Interactive System Architecture Exploration: Case Studies with the

IMiGEr Tool

Premek Brada

, Richard Lipka

, Lukas Holy

and Kamil Jezek

NTIS - New Technologies for the Information Society, Faculty of Applied Sciences, University of West Bohemia,

Univerzitni 8, 306 14 Pilsen, Czech Republic

The University of Sydney, City Road, Camperdown/Darlington, NSW 2006, Sydney, Australia

Keywords:

Large Graph Visualization, Architecture Exploration, Dependency Analysis.

Abstract:

Software systems of all kinds tend to be complex, easily comprising hundreds of components of various types

and many more interconnections. Understanding of their internal structure through appropriate visualiza-

tion is, therefore, a challenging task, especially when hierarchical decomposition is not possible. Among the

key hindrances in existing graph-based visualizations of such systems are visual clutter and the contradictory

requirements of ideally seeing the whole system context while showing enough details to analyze particular el-

ements. Addressing such issues to enable effective comprehension of large multi-modal graphs, we developed

a method of their exploration leaning on user interaction with the diagram and details on demand principle,

implemented in IMiGEr. In this paper, we show the key techniques it employs, explain their combination and

illustrate the beneﬁts on the representative tasks in software architecture understanding.

1 INTRODUCTION

The static structure of software systems, in terms of

their constituent components and connectors, is an

important part of the system architecture. These sys-

tems tend to be complex, easily comprising hundreds

of components of various types and many more inter-

connections. Understanding the (static) architecture

means creating its mental map, in which the compo-

nent relationships, as well as their placement on a can-

vas (the layout), play important roles.

To create such a mental map, the architect needs

to repeatedly quickly ﬁnd the desired information and

detect patterns in component diagrams which are es-

sentially graphs containing dozens to hundreds of el-

ements (nodes). Several issues make this a chal-

lenging task; cf. (Caserta and Zendra, 2010). First,

such a graph displayed on one canvas necessarily

exhibits a heavy visual clutter (Rosenholtz et al.,

2007) which, unless reduced, complicates graph un-

derstanding. Second, it leads to the contradictory

situations of either seeing the context (whole graph)

but no useful detail or showing enough detail to

analyze particular nodes (small sub-graph) without

context. Finally, in many domains including soft-

ware architecture, there are multiple types of both

nodes (e.g. library, executable, conﬁguration ﬁle) and

edges (e.g. dependency, containment), and such mul-

timodal graphs further add complexity to the visu-

alized information. To combat the resulting infor-

mation overload, the architect needs effective tools

(Chaudron et al., 2012) providing architecture anal-

ysis and exploration techniques (Arleo et al., 2018;

van den Elzen and van Wijk, 2014). Focusing on fac-

tors enabling effective comprehension of multi-modal

graphs, we developed a method of their interactive ex-

ploration aiming to be better suited than e.g. UML for

uncovering component clusters and tracing dependen-

cies in complex graphs (Holy et al., 2015). In this pa-

per, we show its key aspects as implemented in the

IMiGEr tool, applied on representative tasks in soft-

ware architecture understanding.

2 BACKGROUND AND RELATED

WORK

Visual clutter can be reduced by many techniques,

such as bundling (Holten and Van Wijk, 2009), sam-

pling (Raﬁei, 2005), clustering (Chen and Liu, 2003)

etc. The whole taxonomy of these techniques has

been described by many surveys, such as (Beck et al.,

2017), (Vehlow et al., 2017), (von Landesberger et al.,

288

Brada, P., Lipka, R., Holy, L. and Jezek, K.

Interactive System Architecture Exploration: Case Studies with the IMiGEr Tool.

DOI: 10.5220/0009164002880293

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 3: IVAPP, pages

288-293

ISBN: 978-989-758-402-2; ISSN: 2184-4321

2011), (Ellis and Dix, 2007). A short description of

those techniques related to our work is provided.

The clutter caused by the lines is often reduced

by edge bundling (Holten, 2006). Although this ap-

proach reduces the clutter, it makes it difﬁcult to trace

the dependencies between connected nodes leading

through the edge bundles. Some of the edge aspects

could be analyzed by showing dependencies as bipar-

tite graphs (Abuthawabeh et al., 2013).

The visual clutter can be also lowered by using

node clustering, where one cluster usually represents

multiple nodes. Thus the number of nodes in the

whole diagram is lowered, though the connections

among components are usually still present. Clusters

can either be marked manually, in an automated way

(Chiricota et al., 2003), (Mancoridis et al., 1998) or

by a combination of those approaches (McGee and

Dingliana, 2012). There is also quite large group of

visualizations showing the node clusters as geograph-

ical blocks (Pinzger et al., 2008), (Wettel et al., 2011).

Another inﬂuencing factor is the chosen layout al-

gorithm, which can ease orientation in both clustered

graphs (Feng, 1997) and non-clustered ones (Hachul

and J

unger, 2007).

Existing tools related to this domain were de-

scribed in our previous paper (Holy et al., 2012).

One of the related tools is SoftVision. It is a soft-

ware visualization framework described in (Telea and

Voinea, 2004) which is able to interactively explore

relations between data structures. It is a desktop ap-

plication that offers a generic interface for describing

a particular parser.

3 THE IMiGEr TOOL OVERVIEW

The approach we apply to address the issues dis-

cussed above uses interactivity and the “details on

demand” principle in combination with information

hiding (Holt, 2001). It is embodied in the implemen-

tation of the IMiGEr tool, which has a Java-based

server backend for managing data and storing user

sessions and a JavaScript front-end application (run-

ning in a web browser and developed using custom UI

implementation) which visualizes the graph and han-

dles user interaction. JSON structures with the simple

custom format are used for input and to transfer data

between the application and the backend. The tool

source code and additional materials are available at

online

as an open-source.

The user interface of IMiGEr features an interac-

tive graph area (canvas, ‘A’ in Figure 1) and a sidebar

https://github.com/ReliSA/IMiGEr

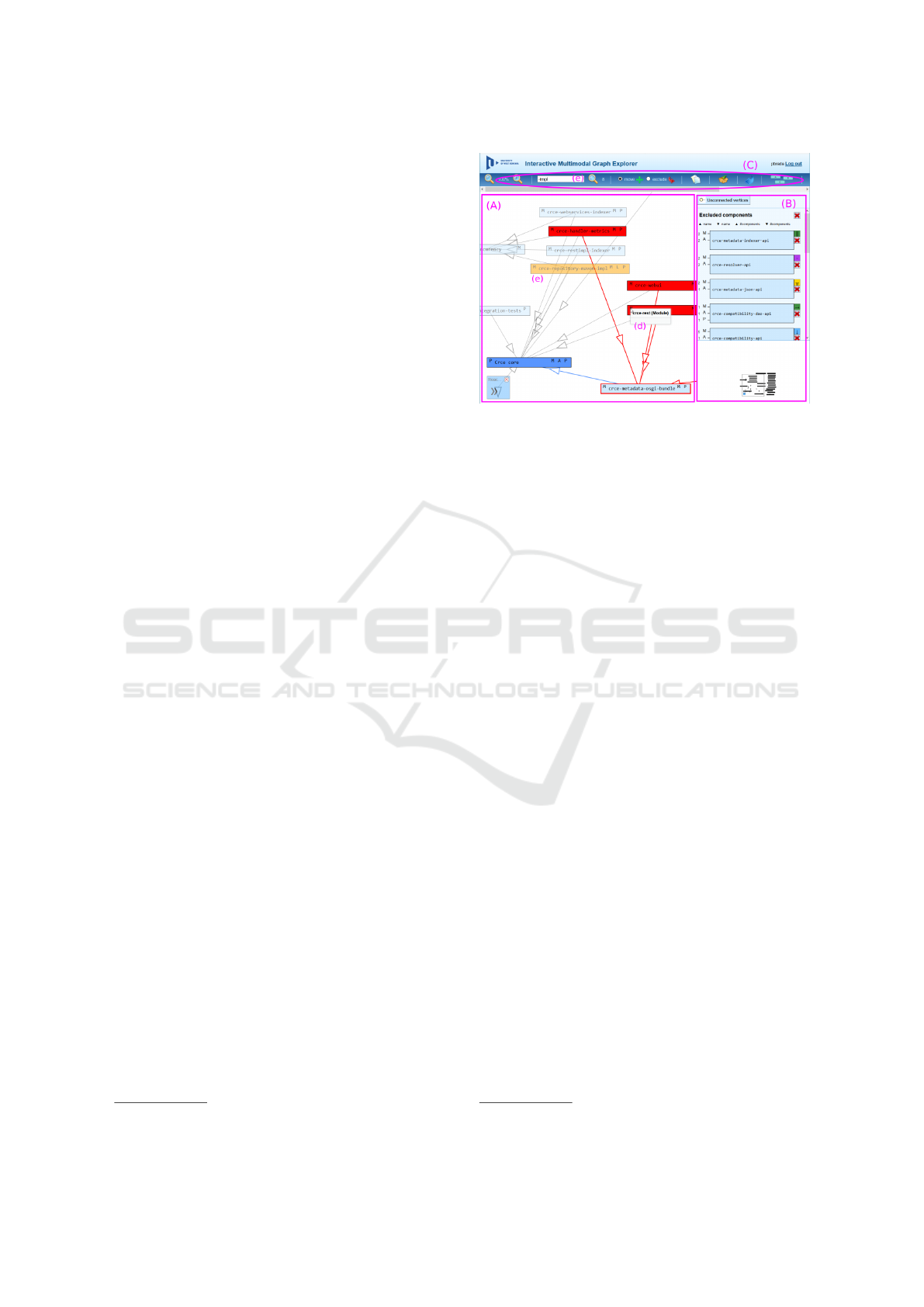

Figure 1: The basic design and features of IMiGEr.

’B’, complemented by a toolbar ’C’. The canvas dis-

plays the node-edge graph, the sidebar contains a list

of nodes picked by the user (excluded from the graph)

plus a birds-eye view. The toolbar is used to invoke

actions like loading new data, storing user’s session

or initiating layout change.

For nodes, only their names and types are shown.

Edges display only their direction. Details like arti-

fact attributes or edge type are provided on demand by

hovering over or clicking on a symbol within the in-

dividual element (cf. the pop-up ‘d’). For nodes with

relations to others, the types of relation is shown as

well (cf. the letters in upper-right of the rectangles).

As a key part of IMiGEr interactivity features, the

selection of an element (node or edge) highlights not

only the element itself but the connected nodes are

highlighted as well. The rest of the nodes are sup-

pressed using transparency. The blue colour is used

for outgoing connections of a node, red colour for in-

coming ones (in the ﬁgure, the bottom-right compo-

nent has been selected). Colour coding is also used to

visually highlight search results, cf. labels ’e’.

3.1 Clutter Reduction

IMiGEr uses several interactive and visual features

to reduce the excessive information shown to the

user. The initially loaded graph usually contains many

nodes and connections. These create a visual clutter

as there is such a high density of the lines that the

user is unable to track the dependencies. An exam-

ple of edge visual clutter is illustrated in Figure 2,

which shows part of component dependencies among

202 components of Nuxeo system

One of the solutions for the visual clutter reduc-

tion is removing “suitable” nodes and connections

https://www.nuxeo.com

Interactive System Architecture Exploration: Case Studies with the IMiGEr Tool

289

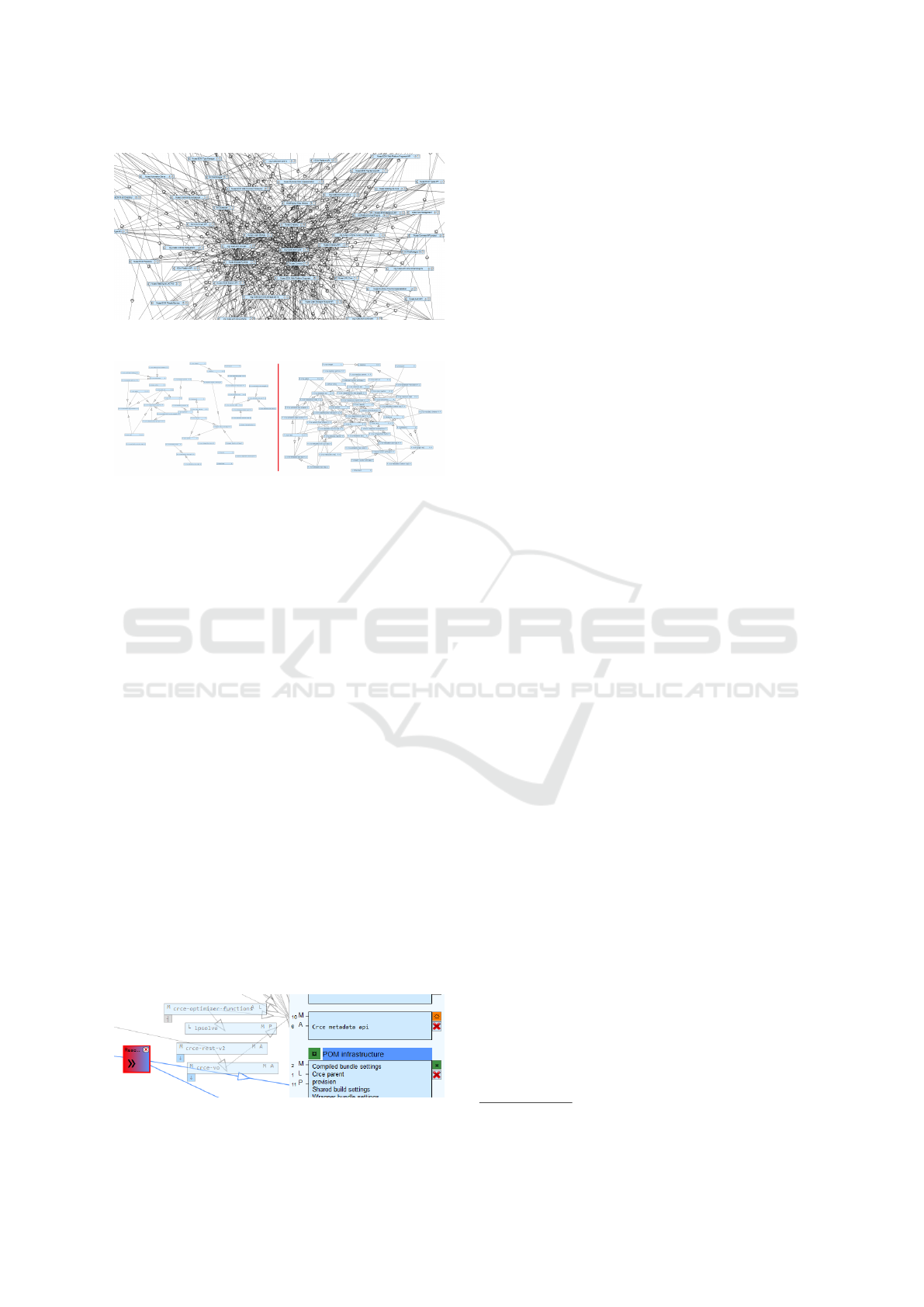

Figure 2: Edge Visual Clutter Demonstration.

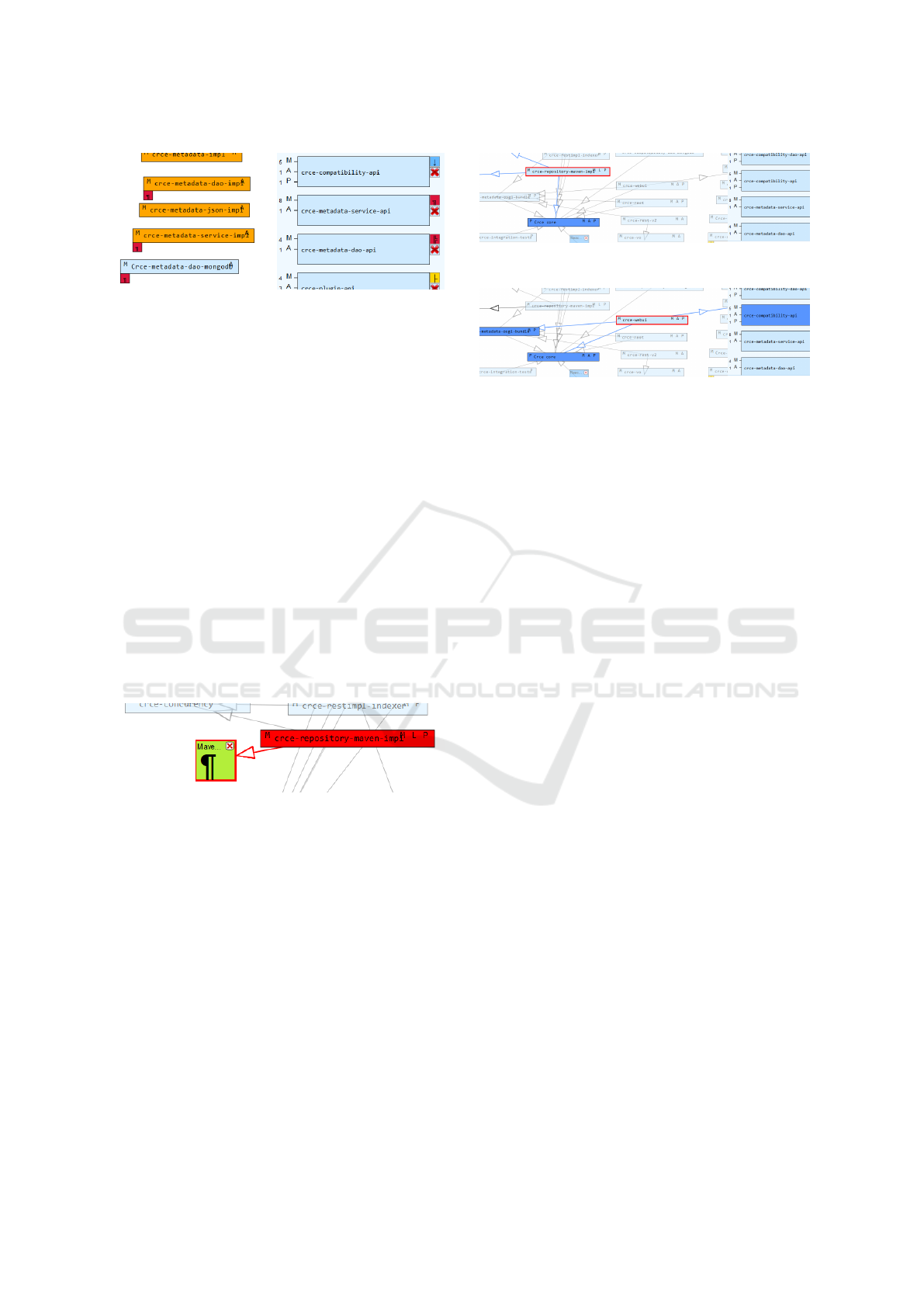

Figure 3: Visual Clutter Reduction Comparison.

from the graphs. This is activated via the “Exclude”

toolbar radio button, which causes a clicked node to

be moved from the canvas to the sidebar. The most

connected graph components are the best candidates

for the removal as their removal will also eliminate

many lines from the graph area. Removal of uncon-

nected components from the graph may also reduce

visual clutter initially.

However, if the removed nodes completely disap-

pear from the user’s perception it may lead to prob-

lems because nodes are needed for mental map cre-

ation. Therefore, IMiGEr features the sidebar which

is showing the nodes excluded (removed) from the

graph, essentially marking them as “familiar ones”.

For such nodes, there are no edges shown in the

graph area by default, but they can be shown on de-

mand to enable tracking their connections. The grey

edges leading to the Crce metadata api component

in Figure 4 sidebar area is an example of the amount

of edge clutter eliminated by excluding this compo-

nent only. In Figure 3, we can see the visual clutter

reduction (diagram on the left side) after removing the

7 most connected nodes from the much denser dia-

gram on the right side to the sidebar.

Another option introduced in the IMiGEr is to use

so called proxy symbols instead of the edges. These

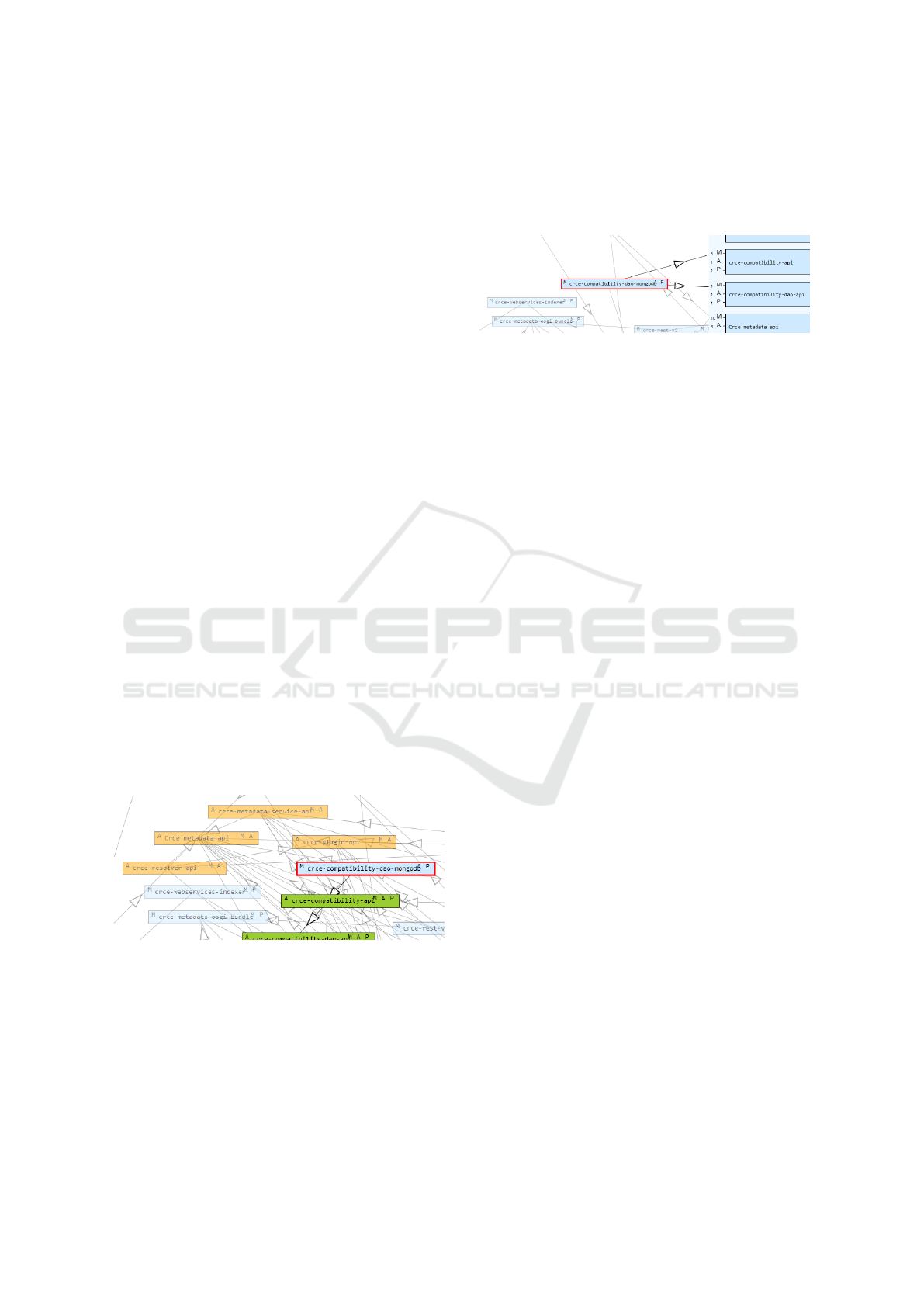

Figure 4: Excluded nodes, Proxy symbols and Groups.

symbols form easily recognizable keys which indicate

connection between a node in the side area and a node

in the graph area – cf. the symbols right of the ex-

cluded components and those attached bottom-left to

the canvas nodes in Figure 4.

To further reduce the visual clutter and simplify

the graph by introducing abstractions, the concept

of groups is used. These are created in the sidebar,

representing multiple nodes by one element (cf. POM

infrastructure in Figure 4). The user adds a node

to a group by right-clicking the node, selecting the

target group by name or proxy symbol. Each group

can also be shown back in the graph area as one node,

cf. the left-most node in Figure 4, with the edges inci-

dent with all group’s nodes leading to/from the group

node.

4 INTERACTIVE

ARCHITECTURE

EXPLORATION WITH IMiGEr

While IMiGEr is designed to work with multimodal

graphs in general, it is well suited for exploring and

understanding speciﬁcally software architecture dia-

grams of larger and/or more complex systems. In this

section, we present its use on several tasks occurring

in this context.

For the case study, we use a diagram of the static

architecture of CRCE, a modular repository tool in-

tended to work with meta-data of software compo-

nents and services

. It comprises 50 components

of three types: “Module” implementing logic in Java

with OSGi framework use, “API” providing Java in-

terface deﬁnitions and “POM” containing only Maven

ﬁles. The diagram of CRCE in IMiGEr – with the

right-hand part of Figure 3 showing its slightly edited

default layout for newly loaded data – is isomorphic

to its UML component diagram which was obtained

by analysing the components and their Maven depen-

dencies in a recent CRCE build. The graph data for

IMiGEr visualization were created by a transforma-

tion of the UML model’s XMI representation.

The exploration examples below loosely follow

a scenario in which a software architect is given an

architecture diagram lacking any “reasonable” lay-

out and grouping, e.g. as when analyzing reverse-

engineered information of a poorly documented sys-

tem. The overall goal is to understand the system

structure and create a diagram which would reﬂect

this understanding, for future documentation.

https://github.com/ReliSA/CRCE

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

290

4.1 Basic Tasks

Exploring architectural diagrams entails some rela-

tively simple tasks which are repeated many times in

the process.

(A1) A common need in a “messy” diagram is

to disentangle the dependencies. For this, itera-

tively seeking a component’s collaborators (clients

and providers) can be combined with relocating them,

e.g. closer together if they belong to a common sub-

system. Therefore, seeing a component’s collabora-

tors and being able to move them around while the

component is still in focus is desirable.

In IMiGEr, clicking on the component selects it,

and the selection persists throughout panning, zoom

and node move operations. Even if some collabora-

tor(s) are far away from current viewport, using these

operations while the selection is active helps locate

(and re-locate, if needed) the collaborators.

(A2) The need to discover components of a certain

kind is behind questions like “Are there any API com-

ponents in CRCE?”. In many cases, names of compo-

nents provide good hints in this regard. Search func-

tionality, a common feature of most tools, can then

help. In IMiGEr additionally, the node types can pro-

vide additional guidance.

We provide search results’ visual presentation in

the diagram itself, in the form of highlight colour

which persists as long as the search string is un-

changed (see Figure 5 with results of search for

“api”). The highlighted components can again be

moved around or subject to other operations. In the

example, the user further interacted with the right-

most component to show its collaborators of the

“API” type.

Figure 5: Working with Search Results in the Diagram.

(A3) The ability to hide unwanted components

from view addresses the need to simplify the diagram

for its better clarity, augmenting the component re-

location and layout change features. Prime examples

are components with high fan-in/fan-out, e.g. libraries

or front controllers, with a large number of relation-

ships. These relationships make it difﬁcult to place

such components in the diagram without introduc-

ing the clutter of relationship lines (intersecting other

components or edges) or, when using edge routing

to avoid the intersections, complicating dependency

tracking.

Figure 6: Excluding Known Components to the Sidebar.

In IMiGEr, the ability to exclude such components

to the sidebar cleans up the diagram (sometimes sub-

stantially) while still keeping them visible to the ar-

chitect. In the CRCE case, the API components are

heavily referenced by other ones, and the result of ex-

cluding them is illustrated by Figure 6 – it shows ex-

actly the same diagram part as the previous ﬁgure, in-

cluding the tracking of API-type collaborators of the

selected component, but with the API components ex-

cluded.

Hiding components while indicating their pres-

ence is also supported by group manipulation as

shown on Figure 4 above. This provides a mecha-

nism for creating abstractions for sets of components

related by whatever suitable criterion.

4.2 Patterns and Queries

Understanding system architecture leads to more in-

volved analytical queries as well as pattern detection

tasks. Here we sample the role of IMiGEr visualiza-

tion in three such scenarios.

(B1) Finding API Providers. The APIs have been

separated, but which components use them? Can

we discriminate the users either as implementation

providers or as clients? The ﬁrst question is easy to

answer: selecting (clicking) an API component in the

sidebar highlights its relationships, and the incoming

dependencies trace to the using components. The sec-

ond question is harder, and only the component names

(e.g. via search) can be used to get some hints; to get

a precise answer requires analysis of the component

implementations.

By tracing dependencies with IMiGEr, the API

users can be found and put together. Then the

proxy symbol for a chosen API component, e.g. the

metadata-service-api, in combination with the

highlight for “impl” search match, hints on the poten-

tial API implementors as opposed to clients – com-

pare the two components at the bottom of Figure 7.

Interactive System Architecture Exploration: Case Studies with the IMiGEr Tool

291

Figure 7: Hinting on implementors of a given API.

(B2) Separating Helper Libraries. System archi-

tecture often contains highly cohesive clusters of

components that are closely related together, with lit-

tle coupling to the rest of the system. While exploring

the CRCE diagram, the architect, for example, dis-

covers – thanks to dependency highlighting (task A1)

– that the repository component for Maven repository

access crce-repository-maven-impl is linked to

an unusually high number of other (non-API) com-

ponents. The question is whether these components

form a cohesive local cluster, an anomalous structure,

or are a part of some kind of a shared layer in the sys-

tem?

Dependency highlighting is used in the ﬁrst place

to visualize and layout the linked components around

the center component. Secondly, the component types

displayed in the component rectangles indicate that

many of the components are in fact plain libraries

rather than domain components, not corresponding to

the “anomalous structure” hypothesis.

Figure 8: Use of groups for ﬁnding local clusters.

To efﬁciently answer the question of a shared

layer, the architect abstracts the libraries into a group,

with the side beneﬁt of increased diagram clarity.

When the group element is placed in the diagram area

and selected as in Figure 8, the single relationship

of the group clearly shows that the grouped libraries

are indeed local to the center component only; thus

they are not part of a shared layer but rather form a

local cluster in the tool implementation. The group

representation therefore efﬁciently reduces diagram

complexity while retaining the key information on the

component-library dependencies.

(B3) Detecting Patterns in the Architecture.

Components and parts of the architecture are some-

times difﬁcult to classify into a particular layer, sub-

Figure 9: Pattern Detection: Plugin components.

Figure 10: Pattern Detection: Core components.

system or other higher-level structure. This is com-

mon in the “big ball of mud” architectures but can

occur even in systems conforming to an architectural

style, hinting at potential architectural erosion.

In the case of CRCE, there are several compo-

nents for which it is unclear whether they are part of

the core of the system or rather represent a “plugin”.

The combination of IMiGEr features, in particular de-

pendency highlighting and sidebar, helps uncover pat-

terns which clarify the component purpose and clas-

siﬁcation in such cases.

In Figures 9 and 10, two components are inves-

tigated in an example case. The top image shows

a pattern recurring for cases when a component is a

plugin – it depends on the “core” and local non-API

components only. The pattern in the bottom image on

the other hand is typical for components which were

eventually classiﬁed as “to be moved into the core” –

these have both the core and API components among

their dependencies.

5 CONCLUSIONS

The IMiGEr tool presented in this paper implements a

combination of several techniques of interactive graph

data visualization, including non-standard ones like

node exclusion to sidebar with the possibility to rep-

resent them in main diagram by proxy symbols. Fo-

cused on effective exploration of large graphs, it is

designed to make the task of creating a mental map of

a system easier for a software architect. It can be con-

trasted to many advanced UML tools, in which even

the relatively straightforward task of tracking compo-

nent dependencies requires a lot of steps and often re-

sults in losing the original context of the exploration.

The future work with IMiGEr includes both tech-

nical and research goals. We would like to enhance

the tool by implementing the concept of “viewports”

IVAPP 2020 - 11th International Conference on Information Visualization Theory and Applications

292

(zooming into a group within the diagram) and im-

proving its performance. We also want to evaluate the

beneﬁts of the approaches implemented in IMiGEr by

controlled studies of exploring software architectures

and other complex graph structures.

ACKNOWLEDGEMENTS

This research was partially supported by Ministry of

Education, Youth and Sports of the Czech Republic

project PUNTIS (LO1506) under the program NPU I.

REFERENCES

Abuthawabeh, A., Beck, F., Zeckzer, D., and Diehl, S.

(2013). Finding structures in multi-type code cou-

plings with node-link and matrix visualizations. In

2013 First IEEE Working Conference on Software Vi-

sualization (VISSOFT), pages 1–10.

Arleo, A., Didimo, W., Liotta, G., and Montecchiani,

F. (2018). GiViP: A visual proﬁler for distributed

graph processing systems. In Lecture Notes in Com-

puter Science, volume 10692 LNCS, pages 256–271.

Springer, Cham.

Beck, F., Burch, M., Diehl, S., and Weiskopf, D. (2017). A

taxonomy and survey of dynamic graph visualization.

Comput. Graph. Forum, 36(1):133–159.

Caserta, P. and Zendra, O. (2010). Visualization of the

Static Aspects of Software: A Survey. IEEE trans-

actions on visualization and computer graphics, 17.

Chaudron, M. R. V., Heijstek, W., and Nugroho, A. (2012).

How effective is UML modeling? Software & Systems

Modeling, 11(4):571–580.

Chen, K. and Liu, L. (2003). A visual framework invites

human into the clustering process. In Scientiﬁc and

Statistical Database Management, 2003. 15th Inter-

national Conference on, pages 97 – 106.

Chiricota, Y., Jourdan, F., and Melanc¸on, G. (2003). Soft-

ware components capture using graph clustering. In

Proceedings of the 11th IEEE International Workshop

on Program Comprehension, IWPC ’03, pages 217–.

IEEE Computer Society.

Ellis, G. and Dix, A. (2007). A taxonomy of clutter

reduction for information visualisation. Visualiza-

tion and Computer Graphics, IEEE Transactions on,

13(6):1216 –1223.

Feng, Q. (1997). Algorithms for drawing clustered graphs.

Hachul, S. and J

unger, M. (2007). Large-graph lay-

out algorithms at work: An experimental study.

http://jgaa.info/ vol. 11, no. 2, pp. 345-369.

Holt, R. (2001). Software Architecture as a Shared Mental

Model. ASERC Workshop on Software Architecture,

University of Alberta.

Holten, D. (2006). Hierarchical edge bundles: Visualiza-

tion of adjacency relations in hierarchical data. IEEE

Transactions on Visualization and Computer Graph-

ics, 12(5):741–748.

Holten, D. and Van Wijk, J. J. (2009). Force-directed edge

bundling for graph visualization. Computer Graphics

Forum, 28(3):983–990.

Holy, L., Maly, I., Cmolik, L., Jezek, K., and Brada, P.

(2015). An interactive UML-like visualization for

large software diagrams. Research Journal of Applied

Sciences, Engineering and Technology, 11:355–371.

Holy, L., Snajberk, J., and Brada, P. (2012). Evaluat-

ing component architecture visualization tools - cri-

teria and case study. In GRAPP & IVAPP 2012:

Proceedings of the International Conference on Com-

puter Graphics Theory and Applications and Interna-

tional Conference on Information Visualization The-

ory and Applications, Rome, Italy, 24-26 February,

2012, pages 737–742.

Mancoridis, S., Mitchell, B. S., and Rorres, C. (1998). Us-

ing automatic clustering to produce high-level system

organizations of source code. In In Proc. 6th Intl.

Workshop on Program Comprehension, pages 45–53.

McGee, F. and Dingliana, J. (2012). Visualising small world

graphs - agglomerative clustering of small world

graphs around nodes of interest. In GRAPP & IVAPP

2012: Proceedings of the International Conference on

Computer Graphics Theory and Applications and In-

ternational Conference on Information Visualization

Theory and Applications, Rome, Italy, 24-26 Febru-

ary, 2012, pages 678–689.

Pinzger, M., Graefenhain, K., Knab, P., and Gall, H. C.

(2008). A tool for visual understanding of source code

dependencies. In 2008 16th IEEE International Con-

ference on Program Comprehension, pages 254–259.

Raﬁei, D. (2005). Effectively visualizing large networks

through sampling. In Visualization, 2005. VIS 05.

IEEE, pages 375 – 382.

Rosenholtz, R., Li, Y., and Nakano, L. (2007). Measuring

visual clutter. Journal of Vision, 7(2).

Telea, A. and Voinea, L. (2004). A framework for inter-

active visualization of component-based software. In

Proceedings of the 30th EUROMICRO Conference,

pages 567–574, Washington, DC, USA. IEEE Com-

puter Society.

van den Elzen, S. and van Wijk, J. J. (2014). Multivariate

Network Exploration and Presentation: From Detail

to Overview via Selections and Aggregations. IEEE

Transactions on Visualization and Computer Graph-

ics, 20(12):2310–2319.

Vehlow, C., Beck, F., and Weiskopf, D. (2017). Visualizing

group structures in graphs: A survey. Comput. Graph.

Forum, 36(6):201–225.

von Landesberger, T., Kuijper, A., Schreck, T., Kohlham-

mer, J., van Wijk, J. J., Fekete, J., and Fellner, D. W.

(2011). Visual analysis of large graphs: State-of-the-

art and future research challenges. Comput. Graph.

Forum, 30(6):1719–1749.

Wettel, R., Lanza, M., and Robbes, R. (2011). Software

systems as cities: a controlled experiment. In Pro-

ceedings of the 33rd International Conference on Soft-

ware Engineering, ICSE 2011, Waikiki, Honolulu , HI,

USA, May 21-28, 2011, pages 551–560.

Interactive System Architecture Exploration: Case Studies with the IMiGEr Tool

293
