Advancements in Red Blood Cell Detection using Convolutional Neural

Networks

Franti

sek Kaj

anek and Ivan Cimr

Cell-in-Fluid Biomedical Modelling and Computations Group, Faculty of Management Science and Informatics,

University of

Zilina, Slovakia

Keywords:

Convolutional Neural Network, Red Blood Cells, Object Detection, Background Subtraction.

Abstract:

Extraction of data from video sequences of experiments is necessary for the acquisition of high volumes of

data. The process requires Red Blood Cell detection to be of sufﬁcient quality, so that the tracking algorithm

has enough information for connecting frames and positions together. When holes occur in the detection, the

tracking algorithm is only capable of ﬁxing a certain amount of errors before it fails. In this work we iterate

on existing frameworks and we attempt to improve upon the existing results of Convolutional Neural Network

solutions.

1 INTRODUCTION

Modeling of blood ﬂow in microﬂudic devices is a

way of approaching tasks, which are hard to solve

using other means, like for example conducting real

world biological experiments. Computational mod-

elling helps to predict outcomes in circumstances that

are difﬁcult to achieve in laboratory (Calder and et al.,

2018). It is an effective tool in optimization and de-

sign (Janacek et al., 2017; Kleineberg et al., 2017). In

order for simulations to provide valid results, ﬁdelity

and quality of the simulation is critical for modeling

elasticity, interaction and motion of red blood cells

(RBC). This is due to, e.g. hematocrit of blood being

very high (45%), which means that realistic modeling

of RBCs is key for further improvement. RBC models

have been used to model processes inside microﬂuidic

devices (Cimr

ak et al., 2014; Jan

cigov

a and Cimr

ak,

2015). The underlying model for cell’s membrane

is built upon the knowledge about real behaviour of

cells in biological experiments. To validate the mod-

els, experiments with single cells may be used to as-

sess the biomechanics of individual cells, such as in

(Dao et al., 2006), where the stretching of individual

cells is performed with optical tweezers. To validate

macroscopic phenomena such as cell-free layer, ex-

periments with many cells can be used. For reference

see (Fedosov et al., 2010) and references therein. In

the latter case, data extracted from video sequences

are crucial for the process of validating a model.

Validation of simulations can be done by compar-

ing them to real world biological experiments. Often,

it is possible to create videos of experiments when

conducting them. These can be analyzed manually,

but such manual processing of video data is time con-

suming. One possible way of improving the pro-

cessing time is using computer vision. Processing of

video data can then be analyzed by automated com-

puter vision algorithms. Videos provide a lot of infor-

mation about cells, for example velocity (which then

also provides information about ﬂuid ﬂow), shape in-

formation, count etc. As a result, the task is to create

a robust system which is capable of both detecting

and tracking cells across different videos, with as lit-

tle manual intervention as possible.

The focus of this article is to improve our exist-

ing detection methods for the task of detecting RBCs.

We take existing frameworks for object detection with

Convolutional Neural Networks (CNN), which we

previously evaluated in (Kaj

anek and Cimr

ak, 2019)

and attempt to improve their performance on our task.

CNNs have so far provided the best detection re-

sults, and as a result, improving their performance

will greatly help with cell tracking.In Section 2 we

brieﬂy highlight the work done in this ﬁeld. Then we

will go over our training and testing methodology in

Section 3 We will also evaluate the impact of amount

of data on our task, which is especially critical due to

the scarcity of usable videos (Section 4). We will go

over the existing conﬁgurations and their results, and

the suggested augmentations of the process that pro-

vide a performance uplift. After that, we will evaluate

206

Kajánek, F. and Cimrák, I.

Advancements in Red Blood Cell Detection using Convolutional Neural Networks.

DOI: 10.5220/0009165002060211

In Proceedings of the 13th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2020) - Volume 3: BIOINFORMATICS, pages 206-211

ISBN: 978-989-758-398-8; ISSN: 2184-4305

the impact of new data and new videos on our perfor-

mance and discuss the transferability of this detection

algorithm. The results are important for choosing the

next step for improving data processing automation.

2 RELATED WORK

Visual object detection is no new task in computer vi-

sion. Our current approach is composed of 3 exist-

ing methods, Hough transform (Illingworth and Kit-

tler, 1987)(Yuen et al., 1988), AdaBoost (Freund and

Schapire, 1999), and CNNs (Kaj

anek and Cimr

ak,

2019), which provide data for our tracking algorithm.

While Hough transform shows promise, due to be-

ing the only unsupervised method and only needs mi-

nor parametrization to function properly, it is also the

least performing method. As a result we most of-

ten resort to machine learning approaches. Machine

learning is quite common in computer vision, but is

generally used on much more complex tasks with dif-

ferent nuances. Lately, CNNs outperform a lot of tra-

ditional methods, especially when it comes to quality

of detection. CNNs are able to do a variety of tasks,

for example image classiﬁcation (Krizhevsky et al.,

2017), object recognition (Donahue et al., 2013), de-

tection, segmentation (Girshick et al., 2013), or for

example region extrapolation (Ren et al., 2015). Ob-

ject detection speciﬁcally utilizes convolutions, which

represent important features in images very well. Es-

pecially in recent years, signiﬁcant advances have

been made in the development of neural networks and

the propagation of information. As a result, improv-

ing existing CNN framework results is of value, since

we can expect further improvement of base perfor-

mance of these techniques in the near future. More

existing approaches are mentioned in (Kaj

anek and

Cimr

ak, 2019)

Most known CNN tasks are vastly different from

our task. General tasks on which CNNs tend to

be evaluated, may include hundreds of classes in a

varying environment and varying sizes, for example

COCO, PETS or ImageNet datasets. Our task of de-

tecting RBCs is relatively simple, it has only one class

(and background), and it has a relatively small size

variance of less than 20%. On the other hand, cell

detection has different issues. Some very common

problems are for example RBC rotation, RBC over-

lap, lighting differences and blurred motion of cells.

There is also the problem of image being 2D and cells

moving in ﬂuid in 3D. This has an impact on their

sizes and how they stand out from the background.

The lower the cells, the more blurry their contour is.

All of these factors can make detection problematic.

There are some extreme scenarios, which make detec-

tion impossible. First such scenario is in the case of

a mismatch between the frames-per-second(FPS) of

the video and the speed of the cells, causing them to

be too blurry in the high-ﬂow sections of the liquid.

Another such scenario is when the individual cells

are smaller than 5px in diameter. Last scenario we

observed was caused by too many cells in the video

sample, causing individual cells blurring cells around

them causing a performance downgrade even during

manual processing (Figure 1).

Figure 1: Example of blurred cells due to low FPS (Mazza.,

2017).

AdaBoost in comparison to our trained CNN

heavily underpeforms and as a result is only used as

a redundancy. This is likely underlined by not having

hand-crafted features speciﬁcally for cells, as the ex-

isting Haar Wavelet features (Viola and Jones, 2001)

do not describe our usecase very well.

3 EXPERIMENTS

For our testing methodology we need to elaborate

on our existing ﬁndings. In (Kaj

anek and Cimr

ak,

2019) we tested 3 known frameworks, Faster RCNN

(Ren et al., 2015), R-FCN (Dai et al., 2016) and

SSD(Liu et al., 2015). Faster RCNN and R-FCN pro-

vided similar results, whereas SSD underperformed

even our AdaBoost solution. These frameworks were

tested on a dataset comprised of 200 frames of a sin-

gle video, which amounted to about 8000 positives

RBC samples and about 80000 negative background

samples. We obtained best results using the Faster

RCNN framework which provided 98.3% precision

Advancements in Red Blood Cell Detection using Convolutional Neural Networks

207

Table 1: CNN testing results.

200 frames 250 frames 250 and 50 frames

Precision/Recall First video Second Video First Video Second Video First Video Second Video

SSD 90.9%/66.3% 16.7%/11.0% 94.5%/68.0% 0.0%/0.0% 95.1%/68.7% 99.2%/93.3%

SSD - Adjusted - - - - 98.7%/88.0% 99.2%/95.1%

Faster R-CNN 99.6%/89.7% 0.0%/0.0% 99.3%/97.2% 1.4%/0.1% 99.5%/94.7% 98.7%/98.7%

R-FCN 99.2%/82.1% 2.7%/0.4% 99.6%/88.6% 10.0%/0.4% 82.5%/86.5% 95.5%/97.4%

First two columns ((Kaj

anek and Cimr

ak, 2019)) represent trained models on 200 frames of ﬁrst video. Second two columns

represent trained models on 250 frames of our ﬁrst video. Last 2 columns represent trained models on both videos with 250

and 50 frames respectively. The values in each column represent the Precision/Recall values of a given model. The models

were trained with 100 000 iterations each.

and 88.8% recall. Precision can be calculated as: true

positives/(true positives + false positives) and recall:

true positives/(true positives + false negatives). Com-

pared to common CNN performance, this is a partic-

ularly low recall.

For our previous evaluation, we used Intersection

over Union(IoU) of 0.5 and distance between dataset

sample and detected sample could be at most 0.3 *

width of dataset sample. After manual examination,

we noticed that some of our false positives with these

settings are within a margin of error and need to be

included in some form in the result metric. The issue

manifested as a cluster of cells being joined together

into one in our detection results, causing the analysis

algorithm to fail to pick up on them. This has lead

us to adjust our ”true positive” result bracket into 3

different values - IoU >0.5, 0.3 and 0.1 to provide

further information. We also adjusted our second pa-

rameter - center distance to also fall into 2 brackets

- 0.5 of the width of a dataset sample and 0.3. As a

result, more cells are evaluated as valid even if they

are not perfectly centered, and we also have more in-

formation about centering from our metric.

In addition to adjusting our evaluation, we also

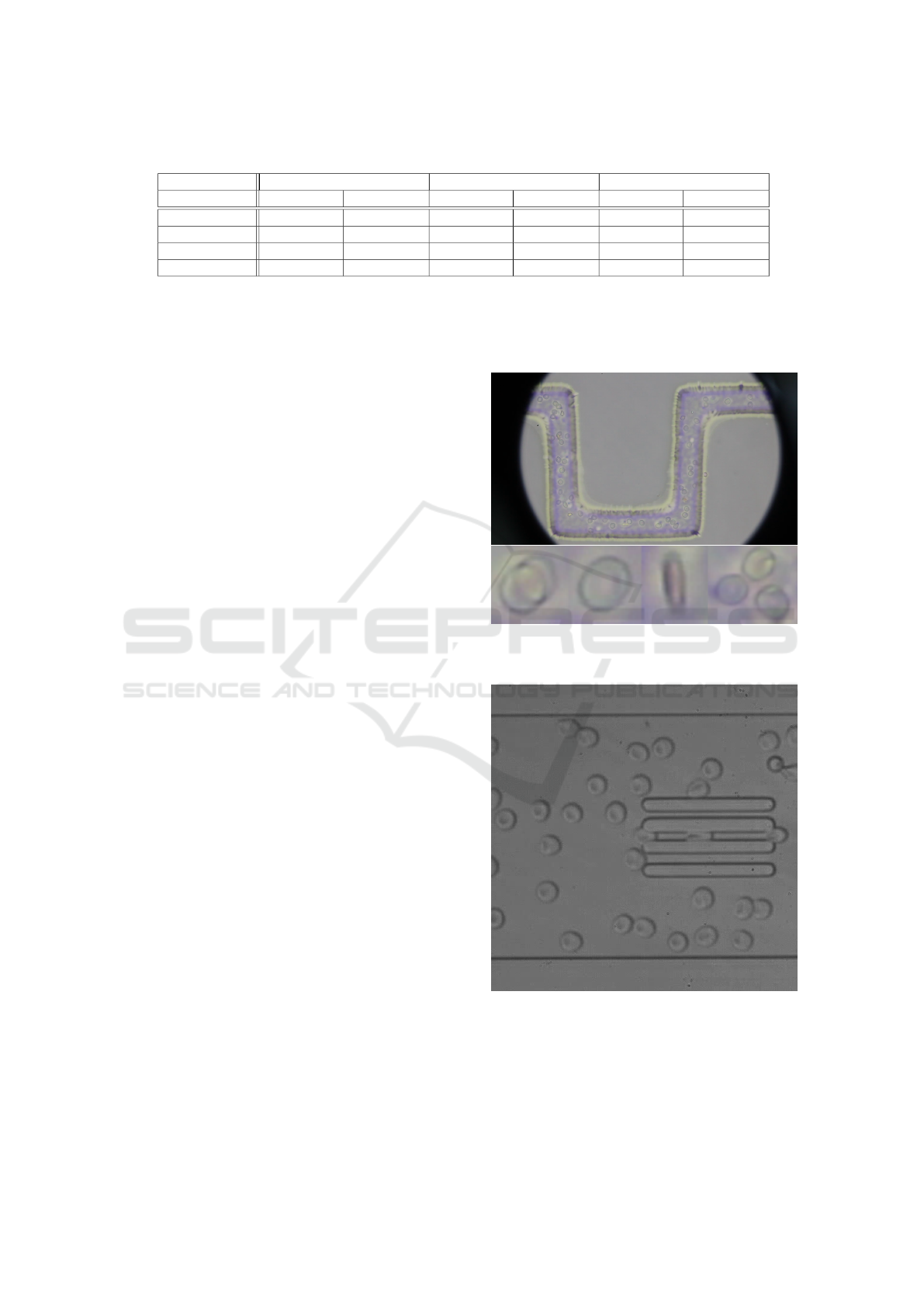

added more annotations to our dataset. We now have

250 frames of our ﬁrst video (Figure 2) and 50 frames

of our second video (Figure 3).

We would like to test the impact of additional data

of our ﬁrst video, as well as the impact of our second

video on the end results. This is aimed towards ana-

lyzing how much data will be required when we are

presented with additional videos for data processing.

Due to adding more data we will also re-evaluate all

of our old experiments. Before we used 150 frames

for training, 50 frames for testing during the training

process and 50 frames for ﬁnal evaluation. Now our

dataset is segmented into 200 training, 50 testing and

50 evaluation frames in the ﬁrst video and 30 train-

ing, 20 testing and 50 evaluation frames in the second

video. We also want to take a look at the impact of

additional training time.

Next, we would like to reevaluate and ﬁx our de-

Figure 2: First video in dataset and examples of cells in

video. Source: (Mazza., 2017).

Figure 3: Second video in dataset. Source: (et al., 2016).

tection problems encountered with the SSD detection

framework. This framework was designed for supe-

rior speed at the cost of using much smaller images

for detection. It uses an anchor system, which re-

stricts how many detections can be found in a single

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

208

anchor. We want to adjust its anchor system so that it

provides representative results on our task.

Lastly, we wanted to evaluate the impact of back-

ground subtraction on the CNN performance. Our

Hough Transform solution beneﬁted greatly from the

usage. We needed to craft a new background subtrac-

tion method as well, due to one of our videos hav-

ing a shift in camera direction. After reviewing ex-

isting thresholding methods used in common object

detection tasks, we found, that these methods do not

work well in our poor lighting conditions. As a result

we devised a simple temporal method with history of

10 frames. This method has some temporal artifacts,

but should work well on the task at hand. We will

also compare this new temporal method with the old

method, which created one background out of all the

images.

The testing workbench was comprised of Thread-

ripper 2950X and GTX 1080 Ti graphics card. The

training time for most of our models was around 12

hours, with some of our training taking up to 24h

each.

4 RESULTS

First we will look at the impact of additional trad-

ing data. The evaluation can be seen in Table 1. We

can see that across all neural networks we have a per-

formance uplift when comparing 200 frames vs 250

frames. While SSD still suffers from the same issues

with having a lower recall than R-FCN and Faster R-

CNN, we can still see an overall improvement. This

conﬁrms our theory that our results were sub-par due

to lack of training data. The resulting precision and

recall are now sufﬁcient for our tracking step.

Next, we wanted to evaluate the impact of our sec-

ond video. As we can see, the trained models which

were not trained on the second video provide very

poor results on this video, see column two and four

in Table 1. This means, that we need to introduce di-

versity to our dataset. By adding our second video

to the dataset and training with this data as well, we

achieved two goals. One, our results on the ﬁrst video

stayed roughly the same in the case of Faster R-CNN

and SSD. For R-FCN however we can see a perfor-

mance regression. Going forward we need to closely

monitor R-FCN performance after adding more data.

We also tested a 200 frames and 50 frames conﬁg-

uration, which has also shown the same result, SSD

and Faster R-CNN staying roughly the same, and R-

FCN regressing even further. Second, we managed to

successfully detect cells in our second video, which

differed in many ways, and achieve even better re-

sults. The cells in the second video (Figure 3) are

more clearly visible and are bigger. As a side effect

of this, we can see that the SSD neural network pro-

vides respectable results on our second video. This

seems to imply that the anchor system is limiting its

performance on the ﬁrst video due to the small cell

size vs. image size difference.

Table 2: Overtraining.

First Video

SSD 75.9%/59.4%

Faster R-CNN 92.9%/96.8%

R-FCN 95.4%/88.5%

250 frames trained with 200000 iterations

from ﬁrst video - values represent Preci-

sion/Recall.

Next, we further trained our models with 200000

iterations, up from 100000. All 3 frameworks suf-

fer from overtraining and precision degradation. This

means, that our training is as good as it gets and will

only beneﬁt from additional data and minor tweaking

using error rate during the testing step.

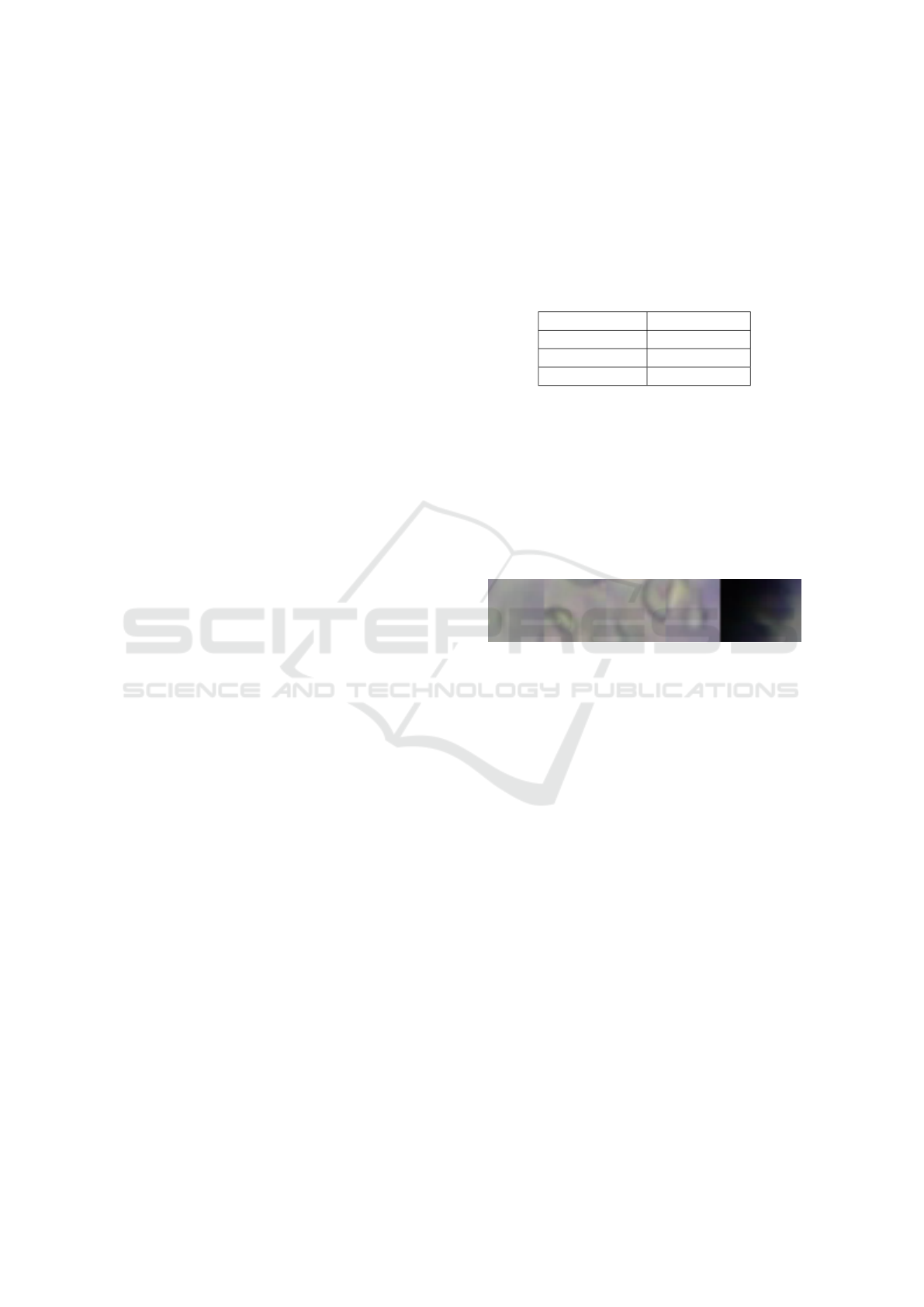

Figure 4: Example of false positives.

Before we go over our adjustments to the SSD

framework, we need to explain the impact of chang-

ing our metrics. First of all, our recall rose due to

us including 0.5 width distance difference bounding

boxes in the ”true positive” category. While these

suffer from worse localization, they are still valid de-

tections for our next step. This improved detection

across the board, but it improved recall of SSD on

our ﬁrst video by 16%. This seems to imply, that be-

cause SSD works on much smaller images, this causes

some issues with pinpointing location. On the second

video, which has much smaller resolution, the differ-

ence was less than 0.5%. After tweaking the model

of SSD further, we achieved comparable results on

our ﬁrst video. We achieved this through adjusting

anchor scaling of SSD model, as well as increasing

the working resolution of the model from 300px to

600px. This also ﬁxed the localization issue of SSD

in the ﬁrst video. It is to be noted however, that this

had an adverse effect on the speed of training of this

adjusted SSD model, causing it to train twice as slow.

Luckily this is not a concern for us.

Lastly, we looked at our background subtraction

evaluation. The goal here was to lessen the trans-

ferability of our models between videos with as lit-

Advancements in Red Blood Cell Detection using Convolutional Neural Networks

209

Table 3: Background Subtraction.

First Video Second Video

SSD 93.8%/66.7% 72.6%/98.4%

Faster R-CNN 99.3%/88.4% 5.5%/0.8%

250 frames trained from ﬁrst video with background subtracted

from both - values represent Precision/Recall.

tle human intervention as possible. Here we illus-

trate Faster R-CNN and SSD (R-FCN behaved sim-

ilarly to Faster R-CNN) in Table 3. We can see that

in the case of SSD, background subtraction improved

transferability considerably at the cost of precision.

With additional data manipulation we can likely cre-

ate a model, which will be more robust towards light-

ing and color. Faster R-CNN on the other hand pro-

vided no noticable performance uplift and as a result

still needs training from the other video. When com-

paring our two background subtraction methods, tem-

poral and static image, both provided similar results.

Our ﬁrst video has an accidental camera shift, and the

temporal method mitigated this issue after the frames

in mind going out of history.

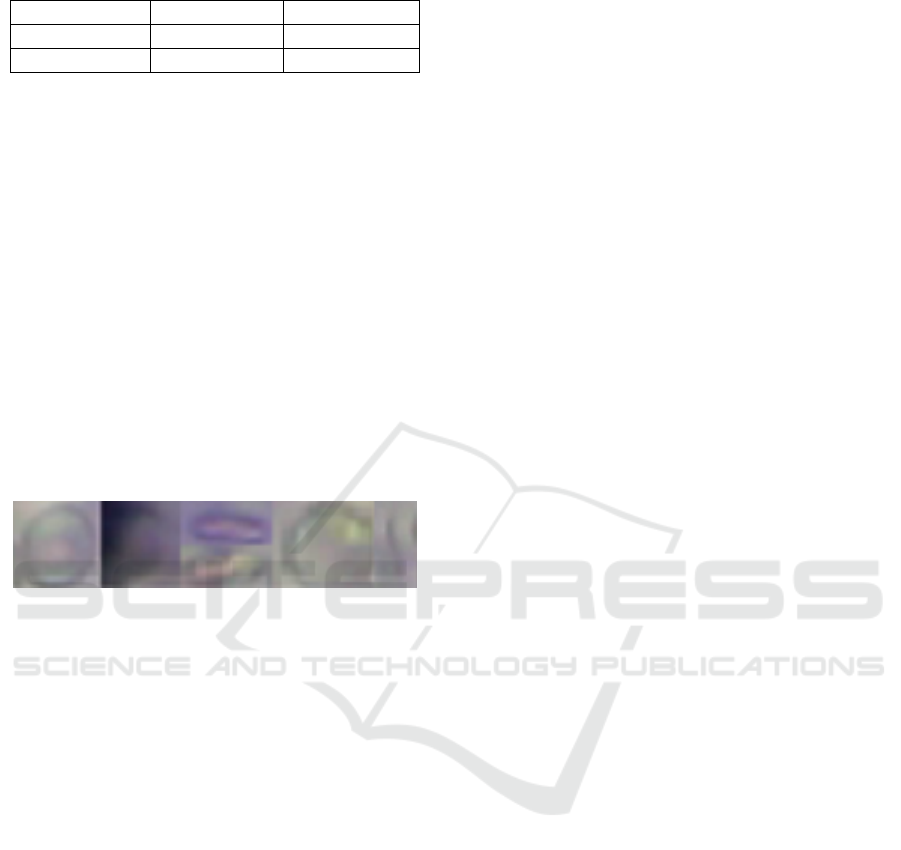

Figure 5: Example of false negatives.

When analysing all of our results, speciﬁcally

false negatives (Figure 5), we came to a conclusion

that the CNN performance is starting to outperform

humans in certain cases. We took a closer look at

cells which caused a Precision downgrade and when

looking at multiple frames in a sequence, we noticed

that manual annotations for our dataset were missing

certain cells. After visualisation, this enabled us to

improve our dataset, further improving the results of

our trained CNNs.

As last veriﬁcation, we performed 5-fold cross

validation on our test case of 250 images from ﬁrst

video and 50 images from second video. The vari-

ance of Faster R-CNN precision was 99 % ± 1 % and

Recall 94 % ± 4 % with SSD and R-FCN giving very

similar results, with variance being within 1% of val-

ues from Faster R-CNN.

5 CONCLUSION

The presented results highlight the importance of pre-

processing and data acquiry for the performance of

CNNs. Their performance out of the box is already

very good, but with certain additions and alterations

they perform well enough to even challenge manual

human processing.

The detection step after careful evaluation is ro-

bust enough for us to use for data gathering. The next

step for evaluating this work is to use the output as

the input of a tracking algorithm to determine whether

the minor localisation issues are a problem for piecing

together tracks of cells. After evaluating the whole

pipeline, we will not only have concrete data for val-

idating simulation experiments, but we will also be

potentially able to improve detection further through

additional metrics.

ACKNOWLEDGEMENTS

This work was supported by the Slovak Research

and Development Agency (contract number APVV-

15-0751) and by the Ministry of Education, Science,

Research and Sport of the Slovak Republic (contract

number VEGA 1/0643/17).

REFERENCES

Calder, M. and et al. (2018). Computational modelling for

decision-making: where, why, what, who and how. R

Soc Open Sci, 5(6).

Cimr

ak, I., Gusenbauer, M., and Jan

cigov

a, I. (2014).

An ESPResSo implementation of elastic objects im-

mersed in a ﬂuid. Computer Physics Communications,

185(3):900 – 907.

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-FCN: object de-

tection via region-based fully convolutional networks.

CoRR, abs/1605.06409.

Dao, M., Li, J., and Suresh, S. (2006). Molecularly based

analysis of deformation of spectrin network and hu-

man erythrocyte. Materials Science and Engineering

C, 26:1232–1244.

Donahue, J., Jia, Y., Vinyals, O., Hoffman, J., Zhang, N.,

Tzeng, E., and Darrell, T. (2013). Decaf: A deep con-

volutional activation feature for generic visual recog-

nition. CoRR, abs/1310.1531.

et al., C. T. (2016). An on-chip rbc deformability checker

signiﬁcantly improves velocity-deformation correla-

tion. Micromachines,7,176.

Fedosov, D., Caswell, B., Popel, A., and Karniadakis, G.

(2010). Blood ﬂow and cell-free layer in microvessels.

Microcirculation, 17:615–628.

Freund, Y. and Schapire, R. E. (1999). A short introduction

to boosting. In In Proceedings of the Sixteenth In-

ternational Joint Conference on Artiﬁcial Intelligence,

pages 1401–1406. Morgan Kaufmann.

Girshick, R. B., Donahue, J., Darrell, T., and Malik, J.

(2013). Rich feature hierarchies for accurate ob-

ject detection and semantic segmentation. CoRR,

abs/1311.2524.

BIOINFORMATICS 2020 - 11th International Conference on Bioinformatics Models, Methods and Algorithms

210

Illingworth, J. and Kittler, J. (1987). The adaptive hough

transform. IEEE Transactions on Pattern Analysis and

Machine Intelligence, PAMI-9(5):690–698.

Janacek, J., Kohani, M., Koniorczyk, M., and Marton, P.

(2017). Optimization of periodic crew schedules with

application of column generation method. Trans-

portation Research Part C: Emerging Technologies,

83:165 – 178.

Jan

cigov

a, I. and Cimr

ak, I. (2015). A novel approach with

non-uniform force allocation for area preservation in

spring network models1). AIP Conference Proceed-

ings, 1648(1):–.

Kaj

anek, F. and Cimr

ak, I. (2019). Evaluation of detec-

tion of red blood cells using convolutional neural net-

works. In 2019 International Conference on Informa-

tion and Digital Technologies (IDT), pages 198–202.

Kleineberg, K.-K., Buzna, L., Papadopoulos, F., Bogu

M., and Serrano, M. A. (2017). Geometric correla-

tions mitigate the extreme vulnerability of multiplex

networks against targeted attacks. Phys. Rev. Lett.,

118:218301.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2017). Im-

agenet classiﬁcation with deep convolutional neural

networks. Commun. ACM, 60(6):84–90.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S. E.,

Fu, C., and Berg, A. C. (2015). SSD: single shot multi-

box detector. CoRR, abs/1512.02325.

Mazza., G. (2017). in-house experiments for biological re-

search.

Ren, S., He, K., Girshick, R. B., and Sun, J. (2015). Faster

R-CNN: towards real-time object detection with re-

gion proposal networks. CoRR, abs/1506.01497.

Viola, P. and Jones, M. (2001). Robust real-time object de-

tection. International Journal of Computer Vision.

Yuen, H. K., Illingworth, J., and Kittler, J. (1988). Ellipse

detection using the hough transform. In Proc. AVC,

pages 41.1–41.8. doi:10.5244/C.2.41.

Advancements in Red Blood Cell Detection using Convolutional Neural Networks

211
