Defect Detection using Deep Learning from Minimal Annotations

Manpreet Singh Minhas

and John Zelek

Department of Systems Design Engineering, University of Waterloo, Waterloo, Ontario, Canada

Keywords:

Defect Detection, CNNs, Transfer Learning, Deep Learning.

Abstract:

Visual defect assessment is an important task for infrastructure asset monitoring to detect faults (e.g., road

distresses, bridge cracks, etc) for recognizing and tracking the distress. This is essential to make a decision

on the best course of action, whether that be a minor or major repair or the status quo. Typically a lot of this

surveillance and annotation is done by human operators. Until now, visual defect assessment has been carried

out manually because of the challenging nature of the task. However, the manual inspection method has several

drawbacks, such as training time and cost, human bias and subjectivity, among others. As a result, automation in

visual defect detection has attracted a lot of attention. Deep learning approaches are encouraging the automation

of this detection activity. The actual perceptual surveillance can be conducted with camera-equipped land

vehicles or drones. The automatic defect detection task can be formulated as the problem of anomaly detection

in which samples that deviate from the normal or defect-free ones need to be identiﬁed. Recently, Convolutional

Neural Networks (CNNs) have shown tremendous potential in image-related tasks and have outperformed the

traditional hand-crafted feature-based methods. But, CNNs require a large number of labelled data, which

is virtually unavailable for all the practical applications and is a major drawback. This paper proposes the

application of network-based transfer learning using CNNs for the task of visual defect detection that overcomes

the challenge of training from a limited number of samples. Results obtained show that the proposed method

achieves high performance from limited data samples with average F1 score and AUROC values of 0.8914 and

0.9766 respectively. The number of training defect samples were as low as 20 images for the Fray category of

the Magnetic Tile defect data-set.

1 INTRODUCTION

Inspection of surfaces, products, infrastructure such

as roadways, buildings, railways, etc. all involve the

detection of defects and is primarily done for qual-

ity control or assessment and maintenance planning

purposes. In manufacturing, the purpose is to verify

that the product is defect free before installation in the

next level of assembly or for the ﬁnal distribution of

the product to the customers. While in infrastructure

asset management, defects need to be monitored for

planning maintenance and repairs. Even today, manual

human inspection remains the norm across different

industries. It relies on the basic premise that the sur-

face defects are salient and visually different from the

defect-free surface. This not only makes the process

highly subjective, and susceptible to the human biases

but also prone to errors. The errors in the inspection

process usually have acute consequences such as in-

jury, fatality, loss of expensive equipment, scrapped

https://orcid.org/0000-0003-3425-6533

items, rework, or failure to procure repeat business.

Inspection errors can be attributed to the task, environ-

mental, individual, organizational, and social factors

(See et al., 2017). Speciﬁcally, individual factors such

as age, visual acuity, scanning strategy, experience

and training impact the errors caused during the man-

ual inspection process. Because of these challenges,

automation of defect detection has been a topic of re-

search across different application areas such as steel

surfaces (Sun et al., 2018), pavements (Ai et al., 2018),

rail tracks (Yu et al., 2019) and fabric (Kumar, 2008).

Even though automatic defect detection has a lot of

potential beneﬁts, it also has its associated challenges.

One of the major ones is that the appearance of defects

varies even within the same inspection task in terms

of shape, size, color, geometry, etc. Also, environ-

mental factors such as changing lighting conditions

and extreme weather add to the detection complexity.

The traditional automation methods have relied on the

computation of a set of hand-crafted textural features

which are then used to train some type of classiﬁer

e.g. SVM. Few examples of these engineered features

506

Minhas, M. and Zelek, J.

Defect Detection using Deep Learning from Minimal Annotations.

DOI: 10.5220/0009168005060513

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

506-513

ISBN: 978-989-758-402-2; ISSN: 2184-4321

include Gabor ﬁlters (Kumar and Pang, 2002), Fourier

transform (Chi-Ho Chan and Pang, 2000), Wavelet

transform (Serdaroglu et al., 2006) and second-order

statistics derived from spatial gray-level co-occurrence

matrices (Tsai and Huang, 2003). These features suf-

fer from the following drawbacks. They are extremely

difﬁcult to develop and require domain expertise. Also,

they do not generalize i.e. features developed for one

defect cannot be used for other defect detection tasks

without a drastic degradation in the detection perfor-

mance.

In recent years, deep learning approaches and par-

ticularly Convolutional Neural Networks (CNNs) have

outperformed all the traditional hand-crafted feature

based methods in almost all the computer vision tasks.

As a result, there has been a growing interest in au-

tomation of defect detection using deep learning. For

example CNNs were used for rail surface defect clas-

siﬁcation (Faghih-Roohi et al., 2016) and steel de-

fect classiﬁcation (Masci et al., 2012). Although deep

learning methods achieve great performance, they have

the following challenges. Deep learning techniques

require large amounts of labelled training data. But in

real world applications getting labelled training data

is extremely difﬁcult and expensive. Since the occur-

rences of defected examples are very sparse, getting

large amounts of defected instances for training is vir-

tually impossible. As a result training deep neural

networks from scratch for defect detection is difﬁcult

if not impossible.

Transfer Learning is a technique that is used in

practice to tackle this challenge. The goal of trans-

fer learning is to improve learning in a target task

by leveraging knowledge from a source task (Torrey

and Shavlik, 2009). Deep transfer learning can be

broadly classiﬁed into four categories: instance-based

deep transfer learning, mapping-based deep transfer

learning, network-based deep transfer learning, and

adversarial based deep transfer learning. Out of these

types, network-based deep transfer learning is most

widely used in practical applications. It refers to the

reuse of a partial network pre-trained for a source do-

main, including its network structure and connection

parameters and transferring it to be a part of deep

neural network which used for a target domain (Tan

et al., 2018). The source network is thought of as

consisting of two sub-networks: (1) Feature extrac-

tor sub-network and (2) Classiﬁcation sub-network.

The target network is constructed using the source

network with some modiﬁcations and trained on the

target dataset for the intended task. The network based

transfer learning approach is shown in Figure 1.

A growing body of literature has examined the use

of transfer learning for different classiﬁcation tasks.

Kensert et al. applied transfer learning for classifying

cellular morphological changes and explored differ-

ent CNN architectures (Kensert et al., 2019). The

ResNet50 architecture achieving the highest accuracy

of 97.1%. They observed that the models were able to

distinguish the different cell phenotypes despite a lim-

ited quantity of labelled data. In another study, Feng et

al. (Feng et al., 2019) used transfer learning for struc-

tural damage detection. The Inception-v3 architecture

obtained an average accuracy of 96.8% using transfer

learning and outperformed the SVM method which

had an accuracy of 61.2%. Although transfer learning

for classiﬁcation has been explored for speciﬁc appli-

cations, an extensive exploration of anomaly detection

using transfer learning comparing the performance of

the state-of-the-art CNN architectures on different de-

fect detection tasks is missing in the literature. In this

research, we uniquely use the output value from the

neuron responsible for the anomalous samples as the

anomaly score value. And the approach was tested on

three different CNN architectures and four challenging

data-sets. Unlike the current work on defect detection

using transfer learning, we use the AUROC metric

for evaluating the model performance, because it is a

robust and more accurate measure of the separation

capability than just the classiﬁcation accuracy.

2 RELATED WORK

Automated defect detection is a difﬁcult task and has

a lot of challenges such as complex textures, varying

lighting conditions, different defect shapes, sizes, etc.

Even noise can be different from the normal texture but

should not be classiﬁed as a defect. In all real-world

applications, an extremely limited number of anoma-

lous (defective) samples are available. This makes

training any learning based approach difﬁcult. Tradi-

tional methods of defect detection have relied on the

extraction of engineered features specially developed

for particular tasks, which are then fed into a classiﬁer

such as an SVM to make the ﬁnal detection. However,

these hand-crafted features not only do not generalize

but also are difﬁcult and costly to develop since these

require speciﬁc domain knowledge and expertise.

With the recent advances in deep learning, Con-

volutional Neural Networks have outperformed the

traditional methods in almost all the computer vision

related tasks. There have been several studies that

compare deep learning with traditional methods such

as (Hssayeni et al., 2017), (Marnissi et al., 2019), and

(Pogorelov et al., 2018). One ﬁnding that is concurrent

with almost all the studies is that the learned features

are better than the non-learned features. Network-

Defect Detection using Deep Learning from Minimal Annotations

507

Domain

Source

Feature extractor

Subnetwork

Source

Classification

Subnetwork

Task A

Domain

Target

Feature extractor

Subnetwork

Target

Classification

Subnetwork

Task B

Backpropagation

Transfer

Learning

Frozen

Network A

Network B

Figure 1: Illustration of a network-based deep transfer learning from a source domain A and task A to target domain B and task

B. The Network A is trained on a large training dataset and is called the pre-trained network. Network B is constructed by

using parts of Network A followed by a new softmax classiﬁcation network. Finally, the resulting network B is initialized with

the pre-trained weights and trained using backpropagation on the target dataset.

based transfer learning is a practical technique that

allows the tweaking of the pre-trained (learned) mod-

els for some speciﬁc target tasks. And this process can

be done from a limited amount of data.

In one study (Perez et al., 2019), the authors ex-

plored the use of convolutional neural networks for

detecting building defects that is required for effective

management of asset portfolios and improving busi-

ness performance. They used network-based transfer

learning on a VGG-16 network pre-trained on the Ima-

geNet dataset. Also, they approached the problem as a

multi-class classiﬁcation problem rather than anomaly

detection. The ﬁnal layer was replaced to have 4 output

neurons and only the last layer weights were updated

during the training. Image augmentation in the form

of rescaling, rotation, etc. was applied. Their approach

achieved a testing accuracy of 87.50%.

Mittel and Kerber (Mittel and Kerber, 2019) ap-

plied vision-based crack detection using transfer learn-

ing in the metal forming process. They also ap-

proached the crack detection as a classiﬁcation prob-

lem. In their experiments, GoogLeNet outperformed

AlexNet by achieving an F1-score of 0.835. Transfer

learning along with model ensembling was explored

in (Zhang et al., 2019) for weld defect detection and

image augmentation was done using Wasserstein Gen-

erative Adversarial Network. The approach led to

good results with average accuracy of 98% on the de-

fect classes. CNNs were used as ﬁxed feature extractor

followed by training different classiﬁers for pavement

distress detection in (Gopalakrishnan et al., 2017). In

their experiments, a single layer neural network clas-

siﬁer trained on features extracted from VGG16 pre-

trained on ImageNet achieved the best performance.

All the existing approaches tackle the defect detec-

tion problem as a single or multi-class classiﬁcation

problem. The class category is selected by choosing

the one with the highest score. We hypothesize that for-

mulating defect detection as anomaly detection would

lead to better separation capability of the classiﬁer. As-

signing an anomaly score to every image that is the

output value from the neuron responsible for detecting

the anomalous class can give better control over the

classiﬁcation. While the F1 score is a great metric for

evaluating classiﬁcation performance, these values can

change depending on the choice of threshold. There-

fore, in this research, we use the AUROC metric (sub-

section 4.4) for evaluating the detector performance

which takes into account all the thresholds. The rest of

the paper is organized as methodology, experiments,

results, and conclusion.

3 METHODOLOGY

The methodology followed in this paper for defect

detection is described by the following steps.

1. Source Model Selection:

A source CNN model

trained on a source data-set for the classiﬁcation

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

508

task is selected for the network-based transfer

learning. For example, DenseNet161 trained on

the ImageNet data-set.

2. Source Model Modiﬁcation:

The source model

is then modiﬁed by the replacement of the last fully

connected layer with a new layer having two output

neurons. Softmax activation is applied to the layer

to convert the neuron outputs into probabilities.

After this step, the network is ready to be trained

for defect detection.

3. Target Model Transfer Learning:

This step in-

volves the training of the modiﬁed neural network

on the target data-set. Two strategies can be used:

(a) Fixed Feature Extractor:

It has been shown

that deep learning models are good at extracting

general features that are better than the tradi-

tional hand-crafted features for classiﬁcation. In

this case, all the pre-trained network parame-

ter weight values are frozen during training (i.e.

these perimeters won’t be updated during the

optimization process). Only the ﬁnal fully con-

nected softmax layer weights are learnt during

the training stage.

(b) Full Network Fine Tuning:

In this method, ei-

ther parameters of the entire network or that of

the last

layers (parameters frozen for the ini-

tial layers) are updated along with the softmax

classiﬁer during the optimization or training pro-

cedure. A lower learning rate is used because

the pre-trained weights are good and don’t need

to be changed too fast and too much.

4 EXPERIMENTS

In this section, the overall experimental setup includ-

ing the data-sets, CNN architectures, implementation,

training, and evaluation criteria are explained.

4.1 Data-sets

The data-sets used for the experiments are as follows.

1. The German Asphalt Pavement Distress

(GAPs) v2 Data-set:

(Stricker et al., 2019) is

a high quality data-set for pavement distress

detection with damage classes as cracks, potholes,

inlaid patches, applied patches, open joints and

bleeding. The v2 of the data-set has a 50k subset

available for deep learning approaches. It contains

30k normal patches and 20k patches with defects

with a patch size of

256 × 256

for the training set.

And for the testing set there are 6k normal patches

and 4k patches with defects.

2. DAGM Data-set:

(Matthias Wieler, 2007) is a

synthetic data-set for weakly supervised learning

for industrial optical inspection. The data-set con-

tains ten classes of artiﬁcially generated textures

with anomalies. For this study, the Class 1 hav-

ing the smudge defect was selected, since it pre-

sented with the maximum intra-class variance of

the background texture. It (hereafter referred to as

DAGMC1) contains

150

images with one defect

per image and 1000 defect free images.

3. Magnetic Tile Defects Data-set:

(Huang et al.,

2018) contains images of magnetic tiles collected

under varying lighting conditions. Magnetic tiles

are used in engines for providing constant mag-

netic potential. There are ﬁve different defect types

available namely Blowhole, Crack, Fray, Break

and Uneven. In the experiments in addition to test-

ing the individual defect classes, an MT Defect

category consisting of all the defect types was also

created and considered.

4. Concrete Crack Data-set:

(Fan et al., 2019) con-

tains images of concrete with two classes namely

positive (with the crack defect) and negative (with-

out crack). There are

20, 000 277 × 277

color im-

ages for each class. Images have variance in terms

of surface ﬁnish and illumination conditions which

makes the data-set challenging.

4.2 CNN Architectures

The following architectures were selected for conduct-

ing the experiments. Within each category, the model

conﬁguration which achieved the lowest error on the

ImageNet data-set was selected.

1. DenseNet:

Densely Connected Convolutional Net-

works (Huang et al., 2017) (DenseNets) introduced

the concept of inputs from every preceding layer

in the dense blocks. Every layer is connected to

every other layer in a feed-forward fashion so that

the network with L layers has

L(L+1)

direct con-

nections. The DenseNet-161 architecture was used

as the source network for the experiments.

2. ResNet:

Deep Residual Networks (He et al., 2016)

introduced the concept of identity shortcut connec-

tions that skip one or more layers. These were

introduced in 2015 by Kaiming He. et.al. and

bagged

place in the ILSVRC 2015 classiﬁca-

tion competition . ResNet-152 architecture is used

for the experiments.

3. VGGNet:

VGGnet was invented by the Visual

Geometry Group from the University of Oxford.

It introduced the use of successive layers of

3 × 3

Defect Detection using Deep Learning from Minimal Annotations

509

Network Pretrained on

ImageNet with the

Fully Connected Layer

Disconnected

New Fully

Connected layer

with 2 output

classes and softmax

activation

Input


Output

Vector

(2x1)

One Hot

Encoded

Label

(2x1)

Cross Entropy

Loss

Update network parameters

with low learning rate

Figure 2: Defect Detection using network-based transfer learning. A model pre-trained on some source data-set (e.g. ImageNet)

is selected as the base network. The ﬁnal layers of the network are modiﬁed to have two output classes, after which the softmax

activation is applied to convert the neuron outputs into probabilities. The network is then trained on the target data-set with a

much smaller learning rate (e.g.

−4

) to adapt it to the new data-set. The output from the anomaly class neuron is then used as

an anomaly score for the sample. A high value indicates that the network is conﬁdent that the sample is anomalous.

ﬁlters instead of large-size ﬁlters such as

11 × 11

and

7 ×7

. VGG19 was chosen for the experiments.

4.3 Implementation

PyTorch (Paszke et al., 2017) version 1.3 was used

for conducting all the experiments. Publicly available

implementations of the selected models were used

from the torchvision package version 0.2.2. Model

weights pre-trained on ImageNet data-set available in

the PyTorch model zoo were used for the experiments.

Adam (Kingma and Ba, 2014) optimizer with default

settings was used. The learning rate was set to

−4

All the experiments were conducted for 25 epochs.

The input images were resized to

224 ×224 × 3

before

feeding to the network because of the fully connected

layers. The prediction output from the anomaly/defect

neuron was used as the anomaly score and also for

performing the classiﬁcation. The loss function used

was CrossEntropy which is deﬁned as follows.

H = −

∑

i=1

log( ˆy

) + (1 − y

)log(1 − ˆy

)] (1)

where H is the Cross Entropy,

is the label and

ˆy

the prediction for the i

pixel.

4.4 Evaluation Metrics

To evaluate the quantitative performance of the mod-

els, two metrics were selected. The ﬁrst metric was

the area under curve (AUC) measurement of the re-

ceiver operating characteristics (ROC) (Ling et al.,

2003). AUC or AUROC is a reliable measure of the

degree or measure of the separability of any binary

classiﬁer (binary segmentation masks in this case). It

provides an aggregate measure of the model’s perfor-

mance across all possible classiﬁcation thresholds. An

excellent model has AUROC value near to the one and

it means that the classiﬁer is virtually agnostic to the

choice of a particular threshold. The second metric

used for the assessment was the F1 score. It is deﬁned

as the harmonic mean of precision and recall and is

given by the Equation 2. F1 score reaches its best

value at one and the worst score at zero. It is a robust

choice for classiﬁcation tasks since it takes both the

false positives and false negatives into account.

F = 2 ×

P × R

P + R

(2)

where F is the F1 score, P is the precision and R is the

recall.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

510

5 RESULTS

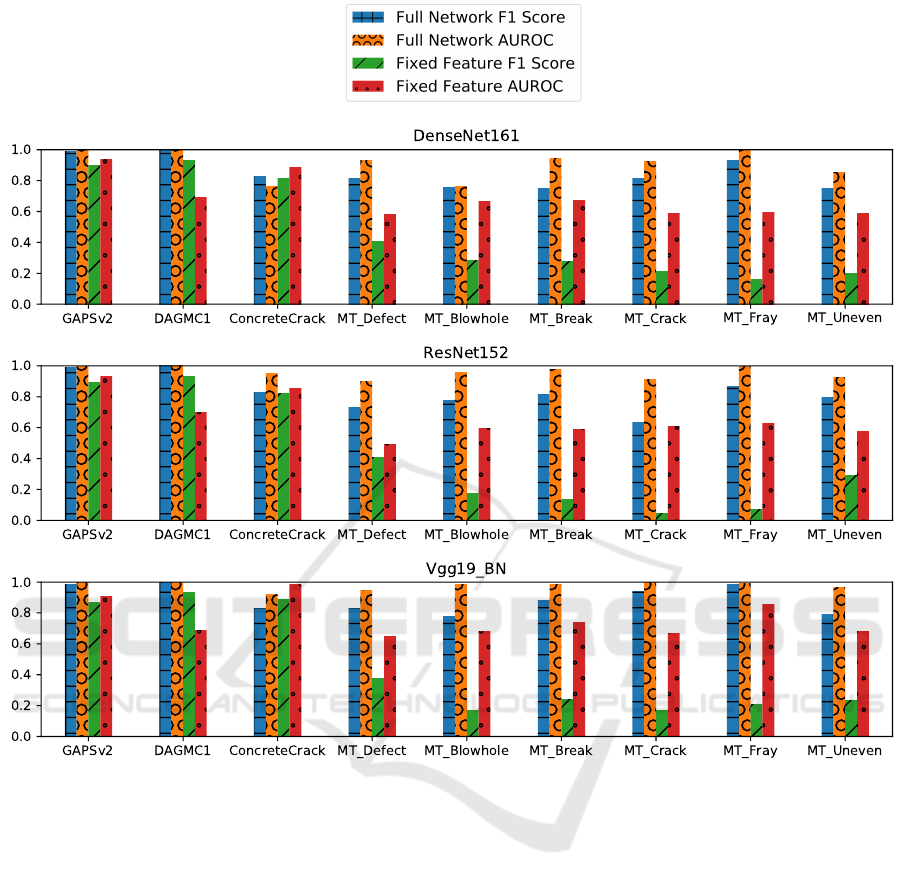

Figure 3 summarises the results of all the experiments

conducted for the various data-sets and CNN architec-

ture conﬁgurations. Figures 3 (a), (b) and (c) show

the AUROC and F1 Score values for the Fixed Feature

Extractor and Full Network Fine Tuning experiments

for DenseNet161, ResNet152 and Vgg19 respectively.

The values shown are for the best model per architec-

ture and data-set based on the lowest validation loss. It

is important to note that for calculating the F1 scores a

threshold value of 0.5 was used since that is the mean

value of the output range of the neuron with softmax

activation applied to it. The F1 score value will vary

depending on the choice of threshold. But the AUROC

score takes into account all the possible threshold val-

ues in its calculation. One clear observation from all

the experiments is that on average, across all the data-

set and CNN architecture conﬁgurations Full Network

Fine Tuning worked better than the Fixed Feature Ex-

tractor approach. Table 1 shows comparison between

the two. This showed that the initial layers which are

often attributed to being good at extracting general

features, also need to be trained while performing the

network-based transfer learning. Fine tuning the net-

work weights with a lower learning rate in comparison

to the learning rate used during the training on the

source data-set leads to weights that better optimize

the cost function for the target task and data-set.

On average across all the data-sets, using the Full

Network Fine Tuning approach the Vgg19 architec-

ture performed the best with F1 Score and AUROC

values of 0.8914 and 0.9766 respectively. In the ﬁxed

feature extractor approach Vgg19 performed the best

on an average based on the AUROC value. While the

DenseNet161 performed the best based on F1 score.

The highest average performance gap between the two

approaches was observed in the ResNet152 model,

with a difference of 97% and 44% for F1 score and AU-

ROC value respectively. And the lowest gap with re-

spect to the F1 score and AUROC value was obaserved

for DenseNet161 and Vgg19 at 83% and 28% respec-

tively. DAGMC1 was the only synthetic data-set in

the experiments and as expected all the three archi-

tectures are perfectly able to separate the defects or

anomalies from the normal samples. On the extremely

challenging GAPSv2 data-set DenseNet161 performed

the best with F1 Score and AUROC values of 0.9882

and 0.9979 respectively. ConcreteCrack data-set is the

only data-set on which on average the ﬁxed feature

extractor approach performed better than the full net-

work ﬁne-tuning. However, the performance gap was

marginal in comparison to other data-sets. It was 2%

for the F1 Score and 4% for the AUROC value. On the

magnetic tile dataset (data-sets with the preﬁx MT) as

expected average of the best models trained for single

defect category outperformed the best model trained

on the mixture of all the defects. The improvement

for F1 Score and AUROC values was that of 6% and

4% respectively. Another thing to note is that the out-

put of the anomaly or defect neuron being used as an

anomaly score worked well which is in concurrence

with our hypothesis. It resulted in a very high separat-

ing power of the networks between the anomalous and

normal samples. This is evident from the impressive

average AUROC value of 0.9766 as mentioned earlier

in this section.

Table 1: Comparison of Full Network and Fixed Feature

extraction approach. The values shown are averaged across

all the data-sets. As can be seen, the Full Network approach

clearly outperforms the Fixed Feature approach across the

three architectures.

Model

Full Network Fixed Feature

F1 Score AUROC F1 Score AUROC

DenseNet161 0.8477 0.9087 0.4639 0.6874

ResNet152 0.8259 0.9570 0.4183 0.6631

Vgg19 0.8914 0.9766 0.4543 0.7600

6 CONCLUSION

In this paper, we applied the concept of network-based

transfer learning using CNNs to the task of defect

detection. The approach tackles the challenge of a lim-

ited number of anomalous samples available in real-

world applications. The method achieves impressive

values of 0.8914 and 0.9766 for F1 Score and AUROC

respectively across four challenging data-sets. Within

the network-based transfer learning approach two tech-

niques were tested i.e., Fixed Feature Extraction and

Full Network Fine Tuning. It was found that the full

network ﬁne tuning approach on an average across

all the data-sets tended to work much better than the

ﬁxed feature extraction approach. Additionally, the

use of the output value from the neuron responsible

for the anomaly or defect class as an anomaly score

led to excellent AUROC values indicating the strong

separation power of the CNNs across all the data-sets.

For future work, it would be interesting to see how

the choice of the activation function of the ﬁnal classi-

ﬁer affects defect detection performance. Additionally,

experiments can be conducted on freezing only a few

selected layers of the model and evaluating the change

in performance. More CNN architectures can be anal-

ysed to see how the choice of architecture affects the

performance for different defect types.

Defect Detection using Deep Learning from Minimal Annotations

511

Figure 3: Results of the experiments conducted on all the data-sets and CNN architectures. Figures 3 (a), (b) and (c) show the

AUROC and F1 Score values for the Fixed Feature Extractor and Full Network Fine Tuning experiments for DenseNet161,

ResNet152 and Vgg19 respectively. The values shown are for the best model per architecture and data-set based on the lowest

validation loss. It can be observed across the data-sets and the architectures, that on an average the full network ﬁne tuning

seems to work better than the ﬁxed feature extractor approach. (Best viewed in colour.)

ACKNOWLEDGEMENTS

The authors would like to thank the Ontario Ministry

of Transportation and NSERC (National Science and

Research Council) for providing funds that supported

this research.

REFERENCES

Ai, D., Jiang, G., Siew Kei, L., and Li, C. (2018). Automatic

pixel-level pavement crack detection using information

of multi-scale neighborhoods. IEEE Access, 6:24452–

24463.

Chi-Ho Chan and Pang, G. K. H. (2000). Fabric defect

detection by fourier analysis. IEEE Transactions on

Industry Applications, 36(5):1267–1276.

Faghih-Roohi, S., Hajizadeh, S., Nez, A., Babuska, R., and

De Schutter, B. (2016). Deep convolutional neural

networks for detection of rail surface defects. In 2016

International Joint Conference on Neural Networks

(IJCNN), pages 2584–2589.

Fan, R., Bocus, M. J., Zhu, Y., Jiao, J., Wang, L., Ma, F.,

Cheng, S., and Liu, M. (2019). Road crack detection

using deep convolutional neural network and adaptive

thresholding. 2019 IEEE Intelligent Vehicles Sympo-

sium (IV), pages 474–479.

Feng, C., Zhang, H., Wang, S., Li, Y., Wang, H., and Yan, F.

(2019). Structural damage detection using deep convo-

lutional neural network and transfer learning. KSCE

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

512

Journal of Civil Engineering, 23(10):4493–4502.

Gopalakrishnan, K., Khaitan, S. K., Choudhary, A., and

Agrawal, A. (2017). Deep convolutional neural net-

works with transfer learning for computer vision-based

data-driven pavement distress detection. Construction

and Building Materials, 157:322 – 330.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep residual

learning for image recognition. 2016 IEEE Conference

on Computer Vision and Pattern Recognition (CVPR),

pages 770–778.

Hssayeni, M. D., Saxena, S., Ptucha, R., and Savakis, A.

(2017). Distracted driver detection: Deep learning vs

handcrafted features. Electronic Imaging, 2017(10):20–

26.

Huang, G., Liu, Z., van der Maaten, L., and Weinberger,

K. Q. (2017). Densely connected convolutional net-

works. 2017 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 2261–2269.

Huang, Y., Qiu, C., and Yuan, K. (2018). Surface defect

saliency of magnetic tile. The Visual Computer.

Kensert, A., Harrison, P. J., and Spjuth, O. (2019). Transfer

learning with deep convolutional neural networks for

classifying cellular morphological changes. SLAS DIS-

COVERY: Advancing Life Sciences R&D, 24(4):466–

475. PMID: 30641024.

Kingma, D. P. and Ba, J. (2014). Adam: A method for

stochastic optimization. CoRR, abs/1412.6980.

Kumar, A. (2008). Computer-vision-based fabric defect

detection: A survey. IEEE Transactions on Industrial

Electronics, 55(1):348–363.

Kumar, A. and Pang, G. K. H. (2002). Defect detection in

textured materials using gabor ﬁlters. IEEE Transac-

tions on Industry Applications, 38(2):425–440.

Ling, C. X., Huang, J., and Zhang, H. (2003). Auc: A sta-

tistically consistent and more discriminating measure

than accuracy. In Proceedings of the 18th International

Joint Conference on Artiﬁcial Intelligence, IJCAI’03,

pages 519–524, San Francisco, CA, USA. Morgan

Kaufmann Publishers Inc.

Marnissi, M. A., Fradi, H., and Dugelay, J. (2019). On the

discriminative power of learned vs. hand-crafted fea-

tures for crowd density analysis. In 2019 International

Joint Conference on Neural Networks (IJCNN), pages

1–8.

Masci, J., Meier, U., Ciresan, D. C., Schmidhuber, J., and

Fricout, G. (2012). Steel defect classiﬁcation with

max-pooling convolutional neural networks. The 2012

International Joint Conference on Neural Networks

(IJCNN), pages 1–6.

Matthias Wieler, T. H. (2007). Weakly supervised learning

for industrial optical inspection. https://hci.iwr.uni-

heidelberg.de/node/3616.

Mittel, D. and Kerber, F. (2019). Vision-based crack de-

tection using transfer learning in metal forming pro-

cesses. In 2019 24th IEEE International Conference

on Emerging Technologies and Factory Automation

(ETFA), pages 544–551.

Paszke, A., Gross, S., Chintala, S., Chanan, G., Yang, E.,

DeVito, Z., Lin, Z., Desmaison, A., Antiga, L., and

Lerer, A. (2017). Automatic differentiation in PyTorch.

In NIPS Autodiff Workshop.

Perez, H., Tah, J. H. M., and Mosavi, A. (2019). Deep learn-

ing for detecting building defects using convolutional

neural networks. Sensors, 19(16):3556.

Pogorelov, K., Ostroukhova, O., Petlund, A., Halvorsen, P.,

de Lange, T., Espeland, H. N., Kupka, T., Griwodz, C.,

and Riegler, M. (2018). Deep learning and handcrafted

feature based approaches for automatic detection of

angiectasia. In 2018 IEEE EMBS International Confer-

ence on Biomedical Health Informatics (BHI), pages

365–368.

See, J. E., Drury, C. G., Speed, A., Williams, A., and Kha-

landi, N. (2017). The role of visual inspection in the

21st century. Proceedings of the Human Factors and

Ergonomics Society Annual Meeting, 61(1):262–266.

Serdaroglu, A., Ertuzun, A., and Ercil, A. (2006). Defect

detection in textile fabric images using wavelet trans-

forms and independent component analysis. Pattern

Recognition and Image Analysis, 16(1):61–64.

Stricker, R., Eisenbach, M., Sesselmann, M., Debes, K., and

Gross, H.-M. (2019). Improving visual road condition

assessment by extensive experiments on the extended

gaps dataset. In International Joint Conference on

Neural Networks (IJCNN), pages 1–8.

Sun, X., Gu, J., Tang, S., and Li, J. (2018). Research progress

of visual inspection technology of steel products a

review. Applied Sciences, 8(11).

Tan, C., Sun, F., Kong, T., Zhang, W., Yang, C., and Liu, C.

(2018). A survey on deep transfer learning. In ICANN

2018.

Torrey, L. and Shavlik, J. W. (2009). Transfer learning.

Tsai, D.-M. and Huang, T.-Y. (2003). Automated surface

inspection for statistical textures. Image and Vision

Computing, 21(4):307 – 323.

Yu, H., Li, Q., Tan, Y., Gan, J., Wang, J., Geng, Y., and Jia, L.

(2019). A coarse-to-ﬁne model for rail surface defect

detection. IEEE Transactions on Instrumentation and

Measurement, 68(3):656–666.

Zhang, H., Chen, Z., Zhang, C., Xi, J., and Le, X. (2019).

Weld defect detection based on deep learning method.

In 2019 IEEE 15th International Conference on Au-

tomation Science and Engineering (CASE), pages

1574–1579.

Defect Detection using Deep Learning from Minimal Annotations

513
