AutoPOSE: Large-scale Automotive Driver Head Pose and Gaze Dataset

with Deep Head Orientation Baseline

Mohamed Selim

, Ahmet Firintepe

, Alain Pagani

and Didier Stricker

German Research Center for Artiﬁcial Intelligence (DFKI), Trippstadter Str. 122, Kaiserslautern, Germany

BMW Group, Munich, Germany

https://autopose.dfki.de

Keywords:

Driving, Head Pose Estimation, Deep Learning, Infrared Camera, Kinect V2, Eye Gaze.

Abstract:

In computer vision research, public datasets are crucial to objectively assess new algorithms. By the wide

use of deep learning methods to solve computer vision problems, large-scale datasets are indispensable for

proper network training. Various driver-centered analysis depend on accurate head pose and gaze estimation.

In this paper, we present a new large-scale dataset, AutoPOSE. The dataset provides ∼ 1.1M IR images taken

from the dashboard view, and ∼ 315K from Kinect v2 (RGB, IR, Depth) taken from center mirror view.

AutoPOSE’s ground truth -head orientation and position- was acquired with a sub-millimeter accurate motion

capturing system. Moreover, we present a head orientation estimation baseline with a state-of-the-art method

on our AutoPOSE dataset. We provide the dataset as a downloadable package from a public website.

1 INTRODUCTION

Public datasets have tremendously pushed forward

computer vision research in the recent years. Ob-

jective comparisons of new algorithms on exact same

data is essential for assessing contributions. In addi-

tion, since the rise of deep learning methods, large-

scale datasets have become crucial to realize research

and development.

There is a large interest in car interior human-

centered applications, such as driver attention mon-

itoring, driver intention prediction, and driver-car in-

teraction. All these technologies requires as basis the

head pose and gaze of the driver. The head pose de-

scribes the head position and orientation in the car,

whereas the gaze is the direction of the driver’s view.

Recent datasets provide either head pose or gaze

or have an automotive context. However, none of

them contains the combination of all of them. Thus,

we propose AutoPOSE, which is the ﬁrst dataset pro-

viding combined driver head pose and gaze for in-car

analysis.

In more detail, our contributions are:

• We provide a large-scale, accurate, driver head

pose and eye gaze dataset.

• The dataset contains images acquired from two

different camera positions in our car simulator and

provides different image types: dashboard (IR,

∼ 1.1M ) and center mirror (RGB, Depth, IR,

∼ 315K each).

• All frames are annotated of the dataset with

information about driver’s activity, accessories

(glasses) and face occlusion.

• We provide baseline results for head orientation

estimation task where we evaluate POSEidon net-

work on our dataset.

In the remainder of the paper, we discuss the related

work on head pose estimation and on latest head pose

datasets in section 2. We present our new dataset in

section 3, and explain in detail how we acquired it in

section 4. We discuss and evaluate the head orienta-

tion estimation algorithm on our dataset in section 5.

In section 6, we conclude and summarize our work.

2 RELATED WORK

2.1 Related Datasets

In 2017, two new head pose datasets were introduced,

the DriveAHead (Schwarz et al., 2017) and Pandora

(Borghi et al., 2017). The DriveAHead proposed a

novel head reference system (or head coordinate sys-

tem), deﬁning where the head center is, and how the

Selim, M., Firintepe, A., Pagani, A. and Stricker, D.

AutoPOSE: Large-scale Automotive Driver Head Pose and Gaze Dataset with Deep Head Orientation Baseline.

DOI: 10.5220/0009330105990606

In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages

599-606

ISBN: 978-989-758-402-2; ISSN: 2184-4321

599

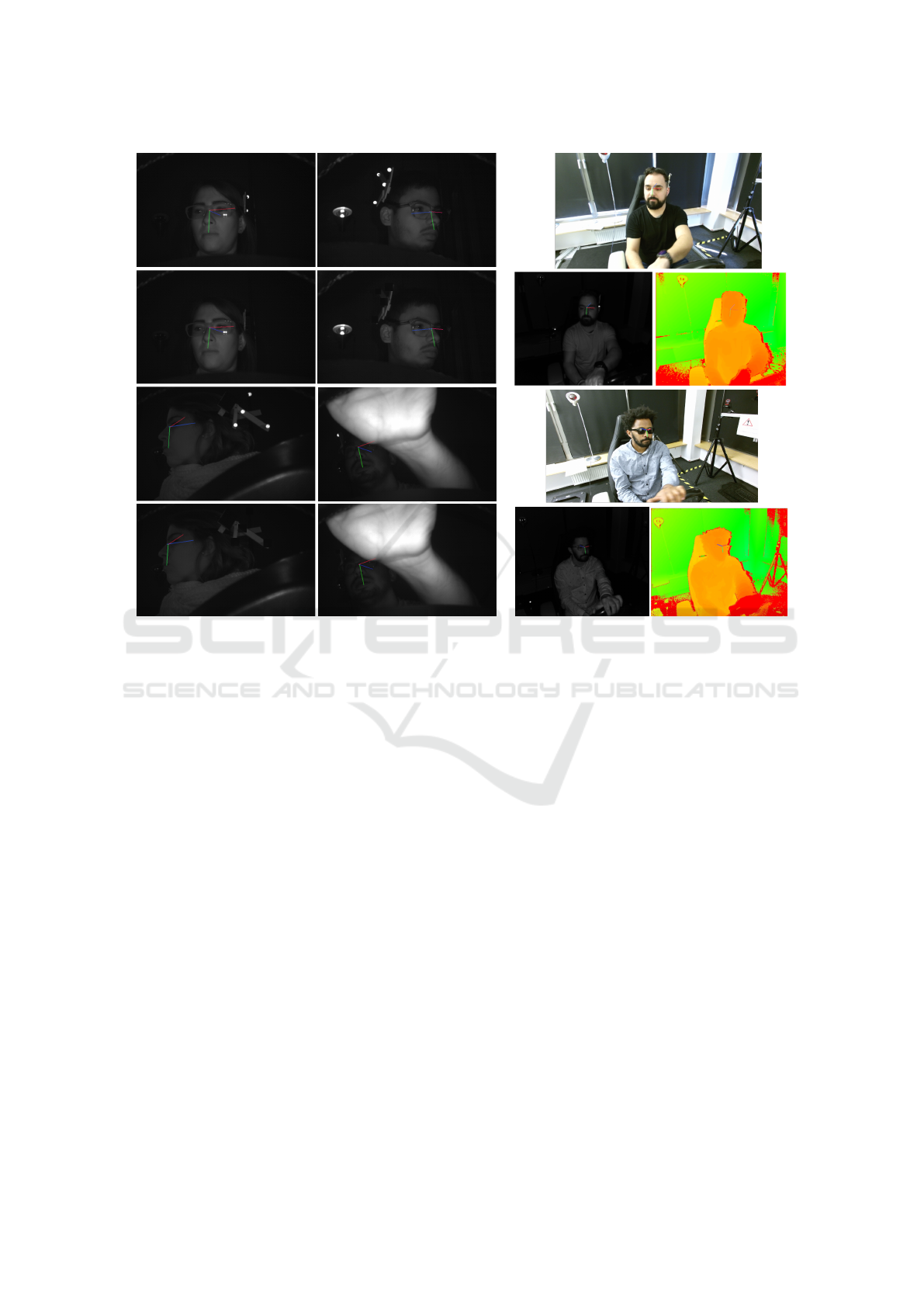

(a) IR Camera - Dashboard (b) Kinect v2 - Center rear mirror

Figure 1: (a) Row 1: RAW images with head target reﬂective markers visible, Row 2: post-processing - markers covered.

Second column shows gaze annotation lamp(b) Kinect color, IR, and depth(color mapped) images. Note: Intensity was

improved for visibility and printing purposes.

x, y, and z-axis of the head are deﬁned related to spe-

ciﬁc facial landmarks. We also use the same head ref-

erence system in our AutoPOSE dataset. The DriveA-

Head provided IR and depth frames from a Kinect

camera in a real driving scenario. The authors did not

provide accuracy measures of the motion capturing

system while driving, although the motion of the car

will affect the tracking system calibration accuracy.

The dataset is suitable for deep learning frameworks.

Pandora (Borghi et al., 2017) is a large scale

dataset that is also suitable for deep learning frame-

works. However, the authors did not specify a head

reference system (head center and rotation axis). In

addition, the subjects were acting to be driving on a

normal chair in front of a wall. In our AutoPOSE,

we provide data captured in a real car cockpit with

cameras placed at the dashboard and the center mir-

ror location. Moreover, we use a well-deﬁned head

reference coordinate system.

In 2015, the MPIIGaze (Zhang et al., 2015)

dataset was introduced containing RGB images only.

The subjects were gazing at known points at a com-

puter screen. As RGB cameras are highly affected

by sunlight, they are not suitable for driving scenarios

(Schwarz et al., 2017). In our AutoPOSE, we provide

IR images from two perspectives (dashboard, center

mirror) with 3D gaze target ground truth in a driving

environment.

In summary, all existing datasets have speciﬁc

drawbacks. AutoPOSE provides ground truth in a

controlled environment, that ensures ground truth cor-

rectness and quality. Moreover, we provide frame

annotations were the subjects performed the required

task while having no glasses on, with clear glasses on

and with sunglasses on. All frames were manually

annotated. The dataset provides two camera views

(dashboard, and center mirror) in a car cockpit with

gaze target ground truth and occlusion annotations.

2.2 Head Pose Estimation

Approaches for head pose estimation are performed

either on 2D information like RGB (Baltrusaitis et al.,

2018; Ranjan et al., 2019), or IR images (Schwarz

et al., 2017), or on 3D information like depth maps

(Borghi et al., 2017; Borghi et al., 2018). The selec-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

600

tion of the suiting input type depends also on the cate-

gory of an approach. Three main categories have been

deﬁned to classify approaches: feature-based, 3D

model registration and appearance-based approaches

(Fanelli et al., 2011; Meyer et al., 2015; Borghi et al.,

2017). Feature-based approaches need deﬁned facial

features like eye corners or mouth corners, which are

then localized in frames to perform pose estimation.

These approaches can work on 2D as well as 3D infor-

mation. In (Barros et al., 2018), two different feature-

based approaches have been combined to regress head

pose, the approaches being deﬁned facial landmarks

on the face and keypoints computed by motion. The

approach requires 2D images only.

3D model registration derives a head model from

the data and regresses a head pose depending on the

derived 3D information. This can be done based on

2D and 3D or both. (Papazov et al., 2015) uses facial

point clouds and matches them with possible poses.

Appearance-based approaches take the whole in-

formation provided into consideration and try to

regress a pose. They are generally learning-based

methods. This can be either a raw 2D image or a depth

map, as in the DriveAHead-approach (Schwarz et al.,

2017). The DriveAHead-approach uses both, 2D-IR-

images and depth information to regress a pose. The

POSEeidon-framework (Borghi et al., 2017; Borghi

et al., 2018) uses 3D-information only to derive other

types of information like motion and grayscale image

to regress the 3D orientation.

The baseline method we use in this paper is based

on deep neural networks, which has proven to have

high potential for the head pose estimation task as

shown by (Borghi et al., 2017; Borghi et al., 2018;

Ahn et al., 2015; Ahn et al., 2018), however, requir-

ing large amounts of data.

3 AutoPOSE DATASET

We introduce a new headpose and eye gaze dataset.

We captured our images using two cameras placed

at two different positions in the car simulator in our

lab. One camera, is an IR-camera placed at the dash-

board of the car, and targeted at the driver. The sec-

ond camera is a Kinect v2 placed at the location of

the center miror of the car providing 3 image types,

[IR, depth (512x424 pixels)], and RGB (1920x1080)

images. The dataset consists of 21 sequences. Our

21 subjects were 10 females and 11 males. The dash-

board IR camera was running at 60 fps, giving in total

1,018,885 IR images. The Kinect was running at 30

fps, giving in total 316,497 synchronized RGB, depth,

and IR images.

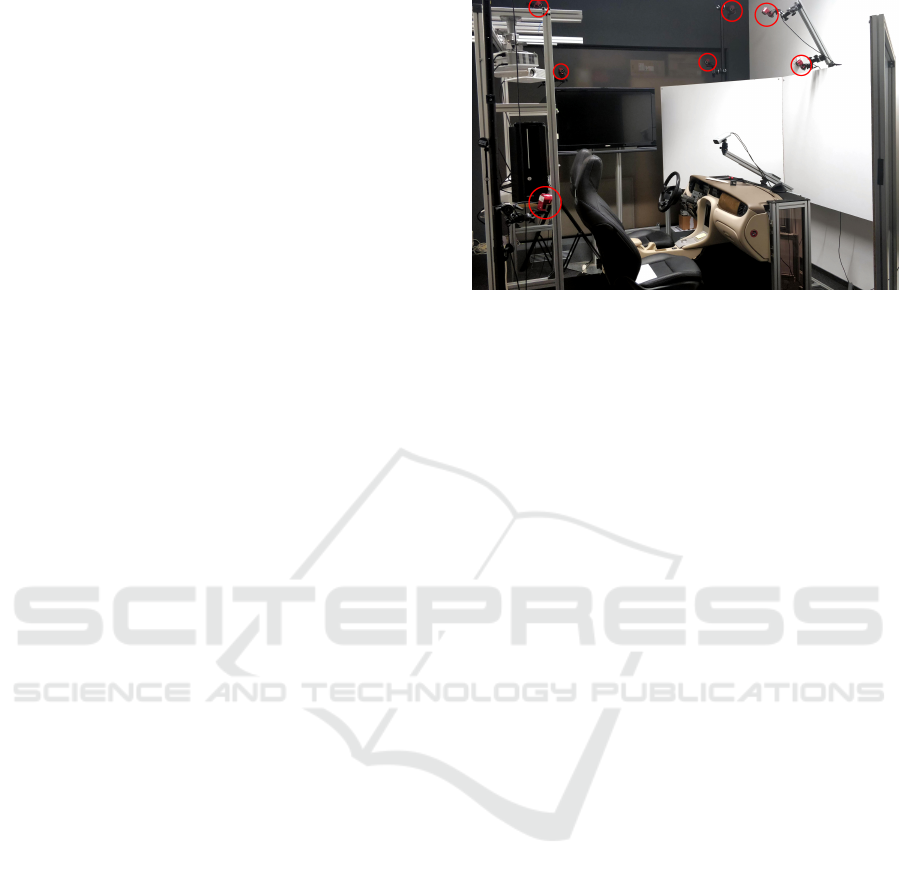

Figure 2: Driving simulator at our lab. The red circles high-

lights some of the motion capture system cameras.

It was not possible to capture the data using both

cameras at the same time, because the strong IR light

emitted by the Kinect was affecting the image cap-

tured by the camera located at the dashboard. Conse-

quently, we decided to capture the data ﬁrst with the

dashboard IR camera, then capture with the Kinect.

In each capturing sequence, the subject was asked to

perform the tasks listed in Table 1. First, the subject

was instructed about all the tasks required. The sub-

ject performed pure rotations as much as possible, fol-

lowed by free natural motion, with and without face

occlusions using his/her hand. Later, the gaze tasks

which are described later in detail in subsection 4.5.

All tasks were ﬁrst performed without any glasses

on the face of the subject. Later on, all tasks were

performed again with clear glasses on, then with sun-

glasses on. After acquiring the data with the dash-

board camera, the whole experiment was repeated

again using the Kinect camera while turning the dash-

board IR camera off. It is noted that the subjects were

faster in performing the tasks again for the Kinect se-

quence, thus leading to less frames for the Kinect se-

quence. Also, 4 Kinect sequence were discarded due

to technical issues that lead to invalidating them. All

tasks for all of our 21 subjects were manually anno-

tated stating the start/end frame, along with the task

performed, and glasses existence with its type.

3.1 Head Coordinate System

As introduced in subsection 2, existing datasets have

different head coordinate system deﬁnition. In other

words, when treating the head as a rigid body, it is

required to deﬁne the x, y, and z axis of the head,

and the head center. In our dataset we decided to fol-

low the head coordinate system deﬁnition proposed

in (Schwarz et al., 2017), which adds more consis-

tent data to the community. The deﬁnition, requires

AutoPOSE: Large-scale Automotive Driver Head Pose and Gaze Dataset with Deep Head Orientation Baseline

601

Table 1: Number of frames per annotation of the IR-Dashboard camera.

No glasses Clear glasses Sunglasses Neck scarf Total

Pure yaw rotation 12k 12.5k 13.5k 11.7k 50k

Pure pitch rotation 12k 11.7k 12.6k 11k 47.5k

Pure roll rotation 13k 12k 12.5k 11k 48.5k

Free natural motion 374k 153k 158k 22k 705k

Free natural motion - Hand near face actions 40k - - - 40k

Gaze point 1 - Left mirror 7.2k 6.5k 6.7k - 20.5k

Gaze point 2 - Right mirror 7.6k 7k 7k - 21.6k

Gaze point 3 - Dash board 7.5k 7.2k 7.5k - 22.2k

Gaze point 4 - looking forward at the road 7.3k 6.6k 7.1k - 21.1k

Gaze point 5 - Back mirror 6k 6.8k 7.1k - 19.9k

Gaze point 6 - Media center 7.4k 6.6k 6.6k - 20.6k

495k 230k 238k 55k 1M

8 landmarks on the face, which are four eye corners,

two nose corners, and two mouth corners. The head

center is the 3D mean point of the four eye corners.

The The x-axis is deﬁned to be the 3D vector that

starts at the head center, and passes between the left

eye corners. The y-axis is computed as follows. The

3D mean point of the two nose corners and two mouth

corners is projected on the plane whose norm is the x-

axis. The projected point and the head center deﬁne

the y-axis of the head. Finally, the z-axis is the cross

product of the x and y axis.

4 DATA ACQUISITION

In order to acquire reliable and accurate ground truth

for AutoPOSE, we used a sub-millimeter accurate

motion capturing system, the OptiTrack, which con-

sists of 12 Flex13 IR cameras, running at 120 fps.

We calibrated the system using the Motive software

of OptiTrack. At the beginning of each recording, the

system was calibrated by waving a calibration wand

that has three markers at known distances. The cali-

bration sequence is used to estimate the intrinsics and

extrinsics of each camera in the setup. The system

tracks the reﬂective markers and provides the 3D po-

sition and orientation of the deﬁned rigid bodies.

In our dataset, the subject put on a rigid tool con-

taining 8 reﬂective markers at the back of the head, we

refer to it as the head target. The calibration software

computed a mean 3D error for the markers tracking of

0.32 mm. We also attached 8 markers to the IR cam-

era at the dashboard, and also 8 markers to the Kinect

v2 camera. In the tracking software, we set the rigid

bodies to be tracked only if all markers are visible and

tracked. This ensures the most accurate tracking pos-

sible of the subject head and the cameras.

By applying image processing and projecting

known 3D head target marker locations on the 2D

images, we erase the markers in order not to provide

more realistic images for learning. Figure 1 (a) shows

pictures with and without the markers.

4.1 System Synchronization and

Calibration

In this section, we describe in details our system syn-

chronization and calibration, which allows us to have

the subject’s head pose (orientation and translation)

with respect to the camera coordinate system for each

frame.

In order to synchronize the images of the cameras and

the tracking information, the cameras and the track-

ing system were running on the same computer. The

captured images were saved along with the timestamp

of the computer. Also, the tracking information from

OptiTrack were saved on the same machine along

with the timestamp. This enabled us to synchronize

the images with the 3D information. Since, the track-

ing system is running at 120 Hz and the cameras are

running at 60 Hz (dashboard IR) and 30 Hz (Kinect),

we were able to select the best matching 3D informa-

tion for each frame in the dataset. The average differ-

ence between the time stamps is max 5 ms.

4.2 Camera - Handeye Calibration

We placed spherical reﬂective markers on the cam-

era body, thus in each frame we get the position and

orientation of the camera body in our reference co-

ordinate system. Our aim is to ﬁnd the head pose,

described as orientation and translation in the camera

coordinate system. Consequently, the rigid transfor-

mation between the camera body (deﬁned by our re-

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

602

OptiTrack - OT

Head Target - hTarget

Head - h

Camera Marker -

cMarker

Camera - c

𝐻

ℎ→ℎ𝑇𝑎𝑟𝑔𝑒𝑡

𝐻

ℎ𝑇𝑎𝑟𝑔𝑒𝑡→𝑂𝑇

𝐻

𝑂𝑇→𝑐𝑀𝑎𝑟𝑘𝑒𝑟

𝐻

𝑐𝑀𝑎𝑟𝑘𝑒𝑟→𝑐

Figure 3: (a) 3D demonstration of the setup coordinate systems. (b) Sample image showing the subject wearing the head

target, Kinect at the center mirror position, and gaze annotation IR lamp at the back.

-80 -60 -40 -20 0 20 40 60 80

Angle in degrees

Number of frames

Yaw

Pitch

Roll

Figure 4: AutoPOSE yaw, pitch, and roll angles histogram.

ﬂective markers as a rigid body in OptiTrack), and the

camera coordinate system must be computed.

We used the handeye calibration algorithm (Tsai

and Lenz, 1989) to ﬁnd the required rigid transforma-

tion. We attached spherical reﬂective markers to both

cameras (IR, and Kinect). We calibrated our two cam-

eras with 50 images. The re-porjection error is 2.19

pixels for the IR camera. The error for the Kinect

v2 RGB camera is 3 pixels, and 2.3 pixels for the

Kinect’s IR camera.

4.3 Head Calibration

In order to compute subject-speciﬁc head reference

system, he/she puts on the head target, so that it rests

at the back of the head, and does not occlude any part

of the face. The experiment coordinator puts on the

subject’s 8 special facial markers from OptiTrack at

the designated positions mentioned before. We record

with OptiTrack a calibration sequence of 1 min where

the subject rotates his/her head in yaw, pitch, and roll

directions.

We compute for each frame the head coordinate

system, and ﬁnd the rigid transformation from the

head coordinate system to the head target. Finally,

we compute the average transformation among all

frames. This deﬁnes our subject-speciﬁc head calibra-

tion. The facial markers are removed, and the subject

is now ready for recording the dataset sequence.

In order to compute the calibration error, we use

the calibration sequence. We consider the computed

head reference system as ground truth. We apply the

computed transformation on the head target, this gives

us the recovered head pose. The calibration error in is

as small as 1.02 mm for translation and 1.6 degrees

for the orientation.

4.4 Head Pose

Finally, in order to ﬁnd the head pose (translation and

orientation) in the camera coordinate system, we track

the head target and the camera rigid bodies in each

frame. We apply transformations in this order

h→c

cMarker→c

· H

OT →cMarker

· H

hTarget→OT

· H

h→hTraget

(1)

Figure 4 shows the histogram of the yaw, pitch

and roll angles of the 1M frames from the dashboard

IR camera. The rotations were limited to -90 degrees

to +90 degrees. As shown, the pitch angle histogram

AutoPOSE: Large-scale Automotive Driver Head Pose and Gaze Dataset with Deep Head Orientation Baseline

603

is shifted in the negative values of the rotation angles.

This is due to the placement of the camera in the dash-

board, where it is looking at the face from the bottom,

check Figure 1 (a).

4.5 Eye Gaze

In our dataset, we provided annotation for gaze

frames. We asked our subjects to gaze at six spher-

ical reﬂective markers placed at driving-related loca-

tions, the dashboard, in front of the driver (represent-

ing looking at the road), center mirror, 2 side mirrors,

and center of the car (representing media center, cli-

mate control). The car markers are tracked by Opti-

Track throughout the entire sequence. We asked the

subject to gaze at each marker for 5 to 10 seconds.

We think that the best person to tell if he/she is

gazing at a point or not is the person him/herself. We

placed a button close to the subject. When the subject

gazes at a marker, he/she press the button, which turns

an IR lamp at the back, visible in the frame, and does

not interfere with the camera’s IR light. Later, we

manually annotated the start and end frame for each

gaze target. The ground truth gaze targets can be used

to in gaze estimation algorithms assessment in auto-

motive or other ﬁelds. To the best of our knowledge,

this is the ﬁrst time to provide gaze target ground truth

in automotive ﬁeld using IR camera from dashboard

and from center mirror views.

5 HEAD ORIENTATION

ESTIMATION BASELINE

We used the POSEidon-CNN on the IR data to per-

form head pose estimation. Before training, we con-

ducted preprocessing on the raw images for cleaning

and obtaining cropped images of the frames. As a

ﬁrst dataset preparation step, we cleaned the 752x480

pixel images of the IR camera. We kept the frames

with yaw rotations higher than 120 degrees for train-

ing to increase robustness, but did not consider them

in the validation and test set. We additionally equalize

and normalize the images.

The authors of (Borghi et al., 2017) and (Borghi

et al., 2018) rely on the output of a neural network to

regress 2D head position, which they further use for

cropping. This outputs the head center in image co-

ordinates (x

, y

). We obtained the head center from

the ground truth data instead of a neural network. This

prevents having additional error in the pose estima-

tion part introduced through another position estima-

tion method. A dynamic size algorithm provided the

head bounding box with the acquired head center, the

Conv1

Conv2

Conv3

Conv4

128

Conv5

128

fc1

fc2

output

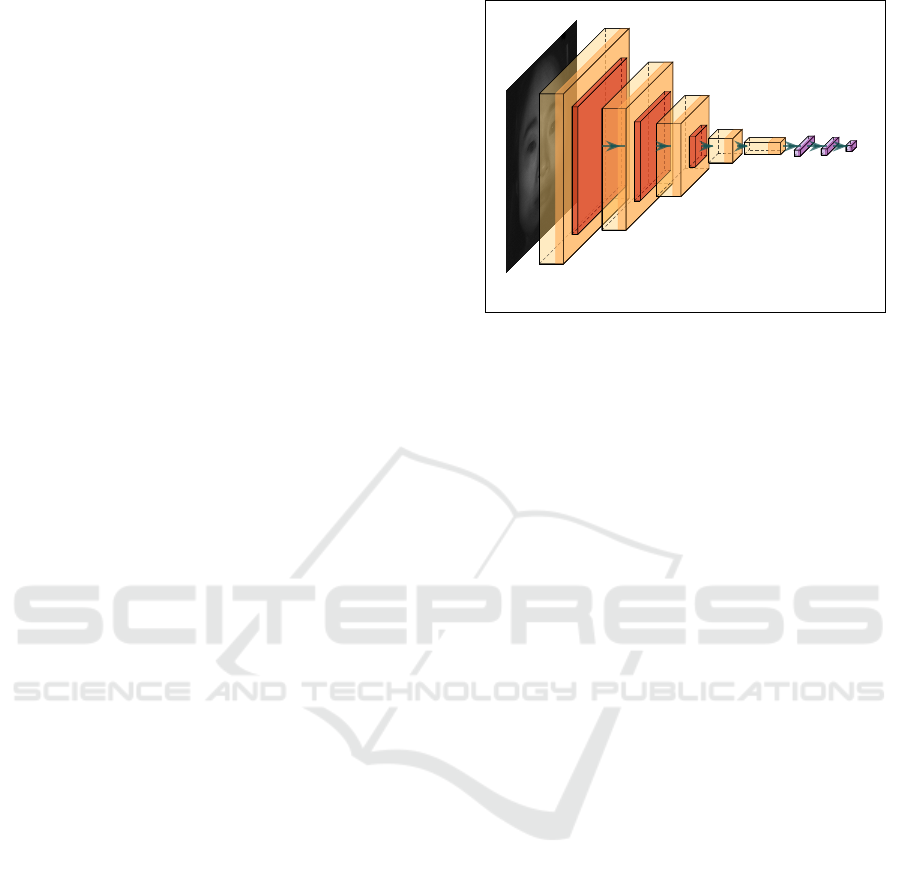

Figure 5: The POSEidon-CNN (Borghi et al., 2018) for 64

pixel images.

width w

and the height h

, which are used to crop

the frames. We acquired them as described in (Borghi

et al., 2017). With the horizontal and vertical focal

lengths of the acquisition device, distance D between

the head center and the acquisition device and R

and

, which are the average width and height of a face.

The head width R

and height R

in 3D were deﬁned

uniformly as 32 cm, so the head is equal in size inside

the cropped images. Moreover, if more than a third of

the head were not visible in the frame, we discarded

the cropped image.

5.1 Network Architecture

We considered part of a recent head pose estimation

framework: the POSEidon-framework (Borghi et al.,

2018). The framework relied on depth data and did

not perform Head Pose Estimation on IR images. The

head pose estimation part in the framework is based

on three different branches, which considers depth

maps, grayscale images generated from depth maps

and motion images. All branches were trained with

the same CNN architecture. The output of the three

branches is fused in the end. We obtained the CNN,

which each branch in the framework used separately

(Figure 5).

The model exploited Dropout as regularization (σ

= 0.5) at the two fully connected layers.

We trained and tested the described model on the

IR data of the dashboard IR camera, providing base-

line results for the dataset.

5.2 Network Training

We trained the Deep Neural Network on the cropped

images of the dataset. We selecedt training and test

setup including loss function and training, validation

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

604

and test set deﬁnition accordingly. To evaluate the

model, we chose metrics for benchmarking on the

dataset.

For training, we deﬁned our loss function as pre-

sented in (Borghi et al., 2017; Borghi et al., 2018) to

put more focus on the yaw, which is predominant in

the automotive context. Our labels range from -180

degree to 180 degree. We used a weighted L

loss

between label and prediction, where we weighed the

difference between them on the yaw with 0.45, pitch

with 0.35 and roll with 0.2. Furthermore, we took 19

of the 21 sequences of the subjects for training. We

use one sequence for the validation set and one for

testing. The training was done in batches with a size

of 128, where the batches were chosen randomly.

5.3 Evaluation Metrics

To provide a good benchmarking foundation, mean-

ingful metrics for the head pose estimation task are

required. Thus, we chose 4 metrics as a basis for fur-

ther benchmarking.

The ﬁrst metric is the angle estimation error, that

we refer to as Mean Absolute Error (MAE).

MAE :=

∑

i=1

y −

(2)

It provides an easily comprehensible metric. Comput-

ing it on one axis or all axis result in the total estima-

tion error on the respective input. Another metric is

the Standard Deviation (STD), providing further in-

sight to the error distribution around the ground truth.

The third metric is the Root Mean Squared Error

(RMSE) to weigh larger errors higher.

RMSE :=

∑

i=1

(y −

(3)

It takes the squared difference of the predicted value

and the ground truth value, weighing larger errors

higher. Thus, high variation in predictions of an al-

gorithm result in a higher overall error compared to

the mean without squaring the values. Computing the

mean over one or all axis and subsequently calculat-

ing the square root of the outcome produces the same

unit as the predictions and ground truth, thus making

it more understandable.

The last metric is the Balanced Mean Angular

Error (BMAE) as deﬁned in (Schwarz et al., 2017),

which provides further insight as it takes different

ranges into consideration. The authors base their met-

ric on the unbalanced amount of different head ori-

entations due to driving and its bias towards frontal

orientation. The BMAE addresses this:

BMAE :=

∑

i,i+d

, i ∈ dN ∩ [0, k], (4)

i,i+d

is the average angular error. In contrast to

(Schwarz et al., 2017) which computes the difference

based on quaternions, we compute it as

y −

for all

labels y and predictions

y, where the absolute distance

of ground truth angle y to zero lies between i and i +

d. During our evaluation, we set the section size d to

5 degrees and maximum degree k to 120.

We tested the previously presented POSEidon-

model on the metrics to provide a baseline for future

head pose estimation benchmarking.

5.4 Results

Our evaluations for head orientation estimation on all

metrics are shown in table 2.

Table 2: Results on the 64x64 pixel cropped images of Po-

seidon trained and tested on our dataset.

Metric Pitch Roll Yaw Avg

MAE 2.96 3.16 3.99 3.37

STD 4.63 3.93 7.82 5.46

RMSE 4.73 4.55 7.98 5.97

BMAE 7.10 9.42 19.05 11.86

The results showed the performance of the

POSEidon-CNN on our 64 pixel images. We ob-

served that the CNN had a lower error than 3.5 degree

on the MAE. The BMAE shows that the networks per-

formed worse if more extreme poses with less exam-

ples are weighted equally as more common poses. In

general, we noted that the yaw is more challenging as

the network performed worse on the yaw on all met-

rics compared to the pitch and roll.

6 CONCLUSION

In this paper, we introduced a new large-scale driver

head pose and eye gaze dataset. We discussed in de-

tail, the head and camera calibration pipeline that en-

abled us to have the head pose described in the cam-

era frame. We captured data from two positions in

our car simulator for 21 subjects (10 females and 11

males). We collected 1.1M images from the dash-

board IR camera and collected 315K images for each

type from Kinect v2 (RGB, Depth, IR). We acquired

the ground truth head pose of all frames of the dataset

head pose using a sub-millimeter accurate motion

capturing system. Moreover, we annotated the frames

of the dataset with information about driver’s activity,

face accessories (clear glasses, and sunglasses) and

face occlusion.

Based on our dataset, we selected a state-of-the-

art method to generate a baseline result on the IR data

AutoPOSE: Large-scale Automotive Driver Head Pose and Gaze Dataset with Deep Head Orientation Baseline

605

for head orientation estimation task.

ACKNOWLEDGEMENT

This work was partially funded by the company IEE

S.A. in Luxembourg. The authors would like to

thank Bruno Mirbach, Frederic Grandidier and Fred-

eric Garcia for their support. This work was partially

funded by the German BMBF project VIDETE under

grant agreement number (01|W18002).

REFERENCES

Ahn, B., Choi, D.-G., Park, J., and Kweon, I. S. (2018).

Real-time head pose estimation using multi-task deep

neural network. Robotics and Autonomous Systems,

103:1 – 12.

Ahn, B., Park, J., and Kweon, I. S. (2015). Real-time head

orientation from a monocular camera using deep neu-

ral network. In Cremers, D., Reid, I., Saito, H., and

Yang, M.-H., editors, Computer Vision – ACCV 2014,

pages 82–96, Cham. Springer International Publish-

ing.

Baltrusaitis, T., Zadeh, A., Lim, Y. C., and Morency,

L. (2018). Openface 2.0: Facial behavior analysis

toolkit. In 2018 13th IEEE International Conference

on Automatic Face Gesture Recognition (FG 2018),

pages 59–66.

Barros, J. M. D., Mirbach, B., Garcia, F., Varanasi, K., and

Stricker, D. (2018). Fusion of keypoint tracking and

facial landmark detection for real-time head pose esti-

mation. In 2018 IEEE Winter Conference on Applica-

tions of Computer Vision (WACV), pages 2028–2037.

Borghi, G., Fabbri, M., Vezzani, R., Cucchiara, R., et al.

(2018). Face-from-depth for head pose estimation on

depth images. IEEE transactions on pattern analysis

and machine intelligence.

Borghi, G., Venturelli, M., Vezzani, R., and Cucchiara, R.

(2017). Poseidon: Face-from-depth for driver pose

estimation. In The IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR).

Fanelli, G., Gall, J., and Van Gool, L. (2011). Real time

head pose estimation with random regression forests.

In CVPR 2011, pages 617–624. IEEE.

Meyer, G. P., Gupta, S., Frosio, I., Reddy, D., and Kautz, J.

(2015). Robust model-based 3d head pose estimation.

In Proceedings of the IEEE International Conference

on Computer Vision, pages 3649–3657.

Papazov, C., Marks, T. K., and Jones, M. (2015). Real-time

3d head pose and facial landmark estimation from

depth images using triangular surface patch features.

In The IEEE Conference on Computer Vision and Pat-

tern Recognition (CVPR).

Ranjan, R., Patel, V. M., and Chellappa, R. (2019). Hy-

perface: A deep multi-task learning framework for

face detection, landmark localization, pose estimation,

and gender recognition. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 41(1):121–135.

Schwarz, A., Haurilet, M., Martinez, M., and Stiefelhagen,

R. (2017). Driveahead-a large-scale driver head pose

dataset. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 1–10.

Tsai, R. Y. and Lenz, R. K. (1989). A new technique for

fully autonomous and efﬁcient 3d robotics hand/eye

calibration. IEEE Transactions on Robotics and Au-

tomation, 5(3):345–358.

Zhang, X., Sugano, Y., Fritz, M., and Bulling, A. (2015).

Appearance-based gaze estimation in the wild. In

Proc. of the IEEE Conference on Computer Vision and

Pattern Recognition (CVPR), pages 4511–4520.

VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications

606
