Pitching Classification and Habit Detection by V-Net
Sota Kato and Kazuhiro Hotta
Meijo University, 1-501 Shiogamaguchi, Tempaku-ku, Nagoya 468-8502, Japan
Keywords: Habit Detection, Video Classification, Pitching Classification, V-Net, Grad-CAM.
Abstract: In this paper, we propose a method that is classified pitching motions using deep learning and detected the
habits of pitching. In image classification, there is a method called Grad-CAM to visualize the location related
to classification. However, it is difficult to apply the Grad-CAM to conventional video classification methods
using 3D-Convolution. To solve this problem, we propose a video classification method based on V-Net. By
reconstructing input video, it is possible to visualize the frame and location related to classification result
based on Grad-CAM. In addition, we improved the classification accuracy in comparison with conventional
methods using 3D-Convolution and reconstruction. From experimental results, we confirmed the
effectiveness of our method.
1 INTRODUCTION
In recent years, the field of image recognition has
greatly developed, and it is expected the practical use
in various tasks such as automatic operation and
factory automation. Such technologies can also be
applied to the analysis of detailed human movements.
The purpose of this paper is to classify pitching
motions using deep learning and to visualize their
habits, and to realize objective judgments rather than
human subjective judgments.
In order to analyse human motion, it is important
to visualize the reason why learning judged. In deep
learning, there is Grad-CAM (R.R. Selvaraju and M.
Cogswell, 2017)
which is a method for visualizing the
important location for classification. Grad-CAM is
often used in still image classification. However,
since video classification includes frames, Grad-
CAM is not useful for video classification because
only important location in all frames is obtained. We
want to know both important frame and location in a
video. For this reason, it is difficult to apply Grad-
CAM to conventional video classification methods.
To address the problem, we propose a video
classification method using V-Net (F. Milletari and
N. Navab, 2016
). The number of channels at final
layer in V-net can be the same number of frames as
an input video, so it is possible to visualize the
important frame and location with some devices. In
addition, the input video is reconstructed from the
output of V-Net.

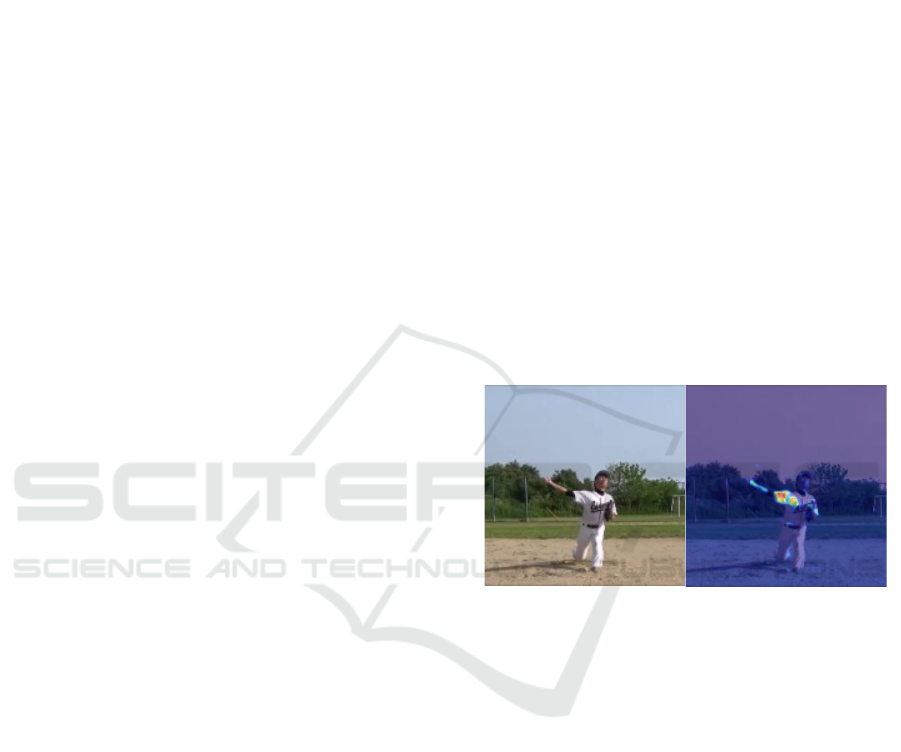

Figure 1: Example of habit detection. Left shows an input
image and right shows the result of habit detection.
Figure 1 shows the example of visualization. In
experiments, we classify the pitching of three types of
balls. If a video is classified well, we visualize the
reason why V-Net classified the video into the class.
The important location and frame are related to the
habit of pitching of the person. As a result of
classification of three kinds of pitching motions using
V-Net, we achieved higher classification accuracy
than 3D-Resnet (S. Ji, W. Xu, 2013
) which has been
used in conventional video classification. In addition,
from the result of visualization, we confirmed that
CNN can detect important frame and location for
classification.
The organization of this paper is as follows. First,
section 2 describes related works. Section 3 explains
the proposed method. Section 4 describes the details
of data. Section 5 shows experimental results. Finally,
in section 6, we describe the conclusion and future
works.
Kato, S. and Hotta, K.
Pitching Classification and Habit Detection by V-Net.
DOI: 10.5220/0009347106150621
In Proceedings of the 15th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2020) - Volume 4: VISAPP, pages
615-621
ISBN: 978-989-758-402-2; ISSN: 2184-4321
Copyright
c
 2022 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
615

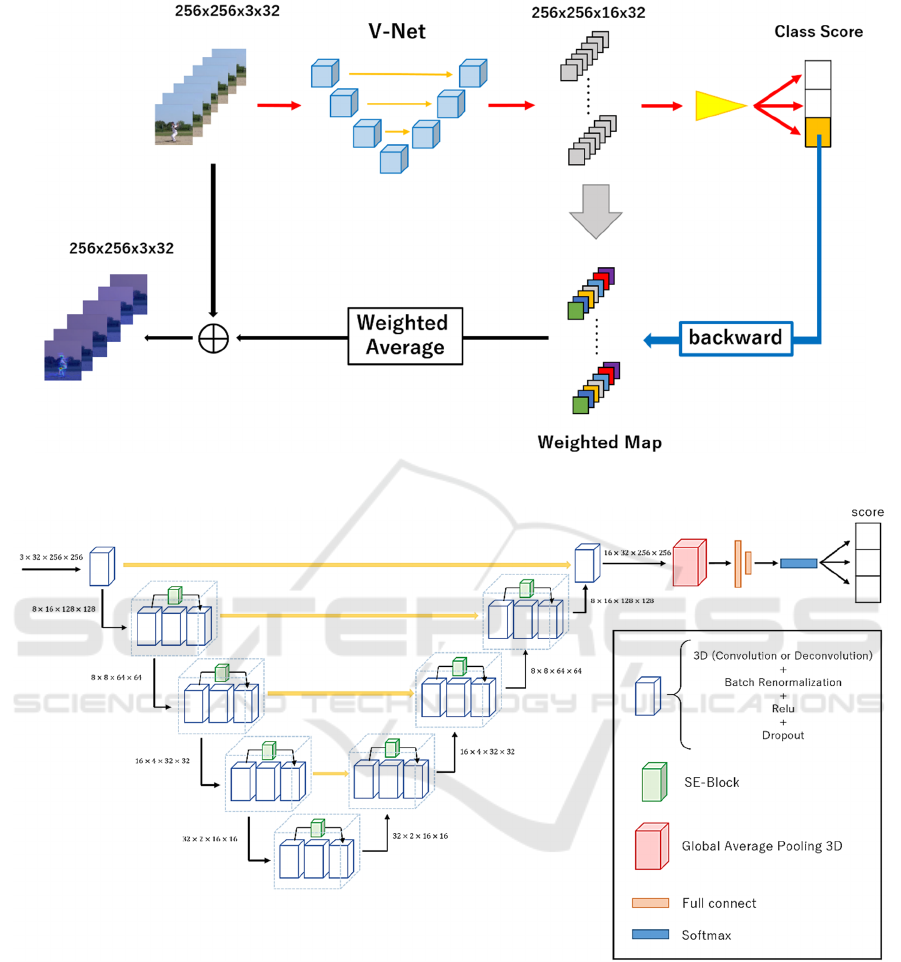

Figure 2: Overview of our proposed method.
Figure 3: Network architecture of V-Net.
2 RELATED WORKS
2.1 Video Classification Method
In conventional video recognition methods, feature
points such as STIP (Space-Time Interest Points) (I.
Laptev and T. Lindeberg, 2003
) and DT (Dense
Trajectories) (H. Wang and A. Klaser, 2011
) were
used. Therefore, video classification methods using
CNN are the trend (D. Tran1 and L. Bourdev, 2015)
(S. Ji and W. Xu, 2013). Among them, the video
recognition methods using 3D-convolution is paid
attention because 2D-convolution cannot extract
sequential features. Higher accuracy is achieved by
CNN with 3D-convolution. One of the representative
video classification method using 3D-convolution is
3D-Resnet (S. Ji and W. Xu, 2013). 3D-Resnet is the
extended version of Resnet for 2D-images (K. He and
VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications
616

X. Zhang, 2017 ) , and it is greatly improved by using
recent huge video databases.
2.2 V-Net
V-Net is a segmentation method for volumetric
medical images. U-Net (O. Ronneberger and P.
Fischer, 2015
) is the famous method for segmentation
of 2D images. V-net is the extended version of U-net
and it used 3D-Convolution to extract volumetric
features. It was proposed as a segmentation method
for volumetric images, but here we use it to classify
pitching motions. Thus, the number of frames in the
final output of V-net is set to the same frames as an
input video. There is the possibility to visualize both
important frame and location in a video.
2.3 Grad-CAM
Grad-CAM is a method that can visualize the location
related to classification result. Conventional
visualization methods for deep learning are guided
backpropagation (R.R. Selvaraju and M. Cogswell,
2017
) and deconvolution (M. D. Zeiler and R. Fergus,
2014
) but these methods visualize and emphasize the
part that reacted in image. They are not the part that
contributed to classification.
Grad-CAM is improved the problem and
visualized locations that have a large influence on the
probability score of each class using the weighted
average of feature maps. The weight is a coefficient
that expresses the magnitude of the change that
occurs in the probability score when a small change
is made to a certain image location in the feature map.
In other words, an image location with a large effect
on class judgment has a probability score. The
derivative of it is also large.
Equation (1) is the weight for the k-th filter of
class 𝐜. The probability score 𝒚
𝒄
of class 𝐜 is
differentiated with respect to the value 𝑨
𝒊𝒋
𝒌
of pixel (i,
j) in the k-th feature map, and the gradient is obtained.
We averaged each feature map over all pixels. The
larger the weight, the more important the feature map
𝑨
𝒌
for class c. In equation (2), the weighted average
of the k-th filter is calculated in equation (1), and the
output of ReLU function (max{x,0}) is the heat map.
By taking the average of the slopes in equation (1), it
is possible to clearly differences between classes.
𝑎



1
𝑧

𝜕𝑦

𝜕
𝐴



(1)

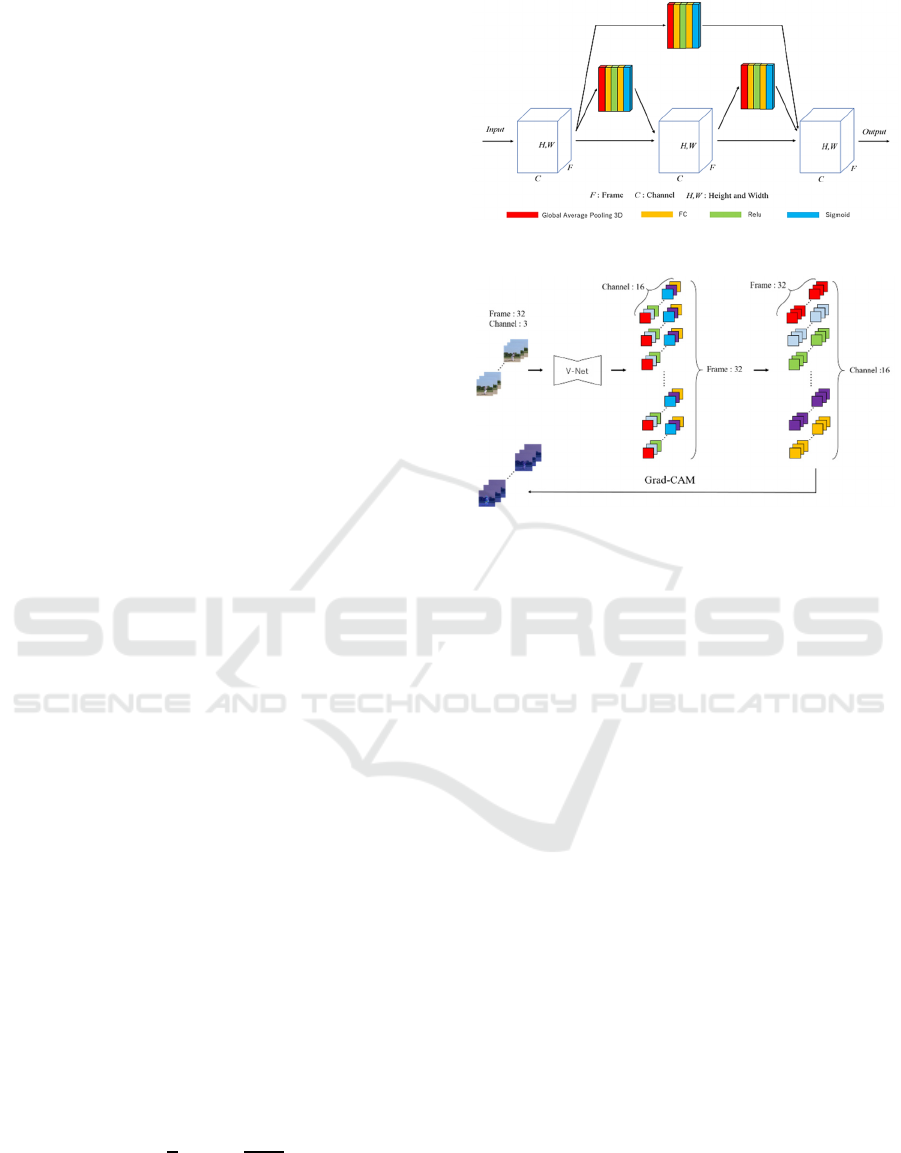

Figure 4: Architecture of SE-block.
Figure 5: How to detect habit of pitching.
𝐺𝑟𝑎𝑑𝐶𝐴𝑀𝑅𝑒𝐿𝑈

𝑎


𝐴



(2)
Grad-CAM is effective for visualization of CNN
for 2-D images. It is not applicable for video
classification because Grad-CAM visualizes only
important location in an image. Since we want to
know both important frame and location in a video.
Thus, we use the V-net so that the number of outputs
corresponds to the number of input frames. However,
there is no guaranty that frames at final layer
correspond to the frames on input video. Thus, we use
reconstruction between the output and input frames.
After those devices, we apply Grad-CAM to visualize
the habit of pitching.
3 PROPOSED METHOD
Figure 2 shows the overview of our proposed method.
An input video of 256×256 pixels and 32 frames is
fed into the V-Net. As described previously, the
number of channels of output layer is set to the same
number of frames in an input video. Concretely, the
output of V-Net is 256×256 pixels and 32 frames
which is the same as the input video. In addition, the
reconstruction is performed between the output layer
Pitching Classification and Habit Detection by V-Net
617

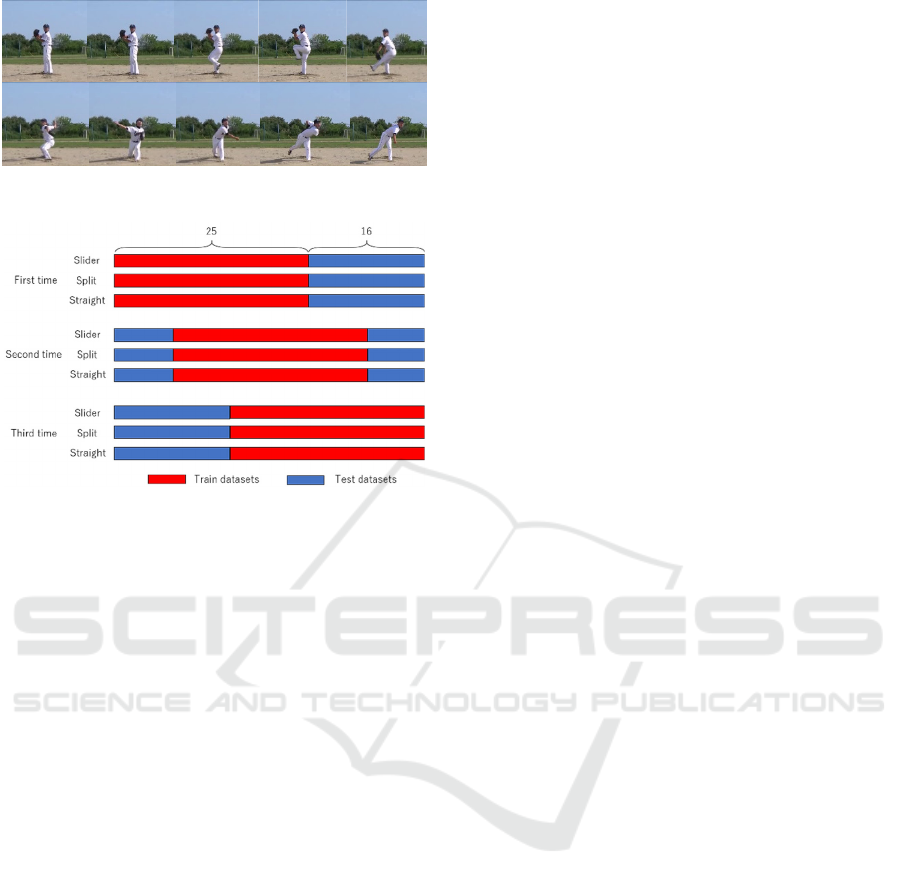

Figure 6: Example of throwing video frame.
Figure 7: Cross Validation method.
and input frames in order to detect frame and location
related to classification.
To classify the input video, global average pooling
and fully connection layer are used. The highest
probability of output is backward to V-Net and is
calculated important features affected final
probability score. Grad-CAM is generally used final
convolution features of classification network and
generated visualize heat map using these features.
Similarly, we used final convolution features of the
V-Net.
3.1 Details of Network Architecture
Figure 3 shows the details of the V-Net we used. V-
Net consists of 7 blocks. In the encoder part, 3D-
convolution, batch renormalization (S. Ioffe, 2017
) ,
Relu function and dropout are used three times for
one block. The same processing is used in the decoder
part as the encoder.
In addition, SE-block (J. Hu and L. Shen, 2018
) is
added to all blocks. Figure 4 shows the configuration
of the SE-block. SE-block is composed of global
average pooling (
M. Lin and Q. Chen, 2014) , fully
connect layer, Relu and sigmoid functions. SE-block
is a kind of channel attention. By assigning weights
to each channel, the classification accuracy can be
improved.
We use 3D-global average pooling (
M. Lin and Q.
Chen, 2014)
whose size is 16×16×16 to reduce the
dimension. The averaged features are fed into 2 fully
connection layers and to output three classes.
We used softmax cross entropy loss for
classification and mean least squares loss for
reconstruction. Reconstruction is expected to make
the outputs of V-net correspond to input frames. The
equation of softmax cross entropy loss is shown in
equation (3), and the equation for reconstruction loss
is shown in equation (4). 𝑃

𝑥

is the correct label,
𝑞

𝑥

is the probability by softmax function, 𝑥

is the
input frame and 𝑥

𝑥


is the predicted value. The
final loss function is equation (5).
𝐶𝑟𝑜𝑠𝑠 𝑒𝑛𝑡𝑟𝑜𝑝𝑦 𝑙𝑜𝑠𝑠 𝑝

𝑥

log𝑞

𝑥


(3)
𝑅𝑒𝑐𝑜𝑛𝑠𝑡𝑟𝑢𝑐𝑡𝑖𝑜𝑛 𝑙𝑜𝑠𝑠 
‖
𝑥

𝑥

𝑥

‖



(4)
𝐿𝑜𝑠𝑠𝐶𝑟𝑜𝑠𝑠 𝑒𝑛𝑡𝑟𝑜𝑝𝑦 𝑙𝑜𝑠𝑠 𝑅𝑒𝑐𝑜𝑛𝑠𝑡𝑟𝑢𝑐𝑡𝑖𝑜𝑛 𝑙𝑜𝑠𝑠
(5)
3.2 Habit Detection
Figure 5 shows how to detect the habit of pitching by
our method. The output of our V-Net is channel×
frame×size (height and width). Since Grad-CAM is
calculated by the weighted sum of each channel, we
cannot use Grad-CAM directly. Therefore, the same
channel which corresponds to each frame is collected
by switching channels and frames as shown in Figure
5. For example, the feature map which corresponds to
the first frame is shown as red. By using 3D-
convolution, some feature maps are obtained, and the
feature maps which correspond to the first frame are
concatenated as shown in Figure 5. Then we can
apply Grad-CAM to the feature maps, and the habit
of pitching is detected.
4 DATASET AND EVALUATION
METHOD
A baseball player throws three types of balls; straight,
slider, and split. We captured videos of it with a fixed
camera. Figure 6 shows the example of the pitching
videos. The video size is 256×256 pixels, and the
number of frames is 32 frames. 41 videos are captured
for each ball type. 25 videos are used for training and
16 videos are used for test.
In experiments, we evaluate our method using
cross validation. Figure 7 shows Cross Validation we
used. Training data and test data were randomly
divided. Experiments are performed three times, and
VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications
618

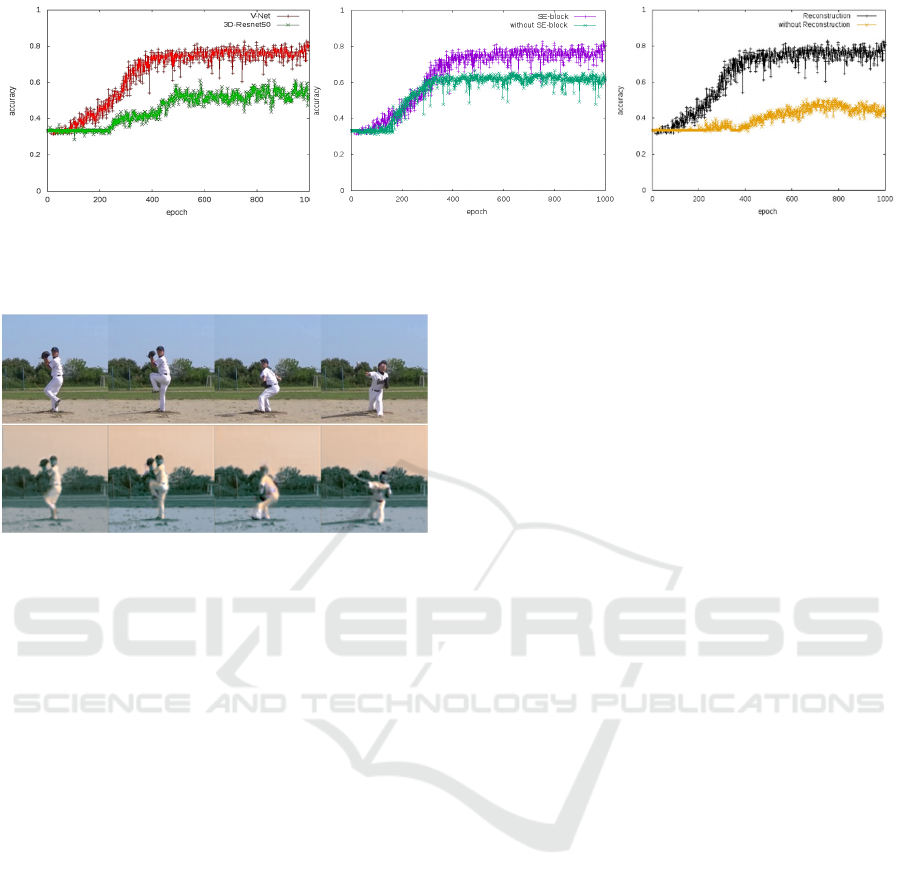

Figure 8: Results of cross validation. Left column shows the comparison between conventional method (3D-Resnet50) and
proposed method (V-Net), Middle column shows the comparison our method with/without SE-block, and right column shows
the comparison between our method with/without reconstruction loss.
Figure 9: Input frame (top) and reconstructed image
(bottom).
the average accuracy is used as evaluation measure.
3D-Resnet50 (S. Ji and W. Xu, 2013) which is the
famous video classification method is also evaluated
as a comparison. We trained our method and
comparison method with full scratch manner.
5 EXPERIMENTS
Figure 8 shows the graphs of classification accuracy.
The left column shows the comparison between the
conventional 3D-Resnet50 and our proposed method
with SE-block and reconstruction. The red line shows
the proposed method, and green line shows 3D-
Resnet50. This graph shows that the proposed method
improved more than 20% in comparison with the
conventional 3D-Resnet50. The number of
convolutions used in 3D-Renet is 50 layers, but our
proposed method is used only 23 convolutional layers.
The size of proposed network is about half in
comparison with 3D-Resnet. Our proposed method
gave better accuracy with a small number of
convolutional layers.
The middle column shows the comparison between
our proposed method with/without SE-block. Purple
line is our method with SE-block and green line is our
method without SE-block. From the graph, we
confirmed that SE-block improved the accuracy
about 20%. The channel attention also works well in
video classification with 3D-convolution.
The graph on the right column shows the
comparison between our method with/without
reconstruction loss. The black line shows our method
with reconstruction loss and yellow line shows our
method without reconstruction loss. From the graph,
we can see that the accuracy is improved about 40%
by using reconstruction loss because relationship
between frames is consistent by reconstruction loss.
Figure 9 shows the example of reconstructed images
by the proposed method. We confirmed that
reconstructed images correspond to each frame.
Figure 10 shows the visualization results of the
important frame and location for classification. Red
shows the most important for classification and blue
shows unimportant. In the correct slider class, habit is
detected at pitcher's left foot, left hand, and right
elbow when he releases a ball. In the split class, the
habit is around the left hand glove. The habit of
straight class focuses on his back and the right arm
during takeback. From these results, we see that three
ball types are classified by looking at different places.
Figure 11 shows the visualization results when
our method miss-classified. Top row shows the case
that the correct class is slider but the video is miss-
classified into split. We see that heat map responds
strongly to the left hand glove that reacts to the split.
Bottom row shows the case that the correct class is
split but our method miss-classified into straight. We
see that it reacts to the back reacting to straight and
the right hand during takeback. From the result of
visualization, we confirmed that our method focused
on the important part to classify each ball type in the
case of miss-classification.
Pitching Classification and Habit Detection by V-Net
619

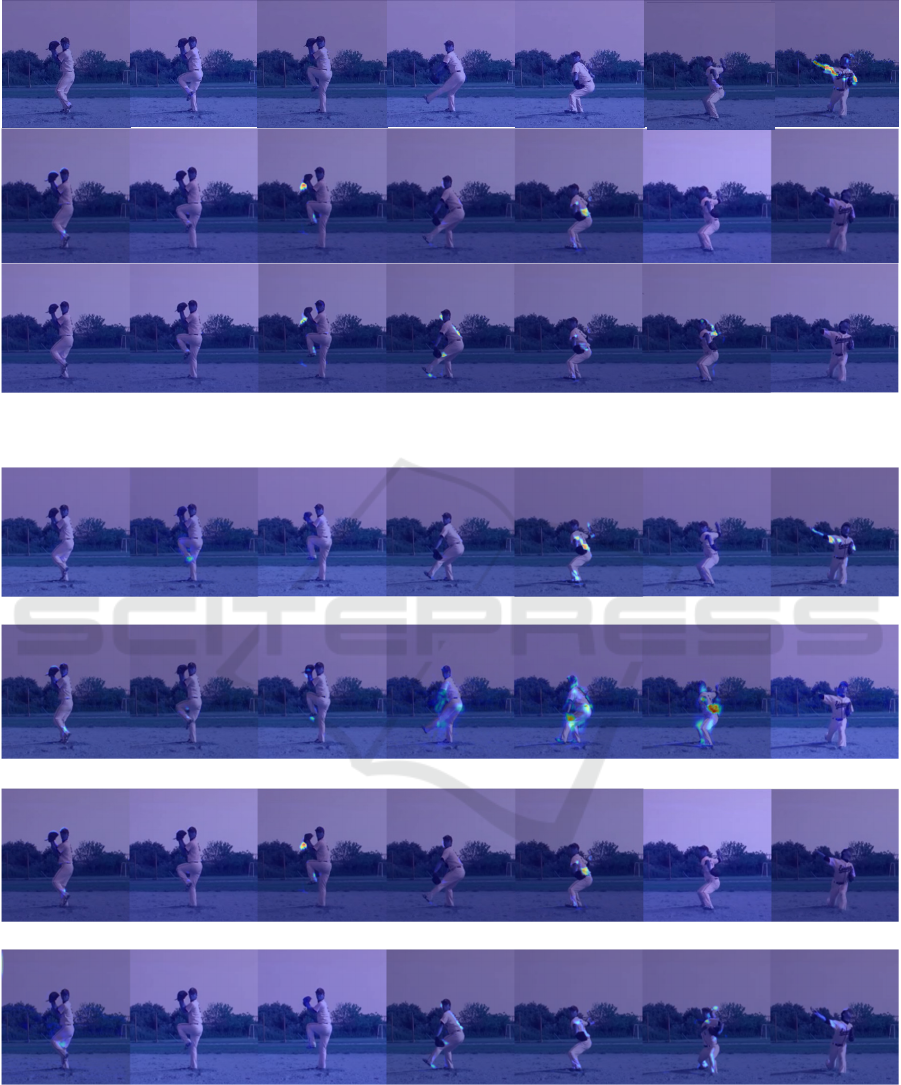

Figure 10: Results of habit detection. From top to bottom shows slider, split and straight. The same frames are shown among
three classes.
(1a)
(1b)
(2a)
(2b)
Figure 11: Visualized results of the videos when our method miss-classified. (1a) V-Net predicted slider correctly (1b) V-Net
predicted split though correct class is slider, (2a) V-Net predicted split correctly (2b) V-Net predicted straight though correct
class is split.
VISAPP 2020 - 15th International Conference on Computer Vision Theory and Applications
620

6 CONCLUSION
In this paper, we proposed pitching classification
method using V-Net with reconstruction, and habit
detection is performed based on Grad-CAM. It can
provide higher accuracy than the conventional video
classification method by using reconstruction and SE-
block. By using our proposed method, we can
understand important movements. Thus, our method
will be useful to the analysis of human movements.
However, some results of habit detection include
an ambiguous heat map or a blurred heat map. Since
the improved version (
A. Chattopadhyay and A. Sarkar,
2018)
of Grad-CAM has been proposed, we would
like to try it in the future to make visualized images
clearer. Furthermore, we would like to confirm the
effectiveness of the proposed method by applying our
method to other video classification datasets.
REFERENCES
R. R. Selvaraju, M. Cogswell, A. Das, R. Vedantam, D.
Parikh, D. Batra, “Grad-CAM: Visual Explanations
From Deep Networks via Gradient-Based
Localization”, In Proc. International Conference on
Computer Vision, pp. 618-626, 2017.
F. Milletari, N. Navab, S.A. Ahmadi, “V-Net: Fully
Convolutional Neural Networks for Volumetric
Medical Image Segmentation”, In Proc. International
Conference on 3D Vision, pp. 565-571, 2016.
I. Laptev, T. Lindeberg, “Space-Time Interest Points”, In
Proc. International Conference on Computer Vision,
pp.432-439, 2003.
H. Wang, A. Klaser, C. Schmid, C.L. Liu, “Action
recognition by dense trajectories”, In Proc. IEEE
Conference on Computer Vision and Patern
Recognition, pp.3169-3176, 2011.
D. Tran1, L. Bourdev, R. Fergus, L. Torresani, M. Paluri1,
“Learning Spatiotemporal Features with 3D
Convolutional Networks”, In Proc. International
Conference on Computer Vision, pp.4489-4497, 2015.
S. Ji, W. Xu, M. Yang, K. Yu, “3D Convolutional Neural
Networks for Human Action Recognition”, IEEE
Transactions on Pattern Analysis and Machine
Intelligence, Volume, Vol.35, pp.221-231, 2013.
K. He, X. Zhang, S. Ren, J. Sun. Deep Residual Learning
for Image Recognition. In Proc. Computer Vision and
Pattern Recognition, pp.770-778, 2016.
O. Ronneberger, P. Fischer, T. Brox, “U-Net:
Convolutional Networks for Biomedical Image
Segmentation”, In Proc. Medical Image Computing and
Computer-Assisted Intervention, pp.234-241, 2015.
M. D. Zeiler R. Fergus, “Visualizing and understanding
convolutional networks”, In Proc. European
Conference on Computer Vision, pp.818-833, 2014.
S. Ioffe, “Batch renormalization: Towards reducing
minibatch dependence in batch-normalized models”, In
Proc. Neural Information Processing Systems, pp.1942-
1950, 2017.
J. Hu, L. Shen, G. Sun, “Squeeze-and-Excitation
Networks”, In Proc. IEEE Conference on Computer
Vision and Pattern Recognition, pp.7132-7141, 2018.
M. Lin, Q. Chen, S. Yan, “Network in network,” In Proc.
International Conference on Learning Representations,
2014.
A. Chattopadhyay, A. Sarkar, P. Howlader,
V.N.Balasubramanian, “Grad-CAM++: Generalized
Gradient-Based Visual Explanations for Deep
Convolutional Networks”, In Proc. Winter Conference
on Applications of Computer Vision, 2018.
Pitching Classification and Habit Detection by V-Net
621
