Anonymisation and Compliance to Protection Data:

Impacts and Challenges into Big Data

Artur Potiguara Carvalho

1 a

, Edna Dias Canedo

1,2 b

, Fernanda Potiguara Carvalho

3 c

and Pedro Henrique Potiguara Carvalho

Electrical Engineering Department (ENE), University of Bras

ılia (UnB), P.O. Box 4466, Bras

ılia - DF, Brazil

Department of Computer Science, University of Bras

ılia (UnB), P.O. Box 4466, Bras

ılia - DF, Brazil

Law School (FD), University of Bras

ılia (UnB), Bras

ılia - DF, Brazil

Keywords:

Anonymisation, Big Data, Privacy, Governance, Compliance.

Abstract:

Nowadays, in the age of Big Data, we see a growing concern about privacy. Different countries have enacted

laws and guidelines to ensure better use of data, especially personal data. Both the General Data Protection

Regulation (GDPR) in the EU and the Brazilian General Data Protection Law (LGPD) outline anonymisation

techniques as a tool to ensure the safe use of such data. However, the expectations placed on this tool must be

reconsidered according to the risks and limits of its use. We discussed whether anonymity used exclusively can

meet the demands of Big Data and, at the same time, the demands of privacy and security. We have concluded

that, albeit anonymised, the massive use of data must respect good governance practices to preserve personal

privacy. In this sense, we point out some guidelines for the use of anonymised data in the context of Big Data.

1 INTRODUCTION

News about leakage of personal information on Social

Network websites is almost an every day occurrence

nowadays (Mehmood et al., 2016; Joyce, 2017). In

this era of Big Data, one of the most widely discussed

issues is privacy and protection of personal data (Liu,

2015; Lanying et al., 2015; Dalla Favera and da Silva,

2016; Ryan and Brinkley, 2017; Casanovas et al.,

2017; Popovich et al., 2017; Pomares-Quimbaya

et al., 2019; Huth et al., 2019). This is a concern

worldwide, which highlights the need for reﬂection

and solutions in areas such as law, governance, and

technology structure.

In this context, several countries have sought

strategies to preserve privacy and guide the use of

Big Data. Big Data (BD) is a massive data process-

ing technology (De Mauro et al., 2016), which often

includes all kinds of personal data, while not pro-

viding clear guidelines on how to store them. This

method of aggregation impacts data protection di-

rectly (Brkan, 2019; Mustafa et al., 2019; Koutli et al.,

https://orcid.org/0000-0001-7463-1487

https://orcid.org/0000-0002-2159-339X

https://orcid.org/0000-0003-4934-5176

https://orcid.org/0000-0002-0110-4069

2019; Fothergill et al., 2019; Pomares-Quimbaya

et al., 2019). Because of this, “data minimisation” has

been presented as a guiding principle of the regulation

of such software.

In the European context, that expression is men-

tioned in the General Data Protection Regulation

(GDPR), Article 5(1)(c)(Regulation, 2018), which

posits personal data shall be: “adequate, relevant and

limited to what is necessary in relation to the purposes

for which they are processed” (‘data minimisation’).

Also, the Brazilian General Data Protection Law

(LGPD), contains similar wording in its article 6

(da Rep

ublica, 2018), that providing the “principle

of necessity”. Under this principle, data process-

ing should be limited to the minimum necessary to

achieve its purposes, using only data that is relevant,

proportionate and not excessive to the purposes of the

processing.

Underlying these legal structures, Data Gover-

nance (DG) has been used to foster standardization of

and quality control in internal data management. To

accomplish this, “data minimisation” has been pro-

posed as a way to rationalize otherwise costly and

expansive DG (Fothergill et al., 2019; Ventura and

Coeli, 2018). In this scenario, compliance with these

legal and governance structures has become a guar-

Carvalho, A., Canedo, E., Carvalho, F. and Carvalho, P.

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data.

DOI: 10.5220/0009411100310041

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 31-41

ISBN: 978-989-758-423-7

antee of the viability of BD tools in a society in-

creasingly concerned about data protection (Brkan,

2019; Casanovas et al., 2017; Huth et al., 2019). The

challenge is to conciliate Personal Data Regulations

(PDR) and BD mechanisms, mitigating friction be-

tween companies and governments.

In this paper, we investigate an important tool

for the compliance of BD mechanisms with PDR:

anonymisation

techniques. These are important be-

cause once anonymised, these data are exempt from

the requirements of PDR, including the principle of

“data minimisation” (Regulation, 2018).

To guide this work, we present the BACK-

GROUND exploring the limits of expectations placed

upon this tool. The question is whether anonymisa-

tion used exclusively can meet the demands of the two

apparently opposing systems, in example, demands

presented by both PDR and the BD. The justiﬁcation,

about the choice of the problem in focus, is speci-

ﬁed by pointing the difﬁculties of conceptualizing the

term. In this moment, an overview of the academy’s

work in the area is presented. We strive to counter-

balance the advantages and risks of using anonymi-

sation as a form of compliance. We raised the hy-

pothesis that, although anonymisation is an important

tool to increase data protection, it needs to be used

with assistance from other mechanisms developed by

compliance-oriented governance.

The main goal is to present anonymisation risks in

order to promote better use of this tool to privacy pro-

tections and BD demands. In section Related Work,

we raise the main bibliographical references for the

subject. We point out as a research method the liter-

ature review and the study of a hypothetical case. In

section Related Work, we bring the results obtained

so far, which been compared, when we bring a brief

discussion about areas prominence and limitations of

this work.

We conclude that it is not possible to complete BD

compliance with PDR and privacy protection exclu-

sively by anonymisation tools (Brasher, 2018; Ryan

and Brinkley, 2017; Casanovas et al., 2017; Ventura

and Coeli, 2018; Domingo-Ferrer, 2019). To solve

this problem we aim to conduct future research about

frameworks that can promote good practices that, as-

sociated with anonymisation mechanisms, can secure

data protection in BD environments.

The term is spelled with two variants: “anonymisa-

tion”, used in the European context; or “anonymization”

used in the US context. We adopt in this article the Euro-

pean variant because the work uses the GDPR (Regulation,

2018) as reference.

2 BACKGROUND

Many organizations have considered anonymisation

through BD to be the miraculous solution that will

solve all data protection and privacy issues. This be-

lief, which has been codiﬁed in European and Brazil-

ian regulations, undermines an efﬁcient review of or-

ganisations’ data protection processes and policies

(Brasher, 2018; Dalla Favera and da Silva, 2016;

Ryan and Brinkley, 2017; Casanovas et al., 2017;

Popovich et al., 2017). For this, in this work we in-

vestigate the following research question:

RQ.1 Is anonymisation sufﬁcient to conciliate Big

Data compliance with Personal Data Regulations

and data privacy at large?

In order to answer RQ.1, the concept of anonymi-

sation, its mechanisms, and legal treatment must be

highlighted. The text preceding the articles of Reg-

ulation, pertaining to the European Economic Area,

guides the anonymisation is point 26 (Regulation,

2018). It states that the “principles of data protection

should apply to any information concerning an iden-

tiﬁed or identiﬁable natural person”. Therefore, the

principles are not applied to anonymous data, namely,

“to personal data rendered anonymous in such a man-

ner that the data subject is not or no longer identiﬁ-

able.”

The LGPD contains a similar exclusion in its Ar-

ticle 12 (da Rep

ublica, 2018). Regulators conclude

that, once anonymous, information cannot violate pri-

vacy, because data can no longer be linked to an iden-

tiﬁed or identiﬁable person. However, this premise

implies some challenges. First, the data can be con-

sidered personal even though it is not possible to

know the name of the person to whom the data refers.

This is because the name is just one way to identify

a person, which makes it possible to re-identify data

when a personal, nameless proﬁle is provided.

Second, in a BD context, precisely because it

deals with massive data, connecting information be-

comes extremely easy, even when it comes to meta-

data or data fragments. Thus, some easy anonymi-

sation techniques, such as masking, can be effec-

tive in closed and smaller databases, but not in BD

(Pomares-Quimbaya et al., 2019).

Besides, techniques such as inference are more

easily applicable in BD contexts. Inference is one of

the techniques where information, although not ex-

plicit, can be assumed through the available data. An-

alyzing the propositional logic, we can say that there

is inference when three propositions A, B and C re-

spect the following equations:

A ⇒ B (1)

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

B ⇒ C (2)

so,

A ⇒ C (3)

In a example (using a Shapiro’s CarPool World

(Shapiro, 1995)) if A is ”Betty is a driver”, B is ”Tom

is a passenger” and C is ”Betty drives Tom”, we can

say by inference that every time that Betty is a driver

and Tom is the passenger, Betty drives Tom (equation

3).

In this sense, it is possible to emphasize that,

when techniques such as inference are considered,

anonymisation projects in a BD context become even

more vulnerable, making data normally considered

auxiliary to indicate personal data.

For those reasons, PDR speciﬁes assumptions

about what is considered identiﬁed or identiﬁable

data. The introduction to GDPR states, in point 26

(Regulation, 2018), that to determine whether an in-

dividual is identiﬁed or identiﬁable, all reasonable

means must be taken into account, namely, “all ob-

jective factors such as costs and the amount of time

required must be considered for identiﬁcation, tak-

ing into account the technology available at the time

of processing and technological developments”. We

could highlight this classiﬁcation as a third point of

concern, since the text assumes that, in massive con-

texts, data identiﬁcation is possible, depending on the

effort employed to re-identify it.

The fourth point of concern would be the difﬁcul-

ties of determining the anonymity of a certain piece

of, as this identiﬁcation will depend on criteria that,

although speciﬁed by law, will change according to

technical advances or even by the speciﬁc analysis

conditions. This causes constant uncertainty regard-

ing anonymisation.

These four concerns converge to the point that it

is not possible to sustain the unexamined belief in

anonymisation as a sureﬁre way of ensuring privacy

in BD contexts, which leads us to the hypothesis of

the present paper. As noted, anonymisation in BD

involves risks, especially to user privacy. Therefore,

we argue that anonymisation should be used with

the assistance of other privacy mechanisms, so as to

better manage this data. Considering this, we can

deﬁne the hypothesis of this research as follows:

HP.1 BD compliance with the PDR and data pri-

vacy cannot be achieved solely by anonymisa-

tion tools.

This does not mean that anonymity is a useless tool.

Instead, it is an excellent ally when using BD plat-

forms as it is one of the most powerful privacy protec-

tion techniques. The point, however, is that it is not

possible to rely solely on this technique, leaving aside

the use of privacy-oriented governance. This means

that to some extent BD must also adapt to privacy, ei-

ther by increasing data capture criteria in the sense of

minimization or by strengthening the governance of

such data, even if anonymised.

The Main Goal of this paper is to present

anonymisation risks and promote the better use of this

tool for BD and the necessary privacy protection. We

intend to expose privacy threats related to the use of

anonymisation as an alternative to PDR enforcement.

Therefore, we point out that anonymity tools should

follow the protection guidelines to foster privacy.

As a research method, we use literature review,

exploring the evolution of the concept, classiﬁcation,

demands, improvements on anonymity. To demon-

strate the weaknesses of the tool we present a hypo-

thetical case study. Random anonymous data were

organized within a BD platform and analyzed with

basic data from a speciﬁc database structure. Thus,

although the data were anonymised in relation to the

platform itself, they could be re-identiﬁed when ex-

posed to external data. The result of the hypothetical

case were analyzed in light of current legislation, and

will be discuss in the following sections.

To guide the consultation of PDR, in particular,

the GDPR and LGPD, follows a comparative table 1

of regulations, which will be used throughout the pa-

per.

Table 1: Comparative Table of Regulations.

Concepts GDPR LGPD

“Data min-

imization”

concept

Article 5(1)(c)

Article

6(III)

Anonimisation

concept

text preceding

the articles of

GDPR, point

26; Article

4(5)

Article

5(XI)

Personal data

concept

Article 4(1) Article 5(I)

Exclusion of

anonymous

data from

personal data

classiﬁcation

text preceding

the articles of

GDPR, point

26.

Article 12

Processing

concept

Article 4(2) Article 5(X)

Sensitive data

concept

text preceding

the articles of

GDPR, point

51.

Article

5(II), Arti-

cle 11

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data

2.1 Related Work

Back in 2015, H. Liu had already announced the chal-

lenge of managing legal frameworks, privacy protec-

tion, individual autonomy, and data applications.(Liu,

2015). In 2016, Mehmood et al. detailed a group

of methods and techniques that provides encryption

and protection to data inside BD (Mehmood et al.,

2016). In the same year, Dalla Farvera and da Silva

discuss veiled threats to data privacy in the BD era

(Dalla Favera and da Silva, 2016). Still in 2016, Lin et

al. presents a model considering differential privacy

(varying by datasets privacy loss)(Lin et al., 2016).

In 2017, Ryan and Brinkley add the vision of the

organization governance model to address the new

protection data regulations (PDR) issues (Ryan and

Brinkley, 2017). In that year, many other authors

discussed the same subject (Casanovas et al., 2017;

Popovich et al., 2017; Joyce, 2017). In 2018, Ven-

tura and Coeli introduce the concept of the right to

information in the context of personal data protec-

tion and governance(Ventura and Coeli, 2018), while

Brasher (Brasher, 2018) criticize the current process

of anonymisation in BD.

In 2019, Domingo-Ferrer (Domingo-Ferrer, 2019)

summarizes the Brashers review, mainly in BD plat-

forms, presenting the issues of anonymisation and its

speciﬁcities. Jensen et al. (Jensen et al., 2018) dis-

cuss how to realize value with BD projects and the

best practices to measure and control it. Mustafa et

al. (Mustafa et al., 2019) indicate a framework about

privacy protection for application in the health ﬁeld.

They present the threats of privacy involving medical

data in the light of regulation (GDPR).

According to Brasher (Brasher, 2018), “anonymi-

sation protects data subjects privacy by reducing the

link-ability of the data to its subjects”, which is sim-

ilar to the concept outlined by PDR. According to

this deﬁnition, it is possible to highlight two types

of data: Personally Identiﬁable Information (“PII”),

which may include the quasi-identiﬁers and contains

security liabilities concerning personal data, and Aux-

iliary Data (“AD”), which can reveal the subjects ref-

erenced. These two types of data must be handled

separately by anonymisation, according to the risks

inherent to each.

About quasi-identiﬁers, Brasher (Brasher, 2018)

describes: “non-facially identiﬁable data that can be

linked to auxiliary information to reidentify data sub-

jects”. Mehmood et al. (Mehmood et al., 2016)

complements: “The attributes that cannot uniquely

identify a record by themselves, but if linked with

some external dataset may be able to re-identify the

records.” To exemplify that description, Mehmood et

al. (Mehmood et al., 2016) show an example (Figure

1) of link quasi-identiﬁers from records of medical

application and movie reviews application:

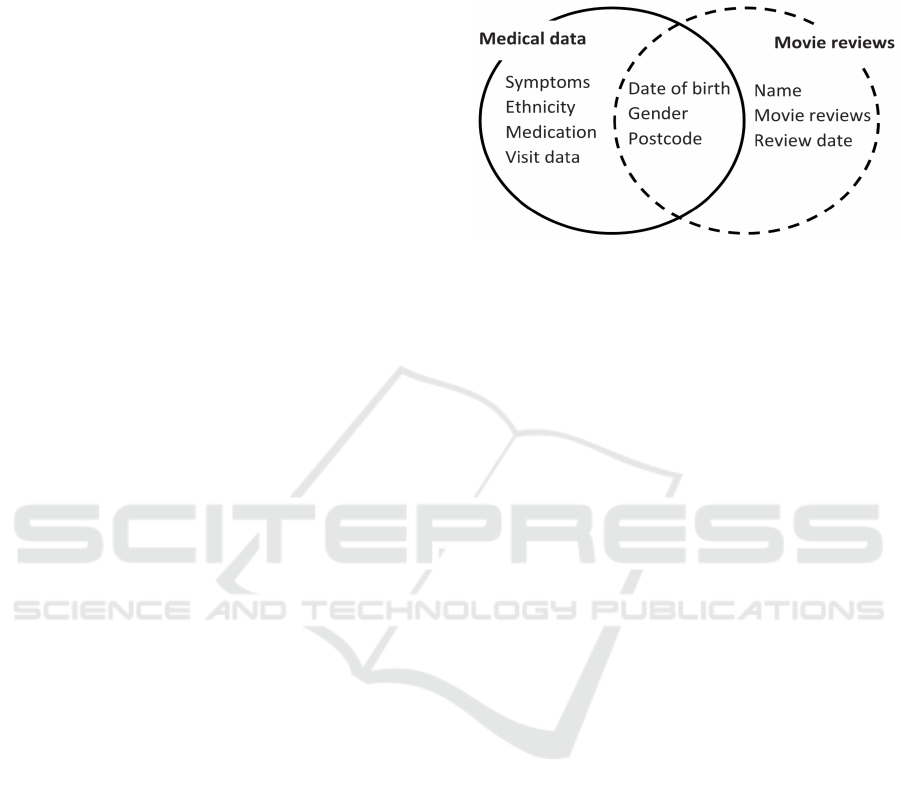

Figure 1: Quasi-Identiﬁers and Linking Records (Mehmood

et al., 2016).

Brasher’s work (Brasher, 2018) presents the ﬁve most

common anonymisation techniques: (1) Suppres-

sion, (2) Generalization, (3) Aggregation, (4) Noise

Addition, and (5) Substitution , as shown in Figure

1) Suppression is the process that excludes any PII

from the base.

2) Generalization shufﬂes PII identiﬁers, without

excluding any information, reducing their link-

ability.

3) In Aggregation, both data types (PII and AD) go

through some reducing treatment that maintains

some properties of data (average, statistical distri-

bution, or any others property) and also reduces

their link-ability.

4) Noise addition adds some non-productive data to

confuse the link between PII/AD and their sub-

jects.

5) Finally, Substitution is similar to Generalization,

while it differs in that: it shufﬂes not the identi-

ﬁer, but the value of the data itself, replacing the

original dataset with other parameters. This pro-

cess can be applied to both PII and AD (Brasher,

2018).

Mehmood et al. (Mehmood et al., 2016) also divides

the privacy protection by anonymisation in ﬁve differ-

ent operations: (1) Suppression, (2) Generalization,

(3) Permutation, (4) Perturbation, and (5) Anato-

mization, all of which correspond to the strategies

presented by (Brasher, 2018). This can be seen in Fig-

ure 2.

The Suppression (strategy 1 in Figure 2) strategy

is criticized by Domingo-Ferrer (Domingo-Ferrer,

2019). Anonymising data in BD is not enough be-

cause re-linking the deleted identiﬁers becomes triv-

ial in this massive context, especially if external data

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

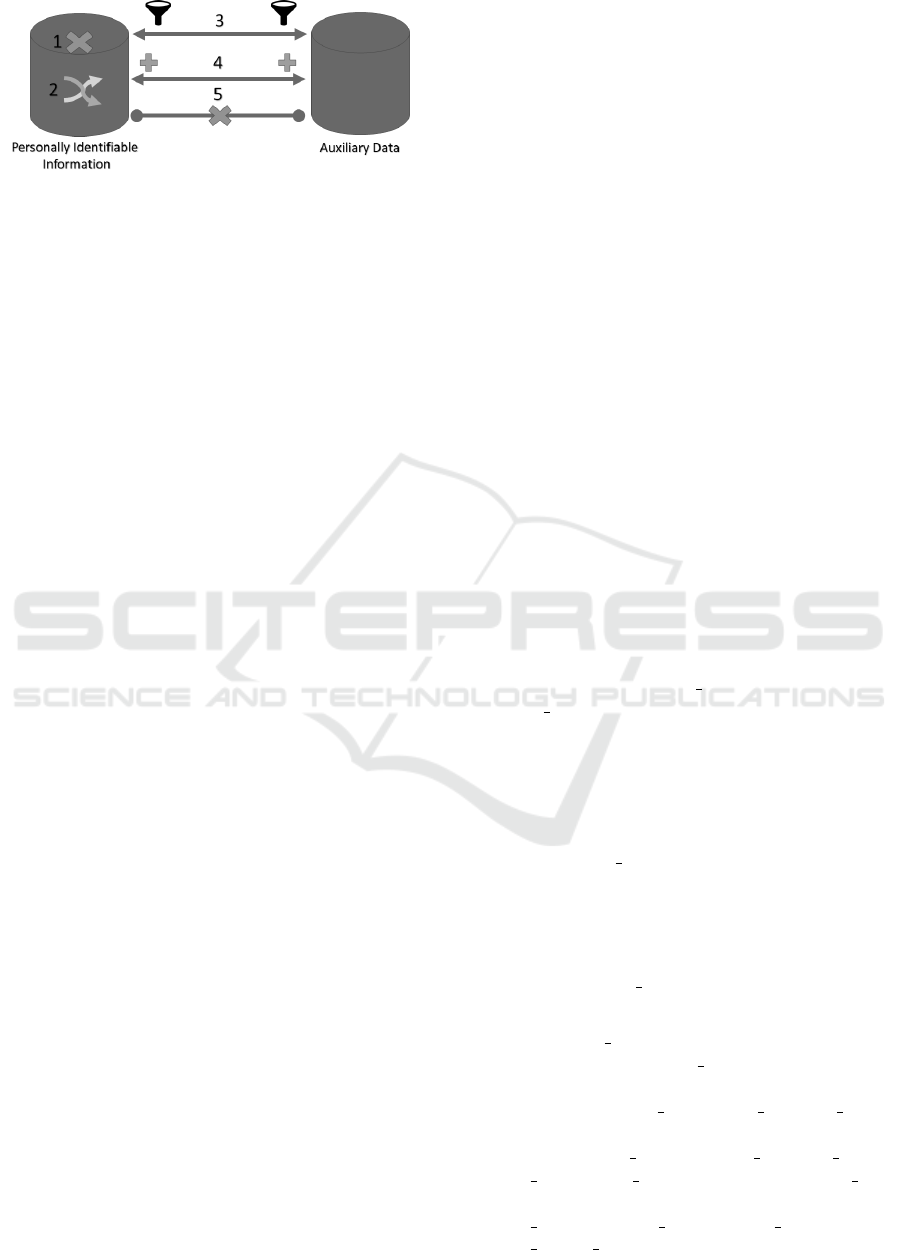

Figure 2: Anonymisation Techniques, Adapted from

(Brasher, 2018; Mehmood et al., 2016).

is factored into the analysis. According to the author,

concerns about the social impact of this insufﬁcient

protection are as great as to have surfaced on main-

stream media (Domingo-Ferrer, 2019).

The author goes on to explain that efﬁcient pri-

vacy protection must consider balancing these two as-

pects: utility loss and privacy gain of PII-based data.

Supposed privacy gains occur at the expense of util-

ity loss. When a suppressed piece of data is discarded

less valuable information can be extracted (Domingo-

Ferrer, 2019). BD anonymisation is still limited

(Domingo-Ferrer, 2019). Domingo-Ferrer presents

three main limitations to current big data anonymi-

sation processes:

1) trust in data controllers, granted by PDR, is under-

mined by lack of actionable management criteria

for the treatment of conﬁdentiality;

2) the weakness of the anonymisation methods,

which satisfy an insufﬁciently broad set of Statis-

tic Disclosure Controls (SDC);

3) and the utility cost of the process of data anonymi-

sation which may incur the difﬁculty of merging

and exploring anonymised data.

Mehmood et al. (Mehmood et al., 2016) and

Domingo-Ferrer (Domingo-Ferrer, 2019) agree about

the trade-off between privacy by anonymisation and

utility, and its negative relation mainly in the BD con-

text. Applying some anonymisation strategy as the

only action regarding data privacy leads to the de-

crease of potential insights on PII and AD.

Quoting the weakness of the anonymisation meth-

ods, Lin et al. (Lin et al., 2016) apply differential

privacy to body sensor network using sensitive BD.

In their work, Lin et al. (Lin et al., 2016) combine

strategies 3 and 4 (ﬁgure 2) to hardening the privacy

of a given dataset. But as shown, the scheme adopted

by Lin only considers the information given by the

internal dataset, ignoring possible attacks using other

ADs available on the Internet, for example. Lin et

al. (Lin et al., 2016) also discuss the risk of data loss

through the anonymisation process.

3 PARTIAL RESULTS

To demonstrate a hypothetical example, we will use

a data repository proposal on a BD platform whose

inserted data represents customers of a ﬁnancial insti-

tution.

Customer registration information (usually not

just for ﬁnancial companies) represents signiﬁcant

concentrations of personal data, sometimes, even sen-

sitive. Besides, in the ﬁnancial sector, it is possible to

identify a customer through other non-conventional

data (considered quasi-identiﬁers) such as identity,

social register, driver’s license, bank account number,

among others.

The hypothetical example will use BD because,

as already discussed, the large amount of data (and

its intrinsic challenges) make the BD platform the in-

frastructure where it is easier to re-identify personal

data once to treat its countless relationships (explicit

or implicit) of personal data can be an arduous and

expensive task in terms of processing.

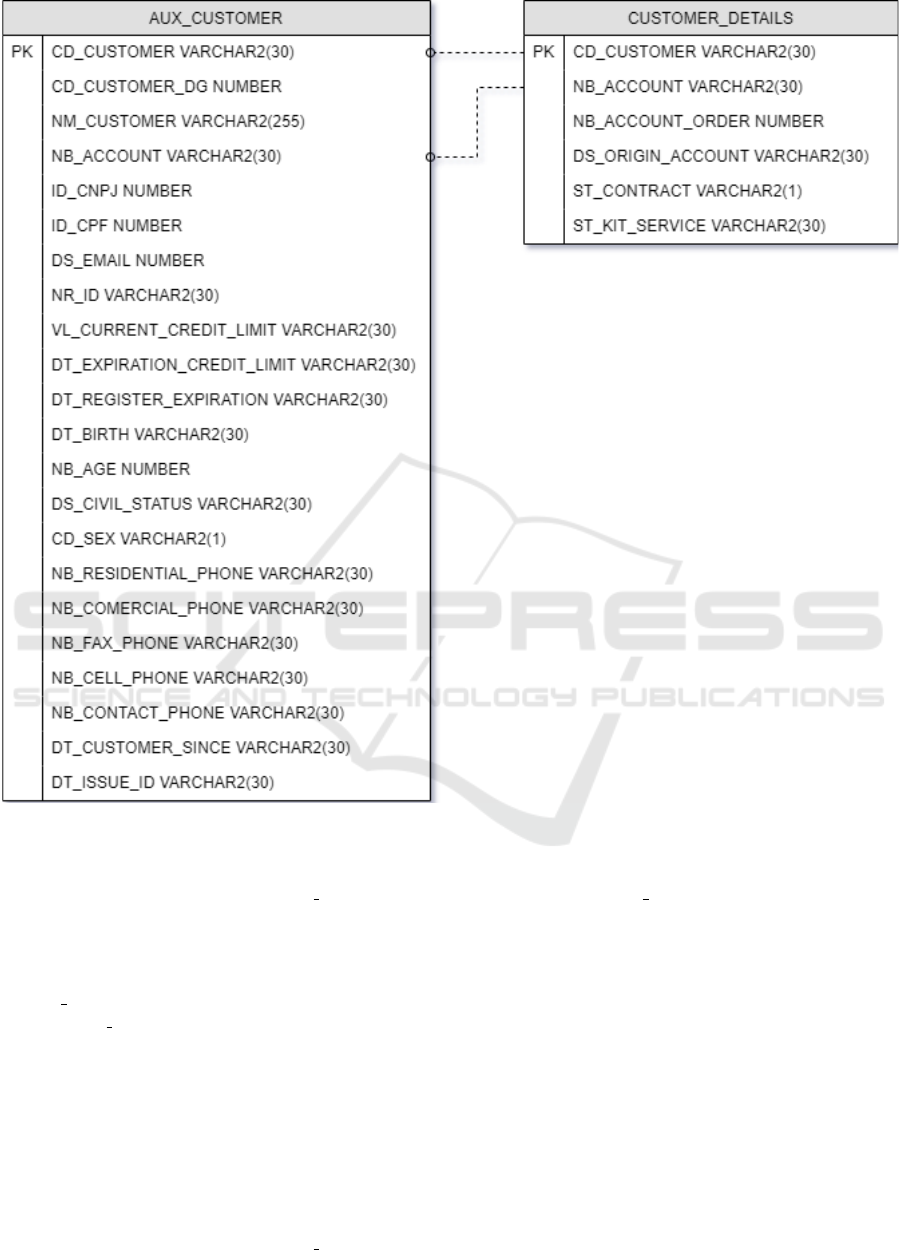

Consider a certain data structure in a BD platform

according to Figure 3:

This structure is implemented on a BD platform,

to enable the analysis of the customer (current or po-

tential) characteristics of a certain ﬁnancial company.

This analysis would contain personal data ﬁlters such

as age, sex or relationship time with the company

and will support several departments in this organi-

zation. Also datasets AUX CUSTOMER and CUS-

TOMER DETAIL were considered and classiﬁed ac-

cording to Tables 2 and 3.

Now, we must consider the anonymisation applied

by combining the strategies 1-5 described before, ac-

cording to the showing:

1) Using strategy 1 (Suppression): The regis-

ters with CD CUSTOMER lower than 100500

were excluded from this table (from 100000 to

100500).

2) Using strategy 2 (Generalization): From 100500

to 100800, the identiﬁcation was weakened by

shufﬂing the CD CUSTOMER.

3) Using strategy 3 (Aggregation): The register with

the same ID CPF (22464662100) was converted

to a unique register (CD CUSTOMER = 603093,

603094, 603095 and 603096) by the sum of

attribute value VL CURRENT CREDIT LIMIT

and the max operation over attribute val-

ues DT EXPIRATION CREDIT LIMIT,

DT REGISTER EXPIRATION, NB AGE

and the min operation over attribute values

DT BIRTH, DT CUSTOMER SINCE and

DT ISSUE ID.

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data

Figure 3: Hypothetical Structure Data Model.

4) Using strategy 4 (Noise Addition): Was included

the register identiﬁed by the CD CUSTOMER

100623 with random information.

5) Using strategy 5 (Substitution): Was di-

vided two groups of registers (G1 - from

CD CUSTOMER 100800 to 101100 and G2 -

from CD CUSTOMER 1013000 to 101600) and

the AD attributes were shufﬂed between these two

groups, preserving the original characteristics.

Based on the difﬁculty of transforming data privacy

governance concepts into operational data protection

actions (as described by Ventura and Coeli (Ventura

and Coeli, 2018)), suppose that only part of the data

in the structure shown by ﬁgure 3 has been classi-

ﬁed as identiﬁable of the respective subject. Only

the data contained in the dataset AX CUSTOMER

will be anonymised, excluding the data present in the

dataset CUSTOMER DETAILS.

In the actual production environment, several rea-

sons could lead to the BD information not being taken

into consideration while in providing anonymisation,

such as data governance process failures, misinter-

pretation of regulation, mistakes in internal concept

of sensitive personal data, difﬁcult to manage large

amounts of data or many different datasets, among

others.

Using another dataset (concerning customer de-

tails) from the same schema that was extracted from

the previous customer table, it is possible to undo

or disturb the anonymisation (weakening the privacy

protection) according to the shown:

1) Concerning strategy 1 (Suppression): The reg-

isters excluded were identiﬁed (provide that the

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

Table 2: Attributes/classiﬁcation of an Example Customer

Table.

PII/AD COLUMN NAME DATA TYPE

PII cd customer double

PII cd customer dg double

PII nm customer string

PII nb account double

PII id cnpj string

PII id cpf string

PII ds email string

PII nb id string

AD vl current credit limit double

AD dt expiration credit limit string

AD dt register expiration string

AD dt birth string

AD nb age double

AD ds civil status string

AD cd sex string

AD nb residential phone string

AD nb comercial phone string

AD nb fax phone string

AD nb cell phone string

AD nb contact phone string

AD dt customer since string

AD dt issue id string

Table 3: Attributes/classiﬁcation of a Example Customer

Details Table.

PII/AD COLUMN NAME DATA TYPE

PII cd customer double

PII nb account double

PII nb account order double

AD ds origin account string

AD st contract string

AD st kit service string

application of the anonymisation method was

known) by the referential integrity (not explicit)

with the table CUSTOMER DETAIL by the at-

tribute CD CUSTOMER. Besides, exclusion is

the most aggressive strategy, and produces the

greatest loss of utility.

2) Concerning strategy 2 (Generalization): Using

the attribute NB ACCOUNT (not search index,

but personal data), it was possible to identify the

shufﬂing, since this attribute can identify an indi-

vidual.

3) Concerning strategy 3 (Aggregation): The pres-

ence of the register with the CD CUSTOMER =

603093, 603094, 603095 and 603096 in the table

CUSTOMER DETAIL denouncement that these

registers were manipulated in the original table.

4) Concerning strategy 4 (Noise Addition): The ab-

sence of the register with CD CUSTOMER =

100623 indicates that this register was added to

the original table.

5) Concerning strategy 5 (Substitution): Combin-

ing the CD CUSTOMER and the NB ACCOUNT

from these two tables its possible to identify the

manipulation of these data, even if it is hard to

deﬁne what exactly was modiﬁed.

Note that the data used to undo/detect the anonymisa-

tion process belonged to the same data schema as the

original base. In the context of BD, it would be com-

mon that in the large universe of data there would be

replications of PII or quasi-identiﬁers like the shown

in the example.

Thus, it is possible that within the DB database

there are reliable data to guide the conclusions against

anonymisation. Besides, the data used to re-identify

can be accessed by internet, social network, another

BD or any other external data repository. Both present

themselves as weaknesses in BD platforms, as they

will provide insight into the anonymisation methods

used.

Once the anonymisation method is detected, it is

simpler to look for mechanisms to complete missing

information or even rearrange and restructure infor-

mation that has been merged or added noises.

For this, public databases can be an effective

source for obtaining speciﬁc information.

Also, knowing which data has been anonymised

greatly weakens database protection. This is because

data that has not undergone the anonymisation pro-

cess, for example, or data that is reorganized within

the platform, will constitute a remnant base that main-

tains its integrity. Thus, unchanged data is known to

be intact and can be used to obtain relevant informa-

tion.

Finally, we clariﬁed that all scripts used for cre-

ate/populate the examples data structures are avail-

able:

CREATE TABLE

AUX

CUSTOMER

(

CD CUSTOMER VARCHAR2(30)

PRIMARY KEY,

CD CUSTOMER DG NUMBER,

NM CUSTOMER VARCHAR2(255),

NB ACCOUNT VARCHAR2(30),

ID CNPJ NUMBER,

ID CPF NUMBER,

DS EMAIL NUMBER,

NR ID VARCHAR2(30),

VL CURRENT CREDIT LIMIT

VARCHAR2(30),

DT EXPIRATION CREDIT LIMIT

VARCHAR2(30),

DT REGISTER EXPIRATION

VARCHAR2(30),

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data

DT BIRTH VARCHAR2(30),

NB AGE NUMBER,

DS CIVIL STATUS

VARCHAR2(30),

CD SEX VARCHAR2(1),

NB RESIDENTIAL PHONE

VARCHAR2(30),

COMERCIAL PHONE

VARCHAR2(30),

NB FAX PHONE VARCHAR2(30),

NB CELL PHONE VARCHAR2(30),

NB CONTACT PHONE VARCHAR2(30),

DT CUSTOMER SINCE VARCHAR2(30),

DT ISSUE ID VARCHAR2(30) );

CREATE TABLE

CUSTOMER DETAILS

(

CD CUSTOMER VARCHAR2(30)

PRIMARY KEY,

NB ACCOUNT VARCHAR2(30),

NB ACCOUNT ORDER NUMBER,

DS ORIGIN ACCOUNT VARCHAR2(30),

ST CONTRACT VARCHAR2(1),

ST KIT SERVICE VARCHAR2(30) ) ;

4 THREATS AND VALIDATION

4.1 The Hypothetical Case

Partial results have given us a perspective about the

threats involved anonymisation. In some cases, as

when attributes have been shufﬂed, comparative anal-

ysis with the table CUSTOMER DETAILS makes it

possible to re-identify and rearrange the information.

But, in general, it was possible to conclude at

least the existence of data processing. For exam-

ple, when deleting data, comparison with the CUS-

TOMER DETAILS table reveals that information has

been suppressed.

It means that the use of anonymisation is clear

from a simple comparison with a table within the

same database. This is true even with suppression,

which is the most aggressive anonymisation tech-

nique.

This reveals which data has been modiﬁed,

deleted or shufﬂed and provides a remnant base that

maintains its integrity and can be used.

Also, it provides information to complete or orga-

nize all bases through external reinforcement, as with

public base, as mentioned.

This requires that the comparison be based on in-

formation whose integrity is assured. Obtaining such

secure information is not only possible but is likely,

mainly in the context of BD, that to take into account

large databases, that are stored without effective gov-

ernance. Also, it is likely that exist database there is

unfeasible anonymisation due to the need to link in-

formation to users, as in the case of personalized ser-

vices, within the same database.

Therefore, these anonymised data still present

risks when they are indiscriminately shared on differ-

ent bases, marketed or made available.

Lack of management increases the likelihood of

leakage of this data, which could cause information

to be easily obtained.

Therefore, anonymisation, taken in isolation,

while providing a sense of security, contains factors

that make its misuse extremely risky.

4.2 Validation

Considering the risks presented in this paper, and also

based on the criticisms raised by (Domingo-Ferrer,

2019), we highlight some discussion points and pro-

pose, for each of them, guidelines to the use of anony-

mous data in the context of BD mechanisms.

1) Is data anonymised by comparing the entire com-

pany database or the public database?

As we discussed earlier, data is usually considered

anonymous within their own platforms. However,

anonymisation cannot neglect that, in our BD age,

a large amount of data is available through other

sources. We suggest that, as a minimum require-

ment for anonymisation to be considered effec-

tive, it should analyze its own database and - at

least - other databases that are public, organized,

and freely accessible.

2) Acknowledging the loss of utility caused by the

anonymisation process, which data can and can-

not be anonymised?

This is an important issue because, depending on

the company’s activity, anonymisation may be a

technique that will render data unusable for cer-

tain purposes. If the company deals, for example,

with personalized services, knowing which data

relates to each customer becomes essential. Thus,

companies need to choose which data to store, re-

ducing the cost of maintaining large anonymised

databases.

This is justiﬁed by the fact that maintaining

anonymity requires continuous readjustment ac-

cording to the evolution of the technique, as

highlighted earlier. Besides, keeping smaller

databases minimizes the risk of leakage, which

increases as more data is stored. Finally, bet-

ter choosing which data to anonymise forestalls

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

the need for an anonymous database not to be re-

identiﬁed in order to meet business demands.

3) Is anonymisation a type of “processing of per-

sonal data”? While some researchers argue dif-

ferently (Hintze and El Emam, 2018), we argue

that anonymisation is a form of “processing of

personal data”.

Once anonymised, the data can be used, even for

purposes other than originally stated when it was

collected as personal data, as we can see in article

6(4)(e) (Regulation, 2018) and the point 26 of the

GDPR introduction text. But, for anonymisation

to be considered a lawful processing method, it is

necessary to follow the requirements outlined in

the GDPR, Article 6 (1) (Regulation, 2018), such

as the subject’s consent or vital interest. However,

we highlight some criticisms of article 6 (1) (f)

(Regulation, 2018), which will be explained in the

next point.

4) Can anonymisation be applied by legitimate inter-

ests?

Article 6 (1)(f) (Regulation, 2018) stresses that

data may be used for “legitimate interests” pur-

sued by the controllers. On this point, the intro-

duction of GDPR states in point 47 (Regulation,

2018) that:

“The legitimate interests of a controller, in-

cluding those of a controller to which the

personal data may be disclosed, or of a third

party, may provide a legal basis for process-

ing, provided that the interests or the funda-

mental rights and freedoms of the data sub-

ject are not overriding, taking into considera-

tion the reasonable expectations of data sub-

jects based on their relationship with the con-

troller.”

Thus, legitimate interest is an abstract term that

may be used to create a means of escaping regula-

tion, rather than data protection (Zikopoulos et al.,

2011). Furthermore, the same point 47 highlights

that “At any rate the existence of a legitimate in-

terest would need careful assessment including

whether a data subject can reasonably expect at

the time and in the context of the collection of the

personal data that processing for that purpose may

take place”.

As seen, the article 6(4)(e) (Regulation, 2018) and

point 26 of the GDPR introductory text state that

the anonymous data is not a personal data, and,

therefore, processing of this data need not respect

the original purpose of the data. Due to this, it

is not possible to initially predict which purposes

the data will serve after anonymisation.

In short, because deﬁning legitimate interest in-

volves a high degree of abstraction, in addition to

the fact that once anonymised data can be used

even for purposes other than the original, we argue

that legitimate interests are insufﬁcient to make

anonymisation processing legal. On the other

hand, we consider that due to risk, the best way

to enact lawful processing of anonymisation is

through given consent, without excluding remain-

ing case applications described in Article 6 (1)

(Regulation, 2018).

Importantly, based on the hypothetical case and

the observations already exposed, we adhere to the

position described by (Domingo-Ferrer, 2019) about

the three main limitations to anonymisation. Also, we

add the following observations:

1) Are data controllers trusty? Although granted by

PDR, it is undermined by a lack of actionable

management criteria for the treatment of conﬁ-

dentiality. Therefore, especially for anonymous

data, it is likely that bad data processing will be

detected only with data leakage. This is why we

support stricter regulation of anonymity, as a way

to increasing care with this data and promoting

good governance practices for its management.

This is a tool to consider objective factors for mea-

suring trust in data controllers.

2) As with (Domingo-Ferrer, 2019) discourse, the

many anonymisation methods proposed and its

privacy models satisﬁes a speciﬁc SDC. A schema

designed with focus in the decentralized process

would fortify the data protection, approaching

its issues holistically, especially because the BD

platform requires the scalability property, both in

terms of performance and infrastructure.

3) The utility cost of the data anonymisation process

that can result in the difﬁculty of merging and ex-

ploiting anonymised data.

As indicated, anonymisation requires continuous

improvement of its processing, considering the

evolution of the techniques. So keep data anony-

mous on these platforms implies expenditure of

maintenance resources.

Anonymisation also implies a reduction in the

utility of data. It difﬁcult its use in businesses us-

ing personalized services, as mentioned. These

make in some cases unfeasible to use anonymi-

sation tools. On the other hand, it is possible to

overcome these hurdles in the future. One exam-

ple is homomorphic encryption, which allows per-

sonalized services with anonymous data analysis

without re-identifying this information. It seems

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data

to be an alternative to this type of database analy-

sis and to reduce risk. However, this tool needs

to be reﬁned to analyze the DB. Currently, ho-

momorphic encryption requires an unreasonable

amount of time to perform on DB platforms.

5 CONCLUSIONS

Both GDPR (Regulation, 2018) and LGPD

(da Rep

ublica, 2018) describe anonymisation

techniques as a tool to ensure the safe use of personal

data and to exclude them from the rules governing

data processing. However, as seen, the expectations

placed on this tool should be reconsidered according

to the risks and limitations of its use.

In the context of Big Data, even anonymous data

does not ensure privacy. As highlighted, the tool has

its own internal limitations. We have indicate four

concerns related to the concept of anonymisation and

the fact that this data is treated as distinct from per-

sonal data. They are:

1) subject identiﬁcation when a proﬁle is provided;

2) connecting information becomes extremely easy

in a BD context with metadata or data fragments;

3) the legal concept of anonymisation accepts that,

in massive contexts, data identiﬁcation is possible,

depending on the effort employed to re-identify it.

Because of this concept, in order to mitigate risk

derived from anonymisation, other mechanisms

must be combined to improve the privacy protec-

tion;

4) difﬁculty in determining anonymity, as it depends

on criteria that could change according to techni-

cal advances or even by the speciﬁc analysis con-

ditions.

We also show that, compared to an internal data

set, it is possible to discover the anonymisation tech-

nique used, and, in some cases, immediately re-

identify subject data. Therefore, it is clear that

anonymisation is not sufﬁcient to reconcile Big Data

compliance with Personal Data Regulations and data

privacy. This does not mean that anonymisation is a

useless tool, but it needs to be applied with the assis-

tance of other mechanisms developed by compliance-

oriented governance.

We conclude that anonymity used exclusively can-

not meet the demands of Big Data and, privacy and se-

curity simultaneously. Besides, anonymisation needs

to consider some other factors listed, such as inter-

ference from external data, such as public databases;

the recognition of the loss of utility that this technique

involves; the need to comply with legal requirements

for the processing personal data to promote anonymi-

sation.

Some guidelines do not address anonymised data,

these need to be required to manage such data through

principles such as “data minimisation”. In conclu-

sion, a Big Data-driven framework is required to rec-

ommend best practices that, coupled with anonymi-

sation tools, ensure data protection in Big Data envi-

ronments, while also addressing the compliance issue.

We expect to investigate and present this proposal in

future research.

ACKNOWLEDGMENTS

This research work has the support of the Research

Support Foundation of the Federal District (FAPDF)

research grant 05/2018.

REFERENCES

Brasher, E. A. (2018). Addressing the failure of anonymiza-

tion: Guidance from the european union’s general data

protection regulation. Colum. Bus. L. Rev., page 209.

Brkan, M. (2019). Do algorithms rule the world? algorith-

mic decision-making and data protection in the frame-

work of the gdpr and beyond. International journal of

law and information technology, 27(2):91–121.

Casanovas, P., De Koker, L., Mendelson, D., and Watts, D.

(2017). Regulation of big data: Perspectives on strat-

egy, policy, law and privacy. Health and Technology,

7(4):335–349.

da Rep

ublica, P. (2018). Lei geral de protec¸

de dados pessoais (lgpd). Secretaria-Geral,

accessed in November 19, 2019. https:

//www.pnm.adv.br/wp-content/uploads/2018/08/

Brazilian-General-Data-Protection-Law.pdf.

Dalla Favera, R. B. and da Silva, R. L. (2016).

Ciberseguranc¸a na uni

ao europeia e no mercosul: Big

data e surveillance versus privacidade e protec¸

ao de

dados na internet. Revista de Direito, Governanc¸a e

Novas Tecnologias, 2(2):112–134.

De Mauro, A., Greco, M., and Grimaldi, M. (2016). A for-

mal deﬁnition of big data based on its essential fea-

tures. Library Review.

Domingo-Ferrer, J. (2019). Personal big data, gdpr and

anonymization. In International Conference on Flex-

ible Query Answering Systems, pages 7–10. Springer.

Fothergill, D. B., Knight, W., Stahl, B. C., and Ulnicane, I.

(2019). Responsible data governance of neuroscience

big data. Frontiers in neuroinformatics, 13:28.

Hintze, M. and El Emam, K. (2018). Comparing the ben-

eﬁts of pseudonymisation and anonymisation under

the gdpr. Journal of Data Protection & Privacy,

2(2):145–158.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

Huth, D., Stojko, L., and Matthes, F. (2019). A service def-

inition for data portability. In 21st International Con-

ference on Enterprise Information Systems, volume 2,

pages 169–176.

Jensen, M. H., Nielsen, P. A., and Persson, J. S. (2018).

Managing big data analytics projects: The challenges

of realizing value. Managing Big Data Analytics

Projects: the Challenges of Realizing Value.

Joyce, D. (2017). Data associations and the protection of

reputation online in australia. Big Data & Society,

4(1):2053951717709829.

Koutli, M., Theologou, N., Tryferidis, A., Tzovaras, D.,

Kagkini, A., Zandes, D., Karkaletsis, K., Kaggelides,

K., Miralles, J. A., Oravec, V., et al. (2019). Secure

iot e-health applications using vicinity framework and

gdpr guidelines. In 2019 15th International Con-

ference on Distributed Computing in Sensor Systems

(DCOSS), pages 263–270. IEEE.

Lanying, H., Zenggang, X., Xuemin, Z., Guangwei, W.,

and Conghuan, Y. (2015). Research and practice of

datarbac-based big data privacy protection. Open Cy-

bernetics & Systemics Journal, 9:669–673.

Lin, C., Wang, P., Song, H., Zhou, Y., Liu, Q., and Wu, G.

(2016). A differential privacy protection scheme for

sensitive big data in body sensor networks. Annals of

Telecommunications, 71(9-10):465–475.

Liu, H. (2015). Visions of big data and the risk of privacy

protection: A case study from the taiwan health data-

bank project. Annals of Global Health, 1(81):77–78.

Mehmood, A., Natgunanathan, I., Xiang, Y., Hua, G., and

Guo, S. (2016). Protection of big data privacy. IEEE

access, 4:1821–1834.

Mustafa, U., Pﬂugel, E., and Philip, N. (2019). A novel

privacy framework for secure m-health applications:

The case of the gdpr. In 2019 IEEE 12th International

Conference on Global Security, Safety and Sustain-

ability (ICGS3), pages 1–9. IEEE.

Pomares-Quimbaya, A., Sierra-M

unera, A., Mendoza-

Mendoza, J., Malaver-Moreno, J., Carvajal, H., and

Moncayo, V. (2019). Anonylitics: From a small

data to a big data anonymization system for analytical

projects. In 21st International Conference on Enter-

prise Information Systems, pages 61–71.

Popovich, C., Jeanson, F., Behan, B., Lefaivre, S., and

Shukla, A. (2017). Big data, big responsibility! build-

ing best-practice privacy strategies into a large-scale

neuroinformatics platform. International Journal of

Population Data Science, 1(1).

Regulation, G. D. P. (2018). Eu data protection rules.

European Commission, Accessed in October 9, 2019.

https://ec.europa.eu/commission/priorities/justice-

and-fundamental-rights/data-protection/2018-refor

m-eu-data-protection-rules en.

Ryan, M. and Brinkley, M. (2017). Navigating privacy in

a sea of change: new data protection regulations re-

quire thoughtful analysis and incorporation into the

organization’s governance model. Internal Auditor,

74(3):61–63.

Shapiro, S. (1995). Propositional, ﬁrst-order and higher-

order logics: Basic deﬁnitions, rules of inference, ex-

amples. Natural Language Processing and Knowl-

edge Representation: Language for Knowledge and

Knowledge for Language. AAAI Press/The MIT Press,

Menlo Park, CA.

Ventura, M. and Coeli, C. M. (2018). Para al

em da pri-

vacidade: direito

a informac¸

ao na sa

ude, protec¸

ao de

dados pessoais e governanc¸a. Cadernos de Sa

ude

ublica, 34:e00106818.

Zikopoulos, P., Eaton, C., et al. (2011). Understanding

big data: Analytics for enterprise class hadoop and

streaming data. McGraw-Hill Osborne Media.

Anonymisation and Compliance to Protection Data: Impacts and Challenges into Big Data
