A Surface and Appearance-based Next Best View System for Active

Object Recognition

Pourya Hoseini

, Shuvo Kumar Paul

, Mircea Nicolescu and Monica Nicolescu

Department of Computer Science and Engineering, University of Nevada, Reno, U.S.A.

Keywords:

Object Recognition, Active Vision, Next Best View, View Planning, Foreshortening, Classiﬁcation

Dissimilarity, Robotics.

Abstract:

Active vision represents a set of techniques that attempt to incorporate new visual data by employing camera

motion. Object recognition is one of the main areas where active vision can be particularly beneﬁcial. In

cases where recognition is uncertain, new perspectives of an object can help in improving the quality of

observation and potentially the recognition. A key question, however, is from where to look at the object.

Current approaches mostly consider creating an occupancy grid of known object voxels or imagining the

entire object shape and appearance to determine the next camera pose. Another current trend is to show every

possible object view to the vision system during the training time. These methods typically require multiple

observations or considerable training data and time to effectively function. In this paper, a next best view

system is proposed that takes into account only the initial surface shape and appearance of the object, and

subsequently determines the next camera pose. Therefore, it is a single-shot method without the need to have

any speciﬁcally made dataset for the training. Experimental validations prove the feasibility of the proposed

method in ﬁnding good viewpoints while showing signiﬁcant improvements in recognition performance.

1 INTRODUCTION

It is a necessity for an intelligent entity to sense its

environment to act informed. One of the main per-

ception mediums is vision. Despite being a heav-

ily used sensing modality, a vision mechanism may

face difﬁculties in capturing the most useful views

for the speciﬁc task at hand. There can be many rea-

sons for such issues, including occlusion, lack of dis-

criminative features due to bad lighting or unfavor-

able viewpoints of the object, or insufﬁcient image

resolution. Active vision is an answer to those situa-

tions that tries to enhance the performance of the vi-

sion system by dynamically incorporating new visual

sensory sources. Some application domains of active

vision are three-dimensional (3D) object reconstruc-

tion and object recognition, the latter being the focus

of our work. Active Object Recognition (AOR) has

many uses in robotics (Paul et al., 2020), vision-based

surveillance, etc. AOR procedures normally involve

uncertainty evaluation, camera movement, matching,

and information fusion (Hoseini et al., 2019a) and

(Hoseini et al., 2019b). If the current recognition is

https://orcid.org/0000-0003-3473-9906

https://orcid.org/0000-0003-1791-3925

not certain enough, a camera is moved to observe the

object from another viewpoint and to fuse the current

and new information, usually classiﬁcation decisions,

from the matched objects in the views, in order to ob-

tain improved results.

Regarding the camera movement, a primary ques-

tion to answer is where and in what orientation a

camera should be placed to fetch the next best view

(NBV) of the object. Finding next best view is an

ill-posed task, because the current viewpoint of the

object is usually not sufﬁcient to deterministically de-

duce the object shape and appearance from its other

facets. Approaches to NBV are generally impacted

by the speciﬁc application they are being employed

for. In 3D reconstruction applications, a NBV that

plans to acquire a chain of views that are aimed to ex-

plore unobserved voxels of objects might be an ideal

option. In contrast, the next views in an object recog-

nition application are desired to present new discrim-

inative features, by which the object recognition per-

formance can be enhanced. The number of planned

views for object recognition is also intended to be as

low as possible to reduce energy and time spent mov-

ing the cameras physically.

A deep belief network is presented in (Wu et al.,

2015) to “hallucinate” the whole object shape and ap-

pearance in the presence of occlusion to compute the

recognition uncertainty in several predeﬁned camera

poses. The viewpoint with the least uncertainty is

then selected. Although interesting, this idea has a

major ﬂaw in depending heavily on the estimation of

the object shape and appearance, which can be a large

source of errors. In contrary to (Wu et al., 2015), the

work in (Doumanoglou et al., 2016) directly estimates

the classiﬁcation probabilities of different views in-

stead of rendering their hypothetical object appear-

ances to compute the information gain in each view.

Despite overcoming the problem of computationally

expensive renderings of hypothetical 3D objects, this

approach requires 3D training data for every test ob-

ject and performing classiﬁcation and conﬁdence es-

timation for every viewpoint of the 3D objects in the

training. This prerequisite signiﬁcantly affects the

functionality of the technique due to the scarcity of

such training data for many real-world objects.

A boosting technique is proposed in (Jia et al.,

2010) to combine three criteria for determining the

NBV around objects. The ﬁrst criterion compares

the similarity of the current object with prerecorded

object appearances in different views and selects the

one with the least similarity. The other two crite-

ria for choosing NBV are the prior probability of a

viewpoint in successfully determining the object class

given either a currently detected object pose or a cur-

rently detected object category. Aside from the priors,

which are application data speciﬁc, using a similarity

measure between the current viewpoint of an object

and its other viewpoints requires a dataset made of

images around the training objects with their known

pose. This can be practically burdensome as there is a

need to capture poses and appearances all around the

objects that are to be detected at test time.

Rearranging depth camera positions based on imi-

tating barn owls’ head motions is examined in (Barzi-

lay et al., 2017) for 3D reconstruction of objects. The

method in (Barzilay et al., 2017) mimics motions re-

gardless of the object shape and appearance, which

can cause missing some important clues in determin-

ing the next best view. In (Atanasov et al., 2014),

an active pose estimation and object detection frame-

work is described to balance the odds of object detec-

tion enhancement and the energy needed to move the

camera. A multitude of captures are planned along the

fastest way the camera is moved toward the object.

Since the active vision system of (Atanasov et al.,

2014) does not consider the object shape and appear-

ance and merely moves the camera towards an object,

it cannot be deemed as an intelligent viewpoint selec-

tion method.

A trajectory planning technique for an eye-in-

hand vision system on a PR2 robot is presented

in (Potthast and Sukhatme, 2011) to boost the ex-

pected number of voxel observation by searching for

maximum local information gain. In continuation

to the work of (Potthast and Sukhatme, 2011), a

next best view method for 3D reconstruction applica-

tions on the basis of predicting information gain from

prospective viewpoints is proposed in (Potthast and

Sukhatme, 2014). To predict the information gain in

unobserved areas, an occupancy grid is formed out

of all the observations so far, and a Hidden Markov

Model (HMM) is used to estimate the observation

probability of unobserved cells in the grid.

By reviewing the literature, we see that the earlier

work in determining the next best view is clustered

in two groups: space occupancy-based and object

estimation-based techniques. Assessing occupancy of

3D space via ray tracing and computation of informa-

tion gain is intrinsically beneﬁcial for 3D reconstruc-

tion purposes, because it attempts to discover more

surface voxels than discriminative features for classi-

ﬁcation. That is why it has been preferred regularly in

previous work for 3D reconstruction. In contrast, ob-

ject estimation techniques depend on either “halluci-

nating” the 3D shape of the current object or compar-

ing the current object shape and/or appearance to the

ones acquired during training to infer the best camera

pose by comparing different viewpoints. Their prob-

lem is, however, the reliance on large datasets of ob-

ject images taken from predeﬁned points of view as

well as in the inaccuracies stemming from hypotheti-

cal object shapes/appearances.

In this paper, a single-shot next best view method

for object recognition tasks is presented, which plans

for one new viewpoint based on cues from the cur-

rently visible object shape and appearance to improve

the object recognition performance when necessary.

The proposed NBV method is neither reliant on a

prior dataset of speciﬁcally designated images from

around the object, nor on 3D object volumes for train-

ing. It uses conventional datasets, a collection of ran-

dom images of objects, merely for the training of the

classiﬁers. It also does not involve a chain of cam-

era motions toward or around the object to save time

and energy for camera motion. To achieve these char-

acteristics, an ensemble of criteria is used to analyze

different areas of the current view for appearance and

shape cues to suggest a new camera pose. Exam-

ples of such criteria are classiﬁcation dissimilarity be-

tween a region of the object image and the whole

image, foreshortening, and various statistical texture

metrics. A test dataset was also created to evaluate

the proposed method in a systematic way. In the tests,

the proposed NBV system conﬁrms its efﬁcacy in pre-

dicting the next best camera view among a set of pre-

selected test-time poses around the object. The main

contributions of the proposed work are:

1. A novel next best system is proposed exclusively

for the task of object recognition.

2. The current object shape and appearance are only

used in the proposed NBV; hence no prior knowl-

edge of objects is needed.

3. There is no need to create specially designed

datasets for the next best view determination. The

only training employed is for the object classi-

ﬁers.

4. A small test dataset, comprised of the images cap-

tured around various objects, has been gathered to

efﬁciently test the proposed NBV system. It can

be used by other researchers as a benchmark.

5. Experimental validation shows good results in

terms of the performance improvement after fu-

sion of views among a pre-deﬁned set of possible

camera poses.

The remainder of the paper is organized as fol-

lows. The proposed next best view system is pre-

sented in section 2. Section 3 shows the results ob-

tained in the benchmarks. Lastly, concluding remarks

are discussed in section 4.

2 THE PROPOSED SINGLE-SHOT

NEXT BEST VIEW METHOD

In order to ﬁnd a candidate viewpoint in a single try

after the initial capture, only the color and depth in-

formation of the initial camera view are assumed to

be available. For rigorous testing purposes, the NBV

poses are restricted to a number of pre-speciﬁed poses

that are typically reachable for eye-in-hand or UAV

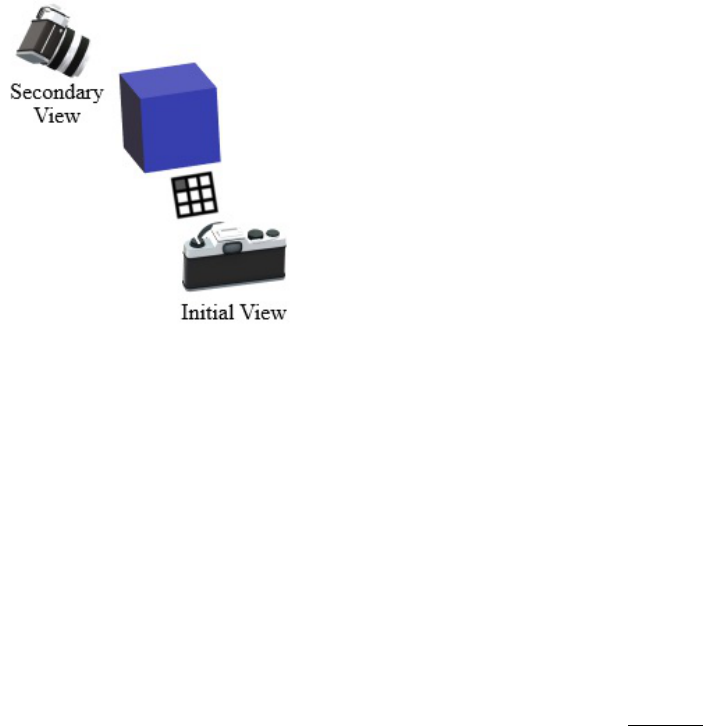

platforms. The poses around any object are clustered

into eight groups in the current implementation, all of

them on the plane that passes through the object and

is parallel to the image plane of the camera at the ini-

tial viewpoint. Each group is the set of poses that are

generally viewing the same part of the object.

The viewpoints are selected to be at the same

depth as the object in the camera coordinate of the

initial view, because they can provide substantially

new information from a view direction perpendicular

to the initial one, but still are reasonably accessible

for many eye-in-hand arrangements. Any pose from

a depth less than the object’s depth will probably see

common parts of the object as the frontal initial view.

Figure 1: Tiling routine in the proposed next best view sys-

tem.

In contrast, any pose with a depth farther than the ob-

ject will see behind the object, which can be desirable,

but has two disadvantages. First, it is hard to reach by

a robotic system. Many robotic arms do not have the

degrees of freedom required to move an arm-mounted

camera to a pose facing the back of the object, as well

as to poses at a large distance from the robot. It is also

challenging to plan for a pose behind an object for a

freely moving camera unit as the object’s thickness is

unknown in a single frontal shot. The second reason

is that for a single NBV based on the current frontal

view of an object, we are not aware of the worthiness

of the self-occluded area behind the object for active

object recognition camera poses. Therefore, the op-

tion of seeing behind an object is not considered as a

candidate for a next viewpoint.

2.1 Local Analysis of the Current View

In the proposed method, the object bounding box,

emerging from any object detection system, is divided

into different regions. The tiled regions cover the en-

tire area of the bounding box in a non-overlapping

fashion. Figure 1 illustrates the tiling scheme in the

proposed method. Each bounding box is divided into

nine regions in the current implementation, where

each of the eight peripheral tiles corresponds to one of

the pose groups of a camera around the object. For in-

stance, the top left tile represents a point of view when

the camera is viewing the object from the object’s top

left with the same depth to the camera as the object

itself in the camera coordinate of the initial view. The

camera in the new orientation can be placed arbitrar-

ily close to the object considering the pose feasibility

for the camera setup and the image resolution of the

camera. Figure 2 shows this example situation.

The rationale behind this tiling scheme is that an-

alyzing each region of the current view can reveal

clues to a more informative NBV corresponding to

the side of the object it is representing. In con-

Figure 2: An example next viewpoint selection situation,

where the top left tile is selected and consequently the sec-

ondary viewpoint is looking at the object from its top left.

trast to methods of (Potthast and Sukhatme, 2011),

(Potthast and Sukhatme, 2014), (Doumanoglou et al.,

2016), (Rebull Mestres, 2017), (Krainin et al., 2011),

and (Bircher et al., 2016) that simply attempt to

look at unobserved voxels, the proposed approach

tries to further qualify its decision based on what

is currently being seen. Additionally, the proposed

method differs from techniques of (Wu et al., 2015)

and (Doumanoglou et al., 2016) that hypothesize

the object shape, as it only utilizes limited cues di-

rectly available in the initial view, instead of requiring

the inference of explicit information about the entire

shape, appearance, and relative pose of the object.

2.2 The Ensemble of Viewpoint Criteria

In the proposed method an equally weighted voting

mechanism among four criteria selects the peripheral

tile with the highest votes. Only a single vote is cast

for the tile with the highest score from each criterion.

Two of the criteria statistically analyze the texture of

a tile. Another one evaluates the foreshortening of the

object to estimate how visible its surface was in the

initial view. The last criterion considers the classiﬁ-

cation dissimilarity between a tile and the entire ob-

ject. In the following three subsections, we explain in

detail the 4 voting criteria.

2.3 Statistical Texture Metrics

One of the instances where active vision proves to

be helpful is when the object being observed is not

clearly recognizable due to occlusion, lighting condi-

tions, object shape, etc. One way to confront these

situations can be to shift the view toward poses that

are likely to be well-lit and provide better quality im-

ages. To this end, the second and third moment tex-

ture analysis tools are utilized. The two criteria are

chosen to be obtained from the intensity histograms

of each tile’s image to help in their faster processing.

2.3.1 Second Moment (Variance) of Histogram

A high-contrast image has a higher chance of con-

taining more features than a uniform one. The second

moment or variance of intensity histogram is a mea-

sure of contrast of an image (Gonzalez, 2018). The

variance of an intensity histogram is deﬁned in (1)

(Gonzalez, 2018).

(z) = µ

(z) =

L−1

∑

i=0

− m)

p(z

) (1)

In the equation, σ

(z) is the variance of intensity

levels (z), which is identical to the second moment,

(z). In Addition, L represents the total number of

intensity levels in the histogram, i is the index of the

current intensity level, p(z

) is the probability of an

intensity level, and m is the mean of intensities, com-

puted as follows:

m =

L−1

∑

i=0

p(z

) (2)

To scale the metric to the range of [0, 1), the con-

trast score V (z) is calculated via (3).

V (z) = 1 −

1 + σ

(z)

(3)

The scaled second moment, V (z), should be high

ideally, because a greater V(z) means higher contrast

and perhaps more features, with which a tile can be a

cue to a feature-rich sideward surface for a good next

viewpoint.

2.3.2 Third Moment of Histogram

The third moment can be used as a way to measure

how skewed is a histogram towards dark or bright lev-

els (Gonzalez, 2018). It is deﬁned in (4).

(z) =

L−1

∑

i=0

− m)

p(z

) (4)

A positive µ

(z) indicates a histogram with more

probable bright intensity levels. A histogram weigh-

ing more towards darker intensities is also expected

with a negative third moment. Therefore, to ﬁnd a

well-lit surface that is neither bright nor dark, we can

seek for a third moment close to zero. Good light-

ing in a boundary tile may signal the existence of the

same condition for the corresponding side of the ob-

ject, which is desirable. Equation (5) is introduced

in the following to translate preferable lighting condi-

tions to a higher score. In (5), higher L(z) values are

related to close to zero third moments, while lower

L(z) can be a result of large or small third moments.

L(z) =

1 +

(z)

(5)

2.4 Foreshortening Score

Considering that we examine all criteria on the pe-

riphery tiles of an object’s bounding box, an object

surface with less foreshortening probably means that

it should be easily visible to the sensor in a peripheral

tile. However, in that case, since the peripheral sur-

face has less perspective to the camera’s image plane

and its plane is on average closer to being parallel to

the camera, there should be other faces of the object

that are not being viewed by the camera. On the other

hand, a peripheral surface with a perspective to the

current view, is likely not clearly visible in the current

view as its surface is tilted and exhibits foreshorten-

ing too. Based on this idea, the foreshortening score

considers how much foreshortening is present, or in

other words how parallel is the object surface being

seen in a tile to the image plane of the 3D camera ob-

serving the object. Assuming the depth map of a tile

is segmented, and the object surface constitutes the

foreground pixels, the foreshortening score is deﬁned

in the following:

P = −

∑

p∈F



−−−−−−−→

(

, 1)



−→

(6)

where P is the foreshortening score, p is a pixel in

the current tile, F is the set of foreground pixels,

shows the number of pixels in the tile that are desig-

nated as foreground, N() stands for a function to nor-

malize a vector, and

−→

z is the depth axis in the initial

view’s camera coordinate. The derivatives of depth

(z) with respect to x and y axes in the initial view’s

pixel coordinate are calculated for a particular pixel

, y

) in the following way:



x=x

= z(x

+ 1, y

) − z(x

− 1, y

) (7)



y=y

= z(x

, y

+ 1) − z(x

, y

− 1) (8)

The z(., .) in (7) and (8) signiﬁes the depth at a

pixel of the depth map. To obtain a depth map, the

initial viewpoint must be captured by a 3D camera. It

is common for ordinary 3D cameras to produce small

fragments of unknown values spread over their gener-

ated depth map. To resolve this issue, the maximum

depth in the current tile is replaced over all the un-

known values. We are assuming that large depth val-

ues are attributed to the background. To eliminate the

background from affecting the score, only the fore-

ground areas (F) obtained through Otsu’s segmenta-

tion (Otsu, 1979) are used in (6).

For every foreground pixel in the depth map the

term N(

−−−−−−−→

(

, 1)) in (6) computes the normalized

surface normal. The inner product of the surface nor-

mal and the z axis of the camera coordinate mea-

sures how parallel are the object surface and the im-

age plane of the camera in the initial view, effectively

quantifying the foreshortening of the object. Ulti-

mately, to ﬁnd the average parallelism of the object

surface to the camera, the results of the inner prod-

ucts are averaged over all the foreground pixels. The

proposed score prefers a tile when its score is higher.

2.5 Tile Classiﬁcation Dissimilarity

When an AOR system is uncertain about its recogni-

tion, it can be a good idea to ﬁnd where in the initial

view (i.e. which tile) is contributing more to the un-

certainty by not conﬁrming the initial view’s recogni-

tion. Later, trying to take a new look from the direc-

tion of that opposing tile will probably help in getting

new information and resolving the ambiguity. Ac-

cordingly, to measure the extent of dissimilarity of

class probabilities of the whole object image and a

tile, the sum of their absolute differences (SAD) is

used. This criterion is deﬁned in (9).

∑

i∈G



(i) − p

(i)



(9)

where S

is the dissimilarity score between the tile j

and the complete object image, G represents the set of

object classes, and p

(i) and p

(i) are probabilities

of a class i after classifying the tile j and the whole

object image by the classiﬁers trained for tile j (c

)

and the whole object (c), respectively. The c and c

are conventional classiﬁers, trained with color images

of objects, with the difference that c

only uses the

portion of images related to tile j, while c considers

the whole object images in the training.

3 EXPERIMENTAL RESULTS

The proposed next best view method was evaluated on

a dataset we created, particularly for benchmarking of

Figure 3: A sample situation in the dataset.

active object recognition techniques. To produce un-

certain initial recognitions that cause an active object

recognition system to trigger, the initial views of ob-

jects were intentionally distorted in the tests. In addi-

tion, the tests were performed on AOR systems with

different classiﬁers and fusion methods to ensure the

results are not biased for a speciﬁc type of AOR sys-

tem.

3.1 The Test Dataset for Active Object

Recognition

We collected 240 test situations, generally for evalu-

ating active recognition systems, especially next best

view methods. The dataset is comprised of 10 ob-

jects, each one being shown in 24 situations. The ob-

jects in each of their 24 test situations were placed in

various poses (4 random faces of the object), lighting

conditions (2 modes: darker and brighter), and back-

ground textures (3 modes: dark tabletop, light carpet,

and colorful rug). There are seven images and their

corresponding depth maps in each situation: one for a

frontal initial view, another for an initial view with a

slightly higher altitude initial view, and ﬁve others for

the images/depth maps taken from the sides of objects

as follows: left, top left, top, top right, and right. Fig-

ure 3 shows a sample situation for one of the objects

in the dataset. The dataset is published along with the

current paper.

3.2 Emulating AOR Triggering

Conditions

Active object recognition systems are normally used

when the classiﬁers suffer reduced performance due

to occlusion or unfavorable perspective of objects.

Because the initial views in the test dataset are clear

and unobstructed, the initial views are altered to cre-

ate the conditions that can trigger AOR. These alter-

ations are superimposing a corner of the image and its

respective depth map, amounting to 36% of their area,

by a patch of another randomly selected object image

Figure 4: Initial view distortions. a) Original im-

age, b, c) Top/bottom whiteout, d, e) Left/right blackout,

f, g) Lighter/heavier noise, h, i, j, k) Corner superimpose,

l, m) Lighter/heavier blur, n) Bright, o) Dark.

and its depth map, replacing with white or black an

entire half of the image and its corresponding depth

map, Gaussian blurring in two levels, adding noise in

two levels, and image brightening/darkening.

The tests were performed on the original images

and their altered versions as well as their correspond-

ing depth maps, totaling 15 test scenarios for any test

situation in the dataset. Figure 4 shows the 15 ver-

sions of the initial view for an object in a sample situ-

ation.

3.3 Test Benchmarks

Since there are two initial images in each test situation

in the dataset, two experiments can be performed for a

single situation. As mentioned in the former section,

for each initial image 15 test scenarios with various

alterations are possible. Therefore, 30 tests are per-

formed for any test situation. With the existence of

240 test situations in the dataset, 7200 situations were

evaluated for any vision system in the tests.

To ensure that the proposed NBV is independent of

the classiﬁer and the fusion algorithms in the AOR

system, ﬁve different classiﬁers and three fusion tech-

niques were examined in order to take their aver-

age results. Averaging, Na

ıve Bayes (Hoseini et al.,

2019a), and Dempster-Shafer (DS) (Hoseini et al.,

2019b) fusion algorithms are used in the tests. Three

of the classiﬁers are Convolutional Neural Network

(CNN) models with different number and composi-

tion of layers, activation functions, and pooling op-

erations. Another one is a Support Vector Machine

(SVM) classiﬁer with the feature vector comprised

of Hu moments of the three RGB (red-green-blue)

planes, besides the reduced Histogram of Oriented

Gradients (HOG) of the gray level image of the in-

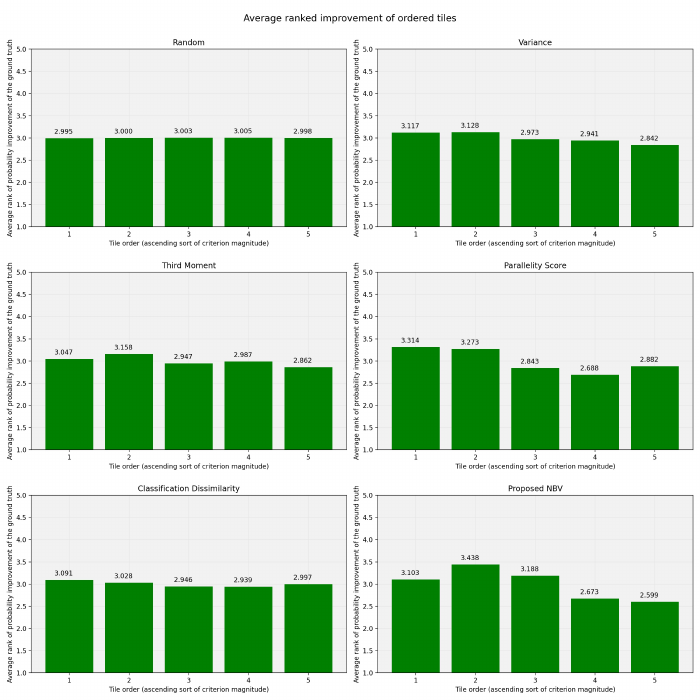

Figure 5: Average ranked improvement of tiles in ascending order of scores.

put. The last one is a random forest that uses a bag of

visual words of Speeded Up Robust Features (SURF)

keypoint descriptors.

Considering the possible combinations of the classi-

ﬁcation and fusion approaches, 15 benchmarks were

evaluated, each with 7200 situations tested. In the

tests, the conﬁdence threshold of the AOR, explained

in (Hoseini et al., 2019a) and (Hoseini et al., 2019b),

was set to 20, that means the second viewpoint is re-

trieved if the highest class probability of the initial

view is less than 20 times of the second highest one.

3.4 Obtained Results

3.4.1 Ranked Ground Truth Improvement

In every test situation, the ﬁve prospective next view-

points are examined for the scores they get from every

criterion. In Figure 5, the tiles are sorted on the hori-

zontal axis in an ascending order of the scores of each

designated criterion. The height of the bars for any

tile shows the mean rank of the tile in attaining better

probability for the ground truth classes after the deci-

sion fusion stage. The lower the rank and the closer

it is to 1, the better it is. Therefore, in Figure 5 it is

desirable to have lower height of the bars in the right

sides of the plots.

From the results, it can be seen that the proposed

NBV method attains better ranks for the tiles it scores

higher. It means that it is useful in selecting the view-

points that offer the best improvement in probability

of the true class in the AOR system’s output. Addi-

tionally, Figure 5 shows the performance of randomly

selecting the next view and the individual criteria that

are part of the ensemble. All the proposed individ-

ual criteria in the ensemble mostly ﬁnd the better tiles

with their scorings and tend to bring the height of their

very right bar down, despite being not as good as the

combination of them, which causes sharper decline in

the height of the right bar.

3.4.2 Performance per Criterion

Figure 6 compares the ratio of accuracy, precision, re-

call, and F

score improvement of the proposed sys-

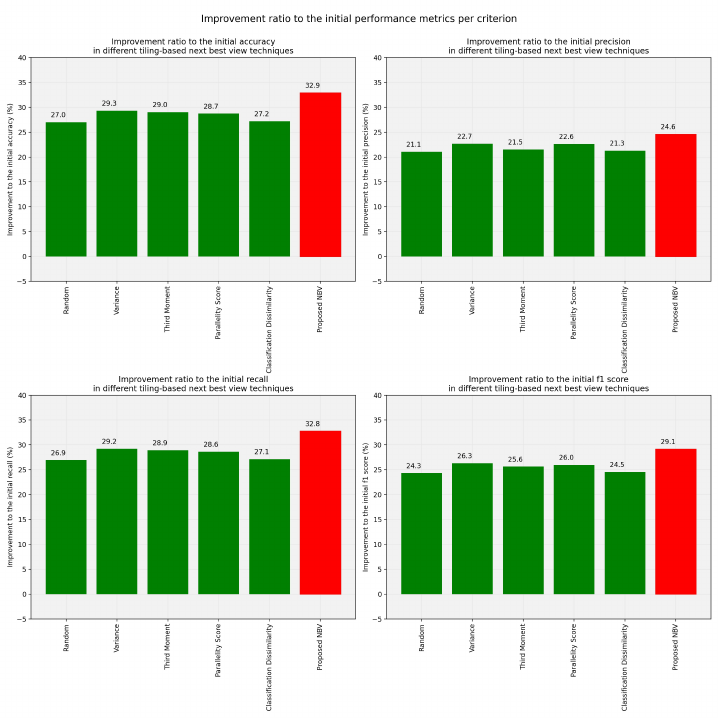

Figure 6: Improvement ratio to the initial performance metrics per measure.

tem and its constituting measures as well as random

view selection to their initial performance metrics.

We see that the proposed system achieves high im-

provements and is better than the other criteria in the

ﬁgure, including the random selection of next view-

point. Accuracy and F

score of the proposed method

is 5.9% and 4.8% more than a randomly viewpoint

selecting AOR system.

3.4.3 Performance Improvement per Sorted

Tiles

The accuracy, precision, recall, and F

score improve-

ment of the AOR system by using any of the ﬁve pos-

sible tiles in the tests are shown in Figure 7. The tiles

are sorted in the horizontal axis based on the scores

they receive from each measure. It is desirable to see

better performance for the tiles the NBV system em-

phasizes more, i.e. the ones with higher scores in the

right side of each plot. Therefore, we want to see

higher bars on the right side of each plot. The re-

sults prove that the proposed NBV is effective in ob-

taining higher performance indices in its top picks.

The individual measures participating in the ensem-

ble also show a trend of increasing accuracy, preci-

sion, recall, and F

score with the higher scores they

produce, which is not always true for the random se-

lection.

3.4.4 Receiver Operating Characteristic (ROC)

Curves

Figure 8 shows the ROC curves obtained through

micro-averaging for all the samples in the 15 bench-

marks. The blue curves in the ﬁgure, show the re-

sults of the initial view recognitions only, while the

green curves indicate the effect of fusing with the re-

sults of a randomly selected view. The red curves,

instead, show the results of utilizing the proposed

method. Comparing the three sets of the curves veri-

ﬁes the effectiveness of the AOR system in enhancing

the ROC curve, and of the NBV method in increasing

the recognition improvement.

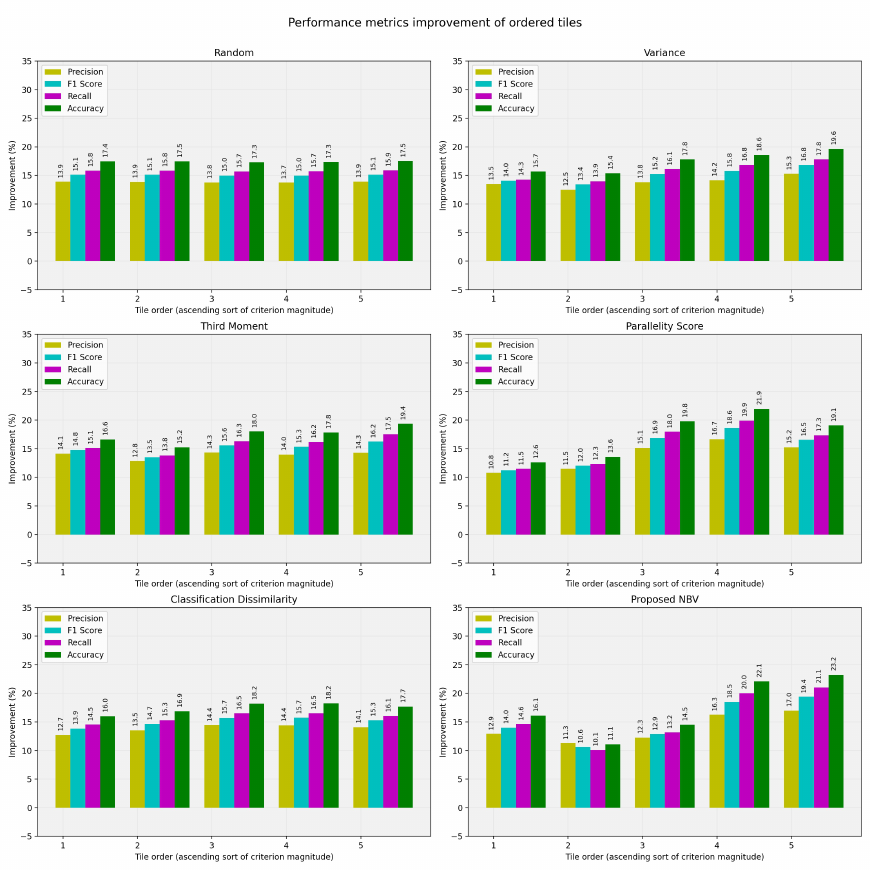

Figure 7: Performance metrics improvement of tiles in ascending order of scores.

3.5 Discussion

The experimental results clearly show the applicabil-

ity of the proposed NBV in improving accuracy, re-

call, precision, and thus F

score of the active object

recognition systems. In the results, we observe that

the active object recognition systems with a random

selection of next viewpoint attain 27% and 24.3% ac-

curacy and F

score improvement on average. With

the proposed next best view method, the same AOR

systems experience 32.9% and 29.1% accuracy and

score enhancements, which amounts for 5.9% and

4.8% further improvement over a random AOR.

Interestingly, the tile ranking using the foreshortening

score shows that sometimes the tiles with the penul-

timate score reach better ranks than the highest scor-

ing ones. Those cases occur perhaps when the higher

scoring tile has a very steep object surface with re-

spect to the image plane of the camera in the initial

view. Compared to less steep surfaces, a very steep

one may impede the proper view of the respective ob-

ject side from the perspective of the initial view.

4 CONCLUSION

In this paper a next best view approach for active ob-

ject recognition systems was presented. The proposed

view selection divides an initial image of an object

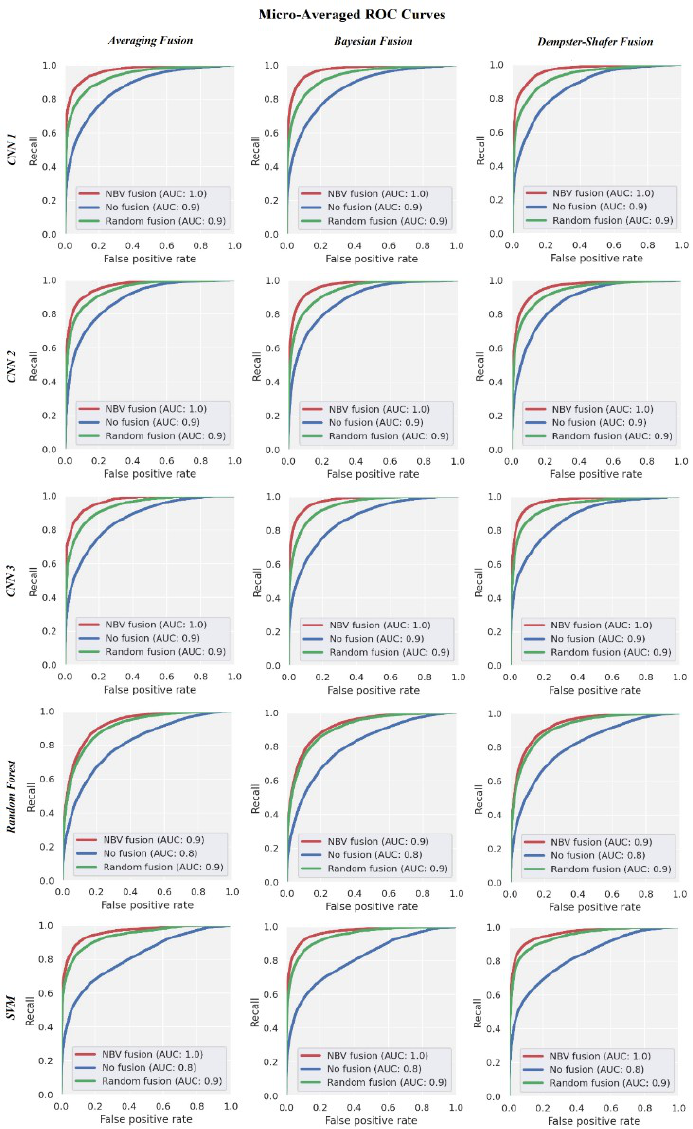

Figure 8: ROC curves of different test benchmarks.

into a few zones to investigate each one for clues in

determining better next views. Each area is analyzed

through an ensemble of four different techniques:

foreshortening, histogram variance, histogram third

moment, and classiﬁcation dissimilarity. There is no

need to a prior training set of speciﬁc views of ob-

jects or their 3D models in the proposed method. It

can suggest the next viewpoint based on just the in-

formation of a single initial view, which along with

the property of considering both the 3D shape and ap-

pearance of objects offers an intrinsic advantage for

active object recognition tasks.

A dataset for testing active object recognition systems

was developed as a part of this work and was used to

evaluate the proposed next best view technique. In

the presence of heavy occlusions in the initial view,

we report 32.9% and 29.1% average accuracy and F

score improvements compared to the initial perfor-

mance values.

In continuation to this work, future efforts should be

directed toward probing alternative tiling schemes of

the initial view. Another area of work can be investi-

gating other ensemble methods in place of the current

voting scheme. A meta-learning approach would be a

potentially interesting way to combine the tile scores.

ACKNOWLEDGMENTS

This work has been supported in part by the Ofﬁce

of Naval Research award N00014-16-1-2312 and US

Army Research Laboratory (ARO) award W911NF-

20-2-0084.

REFERENCES

Atanasov, N., Sankaran, B., Le Ny, J., Pappas, G. J., and

Daniilidis, K. (2014). Nonmyopic view planning for

active object classiﬁcation and pose estimation. IEEE

Transactions on Robotics, 30(5):1078–1090.

Barzilay, O., Zelnik-Manor, L., Gutfreund, Y., Wagner, H.,

and Wolf, A. (2017). From biokinematics to a robotic

active vision system. Bioinspiration & Biomimetics,

12(5):056004.

Bircher, A., Kamel, M., Alexis, K., Oleynikova, H., and

Siegwart, R. (2016). Receding horizon” next-best-

view” planner for 3d exploration. In 2016 IEEE in-

ternational conference on robotics and automation

(ICRA), pages 1462–1468. IEEE.

Doumanoglou, A., Kouskouridas, R., Malassiotis, S., and

Kim, T.-K. (2016). Recovering 6d object pose and

predicting next-best-view in the crowd. In Proceed-

ings of the IEEE conference on computer vision and

pattern recognition, pages 3583–3592.

Gonzalez, R. C. (2018). Richard E. Woods Digital Image

Processing, Pearson. Prentice Hall.

Hoseini, P., Blankenburg, J., Nicolescu, M., Nicolescu, M.,

and Feil-Seifer, D. (2019a). Active eye-in-hand data

management to improve the robotic object detection

performance. Computers, 8(4):71.

Hoseini, P., Blankenburg, J., Nicolescu, M., Nicolescu, M.,

and Feil-Seifer, D. (2019b). An active robotic vi-

sion system with a pair of moving and stationary cam-

eras. In International Symposium on Visual Comput-

ing, pages 184–195. Springer.

Jia, Z., Chang, Y.-J., and Chen, T. (2010). A general

boosting-based framework for active object recogni-

tion. In British Machine Vision Conference (BMVC),

pages 1–11. Citeseer.

Krainin, M., Curless, B., and Fox, D. (2011). Autonomous

generation of complete 3d object models using next

best view manipulation planning. In 2011 IEEE In-

ternational Conference on Robotics and Automation,

pages 5031–5037. IEEE.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. IEEE transactions on systems, man,

and cybernetics, 9(1):62–66.

Paul, S. K., Chowdhury, M. T., Nicolescu, M., Nicolescu,

M., and Feil-Seifer, D. (2020). Object detection and

pose estimation from rgb and depth data for real-time,

adaptive robotic grasping. In 24th International Con-

ference on Image Processing, Computer Vision, &

Pattern Recognition (IPCV). Springer.

Potthast, C. and Sukhatme, G. S. (2011). Next best view

estimation with eye in hand camera. In IEEE/RSJ Intl.

Conf. on Intelligent Robots and Systems (IROS). Cite-

seer.

Potthast, C. and Sukhatme, G. S. (2014). A probabilistic

framework for next best view estimation in a cluttered

environment. Journal of Visual Communication and

Image Representation, 25(1):148–164.

Rebull Mestres, J. (2017). Implementation of an automated

eye-in hand scanning system using best-path planning.

Master’s thesis, Universitat Polit

ecnica de Catalunya.

Wu, Z., Song, S., Khosla, A., Yu, F., Zhang, L., Tang, X.,

and Xiao, J. (2015). 3d shapenets: A deep representa-

tion for volumetric shapes. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 1912–1920.
