On Order-preserving, Gap-avoiding Rectangle Packing

oren Domr

, Daniel Lucas

, Reinhard von Hanxleden

and Klaus Jansen

Department of Computer Science, Kiel University, Westring, Kiel, Germany

Keywords:

Automatic Layout, User Intentions, Rectangle Packing.

Abstract:

We present 2D rectangle packing heuristics that preserve the initial ordering of the rectangles while maintain-

ing a left-to-right reading direction. Furthermore, rectangles are placed such that inner whitespace (“gaps”)

can be eliminated by enlarging and repositioning them without enlarging the drawing. This is achieved by

initially approximating the required width and using a strip packing algorithm to pack the rectangles. The

algorithms are suitable for interactive scenarios and can also be applied to strip packing problems to maintain

the reading direction.

1 INTRODUCTION

Packing rectangles in a speciﬁc area, width, height,

aspect ratio, or different bins has been studied on sev-

eral occasions and remains in most cases a hard prob-

lem (Dowsland and Dowsland, 1992). This prob-

lem is relevant for numerous areas. For example,

the transportation industry does not only need tightly

packed packages, but also ordered packages and a

stable packing (Da Silveira et al., 2014). The pack-

ages should be ordered such that they can be removed

easily at a speciﬁed destination. This is expressed

by adding stability and removal order constraints to

the strip packing problem of determining the minimal

height for an overlapping free packing of rectangles

in a bounded width and inﬁnite height.

Another application, which has actually motivated

the work presented in this paper, is the placement of

regions in SCCharts (von Hanxleden et al., 2013),

a synchronous language for Model-Driven Engineer-

ing (MDE). SCCharts are a graphical language and

graphical models are predominantly still created man-

ually. In this paper, however, we are interested in cre-

ating SCChart diagrams automatically, from a purely

textual model. Since the inception of SCCharts,

this approach has been realized and stress-tested in

the Kiel Integrated Environment for Layout Eclipse

Rich Client (KIELER)

(Fuhrmann and von Hanxle-

https://orcid.org/0000-0002-8011-8484

https://orcid.org/0000-0001-6090-2637

https://orcid.org/0000-0001-5691-1215

https://orcid.org/0000-0001-8358-6796

www.rtsys.informatik.uni-kiel.de/en/research/kieler

den, 2010; von Hanxleden et al., 2011), which makes

use of the open source Eclipse Layout Kernel (ELK)

The application case of SCCharts has already inspired

a number of works in the area of graph drawing (Chi-

mani et al., 2011; R

uegg et al., 2014; Jabrayilov et al.,

2016; Gutwenger et al., 2014; R

uegg et al., 2016;

uegg et al., 2017; Schulze et al., 2014). However,

these previous works have focused on the drawing of

the node-link diagrams present in SCCharts; the rect-

angle packing problem posed by SCChart regions has

not been covered so far.

As illustrated in Figure 1, SCChart regions can be

expanded making their content visible, as it is the case

for regions F, H, and K in the example, or collapsed.

In both cases, each region requires a rectangular area.

Collapsed regions usually have the same height but

vary in width. Expanded regions can have any size

and are typically much bigger than the collapsed re-

gions.

An SCChart drawing usually has to ﬁt into a cer-

tain drawing area that has a speciﬁc width and height,

which also prescribes an aspect ratio. The drawing

should not only ﬁt this aspect ratio, but it should also

use minimal area to draw regions with a higher zoom

level, as expressed by the scale measure, formally de-

ﬁned later. A bigger scale measure means that regions

can be drawn bigger, which means all components

and labels can be read more easily.

Regions should also not have any “gaps”, i. e., no

unnecessary whitespace between them. They should

be placed such that their size can be increased to elim-

inate the remaining whitespace to obtain an aestheti-

https://www.eclipse.org/elk/

Domrös, S., Lucas, D., von Hanxleden, R. and Jansen, K.

On Order-preserving, Gap-avoiding Rectangle Packing.

DOI: 10.5220/0010186400380049

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages 38-49

ISBN: 978-989-758-488-6

cally pleasant drawing. For example, Figure 1d con-

tains undesired whitespace, which is eliminated in

Figure 1e.

Contributions & Outline

The technical contributions are:

• The presentation and formalization of the region

packing problem (Section 2), including placement

constraints that lead to a reading direction for

regions, as well as whitespace elimination con-

straints.

• A ﬁrst, rather simplistic box algorithm to solve

the region packing problem (Section 3, see Fig-

ure 1b).

• Second, an alternative approach, the rectpacking

algorithm (Section 4, seen in Figure 1c). This in-

cludes a width approximation step and also intro-

duces and provides speciﬁc treatment of the one

big region case.

• Finally, the LR-rectpacking algorithm (Section 5,

see Figure 1e). This includes an improved com-

paction step to maintain the reading direction as

well as the elimination of special handling for the

one big region case.

The algorithms are evaluated against an optimal

solution (Section 6, see Figure 1f). We conclude and

present future work in Section 7.

Related Work

Dowsland and Dowsland give an overview of numer-

ous works on rectangle packing and strip packing

(Dowsland and Dowsland, 1992). Each of them does

not consider ordering and reading direction as it is

proposed by this paper.

Da Silveira et al. present a strip packing algo-

rithm that considers the packaging order by assigning

packages to classes, which indicate the removal order

(Da Silveira et al., 2013). They initially place pack-

ages in rows as in the box layout algorithm. How-

ever, to optimize the used space, they reverse the even

rows and compact the drawing, which may destroy

the reading direction and may produce a drawing in

which whitespace cannot be eliminated.

Augustine et al. explore strip packing with prece-

dence constraints and strip packing with release times

for FPGA programming (Augustine et al., 2006).

Rectangles are placed such that they are above/below

other rectangles or above their release time, which

represents dependencies between different jobs. This

placement also allows to eliminate the whitespace be-

tween the different rectangles, but this is not consid-

ered in this context. In contrast to our work, their

precedence constraints only restrict the vertical place-

ment and do not consider a reading direction.

Kenyon and R

emila present an asymptotic fully

polynomial approximation scheme for strip-packing

(Kenyon and R

emila, 2000). They pack all wide rect-

angles sorted by width in a stack and group neighbor-

ing rectangles by their cumulative heights. Rounding

up rectangle width in a group allows to solve this as

a fractional strip packing problem. The narrow rect-

angles are placed using a next ﬁt decreasing height

algorithm. In contrast to this paper, the ordering of

the rectangles is not considered. However, it might be

useful to design an approximation algorithm for the

proposed rectangle packing problem.

Bruls et al. suggest a method to visualize ﬁle sys-

tem or company structures via treemaps (Bruls et al.,

2000). They solve the issue of long and small rectan-

gles in treemaps by forming rows and subrows similar

to our approach. However, they order the rectangles

by their size, since this produces the best drawings.

Moreover, only the area of their rectangles is given.

The rectangle bounds can be changed. We have to

deal with a minimum width and height instead and

consider a reading direction.

Wang et al. present EdWordle, which allows to

move and edit words in wordclouds while preserving

the neighborhood of words (Wang et al., 2017). In

contrast to our approach this does not consider on or-

dering of the words. Moreover, a reading direction is

not necessary in that scenario, gaps are allowed, it is

not necessary to align words in rows of columns, and

the dimensions of words seem rather restricted and do

not seem to differ much in size.

The second author presented the rectpacking al-

gorithm in his thesis (Lucas, 2018), including further

details on how the width approximation works, how

the algorithm was implemented, and how the one big

region case works.

2 THE REGION PACKING

PROBLEM

Given an ordered sequence of regions

R = (r

,...r

) with r

= (w

) for region

, with the minimal width w

and minimal height h

we compute a drawing by assigning coordinates x

and y

and a new computed width w

and height h

each region r

. Henceforth, we call the regions r

i−1

and r

i+1

the neighbors of r

Clearly, a requirement on the drawing is that re-

gions must not overlap with other regions, and that

computed widths/heights are at least the speciﬁed

minimum widths/heights. Beyond these correctness

On Order-preserving, Gap-avoiding Rectangle Packing

Example

C D

int X = 2

(a) Box layouter, with whitespace, SM

= 0.00363

Example

C D

int X = 2

(b) Box layouter, after whitespace elim-

ination, SM = 0.00363

Example

C D

int X = 2

nation, SM = 0.00446

Example

C D

int X = 2

(d) LR-rectpacking, with whitespace,

SM = 0.00446

Example

C D

int X = 2

(e) LR-rectpacking, after whitespace

elimination, SM = 0.00446

Example

C D

int x = 2

(f) CP optimizer solution, SM = 0.00508

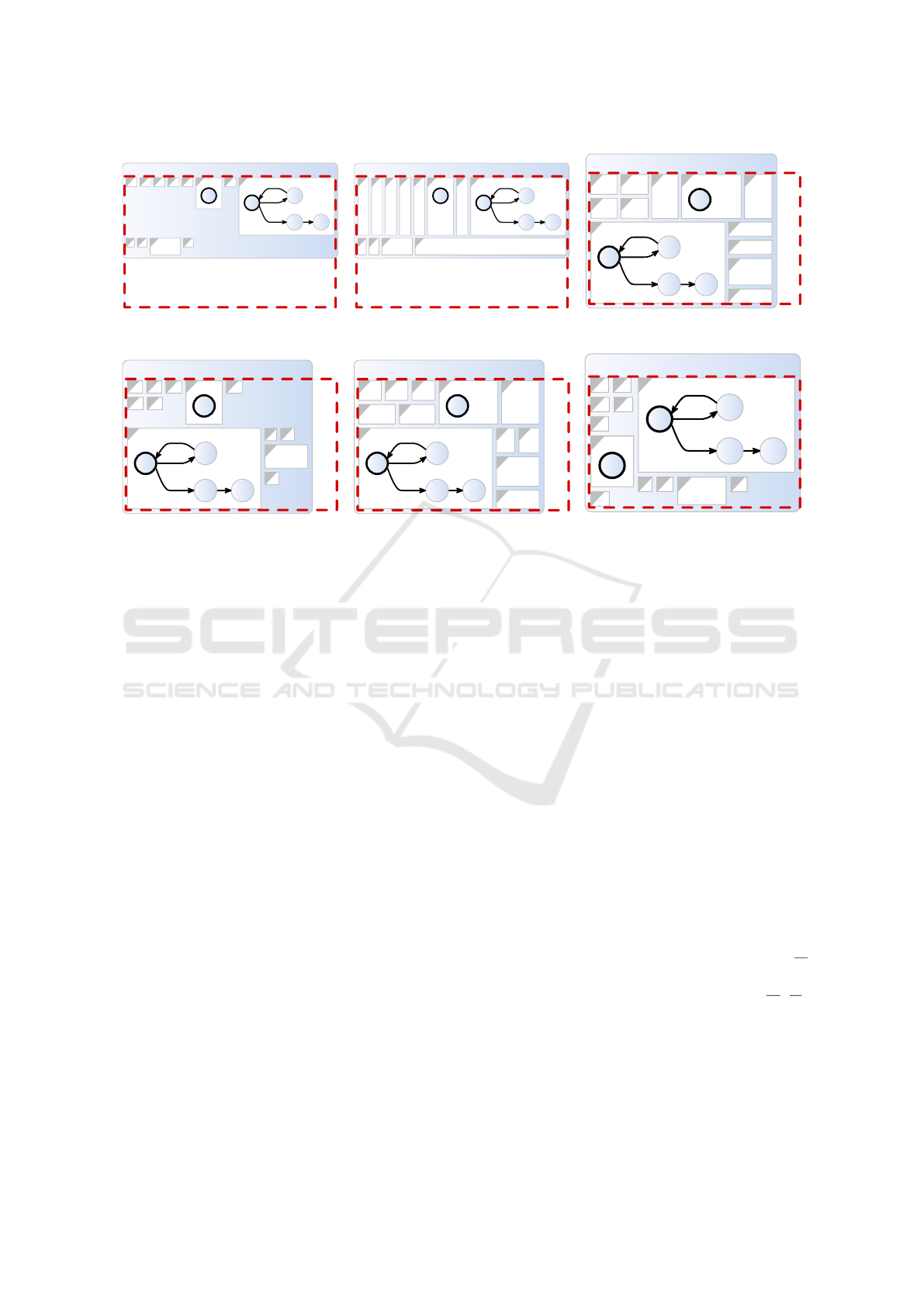

Figure 1: An SCChart with region F, H, and K expanded, desired aspect ratio of 1.6 (red-dashed bounding box), with scale

measure SM (larger is better).

requirements, we seek to produce drawings that make

best possible use of the drawing area, and that con-

sider the mental map of the user, as detailed in the

following sections.

Since we talk about layout creation and the men-

tal map is usually only used for layout adjustment

(Purchase et al., 2006), we need to broaden this term.

The user begins to create a mental map by writing

the textual model. We should preserve the order of

that textual model also in the corresponding diagram.

Since our drawings are not one dimensional but two

dimensional, the drawing should make clear when re-

gions are ordered horizontally and when vertically. A

trivial solution to achieve this is the box layout algo-

rithm (see Section 3), which has a clear placement

of regions in rows and a left to right reading direc-

tion. Moreover, we deem the dimension of a region

as unimportant to recognize the region. In an SCCha-

rts scenario, inner state machines deﬁne the look of a

region, which is not inﬂuenced by the dimension of

the region. To summarize, regions should be discov-

erable by their name, their contents, and their display

order.

2.1 Rows, Blocks, and Subrows

If we want to talk about reading direction and place-

ment of regions, we have to introduce proper termi-

nology to describe region placement and alignment.

A drawing consists of rows, which in turn consist

of blocks, which in turn consist of of subrows (rows

within rows). Figure 2 has two rows. The top row

consist of three blocks. The ﬁrst block consist of two

subrows. The top subrow consist of three regions: re-

gion A, region B, and region C. Henceforth we call

the upper bound of a row the row level of that row. In

Figure 2 region A, B, C, F, G, H, I, and J are on the

row level of their row. This means they align at their

top with their row level.

2.2 Aspect Ratio and Scale Measure

The size of the different elements is an important lim-

iting factor regarding readability and understandabil-

ity.

Let A = (w

) be the drawing area deﬁned by

the desired width w

and the desired height h

. This

deﬁnes the desired aspect ratio DAR = w

. Simi-

lar to the DAR, the aspect ratio is deﬁned as AR =

given by the actual width w

and the actual height

. The original scale measure OSM = min(

)

expresses how well the drawing uses the given area

uegg and von Hanxleden, 2018). E.g., an OSM of 1

means that both the width and the height ﬁt the draw-

ing area, but that the drawing cannot be enlarged any-

more without exceeding the drawing area. An OSM

of 0.5 means that the drawing has to be shrunk by a

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

Example

C D

int X = 2

(a) Blocks (red)

Example

C D

int X = 2

(b) Subrows (red)

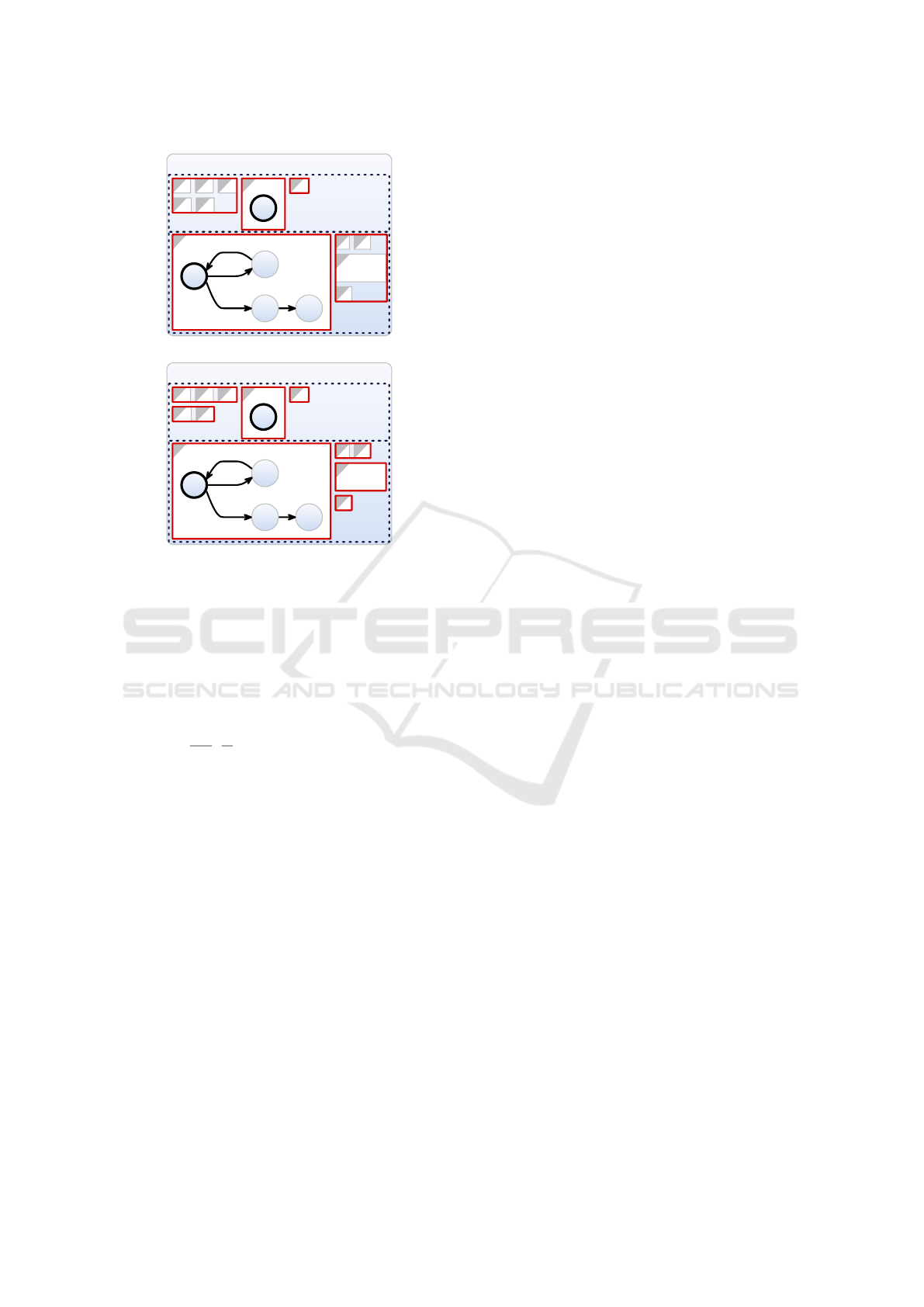

Figure 2: Rows, blocks, and subrows (dotted, black) in a

rectangle packing.

factor of 2 to ﬁt the drawing area. Clearly, a larger

OSM allows a more readable diagram and is hence

better. In our case we only have a given desired as-

pect ratio and not the desired width and height. This

means that we can arbitrarily assume h

= 1, which

results in w

= DAR. This yields the scale measure

SM = min(

DAR

), which is based on the desired

aspect ratio DAR. Again, just as for the OSM, larger

SM is better. Practically, we allow ourselves to pro-

duce drawings of arbitrary height and width, and leave

it up to the rendering to scale the drawing such that

it ﬁts the drawing area, modulo zooming/panning ac-

tions taken by the user.

2.3 Ordering and Whitespace

We assume that regions are correctly ordered if for

each pair of regions r

, r

with i < j the following

holds:

+ w

≤ x

∨y

+ h

≤ y

This means that the region i is horizontally or ver-

tically before the region j. This constraint is not

enough to identify the order of the regions just by their

placement. In bigger graphs this hinders the ability to

discover regions in the drawing even if the previous

ordering and the position of its neighbors is known.

The reading direction (visible in Figure 1d) makes

the region ordering better discernible. Here regions

are placed such that they preferably align horizontally

and form rows of regions.

A region is either placed

(1) directly right of its preceding neighbor

(2) right of its preceding neighbor on the current row

level

(3) in the next subrow

(4) in the next row

This is not enough to clearly identify a reading di-

rection, as seen in Figure 1d and 1f. A random align-

ment of subrows, as in Figure 1f, could irritate the

user and suggest to continue right instead of down.

Therefore, the height of each row should be deﬁned

by the highest element in it. This helps the user to

follow a reading direction.

We also want to be able to eliminate the whites-

pace in a drawing, as seen in Figure 1d compared to

Figure 1e. This allows to use the available space to

its full extent and creates a visually pleasing draw-

ing by increasing the width or height of the regions.

Moreover, it is easier to follow the region order. If

empty space is below and right of a region, it is un-

clear where to continue. If the whitespace is elim-

inated, the user continues below, if the right region

does not align horizontally with the current one, and

right if it does align. It is not always possible to re-

move all whitespace in arbitrary drawings. However,

since we only consider the position (1) to (4) for a

node, the whitespace can always be eliminated.

A lower-numbered constraint is preferred over a

higher one to maintain a left-to-right reading direc-

tion. Constraint (1) is true if a region is directly right

of its preceding neighbor (see region B in Figure 1d).

A region fulﬁlls (2) if it is on its row level right of

its preceding neighbor. Region F in Figure 1d fulﬁlls

this constraint. Constraint (3) means a region is in the

next subrow below and possibly left of its preceding

neighbor (see i. e. regions H and K in Figure 1d). Re-

gion H in Figure 1d is an example for Constraint (4).

The box layouter fulﬁlls (1) or (4) but fulﬁlls neither

(2) nor (3) without fulﬁlling (1) or (4) at the same

time. Since the (2) implies (1) and (3) implies (4) in

case of the box layouter. Rectpacking considers all of

them, but prefers (3) over (2). LR-rectpacking uses

these constraints as they are intended to maintain the

reading direction.

Additionally to the reading direction, the drawing

has to be space efﬁcient and near the desired aspect

ratio to produce better drawings than the one in Fig-

ure 1b, which is expressed by the scale measure.

On Order-preserving, Gap-avoiding Rectangle Packing

To summarize, we want an algorithm that pro-

duces drawings with a high scale measure, makes re-

gions discoverable by maintaining a reading direc-

tion, and places the regions such that the inner whites-

pace can be eliminated.

3 BOX LAYOUTER

Algorithm 1 presents the box algorithm, a greedy al-

gorithm for layouting regions.

The algorithm reduces the rectangle packing prob-

lem to a strip packing problem by estimating the

width based on the area and the region sizes (Algo-

rithm 2).

The layout algorithm places the regions next to

each other in rows (line 3) without considering the

height of such a row, as seen in Figure 1a.

Next, the regions are expanded to ﬁll the row

height (see regions A to G in Figure 1a compared to

Figure 1b). The last region in a row is also horizon-

tally enlarged (see region F). Note that it is also pos-

sible to divide the available width among all regions

of a row, but the use of this algorithm allows to only

enlarge the width of the last node compared to the fol-

lowing ones.

Algorithm 1: box.

Input: Regions rs, DAR

Output: Placed regions rs

1 // Width approximation, see Algorithm 2

2 width = approx(rs,DAR)

3 boxPlace(rs,width) // Region placement

4 expand(rs) // Whitespace elimination

Algorithm 2: boxWidthApproximation.

Input: Regions rs, DAR

Output: Approximated width

1 totalArea =

∑

area(rs)

2 area = totalArea + |rs|∗stddev(totalArea)

3 return max(maxWidth(rs),

√

area ∗DAR)

The algorithm produces rather good drawings for

graphs with regions of similar height. Since the re-

gions are aligned in rows, one can ﬁnd a region with-

out much effort if their initial ordering is known. In

the SCCharts case, big regions, which contain state

machines, are easy to identify and can be used as a

reference point. Here, the shape of the region itself

is irrelevant for the mental map, since the shape of

their innards is preserved and it is discoverable by the

position of its neighboring regions.

Algorithm 3: boxPlace.

Input: Regions rs, width w

Output: Placed regions rs

1 lineX, lineY , lineHeight = 0

2 foreach r in rs do

3 if lineX +r.width ≤ w then

4 r.x = lineX

5 r.y = lineY

6 lineX += r.width

7 lineHeight =

max(lineHeight,r.height)

8 else

9 lineY += lineHeight

10 lineX = 0

11 lineHeight = r.height

12 r.x = 0

13 r.y = lineY

However, big regions are also the weak point of

this algorithm, as seen in Figure 1b. For graphs with

different region sizes, the estimated width is too big,

and by stacking the regions inside a row the whites-

pace could be drastically reduced. As a result, region

names and inner behavior are very small and difﬁcult

to read. The user needs pan and zoom action to un-

derstand and read everything. This limits understand-

ability and is quite time consuming.

One big expanded region and many small col-

lapsed regions are a common use case in SCCharts

development and inspired the one big region case in

the rectpacking algorithm (see Section 4.4).

4 RECTPACKING HEURISTIC

The rectpacking algorithm aims to optimize the scale

measure SM (see Section 2.2), and with it the read-

ability of the diagram, while preserving a reading di-

rection to not disturb the mental map of the user. A

structural overview can be seen in Algorithm 4. The

algorithm exists in two variations, LR-rectpacking

and plain rectpacking, which have the same structure

but vary in which subroutines are called, as indicated

by the optional “lr” preﬁx.

Algorithm 4: [LR-]rectpacking.

Input: Regions rs, DAR

Output: Placed regions rs

1 width = rpApprox(rs,DAR)

2 [lr]rpPlace(rs,width)

3 [lr]compact(rs)

4 [lr]expand(rs,width,DAR)

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

3 4

LBDB

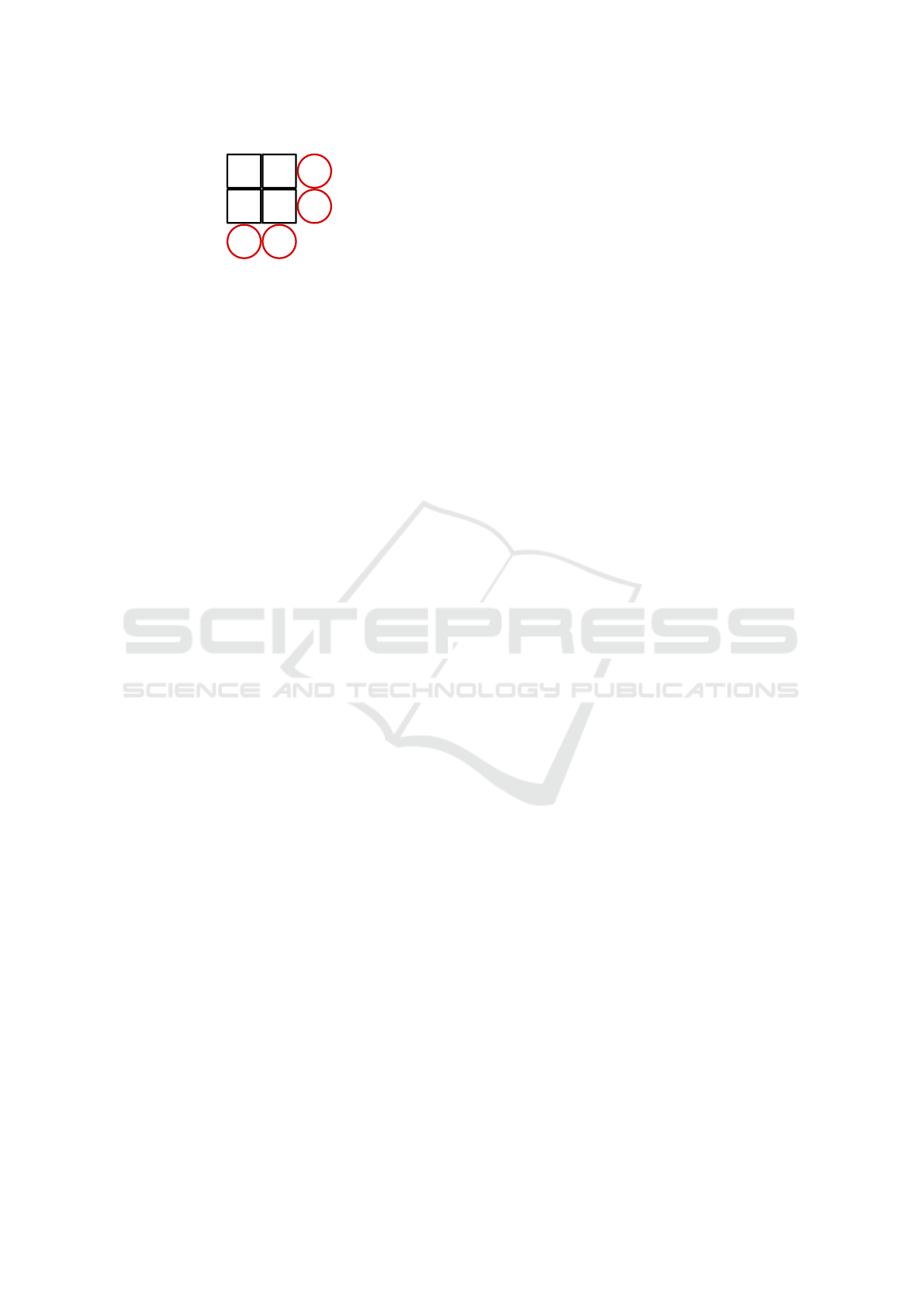

Figure 3: Candidate positions.

4.1 Width Approximation

If one wants to improve the box algorithm, a more

compact drawing is expected. Since the static width

approximation of the box algorithm does not take the

order of the rectangles into account and does over-

estimate the width in no relation to the actual draw-

ing width, we propose to use a greedy placement al-

gorithm that does not consider reading direction (see

Figure 4a) but approximates the area better than the

box algorithm, as seen in Figure 4c.

The greedy algorithm places one region after the

other on one of four candidate positions, as seen in

Figure 3.

• Directly right of the last placed region (LR)

• Right of the whole drawing, top aligned (DR)

• Directly below the last placed region (LB)

• Below the whole drawing, left aligned (DB)

These positions are weighted based on the result-

ing scale measure, area, and aspect ratio. If one wants

to optimize scale measure, it is the primary criterion,

area the secondary, and aspect ratio the tertiary. If one

wants to optimize the aspect ratio, they are applied

in the following order: aspect ratio, area, scale mea-

sure. Depending on whether the aspect ratio or the

scale measure should be optimized, the option that

currently yields the best values is chosen. Regions

placed at LR might be shifted up, regions placed at

LB might be shifted left to optimize the current draw-

ing, since the width is often overestimated. After po-

tentially shifting the previous region, the next one is

placed. A complete placement can be seen in Fig-

ure 4a. The scale measure is the main optimization

goal. In this example, region E is placed on the DR

candidate position, since DR is preferred over LR and

both produce the same scale measure, which is better

than the one of the DB and LB position, since the used

DAR prefers wider drawings over higher ones.

4.2 Region Placement and Compaction

The approximated width reduces the problem to a

strip packing problem. In the ﬁrst step, the regions

are placed in rows the same way as in the box al-

gorithm, as seen in Figure 4b. Using the maximum

height of a row, the drawing is compacted by assign-

ing regions to stacks, which are sequences of regions

that are aligned vertically, inside a row, as seen in Fig-

ure 4c. Note that this imposes a top-down reading di-

rection compared to the left-to-right reading direction

of the rows. In Figure 4c region A and B, region C and

D, region E, region F, region G, region H, and region

I, J, K and L form a stack.

4.3 Whitespace Elimination

The whitespace is eliminated by iterating through all

stacks in a row and enlarging the height of the regions

in the stacks such that the stack ﬁts the row height,

as seen in Figure 5. The additional width of a row is

divided among all stacks. Moreover, all stacks are en-

larged to ﬁt the row height. All regions in a stack are

enlarged to ﬁt the stack width and equally enlarged to

ﬁt the new stack height, which creates an aesthetically

pleasing drawing (Figure 1b compared to Figure 1c).

4.4 Big Region Handling

The rectpacking heuristic includes a special case han-

dling for sets of regions that indicate SCCharts re-

gions with one expanded region, i. e. a set of regions

with one big region and other regions with the same

height. We henceforth refer to this as the one big re-

gion case.

We consider a left-to-right reading direction for

the regions, as in Figure 6b, to be more pleasing than

the standard case top-down reading direction in Fig-

ure 6a. Moreover, a left-to-right reading direction is

already present in the rows the rectpacking algorithm

forms.

To achieve drawings as in Figure 6b, we assume

that all small regions before and after the big region

have the same width and height respectively. Since all

regions have the same size they can easily be placed

in rows, as seen in Figure 6b. For the normal case this

is not trivial, since we only know the bounding height,

but no bounding width. This is why we form rows of

stacks, what is basically solving a vertical strip pack-

ing problem using the box layouter vertically.

5 LR-RECTPACKING

The rectpacking algorithm achieves a better scale

measure than the box layouter. However, it lacks a

consistent reading direction. Furthermore, the one big

region case does not consider the DAR and makes the

On Order-preserving, Gap-avoiding Rectangle Packing

Example

C D

int X = 2

(a) After width approximation, SM =

0.00446

Example

C D

int X = 2

(b) After placement, SM = 0.00371

Example

C D

int X = 2

Figure 4: Layout with rectpacking heuristic, DAR = 1.6 (red-dashed).

B C

(a) After compaction

B C

(b) Move stacks

(d) Expand regions

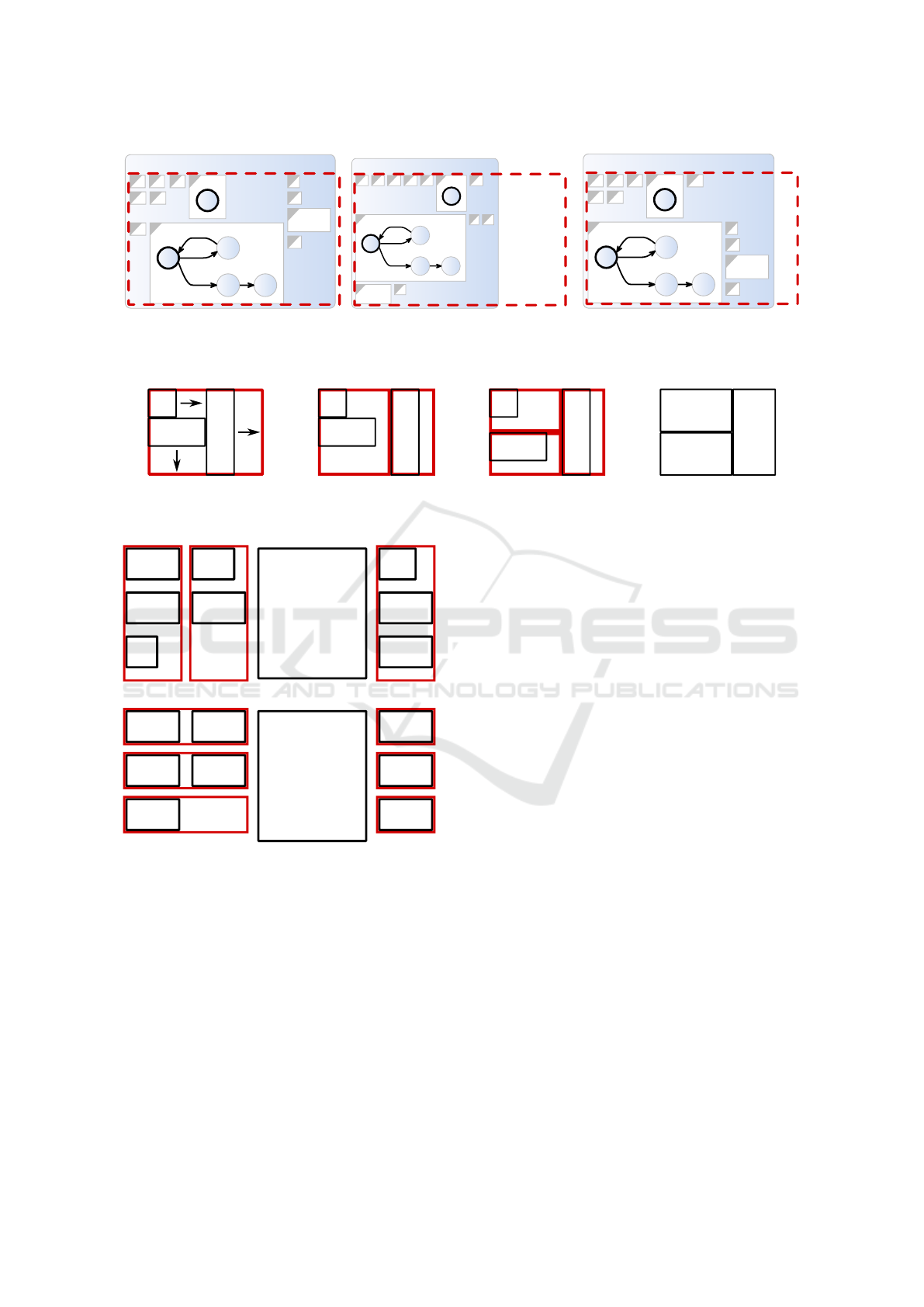

Figure 5: Rectpacking whitespace elimination in a row, the arrows indicate the direction in which the regions are enlarged.

1 4

(a) Normal stacks

(b) One big region case layout

Figure 6: Normal rectpacking compared to the one big re-

gion case.

algorithm difﬁcult to maintain in terms of software

engineering.

We, therefore, propose the following algorithm

that changes the placement, compaction, and expan-

sion step. The width approximation step does not

change. It places the regions to get a target width,

as seen in Figure 4a and described in Section 4.1.

5.1 Region Placement

In the next step, the regions are placed in rows, as

seen in Algorithm 5, which results in the same place-

ment as the region placement of the rectpacking algo-

rithm in Figure 4b. However, regions with “similar

height” are grouped into blocks, since such regions

do not lose too much space if they are aligned in sub-

rows. A region ﬁts in a block, if it can be put directly

right of all regions in it without exceeding the target

width and has a similar height than the regions in this

block. The height, width, and position of rows and

blocks are updated on creation. Regions are placed

when they are added to their block. As seen in Fig-

ure 4b, blocks only have one subrow and the result

looks like a placement the box layouter would create.

Later, during compaction, such blocks are

grouped to form stacks of blocks. After region place-

ment each block forms a stack of blocks containing

only itself. During compaction other blocks can be

added to it as described in the following.

5.2 Region Compaction

Given the blocks, which are drawn as ﬂat as possible,

and stacks of blocks that only contain one block after

placement, we try to compact the drawing by a one

pass algorithm which handles each block one after the

other, as seen in Algorithm 6. After placement, the

row heights are deﬁned by the highest node in them.

This height only decreases during compaction.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

Algorithm 5: lrrpPlace.

Input: Regions rs, width w

Output: Placed regions rs

1 Row row = new Row(w)

2 Stack stack = new Stack(row)

3 Block block = new Block(row,stack)

4 foreach r in rs do

5 similar = hasSimilarHeight(block,r)

6 f it = ﬁtRow(block,r)

7 if similar ∧ f it then

8 block.add(r)

9 else if f it then

10 stack = new Stack(row)

11 block = new Block(row,stack,block)

12 block.add(r)

13 else

14 row = new Row(w,row)

15 stack = new Stack(row)

16 block = new Block(row,stack,block)

17 block.add(r)

Algorithm 6: lrcompact.

Input: Regions rs, width w

Output: Placed regions rs

1 rows = getRows(rs)

2 foreach row ∈ rows do

3 foreach block ∈row.blocks do

4 Block next = block.nextBlock()

5 block.addRegions(next)

6 if ﬁtTop(block, next) then

7 block.stack.add(next)

8 else if ﬁtRight(block, next, w) then

9 block.stack.drawInRowHeight()

10 block.placeRight(next)

11 else

12 block.stack.drawInRowWidth(w)

The current block places the next block above it-

self if it does not exceed the row height (see line 6-7).

If the block ﬁts, it is added to the stack of the current

block (see blocks I to J, K, and L in Figure 1d). If the

next block is in the next row, its regions are added to

the current block if their height is similar to the cur-

rent block height (see line 5).

If placing the next block below itself is not possi-

ble but the next block does ﬁt right (line 8), the current

stack is drawn as narrow as possible (see stack A to E

in Figure 1d and line 9-10). Else the current stack is

drawn as ﬂat as possible in the remaining row width

to facilitate the left-to-right reading direction.

Remember that each block aligns their regions in

subrows, which does not waste much space since their

height is similar. Therefore, one wants to ﬁnd the

minimal width such that all blocks of the current stack

do not exceed the row height, which is realized by

a binary search algorithm. This leaves room for im-

provement. If the number of region widths is limited,

we only need to check width permutations between

the minimum stack width and the current stack width.

The next block/stack is placed next to the compacted

current block or at the beginning of the next row and

we continue with the next block/stack of blocks until

all blocks are placed.

5.3 Whitespace Elimination

The whitespace elimination step in LR-rectpacking is

similar to the one of the rectpacking procedure pre-

sented in Section 4.3 and produces drawings such

as the one in Figure 1e. Since the regions are now

grouped in subrows, blocks, and stacks of blocks, the

additional width and height is now equally divided

under the stacks of blocks in each row, the blocks,

and henceforth the subrows and the regions in them

(see Figure 7) instead of dividing it among the stacks

and their regions, as it is done in Section 4.3.

The algorithm has an option to enlarge the regions

such that the drawing exactly ﬁts the DAR during the

whitespace elimination step.

5.4 Worst Case

Clearly this algorithm performs worst, if very high

and very wide regions alternate, as seen in Figure 8.

In this example, the rows are highlighted in dot-

ted black, stacks of blocks and blocks are highlighted

in red if their bounds are unclear. For Figure 8a, the

width approximation yields a much too small width,

since it does not respect the reading direction. The

optimal packing (see Figure 8b) gets more freedom

since its row height is not limited by the highest el-

ement in it. However, the reading direction suffers.

Without a proper numbering of the regions, one would

rather think that n8 is before n7. Only the left aligned

placement with n4 lets the user guess that n7 should

belong to the same row as n8. Whitespace elimina-

tion helps to highlight this alignment, since n2 and

n8 would ﬁll their entire block and would enframe

the row and highlight the blocks and stacks. The in-

ﬂuence on readability has to be quantitatively deter-

mined in future work.

On Order-preserving, Gap-avoiding Rectangle Packing

A B

(a) After compaction

A B

(b) Move stacks and

blocks

A B

(d) Move regions

A B

(e) Expand regions

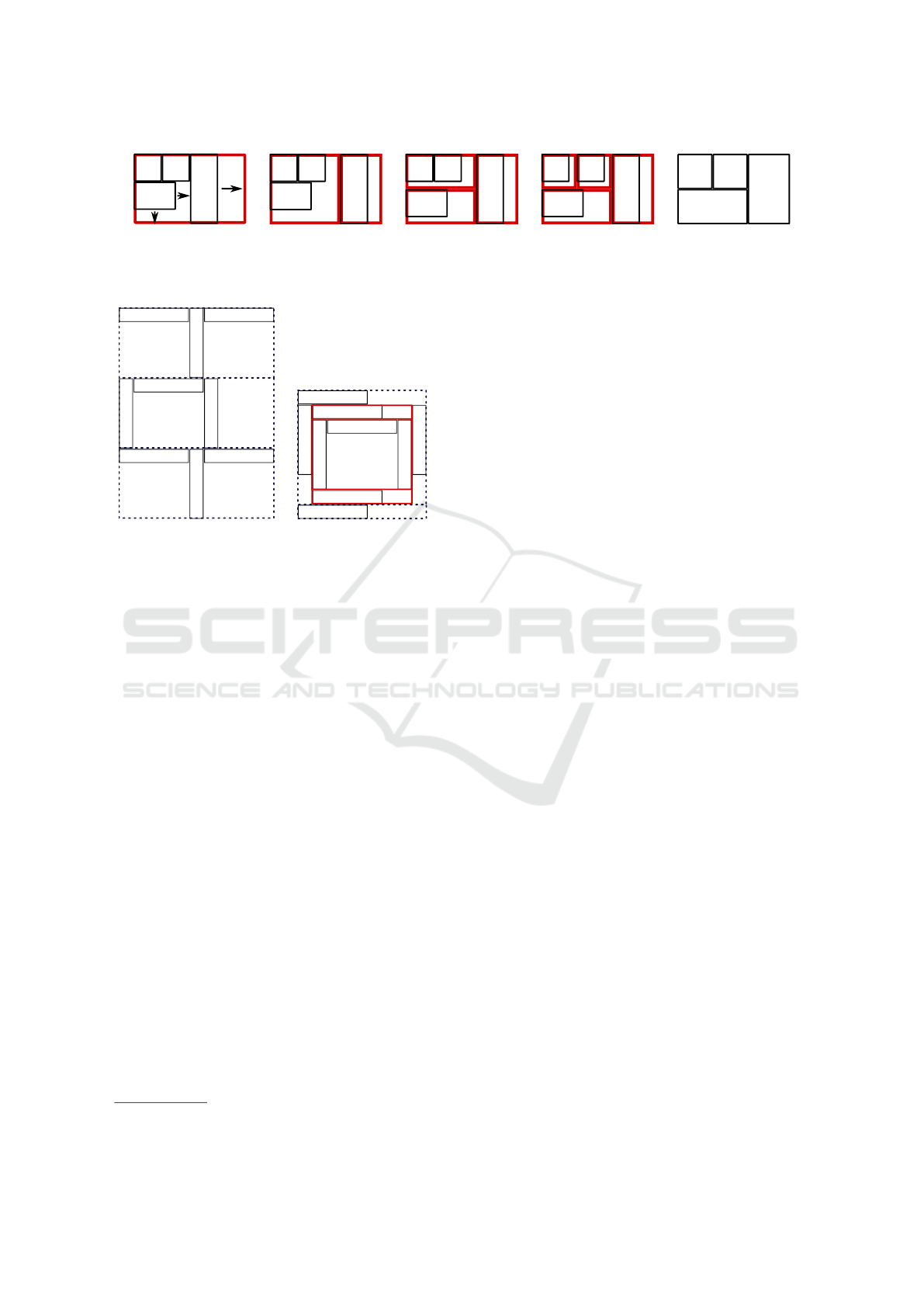

Figure 7: LR-rectpacking whitespace elimination in a row, the arrows indicate the direction in which the regions are enlarged.

(a) LR-rectpacking solution

(b) Optimal packing

Figure 8: Worst case for LR-rectpacking.

6 EVALUATION

All layout algorithm were implemented in the ELK

framework

. We evaluated the performance of the al-

gorithms using the GrAna tool (Rieß, 2010) with 200

graphs for each graph class. The number of regions is

between 20 and 30 to make the instances solvable by

CP optimizer. Normal regions have a height of 20 and

a width with the mean of 100 and a standard deviation

of 20. The big nodes class (BN) has 2 to 5 big re-

gions with a width and height between 300 and 1000.

The one big node class (OB) has only one big region.

The same height class (SH) has no big regions. The

graphs are drawn and evaluated for six different algo-

rithm conﬁgurations with a DAR of 1.3 and a spacing

of 1 between regions:

• B: Using the box layouter with set priorities to en-

force region order

• AA: Using only the width approximation step of

the rectpacking heuristic optimized for aspect ra-

tio (see Section 4.1)

• EA: Using LR-rectpacking optimized for aspect

ratio

• AS: Using the width approximation step of the

rectpacking heuristic optimized for scale measure

(see Section 4.1)

https://www.eclipse.org/elk/reference/algorithms.html

• ES: Using LR-rectpacking optimized for scale

measure

• OS: Using CP optimizer

OS maximizes the scale measure and minimizes

the used area as a secondary criterion. The run time

of OS is limited to at most one hour per graph. Five

graphs in BN, and two in OB were removed, since

the time limit was reached. The regions are placed by

considering only the position (1) to (4) in Section 2.3,

as seen in Figure 1f.

The run times of the box algorithm and

the rectpacking algorithm are clearly in O(n).

LR-rectpacking solves the placement problem in

O(n log(n)) since the compaction step uses binary

search to calculate the best width for a block. How-

ever, in practice the run time of B, AA, EA, AS, and

ES seem linear in the problem size and are in our ex-

periments in millisecond range.

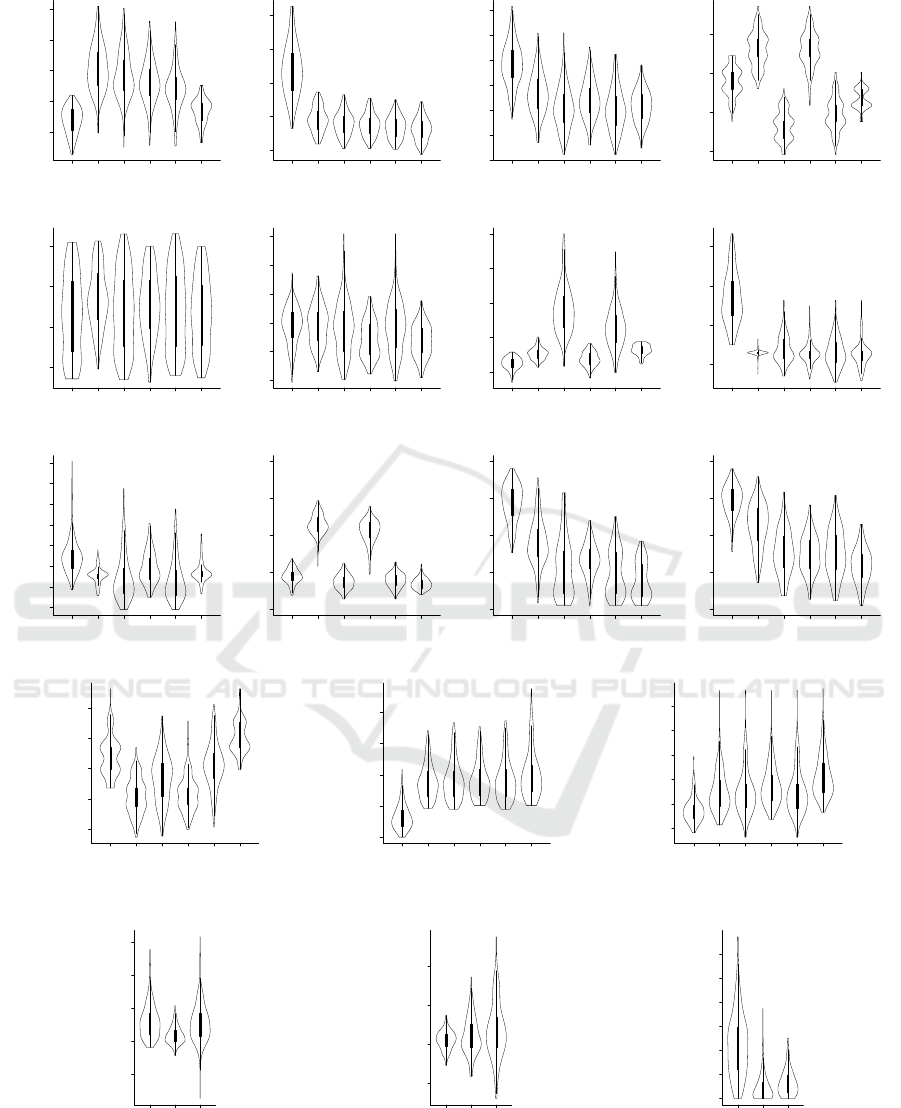

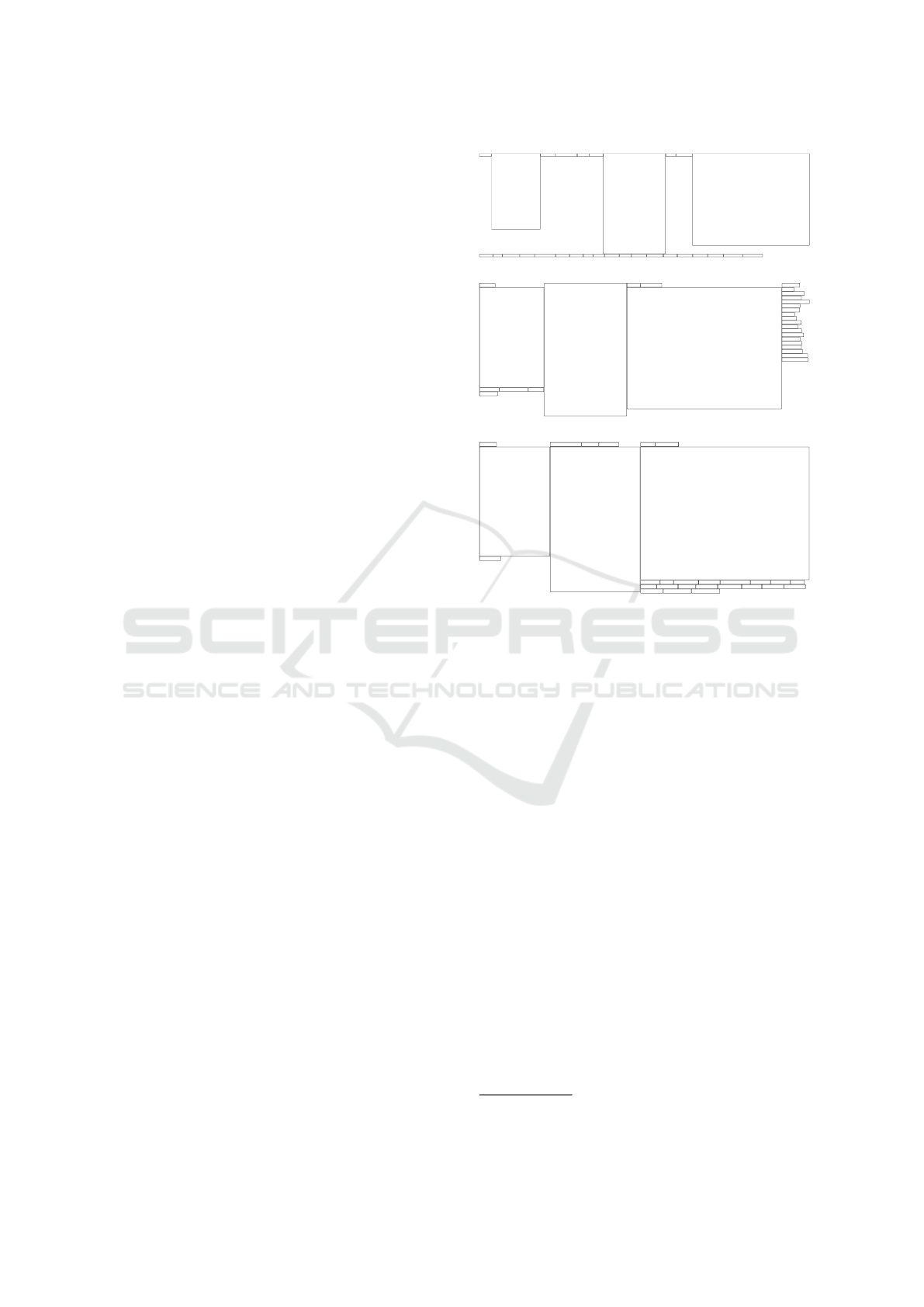

The box layouter heuristic (B) handles same

height regions (SH) quite well, but if big regions oc-

cur it tends to overestimate the needed width, as seen

in Figure 9a – 9c. Therefore, the aspect ratio suffers,

as seen in Figure 9h and Figure 9i. The height of the

OB and BN graphs seems to depend mostly on the

size of the big regions in these graphs, as seen in Fig-

ure 9e and Figure 9f. This can be observed in the scale

measure for the box layouter in Figure 9m – 9o. In the

SH graphs it achieves a relatively good scale measure,

a better one than the LR-rectpacking approaches EA

and ES. However, the big region graphs OB and BN

tend to have smaller scale measures than the rectpack-

ing approaches.

The LR-rectpacking approaches optimized for as-

pect ratio (EA) and scale measure (ES) do not per-

form well for the SH graphs. Since the greedy width

approximation overestimates the width, the following

strip packing cannot perform well in these cases, as

seen in Figure 9a. As a result the height tends to be

smaller than needed, as seen in Figure 9d. However,

this cannot be generalized, and there are OB or BN

cases that underestimate the width. For the big region

cases OB and BN the algorithm achieves values near

the optimum, as seen in the aspect ratio in Figure 9h

and Figure 9i, the whitespace in Figure 9k and Fig-

ure 9l, and the resulting scale measure in Figure 9n

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

250 350 450

B EA ES

●

Same height

Width

B EA ESAA AS OS

(a) Width (SH)

500 1500 2500

B EA ES

●

One big node

Width

B EA ESAA AS OS

(b) Width (OB)

500 1500 2500 3500

B EA ES

●

Big nodes

Width

B EA ESAA AS OS

150 200 250 300

B EA ES

●

Same height

Height

B EA ESAA AS OS

(d) Height (SH)

400 600 800 1000

B EA ES

●

One big node

Height

B EA ESAA AS OS

(e) Height (OB)

500 1500 2500

B EA ES

●

Big nodes

Height

B EA ESAA AS OS

(f) Height (BN)

1.0 1.5 2.0 2.5 3.0

B EA ES

●

Same height

Aspect Ratio

B EA ESAA AS OS

(g) Aspect ratio (SH)

1 2 3 4

B EA ES

●

One big node

Aspect Ratio

B EA ESAA AS OS

(h) Aspect ratio (OB)

0.5 1.5 2.5 3.5

B EA ES

●

Big nodes

Aspect Ratio

B EA ESAA AS OS

(i) Aspect ratio (BN)

0 20 40 60 80

B EA ES

●

Same height

Top−Level Whitespace

B EA ESAA AS OS

(j) Whitespace (SH)

0 20 40 60 80

B EA ES

●

One big node

Top−Level Whitespace

B EA ESAA AS OS

(k) Whitespace (OB)

0 20 40 60 80

B EA ES

●

Big nodes

Top−Level Whitespace

B EA ESAA AS OS

(l) Whitespace (BN)

0.0030 0.0040 0.0050

B EA ES

●

Same height

Scale Measure

B EA ESAA AS OS

(m) Scale

measure (SH)

0.0005 0.0015 0.0025

B EA ES

●

One big node

Scale Measure

B EA ESAA AS OS

(n) Scale

measure (OB)

0.0004 0.0010

B EA ES

●

Big nodes

Scale Measure

B EA ESAA AS OS

(o) Scale

measure (BN)

−0.5 0.5 1.0 1.5

SM BN

●

Aspect Ratio Difference

SM BNOB

(p) Aspect ratio

−20 0 20 40

SM BN

●

Whitespace Difference

SM BNOB

(q) Whitespace

0.0000 0.0006 0.0012

SM BN

●

Scale Measure Difference

SM BNOB

(r) Scale measure

Figure 9: Width, height aspect ratio, whitespace, scale measure, and comparison.

On Order-preserving, Gap-avoiding Rectangle Packing

and Figure 9o. It outperforms the box layouter in all

non-trivial cases.

The heuristics focused on aspect ratio (AA, EA)

and scale measure (AS, ES) perform nearly the same.

They both optimize the aspect ratio to be as close as

possible at the desired aspect ratio in the width ap-

proximation step. The AA approach in Figure 9g –

9i seems to be more strict to achieve the aspect ra-

tio. In terms of scale measure, the scale measure ap-

proach, not surprisingly, outperforms the aspect ratio

approach. In terms of aspect ratio the aspect ratio ap-

proach achieves better results. When whitespace is

eliminated to ﬁt the aspect ratio, AA is the better al-

gorithm. Otherwise, ES should be used. Therefore,

ES is the standard approximation strategy for the rect-

packing algorithm in ELK.

Figure 9p shows a comparison between ES and

OS in terms of aspect ratio, calculated via |DAR −

ar(ES)|−|DAR −ar(OS)| with ar being the aspect

ratio for the given set of regions. A negative value

means that ES is closer to the desired aspect ratio than

OS. OS is nearly always better than the heuristic. The

negative cases occur because space was sacriﬁced to

achieve a better aspect ratio.

Figure 9q presents the difference in whitespace

usage for the speciﬁc graphs ws(OS) −ws(ES), with

ws being the whitespace for the given set of regions.

Again, a negative value means that ES is better than

OS. For the SH graph set, OS is nearly always bet-

ter. For OB and BN the median is near zero and some

cases are even better. However, these cases have a

worse aspect ratio.

Figure 9r shows the difference in scale measure

sm(OS) −sm(ES) with sm being the scale measure.

As expected, no negative values are present. The

heuristic seems to be most effective for graphs with

only one big region and bad for sets without big re-

gions, as mentioned before, and is in most cases near

the optimum.

Figure 10 shows an example BN graph layouted

with B, ES and OS. Figure 10c achieves a better scale

measure than Figure 10b. However, the reading direc-

tion suffers. In Figure 10c subrows of different blocks

align, which visually creates rows that do not exist.

Figure 10a shows that graphs layouted with the box

layouter always align their regions in rows. The re-

sulting scale measure is clearly worse than the ones of

Figure 10 and Figure 10c. The solution is clearly far

from optimal since the algorithm refrains from stack-

ing the regions inside the rows.

n0 n1 n2 n3 n4 n5 n6 n7 n8 n9

n10 n11 n12 n13 n14 n15 n16 n17 n18 n19 n20 n21 n22 n23 n24 n25 n26 n27 n28

(a) Example BN graph layouted with B

n2 n3 n4

n6 n7 n8

n10

n11

n12

n13

n14

n15

n16

n17

n18

n19

n20

n21

n22

n23

n24

n25

n26

n27

n28

(b) Example BN graph layouted with ES

n3 n4 n5

n7 n8

n10 n11 n12 n13 n14 n15 n16 n17

n18 n19 n20 n21 n22 n23 n24 n25

n26 n27 n28

Figure 10: Example BN graph.

7 CONCLUSION AND FUTURE

WORK

The proposed LR-rectpacking algorithm achieves bet-

ter results than the box layouter and the initial rect-

packing algorithm in all interesting cases. Same

height regions usually only occur in SCCharts if all

regions are collapsed. Then the zoom level is not

that important since all regions are relatively small

in this case. We propose to use the LR-rectpacking

algorithm for SCCharts regions in the future. This al-

gorithm is currently also used in the Object Explorer

tool

(created by Xplain Data) in order to analyze

complex mass data. In this application a user may

open multiple windows. The “box” or “rectpacking”

algorithm is used to later create a smooth layout.

The heuristic produces drawings with scale mea-

sures near the optimum for the graphs with at least

one big region.

As seen in the results for SH graphs, the algorithm

has room for improvement in the width approxima-

tion step, which will be optimized in future work.

https://www.xplain-data.de/

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

We believe that an ordering of regions and a read-

ing direction helps the user to discover regions and

helps to maintain the mental map. The exact inﬂu-

ence of this has to be determined in future work.

Part of future work is to analyze real SCCharts to

compare the algorithms and to include user feedback

for the different drawings.

REFERENCES

Augustine, J., Banerjee, S., and Irani, S. (2006). Strip pack-

ing with precedence constraints and strip packing with

release times. In Proceedings of the Eighteenth An-

nual Acm Symposium on Parallelism in Algorithms

and Architectures (SPAA’06), pages 180–189, New

York, NY, USA. ACM.

Bruls, M., Huizing, K., and Van Wijk, J. J. (2000). Squari-

ﬁed treemaps. In Data visualization 2000, pages 33–

42. Springer.

Chimani, M., Gutwenger, C., Mutzel, P., Sp

onemann, M.,

and Wong, H.-M. (2011). Crossing minimization and

layouts of directed hypergraphs with port constraints.

In Proceedings of the 18th International Symposium

on Graph Drawing (GD ’10), volume 6502 of LNCS,

pages 141–152. Springer.

Da Silveira, J. L., Miyazawa, F. K., and Xavier, E. C.

(2013). Heuristics for the strip packing problem with

unloading constraints. Computers & operations re-

search, 40(4):991–1003.

Da Silveira, J. L., Xavier, E. C., and Miyazawa, F. K.

(2014). Two-dimensional strip packing with un-

loading constraints. Discrete Applied Mathematics,

164:512–521.

Dowsland, K. A. and Dowsland, W. B. (1992). Pack-

ing problems. European Journal of Operational Re-

search, 56(1):2 – 14.

Fuhrmann, H. and von Hanxleden, R. (2010). On the prag-

matics of model-based design. In Proceedings of the

15th Monterey Workshop 2008 on the Foundations of

Computer Software. Future Trends and Techniques for

Development, Revised Selected Papers, volume 6028

of LNCS, pages 116–140, Budapest, HR. Springer.

Gutwenger, C., von Hanxleden, R., Mutzel, P., R

uegg, U.,

and Sp

onemann, M. (2014). Examining the compact-

ness of automatic layout algorithms for practical di-

agrams. In Proceedings of the Workshop on Graph

Visualization in Practice (GraphViP ’14), pages 42–

52.

Jabrayilov, A., Mallach, S., Mutzel, P., R

uegg, U., and von

Hanxleden, R. (2016). Compact layered drawings of

general directed graphs. In Proceedings of the 24th

International Symposium on Graph Drawing and Net-

work Visualization (GD ’16), pages 209–221.

Kenyon, C. and R

emila, E. (2000). A near-optimal solution

to a two-dimensional cutting stock problem. Mathe-

matics of Operations Research, 25(4):645–656.

Lucas, D. (2018). Order- and drawing area-aware

packing of rectangles. Bachelor thesis, Christian-

Albrechts-Universit

at zu Kiel, Faculty of Engi-

neering. https://rtsys.informatik.uni-kiel.de/

∼

biblio/

downloads/theses/dalu-bt.pdf.

Purchase, H. C., Hoggan, E. E., and G

org, C. (2006). How

important is the “mental map”? – an empirical in-

vestigation of a dynamic graph layout algorithm. In

Proceedings of the 14th International Symposium on

Graph Drawing (GD ’06), volume 4372 of LNCS,

pages 184–195. Springer.

Rieß, M. (2010). A graph editor for algorithm engineer-

ing. Bachelor thesis, Kiel University, Department of

Computer Science.

uegg, U., Ehlers, T., Sp

onemann, M., and von Hanxle-

den, R. (2017). Generalized layerings for arbitrary and

ﬁxed drawing areas. Journal of Graph Algorithms and

Applications, 21(5):823–856.

uegg, U., Kieffer, S., Dwyer, T., Marriott, K., and

Wybrow, M. (2014). Stress-minimizing orthogonal

layout of data ﬂow diagrams with ports. In Proceed-

ings of the 22nd International Symposium on Graph

Drawing (GD ’14), pages 319–330.

uegg, U., Schulze, C. D., Grevism

uhl, D., and von

Hanxleden, R. (2016). Using one-dimensional com-

paction for smaller graph drawings. In Proceedings

of the 9th International Conference on the Theory and

Application of Diagrams (DIAGRAMS ’16), volume

9781 of LNCS, pages 212–218. Springer.

uegg, U. and von Hanxleden, R. (2018). Wrapping layered

graphs. In Proceedings of the 10th International Con-

ference on the Theory and Application of Diagrams

(DIAGRAMS ’18), pages 743–747. Springer.

Schulze, C. D., Sp

onemann, M., and von Hanxleden, R.

(2014). Drawing layered graphs with port constraints.

Journal of Visual Languages and Computing, Special

Issue on Diagram Aesthetics and Layout, 25(2):89–

106.

von Hanxleden, R., Duderstadt, B., Motika, C., Smyth, S.,

Mendler, M., Aguado, J., Mercer, S., and O’Brien, O.

(2013). SCCharts: Sequentially Constructive State-

charts for safety-critical applications. Technical Re-

port 1311, Christian-Albrechts-Universit

at zu Kiel,

Department of Computer Science. ISSN 2192-6247.

von Hanxleden, R., Fuhrmann, H., and Sp

onemann, M.

(2011). KIELER—The KIEL Integrated Environment

for Layout Eclipse Rich Client. In Proceedings of

the Design, Automation and Test in Europe University

Booth (DATE ’11), Grenoble, France.

Wang, Y., Chu, X., Bao, C., Zhu, L., Deussen, O., Chen,

B., and Sedlmair, M. (2017). Edwordle: Consistency-

preserving word cloud editing. IEEE transactions on

visualization and computer graphics, 24(1):647–656.

On Order-preserving, Gap-avoiding Rectangle Packing
