CauseWorks: A Framework for Transforming User Hypotheses into

a Computational Causal Model

Thomas Kapler

, Derek Gray

, Holland Vasquez

and William Wright

Uncharted Software, Toronto, Canada

Keywords: Causality Analysis, User-driven Modelling.

Abstract: Causal Model building for complex problems has typically been completed manually by domain experts and

is a time-consuming, cumbersome process. Operational Design defines a process of rapid, structured discourse

for teams to envision systems and relationships about complex, “wicked” problems, however, the resulting

models are simple diagrams produced on whiteboards or slides, and as such, do not support computational

analytics, thus limiting usefulness. We introduce CauseWorks, an application that helps operators “sketch”

complex systems and transforms sketches into computational causal models using automatic and semi-

automatic causal model construction from knowledge extracted from unstructured and structured documents.

CauseWorks then provides computational analytics to assist users in understanding and influencing the system.

We walk through human-machine collaborative model-building with CauseWorks and describe its application

to regional conflict scenarios. We discuss feedback from subject matter experts as well as lessons learned.

1 INTRODUCTION

Causal reasoning forms the basis for most complex

forms of reasoning, facilitating hypotheses,

inferences, explanations, and problem-solving

(Jonassen & Ionas, 2006). This is true for virtually all

domains: causal reasoning permeates science,

engineering, public health, finance, medicine, and

military planning and decision making (Keim et al.,

2010; Sedig et al., 2012; Schmitt, 2017). Indeed,

understanding causality, the influence by which one

factor or cause contributes to the production of

another factor has become an important topic in

visualization within the last decade (Pearl, 2009.)

Causality provides a way of understanding systems,

subsystems, how they operate dynamically, their

underlying characteristics, and forces that drive

change. As such, there is an increasingly important

role for visual analytics, to support the user’s

understanding of causality through interactive visual

interfaces.

The application of causality visualization

methods to complex wicked problems, while

https://orcid.org/0000-0003-1957-9131

https://orcid.org/0000-0003-4009-2125

https://orcid.org/0000-0001-9048-3445

https://orcid.org/0000-0002-5685-3999

emerging, is still limited (Proulx et al., 2019). Wicked

problems can be difficult to define, are not discreet,

and potential solutions are intertwined and complex

(Rittel & Webber, 1973). Government instability,

gray zone conflicts (Wirtz, 2017), food security

(Zhang & Vesselinov 2017), and climate change (Gil

et al., 2018) are examples of ill-structured, dynamic

situations which are poorly understood and where

solutions are neither readily available nor have

consensus. Most causality visualization systems

require a pre-existing model for the user to explore

(Sedlmair et al., 2012). However, with wicked

problems, key knowledge may reside within the mind

of the domain expert. As such, in addressing wicked

problems modelling efforts are often completed by

hand, involving the knowledge of many domain

experts, who may be novices in causal modeling.

Inherently, this process can be time consuming,

requiring access to domain and modelling experts,

which are costly and hard to procure (McPherson et

al., 2007).

Kapler, T., Gray, D., Vasquez, H. and Wright, W.

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model.

DOI: 10.5220/0010194300500063

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages 50-63

ISBN: 978-989-758-488-6

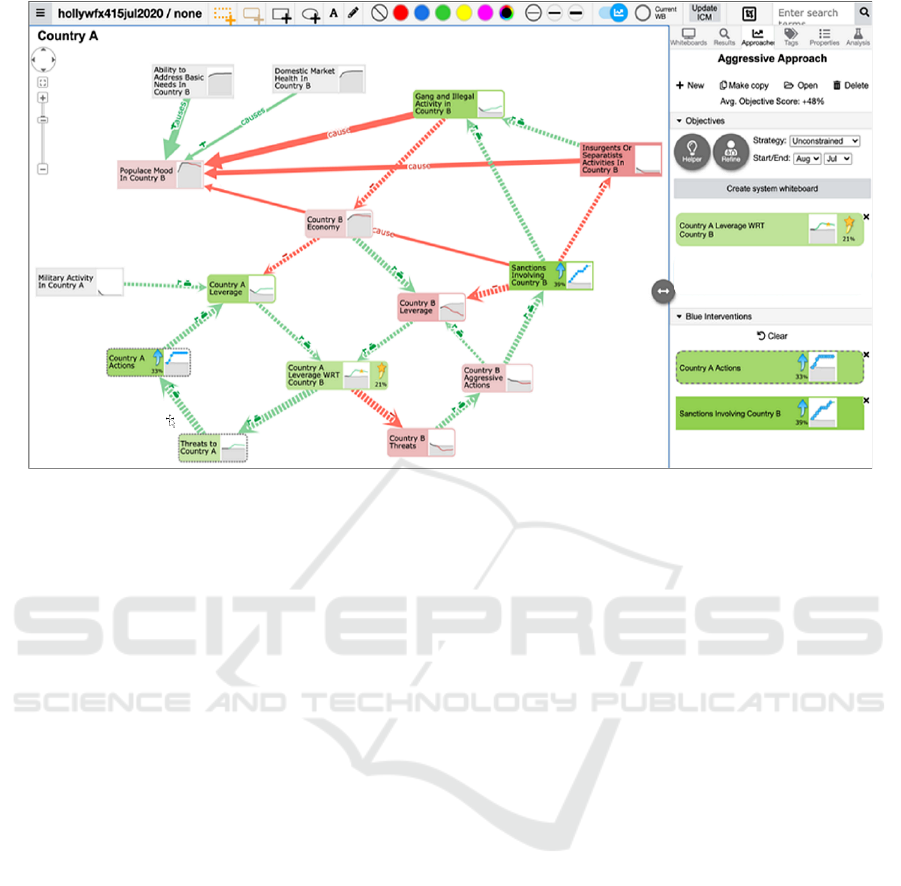

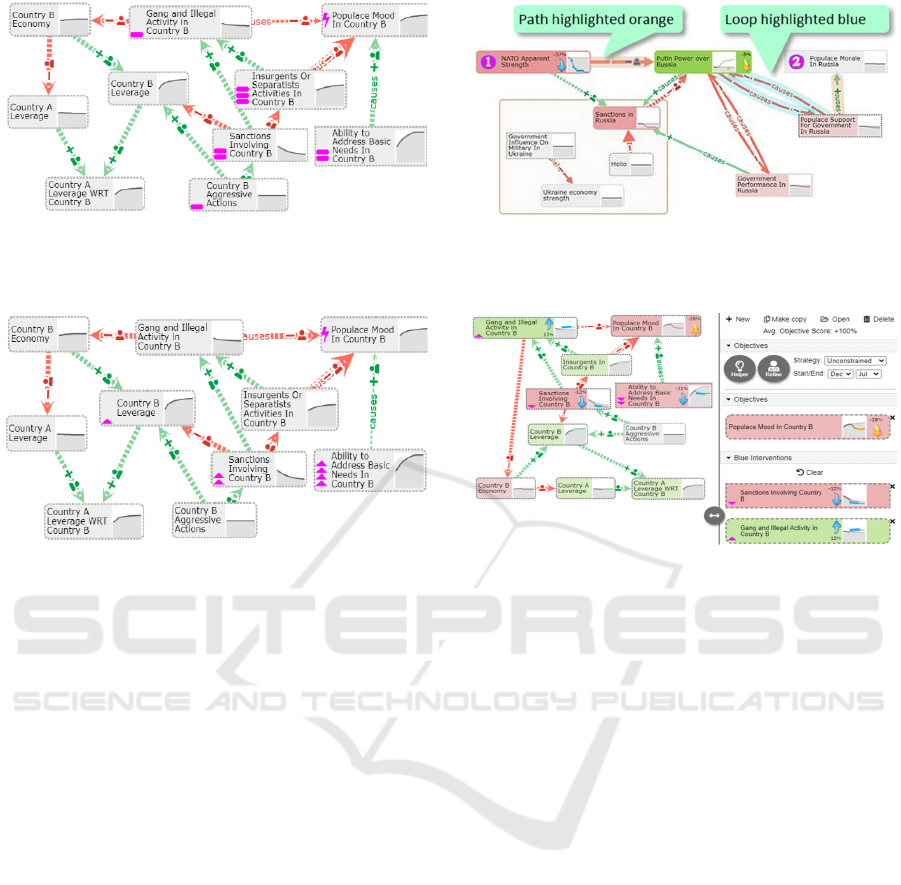

Figure 1: CauseWorks visual analytics interface for rapid creation of causal models showing a simple causal system of

relationships between two countries. Side panel summarizes user objectives and the interventions made to achieve them.

Green and red nodes indicate projected changes to factors resulting from interventions (in blue).

In developing solutions for wicked problems

within the military, military planners will combine

systems thinking, causal thinking and the Operational

Design (OD) process (described in the subsequent

section) to frame complex problems and arrive at

potential solutions. The Defence Advanced Research

Projects Agency’s (DARPA, 2018) Causal

Exploration (CX) Program, is focused on developing

a causal modeling platform to aid expert military

planners in decision-making in conflicts complicated

by political, economic, social and other non-military

factors where there is significant uncertainty about

the problem and appropriate objective. In this paper,

we present CauseWorks, a visual analytics interface

developed by Uncharted Software for teams to apply

causal modelling to complex problems. The problem

domain of focus is regional conflict analysis;

however, we note that the application of CauseWorks

could extend to other domains. The key contribution

in this paper is a framework to support OD experts

who are novice modelers in building computational

causal models for complex, wicked problems. The

specific contributions include: 1) a method for

capturing user-driven ideas and hypotheses, and

connecting them with a knowledge base spanning

thousands of documents, 2) a method for rapidly

transforming hypotheses into a computational causal

model backed by data, and 3) a method for interacting

with and visualizing casual analytics within the

context of the model to reveal system behaviors and

assist in solution development. In the subsequent

section, we provide additional background on OD to

set the stage for the application of CauseWorks.

2 OPERATIONAL DESIGN

The United States military is increasingly conducting

operations in complex, ill-structured environments

that are characterized by a diverse, ambiguous set of

actors, enemies, and unknowns, (Joint Publication JP

5-0, 2017). In order to develop the best course of

action, military planners need to develop a

comprehensive understanding of interconnected,

complex systems such as the governments,

population, security forces, and non-state actors that

make up the environment (Schmitt, 2017). This

understanding is achieved through OD, a method

used by military planners involving team

brainstorming, system sketching, and other methods,

of characterizing the intertwined relationships

between entities and factors involved in current and

desired states.

During the OD process, a team of six to nine

operational designers and domain experts will engage

in extensive discussion with three goals: 1) framing

the operational environment, 2) framing the problems

that permeate the environment, and 3) creating

approaches to transform the problem (

ATP 5-0.1,

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

2015)

. This involves rapid brainstorming of potential

variables on a whiteboard and developing lists of key

actors and factors, and hypotheses about the

relationships between them. The design team will

supplement initial hypotheses with supporting

evidence obtained from researching government

documents, articles, and additional relevant source

material. This process is completed manually, using

physical whiteboards and post-it notes that document

the team’s conceptualization of the environment.

Written narratives are composed in Microsoft (MS)

Word documents. Pre-existing templated conceptual

diagrams may be filled out in MS PowerPoint. This

process is completed in a short period of time (i.e.

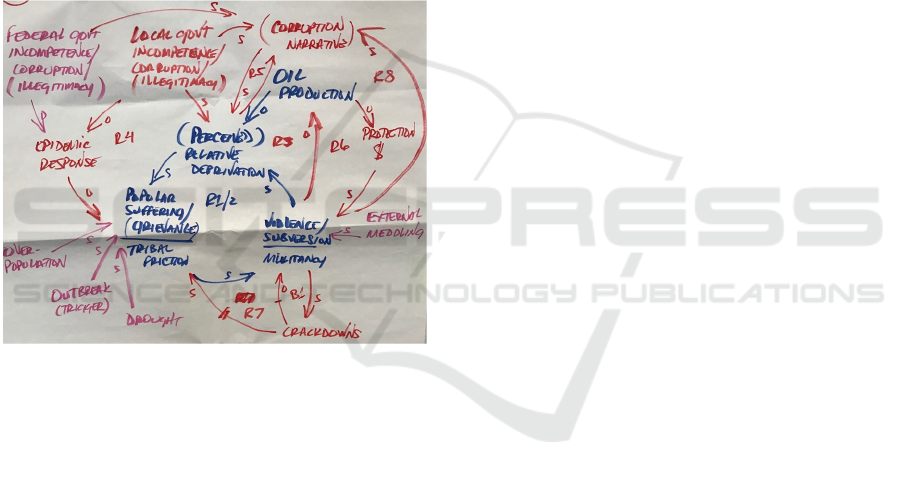

days). Figure 2 provides an example of a system

sketch created by SMEs using the OD process to

solve a fictional problem.

Figure 2: Example system sketch of a fictional scenario

created during a user exercise with CX system designers

and SMEs.

During planning exercises attended by the

authors, several limitations to the current OD process

were noted. First, domain experts across a range of

specializations are often unavailable. Secondly, the

design team identifies actors, systems, variables and

proposes hypotheses manually, based on prior

knowledge. As such, the quality of the resulting

system concept model largely depends on the

expertise, interpersonal “chemistry” and creativity of

the design team’s ability to identify relevant variables

and connections between variables. In doing so, the

team may rely on heuristics, which may be error

prone and subject to human biases (Das & Teng,

1999). Additionally, in supporting hypotheses with

evidence, the team manually searches through

documents, which inherently is a cumbersome, time-

consuming process. The lack of time reduces the

opportunity for an evidence-based weighing of

alternatives. Additionally, the scale and scope are

limited. OD exercises over three days typically result

in systems with ten to twenty factors. Current and

future states are envisioned, but system dynamics and

changes in factors over time are not strongly

considered. Finally, because this process is completed

by hand, the end product does not result in a

computational causal model with which to leverage

analytical tools. Validation of conceptual models and

solutions are performed manually by reviewing static,

slide-based products with senior staff.

3 RELATED WORK

In this section, we relate our work to relevant tools

that support causal reasoning and causality

visualization, including tools for mind mapping,

argument mapping, and causal modelling.

Mind mapping is a tool for visualizing one’s

mental model of a problem. While traditionally,

mind-mapping has been completed by hand on

whiteboards, several digital tools have been

developed to facilitate this activity (e.g., Subramanian

& Krishnamurth, 2020; Shih et al., 2009). However,

as Chen, and colleagues (2020) point out, few of these

provide computer-based support for idea and

hypotheses generation, or assist users with the

learning process. With this limitation in mind, they

developed QCue, which provides the user with

system-generated ideas to assist the user in exploring

topics as they develop a mind-map and user-elicited

queries that allow the user to explore a given topic in

depth. Wright et al., (2017) presented Argument

Mapper, for developing hypotheses in the mind-

mapping process through computer-based analytics,

with the goal of reducing human cognitive bias.

Analysts construct argument trees composed of

hypotheses, sub-hypotheses, assumptions and

evidence, and assess the credibility and evidence of

each item. Support for the upper-level hypotheses is

automatically calculated. CauseWorks provides tools

for mind mapping, allowing users to sketch their

hypotheses about causal relationships and factors

within a given system and then automatically finds

supporting or refuting evidence. Like QCue, users are

presented with suggestions to help facilitate learning

and encourage creativity, however in CauseWorks,

suggestions include true model additions, thereby

expanding the scope of the causal model.

In the context of causal modelling, automated

algorithms exist for extracting causal relationships

from factors within multivariate data sets (Wang &

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

Mueller, 2017). Factors are synonymous with

variables and are attributes (characteristics) of an

entity or their environment that influence the question

of interest (McPherson et al., 2007). Causal

relationships can be depicted in a directed acyclic

graph (DAG), which consists of a set of nodes and

links (Von Landesberger et al., 2011; Pearl, 2009).

Nodes typically represent relevant factors while links

represent the causal connections between factors.

Link properties include direction, strength, and

certainty (Bae et al., 2017), described through visual

encodings including color, line width, fuzziness, and

transparency. A central component of CauseWorks is

a computational causal model. The model is

displayed using nodes and links that visually encode

different stages of model construction, as well as

several static and dynamic model properties. In

CauseWorks the user is not constrained to a DAG

automatic graph layout, rather CauseWorks supports

a user-driven layout with the option to leverage

automatic graph layouts.

Causality cannot be computed from the data

alone. Wang (2018) noted the need for the domain

expert to interact with the causal graph. Zhang et al.,

(2015) developed an interactive correlation map for

filtering edges with weak correlations. Wang and

Meuller (2016) presented a platform in which users

modify a causal graph by connecting nodes, assigning

causal direction, deleting or marking edges as

unknown. In Causemos (Proulx et al., 2020), expert

modellers start with a knowledge base of extracted

causal statements displayed in a causal graph, and

then refine it. In CauseWorks, causal relationships

and factors are extracted from source documents,

resulting in a model database that users can search,

pull content from and edit to construct a

computational model.

In general, causality visualization methods are

limited in expression, scale, dimensionality, and do

not provide sufficient support for “what if” analysis,

injecting interventions, and development of solutions

to impact system behaviour (Kapler & Wright, 2018).

The CauseWorks system offers advanced causal

analytics to assist the team with answering

sensemaking questions (e.g., “what-if” and “how-to”)

in addition to considering multiple approaches to

solution development. In the next section we describe

the implementation of CauseWorks.

4 CAUSEWORKS SYSTEM

DESCRIPTION

To understand the model construction interface of

CauseWorks, it is necessary to have a basic

understanding of the underlying system, and how it

automatically generates causal model elements for

users to leverage in constructing their own models.

CauseWorks is composed of a web client and a

server (Node.js), both written in the Javascript

language (see Figure 3). The client application

components are built on the EmberJS framework,

with both D3.js and Cytoscape.js visualization

libraries for graph rendering, augmented with SVG-

elements for specialized visuals and interactions. The

CauseWorks server marshals communication

between the client and back-end analytics. These

back-end analytics consist of 3

party program

performers (details available from DARPA). Firstly,

three Natural Language Processing reader

components extract events, causal assertions and

associated locations and actors from a shared corpus

of thousands of documents related to a given problem

domain (including expert-authored reports, news

media articles and open source material).

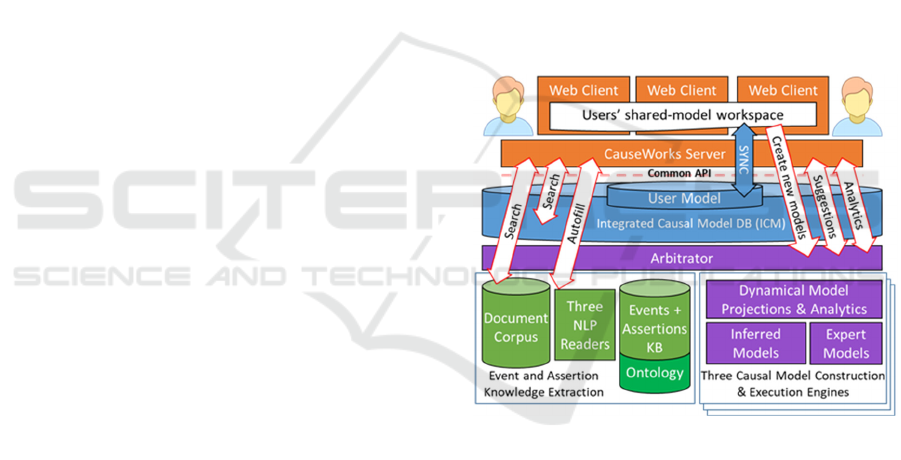

Figure 3: CauseWorks system architecture includes a

federation of three NLP readers and three causal modelling

framework performers. The ICM combines all models into

a single database, and the Arbitrator routes work among

readers and frameworks. Analytics, search, and other tools

are exposed to CauseWorks as services via a common API.

A common ontology is utilized to align readers,

and to associate events with “FactorTypes” curated

for a specific problem domain. Secondly, reader-

results are merged and then processed into a causal

model database by three causal-model frameworks

that provide model construction, simulation and

analytic functions. Factors are created where events

match FactorType definitions. Factor value and trend

is inferred from event trends or structured data

timeseries. Then, causal relationships between factors

are generated based on the FactorTypes of the cause

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

and effect events that comprise causal assertions.

Strength is inferred from assertion count, confidence

and, in some cases, correlations between factor

historical trends. The process for associating

extracted data with user-created Factors leverages

users input values for FactorType, actors, and

locations. In addition, CauseWorks includes model

frameworks for pre-built subsystems (e.g. economy

model for a nation-state). Figure 3 provides an

overview of the CauseWorks system architecture.

5 SYSTEM OBEJECTIVES AND

DESIGN REQUIRMENTS

Key human performance factors for OD are focused

on human learning, thinking and creativity. Important

performance objectives include: 1) increase learning

and comprehension about new, unfamiliar, unknown

situations, 2) engage human critical thinking in a

group debate that questions and tests alternative

perspectives, 3) encourage creativity by considering

different perspectives and merging selected aspects,

and 4) use group discourse as the catalyst to develop

new ways of thinking about problems and identifying

innovative solutions (Schmitt, 2006; ATP 5-0.1,

2015; Joint Publication JP 5-0; 2017)

In developing CauseWorks, we followed a user-

centric approach, engaging with expert OD

practitioners, trainers and students. Early design

began with structured interviews and system concept

sketches. Full-day, problem-focused exercises were

performed for system designers to observe traditional

OD teams working through regional conflict

scenarios. Results included the following high-level

objectives for CauseWorks functionality.

1. This system should support the rapid pace of OD

team brainstorming and discourse without

disruptive “care and feeding” of the software tools

2. The system should enable creation of an

unconstrained, notional, causal system, i.e. a

“sketch” system

3. The system should enable transformation of the

hypothesized system into a computational causal

model with minimal user effort or input.

4. The system should display the causal model in a

manner that allows sense-making of causal

structure, causal “flow”, predictions and impacts

of changes.

5. The system should provide causal analytics to

assist the team in understanding, validating, and

improving the model, uncovering patterns and

behaviours, and assist in developing a solution.

Note that one key assumption repeated by subject

matter experts (SME’s) was that models are never

objectively “correct”, but some are useful (Box,

1979). For OD of complex problems, supporting

high-level thinking and introducing new factors for

consideration is more important than the accuracy of

a specific model. An initial CauseWorks application

and analytics system was developed, followed by a

series of scenario-focused exercises conducted

with SMEs to assess system performance, usability,

and collect feedback to inform subsequent

development cycles.

The following sections focus on CauseWorks

HMI and human-machine workflow for creating and

using causal models.

6 CAUSEWORKS VISUAL

ANALYTICS WORKFLOW

The following sections describe how the affordances,

interactions and visual encodings enable our

envisioned machine assistance mantra of “capture

sketch hypotheses of a system, transform it into a

causal model, and provide insights with causal

analytics”. While this workflow is described as a

linear process, it is important to note that a team can

work through the process iteratively and move back

and forth through each step.

The main purpose of CauseWorks is working with

causal models. Accordingly, the design focus is on

causal model construction and analytics presentation.

We begin by presenting high-level interface

components and key visual encodings, and

subsequently discuss how to use the system.

6.1 General Workspace & Visual

Encodings

Current OD methodology relies heavily on the use of

physical whiteboards to allow teams to freely capture

discussion points and sketch diagrams. CauseWorks

is similarly centered about a digital whiteboard

workspace.

The HMI is comprised of a whiteboard

workspace, side panel, and main menu bar (see Figure

1). It is within the whiteboard workspace that the

team sketches and constructs their causal model.

Sketching tools in the toolbar include the creation of

user nodes, groups, and simple shapes. CauseWorks

also includes tools for grouping nodes, and then

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

collapsing or hiding group contents to declutter or

simplify the display. Groups can also combine factor

values into a single aggregate factor. A small right-

side panel provides tabs to access additional functions

and thus avoid floating windows that obscure the

whiteboard. Tabs within the side-panel allow the

team to navigate whiteboards; search the document

corpus and model database; edit factors and

relationships and connect them with evidence; access

analytic functions; and develop approaches to achieve

objectives. These functions are described in

subsequent sections.

In addition, CauseWorks supports synchronous

and asynchronous collaboration through shared

whiteboards, shared models and shared analytics. A

team can flexibly work with the system on a large

touch screen display and/or multiple workstations,

enabling co-located group-based OD processes as

well as distribution of tasks among separate teams or

individuals. Features and observations pertaining to

team collaboration using CauseWorks will be

described in a subsequent report (Kapler, Gray,

Vasquez, and Wright in preparation).

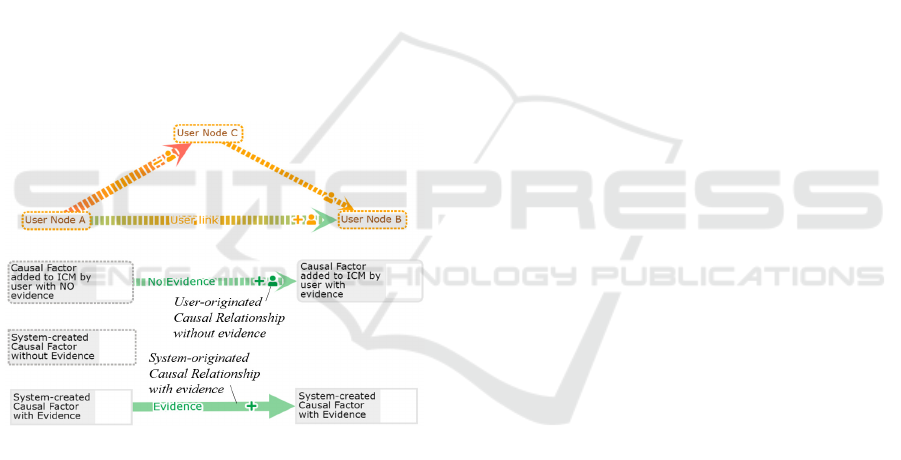

Figure 4: Visual encodings for user nodes, user links, causal

factors and causal relationships.

Key visual encodings in CauseWorks delineate

different stages and states in the construction of the

causal model (see Figure 4). Throughout the model-

building process, the team works with “user” nodes

and links, and causal factors and relationships. User

nodes and links have a distinct orange color with

rounded corners. They have no causal function and

are used to capture notes and ideas and for sketching

systems diagrams. User links can however represent

qualitative relationships between nodes, with width

representing notional strength, a color ramp

representing polarity (double-encoded with “+” or “-

” icon) and color saturation representing confidence.

When a user node or link is promoted to a

computational causal factor or relationship, they

visually change to using black text, and a grey

background. A dashed line or outline indicates items

that are NOT backed by evidence. User-originated

causal factors retain their rounded corners while

system-generated causal factors have sharp, right-

angle corners.

These visual encodings were designed in

conjunction with SMEs to help see at a glance the

pedigree and state of the model as it evolves,

indicating where there is supporting data, or where

additional work is required; for example, backfilling

details after an intense team discussion.

6.2 Sketch Hypotheses of Complex

System

The OD process begins with team discussion about

actors, factors and influences involved in a problem

environment. This is typically captured as a series of

point-form notes. In CauseWorks, users enter this

information directly onto whiteboards using user

nodes and user links, in a process we describe here as

“sketching”. This gives CauseWorks analytics a

means to access team thinking and problem context:

a critical step in providing model-building assistance.

Supporting the rapid pace of team discourse in a

digital system (vs. physical markers and whiteboards)

requires simple, efficient affordances. For rapid note-

taking, user nodes can be created in quick succession

by hitting the Tab key. Links are created by dragging

a handle between nodes in one stroke, with direction,

strength, polarity and confidence set simultaneously

in single gesture (see Figure 5.5: Interactive Link

Editor).

As the team sketches a rough causal system, they

enter important concepts in the text of user nodes.

User training includes guidance for labelling nodes

intended to become factors in the model. For

example, a label should include a measurable

concept, along with locations and actors (e.g.

“Economic Growth in Canada”). This specificity

aligns with typical web-search syntax and enables

CauseWorks to more effectively assist in evolving the

model. An in-context search affordance that leverages

the label is provided that operates in two ways. First

it finds related factors in the model database that can

be either dragged onto user nodes to substitute them

in-place (see Figure 5.4), or just added to the

whiteboard if they are of interest to the user. This is

one way that computational causal factors are

surfaced for consideration into the user’s model. In

many cases users may not have previously known

about or considered these factors, thus potentially

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

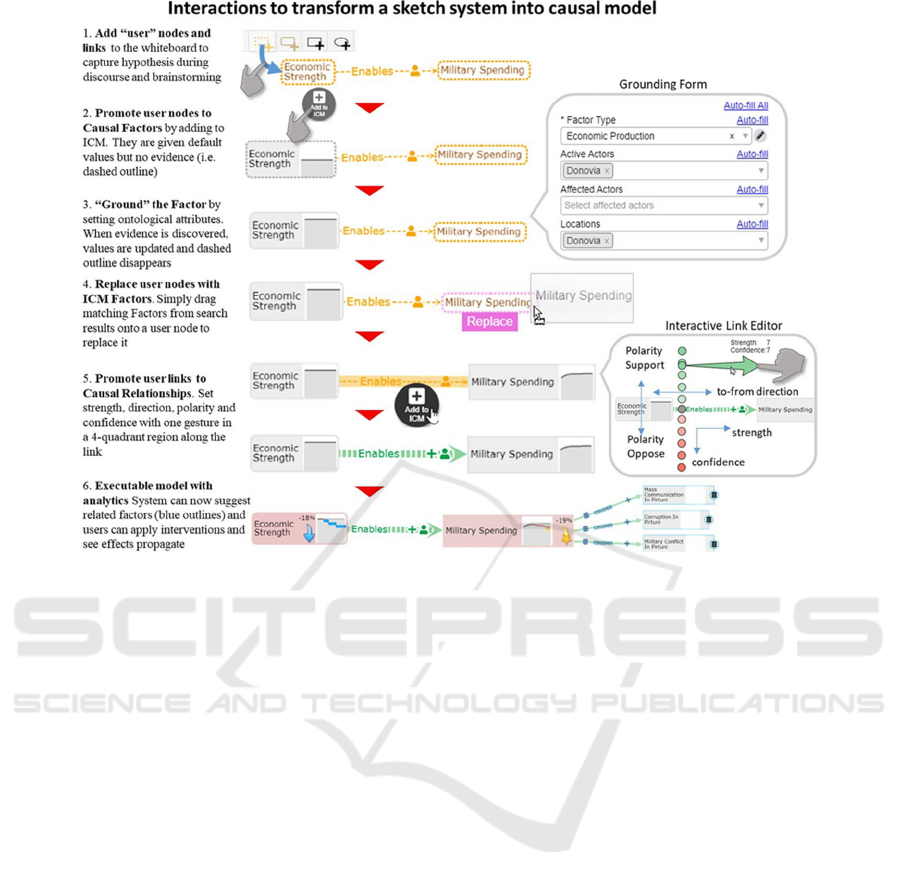

Figure 5.1-5.6: Interactions for transforming a sketch system into a computational causal model.

injecting new thinking and scope into the model.

Second, the search tool performs a Lucene text search

(Goetz, 2000) into the document corpus, which

provides familiar web-search-like results for

researching the topic represented by a node label.

Results can be attached as evidence to a factor, thus

allowing users to manually connect their hypotheses

to data sources. This association provides additional

opportunities for the machine to understand user

thinking, problem context and apply analytics.

6.3 Transform Hypotheses Sketch into

a Computational Causal Model

As the OD process moves into system framing, the

user continues to transform their sketch into a

computational causal model. User nodes and links

can be instantly converted into computational causal

factor nodes and causal relationship links by clicking

“add to ICM” (Figure 5.2). As such, the team can

construct causal factors and relationships purely

based on their own knowledge or intuition without

pulling from the model database. This gives

CauseWorks flexibility to support unconstrained

causal thinking about any domain. All causal factors

have three key attributes:

1. Initial Value: value between 0-100 representing a

factors current value today relative to historical

norms, with 50 being “average”. A 0-100 range

was selected instead of discrete qualitative values

because it allows for higher granularity to reveal

small directional changes (e.g. a change of +5%

may be insignificant, but the direction of change

is perceivable)

2. Trend: The trend of the value at the current time,

i.e. increasing, decreasing or staying level

3. Confidence: a scale of 0-10

User-derived causal factors are given default values;

however, these can be modified at any time to reflect

user’s beliefs. It is important to note that in

CauseWorks, the user’s working model consists only

of factors and relationships that are placed on a

whiteboard. A dynamic model forward projection

runs automatically whenever the user modifies the

model. The projections can be run over a variable

number of months or years and are displayed in

sparklines on the nodes themselves. The grey and

black timeline with grey fill shows the “baseline”

projected value for a factor starting from “now”

through a number of time-steps in the future,

determined by executing a simulation of the model

(see Figure 6).

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

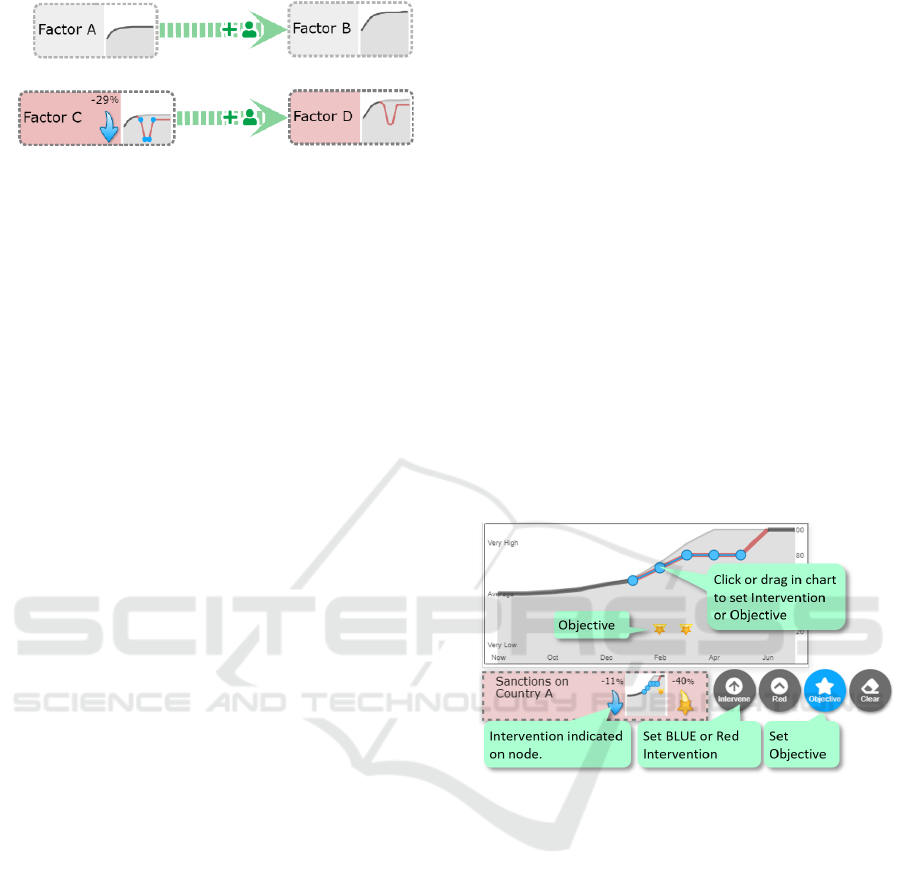

Figure 6: Baseline projections (top) and “What-if”

projection overlay resulting from intervention (bottom).

The next stage in model evolution is to populate

new factors and relationships with evidence from the

corpus through a process referred to as “grounding”.

This involves defining a factor in ontological terms,

and then running a process to connect it to the results

of machine reading. Each factor includes properties

to align it to a pre-determined domain ontology that

includes FactorTypes, active and affected actors and

locations (see Figure 5.3).

“Factor types” are high-level concepts detected by

the reader subsystems in the document corpus (see

System Description). The form can be completed

manually by the user, or through the “auto-fill”

feature, which uses machine reading of the user-

entered node label to extract terms and complete the

grounding form with suggested values.

Once grounded, a Factor’s “Data” tab will list

discovered events, assertions, and their associated

extracts from structured and unstructured data

sources, ranked by relevance. Trends in the structured

data and event history are used to determine Factors’

initial values and trend attributes. Explanation of

value calculations are presented to users in the “Data”

tab (development of explanations is ongoing and is

outside of the scope of this paper).

A separate processing stage finds new causal

relationships and factors related to the new factor

based on information in the knowledge base and

model database. These new relationships are stored in

the model database, but are not added to the user’s

whiteboard. Rather, it is the role of the Suggestion

System to provide in-context, discovery of new causal

relationships for a selected factor, and quickly

incorporate them into the model with minimal effort.

Suggested relationships are displayed in context

around a selected factor on the whiteboard (see Figure

4.6). They are displayed temporarily, with a blue

outline to distinguish them. Suggestions are ranked

based on multiple criteria including strength and

context. To accept a suggestion into the model, the

user clicks on it and it is added to the whiteboard.

Thus suggestions surface new factors and

relationships for consideration to improve and expand

the users model.

6.4 Apply Causal Analytics

CauseWorks provides causal analytics services for

improving the model, revealing behaviours, and

achieving planning objectives. A key user experience

goal is to incorporate analytics into the model

building process, thus results are always presented

within the whiteboard workspace to ensure continuity

of thought and context.

6.4.1 “What if Projection”

The “What-if” projection is the most frequently used

analytical tool in CauseWorks. “What-if” projections

are generated when users create “interventions” on

Factors to change the system. An intervention is

defined as an applied change in the value of a factor

at some point in the future. Applying interventions

and assessing their effects is a key mechanism for

understanding and validating model behaviour (see

Figure 7). Interventions also capture the means to

achieve the overall planning goals.

Figure 7: Intervention and Objectives Editor. Click on chart

to add and remove interventions and objectives.

Fast, intuitive entry of interventions allows rapid

testing and exploration of model behaviour. Users can

“sketch” interventions over the baseline projection

within a full-size version of the sparkline chart. When

an intervention is created, CauseWorks automatically

runs a model simulation and the resulting “What-If”

projections are overlaid in the node sparklines for

comparison, using green or red segments to

emphasize values above or below the baseline.

Interventions are highlighted in the whiteboard with

blue arrows. Aggregate change in a factors average

value over time compared to the baseline are pre-

attentively indicated with a saturated scale of green or

red applied to causal factor backgrounds, expressing

increase or decrease, respectively (see Figure 1)

making changes clearly visible within the generally

monochrome graph.

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

6.4.2 Sensitivity

The sensitivity tool takes a factor as input and

highlights other factors that it is causally sensitive to.

Degree of sensitivity is displayed using a 5-point

scale, displayed as magenta bars shown on the factor

nodes. (see Figure 8.1). This helps the team answer

questions such as “which other factors are likely

going to have a large impact on this factor?” When

applied to an objective factor, this tool assists the

team in identifying influencing factors as targets for

an intervention.

6.4.3 Most Impact

Most Impact indicates nodes with a high general

impact on the system based on a series of simulations.

These are also indicated with a 5-point scale,

displayed as magenta bars. This helps the team

answer questions such as, “which are the central

factors that all factors are most sensitive to?”

6.4.4 “Why” Projections

“Why” Projection takes a single factor and time range

as inputs and returns factors that cause changes in the

value of that factor over the given time frame. Each

resulting contributing factor is marked with 1 to 5

small arrows to indicate strength and direction of

impact (see Figure 8.2). The “Why” function can

operate on either the baseline or the what-if

projection. This helps the team answer specific

questions about projection results, such as, “which

factors lead to a jump at time ‘t’ in this Factor?”

6.4.5 Causal Loops

Causal Loops takes two factors as inputs (A and B)

and outputs paths between them that include

reinforcing or dampening loops occurring along each

path. Loops are an important consideration in

thinking about complex systems as they can

significantly enhance effects of an intervention.

Loops are highlighted in the whiteboard with a

repeating animated cycle that is effective at

emphasizing complex graph paths (Ito et al., 2016).

Figure 8.3 includes a static image of a causal loop.

6.4.6 Causal Pathways

Causal Pathways takes two factors as inputs (A and

B) and returns a new whiteboard that contains all

significant paths in one direction from A to B. This

helps the team answer questions such as “how does a

change in factor A propagate to factor B?”

6.4.7 Approach Helper

CauseWorks provides tools for developing

“approaches” to influence a system to meet planning

objectives. These include tracking objectives,

suggesting interventions to achieve them, finding

unexpected impacts and opportunities, measuring

solution performance, and managing multiple

approach options (see Figure 1).

The key information that helps drive these

analytics are users’ objectives. Objectives are defined

as a desired change in the value of a factor at some

point in the future. Explicitly setting user objectives

captures critical information about the team’s goals,

which in-turn helps inform machine assistance

functions for suggesting factors, recommendations

for interventions to achieve objectives, and generally

improves system awareness of problem context and

scope. Objectives are visually represented by an

orange star icon on factors and in the sparklines.

Objectives are entered using the same interface as

interventions; users can set both time and value for an

objective with a single click on the timeline (see

Figure 7). An example of an objective is “increase

sanctions on Country B starting in October”.

In CauseWorks, an approach is a collection of

objectives and the interventions applied to achieve

them. Teams may develop multiple named

approaches to a planning problem, such as

“Aggressive Solution”, or “Least Risk”. Within the

Approach Management Tab, users can name,

organize, open, save and copy different approaches

(see Figure 8.4). For a selected approach, the

objective and intervention factors are displayed as a

list of nodes. The Approach Helper is an analytic

function that can automatically propose interventions

to meet objectives. It uses objectives in the active

Approach as the inputs and allows users to set

constraints on the timing and size of interventions it

proposes. When executed, this function will create

interventions on factors in the user model and add

them to the current Approach. The “Refine” tool is

similar to the Helper, however it only adjusts existing

interventions that the team has already set, optimizing

them to meet objectives.

When considering which factors to apply

interventions to, it is important to recognize that not

all factors represent something that can be influenced

directly as part of a solution (e.g., GDP of the USA).

As such, the team can toggle a flag to exclude certain

factors from intervention consideration.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

Figure 8.1: Sensitivity results for “Populace Mood In

“Country B” indicated by magenta bars in the whiteboard

view.

Figure 8.3: Example of Causal Loops result.

Figure 8.2: “Why” results show contributions by othe

factors on “Populace Mood In Country B” for a time perio

set by user (not shown). Up arrow-stack indicates relative

amount of increasing influence.

Figure 8.4: Approach Tab showing objectives in “Populace

Mood in Country B” being met with interventions generate

y the Approach Helper tool. Score of “100%” indicates

objective target values are fully met in the What-i

projection.

Each Approach can also include an optional

automatically generated text summary of

interventions, impacts on objectives and alternative

intervention suggestions through an Approach

Narrative. The narrative display includes embedded

graphical representations of factors nodes, with

linked highlighting and drag-and-drop to the

whiteboard. This allows the user to connect the

narrative to the whiteboard view and helps call out 2

and 3

order effects that users may not have noticed.

As such, the narrative can surface potentially hidden

or surprising information, a key benefit of combined

human-machine systems (Wickens, Hollands,

Banbury, & Parasuraman, 2015). The narrative

engine is a separately developed plug-in component,

and its design and assessment is the focus of a report

by (Choudhry et al., 2020)

7 USER EVALUATION

OD SMEs were involved in CauseWorks

development from the early stages of the system

design through multiple hands-on evaluation

exercises. Observations and interviews were

conducted to determine design requirements and

inform the initial system design. Multi-day exercise-

based evaluations have been conducted every 6

months. Each involved a fictional scenario matched

to a corpus of scenario-related documents processed

into a knowledge base. Participants included

experienced OD experts, government–provided

problem domain experts, and OD students from the

US Military. Teams were formed to address problems

and present solutions over several days using

CauseWorks. The goal of these exercises was to

determine whether the system meets users’ needs, and

identify issues and functional gaps, to inform

subsequent CauseWorks iterations.

Two key concerns were closely followed by the

authors: 1) that users are able to quickly learn the

basic interactions necessary to sketch systems,

compose models, and develop approaches, and 2)

users can produce planning products within normal

planning timelines. HMI training took a half-day,

including lower-level system background. Once users

had hands-on CauseWorks, they were quickly able to

use the system, possibly due to intentional similarities

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

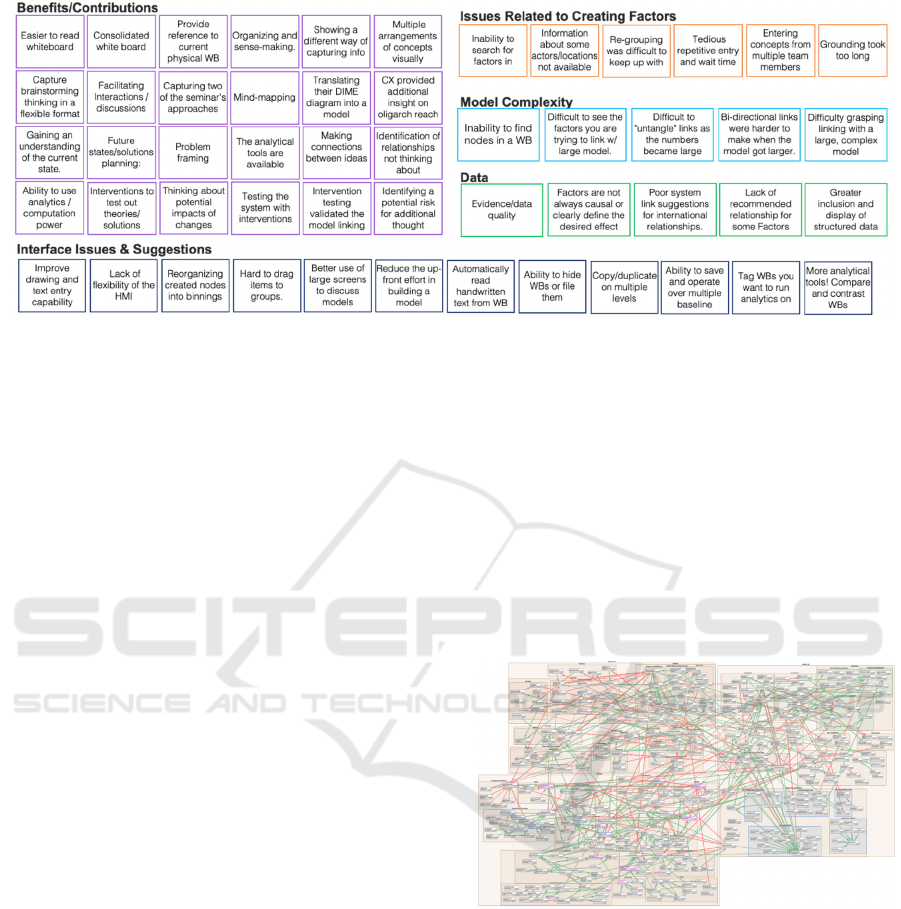

Figure 9: Affinity diagram of user feedback collected from planning exercises.

with tools such as MS PowerPoint. Within a 3-day

standard planning exercise, teams using CauseWorks

were able to generate models and approaches for their

target problems, and then brief superiors using the

live system. Further, they were able to adjust

solutions on-the-fly to respond to Commanders

questions and feedback. Significantly, this

demonstrates that it is possible to incorporate causal

modelling into the planning process with minimal

negative effect on schedule or workload.

Post-exercise surveys were conducted by

government staff and CX program performers to

collect feedback about CauseWorks. We compiled

survey answers from one exercise and constructed an

affinity diagram (Harboe & Huang, 2015) comprising

five themes in the data (see Figure 9). Many

participants noted benefits and contributions of the

system, suggesting that the CauseWorks provides

advantages over traditional operational design

methods. As with most prototypes, opportunities to

improve the system were noted. Some users observed

that creating and grounding factors was a

cumbersome multi-step process. Indeed, the

grounding process is not part of the traditional OD

process, however it is necessary to connect factors to

extracted data from the corpus. Additionally, SMEs

observed that as models increased in scale, there were

challenges with untangling links and grasping

complex causal flows. SMEs also questioned the

accuracy of event associations to Factors, though this

can be attributed to limitations in automatic event and

assertion extraction technologies. Finally, SMEs

provided recommendations and suggestions to

improve the interface, several of which have since

been addressed.

8 LESSONS LEARNED &

LIMITATIONS

In this section we discuss limitations and potential

future research suggested by this work. This includes

the efficacy of user-driven layouts, fixed vs.

zoomable whiteboards, the distribution of models

across multiple whiteboards, the construction of

causal models by novice modellers, and the use of

color to convey causal attributes and effects.

Figure 10: Example system sketch from problem-solving

exercise with CauseWorks. This model consists of

approximately 1000 nodes and edges created during a

multi-day exercise. Image intentionally blurred to obfuscate

confidential details.

An early design decision was to emphasize user-

driven layouts, rather than applying automated graph

layouts to the evolving causal model. This allows

teams to arrange information according to their own

criteria and logic and provides an additional

contextual dimension from which machine analytics

could extract meaning (e.g. users often cluster related

items). User layouts also support long-term shared

team cognition, as users become familiar with

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

groupings and arrangements and remember where to

find things. We observed that this contributed to

maintaining comprehension of models containing

nearly 1000 nodes and edges, well beyond our

scalability expectations (see Figure 10).

At this scale, maximizing use of screen space and

label readability has a significant impact on a teams’

ability to view a model together, even on an 80-inch

4k display. Independent virtual collaboration spaces

are a technical alternative to wall-size displays,

however the impact of virtual meetings on OD

discourse is unknown. A large touchscreen display

was available at one exercise, and we observed

stronger team engagement, discussion and model

development compared to a single-laptop-per-team

configuration. Users did ask for layout tools to

automatically arrange factors based on topical

groupings, such as geography or affiliation.

Early implementations of CauseWorks provided a

fixed-scale whiteboard, as most virtual whiteboards

take this approach (e.g. Google Jamboard) and there

are documented challenges associated with zoomable

workspaces. Zooming is a weak method for subgraph

comparison and in some instances, users prefer an

overview context compared to zoom interaction due

to simpler navigation (Büring, Gerken, & Reitere,

2006). However, as models increased in size and

complexity, SMEs demanded zoom-able whiteboards

to fit growing models into a single view.

A related challenge is how to effectively work

with large models that are distributed across multiple

whiteboards. Initial thinking was to place major

subsystems on separate whiteboards, however,

observations from exercises revealed difficulties in

recalling relationships between nodes on different

whiteboards. Indeed, as the distance between sources

of information increases, whether across multiple

displays or whiteboards, there is a cost to the user in

maintaining information in working memory

(Wickens et al., 2015) and users tend to perform

fewer information seeking behaviours (Fu and Gray,

2006). Eventually users elected to place large models

on a single whiteboard to avoid this effect. Further

research is required to effectively allow

comprehension of connections in systems that span

multiple pages.

Functions are needed to support model building

by domain experts and planning experts who are not

model building experts. Determining the appropriate

scope and level of detail to model impacts the speed

of model development, validity, speed of

experimentation and confidence in model results.

Building more complex models, because it is possible

to do so, does not necessarily equate to effective

modelling (Robinson, 2004). It is important to avoid

modelling every aspect of a system. Simpler models

can be developed faster, are more flexible, require

less data and are easier to interpret, validate and

maintain because the structure of the model is clearer

(Chwif, 2000). The ease with which CauseWorks

users can construct models impacts the size of the

systems they create. This can enable inclusion and

consideration of many more factors, causes and

solutions than might otherwise occur using traditional

methods, however one should acknowledge the

possibility of overwhelming human comprehension.

A cycle of model simplification or filtering could help

reduce a large model to make it more comprehensible.

In general, however, we observed that users find

value in building larger systems to reflect real-world

complexities, and also that the system can help with

sense-making of larger models through use of

analytics, and by enabling distributed work through

collaboration.

CauseWorks use of green and red for indicating

both link polarity and factor value change, merits

explanation. Use of color is important when a user

must attend to changing patterns on an interface

(Brewer,1996). Our hypothesis is that the shared

color schemes reinforce each other (increase/support

vs. decrease/oppose; Wickens et al., 2015), and thus

makes recalling combinations of link-factor effects

easier than with two separate, two-color schemes (4

colors total; Brewer, 1996). A 4-color scheme also

limits unique color use for other information. User

feedback on color usage includes mention that red is

often used to represent “enemy” in military

convention, which may cause confusion in

interpretation, however despite providing alternative

color options in CauseWorks, users continued to use

the green-red color scheme without issue. We suggest

that further research into optimal color schemes for

military use of causal model representations may be

useful.

9 CONCLUSIONS

Causal Model building for complex problems has

typically been completed manually by domain

experts and is a time-consuming, cumbersome

process. OD is a process of rapid, structured discourse

for teams to envision systems and relationships about

complex, “wicked” problems, however, the resulting

models are simple diagrams produced on whiteboards

or slides, and as such, do not support computational

analytics, thus limiting usefulness. In this paper we

introduced the HMI and workflow for CauseWorks, a

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model

tool for expert planners (but novice model builders)

to create computational causal models of complex

problems. We presented how users can sketch

hypotheses about a system on a digital whiteboard

and connect it to automatically extracted information

that suggests system behaviour, thereby transforming

the sketch into a computational causal model.

CauseWorks also helps expand OD team thinking and

model development by suggesting new factors to add

to the model, and by providing analytics to support

sense-making and solution development. In applied

planning exercises, military operational planners with

no prior modelling experience were able to use

CauseWorks to construct and use computational

causal models to develop approaches for realistic

complex planning scenarios, within typical planning

time constraints. Planners thought CauseWorks

supported the OD process and helped them consider

new ideas.

Future work should investigate the following:

ways to present connections between models

spanning multiple whiteboards; assessment of model

characteristics built by novice modellers; deeper

investigation into causal symbology and color-use for

military applications. Formal experiments should be

performed to assess impact of using CauseWorks

modelling tools in operational design vs traditional

methods.

ACKNOWLEDGEMENTS

This work was supported by the Defense Advanced

Research Projects Agency (DARPA) under Contract

Number FA8650-17-C-7720. The views, opinions,

and findings contained in this report are those of the

authors and should not be construed as an official

Department of Defense position, policy, or decision.

This work has been approved for Public Release,

Distribution Unlimited. The authors wish to thank all

Causal Exploration collaborators for support and

encouragement.

REFERENCES

ATP 5-0.1, Army Design Methodology, HQ Dept of the

Army, July 2015.

Bae, J., Helldin, T., & Riveiro, M. (2017). Understanding

indirect causal relationships in node-link graphs.

Computer Graphics Forum, 36(3), 411-421.

Box, G. E. P. (1979), Robustness in the strategy of scientific

model building, in Launer, R. L.; Wilkinson, G. N.

(eds.), Robustness in Statistics, Academic Press, pp.

201–236.

Brewer, C. A. (1996). Guidelines for selecting colors for

diverging schemes on maps. Cartographic Journal,

33(2), 79-86

Büring, T., Gerken, J., & Reiterer, H. (2006). User

interaction with scatterplots on small screens - A

comparative evaluation of geometric-semantic zoom

and fisheye distortion. IEEE Transactions on

Visualization and Computer Graphics, 12(5), 829-836.

Chen, T. J., Subramanian, S. G., & Krishnamurthy, V. R.

(2020). QCue: Queries and Cues for Computer-

Facilitated Mind-Mapping. Paper presented at the

Proceedings – Graphics Interface

Choudhry, A., Sharma, M., et al. (2020). Once upon a time

in visualization: Understanding of textual narratives for

causality, IEEE Transactions on Visualization and

Computer Graphics

Chwif L, Barretto M.R.P., & Paul R.J. (2000). On

simulation model complexity. In: Joines JA, Barton

RR, Kang K and Fishwick PA (eds). Proceedings of the

2000 Winter Simulation Conference. IEEE:

Piscataway: NJ, pp 449–455.

Dang, T. N., Murray, P., Aurisano, J., & Forbes, A. G.

(2015). ReactionFlow: An interactive visualization tool

for causality analysis in biological pathways. BMC

Proceedings, 9

DARPA, (2018). https://www.darpa.mil/program/causal-

exploration.

Das, T. K., & Teng, B. S. (1999). Cognitive biases and

strategic decision processes: An integrative

perspective. Journal of Management Studies, 36(6),

757-778.

Fu, W. T., & Gray, W. D. (2006). Suboptimal tradeoffs in

information seeking. Cognitive Psychology, 52(3), 195-

242.

Gil, Y., Pierce, S. A., Babaie, H., Banerjee, A., Borne, K.,

Bust, G., . . . Shekhar, S. (2019). Intelligent systems for

geosciences: An essential research agenda.

Communications of the ACM, 62(1), 76-84.

Goetz, B. (2000). The Lucene search engine: Powerful,

flexible, and free. JavaWorld. http://www. javaworld.

com/javaworld/jw-09-2000/jw-0915-lucene. html.

Gray, W. D., & Fu, W. T. (2004). Soft constraints in

interactive behavior: The case of ignoring perfect

knowledge in-the-world for imperfect knowledge in-

the-head. Cognitive Science, 28(3), 359-382.

Harboe, G., & Huang, E. M. (2015). Real-world affinity

diagramming practices: Bridging the paper-digital gap.

In Proceedings of the 33rd Annual ACM Conference on

Human Factors in Computing Systems (pp. 95-104).

Ito, T., & Misue, K. (2016). A visualization technique using

loop animations. In International Conference on

Human Interface and the Management of Information

(pp. 136-147).

Joint Publication JP 5-0, Joint Planning, Joint Chiefs of

Staff, June, 2017.

Jonassen, D. H., & Ionas, I. G. (2008). Designing effective

supports for causal reasoning. Educational Technology

Research and Development, 56(3), 287-308.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

Keim, D. A., Kohlhammer, J., Ellis, G., & Mansmann, F.

(2010). Mastering the information age; solving

problems with visual analytics. Eurographics.

McPherson, K., Marsh, T., & Brown, M. (2007). Foresight

report on obesity. The Lancet, 370(9601), 1755.

Pearl, J. (2009). Causal inference in statistics: An

overview. Statistics Surveys, 3, 96-146.

Proulx, P., Husain, F., Gyori, B. M., & Pyarelal, A. (2019).

MOIRE: MOdeling and Inference from REading.

Demonstration presented in Modeling the World's

Systems Conference.

Rittel, H. W. J., Webber, M. M. (1973). Dilemmas in a

general theory of planning. Policy Sciences, 4(2), 155–

169.

Robinson, S. (2004). Simulation: The Practice of Model

Development and Use, John Wiley and Sons Ltd:

England.

Schmitt, J., A Systemic Concept for Operational Design,

(2006) US MC Warfighting Laboratory. http://www.

mcwl. usmc. mil/file_download.

Sedig, K., Parsons, P., & Babanski, A. (2012). Towards a

characterization of interactivity in visual analytics.

Journal of Multimedia Processing Technologies, 3(1),

12-28.

Sedlmair, M., Meyer, M., & Munzner, T. (2012). Design

study methodology: Reflections from the trenches and

the stacks. IEEE Transactions on Visualization and

Computer Graphics, 18(12), 2431-2440.

Shih, P. C., Nguyen, D. H., Hirano, S. H., Redmiles, D. F.,

& Hayes, G. R. (2009). GroupMind: Supporting idea

generation through a collaborative mind-mapping tool.

Paper presented at the GROUP'09 - Proceedings of the

2009 ACM SIGCHI International Conference on

Supporting Group Work, (pp.139-148).

Von Landesberger, T., Kuijper, A., Schreck, T.,

Kohlhammer, J., van Wijk, J. J., Fekete, J. D., &

Fellner, D. W. (2011). Visual analysis of large graphs:

state‐of‐the‐art and future research challenges.

Computer Graphics Forum, 30(6), 1719-1749

Wang, X. (2018). A Comparison of Causal Inference

Methods and Their Application in Big Data Analytics

(Doctoral Dissertation), Louisiana State University,

Louisiana, USA.

Wang, J., & Mueller, K. (2018). Visual causality analysis

made practical. Paper presented at the 2017 IEEE

Conference on Visual Analytics Science and

Technology, VAST 2017 Proceedings, 151-161.

Wickens, C. D., Hollands, J. G., Banbury, S., &

Parasuraman, R. (2015). Engineering psychology and

human performance. Psychology Press.

Wright, W., & Kapler, T. (2018). Challenges in Visualizing

Complex Causality Characteristics. IEEE Pacific

Visualization. 2018. Proceedings

Wright, W., Sheffield, D., & Santosa, S. (2017). Argument

mapper: Countering cognitive biases in analysis with

critical (visual) thinking. In Information Visualisation

(IV), 2017 21

International Conferences, IEEE, (pp.

250-255).

Wirtz, J. J. (2017). Life in the “Gray Zone”: observations

for contemporary strategists. Defense & Security

Analysis, 33(2), 106-114.

Zhang, Z., McDonnell, K. T., Zadok, E., & Mueller, K.

(2015). Visual correlation analysis of numerical and

categorical data on the correlation map. IEEE

Transactions on Visualization and Computer

Graphics, 21(2), 289-303.

Zhang, X., & Vesselinov, V. V. (2017). Integrated

modeling approach for optimal management of water,

energy and food security nexus. Advances in Water

Resources, 101, 1-10.

CauseWorks: A Framework for Transforming User Hypotheses into a Computational Causal Model
