SIMDGiraffe: Visualizing SIMD Functions

P. M. Ntang

and D. Lemire

Universit

e du Qu

ebec (T

ELUQ), Montreal, Qu

ebec, Canada

Keywords:

Software Visualization, SIMD Instructions, Vectorization.

Abstract:

Many common processors offer advanced parallel-processing features to accelerate computations. In particular,

most commodity processors support Single Instruction on Multiple Data (SIMD) instructions. Algorithms

designed to beneﬁt from these instructions can be several times faster than conventional algorithms. However,

they can be difﬁcult to understand, and therefore to review. We build SIMDGiraffe, a tool that can help visualize

SIMD code written using the popular Intel intrinsics in C.

1 INTRODUCTION

The physical architectures available on the current

commodity processors offer a lot of performance pos-

sibilities, including parallelism. In particular, these

processors support vectorization via Single Instruction

on Multiple Data (SIMD) instructions. These instruc-

tions can perform the same operation on several values

at once, within the same instruction: e.g., a single

SIMD instruction compute

,...,a

) + (b

,...,b

) = (a

+ b

,...,a

+ b

)

(1)

C and C++ programmers can use the popular Intel

intrinsics to beneﬁt from the SIMD instruction sets

available on x64 processors (e.g., AVX-512) (Intel,

2018). To fully leverage these SIMD instructions, the

code must be designed and written in a vectorial man-

ner (Pohl et al., 2016; Kretz and Lindenstruth, 2012;

Maleki et al., 2011). However for many programmers,

it is difﬁcult to read and understand even short samples

written using SIMD intrinsics. These difﬁculties may

intimidate and discourage programmers from using

these functions, despite their performance. Code vi-

sualization may help to better understand programs

and algorithmsn (Myers, 1990). But while the tools

for visualizing parallel codes have been widely dis-

cussed (Stringhini and Fazenda, 2015; Papenhausen

et al., 2016; Li et al., 2017), the visualization of vec-

torial codes has not been the subject of much of in-

terest. To our knowledge, no work has focused on

the visualization of vectorial codes speciﬁcally even

though vectorization has been the subject of attention

https://orcid.org/0000-0002-4400-6469

https://orcid.org/0000-0003-3306-6922

on many other aspects (Muła and Lemire, 2018; Tri-

funovic et al., 2009; Nuzman et al., 2011; Lemire

et al., 2018). Thus some authors confronted with this

problem produce manually ﬁgures to explain the code

execution (Muła and Lemire, 2018). Such a particular

manual representation can be helpful in understand-

ing a particular code. But it obviously allows only

visualizing this particular code.

To address these issues we built a tool—

SIMDGiraffe—that generates automatically ﬁgures

from machine code to help understand the underlying

algorithms. SIMDGiraffe is an open source tool to

analyze and visualize SIMD code written using the

popular SIMD instructions sets onx64 processors. Our

main contributions are:

•

A description of the behavior of a vector code that

runs on a target vector architecture by a model that

can be generalized to any function running on any

architecture;

•

A visual encoding model based on a data type

representing the domain of the vector code thus

described;

•

and ﬁnally, SIMDGiraffe, a freely available proto-

type to test the whole.

2, we present the related work and background

of our work. In

3, we present the problems facing

actors in the domain of vector programming and char-

acterize the input data of the domain problem. In

we explain how we deduce from these data the behav-

ior of a vector function on a given vector architecture

during runtime. We also present the data structure to

store these data and the operations carried out on it,

all of which make it possible to describe this behavior

Ntang, P. and Lemire, D.

SIMDGiraffe: Visualizing SIMD Functions.

DOI: 10.5220/0010195201470154

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages

147-154

ISBN: 978-989-758-488-6

147

and to translate it in the form of visual representation.

5, we present the chosen visual encoding and

the interactions developed. We present in

6 exam-

ples of execution of SIMDGiraffe that we review. We

conclude in § 7.

2 RELATED WORK

Many hardware manufacturers provide programmers

with vector functions: the intrinsics. In the following,

speaking of these functions, we will use the two terms

vector and intrinsic as synonyms. These functions

are vector in the sense that their operands are vectors.

For example the operation 1 where

,...,a

)

and

,...,b

)

are operands, for i ranging from

15 a

and

being 32-bit signed integers (

int32

), can be com-

puted by the instruction

mm512 add epi32

available

on the AVX-512 instruction set (Intel, 2018).

2.1 Works on Intrinsic Functions

Vector operands give intrinsic instructions their power

and performance. A vectorized code can thus be supe-

rior to its scalar equivalent in terms of execution time

with a factor ranging from one to eight on the latest

generation of CPUs (AVX-512) (Bramas, 2017). More

generally, this performance is proportional to a factor

that depends on the size of the registers(Cebrian et al.,

2020), and therefore on the architecture on which the

code is executed. The vector instructions and archi-

tecture, or SIMD, is also efﬁcient in terms of energy

consumption (Steigerwald and Agrawal, 2011). We

use the terms vector code, vector program or vector

function to denote codes, programs and functions that

are written using vector instructions i.e., intrinsics, un-

less otherwise speciﬁed. Vector programs can seem

difﬁcult to design, understand, and maintain. Also,

some projects have tried to get around these difﬁcul-

ties.

These projects consist essentially in the develop-

ment of libraries to encapsulate intrinsic functions and

hide their difﬁculties from programmers. Although

there are projects aimed at exploiting the performance

of intrinsics in other programming languages (Mc-

Cutchan et al., 2014) and even in databases (Fang

et al., 2019), most projects target C/C++. These

projects include Sierra (Leissa et al., 2014), ISPC,

CUBA, OpenMP (Lee et al., 2017), OpenCL, Ope-

nACC, Generic SIMD Library (Wang et al., 2014),

Array Notation (Krzikalla and Zitzlsberger, 2016), Vc

(Kretz and Lindenstruth, 2012), Boost.SIMD (Est

erie

et al., 2014), Neat SIMD (Gross, 2016), etc. The

goal of most of these projects is to allow C/C++ pro-

grammers to write code without worrying about intrin-

sic functions, either by overloading the operators, or

by letting the compiler carry out vectorization (auto-

vectorization). But most of the tools developed offer

simplicity to the detriment of performance and gen-

erally only deal with speciﬁc aspects (Est

erie et al.,

2014). They must also be maintained and updated.

Even if the performance of these tools were to be

optimized, vector programming will probably remain

the choice of certain types of programmers such as

library developers (Wang et al., 2014). Therefore, we

have to face the difﬁculties inherent in vector program-

ming if we really want to beneﬁt from the advantages

it offers. Precisely, to face these difﬁculties, the ac-

tors of vector programming have developed several

strategies including communication through images.

These visual representations are used as well to ex-

plain an isolated vector instruction (InstLatX64, 2018;

Stupachenko, 2015) as to explain a vector code (Dirty

hands coding, 2019; Muła and Lemire, 2018). The

common weakness of all these uses of images is that

they only target those particular cases for which these

images are produced, but also, they can be biased

as they can be subject to the expert blind spot effect

(Nathan et al., 2001). These uses of visual representa-

tions are software visualization albeit at a rudimentary

level.

2.2 Software Visualization

Software visualization is part of information visual-

ization which is an active area of research with a

well-established foundation. Thus, there are model-

ing and step-by-step validation tools for the imple-

mentation of visualization solutions (Munzner, 2009),

well-developed methodological tools for design study

research (Sedlmair et al., 2012), and even a guide for

writing articles in the ﬁeld (Munzner, 2008). These

achievements can easily be transposed to software vi-

sualization concerning the structure and evolution of

code. This transposition becomes much more com-

plicated when it comes to code behavior. It is, there-

fore, necessary to reconcile the more global approach

of information visualization (Munzner, 2014) with

the more speciﬁc approach of software visualization

(Diehl, 2007). Although this reconciliation is not the

subject of this paper, it is important to have these ad-

justments in mind to progress in a software visualiza-

tion process, more particularly when it comes to code

behavior. Some of the terminology used previously

is already speciﬁc to software visualization which is

the visualization of artifacts related to software and its

development process; and is concerned by its structure,

its behavior and its evolution (Diehl, 2007).

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

148

A concrete example of the difﬁculty in transposing

the achievements of information visualization to the

speciﬁc ﬁeld of software visualization concerns the

data used to visualize the behavior of code. In general,

data and its manipulation by actors in the ﬁeld are

key and critical moments for the information visual-

ization researcher. The latter should passively observe,

or actively by asking questions, these actors at work

(Sedlmair et al., 2012). While this may be true in

software visualization in terms of code structure and

evolution, it is less true when it comes to code behavior.

Not that the data are no longer key or critical, on the

contrary, but simply they are no longer given. The in-

formation visualization researcher may work on other

phases pending the acquisition of the data, although

there are risks involved (Sedlmair et al., 2012). This

approach is also quite possible for software visualiza-

tion in terms of the structure and evolution of code, but

would be difﬁcult, if at all possible, for code behav-

ior. Indeed, there is for software visualization, with

regard to code behavior, an additional phase that could

be called speciﬁcation of the data acquisition mode.

Code instrumentation for example corresponds to this

phase. This speciﬁcation, of which the raw data to be

visualized is the ultimate result, determines what can

be done with this data. It is only after this stage that

the data can be characterized. The characterization

determines, of course, which aspects of code behav-

ior can be observed. This characterization naturally

involves, as in any information visualization process,

the description of the problem to be solved.

3 DOMAIN PROBLEM AND DATA

CHARACTERIZATION

The relevance of the problem we want to solve, and

the visualization approach adopted, stems essentially

from the literature review presented in

2. Indeed, the

use of images by the actors of vector programming

is the expression of a persistent need and justiﬁes the

relevance of visualization as a solution to overcome the

difﬁculties associated with understanding, explaining,

and maintaining vector codes.

3.1 Domain Problem

More speciﬁcally, we want to help those involved in

the ﬁeld to understand the behavior of vector code

when executed on a given vector architecture. We in-

sist on this architectural aspect, because after all it is

the ﬁrst condition of vectorization. Indeed, without

the appropriate hardware architecture, in particular the

presence of vector registers, vectorization is not pos-

sible. For the behavior of a code at runtime, one can

use instrumentation. But instrumentation is generally

a source of bias since it can modify the behavior of

code at runtime (Diehl, 2007). In addition, the in-

strumentation makes the separation between referrers

and attributes unclear. However, this is the standard

for other areas of information visualization (Purchase

et al., 2008). Visualization then consists in looking

for metaphors making it possible to describe the rela-

tionships between these two characteristics of the data

or even simply to represent one of the characteristics.

The modeling of code behavior has been the subject

of several works (Kwon and Su, 2011; Dupont et al.,

2008). These works, whether they are based on con-

straints on data approach (Ernst et al., 2001; Cicchello

and Kremer, 2004), the ﬁnite state machines approach

(Biermann and Feldman, 1972), or on a synthetic ap-

proach (Lorenzoli et al., 2008), are mainly interested

in the generation of code behavior models. Tools such

as LLVM Machine Code Analyzer can be considered

as instantiations of these models. We need an opera-

tional model to generate the attributes describing the

behavior of code running on a given target architec-

ture. This will bring us closer to the standard of the

other areas of information visualization. This model is

based on the assumption and the observation that any

program is determined, from the point of view of its

behavior, by an instance of that program on a physical

architecture and only. We use the term architecture to

denote the physical machine and its basic primitives

which allow the manipulation of the hardware.

In functional form, we can write that the behavior

of a program at runtime (PE) is

PE = F(S,H) (2)

where S is the source code or the software, and H is

the architecture or the hardware on which this source

code runs. This function can be broken down into

elementary functions, each corresponding to an oc-

currence of an instruction in a register used by the

program during its execution. All the rest of the mem-

ory that is not part of the registers is seen as a single

particular register. This formalism allows, at least at

the machine language level, to describe the semantics

of a code in a consistent way (Dasgupta et al., 2019).

Equation 2 is then an aggregation of these elementary

functions. With the assumption that the aggregation

of elementary functions restores the overall behavior

of the code, the output of this equation corresponds

to the attributes used to characterize the behavior of

the code

on the architecture

. Here, as with any

software visualization problem, especially with code

behavior, one of the main problems is determining and

obtaining data to express code behavior at runtime.

SIMDGiraffe: Visualizing SIMD Functions

149

3.2 Data Characterization

Unlike other ﬁelds of information visualization and

even software visualization in terms of the structure

and evolution of code, The raw data that are the source

codes are not sufﬁcient to understand the behavior of

this code at runtime, so they cannot be taken as the

raw material of the process. One of the ﬁrst and main

problems to be solved here is not to obtain the data, but

to specify how to get to this data; only then does the

question of its acquisition and characterization arise.

For other areas of information visualization, and even

for the evolution and structure of a code, only the

problems of data acquisition and characterization arise.

One cannot, by looking at the code of a function, or

even by analyzing it, obtain information about its be-

havior at runtime. At a minimum, and this is especially

practical for an algorithm, an abstract execution must

be carried out. But in real world, the behavior of code

depends on the architecture on which it is executed.

So the PE function depends on two variables which

are the source code S and the architecture H. Tools

like the LLVM Machine Code Analyzer embedded

in Godbolt allow us to calculate the output of such a

function. Indeed, this tool makes it possible to gen-

erate, according to the target architecture passed as a

parameter, data describing the behavior of a code that

is executed on this architecture. This behavior is de-

scribed in terms of memory occupation, input/output

operations performed by the code, sequences of modi-

ﬁcations performed by the code on the registers, i.e.,

the calculation and control sequences, and even the per-

formance of code executions in terms of duration, etc.

SIMDGiraffe therefore relies on Godbolt for the gen-

eration of this data, which it retrieves and processes.

4 OPERATION AND DATA TYPE

ABSTRACTION

Before getting to the computer processing of data in

SIMDGiraffe, the code behavior must be abstracted

from the data. This abstraction is then concretized

through an abstract data type, which structures the pos-

sibilities in terms of visual encoding and interactions.

The retrieved data, which feeds the abstract data type,

then undergoes a logical and formal transformation

to ﬁt it. To achieve this transformation, we take ad-

vantage of equation 2. In this equation,

is deﬁned

S × H

where

is the vector source code and

is the vector architecture. We can take advantage of

the fact that the instances of the instructions of S are

ﬁnite in number, as are the registers. For example, they

are sixteen 512-bit SIMD registers in 64-bit mode on

the AVX-512 generation (Intel, 2011) and even bet-

ter, not all registers are used during the execution of

a given program. We then decompose

into a series

of instances of each of its instructions. We exploit the

fact that the intrinsic functions have an equivalent in

assembler, and therefore it is these equivalents that

appear in this decomposition of

. In this way, we

assimilate

to these instances. The architecture is also

assimilated to the registers used by the code

during

its execution. We deﬁne the relation

from

sRh

if only if

use

. The graph of

is a subset of

the matrix table

S × H

. The restriction of

then

breaks down into

, the output of which describes the

behavior of instance

of a vector instruction on a regis-

ter

. The matrix array is enriched by describing each

element

(i,r)

with its output

. In the cell corre-

sponding to this element, we place the description of

the behavior of the instruction on the register. Finally,

we get a double-entry array whose rows are instances,

columns are registers, and the cell

(i,r)

is occupied by

the output of

corresponding to the instance

and

the register

if they are in the graph of

(

(i,r) ∈ R

)

or nothing if they are not in this graph. Each column

is ordered since the instances appear in the order in

which they use the corresponding register. This is a

total order because two instances cannot use the same

the description at the output of the function

. The

data structure which is suitable for this representation

is naturally a matrix. The main justiﬁcation for this

choice is that the data itself is in matrix form. The ele-

ment

(i,r)

of this matrix is an object which describes

the interaction of the instance

on the register

if this

pair is in the graph of

and 0 or null if it is not in the

graph of

. The visual encoding and the interactions

are obtained from this matrix.

5 VISUAL ENCODING AND

INTERACTION DESIGN

In the way the matrix is obtained, this encoding, and

the interactions that follow translate the behavior of the

code when it is executed on the target architecture. To

ﬁnd the visual encoding that translates the description

carried by the matrix in a cognitively efﬁcient way, we

follow the principles for graphic encoding (Engelhardt

and Richards, 2020) and the rules of color scheme

(MacDonald, 1999). The color scheme is done during

the implementation because the display medium must

be considered. It is done by applying the rules, but

also by adjustments according to the visual rendering

obtained. In the description carried by the matrix, we

only consider input/output and operations on registers,

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

150

since they reﬂect the code behavior. For machine code,

we equate this behavior to its semantics.

5.1 Visual Encoding

In terms of semantics, a machine instruction can be

modeled in three simple steps: reading the source

operands, performing an operation, writing to the des-

tination operands (Dasgupta et al., 2019). Thus, we

can completely describe a program by a sequence of

triples read, operation, write. Each element of such a

triple corresponds to the modiﬁcation of the state of

one or more registers. We can translate this triple by

the graphic sequence of Figure 1. In this representa-

tion, r stands for read, and w stands for write. It is

assumed that if there is no reading or writing during

a register operation, the corresponding ellipse is left

empty. We modify this ﬁgure slightly in the visual

representation to obtain Figure 2. Although for most

software visualization taxonomies (Diehl, 2007; My-

ers, 1990; Blaine Price and Small, 1998) visualization

of code behavior at runtime involves dynamic visual-

ization, we opt for static visualization. Indeed, it is

established that a static visualization, if it can provide

the same information as a dynamic visualization, is

better in terms of cognitive efﬁciency and effectiveness

in comprehension (Robertson et al., 2008). To fully

describe the action of an operation on a register, we do

not need any additional information from the user or

any other entity; we only need the source code and the

target architecture. This action is also not time depen-

dent. With the assumption that all the information to

be visualized can be displayed in a rectangle similar

to that of Figure 2, the choice of a static visualization

is therefore appropriate. The matrix is thus translated

into a series of images describing the behavior of the

code in a plane and the names of rows and columns

are added.

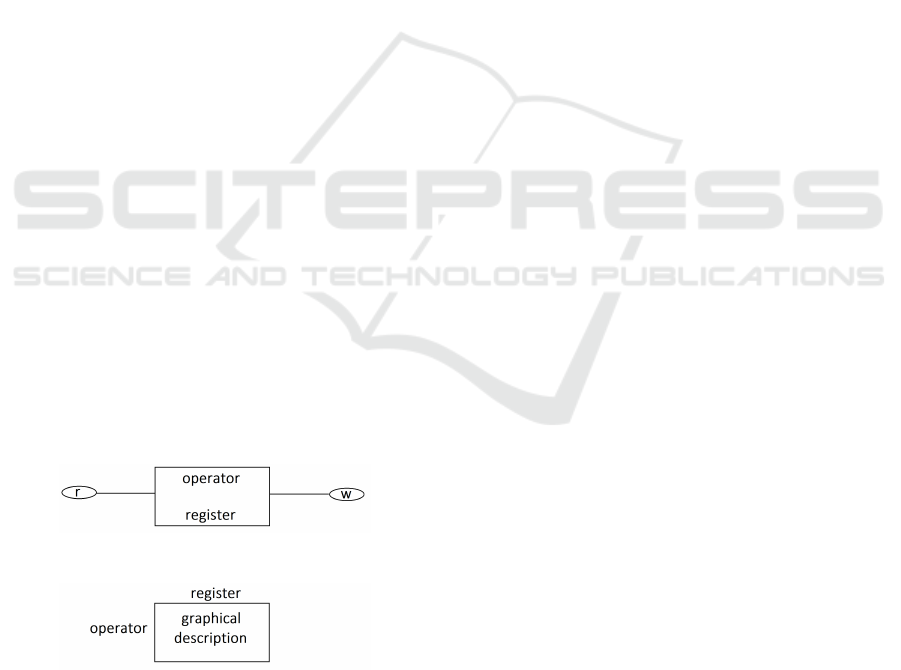

Figure 1: Triple as graphic sequence.

Figure 2: Sequence transformed into a geometric cell.

5.2 Interaction Design

The interactivity of the system is designed with spe-

ciﬁc objectives and scenarios. The objectives of the

interactivity of the system are to allow the user to slice

the vector source code into logical blocks according

to the behavior of this code during its execution, to

localize in the source code the instances of a vector

instruction appearing on the visual representation, to

have explanations on each of the vector instructions

appearing in the decomposition of the vector source

code. This interactivity relies for a large part on formal

relations that link elements together.

Thus, let the relation

deﬁned on

) G (i

)

if and only if the entry of the register

for the instruction

is read on the register

for the

instruction

(n,m) = (k, l)

. If we set

= {x ∈

R and ∃y ∈ R /(y G x

or x

G y) and (y G x or x S y)}

we deﬁne from a given point

a path starting

from the entry point of the function

to an exit point

of this function. An exit point is deﬁned here as a point

where the function accesses memory for writing with-

out the value thus written being no longer accessed

during its execution. Such a path makes it possible

to isolate logical blocks of independent or weakly de-

pendent code. A block is independent if it can run

independently from the rest of the function up to its

exit point. A block is weakly dependent if it can exe-

cute independently from the rest of the function, but

its return value is read internally into the function. In

SIMDGiraffe, the user just needs to set

and see

Up to two points can be set, and their path visualized

at the same time. A point is set either by pointing it

with the mouse and in this case, it ceases to be a set

point when it is no longer pointed or either by clicking

on it and in this case, it is set until you click on it

again. When a point is set, the corresponding vector

instruction instance is selected. An instance of a vector

instruction can be selected by pointing directly to the

name of the instance in question. When an instance

of a vector instruction in the visual representation is

selected, the corresponding block in the source code

is highlighted. There is thus an interactive visual cor-

respondence between the source code and the visual

representation of its behavior when executed on the

target architecture. An explanation of the vector in-

struction of which an instance is selected is also given

in the graphical representation space. Although there

are some code samples preloaded in SIMDGiraffe, the

users can type their own vector source code and in-

teractively visualize its behavior when it is run on the

target architecture.

6 EXAMPLE AND REVIEW

In this example, the target vector architecture, which

is parameterized in the source code of SIMDGi-

SIMDGiraffe: Visualizing SIMD Functions

151

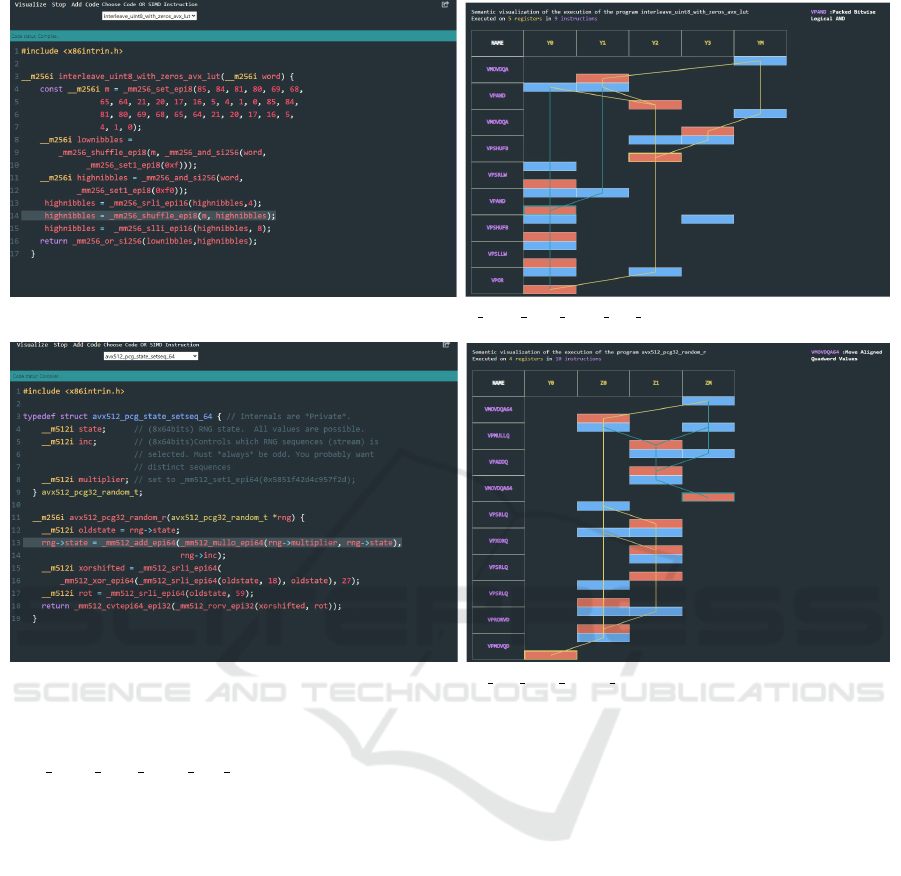

Figure 3: Spatial view of program interleave uint8 with zeros avx lut at runtime.

Figure 4: Spatial view of program avx512 pcg state setseq 64 at runtime.

raffe, is the AVX-512 of Intel. The example in Fig-

ure 3 shows the visualization of the function inter-

leave uint8 with zeros avx lut. In the right window,

there is a summary of the execution of the function on

the target architecture above the visualization plane.

Thus, on the AVX-512, this function is executed with

5 registers in 9 instances of vector instructions. On

the right, at the top of this window, we have the ex-

planation of the VPAND vector instruction, of which

one of the instances is the last selected. The points

are represented by rectangles. The ﬁrst set point has

a yellow rectangle edge, and the second set point has

a green rectangle edge. In the left window, the high-

lighted instruction, i.e. line 14, corresponds to the

last instance selected, i.e. the second instance of the

VPAND instruction; the sixth line in the case. The

path in yellow materializes a code block that is weakly

dependent on the rest of the code.

In the second example in Figure 4, we also have

two instances selected. What can be noticed is that the

two set points delimit through their respective paths

two independent blocks of codes. This function at

the level of the ﬁrst block of code accesses and writes

on the memory during its execution, as can be seen.

Viewing the behavior of this function shows us that

we can split the source code into two large blocks

that share a single declaration and variable assignment

at the input of each of the two blocks. This is the

instruction:

__m512i oldstate = rng->state;

The ﬁrst block of runtime behavior, whose path in

the visual representation is in blue, corresponds to the

ﬁrst block of the source code:

rng->state=_mm512_add_epi64(_mm512_mullo_epi64

(rng->multiplier, rng->state), rng->inc);

The second block of runtime behavior corresponds

to the second block of the source code:

__m512i xorshifted = _mm512_srli_epi64(

_mm512_xor_epi64(_mm512_srli_epi64

(oldstate, 18), oldstate), 27);

__m512i rot = _mm512_srli_epi64(oldstate, 59);

return _mm512_cvtepi64_epi32(_mm512_rorv_epi32

(xorshifted, rot));

Determining the start and end of each block in the

source code is done by setting the entry and exit point

respectively in the visual representation. The start and

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

152

end of the block are then respectively highlighted each

time. These two blocks run independently. Thanks

to the visual representation, a person with little expe-

rience in vector programming was able to make this

slicing, just as he was able to notice the writing access

in memory by the function.

7 CONCLUSION

SIMDGiraffe

is a prototype designed to help vector

programming actors in explaining and understanding

the behavior of vector code, more precisely vector

functions, on a given target architecture. Consequently,

it can help in the maintenance of vector functions.

SIMDGiraffe is the result of an overall approach fo-

cusing on a model for describing the domain of the

behavior of vector source code when running on a tar-

get architecture; a visual encoding model; and choices

on the type of data representations to allow passing

from data describing this behavior to images. The cur-

rent prototype has been tested on examples of vector

functions with positive feedback.

Encouraged by these results, we intend in our fu-

ture work to deepen our domain description model by,

for example, integrating performance-related elements

and thus making it possible to predict this performance

according to a given target architecture; deepen the

visual encoding model by unfolding in this model the

description of the calculation and control operations

since for the moment only the inputs/outputs opera-

tions, reading and writing, are presented graphically;

translate these insights into the prototype; carry out

a more formalized evaluation of this prototype, for

example through a case study.

ACKNOWLEDGEMENTS

This work was supported by NSERC, Grant/Award

Number: 1255914. We thank J. Piotte, for his contri-

bution to the foundations of this project during the ex-

ploration of the experimented trail in SIMD-Visualiser.

REFERENCES

Biermann, A. W. and Feldman, J. A. (1972). On the

Synthesis of Finite-State Machines from Samples of

Their Behavior. IEEE Transactions on Computers,

C-21(June):592–597.

Online at https://pmntang.github.io/SIMDGiraffe/#/.

Blaine Price, R. B. and Small, I. (1998). A Principled Tax-

onomy of Software Visualization. In Stasko, John;

Domingue, John; Brown, Marc H; Price, B., editor,

Software Visualization: Programming as a Multimedia

Experience, chapter 3, pages 57–81. MIT press.

Bramas, B. (2017). Inastemp: A Novel Intrinsics-as-

Template Library for Portable SIMD-Vectorization.

Scientiﬁc Programming, 2017.

Cebrian, J. M., Natvig, L., and Jahre, M. (2020). Scalability

analysis of AVX-512 extensions. Journal of Supercom-

puting, 76(3):2082–2097.

Cicchello, O. and Kremer, S. C. (2004). Inducing gram-

mars from sparse data sets: A survey of algorithms

and results. Journal of Machine Learning Research,

4(4):603–632.

Dasgupta, S., Park, D., Kasampalis, T., Adve, V. S., and

s¸

u, G. (2019). A complete formal semantics of

x86-64 user-level instruction set architecture. In Pro-

ceedings of the 40th ACM SIGPLAN Conference on

Programming Language Design and Implementation,

pages 1133–1148. ACM.

Diehl, S. (2007). Software visualization: visualizing

the structure, behaviour, and evolution of software.

Springer Science & Business Media.

Dirty hands coding (2019). utf8lut: Vector-

ized UTF-8 converter. Decoding UTF-

8. https://dirtyhandscoding.github.io/posts/

utf8lut-vectorized-utf-8-converter-introduction.html.

Dupont, P., Lambeau, B., Damas, C., and Van Lamsweerde,

A. (2008). The QSM algorithm and its application to

software behavior model induction. Applied Artiﬁcial

Intelligence, 22(1-2):77–115.

Engelhardt, Y. and Richards, C. (2020). The DNA Frame-

work of Visualization, volume 12169 LNAI. Springer

International Publishing.

Ernst, M. D., Cockrell, J., Griswold, W. G., and Notkin, D.

(2001). Dynamically discovering likely program invari-

ants to support program evolution. IEEE Transactions

on Software Engineering, 27(2):99–123.

Est

erie, P., Falcou, J., Gaunard, M., and Laprest

e, J.-

T. (2014). Boost.SIMD: Generic Programming for

Portable SIMDization. In Proceedings of the 2014

Workshop on Programming Models for SIMD/Vector

Processing, WPMVP ’14, pages 1–8, New York, NY,

USA. ACM.

Fang, Z., He, Z., Chu, J., and Weng, C. (2019). Simd accel-

erates the probe phase of star joins in main memory

databases. In International Conference on Database

Systems for Advanced Applications, pages 476–480.

Springer.

Gross, M. (2016). Neat SIMD: Elegant vectorization in C++

by using specialized templates. In High Performance

Computing & Simulation (HPCS), 2016 International

Conference on, pages 848–857. IEEE.

InstLatX64 (2018). VPMADDUBSW//VPMADDWD.

https://twitter.com/InstLatX64/status/

976059767176204288.

Intel (2011). Intel 64 and IA-32 Architectures Software

Developer’s Manual Combined Volumes. System,

3(253665).

SIMDGiraffe: Visualizing SIMD Functions

153

Intel (2018). Intel intrinsics guide. https://software.intel.

com/sites/landingpage/IntrinsicsGuide/.

Kretz, M. and Lindenstruth, V. (2012). Vc: A C++ library

for explicit vectorization. Software: Practice and Ex-

perience, 42(11):1409–1430.

Krzikalla, O. and Zitzlsberger, G. (2016). Code Vectorization

Using Intel Array Notation. In Proceedings of the 3rd

Workshop on Programming Models for SIMD/Vector

Processing, WPMVP ’16, pages 6:1–6:8, New York,

NY, USA. ACM.

Kwon, T. and Su, Z. (2011). Modeling high-level behav-

ior patterns for precise similarity analysis of software.

Proceedings - IEEE International Conference on Data

Mining, ICDM, pages 1134–1139.

Lee, J., Petrogalli, F., Hunter, G., and Sato, M. (2017). Ex-

tending OpenMP SIMD Support for Target Speciﬁc

Code and Application to ARM SVE. In International

Workshop on OpenMP, pages 62–74. Springer.

Leissa, R., Haffner, I., and Hack, S. (2014). Sierra: A

SIMD Extension for C++. In Proceedings of the 2014

Workshop on Programming Models for SIMD/Vector

Processing, WPMVP ’14, pages 17–24, New York, NY,

USA. ACM.

Lemire, D., Kurz, N., and Rupp, C. (2018). Stream VByte:

Faster byte-oriented integer compression. Information

Processing Letters, 130:1–6.

Li, B., Mooring, J., Blanchard, S., Johri, A., Leko, M., and

Cameron, K. W. (2017). Seemore. J. Parallel Distrib.

Comput., 105(C):183–199.

Lorenzoli, D., Mariani, L., and Pezz

e, M. (2008). Automatic

generation of software behavioral models. Proceedings

- International Conference on Software Engineering,

pages 501–510.

MacDonald, L. W. (1999). Using color effectively in com-

puter graphics. IEEE Computer Graphics and Applica-

tions, 19(4):20–35.

Maleki, S., Gao, Y., Garzar

an, M. J., Wong, T., and Padua,

D. A. (2011). An evaluation of vectorizing compilers.

In Proceedings of the 2011 International Conference

on Parallel Architectures and Compilation Techniques,

PACT ’11, pages 372–382, Washington, DC, USA.

IEEE Computer Society.

McCutchan, J., Feng, H., Matsakis, N., Anderson, Z., and

Jensen, P. (2014). A SIMD Programming Model for

Dart, Javascript,and Other Dynamically Typed Script-

ing Languages. In Proceedings of the 2014 Workshop

on Programming Models for SIMD/Vector Process-

ing, WPMVP ’14, pages 71–78, New York, NY, USA.

ACM.

Muła, W. and Lemire, D. (2018). Faster base64 encoding

and decoding using AVX2 instructions. ACM Trans.

Web, 12(3).

Munzner, T. (2008). Process and pitfalls in writing infor-

mation visualization research papers. Lecture Notes in

Computer Science, 4950 LNCS:134–153.

Munzner, T. (2009). A nested model for visualization design

and validation. IEEE Transactions on Visualization

and Computer Graphics, 15(6):921–928.

Munzner, T. (2014). Visualization Analysis and Design. A

K Peters/CRC Press.

Myers, B. A. (1990). Taxonomies of visual programming and

program visualization. Journal of Visual Languages

and Computing, 1(1):97–123.

Nathan, M. J., Koedinger, K. R., and Alibali, M. W. (2001).

Expert blind spot: When content knowledge eclipses

pedagogical content knowledge. In Proceedings of

the third international conference on cognitive science,

pages 644–648. Beijing: University of Science and

Technology of China Press.

Nuzman, D., Dyshel, S., Rohou, E., Rosen, I., Williams,

K., Yuste, D., Cohen, A., and Zaks, A. (2011). Va-

por simd: Auto-vectorize once, run everywhere. In

International Symposium on Code Generation and Op-

timization, CGO 2011, pages 151–160.

Papenhausen, E., Mueller, K., Langston, M. H., Meister,

B., and Lethin, R. (2016). An interactive visual tool

for code optimization and parallelization based on

the polyhedral model. In Parallel Processing Work-

shops (ICPPW), 2016 45th International Conference

on, pages 309–318. IEEE.

Pohl, A., Cosenza, B., Mesa, M. A., Chi, C. C., and Juurlink,

B. (2016). An evaluation of current simd programming

models for c++. In Proceedings of the 3rd Workshop

on Programming Models for SIMD/Vector Processing,

WPMVP ’16, pages 3:1–3:8, New York, NY, USA.

ACM.

Purchase, H. C., Andrienko, N., Jankun-Kelly, T. J., and

Ward, M. (2008). Theoretical foundations of informa-

tion visualization. Lecture Notes in Computer Science,

4950 LNCS:46–64.

Robertson, G., Fernandez, R., Fisher, D., Lee, B., and Stasko,

J. (2008). Effectiveness of animation in trend visual-

ization. IEEE Transactions on Visualization and Com-

puter Graphics, 14(6):1325–1332.

Sedlmair, M., Meyer, M., and Munzner, T. (2012). Design

study methodology: Reﬂections from the trenches and

the stacks. IEEE Transactions on Visualization and

Computer Graphics, 18(12):2431–2440.

Steigerwald, B. and Agrawal, A. (2011). Developing Green

Software. Intel White Paper, pages 1–11.

Stringhini, D. and Fazenda, A. (2015). Characterizing com-

munication patterns of parallel programs through graph

visualization and analysis. In European Conference on

Parallel Processing, pages 565–576. Springer.

Stupachenko, E. V. (2015). Programming us-

ing AVX2. Permutations. https://software.

intel.com/content/www/us/en/develop/blogs/

programming-using-avx2-permutations.html?

wapkw=vpunpckl.

Trifunovic, K., Nuzman, D., Cohen, A., Zaks, A., and Rosen,

I. (2009). Polyhedral-model guided loop-nest auto-

vectorization. In 18th International Conference on

Parallel Architectures and Compilation Techniques -

Conference Proceedings, PACT, pages 327–337.

Wang, H., Wu, P., Tanase, I. G., Serrano, M. J., and Moreira,

J. E. (2014). Simple, portable and fast SIMD intrinsic

programming: Generic SIMD library. In Proceedings

of the 2014 Workshop on Programming Models for

SIMD/Vector Processing, WPMVP ’14, pages 9–16.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

154
