On the Transferability of Winning Tickets in Non-natural Image Datasets

Matthia Sabatelli

, Mike Kestemont

and Pierre Geurts

Monteﬁore Institute, University of Li

ege, Grande Traverse 10, Li

ege, Belgium

Centre for Digital Humanities and Literary Criticism, University of Antwerp, Prinsstraat 13, Antwerp, Belgium

Keywords:

Lottery Ticket Hypothesis, Transfer Learning, Pruning.

Abstract:

We study the generalization properties of pruned models that are the winners of the lottery ticket hypothesis on

photorealistic datasets. We analyse their potential under conditions in which training data is scarce and comes

from a not-photorealistic domain. More speciﬁcally, we investigate whether pruned models that are found

on the popular CIFAR-10/100 and Fashion-MNIST datasets, generalize to seven different datasets coming

from the ﬁelds of digital pathology and digital heritage. Our results show that there are signiﬁcant beneﬁts in

training sparse architectures over larger parametrized models, since in all of our experiments pruned networks

signiﬁcantly outperform their larger unpruned counterparts. These results suggest that winning initializations

do contain inductive biases that are generic to neural networks, although, as reported by our experiments on the

biomedical datasets, their generalization properties can be more limiting than what has so far been observed

in the literature.

1 INTRODUCTION

The “Lottery-Ticket-Hypothesis” (LTH) (Frankle and

Carbin, 2018) states that within large randomly ini-

tialized neural networks there exist smaller sub-

networks which, if trained from their initial weights,

can perform just as well as the fully trained unpruned

network from which they are extracted. This hap-

pens to be possible because the weights of these sub-

networks seem to be particularly well initialized be-

fore training starts, therefore making these smaller ar-

chitectures suitable for learning (see Fig 1 for an illus-

tration). These sub-networks, i.e., the pruned struc-

ture together with their initial weights, are called win-

ning tickets, as they appear to have won the initializa-

tion lottery. Since winning tickets only contain a very

limited amount of parameters, they yield faster train-

ing, inference, and sometimes even better ﬁnal per-

formance than their larger over-parametrized coun-

terparts (Frankle and Carbin, 2018; Frankle et al.,

2019a). So far, winning tickets are typically identiﬁed

by an iterative procedure that cycles through several

steps of network training and weight pruning, start-

ing from a randomly initialized unpruned network.

While simple and intuitive, the resulting algorithm,

has unfortunately a high computational cost. De-

spite the fact that the resulting sparse networks can

be trained efﬁciently and in isolation from their initial

weights, the LTH idea has not yet led to more efﬁ-

cient solutions for training a sparse network, than ex-

isting pruning algorithms that all also require to ﬁrst

fully train an unpruned network (Han et al., 2015a;

Molchanov et al., 2016; Dong et al., 2017; Lin et al.,

2017; Zhuang et al., 2018).

Since the introduction of the idea of the LTH, sev-

eral research works have focused on understanding

what makes some weights so special to be the win-

ners of the initialization lottery. Among the differ-

ent tested approaches, which will be reviewed in Sec.

5, one research direction in particular has looked into

how well winning ticket initializations can be trans-

ferred among different training settings (datasets and

optimizers), an approach which aims at characteriz-

ing the winners of the LTH by studying to what ex-

tent their inductive biases are generic (Morcos et al.,

2019). The most interesting ﬁndings of this study are

that winning tickets generalize across datasets, within

the natural image domain at least, and that tickets ob-

tained from larger datasets typically generalize bet-

ter. This opens the door to the transfer of winning

tickets between datasets, which makes the high com-

putational cost required to identify them much more

acceptable practically, as this cost has to be paid only

once and can be shared across datasets.

In this paper, we build on top of this latter work.

While Morcos et al. (Morcos et al., 2019) focused

on the natural image domain, we investigate the pos-

sibility of transferring winning tickets obtained from

Sabatelli, M., Kestemont, M. and Geurts, P.

On the Transferability of Winning Tickets in Non-natural Image Datasets.

DOI: 10.5220/0010196300590069

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

59-69

ISBN: 978-989-758-488-6

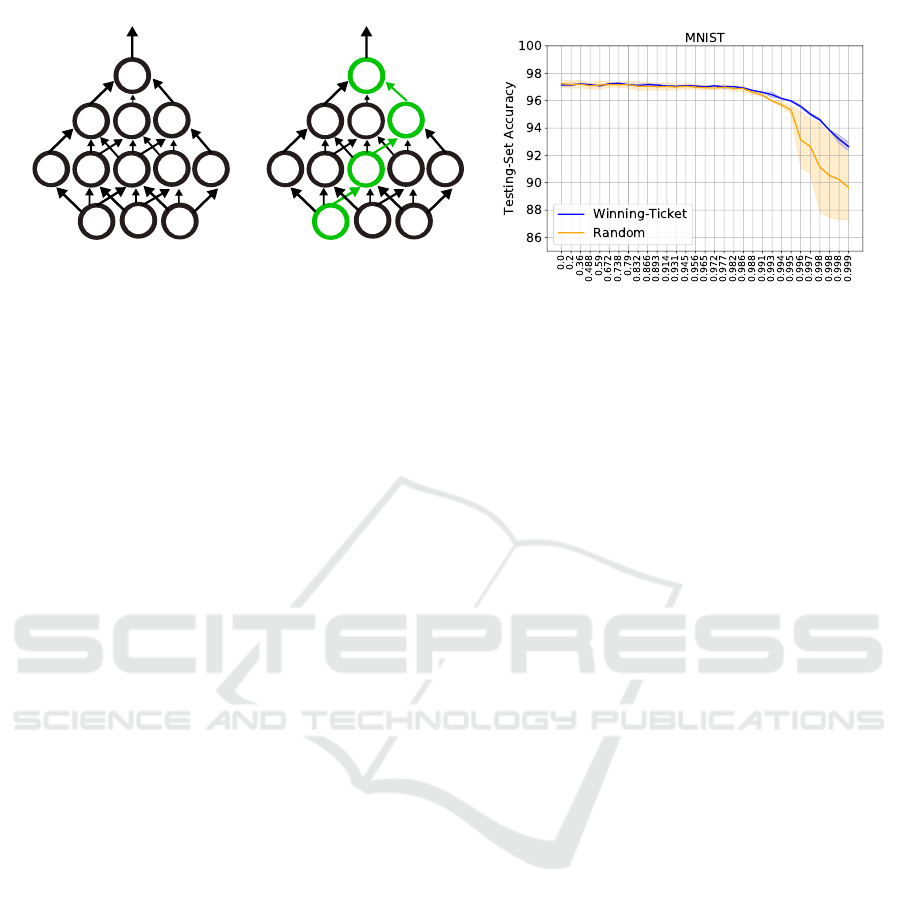

Figure 1: A visual representation of the LTH as introduced in (Frankle and Carbin, 2018). Let us consider a simpliﬁed version

of a two hidden layer feedforward neural network as is depicted in the ﬁrst image on the left. The LTH states that within

this neural network there exist multiple smaller networks (represented in green), which perform just as well as their larger

counterpart. Training these sparse models from scratch successfully is only possible as long as their weights are initialized

with the same values that were also used when the larger (black) model was initialized. As can be seen by the blue curve of

the last plot the performance of such pruned models gets barely harmed even when large pruning rates are reached. These

models are considered as the winners of the initialization lottery and also perform better than the same models re-initialized

randomly (orange line). Results obtained on the MNIST dataset that replicate the ﬁndings presented in (Frankle and Carbin,

2018).

the natural image domain to datasets in non natural

image domains. This question has an important prac-

tical interest as datasets in non natural image domains

are typically scarcer than datasets in natural image do-

mains. They would therefore potentially beneﬁt more

from a successful transfer of sparse networks, since

the latter can be expected to require less data for train-

ing than large over-parametrized networks. Further-

more, besides studying their generalization capabili-

ties, we also focus on another interesting property that

characterizes models that win the LTH, and which so

far has received less research attention. As originally

presented in (Frankle and Carbin, 2018), pruned mod-

els which are the winners of the LTH can yield a ﬁnal

performance which is better than the one obtained by

larger over-parametrized networks. In this work we

explore whether it is worth seeking for such pruned

models when training data is scarce, a scenario that is

well known to constraint the training of deep neural

networks. To answer these two questions, we carried

out experiments on several datasets from two very dif-

ferent non natural image domains: digital pathology

and digital heritage.

Research Questions and Contributions: this work

investigates two research questions. First, we aim

at better characterizing the LTH phenomenon by in-

vestigating whether lottery winners that are found on

datasets of natural images contain inductive biases

that are strong enough to allow them to generalize to

non-natural image distributions. To do so, we present

to the best of our knowledge the ﬁrst results that study

the transferability of winning initializations in this

particular training setting. Second, we thoroughly

study for the ﬁrst time whether pruned models that are

the winners of the LTH can consistently outperform

their larger over-parametrized counterparts in condi-

tions with scarce training data.

2 DATASETS

We consider seven datasets that come from two dif-

ferent, unrelated sources: histopathology and digital

heritage. Each dataset comes with its training, val-

idation and testing splits. Furthermore the datasets

change in terms of size, resolution, and amount of la-

bels that need to be classiﬁed. We report an overview

about the size of these datasets in Table 1 while a vi-

sual representation of the samples constituting these

datasets in Fig. 2. The Digital-Pathology (DP) data

comes from the Cytomine (Mar

ee et al., 2016) web

application, an open-source platform that allows in-

terdisciplinary researchers to work with large-scale

images. While Cytomine has collected a large num-

ber of datasets over the years, in this work we have

limited our analysis to a subset of four datasets that

all represent tissues and cells from either human

or animal organs: Human-LBA, Lung-Tissues, and

Mouse-LBA were originally proposed in (Mormont

et al., 2018), while Bone-Marrow comes from (Kainz

et al., 2017). All four datasets have been used in

(Mormont et al., 2018), that researched whether neu-

ral networks pre-trained on natural images could suc-

cessfully be re-used in the DP domain. In this pa-

per, we explore whether an alternative to the transfer-

learning approaches presented in (Mormont et al.,

2018) could be based on training pruned networks

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

that are the winners of the LTH. This will allow us

to investigate the two research questions introduced

in Sec. 1: we will explore whether winning initial-

izations that are found on datasets of natural images

do generalize to non-natural domains, and whether

sparse models winners of the LTH can perform bet-

ter than larger unpruned models that get trained from

scratch. Regarding the ﬁeld of Digital-Humanities

(DH) we have created three novel datasets that all re-

volve around the classiﬁcation of artworks. We con-

sider two different classiﬁcation tasks that have al-

ready been thoroughly studied by researchers bridg-

ing between the ﬁelds of Computer Vision (CV) and

DH (Mensink and Van Gemert, 2014; Strezoski and

Worring, 2017; Sabatelli et al., 2018). The ﬁrst task

consists in identifying the artist of the different art-

works, while the second one aims at classifying which

kind of artwork is depicted in the different images, a

challenge which is usually referred to in the litera-

ture as type-classiﬁcation (Mensink and Van Gemert,

2014; Sabatelli et al., 2018). When it comes to the

artist-classiﬁcation task we have created two differ-

ent datasets, which purpose will be better explained in

Sec. 4.3. All images are publicly available as part of

the WikiArt gallery (Phillips and Mackintosh, 2011)

and can also be found within the large popular Om-

niArt dataset (Strezoski and Worring, 2018). Albeit

in DH it is actually easier to ﬁnd large datasets than

in histopathology, it is worth mentioning that we have

kept the size of these datasets intentionally small in

order to ﬁt the research questions introduced in Sec.

1. Furthermore, it is also worth noting that there are

several additional challenges that need to be over-

come when training deep neural networks on artis-

tic collections, which therefore motivate the use of

this kind of datasets in this work. The size, texture,

and resolution of the images coming from the DH are

usually representative of different time periods, artis-

tic movements and might have gone through different

digitization processes, which are all reasons that make

these datasets largely varied and challenging.

3 EXPERIMENTAL SETUP

We follow an experimental set-up similar to the one

that was introduced in (Morcos et al., 2019) (and that

has been validated by (Gohil et al., 2020)). Let us

deﬁne a neural network f (x;θ) that gets randomly

initialized with parameters θ

∼ D

and then trained

for j iterations over an input space X , and an output

space Y . At the end of training a percentage of the

parameters in θ

gets pruned, a procedure which re-

sults in a mask m. The parameters in θ

which did

not get pruned are then reset to the values they had

at θ

, where k represents an early training iteration.

A winning ticket corresponds to the combination be-

tween the previously obtained mask, and the parame-

ters θ

, and is deﬁned as f (x; m  θ

)

. Constructing

a winning ticket with parameters θ

, instead of θ

, is

a procedure which is known as late-resetting (Frankle

et al., 2019a), and is a simple but effective trick that

makes it possible to stably ﬁnd winning initializations

in deep convolutional neural networks (Frankle et al.,

2019a; Morcos et al., 2019). In this study f (x;θ)

comes in the form of a ResNet-50 architecture (Han

et al., 2015a) which gets trained on the three pop-

ular CV natural image datasets CIFAR-10/100 and

Fashion-MNIST. Following (Han et al., 2015a; Mor-

cos et al., 2019), 31 winning tickets f (x;m  θ

) of

increasing sparsity are obtained from each of these

three datasets by repeating 31 iterations of network

training and magnitude pruning with a pruning rate

of 20%. More precisely, at each pruning iteration,

the network is trained for several epochs (using early

stopping on the validation set as described in the ap-

pendix) and then the 20% of weights with the low-

est magnitudes are pruned. The parameters θ

that

deﬁne each of the 31 tickets are then taken as the

weights of the corresponding pruned networks at the

kth epoch of the ﬁrst pruning iteration. Once these

pruned networks are found we aim at investigating

whether their parameters θ

contain inductive biases

that allow them to generalize to the non-natural image

domain. To do so we replace the ﬁnal fully connected

layer of each winning ticket with a randomly initial-

ized layer that has as many output nodes as there are

classes to classify. We then ﬁne-tune each of these

networks on the non-natural image datasets consid-

ered in this study. At the end of training, we study

the performance of each winning ticket in two differ-

ent ways. First, we compare the performance of each

network to the performance of a fully unpruned net-

work that gets randomly initialized and trained from

scratch. Second, we also compare the performance

of winning tickets that have been found on a natural

image dataset to 31 new sparse models that are the

winners of the LTH on the considered target dataset.

Since it is not known to which extent pruned networks

that contain weights that are the winners of the LTH

on a natural image dataset can generalize to target dis-

tributions that do not contain natural images, we re-

Note that this formulation generalizes the original ver-

sion of the LTH (Frankle and Carbin, 2018) that we have

represented in Fig. 1, where a winning ticket is obtained af-

ter resetting the unpruned parameters of the network to the

values they had right after initialization, therefore deﬁning

a winning ticket as f (x; m  θ

On the Transferability of Winning Tickets in Non-natural Image Datasets

Table 1: A brief overview of the seven different datasets which have been used in this work. N

corresponds to the total

amount of samples that are present in the dataset, while Q

represents the number of classes.

Dataset Training-Set Validation-Set Testing-Set N

Human-LBA 4051 346 1023 5420 9

Lung-Tissues 4881 562 888 6331 10

Mouse-LBA 1722 716 1846 4284 8

Bone-Marrow 522 130 639 1291 8

Artist-Classification-1 3103 389 389 3881 20

Type-Classification 2868 360 360 3588 20

Artist-Classification-2 2827 353 353 3533 19

Figure 2: Some image samples that constitute the non-natural image datasets which have been used in this work. From left to

right we have the Human-LBA, Lung-Tissues, Mouse-LBA and Bone-Marrow datasets, while ﬁnally we report some examples

that represent artworks which come from the ﬁeld of digital heritage.

port the ﬁrst results that investigate the potential of a

novel transfer-learning scheme which has so far only

been studied on datasets from the natural image do-

main. Moreover, testing the performance of sparse

networks that contain winning tickets that are speciﬁc

to a non-natural image target distribution also allows

us to investigate whether it is worth pruning large net-

works with the hope of ﬁnding smaller models that

might perform better than a large over-parametrized

one. As mentioned in Sec. 1, pruned networks that

are initialized with the winning weights can some-

times perform better than a fully unpruned network.

Identifying such sparse networks leads to a very sig-

niﬁcant reduction of model size, which can be a very

effective way of regularization when training data is

scarce.

4 RESULTS

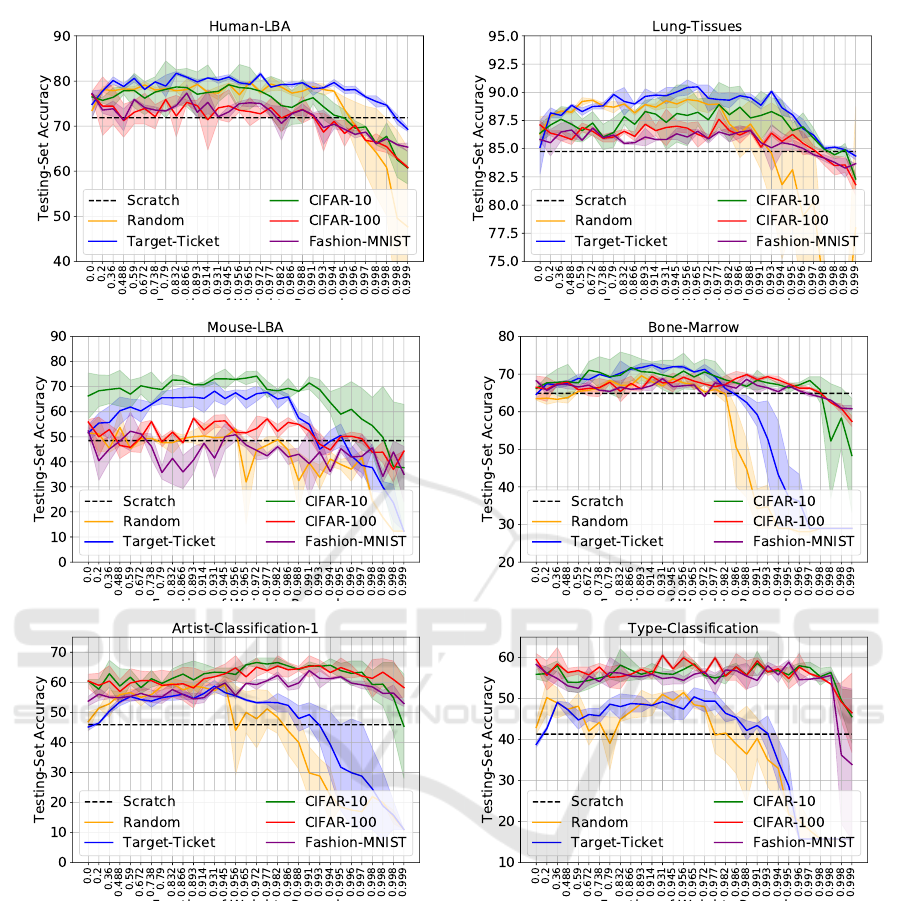

The results of all our experiments are visually re-

ported in the plots of Fig. 3. Each line plot represents

the ﬁnal performance that is obtained by a pruned

model that contains a winning ticket initialization on

the ﬁnal testing-set of our target datasets. This perfor-

mance is reported on the y-axis of the plots, while on

the x-axis we represent the fraction of weights that is

pruned from the original ResNet-50 architecture. As

explained in the previous section the performance of

each winning ticket is compared to the performance

that is obtained by an unpruned, over-parametrized ar-

chitecture that is reported by the black dashed lines.

The models that are the winners of the LTH on a

natural image dataset are reported by the green, red

and purple lines, while the winners of the LTH on

a non-natural target dataset are reported by the blue

lines. Furthermore, when it comes to the latter lot-

tery tickets, we also report the performance that is

obtained by winning tickets that get randomly reini-

tialized ( f (x; m  θ

) with θ

∼ D

). These results

are reported by the orange lines. Shaded areas around

all line plots correspond to ±1 std. that has been ob-

tained after repeating and averaging the results of our

experiments over four different random seeds.

4.1 On the Importance of Finding

Winning Initializations

We can start by observing that pruned models which

happen to be the winners of the LTH either on a nat-

ural dataset, or on a non-natural one, can maintain a

good ﬁnal performance until large pruning rates are

reached. This is particularly evident on the ﬁrst three

datasets, where models that keep only ≈ 1% of their

original weights barely suffer from any drop in per-

formance. This gets a little bit less evident on the

last three datasets, where the performance of win-

ning ticket initializations that are directly found on the

considered target dataset starts getting harmed once

a fraction of ≈ 97 of original weights are pruned.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

These results show that an extremely large part of the

parameters of a ResNet-50 architecture can be con-

sidered as superﬂuous, therefore conﬁrming the LTH

when datasets contain non-natural images. More im-

portantly, we also observe that pruned models win-

ners of the LTH, signiﬁcantly outperform larger over-

parametrized models that get trained from scratch.

This can be very clearly seen in all plots where the

performance of pruned models is always consistently

better than what is reported by the black dashed line.

To get a better sense of how much these pruned net-

works perform better than their larger unpruned coun-

terparts, we report in Table 2 the performance that

is obtained by the best performing pruned model,

found over all 31 possible pruned models, and com-

pare it to the performance of an unpruned architec-

ture. The exact fraction of weights which is pruned

from an original ResNet-50 architecture is reported in

Table 3 for each conﬁguration. We can observe that

no matter which dataset has been used as a source

for ﬁnding a winning ticket initialization, all pruned

networks reach a ﬁnal accuracy that is signiﬁcantly

higher than the one that is obtained after training an

unpruned model from scratch. While in most cases

the difference in terms of performance is of ≈ 10%

(see e.g. the Human-LBA, Lung-Tissues and the

Type-Classification datasets), it is worth high-

lighting that there are other cases in which this differ-

ence is even larger. This is the case for the Mouse-LBA

and Artist-Classification-1 datasets where a

winning ticket coming from the CIFAR-10 dataset

performs more than 20% better than a model trained

from scratch. These results show that in order to max-

imize the performance of deep networks it is always

worth ﬁnding and training pruned models which are

the winners of the LTH.

4.2 On the Generalization Properties of

Lottery Winners

We then investigate whether natural image tickets can

generalize to the non-natural setting. Findings differ

across datasets. When considering the datasets that

come from the ﬁeld of DP, we can see that, in three

out of four cases, winning tickets that are found on

a natural image dataset get outperformed by sparse

winning networks that come after training a model

on the biomedical dataset. This is particularly ev-

ident in the results obtained on the Human-LBA and

Lung-Tissues datasets where the highest testing-set

accuracy is consistently reached by the blue line plots.

When it comes to the Bone-Marrow dataset the differ-

ence in terms of performance between the best natural

image ticket, in this case coming from the CIFAR-

10 dataset, and the one coming from the biomedical

dataset, is less evident (see Table 2 for the exact accu-

racies). Furthermore, it is worth highlighting that on

the Bone-Marrow dataset, albeit natural image mod-

els seem to get outperformed by the ones found on the

biomedical dataset, the performance of the latter ones

appears to be less stable once extremely large pruning

rates are reached. When it comes to the Mouse-LBA

dataset these results slightly differ. In fact, this dataset

corresponds to the only case where a natural image

source ticket outperforms a non-natural one. As can

be seen, by the green line plot, pruned models com-

ing from the CIFAR-10 dataset outperform the ones

found on the Mouse-LBA dataset. When focusing our

analysis on the classiﬁcation of arts, we see that the

results change greatly from the ones obtained on the

biomedical datasets. In this case, all of the natu-

ral image lottery winners, no matter the dataset they

were originally found on, outperform the same kind

of models that were found after training a full net-

work on the artistic collection. We can see from Table

2 that the ﬁnal testing performance is similar among

all of the best natural image tickets. Similarly to what

has been noticed on the Bone-Marrow dataset we can

again observe that tickets coming from a non-natural

data distribution seem to suffer more from large prun-

ing rates.

These results show both the potential and the lim-

itations that natural image winners of the LTH can

offer when they are ﬁne-tuned on datasets of non-

natural images. The results obtained on the artistic

datasets suggest that winning initializations contain

inductive biases that are strong enough to get at least

successfully transferred to the artistic domain, there-

fore conﬁrming some of the claims that were made in

(Morcos et al., 2019). However, it also appears that

there are stronger limitations to the transferability of

winning initializations which were not observed by

(Morcos et al., 2019). In fact, our results show that

on DP data the best strategy is to ﬁnd a winning ticket

directly on the biomedical dataset, and that winning

initializations found on natural image datasets, albeit

outperforming a randomly initialized unpruned net-

work, perform worse than pruned models that are the

winners of the LTH on a biomedical dataset.

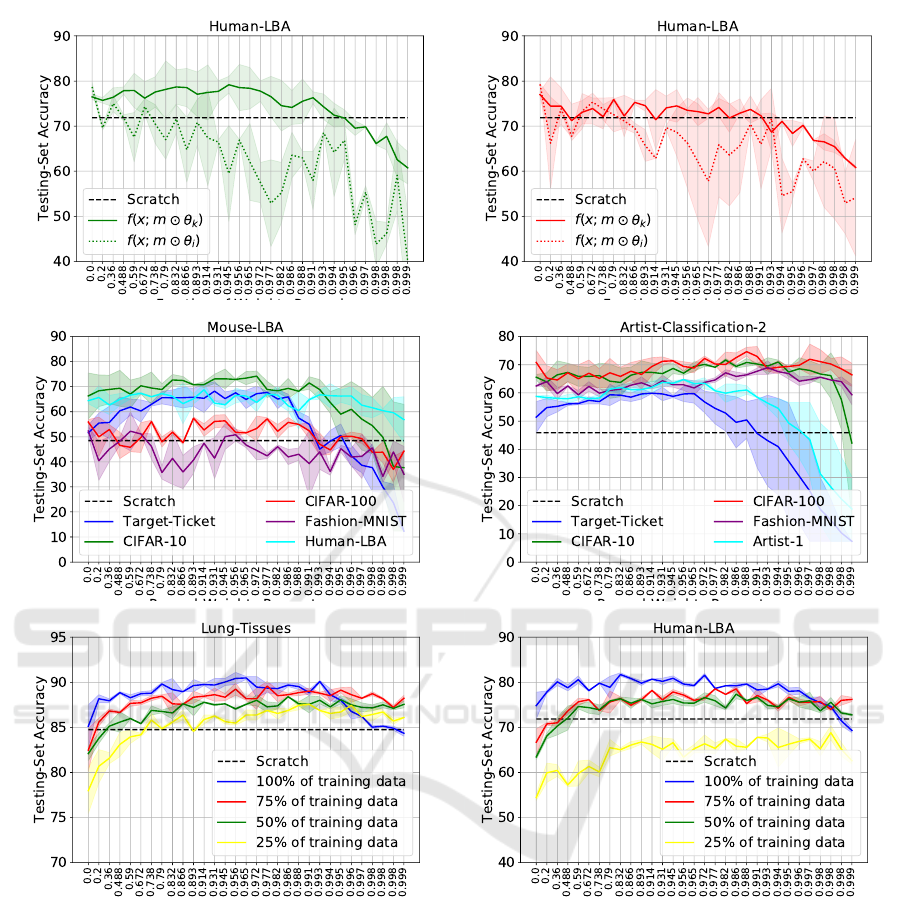

4.3 Additional Studies

To characterize the transferability of winning initial-

izations even more, while at the same time gaining a

deeper understanding of the LTH, we have performed

a set of three additional experiments which help us

characterize this phenomenon even better.

On the Transferability of Winning Tickets in Non-natural Image Datasets

Table 2: The results comparing the performance that is obtained on the testing-set by the best pruned model winner of the

LTH, and an unpruned architecture trained from scratch. The overall best performing model is reported in a green cell, while

the second best one in a yellow cell. We can observe that pruned models winners of the LTH perform signiﬁcantly better than a

larger over-parametrized architecture that gets trained from scratch. As can be seen by the results obtained on the Mouse-LBA

and Artist-Classification-1 datasets the difference in terms of performance can be particularly large (≈ 20%).

Target-Dataset Scratch-Training CIFAR-10 CIFAR-100 Fashion-MNIST Target-Ticket

Human-LBA 71.85

±1.12

79.17

±1.85

76.97

±0.73

77.32

±1.85

81.72

±0.39

Lung-Tissues 84.75

±0.81

88.90

±1.97

87.61

±0.90

87.61

±0.11

90.48

±0.16

Mouse-LBA 48.17

±1.18

74.20

±2.04

57.42

±0.48

52.27

±1.73

68.20

±3.79

Bone-Marrow 64.66

±1.36

71.75

±3.36

69.87

±0.39

68.77

±0.39

72.55

±0.46

Artist-Classification-1 45.88

±0.42

66.58

±1.54

65.55

±1.79

63.88

±0.12

58.74

±1.92

Type-Classification 41.36

±2.31

58.63

±2.97

60.56

±0.44

58.92

±0.59

50.44

±2.23

Table 3: Some additional information about the lottery winners which performance is reported in Table 2. For each winning

ticket we report the fraction of weights that is pruned from an original ResNet-50 architecture and that therefore characterizes

the level of sparsity of the overall best performing lottery ticket. The results in the Scratch-Training column are not reported

since these are unpruned models that are trained from scratch.

Target-Dataset Scratch-Training CIFAR-10 CIFAR-100 Fashion-MNIST Target-Ticket

Human-LBA - 0.945 0.79 0.886 0.832

Lung-Tissues - 0.977 0.977 0.672 0.965

Mouse-LBA - 0.972 0.893 0.738 0.931

Bone-Marrow - 0.866 0.988 0.931 0.914

Artist-Classification-1 - 0.972 0.993 0.991 0.931

Type-Classification - 0.991 0.931 0.995 0.963

4.3.1 Lottery Tickets vs Fine-tuned Pruned

Models

So far we have focused our transfer-learning study on

lottery tickets that come in the form of f (x; m  θ

where, as mentioned in Sec. 3, θ

corresponds to the

weights that parametrize a neural network at a very

early training iteration. This formalization is how-

ever different from more common transfer-learning

scenarios where neural networks get transferred with

the weights that are obtained at the end of the train-

ing process (Mormont et al., 2018; Sabatelli et al.,

2018). We have therefore studied whether there is

a difference in terms of performance between trans-

ferring and ﬁne-tuning a lottery ticket with parame-

ters θ

, and the same kind of pruned network which

is initialized with the weights that are obtained once

the network is fully trained on a source task. We de-

ﬁne these kind of models as f (x; m  θ

) where i stays

for the last training iteration. We report some exam-

ples of this behaviour in the ﬁrst row of plots pre-

sented in Fig. 4, where we consider f (x; m  θ

) mod-

els which were trained on the CIFAR-10 and CIFAR-

100 datasets, and then transferred and ﬁne-tuned on

the Human-LBA dataset. We found that these models

overall perform worse than lottery tickets, while also

being less robust to pruning. This also shows that on

this dataset, the slightly inferior performance of the

natural image tickets with respect to the target tickets

is not due to the weight re-initialization.

4.3.2 Transferring Tickets from Similar

Non-natural Domains

We investigated whether it is beneﬁcial to ﬁne-

tune lottery winners that, instead of coming from

a natural image distribution, come from a re-

lated non-natural dataset. Speciﬁcally we tested

whether winning tickets generated on the Human-LBA

dataset generalize to the Mouse-LBA one (since both

datasets are representative of the ﬁeld of Live-Blood-

Analysis), and whether lottery winners coming from

the Artist-Classification-1 dataset generalized

to the Artist-Classification-2 one. We visu-

ally represent these results in the central plots pre-

sented in Fig. 4. As one might expect, we found that

it is beneﬁcial to transfer winning tickets that come

from a related source. Speciﬁcally, Human-LBA tick-

ets can perform just as well as winning tickets that

are generated on the Mouse-LBA dataset, while at the

same time also being more robust to large pruning

rates. When it comes to lottery winners found on

the Artist-Classification-1 dataset we have ob-

served that these tickets can even outperform the ones

generated on the Artist-Classification-2 one.

4.3.3 On the Size of the Training Set

We have observed from the blue line plots of Fig.

3 that there are cases in which lottery winners are

very robust to extremely large pruning rates (see as

an example the ﬁrst and second plots), while there are

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

Figure 3: An overview of the results showing that sparse models that are the winners of the LTH (represented by the coloured

lines) signiﬁcantly outperform unpruned networks which get randomly initialized and trained from scratch (dashed black

line). This happens to be the case on all tested datasets, no matter whether a winning initialization comes from a natural

image source or not. It is however worth mentioning that, especially on the biomedical datasets, natural image tickets get

outperformed by sparse networks that that are the winners of the LTH on a biomedical dataset. On the other hand this is not

the case when it comes to the classiﬁcation of arts where natural image tickets outperform the ones which are found within

artistic collections.

other cases in which their performance deteriorates

faster with respect to the fraction of weights that get

pruned. The most robust performance is obtained by

winning tickets that are generated on the Human-LBA

and Lung-Tissues datasets, which are the two tar-

get datasets that contain the largest amount of training

samples. We have therefore studied whether there is a

relationship between the size of the training data that

is used for ﬁnding lottery winners, and the robustness

in terms of performance of the resulting pruned mod-

els. We generated lottery winners after incrementally

reducing the size of the training data by 75%, 50%

and 25%, and then investigated whether we could ob-

serve a similar drop in performance as the one which

can be seen by the last three blue line-plots of Fig. 3

once a large fraction of weights got pruned. Perhaps

On the Transferability of Winning Tickets in Non-natural Image Datasets

surprisingly, we have observed that this was not the

case, and as can be seen by the plots represented in

the last row of Fig. 4, the performance of lottery win-

ners that are found when using only 25% of the train-

ing set is just as stable as the one of winning tickets

which are generated on the entire dataset. It is how-

ever worth mentioning that, albeit the performance of

such sparse models is robust, their ﬁnal performance

on the testing set is lower than the one that is obtained

by winning tickets that have been trained on the full

training data distribution.

5 RELATED WORK

The research presented in this paper contributes to a

better understanding of the LTH by exploring the gen-

eralization and transfer-learning properties of lottery

tickets. The closest approach to what has been pre-

sented in this work is certainly (Morcos et al., 2019),

which shows that winning models can generalize

across datasets of natural images and across different

optimizers. As mentioned in Sec. 3, a large part of our

experimental setup is based on this work. Besides the

work presented in (Morcos et al., 2019), there have

been other attempts that aimed to better understand

the LTH after studying it from a transfer-learning per-

spective. However, just as the study presented in

(Morcos et al., 2019), all this research limited its anal-

ysis to natural images. In (Van Soelen and Sheppard,

2019) the authors transfer winning tickets among dif-

ferent partitions of the CIFAR-10 dataset, while in

(Mehta, 2019) the authors show that sparse models

can successfully get transferred from the CIFAR-10

dataset to other object recognition tasks. While these

results seem to suggest that lottery tickets contain in-

ductive biases which are strong enough to general-

ize to different domains, it is worth highlighting that

their transfer-learning properties were only studied af-

ter considering the CIFAR-10 dataset as a possible

source for winning ticket initializations, a limitation

which we overcome in this work. It is also worth

mentioning that the research presented in this paper

is strongly connected to the work presented in (Fran-

kle et al., 2019a). While the ﬁrst paper that introduced

the LTH limited its analysis to relatively simple neu-

ral architectures, such as multilayer perceptrons and

convolutional networks which were tested on small

CV datasets, the presence of winning initializations

in larger, more popular convolutional models such as

(Szegedy et al., 2015) and (He et al., 2016) trained

on large datasets (Russakovsky et al., 2015) was only

ﬁrst presented in (Frankle et al., 2019a). Since in

this work we have used a ResNet-50 architecture (He

et al., 2016), we have followed all the recommenda-

tions that were introduced in (Frankle et al., 2019a),

for successfully identifying the winners of the LTH

in larger models. More speciﬁcally we mention the

late-resetting procedure which resets the weights of a

pruned model to the weights that are obtained after k

training iterations instead of to the values which were

used at the beginning of training (as explained in Sec.

3), a procedure which has shown to be related to lin-

ear mode connectivity (Frankle et al., 2019b). While

the work presented in this paper has limited its anal-

ysis to networks that minimize an objective function

that is relevant for classiﬁcation problems, it is worth

noting that more recent approaches have identiﬁed

lottery winners in different training settings. In (Yu

et al., 2019) the authors show that winning initializa-

tions can be found when neural networks are trained

on tasks ranging from natural language processing to

reinforcement learning, while in (Sun et al., 2019) the

authors successfully identify sparse winning models

in a multi-task learning scenario. As future work, we

want to study whether lottery tickets can be found on

different neural architectures, and also when neural

networks are trained on CV tasks other than classiﬁ-

cation. More speciﬁcally we aim at studying whether

winners of the LTH, which are found on popular nat-

ural image datasets such as (Lin et al., 2014) and (Ev-

eringham et al., 2010) when tackling image localiza-

tion and segmentation tasks, can generalize to non-

natural settings which might include the segmenta-

tion of biomedical data, or the localization of objects

within artworks.

6 CONCLUSION

We have investigated the transfer learning potential

of pruned neural networks that are the winners of the

LTH from datasets of natural images to datasets con-

taining non-natural images. We have explored this

in training conditions where the size of the training

data is relatively small. All of the results presented

in this work conﬁrm that it is always beneﬁcial to

train a sparse model, winner of the LTH, instead of a

larger over-parametrized one. Regarding our study on

the transferability of winning tickets we have reported

the ﬁrst results which study this phenomenon under

non-natural data distributions by using datasets com-

ing from the ﬁelds of digital pathology and heritage.

While for the case of artistic data it seems that win-

ning tickets from the natural image domain contain

inductive biases which are strong enough to general-

ize to this speciﬁc domain, we have also shown that

this approach can present stronger limitations when it

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

Figure 4: A visualization of the results of the additional studies presented in Sec. 4.3. In the ﬁrst row our study which

compares the performance of lottery tickets to the one of fully trained pruned networks. In the second row our results that

show some of the beneﬁts that could come from transferring winning tickets generated on similar non-natural distributions.

Lastly, in the third row, our study that shows that the stability performance of lottery tickets seems to not be dependent from

the size of the training set.

comes to biomedical data. This probably stems from

the fact that DP images are further away from natural

images than artistic ones. We have also shown that

lottery tickets perform signiﬁcantly better than fully

trained pruned models, that it is beneﬁcial to trans-

fer lottery winners from different, but related, non-

natural sources, and that the performance of lottery

tickets is not dependant on the size of the training

data. To conclude, we provide a better characteriza-

tion of the LTH while simultaneously showing that

when training data is limited, the performance of deep

neural networks can get signiﬁcantly improved by

using lottery winners over larger over-parametrized

ones.

ACKNOWLEDGEMENTS

This research was partially supported by BELSPO,

Federal Public Planning Service Science Policy, Bel-

On the Transferability of Winning Tickets in Non-natural Image Datasets

gium, in the context of the BRAIN-be project IN-

SIGHT (Intelligent Neural Systems as InteGrated

Heritage Tools). The authors would like to thank all

researchers that have worked on collecting and an-

notating the datasets used in this study, in particu-

lar I. Salmon’s lab (ULB, BE) and D. Cataldo’s lab

(ULi

ege, BE) for the DP datasets. Matthia Sabatelli

wishes to thank Gilles Louppe for the fruitful brain-

storming sessions, and Michela Paganini for the in-

sightful discussions about the Lottery-Ticket Hypoth-

esis and its potential applications to transfer learning.

REFERENCES

Dong, X., Chen, S., and Pan, S. (2017). Learning to prune

deep neural networks via layer-wise optimal brain sur-

geon. In Advances in Neural Information Processing

Systems, pages 4857–4867.

Everingham, M., Van Gool, L., Williams, C. K., Winn, J.,

and Zisserman, A. (2010). The pascal visual object

classes (voc) challenge. International journal of com-

puter vision, 88(2):303–338.

Frankle, J. and Carbin, M. (2018). The lottery ticket hypoth-

esis: Finding sparse, trainable neural networks. arXiv

preprint arXiv:1803.03635.

Frankle, J., Dziugaite, G. K., Roy, D., and Carbin, M.

(2019a). Stabilizing the lottery ticket hypothesis.

arXiv preprint arXiv:1903.01611.

Frankle, J., Dziugaite, G. K., Roy, D. M., and Carbin, M.

(2019b). Linear mode connectivity and the lottery

ticket hypothesis. arXiv preprint arXiv:1912.05671.

Gohil, V., Narayanan, S. D., and Jain, A. (2020). One ticket

to win them all: generalizing lottery ticket initializa-

tions across datasets and optimizers. ReScience-C.

Han, S., Mao, H., and Dally, W. J. (2015a). Deep compres-

sion: Compressing deep neural networks with prun-

ing, trained quantization and huffman coding. arXiv

preprint arXiv:1510.00149.

Han, S., Pool, J., Tran, J., and Dally, W. (2015b). Learning

both weights and connections for efﬁcient neural net-

work. In Advances in neural information processing

systems, pages 1135–1143.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Kainz, P., Burgsteiner, H., Asslaber, M., and Ahammer, H.

(2017). Training echo state networks for rotation-

invariant bone marrow cell classiﬁcation. Neural

Computing and Applications, 28(6):1277–1292.

Lin, J., Rao, Y., Lu, J., and Zhou, J. (2017). Runtime neural

pruning. In Advances in Neural Information Process-

ing Systems, pages 2181–2191.

Lin, T.-Y., Maire, M., Belongie, S., Hays, J., Perona, P.,

Ramanan, D., Doll

ar, P., and Zitnick, C. L. (2014).

Microsoft coco: Common objects in context. In Euro-

pean conference on computer vision, pages 740–755.

Springer.

Mar

ee, R., Rollus, L., St

evens, B., Hoyoux, R., Louppe,

G., Vandaele, R., Begon, J.-M., Kainz, P., Geurts, P.,

and Wehenkel, L. (2016). Collaborative analysis of

multi-gigapixel imaging data using cytomine. Bioin-

formatics, 32(9):1395–1401.

Mehta, R. (2019). Sparse transfer learning via winning lot-

tery tickets. arXiv preprint arXiv:1905.07785.

Mensink, T. and Van Gemert, J. (2014). The rijksmuseum

challenge: Museum-centered visual recognition. In

Proceedings of International Conference on Multime-

dia Retrieval, pages 451–454.

Molchanov, P., Tyree, S., Karras, T., Aila, T., and Kautz,

J. (2016). Pruning convolutional neural networks

for resource efﬁcient inference. arXiv preprint

arXiv:1611.06440.

Morcos, A., Yu, H., Paganini, M., and Tian, Y. (2019).

One ticket to win them all: generalizing lottery ticket

initializations across datasets and optimizers. In Ad-

vances in Neural Information Processing Systems,

pages 4933–4943.

Mormont, R., Geurts, P., and Mar

ee, R. (2018). Com-

parison of deep transfer learning strategies for digital

pathology. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 2262–2271.

Phillips, F. and Mackintosh, B. (2011). Wiki art gallery,

inc.: A case for critical thinking. Issues in Accounting

Education, 26(3):593–608.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). Imagenet large scale visual

recognition challenge. International journal of com-

puter vision, 115(3):211–252.

Sabatelli, M., Kestemont, M., Daelemans, W., and Geurts,

P. (2018). Deep transfer learning for art classiﬁcation

problems. In Proceedings of the European Conference

on Computer Vision (ECCV), pages 631–646.

Strezoski, G. and Worring, M. (2017). Omniart: multi-task

deep learning for artistic data analysis. arXiv preprint

arXiv:1708.00684.

Strezoski, G. and Worring, M. (2018). Omniart: a large-

scale artistic benchmark. ACM Transactions on Mul-

timedia Computing, Communications, and Applica-

tions (TOMM), 14(4):1–21.

Sun, T., Shao, Y., Li, X., Liu, P., Yan, H., Qiu, X.,

and Huang, X. (2019). Learning sparse sharing

architectures for multiple tasks. arXiv preprint

arXiv:1911.05034.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 1–9.

Van Soelen, R. and Sheppard, J. W. (2019). Using win-

ning lottery tickets in transfer learning for convolu-

tional neural networks. In 2019 International Joint

Conference on Neural Networks (IJCNN), pages 1–8.

IEEE.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

Yu, H., Edunov, S., Tian, Y., and Morcos, A. S. (2019).

Playing the lottery with rewards and multiple lan-

guages: lottery tickets in rl and nlp. arXiv preprint

arXiv:1906.02768.

Zhuang, Z., Tan, M., Zhuang, B., Liu, J., Guo, Y., Wu,

Q., Huang, J., and Zhu, J. (2018). Discrimination-

aware channel pruning for deep neural networks. In

Advances in Neural Information Processing Systems,

pages 875–886.

APPENDIX

In all of our experiments we have used a ResNet-

50 convolutional neural network which has the same

structure as the one presented in (Han et al., 2015a).

We have chosen this speciﬁc architecture since it has

proven to be successful both when used on DP data

(Mormont et al., 2018) as on DH datasets (Sabatelli

et al., 2018). Speciﬁcally when it comes to the

amount of strides, the sizes of the ﬁlters, and the num-

ber of output channels, the residual blocks of the net-

work come in the following form: (1 × 1, 64, 64,

256) × 3, (2×2, 128, 128, 512) × 4, (2×2, 256,

256, 1024) × 6, (2×2, 512, 512, 2048) × 3. The

last convolution operation of the network is followed

by an average pooling layer and a ﬁnal linear clas-

siﬁcation layer which has as many output nodes as

there is classes to classify in our datasets. Since we

only considered classiﬁcation problems, the model

always minimizes the categorical-crossentropy loss

function. When feeding the model with the images

of the datasets presented in Table 1 we extract a ran-

dom crop of size 224 × 224 and used mini-batches of

size 64. No data-augmentation was used. We train

the neural network with the Stochastic Gradient De-

scent (SGD) algorithm with an initial learning rate of

−1

. SGD is used in combination with Nesterov Mo-

mentum ρ, set to 0.9, and a weight decay factor α set

to 10

−5

. Training is controlled by the early-stopping

regularization method which stops the training pro-

cess as soon as the validation loss does not decrease

for ﬁve epochs in a row. When it comes to the param-

eters used for pruning we follow a magnitude pruning

scheme as the one presented in (Han et al., 2015b)

which has a pruning-rate of 20%. In order to con-

struct winning-tickets we have used the late-resetting

procedure with k = 2. We summarize all this infor-

mation in Table 4.

Table 4: Hyperparameters for our experimental setup.

Hyperparameter

Neural Network ResNet-50

Weight-Initialization Xavier

Optimizer SGD

Size of the mini-batches 64

Learning-rate 10

−1

Momentum ρ 0.9

Decay-Factor α 10

−5

Annealing-epochs [50, 60, 75]

Early-Stopping 5

Pruning-Rate 0.20

Late-resetting k 2

On the Transferability of Winning Tickets in Non-natural Image Datasets
