Annotations in Different Steps of Visual Analytics

Christoph Schmidt

1 a

, Bastian Grundel

2 b

, Heidrun Schumann

and Paul Rosenthal

1 c

Institute for Visual and Analytic Computing, University of Rostock, Rostock, Germany

Eye Care Center, University of Greifswald, Greifswald, Germany

Keywords:

Annotation, Visual Analytics, Heterogeneous Clinical Data, Data Preprocessing, Data Cleansing, Data

Exploration.

Abstract:

Annotations in Visual Analytics (VA) have become a common means to support the analysis by integrating

additional information into the VA system. Here, annotations often differ between the individual steps of VA.

For example, during data preprocessing it may be necessary to add information on the data, such as redundancy

or discrepancy information, while annotations, used during exploration, often refer to the externalization of

ﬁndings and insights. Describing the particular needs for these step-dependent annotations is challenging. To

tackle this issue, we examine the data preprocessing, data cleansing, and data exploration steps for the analysis

of heterogeneous and error prone data in respect to the design of speciﬁc annotations. By that, we describe their

peculiarities for each step in the analysis, and thus aim to improve the visual analytics approach on clinical

data. We show the applicability of our annotation concept by integrating it into an existing visual analytics

tool to analyze and annotate data from the ophthalmic domain. In interviews and application sessions with

experts, we assess the usefulness of our annotation concept for the analysis of the visual acuity development

for patients, undergoing a speciﬁc therapy.

1 INTRODUCTION

Data preprocessing, data cleansing, and data ex-

ploration are common steps in visual analytics

(Gschwandtner et al., 2012; Sacha et al., 2014). Each

of these steps has its own challenges. Data prepro-

cessing often requires consideration of multiple data

sources, which can lead to redundant and potentially

conﬂicting data point values. During data cleansing,

the detected data discrepancies and incompleteness

must be resolved to create a consistent data set. Dur-

ing data exploration, the characteristics must be as-

sessed by experts with domain knowledge to identify

ﬁndings that may lead to new insights. While anno-

tations have proven useful to be supportive in visual

analytics (Zhao et al., 2017), their particular use with

respect to the needs, described above, is challeng-

ing. This regards, for example, how annotations can

help (i) to mark and communicate data redundancies

and discrepancies, (ii) to inform and support users

about data cleansing decisions or recurring data er-

https://orcid.org/0000-0002-5358-0673

https://orcid.org/0000-0003-3791-0414

https://orcid.org/0000-0001-9409-8931

rors, and (iii) to perpetuate and/or comment on results

in single-user, asynchronous, or collaborative envi-

ronments. Our approach addresses these issues by de-

signing tailored annotations for each of these different

steps. For the data preprocessing step, we insert auto-

matically generated annotations for data value redun-

dancy, discrepancy, and discrepancy resolution. For

data cleansing, we integrate annotations that enable

users to explain decisions about resolved discrepan-

cies on the one hand and to automatically detect re-

curring errors on the other hand. The latter facilitates

the further cleansing process by reducing the effort for

the detection of recurring errors. The annotations for

the exploration step are designed to capture the users’

knowledge, required for the analysis, to support iden-

tiﬁcation and externalization of ﬁndings and insights,

and allow for user communication. Our annotations

follow the principle of being as automatic as possible,

while also increasing the trust in the data by reliability

and transparency. Under this premise, we identify and

describe these customized annotations for individual

steps in the visual analytics process, generating an an-

notation concept for these steps. We are aware of the

fact that this problem also affects other steps of the

Schmidt, C., Grundel, B., Schumann, H. and Rosenthal, P.

Annotations in Different Steps of Visual Analytics.

DOI: 10.5220/0010198001550163

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages

155-163

ISBN: 978-989-758-488-6

155

analysis, such as validation or knowledge generation.

However, integrating annotations into these steps re-

quires further detailed considerations, and goes be-

yond the scope of this paper.

To show the applicability of our concept, we ex-

tend an existing visual analytics tool, described by

Schmidt et al. (2019), and enable the description, cap-

ture, and communication of additional information,

that support the users in their visual analytics process.

We apply the advanced tool to heterogeneous,

contradictory, and incomplete data from an oph-

thalmic clinic. Here, domain experts want to assess

the development of visual acuity values, which repre-

sent the patients’ ability to see sharply and in detail,

after a change in therapy. With the support of our

annotation-enriched tool, domain experts are able to

process and analyze data from several thousand pa-

tients efﬁciently. This allows to examine large single-

center data (from one clinic) in sufﬁcient time, and

thus avoids the spreading of the work to multiple

centers (several clinics), generating possibly biased

multi-center data.

This work is structured as follows: Section 2 de-

scribes existing work on annotations in the different

steps of visual data analysis. In Section 3, we show

our approach, whose implementation into an existing

tool is sketched in Section 4. In Section 5, we de-

scribe its usefulness by means of user sessions and

application on a use case. A summary and an outlook

on future work can be found in Section 6.

2 RELATED WORK

The use of annotations can be critical for visual ana-

lytics (Lipford et al., 2010; Mahyar et al., 2012) and

plays a role in different perspectives. First, there are

approaches to introduce general classiﬁcations for an-

notations (Saur

ı, 2017; Schmidt et al., 2018; Vanhulst

et al., 2018). Second, there are approaches to use an-

notations within the different steps of visual analytics.

As we speciﬁcally examine annotations during these

steps, we will discuss related work in the following.

As data preprocessing generally has the goal to

structure and fuse the data, data preprocessing anno-

tations support that process by gathering additional

information. Existing literature shows automatic (Jin

et al., 2017; Lakiotaki et al., 2018; Shabana and Wil-

son, 2015) and manual (Kr

uger et al., 2015; Schmidt

et al., 2019) approaches. For the communication of

these annotations, Kr

uger et al. (2015) have shown

that a direct communication within the data visu-

alization can be useful, while Shabana and Wilson

(2015) communicate the added information as an ex-

tra layer on demand. Although there are approaches

to combine both direct and on-demand communica-

tion (Schmidt et al., 2019), a thorough analysis of

such presentations is ongoing research.

The reason for data cleansing is the correction

of erroneous data (M

uller and Freytag, 2003). Data

Cleansing Annotations can support that process when

they integrate the knowledge of the user. McCurdy

et al. (2019) apply this approach to epidemiological

data, where they gather the information from the user

via an extra view and communicate the information

on demand via interaction functions in the visualiza-

tion system. While there are further approaches for

data cleansing visualizations (Gschwandtner et al.,

2014; Schmidt et al., 2019), we focus on annotation

use for recording and visualizing the circumstances

of the cleansing process.

Data Exploration Annotations have been used to

support the exploration step by, e.g., (i) locating the

ﬁndings (Heer et al., 2007; Willett et al., 2011), (ii)

documenting the ﬁndings (Willett et al., 2011; Zhao

et al., 2018), and (iii) externalizing the ﬁndings and,

if applicable, the gained insights (Zhao et al., 2017).

Data exploration annotations can be gathered either

directly in the visualization, (Groth and Streefkerk,

2006), next to the visualization, (Willett et al., 2011),

or via extra views (Schmidt et al., 2019). Concerning

the communication of annotations during exploration,

Groth and Streefkerk (2006) and Heer et al. (2007),

among others, show them directly in the visualization,

while Zhao et al. (2017) and Mahyar and Tory (2014)

design a dedicated tool for annotation visualization.

To sum up, previous work often describes the use

of annotations for only one step of the analysis, while

we aim at analyzing the fundamental characteristics

of annotations within the three steps: data prepro-

cessing, data cleansing, and data exploration. Al-

though literature has shown supporting effects of an-

notations in the analysis of heterogeneous real-world

data, to our knowledge there is no consideration of the

speciﬁcs of annotations during the different steps in

visual analytics. To ﬁnd remedy, we describe differ-

ent ways to collect and communicate the annotations

for each step.

3 OUR APPROACH

The steps preprocessing, cleansing, and exploration

are of special interest, since previous analyses in the

ﬁeld of heterogeneous real-world data have shown

their importance (Gschwandtner et al., 2012).

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

156

To identify reasonable characteristics of annota-

tions, we ﬁrst deﬁne the requirements. These require-

ments arose from the results of the discussions with

experts and previous annotation descriptions in liter-

ature. In general, annotations may well support the

analysis, yet manual annotations are often time con-

suming. Previous work has shown that manual anno-

tations, e.g., for labeling image data, increase the time

needed by a factor of ﬁve, compared to a combination

of manual and automatic annotation (Jin et al., 2017).

On the other hand, there is still a scepticism of users

towards subsequently added information to the analy-

sis system, especially, if this has been done automat-

ically (Krishnan et al., 2016). In the discussion with

our experts, these two aspects were conﬁrmed. This

results in the conﬂict, that experts do not have the time

get involved with thousands of data points via manual

annotation, yet want to understand all changes made

in the data. We have the impression that the experts

regard the data as ”their data” as long as they can trace

where the data came from and what happened to it.

To reﬂect that contrast, we deﬁne the following two

requirements for our approach:

• R1 - Use automatic annotation where possible and

manual annotations where necessary.

• R2 - Ensure a high reliability and transparency of

annotations, and thus increase the trust in the an-

notations.

With that in mind, we design the annotations for the

VA steps. For each step, we shortly describe its key

elements, followed by a thorough annotation descrip-

tion.

3.1 Data Preprocessing Annotation

The data preprocessing step has the goal to collect

and structure necessary information from all avail-

able data sources. These data may stem from different

sources, as data is often collected from more than one

electronic device and/or manually recorded. When

these sources are merged, redundancies and discrep-

ancies within the data may appear. For a structured

data analysis, these redundant values are often consol-

idated to one value. To solve consolidation conﬂicts

in case of discrepancies, rules have to be applied, with

which the ﬁnal consolidated value is retrieved. Dur-

ing that process, various supplementary information

is produced: source names, the redundant values for

the data point, the existence of discrepancies, the de-

cision information on the ﬁnal value used.

Making that information available to users via an-

notations increases the transparency of the consolida-

tion process, and thus can help to better understand

and judge the consolidated data. So, we introduce the

possibility to gather and communicate that informa-

tion.

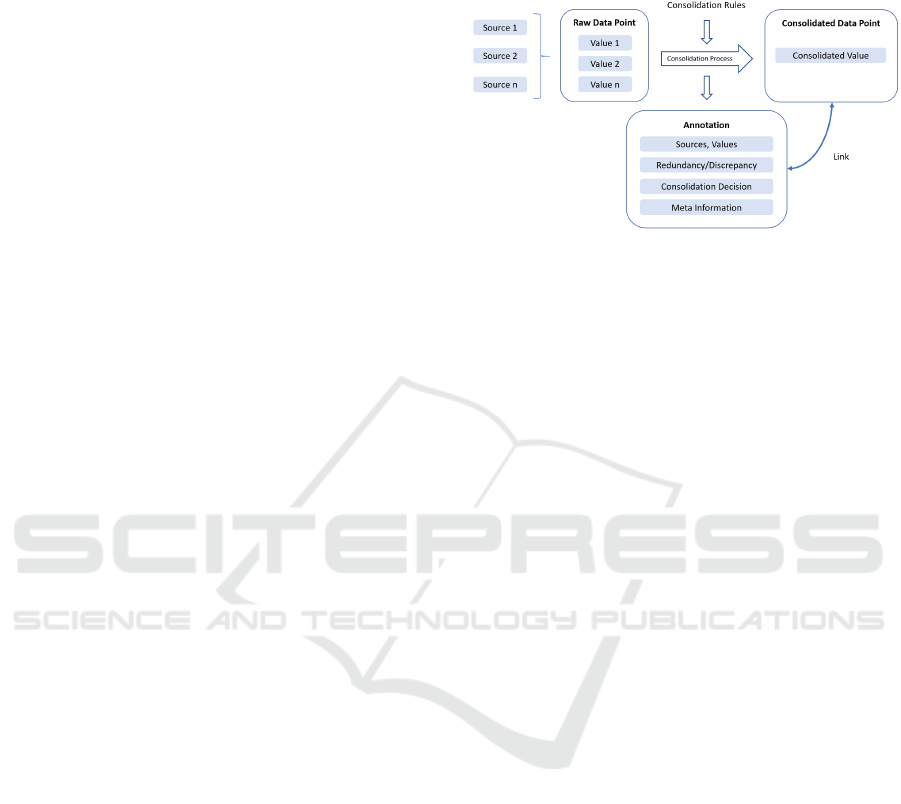

Figure 1: Annotation creation during the data preprocess-

ing consolidation process. The annotation content is created

during the redundancy removal and discrepancy resolution

by deriving the respective information automatically. For

processing during the later analysis steps, a link to the con-

solidated data point is preserved.

As data preprocessing often includes operations,

that have to reﬂect the peculiarities of the domain

data, tacit knowledge of the domain experts may be

required to be included. This can be done manually

via direct input by the domain expert, e.g., by solv-

ing data discrepancies for each affected data value.

Yet, if the experts’ knowledge is represented by pre-

deﬁned, domain-speciﬁc consolidation rules, the con-

solidation process can be automated, including auto-

matic annotation recording. In reference to R1, we

achieve that, by utilizing a recording process that au-

tomatically captures the consolidation and result in-

formation during the application of the consolidation

rules as shown in Figure 1. In case of a structuring

or consolidation incident, we store all source names

and data values for that data point in an annotation.

We obtain the information, whether there is a redun-

dancy (no. of sources > 1) and/or a discrepancy (no.

of different values > 1). We also store the informa-

tion, what consolidated value is chosen and which

rule applies. To increase the understanding of the an-

notation creation parameters, the annotation is stored

with some meta information, such as timestamp, user

name, and a link to the associated data point. So,

the resulting annotation holds the information, what

data sources were considered, if redundancy and/or

discrepancies apply, what rule lead to the choice of

value, as well as meta information.

We communicate our preprocessing annotations

to show the causation and circumstances of the con-

solidation results, in order to enable an assessment by

experts. The decision on how to communicate them

is driven by the close linkage between the annota-

tions, the data, and the rule-based automatic changes,

made to the data. We show the linkage by directly

Annotations in Different Steps of Visual Analytics

157

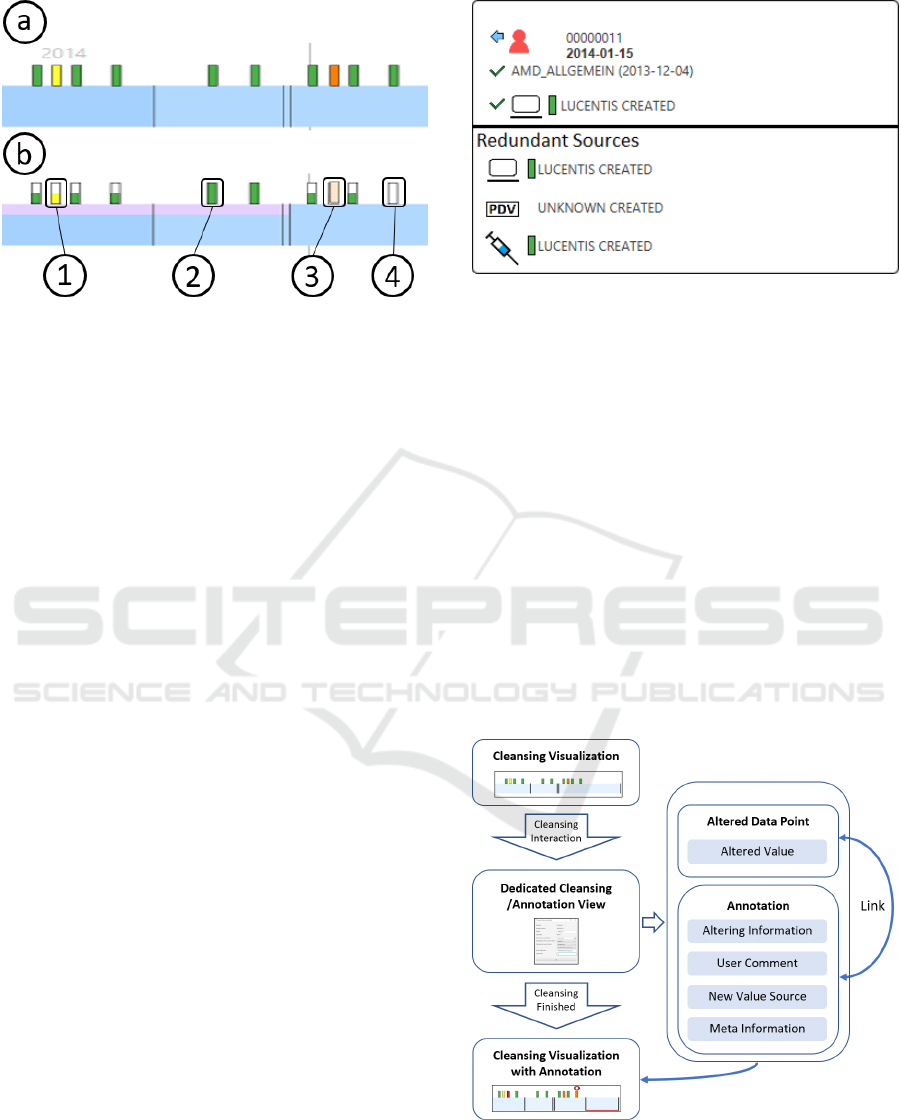

Figure 2: The preprocessed data shown without visual en-

coding of consolidation annotations (a) and different encod-

ings of redundancy and discrepancy information (b). The

encodings can include values with only one source (1), con-

sistent values (2), values with discrepancies solved by rule

(3), and/or values with discrepancies, where user action is

needed (4). The shown design is taken from our exemplary

implementation.

altering the original data encodings in the exemplary

adapted tool. In our case, these are color-coded cat-

egories on a time-line visualization (Figure 2). As

our visual design should allow easy interpretation of

where and with what result data consolidation was

performed, we intend to ﬁnd intuitive encodings for

redundancy and discrepancy information. As a result,

we decide to not indicate fully consistent data points

at all, as there is no need for user attention (2). If

there is some source missing (so there is no redun-

dancy), we encode this information by reducing the

area of color coding, so some color is ”missing” (1).

In case there is a discrepancy during consolidation,

which was solved by the user deﬁned rules, we rep-

resent that by showing the consolidation result with

some transparency. This indicates that the result is

not discrepancy-free (3). Finally, if there is a discrep-

ancy and no rule could be applied, we indicate the

discrepancy by not encoding any of the contradictory

data values (4). This ensures that the user sees the

need for action without being mislead by an encoding

of a value that could be wrong due to the discrepancy.

Yet, the other information gathered for each anno-

tation would lead to visual clutter, if shown directly in

the visualization. So, we display them on demand in

an extra view (Figure 3). With these information pro-

vided, users are able to judge the annotation content,

and thus increase their trust in the annotations (R2).

3.2 Data Cleansing Annotations

Data cleansing usually has the goal to reduce the

number of missing, misleading, or wrong data points;

Figure 3: Detail view with further information on the con-

solidation process, which is shown on demand to avoid clut-

ter.

short - to ”correct dirty data” (Gschwandtner et al.,

2014). This can be achieved by amending the pre-

processed data through adding, changing, or deleting

data points. In contrast to preprocessing, many data

points to be cleansed require the experts’ knowledge

in combination with context information, such as

nearby data points, so that manual corrections are

necessary. If fully allowed and undocumented, these

corrections can completely alter the original data, and

thus bear the risk to introduce new errors and to leave

the user unconscious of changes made. To reduce

these risks, annotations can provide information

on when, how, and by whom, which data values

have been edited. We address these questions by

developing speciﬁc ways to gather and communicate

annotations during data cleansing.

Figure 4: Via dedicated interaction with the data cleansing

visualization, the speciﬁc cleansing view is shown. Here,

the changes (added, changed, deleted value) are recorded

together with supplementary information. They are stored

in an annotation, linked to the data point.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

158

As the focus during data cleansing lays on

the detection and correction/amendment of erro-

neous/missing data points (Gschwandtner et al.,

2014), the annotation gathering process should avoid

a disturbance of that focus. We achieve that by inte-

grating the gathering process into the cleansing pro-

cess, so that the necessary information is recorded

”on the side”. Our design of this process is shown

in Figure 4. The user starts the cleansing via inter-

action with the visualization. The additional anno-

tation information is collected in the cleansing view

by dedicated additional ﬁelds. As there are recurring

errors, we introduce the possibility to automatically

annotate all errors of a speciﬁc type. This concerns,

e.g., if a certain source always produces an error with

a certain value, the user can decide to change all val-

ues, with the respective annotation generated auto-

matically (R1). As this process is user initiated, and

the information is always stored in an annotation, and

thus is transparent, the trust in the change remains

high (R2).

When the editing operation is ﬁnished and the

additional annotation ﬁelds are ﬁlled, both, the edited

data point(s) and the annotation(s) information are

stored and mutually linked for later reference. To

allow users to judge the edited value, for example

in asynchronous collaborative environments or

discontinuous processing, as described by Zhao et al.

(2018), editing information beyond the changed

value, such as the user name, the concrete process

(add, change or delete), the timestamp, etc., are also

stored. This enables users to see and judge, in what

moment of the analysis (timestamp), with which

qualiﬁcation (user), what action (add, change, delete)

a data point has undergone (R2).

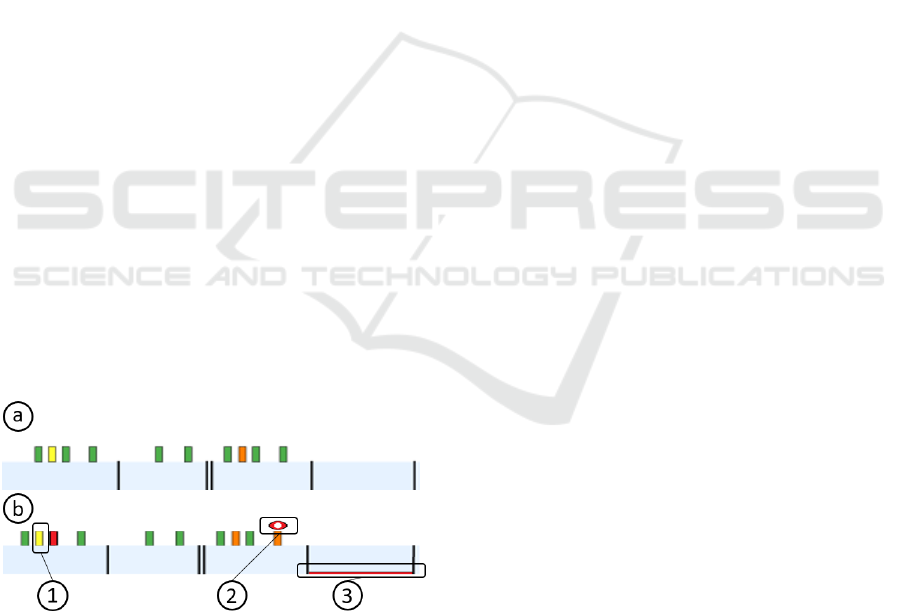

Figure 5: The cleansed data shown without visual encod-

ing of annotations (a). As seen, there is no indication, and

thus no recognition of the data changes made. In contrast,

view (b) indicates the data changes via varying annotation

encodings. The encodings can include deleted values (1),

changed values (2), and added values (3).

During the data cleansing step, changes in the data

are made. The goal of annotations in this step is to

communicate (highlight) the changes and their cir-

cumstances. Here, several aspects have to be consid-

ered. On the one hand, the focus during this step re-

mains on detecting erroneous data-points and cleans-

ing them, which the displayed annotations must not

disturb. On the other hand, the annotations should

provide sufﬁcient information that is helpful in judg-

ing the changes made.

To fulﬁll both needs, we use overview and detail

techniques, as shown in Figure 5 (b), similar to the

preprocessing step. To avoid misleading altering of

the cleansing visualization, we provide an extra layer

on top of the visualization with the highlighting in-

formation. For that extra layer, we do not use the data

encoding colors and forms, but represent the meta in-

formation by separate forms and colors. In doing so,

we are able to represent the meta information on the

cleansed data without disturbing the original data rep-

resentation, but still indicating locations, where data

cleansing applies.

The meta information shows the location of

changes (location of red colored glyphs Figure 5 (1)-

(3)) and the type of change (form of glyph). To rep-

resent deleted data points, we intent to indicate the

disappearance of that data point by fully overlaying

the color-coded value with a data point shaped glyph

(1). Altered values are indicated with a circular glyph

(2), to highlight the data point and still show the al-

tered value encoding. For added values, we indi-

cate the location with an additional mark on the en-

coded data value (3). To switch between the indi-

cation of cleansed data points and the visualization

of the ”pure” cleansed data, we include a function

to hide the extra layer with the cleansing annotation

encoding (see difference between Figure 5 (a) - no

annotations and Figure 5 (b) - annotated). To fully

understand what has been done, the user can display

detail information on demand via mouse hovering on

the respective annotation in the visualization.

3.3 Data Exploration Annotations

According to Sacha et al. (2014), data exploration has

the goal to identify ﬁndings and gain insights. They

state that ”a ﬁnding is an interesting observation made

by an analyst using the visual analytics system. The

ﬁnding leads to further interaction with the system

or to new insights”. Annotations at this stage have

been used to support that process by, e.g., (i) locating

the ﬁndings, (ii) documenting the ﬁndings, and (iii)

externalize the ﬁndings and, if applicable, the gained

insights. For our annotation concept, we differentiate

between these three goals, as they impose different

gathering and communication aspects.

Annotations in Different Steps of Visual Analytics

159

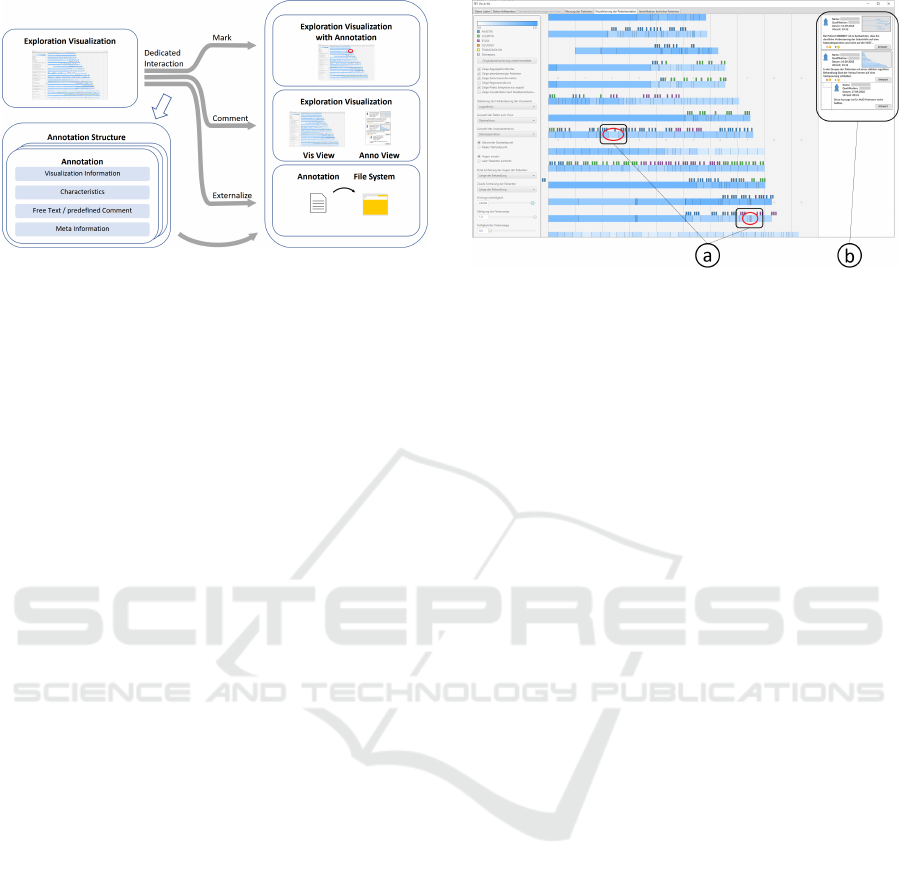

Figure 6: The concept on annotation gathering during data

exploration. Via dedicated interaction methods annotations

are recorded. That concerns either marking, commenting,

or externalization.

Gathering annotations during data exploration of-

ten means recording the thoughts of experts in ref-

erence to the visualization (Groth and Streefkerk,

2006). By working with experts and analyzing exist-

ing literature, we have seen that the recording char-

acteristics often depend on the annotation purpose.

To reﬂect the different purposes, we organized the

gathering process respectively (Figure 6). To mark

identiﬁed ﬁndings within the visualization, we sup-

port locally drawn annotations within the visualiza-

tion, comprised of different forms like circles or el-

lipses. For the recording of comments, we use free

text entries. The gathering is initiated either directly

in the visualization for feature commenting or within

a separate view for general commenting or user com-

munication. To externalize ﬁndings, all exploration

annotations are automatically exported via standard-

ized JSON objects (R1). This includes the visual-

ization information (e.g., screenshot or visualization

stage), the annotation characteristics (data-point ref-

erences, type), any comment made by the annotator,

and meta information (such as user name, timestamp,

existing references to other annotations, etc.). The lat-

ter is important, to support comments or discussions

on previously made annotations (Willett et al., 2011).

Additionally, we store veriﬁcation information for all

exploration annotations (R2). That veriﬁcation infor-

mation consists of the annotator’s qualiﬁcation as well

as positive or negative conﬁrmations from other users.

Communicating our annotations during explo-

ration also depends on their purpose. If users want to

mark ﬁndings, the communication should be locally

connected to the ﬁnding as shown in Figure 7 (a). By

that, the user instantly recognizes, where the ﬁnding

is situated. For the forms of communicating marks,

we are inspired by Heer et al. (2007) and use glyphs

or simple geometric forms to highlight the location

on the one hand and reduce the distraction from the

Figure 7: The data with annotation view during explo-

ration. Annotations include markings in the visualization to

highlight ﬁndings (a) and comments next to the visualiza-

tion for recording of insights or discussion between experts

(b).

actual ﬁnding on the other hand. To show additional

comments for the marked ﬁndings, mouse hovering is

used to display the comment on demand and locally

near the mark. Especially for the marks within the vi-

sualization, there is a particular difference to the other

steps. While annotation glyphs during preprocessing

and cleansing were locally linked to a speciﬁc data

point and predeﬁned in form, here, we do not restrict

the location, form, or size. By that, we aim to support

the localization and marking of features and ﬁndings

of any size and location in the visualization.

Yet, more complex comments, even though they

have been localized in the visualization, as by Groth

and Streefkerk (2006), are likely to clutter the over-

all visualization. We therefore apply visual separa-

tion in accordance with Schmidt et al. (2018), which

means to assign an extra space next to the visualiza-

tion. The advantage is that more than one comment

can be shown and brought into context by the user.

For the design of the extra view, we were inspired by

Willett et al. (2011), who suggest a forum style, which

sufﬁciently supports analysis and discussion function-

ality. Figure 7 (b) shows our design concept, ﬁtted to

comments from different experts with different quali-

ﬁcations with the need for mutual judgement.

To analyze externalized ﬁndings, we support a

structured export for further usage with other tools.

For the externalization process, we provide an extra

view within the system to show the annotations to be

externalized. It allows users to parameterize and ﬁlter

the annotations and related data-points.

3.4 Summary

In conclusion to the details provided above on the

different steps, we summarize our analysis as follows:

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

160

Data preprocessing has the goal to generate a

structured and consolidated data set based on the

available raw data. Annotations provide information

on the structuring and consolidation process, and thus

increase the trust in the consolidated data.

Data cleansing has the goal to generate a seman-

tically correct data set, based on the preprocessed

data by adding missing values and deleting or chang-

ing erroneous data values. Annotations highlight the

changes and provide additional information on the

changes, so that the user knows when and where what

changes were made by whom.

Data exploration has the goal to generate ﬁndings

and insights by exploring the cleansed data. Anno-

tations mark these ﬁndings in the visualization, inte-

grate experts thoughts into the VA system and allow

for discussion between users. By that, the reason-

ing process is supported and highlighted features are

made persistent. With annotations, both are available

for later recall via externalization.

4 IMPLEMENTATION

In this section, we show that our annotation con-

cept can be integrated into an existing visual analyt-

ics tool by providing additional annotation function-

ality. The tool we extended, already provides visual

analytics functionality and rudimentary annotation

function (GitLab: https://git.informatik.uni-rostock.

de/cschmidt/topos-tool).

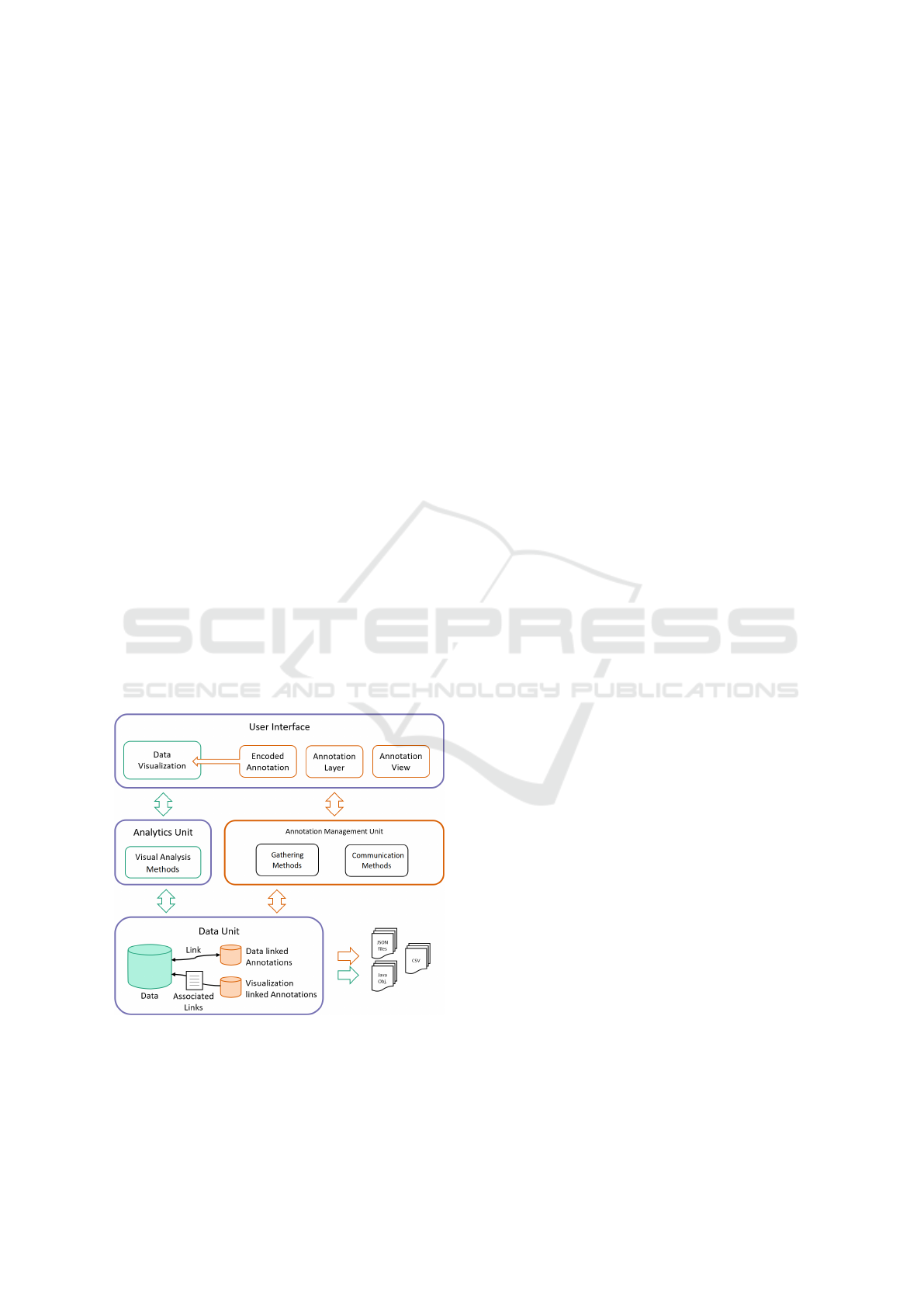

Figure 8: The extended high level architecture of the tool

with additional annotation functionality.

The extended architecture of the tool is shown in

Figure 8. We add an annotation unit and annotation

functionality (orange) to the existing units (purple)

and existing functionality (green). Due to the mod-

ularized architecture of the existing tool, the integra-

tion of the additional annotation management unit can

be easily integrated. For the visualization- and data-

integrated annotation-functions, we alter the existing

units.

Our extensions in the data unit encompass the

setup and processing of the annotation structures,

including the interplay with the original data (Fig-

ure 8 lower left). To distinguish between data and

annotations, we set up two additional internal data

structures, one for data linked annotations and one for

visualization linked annotations.

The added annotation management unit is respon-

sible for the annotation management within the sys-

tem. It receives and structures the annotation infor-

mation from the user interface unit and sends it to

the data unit for storage. Conversely, it requests the

necessary information from the data management unit

and forwards it to the user interface unit or to the ﬁle

system for externalization.

The extended user interface unit (Figure 8 top)

contains the original data visualization functionality

together with additional screen management func-

tions. These ensure the appearance of the annotations

dependent on their characteristics and the current step

in the analysis.

Concerning the interaction, we introduce a ded-

icated annotation interaction function (right mouse

button) for all visualizations to ensure consistency for

better usability. With this dedicated interaction event,

we are able to implement all annotation interaction

functionality independently from the existing event

management.

In summary, the extended tool allows annotation-

enhanced data preprocessing, -cleansing, and -

exploration of real-world data.

5 USE CASE AND EXPERT

FEEDBACK

Our use case is situated in the medical domain. The

data stem from an ophthalmic clinic, where about

3,600 patients were diagnosed with different macula

diseases. The macula is located in the rear of the eye

and responsible for sharp and detailed vision.

The goal of the experts is to ﬁrst convert the raw

data into a structured and cleansed data-set. Second,

they want to ﬁlter all patients that had a particular

change in therapy, such as an altering of the medi-

cation used. As the data were derived from various

clinical systems and are comprised of various dimen-

sions, they are heterogeneous and erroneous.

Annotations in Different Steps of Visual Analytics

161

This leads to the tasks to (i) allow the program to

do as much automatically as possible, (ii) share the

remaining work with different experts with different

levels of qualiﬁcation and knowledge on the data, and

(iii) be always informed on the actions taken to keep

the control over the data and the analysis results.

To assess our solution in terms of its ability to

perform the tasks, we arranged two user sessions in

combination with several interviews and discussions

of results with the experts.

The ﬁrst user session was dedicated to the data

preprocessing and data cleansing step. The session

was designed as a collaborative session with one do-

main expert and one visualization expert. Combining

the domain knowledge with the tool and visualization

knowledge helped to avoid misunderstandings in the

tool usage.

Data from roughly 200 patients were preprocessed

and cleansed. The domain expert appreciated the au-

tomatic preprocessing functions in combination with

the automatic annotations. He said that the additional

information on the sources of a data point allowed to

understand from which sources the data value came

from and how the system made its decision on the

chosen value. If that process would have to be done

in the conventional way, the time needed would have

severely increased. Yet, due to the annotations, the

domain expert trusted the consolidated data. Addi-

tionally, the domain expert saw in the preprocess-

ing annotations that many data discrepancies can be

routed to the text mining source. The text mining al-

gorithm, as described by Grundel et al. (2020), was

conveniently able to identify and extract the visual

acuity values within the doctoral letters for a speciﬁc

appointment. As doctors tend to note also the last

visual acuity value from the previous visit, the text

mining source often also contained that information,

leading to discrepancies, as the value often differed

from the current one. Due to that ﬁnding, the consol-

idation rules for automatic data preprocessing could

be updated, so that the visual acuity value could be

assigned to the correct date. This generated an addi-

tional redundant source for visual acuity values, in-

creasing its validity.

For the cleansing step, the domain expert concen-

trated on the validation and correction of speciﬁc in-

jections with a certain medication, as he knew that in

some cases the data had missing values or false en-

tries. To test the cleansing annotations, the visualiza-

tion expert applied an eight hour session of adding

missing values and verifying the mentioned existing

injections in reference to rules provided by the ex-

pert for 500 patients. Based on the cleansed data, the

domain expert applied a one hour session to validate

the work. By using the annotations, which provided

him with information on where and by whom what

change has been made, the domain expert stated that

he could easily see and judge the changes and, if nec-

essary, correct the cleansing actions taken. In doing

so, the expert noticed an increasing risk of copying

errors in the data, as visual acuity values are not al-

ways automatically transferred to the doctoral letter,

but sometimes are copied by hand.

The second session was dedicated to the data ex-

ploration and lasted roughly three hours. The set-up

again was the application of the extended tool by one

domain expert and one visualization expert with a part

time support of a second domain expert.

The domain experts noted that especially the use

of pre-deﬁned comments was helpful. They ﬁrst

marked a speciﬁc patient and then assigned a stan-

dardized comment, which can be seen as some form

of classiﬁcation. In doing so, the domain experts

could divide the patients into different groups, such as

patients with successful, indifferent, and less success-

ful therapy changes. Finally, they used externalization

of the therapy change results, which allowed them to

use familiar tools for further aggregations and exami-

nations.

6 CONCLUSION

With our approach we have shown that annotations

can support different steps in visual analytics, if

they are individually characterized and customized

for each phase. We created (i) automatic annotations

for data preprocessing, (ii) semi-automatic annota-

tions for data cleansing, and (iii) manual annotations

for data explorations. By providing transparency on

the circumstances of data structuring, cleansing, as

well as exploration results, we allowed users to al-

ways be informed.

Even though we use our concept on clinical data

from ophthalmology, we see the possibility to apply it

to other scenarios. It would be interesting to investi-

gate to what extend our concept would require amend-

ment on other scenarios. Hereby, general suggestions

for the use of speciﬁc annotation designs in visual an-

alytics could be developed. Finally, we would like to

examine annotations that support the remaining steps

in visual analytics, such as the validation and knowl-

edge generation step.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

162

ACKNOWLEDGEMENTS

This work has been supported by the German Federal

Ministry of Education and Research (Project TOPOs).

REFERENCES

Groth, D. and Streefkerk, K. (2006). Provenance and

annotation for visual exploration systems. IEEE

Transactions on Visualization and Computer Graph-

ics, 12(6):1500–1510.

Grundel, B., Bernardeau, M.-A., Langner, H., Schmidt, C.,

ohringer, D., Ritter, M., Rosenthal, P., Grandjean,

A., Schulz, S., Daumke, P., and Stahl, A. (2020).

Merkmalsextraktion aus klinischen routinedaten mit-

tels text-mining. Der Ophthalmologe.

Gschwandtner, T., Aigner, W., Miksch, S., G

artner, J.,

Kriglstein, S., Pohl, M., and Suchy, N. (2014). Time-

Cleanser: A Visual Analytics Approach for Data

Cleansing of Time-Oriented Data. In Proceedings of

the i-KNOW ’14.

Gschwandtner, T., G

artner, J., Aigner, W., and Miksch,

S. (2012). A taxonomy of dirty time-oriented data.

In Multidisciplinary Research and Practice for In-

formation Systems, pages 58–72, Berlin, Heidelberg.

Springer.

Heer, J., Vi

egas, F. B., and Wattenberg, M. (2007). Voy-

agers and voyeurs: Supporting asynchronous collabo-

rative information visualization. In Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems, CHI ’07, pages 1029–1038, New York, NY,

USA.

Jin, Y., Li, J., Ma, D., Guo, X., and Yu, H. (2017). A semi-

automatic annotation technology for trafﬁc scene im-

age labeling based on deep learning preprocessing. In

2017 IEEE International CSE and IEEE International

Confernece on EUC, pages 315–320.

uger, R., Herr, D., Haag, F., and Ertl, T. (2015). Inspec-

tor Gadget: Integrating Data Preprocessing and Or-

chestration in the Visual Analysis Loop. In EuroVis

Workshop on Visual Analytics (EuroVA).

Krishnan, S., Haas, D., Franklin, M. J., and Wu, E. (2016).

Towards reliable interactive data cleaning: A user

survey and recommendations. In Proceedings of

the Workshop on Human-In-the-Loop Data Analytics,

pages 9:1–9:5, New York, NY, USA. ACM.

Lakiotaki, K., Vorniotakis, N., Tsagris, M., Georgakopou-

los, G., and Tsamardinos, I. (2018). BioDataome:

a collection of uniformly preprocessed and auto-

matically annotated datasets for data-driven biology.

Database, 2018.

Lipford, H. R., Stukes, F., Dou, W., Hawkins, M. E., and

Chang, R. (2010). Helping users recall their reasoning

process. In 2010 IEEE Symposium on Visual Analytics

Science and Technology, pages 187–194.

Mahyar, N., Sarvghad, A., and Tory, M. (2012). Note-

taking in co-located collaborative visual analytics:

Analysis of an observational study. Information Vi-

sualization, 11:190–204.

Mahyar, N. and Tory, M. (2014). Supporting communi-

cation and coordination in collaborative sensemak-

ing. IEEE Transactions on Visualization and Com-

puter Graphics, 20:1633–1642.

McCurdy, N., Gerdes, J., and Meyer, M. (2019). A frame-

work for externalizing implicit error using visualiza-

tion. IEEE Transactions on Visualization and Com-

puter Graphics, 25:925–935.

uller, H. and Freytag, J. C. (2003). Problems, meth-

ods, and challenges in comprehensive data cleansing.

Humboldt-Universit

at zu Berlin, 10099.

Sacha, D., Stoffel, A., Stoffel, F., Kwon, B. C., Ellis, G., and

Keim, D. A. (2014). Knowledge generation model for

visual analytics. IEEE Transactions on Visualization

and Computer Graphics, 20:1604–1613.

Saur

ı, R. (2017). Building FactBank or How to Annotate

Event Factuality One Step at a Time, pages 905–939.

Springer Netherlands, Dordrecht.

Schmidt, C., R

ohlig, M., Grundel, B., Daumke, P., Rit-

ter, M., Stahl, A., Rosenthal, P., and Schumann, H.

(2019). Combining visual cleansing and exploration

for clinical data. In 2019 IEEE Workshop on Visual

Analytics in Healthcare (VAHC), pages 25–32.

Schmidt, C., Rosenthal, P., and Schumann, H. (2018). An-

notations as a support for knowledge generation - sup-

porting visual analytics in the ﬁeld of ophthalmology.

In Proceedings of the 13

International Joint Con-

ference on Computer Vision, Imaging and Computer

Graphics Theory and Applications, pages 264–272.

SCITEPRESS - Science and Technology Publications.

Shabana, K. M. and Wilson, J. (2015). A novel method for

automatic discovery, annotation and interactive visu-

alization of prominent clusters in mobile subscriber

datasets. In 2015 IEEE 9

International Confer-

ence on Research Challenges in Information Science

(RCIS), pages 127–132.

Vanhulst, P.,

equoz, F., Tuor, R., and Lalanne, D. (2018).

Designing a classiﬁcation for user-authored annota-

tions in data visualization. In Proceedings of the

13th International Joint Conference on Computer Vi-

sion, Imaging and Computer Graphics Theory and

Applications - Volume 2 : IVAPP,, pages 85–96.

SCITEPRESS - Science and Technology Publications.

Willett, W., Heer, J., Hellerstein, J., and Agrawala, M.

(2011). Commentspace: Structured support for col-

laborative visual analysis. In Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems, pages 3131–3140. ACM.

Zhao, J., Gl uck, M., Isenberg, P., Chevalier, F., and

Khan, A. (2018). Supporting handoff in asynchronous

collaborative sensemaking using knowledge-transfer

graphs. IEEE Transactions on Visualization and Com-

puter Graphics, 24:340–350.

Zhao, J., Glueck, M., Breslav, S., Chevalier, F., and Khan,

A. (2017). Annotation graphs: A graph-based vi-

sualization for meta-analysis of data based on user-

authored annotations. IEEE Transactions on Visual-

ization and Computer Graphics, 23:261–270.

Annotations in Different Steps of Visual Analytics

163
