Exploiting Food Embeddings for Ingredient Substitution

Chantal Pellegrini

a,∗

, Ege

Ozsoy

b,∗

, Monika Wintergerst

c,∗

and Georg Groh

Department of Informatics, Technical University of Munich, Boltzmannstr. 3, 85748 Garching, Germany

Keywords:

Food Substitution, BERT, Word2Vec, Word Embeddings.

Abstract:

Identifying ingredient substitutes for cooking recipes can be beneﬁcial for various goals, such as nutrient opti-

mization or avoiding allergens. Natural language processing (NLP) techniques can be valuable tools to make

use of the vast cooking-related knowledge available online, and aid in ﬁnding ingredient alternatives. Despite

previous approaches to identify ingredient substitutes, there is still a lack of research in this area regarding the

most recent developments in the ﬁeld of NLP. On top of that, a lack of standardized evaluation metrics makes

comparing approaches difﬁcult. In this paper, we present two models for ingredient embeddings, Food2Vec

and FoodBERT. In addition, we combine both approaches with images, resulting in two multimodal repre-

sentation models. FoodBERT is furthermore used for relation extraction. We conduct a ground truth based

evaluation for all approaches, as well as a human evaluation. The comparison shows that FoodBERT, and

especially the multimodal version, is best suited for substitute recommendations in dietary use cases.

1 INTRODUCTION

In the light of rising rates of non-communicable dis-

eases such as type 2 diabetes, and with an unhealthy

diet being one of the leading health risks globally,

healthy eating has become increasingly important

(World Health Organization, 2020). However, chang-

ing one’s diet can be challenging as eating habits are

hard to break. This is why the substitution of food

items is a promising approach to foster healthy nutri-

tion. Substituting ingredients in a cooking recipe for

healthier alternatives can, for instance, help to opti-

mize the meal’s nutrient proﬁle to meet individuals’

dietary needs, while at the same time preserving the

dish’s culinary attributes. Thus, familiar meals can be

enjoyed while approaching dietary aims in manage-

able steps. Apart from replacing ingredients for nutri-

ent optimization, food substitutes can also be applied

for other goals such as avoiding allergens or adapting

dishes to dietary preferences.

A promising way to ﬁnd food substitutes is

to leverage the vast amounts of (mostly textual)

cooking-related data online to draw conclusions about

which food items are interchangeable. Thus, natu-

https://orcid.org/0000-0002-7555-0336

https://orcid.org/0000-0003-2841-3838

https://orcid.org/0000-0002-9244-5431

https://orcid.org/0000-0002-5942-2297

∗

These authors contributed equally.

ral language processing (NLP) can be used to iden-

tify generally applicable ingredient substitutes. We

refer to these replacements as context-free, meaning

independent of the direct recipe context. The food

items identiﬁed as ﬁtting substitutes for an ingredient

should, therefore, be suitable replacements in several

cases, and lay the foundation for all substitution use

cases mentioned above.

While there has been previous research in the NLP

domain that explored this task, there are few gen-

erally applicable approaches that use neural embed-

ding models to generate ingredient substitutes, de-

spite these models’ success on other NLP tasks. No-

tably, there is no approach to our knowledge that ap-

plies the most recent NLP-powerhouses, transformer-

based models like BERT (Devlin et al., 2018), to the

task of substitute generation.

In this paper, we propose and compare several ap-

proaches for context-free ingredient substitute gener-

ation. We train two models, word2vec (Mikolov et al.,

2013) and BERT (Devlin et al., 2018), on recipe in-

structions from the Recipe1M+ dataset (Marin et al.,

2019) to compute meaningful ingredient embeddings.

For BERT, we start from a pre-trained checkpoint.

We refer to these models as Food2Vec and Food-

BERT. Additionally, we combine these text-only ap-

proaches with an image-based approach resulting in

multimodal ingredient representations. We also use

FoodBERT to perform relation extraction on recipe

Pellegrini, C., Özsoy, E., Wintergerst, M. and Groh, G.

Exploiting Food Embeddings for Ingredient Substitution.

DOI: 10.5220/0010202000670077

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 5: HEALTHINF, pages 67-77

ISBN: 978-989-758-490-9

comment data to extract substitute pairs. Further-

more, we propose an approach for a ground truth

based evaluation for all methods and conduct a hu-

man evaluation. Our code and the trained models are

available on GitHub

The remainder of the paper is organized as fol-

lows: Section 2 presents related work, and Section 3

provides the theoretical background. Section 4 intro-

duces the used dataset. The approaches are explained

in Section 5, and their results on ingredient substitu-

tion are presented and discussed in Section 6. Section

7 concludes the paper and proposes possible future

work.

2 RELATED WORK

This section presents previous research in the area of

NLP that has explored the task of substitute gener-

ation, as well as different approaches to evaluating

such methods.

Some approaches have detected food substitutes

in recipe websites’ user comments, for instance

by identifying segments with alteration suggestions

(Druck and Pang, 2012), or through relation extrac-

tion (Wiegand et al., 2012a; Reiplinger et al., 2014).

(Teng et al., 2012) used pattern extraction results

to build an ingredient substitute network. Other re-

searchers have focused on recipe texts and used statis-

tical methods to ﬁnd food substitutes (Shidochi et al.,

2009; Boscarino et al., 2014; Yamanishi et al., 2015).

(Achananuparp and Weber, 2016) identiﬁed substi-

tutes from food diary data with food-context matrices.

The authors refer to the distributional hypothesis, the-

orizing that ingredients that occur in similar contexts

tend to be similar. Other researchers have followed

this concept with neural embedding techniques. Some

approaches employ vector arithmetic on word em-

beddings to ﬁnd substitutes via ingredient analogies.

They are designed for special use cases, such as ”veg-

anizing” meals (Lawo et al., 2020) or adapting recipes

to different cuisines (Kazama et al., 2018). There

is a lack of research on general-purpose ingredient

embeddings for food substitution, as the general ap-

proaches so far have been rather exploratory and with-

out in-depth evaluation (Hinds, 2016; Altosaar, 2017;

Sauer et al., 2017). Additionally, there is no ap-

proach to our knowledge that employs transformer-

based models like BERT (Devlin et al., 2018).

A big challenge for food substitution is the ab-

sence of a standard for comparing the results of dif-

ferent methods. Many approaches so far relied solely

https://github.com/ChantalMP/

Exploiting-Food-Embeddings-for-Ingredient-Substitution

on human evaluation on a relatively small scale, ei-

ther by cooking and testing recipes with substitu-

tions (Kazama et al., 2018; Yamanishi et al., 2015)

or through qualitative analysis of recipes or substi-

tute pair examples (Shidochi et al., 2009; Sauer et al.,

2017; Lawo et al., 2020). In contrast, (Achananuparp

and Weber, 2016) had crowd workers rate 2,000 sub-

stitute pairs. The authors were then able to employ

quantitative evaluation metrics. In an endeavor to cre-

ate a gold standard for various food relations, (Wie-

gand et al., 2012b) found that two subjects’ lists of

substitute pairs had little overlap, indicating that ﬁnd-

ing a consensus on suitable substitutes is challenging.

The authors used their gold standard in subsequent

research to evaluate their approaches quantitatively

(Wiegand et al., 2012a). (Reiplinger et al., 2014) cre-

ated a gold standard for food relations by manually la-

beling sampled sentences from their domain-speciﬁc

corpus. However, the above gold standards are both

in German and in include terms speciﬁc to the Ger-

man cuisine, such as ”Maultaschen”, a German kind

of dumpling. Therefore, it is difﬁcult to apply them

to approaches in other languages, which in turn might

require additional terms in their vocabulary to reﬂect

the respective cuisines.

Given the lack of exploration of neural embedding

models for ingredient substitution and the challenges

concerning evaluation, we propose several learning-

based approaches for substitute generation and con-

duct both a ground truth based and a human evalua-

tion.

3 BACKGROUND

In the previous section, we observed that a con-

cept that has been employed in many substitution ap-

proaches is the distributional hypothesis, which states

that words occurring in similar contexts tend to be

similar in meaning. It was ﬁrst explored in linguistics

(Harris, 1954), and later adopted in the area of com-

putational linguistics (Rubenstein and Goodenough,

1965; Rieger, 1991). In recent years and with the

surge of neural networks, neural approaches to cap-

ture this semantic similarity have been developed.

Two of the most popular approaches are word2vec

(Mikolov et al., 2013) and BERT (Devlin et al., 2018).

Word2vec (Mikolov et al., 2013) is an approach to

compute continuous vector representations of words

given a large corpus of training text. Training a

word2vec model results in vectors representing the

words in the corpus, with semantically similar words

being closer to one another in the vector space. Each

token is represented by exactly one vector, meaning

HEALTHINF 2021 - 14th International Conference on Health Informatics

the embeddings are context-free.

BERT (Bidirectional Encoder Representations

from Transformers) (Devlin et al., 2018) is a

transformer-based language model pre-trained on a

large amount of textual data, which can be ﬁne-tuned

for more speciﬁc tasks. The training is based on two

tasks, masked language modeling and next sentence

prediction, and results in contextualized embeddings.

The authors show that BERT has achieved state-of-

the-art results on various NLP tasks.

One of these applications, R-BERT (Wu and He,

2019), employs BERT for relation extraction and is

among the best methods for this task. The authors

tagged two possible entities in a relation and had the

model predict the relation between them.

In addition to ﬁne-tuning the pre-trained BERT

models, success was also achieved by pre-training

BERT on domain-speciﬁc data for science or biology

(Beltagy et al., 2019; Lee et al., 2020). This is espe-

cially useful if the target domain contains many words

rarely encountered in common texts.

4 DATA

We use Recipe1M+ (Marin et al., 2019), a dataset

containing one million recipes with information like

title, ingredient list, instructions, and images. We

speciﬁcally use 10,660,722 instruction sentences for

training our models. We also extend this dataset by

scraping recipe comments and normalize the content.

4.1 Comment Scraping

Recipe1M+ provides URLs to the original recipe

pages for all recipes. We scrape accessible user com-

ments for the most frequent web pages. A part of

this data was already provided to us in a master’s the-

sis by (Engstler, 2020). In total, our data comprises

1,525,545 comments.

4.2 Normalization

As Recipe1M+ (Marin et al., 2019) does not include

a clean list of all ingredients, we use an ingredient

dataset provided by Yummly (Yummly, 2015) as the

starting point to create such a list. We clean this set

by deleting terms in brackets and discarding ingre-

dients with more than three words, as these gener-

ally include unneeded names of a brand or location,

such as ”Nakano Seasoned Rice Vinegar” or ”Spice

Islands Chili Powder”. To match ingredients from the

Yummly dataset with Recipe1M+, we lemmatize all

nouns in the ingredient list. We do not alter other

words like verbs as these are usually constant, and

lemmatizing them can lead to wrong matchings. For

instance, ”baked” in ”baked potatoes” would be nor-

malized to ”bake”, thus prohibiting a differentiation

between instruction and ingredient part. The same

lemmatization is applied to the instruction and com-

ment sentences. We also combine multi-word in-

gredients with an underscore (”ice cream” becomes

”ice cream”) and discard ingredients that occur less

than ten times in the whole Recipe1M+ dataset. Ad-

ditionally, we manually delete non-food items from

the ingredient list. After these steps, the ingredient

list contains 4,372 ingredients.

5 METHODS FOR SUBSTITUTE

GENERATION

In this section, we present several approaches that can

be used for context-free ingredient substitute genera-

tion.

5.1 Pattern Extraction

One previously applied method for food substitute ex-

traction (Wiegand et al., 2012a; Teng et al., 2012),

which we use as a baseline for our work, is to use user

comments from recipe sites since a good portion of

them mention how to replace certain ingredients with

others (Druck and Pang, 2012). We use Spacy (Hon-

nibal and Montani, 2017) to extract these recommen-

dations by applying the following hand-crafted pat-

terns previously presented by (Engstler, 2020), where

A and B reference ingredients:

• {replace | substitute} A {with | f or} B

• A {instead o f } B

Instead of predicting every extracted pair as a sub-

stitute, only pairs of ingredient I and substitute S

which occur at least t times will be predicted as substi-

tutes. This way, precision can be traded off for recall.

5.2 Food2Vec

The context-free word representations created by

word2vec (Mikolov et al., 2013) match our goal of

context-free ingredient substitutes. Thus, we follow

the idea ﬁrst described in a blog post by Rob Hinds

(Hinds, 2016) and adopt his experimental approach

food2vec of training word2vec on recipe instructions.

We train it on a bigger, pre-processed dataset and re-

ﬁne the process of substitute generation as explained

below. Figure 1 shows an overview of our approach

Food2Vec.

Exploiting Food Embeddings for Ingredient Substitution

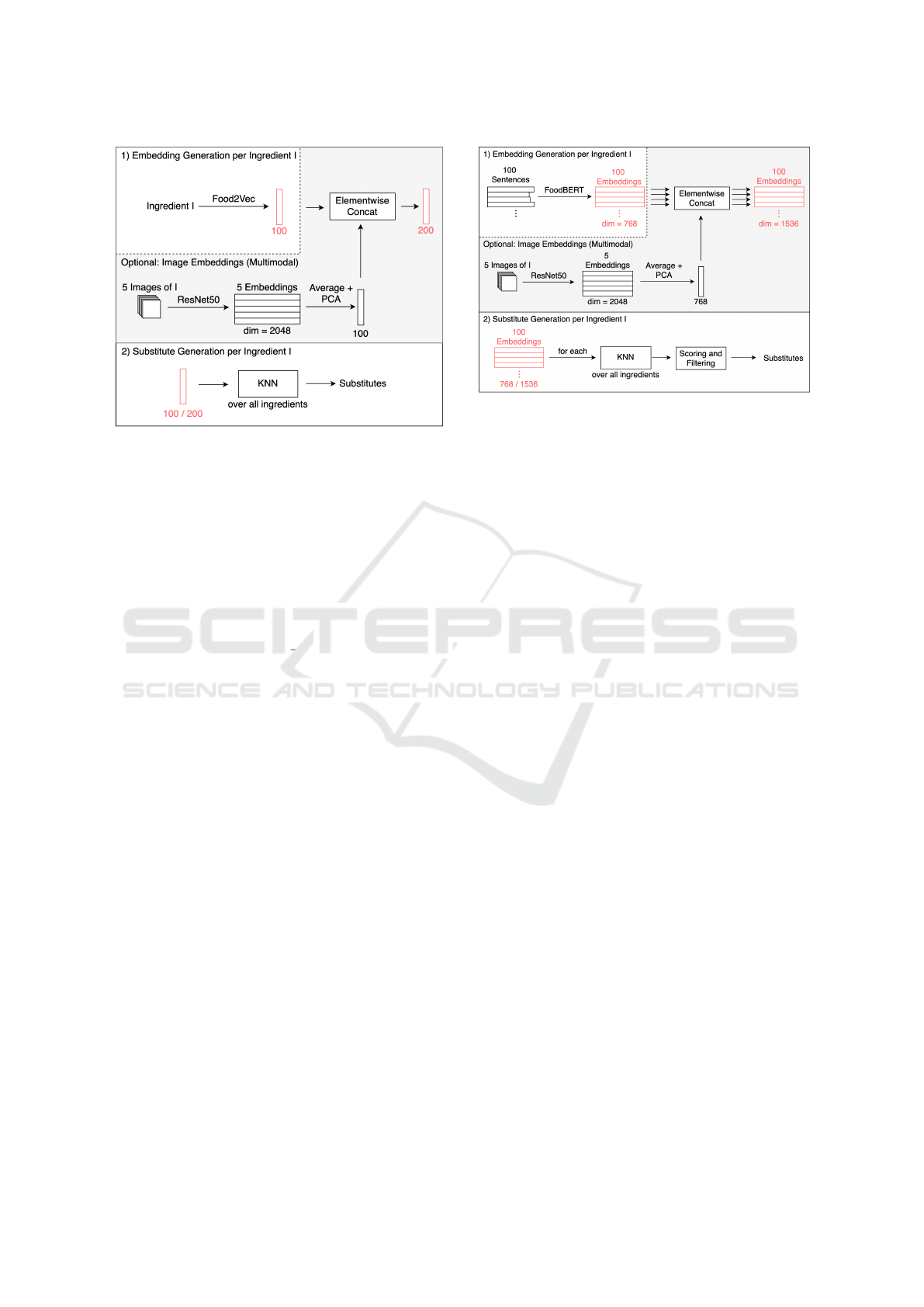

Figure 1: The Food2Vec approach is separated into two

parts: The ﬁrst part calculates text-based embeddings for all

ingredients and optionally concatenates them with image-

based embeddings. The second part uses these embeddings

in conjunction with KNN to predict substitutes.

5.2.1 Training

For creating Food2Vec, we trained the CBOW vari-

ant of word2vec on the normalized instructions of the

Recipe1M+ (Marin et al., 2019) corpus. We use Gen-

sim (

Reh

rek and Sojka, 2010) for training with de-

fault settings, but set the min count to 10 during train-

ing, as we only consider ingredients that occur at least

ten times in Recipe1M+. This means that also non-

ingredient words that occur less than 10 times will

be ignored. These rare words usually do not provide

substantial context and can be neglected. After com-

pleting the training, all our considered ingredients are

represented by a 100-dimensional embedding.

5.2.2 Generating Substitutes

For generating substitutes, we search for the N near-

est neighbors in the embedding space containing all

ingredients. N functions as a threshold to balance the

number of proposed substitutes and the model’s pre-

cision. We ﬁlter the possible results by a handcrafted

rule based on the assumption that for a given ingredi-

ent I, the substitute S should not be a specialization of

that ingredient. For example, we do not want to sub-

stitute ”chicken” with ”chicken breast”. To achieve

this, we remove any potential substitute S that com-

pletely contains the original ingredient I. We refer to

this approach as Food2Vec-Text.

Figure 2: The FoodBERT approach is separated into two

parts: The ﬁrst part calculates text-based embeddings for

up to 100 occurrences of every ingredient and optionally

concatenates them with image-based embeddings. The sec-

ond part employs these embeddings together with KNN and

a further scoring and ﬁltering step to predict substitutes.

5.3 FoodBERT

BERT achieves state-of-the-art results in many dif-

ferent NLP tasks (Devlin et al., 2018), making it a

promising approach for generating substitutes. Ar-

guably one of the main strengths of BERT is that

it works with contextualized embeddings, meaning

a word can have different embeddings depending on

its context. This advantage can not be fully utilized

for our task, as we make context-free predictions.

Nonetheless, BERT’s expressive power and language

understanding can still be helpful. An overview of

this approach is shown in Figure 2.

5.3.1 Modifying BERT for Recipes

The BERT version we use has about 29,000 tokens

in its vocabulary but contains only about 3% of our

ingredients. Even some common ingredients such as

”onion” or ”pasta” are not included. This means that

those ingredients will be understood worse and split

into multiple tokens, resulting in multiple model out-

puts for one ingredient. Average, min, or max pooling

of multiple embeddings are possible ways to deal with

this, but we eliminate it entirely by making sure no in-

gredient is split into multiple tokens. To achieve this,

we extend the BERT vocabulary to include all of the

4,372 ingredients we mentioned in section 4. In total,

we end up with 33,247 tokens in the vocabulary.

5.3.2 Training FoodBERT

We start with the pre-trained bert-base-cased,

with extended vocabulary, and further train it on

HEALTHINF 2021 - 14th International Conference on Health Informatics

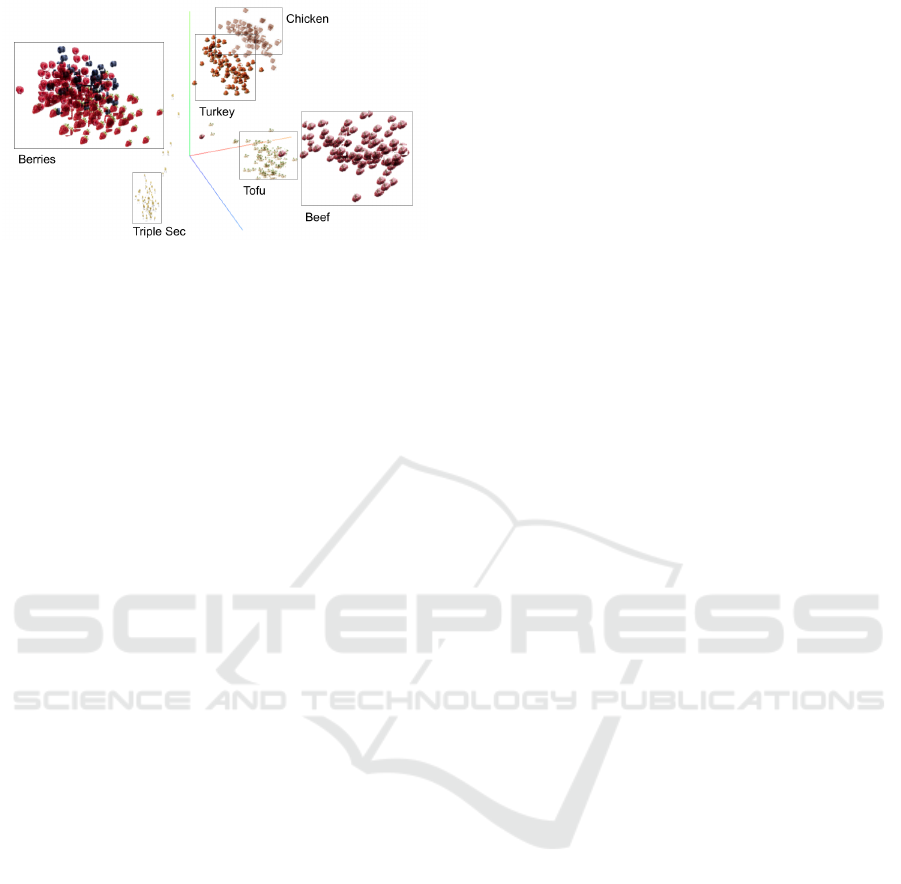

Figure 3: Embedding space visualization for ingredients:

Raspberry, Blueberry, Strawberry, Tofu, Chicken, Turkey,

Beef and Triple Sec. Each small image represents a con-

textualized embedding for one occurrence of the depicted

ingredient. It can be seen that berries and meat-like prod-

ucts are each grouped together, while Triple Sec is far away

from both groups.

Recipe1M+ (Marin et al., 2019) instructions for three

epochs. We use Hugging Face’s Transformers library

(Wolf et al., 2019) and the masked language modeling

training script (Hugging Face, 2020), only adapting

the BERTTokenizer to work with the extended vocab-

ulary. This training took approximately three full days

on an NVIDIA P-100 GPU.

5.3.3 Embedding Space Visualization

While BERT’s hidden representation has a dimension

of 768, it can still be projected into 3D space by using

a dimensionality reduction algorithm such as princi-

pal component analysis (PCA). We visualize the em-

beddings for 100 occurrences of eight different ingre-

dients. The visualization can be seen in Figure 3. It

shows that the ingredients are separated by their type

and use case. This is a valuable property, as the qual-

ity of the hidden representation of FoodBERT is di-

rectly correlated with the success of the approaches

relying on it.

5.3.4 Generating Substitutes

We exploit the FoodBERT embedding space to gen-

erate substitutes. To this end, we ﬁrst sample 100

random sentences for every ingredient (less if there

are less than 100 occurrences) from the recipes in

Recipe1M+. Afterward, a contextualized embedding

with 768 dimensions is computed for every occur-

rence of every ingredient using FoodBERT. In total,

we end up with ∼285,000 embeddings for all ingre-

dients. For every embedding, we compute the 200

nearest neighbors using an approximate KNN (Bern-

hardsson, 2019). To calculate the substitutes for an

ingredient I, we sum up how often every other ingre-

dient appears in these 200 nearest neighbors for all

the embeddings of the ingredient I. This amount of

occurrences is assigned to every possible substitute

as a score. Afterward, we sort the potential substi-

tutes from the highest (most occurrences) to the low-

est score and apply the same ﬁltering as in Food2Vec.

To get the ﬁnal set of substitutes, we ﬁrst require any

potential substitute to at least have a score of 100.

Second, we have a relative threshold that sets the min-

imum required score in relation to the highest score

(HS) for the ingredient, e.g. 1/10 of HS. This relative

threshold is tuned to achieve different precision-recall

trade-offs. We refer to this approach as FoodBERT-

Text.

5.4 Multimodal Representations

We argue that a good indicator for two ingredients’

interchangeability is their appearance. To utilize this

additional knowledge, we propose using multimodal

embeddings instead of pure text embeddings. Fig-

ure 1 and 2 show how we integrate the image embed-

dings in our methods.

5.4.1 Image Embeddings for Ingredients

For every ingredient, we download up to ten images

from Google. Afterward, we perform a manual ver-

iﬁcation and cleanup to ensure we have exactly ﬁve

correct images for every ingredient. For every image,

we extract a 2,048 dimensional embedding from the

last layer of a ResNet-50 (He et al., 2016), which is

pre-trained on ImageNet (Deng et al., 2009). Then we

average the embeddings of all ﬁve images to get one

ﬁnal image representation per ingredient.

5.4.2 Combining Image and Text Embeddings

As Food2Vec and FoodBERT embeddings have a di-

mension of 100 and 768 respectively, directly con-

catenating these image embeddings with the corre-

sponding text embeddings would put more focus on

the image embeddings. Therefore, we use PCA to de-

crease the image embedding size from 2,048 to 100

or 768 depending on the method, so that both embed-

ding types have equal inﬂuence. We also normalize

the image embeddings so that they have similar mean

and variance as the text embeddings. Afterward, we

concatenate the text-based and image-based ingredi-

ent representations to get one multimodal embedding

of size 200 for Food2Vec or 1,536 for FoodBERT.

This new ingredient representation is then used like

the text-only embeddings described in the respective

substitute generation sections of Food2Vec and Food-

BERT. Empirically, we achieve better results when in-

tersecting the predicted substitutes of our multimodal

Exploiting Food Embeddings for Ingredient Substitution

approach with the predicted substitutes of the corre-

sponding text-only approach. In this setting, an ingre-

dient will only be proposed as a substitute if both the

text-only and multimodal methods predict it. These

intersected results are what we refer to as Food2Vec-

Multimodal and FoodBERT-Multimodal.

5.5 Relation Extraction

Handcrafted patterns are not optimal when it comes

to extracting the information from user comments.

These patterns do not capture all substitute recom-

mendations and also make mistakes as they are not

context-speciﬁc. We, therefore, propose a learned and

context-speciﬁc relation extraction method, which is

based on FoodBERT.

5.5.1 Data Preparation

We extract pairs of mentioned ingredients for all

the sentences in the user comments by matching the

words to our ingredient list. For all pairs that occur

together in one sentence, we mark the ingredients’ be-

ginning and end with unique characters:

”I used plain $ yogurt $ in place of the £

sour cream £ and it is delicious.”

This modiﬁed sentence is then added to our rela-

tion extraction dataset. To generate labels for train-

ing, 1,000 frequent ingredient pairs are extracted and

labeled with two labels. The ﬁrst label denotes if

the ﬁrst ingredient can be substituted by the second,

the second label vice versa. We gather all 1.3 mil-

lion sentences which include these frequent pairs. To

further focus the dataset on relation extraction, we

only use sentences which include one of the follow-

ing expressions: ”instead”, ”substitute”, ”in place of”

or ”replace”. In this way, we bias our data towards

comments which contain user substitute recommen-

dations. After this step, we end up with approxi-

mately 170,000 sentences, which we use to train and

evaluate our relation extraction model.

5.5.2 Modifying R-BERT

We base our implementation on R-BERT (Wu and He,

2019), which is one of the state-of-the-art relation ex-

traction methods based on BERT. We differ in our

implementation mainly in four places. First, unlike

R-BERT, we do not have entities that span multiple

tokens, so we do not need to average the representa-

tion over multiple embeddings. Instead, we directly

use the embedding for an ingredient token. Second,

we use $ and £ symbols, as underscore is reserved for

multi-word ingredients. Third, we use FoodBERT in-

stead of BERT in the backbone of the model. Finally,

we adapt the classiﬁcation layer to support our desired

output format.

5.5.3 Model Architecture and Training

A marked sentence is given to FoodBERT, with the

ﬁrst token being the BERT speciﬁc classiﬁer token.

From the computed hidden state vector H, three parts

are used further, namely the pooled output H

, which

represents the whole sentence, and embeddings corre-

sponding to the ﬁrst and second ingredient. The three

representations are concatenated and fed into a fully

connected layer which reduces the representation size

to two. These two features correspond to the two la-

bels described previously (Ingredient 1 can be sub-

stituted by 2 or vice versa). To get binary labels, a

sigmoid is applied, and the output is thresholded at

0.5.

We train our network for ten epochs with a learn-

ing rate of 10

−5

and AdamW (Loshchilov and Hutter,

2019) as the optimizer.

5.5.4 Substitute Generation

For generating a ﬁnal list of substitutes, we use all

of the comment data, also the part without labels,

but still limit ourselves to sentences that contain

substitute-relation indicating expressions. We only

consider ingredient pairs that occur more than t times

together. This threshold t can be tuned to achieve

different precision-recall trade-offs. We then use our

model to predict labels for all pairs and add a pair to

our substitute list if more than 10% of the predicted

labels are positive.

6 EXPERIMENTS

In this section, we present the effects of ﬁne-tuning

BERT for the food domain and the results for the task

of substitute generation of all presented methods.

6.1 Evaluation Metrics

Our evaluation is twofold. First, we perform a human

evaluation, where we label the correctness of gener-

ated substitute pairs. Additionally, we created a list

of ground truth substitutes for a subset of ingredients,

which we use for automatic evaluation. For creating

this ground truth set as well as for the human eval-

uation, we consider an ingredient as substitute S for

another ingredient I if we can think of several dishes

where I can be substituted by S. The labeling was per-

formed by two authors with amateur cooking experi-

ence.

HEALTHINF 2021 - 14th International Conference on Health Informatics

6.1.1 Human Evaluation

We randomly sample 200 ingredient-substitute pairs

(I, S) per method and label them regarding their cor-

rectness. We sample these pairs from two portions

of our ingredient set. For 100 pairs, we only sample

from substitute recommendations where the ingredi-

ent I is among the 1,000 most common ingredients in

the recipe dataset. For the other 100 pairs, we sample

from all recommendations. A substitute S can, in both

cases, be from the whole ingredient set. Two authors

labeled these pairs independently to get a more reli-

able evaluation, as we are dealing with an ambiguous

task. The inter-rater reliability using Cohen’s Kappa

lies at 0.72, indicating a substantial reliability (Lan-

dis and Koch, 1977). Given the labels on these two

sets, we compute the overall precision and precision

on common ingredients for all methods. As we have

two annotators, we compute the precision scores sep-

arately for both sets of annotations and then average

them to get the ﬁnal precision values.

6.1.2 Ground Truth based Evaluation

In comparison to human evaluation, an evaluation on

a ground truth set can measure not only precision but

also recall. The challenge in measuring recall is that

it requires an extensive list of all possible substitutes

for every ingredient. As this is unfeasible, we decided

to create such a list only for a subset of 42 ingredi-

ents. Seven of these are not among the 1,000 most

common ingredients. We started creating the ground

truth set with a selection of 42 ingredients and some

of their substitutes recommended in the Food Substi-

tutions Bible (Joachim, 2010). We continuously ex-

tended the set by manually adding any correct predic-

tions of our approaches if they were missing in the

ground truth. In the end, we evaluated all approaches

with the ﬁnal ground truth set. This set contains on av-

erage 16.9 substitutes per ingredient and 708 unique

substitute pairs in total.

6.2 Ablation Study on FoodBERT

Since this is to our knowledge the ﬁrst attempt to ﬁne-

tune BERT for ingredient embeddings, we wanted to

better understand the beneﬁt of ﬁne-tuning BERT for

the food domain. Therefore, we performed an ab-

lation study by replacing FoodBERT with the pre-

trained BERT model bert-base-cased from Hugging

Face (Wolf et al., 2019) for the two methods based on

FoodBERT. The results of these experiments on the

ground truth dataset are shown in Table 1.

It can be seen that ﬁne-tuning on text from the

food domain substantially improves performance. Di-

Table 1: Precision and Recall of FoodBERT methods com-

pared to the same methods using bert-base-cased.

Prec. Recall

FoodBERT-Text 0.806 0.147

BERT 0.151 0.032

FoodBERT Relation Extraction 0.700 0.129

BERT Relation Extraction 0.632 0.085

rectly using the basic BERT embeddings for substi-

tute generation produces poor results with a precision

of 0.151 compared to 0.806 and a lower recall. For

relation extraction, the difference is smaller. BERT is

able to learn the general task of relation extraction on

this dataset, but the additional information about the

food domain still increases the accuracy from 0.632

to 0.700 and the recall from 0.085 to 0.129. These

results are not surprising, as the original BERT vo-

cabulary only contains 137 ingredients from the 4,372

ingredients in our ingredient set. Moreover, several of

these are ambiguous, like animals (”rabbit”, ”lamb”)

or body parts (”liver”, ”breast”), or are homonyms

(”date”).

6.3 Substitution Results

Here we present the quantitative results of our ap-

proaches. Some example substitute predictions can

be found in the appendix in Table 5.

All presented approaches can be tuned for ei-

ther higher precision or higher recall by setting a

method-speciﬁc threshold value. Figure 4a shows the

Precision-Recall curves of our approaches for differ-

ent thresholds. Similarly, Figure 4b visualizes the pre-

cision in relation to the average number of predictions

per ingredient. We can see in both cases that for a

small recall or few predictions, Relation Extraction

stands out with the highest precision, and FoodBERT-

Text has the lowest precision together with Pattern

Extraction. When looking at a higher recall or at

least three predictions, FoodBERT shows better re-

sults than the rest, both on its own and in the multi-

modal setting. Relation Extraction’s performance de-

creases sharply and becomes similar to Pattern Ex-

traction, and the Food2Vec approaches are in be-

tween. Another observation from both curves is that

combining text embeddings with image embeddings

yields additional improvement.

For further evaluation, we consider that people

have different food preferences and can have sev-

eral medical conditions like allergies that forbid them

from eating certain foods. In this context, it is vi-

tal to provide the user with some choice when rec-

ommending food substitutes. We therefore chose to

evaluate a version of every approach in more detail,

Exploiting Food Embeddings for Ingredient Substitution

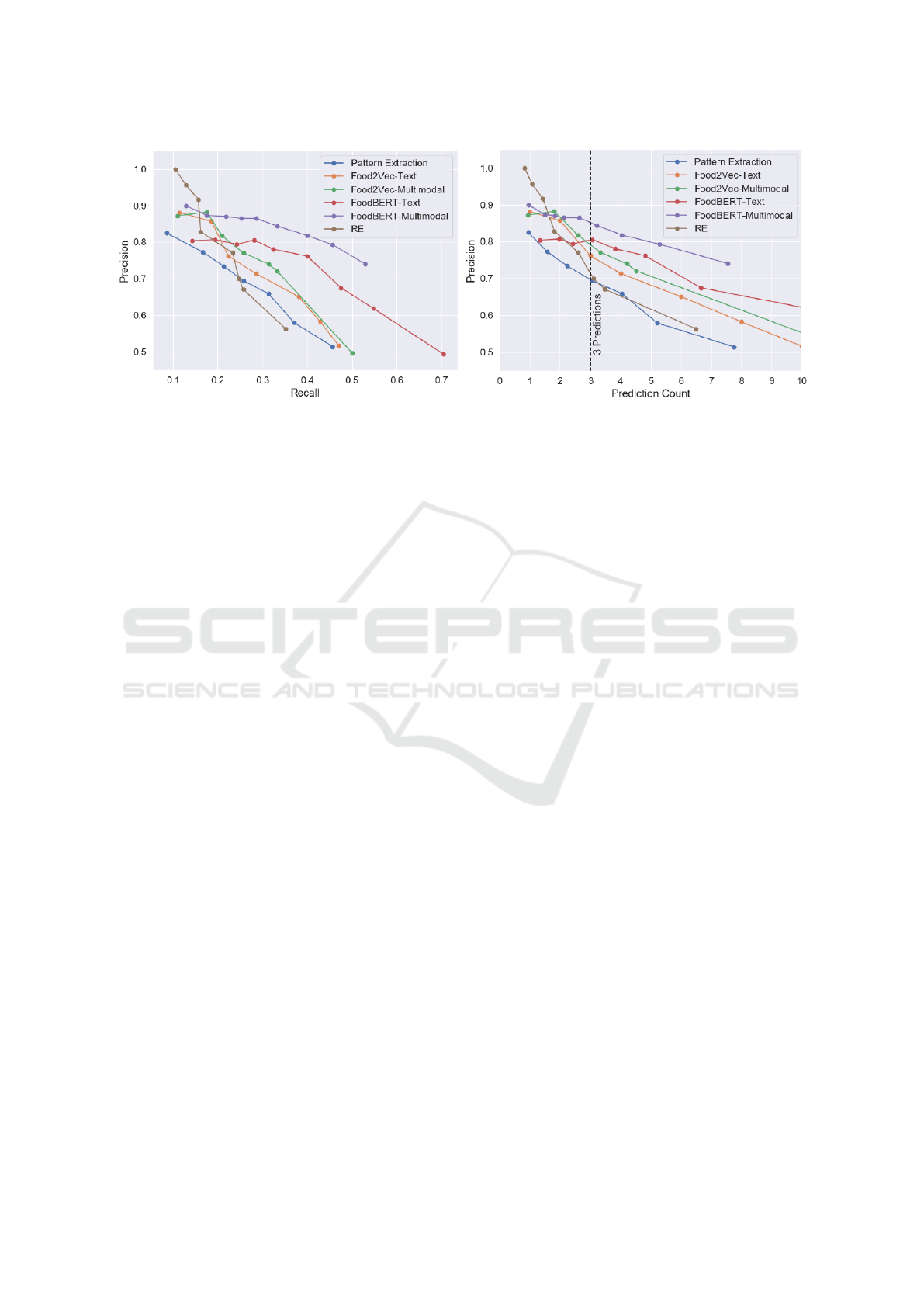

(a) Precision - Recall Curve.

(b) Precision - Prediction Count Curve.

Figure 4: Precision in relation to recall or prediction count.

which at least predicts three substitutes on average for

the ground truth ingredients. The detailed results for

these versions can be found in Table 2.

The ﬁrst thing to notice is that generally, learning-

based methods perform better than the rule-based Pat-

tern Extraction. We can further see the FoodBERT

approaches, both the vanilla and the multimodal ver-

sion, excel in our scenario of predicting at least three

substitutes, with considerably better precision values

of 0.806 and 0.844. The Food2Vec approaches follow

with precision values around 0.77 and slightly worse

recall. Relation Extraction and Pattern Extraction per-

form worst with a precision of around 0.70.

The overall low recall across all approaches can

be explained by the average number of 16.9 substi-

tutes per ingredient in our ground truth. The evaluated

versions of the approaches make on average at least 3

predictions per ingredient, which makes it impossible

to achieve a high recall, as the large number of ground

truth substitutes per ingredient can not be predicted.

Nevertheless, the differences in recall between the ap-

proaches still show that the multimodal approaches

perform best with FoodBERT-Multimodal achieving

the highest recall of 0.164. Pattern Extraction and Re-

lation Extraction have the lowest recall, which once

again indicates that they are not very suitable if sev-

eral substitute predictions per ingredient are desired.

The human evaluation was performed using pre-

dictions from the same method versions, which make,

on average, three predictions. The results are shown

in Tables 3 and 4. In comparison to the ground truth

based results in Table 2, Relation Extraction performs

better, whereas Food2Vec approaches are in a worse

position. In Table 3, we can see that approaches with

fewer uncommon predictions achieve higher preci-

sion. At the same time, considering only common

ingredients, meaning the 1,000 most frequent ones,

leads to much fewer uncommon substitute predictions

compared to the results of the overall case in Table 4.

There, we see considerably more uncommon ingredi-

ents and substitute predictions, except for Pattern Ex-

traction and Relation Extraction. Instead of a recipe

corpus, these two approaches use user comments in

which uncommon ingredients are rarely mentioned,

thereby not surpassing the used threshold. Generally,

suggesting fewer uncommon ingredients or, in other

words, having limited creativity by being restricted to

only the most common ingredients, can increase pre-

cision by ”playing it safe”. How much the creativity

of the approach is worth against its precision can not

be decided generally, as it depends strongly on the use

case.

6.4 Discussion

Overall, the results are encouraging, as the ap-

proaches show good performance according to our

evaluation. Nevertheless, accurately evaluating food

substitutes remains a big challenge. Without a uniﬁed

benchmark, it is hard to compare different approaches

objectively. However, it is questionable whether the

creation of an exhaustive substitute gold standard is

even feasible, as culinary matters are subjective.

The ground truth dataset we created is biased be-

cause we used our own approaches to expand it. The

unbiased alternative would have been to label all in-

gredient pairs (I, S), where I is from the 42 ingredi-

ents in the ground truth set, and S is from all 4,372

ingredients. This would have resulted in manually la-

beling 183,624 pairs, which was unfeasible. By label-

ing only pairs that any approach predicted, we obtain

a correct precision value, but the recall is an upper-

bound, as the ground truth might miss correct substi-

tute pairs. Still, the relation between the recall values

HEALTHINF 2021 - 14th International Conference on Health Informatics

Table 2: Precision, Recall, Top-5 Recall, average prediction count for the ground truth ingredients and total prediction count

for all approaches. This shows the best versions of all approaches making at least 3 predictions per ingredient on average.

Precision Recall Top-5 Recall Avg Predictions Total Predictions

Pattern Extraction 0.695 0.126 0.257 3.05 1238

Food2Vec-Text 0.762 0.136 0.224 3.0 13056

Food2Vec-Multimodal 0.771 0.153 0.257 3.33 5908

FoodBERT-Text 0.806 0.147 0.281 3.07 28385

FoodBERT-Multimodal 0.847 0.164 0.338 3.26 33941

Relation Extraction 0.700 0.129 0.248 3.10 1393

Table 3: Top1000: Precision of all approaches in human

evaluation when considering only common ingredients for

sampling. ”S rare” is the approximate proportion of uncom-

mon ingredients predicted as substitute S for pairs (I,S).

Precision S rare

Pattern Extraction 0.64 4%

Food2Vec-Text 0.51 41%

Food2Vec-Multimodal 0.63 39%

FoodBERT-Text 0.76 3%

FoodBERT-Multimodal 0.80 27%

Relation Extraction 0.79 8%

Table 4: Overall: Precision of all approaches in human eval-

uation when considering all ingredients for sampling. ”I

rare” is the approximate proportion of uncommon ingredi-

ents as ingredient I, ”S rare” the proportion of uncommon

ingredients predicted as substitute S for pairs (I,S).

Prec. I rare S rare

Pattern Extraction 0.61 11% 4%

Food2Vec-Text 0.53 78% 86%

Food2Vec-Multimodal 0.66 47% 66%

FoodBERT-Text 0.60 90% 89%

FoodBERT-Multimodal 0.61 92% 91%

Relation Extraction 0.73 10% 8%

of different approaches is valid.

In our human evaluation, we randomly sampled

ingredient-substitute pairs for each approach. This

sampling may have been advantageous for one ap-

proach and less favorable in another method’s case.

However, using the same set of ingredients to evaluate

every approach would carry the same risk of an unfair

comparison, as some approaches might not have pre-

dicted a single substitute for certain ingredients.

Despite these challenges, we provide an over-

all impression of different approaches’ strengths and

weaknesses by considering several evaluation meth-

ods. For our envisioned use case of providing sub-

stitute recommendations while leaving room for per-

sonal choice, FoodBERT-Multimodal is the best ap-

proach, both according to the ground truth based eval-

uation and the Top1000 human evaluation. Of course,

when considering a different use case, for instance, if

one substitute suggestion per ingredient is sufﬁcient,

different methods can be preferable.

7 CONCLUSION AND FUTURE

WORK

In this work, we presented several approaches for the

task of context-free food substitute recommendation.

We demonstrated that learning-based approaches per-

form very well on this task. The comparison of the

approaches showed that in a dietary context, where it

is beneﬁcial to offer a variety of substitutes to choose

from according to personal preferences, the exploita-

tion of the FoodBERT embeddings and especially its

multimodal enhancement perform best.

Our results suggest that FoodBERT’s embedding

space represents knowledge about food items much

better than the embedding space of the original BERT

model. This opens the possibility to apply our model

to other food-related tasks like cuisine-prediction or

estimating meals’ healthiness. Another direction for

future work could be the contextualized setting of

food substitute recommendations, where the speciﬁc

use case of an ingredient in a particular recipe is

considered to ﬁnd substitutes. Since BERT embed-

dings are contextualized, it is promising to apply it to

this task. Also, since ImageNet is not food-focused,

the multimodal model’s understanding of food items

could be improved by ﬁne-tuning the image embed-

ding model on food images.

While the models presented in this paper consider

the usage context of ingredients in order to identify

culinarily ﬁtting alternatives, the selection process for

substitutes can be extended to incorporate other fac-

tors as well, especially regarding healthy nutrition.

With rules based on dietary guidelines, or even an in-

dividually tailored health metric considering personal

nutrient requirements, the substitutes proposed by the

models could be ﬁltered or re-ranked, resulting in sug-

gestions which are both culinarily adequate as well as

conducive to health goals.

Exploiting Food Embeddings for Ingredient Substitution

ACKNOWLEDGEMENTS

The preparation of this paper was supported by the en-

able Cluster and is catalogued by the enable Steering

Committee as enable 065 (http://enable-cluster.de).

This work was funded by a grant of the German

Ministry for Education and Research (BMBF) FK

01EA1807A.

REFERENCES

Achananuparp, P. and Weber, I. (2016). Extracting food

substitutes from food diary via distributional similar-

ity. In 10th ACM Conference on Recommender Sys-

tems.

Altosaar, J. (2017). food2vec - augmented cook-

ing with machine intelligence. https://jaan.io/

food2vec-augmented-cooking-machine-intelligence/.

Accessed: 2020-09-05.

Beltagy, I., Lo, K., and Cohan, A. (2019). Scibert: A pre-

trained language model for scientiﬁc text. In Proceed-

ings of the 2019 Conference on Empirical Methods

in Natural Language Processing and the 9th Inter-

national Joint Conference on Natural Language Pro-

cessing (EMNLP-IJCNLP), pages 3606–3611.

Bernhardsson, E. (2019). Annoy. https://github.com/

spotify/annoy. Accessed: 2020-07-04.

Boscarino, C., Nedovi

c, V., Koenderink, N. J., and Top, J. L.

(2014). Automatic extraction of ingredient’s substi-

tutes. In Proceedings of the 2014 ACM International

Joint Conference on Pervasive and Ubiquitous Com-

puting: Adjunct Publication, pages 559–564.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). Imagenet: A large-scale hierarchical

image database. In 2009 IEEE conference on com-

puter vision and pattern recognition, pages 248–255.

Ieee.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Druck, G. and Pang, B. (2012). Spice it up? mining reﬁne-

ments to online instructions from user generated con-

tent. In Proceedings of the 50th Annual Meeting of the

Association for Computational Linguistics (Volume 1:

Long Papers), pages 545–553, Jeju Island, Korea. As-

sociation for Computational Linguistics.

Engstler, L. N. (2020). Ontology learning from text in the

food domain. Unpublished master’s thesis. Technical

University of Munich, Munich, Germany.

Harris, Z. S. (1954). Distributional structure. Word, 10(2-

3):146–162.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hinds, R. (2016). Unsupervised learning in scala using

word2vec. https://automateddeveloper.blogspot.com/

2016/10/unsupervised-learning-in-scala-using.html.

Accessed: 2020-09-05.

Honnibal, M. and Montani, I. (2017). spaCy 2: Natural lan-

guage understanding with Bloom embeddings, convo-

lutional neural networks and incremental parsing. To

appear.

Hugging Face (2020). Run language modeling.

https://github.com/huggingface/transformers/blob/

master/examples/language-modeling. Accessed:

2020-07-04.

Joachim, D. (2010). The Food Substitutions Bible. Robert

Rose Inc., Toronto, Ontario, Canada, 2 edition.

Kazama, M., Sugimoto, M., Hosokawa, C., Matsushima,

K., Varshney, L. R., and Ishikawa, Y. (2018). A neural

network system for transformation of regional cuisine

style. Frontiers in ICT, 5:14.

Landis, J. R. and Koch, G. G. (1977). The measurement of

observer agreement for categorical data. Biometrics,

33(1).

Lawo, D., B

ohm, L., and Esau, M. (2020). Supporting

plant-based diets with ingredient2vec.

Lee, J., Yoon, W., Kim, S., Kim, D., Kim, S., So, C. H.,

and Kang, J. (2020). Biobert: a pre-trained biomedi-

cal language representation model for biomedical text

mining. Bioinformatics, 36(4):1234–1240.

Loshchilov, I. and Hutter, F. (2019). Decoupled weight

decay regularization. In International Conference on

Learning Representations.

Marin, J., Biswas, A., Oﬂi, F., Hynes, N., Salvador, A., Ay-

tar, Y., Weber, I., and Torralba, A. (2019). Recipe1m+:

A dataset for learning cross-modal embeddings for

cooking recipes and food images. IEEE Trans. Pat-

tern Anal. Mach. Intell.

Mikolov, T., Chen, K., Corrado, G., and Dean, J. (2013).

Efﬁcient estimation of word representations in vector

space. arXiv preprint arXiv:1301.3781.

Reh

rek, R. and Sojka, P. (2010). Software Framework

for Topic Modelling with Large Corpora. In Proceed-

ings of the LREC 2010 Workshop on New Challenges

for NLP Frameworks, pages 45–50, Valletta, Malta.

ELRA. http://is.muni.cz/publication/884893/en.

Reiplinger, M., Wiegand, M., and Klakow, D. (2014).

Relation extraction for the food domain without la-

beled training data–is distant supervision the best so-

lution? In International Conference on Natural Lan-

guage Processing, pages 345–357. Springer.

Rieger, B. B. (1991). On distributed representation in word

semantics. International Computer Science Institute

Berkeley, CA.

Rubenstein, H. and Goodenough, J. B. (1965). Contextual

correlates of synonymy. Communications of the ACM,

8(10):627–633.

Sauer, C., Haigh, A., and Rachleff, J. (2017). Cooking up

food embeddings.

Shidochi, Y., Takahashi, T., Ide, I., and Murase, H. (2009).

Finding replaceable materials in cooking recipe texts

considering characteristic cooking actions. In Pro-

ceedings of the ACM multimedia 2009 workshop on

HEALTHINF 2021 - 14th International Conference on Health Informatics

Multimedia for cooking and eating activities, pages

9–14.

Teng, C.-Y., Lin, Y.-R., and Adamic, L. A. (2012). Recipe

recommendation using ingredient networks. In Pro-

ceedings of the 4th Annual ACM Web Science Confer-

ence, pages 298–307.

Wiegand, M., Roth, B., and Klakow, D. (2012a). Web-

based relation extraction for the food domain. In

International Conference on Application of Natural

Language to Information Systems, pages 222–227.

Springer.

Wiegand, M., Roth, B., Lasarcyk, E., K

oser, S., and

Klakow, D. (2012b). A gold standard for relation

extraction in the food domain. In Proceedings of

the Eighth International Conference on Language Re-

sources and Evaluation (LREC’12), pages 507–514.

Wolf, T., Debut, L., Sanh, V., Chaumond, J., Delangue, C.,

Moi, A., Cistac, P., Rault, T., Louf, R., Funtowicz,

M., and Brew, J. (2019). Huggingface’s transformers:

State-of-the-art natural language processing. ArXiv,

abs/1910.03771.

World Health Organization (2020). Healthy diet.

https://www.who.int/news-room/fact-sheets/detail/

healthy-diet. Accessed: 2020-09-05.

Wu, S. and He, Y. (2019). Enriching pre-trained language

model with entity information for relation classiﬁca-

tion. In Proceedings of the 28th ACM International

Conference on Information and Knowledge Manage-

ment, pages 2361–2364.

Yamanishi, R., Shino, N., Nishihara, Y., Fukumoto, J., and

Kaizaki, A. (2015). Alternative-ingredient recom-

mendation based on co-occurrence relation on recipe

database. Procedia Computer Science, 60:986–993.

Yummly (2015). What’s cooking? https://www.kaggle.

com/c/whats-cooking/overview. Accessed: 2020-07-

04.

APPENDIX

Table 5: Example substitute predictions of all approaches.

potato

Pattern Extraction

pasta, rice

Food2Vec-Text

beet, squash, turnip

Food2Vec-Multimodal

beet, brussel sprout,

squash, turnip

FoodBERT-Text

beet, parsnip, yam

FoodBERT-Multimodal

parsnip, plantain

Relation Extraction -

tuna

Pattern Extraction

salmon, chicken

Food2Vec-Text

crab meat, pickle relish,

salmon

Food2Vec-Multimodal

crab meat, pickle relish,

salmon

FoodBERT-Text

crab, crab meat, ﬁsh,

prawn, salmon, seafood,

tilapia

FoodBERT-Multimodal

crab meat, prawn,

salmon, swordﬁsh, tofu

Relation Extraction chicken, salmon

pork

Pattern Extraction

beef, lamb, chicken

Food2Vec-Text

beef, chicken, lamb

Food2Vec-Multimodal

beef, chicken, lamb, veal

FoodBERT-Text

lamb, tenderloin

FoodBERT-Multimodal

beef, lamb, tenderloin

Relation Extraction

chicken, beef, fat, veal,

shrimp, turkey, bacon,

sausage, turkey bacon,

chicken breast,

turkey sausage

Exploiting Food Embeddings for Ingredient Substitution
