Integration of Multiple RGB-D Data of a Deformed Clothing Item into

Its Canonical Shape

Yasuyo Kita

, Ichiro Matsuda

and Nobuyuki Kita

Dept. Electrical Engineering, Faculty of Science and Technology, Tokyo University of Science, Noda, Japan

TICO-AIST Cooperative Research Laboratory for Advanced Logistics,

National Institute of Advanced Industrial Science and Technology (AIST), Tsukuba, Japan

Keywords:

Recognition of Deformable Objects, Robot Vision, Automatic Handling of Clothing.

Abstract:

To recognize a clothing item so that it can be handled automatically, we propose a method that integrates

multiple partial views of the item into its canonical shape, that is, the shape when it is ﬂattened on a planar

table. When a clothing item is held by a robot hand, only part of the deformed item can be seen from one

observation, which makes the recognition of the item very difﬁcult. To remove the effect of deformation, we

ﬁrst virtually ﬂatten the deformed clothing surface based on the geodesic distances between surface points,

which equal their two-dimensional distances when the surface is ﬂattened on a plane. The integration of

multiple views is performed on this ﬂattened image plane by aligning ﬂattened views obtained from different

observations. Appropriate view directions for efﬁcient integration are also automatically determined. The

experimental results using both synthetic and real data are demonstrated.

1 INTRODUCTION

Recently, the demand for the automatic recognition of

daily objects has increased aimed at robots working in

the daily lives of people. The recognition of clothing

items for the handling of clothing is a typical example.

Large shape variation that originates from the

physical deformation of clothing items makes the task

of recognizing the items challenging. Deformation

also reduces the size of the area that can be viewed

from one direction as shown in Fig. 1, where a cloth-

ing item is handled by a robot. It is not easy to de-

termine the clothing type (e.g., trousers) or to localize

the best position to grasp next (e.g. the corner of the

waist) from such a partial view of the item in curved

shape. Therefore, many studies on clothing recog-

nition for automatic handling have ﬁrst attempted to

spread the clothing item to reduce the level of defor-

mation from a canonical shape, that is, the shape when

the item is ﬂattened on a plane (F. Osawa and Kamiya,

2007) (Hu and Kita, 2015) (D. Triantafyllou and As-

pragathos, 2016) (A. Doumanoglou, 2014). However,

selecting proper positions to grasp for good spreading

is another difﬁcult recognition problem. Additionally,

such a strategy requires extra actions and time. Using

the fewest handling actions that directly connect to

the task goal is desirable.

A totally different approach from those, virtual

ﬂattening, was proposed (Kita and Kita, 2016), which

calculates the shape of a clothing item ﬂattened on

a plane from the three-dimensional (3D) data of its

deformed shape. This approach has the following

advantages for automatic handling of clothing items.

First, it can avoid extra handling actions that do not

directly connect to its task. Second, the obtained ﬂat-

tened shape nearly equals the item’s canonical shape,

that is a typical shape of each clothing item we imag-

ine. Therefore, once the ﬂattened shape is obtained,

clothing type and size can be relatively easily deter-

mined. In addition, each part of the virtual ﬂattened

shape can have the linkage of the 3D coordinates in

the current deformed shape. Therefore, the 3D infor-

mation necessary for the next action, such as the 3D

location and normal direction of a waist corner, is di-

rectly known using the linkage between the ﬂattened

shape and observed RGB-D data, as illustrated by the

red line in Fig. 1. Concretely, the method calculates

the boundary of a ﬂattened shape based on the cal-

culation of geodesic line, which is the shortest path

between two points on an arbitrary curved surface.

However, the results were limited to the ﬂattening of

partial view or a simple combination of them (Y.Kita

and N.Kita, 2019).

910

Kita, Y., Matsuda, I. and Kita, N.

Integration of Multiple RGB-D Data of a Deformed Clothing Item into Its Canonical Shape.

DOI: 10.5220/0010228209100918

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

910-918

ISBN: 978-989-758-488-6

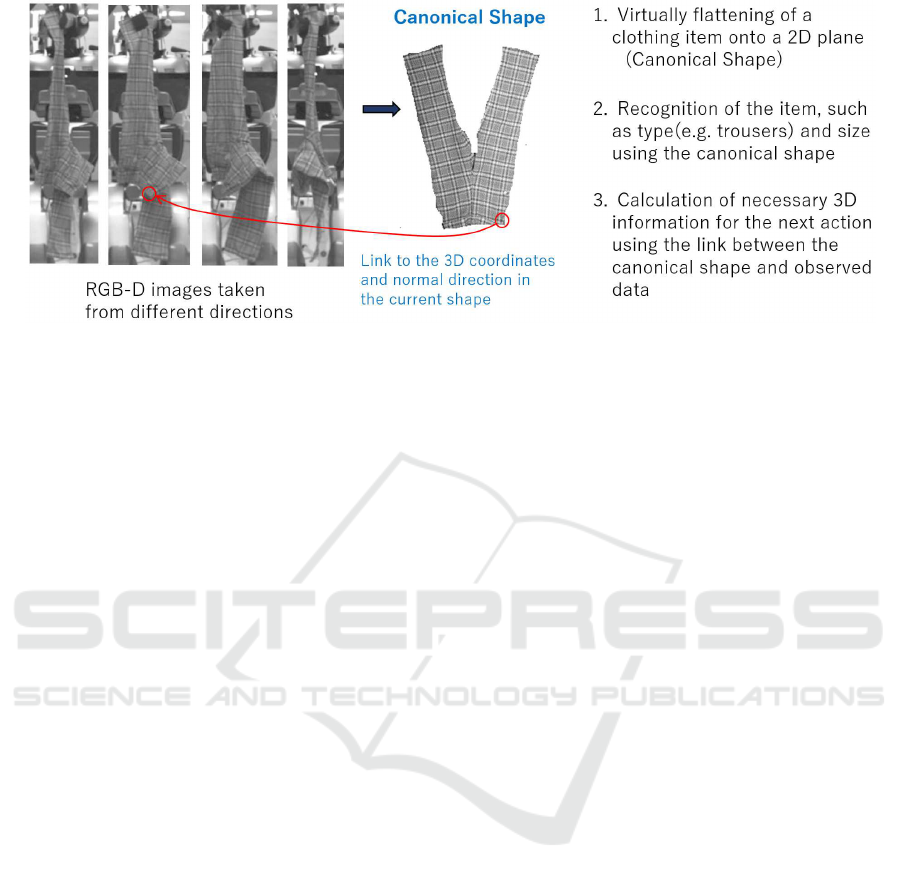

Figure 1: Strategy: recognition of a hanging clothing item using its canonical shape calculated from multiple RGB-D data.

In this study, we propose a method to calculate not

only the boundary contour but also the inside area of

the virtually ﬂattened view. Hereafter, we refer to the

shape after virtual ﬂattening as the ﬂattened view. The

ﬂattened views calculated from multiple 3D observed

data are integrated on the ﬂattened plane by aligning

them using the attributes of each pixel in the ﬂattened

view images, such as intensity (color) and 3D coordi-

nates, inherited from the corresponding 3D observed

points.

The contributions of the present work are sum-

marized as follows: (1) ﬂattening of whole clothing

surface area, (differently from only contours of the

surface (Y.Kita and N.Kita, 2019); (2) integration of

multiple 3D views onto the 2D ﬂattened plane; (3) au-

tomatic determination of efﬁcient view directions for

the integration.

The paper is organized as follows. Section 2 sur-

veys related works. Sections 3 and 4 explain the

methods of ﬂattening the 3D clothing surface and of

integrating the ﬂattened views. Section 5 presents

and discusses the experimental results using both syn-

thetic and actual clothing items. Section 6 summa-

rizes our work and discusses plans for future work.

2 RELATED WORK

As described in Section 1, most of existing meth-

ods ﬁrst spread the clothing item before recogniz-

ing the clothing item. Osawa et al. (F. Osawa and

Kamiya, 2007) proposed a method that re-grasps the

lowest point of a clothing item twice to open the

item and reduce the deformation variation. However,

the shapes that form after the actions are not nec-

essarily discriminating and there is often undesired

twisting of the item. Hue et al.(Hu and Kita, 2015)

proposed a method of ﬁnding the appropriate grasp-

ing point for bringing an item into a small number

of limited shapes from a sequence of 3D data ob-

tained from various viewing directions. However, de-

tection of appropriate points for the action is not so

easy. Recently, many researchers applied a learning

approach for handling clothing items, some of which

are dealing with hanging clothes(A. Doumanoglou,

2014)(I. Mariolis and Malassiotis, 2015)(E. Corona

and Torras, 2018)(Stria and Hlavac, 2018). However,

huge number of data for learning is required and its

applicability to other settings of robots and sensors

is uncertain. In addition, the output of most of the

method is just a type of category and does not indicate

any information of the clothing state that is necessary

to determine next action.

The method of calculating ﬂattened surface with-

out actual ﬂattening (Kita and Kita, 2016) uses the

geodesic distances on the surface observed by a 3D

range sensor. Since 3D range data observed from one

direction, in most of times, does not show the whole

surface of the item due to curving of the surface, the

method was extended to integrate two views captured

from largely different directions (Y.Kita and N.Kita,

2019). However, the latter assumed that the corre-

spondence between some surface points in different

views are given. It is difﬁcult to automatically de-

tect multiple reliable point correspondences under the

scenario in which each observed view shows only a

small part of the surface. Additionally, these meth-

ods calculate only the boundary shape of the ﬂattened

clothing item, but do not ﬂatten its inside area.

The ﬂattening of a 3D surface onto a 2D plane

has been studied mainly regarding graphical 3D mod-

els and/or uniformly dense 3D data using ﬁnite ele-

ment meshes(Zhong and Xu, 2006) or a voxel rep-

resentation(R. Grossmann and Kimme, 2002). How-

ever, both mesh-based and voxel-based methods as-

Integration of Multiple RGB-D Data of a Deformed Clothing Item into Its Canonical Shape

911

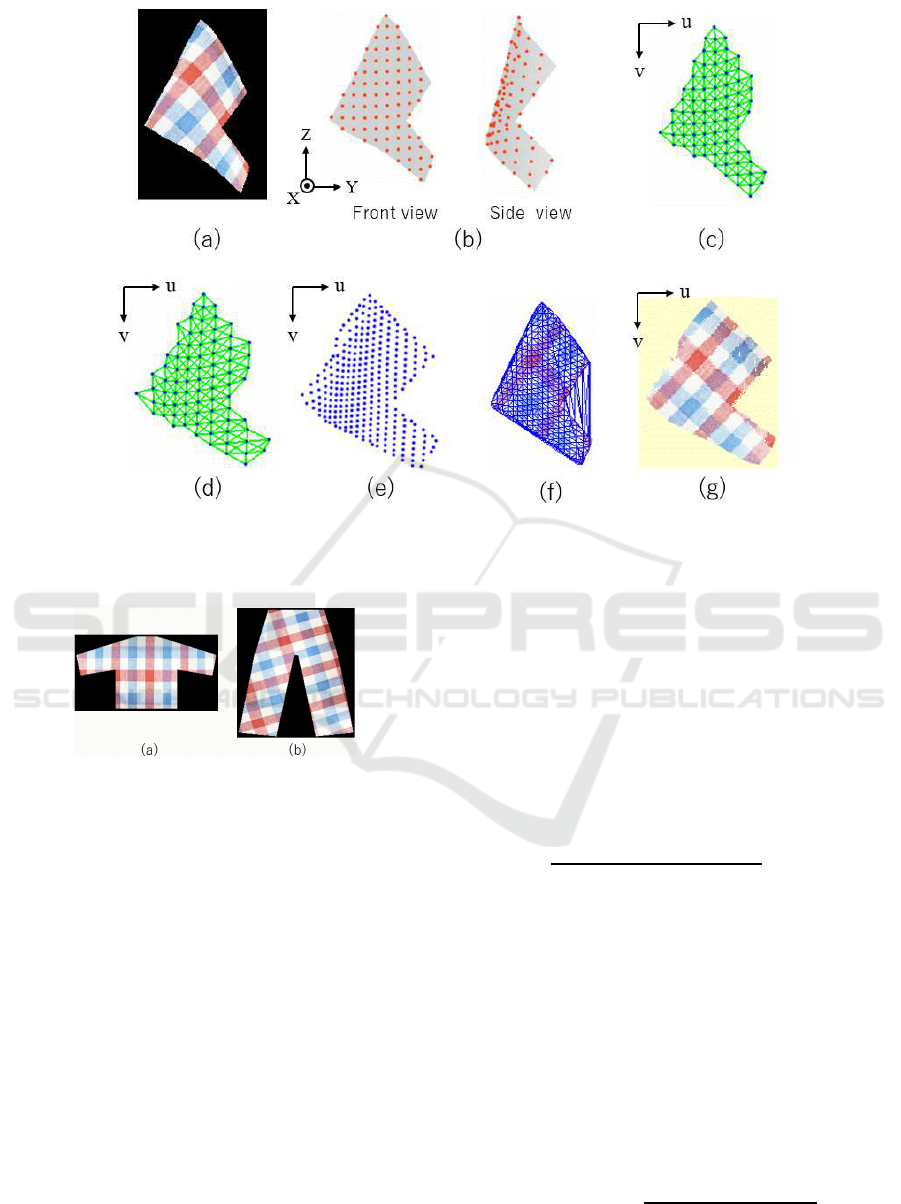

Figure 2: Flattening process: (a) synthetic RGB-D data; (b) sampled 3D points (orange points) on the observed 3D points

(grey dots); (c) initial state using sampled points (blue point), P

with pairs of B(n

) = 1 (green line); (d) convergence

state for P

; (e) convergence state for P

; (f) triangulation using P

as vertices; and (g) ﬂattened view.

Figure 3: Model used for synthetic data: (a) a long-sleeved

shirt; and (b) trousers.

sume uniformly dense 3D data of objects, which is

not always the case for observation data in the real

world. To calculate a geodesic line directly from 3D

point clouds obtained by a range sensor or stereo cam-

eras, (Y.Kita and N.Kita, 2019) adopts an approach

that calculates geodesic lines in a mesh-free way, pro-

posed by Kawashima et al (T. Kawashima, 1999). In

this paper, by sampling points from a clothing surface

with small distances, we approximate the geodesic

distances between the neighboring points by the Eu-

clidean distances.

3 FLATTENING OF OBSERVED

3D SURFACE

We assume that a clothing surface can be ﬂattened

onto a 2D image plane F(u,v). The input of our

method is RGB-D data of a clothing item: 3D point

cloud, P

(n = 1, ...,N). Flattening can be formulated

as the problem of calculating the 2D coordinates of

on the plane, that is, (u

). when the surface is

ﬂattened.

We focus on that the geodesic line length of two

surface points equals with the 2D distance between

the points when the surface is ﬂattened on a 2D plane.

That is, the geodesic lengths give distance constraints

among (u

). Concretely, the coordinates should

satisfy the equation

− u

)

+ (v

− v

)

= G

, (1)

where G

is the geodesic distance between P

and

on the surface.

Because high accuracy of the ﬂattened shape is not

necessarily required for our purpose, by only using

point pairs in the close vicinity, we approximate the

geodesic distance between two points by the 3D Eu-

clidean distance between them in the 3D point cloud,

By representing the use/disuse of E

B(n

) = {1,0}, ﬂattening becomes the minimiza-

tion problem of the equation

H(u, v) =

N−1

∑

B(n

)(

− u

)

+ (v

− v

)

− E

)

(2)

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

912

The solution is then obtained by solving 2N simul-

taneous equations, where the two equations for each

are

∂H(u,v)

∂u

= 0,

∂H(u,v)

∂v

= 0.

To simplify the search of neighboring points, we

record the observed 3D points P

in a depth image

D(i, j), where each pixel (i

, j

) has the 3D coordi-

nates of the point observed in the pixel direction. We

sample the surface points from D(i, j) with some in-

terval d to obtain a reasonable number of points P

(n = 1, ...,N

) for practically solving the simultaneous

equations. Although a small sampling width yields

high-resolution ﬂattening, the calculation of a large

number of equations without an appropriate initial es-

timate is time-consuming and leads to instability. To

avoid this, we start with a large d and use the result as

the initial state for high-resolution ﬂattening.

Fig. 2 shows an example of these processes us-

ing the artiﬁcial 3D shape in 2(a), which is synthe-

sized through the simulation of physical deformation

of the clothing model in Fig. 3(a), when the cloth-

ing item is held at one bottom corner using Maya

nCloth(GOULD, 2004). The grey dots and orange

points in Fig. 2(b) illustrate the 3D points recorded in

D(i, j) and points P

sampled with the interval of 12

pixels. Figs. 2(c) and 2(d) show the initial state using

) = (i

, j

) and the result of solving the mini-

mization of Eq. (2), respectively: the blue points and

green lines illustrate P

and pairs of B(n

) = 1.

Using the result as the initial state of points P

sam-

pled with the interval of 6 pixels, the ﬂattened state for

a high resolution is calculated as shown in Fig. 2(e).

By interpolating the inside area based on Delaunay

triangulation using the resultant points as its vertices,

as shown in Fig. 2(f), the ﬂattened image of the 3D

surface in Fig. 2(a), F(u, v), is obtained, as shown in

Fig. 2(g).

In order to use the attribute of each pixel of the

ﬂattened view at the following alignment stage, we

record nine attributes for each pixel in F(u, v) by in-

heriting ones of the corresponding 3D point: color in-

formation (r, g,b), 3D coordinates (x,y,z), and normal

directions (n

4 INTEGRATION OF

FLATTENED VIEWS

The integration of ﬂattened views is performed by

aligning them on the ﬂattened view plane. This strat-

egy has the advantage of decreasing the search space

of the alignment from the 3D space into the 2D space,

that is, six degrees of freedom to three degrees of free-

dom, which increases the stability and efﬁciency of

the alignment.

Under the scenario in which a clothing item is

held by a (robot) hand, the clothing surface is curved

and/or folded, mainly in the horizontal direction. To

observe hidden parts behind the leftmost (or right-

most) boundaries of the clothing regions, the cloth-

ing item is rotated along the vertical axis through the

holding position. Here, we call the leftmost (or right-

most) boundary as an “occluding edge “ if the bound-

ary divides one surface into visible and hidden parts.

4.1 Calculation of the Appropriate

Rotation Angle

We start with the observed data taken from the view

direction that provides the largest observed area of the

clothing surface. The ﬂattened view calculated from

the data is extended by adding a ﬂattened view calcu-

lated from a new observation after rotating the item

so that the parts around the occluding edge move to

more center. To align a new ﬂattened view to the

current view correctly, a sufﬁcient overlapping area

is necessary between the current and additional ﬂat-

tened views. From this viewpoint, the rotation angle

should be small. By contrast, if the angle is too small,

the newly added area is small and meaningless.

To automatically determine an appropriate ro-

tation angle, we adopt the following processes. To

simplify the explanation, we explain the processes by

considering only the leftmost occluding edge. In the

case of the rightmost occluding edge, the steps of 3

and 4 are slightly changed to ﬁt the right side.

1. Calculate the Z-angle of each pixel in the current

ﬂattened view

We focus on the component of the surface normal

that is perpendicular to the Z-axis, the vertical axis,

and calculate its angle from the X-axis (the direction

of the camera) as illustrated in the diagram under

Fig. 4(a). The value is tan

−1

) ∗ 180/π, and

is called the Z-angle hereafter. The Z-angle of each

pixel in the current ﬂattened view F(u,v) is stored as

F(u, v).a. The intensity values in Fig. 4(a) show the

value of (F(u,v).a+ 90) of the ﬂattened view in Fig.

2(g) under the assumed range of the measurement

limit of the range sensor |F(u,v).a| < A

. We used

= 50 degrees in all the experiments in this study.

In the process below, only the pixels within the range

are considered.

Integration of Multiple RGB-D Data of a Deformed Clothing Item into Its Canonical Shape

913

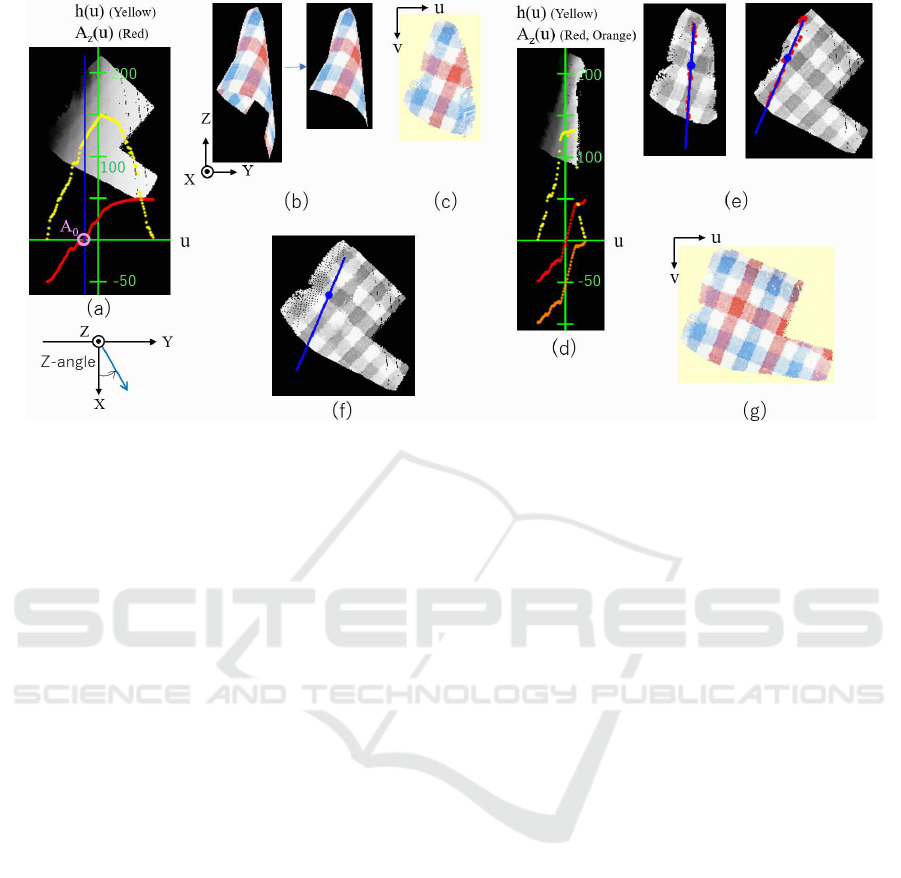

Figure 4: Integration process: (a) histogram and average Z-angle for the row of u of the current ﬂattened view; (b) selected

view for addition; (c) ﬂattened view of the selected view; (d) histogram and average Z-angle for the row of u of the additional

ﬂattened view; (e) corresponding lines and points based on the Z-angle; (f) initial state for alignment; and (g) renewed ﬂattened

view.

2. Calculate the number of pixels h(u) and the aver-

age Z-angle A

(u)

h(u) is the number of pixels having the same u coordi-

nates. Under the situation where the clothing surface

is curved in the horizontal direction, the points of the

same u have similar Z-angle. We calculate the aver-

age of them, A

(u). The yellow and red lines in Fig.

4(a) show h(u) and A

(u), respectively, in the coor-

dinates, (u,h(u)) and (u,A

(u)), illustrated by green

lines.

3. Find the Z-angle A

= A

), where

∑

u=0

h(u) >

The blue line in Fig. 4(a) represents u = u

, where

the area from the occluding line exceeds the desirable

overlapped area size S

. The pink circle that is the in-

tersection of the blue line and the red line shows A

is set based on the expected area size of the cloth-

ing item.

4. Determine the rotation angle A = A

− A

To have a common area of size S

, the Z-angle A

should be within the measurement limit range after

the A rotation; that is, A

+ A < A

. To consider the

maximum value under the condition, the next view

direction is set to A = A

− A

The left and right images in Fig. 4(b) show a

synthetic observation after rotating the item by A =

50 − 0 = 50 degrees, and its front-side area only. In

this study, we assume that only the 3D data of the side

of interest is segmented by pre-processing the data.

Fig. 4(c) is the ﬂattened view calculated from this 3D

data using the method explained in Section 3.

4.2 Alignment of Two Flattened Views

The initial estimate of the alignment is also deter-

mined based on the Z-angle. First, the h

(u) and

(u) of the additional ﬂattened view are calculated,

where the superscript 1(0) corresponds to the addi-

tional (current) ﬂattened views. The yellow, red, and

orange lines in Fig. 4(d) show the h

(u), A

(u), and

(u) − A. The last value represents the Z-angle be-

fore A-degree rotation, that is, the value in the ﬁrst

(current) ﬂattened view. The overlap of the range

of A

(u) and the range of (A

(u) − A) represents the

range of the Z-angle of surface points that are ob-

served in both data.

To ﬁnd the corresponding pixels between the two

ﬂattened views, pixels with the Z-angle of the median

value of the overlapped range, A

, are detected from

the current ﬂattened view, whereas pixels with the Z-

angle of (A

+ A) are detected from the additional

ﬂattened view. The red points in Fig. 4(e) represent

the pixels. Then, the ﬁrst principle axes of the de-

tected pixels on the images are calculated as shown

by the blue lines in Fig. 4(e). Pixels that have the

same z value (height in the 3D space) along the lines

are searched to ﬁnd a pair of corresponding pixels.

The initial estimate of 2D translation and 1D rotation

are determined so that the corresponding pixels and

lines coincide. Fig. 4(f) shows the initial estimate.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

914

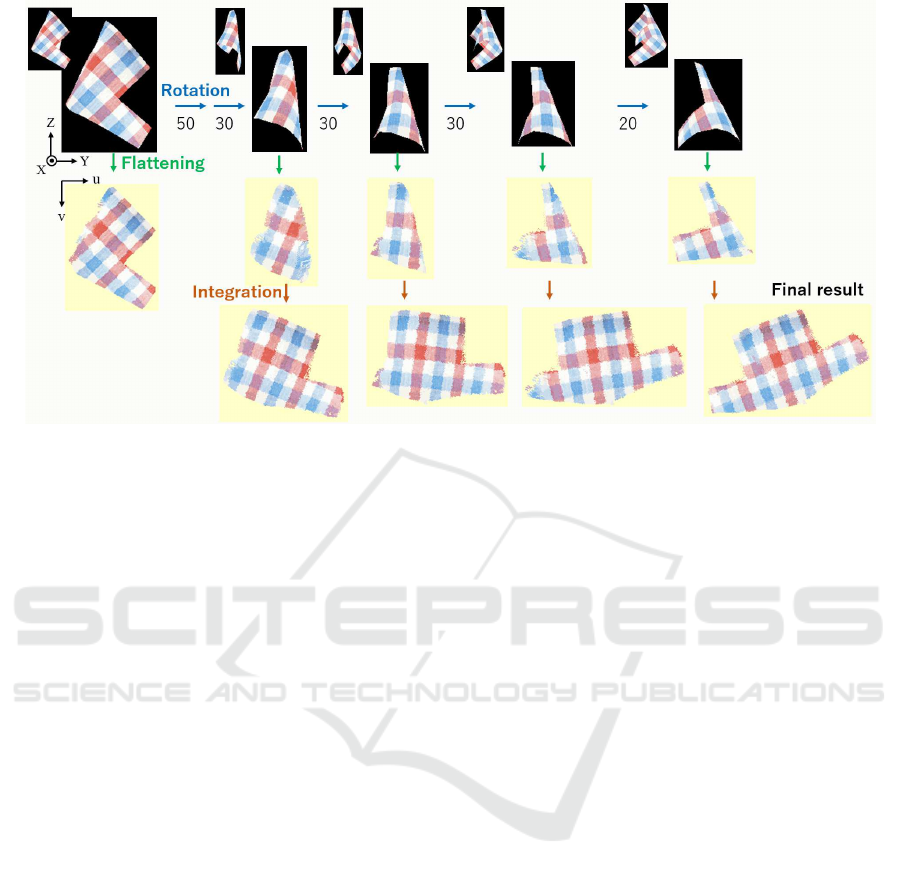

Figure 5: Experimental results using the synthetic data of a long-sleeved shirt.

The ﬁnal alignment is obtained by searching the best

match by adding some translational and rotational dis-

turbance to the initial state. As criteria to assess the

goodness of the alignment, we use the intensity and z

(height) attributes of the ﬂattened views.

4.3 Renewal of the Flattened View

When a pixel in the renewed ﬂattened view has two

observed data from both the current and additional

ﬂattened view, the data of the latter is selected in the

half area that includes the occluding edge. In the other

half side, the Z-angle of the corresponding pixels is

checked and the data that has a smaller absolute an-

gle is selected because the 3D data observed with a

smaller absolute Z-angle is more reliable. The orien-

tation of the renewed ﬂattened view is set as the same

as the additional ﬂattened view, so that the angle dif-

ference from the next-added ﬂattened view becomes

smaller. Fig. 4(g) shows the renewed ﬂattened view.

5 EXPERIMENTS

To examine the validity of the proposed method and

also its practical applicability, we conducted experi-

ments using both artiﬁcial data and the data of actual

clothing items observed by an RGB-D sensor. Long-

sleeved shirts and trousers were used in the both ex-

periments because they are two typical clothing types

and have more a complicated shape than other types,

such as skirts. We assume the scenario in which a

robot grasps a clothing item at its lowest point after

arbitrary picking it up, which is often used to decrease

the shape variation. After this basic action, the cloth-

ing item should be held at any tip of the sleeves/legs

or any corner of the bottom/top lines. In both experi-

ments, the minimum and maximum angle of rotation

were set to 10 and 50 degrees, respectively, with the

selection step of 10 degrees.

5.1 Experiments using Artiﬁcial RGB-D

Data

Artiﬁcial RGB-D data were generated from the 3D

shape obtained by synthetically deforming the two

models in Fig. 3 using Maya nCloth(GOULD, 2004).

Fig. 5 shows a case in which a long-sleeved shirt

was held at a corner of the waist. The top left im-

age in Fig. 5 shows the starting view, which had the

largest observed area, and the image below is its ﬂat-

tened view obtained using the method described in

Section 3. From the leftmost and rightmost Z-angle

values, -49.0 and 20.0, respectively, only the left part

was searched for occluded parts of the surface. Using

the method described in Section 4, the ﬂattened view

was extended gradually using observed data obtained

by rotating the item by 50, 30, 30, 30, and 20 degrees,

as shown in Fig. 5. For the views in which only a

small part of the surface was visible, the rotation an-

gles were determined to be smaller. As a result, six

effective observations, the view direction of 0, -50, -

80, -110, -140, and -160 degrees from the initial state,

were used, which led to efﬁcient and good ﬂattening

(the bottom right image).

Integration of Multiple RGB-D Data of a Deformed Clothing Item into Its Canonical Shape

915

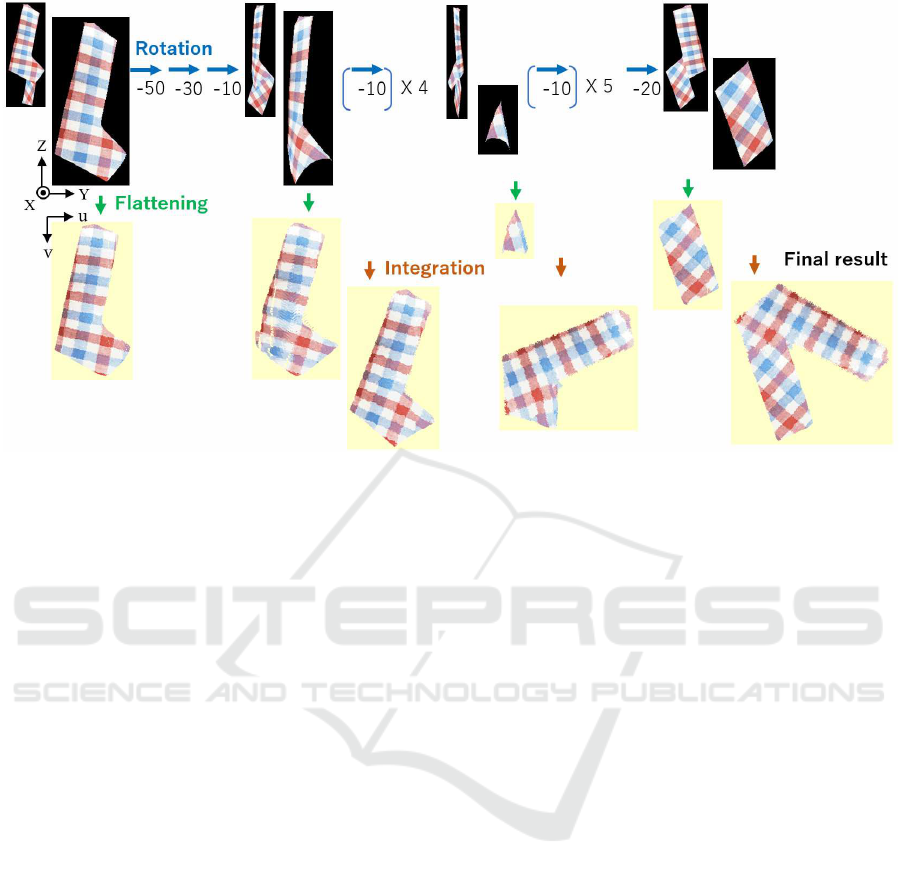

Figure 6: Experimental results using the synthetic data of trousers.

Fig. 6 shows a case in which trousers were held

at the tip of one leg. In this case, the fold at the joint

of the thigh of one leg was fairly steep. As a result,

within a long range of -90 to -180 degrees from the

initial state, only a small part of the surface was visi-

ble. The proposed method properly decreased the ro-

tation angles in the range so that it succeeded in ob-

taining the entire surface, as shown in the ﬁnal result.

The view directions used were 0, 50, 80, 90, 100, 110,

120, 130, 140, 150, 160, 170, 180, and 200 degrees.

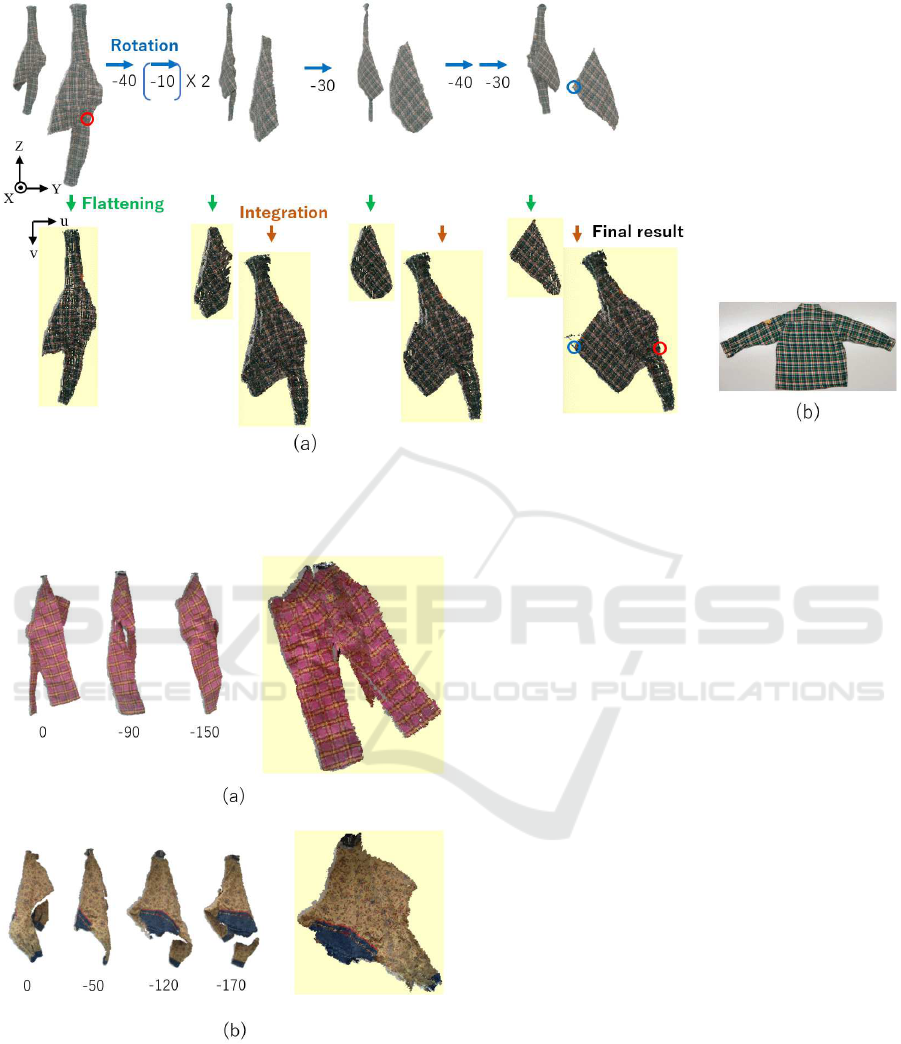

5.2 Experiments using Real Clothing

Items

We also conducted preliminary experiments using

real clothing items by observing them using an RGB-

D sensor: RealSense D435 (RealSense, 2020). Each

clothing item was hung at any tip of the sleeves/legsor

any corner of the bottom/top lines and captured while

it was rotated by 10 degrees around the vertical axis

through the holding position. As noted previously, the

3D data that belongs to one side of the surface of in-

terest should be extracted from all the observed data

before applying the proposed method. We found that

the 3D data outputted from RealSense were strongly

smoothed, and two surfaces were often smoothly con-

nected. Because this made automatic segmentation

very difﬁcult, we manually extracted the 3D data of

only the surface of interest.

Fig. 7(a) shows the results of the ﬂattening of a

long-sleeved shirt with a green checkered pattern held

at the tip of a sleeve. Seven views were selected to

obtain the ﬂattened view of the entire surface, specif-

ically, taken from 0, -40, -50, -60, -90, -130, and -160

degrees from the initial view direction. Although the

resultant ﬂattened view, shown in Fig. 7(c), is not as

realistic compared with the physically ﬂattened shape

shown in Fig. 7(b), it has a sufﬁciently close shape

to enable the recognition of the clothing type and ap-

proximate size.

Fig. 8 shows another two results. Fig. 8 (a) shows

the result of a pair of trousers when it was held at a

corner of the waist. An entire surface was ﬂattened

using seven view directions: 0, -50, -70, -80, -90,-

100, and -150 degrees. However, the ﬂattening of the

trousers held at the tip of one leg failed at the steep

fold of one leg. Although the 3D shape was similar

to the synthetic shape in Fig. 6, actual sensor data

did not have sufﬁcient resolution to correctly align the

ﬂattened views of small parts.

Although an entire surface was ﬂattened when a

long-sleeved shirt with a small ﬂoral print was held

at a tip of one sleeve, ﬂattening failed when the same

item was held at a corner of the bottom line, as shown

in Fig. 8 (b). The failure occurred when the proposed

method attempted to add the ﬂattened view of -170

degrees to the ﬂattened view integrated up to -120 de-

grees (the right image) because of the wrong initial

estimate of the alignment. This occurred because the

corresponding lines based on the Z-angle were badly

determined because of the planarity of the overlapped

area. To avoid this, the approach to ﬁnding initial cor-

respondences should be improved rather than using

only surface points with the medium value of the Z-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

916

Figure 7: Experimental results using an actual long-sleeved shirt: (a) ﬂattening processes; and (b) photo of the item physically

ﬂattened on a table.

Figure 8: Experimental results using two more clothing

items: (a) ﬁnal ﬂattened view with 3D views used for in-

tegration (trousers with a pink checkered pattern); and (b)

ﬁnal ﬂattened view (failed) with 3D views used for integra-

tion (a long-sleeved shirt with a small ﬂoral print).

angle range of commonly observed points. However,

even though this ﬂattened view was not an entire view,

it looked informative to assess the clothing type.

6 CONCLUSION

We proposed a method of deriving the canonical

shape of a clothing item held in the air by a robot

hand. The method is based on the virtual ﬂattening of

a deformed clothing surface onto a 2D plane. Since

the ﬂattened view calculated from the RGB-D data

observed from one direction is partial, ﬂattened views

obtained from different view directions are integrated

on the 2D plane to get whole surface. The method

also automatically calculates the view direction which

efﬁciently add parts unseen by the time.

From the experimental results, the resultant ﬂat-

tened shape was close to its canonical shape, which is

beneﬁcial for recognizing the clothing item. It should

be noted that the resultant canonical shape was not as

realistic, but had the advantage that each pixel had a

link to the 3D point of the current deformed shape.

The red circle (shoulder) and blue circle (corner of

the bottom line) in Fig. 7 show examples. There-

fore, once the next action is decided based on clothing

type recognition, such as “grasp one of the shoulders

(or one of the corners of the bottom line)” for shirts,

the robot can immediately know how and to where it

should move its hand to perform the action.

A problem that remains is the automatic segmen-

tation of one surface from all the observed data; the

difﬁculty of the problem largely depends on the accu-

racy of the 3D sensor used.

Integration of Multiple RGB-D Data of a Deformed Clothing Item into Its Canonical Shape

917

ACKNOWLEDGEMENTS

The authors thank Dr. Y. Kawai and Mr. R. Takase

for their strong support of this research, especially 3D

data acquisition by Mr. Takase. This work was mainly

done while the ﬁrst author was at National Institute of

Advanced Industrial Science and Technology (AIST).

and was supported by a Grant-in-Aid for Scientiﬁc

Research, KAKENHI (16H02885).

REFERENCES

A. Doumanoglou, A. Kargakos, T.-K. K. S. M. (2014). Au-

tonomous active recognition and unfolding of clothes

using random decision forests and probabilistic plan-

ning. In International Conference in Robotics and Au-

tomation (ICRA) 2014, pages pp.987–993.

D. Triantafyllou, I. Mariolis, A. K. S. M. and Aspragathos,

N. (2016). A geometric approach to robotic unfolding

of garments. Robotics and Autonomous Systems, Vol

75:pp. 233–243.

E. Corona, G. Alenya, A. G. and Torras, C. (2018). Active

garment recognition and target grasping point detec-

tion using deep learning. Pattern Recognition, Vol.

74:pp. 629–641.

F. Osawa, H. S. and Kamiya, Y. (2007). Unfolding of mas-

sive laundry and classiﬁcation types by dual manip-

ulator. Journal of Advanced Computational Intelli-

gence and Intelligent Informatics, Vol. 11, No.5:457–

463.

Gould, D. A. D. (2004). Complete Maya Programming.

Morgan Kaufmann Pub.

Hu, J. and Kita, Y. (2015). Classiﬁcation of the category

of clothing item after bringing it into limited shapes.

In Proc. of International Conference on Humanoid

Robots 2015, pages pp.588–594.

I. Mariolis, G. Peleka, A. K. and Malassiotis, S. (2015).

Pose and category recognition of highly deformable

objects using deep learning. In International Confer-

ence in Robotics and Automation (ICRA) 2015, pages

pp.655–662.

Kita, Y. and Kita, N. (2016). Virtual ﬂattening of clothing

item held in the air. In Proc. of 23rd International

Conference on Pattern Recognition, pages pp.2771–

2777.

Intel RealSense depth camera D435

https://www.intelrealsense.com/depth-camera-d435/

on 03/21/2020

R. Grossmann, N. K. and Kimme, R. (2002). Com-

putational surface ﬂattening:a voxel-based approach.

IEEE Trans. on Pattern Anal. and Machine Intelli.,

vol. 24, no.4.

Stria, J. and Hlavac, V. (2018). Classiﬁcation of hang-

ing garments using learned features extracted from

3d point clouds. In Proc. of Int. Conf. on Intelligent

Robots and Systems (IROS 2018), pages pp.5307–

5312.

T. Kawashima, S. Yabashi, H. K. Y. (1999). Meshless

method for searching geodesic line by using moving

least squares interpolation. In Research Report on

Membrane Structures, pages pp. 1–6.

Y.Kita and N.Kita (2019). Virtual ﬂattening of a clothing

surface by integrating geodesic distances from differ-

ent three-dimensional views. In Proc. of Int’l Conf. on

Computer Vision Theory and Applications (VISAPP

2019), pages 541–547.

Zhong, Y. and Xu, B. (2006). A physically based method

for triangulated surface ﬂattening. Computer-Aided

Design, Vol. 38:pp. 1062–1073.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

918
