Automatic Annotation and Segmentation of Sign Language Videos:

Base-level Features and Lexical Signs Classiﬁcation

Hussein Chaaban, Mich

ele Gouiff

and Annelies Braffort

Universit

e Paris-Saclay, CNRS, LIMSI, 91400, Orsay, France

Keywords:

LSF Videos, Annotations, Lexical Signs, Sign Segmentation.

Abstract:

The automatic recognition of Sign Languages is the main focus of most of the works in the ﬁeld, which

explains the progressing demand on the annotated data to train the dedicated models. In this paper, we present

a semi automatic annotation system for Sign Languages. Such automation will not only help to create training

data but it will reduce as well the processing time and the subjectivity of manual annotations done by linguists

in order to study the sign language. The system analyses hand shapes, hands speed variations, and face

landmarks to annotate base level features and to separate the different signs. In a second stage, signs are

classiﬁed into two types, whether they are lexical (i.e. present in a dictionary) or iconic (illustrative), using a

probabilistic model. The results show that our system is partially capable of annotating automatically the video

sequence with a F1 score = 0.68 for lexical sign annotation and an error of 3.8 frames for sign segmentation.

An expert validation of the annotations is still needed.

1 INTRODUCTION

Sign languages (SL) are natural gestural languages

that are used mainly by the deaf community. A SL

discourse consists of a sequence of signs performed

by the hands at a speciﬁc location and conﬁguration,

accompanied by non-manual components like facial

expressions and upper body movements. These se-

quences of manual and non manual components make

it possible to transmit information in parallel during

the discourse.

Currently several studies are interested in the

problem of the automatic processing of SL, and more

particularly of the recognition of the lexical signs,

which are only one of the type of signs present in a SL

discourse. In the following, for simpliﬁcation, we will

use the term SL recognition for lexical sign recogni-

tion. Although a large part of the lexical signs are

deﬁned in a dictionary, there is a very large variability

linked to the context during their realization. In ad-

dition, the signs are often separated by co-articulation

movements (transitions). This extreme variability and

the co-articulation effect represent an important prob-

lem in the automatic processing of SL research ﬁeld.

It is therefore necessary to have a huge number of

SL videos annotated, to study linguistic and to build

https://orcid.org/0000-0002-7152-4640

https://orcid.org/0000-0003-4595-7714

large data-sets for machine learning. SL are not well

understood nor described formally. Linguists and re-

searchers in Human Movement attempt to understand

which movement, which gesture or which body or

face components (from the eyebrows to the hands) are

key in forming a given message.

Certain annotation levels of SL videos require

to isolate each individual sign before describing the

hands movement and the facial/body events that ac-

company it. To date, the temporal segmentation and

motion descriptions of signs are carried out manually

using annotation tools such as ANVIL (Kipp, 2001)

or ELAN (Wittenburg et al., 2002)]. Though these

manual annotations present many problems. In addi-

tion to the signiﬁcant time required for this work, the

results are extremely variable because each annotator

has its own criteria to estimate the beginning and end

of the sign. This leads us to question ourselves on

the issue of temporal segmentation and to propose an

original approach to speed up this stage of video pro-

cessing to study the SL. Therefore, in this paper, we

propose an automatic annotation system for face and

body annotations such as mouthing, head direction,

location of signs. Also, the system segments auto-

matically signs, using hands movements without any

prior learning phase. In other words, no huge manu-

ally annotated data are required for automatic annota-

tion nor for segmentation. After that we propose an

484

Chaaban, H., Gouiffès, M. and Braffort, A.

Automatic Annotation and Segmentation of Sign Language Videos: Base-level Features and Lexical Signs Classiﬁcation.

DOI: 10.5220/0010247104840491

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

484-491

ISBN: 978-989-758-488-6

algorithm to classify the type of the segmented sign

using the automatically generated annotations. In the

next section we present some of the works done in

the SL processing ﬁeld. Sections 3, 4 and 5 describes

our proposed method. Then, Section 6 discusses the

evaluation method, the dataset on which we worked

on and the results. In the last section we present our

conclusions and the perspective of our work.

2 RELATED WORK

Nowadays, most of the works dedicated to the SL

processing are interested in the recognition of lexi-

cal signs. Many attempts of SL recognition are con-

ducted on isolated signs (Rastgoo et al., 2020), (Lim

et al., 2019). However, in a natural speech of SL, it

is often difﬁcult to ﬁnd precisely the beginning and

the end of each sign because of the problems of co-

articulation we mentioned before. In addition, most

of these works focus on speciﬁc datasets, made in

controlled environments (uniform background, signer

with dark clothes) and dealing with a speciﬁc topic,

such as weather (Koller et al., 2015). But the real

challenge in SL recognition remains in identifying dy-

namic signs, i.e. signs in continuous SL speech, and

most importantly independently of the signer (Liang

et al., 2018).

In the ﬁeld of SL recognition, the methods

which exploit Hidden Markov Models (HMM) re-

main among the most used (Fatmi et al., 2017), (Wang

et al., 2006). These approaches identify speciﬁc infor-

mation in a signal. It is then a question of comparing

the signal of a sign to a previously learned model. The

recognition and segmentation processes are then car-

ried out simultaneously. This poses a great limitation

in recognizing many types of iconic structures such as

the depicting signs, or classiﬁers (Cuxac, 2000) which

cannot be learned due to their excessively large num-

ber and their variability depending on the context. Re-

cently, with the great rise of the Convolutional Neu-

ral Networks in the machine learning ﬁeld, there was

no exception of deploying these networks for the SL

recognition. Many researchers adopted this technique

in their works as it showed high recognition rates (Rao

et al., 2018)]. But the main problem of this approach

is the need of enormous amount of annotated data to

train the network. Unfortunately this amount of data

is not easily available especially for non-American

sign languages. Therefore many attempts of recogni-

tion were limited to a certain number of signs (Pigou

et al., 2015).

Concerning automatic annotation of SL, some

works represent a sign as a series of movements

and conﬁguration and try to annotate the segments

by describing facial and body events as mouthing,

gaze, occlusion, hands locations, hand shapes, and

movements without any information about the signs

themselves (Naert et al., 2018), (Yang et al., 2006).

(Lefebvre-Albaret and Dalle, 2008) worked on the au-

tomatic segmentation and annotation of signs to pro-

vide reusable data for virtual signers animation. Their

algorithm is based exclusively on the 2D movements

of the hands in the video. But it requires a human

operator to point, during the viewing of the video, a

frame (which they call primer) so that each sign has

one and only one primer. (Gonzalez Preciado, 2012)

proposed a better way to segment signs using hands

movements and conﬁgurations. The annotations pro-

vided are exclusively describing the hands with no in-

formation about the other non manual components.

3 FEATURES ANNOTATION

To study LS and use machine learning methods, it is

necessary to have loads of annotated videos. In anno-

tations, the linguists extract visual features from the

video. Using statistics on these collected manual and

non-manual features, linguistic models can be built.

These annotations are done manually by linguists or

SL experts. They are subject to error, depending on

the SL knowledge of the annotator. Furthermore, they

are non-reproducible and extremely time consuming.

Thus, automating this task would be a saving of time

and robustness.

The experts of SL can annotate the manual and

non manual components at various levels: from low

levels (face and body features and events) to high lev-

els (structure of the discourse). In our automatic an-

notation, we are interested in the automatic base level

features annotation. In Sign languages, these features

are the lowest level units are. They are meaningless

on their own. But they can be interpreted at a higher

level for annotating more complex linguistic units.

For example lexical level annotation can be generated

using features extracted at the base level. As far now,

there is no predeﬁned list of manual and non man-

ual components to annotate. In the literature, experts

try to annotate hand shapes, their locations, motion,

direction, symmetry between them, mouthing, mouth

gestures, gaze and eyebrows.

3.1 Body and Face Landmarks

The ﬁrst step to annotate these base level features, is

extracting the different body and face parts. Many

works used image segmentation techniques to locate

Automatic Annotation and Segmentation of Sign Language Videos: Base-level Features and Lexical Signs Classiﬁcation

485

these articulators. Those methods usually require spe-

ciﬁc environments and tools such as uniform back-

grounds, colored gloves,... In our work we use Open-

Pose (Cao et al., 2018) (ﬁgure.1), a recent real time

body pose estimation library, which provides the co-

ordinates of different body landmarks with high suc-

cess rates and OpenFace (Baltru

saitis et al., 2018)

(ﬁgure.2) a toolkit capable of facial landmark detec-

tion, head pose estimation, facial action unit recogni-

tion, and eye-gaze estimation.

Figure 1: Body landmarks using Openpose.

Figure 2: Face landmarks using OpenFace.

3.2 Controlled Vocabulary

Once we get the coordinates of the different body and

face landmarks, we proceed to calculate further fea-

tures such as mouthing, gaze, etc. In manual anno-

tation software, the ensemble of these features are

called controlled vocabulary. Till this date, there is

no one standard controlled vocabulary list deﬁned.

Each linguist annotates the events that are relevant

for his studies. With our automatic annotation sys-

tem, we annotate the features that are frequently an-

notated in the literature: mouthing, gaze/head direc-

tion, bi-manual motion, signing space and hands-head

distance. To annotate mouthing, we calculated the

isoperimetric ratio (or circularity) of the interior of

the lips using the coordinates provided by OpenFace

and the formula: IR =

4πa

where a is the area of the

interior of the lips and p is its perimeter. The higher

the ratio is, the more the mouth is open, which is an

indication of a mouthing. The hands-head distance

is simply calculated using the coordinates of both

wrists ((x

W Right

, y

W Right

),(x

W Le f t

, y

W Le f t

)) and nose

Nose

, y

Nose

) (center of the face). For the bi-manual

motion, we measure the speed and direction of each

hand ((V

W Right

),(V

W Le f t

)). The corre-

lation of these two information between the two hands

indicates whether these latter are symmetrical or mov-

ing in an opposite motion. To determine the loca-

tion of the sign in the space, we compare the abscissa

of the neck (x

Neck

) to the abscissas of both wrists

W Right

, x

W Le f t

) to decide if the sign is centered or

not. As for the gaze/head direction, we use OpenFace

directly for the task. The calculation of these fea-

tures is more detailed in our previous article (Chaaban

et al., 2019).

4 TEMPORAL SIGN

SEGMENTATION

Signs can be produced sequentially, separated by tran-

sitions and pauses. In order to study the grammar of

the SL or to automatically recognise them, one pos-

sible strategy consists in segmenting the video before

analyzing the resulting portions of videos. The tem-

poral segmentation of a sign means ﬁnding its bound-

aries, that is when the sign starts and when it ends.

In the manual annotation software, the linguists seg-

ment the signs manually, which takes hours of work.

In addition, the resulting segmentation is, as men-

tioned previously, non-reproducible since it depends

on the subjectivity of the annotator and his/her expe-

rience. We propose an algorithm that segments the

signs automatically using only hands motions, pauses

and hand shapes. The algorithm does not need any

learning phase thus annotated data are not required.

For the segmentation, we use the coordinates of both

wrists to calculate and draw the speed variation of

each hand (see ﬁgure.3a). Then, a Wiener ﬁlter is

applied to smooth-in the signal and the local max-

ima and minima of speed are detected (as shown by

ﬁgure.3b).

When comparing the detected minima and max-

ima in the signal to the beginning and the end of man-

ually annotated signs (disregarding the sign category

which we will discuss later on) we can see that each

sign starts with a maximum of speed of one or both

hands and ends with a minimum of speed, as can be

shown on Figure.4.

This observation is the basis for our temporal seg-

mentation algorithm. To avoid the over-segmentation

of signs that include repetitive movements, we rely

on the hand shapes. Since (Stokoe et al., 1976),

linguists describe the lexical signs using three para-

meters that are hands shapes, their locations and their

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

486

(a) Hands speed variation.

(b) Filtered speed with local minima and maxima.

Figure 3.

Figure 4: Annotated signs compared to the hands speed.

movements. While in some cases the hands shapes

may change during a sign, they remain stable most of

the time. Thus, after our initial segmentation using

the hands speed, we scan the video sequence a second

time and merge consecutive segmented signs of simi-

lar hand shape. These latter are mostly segments of a

repeated movements forming one sign. For the hand

shape detection, we use a pre-trained model that dis-

tinguish 60 different hand conﬁgurations developed

by (Koller et al., 2016). Our algorithm for sign seg-

mentation is represented in the diagram of the ﬁgure

5 SIGN TYPE ANNOTATION

In section 3, we presented the base level features an-

notation. As we described, at that level, the annotated

features are meaningless on their own. In this section,

Detect coordinates of both

wrists ((x

W R

, y

W R

) and

W L

, y

W L

)) using openpose

Draw hands

speed graphs

W R

, V

W L

)

Smoothing

using Wiener

ﬁlter

Detect local

minima and

maxima

Segment signs

using local min-

ima and maxima

of hands speed

Merge consecutive signs

with same hands shapes

Figure 5: The sign segmentation algorithm.

we use the automatically annotated manual and non

manual components to annotate a more meaningful

features on a higher level: the lexical level. For this

level, we do not annotate the meaning of the signs

as we do not have enough data for it, but rather their

types. (Cuxac, 2000) described two main types of

signs: the lexical signs (LS) which are convention-

alized signs that can be found in a dictionary and the

highly iconic structures (HIS) (depicting signs or clas-

siﬁers) which are signs that are partly conventional-

ized and partly context-dependant, their form changes

to describe sizes, shapes, situations and role play-

ing. With a conventionalized form, therefore easier to

identify, we are more intrigued in annotating the lex-

ical signs after the segmentation. The automatic an-

notation of lexical signs will deﬁnitely save time for

the linguists to study the SL in comparison to manual

annotation. Furthermore these annotations will accel-

erate the automatic recognition of signs since the dic-

tionary of candidate signs will be reduced almost to

half the size by dividing it into two classes: lexical

signs and non-lexical signs.

In the literature, the automatic annotation of lex-

ical signs is almost absent. Most of the works study

the automatic recognition of signs. For that reason,

we had to explore the ﬁeld to discover which man-

ual and non manual features allow us to identify the

Automatic Annotation and Segmentation of Sign Language Videos: Base-level Features and Lexical Signs Classiﬁcation

487

lexical signs. We started by an analysis study for

each of the features that we automatically annotated.

In this study we represented the occurrence of each

of the features during the production of each type of

signs. The type of the signs were annotated manually

by an expert on the video sequences. The resulting

histograms showed that the distribution of mouthing,

head direction, location of signs in the space and the

hand-head distance are normal distributions with two

distinct peaks for each type of signs. We drew the

histograms for the 4 features. As an example, ﬁgure.6

shows the mouthing distribution between two types of

signs w.r.t the isoperimetric ratio of the mouth. The

other histograms (of the other features) have a similar

shape, i.e. two semi separated peaks. The correla-

tion ratio between the various features, displayed in

Table.1, shows that they are not correlated, in other

words independent.

Table 1: Correlation between the different features (M:

Mouthing, H-D: Head Direction, Bi-M: Bimanual Motion,

S-L: Sign Location, HH-D: Head-Hand Distance).

Features M H-D Bi-M S-L HH-D

M 1 0.102 0.003 0.039 0.175

H-D 0.102 1 0.035 0.293 0.052

Bi-M 0.003 0.035 1 0.060 0.020

S-L 0.039 0.293 0.060 1 0.114

HH-D 0.175 0.052 0.020 0.114 1

Figure 6: Histogram of mouthing occurrence (represented

by the isoperimetric ratio of the mouth) during the produc-

tion of lexical signs and HIS.

Using these histograms, the average µ

and the vari-

ance σ

of each feature x

, we built a probability dis-

tribution model (ﬁgure.7) with the equation for a nor-

mal distribution parameterized by µ

and : σ

P(x = x

| C) =

2πσ

−

−µ

)

2σ

(1)

Where C is the class of the sign: lexical or not.

To annotate the new frames of the new SL video

sequences as lexical sign frames, the models are com-

bined into one decision rule, as follows:

P(Lexical | F1, F2, F3, F4) = P(Lexical)

∏

i=1

P(x

| Lexical).

(2)

P(Lexical | F1, F2, F3, F4) = P(Lexical)

∏

i=1

P(x

| Lexical).

(3)

where F1 is Mouthing, F2 is head pose, F3 is sign

location and F4 is hand-head distance ( the bimanual

motion feature was dropped of our study as it did not

add any weight to the classiﬁcation of the signs).

Figure 7: Probability distribution model for mouthing (us-

ing the isoperimetric ratio).

Then, we compare (2) and (3). If the result of (2) is

higher than the result of (3) the new frame is part of a

lexical sign, otherwise it is considered as non-lexical.

After the temporal segmentation in section 4, a classi-

ﬁer is applied on every frame of each segmented sign.

A segment is classiﬁed as lexical when the majority

of frames are classiﬁed as lexical, otherwise it is con-

sidered as non-lexical.

6 EXPERIMENTAL METHOD

In this section, we present the performances of our

system to automatically annotate base level features,

segmentation and sign category (lexical or not). To

our knowledge, there is no public dataset with simi-

lar automatic annotations, on which to compare our

results. Thus, our evaluation is based on quantita-

tive measures of the segmentation and classiﬁcation

of lexical signs only in comparison to a ground truth

dataset manually annotated by an expert.

6.1 Dataset

The dataset used in our work is a portion of MOCAP

dataset: a collection of 2D RGB videos in French

Sign Language. The dataset includes 49 videos with

4 different signers ﬁlmed from hip up face view and

The corpus is downloadable here (for research only):

https://www.ortolang.fr/market/corpora/mocap1.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

488

equipped with motion detectors for 3D representation

(ﬁgure.8) used other study purposes since this dataset

was not produced speciﬁcally for our work. We note

that the presence of the motion detectors did not pre-

vent the detection of face, hands and body keypoints

in our 2D RGB image study. The length of the videos

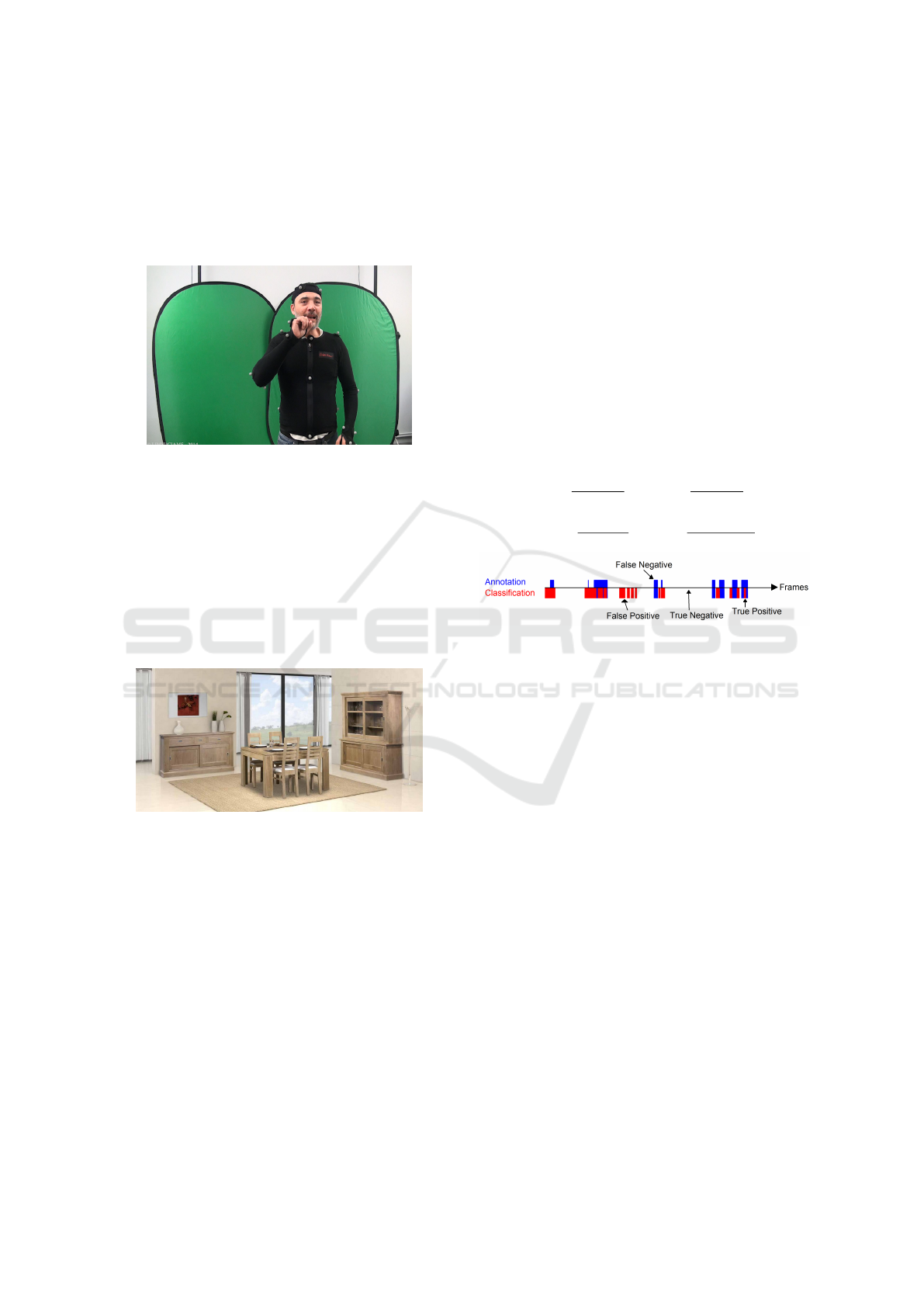

Figure 8: One frame of the MOCAP dataset.

varies from 15 to 34 seconds with an average of 24

seconds, and the dataset contains a total 19.63 min

of videos. In each video, the signer was asked to

describe an image that represents a scene such as a

living room (ﬁgure.9) or a forest. 25 images were

chosen delicately to have a variation between lexical

signs and HIS. The segmentation and the annotation

of sign type (Lexical and HIS) were done manually

by an expert: 1011 signs were annotated, 709 were

lexical signs and 304 were HIS.

Figure 9: Examples of scenes to be described by the signers.

6.2 Evaluation

As described before, our algorithm starts by annotat-

ing features such as mouthing, head direction, loca-

tion of sign. Then, using hand motions, the frames

are scanned to ﬁnd the boundaries of each sign seg-

ment. After that, the automatically generated features

and a portion of manual annotations provided by an

expert are used to create a probabilistic model. The

latter classiﬁes the segmented signs into lexical and

non lexical signs.

In this section, we measure the performance of

the algorithm to locate the lexical signs and ﬁnd its

boundaries in comparison to the ground truth. Since

our ground truth is based on manual annotations

which are dependent on the annotators knowledge and

experience, the evaluation results have to be taken

with caution.

As we described in section 6.1, our dataset is di-

vided into training data and testing data. For the eval-

uation, we compare the automatically generated an-

notation ﬁles to the rest of the manual annotations

which were not used in the learning phase to create

the classiﬁer. Using the testing dataset, we count the

number of true positives (TP) of the detected signs,

the false positive (FP), the true negative (TN) and the

false negative (FN) ones. We consider that a lexical

sign is correctly detected when 3 consecutive frames

classiﬁed as lexical fall in the range of the manually

annotated sign (ﬁgure. 10). Then we compute the TP

and TN rates (TPR and TNR), i.e. the sensitivity and

the speciﬁcity, the positive prediction value (PPV) (or

precision) and F1-score:

T PR =

T P

T P +FN

T NR =

T N

T N +FP

PPV =

T P

T P +FP

= 2

PPV .T PR

PPV + T PR

Figure 10: Counting of False/True Positives and False/True

Negatives.

We calculated the same measures with frame by frame

comparison were each frame from the automatic an-

notations is compared to the corresponding frame in

the manual annotations to determine whether it’s a TP,

FP, TN, or FN frame to give an approximate measure

on the precision of the classiﬁcation in terms of seg-

mentation. The performance of the proposed segmen-

tation approach has been quantitatively evaluated as

well. For each detected sign, we calculate the dif-

ference between the ﬁrst frame of the automatically

segmented lexical sign and the ﬁrst frame of the man-

ually segmented lexical sign. We do the same thing

for the last frames of both automatically and manu-

ally segmented lexical signs. The mean of the sum of

both differences over all the correctly detected lexical

signs represents the segmentation error of our algo-

rithm. The results of the segmentation using the hands

motion alone and the hands motion corrected by the

hands shapes are compared as well.

6.3 Results

The results of our method are evaluated for each

signer individually and then combined to check if the

classiﬁcation is independent of the signer.

Automatic Annotation and Segmentation of Sign Language Videos: Base-level Features and Lexical Signs Classiﬁcation

489

Intra-signer Study. For each signer, the videos and

their corresponding manual annotations are divided

into 3 subsets L

, L

and L

. Two of them (L

, L

) =

, L

), (L

, L3), (L

, L

) are used for learning and

the last one for testing. A cross-validation is per-

formed, by collecting the results of each experiment.

Inter-signer Study. Here, the videos are divided into

4 subsets L

, L

and L

, each subset includes all

the videos from the same signer. Again we tried all

the different combinations of subsets for learning and

testing with three subsets for learning and one subset

for testing.

Firstly, the performance measures for intra and inter-

signer studies were calculated after a temporal seg-

mentation using only the hands motion. Then we cor-

rected the segmentation with the hands shapes and re-

calculated the performance measures. The averages

and standard deviations of both experiments and for

both studies are shown in the tables 2, 3, 4 and 5.

Table 2: Results for intra-signer classiﬁcation after a seg-

mentation based on the hands motion only. The shown

values are the average of all the results coming from each

signer separately.

TPR TNR PPV F1 score

µ σ µ σ µ σ µ σ

0.65 0.08 0.60 0.13 0.52 0.09 0.57 0.05

Table 3: Results for intra-signer classiﬁcation after a seg-

mentation based on the hands motion and hands shapes.

TPR TNR PPV F1 score

µ σ µ σ µ σ µ σ

0.78 0.05 0.62 0.12 0.65 0.10 0.70 0.04

Table 4: Results for inter-signer classiﬁcation after a seg-

mentation based on the hands motion only: averages of all

the results coming from all signers combined.

TPR TNR PPV F1 score

µ σ µ σ µ σ µ σ

0.70 0.11 0.51 0.14 0.45 0.11 0.53 0.05

Table 5: Results for inter-signer classiﬁcation after a seg-

mentation based on the hands motion and hands shapes.

TPR TNR PPV F1 score

µ σ µ σ µ σ µ σ

0.83 0.08 0.52 0.13 0.56 0.10 0.66 0.05

The tables show that our algorithm is able at a certain

level of annotating automatically the lexical signs.

The similarity between the results obtained for intra-

signer and for inter-signer experiments indicates that

our algorithm is signer independent. When compar-

ing the results of classiﬁcation after segmentation us-

ing only hands motion and segmentation using both

hands motion and shapes, we can see clearly that the

use of the hands shapes to correct the segmentation

was beneﬁcial.

To evaluate the performance of our segmentation

technique, we calculated the same metrics with frame

by frame comparison between manual annotations

and automated annotations. The results are shown

in table 6. These results though do not reﬂect the

real performance of the segmentation approach as it

includes the false positive and the false negative de-

tected signs. Therefore we isolated the true positive

detected signs and measured the ability of our algo-

rithm to detect precisely the beginning and the end of

each correctly detected sign. We calculated for each

sign the number of frames between the detected be-

ginning frame and the annotated beginning frame as

well as the difference between the detected end frame

and the annotated end frame. The average of this dif-

ferences was 3.8 frames which represents our error

range. Our automatic annotation algorithm is not per-

fect, and we cannot pretend that our annotations can

be used directly for other linguistic studies. An expert

validation for the automatic annotations is needed af-

ter every processing. Thus our work can be consid-

ered as an assistance tool which can with no doubt

simplify the annotation of face/body features and lex-

ical signs for the linguists and reduce the time spent

for the process.

Table 6: Frame by frame evaluation. The shown values are

the average of all the results coming from each sign and all

signers combined after a segmentation using hands motion

and shapes.

TPR TNR PPV F1 score

µ σ µ σ µ σ µ σ

0.62 0.02 0.55 0.04 0.29 0.02 0.39 0.01

The limitations of our algorithm are due to several

factors starting with the particularity of the sign lan-

guage and its grammar, as some lexical signs may

change form depending on the context and some were

created from the same repeatedly used HIS. Another

factor is the subjectivity of the annotations used for

training which makes our results subjective as well.

Some classiﬁcation errors were also due to the errors

in the detection of facial and body landmarks.

7 CONCLUSIONS

This paper has proposed a tool that will be useful

for linguists to pre-annotate Sign Language videos.

We started by annotating face and body features such

as mouthing, sign location, etc. Then we detailed a

temporal segmentation of lexical signs in video se-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

490

quences. The segmentation was carried out by con-

sidering only the information coming from the hands,

which makes our method applicable to all sign lan-

guages. We ﬁrst used the hands motion calculated us-

ing body landmarks provided by OpenPose. Then we

corrected the segmentation using the hands shapes.

Once we got all signs isolated individually, we built

a probabilistic model using a portion of MOCAP

dataset which was annotated manually by an expert.

The model was used as a classiﬁer to distinguish lexi-

cal and non lexical signs. To evaluate our algorithm of

classiﬁcation we used the sensitivity, the speciﬁcity,

the precision and the F1 score metrics. The results

showed that our algorithm was capable of detecting

the lexical signs with a F1 score = 0.68 and that the

use of hands shapes for segmentation improved the

detection (F1 score improved by 0.13). To evaluate

the segmentation approach we calculate the average

difference between the beginning and end frames of

annotated and detected signs (3.8 frames). In the fu-

ture, we will try to reﬁne both of the segmentation

and the classiﬁcation results by including more fea-

tures that could be useful for the task. On a parallel

axis, we will use the set of the annotated features to

create sub-categories of signs based on the similarities

between features. Such categorisation would acceler-

ate the process of automatic recognition, make it more

efﬁcient.

REFERENCES

Baltru

saitis, T., Zadeh, A., Chong Lim, Y., and Morency,

L.-P. (2018). Openface 2.0: Facial behavior analysis

toolkit. IEEE International Conference on Automatic

Face and Gesture Recognition.

Cao, Z., Hidalgo, G., Simon, T., Wei, S.-E., and Sheikh,

Y. (2018). OpenPose: realtime multi-person 2D pose

estimation using Part Afﬁnity Fields. arXiv preprint

arXiv:1812.08008.

Chaaban, H., Gouiff

es, M., and Braffort, A. (2019). To-

wards an Automatic Annotation of French Sign Lan-

guage Videos: Detection of Lexical Signs, pages 402–

412.

Cuxac, C. (2000). La langue des signes franc¸aise (lsf). les

voies de l’iconicit

e. Biblioth

eque de Faits de Langues,

(15-16). Paris: Ophrys.

Fatmi, R., Rashad, S., Integlia, R., and Hutchison, G.

(2017). American sign language recognition using

hidden markov models and wearable motion sensors.

Gonzalez Preciado, M. (2012). Computer Vision Methods

for Unconstrained Gesture Recognition in the Context

of Sign Language Annotation. Theses, Universit

e Paul

Sabatier - Toulouse III.

Kipp, M. (2001). Anvil - a generic annotation tool for mul-

timodal dialogue. INTERSPEECH.

Koller, O., Forster, J., and Ney, H. (2015). Continuous

sign language recognition: Towards large vocabulary

statistical recognition systems handling multiple sign-

ers. Computer Vision and Image Understanding 141,

pages 108–125.

Koller, O., Ney, H., and Bowden, R. (2016). Deep hand:

How to train a cnn on 1 million hand images when

your data is continuous and weakly labelled. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 3793–3802, Las Vegas, NV, USA.

Lefebvre-Albaret, F. and Dalle, P. (2008). Une approche de

segmentation de la langue des signes franc¸aise.

Liang, Z.-j., Liao, S.-b., and Hu, B.-z. (2018). 3D Convolu-

tional Neural Networks for Dynamic Sign Language

Recognition. The Computer Journal, 61(11):1724–

1736.

Lim, K., Tan, A., Lee, C.-P., and Tan, S. (2019). Isolated

sign language recognition using convolutional neural

network hand modelling and hand energy image. Mul-

timedia Tools and Applications, 78.

Naert, L., Reverdy, C., Caroline, L., and Gibet, S. (2018).

Per channel automatic annotation of sign language

motion capture data. Workshop on the Representa-

tion and Processing of Sign Languages: Involving the

Language Community, LREC. Miyazaki Japan.

Pigou, L., Dieleman, S., Kindermans, P.-J., and Schrauwen,

B. (2015). Sign language recognition using convolu-

tional neural networks. volume 8925, pages 572–578.

Rao, G., Syamala, K., Kishore, P., and Sastry, A. (2018).

Deep convolutional neural networks for sign language

recognition. pages 194–197.

Rastgoo, R., Kiani, K., and Escalera, S. (2020). Video-

based isolated hand sign language recognition using a

deep cascaded model. Multimedia Tools and Applica-

tions.

Stokoe, W., Casterline, D., and Croneberg, C. (1976). A

dictionary of american sign language on linguistic

principles (revised ed.). [Silver Spring, Md.]: Linstok

Press.

Wang, H., Leu, M., and Oz, C. (2006). American sign

language recognition using multidimensional hidden

markov models. Journal of Information Science and

Engineering - JISE, 22:1109–1123.

Wittenburg, P., Levinson, S., Kita, S., and Brugman, H.

(2002). Multimodal annotations in gesture and sign

language studies. LREC.

Yang, R., Sarkar, S., Loeding, B., and Karshmer, A. (2006).

Efﬁcient generation of large amounts of training data

for sign language recognition: A semi-automatic tool.

pages 635–642.

Automatic Annotation and Segmentation of Sign Language Videos: Base-level Features and Lexical Signs Classiﬁcation

491
