Visual-based Global Localization from Ceiling Images using

Convolutional Neural Networks

Philip Scales

, Mykhailo Rimel

and Olivier Aycard

LIG-MARVIN, Université Grenoble Alpes, 621 Avenue Centrale, Saint-Martin-d'Hères, France

Department of Computer science, Grenoble INP, 46 Avenue Félix Viallet, Grenoble, France

Keywords: Visual-based Localization, CNN, Mobile Robot.

Abstract: The problem of global localization consists in determining the position of a mobile robot inside its

environment without any prior knowledge of its position. Existing approaches for indoor localization present

drawbacks such as the need to prepare the environment, dependency on specific features of the environment,

and high quality sensor and computing hardware requirements. We focus on ceiling-based localization that is

usable in crowded areas and does not require expensive hardware. While the global goal of our research is to

develop a complete robust global indoor localization framework for a wheeled mobile robot, in this paper we

focus on one part of this framework – being able to determine a robot’s pose (2-DoF position plus orientation)

from a single ceiling image. We use convolutional neural networks to learn the correspondence between a

single image of the ceiling of the room, and the mobile robot’s pose. We conduct experiments in real-world

indoor environments that are significantly larger than those used in state of the art learning-based 6-DoF pose

estimation methods. In spite of the difference in environment size, our method yields comparable accuracy.

1 INTRODUCTION

Localization is essential for any autonomous or semi-

autonomous mobile robot. A robot must know its

pose relative to the environment to make decisions,

move or perform actions. In a broad sense, the goal of

localization is to provide the robot's pose. It can be a

pose in the world, in a specific environment or with

respect to another object. For global localization, the

robot must determine its pose without any prior

assumptions, enabling it to solve the Kidnapping

problem. As interest in social robotics rises, we are

seeing robots deployed in hospitals, malls, care

homes, and other populated indoor environments. We

consider the problem of globally localizing the robot

within crowded indoor environments.

Different sensors can be used to estimate motion

and/or acquire observations, the most frequently used

being laser range finders (LRFs) and cameras.

However, all sensors have their limitations, usually

making them applicable only in certain conditions

and/or environments. When using LRFs in crowded

environments, a large proportion of laser hits will

provide distances to people which is not relevant for

localization. Furthermore, laser range finders are

orders of magnitude more expensive than cameras.

There are also a number of solutions requiring some

modification of the environment, such as setting up

wireless beacons, or installing artificial landmarks

and visual features. We aim to avoid modifying the

environment, since this may not be possible, or may

be too costly in some real-world applications. When

solving a localization problem, the map of the

environment may or may not be given as input. If the

map is not given, the problem is Simultaneous

Localization and Mapping (SLAM) (Bailey and

Durrant-Whyte, 2006), which we don’t consider.

We aim to develop a real-time framework for the

indoor global localization of a wheeled mobile robot,

which can be applied in crowded environments with

varying lighting conditions. As a first step towards a

complete framework, in this paper, we provide a

method for estimating the robot’s pose from a single

ceiling image. This method can be used with mid-

range, relatively low-cost hardware. Additionally, our

method is straightforward to implement, and all its

dependencies are open-source software. We propose

to use a supervised learning approach —

Convolutional Neural Networks (CNNs) — to

estimate the robot’s 2-DoF position and orientation

angle from a single ceiling image taken by a fisheye

camera mounted on the robot.

Scales, P., Rimel, M. and Aycard, O.

Visual-based Global Localization from Ceiling Images using Convolutional Neural Networks.

DOI: 10.5220/0010248409270934

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

927-934

ISBN: 978-989-758-488-6

927

2 RELATED WORK

Given the assumptions we made in the Introduction,

in this section we focus on the review of vision-based

methods for mobile robot localization. These methods

can vary depending on where the camera is mounted,

how features are extracted from the acquired images,

and in which environment the robot operates.

Some works (Jin and Lee, 2004; Delibasis et al.,

2015) use ceiling-mounted cameras to localize an

indoor mobile robot. The former uses neural networks

to detect a robot in an image and the latter uses

segmentation techniques with a robot marked with a

specific color. Front-facing cameras were used in

(Kendall et al., 2015; Kendall et al., 2017; Clark et al.,

2017; Brahmbhatt et al., 2018; Kendall et al., 2016)

to perform indoor and outdoor 6-DoF camera

relocalization. Although their task was not to localize

a mobile robot, their work is relevant. There are also

approaches for general place recognition (Zhang et

al., 2016) which do not provide sufficient accuracy

for robot localization. CNNs are useful in image

classification tasks since they are able to extract

features from images (Krizhevsky et al., 2012). The

CNN in (Kendall et al., 2015) is able to recognize

high-level features, such as building contours, and

learns the relation between those features and the

pose of the camera. This allows them to regress the 6-

DoF pose from an RGB image in real-time.

An alternative is to mount an upwards-facing

camera on top of the robot. We will refer to these as

ceiling-vision cameras, the first use of which was in

(King and Weiman, 1991). The earlier publications

relied on the presence of active lights on the ceiling

to perform localization, with (Thrun et al., 1999)

measuring the brightness of a local patch of the

ceiling above the robot. More approaches have been

developed since then including the use of artificial

markers (e.g. barcodes, April tags, infra-red beacons

etc.) (Nourbakhsh, 1998) and extracting primitives

(e.g. lines, corners etc.) (Jeong and Lee, 2005). In

(Thrun, 1998), ceiling-vision cameras and artificial

neural networks were used to recognize manually

defined high-level features. However, they used

individual networks for each feature, and their

experiments were limited to a corridor environment.

Approaches using a front-facing camera may fail

in situations where many dynamic obstacles obstruct

recognizable features of the environment. Our use of

a ceiling-vision camera aims to limit such

obstructions. Approaches using ceiling-mounted

cameras or artificial landmarks require the

environment to be modified, and the use of ceiling

lights is only feasible in environments where the

lights are constantly switched on. The use of

manually-defined high-level features makes it harder

to adopt the algorithm for various types of ceilings

composed of different types of panels or lamps.

There are a few fundamental differences between

the applications of our approach and those considered

for camera relocalization (Kendall et al., 2015;

Kendall et al., 2017; Clark et al., 2017; Brahmbhatt et

al., 2018; Kendall et al., 2016). These works obtained

high 6-DoF pose accuracy (0.18-0.48m, 0.11-

0.17rad) using the 7-Scenes dataset (Zhang et al.,

2016) which was acquired in small indoor

environments (2-12m², 1-1.5m height). They also

evaluate their methods in larger outdoor

environments (875-50000m²), but the accuracy

obtained is insufficient for indoor localization of a

mobile robot (1.46-3.67m, 0.13-0.25rad). In contrast,

we aim to provide accurate localization at any point

of rooms of around 100m². Furthermore, images of

ceilings generally contain less visual features than

images from outdoor or 7-scenes datasets. Finally,

these works do not evaluate the performance of their

networks on more constrained embedded hardware

typical for indoor mobile robots.

A more recent work (Xiao et al., 2019) explores

how to ignore dynamic objects when performing

visual SLAM using deep CNNs.

3 METHODS

3.1 Overview

We combine the use of a ceiling-vision camera and

CNNs to estimate the pose of a mobile robot. Our

ceiling-image localization module takes a single raw

camera image as input, and outputs the position [x,y]

and orientation θ of the robot in the frame of an

existing map of the environment. We motivate our

choices in section 3.2.

Our localization module operates in two steps. In

step one, an image of the ceiling is acquired using a

camera mounted on top of a robot. The raw camera

image is pre-processed as described in section 3.3. In

step two, the pre-processed image is used as the input

to two CNNs, which were separately trained to

predict robot position and orientation from a ceiling

image. Position and orientation predictions are

combined to form the 3-DoF pose prediction which is

directly used for robot localization. In the scope of

this work, we do not consider applying additional

filters or sensor fusion. The CNN architectures are

described in section 3.4. Details of dataset

construction are given in section 3.5. The steps for

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

928

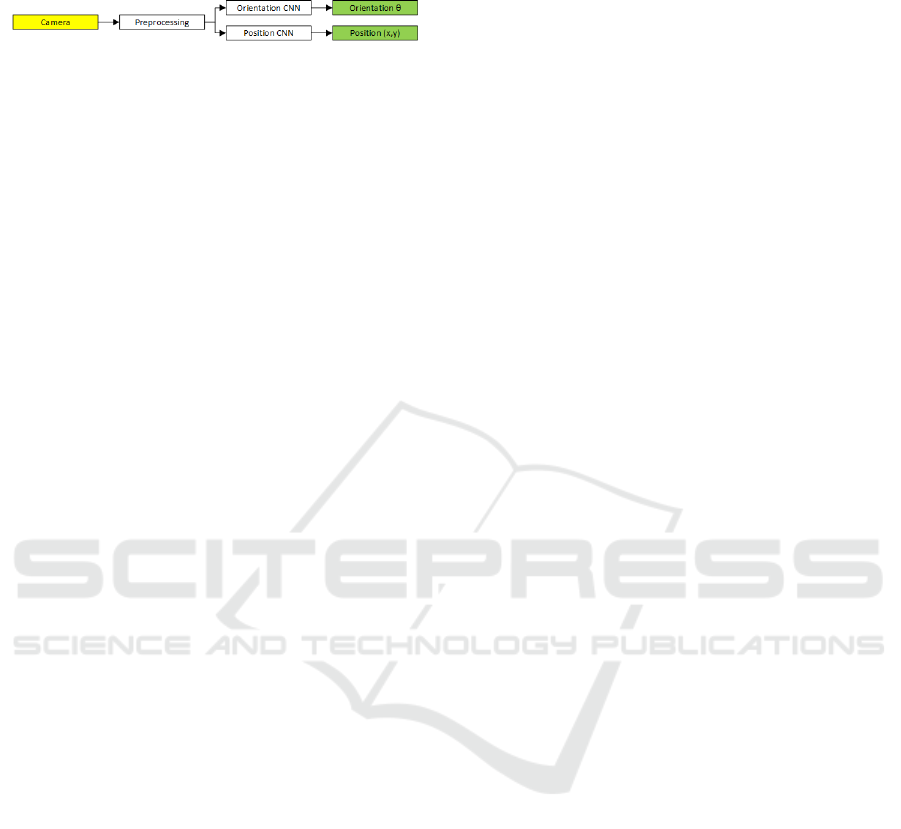

localizing the robot are summarized in Fig. 1. Pseudo-

code for the pose update is provided in Fig. 2.

Figure 1: Summary of the localization module.

3.2 Motivation

CNNs learn which features are relevant to a given

dataset and task, so applying our method to a new

environment requires only a new dataset and network

training, as opposed to manual tweaking of pre-

defined features. Inspired by works in the field of

place recognition and 6-DOF camera relocalization,

we use CNNs to estimate the 3-DoF pose of the robot

from an image. CNNs for complex tasks have a high

memory and computational cost. We split the task

into the estimation of the 2-DoF position, and

estimation of the orientation, each of which is treated

as a regression problem solved by a separate CNN.

This was more accurate than using a single CNN with

our architecture to regress the full 3-DoF pose.

Using only a ceiling image as input allows our

approach to provide immediate global localization,

without the need for an external initial pose

estimation as input or environment exploration phase.

Input: cameraImage img

Output: pose p

Algorithm:

img ← receive_image()

img ← resize(img, 160, 120)

img ← convert_to_greyscale(img)

img ← apply_clahe(img)

p.position ←

position_cnn.predict(img)

p.orientation ←

orientation_cnn.predict(img)

publish_pose(p)

Figure 2: Pseudocode of one localization cycle.

3.3 Image Pre-Processing

The input images to the CNN are obtained by

applying a pre-processing step to the camera images;

they are resized to a resolution of 160x120 pixels,

converted to greyscale, and contrast-limited adaptive

histogram equalization (CLAHE) (Pizer et al., 1987)

is applied to them. The image resolution was chosen

as a trade-off between the localization accuracy, and

the size and computational requirements of the CNN.

We decided to disregard the color information

because there are few color features on most ceilings.

CLAHE was applied to make the network less

sensitive to changes in ambient lighting.

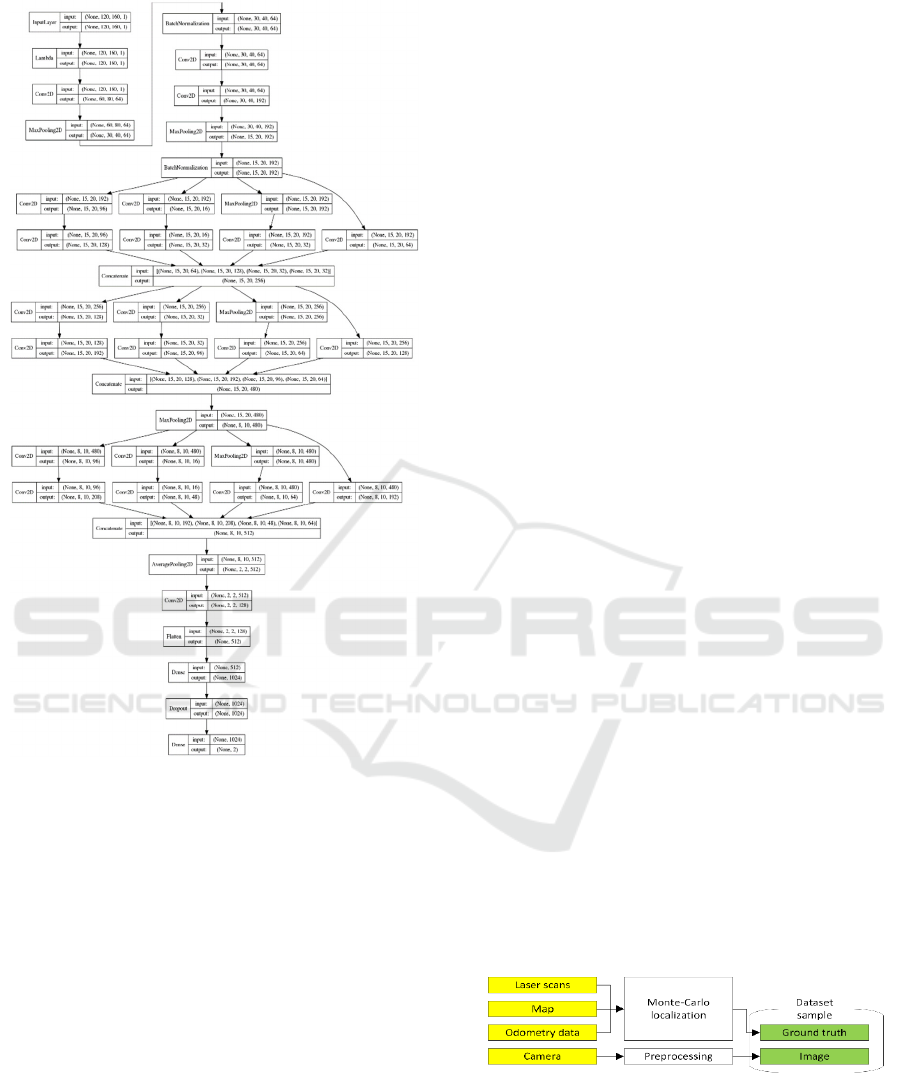

3.4 CNN Architectures

In order to design our CNN, we experimented with

various network architectures. We decided to use the

same base CNN architecture to construct our position

and orientation CNNs, with the only difference being

the number of outputs. We base our final architecture

on only a sub-part of the GoogLeNet architecture

(Szegedy et al., 2015) because our task is different,

and we target a lower computational cost.

Starting with the full GoogLeNet architecture, the

process to build our CNN can be summarized as

follows: (1) we took the first part of GoogLeNet

(from Input to Softmax0 layer in Fig. 3 of (Szegedy

et al., 2015)); (2) we adapted existing layers to suit

our dataset and task by modifying the input layer to

suit our images, and by adapting the output layer for

regression; (3) we added Batch Normalization layers

after the first two Maxpool layers; (4) we adjusted

network hyperparameters. In the rest of this section,

we detail our changes to the original GoogLeNet,

with all unmentioned aspects left unchanged.

GoogLeNet can be understood as having two

auxiliary classifiers branching off from the main

classifier at earlier stages. Generally speaking, in

CNNs, early layers close to the input learn filters that

capture low-level features, and later layers closer to

the output capture high-level features. Ceilings are

usually made up of many lower-level features, such

as lines, edges, lamps, exit signs, and ceiling panels.

In contrast, GoogLeNet was designed to classify

images into 1000 categories, each of which required

the network to capture high-level features. This

observation led us to make use of only the first

auxiliary classifier, discarding other layers. The layer

parameters such as number of units, number and size

of filters, and their structure were left unchanged.

We adapted the input layer to our data by

changing the input shape to 160x120x1(width, height,

channels) in order to suit our images, which are

smaller than those used in GoogLeNet, and use only

one color channel. Consequently, the sizes of our

feature maps are different, and can be seen in Fig. 3.

We adapted the output layer by replacing the

softmax0 with a dense layer with one or two units for

orientation or position regression respectively.

Batch normalization (Ioffe and Szegedy, 2015)

consists in normalizing the inputs of a layer for each

batch of images. This allows us to limit overfitting by

improving regularization, which is especially needed

when using small datasets such as ours. We

introduced Batch normalization layers after each of

the first two MaxPooling layers, as seen in Fig. 3.

Visual-based Global Localization from Ceiling Images using Convolutional Neural Networks

929

Figure 3: CNN for position regression with layer types and

feature map shapes (best viewed on the digital version).

Hyperparameters are tuned to maximize a

network’s performance on a given task and dataset.

We experimented with various parameters

considering what worked best for our task, datasets,

and hardware. We used the Amsgrad stochastic

gradient descent optimizer (learning rate=0.001,

beta1=0.9, beta2=0.999, epsilon=10⁻⁷, decay=0)

(Reddi et al., 2018). We reduced the batch size for

training from 256 to 16 to account for our dataset size,

which is smaller than GoogLeNet was designed for.

This also reduced the memory requirements when

training the network, allowing us to target mid-range

hardware. For the task of position estimation, we

augmented the dataset by applying random rotations

to the images. Given that our camera was centered on

the robot, this was equivalent to capturing images

from the same position at different orientations.

PoseNet (Kendall et al., 2015) and other similar

works perform 6-DoF camera relocalization in town-

scale outdoor, and room-scale indoor environments.

These environments contain many high-level features

which are useful for camera relocalization. Since they

deal with a less constrained problem and high-level

features, they use larger networks. Our approach is a

smaller architecture that still maintains sufficient

representation capacity for our task.

3.5 Dataset Construction

The dataset required to train the CNNs is built by

teleoperating the robot in the environment in which it

will be deployed, while acquiring images of the

ceiling along with the corresponding ground-truth

poses. The images are pre-processed as described in

section 3.3. The quality of the CNN’s predictions

depends on the dataset, which is affected by the

conditions in which the images are acquired, as well

as the method by which the ground-truth pose is

acquired. Artificial and natural lighting conditions

were varied during data acquisition to improve the

CNN’s robustness. For artificial lighting, data was

acquired with all lights on, or all lights off. The

ground-truth pose is provided by an alternative

existing localization method. We used laser-based

Adaptive Monte-Carlo Localization (AMCL) (Fox et

al, 1999) coupled with an existing map of the

environment to provide ground-truth measurements.

We acquired data in a quasi-static environment in

order to maximize the accuracy of the AMCL.

We discarded samples for which the ground-truth

localization had reported a high uncertainty, which

we defined as samples where any one of the pose

covariances were higher than a threshold: σ(x,x) >

0.15m² or σ(y,y) > 0.15m² or σ(θ,θ) > 0.1rad². This

does not eliminate the problem of the pose estimation

drifting out of accuracy as the robot is teleoperated.

To mitigate this effect, data acquisition was

performed by combining data from several shorter

acquisitions. Fig. 4 summarizes the data acquisition.

Figure 4: Overview of the data acquisition method.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

930

4 EXPERIMENTAL SETUP AND

RESULTS

We implemented our method in order to deploy it on

RobAIR (“RobAIR”) (see Fig. 5), a wheeled mobile

robot and tested it in real environments and situations.

In this section, we describe the hardware, software,

the experimental protocol, and results.

4.1 Environments and Datasets

We considered two environments (denoted as A and

B - see Fig. 5) with different ceiling features. Their

areas were 83 m² and 72 m², and ceiling heights of 4m

and 2.5m for A and B respectively. A dataset was

built for each environment by teleoperating the robot

at a speed of 0.5 m/s. Images were acquired at 5fps

and associated with their ground truth pose.

Figure 5: Left: RobAIR. Right: images of the ceiling in

environments A (top) and B (bottom).

For environment A, 30105 samples were acquired

(train, validation data split: 89.7%, 10.3%). For

environment B, 27237 samples were acquired (train,

validation split: 80.5%, 19.5%). We deployed the

robot in three test scenarios: (1) an uncrowded

environment; (2) an uncrowded environment with a

new artificial lighting configuration; (3) an

environment where several participants partially

obstructed the camera’s view. In order to evaluate the

performance of our approach, we teleoperated the

robot while recording samples composed of the

ceiling image, ground-truth pose, and our method’s

pose prediction. New samples were taken when the

ground-truth pose changed by more than 0.001m or

0.001rad in order to discard moments when the robot

was stationary. We present statistics on position and

orientation errors for the different scenarios in Table

1, computed using the testing datasets of 400 to 600

samples, acquired over 320 to 609 seconds.

4.2 Implementation Details

The camera we used was a low-resolution (640x480

pixels) USB camera, equipped with a fish-eye lens. It

was mounted on top of the RobAIR, at a height of

120cm. The robot was equipped with an i5-6200U

processor. The full pose estimation step took 100ms

to run on the robot’s processor. When performing

localization, the camera recorded at 5fps, hence the

pose update rate was 5Hz. We implemented the

localization module as a ROS node. CNNs were

implemented in Python using Keras with Tensorflow

backend. Training was performed on a mid-range

laptop GPU (Nvidia GTX 960m, 2GB of VRAM)

using CUDA. Networks were trained for 30 epochs

(about 1 hour each network). The laser for ground-

truth pose acquisition was a Hokuyo URG-04LX-

UG01 rangefinder, mounted on the base of RobAIR.

4.3 Experimental Results and Analysis

In Fig. 6 and Fig. 7, we show the histograms of pose

error values for scenario 1, environment B. The

supplementary video contains a visualization of the

pose predictions in our evaluation scenarios, as well

as the graphs of errors over the whole duration of each

scenario, which give an idea of how the pose

prediction behaves over time. For both position and

orientation, the general trend in error values varies

according to which part of the environment the robot

is in. Error values fluctuate continuously during the

evaluation, with occasional large error spikes. In all

scenarios, the error behaves in a similar fashion.

Figure 6: Position estimation error histogram for scenario 1

in environment B (609 samples).

Figure 7: Orientation error histogram for scenario 1 in

environment B (609 samples).

Scenario 1 consisted in sampling the data from

the testing datasets used to evaluate the CNNs. These

Visual-based Global Localization from Ceiling Images using Convolutional Neural Networks

931

datasets were acquired in environments with lighting

conditions that the network had trained on (all lights

on or all off). The number of dynamic obstacles in the

environments was negligible, so that ground-truth

laser-based localization would not be affected. The

camera’s view of the ceiling was not obstructed by

people or other dynamic obstacles. This scenario was

performed in environments A and B. The accuracy of

the localization in this scenario demonstrates the

viability of our approach.

Scenario 2 consisted in sampling the data from

environment A while changing the artificial lighting

conditions. During this scenario, we used lighting

configurations where a subset of the lights was

switched on. The training dataset for the CNNs did

not contain this lighting configuration. While the

accuracy of the localization is worse than with all

lights on or off, our approach manages to produce a

relatively stable localization. We also note that often,

large spikes in pose error occur as the lights were

switched on/off, probably due to the camera’s built-

in brightness adaptation.

Table 1: Error of our approach relative to ground-truth.

Scenario

and env.

Pose estimation error

Average

and 95%

confidence

interval

Standard

deviation

Max

0.17±0.01m

0.13±0.02rad

0.12m

0.17rad

0.73m

1.60rad

0.21±0.01m

0.10±0.01rad

0.14m

0.11rad

0.87m

1.18rad

0.60±0.09m

0.32±0.05rad

0.87m

0.53rad

6.58m

3.03rad

1.57±0.13m

0.26±0.02rad

1.57m

0.24rad

7.13m

2.20rad

Scenario 3 consisted in sampling the data from

environment B while several people were present.

People were instructed to walk or stand within 3m of

the robot. This led to the robot’s view of the ceiling

being partially obstructed by people’s faces and upper

body. As a reminder, our network never trained on

such conditions. Error for both position and

orientation spiked when large parts of the ceiling

were obstructed. Laser-based AMCL occasionally

drifted, providing highly inaccurate pose estimations,

an example of which is given in Fig. 8.

Orientation error behaved similarly to scenario 1,

albeit with a slightly higher average error. Position

error averaged above 3m for more than 30

consecutive samples three times, all in similar areas

of the environment. To visualize which parts of the

image influenced the CNN output, we generated

activation heatmaps for a high-error sample from

scenario 3 and a low-error sample from a similar

position in scenario 1 (see Fig. 9).

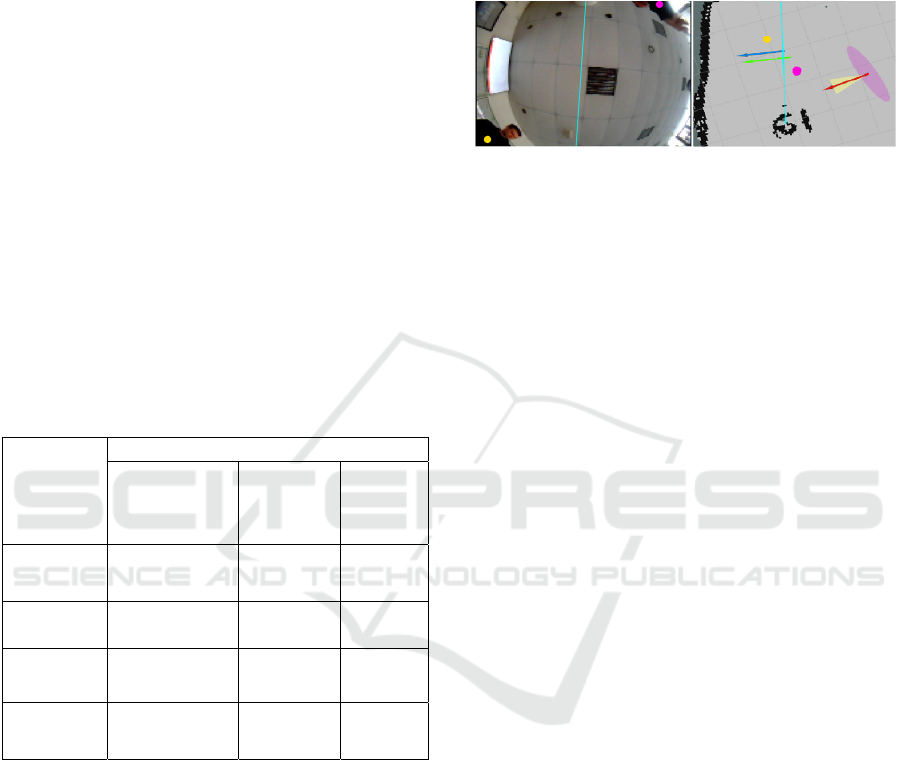

Figure 8: Left:camera image. Right: top-down view of the

map (cells are 1m²). The vertical cyan line serves as a

reference between the image and map. Arrows: actual robot

position observed by the experimenter (green), our method

(blue), laser-based amcl (red, with position and orientation

uncertainties). Yellow and pink dots represent people.

We observe two differences between scenarios 1

and 3: (1) the combination of the pillar and lights in

the top right corner of the image is a distinctive

feature of this area, and it was blocked by a person in

scenario 3. This may explain activation differences

seen in row 1 Fig. 9. (2) The lights in the corridor in

the bottom left corner were always switched off

during training and in scenario 1, whereas they were

on for scenario 3. This may explain the activation

differences in rows 2 and 3 of Fig. 9. For orientation,

the heatmaps were very similar except for the corridor

area, which may explain the comparatively low error.

5 DISCUSSION

As with any supervised learning approach, we are

highly dependent on the quality of the dataset.

Acquiring ground truth data for the CNNs proved

difficult, due to inaccuracies in the laser-based

localization. There would be room for improvement

if a more reliable ground truth method were used.

In order to deploy a robot using our method, one

still needs to spend a fair amount of time acquiring

the dataset and ensuring coverage of the whole

environment, although this process could be

automated with an environment exploration

algorithm. Acquiring ground-truth supposes that one

has access to an alternative method for localization,

potentially requiring more expensive sensors.

However, once the dataset has been acquired by a

single robot, our method can be deployed on any

number of robots using a simple inexpensive camera.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

932

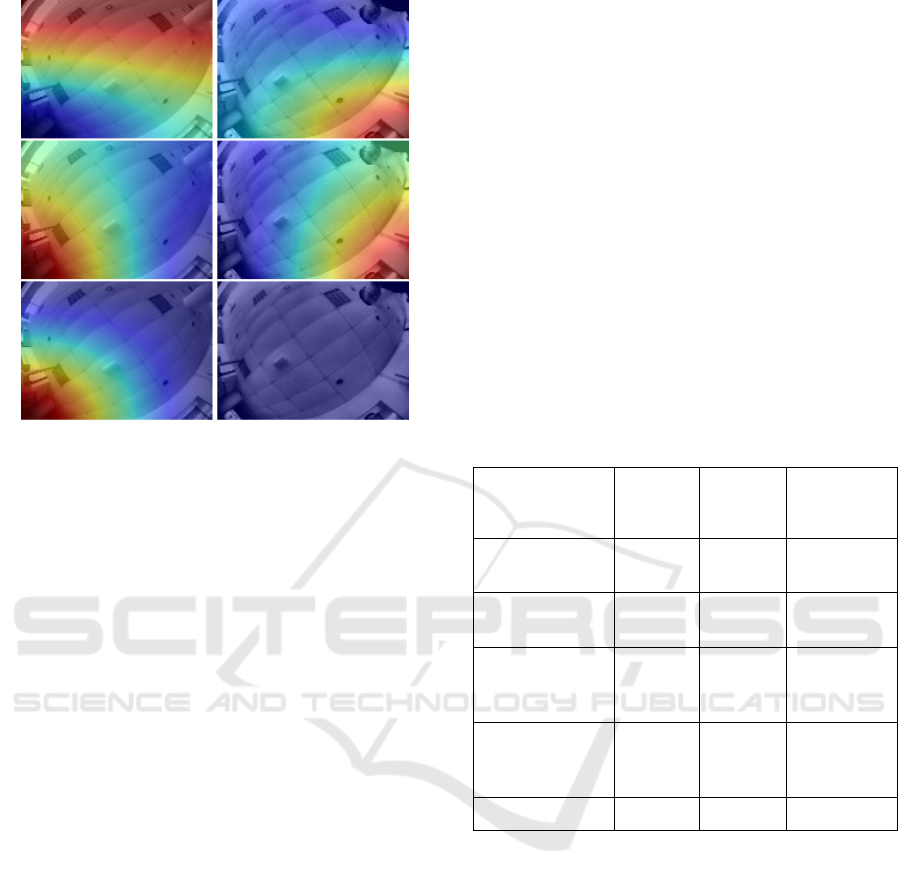

Figure 9: Comparison of position CNN output activation

heatmaps generated using Keras-vis grad-cam (“keras-

vis”), overlayed on the pre-processed image. Left to right:

scenarios 1, 3. Top to bottom: heatmaps for areas that

decrease, maintain, and increase the output values

corresponding respectively to the “grad_modifier”

parameters negate, small_values, and None. The

“backprop_modifier” parameter was None.

Using the raw network predictions directly as the

robot’s pose is currently unstable. The network

occasionally outputs a pose with high error. This

could be due to specific areas in the environment

where the ceiling is too similar to another location.

The accuracy loss when dealing with partial

obstruction of the image by people could be reduced

by mounting the camera higher on the robot, or

potentially by using a fish-eye lens with less

deformation. Further experiments would need to be

conducted in truly crowded scenarios to confirm this.

Table 2 shows average position and orientation

errors from recent 6-DoF camera relocalization works

using the 7-scenes dataset where environments have

an average size of 13 m

. While our work solves for

the 3-DoF case, our test scenarios cover much larger

environments, often with fewer distinctive features.

Although the applications of our approach (3-DoF

indoor robot localization) are different that the ones

in the related works (6-DoF camera relocalization) we

find it beneficial to provide such a comparison.

6 CONCLUSION

This work serves as an exploration into an original

solution to global localization of a mobile robot in

indoor environments. We have detailed a method to

learn the correspondence between images of the

ceiling and the robot’s position and orientation using

a supervised learning approach (CNNs).

Our method was tested in two real environments

with areas of around 72m² and 80m², with average

position and orientation errors in the order of 0.19m

and 0.11rad (median 0.16m, 0.07rad) in uncrowded

environments. These results indicate that our method

has some potential, especially considering the modest

hardware requirements in terms of sensors and

processing power. Tests were performed with varied

artificial lighting conditions where our method

showed some degree of robustness to lighting

changes. Partial obstruction of the ceiling images by

people standing near the robot led to significantly

higher errors in position estimation, and a relatively

small increase in orientation estimation errors.

Table 2: Comparison to 6-DoF camera relocalization work.

Approach Dataset

Median

position

error

Median

orientation

error

VIDLOC (Clark

et al., 2017)

7-scenes 0.26m N/A

PoseNet (Kendall

et al., 2015)

7-scenes 0.48m 0.17rad

MapNET

(Brahmbhatt et al.,

2018)

7-scenes 0.20m 0.11rad

MapNET PGO

(Brahmbhatt et al.,

2018)

7-scenes 0.18m 0.11rad

Ours Scenario 1 0.16m 0.07rad

7 FUTURE WORK

In order to better deal with crowded environments, a

training dataset could be acquired when people are

present in the environment. Such a dataset would

potentially be harder to acquire; however, the

network should be able to provide better localization

than when trained on a dataset of a static

environment. The existing dataset could be modified

by adding people at random locations in the images.

In order to incorporate this work into a complete

localization framework, we can filter the output of the

pose prediction networks to provide a more stable

estimate. One could also consider a set of poses over

time in order to discard outliers. The stable pose

Visual-based Global Localization from Ceiling Images using Convolutional Neural Networks

933

estimation can be combined with other localization

data such as odometry using sensor fusion.

The speed of the pose update could be improved

by adopting a more elaborate CNN architecture.

Recent CNN architectures can minimize resource

usage while maintaining good accuracy for their tasks

(Zhang et al., 2018). Further experimentation with

architectures and hyper parameters could also

improve accuracy and inference time.

ACKNOWLEDGEMENTS

This work has been partially supported by MIAI @

Grenoble Alpes, (ANR-19-P3IA-0003).

REFERENCES

Brahmbhatt, S., Gu, J., Kim, K., Hays, J., & Kautz, J.

(2018). Geometry-aware Learning of Maps for camera

localization. 2018 IEEE/CVF Conference on Computer

Vision and Pattern Recognition, 2616–2625.

Burgard, W., Cremers, A. B., Fox, D., Hähnel, D., Thrun,

S., Dellaert, F., Bennewitz, M., Rosenberg, C., Roy, N.,

Schulte, J., & Schulz, D. (1999). MINERVA: A second

generation mobile tour-guide robot. Proceedings of the

IEEE International Conference on Robotics and

Automation (ICRA).

Clark, R., Wang, S., Markham, A., Trigoni, N., & Wen, H.

(2017). Vidloc: A deep spatio-temporal model for 6-dof

video-clip relocalization. 2017 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

2652–2660.

Delibasis, K. K., Plagianakos, V. P., & Maglogiannis, I.

(2015). Estimation of robot position and orientation

using a stationary fisheye camera. International

Journal on Artificial Intelligence Tools, 24(06),

1560004.

Dellaert, F., Fox, D., Burgard, W., & Thrun, S. (1999).

Monte Carlo localization for mobile robots.

Proceedings 1999 IEEE International Conference on

Robotics and Automation (Cat. No.99CH36288C), 2,

1322–1328.

Durrant-Whyte, H., & Bailey, T. (2006). Simultaneous

localization and mapping: Part I. IEEE Robotics &

Automation Magazine, 13(2), 99–110.

Ioffe, S., & Szegedy, C. (2015). Batch Normalization:

Accelerating Deep Network Training by Reducing

Internal Covariate Shift. Proceedings of the 32nd

International Conference on Machine Learning.

Jeong, W., & LEE, K. M. (2005). CV-SLAM: a new ceiling

vision-based SLAM technique. 2005 IEEE/RSJ

International Conference on Intelligent Robots and

Systems.

Jin, T., & Lee, J. (2004). Mobile robot navigation by image

classification using a neural network. IFAC

Proceedings Volumes, 37(12), 203–208.

Kendall, A., & Cipolla, R. (2017). Geometric loss functions

for camera pose regression with deep learning. 2017

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), 6555–6564.

Kendall, A., & Cipolla, R. (2016). Modelling uncertainty in

deep learning for camera relocalization. 2016 IEEE

International Conference on Robotics and Automation

(ICRA), 4762–4769.

Kendall, A., Grimes, M., & Cipolla, R. (2015). Posenet: A

convolutional network for real-time 6-dof camera

relocalization. 2015 IEEE International Conference on

Computer Vision (ICCV), 2938–2946.

King, S. J., & Weiman, C. F. R. (1991). HelpMate

autonomous mobile robot navigation system (W. H.

Chun & W. J. Wolfe, Eds.; pp. 190–198).

Kotikalapudi, R. A. C. (n.d.). Keras-vis.

https://github.com/raghakot/keras-vis

Krizhevsky, A., Sutskever, I., & Hinton, G. E. (2012).

ImageNet classification with deep convolutional neural

networks. Proceedings of the 25th International

Conference on Neural Information Processing Systems

Nourbakhsh, I. (1998). The failures of a self-reliant tour

robot with no planner.

Pizer, S. M., Amburn, E. P., Austin, J. D., Cromartie, R.,

Geselowitz, A., Greer, T., ter Haar Romeny, B.,

Zimmerman, J. B., & Zuiderveld, K. (1987). Adaptive

histogram equalization and its variations. Computer

Vision, Graphics, and Image Processing, 39(3), 355–

368

Reddi, S. J., Kale, S., & Kumar, S. (2018). On the

Convergence of Adam and Beyond. International

Conference on Learning Representations.

RobAIR. (n.d.). LIG FabMSTIC.

https://air.imag.fr/index.php/RobAIR

Szegedy, C., Wei Liu, Yangqing Jia, Sermanet, P., Reed,

S., Anguelov, D., Erhan, D., Vanhoucke, V., &

Rabinovich, A. (2015). Going deeper with

convolutions. 2015 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), 1–9.

Thrun, S. (1998). Finding landmarks for mobile robot

navigation. Proceedings. 1998 IEEE International

Conference on Robotics and Automation (Cat.

No.98CH36146), 2, 958–963.

Xiao, L., Wang, J., Qiu, X., Rong, Z., Zou, X. (2019)

Dynamic-SLAM: Semantic monocular visual

localization and mapping based on deep learning in

dynamic environment. Robot. Auton. Syst., 117, 1–16.

Zhang, F., Duarte, F., Ma, R., Milioris, H., Lin, H., & Ratti,

C. (2016). Indoor Space Recognition using Deep

Convolutional Neural Network: A Case Study at MIT

Campus. PLoS ONE.

Zhang, X., Zhou, X., Lin, M., & Sun, J. (2018). Shufflenet:

An extremely efficient convolutional neural network

for mobile devices. 2018 IEEE/CVF Conference on

Computer Vision and Pattern Recognition, 6848–6856.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

934
