A New Generic Progressive Approach based on Spectral Difference for

Single-sensor Multispectral Imaging System

Vishwas Rathi

1 a

, Medha Gupta

2 b

and Puneet Goyal

1 c

Department of Computer Science and Engineering, Indian Institute of Technology Ropar, Rupnagar, Punjab, India

Department of Computer Science and Engineering, Graphic Era University, Dehradun, India

Keywords:

Multispectral Imaging System, Image Demosaicking, Multispectral Filter Array, Color Difference,

Interpolation, Spectral Correlation.

Abstract:

Single-sensor RGB cameras use a color ﬁlter array to capture the initial image and demosaicking technique

to reproduce a full-color image. A similar concept can be extended from the color ﬁlter array (CFA) to a

multispectral ﬁlter array (MSFA). It allows us to capture a multispectral image using a single-sensor at a low

cost using MSFA demosaicking. The binary tree based MSFAs can be designed for any k-band multispectral

images and are preferred, however the existing demosaicking methods are either not generic or are of limited

efﬁcacy. In this paper, we propose a new generic demosaicking method applicable on any k-band MSFAs,

designed using preferred binary-tree based approach. The proposed method involves applying the bilinear

interpolation and estimating the spectral correlation differences appropriately and progressively. Experimen-

tal results on two different multispectral image datasets consistently show that our method outperforms the

existing state-of-art methods, both visually and quantitatively, as per the different metrics.

1 INTRODUCTION

The energy transmitted from light origins or reﬂected

by objects contains a wide range of wavelengths. The

standard color image contains the scene’s information

in only three bands: Red, Green and Blue. How-

ever, a multispectral image has more than three spec-

tral bands, which makes the multispectral image more

informative about the scene than the standard color

image. Therefore, multispectral images are found

useful in many research areas such as remote sens-

ing (MacLachlan et al., 2017), medical imaging (Zen-

teno et al., 2019), food industry (Qin et al., 2013;

Chen and Lin, 2020), satellite imaging (Mangai et al.,

2010) and computer vision (Ohsawa et al., 2004;

Vayssade et al., 2020; Junior et al., 2019). Depending

on the application, there are different requirements of

information captured through multiple spectral bands.

These multiple requirements in different domains mo-

tivated the manufacturer to develop different multi-

spectral imaging (MSI) systems (Fukuda et al., 2005;

Thomas et al., 2016; Geelen et al., 2014; Pichette

https://orcid.org/0000-0002-6770-6142

https://orcid.org/0000-0001-6013-3719

https://orcid.org/0000-0002-6196-9347

1 5 2 5

4 3 4 3

2 1 5

3434

1 7 2 8

5 3 6 4

2 1 7

3546

1 13 4 15

9 5 11 7

3 2 14

610812

1 11 4 12

9 5 10 7

3 2 11

69810

1 2 3 54

1 2 3

5 6 7

4321

5 6 7 8

9 10 11

1 2 3 4 5

6 7 8 9 10

11 12 13 14 15

5 Band

8 Band

12 Band 15 Band

(a)

(b)

5 Band 8 Band 12 Band 15 Band

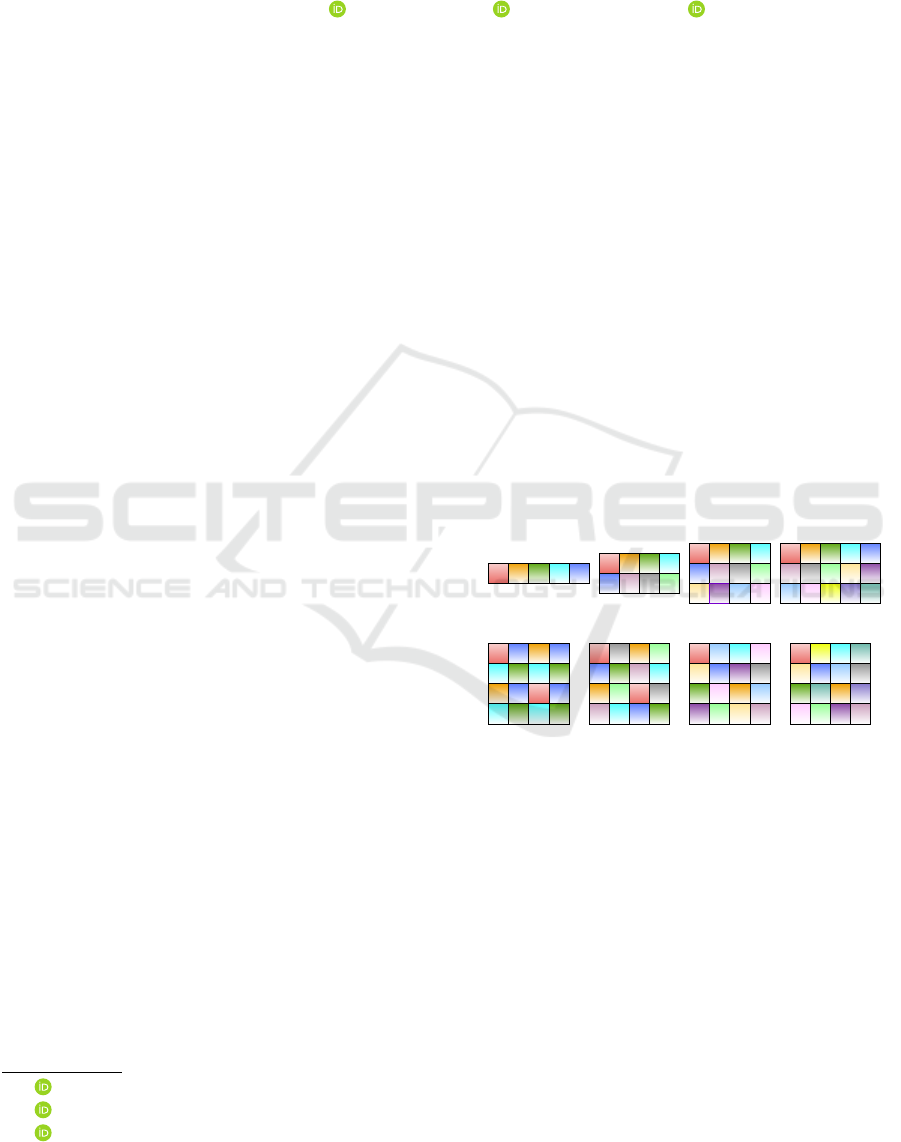

Figure 1: MSFA designs. (a) Non-redundant MSFAs used

in (Brauers and Aach, 2006; Gupta and Ram, 2019). (b)

Binary-tree based MSFAs deﬁned in (Miao and Qi, 2006).

et al., 2016; Ohsawa et al., 2004; Monno et al., 2015)

of varying bands.

The concept of the single-camera-one-shot system

is recently getting explored to develop low-cost mul-

tispectral imaging systems using the MSFA similar to

the standard color camera that also uses a single sen-

sor to capture three bands’ information with a CFA.

The image captured using a single-camera-one-shot

system records only one spectral band information at

each pixel location and this image is called a mo-

saic image or MSFA image in the multispectral do-

main. A complete multispectral image is generated

Rathi, V., Gupta, M. and Goyal, P.

A New Generic Progressive Approach based on Spectral Difference for Single-sensor Multispectral Imaging System.

DOI: 10.5220/0010250103290336

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

329-336

ISBN: 978-989-758-488-6

329

from an MSFA image using an interpolation method

called MSFA demosaicking. This single-sensor mul-

tispectral imaging system (SSMIS) would be of low

cost and small size, and can also capture videos in the

multispectral domain.

However, MSFA demosaicking is a challenging

task because of the highly sparse sampling of each

spectral band. As the number of spectral bands in a

multispectral image increases, the spatial correlation

is lower in the image. That is why SSMIS consider-

ing only spatial correlation does not perform well on

higher spectral bands multispectral images. Further,

the quality of the multispectral image generated us-

ing SSMIS depends on the demosaicking method and

the MSFA pattern used to capture the mosaic image.

As there is no such de-facto standardfor MSFA de-

sign similar to the Bayer pattern in the RGB domain,

the MSFA pattern choice becomes crucial.The binary

tree based MSFAs that can be designed for any k-band

multispectral images, are preferred (Miao and Qi,

2006; Gupta and Ram, 2019). Also, as the require-

ment of the number of spectral bands is application-

speciﬁc, it motivates the need for development of a

generic MSFA demosaicking method for wider appli-

cability. This research, therefore, aims to develop a

generic MSFA demosaicking method for SSMIS us-

ing binary tree based MSFAs to provide better qual-

ity multispectral images. The existing generic MSFA

demosaicking methods (Miao et al., 2006; Brauers

and Aach, 2006) fail to generate good quality multi-

spectral images, especially for higher band multispec-

tral images. The other MSFA demosaicking methods

(Mihoubi et al., 2017; Monno et al., 2015; Monno

et al., 2012; Monno et al., 2011; Jaiswal et al., 2017)

are restricted to multispectral images of some speciﬁc

band size.

This paper proposes an MSFA demosaicking

method utilizing both the spatial and spectral corre-

lation in the MSFA image. The proposed method is

generic, i.e., not restricted for any speciﬁc number of

spectral band images. It uses the binary-tree based

MSFA patterns (Miao and Qi, 2006), which are con-

sidered most compact and designable for any num-

ber of bands. The proposed method ﬁrst interpolates

the missing pixel by performing progressive bilin-

ear interpolation, explicitly designed for binary-tree

based MSFA pattern. Then these interpolated bands

are used progressively in the spectral correlation dif-

ference method. Experimental results on multiple

benchmark datasets show that the proposed method

outperforms other state-of-the-art generic MSFA de-

mosaicking methods, both visually and quantitatively.

2 RELATED WORK

In this section, we discuss different MSFA patterns

present in the literature and associated MSFA demo-

saicking methods.

2.1 Different MSFA Patterns

We divide the MSFA patterns into two categories, as

shown in Figure 1, depending on the probability of

appearance(PoA) of bands in the MSFA pattern.

1. There are many MSFA designs (Brauers and

Aach, 2006; Mihoubi et al., 2015; Aggarwal

and Majumdar, 2014) where each band has

equal PoA in the MSFA pattern. Brauers and

Aach (Brauers and Aach, 2006) proposed a six-

band non-redundant MSFA pattern which stores

bands in 3×2 matrix. This was later extended and

the generalized designs for non-redundant MSFA

patterns were presented (Gupta and Ram, 2019).

Also, Aggarwal and Majumdar (Aggarwal and

Majumdar, 2014) proposed uniform and random

MSFA pattern design; both of these are generic

and can be extended to capture any number of

bands multispectral images. Mihoubi et. al. (Mi-

houbi et al., 2015) used square non-redundant

MSFA design for the 4, 9, and 16-band images.

2. Another category of MSFA design is binary-tree

based where MSFA is more compact and the sev-

eral spectral bands can have different PoA in the

MSFA pattern. Miao and Qi (Miao and Qi, 2006)

proposed this binary-tree based generic method to

generate MSFA patterns using a binary tree for

any number of bands multispectral images. These

are more preferred compared to redundant ones

and many of the recent works have used binary-

tree based MSFAs (Miao and Qi, 2006). Monno

et al. in his works (Monno et al., 2012; Monno

et al., 2011; Monno et al., 2014; Monno et al.,

2015) used ﬁve-band MSFA pattern where, PoA

of G-band is kept 0.5.

2.2 MSFA Demosaicking

The method (Brauers and Aach, 2006) extended the

color-difference-interpolation of CFA demosaicking

to the multispectral domain. But it failed to gener-

ate quality multispectral images. Further, (Mizutani

et al., 2014) improved Brauers and Aach method by

iterating demosaicking methods multiple times. The

number of iterations depended on the correlation be-

tween two spectral bands.

Miao et al. (Miao et al., 2006) proposed a binary

tree-based edge sensing (BTES) generic method for

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

330

MSFA demosaicking that used the MSFA patterns

generated using (Miao and Qi, 2006). BTES method

used the same binary tree for interpolation, which is

used to design MSFA pattern. BTES performed edge

sensing interpolation to develop a complete multi-

spectral image. Although BTES is generic, it does not

perform well on a higher band multispectral image as

it uses only spatial correlation.

In (Aggarwal and Majumdar, 2014), authors used

uniform MSFA design for MSFA demosaicking and

proposed a linear demosaicking method that requires

the prior computation of parameters using original

images. This limits the feasibility and applicability of

the method as original images would not be available

in real-time situation. Mihoubi et. al. (Mihoubi et al.,

2015) used the concept of intensity image, which has

a strong spatial correlation with each band than bands

considered pairwise. Further, Mihoubi et al. in (Mi-

houbi et al., 2017) had improved their previous work

by proposing a new estimation of intensity image.

However, their method is not generic.

Monno et. al. (Monno et al., 2015; Monno et al.,

2012; Monno et al., 2011; Monno et al., 2014) pro-

posed several methods considering the MSFAs de-

signed using the binary-tree based method and used

the concept of guide image which was generated from

under sampled G-band, and later they used this guide

image as a reference to interpolate remaining under-

sampled bands. (Monno et al., 2011) extended exist-

ing upsampling methods to adaptive kernel upsam-

pling methods using an adaptive kernel to reconstruct

each band and later improved in (Monno et al., 2012)

using the guided ﬁlter. To further improve (Monno

et al., 2012), in (Monno et al., 2015), the authors con-

structed multiple guide images and used them for in-

terpolation. This approach is not effective for a higher

band multispectral image. It is limited to the MSFA

pattern where G-band has PoA 0.5, making other

bands severely undersampled in higher band multi-

spectral image. (Jaiswal et al., 2017) also utilized the

MSFA generated using (Monno et al., 2015). Here,

authors proposed a method using frequency domain

analysis of spectral correlation for ﬁve-band multi-

spectral images. This method requires the complete

information of multispectral images for the model’s

learning parameters estimation, which would not be

available in real practice for MSFA based multispec-

tral camera device intended to be developed.

Few machine learning and deep learning-based

MSFA demosaicking methods (Aggarwal and Ma-

jumdar, 2014; Shopovska et al., 2018; Habtegebrial

et al., 2019) also has been recently explored. How-

ever, these methods require atleast some of the origi-

nal multispectral images of the SSMIS for the learn-

PBSD

MSFA Image

EstimatedImage

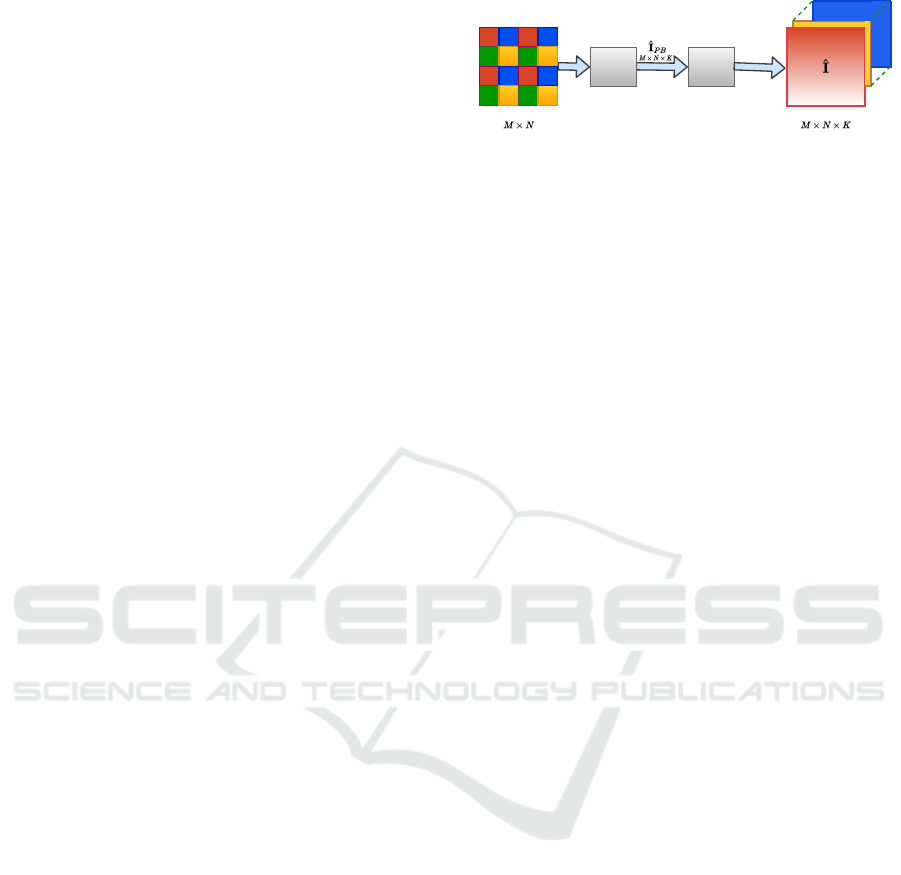

Figure 2: Proposed MSFA demosaicking approach.

ing and training of model parameters, but that will

not be available in the real world capturing scenario

for the considered SSMIS.

3 PROPOSED METHODOLOGY

In this paper, we propose an MSFA demosaicking

method that is based on progressive bilinear interpo-

lation and progressive bilinear spectral difference. As

shown in Figure 2, the complete method essentially

comprises of two steps, mentioned as follows:

1. First, interpolate the missing pixel values using

a progressive bilinear (PB) approach designed

speciﬁcally for the binary tree based MSFA pat-

terns.

2. Second, use progressive bilinear spectral differ-

ence (PBSD) approach based on inter-band dif-

ferences and applied progressively.

In the following subsections 3.1 and 3.2, we present

these steps in more details.

3.1 Progressive Bilinear (PB)

Interpolation

Here, we describe a new intra-band progressive ap-

proach for estimating the missing pixel values at a few

unknown locations using the bilinear interpolation on

some initially known pixel values, as per the binary-

tree based MSFA and the speciﬁc spectral band con-

sidered. Then, these estimated pixel values with ini-

tially known pixel values are used to calculate miss-

ing pixel values at other locations. PB interpolation

approach consists of the following components.

3.1.1 Pixel Selection

PB interpolation is an intra-band approach and thus

independent of the order of bands selected for the in-

terpolation. But the order of pixel locations chosen

for the interpolation for the different bands is differ-

ent. This pixel selection order critically depends on

the binary tree used to create the MSFA pattern, de-

signed using (Miao and Qi, 2006). For any chosen

A New Generic Progressive Approach based on Spectral Difference for Single-sensor Multispectral Imaging System

331

1 2

4 5

iii

1 5 2 5

4 3 4 3

2 1 5

3434

5 2 5

4 43 3

4 3

2 2

1 1

5 5 5

4 4

33 34 4

(b)

(a)

1 1

(c)

1 1

11 1

(e)

1 1 1 1

1 1 1

1111

1 1 1

1 11 1

1 1

1 1 1

1 11

11 11 1

(f)

1 1

(d)

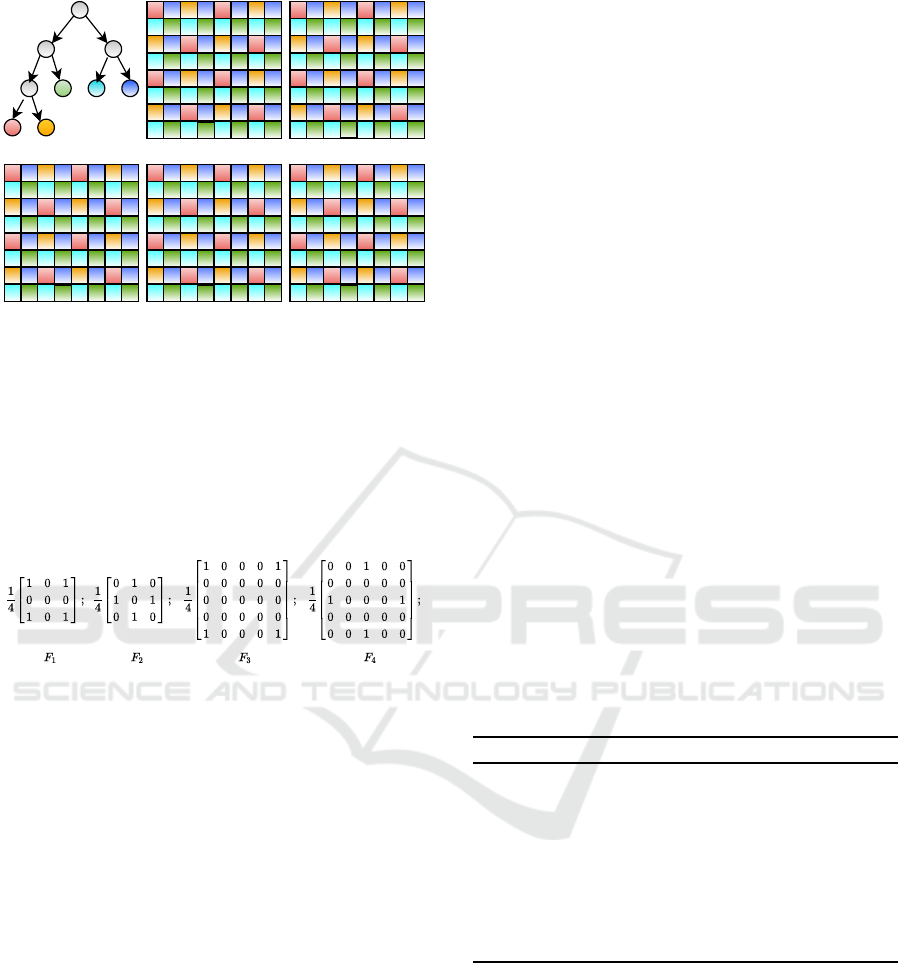

Figure 3: Illustration of PB interpolation of band 1. (a) Bi-

nary tree used to generate 5-band MSFA. (b) 5-band MSFA

pattern for 8×8 size mosaic (raw) image. (c) Band 1’s pixel

locations in the original mosaic image; one may note that

band 1’s PoA = 1/8 initially. (d) Band 1 estimated ﬁrst at

the locations of a band corresponding to sibling node, i.e.,

band 2, using ﬁlter F

. (PoA now = 1/4) (e) Later, interpo-

late at the locations of band 3 using ﬁlter F

(Band 1 PoA

now = 1/2) (f) Finally, interpolate at the locations of band 4

and 5 using ﬁlter F

Figure 4: Filters used for PB interpolation.

band during interpolation, we ﬁrst estimate the miss-

ing band information at the sibling band’s pixel lo-

cations and move one level up in the binary tree and

repeat the same process until we estimate the missing

band information at all locations. If the sibling node

is an internal node, then the bands corresponding to

the leaves under the sibling node can be considered

in any order. For example, consider the binary tree

for a 5-band multispectral image and corresponding

MSFA pattern-based mosaic image, as shown in Fig-

ure 3(a) and (b), respectively. For interpolating band

1, we can select the pixel locations either in the or-

der: {2,3,4,5} or {2,3,5,4}. For interpolating band 3,

we can select the pixel locations either in the order:

{1,2,4,5}, {2,1,4,5} {1,2,5,4} or {2,1,5,4}, and for

interpolating band 4, we must ﬁrst select pixel loca-

tions corresponding to band 5 and then locations for

the other bands 1, 2 and 3 in any order.

3.1.2 Interpolation

Given the pixel selection order for a band, the miss-

ing pixel values of this band are progressively in-

terpolated using the four closest known neighboring

pixel values of the same band. This closest neighbor-

hood, at any progressive step, depends on the PoA of

the known (original and/or estimated) pixel values of

the selected band. For the binary-tree based MSFA

patterns, it can be observed that the 3 × 3 neighbor-

hood of a missing data pixel will contain at least four

known pixels if PoA of the band considered is greater

than or equal to 1/4, and for the band pixels with PoA

less than 1/4 but greater than or equal to 1/16, four

known neighboring pixels will lie in 5 × 5 neighbor-

hood. Based on the locations of the known neighbor-

ing pixels in the closest neighborhood, we select the

ﬁlter and perform convolution at pixel locations of the

selected band in the pixel selection scheme. The ﬁl-

ters are shown in Figure 4, and can work up to 16

bands multispectral image. In Algo. 1, we deﬁne

the interpolation scheme, which interpolates band q

at other band locations. The same algorithm can be

repeated to interpolate all the bands of the multispec-

tral image. In Figure 3(c), to interpolate band 1 at

some location (i,j) of band 2, four nearest pixel val-

ues of band 1 are found in 5 × 5 neighborhood at lo-

cations (i-2,j), (i+2,j), (i,j-2), and (i,j+2). Therefore,

F4 ﬁlter is used to interpolate band 1 at locations of

band 2. After interpolating at band 2 locations, PoA

of band 1 increases to 1/4, as shown in Figure 3(d),

which makes four nearest pixel values of band 1 to be

available in 3 × 3 neighborhood. Further, to interpo-

late band 1 at locations of band 3, we use ﬁlter F

and

ﬁnally, we use ﬁlter F

to interpolate at band 4 and 5

locations.

Algorithm 1: Interpolation scheme for band-q.

Input: I

MSFA

,F, M

= I

MSFA

 m

// Initialization

2 For each band p taken in the order given by

pixel selection scheme, repeat following

steps 3 and 4;

3 Select F

based on current PoA of



∗ F



 m

where, I

MSFA

is K band mosaic image of size M ×

N, F = {F

} is set of ﬁlters used, M

,...m

} is set of K binary masks, each of size

M × N, ’∗’ is convolution operator, and ’’ is ele-

ment wise multiplication operator. The binary mask

has value 1 only at locations where q

band’s orig-

inal values are there.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

332

3.2 Progressive Bilinear Spectral

Difference (PBSD)

The PBSD method is applicable for any binary-tree

based MSFAs and thus it can be used to interpo-

late any K-band images using PB interpolation. It

is motivated from color difference based interpola-

tion method (Brauers and Aach, 2006). Using

the initial multispectral image, the following steps are

performed to generate the interpolated

I multispectral

image.

1. For each ordered pair (p,q) of bands, determine

the sparse band difference

at q

band’s loca-

tions.

= I

MSFA

 m

(1)

 m

−

(2)

2. Now compute the fully-deﬁned band difference

using PB interpolation of

. Computing

this on binary tree based MSFAs is feasible only

because of the new approach i.e. PB, as described

in subsection 3.1.

3. For each band q, estimate

at pixel locations

where m

(x,y) = 1 as:

∑

p=1



−

 m



(3)

Now, all K bands are fully-deﬁned and together form

the complete multispectral image

4 EXPERIMENTAL RESULTS

We implement the proposed method PBSD and ex-

amine its performance on two publicly available mul-

tispectral image datasets: (a) Cave dataset (Yasuma

et al., 2010) and (b) TokyoTech dataset (Monno et al.,

2015). The Cave dataset contains 31 images each of

having 31-bands, and these bands range from 400nm

to 700nm with a spectral gap of 10nm. The Toky-

oTech dataset contains 30 images. Each image has

31-bands, and the spectral range of these 31-bands is

from 420nm to 720nm with a spectral gap of 10nm.

We consider multispectral images with band size (K)

varying from 5 to 15. The K-band multispectral im-

ages were prepared from these 31-band images by se-

lecting K-bands at equal spectral gaps beginning from

the ﬁrst band. We obtain the mosaic image by sam-

pling the pixel values based on the MSFA pattern de-

ﬁned for each band and then applying the MSFA de-

mosaicking method to estimate the complete multi-

spectral image.

We compare the proposed method with other

existing generic MSFA demosaicking methods:

WB (Gupta and Ram, 2019), SD (Brauers and Aach,

2006), LMSD (Aggarwal and Majumdar, 2014),

ISD (Mizutani et al., 2014), IID (Mihoubi et al.,

2015), and BTES (Miao et al., 2006). We consider

CIE D65 illumination for the evaluation of methods.

To compare the estimated image’s quality with the

original image, we evaluate these methods based on

the PSNR and SSIM image quality metrics.

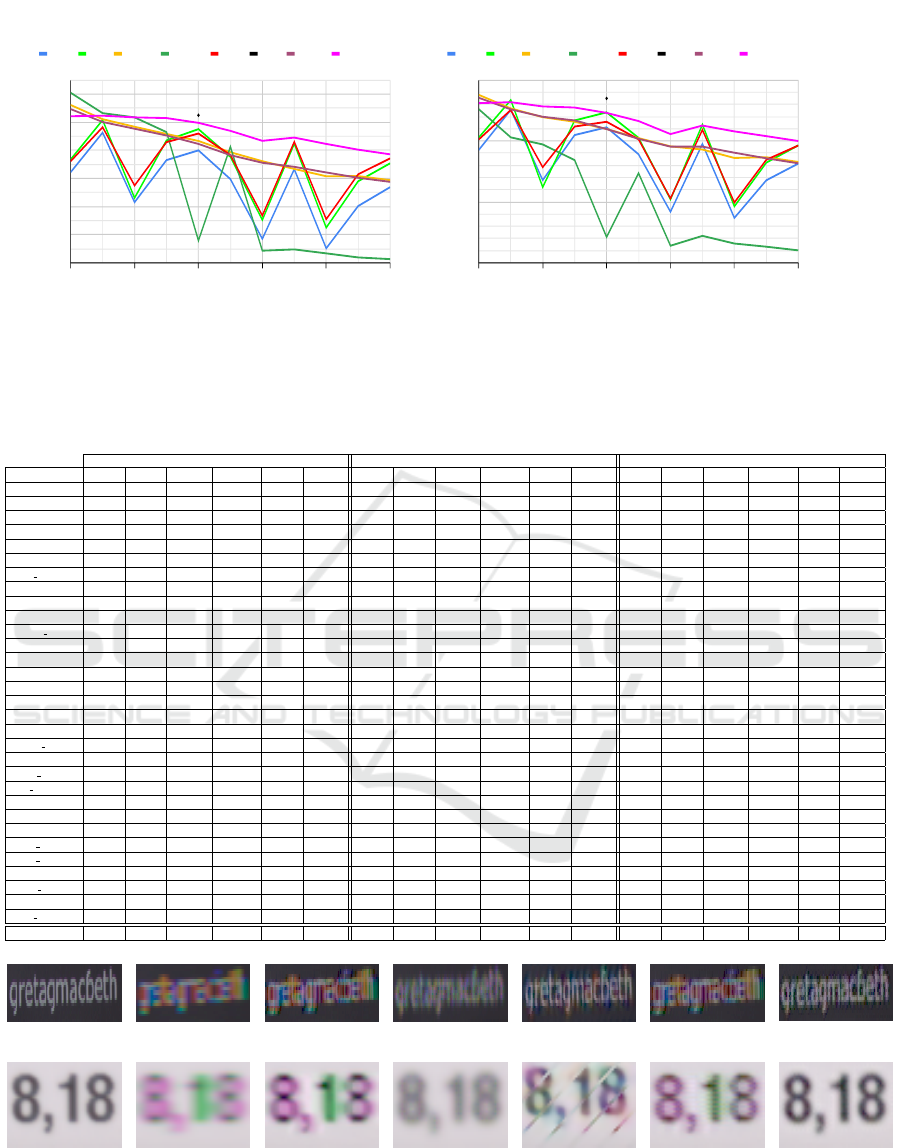

Figure 5 represents the quantitative performance

of different methods. For many larger bands images,

the SD and ISD methods seem to perform better than

the BTES method. However, the BTES method, using

compact (binary-tree based) MSFAs, performs better

for some bands such as 5, 7, 11, and 13. The sharp de-

crease in the performance for the 5, 7, 11, and 13 band

images in WB, SD, and ISD methods is because of

the non-compact characteristics of the non-redundant

MSFAs used in these methods. This observation was

the motivation for the proposed method. For seven

and higher bands multispectral image, the proposed

method PBSD performs consistently better than the

other methods, including BTES and LMSD, on both

datasets considered. This may be noted that the

IID method is applicable only to the non-redundant

MSFA pattern of square size (e.g. 2×2, 3×3, or 4×4).

Thus its results are shown here in Figure 5 for only 9-

band multispectral images.

Tables 1 and 2 represent reconstruction results for

8, 11 and 14 band multispectral images using differ-

ent MSFA demosaicking methods. It can be observed

that the proposed method PBSD performing better

and provides 1-2 dB average PSNR improvement in

compared to second best performing method. Table

3 shows the overall average PSNR and SSIM values

taken over different bands (5-band to 15-band) multi-

spectral images. The existing method BTES performs

reasonably better than other existing methods, how-

ever the proposed method PBSD performs the best by

providing further improvement of 1.25 dB in PSNR

and around 0.9% in SSIM on BTES on the Cave

dataset and 1.21 dB in PSNR and 2.5% in SSIM on

the TokyoTech dataset images.

Figure 6 shows the visual comparison of the few

images from the Cave and TokyoTech datasets gen-

erated by the various MSFA demosaicking methods

for 7 and 14 band multispectral images. To estimate

colorimetric accuracy, we convert the K-band multi-

spectral images into the sRGB domain using (Monno

et al., 2015). We select smaller portions from multiple

images so that artifacts should be visible. We can ob-

serve that other existing MSFA demosaicking meth-

ods generate signiﬁcant artifacts on the text of the im-

A New Generic Progressive Approach based on Spectral Difference for Single-sensor Multispectral Imaging System

333

No. of Bands (K) (a)

PSNR (in dB)

28.00

30.00

32.00

34.00

36.00

38.00

40.00

5 7 9 11 13 15

WB SD BTES LMSD ISD IID PWB PBSD

Comparison of different methods based on PSNR on the Cave dataset

No. of Bands (K) (b)

PSNR (in dB)

23.00

28.00

33.00

38.00

5 7 9 11 13 15

WB SD BTES LMSD ISD IID PWB PBSD

Comparison of different methods based on PSNR on the TokyoTech dataset

Figure 5: Comparison of different MSFA demosaicking methods based on PSNR (a and b) on the Cave and TokyoTech

datasets. There are a few other MSFA demosaicking methods (Monno et al., 2015; Mihoubi et al., 2017; Jaiswal et al., 2017)

as well, but these are not generic and therefore not considered for comparison.

Table 1: Comparison of PSNR(dB) values for different methods on 31 multispectral images of the Cave dataset.

8-band 11-band 14-band

Image WB BSD BTES LMSD ISD PBSD WB BSD BTES LMSD ISD PBSD WB BSD BTES LMSD ISD PBSD

Balloon 40.56 42.10 42.45 42.38 41.58 43.56 33.95 35.61 40.25 32.08 35.74 41.61 36.84 38.90 39.20 31.48 38.84 40.73

Beads 27.28 28.00 28.39 27.15 26.67 28.99 21.49 21.84 27.05 21.30 21.51 27.76 23.99 24.91 26.19 20.47 24.00 27.16

Cd 37.58 37.78 39.34 34.12 36.52 38.43 32.33 32.53 37.81 29.20 31.76 36.50 34.88 35.38 37.37 26.59 34.02 36.72

Chart&toy 29.92 31.60 31.60 34.32 32.01 33.50 25.17 26.96 29.67 24.54 27.59 32.08 27.20 29.35 28.54 24.05 30.45 30.89

Clay 36.81 37.31 41.35 37.19 36.27 40.41 31.17 31.51 39.53 30.91 31.52 38.65 33.21 33.77 37.20 30.33 33.62 37.29

Cloth 29.14 30.73 29.84 30.27 31.39 31.99 25.19 26.32 28.77 24.80 27.15 30.92 26.83 28.71 28.11 24.60 30.15 30.85

Egy statue 38.55 40.22 39.69 41.82 40.26 41.62 32.79 34.24 38.06 32.51 34.86 40.11 35.30 37.49 37.21 32.51 38.53 39.46

Face 38.88 40.38 40.62 41.63 40.21 41.55 33.09 34.65 38.60 31.84 34.89 40.05 35.72 37.86 37.42 31.37 38.35 39.37

Beers 39.42 40.18 40.55 39.98 39.73 40.69 33.04 34.08 38.27 29.85 34.30 38.87 35.68 37.14 36.95 29.23 37.51 38.35

Food 38.25 39.12 38.87 38.01 38.42 39.50 31.86 32.82 37.12 29.16 32.46 38.15 34.86 36.50 36.04 28.95 36.15 37.75

Lemn slice 34.59 36.00 35.56 36.59 36.31 37.01 29.72 31.32 34.39 28.24 31.79 35.96 31.85 33.70 33.62 28.00 34.54 35.60

Lemons 38.17 39.92 40.31 42.25 40.50 42.04 33.43 35.44 37.98 31.41 35.94 40.19 35.26 37.50 36.70 30.83 38.44 39.11

Peppers 36.53 38.63 39.96 39.86 38.39 40.80 29.00 31.01 36.87 31.23 31.46 38.77 31.50 34.09 35.49 30.45 35.13 38.31

Strawberry 36.69 38.50 38.16 39.83 39.00 40.27 32.59 34.18 36.23 30.06 34.62 38.68 34.24 36.15 35.34 29.68 37.31 37.95

Sushi 37.12 38.50 37.81 38.05 38.71 39.35 32.51 33.99 36.18 29.43 34.57 38.39 34.20 36.02 35.11 28.99 36.98 37.74

Tomatoes 34.99 36.83 35.59 37.86 37.41 37.74 31.68 33.06 34.42 29.29 33.64 37.01 32.74 34.72 33.48 29.24 35.86 36.21

Feathers 30.73 32.46 33.39 33.23 32.38 35.01 24.63 26.09 31.46 26.99 26.60 33.60 27.08 28.93 30.47 26.46 29.68 32.94

Flowers 36.32 37.14 37.88 36.14 36.16 38.57 29.25 30.33 36.66 29.13 30.42 37.08 32.70 34.13 35.92 28.93 34.12 37.07

Glass tiles 26.78 28.15 29.48 30.29 28.57 30.59 22.34 23.35 27.53 24.76 24.25 29.01 24.04 25.45 26.51 24.59 26.47 28.11

Hairs 38.65 40.66 40.41 42.94 41.26 42.65 33.41 35.52 38.41 32.89 36.39 41.00 35.92 38.40 37.48 32.52 39.51 40.32

Jelly beans 28.48 30.53 30.22 31.19 30.78 32.67 22.28 24.37 28.78 23.17 24.83 31.49 25.12 27.41 28.00 22.93 28.29 30.94

Oil paint 31.49 32.93 32.68 34.04 33.69 34.06 28.18 29.20 31.74 28.81 30.15 33.25 29.73 31.22 30.98 28.13 32.32 32.61

Paints 29.40 31.23 32.49 32.55 31.60 32.98 23.61 25.24 29.44 22.54 25.87 31.48 25.21 27.02 27.98 21.94 28.31 30.47

Photo&face 37.25 39.26 39.12 39.76 39.03 40.09 30.97 32.98 36.59 30.23 33.40 38.77 33.53 36.03 35.44 30.26 36.77 37.73

Pompoms 38.42 38.74 39.54 36.94 37.24 39.69 30.67 30.79 38.13 29.52 29.73 37.22 34.60 35.26 37.30 28.59 33.71 37.41

R&f apples 40.92 42.49 43.26 44.31 42.86 44.54 35.36 38.10 40.63 32.59 38.66 42.70 37.43 39.88 39.33 32.23 40.58 41.75

R&f pepper 38.44 40.24 40.77 42.74 40.72 42.51 33.36 35.33 38.27 31.36 35.71 40.12 35.42 37.70 36.94 30.63 38.49 39.32

Sponges 35.96 36.66 38.98 37.14 35.74 38.46 29.45 29.73 36.56 28.09 29.78 35.74 32.10 32.91 34.69 27.19 32.43 35.04

Stuf. toys 37.87 38.92 39.51 37.05 37.53 39.68 29.32 30.34 36.81 27.23 30.41 37.39 32.99 34.80 35.85 26.69 34.61 37.41

Superballs 38.19 39.66 39.46 37.58 39.09 40.94 32.08 33.22 37.58 30.38 33.12 39.15 34.73 36.34 37.04 30.92 36.20 39.00

Thr spools 31.17 33.21 34.93 39.06 34.29 37.40 26.83 28.38 32.37 31.07 29.12 35.30 28.27 30.21 31.28 31.12 31.78 34.08

Average 35.31 36.71 37.17 37.30 36.59 38.30 29.70 31.05 35.23 28.86 31.36 36.68 32.04 33.80 34.17 28.38 34.30 36.05

) Reference (a

) WB (a

) SD (a

) BTES (a

) LMSD (a

) ISD

) Proposed

) Reference (b

) WB (b

) SD (b

) BTES (b

) LMSD (b

) ISD

) Proposed

Figure 6: Visual comparison of demosaicked images (sRGB) generated from the 7-band (row a) and 14-band (row b) images.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

334

Table 2: Comparison of PSNR(dB) values for different methods on 30 multispectral images of the TokyoTech dataset.

8-band 11-band 14-band

Image WB BSD BTES LMSD ISD PBSD WB BSD BTES LMSD ISD PBSD WB BSD BTES LMSD ISD PBSD

Butterﬂy 34.93 36.21 35.15 35.36 34.83 36.53 28.19 29.22 33.12 24.21 29.02 34.32 31.17 32.62 31.95 24.83 32.29 34.02

Butterﬂy2 29.54 29.34 30.1 28.19 29.06 29.95 23.1 23.18 27.83 21.82 23.3 28.13 25.42 26.02 27.17 21.38 26.37 27.83

Butterﬂy3 36.78 38.78 38.05 36.93 38.89 39.7 28.41 30.45 35.03 27.65 30.75 37.54 31.84 34.17 34.06 27.47 34.85 36.53

Butterﬂy4 36.49 38.71 37.21 38.15 38.54 39.72 29.85 31.39 34.66 27.26 31.57 37.75 32.47 34.54 33.69 28.36 35.01 37.02

Butterﬂy5 36.04 38.45 36.76 33.67 39.06 39.46 30.08 31.79 34.17 25.34 32.28 37.52 32.45 34.49 33.22 25.01 35.53 36.53

Butterﬂy6 32.66 34.14 33.88 33.13 34.53 35.55 25.94 27.21 31.37 24.04 27.55 33.88 28.53 30.17 30.54 24.11 31.15 33.05

Butterﬂy7 37.6 39.87 37.95 38.66 40.34 40.7 30.79 32.37 35.33 26.98 32.98 38.64 33.54 35.86 34.31 28.09 37.01 37.92

Butterﬂy8 35.5 38.3 36.01 36.92 38.05 39.32 28.7 30.59 34.04 26.28 30.72 37.64 31.71 34.2 33.08 26.57 34.66 36.61

CD 39.11 37.95 40.86 22.81 34.44 37.63 31.4 30.62 38.36 21.13 28.51 33.18 34.75 34.21 37.22 18.83 30.78 34.28

Character 29.25 33.54 30.88 33.37 34.94 35.13 22.08 23.97 27.61 20.28 24.64 32.65 24.26 26.66 26.35 20.23 27.97 31.15

Cloth 29.97 32.21 30.47 29.68 31.95 33.31 22.44 24.13 28.32 22.28 24.65 31.78 25.46 28.04 27.3 22.22 29.01 30.89

Cloth2 31.7 33.02 32.62 31.77 33.51 34.15 26.75 27.86 31.48 27.15 28.39 33.1 29.07 30.53 31.22 27.47 31.56 33.1

Cloth3 32.85 34.52 34.86 33.3 35.12 37.83 27.16 29.39 32.89 28.18 30.02 35.41 29.82 32.33 32.43 27.61 33.66 34.95

Cloth4 31.41 33.85 32.7 30.68 34.69 36.9 25.72 27.69 30.82 25.28 28.65 34.8 27.84 30.2 30.08 24.78 32.02 34.13

Cloth5 31.93 32.34 34.51 31.16 32.57 35.59 28.71 29.42 33.58 28.11 30.12 31.83 30.39 31.11 32.68 27.82 32.28 33.27

Cloth6 39.09 38.94 39.24 30.95 36.94 39.11 32.17 31.96 38.15 27.63 31.69 36.88 35.81 36.12 37.33 27.47 35.29 37.53

Color 42.37 40.62 40.38 36.5 39.04 37.66 47.01 44.17 36.36 24.54 41.79 34.42 42.1 40.76 34.94 24.51 39.15 34.4

Colorchart 41.91 41.74 44.73 33.31 38.89 42.19 31.57 32.25 41.87 27.72 31.25 39.16 36.1 37.22 40.24 27.66 35.4 39.31

Doll 25.12 26.28 25.86 27.03 26.37 27.42 20.82 21.6 24.85 21.11 22.08 26.05 22.69 23.92 24.29 21.1 24.57 25.99

Fan 26.38 27.38 27.06 27.06 26.99 28.33 20.58 21.63 25.71 20.06 22.06 27 23.15 24.45 24.84 20.12 24.88 26.36

Fan2 28.16 29.66 29.83 29.07 28.77 30.79 20.18 21.95 27.9 21.18 22.45 29.06 23.43 25.49 26.73 21.29 25.99 28.6

Fan3 27.79 29.3 29.35 29.36 28.8 30.57 20.54 22.01 27.44 21.72 22.43 28.96 23.47 25.42 26.54 21.46 26.08 28.52

Flower 41.78 42.07 43.55 27.82 39.56 43.31 32.41 32.64 41.77 24.49 31.67 40.79 37.29 38.36 41.21 24.4 36.92 41.69

Flower2 42.42 42.08 43.71 29.81 39.76 42.97 33.76 33.74 42.49 26.37 32.95 39.97 38.23 38.55 41.94 26.3 37.09 41.26

Flower3 43.16 42.76 44.17 30.02 40.13 43.13 33.05 33.63 42.42 26.63 32.93 40.5 37.89 38.91 41.72 26.58 37.49 41.37

Party 29.13 29.89 32.27 30.49 28.86 31.34 21.06 22.66 29.48 24.21 22.86 29.16 24.11 25.77 28.49 23.92 25.87 29.09

Tape 29.64 30.14 30.88 29.53 30.37 31.44 25.69 26.06 29.56 23.69 26.12 29.36 27.51 28.19 28.83 23.28 28.34 29.8

Tape2 32.13 33.38 32.48 33.93 33.35 33.64 27.06 28.92 31.07 25.91 29.35 30.89 28.84 29.83 30.11 25.74 30.38 31.37

Tshirts 24.14 27.06 24.65 25.92 27.87 28.63 18.75 20.45 23.14 18.45 21.39 27.37 20.81 23.42 22.4 18.71 25.27 26.73

Tshirts2 25.79 28.21 27.19 28.26 29.41 30.52 21.62 23.14 25.95 22.18 24.11 29.25 23.12 25.14 25.19 22.33 27.06 28.65

Average 33.49 34.69 34.58 31.43 34.19 35.75 27.19 28.20 32.56 24.40 28.28 33.57 29.78 31.22 31.67 24.32 31.46 33.40

Table 3: Comparison of different methods on the average

over all bands (5-band to 15-band) images.

WB SD BTES LMSD ISD PWB PBSD

Cave

PSNR 33.5 34.8 36.1 33.0 35.0 36.0 37.3

SSIM 0.95 0.96 0.97 0.92 0.96 0.97 0.98

Tokyo-

Tech

PSNR 31.3 32.4 33.5 28.3 32.3 33.5 34.7

SSIM 0.91 0.92 0.94 0.83 0.93 0.95 0.96

ages, whereas our proposed method reproduces the

sRGB images more accurately than the other meth-

ods.

5 CONCLUSIONS

The non-redundant MSFAs are not compact, and that

limits the efﬁcacy of MSFA demosaicking methods

using such MSFAs. The binary tree based MSFAs are

compact and facilitate better spectral and spatial cor-

relation. However, most of the existing demosaicking

methods using binary tree based (preferred) MSFAs

are not generic. In this work, a novel progressive ap-

proach of demosaicking is presented that can be used

for effectively reconstructing any K-band multispec-

tral images from binary-tree based (compact) MSFAs.

The proposed method is generic, and it applies ini-

tially bilinear interpolation appropriately and progres-

sively and then uses the spectral differences method

to further improve the quality of demosaicked image.

We evaluated the proposed method’s performance by

comparing it with other existing generic MSFA de-

mosaicking methods on multiple multispectral image

datasets. Considering different performance metrics

and the visual assessment, the proposed method’s per-

formance is consistently observed better than the ex-

isting generic MSFA demosaicking methods. In the

future, we plan to enhance and develop application-

speciﬁc efﬁcient MSFA demosaicking methods.

ACKNOWLEDGEMENTS

This research is supported by the DST Science

and Engineering Research Board, India under grant

ECR/2017/003478.

REFERENCES

Aggarwal, H. K. and Majumdar, A. (2014). Single-

sensor multi-spectral image demosaicing algorithm

using learned interpolation weights. In Proceedings

of the International Geoscience and Remote Sensing

Symposium, pages 2011–2014.

Brauers, J. and Aach, T. (2006). A color ﬁlter array based

multispectral camera. In 12. Workshop Farbbildverar-

beitung, pages 55–64.

Chen, I. and Lin, H. (2020). Detection, counting and

maturity assessment of cherry tomatoes using multi-

spectral images and machine learning techniques.

In Proceedings of International Joint Conference on

Computer Vision, Imaging and Computer Graphics

Theory and Applications( VISIGRAPP), pages 759–

766.

A New Generic Progressive Approach based on Spectral Difference for Single-sensor Multispectral Imaging System

335

Fukuda, H., Uchiyama, T., Haneishi, H.and Yamaguchi, M.,

and Ohyama, N. (2005). Development of 16-band

multispectral image archiving system. In Proceedings

of SPIE, pages 136–145.

Geelen, B., Tack, N., and Lambrechts, A. (2014). A com-

pact snapshot multispectral imager with a monolithi-

cally integrated per-pixel ﬁlter mosaic. In Proceedings

of SPIE, volume 8974, page 89740L.

Gupta, M. and Ram, M. (2019). Weighted bilinear in-

terpolation based generic multispectral image demo-

saicking method. Journal of Graphic Era University,

7(2):108–118.

Habtegebrial, T. A., Reis, G., and Stricker, D. (2019).

Deep convolutional networks for snapshot hypercpec-

tral demosaicking. In 10th Workshop on Hyperspec-

tral Imaging and Signal Processing: Evolution in Re-

mote Sensing, pages 1–5.

Jaiswal, S. P., Fang, L., Jakhetiya, V., Pang, J., Mueller, K.,

and Au, O. C. (2017). Adaptive multispectral demo-

saicking based on frequency-domain analysis of spec-

tral correlation. IEEE Transactions on Image Process-

ing, 26(2):953–968.

Junior, J. D., Backes, A. R., and Escarpinati, M. C. (2019).

Detection of control points for uav-multispectral

sensed data registration through the combining of

feature descriptors. In Proceedings of International

Joint Conference on Computer Vision, Imaging and

Computer Graphics Theory and Applications( VISI-

GRAPP), pages 444–451.

MacLachlan, A., Roberts, G., Biggs, E., and Boruff, B.

(2017). Subpixel land-cover classiﬁcation for im-

proved urban area estimates using landsat. Interna-

tional Journal of Remote Sensing, 38(20):5763–5792.

Mangai, U., Samanta, S., Das, S.and Chowdhury, P., Vargh-

ese, K., and Kalra, M. (2010). A hierarchical multi-

classiﬁer framework for landform segmentation using

multi-spectral satellite images-a case study over the

indian subcontinent. In IEEE Fourth Paciﬁc-Rim Sym-

posium on Image and Video Technology, pages 306–

313.

Miao, L. and Qi, H. (2006). The design and evaluation of a

generic method for generating mosaicked multispec-

tral ﬁlter arrays. IEEE Transactions on Image Pro-

cessing, 15(9):2780–2791.

Miao, L., Ramanath, R., and Snyder, W. E. (2006). Binary

tree-based generic demosaicking algorithm for mul-

tispectral ﬁlter arrays. IEEE Transactions on Image

Processing, 15(11):3550–3558.

Mihoubi, S., Losson, O., Mathon, B., and Macaire, L.

(2015). Multispectral demosaicking using intensity-

based spectral correlation. In Proceedings of the 5th

International Conference on Image Processing The-

ory, Tools and Applications, pages 461–466.

Mihoubi, S., Losson, O., Mathon, B., and Macaire, L.

(2017). Multispectral demosaicing using pseudo-

panchromatic image. IEEE Transactions on Compu-

tational Imaging, 3(4):982–995.

Mizutani, J., Ogawa, S., Shinoda, K., Hasegawa, M., and

Kato, S. (2014). Multispectral demosaicking algo-

rithm based on inter-channel correlation. In Proceed-

ings of the IEEE Visual Communications and Image

Processing Conference, pages 474–477.

Monno, Y., Kiku, D., Kikuchi, S., Tanaka, M., and Oku-

tomi, M. (2014). Multispectral demosaicking with

novel guide image generation and residual interpola-

tion. In Proceedings of IEEE International Confer-

ence on Image Processing, pages 645–649.

Monno, Y., Kikuchi, S., Tanaka, M., and Okutomi, M.

(2015). A practical one-shot multispectral imaging

system using a single image sensor. IEEE Transac-

tions on Image Processing, 24(10):3048–3059.

Monno, Y., Tanaka, M., and Okutomi, M. (2011). Multi-

spectral demosaicking using adaptive kernel upsam-

pling. In Proceedings of IEEE International Confer-

ence on Image Processing, pages 3157–3160.

Monno, Y., Tanaka, M., and Okutomi, M. (2012). Multi-

spectral demosaicking using guided ﬁlter. In Proceed-

ings of the SPIE Electronic Imaging Annual Sympo-

sium, pages 82990O–1–82990O–7.

Ohsawa, K., Ajito, T., Komiya, Y.and Fukuda, H., Haneishi,

H., Yamaguchi, M., and Ohyama, N. (2004). Six band

hdtv camera system for spectrum-based color repro-

duction. Journal of Imaging Science and Technology,

48(2):85–92.

Pichette, J., Laurence, A., Angulo, L., Lesage, F.,

Bouthillier, A., Nguyen, D., and Leblond, F. (2016).

Intraoperative video-rate hemodynamic response as-

sessment in human cortex using snapshot hyperspec-

tral optical imaging. Neurophotonics, 3(4):045003.

Qin, J., Chao, K., Kim, M. S., Lu, R., and Burks, T. F.

(2013). Hyperspectral and multi spectral imaging for

evaluating food safety and quality. Journal of Food

Engineering, 118(2):157–171.

Shopovska, I., Jovanov, L., and Philips, W. (2018). RGB-

NIR demosaicing using deep residual U-Net. In 26th

Telecommunications Forum, pages 1–4.

Thomas, J.-B., Lapray, P.-J., Gouton, P., and Clerc, C.

(2016). Spectral characterization of a prototype sfa

camera for joint visible and nir acquisition. Sensor,

16:993.

Vayssade, J., Jones, G., Paoli, J., and Gee, C. (2020). Two-

step multi-spectral registration via key-point detec-

tor and gradient similarity: Application to agronomic

scenes for proxy-sensing. In Proceedings of Interna-

tional Joint Conference on Computer Vision, Imag-

ing and Computer Graphics Theory and Applications(

VISIGRAPP), pages 103–110.

Yasuma, F., Mitsunaga, T., Iso, D., and Nayar, S. (2010).

Generalized assorted pixel camera: Postcapture con-

trol of resolution, dynamic range, and spectrum. IEEE

Transactions on Image Processing, 19(9):2241–2253.

Zenteno, O., Treuillet, S., and Lucas, Y. (2019). 3d cylin-

der pose estimation by maximization of binary masks

similarity: A simulation study for multispectral en-

doscopy image registration. In Proceedings of Inter-

national Joint Conference on Computer Vision, Imag-

ing and Computer Graphics Theory and Applications(

VISIGRAPP), pages 857–864.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

336
