Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for

Limited Data Domains

Carola Figueroa-Flores

1,2

, Bogdan Raducanu

, David Berga

and Joost van de Weijer

Computer Vision Center, Ediﬁci “O” - Campus UAB, 8193 Bellaterra, Barcelona, Spain

Department of Computer Science and Information Technology, Universidad del B

ıo B

ıo, Chile

Keywords:

Fine-grained Image Classiﬁcation, Saliency Detection, Convolutional Neural Networks.

Abstract:

It has been shown that saliency maps can be used to improve the performance of object recognition systems,

especially on datasets that have only limited training data. However, a drawback of such an approach is that it

requires a pre-trained saliency network. In the current paper, we propose an approach which does not require

explicit saliency maps to improve image classiﬁcation, but they are learned implicitely, during the training

of an end-to-end image classiﬁcation task. We show that our approach obtains similar results as the case

when the saliency maps are provided explicitely. We validate our method on several datasets for ﬁne-grained

classiﬁcation tasks (Flowers, Birds and Cars), and show that especially for domains with limited data the

proposed method signiﬁcantly improves the results.

1 INTRODUCTION

Fine-grained image recognition has as objective to

recognize many subcategories of a super-category.

Examples of well-known ﬁne-grained datasets are

Flowers (Nilsback and Zisserman, 2008), Cars

(Krause et al., 2013) and Birds (Welinder et al., 2010).

The challenge of ﬁne-grained image recognition is

that the differences between classes are often very

subtle, and only the detection of small highly lo-

calized features will correctly lead to the recogni-

tion of the speciﬁc bird or ﬂower species. An ad-

ditional challenge of ﬁne-grained image recognition

is the difﬁculty of data collection. The labelling of

these datasets requires experts and subcategories can

be very rare which further complicates the collection

of data. Therefore, the ability to train high-quality im-

age classiﬁcation systems from few data is an impor-

tant research topic in ﬁne-grained object recognition.

Most of the state-of-the-art general object classi-

ﬁcation approaches (Wang et al., 2017; Krizhevsky

et al., 2012) have difﬁculties in the ﬁne-grained recog-

nition task, which is more challenging due to the fact

that basic-level categories (e.g. different bird species

or ﬂowers) share similar shape and visual appearance.

Early works have focused on localization and classi-

ﬁcation of semantic parts using either explicit annota-

tion (Zhang et al., 2014; Lin et al., 2015; Zhang et al.,

2016a; Ding et al., 2019; Du et al., 2020) or weak la-

beling (Zheng et al., 2017; Fu et al., 2017; Wang et al.,

2020). The main disadvantage of these approaches

was that they required two different ’pipelines’, for

detection and classiﬁcation, which makes the joint op-

timization of the two subsystems more complicated.

Therefore, more recent approaches are proposing end-

to-end strategies with the focus on improving the fea-

ture representation from intermediate layers in a CNN

through higher order statistics modeling (Cai et al.,

2017; Wang et al., 2018a).

One recent approach which obtained good ﬁne-

grained recognition results, especially with only few

labeled data is proposed in (Flores et al., 2019). The

main idea is that a saliency image can be used to

modulate the recognition branch of a ﬁne-grained

recognition network. We will refer to this technique

as saliency-modulated image classiﬁcation (SMIC).

This is especially beneﬁcial when only few labeled

data is available. The gradients which are backprop-

agated are concentrated on the regions which have

high saliency. This prevents backpropagation of gra-

dients of uninformative background parts of the im-

age which could lead to overﬁtting to irrelevant de-

tails. A major drawback of this approach is that it

requires an explicit saliency algorithm which needs to

be trained on a saliency dataset.

In order to overcome the lack of sufﬁcient data for

a given modality, a common strategy is to introduce

a ’hallucination’ mechanism which emulates the ef-

Figueroa-Flores, C., Raducanu, B., Berga, D. and van de Weijer, J.

Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for Limited Data Domains.

DOI: 10.5220/0010299501630171

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

163-171

ISBN: 978-989-758-488-6

163

Step I: Training on Imagenet

Step II: Finetuning on a fine-grained dataset

Finetuning:

Finetuned layers

Frozen layers

Saliency

Branch

RGB

Branch

Saliency

Branch

RGB

Branch

Initialize weights:

Random initialization

Pretrained network

Saliency

Branch

RGB

Branch

Approach A Approach B

Figure 1: Overview of our method. We process an RGB input image through two branches: one branch extracts the RGB

features and the other one is used to learn saliency maps. The resulting features are merged via a modulation layer, which

continues with a few more convolutional layers and a classiﬁcation layer. The network is trained in two steps.

fect of genuine data. For instance, in (Hoffman et al.,

2016), they use this ’hallucination’ strategy for RGB-

D object detection. A hallucination network is trained

to learn complementary RGB image representation

which is taught to mimic convolutional mid-level fea-

tures from a depth network. At test time, images are

processed jointly through the RGB and hallucination

networks, demonstrating an improvement in detection

performance. This strategy has been adopted also for

the case of few-shot learning (Hariharan and Girshick,

2017; Wang et al., 2018b; Zhang et al., 2019). In this

case, the hallucination network has been used to pro-

duce additional training sample used to train jointly

with the original network (also called a neta-learner).

In this paper, we address the major drawback of

SMIC, by implementing a hallucination mechanism

in order to remove the requirement for providing

saliency images for training obtained using one of the

existing algorithms (Bylinskii et al., ). In other words,

we show that the explicit saliency branch which re-

quires training on a saliency image dataset, can be re-

placed with a branch which is trained end-to-end for

the task of image classiﬁcation (for which no saliency

dataset is required). We replace the saliency image

with the input RGB image (see Figure 1). We then

pre-train this network for the task of image classiﬁca-

tion using a subset from ImageNet validation dataset.

During this process, the saliency branch will learn

to identify which regions are more discriminative.

In a second phase, we initialize the weights of the

saliency branch with these pre-trained weights. We

then train the system end-to-end on the ﬁne-grained

dataset using only the RGB images. Results show that

the saliency branch improves ﬁne-grained recognition

signiﬁcantly, especially for domains with few training

images.

We brieﬂy summarize below our main contribu-

tions:

• we propose an approach which hallucinates

saliency maps that are fused together with the

RGB modality via a modulation process,

• our method does not require any saliency maps

for training (like in these works (Murabito et al.,

2018; Flores et al., 2019)) but instead is trained

indirectly in an end-to-end fashion by training the

network for image classiﬁcation,

• our method improves classiﬁcation accuracy on

three ﬁne-grained datasets, especially for domains

with limited data.

The paper is organized as follows. Section II is

devoted to review the related work in ﬁne-grained im-

age classiﬁcation and saliency estimation. Section III

presents our approach. We report our experimental

results in Section IV. Finally, Section V contains our

conclusions.

2 RELATED WORK

2.1 Fine-grained Image Classiﬁcation

A ﬁrst group of approaches on ﬁne-grained recogni-

tion operate on a two-stage pipeline: ﬁrst detecting

some object parts and then categorizing the objects

using this information.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

164

The work of (Huang et al., 2016) ﬁrst localizes

a set of part keypoints, and then simultaneously pro-

cesses part and object information to obtain highly

descriptive representations. Mask-CNN (Wei et al.,

2018) also aggregates descriptors for parts and objects

simultaneously, but using pixel-level masks instead of

keypoints. The main drawback of these models is the

need of human annotation for the semantic parts in

terms of keypoints or bounding boxes. To partially

alleviate this tedious task of annotation, (Xiao et al.,

2015) propose an weakly-supervised approach based

on the combination of three types of attention in or-

der to guide the search for object parts in terms of

’what’ and ’where’. A further improvement has been

reported in (Zhang et al., 2016b), where the authors

propose and approach free of any object / part anno-

tation. Their method explores a uniﬁed framework

based on two steps of deep ﬁlter response picking.

On the other hand, (Wang et al., 2020) propose an

end-to-end discriminative feature-oriented Gaussian

Mixture Model (DF-GMM) to learn low-rank feature

maps which alleviates the discriminative region diffu-

sion problem in high-level feature maps and thus ﬁnd

better ﬁne-grained details.

A second group of approaches merges these two

stages into an end-to-end learning framework which

optimize simultaneously both part localization and

ﬁne-grained classiﬁcation. This is achieved by ﬁrst

ﬁnding the corresponding parts and then comparing

their appearance (Wang et al., 2018a). In (Xie et al.,

2017), their framework ﬁrst performs unsupervised

part candidates discovery and global object discovery

which are subsequently fed into a two-stream CNN in

order to model jointly both the local and global fea-

tures. In (Chen et al., 2019), they propose an approach

based on ’Destruction and Construction Learning’

whose purpose is to force the network to understand

c¸¡‘the semantics of each region. For destruction, a re-

gion confusion mechanism (RCM) forces the classiﬁ-

cation network to learn from discriminative regions.

For construction, the region alignment network re-

stores the original region layout by modeling the se-

mantic correlation among regions. A similar idea

has been pursued in (Du et al., 2020), where they

propose a progressive training strategy to encourage

the network to learn features at different granularities

(using a random jigsaw patch generator) and after-

wards fuse them together. Some other works intro-

duce an attention mechanism. For instance, (Zheng

et al., 2017) propose a novel part learning approach by

a multi-attention convolutional neural network (MA-

CNN) without bounding box/part annotations. MA-

CNN jointly learns part proposals (deﬁned as multi-

ple attention areas with strong discrimination ability)

and the feature representations on each part. Simi-

lar approaches have been in reported in (Sun et al.,

2018; Luo et al., 2019). In (Ding et al., 2019), they

propose a network which learns sparse attention from

class peak responses (which usually corresponds to

informative object parts) and implements spatial and

semantic sampling. Finally, in (Ji et al., 2020), the au-

thors present an attention convolutional binary neural

tree in a weakly-supervised approach. Different root-

to-leaf paths in the tree network focus on different

discriminative regions using the attention transformer

inserted into the convolutional operations along edges

of the tree. The ﬁnal decision is produced as the sum-

mation of the predictions from the leaf nodes.

In another direction, some end-to-end frameworks

aim to enhance the intermediate representation learn-

ing capability of a CNN by encoding higher-order

statistics. For instance in (Gao et al., 2016) they cap-

ture the second-order information by taking the outer-

product over the network output and itself. Other

approaches focuses on reducing the high feature di-

mensionality (Kong and Fowlkes, 2017) or extract-

ing higher order information with kernelized mod-

ules (Cai et al., 2017). In (Wang et al., 2018a), they

learn a bank of convolutional ﬁlters that capture class-

speciﬁc discriminative patches without extra part or

bounding box annotations. The advantage of this ap-

proach is that the network focuses on classiﬁcation

only and avoids the trade-off between recognition and

localization.

Regardless, most ﬁne-grained approaches use the

object ground-truth bounding box at test time, achiev-

ing a signiﬁcantly lower performance when this in-

formation is not available. Moreover, automatically

discovering discriminative parts might require large

amounts of training images. Our approach is more

general, as it only requires image level annotations

at training time and could easily generalize to other

recognition tasks.

2.2 Saliency Estimation

Initial efforts in modelling saliency involved multi-

scale representations of color, orientation and inten-

sity contrast. These were often biologically inspired

such as the well-known work by Itti et al. (Itti et al.,

1998). From that model, a myriad of models were

based on handcrafting these features in order to ob-

tain an accurate saliency map (Borji and Itti, 2013;

Bylinskii et al., 2015), either maximizing (Bruce and

Tsotsos, 2005) or learning statistics of natural images

(Torralba et al., 2006; Harel et al., 2007). Saliency

research was propelled further by the availability of

large data sets which enabled the use machine learn-

Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for Limited Data Domains

165

ing algorithms (Borji, 2018), mainly pretrained on ex-

isting human ﬁxation data.

The question of whether saliency is important for

object recognition and object tracking has been raised

in (Han and Vasconcelos, 2010). Latest methods

(Borji, 2018) take advantage of end-to-end convolu-

tional architectures by ﬁnetuning over ﬁxation predic-

tion (K

ummerer et al., 2016; ?; ?). But the main goal

of these works was to estimate a saliency map, not

how saliency could contribute to object recognition.

In this paper instead, we propose an approach which

does not require explicit saliency maps to improve im-

age classiﬁcation, but they are learned implicitly, dur-

ing the training of an end-to-end image classiﬁcation

task. We show that our approach obtains similar re-

sults as the case when the saliency maps are provided

explicitely.

3 PROPOSED METHOD

Several works have shown that having the saliency

map of an image can be helpful for object recognition

and ﬁne-grained recognition in particular (Murabito

et al., 2018; Flores et al., 2019). The idea is twofold:

the saliency map can help focus the attention on the

relevant parts of the image to improve the recogni-

tion, and it can help guide the training by focusing

the backpropagation to the relevant image regions. In

(Flores et al., 2019), the authors show that saliency-

modulated image classiﬁcation (SMIC) is especially

efﬁcient for training on datasets with few labeled data.

The main drawback of these methods is that they re-

quire a trained saliency method. Here we show that

this restriction can be removed and that we can hal-

lucinate the saliency image from the RGB image. By

training the network for image classiﬁcation on the

imageNet dataset we can obtain the saliency branch

without human groundtruth images.

3.1 Overview of the Method

The overview of our proposed network architecture

is illustrated in Figure 1. Our network consists of

two branches: one to extract the features from an

RGB image, and the other one (saliency branch) to

generate the saliency map from the same RGB im-

age. Both branches are combined using a modula-

tion layer (represented by the × symbol) and are then

processed by several shared layers of the joint branch

which ﬁnally ends up with a classiﬁcation layer. The

RGB branch followed by the joint branch resembles

a standard image classiﬁcation network. The novelty

of our architecture is the introduction of the saliency

branch, which transforms the generated saliency im-

age into a modulation image. This modulation image

is used to modulate the characteristics of the RGB

branch, putting more emphasis on those characteris-

tics that are considered important for the ﬁne-grained

recognition task. In the following sections we pro-

vide the details of the network architecture, the op-

eration of the modulation layer, and ﬁnally, how our

saliency map is generated. We explain our model us-

ing AlexNet (Krizhevsky et al., 2012) as the base clas-

siﬁcation network, but the theory could be extended

to other convolutional neural network architectures.

For instance, in the experimental results section, we

also consider the ResNet-152 architecture (He et al.,

2016).

3.2 Hallucination of Saliency Maps

from RGB Images

The function of the visual attention maps is to fo-

cus on the location of the characteristics necessary to

identify the target classes, ignoring anything else that

may be irrelevant to the classiﬁcation task. There-

fore, given an input RGB image, our saliency branch

should be able to produce a map of the most salient

image locations useful for classiﬁcation purposes.

To achieve that, we apply a CNN-based saliency

detector consisting of four convolutional layers

(based on the AlexNet architecture)

. The output

from the last convolutional layer, i.e. one with 384

dimensional feature maps with a spatial resolution of

13 × 13 (for a 227 × 227 RGB input image), is fur-

ther processed using a 1 × 1 convolution and then a

function of activation ReLU. This is to calculate the

saliency score for each ”pixel” in the feature maps of

the previous layer, and to produce a single channel

map. Finally, to generate the input for the subsequent

classiﬁcation network, the 13 × 13 saliency maps are

upsampled to 27 × 27 (which is the default input size

of the next classiﬁcation module) through bilinear in-

terpolation. We justify the size of the output maps by

claiming that saliency is a primitive mechanism, used

by humans to direct attention to objects of interest,

which is evoked by coarse visual stimuli. Therefore,

our experiments (see section IV) show that 13 × 13

feature maps can encode the information needed to

detect salient areas and drive a classiﬁer with them.

We vary the number of convolutional layers in the ex-

perimental section and found four to be optimal.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

166

3.3 Fusion of RGB and Saliency

Branches

Consider an input image I(x, y, z), where z = {1, 2, 3}

indicate the three color channels of the image. Also

consider a saliency map s(x, y). In Flores et al. (Flo-

res et al., 2019), a network h (I, s) was trained which

performed image classiﬁcation based on the input im-

age I and the saliency map s. Here, we replace the

saliency map (which was generated by a saliency al-

gorithm) by a hallucinated saliency map h(I, ˚s(I)).

The hallucinated saliency map ˚s is trained end-to-end

and estimated from the same input image I without

the need of any ground truth saliency data.

The combination of the hallucinated saliency map

˚s , which is the output of the saliency branch, and the

RGB branch is done with modulation. Consider the

output of the i

layer of the network, l

, with dimen-

sion w

× h

× z

. Then we deﬁne the modulation as

(x, y, z) = l

(x, y, z) · ˚s(x, y), (1)

resulting in the saliency-modulated layer

. Note that

a single hallucinated saliency map is used to modulate

all i feature maps of

In addition to the formula in Eq. (1) we also intro-

duce a skip connection from the RGB branch to the

beginning of the joint branch, deﬁned as

(x, y, z) = l

(x, y, z) · (˚s (x, y) + 1) . (2)

This skip connection is depicted in Figure 1 (+ sym-

bol). It prevents the modulation layer from com-

pletely ignoring the features from the RGB branch.

This is inspired by this work (Flores et al., 2019) that

found this approach beneﬁcial when using attention

for network compression.

We train our architecture in an end-to-end manner.

The backpropagated gradient for the modulation layer

into the image classiﬁcation branch is equal deﬁned

as:

∂L

∂l

∂L

∂

· ( ˚s (x, y) + 1) , (3)

where L is the loss function of the network. We can

see that the saliency map modulates both the forward

pass (see Eq. (2)) as well as the backward pass in the

same manner; in both cases putting more weight on

the features that are on locations with high saliency,

and putting less weight on the irrelevant features. We

show in the experiments that this helps the network

train more efﬁciently, also on datasets with only few

labeled samples. The modulation prevents the net-

work from overﬁtting to the background.

Conv-1

Conv-2

Conv-3

Conv-4

Baseline

Figure 2: Graph shows the classiﬁcation accuracy on Flow-

ers for various number of layers in the saliency branch. Best

results are obtained with four convolutional layers. Baseline

refers to the method without saliency branch.

Before Pool-2

After Pool-2

After Conv-3

After Conv-4

Baseline

Figure 3: Graph shows the classiﬁcation accuracy on Flow-

ers. Various points for fusing the saliency and RGB branch

are evaluated. Best results are obtained when fusion is

placed before the pool-2 layer. Baseline refers to the

method without saliency branch.

3.4 Training on Imagenet and

Fine-tuning on a Target Dataset

As can be seen in Figure 1, the training of our ap-

proach is divided into two steps: ﬁrst, training on Im-

agenet and second, ﬁne-tuning on a target dataset.

Step 1: Training of Saliency Branch on Imagenet.

As explained above, the aim of the saliency branch is

to hallucinate (generate) a saliency map directly from

an RGB input image. This network is constructed by

initializing the RGB branch with pretrained weights

from Imagenet. The weights of the saliency branch

are initialized randomly using the Xavier method (see

Figure 1, left image). The network is then trained se-

lectively, using the ImageNet validation set: we allow

to train only the layers corresponding to the saliency

branch (depicted by the surrounding dotted line) and

freeze all the remaining layers (depicted through the

continuous line boxes).

Step 2: Fine-tuning on a Target Dataset. In this

step, we initialize the RGB branch with the weights

Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for Limited Data Domains

167

Table 1: Classiﬁcation accuracy for Flowers, Cars, and Birds dataset (results are the average over three runs), using AlexNet

as base network. Results are provided for varying number of training images, from 1 until 30; K refers to using the number

of training images used in the ofﬁcial dataset split. The rightmost column shows the average. The

∗

indicates that the method

requires an explicit saliency method. Our method (Approach B) obtains similar results as SMIC but without the need of a

pretrained saliency network trained on a saliency dataset.

Flowers

#train images 1 2 3 5 10 15 20 25 30 K AVG

Baseline-RGB 31.8 45.8 53.1 63.6 72.4 76.9 81.2 85.1 87.2 87.8 68.3

Baseline-RGB + scratch SAL 34.3 48.9 54.3 65.9 73.1 77.4 82.3 85.9 88.9 89.1 70.0

SMIC (Flores et al., 2019)

∗

37.6 51.9 57.1 68.5 75.2 79.7 84.9 88.2 91.2 92.3 72.7

Approach A 36.9 51.3 56.9 67.8 74.9 78.4 82.9 88.1 90.9 92.0 72.0

Approach B 37.3 51.7 57.2 68.7 75.6 78.7 83.8 88.4 91.7 92.5 72.6

Cars

Baseline-RGB 4.1 7.8 11.7 17.3 25.5 31.1 38.5 42.2 47.2 60.0 28.5

Baseline-RGB + scratch SAL 5.9 10.7 14.4 19.1 27.4 32.9 38.5 44.0 48.7 61.5 30.3

SMIC (Flores et al., 2019)

∗

9.3 14.0 18.0 22.8 30.0 34.7 40.4 46.0 50.0 61.4 32.7

Approach A 9.3 14.3 17.4 22.3 28.4 35.3 39.7 45.7 50.1 61.9 32.4

Approach B 9.8 15.1 18.4 22.9 28.8 35.1 39.9 45.8 49.7 62.9 32.8

Birds

Baseline-RGB 9.1 13.6 19.4 27.7 37.8 44.3 48.0 50.0 54.2 57.0 34.8

Baseline-RGB + scratch SAL 10.4 14.9 20.3 28.3 38.6 43.9 46.9 48.4 50.7 55.7 35.8

SMIC (Flores et al., 2019)

∗

13.1 18.9 22.2 30.2 38.7 44.3 48.0 50.0 54.2 57.0 37.7

Approach A 11.8 18.3 22.1 29.3 39.1 44.4 47.8 49.7 53.1 56.5 37.2

Approach B 12.9 18.7 22.7 29.7 39.4 44.1 48.2 49.9 53.9 57.7 37.7

pre-trained from Imagenet and the saliency branch

with the corresponding pre-trained weights from Step

1. The weights of the top classiﬁcation layer are ini-

tialized randomly, using the Xavier method. Then,

this network is then further ﬁne-tuned on a target

dataset, selectively. We distinguish two cases:

• Approach A. We freeze the layers of the saliency

branch and we allow all the other layers layers in

the network to be trained. This process is depicted

by the continuous line surrounding the saliency

branch and the dotted line for the rest (see the Fig-

ure 1, middle image).

• Approach B. We allow all layers to be trained.

Since we consider training on datasets with only

few labels this could results in overﬁtting, since it

requires all the weights of the saliency branch to

be learned (see the Figure 1, right image) .

In the experiments we evaluate both approaches to

training the network.

4 EXPERIMENTS

4.1 Experimental Setup

Datasets. To evaluate our approach, we used three

standard datasets used for ﬁne-grained image classiﬁ-

cation:

• Flowers: Oxford Flower 102 dataset (Nilsback

and Zisserman, 2008) has 8.189 images divided

in 102 classes.

• Birds: CUB200 has 11.788 images of 200 differ-

ent bird species (Welinder et al., 2010).

• Cars: the CARS-196 dataset in (Krause et al.,

2013) contains 16,185 images of 196 car classes.

Network Architectures. We evaluate our

approach using two network architectures:

Alexnet (Krizhevsky et al., 2012) and Resnet-

152 (He et al., 2016). In both cases, the weights were

pretrained on Imagenet and then ﬁnetuned on each

of the datasets mentioned above. The networks were

trained for 70 epochs with a learning rate of 0.0001

and a weight decay of 0.005. The top classiﬁcation

layer was initialized from scratch using Xavier

method (Glorot and Bengio, 2010).

Evaluation Protocol. To validate our approach,

we follow the same protocol as in (Flores et al.,

2019). For the image classiﬁcation task, we train

each model with subsets of k training images for

k ∈ {1, 2, 3, 5, 10, 15, 20, 25, 30, K}, where k is the to-

tal number of training images for the class. We keep 5

images per class for validation and 5 images per class

for test. We report the performance in terms of accu-

racy, i.e. percentage of correctly classiﬁed samples.

We show the results as an average over three runs.

4.2 Fine-grained Image Classiﬁcation

Results

Optimal Depth and Fusion Saliency Branch. First

we evaluate the saliency branch with a varying num-

ber of convolutional layers. The results are presented

in Figure 2. We found that four convolutional layers

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

168

Table 2: Classiﬁcation accuracy for Flowers, Cars, and Birds dataset (results are the average over three runs), using ResNet152

as base network. Results are provided for varying number of training images, from 1 until 30; K refers to using the number

of training images used in the ofﬁcial dataset split. The rightmost column shows the average. The

∗

indicates that the method

requires an explicit saliency method. Our method (Approach B) obtains similar results as SMIC but without the need of a

pretrained saliency network trained on a saliency dataset.

Flowers

#train images 1 2 3 5 10 15 20 25 30 K AVG

Baseline-RGB 39.0 60.1 68.0 82.5 89.0 92.0 92.1 93.3 94.2 95.4 80.3

Baseline-RGB + scratch SAL 40.1 63.8 69.7 83.9 89.7 91.9 92.9 93.8 95.1 97.1 81.8

SMIC (Flores et al., 2019)

∗

42.6 64.2 70.9 85.5 90.9 92.7 94.0 95.0 97.0 97.8 83.1

Approach A 42.4 64.5 70.7 85.2 90.3 92.4 93.3 94.3 96.5 97.9 82.8

Approach B 42.7 64.5 71.0 85.1 90.4 92.5 93.1 94.7 96.8 98.1 82.9

Cars

Baseline-RGB 30.9 45.8 53.1 62.7 70.9 73.9 79.9 88.7 89.2 90.7 68.6

Baseline-RGB + scratch SAL 33.8 46.1 54.8 63.8 71.7 74.9 80.9 88.1 89.1 91.0 69.4

SMIC (Flores et al., 2019)

∗

34.7 47.9 55.2 64.9 72.1 75.8 82.1 90.0 91.1 92.4 70.6

Approach A 34.1 47.0 56.3 64.7 71.9 75.3 81.7 89.0 90.8 91.7 70.2

Approach B 34.0 47.5 55.4 64.7 71.8 75.5 81.9 89.3 91.0 92.1 70.3

Birds

Baseline-RGB 24.9 35.3 44.1 53.3 63.8 71.8 75.7 79.3 82.9 83.7 61.5

Baseline-RGB + scratch SAL 26.3 36.1 45.2 53.9 64.3 72.1 76.3 79.9 83.1 83.4 62.1

SMIC (Flores et al., 2019)

∗

28.1 37.9 46.8 55.2 65.3 73.1 77.0 82.9 84.4 86.1 63.7

Approach A 26.9 36.9 46.1 54.2 64.9 72.8 77.1 81.4 83.4 84.8 62.9

Approach B 27.1 37.0 46.2 54.9 65.4 72.8 77.1 81.3 83.8 85.1 63.1

led to a signiﬁcant increase in performance. In addi-

tion, we look at the best RGB branch layer to perform

the fusion of the saliency branch and the RGB branch.

The results are presented in Figure 3. It is found to be

optimal to fuse the two branches before the Pool-2

layer for AlexNet

. Based on these experiments, we

use four convolutional layers in the saliency branch

and fuse before the second pool layer for the remain-

der of the experiments and for all datasets.

Evaluation on Scarce Data Domain. As described

in section III, we consider two alternative ways to

train the saliency branch on the target dataset: keep-

ing the saliency branch ﬁxed (Approach A) or al-

lowing it to ﬁnetune (Approach B). In this section,

we compare these two approaches with respect to

the Baseline-RGB and Baseline-RGB + scratch SAL

(where Saliency branch is initialized from scratch

without pretraining on Imagenet). In addition, we

compare to the SMIC method of Flores et al. (Flo-

res et al., 2019) who also reports results for small

training datasets. We do not compare to other ﬁne-

grained methods here, because they do not report

results when only considering few labeled images.

The experiments are performed on Flowers, Cars and

Birds datasets and can be seen in Table 1. The aver-

age improvement of accuracy of our Approach A and

B with respect the Baseline-RGB is 3.7% and 4.3%,

respectively for the Flowers dataset; 3.9% and 4.3%,

respectively for the Cars dataset; and 2.4% and 2.9%,

respectively for the Birds dataset. Our Approach B

is especially advantageous when we compare it with

In a similar study, we found that for Resnet-152 the

optimal fusion is after the forth residual block.

the SMIC approach, where an additional algorithm is

needed to generate the salience map. It is therefore

advantageous to also ﬁnetune the saliency branch on

the target data even when we only have a few labeled

images per class.

In Table 2, we show the same results but now for

ResNet152. One can see that the results improve sig-

niﬁcantly, especially for Cars results improve a lot.

The same general conclusions can be drawn : Ap-

proach B obtains better results than Approach A and

the method obtains similar results as SMIC but with-

out the need of a pretrained saliency network.

Qualitative Results. Table 3 shows some qualita-

tive results for the case when the pretrained version of

our approach predicts the correct label, meanwhile the

Baseline-RGB fails. Alternatively, in Table 4 depicts

the opposite case: the Baseline-RGB predicts the cor-

rect label of the test images, meanwhile the pretrained

version of our approach fails. In both cases, the

saliency images have been generated using our Ap-

proach B. A possible explanation for the failures in

this latter case could be that the saliency images are

not able to capture the relevant region of the image

for ﬁne-grained discrimination. Thus, the salience-

modulated layer focuses on the wrong features for the

task.

5 CONCLUSIONS

In this work, we proposed a method to improve

ﬁne-graned image classiﬁcation by means of saliency

maps. Our method does not require explicit saliency

Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for Limited Data Domains

169

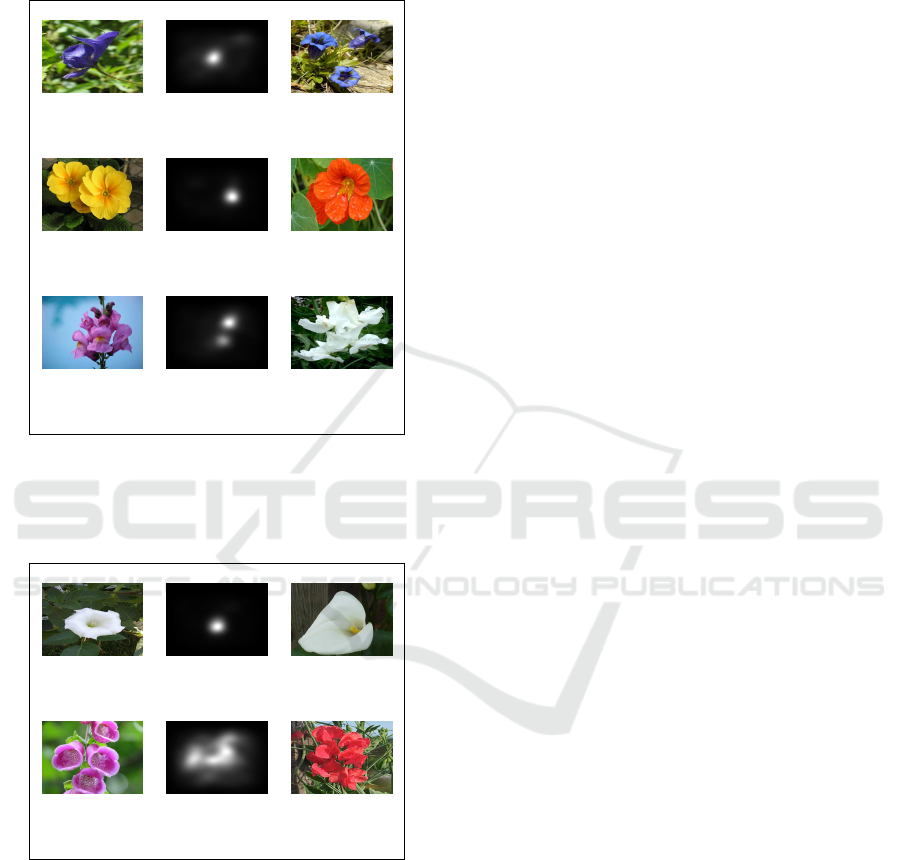

Table 3: Some success examples on Flowers: when the pre-

diction done by Baseline-RGB fails to infer the right label

for some test images, but the prediction by our approach

is correct. Example image contains image of the wrongly

predicted class.

Input Image Our Saliency Example Image

Predicted (Baseline-RGB): StemlessGentian

Predicted (Our Approach B): Moonkshood

Ground Truth: Moonkshood

Predicted (Baseline-RGB): Watercress

Predicted (Our Approach B): Primula

Ground Truth: Primula

Predicted (Baseline-RGB): Sweet Pea

Predicted (Our Approach B): Snap dragon

Ground Truth: Snap dragon

Table 4: Some failure examples on Flowers: when the pre-

diction done by our method fails to infer the right label for

some test images, but the prediction by Baseline-RGB is

correct. Example image contains image of the wrongly pre-

dicted class.

Input Image Our Saliency Example Image

Predicted (Baseline-RGB): Thorn Apple

Predicted (Our Approach B): Arum Lily

Ground Truth: Thorn Apple

Predicted (Baseline-RGB): Foxglove

Predicted (Our Approach B): Sweet Pea

Ground Truth: Foxglove

maps, but they are learned implicitely during the

training of an end-to-end deep convolutional network.

We validated our method on several datasets for ﬁne-

grained classiﬁcation tasks (Flowers, Birds and Cars).

We showed that our approach obtains similar results

as the SMIC method (Flores et al., 2019) which re-

quired explicit saliency maps. We showed that com-

bining RGB data with saliency maps represents a sig-

niﬁcant advantage for object recognition, especially

for the case when training data is limited.

ACKNOWLEDGEMENTS

The authors acknowledge the Spanish project

PID2019-104174GB-I00 (MINECO). and the

CERCA Programme of Generalitat de Catalunya.

Carola Figueroa is supported by a Ph.D. scholarship

from CONICYT (now ANID), Chile.

REFERENCES

Borji, A. (2018). Saliency prediction in the deep learn-

ing era: Successes, limitations, and future challenges.

arXiv, arXiv:1810.03716.

Borji, A. and Itti, L. (2013). State-of-the-art in visual atten-

tion modeling. IEEE Transactions on Pattern Analysis

and Machine Intelligence, 35(1):185–207.

Bruce, N. D. B. and Tsotsos, J. K. (2005). Saliency based

on information maximization. In Proceedings of the

18th International Conference on Neural Information

Processing Systems, NIPS’05, pages 155–162, Cam-

bridge, MA, USA. MIT Press.

Bylinskii, Z., DeGennaro, E., Rajalingham, R., Ruda, H.,

Zhang, J., and Tsotsos, J. (2015). Towards the quan-

titative evaluation of visual attention models. Vision

Research, 116:258–268.

Bylinskii, Z., Judd, T., Borji, A., Itti, L., Durand, F.,

Oliva, A., and Torralba, A. Mit saliency benchmark.

http://saliency.mit.edu/.

Cai, S., Zuo, W., and Zhang, L. (2017). Higher-order in-

tegration of hierarchical convolutional activations for

ﬁne-grained visual categorization. In Proc. of ICCV,

pages 511–520.

Chen, Y., Bai, Y., Zhang, W., and Mei, T. (2019). Destruc-

tion and construction learning for ﬁne-grained image

recognition. In Proc. of CVPR, pages 5157–5166.

Ding, Y., Zhou, Y., Zhu, Y., Ye, Q., and Jiao, J. (2019). Se-

lective sparse sampling for ﬁne-grained image recog-

nition. In Proc. of ICCV, pages 6599–6608.

Du, R., Chang, D., Bhunia, A., Xie, J., Ma, Z., Song, Y.-Z.,

and Guo, J. (2020). In Proc. of ECCV, pages 1–16.

Flores, C. F., Gonzalez-Garcia, A., van de Weijer, J., and

Raducanu, B. (2019). Saliency for ﬁne-grained ob-

ject recognition in domains with scarce training data.

Pattern Recognition, 94:62–73.

Fu, J., Zheng, H., and Mei, T. (2017). Look closer to see

better: Recurrent attention convolutional neural net-

work for ﬁne-grained image recognition. In Proc. of

CVPR, pages 4438–4446.

Gao, Y., Beijbom, O., Zhang, N., and Darrell, T. (2016).

Compact bilinear pooling. In Proc. of CVPR, pages

317–326.

Glorot, X. and Bengio, Y. (2010). Understanding the dif-

ﬁculty of training deep feedforward neural networks.

In International Conference on Artiﬁcial Intelligence

and Statistics, pages 249–256.

Han, S. and Vasconcelos, N. (2010). Biologically plausi-

ble saliency mechanisms improve feedforward object

recognition. Vision Research, 50:2295—-2307.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

170

Harel, J., Koch, C., and Perona, P. (2007). Graph-based vi-

sual saliency. In Sch

olkopf, B., Platt, J. C., and Hoff-

man, T., editors, Advances in Neural Information Pro-

cessing Systems 19, pages 545–552. MIT Press.

Hariharan, B. and Girshick, R. (2017). Low-shot visual

recognition by shrinking and hallucinating features. In

Pro. of ICCV, pages 3018–3027.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep

residual learning for image recognition. In IEEE Con-

ference on Computer Vision and Pattern Recognition,

pages 770–778.

Hoffman, J., Gupta, S., and Darrell, T. (2016). Learning

with side information through modality hallucination.

In Proc. of CVPR, pages 826–834.

Huang, S., Xu, Z., Tao, D., and Zhang, Y. (2016). Part-

stacked cnn for ﬁne-grained visual categorization. In

IEEE Conference on Computer Vision and Pattern

Recognition, pages 1173–1182.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence, 20(11):1254–1259.

Ji, R., Wen, L., Zhang, L., Du, D., Wu, Y., Zhao, C., Liu, X.,

and Huang, F. (2020). Attention convolutional binary

neural tree for ﬁne-grained visual categorization. In

Proc. of CVPR, pages 10468–10477.

ummerer, M., Wallis, T. S. A., and Bethge, M. (2016).

Deepgaze ii: Reading ﬁxations from deep fea-

tures trained on object recognition. arXiv preprint

arXiv:1610.01563.

Kong, S. and Fowlkes, C. (2017). Low-rank bilinear pool-

ing for ﬁne-grained classiﬁcation. In Proc. of CVPR,

pages 365–374.

Krause, J., Stark, M., Deng, J., and Fei-Fei, L. (2013).

3d object representations for ﬁne-grained categoriza-

tion. In 4th IEEE Workshop on 3D Representation and

Recognition, at ICCV, pages 1–8.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in Neural Information Pro-

cessing Systems, pages 1097–1105.

Lin, D., Shen, X., Lu, C., and Jia, J. (2015). Deep

lac: deep localization, alignment and classiﬁcation for

ﬁne-grained recognition. In Proc. of CVPR, pages

1666–1774.

Luo, W., Yang, X., Mo, X., Lu, Y., Davis, L., Li, J., Yang,

J., and Lim, S.-N. (2019). Cross-x learning for ﬁne-

grained visual categorization. In Proc. of ICCV.

Murabito, F., Spampinato, C., Palazzo, S., Pogorelov, K.,

and Riegler, M. (2018). Top-down saliency detection

driven by visual classiﬁcation. Computer Vision and

Image Understanding, 172:67–76.

Nilsback, M.-E. and Zisserman, A. (2008). Automated

ﬂower classiﬁcation over a large number of classes. In

Sixth Indian Conference on Computer Vision, Graph-

ics & Image Processing, pages 722–729.

Sun, M., Yuan, Y., Zhou, F., and Ding, E. (2018). Multi-

attention multi-class constraint for ﬁne-grained image

recognition. In Proc. of ECCV, pages 834–850.

Torralba, A., Oliva, A., Castelhano, M. S., and Hender-

son, J. M. (2006). Contextual guidance of eye move-

ments and attention in real-world scenes: The role of

global features in object search. Psychological Re-

view, 113(4):766–786.

Wang, F., Jiang, M., Qian, C., Yang, S., Li, C., Zhang, H.,

Wang, X., and Tang, X. (2017). Residual attention

network for image classiﬁcation. In IEEE Conference

on Computer Vision and Pattern Recognition, pages

3156–3164.

Wang, Y., Morariu, V. I., and Davis, L. S. (2018a). Learn-

ing a discriminative ﬁlter bank within a cnn for ﬁne-

grained recognition. In Proc. of CVPR, pages 4148–

4157.

Wang, Y.-X., Girshick, R., Hebert, M., and Hariharan, B.

(2018b). Low-shot learning from imaginary data. In

Proc. of CVPR, pages 7278–7286.

Wang, Z., Wang, S., Yang, S., Li, H., Li, J., and Li, Z.

(2020). Weakly supervised ﬁne-grained image classi-

ﬁcation via guassian mixture model oriented discrim-

inative learning. In Proc. of CVPR, pages 9749–9758.

Wei, X.-S., Xie, C.-W., Wu, J., and Shen, C. (2018).

Mask-cnn: Localizing parts and selecting descriptors

for ﬁne-grained bird species categorization. Pattern

Recognition, 76:704 – 714.

Welinder, P., Branson, S., Mita, T., Wah, C., Schroff, F.,

Belongie, S., and Perona, P. (2010). Caltech-UCSD

Birds 200. Technical Report CNS-TR-2010-001, Cal-

ifornia Institute of Technology.

Xiao, T., Xu, Y., Yang, K., Zhang, J., Peng, Y., and Zhang,

Z. (2015). The application of two-level attention

models in deep convolutional neural network for ﬁne-

grained image classiﬁcation. In Proc. of CVPR, pages

842–850.

Xie, G.-S., Zhang, X.-Y., Yang, W., Xu, M., Yan, S., and

Liu, C.-L. (2017). Lg-cnn: From local parts to global

discrimination for ﬁne-grained recognition. Pattern

Recognition, 71:118–131.

Zhang, H., Xu, T., Elhoseiny, M., Huang, X., Zhang, S., El-

gammal, A., and Metaxas, D. (2016a). Spda-cnn: Uni-

fying semantic part detection and abstraction for ﬁne-

grained recognition. In IEEE Conference on Com-

puter Vision and Pattern Recognition, pages 1143–

1152.

Zhang, H., Zhang, J., and Koniusz, P. (2019). Few-shot

learning via saliency-guided hallucination of samples.

In Proc. of CVPR, pages 2770–2779.

Zhang, N., Donahue, J., Girshick, R., and Darrell, T. (2014).

Part-based r-cnns for ﬁne-grained category detection.

In European Conference on Computer Vision, pages

834–849.

Zhang, X., Xiong, H., Zhou, W., Lin, W., and Tian, Q.

(2016b). Picking deep ﬁlter responses for ﬁne-grained

image recognition. In Proc. of CVPR, pages 1134–

1142.

Zheng, H., Fu, J., Mei, T., and Luo, J. (2017). Learning

multi-attention convolutional neural network for ﬁne-

grained image recognition. In Proc. of ICCV, pages

5209–5217.

Hallucinating Saliency Maps for Fine-grained Image Classiﬁcation for Limited Data Domains

171
