An User-centred AI-based Assistance System to Encounter Pandemics in

Clinical Environments: A Concept Overview

Christian Wiede

1 a

, Roman Seidel

2 b

, Carolin Wuerich

1 c

, Damir Haskovic

3 d

Gangolf Hirtz

2 e

and Anton Grabmaier

Fraunhofer IMS, Finkenstrasse 61, Duisburg, Germany

Chemnitz University of Technology, Reichenhainer Strasse 70 Chemnitz, Germany

MINDS & SPARKS GmbH, Gumpendorfer Strasse 73/17, Vienna, Austria

Keywords:

Artiﬁcial Intelligence, Assistance Systems, Clinical Environments, Robotics, Optical Sensors.

Abstract:

The current coronavirus pandemic has highlighted the need for enhanced digital technologies to provide high

quality care to patients in hospitals while protecting the health and safety of the medical staff. It can also be

expected that there will be a second and third wave in the corona pandemic and that preparation for future

pandemics must be made. In order to close this emerging gap, we propose a concept aiming at boosting the

adoption of AI and robotic related technologies to ensure sustainable, patient-centred care in hospitals. The

planned assistance system will provide a continuous and safe monitoring of patients in the whole hospital

environment from entrance to the ward, including data security and protection. The beneﬁts consist in a fast

detection of possible infected persons, a continuous monitoring of patients, a support by robots to reduce

physical contacts during epidemics, and an automatic disinfection by robots. In addition to the technical

challenges, medical, social and economic challenges for such an assistance system are discussed.

1 INTRODUCTION

The COVID-19 pandemic is affecting all continents

including Europe. The globalisation and increasingly

interconnected economies mean that most countries

are, and will be affected by COVID-19 and its con-

sequences. Global effort is therefore required to ef-

fectively break the chains of the virus transmission in

the population, while protecting the health of front-

line workers, particularly health professionals, from

infection.

Robotics, sensor technology and AI assistant sys-

tems can signiﬁcantly reduce the risk of infectious

disease transmission to frontline healthcare workers

by making it possible to triage, evaluate, monitor, and

treat patients from a safe distance without having the

risks of contagion. In addition, robots, sensor tech-

nologies and AI assistant systems have the potential

to be deployed for disinfection, delivering medica-

https://orcid.org/0000-0002-2511-4659

https://orcid.org/0000-0002-3144-1488

https://orcid.org/0000-0003-0917-2696

https://orcid.org/0000-0001-5173-4272

https://orcid.org/0000-0002-4393-5354

tions and food, measuring vital signs, and supporting

health professionals in various tasks. As the epidemic

escalated and a great number of health professionals

have been infected by the virus during their work, the

beneﬁts of robotics are becoming increasingly clear.

We intend to develop an assistance system in or-

der to improve healthcare uptake and treatment of pa-

tients during pandemics (e.g. COVID-19). The sys-

tem enables an increased speed and effectiveness of

diagnoses, treatment and monitoring of patients, and

thus protects patients, caregivers and healthcare pro-

fessionals in hospital settings. The objectives com-

prise a continuous, contactless monitoring of patients

and medical staff through optical sensors, a secure

hospital infrastructure and assistance robots to sup-

port caregivers. To achieve our ambitious objectives,

we present each step required to integrate such an as-

sistance system within a hospital ecosystem, whereby

an interdisciplinary team with partners from industry,

science and healthcare is necessary.

In order to outline our ﬁndings, this paper is struc-

tured as follows: Sect. 2 provides a system overview

of all aspects of the proposed solution. In Sect 3. the

secure infrastructure in the hospital is described. This

Wiede, C., Seidel, R., Wuerich, C., Haskovic, D., Hirtz, G. and Grabmaier, A.

An User-centred AI-based Assistance System to Encounter Pandemics in Clinical Environments: A Concept Overview.

DOI: 10.5220/0010301006930700

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

693-700

ISBN: 978-989-758-488-6

693

is followed by the description of the tracking of pa-

tients and medical staff by means of smart sensors in

Sect 4., Sect. 5 focuses on the contactless extraction

of patients’ vital parameters. Sect. 6 follows this with

the use of telepresence robots. All technical details

and other factors are discussed in Sect. 7. Conclu-

sions for further actions are presented in Sect. 8.

2 SYSTEM OVERVIEW

The global objective of the assistance system is to im-

prove healthcare uptake and treatment of patients dur-

ing pandemics (e.g., COVID-19) and beyond in hos-

pital settings for patients, caregivers and healthcare

professionals by increasing the speed and effective-

ness of diagnoses, treatment and monitoring of pa-

tients. This concept is visualised in Figure 1 and rep-

resents an assistance system in the clinical environ-

ment to improve treatment and care for patients, en-

hance the work balance of medical staff and improve

logistics while reducing costs.

2.1 Objectives of System Concept

Our system concept is divided into two technical ob-

jectives, which are:

1. Fast Triage and Continuous Monitoring: of

potential infected patients in hospitals during pan-

demics by the use of optical sensors to measure vi-

tal signs automatically in the entrance and emergency

rooms for fast detection of infected people and the

contactless continuous monitoring of patients in pa-

tient rooms and corridors for automatic health status

determination and for pathway tracking.

2. Protection of Patients, Caregivers and Infras-

tructure in Hospitals: during pandemics by de-

ploying a contact map for detecting patients and clini-

cal staff in order to track and trace contacts of persons

in the hospital using optical sensors to isolate infected

persons and contain superspreading events.

Furthermore, the system concept envisages the de-

ployment of assistance robots for automatic disinfec-

tion and for working tasks of clinical staff, thereby re-

ducing contact between patients and caregivers, and

the assurance of the system inviolability against cy-

berattacks by redundancy in the systems and stable

ﬁrewalls.

This is accompanied by objectives for rapid and

effective conversion of hospital processes and struc-

tures in the case of epidemics and the establishment of

a reliable, quantiﬁable and large-scale AI assistance

platform for the deployment in European hospitals.

2.2 Related Technologies

Autonomous monitoring of the health status is a cru-

cial task during pandemics. We aim to have a fast

detection in the hospital entrance of possible infected

persons for isolation, and the continuous monitoring

of already infected. The measurement will be auto-

matic, contactless to prevent contamination and fast

for high throughput. Both tasks can be realised by

the monitoring of vital parameters by means of opti-

cal sensors. Literature shows that there is research in

determining heart rate (Poh et al., 2010; Verkruysse

et al., 2008) and respiration rate (Wiede et al., 2017;

Lukac et al., 2014) remotely in various application

ﬁelds. However, non of them targeting the ﬁelds of

patient recovery monitoring and triage of patients,

which both have different demands on the algorithms

(see Sect. 5.2 and 5.1). Monitoring respiration rate

has turned out to be particularly advantageous due the

fact that COVID-19 patients suffer from shortness of

breath. To date, the remote, contactless determination

of patients’ vital parameters has not yet been part of a

large-scale clinical survey for pandemics comparable

to the one planned in this project concept. Therefore,

we have chosen this as a signiﬁcant focus area in this

project where vital parameter monitoring will be done

in 2D images captured from 3D smart sensors.

Furthermore, emergency situations such as falls

and circulatory collapses have to be detected imme-

diately. If such emergency cases are not immedi-

ately recognised, it is conceivable that the patients’

health would suffer and that the care costs would in-

crease. In contrast to the approach using wearable

sensors for fall detection by (Ferrari et al., 2012), the

authors of (Rantz et al., 2013) investigated an image-

based method that detects human falls through anal-

ysis of a depth map. This depth map can be par-

tially rendered as a 3D image without the full rendi-

tion (colour / brightness) of the scene. The proposed

method was tested successfully in multiple hospitals

(TRL 7) (Rantz et al., 2013). A fall detection which

is adapted to ﬁsheye images (Seidel et al., 2020) is in-

tegrated in our system concept and will perform fall

detection without physical contact. Furthermore, an

accurate tracking of persons is guaranteed while re-

specting privacy issues.

Another aspect of our system is the consideration

to use robots. Robotic solutions for hospitals and in

the healthcare ecosystem can be organised into cate-

gories depending on their application and use cases

(Bodenhagen et al., 2019). Telepresence robots are

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

694

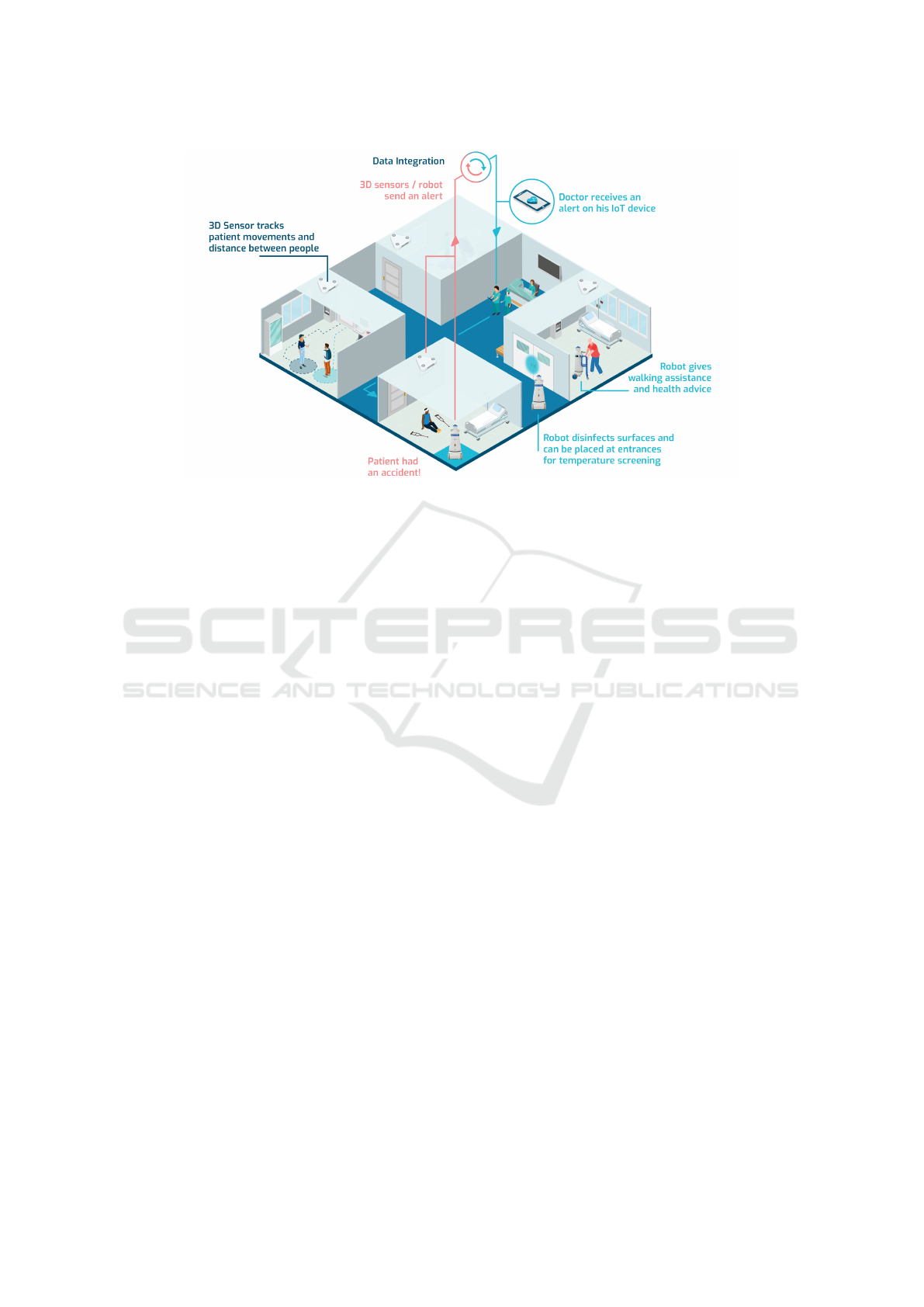

Figure 1: Overview of the technical assistance system with 3D sensors, a robotic platform and a data integration unit. The

system can be integrated in a hospital ward. As an example different use cases are shown in the patient rooms and in the

corridor.

remote-controlled robotic devices that enable a per-

son - such as a health professional - to be virtually

present, to interact and socially engage with patients

remotely and to physically manipulate the robot and

its immediate surroundings. This way, the user is able

to maintain a large degree of control over their vir-

tual presence and interactions with people and objects

in that physical space. Potential use cases envisaged

within the project include reducing physical interac-

tions between patients and carergivers.

There are existing studies of telepresence robots

supporting elderly people and patients that demon-

strate strong, positive inﬂuences over the interactions

with a manageable overall level of care delivered to

patients (Cesta et al., 2016; Gonzalez-Jimenez et al.,

2013; Lee et al., 2017; ?).

Especially in the COVID-19 pandemic, patients

suffered from isolation effects. Therefore, existing

robots will be integrated for telepresence purposes, to

guide and assist patients in hospitals. Telepresence

robots effectively and accurately monitor the health

status of the patients, can alert carers where speciﬁc

problems are arising and are able to intervene where

possible and necessary.

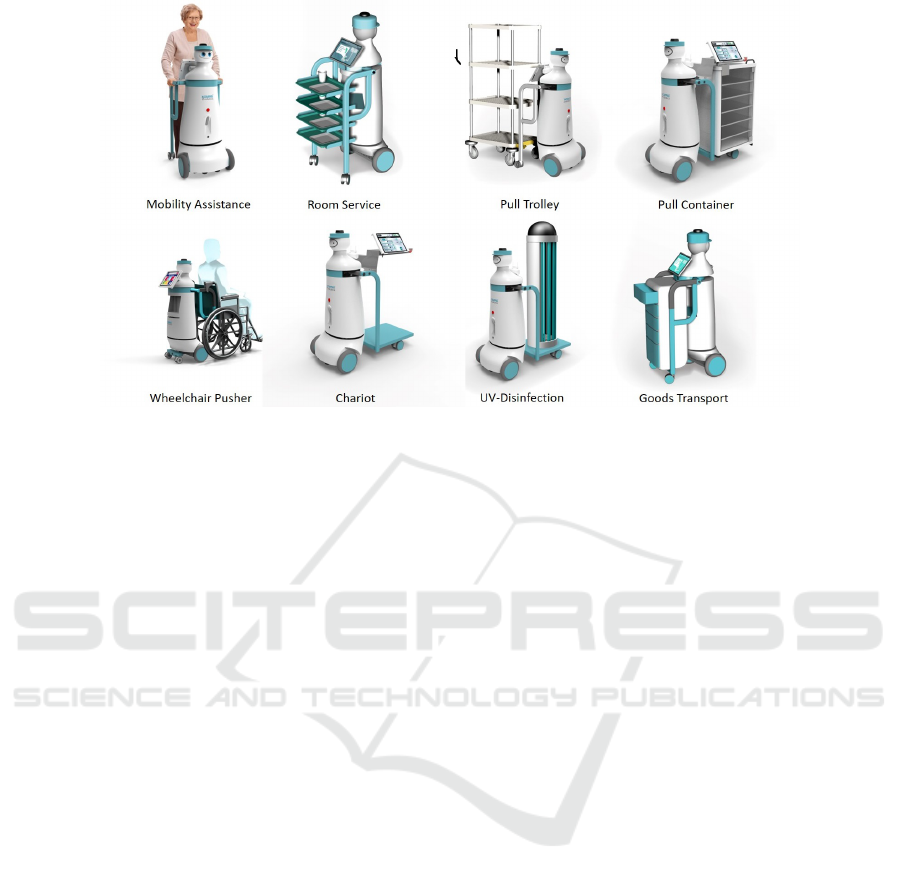

They are also able to actively remind or “nudge”

patients to keep an appointment or to take their re-

quired medicine. Moreover, the robots will be capa-

ble of physical transportation tasks such as movement

of physical objects (meals, medical devices) or phys-

ically guiding patients and their families themselves

from one location to another within the hospital envi-

ronment. Furthermore, the robots can perform tasks

for automatic disinfection of areas in the hospitals by

using ultra violet (UV) light. Data from robots, 3D

sensors and other Hospital Information System (HIS)

related sources will be fused within a data integration

unit, analysed and interpreted by the hospital staff.

The data is stored in dedicated servers hosted in the

hospital and analysed by an AI module designed to

identify further emergency situations requiring deci-

sions and intervention.

3 SECURE INFRASTRUCTURE

Since the collected data contains a huge amount of

sensitive information from different sensors, the data

integration into the HIS needs to meet certain require-

ments regarding the data management infrastructure,

privacy and security. A secure communication, com-

putation, data management and standardisation is es-

sential for a reliable AI assistance platform in hospi-

tals. A distributed system design is required to sup-

port all hospital AI components. For this, multiple

means of visualisation, computing, communication

architectures as well as database management sys-

tems for real-time operation and security will be con-

sidered. Data speciﬁcations are deﬁned beforehand,

especially the outputs of the AI methods employed

by the robots and smart sensors. Additionally, regula-

tory requirements like necessary certiﬁcations, com-

pliance, and data anonymisation needs to be consid-

ered.

An User-centred AI-based Assistance System to Encounter Pandemics in Clinical Environments: A Concept Overview

695

3.1 Data Management and Interfaces

The data management comprises services for system-

atically collecting data from the registered sensors,

robots and other HIS-related sources, as well as the

management for further processing and distributing

data in a secure way. It provides the basis for ensur-

ing interoperability between data sources, providing a

common operational picture in real-time during hos-

pital emergency situations. Events, such as incoming

messages from HIS and Health Portals (HL7, CDA,

FHIR-standard) may trigger further actions such as

email-indications, or tracing and tracking of medi-

cal personnel, patients, mobile equipment and devices

across hospital premises.

Due to the heterogeneous data sources (e.g. hospi-

tal robot) and streams (e.g. smart sensors), a harmon-

isation of the data is required. Algorithms transferred

herein, thus, could include tools for descriptive ana-

lytics (i.e. statistical summaries of integrated robot

and sensory data), time-series analysis of critical pa-

rameters (e.g. symptoms like changes in tempera-

ture, respiration rate, and pulse), and anomaly detec-

tion (e.g. using auto-regression). This shall provide

medical staff with holistic descriptions of the patients’

states, while also feeding key features for diagnostic

detection of critical events into the event bus. In order

to allow medical staff to interpret and use informa-

tion from these heterogeneous data sources, data har-

monisation and visualised analyses will be provided.

Finally, a set of visual components should be inte-

grated into the hospital system by providing front-end

visual analytics integrated into the end-use environ-

ments. Hence, medical staff can monitor vital param-

eters and alarms on a generic hospital control display

component. Customised visual components will be

prepared for displaying status of selected components

e.g. current vital parameters and the patient’s medical

record from the HIS.

3.2 Data Privacy and Security

To provide transparency, data privacy and security

(legal and ethical) restrictions and policies with an

elaborated roles and rights concept will be enforced

and monitored. Especially during public health cri-

sis, hospitals have been targets of cyberattacks in the

past. Thus, the inviolability of the system against

such attacks needs to be assured by redundancy in

the system and stable ﬁrewalls. IT security and user

management policies ensure that only eligible person-

nel can access the systems’ sensitive data. The work

of (Da

c et al., 2017) explores solutions for clinical

monitoring via state-of-the-art of video surveillance

clouds. Another approach is to process images and

videos either locally by a 3D sensor and a robot it-

self or remotely via a secure and powerful processing

node that routes generated meta-data to a data inte-

gration unit. No video data itself is processed by the

integration unit and only necessary data is transmit-

ted through the hospital network, thus improving data

security. In addition, for data protection reasons all

data is processed directly in the hospital and no data is

transferred to a cloud. Moreover, network monitoring

across all layers of ISO/OSI model, forensic analysis

for investigation of security or operational incidents

should be provided.

4 RE-IDENTIFICATION AND

TRACKING

In order to determine user-group-speciﬁc informa-

tion it is necessary to distinguish between the user

groups: clinical staff, visitors and patients. The re-

identiﬁcation of users in the clinical environment en-

sures that information retrieved from sensors like for

tracking or vital parameter monitoring are assigned

to the right person. Persons will be re-identiﬁed by

analysing the 2D images from the smart sensors. In

contrast to body mounted sensor technology such as

radio-frequency identiﬁcation (RFID) technology im-

age sensors have advantages in terms of number of

required sensors and are not object-related. To reduce

the number of necessary 2D image sensors per room,

ﬁsheye lenses with a complete 180

◦

top view (cover-

ing the entire scene below the ceiling) are used. Deep

learning approaches can be adapted to re-identify per-

sons in ﬁsheye images. Focusing on facial informa-

tion as performed by algorithms based on front-view

images is error-prone for top-view image analyses

since the face itself covers only a small portion in

the image. Therefore, features incorporating the en-

tire appearance of the patient (like AMOC (Liu et al.,

2017)) and the training of a detector with synthetic

data (Scheck et al., 2020) will be used. The goal of

this system concept is to achieve a high (rank-1) iden-

tiﬁcation rate while providing a conﬁdence value in-

dicating the certainty of the identiﬁcation. For this,

existing re-identiﬁcation methods have to be retrained

and ﬁne-tuned on top-view ﬁsheye images.

A continuous movement tracking in the hospi-

tal will retrieve and analyse the position of all per-

sons within the hospital based on the person re-

identiﬁcation. In case someone is reported to be in-

fected, the previous pathways of this person in the

hospital can be traced back, relevant persons are

informed and automated disinfection processes can

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

696

start. For this, smart 3D sensors are mounted at the

ceiling of each hospital room to track only the iden-

tiﬁed patients in the room. The 3D sensors consist

of multiple 2D ﬁsheye image sensors and capture im-

ages for anonymously analysing persons’ locations in

the hospital. Fully integrated distance maps between

people to identify contact chains and potential infec-

tion areas will be measured by the smart sensors di-

rectly in 3D, after the tracking of identiﬁed persons

is completed. Furthermore, emergency cases such as

falls can be detected by means of Support Vector Ma-

chine (SVM) classiﬁers. They are based on the 3D

pose referring to the 3D skeleton extraction. If a pa-

tient falls down onto the ﬂoor, the SVM would detect

it and the smart sensor sends an alarm signal to the

data fusion unit which immediately informs medical

professionals or the robots.

5 VITAL PARAMETERS

The contactless measurement of vital parameter is

sensible to do at the hospital entrance to isolate po-

tential infected persons and for the continuous moni-

toring of already infected in the wards. To date, the re-

mote, contactless determination of patients’ vital pa-

rameters has not been part of a large-scale clinical sur-

vey for pandemics as planned in our assistance sys-

tem.

5.1 Triage in Hospital Entrances

In order to establish a fast detection of potential

COVID-19 infected people, an access lock is to be in-

stalled in the entrance area of the emergency room.

Symptomatic COVID-19 cases are characterised in

particular by shortness of breath and fever. In case

of a combination of sympathetic symptoms, these pa-

tients have to be isolated from others immediately in

order to prevent contagion. The measurement will be

carried out using thermal imaging cameras to measure

temperature and RGB cameras to determine the respi-

ration rate. The measurements will be fully automatic

and without contact to the patient. This saves time

and reduces the possible sources of infection.

For the respiratory rate measurement, the patient

needs to sit in front of a camera for 30 seconds with-

out moving. With an RGB camera it is possible to de-

tect and track the torso motions (Wiede et al., 2017).

This can be realised by determining a region of in-

terest (ROI) on the upper body with an detector (Liao

et al., 2016), then detecting minimum Eigenvalue fea-

tures in this region (Shi and Tomasi, 1993) and track

them by means of optical ﬂow (Tomasi and Kanade,

1991). A time channel can be extracted from the tra-

jectories of the tracked points. The signal information

is improved by applying a bandpass ﬁltering and a

principal component analysis (PCA). Finally, the res-

piration rate is obtained from the signal spectrum’s

highest peak. This value is one indicator for the diag-

noses made by the clinical personnel.

First tests in a hospital during the ﬁrst wave

of COVID-19 crisis have proven successful (Wiede

et al., 2020).

5.2 Recovery Monitoring

Furthermore, the embedded omnidirectional sensors

in the patient rooms enable the remote monitoring of

the vital parameters such as heart and respiratory rate.

To account for data privacy, the person identiﬁcation

assures on the one hand that the data is retrieved only

for the user groups patients and medical staff (not vis-

itors), and on the other hand that the retrieved data is

assigned to the right person. In case the health status

changes drastically or emergencies occur, an alarm is

triggered and either a robot or a caregiver will come

and assist.

Unlike in the case of triage, an omnidirectional

image will be processed. This has the advantage that

the whole room can be monitored, but at the expense

of strong distortions. One solution lies in the use a vir-

tual perspective camera such as proposed by Meinel

et al. (Meinel et al., 2014). Thereby, the detected per-

son in the omnidirectional image will be projected to

an artiﬁcial perspective image.

First, the heart rate can be estimated by detect-

ing the face of a person by the method of Zhu and

Ramanan (Zhu and Ramanan, 2012), determining

a person-dependent skin colour model and tracking

the features with optical ﬂow (Tomasi and Kanade,

1991). Subsequently, all pixels in the face matching

the skin colour model criteria are extracted and aver-

aged in every time step to obtain three colour chan-

nels. These channels are normalised, bandpass ﬁl-

tered and processed by an ICA. Finally, the heart rate

is determined by dominant frequency within the Fast

Fourier Transform (FFT) spectrum. This determina-

tion of the respiration rate is analogous to the proce-

dure described in Sect. 5.1.

The use of omnidirectional sensors for the deter-

mination of heart and respiration rate has already been

investigated for ambient assisted living (AAL) appli-

cations (Wiede et al., 2019), whereby a transfer into

the clinical area is generally possible. Moreover, the

mobile robot platforms are able to detect vital param-

eters in the same fashion as their additional tasks in

the hospital.

An User-centred AI-based Assistance System to Encounter Pandemics in Clinical Environments: A Concept Overview

697

6 ROBOTS

In the context of pandemics, the ﬁeld of robotics in

combination with intelligent sensors offers enormous

potential to meet some of the challenges ahead, i.e.

automation of processes in hospitals, reduction of

physical contact between people and better monitor-

ing of patients’ health state. We will focus on telep-

resence robots and personal assistants, since these are

robot types that seem to be particularly well suited

to meet rapidly expanding healthcare demands in epi-

demics. In order to be really useful these robots

need to be aware at all moments of their current posi-

tion. We will use algorithms such as semantic SLAM

(Bowman et al., 2017), long term SLAM in dynamic

environments (Biber and Duckett, 2009; Pomerleau

et al., 2014), and strategies for switching between

SLAM (when exploring and updating the map of the

world) and localisation (when exploiting the current

map information). It will be necessary that the robot

walks at the same pace as patients/visitors, while the

robot is guiding the person to reach a speciﬁc destina-

tion or when a telepresence visit is taking place. Dis-

tance between robot and the person should be ﬁxed

according to the circumstances. During telepresence

meetings, the robot should maintain a close distance

to allow a private conversation, but a longer distance

for a chat with a group of people.

6.1 Telepresence Functionality and User

Interfaces

Especially in the COVID-19 pandemic, patients suf-

fer from isolation effects. Telepresence robots en-

able health professionals and relatives to be virtually

present, to interact and socially engage with patients

remotely, and to physically manipulate the robot and

its immediate surroundings. However, associated

beneﬁts as well include the reduction of physical con-

tact between patients and care givers. The human-

robot interaction will be based on gesture recognition,

as gestures are natural communication codes, and

complementary to a graphical user interface (GUI).

The information being displayed on the GUI mon-

itor will depend on the user group and on the task

being carried out. Another option can be voice in-

teraction, especially for patients who have difﬁculties

moving. However, in noisy environments, achieving

acceptable performances can be very challenging

6.2 Robot for Assistance, Transport and

Disinfection

Furthermore, assistant robots as shown in Figure 2

can take responsibility for simple tasks and routines,

allowing nurses to focus on more complex and press-

ing patient needs and reducing physical contact to

prevent infections. These simple tasks will include

performing regular check-ups on patients in a critical

state, reminding patients to take their medication, to

effectively and accurately monitor the health status of

the patients, to alert carers where speciﬁc problems

arise and to intervene where possible and necessary.

In this context, enabling robots with the skill of ver-

ifying and re-identifying people is necessary to pro-

vide services to the right person. Perceiving people

is needed in order to navigate efﬁciently and safely,

to approach people in an appropriate manner, to ini-

tiate and maintain social interaction, and to recover

the contact with people. Together with the ceiling-

mounted smart sensors, robots will jointly reduce the

amount of physical contact between healthcare pro-

fessionals and patients and ensure that patients do not

get lost and do not leave their ward or room unat-

tended, informing care staff when necessary. This

type of support allows for an immediate and auto-

mated retrieval of medical ﬁndings and issuing alerts

in pre-deﬁned emergency situations such as falls, res-

piratory distress and circulatory collapse. Moreover,

robots are capable of physical transportation tasks

such as movement of physical objects (meals, medical

devices) or physically guiding patients and their fam-

ilies themselves from one location to another within

the hospital environment avoiding crowded places.

Furthermore, the robots will perform tasks for auto-

matic disinfection of areas in the hospitals by using

UV light, which kills the pathogens. For this purpose,

a path planning is implemented in the hospital to dis-

infect all areas and not to forget any corner.

7 DISCUSSION AND

CHALLENGES

To separate infected from non-infected persons as

early as possible, it is unavoidable to identify the user

group of each person in the hospital and track its path-

way through the hospital. With the help of multi-

object (person) tracking (MOT) each person gets an

automatically assigned ID. Challenges in MOT are ID

switches which occur mostly while person crossings

or during occlusions.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

698

Figure 2: Overview of the different functionalities of the robots. Besides the transportation of different containers and goods,

the robot can be a mobility assistance for patients or disinfect hospital wards.

The challenges for the remote vital parameter de-

termination consists in high accuracy requirements,

low resolution in omnidirectional sensors, robustness

against illumination and motion artefacts. Further-

more, a night working mode by operating in near in-

frared has to implemented. It is crucial that all remote

vital parameter algorithms are validated in the hospi-

tal by gold standard measurement methods.

In addition to the optical sensors, robots can be

employed to automate processes in the hospital. As-

sistance robots can perform time-consuming trans-

portation tasks, as well as being a mobility support

for patients or UV-disinfecting hospital wards. This

allows nurses to focus on more complex patient needs

and reduces physical contact preventing infections.

For this purpose, path planning and perceiving peo-

ple in the dynamic environment is crucial for a save

navigation and appropriate human-robot interaction.

During the COVID-19 pandemics many health-

care related institutions have been targeted by cyber-

attacks which shows the need for the identiﬁcation of

data leaks in the digital infrastructure. This fact leads

to two recommendations for action; ﬁrst, the improve-

ment of existing infrastructure especially in hospitals

and second, the consideration of these aspects during

the development of new technical systems.

Beside data security one of the major challenges

is the protection of the user data and its identity. For

this, the data captured by a ﬁsheye camera in a 3D

smart sensor device needs to be anonymised. To over-

come the trade-off between privacy and video ana-

lytics each usergroups’ data (patient, visitor, staff) is

anonymised through face anonymisation and the ad-

dition of depth maps.

In the near future the assistance system is planned

for large-scale piloting in several hospitals in the EU.

A secure infrastructure for sensor-communication and

data storage needs to be integrated into the telematics

infrastructure of the hospital. The major challenges

here are the design of the interface due to different

HIS-providers on the market and the lack of technical

and administrative staff at the hospitals. To increase

the user acceptance in hospitals it is necessary to cre-

ate an AI-guidbook with a fast-response reaction plan

for switching the hospital to crisis mode.

8 CONCLUSION

In our work, we proposed a concept for an assistance

system in hospitals to encounter the effects of pan-

demics such as COVID-19. The components of such

a system consist of the contactless measurement of

health state for patients and medical staff, of robots

with several assistance and guiding function and the

implementation in a secure hospital infrastructure.

Whereas single components are in the market nowa-

days, a combination of these tools is not implemented

in clinical environments. Therefore, the next step is

the implementation in a hospital embedded during a

clinical study in order to measure technical, medical,

social and economical effects. We expect a signiﬁ-

cantly smaller amount of infections in the hospital, a

reduction of workload for caregivers and a cost reduc-

tion due to digitalisation.

An User-centred AI-based Assistance System to Encounter Pandemics in Clinical Environments: A Concept Overview

699

REFERENCES

Biber, P. and Duckett, T. (2009). Experimental analysis of

sample-based maps for long-term slam. The Interna-

tional Journal of Robotics Research, 28(1):20–33.

Bodenhagen, L., Suvei, S.-D., Juel, W. K., Brander, E., and

uger, N. (2019). Robot technology for future wel-

fare: meeting upcoming societal challenges–an out-

look with offset in the development in scandinavia.

Health and Technology, 9(3):197–218.

Bowman, S. L., Atanasov, N., Daniilidis, K., and Pappas,

G. J. (2017). Probabilistic data association for seman-

tic slam. In 2017 IEEE international conference on

robotics and automation (ICRA), pages 1722–1729.

IEEE.

Cesta, A., Cortellessa, G., Orlandini, A., and Tiberio,

L. (2016). Long-term evaluation of a telepresence

robot for the elderly: methodology and ecological

case study. International Journal of Social Robotics,

8(3):421–441.

c, P., Da

c, J., and Crvenkovi

c, B. (2017). Improving

patient safety in hospitals through usage of cloud sup-

ported video surveillance. Open access Macedonian

journal of medical sciences, 5(2):101.

Ferrari, M., Harrison, B., Rawashdeh, O., Hammond, R.,

Avery, Y., Rawashdeh, M., Sadeh, W., and Maddens,

M. (2012). Clinical feasibility trial of a motion de-

tection system for fall prevention in hospitalized older

adult patients. Geriatric Nursing, 33(3):177–183.

Gonzalez-Jimenez, J., Galindo, C., and Gutierrez-

Castaneda, C. (2013). Evaluation of a telepresence

robot for the elderly: a spanish experience. In Inter-

national Work-Conference on the Interplay Between

Natural and Artiﬁcial Computation, pages 141–150.

Springer.

Lee, H., Kim, Y., and Bianchi, A. (2017). A survey on

medical robotic telepresence design from the perspec-

tive of medical staff. Archives of Design Research,

30(1):61–71.

Liao, S., Jain, A. K., and Li, S. Z. (2016). A Fast and Ac-

curate Unconstrained Face Detector. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

38(2):211–223.

Liu, H., Jie, Z., Jayashree, K., Qi, M., Jiang, J., Yan, S., and

Feng, J. (2017). Video-based person re-identiﬁcation

with accumulative motion context. IEEE transac-

tions on circuits and systems for video technology,

28(10):2788–2802.

Lukac, T., Pucik, J., and Chrenko, L. (2014). Contactless

recognition of respiration phases using web camera.

In Radioelektronika (RADIOELEKTRONIKA), 2014

24th International Conference, pages 1–4. IEEE.

Meinel, L., Wiede, C., Findeisen, M., Apitzsch, A., and

Hirtz, G. (2014). Virtual perspective views for real-

time people detection using an omnidirectional cam-

era. In Imaging Systems and Techniques (IST), 2014

IEEE International Conference on, pages 312–315.

IEEE.

Niemel

a, M., Van Aerschot, L., Tammela, A., Aaltonen, I.,

and Lammi, H. (2019). Towards ethical guidelines of

using telepresence robots in residential care. Interna-

tional Journal of Social Robotics, pages 1–9.

Poh, M.-Z., McDuff, D. J., and Picard, R. W. (2010). Non-

contact, automated cardiac pulse measurements using

video imaging and blind source separation. Optics ex-

press, 18(10):10762–10774.

Pomerleau, F., Kr

usi, P., Colas, F., Furgale, P., and Siegwart,

R. (2014). Long-term 3d map maintenance in dynamic

environments. In 2014 IEEE International Con-

ference on Robotics and Automation (ICRA), pages

3712–3719. IEEE.

Rantz, M. J., Banerjee, T. S., Cattoor, E., Scott, S. D.,

Skubic, M., and Popescu, M. (2013). Automated

fall detection with quality improvement rewind to re-

duce falls in hospital rooms. Journal of gerontological

nursing, 40(1):13–17.

Scheck, T., Seidel, R., and Hirtz, G. (2020). Learning from

theodore: A synthetic omnidirectional top-view in-

door dataset for deep transfer learning. In The IEEE

Winter Conference on Applications of Computer Vi-

sion, pages 943–952.

Seidel, R., Scheck, T., Grassi, A. C. P., Seuffert, J. B.,

Apitzsch, A., Yu, J., Nestler, N., Heinz, D., Lehmann,

L., Goy, A., and Hirtz, G. (2020). Contactless inter-

active fall detection and sleep quality estimation for

supporting elderly with incipient dementia. In BMT

2020 Conference (in-press). VDE.

Shi, J. and Tomasi, C. (1993). Good Features to Track.

Technical report, Cornell University, Ithaca, NY,

USA.

Tomasi, C. and Kanade, T. (1991). Detection and Tracking

of Point Features. Technical report, Carnegie Mellon

University.

Verkruysse, W., Svaasand, L. O., and Nelson, J. S. (2008).

Remote plethysmographic imaging using ambient

light. Optics express, 16(26):21434–21445.

Wiede, C., Grundmann, K., Wuerich, C., Rademacher, R.,

Heidemann, B., and Grabmaier, A. (2020). Fast triage

of covid-19 patients in hospitals by means of remote

respiration rate determination. In BMT 2020 Confer-

ence (in-press). VDE.

Wiede, C., Richter, J., and Hirtz, G. (2019). Contact-less vi-

tal parameter determination: An e-health solution for

elderly care. In VISIGRAPP (5: VISAPP), pages 908–

915.

Wiede, C., Richter, J., Manuel, M., and Hirtz, G. (2017).

Remote respiration rate determination in video data-

vital parameter extraction based on optical ﬂow and

principal component analysis. In International Con-

ference on Computer Vision Theory and Applications,

volume 5, pages 326–333. SCITEPRESS.

Zhu, X. and Ramanan, D. (2012). Face detection, pose esti-

mation, and landmark localization in the wild. In Pro-

ceedings of the IEEE Computer Society Conference

on Computer Vision and Pattern Recognition, pages

2879–2886.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

700
