Machine Learning Algorithms for Predicting Chronic Obstructive

Pulmonary Disease from Gene Expression Data with Class Imbalance

Kunti Robiatul Mahmudah

, Bedy Purnama

1,2

, Fatma Indriani

1,3

and Kenji Satou

Graduate School of Natural Science and Technology, Kanazawa University, Kanazawa, Japan

Telkom School of Computing, TELKOM University, Bandung, Indonesia

Department of Computer Science, Universitas Lambung Mangkurat, Banjarbaru, Indonesia

Institute of Science and Engineering, Kanazawa University, Kanazawa, Japan

Keywords: Microarray Data, Gene Expression, COPD, Machine Learning, Class Imbalance.

Abstract: Chronic obstructive pulmonary disease (COPD) is a progressive inflammatory lung disease that causes

breathlessness and leads to serious illness including lung cancer. It is estimated that COPD caused 5% of all

deaths globally in 2015, putting COPD as the three leading causes of death worldwide. This study proposes

methods that utilize gene expression data from microarrays to predict the presence or absence of COPD.

The proposed method assists in determining better treatments to lower the fatality rates. In this study,

microarray data of the small airway epithelium cells obtained from 135 samples of 23 smokers with COPD

(9 GOLD stage I, 12 GOLD stage II, and 2 GOLD stage III), 59 healthy smokers, and 53 healthy non-

smokers were selected from GEO dataset. Machine learning and regression algorithms performed in this

study included Random Forest, Support Vector Machine, Naïve Bayes, Gradient Boosting Machines, Elastic

Net Regression, and Multiclass Logistic Regression. After diminishing imbalance data effect using SMOTE,

classification algorithms were performed using 825 of the selected features. High AUC score was achieved

by elastic net regression and multiclass logistic regression with AUC of 89% and 90%, respectively. In the

metrics including accuracy, specificity, and sensitivity, both classifiers also outperformed the others.

1 INTRODUCTION

Chronic obstructive pulmonary disease (COPD) is a

progressive inflammatory lung disease that restricts

airflow from the lung and imposes a significant

burden on daily patient’s lives. COPD becomes one

of the significant risk factors for developing lung

cancer (Sekine et al., 2012). According to WHO,

COPD caused 5% of all deaths globally in 2015 and

in 2020, it is estimated that 4.7 million out of 68

million deaths worldwide will be caused by COPD

(Lopez-Campos et al., 2016). COPD is often noticed

when the condition has caused major lung damage.

It is difficult to detect COPD in the early stage

because the symptoms only appear after significant

lung damage has occurred. With current

computational technologies, developing machine

learning algorithms, and better access to health and

disease-related data, opportunities for detecting

COPD in the early stage will be improved. Anakal,

S. & Sandhya, P. (2017) highlighted the need of

employing machine learning algorithm in designing

Clinical Decision Support Systems to classify the

different stages of COPD in patients. By employing

machine learning algorithms, Yao, Yangwei, et al

(2019) identified 38 genes which associated with the

pathogenesis of COPD and ILD (interstitial lung

disease). The identified genes can be used to assist

in determining better treatments for COPD and ILD.

Studies of diseases are commonly conducted by

using gene expression data which can reveal

components of the genome that are significantly

changed to help us understand which biological

processes are affected (e.g., Qian et al., 2014).

However, gene expression data analysis and

handling are complex and difficult tasks since the

number of experiments is less than the number of

genes or probes which usually used as features.

Furthermore, platform differences resulting in batch

effects, different experimental conditions, and the

lack of uniformity in experimental annotation

become the major challenge.

What makes this challenge even more difficult is

that the presence of class imbalance, i.e., the number

148

Mahmudah, K., Purnama, B., Indriani, F. and Satou, K.

Machine Learning Algor ithms for Predicting Chronic Obstructive Pulmonary Disease from Gene Expression Data with Class Imbalance.

DOI: 10.5220/0010316501480153

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 3: BIOINFORMATICS, pages 148-153

ISBN: 978-989-758-490-9

of data represented in one class is smaller than other

classes. The minority class is usually the main

interest since classifiers will degrade their

performance on this class while biased towards the

majority class. Class imbalance problem has become

an important issue in the field of machine learning

and remains as one of the major difficulties in

intelligent computer systems. Researchers in this

field have developed techniques to solve this

problem. One of the methods to deal with class

imbalance is by resampling the original dataset

either by oversampling or undersampling (Chawla et

al., 2002).

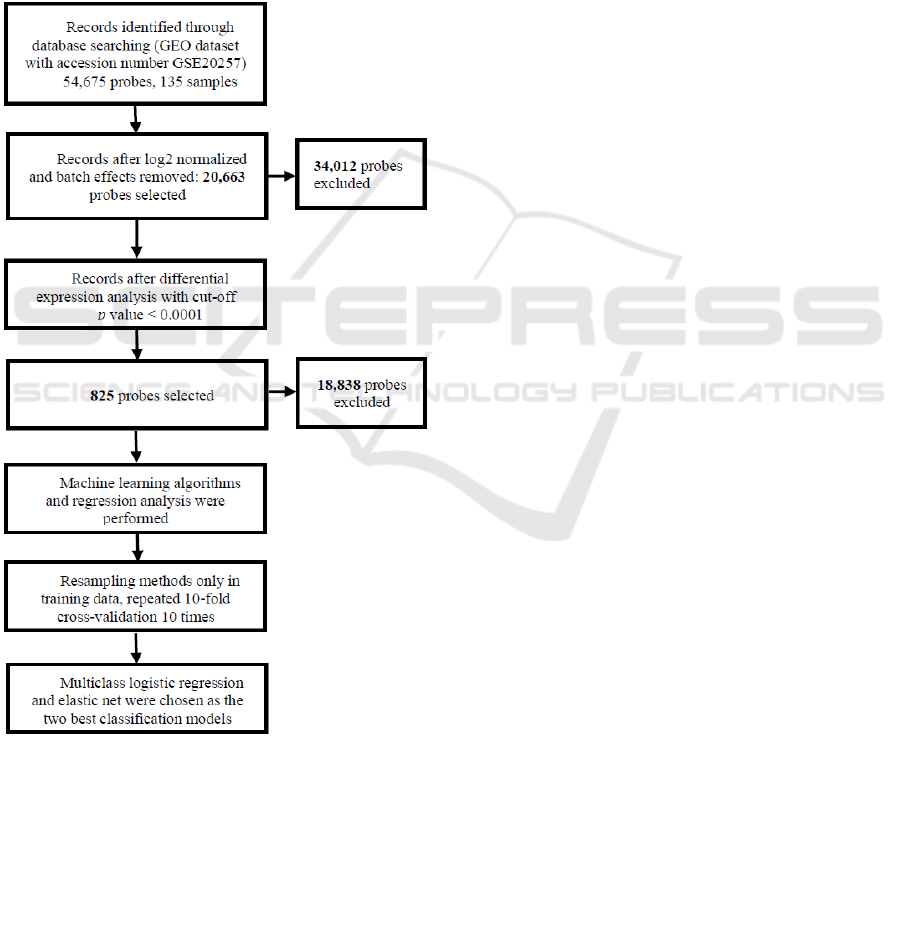

Figure 1: Flowchart of this study plan.

This study was designed to solve the problem

using some machine learning algorithms by dealing

with class imbalance using synthetic minority

oversampling technique (SMOTE). For comparison,

we also performed other different resampling

methods of the “caret” package. The flowchart of

this study is shown in Figure 1.

The rest of this document describes our methods

in detail. In section 2, we describe the material and

methods used for this study. It briefly discusses data

selection methods to increase model performance.

We briefly describe machine learning and regression

algorithms suitable for this analysis and the

evaluation metrics used for assessing the

performance of our proposed method. Section 3

discusses the experiment and result. Finally, section

4 concludes this paper.

2 MATERIAL AND METHODS

2.1 Dataset

We used microarray dataset of the small airway

epithelium (SAE) provided by the Gene Expression

Omnibus (GEO) database,

https://www.ncbi.nlm.nih.gov/geo/, with accession

number GSE20257. It is a series of GPL570

platform which described as Smoking-induced

Disarray of the Apical Junctional Complex Gene

Expression Architecture in the Human Airway

Epithelium. The airway epithelial cells were

obtained by bronchoscopy and brushing which were

done by Crystal Laboratory of Department of

Genetic and Medicine, Weill Cornell Medical

College. The data were originally collected on June

27, 2011 and were updated recently on March 25,

2019. The gene expressions are arranged in

GeneChip HG-U133 Plus2.0 arrays, a single array

representing around 14,500 well-characterized

human genes that can be used to explore human

biology and disease processes (ThermoFisher,

2001).

The dataset contains gene expression data of 135

human subjects with the total number of 54,675

probes. Out of 135 subjects, 23 subjects are smokers

with COPD (9 GOLD stage I, 12 GOLD stage II,

and 2 GOLD stage III), 59 subjects are healthy

smokers, and 53 subjects are healthy nonsmokers.

The data were log2 normalized, removing batch

effects using “affy” and “biobased” R packages

provided by Bioconductor. Differential expression

analysis was then performed using “Limma”

package to select probes that were significantly

changed in healthy non-smokers compared to COPD

patients. These selected probes were then used in the

machine learning algorithms. The probe selection is

aimed at reducing the dimension of the dataset,

which is essential to reduce the computational cost

Machine Learning Algorithms for Predicting Chronic Obstructive Pulmonary Disease from Gene Expression Data with Class Imbalance

149

of modelling. Furthermore, removing unneeded,

irrelevant, and redundant attributes that statistically

do not contribute to the accuracy and other

evaluation metrics of a predictive model can

improve the model’s performances.

2.2 Machine Learning (ML)

We employed various machine learning models

including support vector machine (SVM), naïve

bayes, random forest, gradient boosting machine

(GBM), and regression models included elastic net

regression and multiclass logistic regression (LR)

for the classification task. All ML and regression

methods were applied using “caret”, “e1017”,

“nnet”, and “naivebayes” R packages.

Elastic net is one of regularized regression

models which use a linear combination penalty of L

and L

. It combines the strength of the other two

regularized regression models, ridge and lasso

regression. Parameter α in elastic net regression has

a value between 0 and 1. The aim of the elastic net

regression model was to minimize the loss function.

Multiclass LR is an extension of binary logistic

regression. This model allows us to predict

categorical response variable which has more than

two outcomes. This model aims at capturing the

linear relationship between the response variables

and the independent variables.

2.3 Synthetic Minority Over-sampling

Technique (SMOTE)

A dataset is called imbalanced if the classes are not

approximately equally distributed. Imbalance is a

challenging problem for classification algorithms

because the classifier’s decision is biased toward the

majority class. Dominating effects of the majority

class exert severe impact on the value and meaning

of most of the evaluation metrics (Luque et.al.

2019).

One of the prominent methods to solve class

imbalance is to resample the original dataset either

by oversampling the minority class and/or

undersampling the majority class (Chawla et al.,

2002). SMOTE utilizes a k-nearest

neighbor algorithm to create synthetic samples based

on the existing minority samples.

2.4 Evaluation Metrics of Predictive

Models

To evaluate the performance of the proposed

classification models, the mean accuracy, AUC,

sensitivity, and specificity were calculated for each

model. Sensitivity and specificity are important

evaluation metrics for evaluating a model’s ability to

recognize positive and negative outcomes of a

disease-related dataset. (Trtica-Majnaric et al.,

2010).

Various evaluation metrics such as accuracy,

sensitivity, and precision are derived from confusion

matrix. Table.1 shows the possible nine outputs of

classification models for three classes 1,2, and 3. It

represents the elements of a 3×3 confusion matrix as

described in Tharwat A. (2018).

In Table 1, the columns represent the predicted

classes, and the rows represent the actual classes.

We then have the numbers of nine cases where TP

is the case for which the classifier predicted as class-

1 and the sample were actually class-1, and E

is a

sample from class-1 that misclassified as class-2.

Thus, the false negative in the class-1 (FN

) is the

sum of E

and E



𝐹𝑁



=𝐸



+𝐸





which

indicates the sum of all samples that were actually

class-1 but were misclassified as class-2 or class-3.

Whereas the false positive in the class-1 (FP

) is the

sum of E

and E



𝐹𝑃



=𝐸



+𝐸





which

indicates the sum of all sample that actually were not

class-1 but were misclassified as class-1.

Table 1: An illustrative example of the confusion matrix

for a 3-class classification test.

Predicted

Class

True Class

12 3

1 TP

2 E

3 E

In the “caret” packages, the accuracy is defined

as the overall accuracy using the predicted classes,

while sensitivity and specificity are defined as the

averages of the “one versus all” statistics. As

described in Ballabio et al., (2018), the overall

accuracy is computed as follows:

𝐴𝑐𝑐 =

∑

𝑇𝑃







𝑛

(1)

where 𝑇𝑃



is the number of true positive samples in

class-i, and 𝑛 is the total number of samples.

Accuracy shows how accurate our classification

model is able to predict the class labels given in the

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

150

problem statement. In other word, the best selected

model has the highest accuracy.

Sensitivity for multiclass classification is

computed as follows:

𝑆𝑛 =

∑

𝑆𝑛







𝑔

(2)

where 𝑆𝑛



is sensitivity for class-i and g is the total

number of classes. 𝑆𝑛



can be calculated as follows:

𝑆𝑛



𝑇𝑃



𝑇𝑃



+𝐹𝑁



(3)

On the other hand, specificity for multiclass

classification is computed as follows:

𝑆𝑝 =

∑

𝑆𝑝







𝑔

(4)

where 𝑆𝑝



is specificity for class-i. 𝑆𝑝



can be

calculated as follows:

𝑆𝑝



∑



















𝑛𝑛



(5)

Sensitivity shows the ability of a model in

correctly identifying positive data out of all actual

positives data. In contrast, specificity shows the

ability of a model in correctly identifying negative

data out of all actual negative data. The higher the

sensitivity and specificity, the better the model in

correctly identifying data that belong to a certain

class as well as a data that do not belong to the class.

To calculate AUC score, we used

multiclass.roc

function from pROC packages

which computed multiclass AUC as an average

AUC defined by Hand and Till (2001). For multiple

classes labelled as 0,1,2,…,



𝑐1



with 𝑐2, the

separability between class i and j or auc is defined as

follows:

𝑎𝑢𝑐 =

𝐴





𝑖|

𝑗



+𝐴





𝑗

|𝑖



(6)

where 𝐴





𝑖|𝑗



is the probability shows that if we

draw a member of class j randomly, the estimated

probability of j belongs to class i will be lower than

if if we randomly draw a member of class i instead.

This also applies to the reverse case. For multiclass

case 𝐴





𝑖|𝑗



𝐴





𝑗|𝑖



𝐴𝑈𝐶 =

𝑐



𝑐1



𝑎𝑢𝑐𝑠

(7)

with aucs all the pairwise roc curves.

The best model is selected based on the highest

value of the four evaluation metrics. The higher the

AUC, the better the model in distinguishing a

positive example from a negative one.

2.5 Evaluation of Resampling Methods

In the experiment, we performed SMOTE algorithm

using two different CRAN packages “DMwR” and

“smotefamily”. We also performed down-sampling

and up-sampling for comparison. Up-sampling

works by randomly sampling a dataset so that all

classes have the same number of samples as

majority class. On the contrary, down-sampling will

randomly sample a data set so that all classes have

the same number of samples as the minority class.

To evaluate the performance of all the classifiers,

we performed repeated k-fold cross-validations as it

is a very common technique used for this purpose.

This evaluation technique improves the performance

of machine learning algorithms and regression by

repeating the k-fold cross-validation procedure n

times and reporting the mean result of all folds from

all runs. Filzmoser (2009) shows that repeated cross

validation is a good strategy for optimizing the

complexity of regression models as well as machine

learning models.

3 EXPERIMENTS AND RESULT

The gene expression data usually contain unneeded,

irrelevant, and redundant attributes during the

collection process of the data. In the first step before

performing classification model, we removed

unneeded attributes so that our proposed

classification method will be more accurate. In this

data pre-processing, the raw data downloaded from

GOE dataset were log2 normalized using “biobased”

R package, removed batch effects and unwanted

variation using “affy” package, and compared

statistically or analysed for differential expression

using “Limma” package.

After removing batch effects in the data pre-

processing, 20,663 probes were selected out of

54,675 probes. We then identified 825 probes which

were significantly changed with p value < 0.0001 in

COPD subjects compared to healthy non-smoker

subjects as shown in Figure 2.

The dataset was splitted into training and test set

with percentage of 80% and 20% respectively. We

then applied SMOTE only in the training data to

resample the data. The oversampled data were

included in machine learning and regression

modelling approaches with repeated 10-fold cross-

validations 10 times.

Machine Learning Algorithms for Predicting Chronic Obstructive Pulmonary Disease from Gene Expression Data with Class Imbalance

151

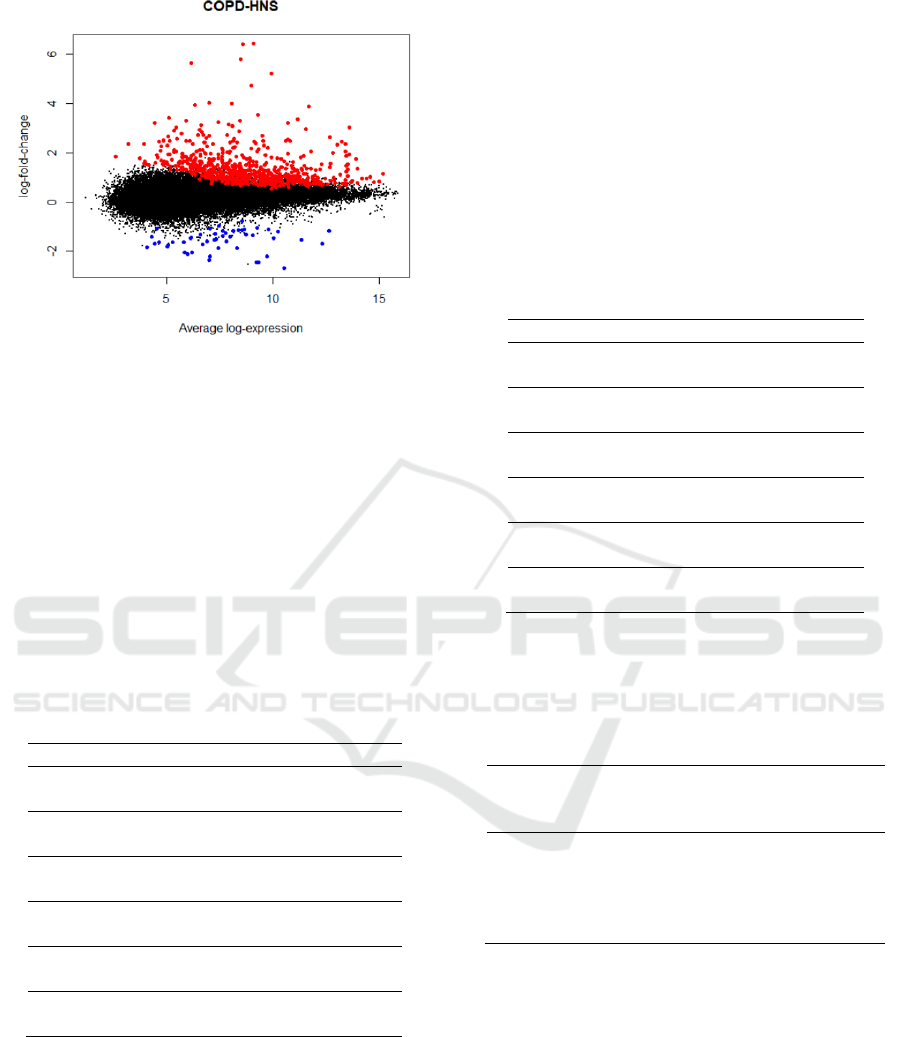

Figure 2: Mean difference (MD) plot displays log2 fold

change versus average log2 expression values for all the

54,675 probes. Highlighted genes are significantly

differentially expressed in COPD compared to healthy

non-smoker (red = upregulated, blue = downregulated).

3.1 Comparison of Machine Learning

Algorithm and Regression Analysis

Table 2 shows the accuracy and AUC score of the

machine learning models of SVM, naïve bayes,

random forest, GBM, and regression model of

elastic net regression and multiclass LR with and

without applying SMOTE to deal with class

imbalance.

Table 2: Accuracy and AUC for different models.

Classifier Accuracy (%) AUC (%)

SVM 68 73

+SMOTE 68 85

Naïve Bayes 48 70

+SMOTE 64 76

Random Forest 48 60

+SMOTE 64 81

GBM 64 81

+SMOTE 56 70

Elastic Net 64 71

+SMOTE 76 89

Multiclass LR 72 82

+SMOTE 80 90

Based on repeated 10-fold cross-validations 10

times, all the performance increased in the models

with SMOTE compared to those without SMOTE

except for GBM. This indicated that SMOTE is

effective when dealing with class imbalance.

The best performance is obtained by multiclass

LR with SMOTE with the highest overall accuracy

score and AUC of 80% and 90%, respectively. This

model also has the highest sensitivity and specificity

value of 0.80 and 0.89, respectively, as shown in

Table 3. This high sensitivity and specificity in the

model indicate that the model can be used to

correctly classify subjects that belong to a certain

class as well as a subject that did not belong to the

class.

The second-best model based on the evaluation

metrics is elastic net regression which obtained a

slightly different of accuracy and AUC score from

that of multiclass LR with 76% and 89%,

respectively.

Table 3: Average sensitivity and specificity for different

models.

Classifier Sensitivity Specificity

SVM 0.53 0.81

+SMOTE 0.70 0.82

Naïve Bayes 0.44 0.71

+SMOTE 0.67 0.80

Random Forest 0.37 0.69

+SMOTE 0.61 0.81

GBM 0.57 0.80

+SMOTE 0.50 0.76

Elastic Net 0.56 0.80

+SMOTE 0.76 0.87

Multiclass LR 0.67 0.84

+SMOTE 0.80 0.89

3.2 Comparison of Resampling

Methods

Table 4: AUC for multiclass LR with different resampling

methods.

Resampling methods

AUC of

Multiclass LR

(%)

Without resamplin

82.4

SMOTE from “DMwR” 90.1

SMOTE from “smotefamil

” 89.3

upSample 87.4

downSample 78.1

We performed different resampling methods in

multiclass LR to see the effect of those on the model

performances. We employed two SMOTE functions

from two different packages. The difference between

SMOTE of “DMwR” and “smotefamily” packages

is that SMOTE in “DMwR” uses a combination of

SMOTE and under-sampling of the majority class

while in “smotefamily” do not. So that, in “DMwR”

we need to tune the two parameters

perc_over and

perc_under in the smote function until we get an

acceptable sample size. In this function, we set

perc_over to 200 and perc_under to 300. For

BIOINFORMATICS 2021 - 12th International Conference on Bioinformatics Models, Methods and Algorithms

152

comparison, we also performed up-sampling and

down-sampling.

By dividing 80% of the dataset as training data

and 20% as validation data, 110 out of 135 data

samples were used as training data which consist of

43 samples of healthy non-smokers, 48 samples of

healthy smokers, and 19 samples of COPD.

upSample function of “caret” package randomly

samples the dataset so that all classes have 48

samples, while

downSample randomly samples the

dataset so that all classes have 19 samples.

Table 4 shows the AUC values for multiclass LR

of different resampling methods. The AUCs of

SMOTE from both “DMwR” and “smotefamily” are

quite similar with the difference of only 0.8%.

Considering that both packages give insignificantly

different outcomes, we can randomly choose to use

one of the SMOTE functions from both packages.

As comparison, resampling the dataset using

upSample function increased the AUC performance

by 5% while

downSample decreased the

performance by 4.3%. However, the AUC

performance of upSample function is still lower than

that of SMOTE either using “DMwR” or

“smotefamily”. The models trained with SMOTE

outperformed the models without SMOTE in the

four evaluation metrics.

4 CONCLUSION

In this study, we used microarray dataset to predict

the presence of COPD by dealing with the class

imbalance at first. Prior study on this dataset have

tried to predict the presence of COPD regardless of

the existence of class imbalance.

The model we proposed can predict the presence

of COPD with an overall accuracy and AUC score

of 80% and 90% respectively, based on repeated 10-

fold cv 10-times. The outcomes indicate that by

dealing with class imbalance before performing

machine learning algorithms and regression analysis

can be used to predict the presence of COPD more

accurately. Our proposed methods also have higher

sensitivity and specificity values than that without

dealing with class imbalance. It shows that the

selected model can be used to correctly classify

subjects that belong to a certain class as well as a

subject that did not belong to the class. The

proposed method in this study can be used to assist

in determining better treatments to lower the fatality

rates caused by COPD.

In the future study, we are considering to employ

more recent and advanced resampling methods to

achieve a better performance.

REFERENCES

Anakal, S. and Sandhya, P, (2017). Clinical Decision

Support System for Chronic Obstructive Pulmonary

Disease using Machine Learning Techniques, 2017.

International Conference on Electrical, Electronics,

Communication, Computer and Optimization

Techniques (ICEECCOT).

Ballabio, D., Grisoni, F., and Todeschini, R., 2018.

Multivariate comparison of classification performance

measures. Chemometrics and Intelligent Laboratory

Systems, Vol 174:33-44.

Chawla, N.V., Bowyer, K.W., Hall, L.O., Kegelmeyer,

W.P., 2002. SMOTE: Synthetic Minority Over-

sampling Technique. Journal of Artificial Intelligence

Research 16: 321-357.

GOLD, 2017. Global strategy for the diagnosis,

management, and prevention of copd.

Hand, D.J., Till, R.J., 2001. A simple Generalisation of the

Area Under the ROC Curve for Multiple Class

Classification problems. Machine Learning 45: 171-

186.

Filzmoser, P., Liebmann, B., and Varmuza, K., 2009.

Repeated double cross validation. Journal of

Chemometrics 23:160-171.

Lopez-Campos, J.L.,Tan, W., and Soriano, J.B., 2016.

Global burden of COPD. Respirology, 21: 14-23.

Luque, A., et al., 2019. The impact of class imbalance on

classification performance metrics based on the binary

confusion matrix. Pattern Recognition Vol.91: 216-

231.

Qian, X., Ba, Y., Zhuang, Q., and Zhong, G., 2014. RNS-

Seq Technology and Its Application in Fish

Transcriptomics. OMICS 18(2): 98-110.

Sekine, Y., Katsura, H., Koh, E., Hiroshima, K., Fujisawa,

T., 2012. Early detection of COPD is important for

lung cancer surveillance. European Respiratory

Journal 39:1230-1240.

Tharwat, A., 2018. Classification Assessment Methods.

Applied Computing and Informatics.

ThermoFisher, 2001. GenechipTM human genome U133

plus 2.0 array.

https://www.thermofisher.com/order/catalog/product/9

00468

Trtica-Majnaric, L., Zekic-Susac, M., Sarlija, N., and

Vitale, B., 2010. Prediction of influenza vaccination

outcome by neural networks and logistic regression.

Journal of Biomedical Informatics, 43(5): 774-781.

Yao, Y., Gu, Y., Yang, M., Cao, D., Wu, F, 2019. The

Gene Expression Biomarkers for Chronic Obstructive

Pulmonary Disease and Interstitial Lung Disease.

Frontiers in Genetics 10: 1154.

Machine Learning Algorithms for Predicting Chronic Obstructive Pulmonary Disease from Gene Expression Data with Class Imbalance

153
