Visual vs Auditory Augmented Reality for Indoor Guidance

Andrés-Marcelo Calle-Bustos

, Jaime Juan

, Francisco Abad

, Paulo Dias

Magdalena Méndez-López

and M.-Carmen Juan

Instituto Universitario de Automática e Informática Industrial, Universitat Politècnica de València, 46022 Valencia, Spain

Department of Electronics, Telecommunications and Informatics, University of Aveiro, Portugal

Departamento de Psicología y Sociología, IIS Aragón, Universidad de Zaragoza, 44003 Teruel, Spain

Keywords: Augmented Reality, Visual Stimuli, Auditory Stimuli, Indoor Guidance.

Abstract: Indoor navigation systems are not widely used due to the lack of effective indoor tracking technology.

Augmented Reality (AR) is a natural medium for presenting information in indoor navigation tools. However,

augmenting the environment with visual stimuli may not always be the most appropriate method to guide

users, e.g., when they are performing some other visual task or they suffer from visual impairments. This

paper presents an AR app to support visual and auditory stimuli that we have developed for indoor guidance.

A study (N=20) confirms that the participants reached the target when using two types of stimuli, visual and

auditory. The AR visual stimuli outperformed the auditory stimuli in terms of time and overall distance

travelled. However, the auditory stimuli forced the participants to pay more attention, and this resulted in

better memorization of the route. These performance outcomes were independent of gender and age.

Therefore, in addition to being easy to use, auditory stimuli promote route retention and show potential in

situations in which vision cannot be used as the primary sensory channel or when spatial memory retention is

important. We also found that perceived physical and mental efforts affect the subjective perception about the

AR guidance app.

1 INTRODUCTION

Outdoor navigation is already a mature technology

with several well-known commercial applications

that provide very good mapping and navigation

information. Most of these commercial applications

are based on Global Positioning Systems (GPS). In

comparison, indoor navigation lags far behind since

indoor tracking technologies have many limitations

and no clear standard has yet emerged. Nevertheless,

since mobile devices have evolved and now integrate

many technologies and sensors, it is already possible

to obtain indoor localization with enough precision to

develop systems that can assist users in indoor

navigation. Therefore, we are interested in helping

users move between different locations in an indoor

environment.

https://orcid.org/0000-0001-5896-8645

https://orcid.org/0000-0002-3754-2749

https://orcid.org/0000-0002-4249-602X

https://orcid.org/0000-0002-8764-1470

In this paper, we develop, explore and evaluate

two different guidance systems. The first uses visual

stimuli which are displayed on the screen of a mobile

device. Stimuli that are overlaid on the camera view

using Augmented Reality (AR). The second is based

on auditory information that is made available as

necessary while the user is moving around the

environment. The objective of this work is to evaluate

the influence of AR stimuli (visual and auditory) on

the global navigation task, as well as on route

memorization. A user study was carried out with 20

users to test the developed apps and to evaluate and

understand the advantages and limitations of both

guidance approaches.

In our study, we consider three hypotheses. The

first hypothesis (H1) is that the auditory condition

will be effective for indoor guidance. The second

hypothesis (H2) is that the auditory condition will

require more time than the visual condition. Our

Calle-Bustos, A., Juan, J., Abad, F., Dias, P., Méndez-López, M. and Juan, M.

Visual vs Auditory Augmented Reality for Indoor Guidance.

DOI: 10.5220/0010317500850095

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 1: GRAPP, pages

85-95

ISBN: 978-989-758-488-6

argument for this second hypothesis is that the

auditory condition requires more attention in

comparison with the visual condition because of the

perceptual dominance of the sense of sight. In other

words, since the auditory condition transmits less

information, it needs more effort to decode or

interpret the signals. Our study involves subjects

without visual or hearing impairments, and under 55

years. Therefore, our third hypothesis (H3) is that

there will be no statistically significant difference for

the performance outcomes due to age and gender.

The paper is organized as follows. After the

introduction, we introduce some related work in

Section 2. In Section 3, we present the main

characteristics of the AR guidance app developed,

and in Section 4, we present the user study. Finally,

the discussion and our conclusions are presented in

Sections 5 and 6, respectively.

2 RELATED WORK

Outdoor navigation problems have gradually been

solved over the years, while indoor navigation still

has many issues that require further attention

(Vanclooster et al., 2016). An Indoor Positioning

System (IPS) is able to determine the position of an

object or a person in a physical space continuously in

real time (Gu et al., 2009). Indoor navigation requires

a much more precise tracking technology than GPS

(the standard for outdoor navigation). However, no

low-cost technology that is precise enough has yet

emerged, so there are few indoor navigation systems

available.

Indoor navigation presents many additional

challenges when compared to outdoor navigation. It

needs to be more precise and convey routing

information more efficiently than outdoor routing due

to the difference of scale. Therefore, AR, especially

AR based on SLAM (Simultaneous Localization and

Mapping), can be a natural response for IPS given its

ability to superimpose virtual content (namely routing

and directions) on a view of the real-world

environment.

Most AR systems are inherently related to sight,

since it is our predominant sense. However, there are

several works that use other senses such as hearing.

Ribeiro et al. (Ribeiro et al., 2012) created a natural

user interface using sound. They presented a

spatialized (3D) audio synthesizer to place virtual

acoustic objects at specific coordinates of the real

world, without explicitly telling the users the

locations of objects. The utility of sound in AR

environments has not been studied extensively. A few

previous works have already shown the following:

participants using spatialized sound perform more

efficiently and faster than working without sound

(Rumiński, 2015); 3D sound in AR environments

significantly improves the performance of the task

and the accuracy of depth judgment (Zhou et al.,

2004); and 3D sounds contribute significantly to the

sense of presence and collaboration (Zhou et al.,

2004).

On the other hand, very few studies have

compared visual and auditory stimuli. One of these is

the study presented by Cidota et al. (Cidota et al.,

2016). They carried out a study to compare the effects

of visual and audio notifications on workspace

awareness using AR in a remote collaboration

scenario. The participants received AR assistance to

solve a physical 2D assembly puzzle called

Katamino. Their study (N=12) showed that,

regardless of the difficulty level of the task, users

preferred visual notifications to audio notifications or

no notification. In our study, visual and auditory

stimuli are also compared, but for indoor guidance.

2.1 Augmented Reality

Rehman & Cao (Rehman & Cao, 2017) presented an

AR-based indoor navigation system. The

environment was scanned, and its visual features (3D

point clouds) were stored as trackables. Locations and

navigation-related information were then associated

with those trackables. The 3D point clouds and device

orientation were tracked using the camera and inertial

sensors of the device. They carried out a study (N=39)

of navigation tasks to compare the performance of the

participants using a wearable device (Google Glass),

an Android Cell Phone (Samsung Galaxy S4), and a

paper map. Their results indicated that the

performance using the paper map was worse in terms

of taking longer and having higher workloads than the

two digital navigation tools. However, the

performance using the digital tools was worse for

route memorization.

Polvi et al. (Polvi et al., 2016) presented a 3D

positioning method for SLAM-based handheld AR

(SlidAR). SlidAR uses epipolar geometry and 3D

ray-casting for positioning virtual objects. They

carried out a study involving 23 participants. They

compared the SlidAR method with a device-centric

positioning method. Their results indicated that

SlidAR required less device movement, was faster,

and received higher scores from the participants.

SlidAR also offered higher positioning accuracy. Piao

& Kim (Piao & Kim, 2017) developed an adaptive

monocular visual–inertial SLAM for real-time AR

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

apps in mobile devices. Egodamage & Tuceryan

(Egodagamage & Tuceryan, 2018) developed a

collaborative AR framework based on distributed

monocular visual SLAM.

Chung et al. (Chung et al., 2016) developed a

projection-based AR guidance system, which

projected guidance information directly on the real

world. This system was compared with a mobile

screen-based guidance app, which shows information

on the screen (N=60). The main conclusion was that

navigation with the projection-based AR was more

natural.

AR has also been used as a planning aid for

navigation in a public transportation network. Peleg

et al. (Peleg-Adler et al., 2018) developed a route-

planning task for public transportation and studied the

effects of aging (N=44). They compared the

performance of younger and older participants using

a mobile AR app and a non-AR app on a mobile

phone. The mobile AR app augmented a wall map

with the bus schedule for each station. The

participants using the AR app completed the task in

less time, regardless their age, but with higher error

rates when compared to the non-AR app. Chu et al.

(Chu et al., 2017) designed mobile navigation

services with AR. A study (N = 49) comparing the

performance of the participants using AR and maps

showed that AR navigation was faster for finding the

correct location.

Some AR car navigation systems have also been

published (Akaho et al., 2012). Wintersberger et al.

(Wintersberger et al., 2019) studied the effect of using

AR aids reflected on a windshield on the acceptance

and trust of drivers. The environment was a country

road with dense fog. In their study (N=26), they used

TAM (the Technology Acceptance Model) and an

adapted version of the Trust in Automation

Questionnaire as measures. Their results showed that

augmenting traffic objects that are relevant for

driving can increase users’ trust as well as other

acceptance parameters.

2.2 Audio Guidance

The two most closely related works to ours are the

ones by Lock et al. (Lock et al., 2017) and Yoon et al.

(Yoon et al., 2019). Lock et al. (Lock et al., 2017)

presented ActiVis, which is a multimodal navigation

system that was developed using Tango SDK (the

same SDK that we have used). Their system guided

the user toward a location target using voice

commands and spatialized sound. Vibration was used

to avoid obstacles. However, the system was not

tested with users.

Yoon et al. (Yoon et al., 2019) presented Clew,

which is an iOS app that was developed using ARKit.

The routes have to be recorded previously with a

smartphone and loaded afterwards to provide

guidance along the route. Clew included sound,

speech, and haptic feedback. The authors highlight

two use cases. The first one allows the user to record

a route in an indoor environment and then navigate

the route back to the initial location. The second use

case allows the user to record a route in an indoor

environment, store this route, and then navigate the

route forward or backward at a later time. Clew can

be downloaded from the App Store. Based on their

study, the authors concluded the following: ARKit is

robust enough for different indoor navigation

environments; the motion estimation of ARKit is

accurate for navigation routes of around 60 meters;

and routes shorter than 33 meters are rated positively

by users. The main difference between Clew and our

proposal is that our app works reliably on routes of

more than 60 meters.

Katz et al. (Katz et al., 2012) presented an AR

guidance system for visually impaired users

(NAVIG). NAVIG combined input data provided

through satellite-based geolocation and an ultra-fast

image recognition system. Guidance was provided

through spatialized semantic audio rendering.

3 INDOOR GUIDANCE APP

WITH AR VISUAL AND

AUDITORY FEEDBACK

In this work, a SLAM-based AR app for indoor

guidance has been developed. The app supports two

different types of indications for indoor routing:

visual signs and audio clips. The modules necessary

to support guidance features were developed using

the Google Tango motion-tracking SDK, which

allows mobile devices (equipped with the appropriate

hardware) to track their position and orientation

throughout 3D space. To increase the reliability of the

tracking, the area learning feature of Google Tango,

which allows the device to locate itself in a previously

known environment, was used. The app was also

developed using the Unity game engine and C#

scripts.

3.1 Functionality of the App

The developed app requires a configuration step. This

configuration step is the same for visual or auditory

navigation. First, the supervisor must explore the

Visual vs Auditory Augmented Reality for Indoor Guidance

environment in order to create the required area

description file. In the second step, the supervisor

defines the possible virtual paths in the environment.

Virtual paths are made of connected cells. The steps

to be performed by the supervisor are: 1) set a path

seed at a given location; 2) move to the desired target

position (cells are added next to the previous cell in

order to create a line of cells) (Figure 1a); and 3)

anchor the last cell as the target position. The process

can be repeated to define multiple paths between

different locations. After the configuration, the

navigation routing app allows users to explore the

environment while providing routing indications. The

app uses the current user’s location and the path

information defined in the configuration step to

compute the best route to the location target.

Depending on the navigation mode (visual or

auditory), the app shows the appropriate visual clues

using arrows on the floor (Figure 1b) or plays

auditory clips (e. g., “Turn left”, “Turn right”, “Go

forward”, or “Stop”). Depending on the condition

used, a different method is used to indicate the users

to go back to the correct route when they deviate from

the path. With visual feedback, a 3D object (Figure

1c) appears showing the position the user should

return to. With auditory feedback, given the absence

of visual feedback, an additional audio clip is

triggered to convey the “out of path” message.

The app also supports rerouting in cases where the

user follows an alternative route, either by ignoring

the route information or due to the appearance of an

obstacle during navigation in the real environment.

The app detects these situations, recomputes, and

updates the shortest path to the final target.

As stated above, two navigation modes are

available.

Visual Navigation. This module presents visual

arrows indicating the route to follow (Figure 1b), and

a location icon appears when deviating from the route

(Figure 1c). When the location icon is presented, a

message is also displayed indicating to the user that

she/he must reach the icon in order to return to the

correct route.

Auditory Navigation. The auditory navigation is

significantly more complex than the visual one since

the app needs to constantly monitor the position and

orientation of the user/mobile device in order to

provide the appropriate auditory cues. The app uses a

series of pre-recorded audio clips that run according

to the instructions coming from the navigation app.

An additional message is available when the device

shakes significantly, instructing the user to stabilize

it. This option was added because conflicting audio

directions might be provided when the orientation of

the device changes rapidly. The participants held the

device in their hands so that the cameras on the device

can identify the position and orientation of the device

relative to the environment. The device screen did not

show anything. Audio was played through the

device's speakers.

(a)

(b)

(c)

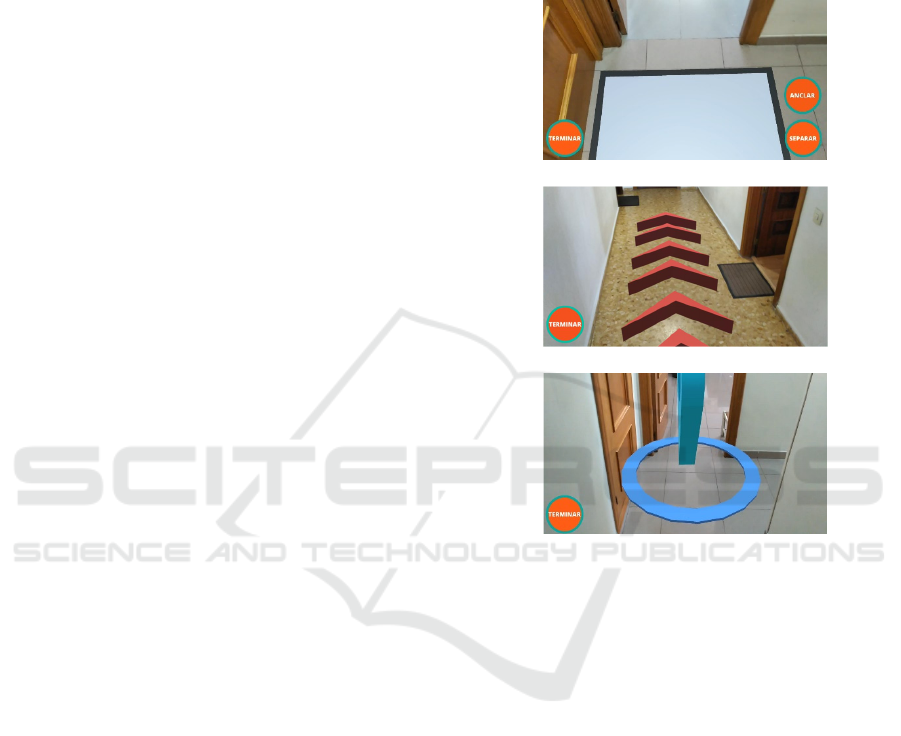

Figure 1: Examples of the AR guidance app with visual

stimuli: (a) configuration step; (b) arrows showing the path;

3.2 Architecture of the App

The different functions of the app are distributed in

four modules that encapsulate certain functionalities.

A module is defined by a series of scripts, which are

divided into two parts (core and handlers). The core

contains an interface file and a module file. The

functions defined in the interface are implemented in

the module file. Handlers allow higher customization

for certain events.

The architecture of our app consists of four

modules (Nav, NavCells, NavVision, and

NavAudio). NavCells is used in the configuration and

allows the placement of a series of cells on which

guidance is performed. The other modules Nav,

NavVision, and NavAudio carry out the guidance

process together. The scenes make use of the

modules. A scene can directly access NavCells and

Nav modules. The access to NavVision and

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

NavAudio modules is achieved through the Nav

module.

The NavCells Module. A set of characteristic points

provided by the Tango Learning Area is obtained

after carrying out a scanning session. In order to carry

out correct guidance, including avoiding obstacles, it

is necessary to indicate which areas of the

environment are walkable, which is not possible

using only the stored points. This is the main task of

the NavCells. In order to specify different paths, the

stored environment is loaded, and a series of cells are

placed along the route. These cells are the units that

together form the route. Figure 2 shows an example

of cell distribution to form the paths of a possible

environment. The NavCells module offers three

functions for placing cells. Based on the current cell

(in the center of the screen), the supervisor might: 1)

create a row of cells (moving and anchoring

successive cells to the previous one); 2) create a

single cell anchored to the previous one; and 3) store

the position and orientation of the cells in a file.

The Nav Module. The Nav module is responsible for

controlling all guidance. Two processes are necessary

(calculation and navigation). In the calculation

process, the cells are recovered and the navigation

calculation is performed, i.e., the cells that must be

followed to reach the desired location target. Once the

route that the user must follow has been obtained, the

navigation process involves the NavVision and

NavAudio modules. The Nav module does the route

calculations and invokes the functions of the

NavVision and NavAudio modules to show users the

shortest route to the target.

The public functions, which are visible to the

programmer, allow the cells that form the

environment map to be entered and the target to be

reached by guiding to be selected. Certain activations

are also allowed using properties. These properties

handle the activation of the three modules involved in

guidance (Nav, NavVision, and NavAudio). When

the Nav module is activated, the route calculation is

performed from the position of the device to the

target. To perform this calculation, the different cells

are traversed using a width search algorithm, which

stops when the target is found. This search can be

performed because each cell contains a list of

neighboring cells. These lists are computed when the

map is created by finding the connections between

adjacent cells.

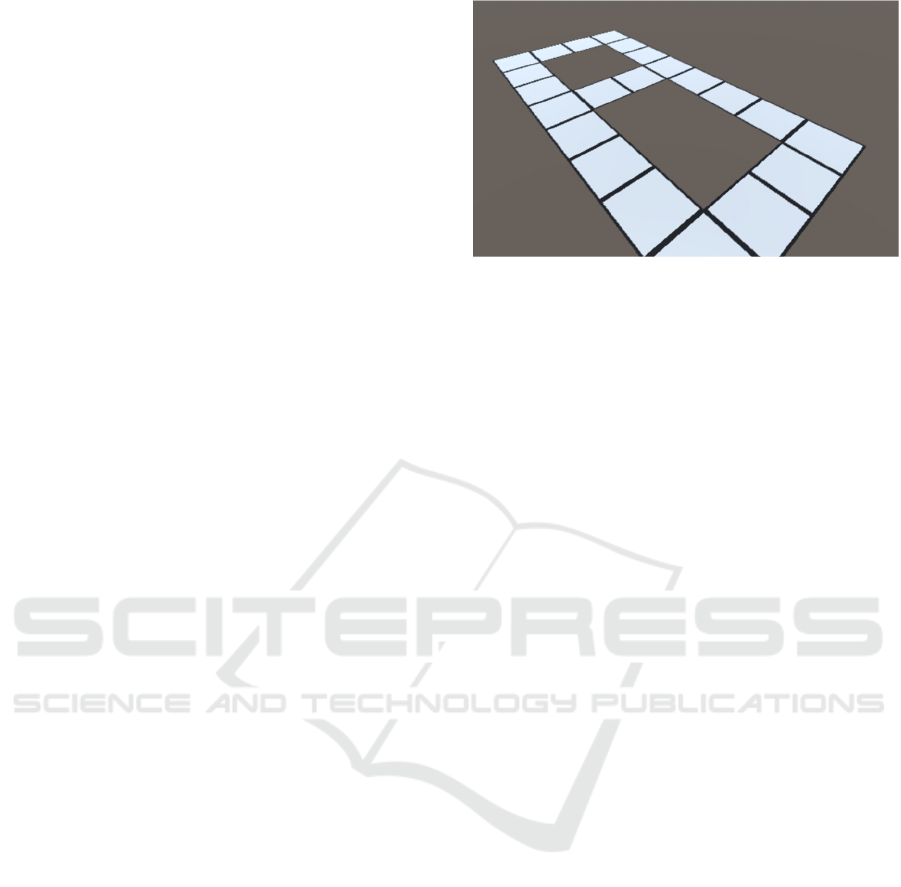

Figure 2: Example of cell distribution to form the paths of

a possible environment (image from Unity).

Once the path to a given target is obtained, the

navigation mode (visual or auditory) must be

activated. In visual mode, the NavVision module is in

charge of rendering arrows on the cells to indicate the

route. In audio mode, the NavAudio module is used

to provide auditory instructions. These two modes

can be used together or separately. The visual mode

shows the visual elements (arrows). The auditory

mode obtains the device orientation in order to check

that it is in the right orientation and plays audio clips

to give indications to turn, stop, and move forward on

the route. Constant checks are carried out between the

orientation of the device and the occupied cell to

retrieve the direction to follow in order to reach the

next cell of the route.

If the user does not follow the indications and

leaves the path, a mechanism is triggered to guide the

user back to the closest point on the path. This process

differs depending on the guidance mode used. For the

visual mode, a 3D object appears, which indicates the

position to which the user must return. The auditory

mode does not show any element, but plays different

audio clips to guide the user back to the correct path.

Another situation that may occur is the modification

of the optimal path. For example, when the user

makes a detour on an alternative path. This deviation

can occur for different reasons: the user does not

follow the appropriate instructions, or the appearance

of an obstacle. In these cases, the app recomputes the

shortest path to the target.

The NavVision Module. The NavVision module

provides visual guidance functionality. This module

displays the arrows to indicate the path and displays

the redirect icon on the closest location in the route.

While the device is on a path, arrows are shown

towards the target. When the user is off the path, the

location icon appears and a message is displayed on

the screen, indicating that the path has been

abandoned and the user must search for the location

Visual vs Auditory Augmented Reality for Indoor Guidance

icon to return to the right path. Figures 1b and 1c

show the modeling of these objects.

The NavAudio Module. The NavAudio module

offers functionalities for guidance using auditory

stimuli. Its functionality is similar to that of a music

player. The NavAudio module plays, stops, or stores

the desired audio clips. The NavAudio module does

not perform any calculations. It only responds to the

instructions received from the Nav module, which is

in charge of performing the relevant calculations. The

only mechanism that is activated within the

NavAudio module occurs when the device moves

abruptly, signaling the user to stop this type of

movement and stabilize the device. This module

contains the following audios: turn left; turn right;

advance; stop; stop shaking; back to route; out of path

(the user has left the path, the user must stop to

redirect); orienting; reached target; and next target

(orienting towards the next target).

4 USER STUDY

A within-subjects user study was conducted in order

to first evaluate the two feedback modes of the

guidance app. The second goal was to compare the

performance and subjective perceptions of users

using the two guidance modes. Finally, we also

wanted to gather some insight about route memory

retention with the two AR stimuli.

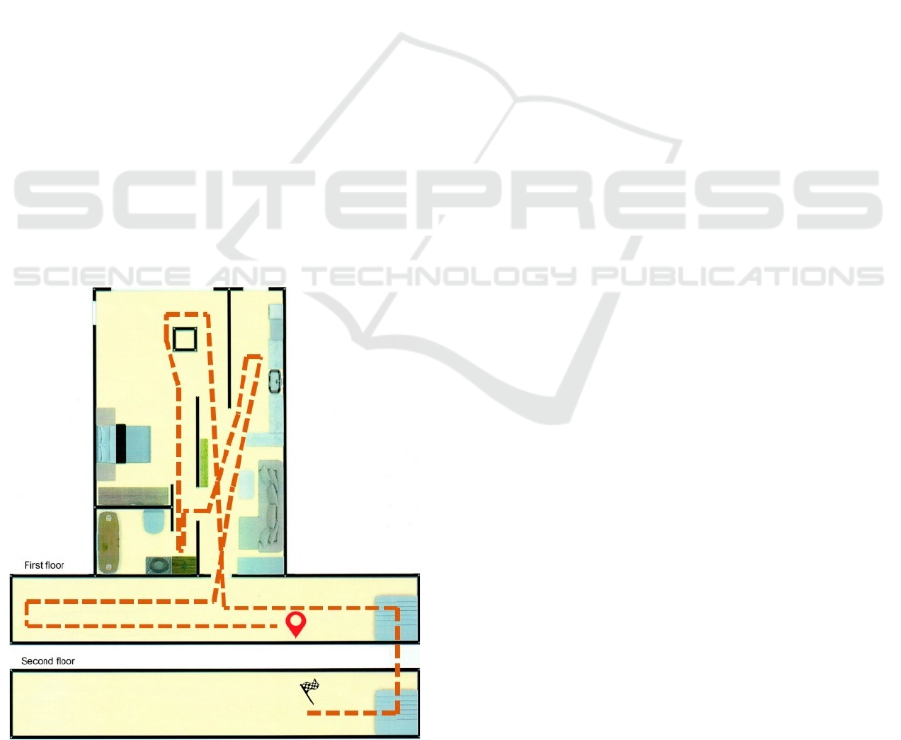

Figure 3: The indoor space map and the route to follow.

4.1 Participants, Procedure, and

Measures

A total of 20 participants were involved in the study,

of which 12 were women (60%). The age range of the

participants was between 7 and 54 years old (35.15 ±

15). The study was approved by the Ethics Committee

of the Universitat Politècnica de València, Spain, and

was conducted in accordance with the declaration of

Helsinki.

All of the participants were involved in two

conditions: VisualCondition and AuditoryCondition.

The participants were randomly assigned to two

groups (Group A and Group B). The participants in

Group A completed the navigation task with visual

stimuli first and completed the navigation task with

auditory stimuli after a period of at least two days.

The participants in Group B completed the navigation

task using the app with auditory stimuli first and

completed the navigation task using the app with

visual stimuli after a period of at least two days. Both

groups were balanced in such a way that there were 9

users in Group A (45%) and 11 users in Group B

(55%). The proportion of women was similar for both

groups. The sessions with the users were carried out

on two floors of a building with a total space of 60

. Figure 3 shows the apartment map and the route

to follow.

The protocol is the following. First, the supervisor

configured the environment for this study. The

participants were not involved in any way in setting

up the environment and did not know the route.

Second, the supervisor explained the navigational

task to the participant, giving basic explanations

about the navigational app. Users of Group A started

with the visual stimuli, while users in Group B started

with the auditory stimuli. The study was divided into

two steps. During Step 1, the supervisor explained

globally the overall task to the user, and, using a

Lenovo Phab 2 Pro, the user performed the navigation

task in the building with either the visual stimuli or

the auditory stimuli (depending on the group). The

app stored the time required to complete the

navigation task as well as the distance travelled. After

completion, the user was asked to indicate the route

she/he followed on 2D paper maps (Map task).

Finally, the user was asked to fill out Questionnaire 1

regarding subjective perceptions. In Step 2, more than

two days after the first step, the users were asked to

repeat the task with the other stimuli and to fill out of

Questionnaire 2 (only to compare the two types of

stimuli).

For the Map task, the participants saw two empty

maps, corresponding to the first and the second floors

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

of the building. Each map was a simplified two-

dimensional map illustrating stairs, hallways,

corridors, rooms, and furniture. The two maps were

printed on A4-sized paper. The supervisor asked the

participants to draw the route they thought they had

followed on the maps using a pen. The performance

score on the map task (Map) measured the proximity

to the route that the users should have followed with

values on a scale from 0 to 10. A template with the

correct route was used for scoring. Points were

subtracted when the route deviated from the correct

one. This calculation was done manually. All scores

were assigned by the same supervisor to ensure that

the criteria were the same for all users.

Questionnaire 1 consists of 16 questions, which

are grouped in the following variables: usability,

enjoyment, competence, concentration, expertise,

calmness, physical effort, mental effort, and

satisfaction. Questionnaire 1 was specifically

designed for this study and was based on previously

used questionnaires (Brooke, 1996; Calle-Bustos et

al., 2017; Munoz-Montoya et al., 2019).

Questionnaire 2 was designed to evaluate the users’

preference regarding the two AR guidance stimuli

and consisted of the following questions: 1) Which

stimuli did you like the most?; 2) Why?; 3) Which

one do you think is the best as a navigational tool?;

and 4) Why?.

5 RESULTS

The normality of the data was verified using the

Shapiro-Wilk test. The tests indicated that the

performance outcomes fit a normal distribution, while

the subjective scores did not fit a normal distribution.

Therefore, we used parametric tests for the

performance outcomes and non-parametric tests for

the subjective scores. A statistically significant

difference at level α = .05 is indicated by the symbol

**. The R open source statistical toolkit

(https://www.r-project.org) was used to analyze the

data (specifically, R version 3.6.2 and RStudio

1.2.5033 for Windows).

To determine whether or not there were order

effects for the distance traveled and the time required

to complete the navigational task for visual or

auditory stimuli, the four possible combinations were

analyzed. First, we considered the Distance variable.

To determine whether or not there was an order effect

for this variable and VisualCondition between the

participants who the used visual stimuli first (61.99 ±

5.04) and the participants who used the visual stimuli

second (62.86 ± 3.91), we applied the unpaired t-test

(t[18] = -.41, p = .685, d = .19). To determine whether

or not there was an order effect for the Distance

variable and AuditoryCondition between the

participants who used the auditory stimuli first (72.80

± 5.67) and the participants who used the auditory

stimuli second (76.42 ± 6.57), we applied the

unpaired t-test (t[18] = -1.25, p = .226, d = .56).

Second, we considered the Time variable. To

determine whether or not there was an order effect for

this variable and VisualCondition between the

participants who used the visual stimuli first (171.78

± 36.62) and the participants who used the visual

stimuli second (146.67 ± 38.04), we applied the

unpaired t-test (t[18] = 1.42, p = .174, d = .64). To

determine whether or not there was an order effect for

the Time variable and AuditoryCondition between

the participants who used the auditory stimuli first

(292.64 ± 40.36) and the participants who used the

auditory stimuli second (284.44 ± 34.76), we applied

the unpaired t-test (t[18] = .46, p = .654, d = .21).

These results indicate that there were no statistically

significant order effects for the distance traveled and

the time required to complete the navigational task for

visual or auditory stimuli. Therefore, since there was

no order effect, the participants were grouped by

condition.

5.1 Performance Outcomes

To determine how the use of visual or auditory stimuli

affects the navigation using the app, we compared the

performance outcomes between the two conditions

(VisualCondition vs. AuditoryCondition) (within-

subjects analysis). First, we considered the variable

that indicates the total time in seconds used to

perform the task (Time). To determine whether or not

there were differences for this variable between the

conditions of VisualCondition (157.97 ± 39.44) and

AuditoryCondition (288.95 ± 38.16), we applied the

paired t-test (t[19] = -14.16, p < .001**, d = 3.17).

This result indicates that there were significant

differences between the two conditions. The

participants of the AuditoryCondition spent more

time completing the task.

Second, we considered the variable that indicates

the total distance in meters traveled by the user to

complete the task (Distance). To determine whether

or not there were differences for this variable between

VisualCondition (62.47 ± 4.48) and

AuditoryCondition (74.43 ± 6.35), we applied the

paired t-test (t[19] = -7.94, p < .001**, d = 1.77). This

result indicates that there were significant differences

between the two conditions. The participants of the

AuditoryCondition walked longer.

Visual vs Auditory Augmented Reality for Indoor Guidance

The variable that represents the participants’

memory of the route followed in the task was also

analyzed (Map). To determine whether there were

differences for this variable between the participants

who used the visual stimuli first (6.22 ±3.79) and the

participants who used the auditory stimuli first (9.36

±1.15), we applied the unpaired t-test (t[18] = -2.47,

p = .024**, d = 1.11). These results indicate that there

were significant differences between the two groups

in favor of the participants who used the auditory

stimuli, who remembered the route followed in the

task better.

5.2 Gender and Age Analysis

To determine if gender influences the Distance

variables for VisualCondition, we applied the

unpaired t-test (t[18] = 1.94, p = .068, d = .89); for

AuditoryCondition, we also applied the unpaired t-

test (t[18] = .78, p = .447, d = .35). To take into

account gender and the Time variable, the same test

was given to VisualCondition (t[18] = 1.69, p = .107,

d = .77) and to AuditoryCondition (t[18] = .98, p =

.342, d = .45). No statistically significant differences

were found in any of these analyses. Therefore, we

can conclude that the performance outcomes were

independent of the participants' gender.

To determine if age influences the Distance

variable, we applied an ANOVA test to

VisualCondition (F[1,18] = 1.181, p =.292) and to

AuditoryCondition (F[1,18] = .873, p =.363).

Similarly, to take into account age and the Time

variable, the same test was given to VisualGroup

(F[1,18] = .065, p =.802) and to AuditoryCondition

(F[1,18] = .392, p =.539). No statistically significant

differences were found in any of these analyses.

Therefore, we can conclude that the performance

outcomes were independent of the participants' age.

5.3 Subjective Perceptions

The participants’ subjective perceptions about the AR

app were measured using Questionnaire 1. The

questions were grouped in the following variables:

usability, enjoyment, competence, concentration,

expertise, calmness, physical effort, mental effort,

and satisfaction. We applied the Mann-Whitney U

test for all of the subjective variables and compared

the participants’ perceptions by using the visual

stimuli first vs the auditory stimuli. The only

significant difference found was for the Satisfaction

variable (U = 74.5, Z = 2.040, p = .046**, r = .456) in

favor of the visual stimuli.

When the visual stimuli was used first and

considering gender, no statistically significant

differences were found in any of these analyses.

When the auditory stimuli was used first and

considering gender, significant differences were

found for enjoyment (U = 25, Z = 2.128, p = .043**,

r = .642); non-mental effort (U = 25, Z = 2.121, p =

.044**, r = .640); and satisfaction (U = 28.5, Z =

2.505, p = .016**, r = .755) in favor of the male

group.

We used Spearman’s correlation to test the

associations among the subjective variables. For the

participants who used the visual stimuli first,

enjoyment correlated with satisfaction (r = .99, p

<.001) and correlated marginally with non-physical

effort (r = .61, p = .07). Usability correlated with non-

mental effort (r = .77, p = .016) and correlated

marginally with calmness (r = .63, p = .071).

Perceived competence correlated with non-physical

effort (r = .85, p =.004). Non-physical effort

correlated marginally with satisfaction (r = .62, p =

.075). For the participants who used the auditory

stimuli first, enjoyment correlated with non-mental

effort (r = .96, p <.001) and satisfaction (r = .76, p

=.006). Usability correlated marginally with

calmness (r = .57, p = .069). Non-physical effort

correlated with satisfaction (

r = .75, p = .008).

5.4 Preferences and Open Questions

When asked “Which stimuli did you like the most?”,

most of the participants (60%) preferred the visual

stimuli. The arguments for the users who preferred

the visual were the following: it was easier (71%); it

was more entertaining (13%), it required less

attention (8%); and it was more direct (8%). The

arguments for the users who preferred the auditory

were the following: it was more entertaining (86%);

and it required less attention (8%). When asked

“Which one do you think is the best as a navigational

tool?”, most of the participants (85%) preferred the

visual stimuli.

6 DISCUSSION

We developed a new AR app for indoor guidance.

Our proposal can be replicated using other devices

and SDKs, such as the iPad Pro which can be

programmed using ARKit. ARKit 3.5 allows

programming apps using the new LiDAR scanner and

depth-sensing system that are built into the iPad Pro.

Our study compared the performance outcomes

and subjective perceptions of the participants using

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

our AR guidance app with visual and auditory stimuli.

To our knowledge, no study such as the one presented

here has been conducted.

Our results show that there were statistically

significant differences regarding the time required for

completing the task and the distance traveled in favor

of the visual condition. These results are in line with

previous research stating that the sight is the

dominant sense in humans (Cattaneo et al., 2008;

Papadopoulos & Koustriava, 2011).

After analyzing the participants’ memory of the

route followed in the task, the results showed

significant differences between the two groups in

favor of the participants who used the auditory

stimuli, who remembered the route followed in the

task better. Our argument for this result is that the

auditory stimuli forced the participants to pay more

attention, which led to better memorization of the

route followed. On the other hand, the visual

guidance partly overlaps the visual information of the

route, thus overshadowing the memorization of the

details. The participant focuses more on the app itself

than on the path being taken (Blanco et al., 2006;

Chung et al., 2016). Taking into account the

differences, our results are in line with the work of

Rehman & Cao (Rehman & Cao, 2017), which

compared paper maps with AR apps. They found that

the AR apps required less time and had lower

workload, but had worse outcomes in memorizing the

route. When using paper maps, even though the

participants required more time and traveled more

distance, they reached the location target, and,

moreover, they memorized the route better.

Therefore, we can conclude that H1 (“the auditory

condition will be effective for indoor guidance”) and

H2 (“the auditory condition will require more time

than the visual condition”) have been corroborated.

Our results show that the performance outcomes

(Distance and Time variables) were independent of

the age and gender of the participants. This

demonstrates that, regardless of gender and age, our

AR guidance app has proven to be suitable for indoor

guidance. These results are in line with previous

works such as (Juan et al., 2014) and corroborates H3

(“there will be no statistically significant difference

for the performance outcomes due to age and

gender”).

With regard to the subjective variables, the results

indicate that the app was highly appreciated by the

participants using both visual and auditory stimuli in

all of the variables analyzed. On a scale of 1 to 7, the

means were very high, equal to, or above 6 in all

cases. The only significant difference found was for

the Satisfaction variable in favor of the visual stimuli.

Our first argument regarding this result is that in the

visual condition less effort is required to pay

attention, and therefore the participants are more

satisfied with this condition. Our second argument is

related to the dominance of visual information in the

human being; the participants are more satisfied when

visual stimuli are used.

When the visual stimuli were used first, no

statistically significant differences were found in any

of the subjective variables between men and women.

When the auditory stimuli were used first, significant

differences were found in favor of the men for

enjoyment, less mental effort required, and

satisfaction. The auditory condition is more

expensive in terms of processing. In general, women

tend to report worse navigation or greater difficulty,

including their self-perception of how well they did

(Mendez-Lopez et al., 2020). Since the auditory

condition is more difficult, gender effects are

observed in some variables related to the perception

of how the participants evaluate themselves after

executing the task.

The correlations among the subjective variables

for the two types of stimuli were: 1) the more

enjoyment experienced, the more satisfaction felt; 2)

the higher degree of usability, the calmer the

participant; and 3) the less physical effort required,

the more satisfaction felt. An additional correlation

between two subjective variables for the auditory

stimuli was: the more enjoyment experienced, the less

mental effort required. Additional correlations among

the subjective variables for the visual stimuli were: 1)

the more enjoyment experienced, the less physical

effort required; 2) the higher degree of usability, the

less mental effort required; and 3) the greater the

perceived competence, the less physical effort

required. From these correlations, we can argue that

perceived physical and mental effort considerably

affects the subjective perception that the user has

about the app.

With regard to the questions “Which stimuli did

you like the most?”, 60% of the users preferred the

visual stimuli. For the question “Which one do you

think is the best as a navigational tool?”, 85% of the

participants preferred the visual stimuli. At this point,

we would like to highlight that the participants

involved in our study had no vision impairments and

that sight was their dominant sense, so they

understandably preferred the visual stimuli.

Moreover, with the visual stimuli, the participants

saw 3D objects that were mixed with the real

environment, while with the auditory stimulus, they

only heard audio clips.

Visual vs Auditory Augmented Reality for Indoor Guidance

A limitation of our work is the sample size and the

within-subject design. Using a within-subject design,

there could be memory effect that might influence the

results. Therefore, it would have been more

recommendable that the sample would be larger and

the study used a between-subject design. However, in

this work in order to determine whether or not there

were order effects for the performance variables used,

the possible combinations were analyzed. The results

indicate that there were no statistically significant

order effects for the performance variables used for

visual or auditory stimuli. Therefore, since there was

no order effect, the participants were grouped by

condition using a within-subject design.

7 CONCLUSIONS

This paper presents the development of an AR app for

indoor guidance. Our AR guidance app works in any

indoor environment and can be used in several rooms

or on several floors of the same building. The

supervisor configures the route information and

creates as many paths as desired.

For the first time, we have carried out a study in

which visual and auditory stimuli are compared for

indoor guidance. From the results, we can conclude

that both visual and auditory stimuli can be used for

indoor guidance. The auditory condition required

more time and more distance to complete the route,

but facilitated a better memorization of the route

followed. The performance outcomes were

independent of gender and age. Therefore, auditory

stimuli can be used for indoor guidance, showing

potential in situations in which vision cannot be used

as the primary feedback channel or when spatial

memory retention is important.

As future work, several studies can be conducted,

especially those related to the suitability of the AR

guidance app for different groups. For example, our

guidance app using the auditory stimuli could be

validated with participants with vision problems. In

another study, using a larger sample, the results of

different adult age groups could be compared (young

adults, middle-age adults, and old adults). In that

study, it could be observed how age and familiarity

with technology influence the results. Our app can use

visual and auditory stimuli together. Our hypothesis

is that an overall increased performance could be

achieved using the two stimuli together. A study for

checking this hypothesis could be carried out. Our

proposal could also be compared with Clew for routes

of less than 33 meters (Yoon et al., 2019). It would

also be interesting to further investigate how the

auditory sense, including spatial sound and other

sensory modalities (e.g., vibration to avoid obstacles)

could be used for indoor guidance. Another possible

work could be to develop an application for the Map

task. In this way, the score of the Map task will be

objective. Using a tablet and on the touch screen, the

participant will draw the route on a digital map. This

digital route will be compared with the correct route

and thus obtain objective scores.

ACKNOWLEDGEMENTS

We would like to thank all of the people who

participated in the study. We would like to thank the

reviewers for their valuable suggestions. This work

was funded mainly by FEDER/Ministerio de Ciencia

e Innovación – Agencia Estatal de

Investigación/AR3Senses (TIN2017-87044-R); other

support was received from the Gobierno de Aragón

(research group S31_20D) and FEDER 2020-2022

“Construyendo Europa desde Aragón”.

REFERENCES

Akaho, K., Nakagawa, T., Yamaguchi, Y., Kawai, K., Kato,

H., & Nishida, S. (2012). Route guidance by a car

navigation system based on augmented reality.

Electrical Engineering in Japan, 180(2), 897–906.

https://doi.org/https://doi.org/10.1002/eej.22278

Blanco, M., Biever, W. J., Gallagher, J. P., & Dingus, T. A.

(2006). The impact of secondary task cognitive

processing demand on driving performance. Accident

Analysis and Prevention, 38, 895–906.

https://doi.org/10.1016/j.aap.2006.02.015

Brooke, J. (1996). SUS-A quick and dirty usability scale.

Usability Evaluation in Industry, 189(194), 4–7.

Calle-Bustos, A.-M., Juan, M.-C., García-García, I., &

Abad, F. (2017). An augmented reality game to support

therapeutic education for children with diabetes. PLOS

ONE, 12(9), e0184645.

https://doi.org/10.1371/journal.pone.0184645

Cattaneo, Z., Bhatt, E., Merabet, L. B., Pece, A., & Vecchi,

T. (2008). The Influence of Reduced Visual Acuity on

Age-Related Decline in Spatial Working Memory: An

Investigation. Aging, Neuropsychology, and Cognition,

15(6), 687–702.

https://doi.org/10.1080/13825580802036951

Chu, C. H., Wang, S. L., & Tseng, B. C. (2017). Mobile

navigation services with augmented reality. IEEJ

Transactions on Electrical and Electronic Engineering,

12, S95–S103. https://doi.org/10.1002/tee.22443

Chung, J., Pagnini, F., & Langer, E. (2016). Mindful

navigation for pedestrians: Improving engagement with

GRAPP 2021 - 16th International Conference on Computer Graphics Theory and Applications

augmented reality. Technology in Society, 45, 29–33.

https://doi.org/10.1016/j.techsoc.2016.02.006

Cidota, M., Lukosch, S., Datcu, D., & Lukosch, H. (2016).

Comparing the Effect of Audio and Visual

Notifications on Workspace Awareness Using Head-

Mounted Displays for Remote Collaboration in

Augmented Reality. Augmented Human Research, 1, 1.

https://doi.org/10.1007/s41133-016-0003-x

Egodagamage, R., & Tuceryan, M. (2018). Distributed

monocular visual SLAM as a basis for a collaborative

augmented reality framework. Computers and

Graphics (Pergamon), 71, 113–123.

https://doi.org/10.1016/j.cag.2018.01.002

Gu, Y., Lo, A., & Niemegeers, I. (2009). A survey of indoor

positioning systems for wireless personal networks.

IEEE Communications Surveys and Tutorials, 11(1),

13–32. https://doi.org/10.1109/SURV.2009.090103

Juan, M.-C., Mendez-Lopez, M., Perez-Hernandez, E., &

Albiol-Perez, S. (2014). Augmented reality for the

assessment of children’s spatial memory in real

settings. PLoS ONE, 9(12), e113751.

https://doi.org/10.1371/journal.pone.0113751

Katz, B. F. G., Kammoun, S., Parseihian, G., Gutierrez, O.,

Brilhault, A., Auvray, M., Truillet, P., Denis, M.,

Thorpe, S., & Jouffrais, C. (2012). NAVIG: augmented

reality guidance system for the visually impaired.

Virtual Reality, 16, 253–269.

https://doi.org/10.1007/s10055-012-0213-6

Lock, J., Cielniak, G., & Bellotto, N. (2017). A portable

navigation system with an adaptive multimodal

interface for the blind. AAAI Spring Symposium -

Technical Report, 395–400.

Mendez-Lopez, M., Fidalgo, C., Osma, J., & Juan, M.-C.

(2020). Wayfinding Strategy and Gender – Testing the

Mediating Effects of Wayfinding Experience,

Personality and Emotions. Psychology Research and

Behavior Management, Volume 13, 119–131.

https://doi.org/10.2147/PRBM.S236735

Munoz-Montoya, F., Juan, M.-C., Mendez-Lopez, M., &

Fidalgo, C. (2019). Augmented Reality Based on

SLAM to Assess Spatial Short-Term Memory. IEEE

Access, 7, 2453–2466.

https://doi.org/10.1109/ACCESS.2018.2886627

Papadopoulos, K., & Koustriava, E. (2011). The impact of

vision in spatial coding. Research in Developmental

Disabilities, 32(6), 2084–2091.

https://doi.org/10.1016/j.ridd.2011.07.041

Peleg-Adler, R., Lanir, J., & Korman, M. (2018). The

effects of aging on the use of handheld augmented

reality in a route planning task. Computers in Human

Behavior, 81, 52–62.

https://doi.org/10.1016/j.chb.2017.12.003

Piao, J. C., & Kim, S. D. (2017). Adaptive monocular

visual-inertial SLAM for real-time augmented reality

applications in mobile devices. Sensors (Switzerland)

17, 2567. https://doi.org/10.3390/s17112567

Polvi, J., Taketomi, T., Yamamoto, G., Dey, A., Sandor, C.,

& Kato, H. (2016). SlidAR: A 3D positioning method

for SLAM-based handheld augmented reality.

Computers and Graphics (Pergamon), 55, 33–43.

https://doi.org/10.1016/j.cag.2015.10.013

Rehman, U., & Cao, S. (2017). Augmented-Reality-Based

Indoor Navigation: A Comparative Analysis of

Handheld Devices Versus Google Glass. IEEE

Transactions on Human-Machine Systems, 47(1), 140–

151. https://doi.org/10.1109/THMS.2016.2620106

Ribeiro, F., Florencio, D., Chou, P. A., & Zhang, Z. (2012).

Auditory augmented reality: Object sonification for the

visually impaired. 2012 IEEE 14th International

Workshop on Multimedia Signal Processing, MMSP

2012 - Proceedings, 319–324.

https://doi.org/10.1109/MMSP.2012.6343462

Rumiński, D. (2015). An experimental study of spatial

sound usefulness in searching and navigating through

AR environments. Virtual Reality, 19, 223–233.

https://doi.org/10.1007/s10055-015-0274-4

Vanclooster, A., Van de Weghe, N., & De Maeyer, P.

(2016). Integrating Indoor and Outdoor Spaces for

Pedestrian Navigation Guidance: A Review.

Transactions in GIS, 20(4), 491–525.

https://doi.org/10.1111/tgis.12178

Wintersberger, P., Frison, A. K., Riener, A., & Von

Sawitzky, T. (2019). Fostering user acceptance and

trust in fully automated vehicles: Evaluating the

potential of augmented reality. Presence:

Teleoperators and Virtual Environments, 27(1), 46–62.

https://doi.org/10.1162/PRES_a_00320

Yoon, C., Louie, R., Ryan, J., Vu, M. K., Bang, H.,

Derksen, W., & Ruvolo, P. (2019). Leveraging

augmented reality to create apps for people with visual

disabilities: A case study in indoor navigation. ASSETS

2019 - 21st International ACM SIGACCESS

Conference on Computers and Accessibility, 210–221.

https://doi.org/10.1145/3308561.3353788

Zhou, Z., Cheok, A. D., Yang, X., & Qiu, Y. (2004). An

experimental study on the role of 3D sound in

augmented reality environment. Interacting with

Computers, 16, 1043–1068.

https://doi.org/10.1016/j.intcom.2004.06.016.

Visual vs Auditory Augmented Reality for Indoor Guidance
