VisNLP: A Visual-based Educational Support Platform for Learning

Statistical NLP Analytics

Amorn Chokchaisiripakdee and Chun-Kit Ngan

Data Science Program, Worcester Polytechnic Institute, 100 Institute Rd., Worcester, U.S.A.

Keywords:

Statistical-based NLP Learning, Educational Support, Data Visualization.

Abstract:

We develop and implement a web-based, interactive visual NLP learning platform that enables novice learners

to study the core processing components of statistical NLP analytics in sequence. More speciﬁcally, the

contributions of this work are three-fold: (1) the ease of learners to access and use our platform through

any web browser at no cost; (2) the interactive and dynamic visuals (e.g., mouseover events, collapsible tree

diagrams, and animations) that enhance the study environment and learners’ engagement; and (3) the in-focus

step-by-step process, using the job posting classiﬁcation as an example, to demonstrate the core processing

components of statistical NLP approaches.

1 INTRODUCTION

In the Big Data era, there is a large amount of text in-

formation available on the Internet such as social me-

dia, web advertisements, and online documents. To

manage and process text information, Natural Lan-

guage Processing (NLP) is the critical AI technology

that can understand, analyze, and generate text with-

out requiring a human lift a ﬁnger. By using text an-

alytics and mining, NLP uses computational and sta-

tistical methods to give insight into observed human

language phenomena and make computers perform

various tasks with human languages. For example,

NLP text classiﬁers, e.g., MonkeyLearn (Text Anal-

ysis, 2020), can automatically analyze text and then

assign a set of pre-deﬁned tags or categories based

on its content. NLP spell-checker applications, e.g.,

Grammarly app (Grammarly., 2020), are able to iden-

tify and correct any spelling mistakes in a text. NLP

machine translation technologies, e.g., Google Trans-

late (Google Translate, 2020), allow automatic trans-

lation from one language to another without any hu-

man intervention. However, to master NLP processes

and techniques to develop such kinds of applications

is not a trivial task even at an introductory level, as it

requires learners, particularly to novice professionals,

junior data scientists, and college students, to have a

good understanding of linguistic and computation that

NLP is based on.

Presently, there are many studying approaches

that can assist novice learners in mastering the con-

cepts of NLP. First, the simplest and most economic

approach is to self-study and self-read NLP-related

text and electronic books (Deng & Liu, 2018; Ro-

drigues & Teixeira, 2015; Shaalan et al., 2017). This

approach requires the learners to (1) read and study

a text that consists of several hundred pages and (2)

possess a strong self-learning capability. Not only

is it time consuming but also noninteractive that re-

sults in deterring learners from investigating in this

area. The second approach to learn NLP is to com-

plete some on-campus or online programs and courses

at educational institutions (Data Science, 2020a; Data

Science, 2020b; Statistics and Data Science Micro-

Masters, 2020). Based upon well-structured and well-

organized program curricula and course syllabuses,

learners are able to study NLP step by step and piece

by piece with the guidance and support of highly ex-

perienced instructors. In addition to that, under this

active learning and interactive environment with other

students, learners can study NLP faster and more ef-

fectively. However, this approach is very expensive

that requires learners to pay a high tuition cost just

for studying one subject area of NLP.

To bridge the above research gap, Zobia and Ste-

fania (Rehman & Kifor, 2015) designed and devel-

oped an ontology-based educational Prot

e tool to

demonstrate the NLP ontology to help learners study

NLP. Speciﬁcally, this ontology tool presents a tree

diagram of conceptual class nodes and subclass nodes

of NLP. For example, NLP is the root class node

which branches out to many subclass nodes such as

224

Chokchaisiripakdee, A. and Ngan, C.

VisNLP: A Visual-based Educational Support Platform for Learning Statistical NLP Analytics.

DOI: 10.5220/0010318202240232

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages

224-232

ISBN: 978-989-758-488-6

POS Tagging, Sentiment Analysis, Spell Checking,

and Text Classiﬁcation. These subclass nodes also

have more subclass child nodes. For instance, there

are four subclass child nodes of Text Classiﬁcation,

including Logistic Regression, Na

ıve Bayes, Support

Vector Machine, and MaxEnt, which are all the com-

mon text classiﬁers. This ontology-based approach

combines the strengths of both previous two ap-

proaches (i.e., inexpensive and interactive), in which

learners can download the Prot

e software (Protege,

2020) for free and learn NLP with the interactive tool

respectively. However, the NLP scope covered by

this tool is very broad that includes 16 study areas

of NLP and only illustrates the main concept and its

sub-concepts without providing any in-depth explana-

tions and descriptions that deﬁnitely could not assist

new learners in understanding any one of those top-

ics. More importantly, most of the concepts displayed

by the ontology are the NLP applications but not the

core processing components of NLP, including text

pre-processing, token building, and text vectorization.

Apparently, all the aforementioned approaches

lack the three important educational elements, i.e.,

inexpensive, interactive, and in-focus, to help ama-

teur learners master NLP. To mitigate the shortcom-

ings of the existing approaches, we propose the de-

velopment and implementation of a visual-based edu-

cational support platform for learning NLP Analytics

(VisNLP). Currently, there are two broad approaches

for the NLP analytical processes: (1) statistical-based

(Bengfort et al., 2018; Hastie et al., 2020; Lane et al.,

2019) and (2) neural network-based (Goldberg, 2017;

Kamath et al., 2020; Reese & Bhatia, 2018). The for-

mer approach is to perform statistical techniques to

process and analyze text data. The latter approach

is to use deep neural networks to conduct text min-

ing and analytics. In this paper, we mainly focus on

statistical-based methods using One-Hot Encoding,

Term Frequency–Inverse Document Frequency (TF-

IDF), and Word Probability approaches. Speciﬁcally,

we develop and implement a web-based, interactive

visual NLP learning platform that enables learners

to study the core processing components of statisti-

cal NLP analytics in sequence: (1) Text Preprocess-

ing (e.g., splitting sentences, spelling check, lower-

ing cases, converting numbers, and removing punctu-

ations); (2) Token Building (i.e., Bag of Words and

N-grams tokenization); (3) Text Vectorization (i.e.,

One-Hot Encoding, TF-IDF and Word Probability);

and (4) Text Similarity Dashboard (i.e., Heatmap Ta-

bles, Cosine Similarity Matrix, and Euclidean Dis-

tance Measurement). Using a variety of interactive vi-

sual diagrams with a practical example, novice learn-

ers can have a good grasp of the NLP process.

The remainder of the paper is organized as fol-

lows. First, we describe our VisNLP framework to

show the process of statistical NLP analytics in Sec-

tion 2. In Section 3, we illustrate our implemented

web platform and use the classiﬁcation of job posi-

tion advertisements as a pilot example to demonstrate

how novice learners can utilize our interactive plat-

form to understand and study statistical NLP analyt-

ics step by step and piece by piece. In Section 4, we

conclude and brieﬂy outline our future work.

2 VisNLP FRAMEWORK

Fig. 1, home page shows the high-level framework

of our VisNLP that consists of ﬁve main modules:

Text Preprocessor, Token Manager, Text Vectorizer,

Text Similarity Dashboard, and Visual Web Inter-

face. Each module has sub-components that manip-

ulate and process texts.

2.1 Text Preprocessor

Text Preprocessor is composed of ten sub-modules

that includes Document Separator (DS), Sentence

Splitter (SS), Spelling Corrector (SC), Contraction

Expander (CE), Number Converter (NC), Punctuation

Remover (PR), Non-alphanumeric Remover (NR),

Stopword Remover (SR), Word Lemmatizer (WL)

and Lowercase Converter (LC). First, the Text Pre-

processor takes a text corpus, i.e., a collection of

document ﬁles from a to z stored in a database of

the platform, as an input and the DS module segre-

gates them from the corpus into many individual doc-

uments. Each document is then sent to the SS mod-

ule, which splits the document into individual sen-

tences. The SC module conducts the spell check on

each sentence and uses the tokenization approach to

replace misspelled words with the highest-probability

corrected words. The corrected-word sentences are

then sent to the CE module, which expands the con-

tracted form of the words into a longer form, such as

”I’m” to ”I am”, ”You’re” to ”You are”, ”It’s” to ”It

is”, ”S/He isn’t” to ”S/He is not”, ”They aren’t” to

”They are not” and ”We aren’t” to ”We are not”, in

each sentence. Then, the NC module substitutes the

numeric value for words, such as ”5” to ”Five”, ”11”

to ”Eleven” and ”3” to ”Three”.

The subsequent modules, PR, NR, and SR, respec-

tively removes punctuations (e.g., full stop(.), comma

(,), and colon (:)), non-alphanumeric characters (e.g.,

#GoLangCode123!$! to GoLangCode123), and stop-

words (e.g., ”ourselves”, ”hers”, ”between”, ”your-

self”, ”but”, and ”again”) from expanded sentences.

VisNLP: A Visual-based Educational Support Platform for Learning Statistical NLP Analytics

225

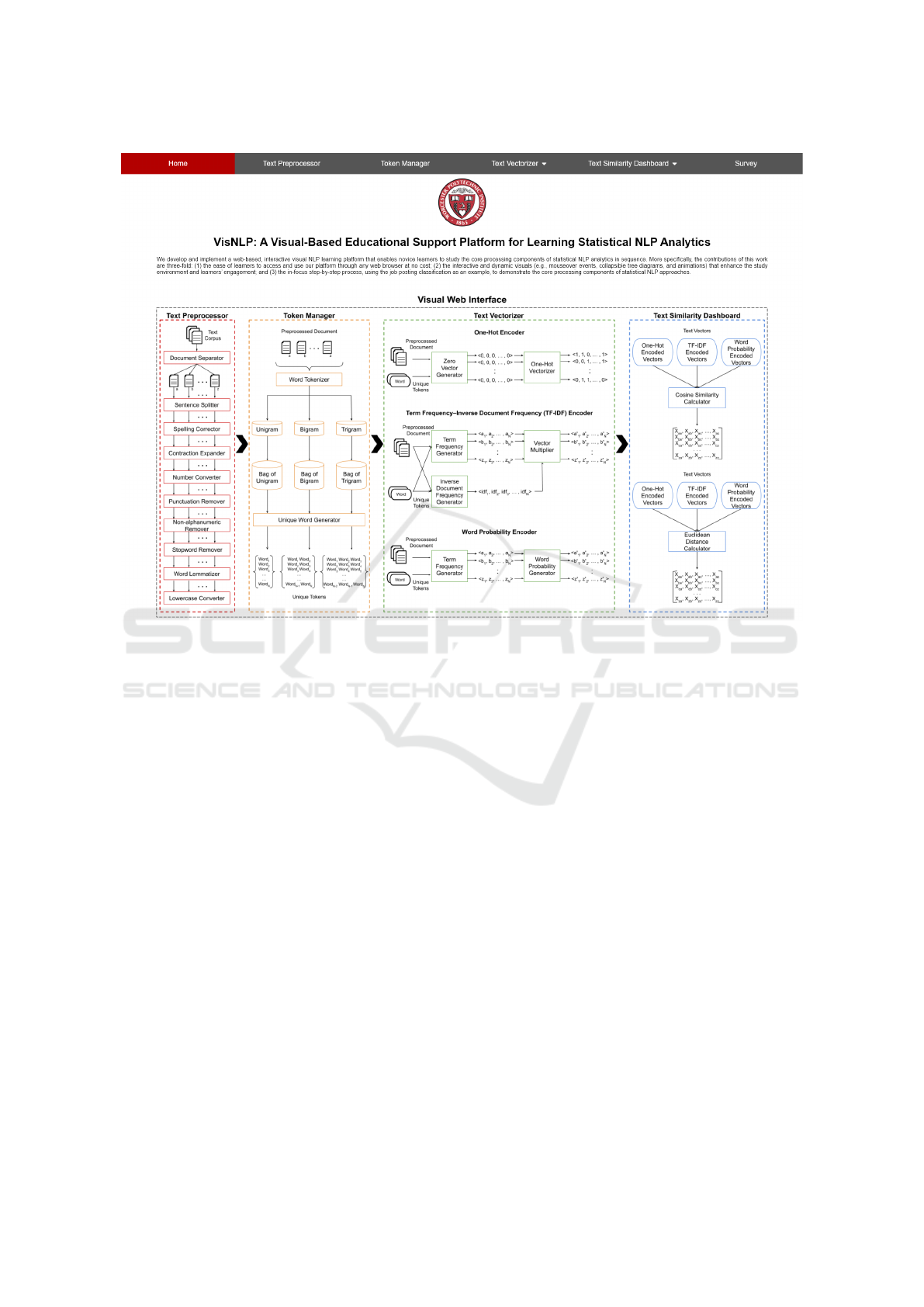

Figure 1: VisNLP Home Page and Framework.

To shorten the length of each expanded sentence, the

WL module groups several forms of the same word

together even if their spelling is quite different. For

example, ”walk”, ”walked”, ”walks”, and ”walking”

would be treated the same as ”walk”. This extensive

normalization down to the semantic root of a word is

called lemmatization. Finally, the LC module con-

verts each character of a word into a lowercase on

lemmatized sentences and then sends the processed

sentences to the Token Manager.

2.2 Token Manager

Token Manager is formed by ﬁve sub-modules that

include Word Tokenizer (WT), three Bag-of-Word

(BoW) DBs, and Unique Word Generator (UWG).

First, the sentences generated from Text Preprocessor

are passed into the WT module that splits each sen-

tence of a document into a collection of vocabularies

called tokens (i.e., unigram, bigram, and trigram) that

are stored in respective BoW DBs. Given the sen-

tence “I like apple.”, the Unigram tokenization gener-

ates “I”, “like”, and “apple” tokens. The Bigram to-

kenization generates “I like” and “like apple” tokens.

The Trigram tokenization generates a “I like apple”

token. It is called BoW, as the positional order and the

structure of those tokens are discarded but only their

occurrence in the document is annotated. The UWG

module then removes all the duplicated tokens to gen-

erate only the unique tokens (i.e., Token

, Token

Token

, ..., Token

) among all the documents from

the BoW DB.

2.3 Text Vectorizer

Text Vectorizer is divided into three sub-modules:

One-Hot Encoder, TF-IDF Encoder and Word Proba-

bility Encoder. All three encoders take the two inputs

including the unique tokens among all the prepro-

cessed documents and the documents themselves in

the text corpus. The unique tokens among all the doc-

uments deﬁne the dimension of each document vector.

For example, if there are N unique tokens in a text cor-

pus, each document vector is a 1×N one-dimensional

vector. The tokens with their occurrence in each doc-

ument are the components to generate the correspond-

ing vector. Since some corpus tokens do not appear in

all the documents, the value of each token may vary

according to different encoding schemes.

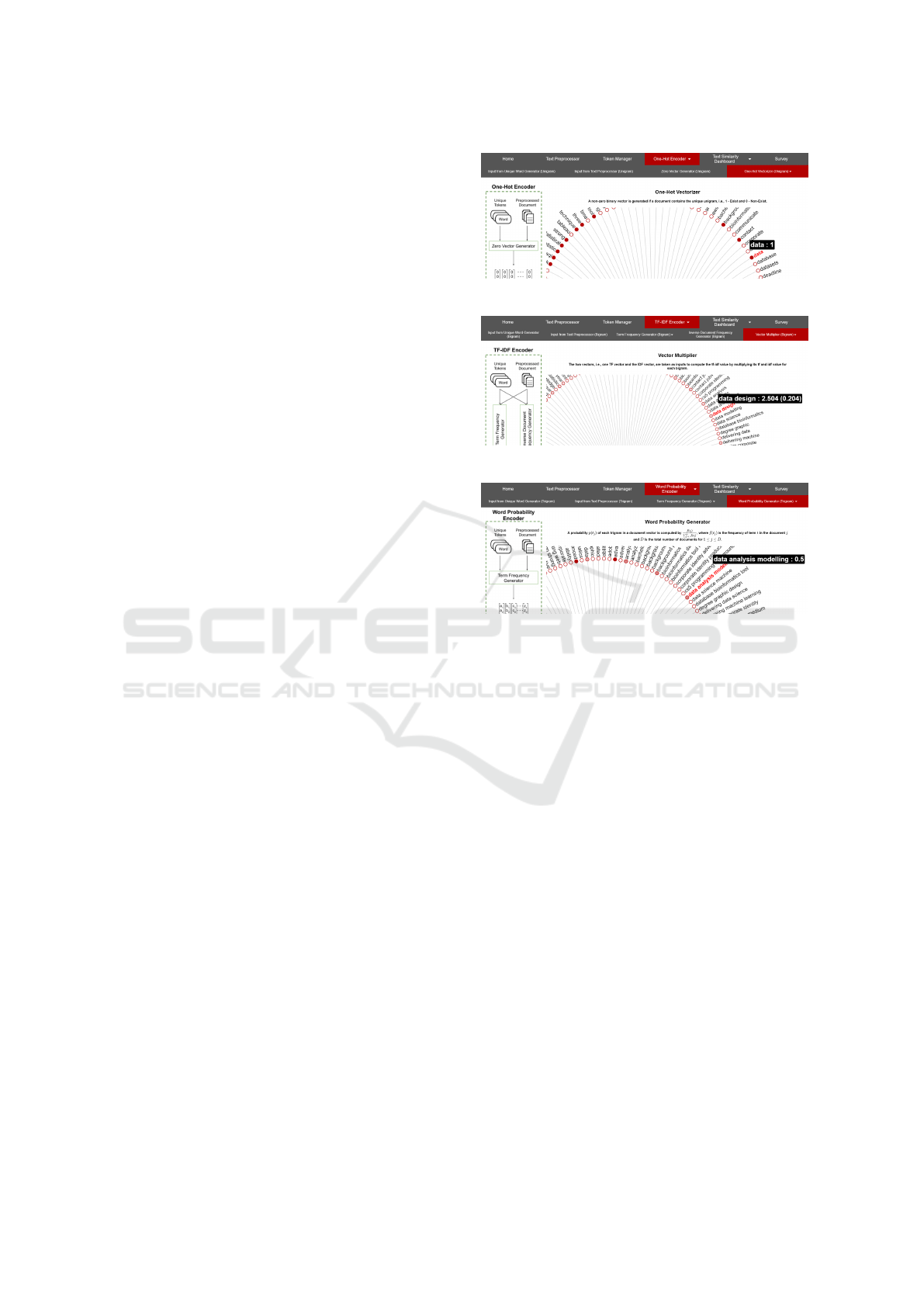

The One-Hot Encoder is composed of two com-

ponents: Zero Vector Generator (ZVG) and One-Hot

Vectorizer (OHV). The ZVG module generates α zero

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

226

binary vectors h0, 0,...,0i, where α is the total number

of documents in the text corpus and the size of each

binary vector is N. And then, the OHV module gen-

erates α non-zero binary vectors (e.g., h1, 1, 0,...,1i,

h0,0,1,...,1i,..., h0,1, 1, ..., 0i) (Goldberg, 2017, p.

212) for all the documents when a document contains

the unique token in a speciﬁc position, i.e., a one (1)

means on or hot and a zero (0) means off or absent.

This collection of vectors is called One-Hot Encoded

Vectors.

The TF-IDF Encoder consists of three sub-

modules: Term Frequency Generator (TFG), Inverse

Document Frequency Generator (IDFG), and Vec-

tor Multiplier (VM). The TFG module generates α

token frequency (TF) vectors (e.g., ha

,..., a

,..., b

i,...,hz

,..., z

i), where a

,..., z

are

the non-negative numeric values β

, which counts the

frequency of a token appeared in a document, for

0 ≤ i ≤ N. The IDFG module generates one non-

negative numeric (IDF) vector hid f

,id f

,..., id f

where id f

= log

N+1

+ 1 and D

is the total number

of documents containing a token, for D

≤ N. The

VM module takes the two vectors, i.e., one TF vec-

tor and the IDF vector, as inputs and computes the

multiplication β

× id f

for each token to generate a

TF-IDF vector (e.g., ha

,..., a

i, hb

,..., b

i,...,

,..., z

i) for a document.

The Word Probability Encoder contains Term Fre-

quency Generator (TFG) and Word Probability Gen-

erator (WPG). Similar to the TF-IDF encoder, the

TFG module generates the α token frequency vectors.

Then, the WPG module takes the TF vectors as the in-

put and computes the probability token p(t

) of each

N-gram document vector by

f (t

)

∑

j=1

f (t

)

, where f (t

) is

the frequency of term t in document j and D is the

total number of documents.

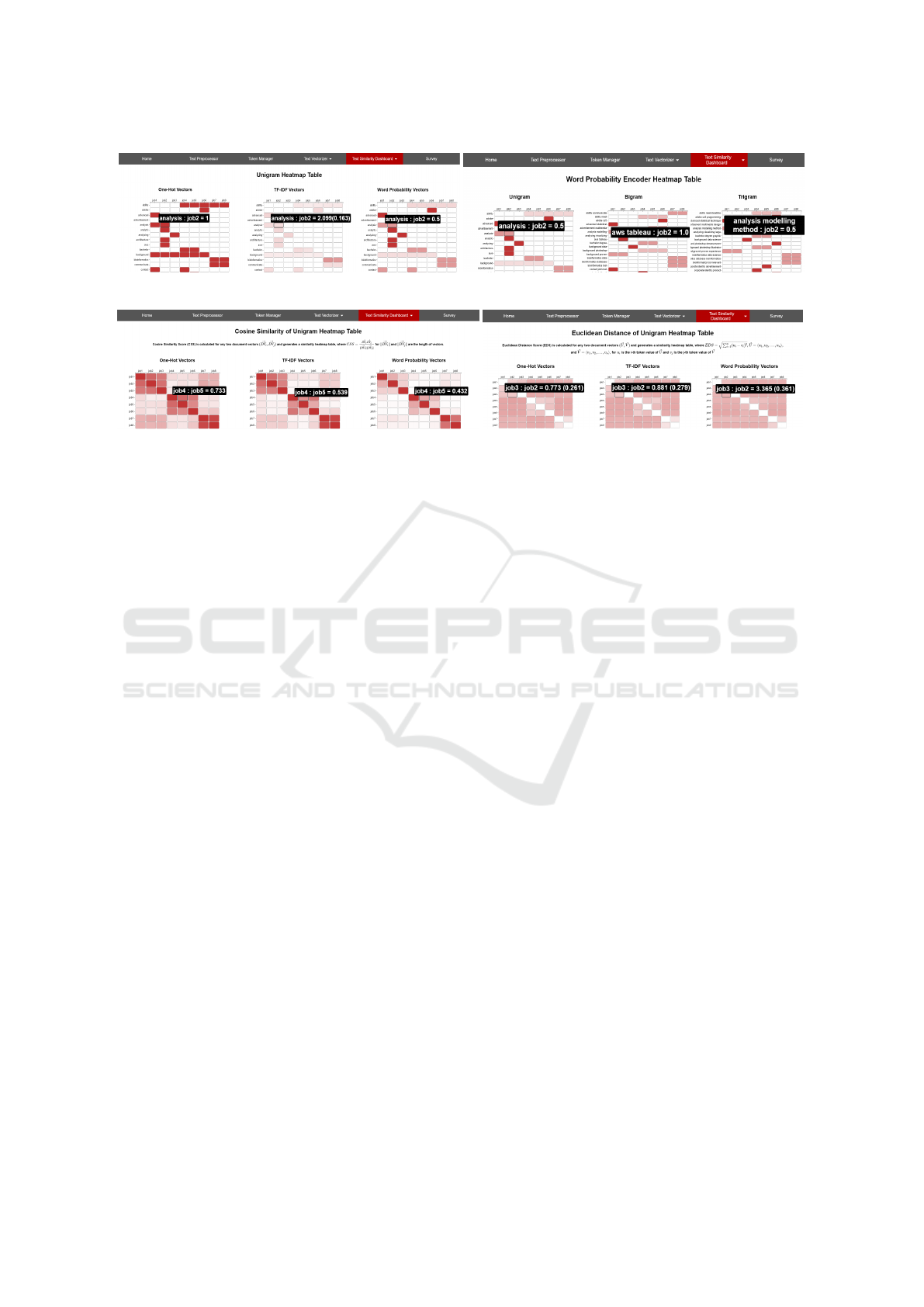

2.4 Text Similarity Dashboard

After the process of Text Vectorizer, One-Hot, TF-

IDF, and Word Probability encoded vectors are the

inputs of Text Similarity Dashboard, which computes

and generates four types of heatmap tables, including

(1) ”Token vs. Document”, (2) ”Text Vectorizer vs.

Document”, (3) Cosine Similarity Score (CSS) and

(4) Euclidean Distance Score (EDS) (Pattnaik, 2019;

Liu, 2019). The Cosine Similarity Score (CSS) is

calculated for any two document vectors (

where CSS =

, for k

k and k

k are

the length of vectors. The Euclidean Distance Score

is computed for any two document vectors (

V ),

where EDS =

∑

i=1

− v

)

U = hu

,...u

and

V = hv

,...v

i, for u

is the i-th token value

U and v

is the j-th token value of

V .

2.5 Visual Web Interface

Finally, to provide the educational support to novice

learners to understand the statistical NLP analytics,

we develop and implement a highly interactive visual

web interface that enables our learners to study the

entire process through the step-by-step guidance from

our interactive visual diagrams that are described in

Section 3.

3 VisNLP PLATFORM

In this section, we use the job posting advertisements,

which are collected from Monster (Monster, 2017),

as an example to describe and explain how learners

can use our VisNLP platform with the well-developed

interactive D3.js visuals (Bostock, 2020) to learn and

study the statistical NLP analytics. Fig. 1 shows the

Home page of our platform.

After learners use a web browser to access our

VisNLP platform, they see the ﬁve main module tabs,

including Text Preprocessor, Token Manager, Text

Vectorizer, Text Similarity Dashboard and Survey, at

the top of the page, the summary contributions of

our VisNLP and the framework at the bottom of the

page. Note that the ”Survey” tab shown on the plat-

form is only for learners to give us the feedback af-

ter using the platform that is not part of our paper

scope. Due to the large number of visual diagrams de-

veloped in our platform, we selectively choose some

representative diagrams in each module and make a

short video (https://youtu.be/ZbJuajHgAYQ) to intro-

duce our platform. To begin with our VisNLP, learn-

ers can start selecting the Text Preprocessor tab.

3.1 Text Preprocessor

The Text Preprocessor (TP) interface consists of the

”Corpus” and other ten sub-module tabs that we de-

scribe in Section II. Each tab contains both the TP

module and the tree diagrams to show how each high-

lighted sub-module impacts on the text. Speciﬁcally,

the process starts with showing one node of the tree

diagram named ”Corpus” to learners, as the ”Cor-

pus” tab is selected by default at the top bar of the

page. The TP module also highlights the ”Text Cor-

pus”. When learners move the cursor over the ”Cor-

pus” node, the node turns the color to be red. The

corpus description, at the same time, is displayed to

explain the meaning of a corpus. As our text corpus is

VisNLP: A Visual-based Educational Support Platform for Learning Statistical NLP Analytics

227

(a) Sentence Splitter (b) Number Converter

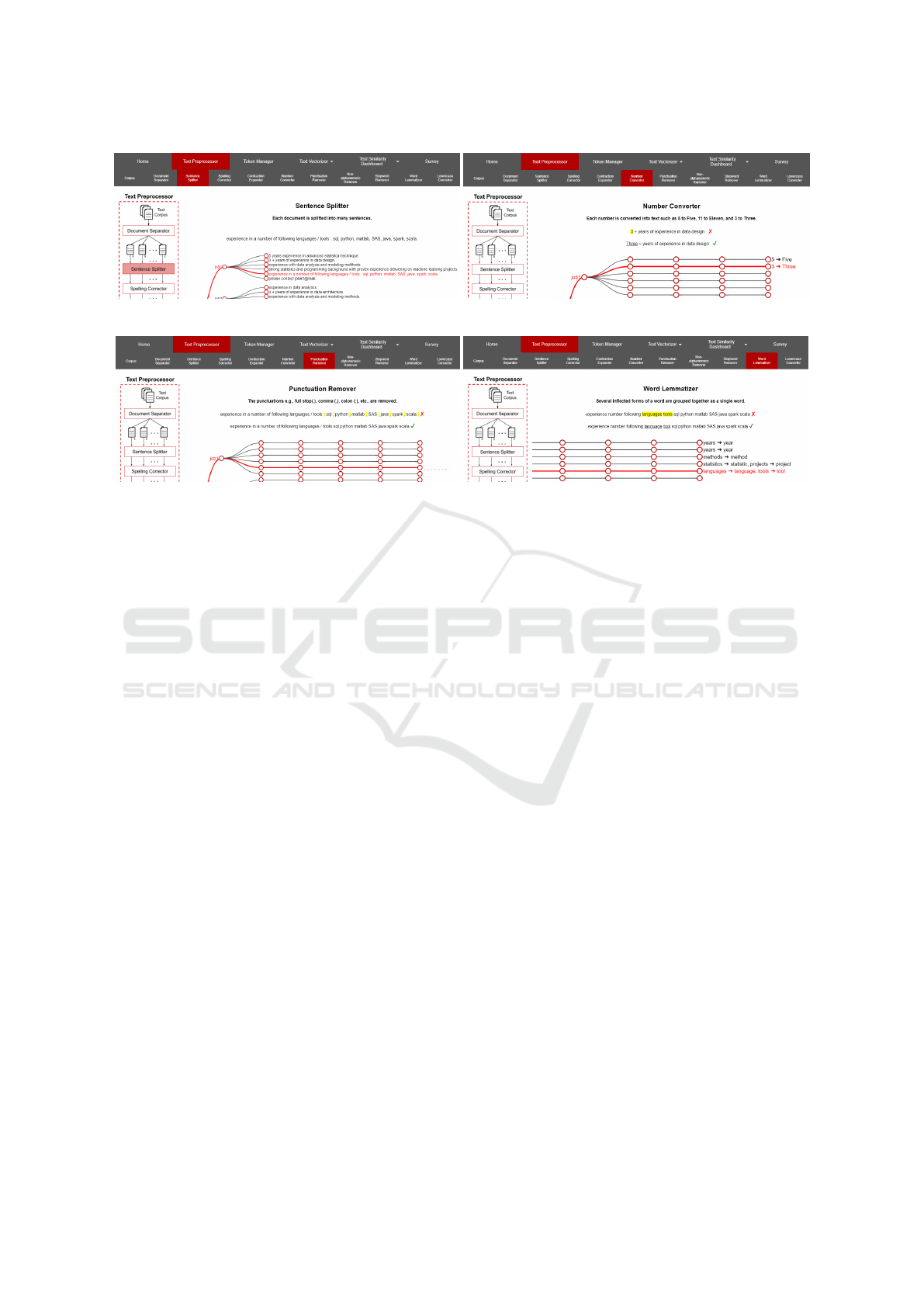

Figure 2: Sub-modules in Text Preprocessor.

related to job posting advertisements, learners should

see the ”Corpus is a collection of text documents. In

our example, there are eight job posting documents.”

on top of the page.

After the DS module tab is clicked, the TP module

highlights the ”Document Separator” and the tree di-

agram shows up and branches out to eight leaf nodes.

Each leaf node represents a text of job posting ad-

vertisements in the corpus and is composed of many

sentences. In Fig. 2a, the SS sub-module branches

out the tree from each job posting node to many sen-

tence leaf nodes that are depended on the number of

sentences in each job posting advertisement. For in-

stance, the job posting node No. 1 is split into six

sentences. When learners move the cursor over a sen-

tence node, the node and its parent turn the color to

be red. The link associated with that sentence node

is also changed the color to be red and show the path

up to the corpus node. The corresponding sentence is

also displayed at the top of the page.

The SC module then takes every single word in

a sentence as an input and replaces any misspelled

word with the highest-probability corrected word. For

example, the misspelled word ”metthods” is replaced

by the corrected word ”methods”, i.e., ”metthods →

methods”, shown at the end of the node. Similarly,

the selected node shows the red link path up to its

parent and ancestor. By moving the cursor over the

node, learners can also see the correction on top of the

page, i.e., the ”before” sentence with a red cross mark

and the ”after” sentence with a green check mark. The

misspelled word is highlighted and the corrected word

is underlined. For a sentence that does not contain any

misspelled words, it is shown with a green check mark

only. In the CE module, at the end of the leaf node,

learners can see some words that are expanded. For

instance, ”You’re” is highlighted and changed to ”You

are” with the underline. In the NC module, a stand-

alone numeric value is replaced by its English word.

For instance, in Fig 2b, ”3” is replaced by ”Three”

and ”5” is replaced by ”Five”. Both before and after

sentences are displayed in the same format as that of

the SC module on top of the page.

The next three modules are PR, NR, and SR that

take a sentence from the NC module and remove

some characters, symbols, and words from the sen-

tence. The PR module removes a punctuation in the

sentence. Learners can see all the removed punctua-

tions, such as ”full stop (.)”, ”hyphen (-)”, ”exclama-

tion mark (!)”, and ”question mark (?)”, highlighted

at the end of the node. For example, in Fig 2c, the

PR module takes a sentence ”experience in a num-

ber of following languages/tools: sql, python, matlab,

SAS, java, spark, scala.” and then removes ”comma

(,)”, “colon (:)”, and ”full-stop (.)” to generate the

output sentence ”experience in a number of following

languages / tools sql python matlab SAS java spark

scala”.

Likewise, the NR and SR modules remove

“/¡¿@#$%&*” and stopwords (e.g., a, an, the, is, am,

and are) respectively in any sentence. Any charac-

ters, symbols, numbers, and words that get removed

are highlighted in the original sentence. For exam-

ple, the NR module takes the sentence ”please con-

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

228

(a) Input from Text Preprocessor (b) Words Tokenizer in Vertical Tree

Figure 3: Sub-modules in Token Manager.

tact job#1@mail” as the input and removes some non-

alphanumeric characters ”hashtag (#)” and ”at (@)”

to get the output sentence ”please contact job1mail”.

After passing the sentence through the SR module,

for example, the sentence “experience in a number of

following languages / tools sql python matlab SAS

java spark scala” is changed to “experience number

following languages tool sql python matlab SAS java

spark scala” by removing the ”in”, ”a”, and ”of” stop-

words. All the above corrections in a sentence are

shown on the top of the page as well by moving the

cursor over the node.

The last two modules are WL and LC, which are

to simplify the words. The WL module takes a sen-

tence from the SR module and converts all the words

to their semantic roots, for example, ”help”, ”help-

ing”, ”helps”, and ”helper” transformed to ”help”. In

Fig. 2d, the input sentence from the SR module is ”ex-

perience number following languages tools sql python

matlab SAS java spark scala”. The WL module takes

that input and lemmatizes the word ”languages” to

”language” and “tools” to “tool”. The changes are

then shown as ”languages → language and tools →

tool” at the end of the node. Likewise, the LC module

takes the sentence from the WL module and converts

each character of a word into a lowercase. For in-

stance, the LC module takes the output from the WL

module, changes the word ”SAS” to ”sas”, and shows

”SAS → sas” at the end of the node. Thus, the ﬁnal re-

sult of this sentence is ”experience number following

language tool sql python matlab sas java spark scala”.

After the LC module returns all the output sentences,

the sentences are sent to Token Manager to create the

Bag of N-grams DBs.

3.2 Token Manager

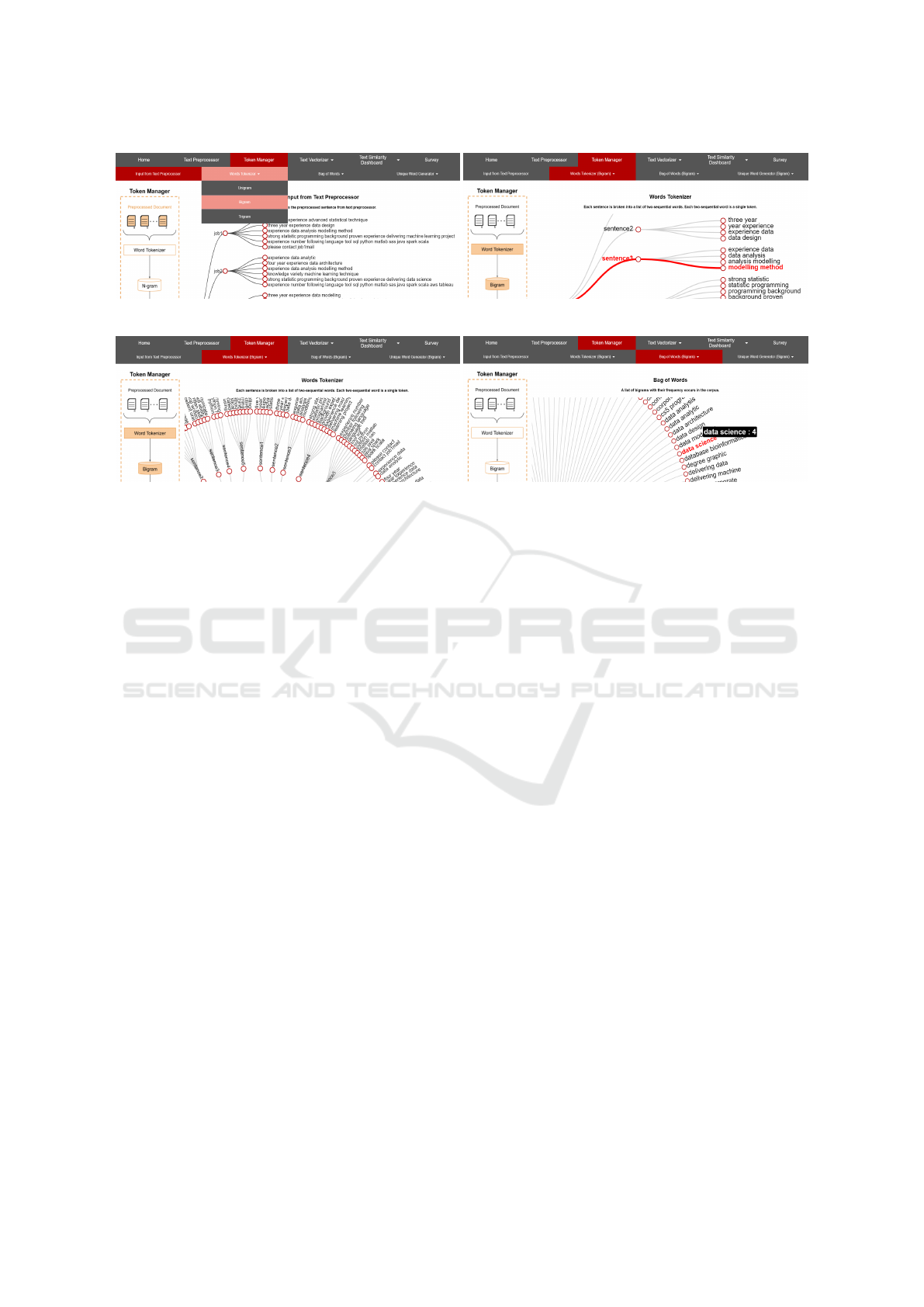

The Token Manager (TM) interface consists of the

”Input from Text Processor” and other sub-module

tabs that we describe in Section 2. Likewise, each tab

contains both the TM module and the tree diagrams

to show how each highlighted sub-module impacts on

the text. The TM module starts with the input sen-

tences generated from the TP module shown in Fig.

3a. The WT module takes these inputs and splits each

sentence into a collection of single vocabularies called

tokens. Each token can be Unigram, Bigram, or Tri-

gram depended on the learners’ selection. In this to-

kenization process, learners can select which N-gram

token should be used as a vocabulary. Speciﬁcally,

when learners click the WT tab and the ”Bigram”

option, the tree diagram branches out each sentence

node to its token nodes shown as a huge zoomable

vertical tree diagram in Fig. 3b. For instance, if

the input sentence is ”experience data analysis mod-

eling method”, after the bigram tokenization, ”experi-

ence data”, ”data analysis”, ”analysis modeling”, and

”modeling method” are generated. As there is a large

number of tokens in the text corpus and the vertical

tree is very lengthy, learners can zoom and drag to the

bottom to see the rest of the tree. By clicking the tree

diagram, the vertical tree can also be transformed to

the radial tree shown in Fig. 3c. Based upon the input

tokens with their occurrence from the WT module,

VisNLP: A Visual-based Educational Support Platform for Learning Statistical NLP Analytics

229

the BoW (Bigram) tab shows the radial tree, in Fig.

3d., with two layers, i.e., corpus and tokens, which

displays all the bigrams with their total occurrence in

the corpus. Learners can see the detail by moving

the cursor over the node. For example, when learners

move the cursor over the token node ”data science”, it

displays the node in the red color and shows the text

”data science : 4”, which means that this token ”data

science” occurs four times in this corpus. Finally, the

UWG module takes the result from the BoW (Bigram)

DB and generates the unique tokens. Token Manager

then sends those unique tokens from the UWG mod-

ule to Text Vectorizer.

3.3 Text Vectorizer

In Text Vectorizer, there are three options for learn-

ers to select: One-Hot Encoder, TF-IDF Encoder, and

Word Probability Encoder. Each encoder has the three

Bag of N-grams to be chosen. All encoders take the

same inputs from the UWG module and the TP mod-

ule respectively to generate the vectors.

If the One-Hot Encoder is selected, the ZVG mod-

ule takes the unique token from the UWG module as

an input and generates the radial tree diagram with

the white color nodes and the corresponding words

for each job posting advertisement. The diagram is

a zero-value vector of each document since each job

document starts with all zero values and the length of

each document vector is the same due to the number

of unique tokens in the entire corpus. Learners can see

that when the word ”data” is selected, the node shows

”data : 0”. There is a color scheme at the bottom of

the page. The white color means a zero value. To

visualize One-Hot encoded vectors, the OHV module

takes the zero vector and the corresponding prepro-

cessed job posting advertisement as the inputs to dis-

play the vector as a radial tree, in which the red node

indicates the value ”1” and the white node means the

value ”0”. If learners move the cursor over the node,

the node is enlarged and displays the detail of the to-

ken. For example, in Fig. 4a, the word ”data : 1” in

the red node is shown up. It means this word appears

in this job posting advertisement.

If the TF-IDF Encoder is chosen, the TFG module

takes the same inputs as that of the ZVG module and

shows the radial tree diagram with different color in-

tensity of nodes from white (0) to red (1) depending

on the normalized color value of each token. For ex-

ample, when the cursor is moved over the word ”data

design”, the node is enlarged to display ”data design

: 1 (0.16)”. The value of 1 means ”data design” ap-

pears only one time in this job posting advertisement

and its normalized color intensity value is 0.16. The

(a) One-Hot Encoder

(b) TF-IDF Encoder

Figure 4: Text Vectorizer.

IDFG module calculates id f

based upon the equation

shown on the web page. For instance, as there are

eight job posting advertisements in the corpus, N =

8. Because the token ”data design” appears in one

documents, D = 1. By substituting these two values

into the equation, the id f

value of the word ”data de-

sign” is 2.504. Finally, the VM module takes both

computed results from the TFG and IDFG modules

as the inputs and performs the multiplication for each

token to generate a TF-IDF vector, which is shown as

a radial tree diagram in Fig. 4b. ”data design: 2.504

(0.204)” is displayed with the tf-idf value (2.504) and

the normalized color intensity value (0.204).

If the Word Probability Encoder is chosen, the

TFG module generates the TF vector as the same way

as that of TF-IDF Encoder. For example, the radial

tree diagram shows the trigram ”data analysis model-

ing : 1 (0.186)”, which means ”data analysis model-

ing” appears only one time in job1. The WPG module

then (1) counts the number of times of a token ap-

peared in a speciﬁc document, (2) computes the total

frequency of that token appeared in all the document

in the entire corpus, and (3) divides these two values

to get the token probability in the speciﬁc document.

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

230

(a) Unigram Heatmap Table (b) Word Probability Heatmap Table

Figure 5: Text Similarity Dashboard.

In Fig. 4c, the probability of the token “data analysis

modeling” is 0.5, which means this token is rare and

can be found in only two documents.

3.4 Text Similarity Dashboard

After the Text Vectorizer generates all the One-Hot,

TF-IDF, and Word Probability vectors, they are sent

to Text Similarity Dashboard for similarity evalua-

tions. In the Text Similarity Dashboard tab, learn-

ers can select: (1) N-gram Heatmap Table, (2) Vec-

torizer Heatmap Table, (3) Cosine Similarity Matrix,

and (4) Euclidean Distance Matrix. For the N-gram

Heatmap Table, learners can choose unigram, bigram

or trigram. For example, when learners select ”Uni-

gram”, shown in Fig. 5a., the table for each vector-

ization approach has the rows as the tokens and the

columns as the jobs. In the table of One-Hot vec-

tors, if the token appears in a speciﬁc document, it is

displayed with a red color box and the value ”1”, or

else it shows a white color box with the value ”0”.

When the cursor is moved over the token ”analysis”

in the second column, it displays ”analysis : job2 =

1”, i.e., the token ”analysis” appears in the job2. In

the table of TF-IDF vectors, learners can see different

color intensity of mixing red and white due to their

tf-idf values. For instance, ”analysis : job2 = 2.099

(0.163)” means the tf-idf value of the word ”analy-

sis” is 2.099 and its normalized color intensity value

is 0.163. The table of Word Probability vectors shows

“analysis : job2 = 0.5”, which means the probability

of token “analysis” appears in job 2 document is 0.5.

Similar to the N-gram Heatmap Table, the Vectorizer

Heatmap Table display the ”Text Vectorizer vs. Doc-

ument” among all the N-grams in Fig. 5b.

The text similarity among the job posting adver-

tisements can be compared by computing the CSS

score and EDS score. The Cosine Similarity Cal-

culator takes the job posting vectors and substitutes

them into the given formula to generate the heatmap

tables for each vectorization approach. For the One-

Hot vectors, the same job posting advertisement is

displayed with a red color and the value ”1” shown

in the diagonal of the tables, as they are the same job

posting. In the table, learners can see that there are

three red color clusters, including (1) Job 1, 2, and 3,

(2) Job 4, 5, and 6, and (3) Job 7 and 8. It means that

those jobs in their own clusters are very similar. Job

1, 2, and 3 are about data scientists; Job 4, 5, and 6

are about graphic designers; and Job 7 and 8 are about

mechanical engineers. When learners move the cur-

sor over a red cell, they can see the detail of it. For ex-

ample, in Fig. 5c, it shows ”job4 : job5 = 0.733”. This

is the value of the CSS score between Job 4 and Job 5.

Learners can apply the same value scheme to view the

CSS score of TF-IDF and Word Probability between

any two jobs. The Euclidean Distance Calculator also

takes the same inputs to compute the distance value.

However, the scores show in the Euclidean Distance

Heatmap Table are different from those shown in the

Cosine Similarity Heatmap Table. For instance, in

Fig. 5d, it shows ”job3 : job2 = 0.733(0.261)” which

are the value of the EDS score between Job 3 and Job

2 and the normalized color value. Likewise, learners

can apply the same value scheme to view the EDS

score of TF-IDF and Word Probability between any

two jobs. Note that the reason why these three ta-

bles in each vectorization approach look quite simi-

lar to one another is because these three approaches

have quite similar vectors with different scaling val-

VisNLP: A Visual-based Educational Support Platform for Learning Statistical NLP Analytics

231

ues only, i.e., 0 or 1 for One-Hot encoding, ≥ 0 for

TF-IDF, and 0∼1 for Word Probability. Due to the

large number of tokens in our corpus, most of the

vectors are sparse vectors (i.e., a lot of zero values

in each vector), as many tokens do not appear in each

job posting advertisement. Hence, both scores of all

three methods are very close to one another.

4 CONCLUSIONS AND FUTURE

WORK

To our best knowledge, this is the ﬁrst paper to intro-

duce a visual-based educational support platform for

learning statistical NLP Analytics. Speciﬁcally, we

develop and implement a web-based, interactive vi-

sual NLP learning platform that enables novice learn-

ers to study the core processing components of statis-

tical NLP analytics in sequence. The contributions of

this work are three-fold: (1) the ease of learners to ac-

cess and use our platform through any web browser at

no cost; (2) the interactive and dynamic visuals (e.g.,

mouseover events, collapsible tree diagrams, and an-

imations) that enhance the study environment and

learners’ engagement; and (3) the in-focus step-by-

step process, using the job posting classiﬁcation as an

example, to demonstrate the core processing compo-

nents of statistical NLP approaches. However, there is

still a lack of many important research questions, e.g.,

how the 3D diagrams should be designed and imple-

mented to strengthen the interactivity between novice

learners and the platform, how neural network-based

methods should be developed visually to deliver the

knowledge and to be a contrast with statistical-based

approaches, and how the platform can be further en-

hanced to visualize a NLP pipeline to solve real-world

problems.

REFERENCES

Bengfort, B., Bilbro, R., & Ojeda, T. (2018). Ap-

plied Text Analysis with Python: Enabling Language-

Aware Data Products with Machine Learning (1st ed.).

O’Reilly Media.

Bostock, M. (2020). D3.js - Data-Driven Documents. D3JS.

https://d3js.org/

Data Science. (2020a). WPI Data Science Program.

https://www.wpi.edu/academics/departments/data-

science

Data Science. (2020b). Harvard University Data Sci-

ence Program - The Graduate School of Arts

and Sciences. https://gsas.harvard.edu/programs-of-

study/all/data-science

Deng, L., & Liu, Y. (2018). Deep Learning in Natural Lan-

guage Processing (1st ed. 2018 ed.). Springer.

Goldberg, Y. (2017). Neural Network Methods for

Natural Language Processing. Synthesis Lectures

on Human Language Technologies, 10(1), 1–309.

https://doi.org/10.2200/s00762ed1v01y201703hlt037

Google Translate. (2020). Google Translation Website.

https://translate.google.com/

Grammarly. (2020). Write your best with Grammarly.

https://www.grammarly.com/

Hastie, T., Tibshirani, R., & Friedman, J. (2020). The El-

ements of Statistical Learning: Data Mining, Infer-

ence, and Prediction, Second Edition (Springer Series

in Statistics) (2nd ed.). Springer.

Kamath, U., Liu, J., & Whitaker, J. (2020). Deep Learning

for NLP and Speech Recognition (1st ed. 2019 ed.).

Springer.

Lane, H., Hapke, H., & Howard, C. (2019). Natural Lan-

guage Processing in Action: Understanding, analyz-

ing, and generating text with Python (1st ed.). Man-

ning Publications.

Liu, Y., Xu, Q., & Tang, Z. (2019). Research on Text

Classiﬁcation Method Based on PTF-IDF and Co-

sine Similarity. 2019 International Conference on In-

telligent Informatics and Biomedical Sciences (ICI-

IBMS). doi:10.1109/iciibms46890.2019.8991542

Monster. (2017, May 26). Job Search, Find Job Openings

Monster.com. https://www.monster.com/jobs/search/

Pattnaik, S., & Nayak, A. K. (2019). Summariza-

tion of Odia Text Document Using Cosine Sim-

ilarity and Clustering. 2019 International Con-

ference on Applied Machine Learning (ICAML).

doi:10.1109/icaml48257.2019.00035

Protege. (2020). Protege. https://protege.stanford.edu/

Reese, M. R., & Bhatia, A. (2018). Natural Language Pro-

cessing with Java: Techniques for building machine

learning and neural network models for NLP, 2nd Edi-

tion (2nd Revised edition). Packt Publishing.

Rehman, Z., & Kifor, S. (2015). Teaching Natural Lan-

guage Processing (NLP) Using Ontology Based Ed-

ucation Design. Balkan Region Conference on En-

gineering and Business Education, 1(1), 206–214.

https://doi.org/10.1515/cplbu-2015-0024

Rodrigues, M., & Teixeira, A. (2015). Advanced Appli-

cations of Natural Language Processing for Perform-

ing Information Extraction (SpringerBriefs in Speech

Technology) (2015th ed.). Springer.

Shaalan, K., Hassanien, A. E., & Tolba, F. (2017). Intelli-

gent Natural Language Processing: Trends and Appli-

cations (Studies in Computational Intelligence (740))

(1st ed. 2018 ed.). Springer.

Statistics and Data Science MicroMasters. (2020).

Statistics and Data Science MicroMasters.

https://micromasters.mit.edu/ds/

Text Analysis. (2020). Text Analytics Website Mon-

keyLearn. https://monkeylearn.com/

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

232
