Data-set for Event-based Optical Flow Evaluation in Robotics

Applications

Mahmoud Z. Khairallah

, Fabien Bonardi

, David Roussel

and Samia Bouchafa

IBISC, Univ. Evry, Universit

e Paris-Saclay, 91025, Evry, France

Keywords:

Event-based Camera, Optical Flow Estimation, Ego-motion Data-sets, Frame Alignment.

Abstract:

Event-Based cameras (also known as Dynamic Vision Sensors ”DVS”) have been used extensively in robotics

during the last ten years and have proved the ability to solve many problems encountered in this domain. Their

technology is very different from conventional cameras which requires rethinking the existing paradigms and

reviewing all the classical image processing and computer vision algorithms. We show in this paper how

Event-Based cameras are naturally adapted to estimate on the ﬂy scene gradients and hence the visual ﬂow.

Our work starts with a complete study of existing event-based optical ﬂow algorithms that are suitable to be

integrated into real-time robotics applications. Then, we provide a data-set that includes different scenarios

along with a set of visual ﬂow ground-truth. Finally, we propose an evaluation of existing event-based visual

ﬂow algorithms using the proposed ground truth data-set.

1 INTRODUCTION

Optical ﬂow is an essential visual cue that is ex-

ploited in most of computer vision algorithms for

robotic applications. In order to measure the relia-

bility of new proposed algorithms, several synthetic

and real data-sets were provided as benchmarks: Mid-

dlebury (Baker et al., 2011), KITTI (Menze et al.,

2015). The rise of Dynamic Vision Sensors ”DVS”

required a total paradigm shift in all computer vision

algorithms, optical ﬂow algorithms included, thus im-

plying a need to propose new ground-truth data-sets.

(Rueckauer and Delbruck, 2016a) propose synthetic

and real DVS data-sets, restricted to camera rota-

tional motions, and use the gyroscope embedded to

the DVS sensor to obtain the ground-truth 2D motion

also called ”in-plane motion”. (Barranco et al., 2016)

use an RGB-D sensor on a pan-tilt rig connected to

the camera to create optical ﬂow ground truth know-

ing 3D motion and depth.

In this paper, our ﬁrst contribution is to provide an

adaptive method to increase the quality of obtained

data from Event-based cameras and reject noises. We

use a VICON motion capture system. Such a sys-

https://orcid.org/0000-0002-0724-8450

https://orcid.org/0000-0002-3555-7306

https://orcid.org/0000-0002-1839-0831

https://orcid.org/0000-0002-2860-8128

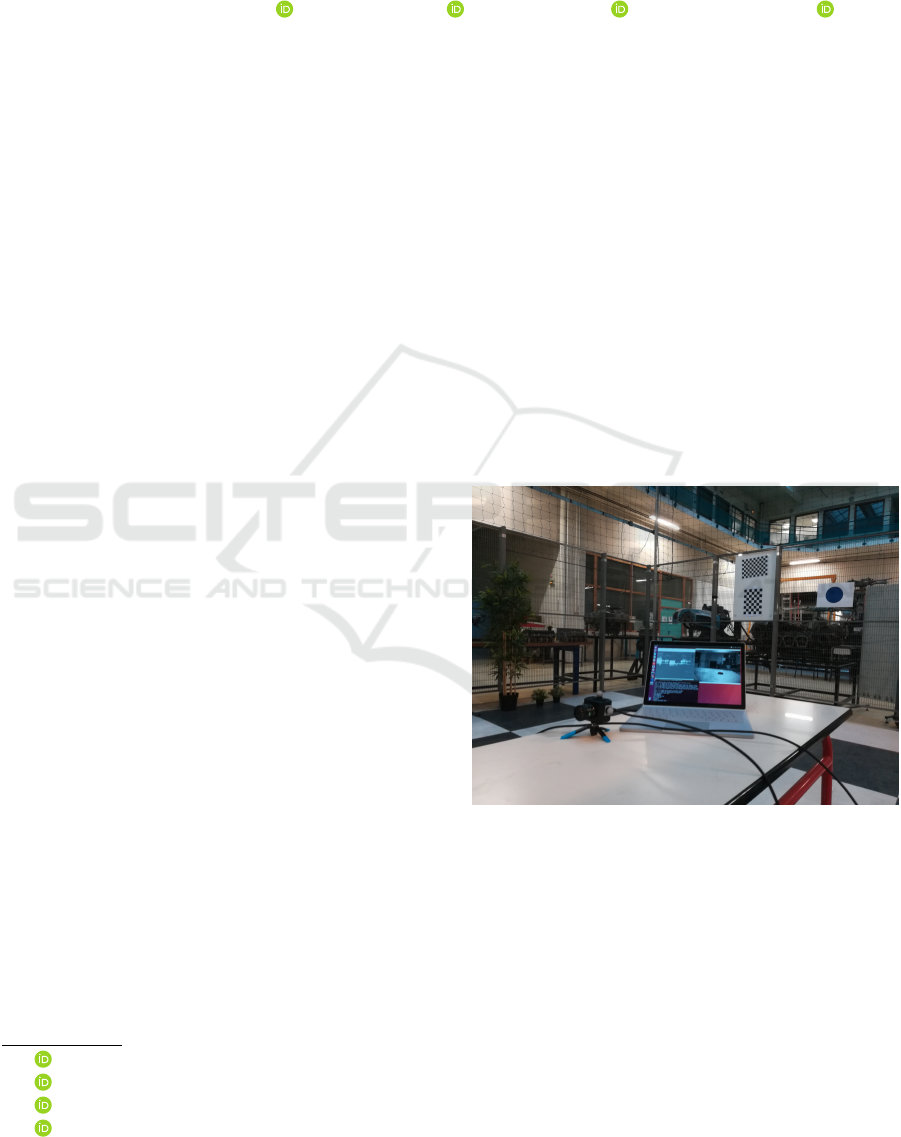

Figure 1: The environment setup of the system: event-based

camera, checkerboards, VICON system.

tem can provide a 6DOF pose ground truth with high

accuracy at frequencies above 100Hz while being

adapted to moving scenes with multiple moving ob-

jects. An optical ﬂow ground truth can easily be de-

rived by measuring the relative objects-camera pose

to calculate the 2D objects projection on the camera

frame. We introduce a calibration method to align the

external VICON system with the DVS internal IMU

that can be applied easily for any sensors that share

roughly the same initial position. We also propose an

event-based data-set that can be used as ground truth

480

Khairallah, M., Bonardi, F., Roussel, D. and Bouchafa, S.

Data-set for Event-based Optical Flow Evaluation in Robotics Applications.

DOI: 10.5220/0010320304800489

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

480-489

ISBN: 978-989-758-488-6

for optical ﬂow algorithms comparison. Finally, we

evaluate existing event-based optical ﬂow algorithms

that are adapted to robotics applications and previ-

ously introduced in (Delbr

uck, 2008), (Benosman

et al., 2012), (Benosman et al., 2013), (Rueckauer and

Delbruck, 2016b) and (Mueggler et al., 2015). This

paper is organised as follows: in section 2, a brief

explanation of the selected optical ﬂow algorithms is

presented. In section 3, an illustration of the recorded

data-set scenario is explained. In section 4 we present

the intrinsic and extrinsic calibration of the systems

and in section 5 a comparison between tested algo-

rithms estimated optical ﬂows and the optical ﬂow ob-

tained from VICON is carried out. Results and con-

clusion are given in the last sections.

2 EVENT-BASED OPTICAL

FLOW ALGORITHMS

Several optical ﬂow algorithms have been developed

to adapt to the nature of event-based vision sensors

in robotics ﬁeld. The algorithms presented in this

study can be grouped in three main categories: vari-

ants of Lucas-Kanade (Lucas and Kanade, 1981) op-

tical ﬂow, Local Plane optical ﬂow and Regularised

optical ﬂow. We chose one algorithm from each cat-

egory according to efﬁciency and real-time robotics

applications adaptability criteria. Some modiﬁcations

are proposed to make these algorithms more adaptive

to different dynamic conditions.

2.1 Event-based Representation

The design of DVS cameras is particularly adapted

to the visual optical ﬂow nature which is deﬁned as

the perceived 2D motion of a 3D moving pattern.

The “silicon retina” used in DVS cameras mimics

the human eye derivative functionality (the system

responsible for motion detection) by sending a sig-

nal (event) whenever a change occurs at a speciﬁc

pixel. The created events can be characterized as a

tuple e = hx,y,t, pi where x and y are the position of

the event in pixel coordinates, t is the timestamp of

event’s creation and p is the polarity of the event such

that p ∈ {−1,+1}. The polarity of the event inter-

prets the increasing or decreasing change of illumina-

tion that occurs in the environment. An event is cre-

ated whenever a difference in illumination exceeds a

threshold according to the following equation:

∆L(x

) = L(x

) −L(x

−∆t) = p

(1)

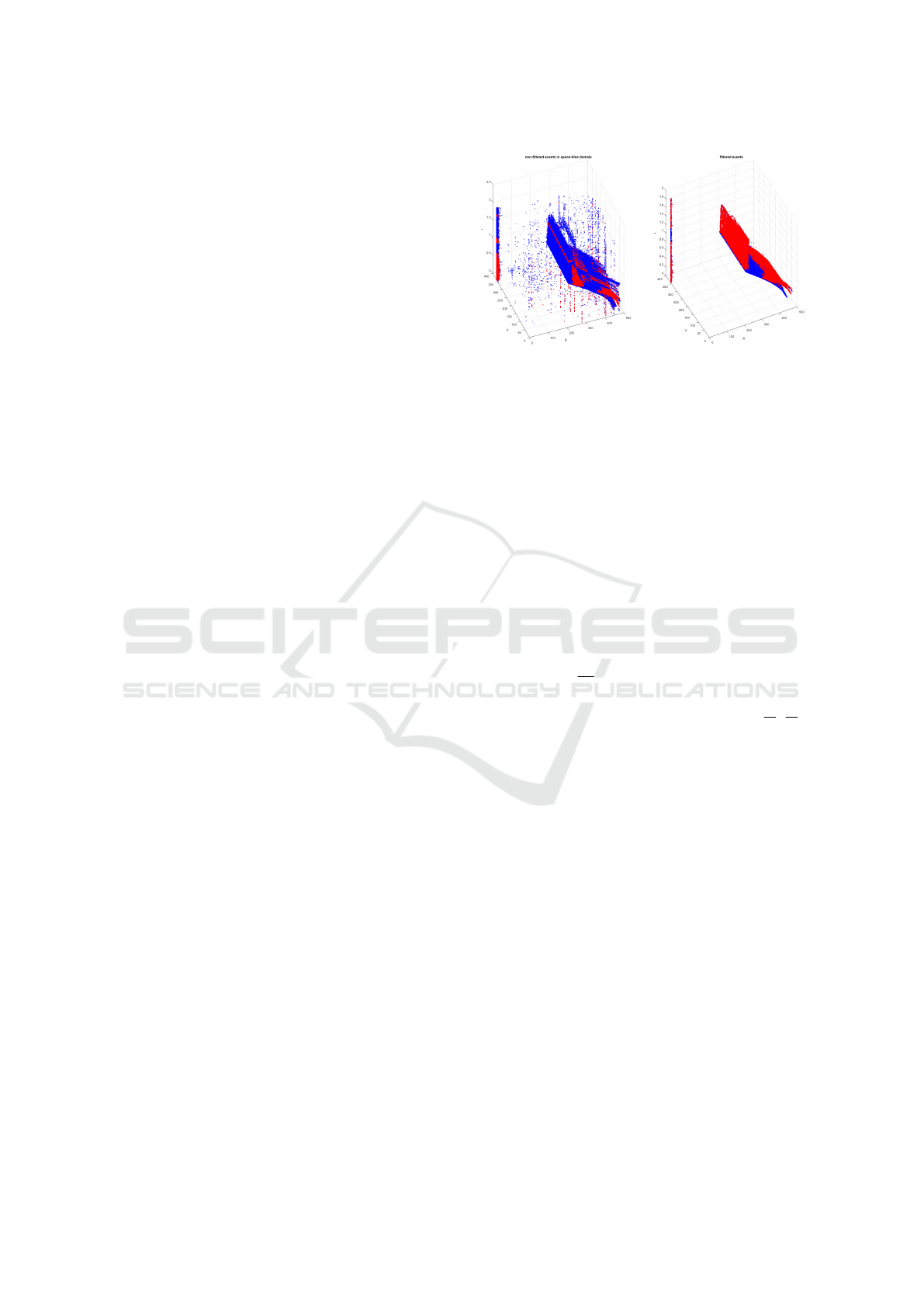

Figure 2: Left: events created due to motion of a beam dur-

ing 2 seconds without ﬁltering. Right: events after ﬁltering.

where L(x

) is the illumination log intensity of

the current time and L(x

−∆t) is the illumina-

tion log intensity of the event created at this pixel

previously at t

−∆t, δ

is the threshold that deter-

mines the creation of the event which is namely about

10 : 15%. The signed threshold δ

can be exceeded

due to change of luminosity in the environment with

no motion or due to motion under constant luminos-

ity or a combination of both cases. In robotics ap-

plications, we assume that environment luminosity

changes are negligible. Hence, under a brightness

constancy constraint, the creation of an event can be

approximated by the following equation using a Tay-

lor expansion of the intensity function:

∆L(x

) ≈

∂L

∂t

)∆t = h∇

L(x

u∆ti

(2)

where h.,.irefers to a dot product and ∇

L = (

∂L

∂x

∂L

∂y

The later equation shows that the creation of an event

embeds in itself the visual ﬂow of the moving envi-

ronment. As a consequence, Event-Based cameras

provide a quasi-continuous ﬂow of events which fa-

cilitates events correlation unlike standard cameras

which face brightness discretization issues. Accord-

ing to this, we give, in this study, a selection of Event-

Based optical ﬂow algorithms that would be simple to

implement, running fast enough for real time applica-

tions and then we study their performance according

to different criteria. The selected approaches are pre-

sented in the following sub-sections.

2.2 Direction Selective Filter

(Delbr

uck, 2008) propose to augment the information

that each event carries with a direction that is deter-

mined using a rough optical ﬂow estimation. Veloc-

ity magnitude and direction are assigned to each event

through three steps: event ﬁltering, direction selection

and magnitude estimation.

Data-set for Event-based Optical Flow Evaluation in Robotics Applications

481

2.2.1 Event Filtering

Due to the noisy nature and the sensitivity of DVS

cameras, it is essential to get rid of uncorrelated

events created by background activity or any other

source like transistor switch leakage (Lichtsteiner

et al., 2008). The author employs what is called an

activity ﬁlter to reject unwanted events that takes only

one parameter T , the “support time”, which is the

maximum time difference permitted between the cur-

rent event and events created previously in the same

neighbourhood. We use for that the active events

surface, which is the buffer that saves only the last

existing event at a speciﬁc pixel and its timestamp.

The support time T decides whether an event can be

passed as a true event or as noise. The process is

carried out in two steps. First, the event timestamp

is stored for the pixel 8-neighbourhood. Second, a

check between the timestamp stored in the event’s lo-

cation and the event’s timestamp is performed: if an

event occurred nearby the current event (within the

support time T), the new event is passed. It is dis-

carded otherwise.

Using a constant support time T is not the best

solution as events could be rejected or included ar-

bitrarily independently from the environment motion.

We propose a modiﬁed version of this ﬁlter to make

it more robust to noise and more adaptive to dynamic

environments. We thereby introduce an adaptive pa-

rameter T

that depends on the created events frequen-

cies since they are related to the dynamics of the en-

vironment. We use the concept of linear interpolation

to estimate T

so that it can be bounded by T

min

and

max

. Using the frequency directly would lead to be

stuck a narrow zone of T

. For this reason, we use

the log inverse function to exploit its saturation prop-

erty and stretch this zone according to the following

equations:

α =

log f

(3)

max

−T

min

max

−α

min

(α −α

min

) + T

min

(4)

where k is tuned to get a better logarithmic curve

and then the best value of T

for different frequen-

cies, T

min

and T

max

are the minimum and maximum

time period that the ﬁlter can provide. α

min

and α

max

are the values of α which correspond to the lowest

and highest values of events frequency f

. This ﬁl-

ter was integrated to all the studied algorithms in this

paper to avoid computing incorrect optical ﬂow from

noise events and losing time in unnecessary calcula-

tions (See Fig. 2).

2.2.2 Direction Selection

A moving edge will tend to create events that are very

close to each other in space and correlated in time.

The orientation ﬁlter treats the ON and OFF events

separately. The present event is given its correspond-

ing angle by checking the events that have the maxi-

mum correlation with the current event in the neigh-

borhood. Events correlation is deﬁned as the differ-

ence in time between the current pixel and the pix-

els in the neighborhood, where events with maximum

correlation (and consequently minimum time differ-

ence) are necessarily created by the same edge. Ac-

cording to the location of these events the present

event is given a value among 4 possible orientations

separated by 45 degrees, one of four orientations is

assigned to an event but no positive or negative direc-

tion is assigned.

2.2.3 Magnitude Estimation

For the estimation of each event’s magnitude, the con-

cept of time of ﬂight, introduced in (Rueckauer and

Delbruck, 2016a), is applied by computing the tem-

poral interval of the current event with the recent past

events along the direction of the edge. Since the di-

rection of the event is known at this step, it is used

to deﬁne the two directions perpendicular to the edge.

Time intervals of the pixels along that axis are com-

pared. Average of differences of each timestamp is

considered as the inverse of the speed on the events

(in pixel per second). A positive or negative direc-

tion is then assigned according to the time correlation

and considering that an edge will only create events

before the motion direction and not past it.

2.3 Adapted Lucas-Kanade Optical

Flow

The adaptation of Lucas-Kanade optical ﬂow for

event-based vision sensors was ﬁrst introduced by

(Benosman et al., 2012). The brightness constancy

constraint assumes that there is no change in bright-

ness w.r.t time i.e. d(I(x(t), y(t),t))/dt = 0 . This as-

sumption leads to the optical ﬂow constraint equation

u + I

v = ∇I

·U = −I

where I

, I

and I

are the

partial derivatives of image intensity toward x, y and

t respectively, u and v are the components of the 2D

velocity vector in x and y directions respectively. As

the problem of optical ﬂow deﬁned in this scheme is

under-determined, an additional constraint was added

by Bruce D. Lucas and Takeo Kanade to solve it:

it consists of applying a neighbourhood consistency

condition. This condition uses the assumption that

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

482

neighbouring pixels will experience the same 2D ve-

locity. It employs a least-square optimisation scheme

to estimate the optical ﬂow over a given neighbour-

hood.

2.3.1 Backward Finite Difference

The main challenge to estimate an event-based opti-

cal ﬂow is to estimate image gradients I

, I

and I

The creation of an event requires a change of illumi-

nation (or gradient in case of illumination constancy)

that could be revealed by analyzing gradients values.

Thus, the gradient intensity is interpreted as the count

of events passed by a pixel during a ﬁxed period of

time in the events space E(x,y,t). The events space

E(x,y,t) is the space of events that are created due

to environmental changes (motion or illumination).

(Benosman et al., 2012), propose a backward ﬁnite

difference scheme to obtain the equivalence of inten-

sity gradients using the following equation:

∼ H

,∆t) −H

−1,y

,∆t) (5)

∼ H

,∆t) −H

−1,∆t) (6)

∼

,∆t) −H

,∆t)

−t

(7)

Where the subscripts x, y and t means the partial

derivatives in x, y and t directions respectively of

events mapping which is similar to image intensity.

The gradient is expressed to be similar to the notion

of sum of events that would ﬁre at a speciﬁc pixel

compared to the sum of events ﬁred at the neighbor-

ing pixel during an interval ∆t. H

is the histogram

of events which is the number of events created in a

speciﬁc pixel during a certain period of time .

2.3.2 Central Finite Difference

A bias in optical ﬂow estimation is evident in the

backward scheme. (Rueckauer and Delbruck, 2016b)

introduce the central ﬁnite difference method which

would yield a symmetric gradient and eliminate the

backward bias of the basic Lucas-Kanade method.

For the 1

order method the events gradient became:

∼

+ 1,y

,∆t) −H

−1,y

,∆t)) (8)

∼

+ 1,∆t) −H

−1,∆t)) (9)

while no change has been introduced to the time gra-

dient estimation.

2.3.3 Savitzky-Golay Filter

Since the event-based Lucas-Kanade method is

mainly based on rate of event histograms (number of

events that occur at a certain pixel during a certain

interval of time) in a small neighborhood, the event

histogram does not gather a lot of events which would

lead to noise sensitivity. (Delbr

uck, 2008) propose the

usage of Savitzky-Golay ﬁlter to estimate the image

gradient increasing as a consequence signal-to-noise

ratio. A low-order polynomial is introduced to ﬁt ad-

jacent points using a least-square scheme, the ﬁtted

two-dimensional polynomial function is described as:

SG(x,y) =

∑

p=0

n−p

∑

q=0

(10)

where n represents the degree of the polynomial. The

order of the polynomial is chosen to be linear and

symmetric in both dimensions (namely ﬁrst order),

SG(x,y) becomes a

+ a

y + a

x. The coefﬁcients

, a

and a

are equivalent to the image gradients

, E

and E

. Coefﬁcients a

are obtained using a

least-square ﬁt of data points: a = Cd d is a vector that

contains timestamp of events to be ﬁtted. C is a ma-

trix calculated once for a certain size of neighborhood

and equal to C = (B

−1

where B = x

is the

matrix containing the polynomial terms. Hence, the

least-square equation becomes a

= (B

−1

After estimating the coefﬁcients, the gradients can be

used to evaluate the optical ﬂow while increasing the

SNR and also expecting a faster computation time.

2.4 Local Plane Fit Optical Flow

By exploiting the almost-continuous nature of the cre-

ated events from event-based cameras (created events

would look like an extruded shape extended in time

using edges, See Fig. 3), it helps a lot to estimate im-

age gradients accurately. The local plane ﬁt scheme

aims to estimate a vector n

perpendicular to the local

plane around each event. The directional components

of this vector enclose the spatial and temporal infor-

mation of the moving edge that triggered this event.

(Benosman et al., 2013) formulated this scheme by

using the concept of events mapping.

∑

: N

7→ R (11)

(x,y) 7→

∑

(x,y) = t (12)

Where events pixel coordinates (x,y) are mapped

along the time axis t.

2.4.1 Iterated Fit

Since time is a monotonically increasing function of

space we can assert that the partial derivatives of

∑

are non zero increasing functions, then the usage of

Data-set for Event-based Optical Flow Evaluation in Robotics Applications

483

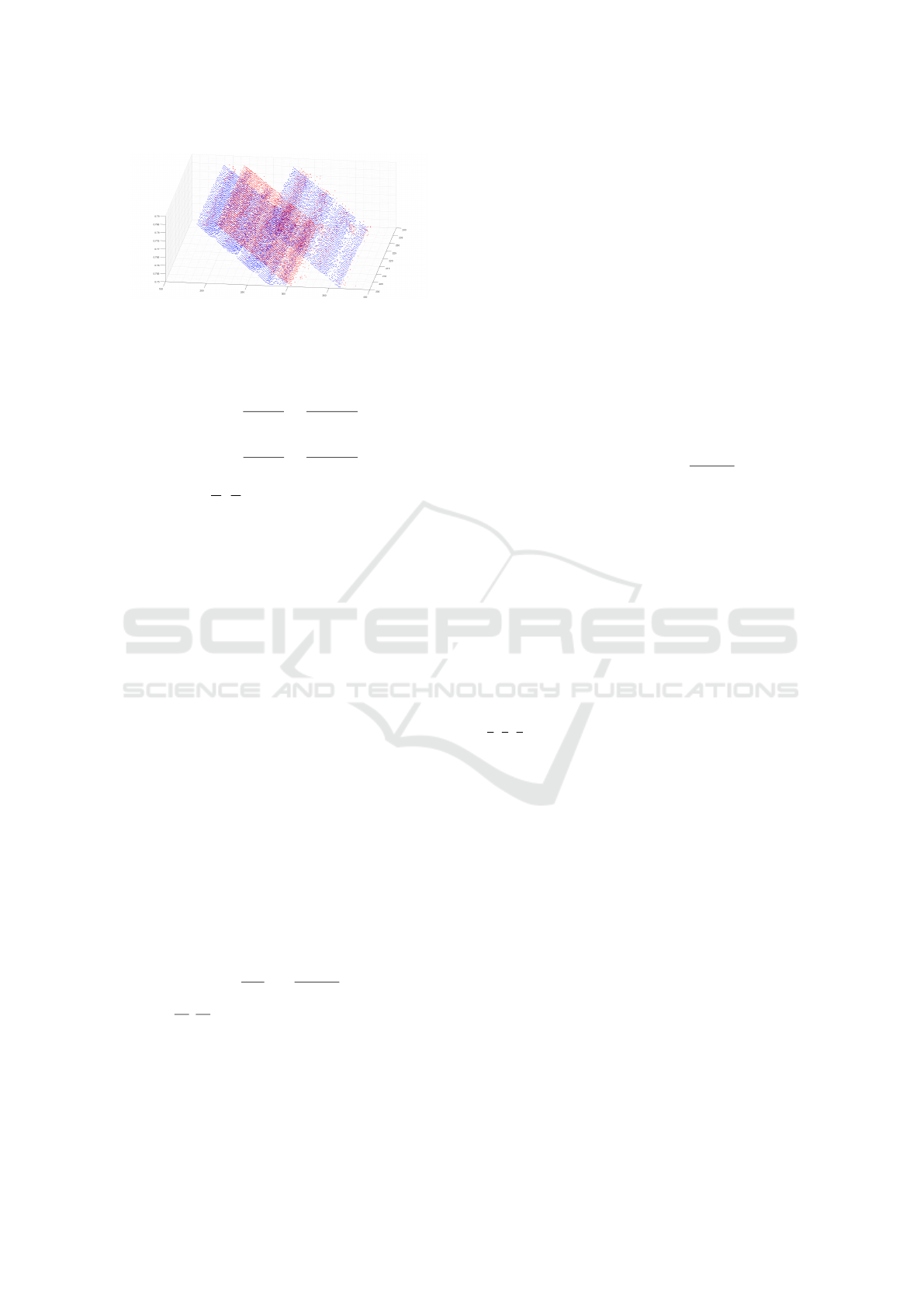

Figure 3: Events Plane-like shapes due to a beam motion

(planes correspond to different edges of the beam).

the inverse function theorem around each event is pos-

sible as

∑

(x,y

) =

∑

e|y

(x,y

)

(13)

∑

,y) =

∑

e|x

,y)

(14)

where ∇

∑

= (

) is the change gradient vector of

time w.r.t space. At each event arrival, a plane is ﬁtted

to get the optical ﬂow values using the events packed

in a spatio-temporal local neighborhood of L ×L ×

2∆t. The event under test is used as the center of this

neighborhood, accordingly, a plane equation should

be satisﬁed within a σ

threshold. Each event ﬁts a

plane as in:

ax + by + ct + d = 0 (15)

where (a b c d)

are the plane parameters. After ﬁt-

ting a plane for the present event with its neighbor-

hood, a check is carried out to make sure that all

events belong to the same surface of the plane within

a threshold σ

. In case an event does not belong to

the surface, it is rejected and the same process is re-

peated until a plane ﬁts within the speciﬁed threshold

where the optical ﬂow components are v

= −c/a and

= −c/b.

2.4.2 Robust Single Fit

We apply the iterations to make sure that all the events

belong to the estimated surface impose a strict con-

ditions that would lead to performance deterioration.

(Rueckauer and Delbruck, 2016b) propose to use only

a single ﬁt while changing the optical ﬂow equations

to be





|g|

g =

−c

+ b





(16)

where g (

−a

−b

)

is the gradient to avoid inﬁnity val-

ues of optical ﬂow .

2.4.3 Savitzky-Golay Plane Fit

To add a smoothing effect on a noisy events plane sur-

face, a Savitizky-Golay two-dimensional ﬁlter is ap-

plied to obtain the plane parameters the same way it

is used in Lucas-Kanade (see 2.3.3) while some mod-

iﬁcations to map a plane are applied. a

is calculated

from the least-square scheme. The plane equation is

considered with c = −1. The polynomial equation

SG(x,y) = a

+ a

y + a

x is now mapped to the

plane equation ax + by + ct + d = 0.

2.4.4 Regularised Plane Fit

To speed up the computation of the local plane ﬁt

algorithm and get higher accuracy, (Mueggler et al.,

2015) use RANSAC instead of the optimization algo-

rithm while reducing the neighborhood to be L ×L ×

∆t, taking into account only events created prior to

the present event. They use a local plane ﬁt and a reg-

ularization step to reﬁne events’ lifetime estimation,

where the lifetime is the time of existence of an event

after its creation and deﬁned as:

√

+ b

/c. The out-

put of the plane ﬁtting algorithm is then used as input

of the regularization scheme to smooth the estimated

plane parameter by enforcing optimization in the tem-

poral direction. The assumption of constant velocity

is used to predict the lifetime of the event in the ﬂow

direction

. The error term to be used is deﬁned as a

measure of conﬁdence of local plane ﬁt estimation:

∆t

err

= |t

−

| (17)

so the regularized plane vector is

= arg min(||An −b||

+ λ(∆t

err

)||n −

) (18)

where n is the estimated plane parameters vector

(

) and

is the predicted one obtained from

neighbourhood events. The term ||An − b|| is the

least-square error of the local plane ﬁt where b is a

vector of ones (equation 15 normalized w.r.t d). The

regularization term λ(∆t

err

) is an empirical function

of ∆t

err

mainly used to reﬁne events’ lifetime. The

usage of plane normal drives the regularization to

smooth the optical ﬂow estimation as well while fo-

cusing the optimization on the time component. This

guarantees a smoother but not necessarily an optimal

performance for optical ﬂow estimation.

3 DATA-SET SCENARIOS

In order to have a quantitative evaluation of the pre-

sented algorithms, an optical ﬂow ground truth should

be provided. The paradigm shift inﬂuenced by DVS

cameras requires new approaches to create optical

ﬂow ground-truth while assuring very ﬁne accuracy

which is rarely found in the state of the art. For

these reasons, we exploit VICON system endowed

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

484

with high precision and accuracy and employed a new

methodology to create the ground truth. The VICON

system tracks the PROPHESEE event-based camera

that also provides IMU readings to create the needed

data-sets. In order to test the reliability of the devel-

oped algorithms, datasets featuring in-plane rotation,

in-plane translation both at various speeds and also a

free-hand motion scenario have been recorded. In all

these scenarios, the camera is moving in front of a

tracked checkerboard. Checkerboard rigid transform

relative to the camera is obtained with the VICON

tracking system allowing us to project the checker-

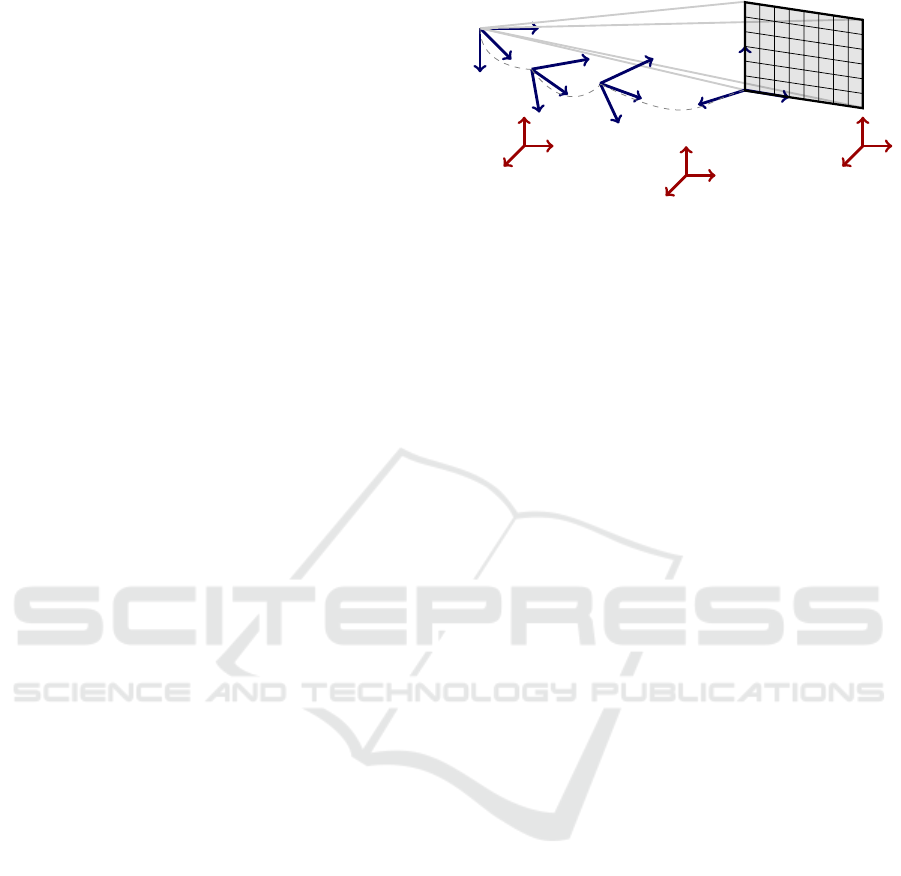

board grid in a camera frame. Reference frames of our

experimental setup are explained in Fig. 4. The goal

of the various scenarios is to better understand the ca-

pabilities and shortcomings of each implemented al-

gorithm. Fig. 1 shows the real environmental setup of

our dataset.

4 SENSORS CALIBRATION

The VICON system is calibrated easily using the pro-

vided software and it returns the states of the point of

origin of the board along with the camera pose. How-

ever, our goal is to obtain apparent motion ground

truth suitable to optical ﬂow evaluation rather than

extrinsic parameters of the camera as used in SLAM

or visual-odometry. And since tested algorithms will

only provide apparent motion, we propose to make

use of the camera’s embedded IMU as a middle trans-

formation to estimate between the VICON and the

camera frames so that the transformations for the

markers on the board and on the camera are (see Fig.

5):

vic

= T

IMU

×T

IMU

vic

(19)

= T

IMU

×T

IMU

vic

×T

vic

(20)

4.1 Intrinsic Calibration

Camera and IMU need to be intrinsically calibrated

before implementing the extrinsic calibration.

4.1.1 IMU Intrinsic Calibration

To understand the IMU intrinsic calibration, we need

to point out that the IMU parameters to be estimated

are divided into two categories, deterministic and ran-

dom. Deterministic parameters are scale factor, mis-

alignment error and bias offsets. Random errors are

the bias residuals and white noise added to the signal,

IMU

vic

Figure 4: Different reference frames (ﬁxed and moving).

the IMU can be modeled as follows:

IMU

= [I + M

]ω + b

+ δb

+ ε

(21)

IMU

= [I + M

]a + b

+ δb

+ ε

(22)

where ω

IMU

and a

IMU

are 3D vectors, rotational ve-

locity and acceleration obtained by the IMU. M

and

are the matrices that contains misalignment errors

of the gyroscope and accelerometer respectively. b

and b

are the offset bias of the gyroscope and ac-

celerometer. δb

and δb

are the bias residual of the

gyroscope and accelerometer that changes with very

low frequency. ε

and ε

are white noise of the gyro-

scope and accelerometer respectively. Using the six-

position calibration (El-Diasty and Pagiatakis, 2010),

we obtain the deterministic parameters of the IMU ex-

cept for the matrix M

because of the inability to have

accurate known excitation source for the gyroscope,

which still can be suppressed in a scheme of fusion.

We use Allan variance modeling (El-Sheimy et al.,

2007) in order to estimate the parameters that controls

the modeling of random IMU parameters.

4.1.2 Camera Intrinsic Calibration

The process of calibrating an event-Based camera is

similar to the process for standard cameras, except in

the image creation phase. In order to overcome the

nature of event-based cameras, we use ﬂashing pat-

terns to adjust the sharpness and lens focus. We gen-

erate a ﬂashing checkerboard on a screen and use the

resulting images as an input for the embedded MAT-

LAB camera calibrator toolbox to estimate the intrin-

sic parameters of the camera.

4.2 Extrinsic Calibration

The VICON system and camera need to be calibrated

both spatially and temporally. The extrinsic calibra-

tion process is divided into temporal synchronization

and spatial alignment to make sure the outputs from

different systems are adjusted perfectly.

Data-set for Event-based Optical Flow Evaluation in Robotics Applications

485

Algorithm 1: IMU-VICON Calibration.

Data: {Θ

IMU

}

N−1

i=0

, {Θ

vic

}

N−1

i=0

Result: q , ∆t

1 Initialize: check = true , itr = 1 , ε = small value

2 while check = true do

3 µ

IMU

N−1

∑

i=0

IMU

, µ

vic

N−1

∑

i=0

vic

4 Θ

IMU

= Θ

IMU

−µ

IMU

, Θ

vic

= Θ

vic

−µ

vic

5 Calculate: S

N−1

∑

i=0

IMU

vic

 9 values

6 Construct: N

4×4

matrix  see (Sola, 2017)

7 Solve: {λ,V } = eig(N)

8 q

itr

= V

 q is the vector corresponds to maximum λ

9 project: Θ

= R

IMU

10 Solve: ∆t

itr

= xcorr(Θ

IMU

,Θ

vic

)

11 Shift: Θ

IMU

= Θ

IMU

(∆t : end)

12 itr + +

13 if

N−1

∑

|Θ

IMU

−Θ

vic

| < ε then

14 check = false

15 end

16 end

17 q =

itr

∏

n=1

18 ∆t =

itr

∑

n=1

∆t

4.2.1 VICON-IMU Extrinsic Calibration

The correspondence problem of two different frames

of reference that observe the same states are widely

known as Wahba’s problem (Wahba, 1965), where the

author deﬁned it, for given two 3D sets of measure-

ments {X

}

N−1

i=0

and {Y

}

N−1

i=0

, as the least square mini-

mization of

argmin

{s,R,t}

N−1

∑

i=0

−s(RX

+ t)|

(23)

where s, R ant t are scale, rotation and translation be-

tween the two frames respectively. The main two as-

sumptions in order to be able to solve this minimiza-

tion problem are that noise is suppressed in both mea-

surements and that they are temporally synchronized.

Since the IMU measurements suffer from high noise

due to integration effect, we choose to use the angles

to be injected in the minimization problem. We use

an error state Kalman ﬁlter (Sola, 2017) to obtain the

accurate measurements. To solve the alignment prob-

lem, we adopt an iterative scheme since each of the

spatial and temporal alignments needs one another as

a prerequisite to be fulﬁlled. We solve for an initial

transformation between the two frames using Horn’s

reformulation of Wahba’s problem (Horn, 1986) (see

algorithm 1).

argmin

N−1

∑

i=0

(q ×Θ

IMU

×q

∗

)Θ

vic

(24)

where Θ

IMU

and Θ

vic

are the angles measured in IMU

and VICON frames and q is a unit quaternion that

represents a rigid body transformation. We project

the IMU readings in the VICON frame to apply cross

correlation between the two signals to ﬁnd ∆t that

would temporally align them. We repeat until the dif-

ference between the estimated calibration parameters

reaches convergence. It is noted that after two itera-

tions, convergence is fulﬁlled. Fig. 5 shows IMU and

VICON measured angles before and after calibration.

To make sure that every sequence is correctly corre-

lated, we calculate the mean absolute difference be-

tween the VICON angles and IMU angles after being

transformed in VICON frame, results are shown in

Table 1.

Table 1: VICON / IMU angles comparison.

sequence φ[

◦

] θ[

◦

] ψ[

◦

]

rotate low 0.7893 0.5988 1.5579

rotate high 1.2885 0.9427 0.4945

translate low 1.2347 1.5135 0.4813

translate high 1.4031 1.6943 0.4838

free motion 0.3923 0.5544 0.3923

4.2.2 Camera-IMU Calibration

After getting the spatio-temporal calibration between

the VICON and IMU we need to do the same between

the IMU and the Camera. We used Kalibr toolbox

(Furgale et al., 2014) to get the spatial transforma-

tion between the camera and the IMU. Since Kalibr

provides a temporal difference only for the provided

data-set used for calibration (which was totally differ-

ent from the data-set used for our comparison), we use

the concept of cross correlation between the IMU ab-

solute rotational velocity and the events frequency in

order to ﬁnd the best time shift. The choice of events

frequency to be correlated with absolute rotational ve-

locity is similar to the temporal synchronization used

in (Censi and Scaramuzza, 2014) since with a higher

velocity more events would be triggered per second,

so the best synchronization will correspond to the best

matching these two signals together.

5 GROUND TRUTH CREATION

AND COMPARISON

Next step after calibration is to recreate accurate

events positions of the checker board to be projected

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

486

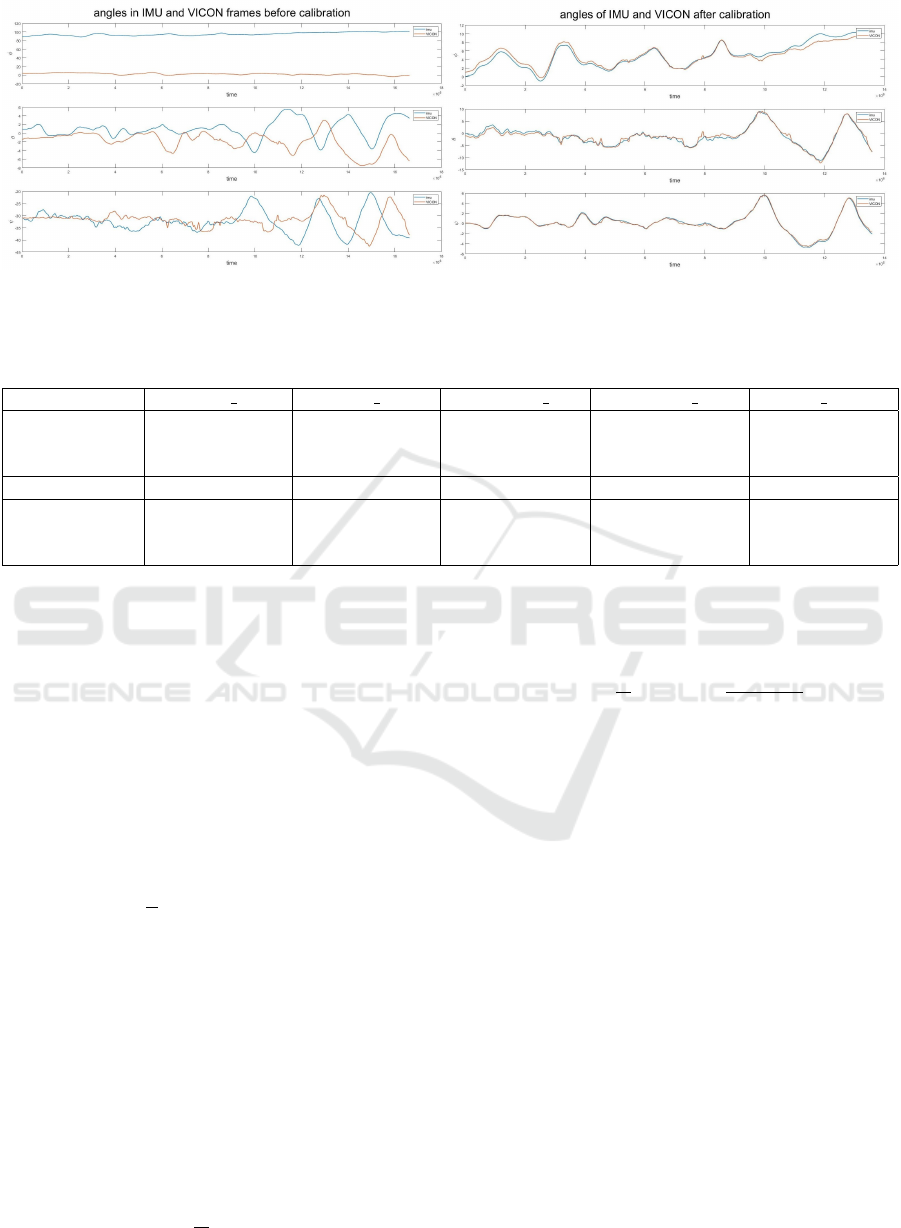

Figure 5: Left: an example of angles (namely the roll angle) in VICON and IMU frames without alignment. Right: the angles

after being transformed in the IMU frame is shown to be perfectly aligned.

Table 2: Average angular error of evaluated algorithms in degrees (DS stands for Direction Selective ﬁlter, LK for Lucas-

Kanade, LP for Local Plane ﬁt and SG for Savitsky-Golay).

Algorithm rotate low rotate high translate low translate high move free

LK Backward 35.158 ±27.547 41.585±15.715 32.314 ±12.642 35.526 ±12.642 22.975 ±23.839

LK Central 23.587 ±19.481 21.135±17.161 19.135 ±10.362 20.264 ±9.321 18.625 ±20.881

LK SG 16.754 ±9.571 15.487 ±10.131 14.361 ±3.752 13.595 ±8.839 10.576 ±11.935

DS 78.391 ±20.507 71.775±21.781 53.651 ±17.432 57.205 ±19.381 72.890 ±68.497

LP Single Fit 12.835 ±5.718 14.304 ±5.203 6.914 ±3.567 6.937 ±4.893 9.350 ±7.761

LP SG 8.905 ±3.107 7.751 ±4.978 5.744 ±2.742 5.065 ±1.347 8.678 ±7.271

LP Regularized 5.871 ±4.178 6.170 ±4.108 5.863 ±3.108 4.709 ±2.938 18.707 ±15.463

in the camera frame using equation 20. We create 3D

points which reside on the edges of the 9×7 checker-

board at time t

and then transform these points at

each time step in the camera frame. The intrinsic

calibration is used to project the transformed checker-

board in the pixels frame while undistorting the scene.

To create the optical ﬂow ground truth values, we fol-

low (Heeger and Jepson, 1992) proposition, exploit-

ing the fact that the checkerboard is a rigid plane. If

we have V and W as translation and rotation speeds

of the 3D scene then the optical ﬂow will be approxi-

mated by the 2D projection of the 3D motion accord-

ing to the equation:

U(x,y) =

A(x,y)V + B(x, y)W (25)

where,

A(x,y) =



−f 0 x

0 −f y



(26)

B(x,y) =



(xy)/ f −( f + x

/ f ) y

( f + x

/ f ) −(xy)/ f −x



(27)

With the created ground truth, we adopt the met-

rics in (Baker et al., 2011) for quantitative compari-

son. First metric is the average endpoint error (AEPE)

which is deﬁned as the average value of the vector dis-

tance between the estimated motion u and the ground-

truth

AEPE =

∑

i=1

||u

−

|| (28)

The second metric is the average angular error (AAE)

which is deﬁned as the average angle between the es-

timated motion u and the ground truth

AAE =

∑

i=1

cos

−1



||||u



(29)

To make sure that the created data-set are reliable and

that any calibration error is omitted, we randomly se-

lect two consequent VICON frames f

and f

and use

the optical ﬂow ground truth to project events trig-

gered between those two frames to the frame f

(see

Fig. 7). We use the mean of absolute difference be-

tween the projected events and the created frame as an

error metric. Errors after events projection show ac-

ceptable results where the projected events are aligned

with the boundaries of the synthetic board and the

mean of absolute difference did not exceed the bound

of 2 pixel. (see Fig.6)

6 RESULTS

In order to show the comparison between the different

algorithms without being biased with high value er-

rors, we use the mean and variance of optical ﬂow val-

ues to remove extreme outliers. We apply the compar-

ison w.r.t accuracy and computational power needed.

Results are demonstrated in Tables 2 and 3 . Since

Data-set for Event-based Optical Flow Evaluation in Robotics Applications

487

Table 3: Relative average end point error of the evaluated algorithms.

Algorithm rotate low rotate high translate low translate high move free

LK Backward 1.324 ±0.607 1.215 ±0.749 0.934 ±0.691 0.883 ±0.482 1.196 ±0.405

LK Central 1.057 ±0.254 0.951 ±0.512 0.894 ±0.533 0.811 ±0.328 1.163 ±0.677

LK SG 0.921 ±0.421 0.812 ±0.458 0.664 ±0.582 0.521 ±0.387 0.994 ±0.369

DS 1.721 ±0.227 1.851 ±0.554 1.322 ±0.363 1.391 ±0.452 1.679 ±1.2161

LP Single Fit 1.125 ±0.248 1.054 ±0.187 0.891 ±0.155 0.803 ±0.183 1.286 ±0.320

LP SG 0.681 ±0.384 0.621 ±0.321 0.347 ±0.124 0.382 ±0.168 0.691 ±0.456

LP Regularized 0.755 ±0.327 0.604 ±0.247 0.404 ±0.203 0.410 ±0.137 0.999 ±0.010

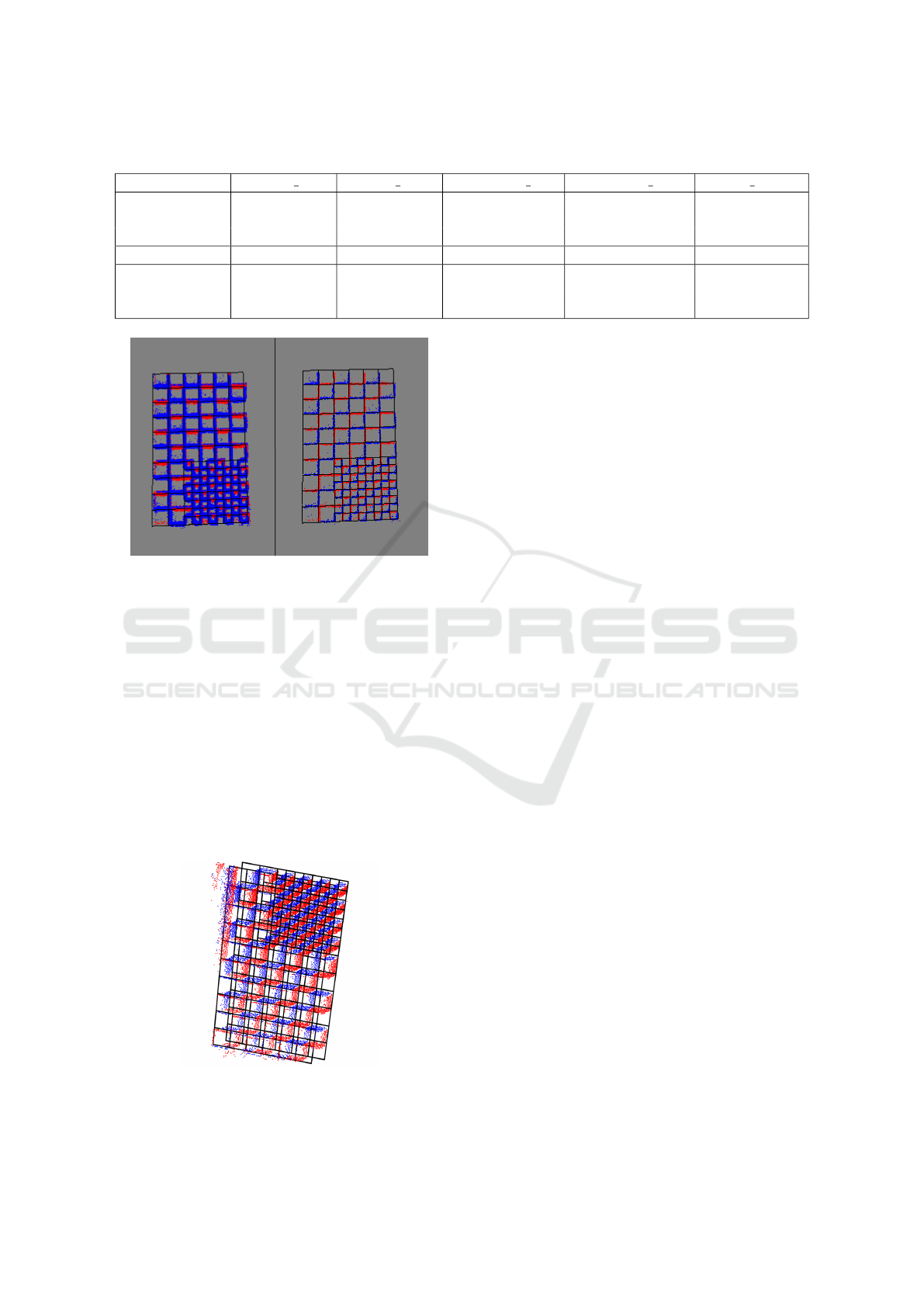

Figure 6: (Left) the events and the synthetic created

checkerboard before projecting the events using the optical

ﬂow ground truth, (Right) the projected on and off events

in the camera frame are sufﬁciently aligned with the cre-

ated checkerboard where the mean of absolute difference

did not exceed the bound of 2 pixel.

algorithms have been tested using MATLAB, com-

putation time in itself is not a signiﬁcant metric but

relative differences between algorithms indicate the

computational power needed.

6.1 Average Angular Error

The obtained results show that the Direction Selec-

tion ﬁlter has -as expected- the lowest angular er-

ror accuracy in all the tested sequences since it pro-

Figure 7: In black: two consequent frames created by the

projection of the VICON system. Positive triggered events

are shown in red and negative events in blue.

vides only a notion of the motion in 8 discrete direc-

tions. In the three categories of algorithms, we can

conclude that the Local Plane algorithms outperform

the other algorithms. The addition of optimal regu-

larization signiﬁcantly reﬁne the estimation of opti-

cal ﬂow’s direction but did not provide the best es-

timation for all sequences because the regularization

term optimizes only the temporal component of the

plane’s normal and not the spatial components. The

usage of Savitsky-Golay ﬁlter enhances the accuracy

of angular error which did not vary much compared

to the Regularized plane ﬁt. The performance of the

algorithms under test was shown to be always better

for scenarios featuring translations while noting that

the Regularized plane ﬁt always provide better per-

formance than Savitsky-Golay Local Plane ﬁt because

the smoothness effect may not be prominent if the op-

tical ﬂow varies much in neighbourhoods which is the

case while rotating.

6.2 Average End Point Error

Using the Direction Selective ﬁlter feature the least

accuracy due to the lack of events used to estimate the

optical ﬂow. Savitsky-Golay Local Plane ﬁt is seen to

always provide better endpoint error (except for high

rotation sequences with minor difference). Regulariz-

ing the local plane optical ﬂow helps to enhance the

end point error but could not exceed the accuracy of

Savitsky-Golay ﬁlter for the reason mentioned in the

previous section that the regularization enforces only

temporal accuracy.

6.3 Computation Time

Although the Direction Selection ﬁlter did not pro-

vide the best accuracy, it was the fastest algorithm to

be performed with signiﬁcantly shorter computation

time, which means that it can be used as indication

or as a preliminary step to add direction information

for each event. On the other hand, using Regulariza-

tion -while not being the best w.r.t performance in all

the cases- add a signiﬁcant rise in computation time.

Because of this aspect, we question the relevance of

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

488

Table 4: Computation times needed for calculations per

event.

algorithm computational time [µs]

DS 77.465 ±32.540

LK Backward 312.974 ±170.568

LK Central 384.489 ±184.946

LK Savitzky-Golay 264.913 ±94.412

LP Single Fit 173.89 ±120.973

LP Savitsky-Golay 129.749 ±112.549

LP regularized 536.486 ±173.914

integrating this algorithm in a more complex scheme.

The Lucas-Kanade algorithm provides relatively good

error accuracy but is not the best in terms of compu-

tational cost. Presenting Savitsky-Golay ﬁlter for any

algorithm (Lucas-Kanade or Local Plane ﬁt) always

reﬁnes the accuracy while signiﬁcantly reducing com-

putation time.

7 CONCLUSION

In this paper, we present a methodology to compare

state-of-the-art event-based optical ﬂow algorithms

and show their performance in the context of robotic

applications. The suggested evaluation led us to pro-

pose an event-based optical ﬂow ground-truth data-

set using a VICON system. Our study reveals that

all the evaluated algorithms need a lot of tuning w.r.t

the time interval to calculate optical ﬂow while also

tuning many thresholds to get the best optical ﬂow

values. Our future work will then focus on proposing

adaptive solutions to make these algorithms perform

better for various scenes in robotic applications while

improving their global performance.

REFERENCES

Baker, S., Scharstein, D., Lewis, J., Roth, S., Black, M. J.,

and Szeliski, R. (2011). A database and evaluation

methodology for optical ﬂow. International journal

of computer vision, 92(1):1–31.

Barranco, F., Fermuller, C., Aloimonos, Y., and Delbruck,

T. (2016). A dataset for visual navigation with neuro-

morphic methods. Frontiers in neuroscience, 10:49.

Benosman, R., Clercq, C., Lagorce, X., Ieng, S.-H., and

Bartolozzi, C. (2013). Event-based visual ﬂow. IEEE

transactions on neural networks and learning systems,

25(2):407–417.

Benosman, R., Ieng, S.-H., Clercq, C., Bartolozzi, C.,

and Srinivasan, M. (2012). Asynchronous frameless

event-based optical ﬂow. Neural Networks, 27:32–37.

Censi, A. and Scaramuzza, D. (2014). Low-latency event-

based visual odometry. In 2014 IEEE International

Conference on Robotics and Automation (ICRA),

pages 703–710. IEEE.

Delbr

uck, T. (2008). Frame-free dynamic digital vision. In

Proceedings of International Symposium on Secure-

Life Electronics, Advanced Electronics for Quality

Life and Society, Univ. of Tokyo, Mar. 6-7, 2008, pages

21–26. nternational Symposium on Secure-Life Elec-

tronics, Advanced Electronics for . . . .

El-Diasty, M. and Pagiatakis, S. (2010). Calibration and

stochastic m odelling of i nertial na vigation s ensor er-

rors. Positioning (POS) Journal Information, page 80.

El-Sheimy, N., Hou, H., and Niu, X. (2007). Analysis

and modeling of inertial sensors using allan variance.

IEEE Transactions on instrumentation and measure-

ment, 57(1):140–149.

Furgale, P., Maye, J., Rehder, J., and Schneider, T. (2014).

Kalibr: A uniﬁed camera/imu calibration toolbox.

Heeger, D. J. and Jepson, A. D. (1992). Subspace methods

for recovering rigid motion i: Algorithm and imple-

mentation. International Journal of Computer Vision,

7(2):95–117.

Horn, B. K. P. (1986). Closed-form solution of absolute

orientation using uni t quaternions.

Lichtsteiner, P., Posch, C., and Delbruck, T. (2008). A

128×128 120 db 15µ s latency asynchronous tempo-

ral contrast vision sensor. IEEE journal of solid-state

circuits, 43(2):566–576.

Lucas, B. D. and Kanade, T. (1981). An iterative image

registration technique with an application to stereo vi-

sion. In IJCAI.

Menze, M., Heipke, C., and Geiger, A. (2015). Joint 3d esti-

mation of vehicles and scene ﬂow. In ISPRS Workshop

on Image Sequence Analysis (ISA).

Mueggler, E., Forster, C., Baumli, N., Gallego, G., and

Scaramuzza, D. (2015). Lifetime estimation of events

from dynamic vision sensors. In 2015 IEEE in-

ternational conference on Robotics and Automation

(ICRA), pages 4874–4881. IEEE.

Rueckauer, B. and Delbruck, T. (2016a). Evaluation of

event-based algorithms for optical ﬂow with ground-

truth from inertial measurement sensor. Frontiers in

neuroscience, 10:176.

Rueckauer, B. and Delbruck, T. (2016b). Evaluation of

event-based algorithms for optical ﬂow with ground-

truth from inertial measurement sensor. Frontiers in

neuroscience, 10:176.

Sola, J. (2017). Quaternion kinematics for the error-state

kalman ﬁlter.

Wahba, G. (1965). A least squares estimate of satellite atti-

tude. SIAM review, 7(3):409–409.

Data-set for Event-based Optical Flow Evaluation in Robotics Applications

489
