Robust Anomaly Detection in Time Series through Variational

AutoEncoders and a Local Similarity Score

Pedro Matias

1,2

, Duarte Folgado

, Hugo Gamboa

1,3

and Andr

e V. Carreiro

Associac¸

ao Fraunhofer Portugal Research, Rua Alfredo Allen 455/461, Porto, Portugal

Faculdade de Ci

encias e Tecnologia, FCT, Universidade Nova de Lisboa, 2829-516 Caparica, Portugal

Laborat

orio de Instrumentac¸

ao, Engenharia Biom

edica e F

ısica da Radiac¸

ao (LIBPhys-UNL), Departamento de F

ısica,

Faculdade de Ci

encias e Tecnologia, FCT, Universidade Nova de Lisboa, 2829-516 Caparica, Portugal

Keywords:

Anomaly Detection, Time Series, Variational AutoEncoders, Unsupervised Learning, ECG.

Abstract:

The rise of time series data availability has demanded new techniques for its automated analysis regarding

several tasks, including anomaly detection. However, even though the volume of time series data is rapidly

increasing, the lack of labeled abnormal samples is still an issue, hindering the performance of most supervised

anomaly detection models. In this paper, we present an unsupervised framework comprised of a Variational

Autoencoder coupled with a local similarity score, which learns solely on available normal data to detect

abnormalities in new data. Nonetheless, we propose two techniques to improve the results if at least some

abnormal samples are available. These include a training set cleaning method for removing the inﬂuence of

corrupted data on detection performance and the optimization of the detection threshold. Tests were performed

in two datasets: ECG5000 and MIT-BIH Arrhythmia. Regarding the ECG5000 dataset, our framework has

shown to outperform some supervised and unsupervised approaches found in the literature by achieving an

AUC score of 98.79%. In the MIT-BIH dataset, the training set cleaning step removed 60% of the original

training samples and improved the anomaly detection AUC score from 91.70% to 93.30%.

1 INTRODUCTION

In the time-series domain, the ever-increasing data

availability raises the need for automating mining or

analysis processes, within which anomaly detection

is included (Chandola et al., 2009). In essence, this

process refers to the automatic detection of samples

that are not conformant with the overall pattern distri-

bution of a dataset. These samples are anomalies or

outliers, and the process is also known as outlier or

novelty detection (Chandola et al., 2009).

There are three categories of anomaly detection

methods: Statistical, Machine Learning (ML), and

Deep Learning (DL) (Braei and Wagner, 2020). Fo-

cusing on the DL ﬁeld, conventional supervised ap-

proaches (despite showing quite robust performances)

fail in two main points: their performance is impaired

when classes are not balanced (the classiﬁer learns

well how to classify the majority class and fails at

predicting the remaining classes); and they require

a priori knowledge about abnormalities in the data,

which, in some domains, is challenging (Zhang et al.,

2018). Thus, as normal data is largely more avail-

able than abnormal examples, techniques capable of

detecting abnormal samples without being dependent

on its availability/knowledge are of great interest in

several tasks (Chalapathy and Chawla, 2019).

In this work, we present an unsupervised anomaly

detection framework (with possibility of using la-

beled abnormal samples for performance increasing,

if available) that is exclusively dependent on normal

data to learn. The contributions of this paper essen-

tially rest on the implementation of a VAE (Varia-

tional Autoencoder) that learns the most relevant in-

trinsic structure of normal patterns, the establishment

of a new anomaly score that uses VAEs reconstruc-

tion properties to emphasize local dissimilar regions

relative to the original signals, and the proposal of a

training set cleaning stage that reduces the inﬂuence

of possibly corrupted samples on the neural network

performance.

1.1 Background

VAEs are unsupervised deep generative models,

which are able to learn meaningful features of the

Matias, P., Folgado, D., Gamboa, H. and Carreiro, A.

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score.

DOI: 10.5220/0010320500910102

In Proceedings of the 14th International Joint Conference on Biomedical Engineer ing Systems and Technologies (BIOSTEC 2021) - Volume 4: BIOSIGNALS, pages 91-102

ISBN: 978-989-758-490-9

training data and generalize it to a continuous la-

tent distribution (Kingma and Welling, 2019). It uses

Bayesian inference to learn from data and structurally

consists of an encoder, a latent space, and a decoder.

It performs data compression by encoding inputs into

a latent variable distribution, which is randomly sam-

pled and ﬁtted into the decoder, that expands the latent

sampled vector and tries to rebuild the original signal

according to its training distribution knowledge. The

sampling process is not differentiable, a required con-

dition for the backpropagation to train the network.

Thus, a reparametrization trick is introduced, by cre-

ating a stochastic variable from which the latent vec-

tor z can be sampled, using the estimated mean and

standard deviation vectors.

Regarding the loss function, a VAE deﬁnes a cus-

tom loss function composed of two different terms: a

reconstruction term, which forces both input and out-

put to be morphologically similar, and a regularizer

term, which approximates each latent variable distri-

bution to a standard normal distribution.

1.2 Related Work

In the past few years, the number of studies fo-

cusing on anomaly detection tasks in time series

data has signiﬁcantly increased. Most traditional un-

supervised approaches use distance-based methods,

such as nearest-neighbor (Ramaswamy et al., 2000)

or clustering (He et al., 2003) algorithms, to de-

tect anomalies. Density estimation methods (Ma and

Perkins, 2003), by capturing the density distribution

of the training data, and temporal prediction tech-

niques (Pincombe, 2005), taking into account tem-

poral dependency within time series, are other two

different categories. However, these approaches have

higher computational complexity, especially for high-

dimensionality data. Dimensionality reduction tech-

niques may solve the problem, but they will also re-

move detailed information, which can decrease per-

formance (Zhang et al., 2020). More recently, DL-

based anomaly detection models have gained some

popularity in this domain (Chalapathy and Chawla,

2019). Approaches based on generative models like

VAEs and Generative Adversarial Networks (GANs)

have shown quite competitive performances relative

to conventional methods due to their strong gener-

alization, modeling, and reconstruction ability. This

enables the learning of the most relevant structure of

training data, which will be used to build a lower-

dimensional latent space distribution to where sam-

ples can be mapped. The analysis of this latent space

and the samples’ reconstruction quality are common

procedures of several frameworks. Many works de-

veloped techniques based on those two types of deep

generative models for detecting anomalies in time-

series data, such as AnoGan (Schlegl et al., 2017),

MAD-GAN (Li et al., 2019) (which implement GAN

architectures), and VELC (Zhang et al., 2020), Donut

(Xu et al., 2018) (which use VAE models).

2 PROPOSED FRAMEWORK

The proposed framework is composed of a Latent

Representation learning step, based on a VAE model,

an optional training data cleaning process when some

abnormal samples are available and corrupted labels

are expected, and, ﬁnally, a new local anomaly score

for the ﬁnal classiﬁcation task.

2.1 Latent Space Representation

The ﬁrst component is a model able to map the in-

put data into a reduced latent space. To this end, a

VAE architecture was implemented. Through a VAE

model trained only with normal samples, the model

is expected to learn a latent space distribution char-

acteristic of normal data, which is pushed to follow a

standard normal distribution. Moreover, for anomaly

detection purposes, the model will be able to success-

fully reconstruct the normal samples, whereas the re-

construction quality of the anomalies is expectedly

worse. Figure 1 presents the implemented architec-

ture.

Latent mean

Latent stddev

Epsilon ~ N(0,1)

Latent Vector (Z)

INPUT

OUTPUT

Sampling

ENCODER DECODER

Conv1D + MaxPooling Conv1D + Upsampling Dense Lambda

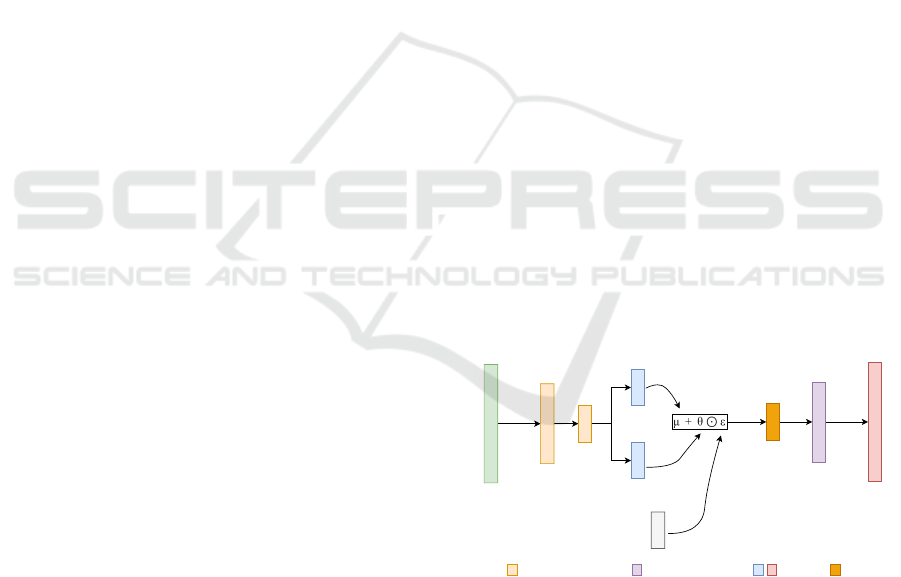

Figure 1: Illustration of VAE network, proposed in this ex-

periment.

The proposed architecture contains, essentially,

1D-Convolutional (Conv-1D) and Fully-Connected

(Dense) layers. Each Conv-1D layer is associated

with a pooling/unpooling layer so that data gets com-

pressed and expanded, respectively. Convolution op-

erations are quite useful when feature extraction and

pattern recognition is needed, being, in this case, cru-

cial for either creating a representative normal latent

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

space and returning suitable reconstructions of nor-

mal samples. Dense layers are used to get the la-

tent vectors and the output signal. The number of la-

tent variables, z

dim

, was set to 10 across experiments,

chosen empirically in preliminary experiments, as

a trade-off between ensuring a robust extraction of

meaningful latent features while avoiding an abrupt

dimensionality reduction by UMAP (Uniform Mani-

fold Approximation and Projection) technique (as it

will be further explained).

Regarding the VAE loss function, for the recon-

struction term, the mean-squared error (MSE) has

been selected to measure the dissimilarity between

original and reconstructed samples. The second

term will calculate the Kullback-Leibler Divergence

(KLD) between each latent variable mean (µ) and

standard deviation (σ), and a standard normal distri-

bution (µ = 0, σ = 1). The ﬁnal expression is given by

the following equation:

VAE

= MSE(X, X

)

| {z }

Reconstruction

+β ·

dim

∑

i=1

(µ

+ σ

) −1 − log(σ

)

| {z }

Regularizer

(1)

In equation 1, X and X

are the original and re-

constructed signals, respectively, z

dim

is the latent

space dimensionality, and µ and σ are the latent mean

and standard deviation distribution parameters, re-

spectively. A β factor has been included to reduce

the regularization term weight, avoiding a posterior

collapse (Lucas et al., 2019).

2.2 Training Samples Cleaning

A ﬁrst step to prepare the training is guaranteeing

a good quality annotated dataset. In larger datasets,

where labels have been assigned manually by special-

ists, the probability of wrongfully annotated samples

is higher. Furthermore, a ﬁltering stage is often not

sufﬁcient to improve SNR (signal-to-noise ratio), and

some samples may get considerably distorted, despite

being well labeled. These two issues may hinder the

deep neural network performance. Therefore, in an

attempt to remove corrupted samples from a training

set, a sample selection technique is proposed. We note

that this is applied only to the training set, thus keep-

ing the test and validation sets intact.

Firstly, the approach assumes some anomalies are

known, which are used as a reference to reject normal-

labeled samples to which they are most similar. In

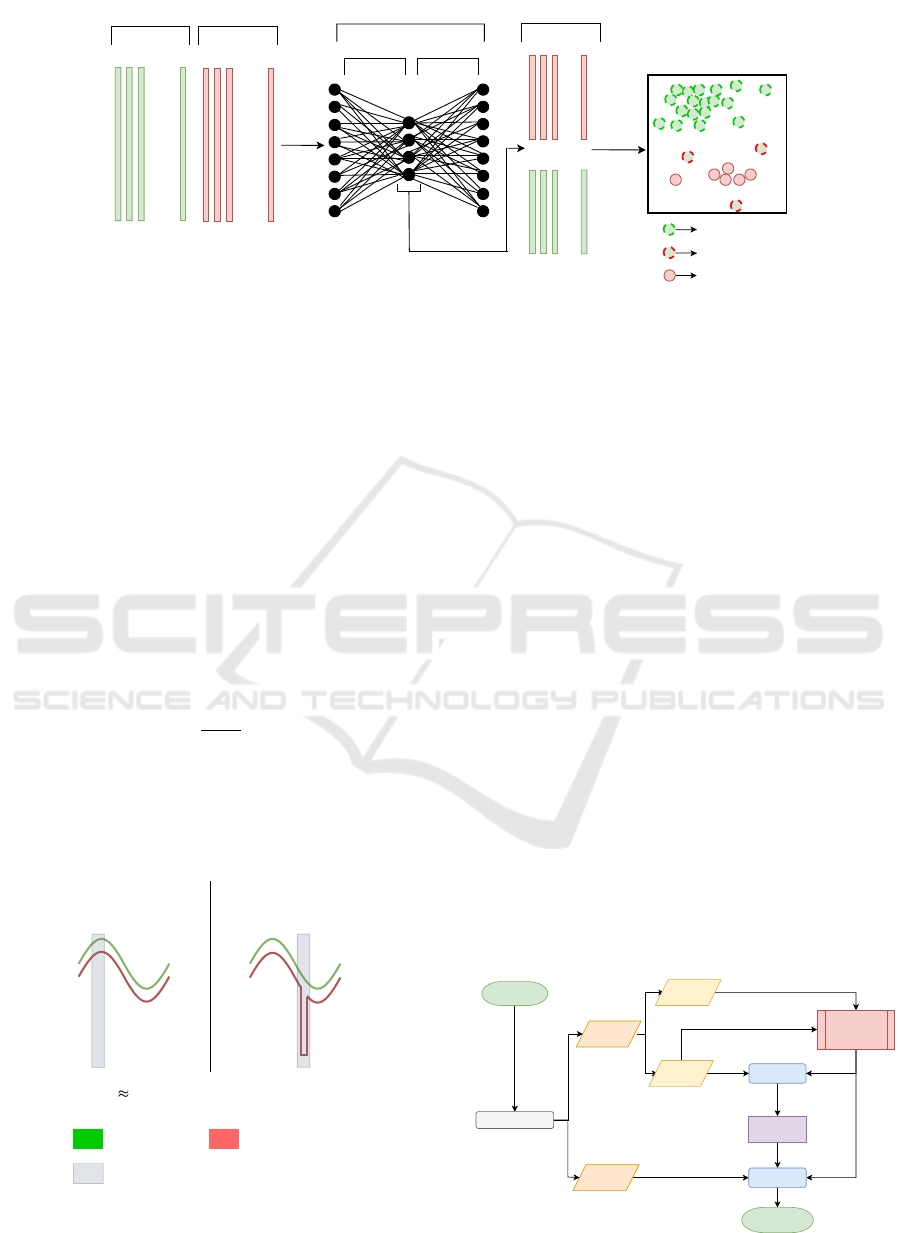

summary, the proposed technique consists of training

the aforementioned VAE model and use its latent rep-

resentation to map the input into a feature space di-

mension, where some samples are rejected based on

their vicinity. The individual steps are explained as

follows:

1. Train the VAE with the Training Set to Clean:

the training set is composed only of normal-

labeled samples. The architecture is the same

used to perform anomaly detection;

2. Extract the Embedding Representation: by ap-

plying the encoder’s compression to the trained

normal and known abnormal samples, the embed-

ded representations become represented by an N-

sized latent vector;

3. Apply UMAP to Extracted Embeddings:

UMAP (McInnes et al., 2020) is a ﬂexible non-

linear dimensionality reduction technique that

ﬁnds a lower-dimensional embedding preserving

the most relevant structure of the data. As the

VAE already learns the distribution of normal

data, UMAP is applied to its latent embeddings

and not the raw inputs so that the dimension re-

duction is not too abrupt. Subsequently, the N-

dimensional embeddings are mapped into a two-

dimensional space (given as a parameter);

4. Reject Normal Samples Closer to Abnormal

Ones: ﬁrst, the minimum Euclidean distance be-

tween each normal sample (from the training set)

and all the abnormal ones is computed. Then,

samples whose minimum distance is above the N

percentile of all distances are selected, and the re-

maining rejected. This deﬁnes the new, ﬁltered,

training set.

An illustrative scheme summarizing the four steps is

displayed in Figure 2.

We note that as the number of rejected samples

rises, the training set normal variability tends to de-

crease, which can lower the network reconstruction

ability. This trade-off depends on the reject threshold

percentile value on step 4), which can be selected

according to each dataset properties, such as the num-

ber of known anomaly types, conﬁdence in the label-

ing process, etc.

2.3 Anomaly Score

A common approach for anomaly detection is based

on comparing a similarity metric between a learned

normality representation vs. outliers, assigning a

score upon which a decision can be made, regarding

if it is an anomalous sample or not. To this end, sev-

eral different scores might be computed. Convention-

ally, the Euclidean distance (L

norm) or MSE are the

most common metrics to compare original and recon-

structed signals. However, they provide a global per-

spective, whereas the distortion is often constrained

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score

ENCODER DECODER

VAE

Normal Samples

S1S2 S3 Sn

...

S1S2 S3 Sm

...

Abnormal Samples

Latent layer

UMAP representation

Selected sample

Rejected sample

Abnormal sample

...

Embeddings

2D-mapping

S1 S2 S3

...

S1 S2 S3

...

Figure 2: Illustration of the sample cleaning procedure.

to local segments. Hence, global scores may hide

the correct interpretation of the reconstruction result.

In order to improve this local distortion awareness, a

new local dissimilarity score is proposed. Given X

and X

, the original and reconstructed samples, re-

spectively, and d, the point-to-point Euclidean dis-

tance vector between both, the highest dissimilar sam-

ples are selected through the condition:

= {d

, i f d

> P

}

0 <i< |d|

(2)

In equation 2, d

∈ d, P

is the M

percentile of

d vector, and D

is the vector containing the M%

highest-scored points. The ﬁnal anomaly score is the

average over the deﬁned points:

local

∑

i=1

(3)

This score is expected to improve the detection of lo-

cal anomalies, of special interest in signals with sub-

patterns such as the ECG (electrocardiogram). Figure

3 illustrates the idea behind this new score.

Normal Reconstruction Abnormal Reconstruction

local

dist

local

> E

dist

Original

Reconstructed

% highest-scored points

Figure 3: Visual representation of the proposed local

anomaly score. S

local

and E

dist

refer to the local score and

global Euclidean distance, respectively.

2.4 Evaluation

The evaluation stage allows to objectively assess the

performance of a given model and infer about its be-

havior under different conditions. In this work, eval-

uation is based on Receiver Operating Characteristic

(ROC) curve, its Area under the Curve (AUC), and

for a given threshold, the (Balanced) Accuracy and

F1-score.

Furthermore, an optimal threshold value can be

computed, corresponding to the best separation be-

tween Normal and Abnormal distributions. For this,

we calculate Youden’s J score (Ruopp et al., 2008),

and ﬁnd where its maximum occurs:

J = T PR − FPR (4)

In equation 4, TPR and FPR designates the True Pos-

itive Rate and False Positive Rate, correspondingly.

Note that this threshold value should be computed

for the validation set (as it depends on known abnor-

mal samples), since the testing set should not be re-

ﬂected in any model decision. However, for compar-

ison purposes with other works who choose the op-

timal threshold based on the testing set, we include

this in our analysis. The general procedure of train-

ing, validation and test stages is summarized and il-

lustrated by Figure 4.

VAE

Training

Threshold

choice

Hypermarameter tuning

 Training

Set

 Testing

Set

 Training

Split

 Validation

Split

Dataset

Pre-processing

ROC curve

Evaluation

metrics

Figure 4: Overall training procedure scheme.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

3 APPLICATIONS

The proposed framework was validated in two

use-cases, both concerning the ECG domain: the

ECG5000 dataset and the MIT-BIH Arrhythmia

dataset.

3.1 ECG5000 Dataset

The ECG5000 dataset is an ECG database released by

Eamonn Keogh and Yanping Chen, and publicly avail-

able in the UCR Time Series Classiﬁcation archive

(Dau et al., 2019). It contains 5000 heartbeats (ex-

tracted from a single patient) with a length of 140

points each. 4500 heartbeats (80%) were held for test-

ing and 500 for training tasks (20%), as shown in Ta-

ble 1.

Table 1: Overview of samples distribution over classes N

(Normal), R-on-T (R-on-T Premature Ventricular Contrac-

tion), PVC (Premature Ventricular Contraction), SP (Supra-

ventricular Premature beat), and UB (Unclassiﬁed Beat).

Class Train Test

N 292 (58.4%) 2627 (58.4%)

R-on-T 177 (35.4%) 1590 (35.4%)

PVC 10 (2.00%) 86 (1.92%)

SP 19 (3.80%) 175 (3.88%)

UB 2 (0.40%) 22 (0.48%)

The majority class (N) was considered the Normal

class, while the remaining classes were grouped into

a single Abnormal class.

The morphological variability of each class is

shown in Figure 5.

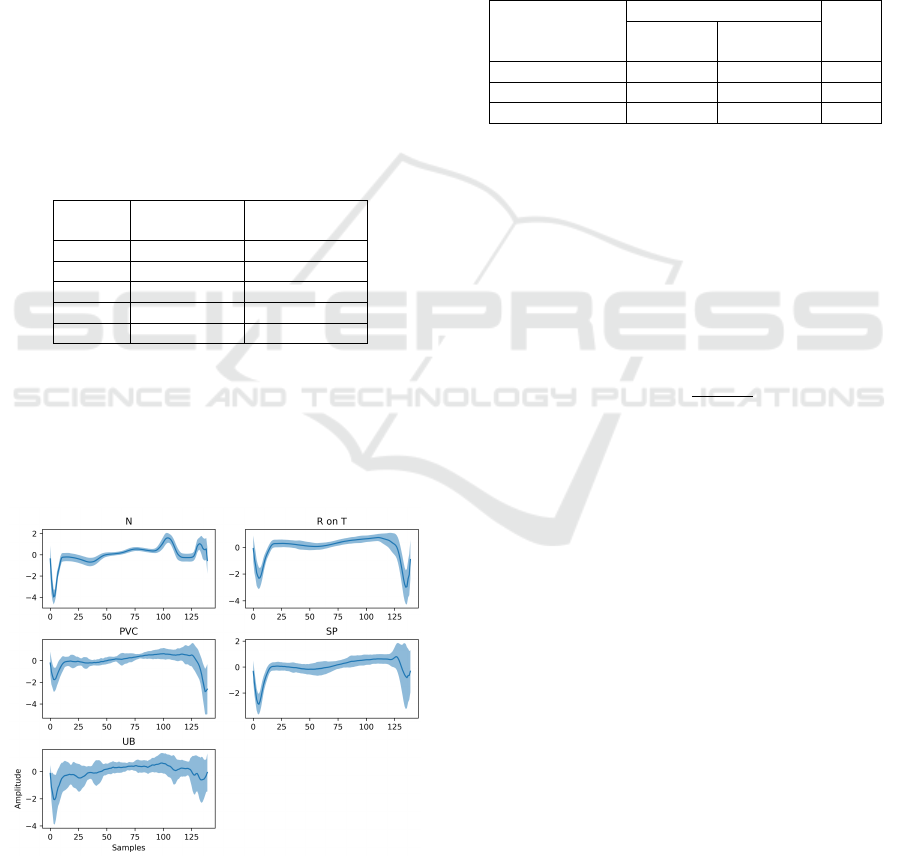

Figure 5: Classes morphological variability on ECG5000

dataset. The highlighted regions indicate the overall aver-

age amplitude (dark blue line) surrounded by one standard

deviation, in both sides (light blue).

3.1.1 Dataset Splitting

For validation purposes, the original training set has

been divided into two subsets: one for training the

model (X

train

) and the other for hyperparameter tuning

val

), as done in (Pereira and Silveira, 2019), with a

splitting ratio (train/validation) of 80/20, respectively.

For testing purposes, a different set (X

test

) was already

predeﬁned. Table 2 summarizes the dataset splitting

procedure.

Table 2: Overview of each set number of samples, on

ECG5000 dataset.

Class

Train

Test

Training

(80%)

Validation

(20%)

Normal class 234 58 2697

Abnormal class - 208 1803

Total 234 266 4500

3.1.2 Pre-processing

As a preprocessing step, we applied a single normal-

ization process to the input signals to keep the com-

parison with other techniques as fair as possible.

• Normalization: dividing each signal by the max-

imum of its absolute ensures the data has an am-

plitude range between -1 and 1.

max |X|

(5)

X and X

refer to the original and pre-processed

signals, respectively.

3.1.3 Training Stage

This step regards the actual training of the model,

and hyperparameter optimization, to achieve the high-

est possible reconstruction difference between normal

and abnormal validation samples. If abnormal data is

not available (purely unsupervised setting), this step

tries to avoid the network’s overﬁtting. Table 3 indi-

cates the best settings adopted for this dataset.

3.2 MIT-BIH Arrhythmia Database

The MIT-BIH Arrhythmia Database is a clinical

database (Moody and Mark, 2001), where records are

ECG signals collected from 47 subjects for two differ-

ent leads/channels. There were extracted 48 half-hour

excerpts from 4000 randomly chosen 24-hour ambu-

latory records. For this analysis, lead MLII was cho-

sen since it is present in most records.

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score

Table 3: Overview of VAE model training hyperparameters,

applied to ECG5000 dataset analysis.

Parameters 49012

Loss function

MSE + β · D

[β = 0.01]

Optimizer Adam

Learning-Rate 1 × 10

−3

Epochs 100

Early Stopping patience 6 epochs

Activation functions TanH and Linear

Batch size 16

Following AAMI (Association for the Advance-

ment of Medical Instrumentation) recommendations

(da S. Luz et al., 2016), the selected heartbeats are

labeled into ﬁve different classes: N (Normal), and

anomalies S (Supraventricular ectopic), V (Ventricu-

lar ectopic), F (Fusion beat), Q (unknown beat). The

overall shape of each heartbeat class is presented in

Figure 6.

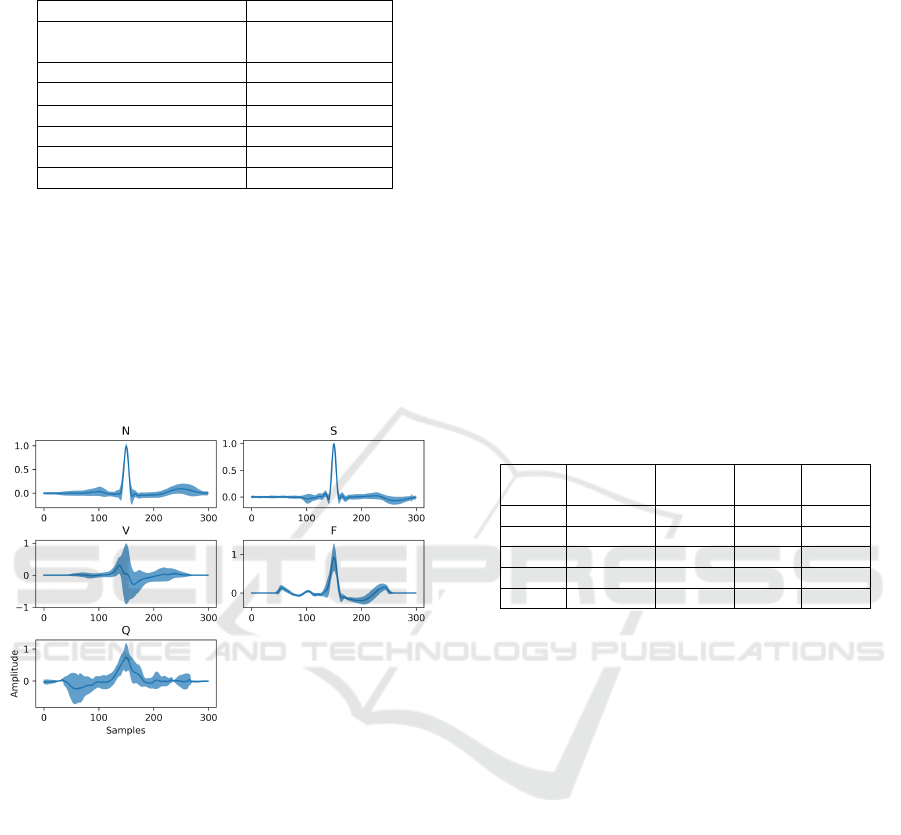

Figure 6: Classes’ morphological variability on MIT-BIH

Arrhythmia dataset. The highlighted regions indicate the

overall average amplitude (dark blue line) surrounded by

one standard deviation, in both sides (light blue).

From Figure 6, anomalies from classes S and F

seem the most challenging to detect since their mor-

phology is similar to that of the N class, with smaller

local deviations rather than global deviations, as for

the V and Q classes.

3.2.1 Dataset Splitting

Following the method proposed by Chazal et al.

(Philip de Chazal et al., 2004), the dataset was divided

into DS1 and DS2 subsets, each one containing ECG

records of 22 different individuals. Additionally, DS1

was further split to create a validation set in order to

guide the training stage in terms of hyperparameter

tuning.

Since the goal of this experiment focuses on de-

tecting morphological anomalies (and not temporal

ones, since single heartbeats are evaluated instead of

longer windows), AAMI recommended classes were

partially changed. This way, in opposition to what

AAMI recommends:

• L, R, j, and e (left and right bundle branch block,

nodal and atrial escape beats, respectively) labels

were removed from class N since bundle branch

blocks and escape beats are both a type of arrhyth-

mia. Thus, only N-labeled beats deﬁned the Nor-

mal class;

• Patient number 108 has been removed from the

training set since its Normal-labeled cardiac cy-

cles are morphologically distinct from those char-

acteristic of a lead II acquisition.

Table 4 displays the labels assigned to each class

(da S. Luz et al., 2016), as well as the number of sam-

ples associated.

Table 4: Overview of each set samples distribution over all

classes on MIT-BIH Arrhythmia dataset.

Class Labels

DS1

(Train)

DS1

(Val.)

DS2

(Test)

N N 31149 5149 36380

S a, A, J, S - 939 1834

V V, E - 3768 3216

F F - 412 388

Q /, f, Q - 8 7

Training and Validation (DS1): 101, 106, 109, 112,

114, 115, 116, 118, 119, 122, 124, 201, 203, 205, 207,

208, 209, 215, 220, 223, 230.

Testing (DS2): 100, 103, 105, 111, 113, 117, 121,

123, 200, 202, 210, 212, 213, 214, 219, 221, 222, 228,

231, 232, 233, 234. For anomaly detection purposes,

class N deﬁned the Normal class, and the remaining

(S, V, F, Q) the Abnormal class.

We note that DS1 was split by individual so that

the training and validation sets did not share heart-

beats of the same patient. Therefore, approximately

19% of the individuals present in DS1 (4 out of 21)

constituted the validation set and the remaining 17 the

training set.

3.2.2 Pre-processing

Signal pre-processing is a crucial step, especially re-

garding physiological signals as the ECG, consider-

ing all possible noise sources that could hinder any

subsequent model performance. The following pre-

processing steps were applied:

1. Butterworth Bandpass Filter: a ﬁfth-order ﬁl-

ter, with lower and higher cutoff frequency at 0.5

and 30 Hz, respectively. It stabilizes the baseline

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

drift and attenuates high-frequency noise compo-

nents.

2. Median Filter: with a kernel size of 0.6 seconds

(average heartbeat duration), it is similar to a mov-

ing average ﬁlter, except the median is used in-

stead of the mean. It helps to improve baseline

correction and remove some artifacts (Lee et al.,

2020).

3. Heartbeat Extraction: it consists of selecting a

neighborhood surrounding each R-peak annota-

tion. This interval is calculated based on the cur-

rent heart-rate (BPM) and is deﬁned as half the

associated period, in both directions.

Beat

edges







idx

± 0.5 ·

60· f s

BPM

if BPM > 70

idx

± 0.5 ·

60· f s

if BPM ≤ 70

(6)

The extracted cycles usually differ in length, so, in a

last pre-processing step, all heartbeats were padded

with zeros on both sides so that they can ﬁt the VAE

architecture, as well as normalized following equation

5. Note the zeros added from padding are not consid-

ered for anomaly scores calculation.

3.2.3 Training Stage

As done for the ECG5000 dataset, the best possi-

ble hyperparameter settings obtained for MIT-BIH Ar-

rhythmia are the same as those presented in Table

3, except the Parameters (60372) and the Batch size

(32).

4 RESULTS AND DISCUSSION

4.1 ECG5000 Dataset

Considering the low number of training samples on

this dataset, the sample cleaning step was not applied

since it would further reduce the number of normal

samples available to train the VAE network.

4.1.1 Signal Reconstruction

The reconstruction ability of this network dictates

its anomaly detection performance. Figures 7 and 8

present some visual examples comparing an original

signal to its corresponding reconstruction, accompa-

nied by the computed local anomaly score.

As shown in Figure 7, normal samples have their

intrinsic variability but their general morphological

structures remain visible, whatever the level of noise

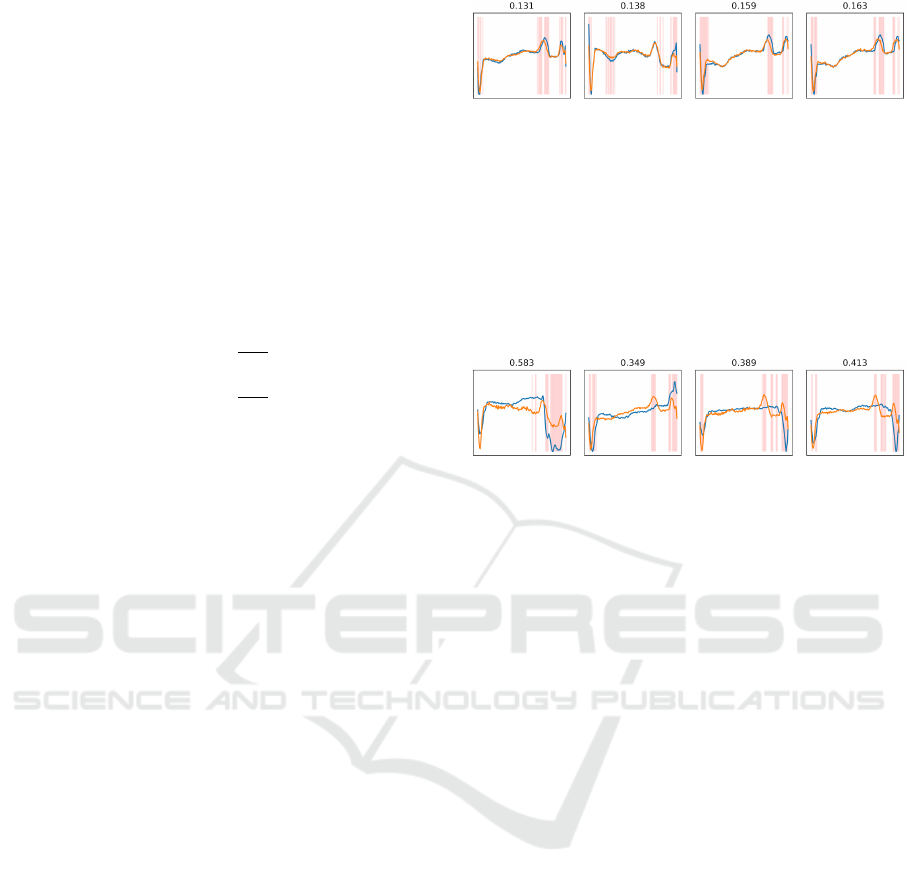

Figure 7: Normal samples reconstruction on ECG5000

dataset. Input and reconstructed samples are plotted in blue

and orange colors, respectively, and most dissimilar points

are highlighted in red. Computed anomaly scores are de-

ﬁned above each subﬁgure.

and shape distortion. These are the main features the

VAE is supposed to learn during training. Although

reconstruction is not perfect, it is still much closer

than for anomalous heartbeats (Figure 8), a require-

ment for anomaly detection.

Figure 8: Abnormal samples reconstruction on ECG5000

dataset. Input and reconstructed samples are plotted in blue

and orange colors, respectively, and most dissimilar points

are highlighted in red. Computed anomaly scores are de-

ﬁned above each subﬁgure.

Regarding the examples presented in Figure 8, the

VAE encoder maps each one of these abnormal sam-

ples to a continuous latent space of normal heartbeats.

As it can be noticed, even though some abnormal

samples are generally similar to its normal reconstruc-

tion, local dissimilarities can make them distinguish-

able.

4.1.2 Anomaly Detection

The results of anomaly detection are evaluated

through the computation of AUC, Accuracy, and F1-

score associated with each ROC curve and chosen

threshold. First, the reconstructed scores (calculated

on validation set samples) are used to compute a ROC

curve and calculate an optimal threshold that allows

the ideal separation between normal and abnormal re-

construction scores (Figure 9). The separation be-

tween normal and abnormal distributions is clear, be-

ing quantitatively conﬁrmed by a high AUC score of

99.60%. The optimal threshold of 0.267 was found

through Youden’s J score.

Evaluating the testing set, as seen in Figure 10,

normal and abnormal reconstruction score distribu-

tions seem quite well separated, which implies the

VAE model has learned meaningful features charac-

teristic of normal patterns. While the model can re-

construct normal heartbeats reliably, most abnormal

heartbeats cannot be retrieved successfully. The ROC

curve shape and the AUC score of 98.70%, displayed

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score

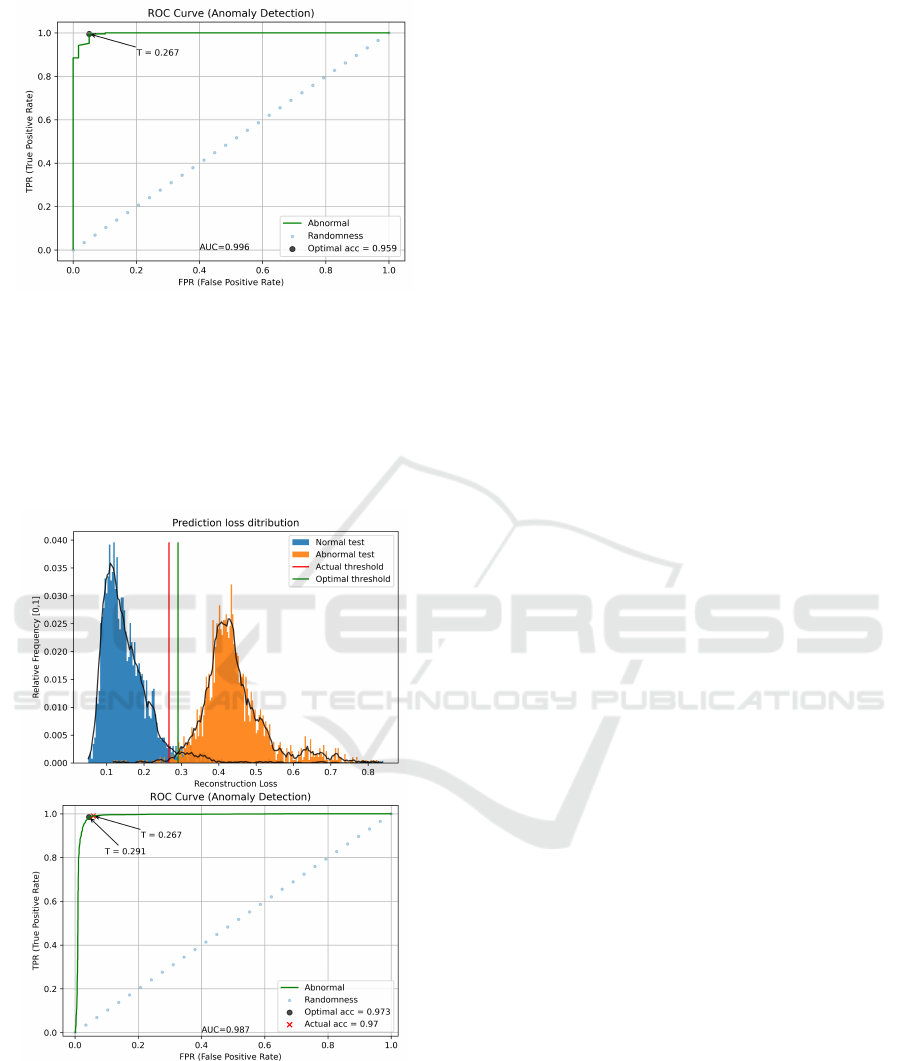

Figure 9: Representation of the ROC curve computed con-

sidering Normal and Abnormal anomaly score distributions,

applied to the validation set on ECG5000 dataset. The

threshold value is marked with a ’T ’ character.

in Figure 10, conﬁrm this visual inference. Further-

more, the selected threshold also generalizes well in

this set, showing an accuracy of 97.00% , quite simi-

lar to the optimal threshold value for the test set.

Figure 10: Representation of anomaly scores distribution

(top) and the corresponding ROC curve (bottom), applied

to the testing set on ECG5000 dataset. Selected and Opti-

mal threshold values are marked with a ’T ’ character in the

bottom image.

4.1.3 Evaluation Metrics

As the ECG5000 dataset has already been employed

in previous works, comparing our approach to other

supervised and unsupervised techniques is important

to better discuss its advantages and limitations, as

well as positioning it within the anomaly detection

ﬁeld. Table 5 presents the results of some super-

vised and unsupervised techniques using the same

dataset. Although supervised approaches generally

solve a multi-class classiﬁcation problem, the class

imbalance makes most samples belonging to Normal

and R-on-T PVC classes, so the approximation to a

two-class problem (anomaly detection) will not cause

much interference on the evaluation scores. Optimal

and Selected rows of our proposal (Ours) refers to

the scores obtained through optimal and (validation)

selected thresholds, respectively. The Selected ver-

sion uses the threshold chosen based on the valida-

tion set (requires known anomalies and is thus semi-

supervised at this level), and it is a more reasonable

choice since it does not require knowing labels of the

testing set. The Optimal approach, which considers

the labels in the testing set, was only used for com-

parison purposes with the methods from (Pereira and

Silveira, 2019).

The dataset split employed in (Pereira and Sil-

veira, 2019) is unknown. Thus, for a fair compari-

son, we avoided a single dataset splitting evaluation,

running our model ten times (ten different splits), and

averaging the results over these runs. For comparison,

VRAE (Pereira and Silveira, 2019), SPIRAL-XGB

(Lei et al., 2017), F-t ALSTM-FCN (Karim et al.,

2018), SAE-C (Malhotra et al., 2017), and oFCMdd

(Liu et al., 2018) approaches were included in Table

5. In this table, S/U column cells usually contain two

characters to distinguish the supervision level of both

learning stage (ﬁrst character) and threshold choice

(second one). One single character indicates the same

supervision level in both aspects. Moreover, super-

vised and unsupervised best scores are underlined and

bolded, correspondingly.

The comparison with the VRAE models will

be emphasized since they are also based on VAEs.

The three presented VRAE techniques focus on us-

ing a post-processing technique to analyze the VAE’s

latent representation, while the model proposed in

this work uses a post-processing similarity score be-

tween input and reconstructed signals. In terms of the

AUC score, the model proposed in this work (Ours)

achieved the highest one, meaning it can achieve the

best separation between normal and abnormal sample

distributions. Regarding Accuracy and F1-score, the

VRAE+SVM approach ends up reaching the highest

scores. Nevertheless, amongst unsupervised methods,

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

our proposed model has still obtained the highest Ac-

curacy and F1 scores. Concerning the Selected alter-

native of the proposed framework, as expected, scores

have decreased, since the testing set labels are used

exclusively for evaluation and not for optimal thresh-

old choices, but we note that this is what can be an-

ticipated for new, real-world data samples. Summing

up, comparing the training settings of both proposed

and VRAE approaches, the former was trained with

57 training epochs and 49 012 trainable parameters

against 1500 epochs and 273 420 trainable parameters

from the latter, which suggests a higher computational

efﬁciency. Thus, as the proposed model is structurally

simpler and achieves similar or better results, it can be

a more reasonable choice, especially if at least some

anomalous samples are available.

4.2 MIT-BIH Arrhythmia Database

4.2.1 Sample Cleaning

Before training the network for anomaly detection,

training set cleaning was performed. As explained

before, normal and abnormal embedding vectors were

extracted by the originally trained VAE encoder and

mapped into a 2D-plan using the UMAP algorithm.

Finally, a set of [20, 40, 60, 80] percentiles was eval-

uated to assess the inﬂuence of the level of sam-

ple rejection on the reconstruction ability, measured

in terms of AUC scores. The 60th percentile level

(where 40% of the training samples were selected)

returned the best score. The 2D map and the corre-

sponding sample selection are shown in Figure 11.

The number of training normal samples has thus

been reduced from 31 149 to 12 460 (60% samples

removed). Comparing the ROC curves of anomaly

score distributions, the ﬁltered training achieved an

Table 5: Overview of models performances on the

ECG5000 dataset.

Model S/U

AUC

(%)

Acc

(%)

Ours (selected) U+S

98.79

96.86 95.75

Ours (optimal) U+S 97.11 96.01

VRAE + SVM S+S 98.36 98.43 98.44

VRAE+Wasserstein U+S 98.19 95.10 94.61

VRAE + k-Means U 95.91 95.96 95.22

SPIRAL-XGB S 91.00 - -

F-t

ALSTM-FCN

S - 94.96 -

SAE-C S - 93.40 -

oFCMdd U - - 80.84

Supervised/Unsupervised

Accuracy

F1-score

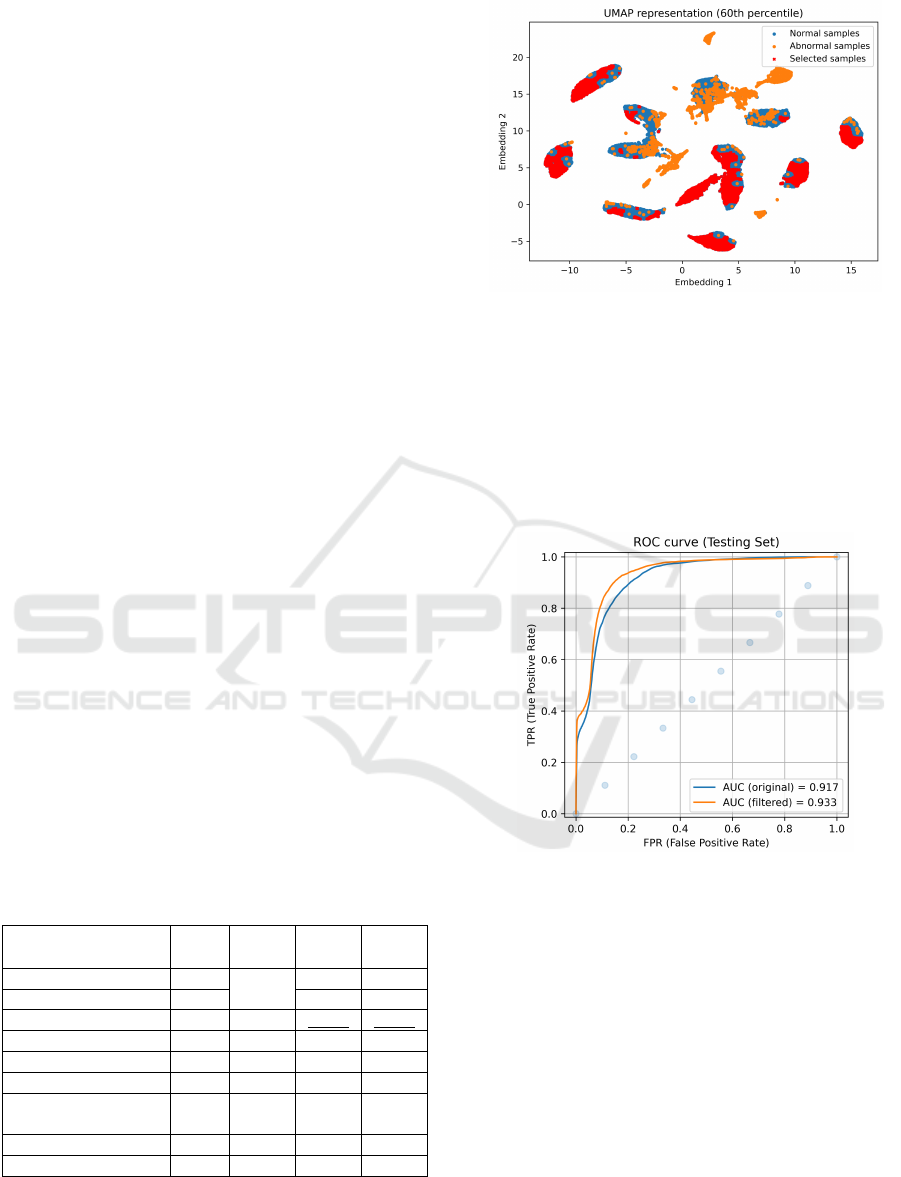

Figure 11: UMAP two-dimensional projection of samples’

latent vectors. The best score was achieved by rejecting

60% of the normal samples closest to the known abnormal

ones.

AUC of 95.90% against 95.80% from the original one

(on the validation set), and 93.30% against 91.70%,

respectively (on testing set). Figure 12 presents the

same testing ROC curves before and after applying

the sample cleaning process.

Figure 12: ROC curves built through inference on the test-

ing set. Blue and orange curves correspond to networks

with and without training set cleaning, respectively.

For both sets, the cleaning stage has been shown

to improve the network performance regarding the

anomaly detection task. Both AUC scores overcame

the original ones, meaning there were some heartbeats

in the original training hindering the model perfor-

mance, either by wrongful annotations, or signiﬁcant

distortions.

4.2.2 Signal Reconstruction

In Figures 14 and 13 some examples of normal and

abnormal heartbeats, respectively, are displayed, to-

gether with their corresponding reconstructions and

anomaly scores.

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score

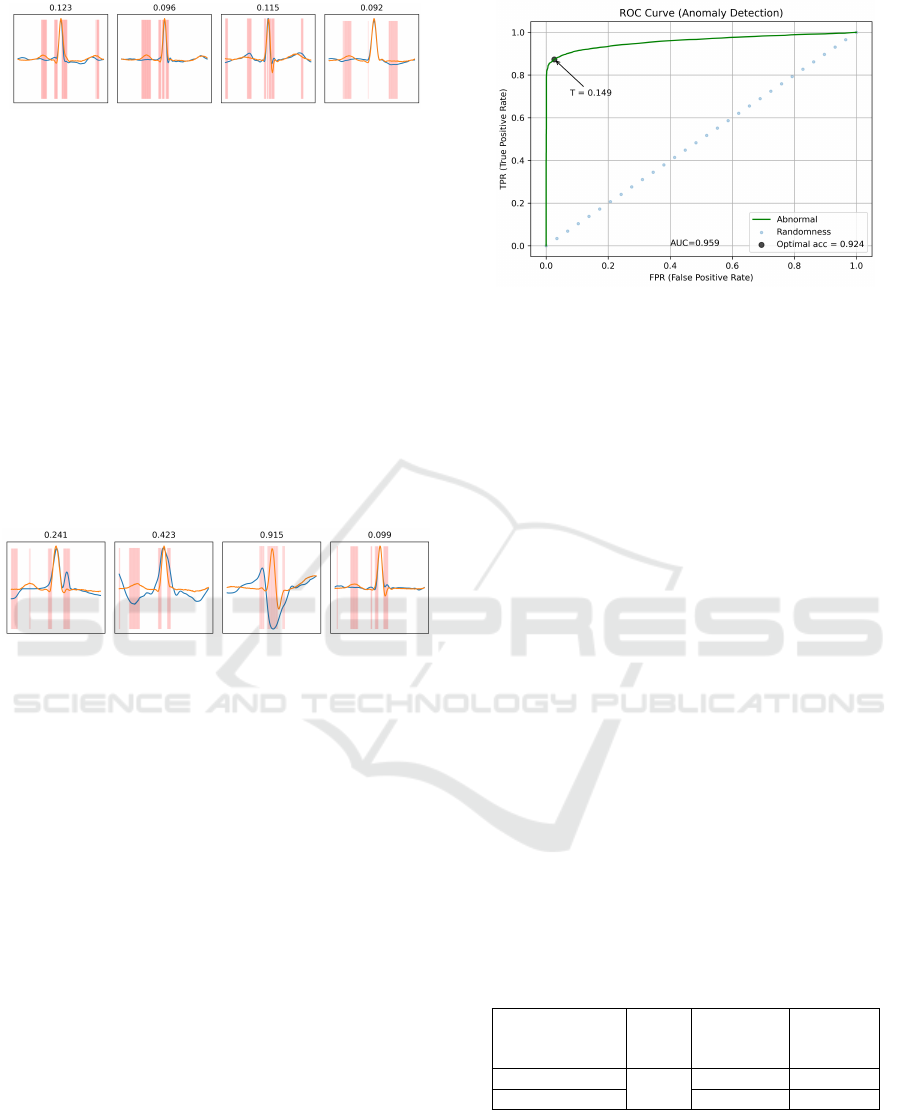

Figure 13: Normal ECG heartbeats reconstruction on MIT-

BIH dataset. Original and reconstructed signals are set with

a blue and an orange line, respectively, and the most dissim-

ilar points are highlighted in red. Reconstruction scores are

above each subﬁgure.

Regarding normal heartbeats, they seem to be

quite well reconstructed by the network (Figure 13).

It is clear that the model has learned the general mor-

phological behavior of a normal cardiac cycle pat-

tern on lead II. There are some heartbeats revealing a

certain level of variability (like high-frequency noise,

any shorter/larger complex) which were not present

in the training samples. Nonetheless, in the majority

of cases, the network can deal with it, adapting the

output to the input as much as the normal latent space

allows, and looking always towards minimizing the

reconstruction loss.

Figure 14: Abnormal ECG heartbeats reconstruction on

MIT-BIH dataset. Original and reconstructed signals are

set with a blue and an orange line, respectively, and the

most dissimilar points are highlighted in red. Reconstruc-

tion scores are above each subﬁgure.

Abnormal samples are mapped onto a normal

heartbeat latent space, so the network tries to recon-

struct the input using only normal characteristics of

the cardiac cycle. As expected, the reconstruction

quality is worse in this case, which translates into

higher anomaly scores (Figure 14).

4.2.3 Anomaly Detection

After training the model, thresholds must be deﬁned

and metrics computed on validation and test sets, con-

cerning the evaluation of the anomaly detection per-

formance.

Firstly, anomaly scores (computed between origi-

nal and reconstructed samples) are calculated for the

validation set, and the threshold which better sepa-

rates normal and abnormal score distributions (Fig-

ure 15) is chosen. This value is then used to evaluate

the test set (Figure 16). Analyzing the ROC curve

in Figure 15 and corresponding AUC score (95.90%),

they suggest normal and abnormal score distributions

in the validation set are well separated.

Figure 15: Representation of the ROC curve computed con-

sidering validation set samples, on MIT-BIH dataset. The

threshold value is marked with a ’T ’ character.

Observing the anomaly score distributions in Fig-

ure 16, the fact the testing set has a much higher vol-

ume of data also implies the presence of more normal

corrupted samples, resulting in a distribution curve

with a long tail. Regarding the abnormal distribu-

tion, the presence of a greater number of examples

from class S in the testing set (Table 4), whose mor-

phology is quite similar to class N samples (Figure

6), causes some overlap between both distributions.

Nevertheless, the degree of superposition is not sufﬁ-

ciently high to impair the model’s performance, still

achieving an AUC score of 93.32%.

4.2.4 Evaluation Metrics

In order to make the previous inferences quantiﬁ-

able, Table 6 summarizes the metrics used to evaluate

the testing set, considering both optimal and selected

thresholds as the separation boundary between nor-

mal and abnormal samples. We present the optimal

threshold results to assess how dependent the model

is on this parameter. Due to an extreme imbalance be-

tween the size of Normal and Abnormal classes, bal-

anced scores seemed to be the most suitable for this

analysis: Balanced Accuracy and averaged F1-score.

Table 6: Overview of models performances on MIT-BIH

Arrhythmia dataset.

Model

AUC

(%)

Balanced

Accuracy

(%)

F1-score

(%)

Ours (selected)

93.32

87.71 75.67

Ours (optimal) 87.77 76.55

In absolute terms, these results are worse than

the ones obtained for the ECG5000 dataset. In

this case, the higher variability level of the MIT-

BIH Arrhythmia dataset hinders the reconstruction of

some N-labeled samples possessing an unusual shape.

Nonetheless, the earlier cleaning step has helped to

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

100

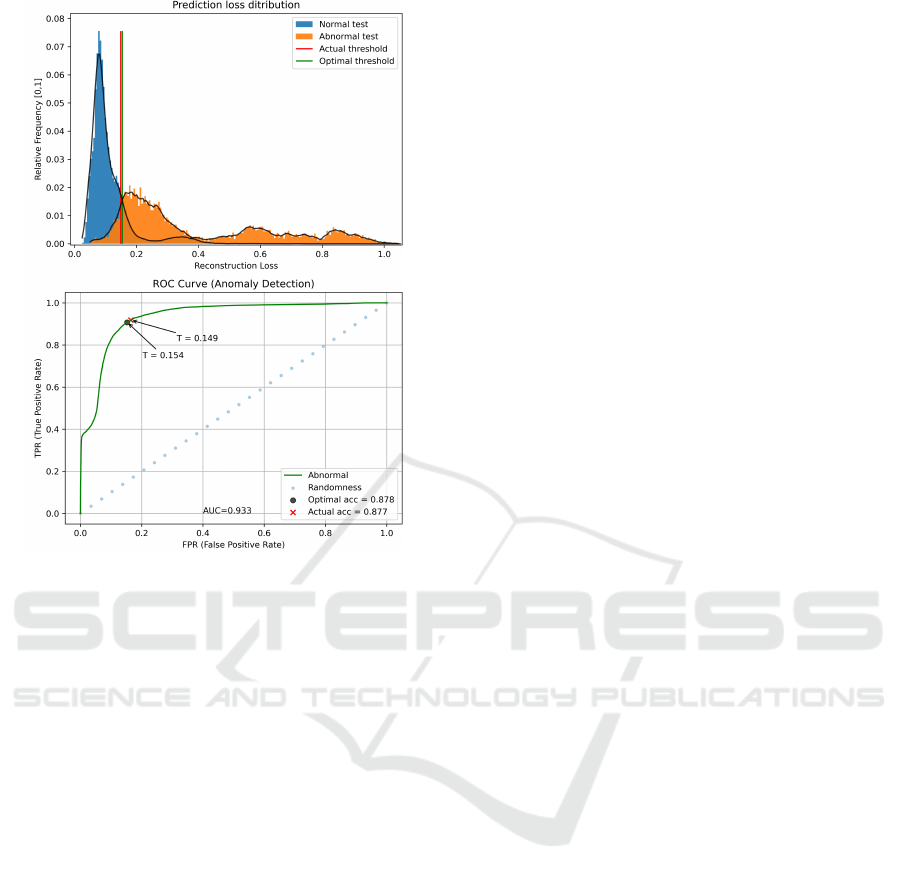

Figure 16: Representation of anomaly scores distribution

(top) and the corresponding ROC curve (bottom), applied

to the testing set on MIT-BIH Arrhythmia dataset. Selected

and Optimal threshold values are marked with a ’T ’ charac-

ter in the bottom image.

obtain slightly better performance with much less

training examples, which must be highlighted.

Using the same overall dataset, according with

(Llamedo and Mart

ınez, 2011), Chazal et al. and

Llamedo et al. proposed two different heartbeat clas-

siﬁers following the same AAMI ﬁve classes and

dataset splitting, having reached averaged F1-scores

of 77.80% and 68.78%, respectively, against 75.67%

from the model proposed in this work. It must be

stressed such a comparison should be made carefully,

since, on one hand, the proposed model is unsuper-

vised in the sense it does not learn from any abnormal

sample, unlike the other two classiﬁers (supervised).

On the other hand, this work has removed L, R, j, and

e labels from the Normal (N) class, which was not

performed by the other authors.

5 CONCLUSIONS

In this paper, an unsupervised anomaly detection

framework (only dependent of Normal data at the

training level) is proposed for time series analysis.

It was introduced to overcome two main issues: the

strict dependence that supervised models have on ab-

normal data availability, as well as the necessity to

improve the detection of anomalies whose abnormal-

ity regions are local rather than global (being possibly

masked behind global similarity scores). The frame-

work explored the reconstruction ability of VAEs cou-

pled with a local similarity score. Additionally, a

sample cleaning step was included to alleviate the

weight of distorted or wrongly annotated training

samples in the model performance.

The framework was evaluated using two different

ECG datasets: ECG5000 and MIT-BIH Arrhythmia.

In ECG5000 dataset, the goal rested on distinguish-

ing between N-labeled (Normal) heartbeats and re-

maining abnormalities by computing the local simi-

larity score between original and reconstructed sam-

ples. Normal and Abnormal score distributions were

well separated, showing high AUC (98.79%), accu-

racy (97.11%) and F1-score (96.01%), overcoming

other recent unsupervised approaches and showing

competitive results relative to the supervised ones. In

addition, the proposed architecture is structurally sim-

pler and computationally cheaper than the other ap-

proaches, turning it into a more reasonable choice for

anomaly detection.

Regarding the MIT-BIH Arrhythmia dataset, the

analysis focused on separating N-labeled (Normal)

samples from four other types of abnormal heartbeats,

grouped in one single Abnormal class. Here, the sam-

ple cleaning step was applied, and improved the net-

work ability to reasonably reconstruct Normal sam-

ples and even worse Abnormal ones, as desired. For

the test set, the ﬁltered training (40% of the original

samples) increased the AUC score from 91.70% to

93.30%. Balanced accuracy and averaged F1-score

metrics reached 87.77% and 76.55%, respectively.

We found that this testing set has a greater heartbeat

variability, and the dataset contains more challenging

anomaly types (e.g. S and F classes). Nevertheless,

the results are still promising.

As future work, further analysis could con-

sider the local reconstruction score exploring not

only amplitude-related distances but also temporally-

related ones. This could help distinguish other types

of anomalies such as speciﬁc arrhythmia types typi-

cally affecting the P wave or the QRS complex, for

instance. Moreover, instead of a predeﬁned score,

a posterior model (e.g. a neural network) might be

trained to measure, more precisely, the degree of mor-

phological dissimilarity between reconstructed and

original signals. In this context, one could also in-

clude a loss term in the VAE to explore the locality of

patterns, learning different weights for different cycle

segments. A different approach might explore a fu-

sion between reconstruction error (as proposed here)

Robust Anomaly Detection in Time Series through Variational AutoEncoders and a Local Similarity Score

101

and latent space analysis (as done for VRAE) for com-

plementary gains in performance. Finally, an even-

tual detection of out-of-domain patterns (e.g. unde-

sired signals corruption, noise, artifacts) could be per-

formed making the VAE learn both normal and ab-

normal domain-patterns, keeping the class of interest

(anomaly) on those kinds of oscillations.

ACKNOWLEDGEMENTS

The project OPERATOR - Digital Transformation in

Industry with a Focus on the Operator 4.0 (OPERA-

TOR - NORTE-01-0247-FEDER-045910) leading to

this work is co-ﬁnanced by the ERDF - European Re-

gional Development Fund through the North Portugal

Regional Operational Program and Lisbon Regional

Operational Program and by the Portuguese Foun-

dation for Science and Technology - FCT under the

MIT Portugal Program (2019 Open Call for Flagship

projects - Digital Transformation in Industry).

REFERENCES

Braei, M. and Wagner, S. (2020). Anomaly detection in

univariate time-series: A survey on the state-of-the-

art.

Chalapathy, R. and Chawla, S. (2019). Deep learning for

anomaly detection: A survey.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM Comput. Surv.,

41(3).

da S. Luz, E. J., Schwartz, W. R., C

amara-Ch

avez, G., and

Menotti, D. (2016). ECG-based heartbeat classiﬁca-

tion for arrhythmia detection: A survey. Computer

Methods and Programs in Biomedicine, 127:144 –

164.

Dau, H. A., Bagnall, A., Kamgar, K., Yeh, C.-C. M., Zhu,

Y., Gharghabi, S., Ratanamahatana, C. A., and Keogh,

E. (2019). The ucr time series archive.

He, Z., Xu, X., and Deng, S. (2003). Discovering cluster-

based local outliers. Pattern Recognition Letters,

24(9):1641 – 1650.

Karim, F., Majumdar, S., Darabi, H., and Chen, S. (2018).

LSTM fully convolutional networks for time series

classiﬁcation. IEEE Access, 6:1662–1669.

Kingma, D. P. and Welling, M. (2019). An introduction to

variational autoencoders. Foundations and Trends



in Machine Learning, 12(4):307–392.

Lee, M., Song, T.-G., and Lee, J.-H. (2020). Heart-

beat classiﬁcation using local transform pattern fea-

ture and hybrid neural fuzzy-logic system based on

self-organizing map. Biomedical Signal Processing

and Control, 57:101690.

Lei, Q., Yi, J., Vaculin, R., Wu, L., and Dhillon, I. S. (2017).

Similarity preserving representation learning for time

series analysis. CoRR, abs/1702.03584.

Li, D., Chen, D., Shi, L., Jin, B., Goh, J., and Ng, S.-K.

(2019). MAD-GAN: Multivariate anomaly detection

for time series data with generative adversarial net-

works.

Liu, Y., Chen, J., Wu, S., Liu, Z., and Chao, H. (2018).

Incremental fuzzy C medoids clustering of time se-

ries data using dynamic time warping distance. PLOS

ONE, 13(5):1–25.

Llamedo, M. and Mart

ınez, J. P. (2011). Heartbeat classiﬁ-

cation using feature selection driven by database gen-

eralization criteria. IEEE transactions on bio-medical

engineering, 58:616–25.

Lucas, J., Tucker, G., Grosse, R., and Norouzi, M. (2019).

Don’t blame the ELBO! a linear VAE perspective on

posterior collapse.

Ma, J. and Perkins, S. (2003). Time-series novelty detection

using one-class support vector machines. volume 3,

pages 1741 – 1745 vol.3.

Malhotra, P., TV, V., Vig, L., Agarwal, P., and Shroff, G.

(2017). TimeNet: Pre-trained deep recurrent neural

network for time series classiﬁcation.

McInnes, L., Healy, J., and Melville, J. (2020). UMAP:

Uniform manifold approximation and projection for

dimension reduction.

Moody, G. and Mark, R. (2001). The impact of the

MIT-BIH arrhythmia database. IEEE engineering in

medicine and biology magazine : the quarterly mag-

azine of the Engineering in Medicine & Biology Soci-

ety, 20:45–50.

Pereira, J. and Silveira, M. (2019). Unsupervised repre-

sentation learning and anomaly detection in ECG se-

quences. International Journal of Data Mining and

Bioinformatics, 22:389–407.

Philip de Chazal, O’Dwyer, M., and Reilly, R. B.

(2004). Automatic classiﬁcation of heartbeats us-

ing ECG morphology and heartbeat interval fea-

tures. IEEE Transactions on Biomedical Engineering,

51(7):1196–1206.

Pincombe, B. (2005). Anomaly detection in time series of

graphs using ARMA processes. ASOR Bull, 24.

Ramaswamy, S., Rastogi, R., and Shim, K. (2000). Efﬁ-

cient algorithms for mining outliers from large data

sets. volume 29, pages 427–438.

Ruopp, M., Perkins, N., Whitcomb, B., and Schisterman, E.

(2008). Youden index and optimal cut-point estimated

from observations affected by a lower limit of detec-

tion. Biometrical journal. Biometrische Zeitschrift,

50:419–30.

Schlegl, T., Seeb

ock, P., Waldstein, S. M., Schmidt-Erfurth,

U., and Langs, G. (2017). Unsupervised anomaly de-

tection with generative adversarial networks to guide

marker discovery.

Xu, H., Feng, Y., Chen, J., Wang, Z., Qiao, H., Chen, W.,

Zhao, N., Li, Z., Bu, J., Li, Z., and et al. (2018).

Unsupervised anomaly detection via variational auto-

encoder for seasonal kpis in web applications. Pro-

ceedings of the 2018 World Wide Web Conference on

World Wide Web - WWW ’18.

Zhang, C., Li, S., Zhang, H., and Chen, Y. (2020). VELC:

A new variational autoencoder based model for time

series anomaly detection.

Zhang, C., Song, D., Chen, Y., Feng, X., Lumezanu, C.,

Cheng, W., Ni, J., Zong, B., Chen, H., and Chawla,

N. V. (2018). A deep neural network for unsupervised

anomaly detection and diagnosis in multivariate time

series data.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

102
