Fairer Evaluation of Zero Shot Action Recognition in Videos

Kaiqiang Huang, Sarah Jane Delany and Susan Mckeever

Technological University Dublin, Grangegorman, Dublin, Ireland

Keywords:

Human Action Recognition, Zero Shot Learning.

Abstract:

Zero-shot learning (ZSL) for human action recognition (HAR) aims to recognise video action classes that have

never been seen during model training. This is achieved by building mappings between visual and semantic

embeddings. These visual embeddings are typically provided via a pre-trained deep neural network (DNN).

The premise of ZSL is that the training and testing classes should be disjoint. In the parallel domain of ZSL for

image input, the widespread poor evaluation protocol of pre-training on ZSL test classes has been highlighted.

This is akin to providing a sneak preview of the evaluation classes. In this work, we investigate the extent to

which this evaluation protocol has been used in ZSL for human action recognition research work. We show

that in the ﬁeld of ZSL for HAR, accuracies for overlapping classes are being boosted by between 5.75% to

51.94% depending on the use of visual and semantic features as a result of this ﬂawed evaluation protocol. To

assist other researchers in avoiding this problem in the future, we provide annotated versions of the relevant

benchmark ZSL test datasets in the HAR ﬁeld: UCF101 and HMDB51 datasets - highlighting overlaps to

pre-training datasets in the ﬁeld.

1 INTRODUCTION

Over the last decade, the problem of how to iden-

tify human actions in videos (such as ‘running’) has

been addressed via a variety of supervised learning-

based methods (Feichtenhofer et al., 2016; Hara et al.,

2018; Karpathy et al., 2014; Simonyan and Zisser-

man, 2014; Wang and Schmid, 2013). A limit of these

methods, as per all supervised learning, is their in-

ability to identify new classes outside of those in the

model training data. Besides, collecting large-scale

annotated human action datasets and retraining clas-

siﬁcation models can be extremely expensive. To ad-

dress this problem, zero-shot learning (ZSL) has been

used in both the image domain (Akata et al., 2013;

Akata et al., 2015; Frome et al., 2013; Norouzi et al.,

2013; Palatucci et al., 2009; Zhang and Saligrama,

2016) and the video domain (Jain et al., 2015; Liu

et al., 2011; Qin et al., 2017; Wang and Chen, 2017b;

Wang and Chen, 2017c; Xu et al., 2015; Xu et al.,

2017; Xu et al., 2016) to classify novel instances

which were not available in the training process. As

shown in Fig.1, visual feature representations are ex-

tracted from action videos as visual embeddings, and

a mapping function is learned between visual embed-

ding and the corresponding semantic embedding in

the training stage. In the ZSL testing phase, visual

features for unseen testing instances are inputted to

the learned mapping function, the semantic embed-

ding is acquired and the action class with the closest

distance by nearest neighbour search in the semantic

embedding space is assigned (Junior et al., 2019). The

issue we address in this paper is the poor evaluation

practice of allowing classes used in the pre-training

dataset to also be used as classes in the ZSL testing

(supposed to be unseen) classes. These overlapping

classes challenge the ”unseen” nature of the ZSL test

classes. In this paper, we answer the following ques-

tions (1) To what extent is this evaluation protocol ap-

plied in the ZSL for HAR research domain to date?

(2) Does the overlap of classes in ZSL testing and pre-

training classes boost ZSL accuracies, thus inﬂating

ZSL results? In addition to reporting on the issue, we

publish corrected non-overlapping versions of bench-

marks ZSL test datasets in the HAR ﬁeld for use by

other researchers.

The rest of this paper is structured as follows. In

Section 2, the background for zero-shot action recog-

nition (ZSAR) is described, including visual and se-

mantic embedding, and ZSL methods. In Section 3,

we explain our methods for evaluating the impact of

overlapping classes on benchmark pre-trained mod-

els and ZSL datasets in the HAR ﬁeld. In Section 4,

experimental implementations are explained in more

206

Huang, K., Delany, S. and Mckeever, S.

Fairer Evaluation of Zero Shot Action Recognition in Videos.

DOI: 10.5220/0010324402060215

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

206-215

ISBN: 978-989-758-488-6

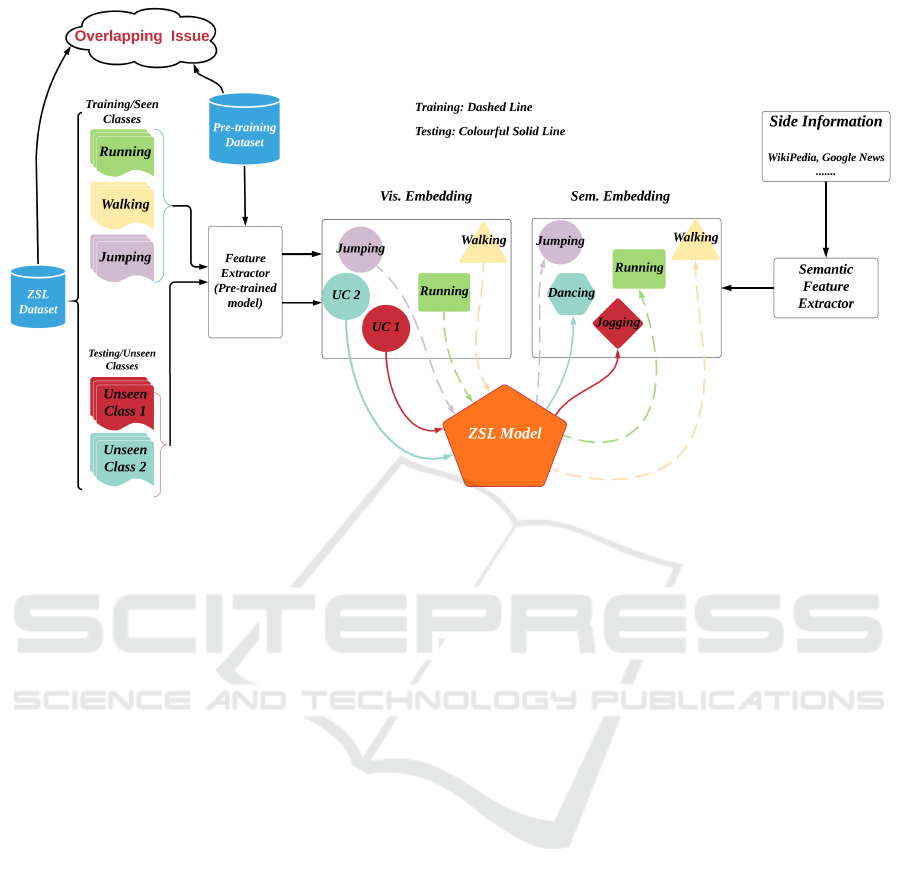

Figure 1: General ZSL Process for HAR. Note that, the colourful solid arrow lines indicate the ZSL training phrase and the

dashed arrow lines indicate the ZSL testing phrase.

detail. In Section 5, the results and ﬁndings are

demonstrated and explained. Finally, the conclusion

is drawn in Section 6.

2 BACKGROUND & RELATED

WORK

The aim of ZSL is to break away from the traditional

limitation of supervised learning - to build a classiﬁer

that can identify classes outside those used in train-

ing. The ZSL training stage maps instances of trained

classes to a semantic space, where the wider semantic

space has representations of both training and new un-

seen classes. In the case of human action recognition,

each instance is a video - each represented as a visual

embedding that is extracted from a pre-trained model.

During the ZSL training stage, visual embedding of

instances are mapped to their equivalent semantic la-

bel embedding, as shown in Figure 1. This learned

mapping is then used to map visual embeddings of

new unseen zero-shot test classes into the semantic

space for identiﬁcation of the new class. Next, we

look at both visual and semantic embedding in more

detail in order to understand the background for our

work.

Visual Embedding. There are two principal ap-

proaches to generating embeddings for the visual rep-

resentations of actions for ZSL (1) Hand-crafted fea-

tures (Wang and Schmid, 2013) and (2) Deep features

(Carreira and Zisserman, 2017; Hara et al., 2018;

Tran et al., 2015). The principal approach to hand-

crafted features, Improved Dense Trajectory (IDT)

(Wang and Schmid, 2013) has been successfully ap-

plied to represent visual information for videos of

actions in early ZSL works. It consists of four de-

scriptors, computed through the tracked trajectories

based on the movement of detected interest points in

a video. More recently, visual representations have

been obtained from pre-trained DNN-based models

(so called ”deep features”) in the ZSL for action

recognition ﬁeld. As shown in Table 1, there are three

deep feature visual representations used in the ﬁeld,

namely C3D, I3D and 3D-ResNet. C3D (Tran et al.,

2015) is a deep 3-dimensional convolutional neural

network (3D CNNs) that learns spatio-temporal rep-

resentations for videos. Due to the highly compu-

tationally intense training in 3D CNNs, I3D (Car-

reira and Zisserman, 2017) was proposed. Instead

of a single 3D network, two different 3D networks

are used, containing RGB and ﬂow as two archi-

tectural streams, to represent appearance and optical

ﬂow, respectively. A third pre-trained network, 3D-

ResNet (Hara et al., 2018) was proposed by building

a deeper 3D CNN to learn spatio-temporal informa-

tion from actions. As shown in Table 1, each of these

three deep feature representations is underpinned by

pre-trained models that have been trained on action

Fairer Evaluation of Zero Shot Action Recognition in Videos

207

Table 1: Visual features and pre-training datasets for human actions (Papers in bold indicate that overlap occurs between

pre-training and ZSL test classes).

Visual Features Feature Types Pre-training Datasets Papers Used

IDT Hand Crafted N/A

(Gan et al., 2015; Guadarrama et al., 2013)

(Jain et al., 2015; Qin et al., 2017)

(Xu et al., 2015; Wang and Chen, 2017c)

(Xu et al., 2017; Xu et al., 2016)

(Zhang and Peng, 2018)

C3D Deep Sports-1M

(Brattoli et al., 2020)

(Mandal et al., 2019; Mishra et al., 2020)

(Mishra et al., 2018; Wang and Chen, 2017b)

(Wang and Chen, 2017a; Tian et al., 2019)

(Wang and Chen, 2017c; Zhang et al., 2018)

I3D Deep Kinetics-400

(Mandal et al., 2019; Narayan et al., 2020)

(Piergiovanni and Ryoo, 2018)

(Roitberg et al., 2018)

3D-ResNet Deep Kinetics-400 (Liu et al., 2020)

datasets: Sports-1M for C3D, and Kinetics-400 for

both I3D and 3D-ResNet. Consequently, where these

pre-trained models are used to provide deep visual

feature representations for action instances in videos,

explicit or semantic overlaps between the pre-training

classes with those of the zero-shot test classes should

be avoided, if a ZSL approach is claimed. Table 1

also indicates which research works use these rep-

resentations. Papers in bold

indicate that some de-

gree of overlap occurs between pre-training and ZSL

test classes in the evaluation protocol. Note that IDT

does not involve a pre-trained model so the issue

of overlapping of pre-training and ZSL test classes

is not relevant. There are two leading benchmark

ZSL datasets in the ZSL action recognition ﬁeld: (1)

UCF101 (Soomro et al., 2012) and (2) HMDB51

(Kuehne et al., 2011). Our identiﬁcation of overlap-

ping classes between these two ZSL datasets the pre-

training datasets is described further in Section 3.1.

Semantic Label Embedding. There are two main

approaches to representing the semantic label space

in ZSL for human action recognition - (1) attribute-

based methods (Liu et al., 2011; Wang and Chen,

2017c) and (2) word embedding based methods

(Mikolov et al., 2013). Attributed-based methods

(i.e. annotated class-level attribute) involve the man-

ual annotation of visual attributes to each action

class. A Golf-Swing action class would include visual

attributes such as single-leg motion and arm-over-

shoulder motion for example. Word embedding is

an alternative approach to attribute-based, removing

the manual annotation requirement and it is widely

used to represent semantics for action classes in re-

cent work (Brattoli et al., 2020; Gao et al., 2019; Jain

et al., 2015; Mandal et al., 2019; Roitberg et al., 2018;

Wang and Chen, 2017c; Xu et al., 2015; Xu et al.,

2016; Zhu et al., 2018).

ZSL Techniques for Human Action Recognition.

A comprehensive overview of ZSL approaches for hu-

man action recognition ﬁeld is provided by the work

(Junior et al., 2019). We brieﬂy review them here.

Early work for ZSL (Liu et al., 2011) makes use of

human-annotated attributes as semantics to learn a

mapping function from visual embedding to attributes

embedding using an SVM model that can decide the

signiﬁcance of each attribute for each action class.

LatEm (Xian et al., 2016) introduced a piece-wise

linear compatibility as non-linearity to learn the rela-

tionship between both embeddings by the latent vari-

ables. And each latent variable is encoded for dif-

ferent visual properties of the input data. Instead

of projecting the visual embedding to the semantic

embedding, BiDiLEL (Wang and Chen, 2017c) pro-

jected both visual and semantic embeddings into a

low-dimensional latent embedding in order to pre-

serve the intrinsic relationships between them. The

SynC approach (Changpinyo et al., 2016) learned a

projection between semantic label embeddings and a

classiﬁer model space. In the classiﬁer model space,

a weighted bipartite graph is created by the training

classes and a set of ”phantom” classes that are syn-

thesised to align semantic embedding and classiﬁer

model spaces by minimising distortion error. ConSE

(Norouzi et al., 2013) is a two-stage approach: First,

it learns the probability for a training action instance

belonging to one of the seen classes. Then, it projects

the visual embedding into the semantic embedding

by taking the convex combination of the top T most

likely seen classes. Finally, the class with the clos-

est cosine distance in the semantic embedding space

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

208

is predicted as the unseen class result. Note that, the

ZSL methods of ConSE, SynC and LatEm were orig-

inally proposed for ZSL image classiﬁcation, but the

latter work extended them to ZSL for human action

recognition (Liu et al., 2019).

With regards to the issue of overlapping classes

between pre-training and ZSL testing datasets, the

work ﬂagged the problem for ZSL for images (Xian

et al., 2017). However, the issue has had limited

recognition in the domain of ZSL for action recogni-

tion. The work by (Roitberg et al., 2018) proposed an

evaluation procedure that enables fair use of external

data by exploring how semantically similar classes in

the ZSL training and test sets can impact on ZSL for

human action recognition evaluation (i.e. Kinetics-

400 for training and HMDB51 for testing). Similarly,

work by (Brattoli et al., 2020) removing overlapped

classes between ZSL training and testing classes for

their ZSL work. However, neither work addresses the

issue of overlap between pre-training model classes

and ZSL test classes. In the next section, we explain

our approach to quantifying the impact of the pre-

train/test overlapping classes issue for ZSL human ac-

tion recognition evaluation.

3 METHODS

We wish to measure whether classes that appear in

both the pre-trained model training set and the ZSL

test sets are obtaining boosted recognition accuracies.

We will focus on the two leading ZSL datasets in

the ﬁeld, UCF101 and HMDB51. Classes in these

two benchmark datasets that overlap with the classes

from the two pre-training datasets (Sports-1M and

Kinetics-400) are the root of our problem. First, we

identify and tag these overlapping classes. An over-

lap is deﬁned as two classes having the same name

(i.e. SkyDiving and Knitting in ZSL dataset UCF101

and pre-training dataset Kinetics-400) or a semanti-

cally similar name (i.e. JumpRope in UCF101 and

Skipping rope in Kinetics-400). For the beneﬁt of

other researchers, we publish these tagged benchmark

datasets

. Having ﬂagged the overlaps, we can now

create ZSL training/test sets, where we can control

the proportions of overlapping classes in our ZSL

test sets, in order to evaluate their impact on ZSL

accuracies. We will test accuracies using the three

pre-trained models for producing visual deep features

shown in Table 1. We also use a fourth baseline non-

deep approach, IDT, which does not involve any pre-

trained models (and therefore no overlapping issue).

https://github.com/kaiqiangh/fairer-eval-zsar

We will measure the ZSL test accuracies of both over-

lapping and non-overlapping classes, for three pre-

trained models and one baseline approach.

3.1 Creating ZSL Training/Test Splits

The next step is to create suitable ZSL training/test

splits for our experiments. The UCF101 dataset has

101 action categories with a total of 13320 videos

collected from YouTube. The HMDB51 dataset con-

tains 51 action categories with 6670 videos in total

collected from commercial videos and YouTube. For

our work, we need to divide our two ZSL datasets

into training and testing splits. In terms of train-

ing/test split size, we note the previous approaches in

ZSL for human action recognition (Wang and Chen,

2017c; Xu et al., 2015): (1) UCF101: 101 classes split

51/50 classes for ZSL training/test respectively. (2)

HMDB51: 51 classes split into 26/25 classes for ZSL

training/test respectively. These previous training/test

splits were created by random selection of classes for

training and test, without any controls of overlapping

classes. We use these dataset split sizes for our work.

As we know which classes in our ZSL datasets are

overlapping with pre-training datasets (shown in Ta-

ble 2), we can now create our own controlled ZSL test

sets consisting of (1) genuinely unseen classes (not

overlapping with pre-trained model - termed ‘true’

unseen classes (TUCs) and (2) problematic overlap-

ping unseen classes (OUCs).

We wish to investigate ZSL accuracies for both

TUCs and OUCs, to determine whether there is a gen-

eral pattern of OUCs achieving higher ZSL accuracies

across the various ZSL techniques. Table 2 shows

the combinations of pre-training datasets and ZSL

datasets that we use in our experiments. Looking at

the ﬁrst row as an example, for models pre-trained on

Kinetics-400 and ZSL dataset UCF101 (which over-

laps on 61 classes), we split UCF101 into class splits

of 51 for ZSL training, and 50 for ZSL testing, as per

previous ZSL split sizes. For our ZSL test set of 50

classes, we use equal proportions of TUCs and OUCs,

using random selection from the pools of overlapping

and non-overlapping classes. The remaining classes

form our ZSL training set.

3.2 Evaluation Metrics

We aim to measure whether overlapping classes

(OUCs) can achieve higher accuracies than non-

overlapping classes (TUCs) in the ZSL test sets. Class

accuracy is a standard metric in the ZSL ﬁeld. We

want to measure accuracies for each of OUC and TUC

separately, so we average per-class accuracies as per

Fairer Evaluation of Zero Shot Action Recognition in Videos

209

Table 2: Our splits and training/testing set for UCF101 and HMDB51.

Index Pre-training Datasets Pre-trained Models

ZSL Datasets

(total classes)

Overlapping

Classes

Non-overlapping

Classes

Training

Testing

(OUC + TUC)

OS1 Kinetics-400

I3D

3D-ResNet

UCF101

(101)

61 40 51 50(25+25)

OS2 Sports-1M C3D

UCF101

(101)

36 65 51 50(25+25)

OS3 Kinetics-400

I3D

3D-ResNet

HMDB51

(51)

28 23 26 25(12+13)

OS4 Sports-1M C3D

HMDB51

(51)

17 34 26 25(12+13)

the following equation (Xian et al., 2017) using TUC

as the example:

ACC

TUC

∑

C=1

# correct predictions in Class C

# instances in Class C

(1)

In addition to comparing absolute differences in

class accuracies, we also want to be able to compare

across ZSL methods and pre-trained models, so we

need a normalised metric. Speciﬁcally, we wish to

quantify the boost or gain in accuracy of overlapping

classes in comparison to true unseen classes. We de-

ﬁne an Overlap Gain metric (OverlapGain), which

measures the difference between OUC and TUC rela-

tive to the average accuracy for the ZSL test set. The

equation is deﬁned as:

OverlapGain =

ACC

OUC

− ACC

TUC

Average(ACC

OUC

, ACC

TUC

))

(2)

A positive OverlapGain value indicates that the

average accuracy for OUC is higher than TUCs, indi-

cating a boost for overlapping classes.

4 EXPERIMENTAL SETUP

In this section, we explain the experimental conﬁgu-

rations for testing combinations of pre-trained models

and ZSL datasets across a variety of ZSL methods.

We also explain the visual and semantic features used

in experiments and the hyper-parameter settings used

in our ZSL implementations.

4.1 Experiments and Baseline

Table 3 shows ﬁve experimental conﬁgurations we

will carry out, based on testing three deep pre-trained

models and the baseline approach, against the two

benchmark ZSL datasets. Overlap class gain results

from deep features (i.e C3D and I3D) will be com-

pared to the IDT baseline. For each of these four

experimental conﬁgurations, we test the leading ZSL

methods described in Section 2. In the ﬁfth experi-

ment conﬁguration, we are reproducing the results for

one speciﬁc ZSL method, BiDiLEL (Wang and Chen,

2017c) as in this work, the actual ZSL training/ test

splits were published with the work, allowing us to

use both their randomly selected ZSL test splits and

compare to our controlled ZSL test splits. This dataset

split information is not available for other ZSL work,

so we will do this comparison for BiDiLEL only. As

per previous work (Wang and Chen, 2017c; Xu et al.,

2017), we use 30 training/test iterations for each eval-

uation.

4.2 Visual and Semantic Embeddings

We adopt the off-the-shelf IDT and C3D provided by

(Wang and Chen, 2017c), and I3D provided by (Man-

dal et al., 2019). Our baseline IDT feature repre-

sentation approach (Wang and Schmid, 2013) con-

tains four different descriptors: HoG, HoF, MBHx

and MBHy. The video representations are generated

by the ﬁsher vector derived from a Gaussian mixture

model with 256 components. To reduce the compu-

tational cost, PCA is applied to reduce dimensions to

3000 for each descriptor, and all descriptors are sim-

ply concatenated to obtain a ﬁnal 12000-dimensional

vector. For C3D (Tran et al., 2015), a video is di-

vided into 16-frames segments and there is an overlap

of eight frames on two consecutive segments. As a re-

sult, the fc6 activation is ﬁrst extracted for all the seg-

ments and then averaged to form a 4096-dimensional

representation for a video. I3D (Carreira and Zis-

serman, 2017) contains RGB and Inﬂated 3D net-

works to generate appearance and ﬂow features from

Mixed 5c layer. For each video instance, the out-

puts from Mixed 5c layer for both networks are av-

eraged through the temporal dimension, pooled in

the spatial dimension and then ﬂattened to obtain a

4096-dimensional vector for appearance and ﬂow fea-

tures, respectively. In the end, both appearance and

ﬂow features are concatenated to represent video with

8192-dimensional vector. 3D-ResNet (Hara et al.,

2018) has been shown to achieve the impressive per-

formance in deeper network style for generic action

recognition, and ResNext-101 model achieved the op-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

210

Table 3: Experimental Conﬁgurations. Att. denotes human-annotated attribute and WV denotes Word2Vec.

Experiments Data Splits Index

Pre-training

Datasets

ZSL

Datasets

Semantics Visual Features ZSL Methods

1 OS1 Kinetics-400 UCF101

Att.

IDT (Baseline)

I3D

3D-ResNet

ConSE

BiDiLEL

LatEm

SynC

ovo

SynC

struct

2 OS2 Sports-1M UCF101

Att.

IDT (Baseline)

C3D

3 OS3 Kinetics-400 HMDB51 WV

IDT (Baseline)

I3D

3D-ResNet

4 OS4 Sports-1M HMDB51 WV

IDT(Baseline)

C3D

OS2

Sports-1M

UCF101

Att.

IDT(Baseline)

C3D

BiDiLEL

OS4 HMDB51 WV

timal results on UCF101 and HMDB51. Each video

is divided into 16 frames as a segment, and each

frame is resized to 112 × 112, resulting in the size of

3channels × 16 f rames × 112pixels × 112pixels with

50% possibility of horizontal ﬂipping for each seg-

ment as input. Next, the processed video is fed into

ResNext-101 model for feature extraction by taking

the output of a 3D global average pooling layer, of

size 2048, as ﬁnal video representation.

For semantic embedding, we use both annotated

attributes and Word2Vec. The UCF101 has 115 bi-

nary attributes, deﬁned and provided by (Liu et al.,

2011). As shown in experimental conﬁgurations 3

and 4, we do not evaluate annotated attributes as se-

mantics for HMDB51 as there are no published at-

tributes sources for this dataset. With regards to

Word2Vec (Mikolov et al., 2013), a skip-gram model

that was trained on a large-scale text corpus (i.e.

Google News Dataset) is used to deliver a 300-

dimensional vector for each action class label for

both UCF101 and HMDB51, provided by (Wang and

Chen, 2017c).

4.3 ZSL Implementation Details

We adopt off-the-shelf implementations for four lead-

ing ZSL methods in our experiments: ConSE

BiDiLEL

, LatEm

and SynC

. In ConSE, the hyper-

parameters of C and T are set to 0.1 and 5, re-

spectively. In BiDiLEL, we do not tune any hyper-

https://github.com/pujols/zero-shot-learning

http://staff.cs.manchester.ac.uk/

∼

kechen/BiDiLEL/

https://www.mpi-inf.mpg.de/departments/

computer-vision-and-machine-learning/

research/zero-shot-learning/

latent-embeddings-for-zero-shot-classiﬁcation

https://github.com/pujols/zero-shot-learning

parameters, but directly use the optimal ones from

the original work. As a consequence, there are three

hyper-parameters α, k

and d

, indicating the trade-

off factor applied to the regularisation for graph con-

struction, the number of nearest neighbours for graph

construction, and the dimensionality of the learned la-

tent space, respectively, and their values are set to 10,

10 and 150 for α, k

and d

, respectively. Next, sim-

ilar hyper-parameter settings for LatEm, the learning

rate for SGD (θ), the number of epoch for SGD and

the number of embeddings to learn (K) are set to 0.1,

150 and 10, respectively. Lastly, for SynC, the bal-

ance coefﬁcient in the objective function to learn the

base classiﬁers (λ) and a factor to model correlation

between a real class and a phantom class by attributes

(σ) are set to 2

−10

and 1, respectively. In addition, all

experiments are conducted in MATLAB.

5 RESULTS AND DISCUSSION

In this section, we present and discuss the experimen-

tal results for the conﬁgurations shown in Table 3.

For each conﬁguration, we measure the difference in

accuracies of overlapping (OUCs) versus true unseen

classes (TUCs) for the pre-trained models in question.

We compare this difference to that of the baseline ap-

proach (IDT).

5.1 Gains to Overlapping Unseen

Classes: Experiments 1 - 4

For all ﬁgures in this section, the X-axis indicates the

ZSL methods evaluated and the Y-axis indicates the

differences of OverlapGain, described in Section 3,

using a pre-trained model over the baseline non-deep

feature i.e. OverlapGain

i3d

− OverlapGain

idt

Fairer Evaluation of Zero Shot Action Recognition in Videos

211

Attributes

ConSE BiDiLEL LatEm SynC(OVO) SynC(struct)

-30

-20

-10

The changes of OverlapGain in % (deep v.s. non-deep)

I3D v.s. IDT

3D-ResNet v.s. IDT

Word2Vec

ConSE BiDiLEL LatEm SynC(OVO) SynC(struct)

-30

-20

-10

The changes of OverlapGain in % (deep v.s. non-deep)

I3D v.s. IDT

3D-ResNet v.s. IDT

Figure 2: Conﬁguration 1: the differences of OverlapGain in % by comparing deep features (I3D, 3D-ResNet) to baseline

non-deep feature (IDT) with regard to the case of UCF101 with Kinetics-400. Left and right ﬁgures shows the results for

Attributes and Word2Vec semantic embeddings approaches, respectively.

Fig.2 shows the results for experimental conﬁg-

uration 1 - the increase in the differences in Over-

lapGain for deep features against the baseline non-

deep feature (IDT) where we treat UCF101 as ZSL

dataset and models pre-trained on Kinetics-400 (I3D

and 3D-ResNet). Looking at the conﬁguration on

the left-hand side that uses the attributes as seman-

tic space, the gains over the baseline range for the

pre-trained deep models range from just over 10%

(ConSE for 3D-ResNet) to just over 50% for SynC

for 3D-ResNet). When using Word2Vec as shown on

the right-hand graph, all pre-trained models have a

positive gain for overlapping classes, in comparison

to the non-deep baseline, with the exception of the

ConSE method. Speciﬁcally, for the performances

of using attributes, the boosts of 18.52%, 27.30%,

38.93%, 51.21% and 35.48% are gained when eval-

uating on deep features against non-deep feature for

ConSE, BiDiLEL, LatEm, SynC

ovo

and SynC

struct

, re-

spectively. Additionally, for the performances of us-

ing Word2Vec, ConSE obtains a decrease of -11.94%,

but other methods still gain the boosts of 23.87%,

24.55%, 39.21% and 26.36%. As can be seen,

attribute-based semantic spaces show a stronger boost

to overlapping classes accuracies than Word2Vec. We

suggest that human-annotated attributes are better for

transferring semantic knowledge than Word2Vec in

ZSL for human action recognition as attributes are

fully supervised by human experts but Word2Vec is

produced in an unsupervised way.

Fig.3 shows the results for experimental conﬁg-

uration 2, where pre-trained model C3D is used for

generating deep visual representations, pre-trained on

the Sports-1M dataset. For the ZSL methods of

ConSE, BiDiLEL, LatEm, SynC

ovo

and SynC

struct

the boost to overlapping class is higher than the

baseline IDT by 51.94%, 28.36%, 32.26%, 27.72%

and 17.84% when using attribute, and by 24.46%,

10.14%, 11.75%, 14.57% and 15.19% when using

C3D v.s. IDT

ConSE BiDiLEL LatEm SynC(OVO) SynC(struct)

The changes of OverlapGain in % (deep v.s. non-deep)

Attributes

Word2Vec

Figure 3: Conﬁguration 2: the differences of OverlapGain

in % regarding the case of UCF101 with Sports-1M, for

pre-trained model C3D against baseline IDT along with at-

tribute and Word2Vec as semantic embedding.

The case of HMDB51 with Kinetics-400

ConSE BiDiLEL LatEm SynC(OVO) SynC(struct)

-35

-30

-25

-20

-15

-10

-5

The changes of OverlapGain in % (deep v.s. non-deep)

I3D v.s. IDT

3D-ResNet v.s. IDT

Figure 4: Conﬁguration 3: the differences of OverlapGain

in % regarding the case of HMDB51 with Kinetics-400.

Word2Vec. Similar to experiment 1, the boost to over-

lap class accuracies is higher for attribute-based se-

mantic spaces than Word2Vec.

Fig.4 shows the results for experimental conﬁg-

uration 3. For ZSL dataset HMDB51 with Kinetics-

400 for pre-training, only the BiDiLEL method shows

a gain for overlapped classes against non-lapped over

the baseline. From the perspective of ZSL meth-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

212

The case of HMDB51 with Sports-1M

ConSE BiDiLEL LatEm SynC(OVO) SynC(struct)

The changes of OverlapGain in % (deep v.s. non-deep)

C3D v.s. IDT

Figure 5: Conﬁguration 4: the differences of OverlapGain

in % regarding the case of HMDB51 with Sports-1M.

ods, only BiDiLEL aims to project both visual and

semantic embeddings to a low-dimensional latent

embedding, but other methods aim to project vi-

sual to semantic embeddings (i.e. ConSE, SynC)

or directly learn compatibility between embeddings

(i.e. LatEm). We suggest that the inﬂuences by

OUCs could be alleviated when predicting ZSL test

classes in a low-dimensional space. Based on the

observations in experiment 3, we ﬁnd that it does

not fully support our hypothesis. The differences

of OverlapGain from deep to non-deep features

are slightly negative for most ZSL methods, and

clearly negative for ConSE, indicating that overlap-

ping classes are not gaining any advantage over true

unseen classes when using I3D and 3D-ResNet in this

case. We note that the videos in the ZSL dataset

HMDB51 and the Kinetics-400 are noisy, in com-

parison to the UCF101 and Sports-1M datasets. In

HMDB51, the instances have non-clean backgrounds

and videos contain multiple actors. Since this par-

ticular combination of ZSL dataset and pre-trained

dataset does not exhibit a ZSL gain from having a

sneak preview of unseen test classes, the results sug-

gest there is insufﬁcient overlap in a Kinetics-400

class video to the equivalent video class in HMDB51

to provide a boost.

Fig.5 shows the results for experimental conﬁg-

uration 4. For ZSL datasets HMDB51 with pre-

training dataset Sports-1M, overlapping classes gain

from 5.75% up to 10.36% across all ZSL methods us-

ing C3D against baseline IDT. To summarise, three

of our four experimental conﬁgurations demonstrate

a strong gain for overlapping classes, with the excep-

tion of some ZSL methods in conﬁguration 3 (Kinet-

ics400 pre-training and HMDB51 ZSL test).

Table 4: Conﬁguration 5: the comparison between previ-

ous splits and our splits for both UCF101 and HMDB51

when evaluating BiDiLEL. The results report average per-

class accuracy in %. Note that, Att. denotes attribute and

WV denotes Word2Vec.

Splits Vis. Rep.

UCF101 HMDB51

Att. WV WV

PS IDT 16.6 15.4 16.4

OS IDT 16.5 15.1 16.0

PS C3D 20.5 18.9 18.6

OS C3D 22.8 19.6 20.6

5.2 Comparison to Previous Work:

Experiment 5

In experimental conﬁguration 5, we examine the im-

pact of using equal split overlapping versus non-

overlapping classes in our ZSL test set - versus re-

sults gained by using previous ZSL training/test in

the ﬁeld. We analysed the splits used previously by

(Wang and Chen, 2017c; Xu et al., 2015) as previ-

ous splits (PS). In their work, We determined that the

number of classes for OUC and TUC occupy 35.4%

and 64.5% respectively in UCF101, and 32.67% and

67.33% in HMDB51. In our splits (OS), we have

UCF101 (50%/50%), and 48% OUC and 52% TUC in

HMDB51 - the latter mismatch is due to the number

of testing classes being odd. The key point is that the

previous splits from published works have a higher

proportion of TUCs than ours, and thus we expect

that ZSL class accuracies will be higher as a result of

using more overlapping classes in our ZSL test sets.

Table 4 shows the results as the mean of per-class av-

erage accuracies when using deep feature (C3D) and

non-deep feature (IDT) along with different semantic

representations under previous splits and our splits for

both ZSL datasets.

As can be seen in Table 4, there is no signiﬁcant

difference between previous splits and our splits in

UCF101 when we use the baseline IDT for visual rep-

resentation. This is as expected as the concept of over-

lapping classes is not relevant here. In contrast, when

using pre-trained model C3D, ZSL accuracies are

higher using our splits than previous research splits,

showing an accuracy increases of 11.22% and 3.70%

for evaluating attributes and Word2Vec in UCF101,

respectively, along with the 14.6% rise of the number

of OUCs in our testing sets against previous splits.

Similarly for HMDB51, no signiﬁcant difference

is found between previous splits and our splits when

using IDT as expected. When using C3D pre-trained

Fairer Evaluation of Zero Shot Action Recognition in Videos

213

model, there is 10.75% boost gained for Word2Vec

with the 15.33% rise of the number of OUCs in

our testing sets from HMDB51 compared to previ-

ous splits. Summarising the results from experimen-

tal conﬁguration 5, the greater the proportion of over-

lapping classes, the higher the ZSL class accuracies

obtained, supporting the case that overlapping classes

between pre-training and ZSL test sets are distorting

ZSL results.

All our discussions so far have focused on the

overlapping of ZSL test classes and pre-trained

datasets as an issue. And indeed, the lack of al-

lowance for this in evaluation results is an issue due

to the unrecognised inﬂation of zero-shot capabilities.

A counter-intuitive point to consider is that better ac-

curacies for ’unseen’ overlapping classes may high-

light opportunities. If we can boost accuracies via the

embedded knowledge in our pre-trained model, we

can consciously factor suitable knowledge-rich pre-

trained models into ZSL frameworks in order to pro-

vide a stronger basis for supporting the zero-shot case.

6 CONCLUSION

We have examined the extent and evaluation impact

of zero-shot ’unseen’ classes appearing in underlying

pre-trained models for feature representation in ZSL

human action recognition. Our work covered four

leading ZSL techniques for the two benchmark ZSL

datasets in the ﬁeld: UCF101 and HMDB51. Three

widely used pre-trained models were tested: C3D,

I3D and 3D-ResNet. From the overall perspective,

our results showed a gain to overlapping classes for

the UCF101 dataset from 17.84% up to 51.94% by

using attribute, and a gain from 10.14% up to 39.21%

by using Word2Vec. Also, we note a less conclusive

pattern for HMDB51 with lower gains for the overlap-

ping classes in the case of HMDB51 with Sports-1M

(the gains from 5.75% up to 10.36%). For HMDB51

with Kinetics-400, some ZSL methods showed no

overlap gain, which may be linked to the noisy and

complex natures of the instances. We publish the

tagged version of the two benchmark ZSL datasets

for use by researchers in the ﬁeld who wish to avoid

breaking the premise of ZSL.

As future work, we aim to focus on the task of

generalised zero-shot learning (GZSL), which pro-

vides an additional challenging of including both seen

and unseen classes in the ZSL test stage - a chal-

lenging problem of predictions biased towards seen

classes. We also highlight an alternative view of the

work here - the choice of suitable pre-trained models

could support the planned boosting of zero-shot ac-

curacies if carried out in a transparent and deliberate

way.

ACKNOWLEDGEMENTS

This project is funded under the Fiosraigh Scholarship

of Technological University Dublin.

REFERENCES

Akata, Z., Perronnin, F., Harchaoui, Z., and Schmid, C.

(2013). Label-embedding for attribute-based classi-

ﬁcation. In Proceedings of CVPR, pages 819–826.

Akata, Z., Perronnin, F., Harchaoui, Z., and Schmid, C.

(2015). Label-embedding for image classiﬁcation.

IEEE transactions on pattern analysis and machine

intelligence, 38(7):1425–1438.

Brattoli, B., Tighe, J., Zhdanov, F., Perona, P., and

Chalupka, K. (2020). Rethinking zero-shot video clas-

siﬁcation: End-to-end training for realistic applica-

tions. In Proceedings of IEEE CVPR, pages 4613–

4623.

Carreira, J. and Zisserman, A. (2017). Quo vadis, action

recognition? a new model and the kinetics dataset.

In proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 6299–6308.

Changpinyo, S., Chao, W.-L., Gong, B., and Sha, F. (2016).

Synthesized classiﬁers for zero-shot learning. In Pro-

ceedings of CVPR, pages 5327–5336.

Feichtenhofer, C., Pinz, A., and Zisserman, A. (2016). Con-

volutional two-stream network fusion for video action

recognition. In Proceedings of CVPR, pages 1933–

1941.

Frome, A., Corrado, G. S., Shlens, J., Bengio, S., Dean, J.,

Ranzato, M., and Mikolov, T. (2013). Devise: A deep

visual-semantic embedding model. In Advances in

neural information processing systems, pages 2121–

2129.

Gan, C., Lin, M., Yang, Y., Zhuang, Y., and Hauptmann,

A. G. (2015). Exploring semantic inter-class relation-

ships (sir) for zero-shot action recognition. In Pro-

ceedings of the National Conference on Artiﬁcial In-

telligence.

Gao, J., Zhang, T., and Xu, C. (2019). I know the relation-

ships: Zero-shot action recognition via two-stream

graph convolutional networks and knowledge graphs.

In Proceedings of the AAAI, volume 33, pages 8303–

8311.

Guadarrama, S., Krishnamoorthy, N., Malkarnenkar, G.,

Venugopalan, S., Mooney, R., Darrell, T., and Saenko,

K. (2013). Youtube2text: Recognizing and describ-

ing arbitrary activities using semantic hierarchies and

zero-shot recognition. In Proceedings of the IEEE

ICCV, pages 2712–2719.

Hara, K., Kataoka, H., and Satoh, Y. (2018). Can spatiotem-

poral 3d cnns retrace the history of 2d cnns and ima-

genet? In Proceedings of CVPR, pages 6546–6555.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

214

Jain, M., van Gemert, J. C., Mensink, T., and Snoek, C. G.

(2015). Objects2action: Classifying and localizing ac-

tions without any video example. In Proceedings of

the IEEE ICCV, pages 4588–4596.

Junior, V. L. E., Pedrini, H., and Menotti, D. (2019). Zero-

shot action recognition in videos: A survey. arXiv

preprint arXiv:1909.06423.

Karpathy, A., Toderici, G., Shetty, S., Leung, T., Suk-

thankar, R., and Fei-Fei, L. (2014). Large-scale video

classiﬁcation with convolutional neural networks. In

Proceedings of IEEE CVPR, pages 1725–1732.

Kuehne, H., Jhuang, H., Garrote, E., Poggio, T., and Serre,

T. (2011). Hmdb: a large video database for hu-

man motion recognition. In ICCV, pages 2556–2563.

IEEE.

Liu, H., Yao, L., Zheng, Q., Luo, M., Zhao, H., and Lyu, Y.

(2020). Dual-stream generative adversarial networks

for distributionally robust zero-shot learning. Infor-

mation Sciences, 519:407–422.

Liu, J., Kuipers, B., and Savarese, S. (2011). Recognizing

human actions by attributes. In CVPR 2011, pages

3337–3344. IEEE.

Liu, K., Liu, W., Ma, H., Huang, W., and Dong, X. (2019).

Generalized zero-shot learning for action recognition

with web-scale video data. WWW, 22(2):807–824.

Mandal, D., Narayan, S., Dwivedi, S. K., Gupta, V.,

Ahmed, S., Khan, F. S., and Shao, L. (2019). Out-of-

distribution detection for generalized zero-shot action

recognition. In Proceedings of CVPR, pages 9985–

9993.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013). Distributed representations of words

and phrases and their compositionality. In Advances in

neural information processing systems, pages 3111–

3119.

Mishra, A., Pandey, A., and Murthy, H. A. (2020). Zero-

shot learning for action recognition using synthesized

features. Neurocomputing.

Mishra, A., Verma, V. K., Reddy, M. S. K., Arulkumar, S.,

Rai, P., and Mittal, A. (2018). A generative approach

to zero-shot and few-shot action recognition. In 2018

IEEE Winter Conference on WACV, pages 372–380.

IEEE.

Narayan, S., Gupta, A., Khan, F. S., Snoek, C. G., and

Shao, L. (2020). Latent embedding feedback and dis-

criminative features for zero-shot classiﬁcation. arXiv

preprint arXiv:2003.07833.

Norouzi, M., Mikolov, T., Bengio, S., Singer, Y., Shlens,

J., Frome, A., Corrado, G. S., and Dean, J. (2013).

Zero-shot learning by convex combination of seman-

tic embeddings. arXiv preprint arXiv:1312.5650.

Palatucci, M., Pomerleau, D., Hinton, G. E., and Mitchell,

T. M. (2009). Zero-shot learning with semantic output

codes. In Advances in NIPS, pages 1410–1418.

Piergiovanni, A. and Ryoo, M. S. (2018). Learning shared

multimodal embeddings with unpaired data. CoRR.

Qin, J., Liu, L., Shao, L., Shen, F., Ni, B., Chen, J., and

Wang, Y. (2017). Zero-shot action recognition with

error-correcting output codes. In Proceedings of the

IEEE Conference on CVPR, pages 2833–2842.

Roitberg, A., Martinez, M., Haurilet, M., and Stiefelhagen,

R. (2018). Towards a fair evaluation of zero-shot ac-

tion recognition using external data. In ECCV, pages

0–0.

Simonyan, K. and Zisserman, A. (2014). Two-stream con-

volutional networks for action recognition in videos.

In Advances in NIPS, pages 568–576.

Soomro, K., Zamir, A. R., and Shah, M. (2012). Ucf101:

A dataset of 101 human actions classes from videos in

the wild. arXiv preprint arXiv:1212.0402.

Tian, Y., Kong, Y., Ruan, Q., An, G., and Fu, Y. (2019).

Aligned dynamic-preserving embedding for zero-shot

action recognition. IEEE Transactions on Circuits and

Systems for Video Technology.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., and Paluri,

M. (2015). Learning spatiotemporal features with 3d

convolutional networks. In ICCV, pages 4489–4497.

Wang, H. and Schmid, C. (2013). Action recognition with

improved trajectories. In Proceedings of IEEE ICCV,

pages 3551–3558.

Wang, Q. and Chen, K. (2017a). Alternative semantic rep-

resentations for zero-shot human action recognition.

In Joint European Conference on Machine Learning

and Knowledge Discovery in Databases, pages 87–

102. Springer.

Wang, Q. and Chen, K. (2017b). Multi-label zero-shot

human action recognition via joint latent embedding.

arXiv preprint arXiv:1709.05107.

Wang, Q. and Chen, K. (2017c). Zero-shot visual recog-

nition via bidirectional latent embedding. IJCV,

124(3):356–383.

Xian, Y., Akata, Z., Sharma, G., Nguyen, Q., Hein, M., and

Schiele, B. (2016). Latent embeddings for zero-shot

classiﬁcation. In Proceedings of CVPR, pages 69–77.

Xian, Y., Schiele, B., and Akata, Z. (2017). Zero-shot

learning-the good, the bad and the ugly. In Proceed-

ings of the IEEE Conference on CVPR, pages 4582–

4591.

Xu, X., Hospedales, T., and Gong, S. (2015). Semantic

embedding space for zero-shot action recognition. In

2015 IEEE ICIP, pages 63–67. IEEE.

Xu, X., Hospedales, T., and Gong, S. (2017). Transductive

zero-shot action recognition by word-vector embed-

ding. IJCV, 123(3):309–333.

Xu, X., Hospedales, T. M., and Gong, S. (2016). Multi-

task zero-shot action recognition with prioritised data

augmentation. In ECCV, pages 343–359. Springer.

Zhang, B., Hu, H., and Sha, F. (2018). Cross-modal and hi-

erarchical modeling of video and text. In Proceedings

of ECCV, pages 374–390.

Zhang, C. and Peng, Y. (2018). Visual data synthesis via

gan for zero-shot video classiﬁcation. arXiv preprint

arXiv:1804.10073.

Zhang, Z. and Saligrama, V. (2016). Zero-shot learning via

joint latent similarity embedding. In proceedings of

CVPR, pages 6034–6042.

Zhu, Y., Long, Y., Guan, Y., Newsam, S., and Shao, L.

(2018). Towards universal representation for unseen

action recognition. In Proceedings of CVPR, pages

9436–9445.

Fairer Evaluation of Zero Shot Action Recognition in Videos

215
