Procam Calibration from a Single Pose of a Planar Target

Ghani O. Lawal and Michael Greenspan

Dept. Electrical and Computer Engineering, Ingenuity Labs, Queen’s University, Kingston, Ontario, Canada

Keywords:

Procam, Calibration, Optimization, Stereovision, Homography.

Abstract:

A novel user friendly method is proposed for calibrating a procam system from a single pose of a planar

chessboard target. The user simply needs to orient the chessboard in a single appropriate pose. A sequence

of Gray Code patterns are projected onto the chessboard, which allows correspondences between the camera,

projector and chessboard to be automatically extracted. These correspondences are fed as input to a nonlinear

optimization method that models the projection of the principle points onto the chessboard, and accurately

calculates the intrinsic and extrinsic parameters of both the camera and the project, as well as the camera’s

distortion coefﬁcients. The method is experimentally validated on a real procam system, which is shown to be

comparable in accuracy with existing multi-pose approaches. The impact of the orientation of the chessboard

with respect to the procam imaging places is also explored through extensive simulations.

1 INTRODUCTION

Projector camera (procam) systems are an effective

approach for implementing range sensing and inter-

acting with a 3D environment. For static scenes, the

procam system can be used as an inexpensive 3D

scanner (Moreno and Taubin, 2012). They can also

be used in dynamic settings where the camera cap-

tures information about the environment in real time

and the projector displays any visual content that the

user provides. This allows the system to implement

Spatial Augmented Reality (SAR) (Audet and Oku-

tomi, 2009). This type of projection-based augmented

reality (AR) enables the user to interact with the en-

vironment naturally without the requirement to have

devices attached to their bodies as in head mounted

or handheld AR (Yang et al., 2016). Shader lamps,

smart projectors and augmented paintings on non-

planar surfaces are a few of the speciﬁc applications

of SAR achieved through procam systems (Bimber

and Raskar, 2005).

Prior to use, the intrinsic and extrinsic parame-

ters of the procam system must be acquired, which

is a process referred to as calibration. Projectors are

similar to cameras with respect to their system geom-

etry, except that they emit light rather than absorb-

ing it, which allows many techniques developed for

camera calibration to be adapted for calibrating a pro-

jector, provided that methods such as structured light

are able to obtain camera-projector pixel correspon-

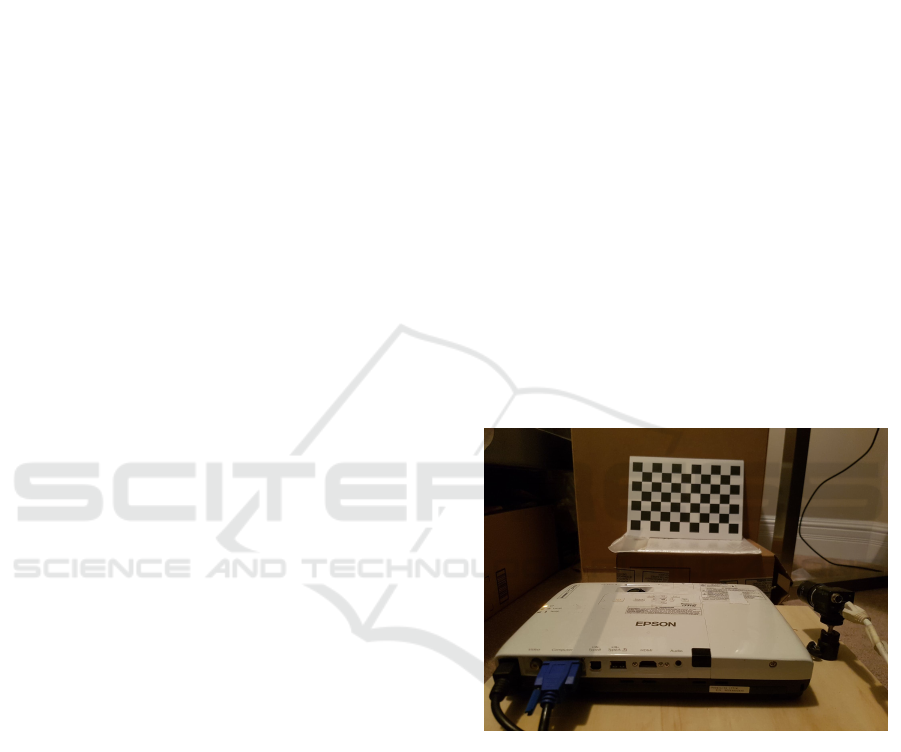

Figure 1: Procam system setup. The projector (white) and

the camera (black) are placed in front of the chessboard tar-

get.

dences. This work makes use of Gray code patterns to

accomplish this task (Salvi et al., 2004). Through the

use of structured light, the difﬁculty in establishing

camera-projector pixel correspondences is largely al-

leviated and becomes computationally trivial, unlike

passive camera-camera stereovision systems. How-

ever the issue remains that to calibrate a procam sys-

tem, 3D correspondences need to be established either

by moving a planar target to multiple poses, or by

making use of a 3D calibration target that possesses

speciﬁc shape and detail requirements.

This work proposes a user friendly method for

calibrating a procam system from a single pose of

Lawal, G. and Greenspan, M.

Procam Calibration from a Single Pose of a Planar Target.

DOI: 10.5220/0010327708170827

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

817-827

ISBN: 978-989-758-488-6

817

a planar chessboard pattern of known dimensions as

shown in Figure 1. Camera-chessboard and projector-

chessboard homographies are established with cam-

era and chessboard after the camera and projector

correspondences have been identiﬁed. Using their

respective homographic relationship with the chess-

board both the camera and projector project their prin-

cipal points onto it thereby establishing a deﬁnition

for their respective principal axis. Once their princi-

pal axis are deﬁned their respective projection param-

eters are optimized using the Levenberg-Marquardt

algorithm. Once the projection relationship the chess-

board has with the camera and projector is calculated

it is trivial to compute the extrinsic parameters that re-

late the camera location to the projector location. The

user does not need to move any object or require any

special purpose or expensive equipment.

The accuracy of the recovered parameters from

this method are comparable to those derived from

mainstream techniques, all of which require multi-

ple repositioning of a calibration target. To our best

knowledge, this is the ﬁrst example of procam cali-

bration from a single pose of a planar target, which is

the main contribution of this paper.

A second contribution is the implementation of a

PnP-based technique for determining the precision of

a group of calibration parameters. This was included

to enhance the reprojection error metric, which may

not necessarily indicate how stable the ﬁnal parame-

ters are when used to determine arbitrary 3D points in

space. The beneﬁt of this technique is revealed from

the experimental results, which characterize the accu-

racy of the method and demonstrates that it compares

favorably with other more standard approaches.

2 BACKGROUND

There are many types of procam calibration methods,

all of which require one or more of the following;

• Images of a 2D target in several poses;

• A pre-calibrated camera;

• A precise electro-mechanical actuator, or;

• A 3D object that satisﬁes speciﬁc shape and detail

constraints.

Each of these requirements increases complexity and

therefore decreases accessibility for the user, espe-

cially outside of a lab environment, as well as increas-

ing potential sources of error.

Methods based on Zhang’s ﬂexible calibration ap-

proach (Zhang, 2000) are the most common, due to

its effectiveness and popularity for camera calibra-

tion. The main difference between such methods are

the structured light technique used to acquire pro-

jector correspondences, and the patterns used on the

2D planar target, which tend to be chessboard cor-

ners (Zhang and S. Huang, 2006)(Huang et al., 2018),

circles (Zhongwei Li, 2008)(Huang et al., 2015) or

sometimes QR codes (Audet and Okutomi, 2009) and

random dot patterns (Yang et al., 2016). Whichever

structured light technique or 2D planar target pattern

is used, this type of calibration requires at least three

poses of the 2D target plane to be imaged by the

procam system (Zhang, 2000). It is an exacting and

time consuming task to orient a planar target in mul-

tiple unique positions, while ensuring that it remains

prominently in the ﬁelds of view of both the camera

and the projector.

A method called visual servoing can be used to

calibrate a projector given a pre-calibrated camera.

The projector is to project a chessboard onto a physi-

cal one such that the corners of the physical and pro-

jected chessboard align (Berry et al., 2013). This is

done my modelling the projector as a virtual camera

whose pose can be altered and is viewing the chess-

board though the actual projector remains in the same

position throughout the calibration process. Using

control theory the virtual camera is moved so that it

is in the same pose as the projector that it is mod-

elling, once the virtual camera and projector occupy

the same position the projected chessboard will align

with the physical one (Chaumette and Hutchinson,

2006) (Mosnier et al., 2009). Despite the camera

(which is effectively half of the procam system) be-

ing precalibrated, at least 10 distinct poses of a chess-

board are needed to calibrate the projector intrinsic

and the extrinsic parameters. This therefore has the

same drawbacks as Zhang’s method applied to pro-

cam calibration.

It is possible to calibrate a procam system if the

position of a planar target can be precisely controlled.

This allows Tsai’s camera calibration method (Tsai,

1987) to be repurposed for procam calibration. In

Tai’s method, calibration can be achieved with only

two poses of a planar target, under the condition that

these poses are related by a pure translation, and that

the accurate translation value is known (Chen et al.,

2009) (Zhang, 2000). This can only be done if one has

access to a programmable actuator, which severely

limits the accessibility of this method.

Through the decomposition of a radial fundamen-

tal matrix and utilizing Bougnoux’s equations, it is

possible to simultaneously calibrate the projector and

camera (Li et al., 2017). Methods based on the afore-

mentioned matrix and equations only require a 3D

(i.e. non-planar) object imaged in a single pose to

complete the calibration process (Yamazaki et al.,

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

818

2011). However, for the values to be known to a

global scale, the dimensions of the object must be

known, and because it is based on a fundamental ma-

trix, the object has shape and detail requirements that

must be met for the results to be stable, including that

it should not be rotational or translation invariant and

provide enough geometric variation to facilitate suc-

cessful optimization (Resch et al., 2015).

3 METHOD

The proposed method makes use of an error metric

based upon mapping a set of known 2D coordinates

on a planar chessboard pattern onto each of the cam-

era and projector planes. This linear mapping com-

prises the respective homographies between the two

pairs of planes (i.e. chessboard to camera, and chess-

board to projector) as well as the projection matrices

formed by the camera and projector intrinsic and ex-

trinsic parameters. In the case of the camera, a non-

linear transformation of the image is also applied, to

correct for radial distortions.

The error metric is used to drive a non-linear opti-

mization process over a set of parameters that model

the projections. The optimization is done separately

for each of the camera and the projector, and its suc-

cessful convergence is reasonably robust to the selec-

tion of initial values. Upon convergence, the resulting

optimized parameters convert directly to establish the

intrinsic and extrinsic parameters of the camera and

projector, the accuracy of which is then independently

evaluated with a separate test.

3.1 Model and Notation

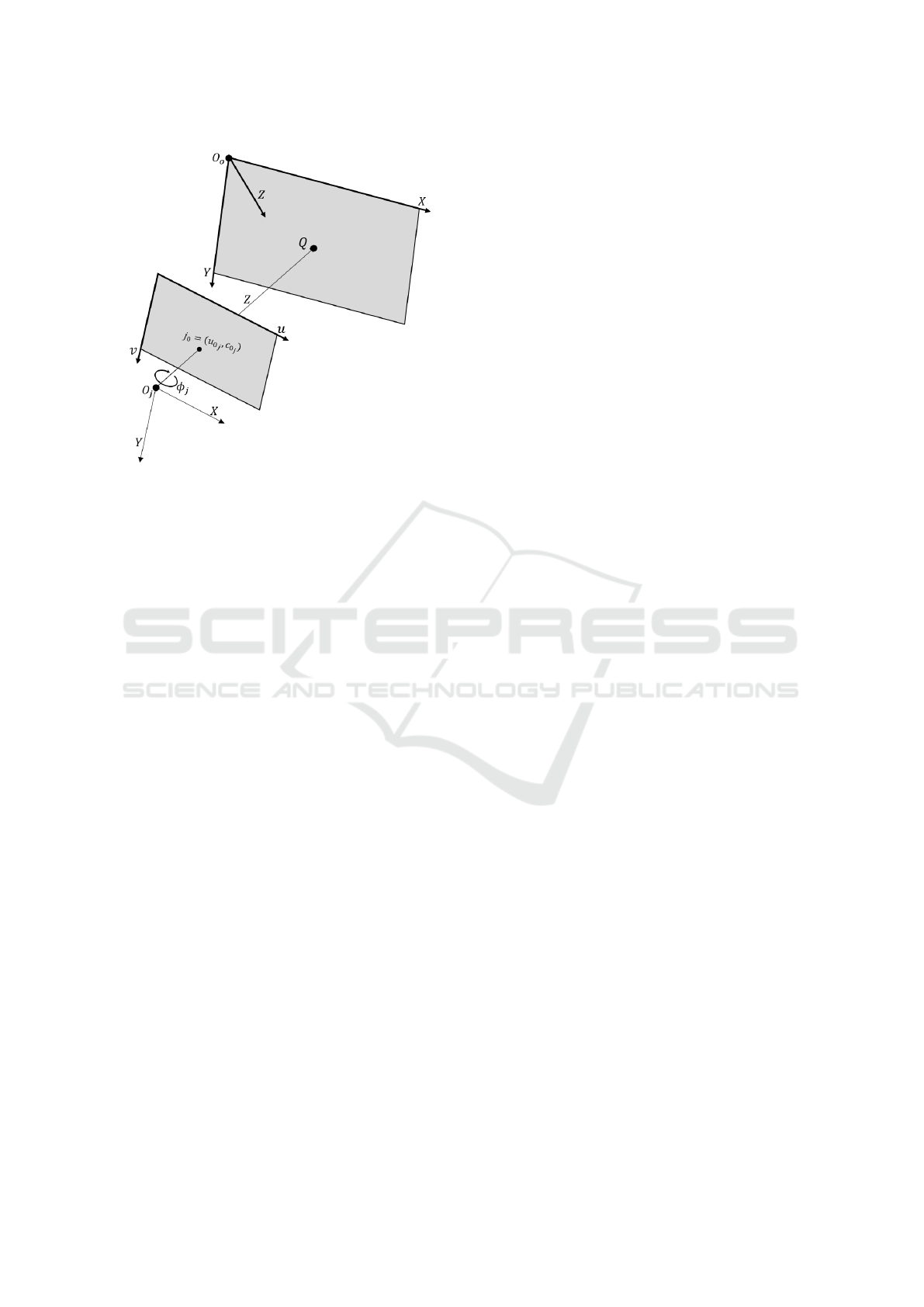

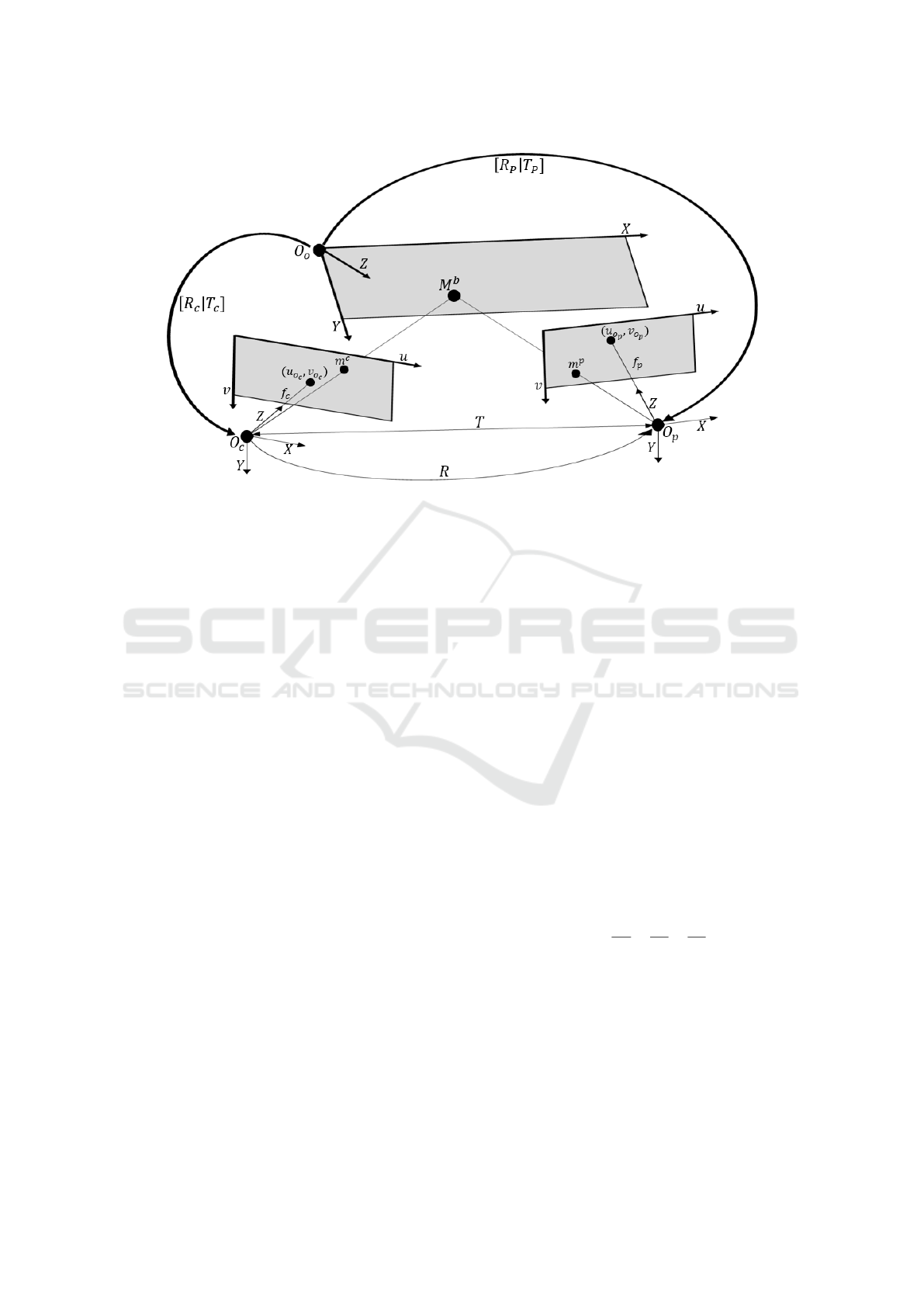

The pinhole model is used to describe the camera and

projector (Hartley and Zisserman, 2003) as shown in

Figure 2 , with respective intrinsic matrices K

and K

deﬁned as:





0 u

0 α

0 0 1





, K





0 u

0 α

0 0 1





(1)

Here, f

and f

represent the camera and projector fo-

cal lengths , and [u

]

and [u

]

are their

respective principal points. The aspect ratio between

the camera’s u- and v-axes is denoted α

. The pro-

jector’s aspect ratio is assumed to be unity, due to

the high uniformity of commercial projectors, and so

= 1 and this term is excluded from further consid-

eration. Camera lenses can exhibit signiﬁcant radial

distortion (Hartley and Kang, 2007), which can be es-

timated and corrected using the two parameter divi-

sion model (Huang et al., 2020) that was introduced

by Fitzgibbon (Fitzgibbon, 2001). Alternately, pro-

jector lenses tend to be high quality and considered to

possess relatively negligible amounts of radial distor-

tion (Drar

eni et al., 2011), and so we do not include

projector radial distortion in our calibration model.

Let m

= [u

]

and ˆm

= [ ˆu

ˆv

]

represent cor-

responding undistorted and distorted 2D points in the

camera image plane. The division model transforms

ˆm

to m

through the following:











= u

ˆu

− u

1 + k

+ k

= v

ˆv

− v

1 + k

+ k

(2)

where k

and k

are the free parameters that need to

be estimated, and r is the Euclidean distance between

the principal point and the distorted point.

The intrinsic matrices of the camera and projector

allow 3D points deﬁned in their respective coordinate

systems to be transformed to their respective image

planes as follows:

= K

(3)

where m

= [u

]

are 2D points on the camera ( j =

c) or projector ( j = p) plane, and M

= [x

]

are 3D points deﬁned in their corresponding coordi-

nate reference systems as shown in Figure 2. Points

on the planar chessboard calibration target are deﬁned

in the chessboard coordinate frame, but are not a pri-

ori deﬁned in either the camera or projector coordi-

nate frames. To map these points from the chessboard

frame to the camera or projector frames, the rotation

and translation values between the chessboard and

pinhole devices need to be determined. Let [R

]

and [R

] represent the rotation and translation of

the chessboard in the camera and projector frames re-

spectively, with the rotation matrices parameterized

by the XYZ-Euler angles (ψ

,ν

,φ

) and (ψ

,ν

,φ

Multiplying the rotation and translation matrices by

the corresponding intrinsic matrix allows for points

deﬁned in the chessboard coordinate system to be pro-

jected onto the camera and projector image planes:

= K

(4)

where M

= [x

]

is a 3D point on the chess-

board plane described in the chessboard frame as

shown in Figure 2.

The chessboard by construction lies on the x

-y

plane, and so M

= [x

. Let m

= [x

]

rep-

resent a 2D coordinate on the chessboard plane such

that M

= [m

. The metric dimension of the

Procam Calibration from a Single Pose of a Planar Target

819

Figure 2: Procam System Model.

chessboard is known, and its N corner coordinate val-

ues are stored as {m

}

i=1

. The value of any m

then related to the corresponding 2D m

and m

points

through a pair of 2D homographies:

= H

(5)

Two sets of six parameters, denoted by θ

for the

camera and θ

for the projector, need to be deter-

mined to fully calibrate the procam system:







= { f

,α

,φ

}

= { f

,φ

}

(6)

Here, O

= [x

]

, φ

, and O

= [x

]

, denote the center of projection and the rotation

about the principal axis of the camera and projector

respectively.

3.2 Camera Calibration

The radial distortion present in the camera lens must

ﬁrst be calculated before θ

can be optimized. This

is accomplished by ﬁrst extracting the epipole from

the fundamental matrix between ˆm

and m

, which is

known as the fundamental matrix of radial distortion

for which the epipole is equivalent to the center of

distortion (Hartley and Kang, 2007). The center of

distortion extracted from this technique is used as the

principal point for the camera. Next, the distortion

coefﬁcients k

and k

are computed using the one-shot

method of (Huang et al., 2020), which is based on the

assumption that the homography between the b

and

is proportional to the mapping between ˆm

and m

Once k

and k

are calculated the undistorted camera

image points m

can be recovered using Eq. 2.

Having calculated and corrected the camera radial

distortion, the ﬁrst step in optimizing θ

is to deﬁne

the principal axis of the camera. First the homogra-

phy H

between the camera and chessboard is calcu-

lated from Eq. 5 using the known m

and the extracted

and undistorted m

. Homography H

is then used to

project the camera frame principal point [u

]

onto the chessboard plane. Let C

be the 3D loca-

tion of [u

]

projected onto the chessboard, ex-

pressed in the chessboard coordinate frame. By def-

inition the principal axis is the z-axis

Z, which origi-

nates at the origin of the camera reference frame, and

intersects with the image plane at point [u

]

and

at the chessboard at point C

as shown in Figure 3. A

rotation matrix A is formed by the following:











Z = C

− O

Y =

Z × [1 0 0]

X =

Y ×

(7)

A =



Y |



(8)

The directions of the x- and y-axes are controlled by

, which rotates them about the z-axis, creating a new

rotation matrix A

= AR

(φ

). Next, A

and O

are

then used to calculate the extrinsic values between the

chessboard and the camera:

= A

, T

= −A

× O

(9)

The location of C

is constant throughout the en-

tire optimization process, therefore the camera is al-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

820

Figure 3: Formation of Principal Axis. For the camera, j =

c and Q = C

. For the projector, j = p and Q = P

ways pointed towards the same location on the chess-

board plane. Thus, as the value of x

changes the the

camera is rotated about its y axis and as the value of y

changes the camera is rotated about its x axis. There

is no need to include ψ

and ν

, the rotations about

the camera’s x and y axis respectively, in θ

The corners of the chessboard are then projected

onto the camera image plane using Eq. 3 with each

replaced by m

(θ

). The absolute difference be-

tween the undistorted camera image points m

and

the transformed image points m

(θ

) is the error met-

ric used to optimize θ

, by applying the Levenberg-

Marquardt algorithm to minimize the following cost

function with respect to θ

∗

= argmin

∑

i=1

||m

− m

(θ

)||

(10)

3.3 Projector Calibration

As with the camera, the principal axis of the projector

must be deﬁned to optimize θ

. Homography H

then used to project [u

]

onto the chessboard

plane, so that P

is the 3D point of intersection of the

projector optical axis and the chessboard plane, ex-

pressed in the chessboard coordinate system as shown

in Figure 3. u

will always be equal to half the width

of the projector image plane. As before with the cam-

era, and analogous to Eq. 9, a rotation matrix A matrix

is formed using Eq. 11, albeit with φ

replaced by φ

Here, the directions of the x- and y-axes are con-

trolled by φ

, which rotates them about the z-axis, cre-

ating a new rotation matrix A

= AR

(ψ). The A

and

values are then used to calculate the extrinsic pa-

rameters between the chessboard and camera:

= A

, T

= −A

× O

(11)

The location of P

is conﬁned to a line segment on

the chessboard plane throughout the entire optimiza-

tion process. Thus, as the value of x

changes the the

projector is rotated about its y axis and as the values

of v

and y

change the projector is rotated about its

x axis. There is no need to include ψ

and ν

, the ro-

tations about the projector’s x and y axis respectively,

in θ

The corners of the chessboard are then projected

onto the projector image plane using Eq. 3, with m

replaced by m

(θ

). The absolute difference between

the projector image points m

and transformed image

points m

(θ

) is the error metric used to optimize θ

Analogous to the application of Eq. 10 for the cam-

era parameters, the Leveberg-Marquardt algorithm is

then applied to minimize the following cost function

with respect to the projector parameter set θ

∗

= argmin

∑

i=1

||m

− m

(θ

)||

(12)

3.4 Projector Camera Calibration

Lastly the procam extrinsic parameters are recovered

from [R

] and [R

R = R

T = T

− R T

(13)

3.5 Initial Values

Initial estimates of the values of the two calibration

parameter sets are required to commence the opti-

mization process, with the values used listed in Ta-

ble 1. The initial values of the focal lengths are

the diagonal pixel length of their respective image

planes (Yamazaki et al., 2011) where r

, r

, c

are the number of rows and columns in the projector

and camera image planes. The value of α

is initial-

ized to 1 as experimentally the aspect ratio is typi-

cally close to unity for pinhole devices (Moreno and

Taubin, 2012). The vertical coordinate of the projec-

tor principal point, v

, is usually near the top or bot-

tom of the image plane, and so it was initialized to half

the height of the projector image plane. The values of

= O

= [0 0 2w

]

and φ

= φ

= 0

◦

were ini-

tialized based on the reasonable assumption that the

chessboard is facing both the camera and the projec-

tor, and that their x- and y-axes are similarly oriented.

The width of the chessboard is represented by w

Procam Calibration from a Single Pose of a Planar Target

821

Table 1: Calibration Parameter Set Initial Values.

Camera

Initial Value

+ c

Projector

Initial Value

+ c

3.6 Correspondence Acquisition

The N chessboard corner coordinates are extracted

to subpixel accuracy from the camera image and are

stored in the array { ˆm

}

i=1

, with the ˆ symbol indicat-

ing that these coordinates exhibit the radial distortion,

i.e. they have not yet been undistorted by applying

Eq. 2. The projector frame coordinates correspond-

ing to each of these camera frame coordinates are ac-

quired by decoding a sequence of 46 projected Gray

Code patterns, two of which are shown in Figure 4

and utilizing local homographies in the same manner

as (Moreno and Taubin, 2012). The projector corre-

spondences are then stored in the array {m

}

i=1

, or-

dered such that each ˆm

, m

and m

correspond. Fig-

ure 5 shows the raw camera image and the computed

projector ‘image’.

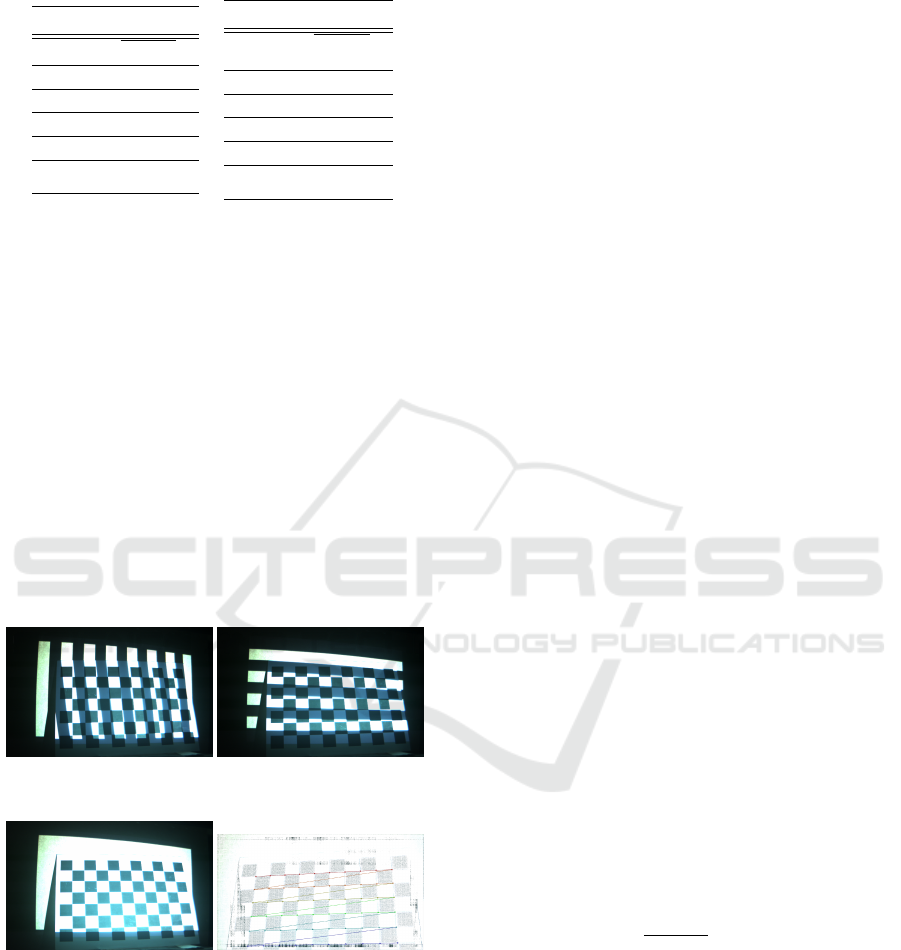

Figure 4: Horizontal and vertical Gray Codes projected onto

chessboard.

Figure 5: Camera Image (left) and projector image (right).

4 EXPERIMENTS

Two sets of experiments were performed to test the

accuracy of the proposed procam calibration method.

One utilized a real procam system programmed with

OpenCV in C++, and the other was a simulation pro-

grammed in MATLAB. The real experiments show

that different poses affect the accuracy of the calibra-

tion, and the simulated experiments allow us to isolate

and identify what elements of the chessboard pose are

the most inﬂuential factors that impact accuracy.

4.1 ProCam Setup

The proposed calibration method was applied to a

physical procam system. The camera used for this

experiment was a BlackFly Point Grey color cam-

era with a resolution of 1280×800 and the projec-

tor was the Epson PowerLite 1771W with a resolu-

tion of 1920×1080 as shown in Figure 1. A chess-

board of dimensions 21×26.5 cm with 10×6 = 60

corners was used as the calibration plane. The chess-

board was moved to seven distinct poses where the

Gray Code sequence was projected, to establish sets

of correspondences between the camera and projector

points (described in Sec. 3.6).

4.2 Accuracy Metrics and Reference

Values

To assess the accuracy and validity of the calibration

parameters, the calibration method of (Moreno and

Taubin, 2012) was used to establish reference values

to compare against. They effectively used Zhang’s

method (Zhang, 2000) to calibrate both the camera

and the projector. Zhang’s method requires minimally

three distinct poses of a planar surface to calibrate a

pinhole device, with 46 Gray Code images acquired

for each chessboard pose to automatically establish

correspondences between projector and camera coor-

dinates.

As seven distinct poses of the chessboard were

acquired, there are multiple groups of calibration pa-

rameters that can arise, each resulting from a unique

combination of the seven distinct chessboard poses.

Each such combination is referred to here as a pose

set. Each pose set contains between three and seven

chessboard poses, and so the number of pose sets is:

∑

i=3

i!(7 − i)

= 99 (14)

The reprojection error was used to determine the

validity and of the calculated calibration parameters,

as well as the two quantities σ

|T |

and σ

, where σ

the standard deviation of the projector location with

respect to the camera, and σ

|T |

is the standard devi-

ation of the projector’s distance |T | from the camera

(known as the stereovision baseline). Assume the ﬁrst

group of calibration parameters were obtained using

a combination of poses one, two and three. The in-

trinsic parameters from that pose set are used with

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

822

Table 2: Daniel and Gabriel Reprojection Errors.

Reprojection Error

Stat Cam Pro Stereo

Set A 0.251 0.775 0.577

Set B 0.256 0.815 0.604

Mean 0.274 0.855 0.637

Std Dev 0.047 0.308 0.216

Table 3: Standard Deviation of Baseline.

Translation Vector

Stat σ

|T |

Set A 4.49 1.70 1.76 5.11 2.97

Set B 0.79 0.90 0.53 1.31 0.70

Mean 6.06 2.91 2.46 7.27 3.86

Std Dev 5.53 3.11 2.07 6.55 4.20

the point correspondences extracted from the Gray

Code images to calculate the (X,Y,Z,|T |) values be-

tween the camera and projector, resulting in seven

(X,Y,Z,|T |) values, i.e. one for each pose, including

the three poses (one, two and three) used to calculate

the parameters. The σ

value is equal to the square

root of the sum of the variances of the (X ,Y, Z) co-

ordinates, and σ

|T |

is equal to the standard deviation

of the |T | values. Methods that solve the PnP prob-

lem can be used to extract the pose of pinhole device

with respect to an object deﬁned from a known set of

planar or non-planar points if the intrinsic parameters

are known (Lepetit et al., 2009) (Lu, 2018). Therefore

OpenCV’s solvePnP function is used in conjunction

with Eq. 13 to calculate σ

|T |

and σ

These standard deviation metrics are included in

the analyses because reprojection error may not ac-

curately predict the correctness of a possible 3D re-

construction. No matter how the chessboard is moved

and oriented in 3D space one should be able to calcu-

late the same values for the procam extrinsic param-

eters using a PnP method because the pose between

the camera and projector is rigid and thus constant in

a procam system. Thus when a PnP method is applied

with the procam intrinsic parameters to calculate the

extrinsics, T and |T | should remain constant, although

a small amount of variation is expected due to noise.

Therefore the σ

|T |

and σ

measures the precision of

the calibration.

The reprojection errors, σ

|T |

and σ

were calcu-

lated for all 99 pose sets. Pose set 99 was calibrated

using all seven poses, and pose set 4 was calibrated

using only poses four, ﬁve and six. For convenience,

these are referred to as Set A and Set B, respectively.

Set A produced the lowest reprojection error for the

camera, projector and procam system, while the pa-

Table 4: Daniel and Gabriel Calibration Results.

Parameter Reference Values Mean Std Dev

1535.7 1541.8 57.4

1537.9 1542.3 54.7

666.4 666.4 10.1

518.3 518.3 21.6

2506.4 2428.2 179.4

2507.2 2430.7 157.7

1007.9 996.1 20.4

1046.0 1074.7 50.1

ψ 0.87 1.82 1.42

ν 14.44 14.91 0.71

φ -0.25 -0.12 0.34

X -170.05 -174.12 6.57

Y -41.25 -38.37 6.49

Z -65.35 -77.90 36.32

Table 5: Camera Intrinsic Parameters.

Set f

1 1492.91 1497.45 653.77 542.00

2 1400.22 1402.12 624.69 549.09

3 1907.85 1911.66 646.03 543.90

4 1585.58 1589.60 676.94 517.70

5 1484.22 1492.50 677.57 516.98

6 1493.04 1494.36 621.42 526.89

7 2139.43 2142.98 611.36 560.52

rameters of Set B resulted in the lowest values for σ

|T |

and σ

as shown in Tables 2 and 3. The parameters of

Set B are used as the reference values because transla-

tion standard deviation values are less than half of Set

A’s, and their resultant reprojection errors are within

no more than 5% of Set A’s. This indicates that the pa-

rameters resulting from Set B will be able to extract

depth to a higher degree of accuracy than Set A for

arbitrary objects because while Set A is marginally

more accurate than Set B, Set A is signiﬁcantly less

precise than Set B.

4.3 Real Data Results

Each of the seven chessboard poses produced a dif-

ferent ﬁnal group of procam calibration parameters

when the proposed method was used. The values of

the parameters is largely dependent on the orientation

between the pinhole devices and the chessboard. Ta-

ble 5 and 6 show the calculated intrinsic parameters of

the camera and projector respectively for each pose.

The camera reprojection error is largely dependent

on the sum of the absolute values of ψ

and ν

. This

pattern is clearly displayed in Table 7 which also lists

|∆ f

|, the absolute difference between the reference

values and calculated focal length of the camera for

Procam Calibration from a Single Pose of a Planar Target

823

Table 6: Projector Intrinsic Parameters.

Set f

1 2812.21 2812.21 960.00 908.01

2 3364.91 3364.91 960.00 820.48

3 2537.86 2537.86 960.00 1065.43

4 2586.15 2586.15 960.00 1042.14

5 2357.50 2357.50 960.00 1039.86

6 1893.04 1893.04 960.00 1159.24

7 2554.36 2554.36 960.00 1077.02

Table 7: Camera Calibration Accuracy Metrics.

Set ψ

|ψ

| + |ν

| |∆ f

| Error

1 -19.11 -8.32 27.43 42.78 0.30

2 -12.25 -9.42 21.68 135.47 0.42

3 -4.47 4.92 9.40 372.16 1.2

4 -9.62 1.74 11.36 49.88 0.44

5 -5.69 -29.44 35.12 51.47 0.39

6 -14.18 -15.64 29.82 42.65 0.31

7 -4.13 5.01 9.14 603.73 1.62

each set. Set one, ﬁve and six possess |ψ

| + |ν

| val-

ues over 25 degrees and their average reprojection er-

ror across the seven images is less then 0.4. Sets 3

and 7 both have |ψ

| + |ν

| less than 10 degrees av-

erage reprojection error is greater than 1. Set two

and set four both were both calibrated with |ψ

|+ |ν

values that are greater than 10 degrees but less then

25 degrees, and their average reprojection errors are

0.42 and 0.44 respectively. Generally the higher the

|ψ

|+|ν

| value, the lower the reprojection errors that

the intrinsic matrix will provide. Also, the sets that

provide three of the lowest reprojection error, set one,

four and six produce |∆ f

| values that are less than the

standard deviation value of f

in Table 4.

The projector reprojection error is also dependent

of the chessboard rotation about its x- and y-axis, but

in a different manner than the camera. Sets three, four,

ﬁve and seven possess |ν

| that are all greater than 13

degrees, and each of their mean reprojection errors

are less than 1.5. Sets one, two and six all posses |ν

values less than 10 degrees and consequently their re-

projection errors are all greater than 1.5 as displayed

in Table 8. Therefore generally the greater the |ν

value, the lower the associated reprojection errors that

the intrinsic matrix will provide. |∆ f

|, the absolute

difference between the reference focal length and cal-

culated focal length is also displayed in Table 8, the

sets that provide the lowest four reprojection errors

(i.e. sets three, four, ﬁve and seven), produce |∆ f

values that are less than the standard deviation of f

in Table 4.

The accuracy of the extrinsic parameters which

are displayed in Table 9 are dependent on the accu-

Table 8: Projector Calibration Accuracy Metrics.

Set ψ

|∆ f

| Error

1 -22.03 7.05 305.02 1.57

2 -16.39 5.10 857.72 2.81

3 1.69 14.46 30.66 0.96

4 -8.23 17.92 78.95 0.96

5 -6.44 -13.63 149.70 1.25

6 -9.15 -1.82 614.15 2.27

7 -2.16 17.81 47.17 1.01

Table 9: ProCam Euler Angles and Translation Vector.

Euler Angles Translation Vector

Set ψ ν φ X Y Z

1 -2.77 15.41 -1.06 -170.20 -39.13 8.66

2 -5.13 14.22 -1.76 -163.19 -39.14 124.57

3 -1.69 14.46 -0.53 -201.81 -23.20 -186.90

4 1.24 16.19 -0.63 -178.27 -36.52 -62.35

5 1.66 15.74 -0.25 -164.90 -34.38 -73.10

6 3.63 14.23 0.86 -170.68 -35.38 -155.81

7 1.53 12.85 0.19 -211.10 -20.29 -255.61

racy of the intrinsic parameters. Intrinsic parameters

dictate the location of the image plane relative to the

center of distortion, and where the ray connecting a

3D point and the center of projection intercept the as-

sociated image plane. For example, the Z value of

set two and set seven diverge the most from the ref-

erence value, with values 189.92 and 190.26 mm re-

spectively. The projector focal length produced from

set two deviates from the reference value the most

compared to the six other projector focal lengths.

Likewise for the camera focal length produced by set

seven. Sets four and ﬁve produce two of the top four

calibration parameters for the camera and the projec-

tor, and as a result have the most accurate Z value.

The results of the σ

|T |

, σ

and the stereo reprojec-

tion error are highly correlated. Generally, the closer

the calibration parameters (both intrinsic and extrin-

sic) are to the reference value, the smaller the errors

and translation standard deviations are, as shown in

Table 10. Set one and three have the same stereo re-

projection, but their σ

value differs by about 2 mm

and their σ

|T |

value differ by about 7 mm. This sug-

gests that despite possessing the same correspondence

error, the calibration parameters of set three would

provide a better surface reconstruction than set one.

4.4 Simulation Results

From the results of the real procam system experi-

ments, it is shown that that the pose of the chessboard

relative to the camera and projector directly affect the

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

824

Table 10: PNP Translation Vector and Stereo Reprojection

Error Results.

Set Magnitude Location Stereo

1 10.45 11.40 1.13

2 17.94 21.40 2.02

3 3.68 9.64 1.13

4 1.49 2.34 0.75

5 1.48 2.99 0.93

6 11.69 20.72 1.62

7 6.74 18.62 1.40

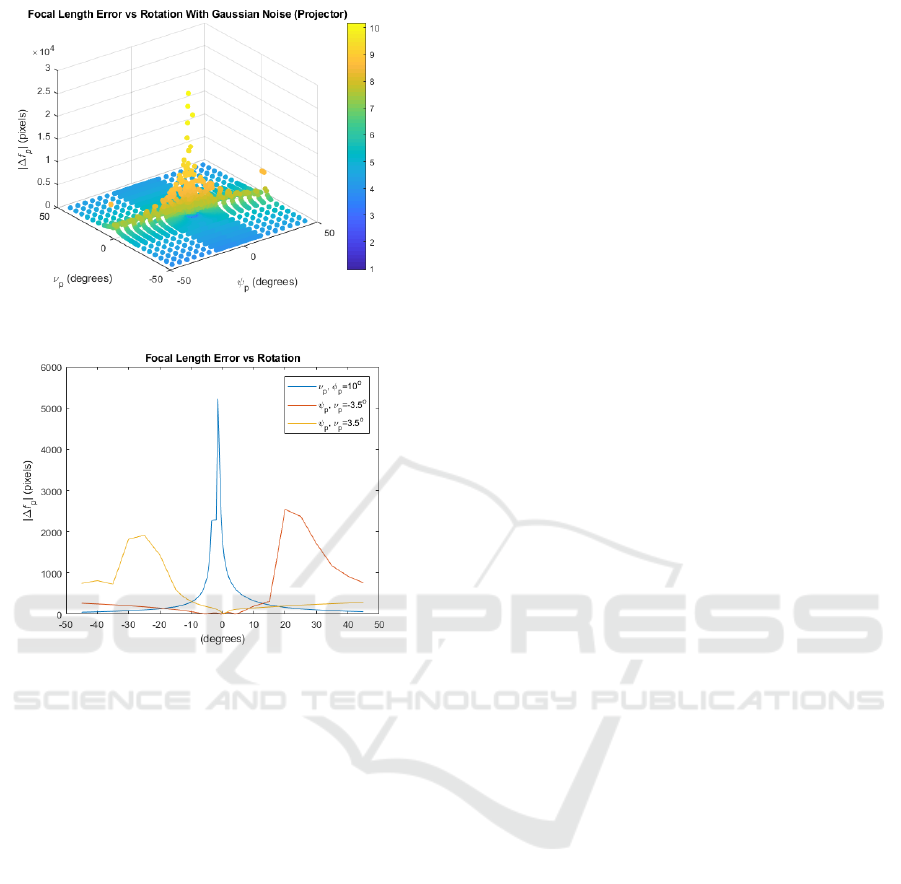

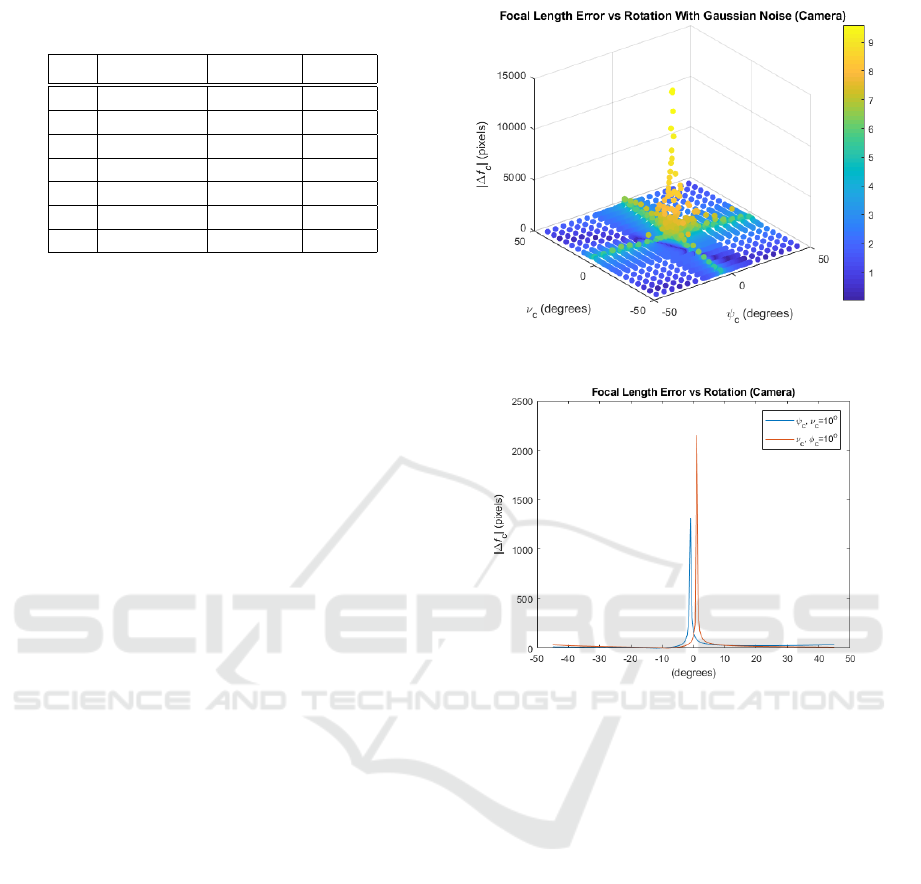

calibration accuracy. This simulated experiment iso-

lates and examines this phenomenon more precisely,

by rotating the projector and camera individually with

respect to the chessboard to identify how the varying

degrees of rotation affect calibration accuracy. The

value of |∆ f

| and |∆ f

| are highly correlated with

their respective reprojection errors as shown in Ta-

ble 7 and 8 and are therefore used as the accuracy

metrics for this experiment. The simulated K

values

are; f

= 1539, α

= 1.004, u

= 674, and v

= 512.

The simulated K

values are; f

= 2421, α

= 1.002,

= 1013, and u

= 1065. The resolution of the

simulated camera and projector are 1280×800 and

1900×1080 pixels respectively. The simulated chess-

board was 21. × 26.5 cm with 10 × 6 = 60 corners.

Let (ψ

,ν

) and (ψ

,ν

) be the rotations about x-

and y-axes for the camera and projector respectively.

The principal point to calibrate the camera was shifted

5 pixels to the right and downwards from its true value

to account for the real world issue that the calculated

center of distortion is not located in the exact same

place as the ground truth principal point of the cam-

era. The assumptions about the projector intrinsic ma-

trix in this section are consistent with the assumptions

made in the previous section. Throughout all rota-

tions, the translation vector for both devices were kept

constant, along with the rotations about the z-axis (i.e.

φ) as well as their respective intrinsic matrices.

4.4.1 Camera

The value of |∆ f

| generally decreases as |ψ

| + |ν

increases, as shown in Figure 6 where yellow points

signify high error and dark blue points signify low er-

ror. Figure 7 shows a plot of |∆ f

| vs. ψ

, where

= 10

◦

∀ (ψ

,|∆ f

|), and |∆ f

| vs ν

where ψ

◦

∀ (ν

,|∆ f

|). Despite the fact that for each of the

aforementioned graphs one of the angles is ﬁxed, they

represent the overall relationship between the focal

length error and (ν

,ψ

), which is that |∆ f

| expo-

nentially decays as |ψ

| and |ν

| increase.

Figure 6: Camera Focal Length Error vs ψ

,ν

Figure 7: Rotate ψ

, ν

= 10

◦

and ν

, ψ

= 10

◦

4.4.2 Projector

The overall relationship between |∆ f

| and (ψ

,ν

)

is not the same as the camera’s due to the differ-

ent set of assumptions regarding the intrinsic param-

eters. The |∆ f

| value still exponentially decays as

|ν

| increases for all ψ

= θ, as shown in Figures 8

and 9. However, the relationship between |∆ f

| and

changes depending on the corresponding ψ

, as

shown in Figures 9. As ν

is kept constant from -45

to 45 degrees, the relationship between |∆ f

| and ψ

transitions from generally increasing with ψ

, expo-

nentially decaying with |ψ

| and generally decreasing

with ψ

.54tr

4.5 Discussion

The best intrinsic calibration results from the pro-

posed method are comparable to the results of Daniel

and Gabriel’s technique. The reprojection error of the

camera using intrinsic values from set one and set six

are within one standard deviation of the mean repro-

jection error from (Moreno and Taubin, 2012). All

Procam Calibration from a Single Pose of a Planar Target

825

Figure 8: Projector Focal length Error vs ψ

,ν

Figure 9: Rotate ν

,ψ

= 10

◦

; ψ

,ν

= −3.5

◦

; and

,ν

= 3.5

◦

sets where |ψ

| + |ν

| > 10

◦

resulted in reprojection

errors below 0.45 for the camera. The reprojection

error of the projector using intrinsic values from set

three, four and seven are within one standard devia-

tion of the mean reprojection error from (Moreno and

Taubin, 2012) and all sets where |ν

| > 13

◦

resulted

in reprojection errors below 1.3 despite not account-

ing for distortion.

The best procam calibration results from the pro-

posed method are also comparable to the results of

Daniel and Gabriel’s technique. All sets used to cal-

ibrate the system with the proposed technique except

set two resulted in σ

values within a standard devi-

ation of the mean value in Table 10. Set three, four,

ﬁve and six, where at least either |ψ

| + |ν

| > 10

◦

or |ν

| > 13

◦

achieved σ

values less than then the

mean of the Zhang-style calibration method. Sets

four and ﬁve are the only ones that resulted in σ

|T |

values that are within one standard deviation of the

value returned by Set B and are also less than the

mean value. They are also the only two sets where

|ψ

| + |ν

| > 10

◦

and |ν

| > 13

◦

and are therefore

able to achieve a stereo reprojection error of less than

1. The stereo reprojection error from set four is also

within one standard deviation of the reprojection error

derived from the ground truth method in Table 2.

5 CONCLUSIONS

This work has proposed a simple and accurate method

of calibrating a procam system. It is very user

friendly, requiring only a single pose of the planar

chessboard target, without any requirement to reposi-

tion the target to multiple poses. It therefore contains

none of the practical drawbacks and inconveniences

of mainstream techniques, while maintaining compa-

rable reprojection errors and stability of the estimated

parameters. The conditions that provide the best re-

sults are easy to follow and are reproducible; orient

the chessboard with respect to the camera and projec-

tor so that |ψ

| + |ν

| > 10

◦

degrees and |ν

| > 13

◦

degrees, respectively. Generally the calibration accu-

racy improves as both quantities increase.

ACKNOWLEDGEMENTS

The authors would like to acknowledge and thank Ep-

son Canada, the Natural Sciences and Engineering

Research Council of Canada, and the Ontario Centres

of Excellence, for their support of this work.

REFERENCES

Audet, S. and Okutomi, M. (2009). A user-friendly

method to geometrically calibrate projector-camera

systems. In 2009 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition Work-

shops, pages 47–54.

Berry, F., Aider, O. A., and Mosnier, J. (2013). A visual

servoing-based method for procam systems calibra-

tion. Sensors, 13(10):13318–13333.

Bimber, O. and Raskar, R. (2005). Spatial Augmented Re-

ality: Merging Real and Virtual Worlds. A K Peters.

Chaumette, F. and Hutchinson, S. (2006). Visual servo con-

trol, Part I: Basic approaches. IEEE Robotics and Au-

tomation Magazine, 13(4):82–90.

Chen, X., Xi, J., Jin, Y., and Sun, J. (2009). Accurate

calibration for a camera–projector measurement sys-

tem based on structured light projection. Optics and

Lasers in Engineering, 47(3):310 – 319. Optical Mea-

surements.

Drar

eni, J., Roy, S., and Sturm, P. F. (2011). Methods for

geometrical video projector calibration. Machine Vi-

sion and Applications, 23:79–89.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

826

Fitzgibbon, A. W. (2001). Simultaneous linear estimation

of multiple view geometry and lens distortion. In Pro-

ceedings of the 2001 IEEE Computer Society Con-

ference on Computer Vision and Pattern Recognition.

CVPR 2001, volume 1, pages I–I.

Hartley, R. and Kang, S. B. (2007). Parameter-free radial

distortion correction with center of distortion estima-

tion. IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence, 29(8):1309–1321.

Hartley, R. and Zisserman, A. (2003). Multiple view geom-

etry in computer vision. Cambridge university press.

Huang, B., Ozdemir, S., Tang, Y., Liao, C., and Ling, H.

(2018). A single-shot-per-pose camera-projector cali-

bration system for imperfect planar targets. pages 15–

20.

Huang, K., Ziauddin, S., Zand, M., and Greenspan, M.

(2020). One shot radial distortion correction by di-

rect linear transformation. In 2020 IEEE International

Conference on Image Processing (ICIP), pages 473–

477.

Huang, Z., Xi, J., Yu, Y., and Guo, Q. (2015). Accurate pro-

jector calibration based on a new point-to-point map-

ping relationship between the camera and projector

images. Applied Optics, 54.

Lepetit, V., Moreno-Noguer, F., and Fua, P. (2009). Epnp:

An accurate o(n) solution to the pnp problem. Inter-

national Journal of Computer Vision, 81.

Li, F., Sekkati, H., Deglint, J., Scharfenberger, C., Lamm,

M., Clausi, D., Zelek, J., and Wong, A. (2017).

Simultaneous projector-camera self-calibration for

three-dimensional reconstruction and projection map-

ping. IEEE Transactions on Computational Imaging,

3(1):74–83.

Lu, X. (2018). A review of solutions for perspective-n-

point problem in camera pose estimation. Journal of

Physics: Conference Series, 1087:052009.

Moreno, D. and Taubin, G. (2012). Simple, accurate, and

robust projector-camera calibration. In 2012 Second

International Conference on 3D Imaging, Modeling,

Processing, Visualization Transmission, pages 464–

471.

Mosnier, J., Berry, F., and Ait-Aider, O. (2009). A new

method for projector calibration based on visual ser-

voing.

Resch, C., Naik, H., Keitler, P., Benkhardt, S., and Klinker,

G. (2015). On-site semi-automatic calibration and

registration of a projector-camera system using ar-

bitrary objects with known geometry. IEEE Trans-

actions on Visualization and Computer Graphics,

21(11):1211–1220.

Salvi, J., Pag

es, J., and Batlle, J. (2004). Pattern codiﬁ-

cation strategies in structured light systems. Pattern

Recognition, 37(4):827–849.

Tsai, R. (1987). A versatile camera calibration technique

for high-accuracy 3d machine vision metrology using

off-the-shelf tv cameras and lenses. IEEE Journal on

Robotics and Automation, 3(4):323–344.

Yamazaki, S., Mochimaru, M., and Kanade, T. (2011). Si-

multaneous self-calibration of a projector and a cam-

era using structured light. pages 60–67.

Yang, L., Normand, J., and Moreau, G. (2016). Practi-

cal and precise projector-camera calibration. In 2016

IEEE International Symposium on Mixed and Aug-

mented Reality (ISMAR), pages 63–70.

Zhang, S. and S. Huang, P. (2006). Novel method for struc-

tured light system calibration. Optical Engineering -

OPT ENG, 45.

Zhang, Z. (2000). A ﬂexible new technique for camera cal-

ibration. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 22(11):1330–1334.

Zhongwei Li, Yusheng Shi, C. W. Y. W. (2008). Accurate

calibration method for a structured light system. Op-

tical Engineering, 47(5):1 – 9 – 9.

Procam Calibration from a Single Pose of a Planar Target

827
