A Replication Study on Glanceable Visualizations: Comparing Different

Stimulus Sizes on a Laptop Computer

Tanja Blascheck

1 a

and Petra Isenberg

2 b

University of Stuttgart, Stuttgart, Germany

Universit

e Paris Saclay, CNRS, Inria, France

Keywords:

Glanceable Visualization, Quantitative Evaluation, Desktop, Smartwatch, Display Size, Perception.

Abstract:

We replicated a smartwatch perception experiment on the topic of glanceable visualizations. The initial study

used a setup that involved showing stimuli on an actual smartwatch attached to a wooden stand and a laptop

to run and log the experiment and communicate with the smartwatch. In our replication we wanted to test

whether a much simpler setup that involved showing the same stimuli on a laptop screen with similar pixel

size and density would lead to similar results. We also extended the initial study by testing to what extent the

size of the stimulus played a role for the results. Our results indicate that the general trends observed in the

original study mostly held also on the larger display, with only a few differences in certain conditions. Yet,

participants were slower on the large display. We also found no evidence of a difference for the two different

stimulus display sizes we tested. Our study, thus, gives evidence that simulating smartwatch displays on laptop

screens with similar resolution and pixel size might be a viable alternative for smartwatch perception studies

with visualizations.

1 INTRODUCTION

In a recent publication Blascheck et al. (2019) pre-

sented the results of a perception experiment con-

ducted on smartwatches. The authors evaluated how

quickly on average participants could perform a sim-

ple data comparison task with different visualizations

and data sizes. In the study, the authors used an actual

smartwatch strapped to a wooden stand whose dimen-

sions were modeled after average viewing distances

and display tilt collected from a study of smartwatch

wearers. This setup ensured more ecological validity

compared to a study performed on a common desktop

or laptop computer. Yet, the setup was technically com-

plicated both in software and hardware design, which

makes it difﬁcult to reproduce or replicate these types

of smartwatch perception studies. We set out to study

whether the same research questions can be studied

with a simpler setup, in which the study stimuli are

shown on a laptop computer that can run both the soft-

ware to show the stimuli and log responses. This sim-

pler setup using a single computer would not require

complicated network connections between smartwatch

https://orcid.org/0000-0003-4002-4499

https://orcid.org/0000-0002-2948-6417

and the controlling computer running the software. In

addition, we were interested in clarifying to which ex-

tent the ﬁndings of the original study were due to the

size of the stimuli on the smartwatch and whether the

results would hold for larger visualizations. Based on

related work, we hypothesized that thresholds would

increase for larger visualizations, but that the ranking

of techniques would stay the same.

To follow up on these questions we chose to repli-

cate the study design by Blascheck et al. (2019) to

answer:

•

do trends observed by Blascheck et al. (2019)

hold for smartwatch-sized visualizations shown

on larger displays?, and

•

do trends observed by Blascheck et al. (2019) hold

for larger visualizations shown on larger displays?

To address these questions we conducted a

between-subject experiment using a laptop computer

instead of a smartwatch and used two different stimuli

sizes (

320 px×320 px

and

1280 px×1280 px

). Except

for these two changes, the study setup was the same,

allowing us to compare the trends observed in our

experiment with those from the smartwatch study.

Therefore, the main contribution of our paper is

three-fold: First, a between-subject study for a simple

Blascheck, T. and Isenberg, P.

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer.

DOI: 10.5220/0010328501330143

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 3: IVAPP, pages

133-143

ISBN: 978-989-758-488-6

133

data comparison task on a laptop computer following

the setup of Blascheck et al. (2019). Second, a compar-

ison of the results of the two stimuli sizes as well as a

comparison of the trends for the small stimulus to the

trends found in Blascheck et al. (2019) who conducted

the same study on a smartwatch. Last, a discussion

of the results and the implications that follow from

these results for future studies analyzing glanceable

visualizations at micro scale. Overall, our work brings

us one step closer to understanding visualizations that

have a small form factor (micro visualizations), how

to design, and evaluate them.

2 RELATED WORK

We discuss related work on micro visualizations, the

studies thereof especially about size comparisons, as

well as studies on smartwatches.

2.1 Micro Visualizations

Micro visualizations are data representations that are

high-resolution visualizations designed for small to

medium-sized displays (Blascheck et al., 2019; Bran-

des, 2014). This includes data glyphs (Borgo et al.,

2013), sparklines (Tufte, 2001), as well as word-sized

graphics (Beck and Weiskopf, 2017; Gofﬁn et al.,

2017), and most visualizations designed for smart-

watches or ﬁtness trackers.

Data glyphs are representations that encode mul-

tiple data dimension of a single data point in a single

represention. They are often used in small multiples

settings and some typical applications include the rep-

resentation of meteorological data (Anderson, 1957),

medical data (Ropinski et al., 2011), their use in multi-

ﬁeld (Chung et al., 2014), ﬂow, tensor, or uncertainty

visualizations (Borgo et al., 2013).

Sparklines in comparison are deﬁned by Tufte

(2001) as “small, high-resolution graphics usually

embedded in a full context of words, numbers, im-

ages.” This deﬁnition was later extended by Gofﬁn

et al. (2017) to word-sized graphics that include both

data-driven and non-data driven graphics and that can

vary from the size of a word to the size of a paragraph.

Beck and Weiskopf (2017) use a similar deﬁnition.

They deﬁne word-sized graphics as “data-intense vi-

sual representations at the size of a word. In particular,

[...] [this] even include[s] the coding of information

using icon images.” Examples and applications of

word-sized graphics includes the representation of eye

movement data (Beck et al., 2017), GestaltLines (Bran-

des et al., 2013), or the representation of source code

metrics (Beck et al., 2013a,b).

Visualizations designed for smartwatches also fall

into this category of micro visualizations, because their

typical size ranges between 128–

480 px

(Blascheck

et al., 2019) at 200 or more PPI. Their small form-

factor, similar to data glyphs and word-sized graphics,

implies that they are typically designed without labels,

axes, grid lines, or tick marks. Therefore, we can apply

the same design guidelines and learn from both stud-

ies conducted with data glyphs as well as word-sized

grpahics. However, a difference in usage of micro vi-

sualizations on smartwatches versus data glyphs and

word-sized graphics is their context. Whereas data

glyphs are used in small multiples settings and word-

sized graphics are embedded into texts, tables, or lists,

visualizations on smartwatches are typically used to

satisfy quick information needs—have I reached my

goal? How many steps have I taken today? Was I run-

ning faster on Monday or Thursday? This implies that

visualizations are only glanced at for a few seconds

(

≤

5 s) (Pizza et al., 2016), opening up new research

questions regarding studies of micro visualizations.

2.2 Studies of Micro Visualizations

There are not many evaluations about the size of micro

visualizations. Fuchs et al. (2017) did a systematic

review of 64 papers that included evaluations of data

glyphs, however, they found no studies that speciﬁcally

investigate display size.

In the context of word-sized graphics, Heer et al.

(2009) evaluated horizon graphs (Saito et al., 2005),

which are line charts that are mirrored and compressed

along the y-axis. One of the research questions the

authors studied was the size of these charts, scaling

them by 0.5, 0.25, and 0.125. They found that as chart

size increases the error decreases but the estimation

time increases. Their explanation for this was that par-

ticipants spent more time on the larger charts, because

they felt that they could get better results.

Javed et al. (2010) compared three different types

of line charts—simple line graphs, braided graphs,

small multiples, and horizon graphs for four different

chart sizes: 48, 96, and

192 px

. Their results indicate

that decreasing chart size had a negative impact on

accuracy but only a small effect on completion time.

Based on these two studies, we can hypothesize

that accuracy is higher for larger charts and completion

times increases or stays stable. One main difference

of our replication study is that we set a time threshold

for depicting the stimuli. Therefore, participants are

not free to take as long as they want to answer and we

do not measure a trade-off between accuracy and time.

Instead, we target a

91% correct response rate and see

how long people need to see the visualization stimulus

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

134

to answer on average with this correctness (Garc

ıa-

erez, 1998).

Perin et al. (2013) created different word-sized

graphics to represent the phases of a soccer game and

evaluated them based on different sizes (between

20 px

× 15 px

and

80 px × 60 px

). However, they only asked

participants to evaluate the combination of represen-

tation and size on a Likert scale and rank the four

representations by preference. There was no evalua-

tion of performance. The results show that the smaller

the word-sized graphic was, the less preferred it was.

2.3 Studies of Visualizations on

Smartwatches

In recent years, studies of visualizations on smart-

watches have become popular. For example, Neshati

et al. (2019) studied line charts and different compres-

sion techniques on a smartwatch. They found that their

novel x-axis compression lead to better performance,

in respect to reaction time, error rate, and interactivity.

Although, they looked at different sizes of a graph, the

main goal of the study was decrease the size of the line

chart (x-, y-, and xy-axis compression of a baseline,

which was

184 px × 68 px

) rather than comparing it

to a desktop sized visualization.

Blascheck et al. (2019) studied different chart types

and data sizes with a simple data comparison task on a

smartwatch. The main result was that donut charts had

the minimal time threshold followed by bar and then

radial charts for all data sizes. We replicate their study

to investigate if trends observed on smartwatches hold

for smartwatch-sized visualizations as well as large

visualizations shown on a larger display, i.e., a laptop

computer.

Other studies related to visualizations for smart-

watches include a survey by Aravind et al. (2019) who

asked participants which types of visualizations they

would like to see on their smartwatch or ﬁtness tracker

for different types of sleep data. They found that peo-

ple mostly preferred different forms of bar chart, donut

charts, or a hypnogram to depict different types of

sleep data and time granularities. Aravind et al. (2019)

distinguished between smartwatches and ﬁtness track-

ers, but in most cases (6/8 comparisons) the same type

of visualization was preferred for both. However, the

authors did not compare performance differences be-

tween the devices.

Islam et al. (2020) conducted a survey to ﬁnd out

how many data items people represent on their watch

face, which type of data, as well as which type of rep-

resentations they use. They found that people have

between 3 and 5 data items shown on their watch face

together with time. The most common type of data

Table 1: Similarities and differences between the study con-

ducted by Blascheck et al. (2019) and our own.

Blascheck et

al.

Our study

Study Design Within-g. Between-group

Study Device Smartwatch Laptop

Chart Types Bar, donut, radial chart

Data Size 7, 12, 24 data values

Stimuli Size 320 × 320 px 320 × 320 px

1280 × 1280 px

Participants 18 2 × 18 p. group

represented were health and ﬁtness data and people

mostly used icon and text together. Representations

using charts were less common, however, there is still

a lot of potential for representing data using charts on

watch faces. Islam et al. (2020) focus was on under-

standing the current usage of watch face space, but

they neither compared display sizes nor performance.

3 STUDY METHODOLOGY

We replicated the second study (called “random dif-

ferences”) by Blascheck et al. (2019) using a laptop

computer instead of a smartwatch and two different

stimuli sizes (

320 px×320 px

and

1280 px×1280 px

The goal of the original study was to ﬁnd the minimum

time threshold of a simple data comparison task for

three chart types (

Bar

Donut

and

Radial

)

and three data sizes (7, 12, and 24 data values). We

compare the trends from our study to the original study

to investigate if there is an effect of screen size. We

also add an additional analysis that compares the re-

sults of two stimulus sizes (

small

and

large

). We

summarize similarities and differences between the

study by Blascheck et al. (2019) and our study in Ta-

ble 1.

3.1 Study Design

Largely we used the same study design as Blascheck

et al. (2019). However, we ran a between-subject

design where stimuli were displayed on a laptop

computer. One group of participants saw

small

stimuli (

320 px×320 px

), the size used by Blascheck

et al. (2019) and the other group saw

large

stimuli

(

1280 px×1280 px

). Each group consisted of the same

nine conditions: 3 chart types

3 data sizes (cf. Ta-

ble 2). We counterbalanced the order of chart type

and the order of data size using a Latin square and

participants were randomly assigned to one of the two

groups.

The experiment was set up as a two-alternative

forced choice design (Greene and Oliva, 2009; King-

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer

135

dom and Prins, 2010), in which participants had to

choose which of two marked elements was the larger.

The exposure duration was adapted based on the re-

sponse using a weighted up-down staircase procedure:

the exposure duration was decreased by

300 ms

after

three correct responses and increased by

100 ms

after

one incorrect response. This procedure allows us to

estimate a psychometric function (Kingdom and Prins,

2010), in which the time thresholds represents

91%

correct responses (Garc

ıa-P

erez, 1998). The staircase

was terminated if one of two criteria were reached:

either after 15 reversals or after 150 trials in total.

3.2 Procedure

Participants conducted nine staircases in total (3 chart

types

3 data sizes). When participants arrived, they

signed a consent form and then ﬁlled out a background

questionnaire. They then picked a random ID, which

assigned them to one of the two groups and a spe-

ciﬁc chart type and data size order. Next, they read

a short paper description of the study, which gave an

overview of the different conditions and explained the

general procedure for one trial. Participants then were

placed in front of the laptop. Each staircase began with

ten practice trials immediately followed by the actual

stimuli. When one of the two termination criteria was

reached—15 reversals or 150 trials—the next condi-

tion began. The starting time of each staircase was

between

2800 ms

and

9000 ms

(based on Blascheck

et al. (2019)).

The general procedure for one trial began with

participants seeing a stimulus and giving a response

by pressing a button. Then the laptop showed if the

participants’ input was correct or not. Based on the

answer, the exposure duration was adapted and the

next stimulus was shown for the determined duration.

Afterwards four intervening images were shown to

reduce after effects. After each chart type we asked

participants about their strategy to perform the task.

After ﬁnishing all chart types, participants were asked

to rank the charts based on preference and conﬁdence.

3.3 Stimuli

We used the same stimuli as the second study (called

“random differences”) by Blascheck et al. (2019) (cf.

Table 2). However, we created them with two sizes

(

320 px×320 px

and

1280 px×1280 px

). The ﬁrst tar-

get bar had a size between 40–270 data values (gener-

ated randomly) and the second between 30 and a max

of target value1

−10

, to ensure that there was at least a

ten data value difference between the two targets. The

two targets were highlighted using black dots. The

Table 2: Examples of the stimuli we used in the study: three

chart types:

Bar

Donut

, and

Radial

as well as

three data sizes: 7, 12, and 24 data values.

Chart Type

Bar Donut Radial

Data Size

Figure 1: The study setup showing the keyboard (front) and

the laptop (back) with a large stimulus (1280 px×1280 px).

position of the target value was varied and the two

targets were

95 px

apart. Overall, for both groups we

created 396 images.

3.4 Apparatus

We used a Lenovo Yoga 2 Pro running a Windows 8

operating system. The laptop’s display size was

13.3 in

with a viewable screen area of 294

× 166 mm

, and a

screen resolution of 3200

×1800 px

(

a pixel size

0.092 mm

). We chose this laptop, because it had

almost the same pixel size as the Sony SmartWatch 3

used by Blascheck et al. (2019) (viewable screen area:

28.73

× 28.73 mm

, screen resolution: 320

× 320 px

pixel size:

0.089 mm

). Figure 1 shows an image of the

setup with a large Bar stimulus.

The laptop was placed at an angle of

50°

with

a viewing distance of

28 cm

20 cm

height from the

table surface, and roughly

90 cm

from the ﬂoor. This

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

136

●

allallall

radial

donut

bar

0 2000 4000 6000

●

allallall

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

allallall

radial

donut

bar

0 2000 4000 6000

●

allallall

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

allallall

radial

donut

bar

0 2000 4000 6000

●

allallall

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

large small smartwatch

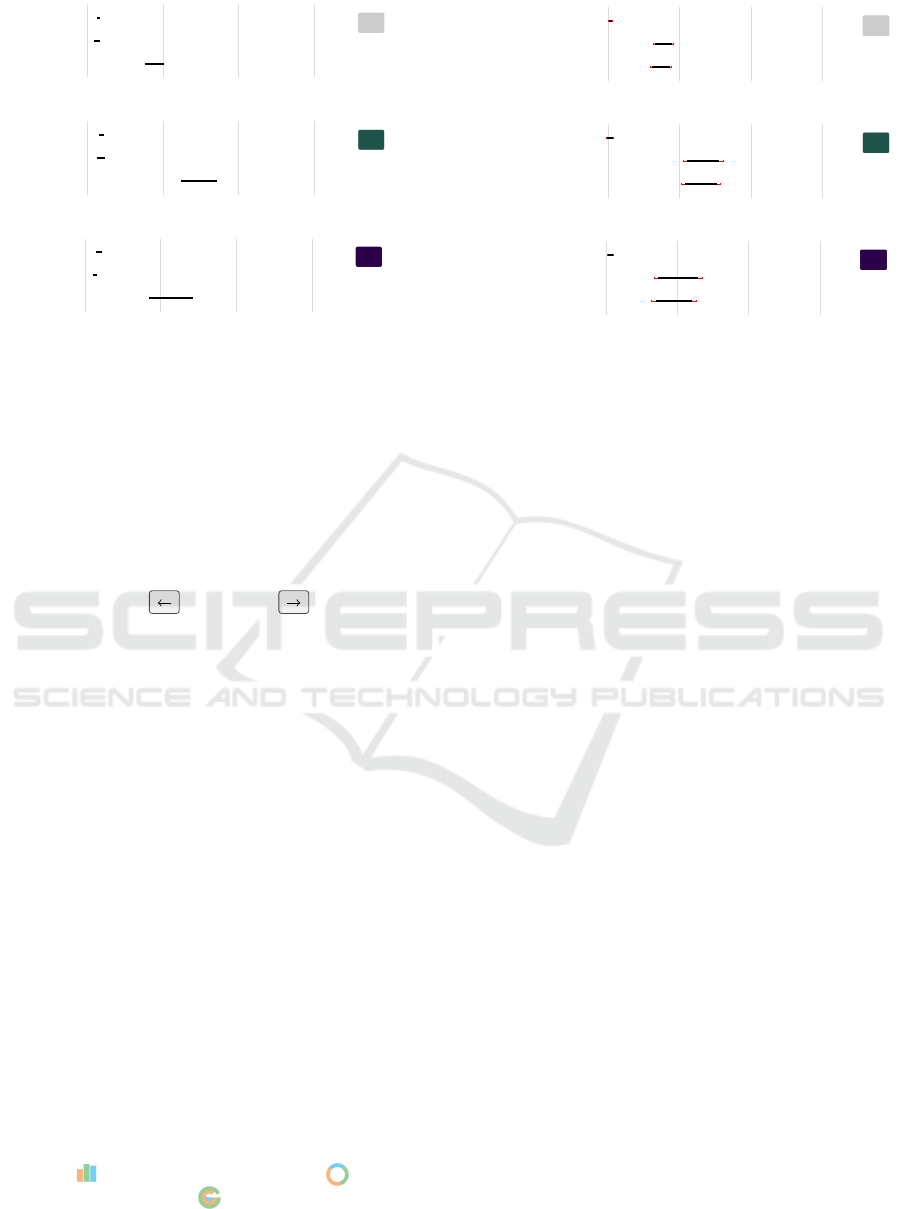

Figure 2: Left column: Average thresholds in milliseconds for each chart type across all data sizes. Right column: Pair-wise

comparisons between chart types. The three rows represent results for the original smartwatch study, our study with

small

and

then

large

stimuli. Error bars represent 95% Bootstrap conﬁdence intervals (CIs) adjusted for three pairwise comparisons

with Bonferroni correction.

mirrored the size of the stimuli used in the smartwatch

study. We placed participants in front of the screen at

the beginning of the study but they were allowed to

adjust their position during the study. A keyboard was

placed in front of them and they used the arrow keys to

indicate if the left or the right target element

was larger. The laptop recorded the key presses, wrote

a log ﬁle, determined each stimulus’ exposure duration

based on the input, and whether the termination criteria

had been reached.

3.5 Participants

Our study task involves simple size comparisons that

a broad spectrum of the population can complete with

little training. We, therefore, recruited 36 participants

(17 female, 19 male) via a diverse range of mailing

lists inside and outside of the university. Participants

average age was 30 years (SD = 12.3). Their high-

est degree was certiﬁcate of secondary education (6),

general certiﬁcate of secondary education (5), ﬁnal

secondary-school examination (10), Bachelor (9), and

Master (6). All participants had normal or corrected-

to-normal vision and only one participant reported to

have a color vision deﬁciency. Participants were com-

pensated with 10

. If participants were employees

of the university where the study was conducted, they

received a chocolate bar.

Participants had on average 4.5 years (SD = 3) expe-

rience with visualizations. They rated their familiarity

with

Bar

(M = 4.7, SD = 0.6),

Donut

(M = 3.5,

SD = 1.6), and

Radial

(M = 2.3, SD = 1.5) on

a 5-point Likert scale (1: not familiar at all–5: very

familiar).

4 RESULTS

In the following, we report on our analysis of the

collected data. As done in Blascheck et al. (2019)’s

second experiment, we use inferential statistics with

interval estimation (Dragicevic, 2016) for calculat-

ing the sample means of thresholds and 95% conﬁ-

dence intervals (CIs). With these intervals we can be

95% conﬁdent that the interval includes the population

mean. We use BCa bootstrapping to construct conﬁ-

dence intervals (10,000 bootstrap iterations) and adjust

them for multiple comparisons using Bonferroni cor-

rection (Higgins, 2004). To compare the

large

and

small

stimuli conditions we use bootstrap conﬁdence

interval calculations for two independent samples. All

scripts, data, and stimuli are available as supplemental

material in an Osf repository (https://osf.io/7zwqn/).

4.1 Thresholds

Overall, we collected 324 staircases. We calculated

a time threshold for each staircase, which should

represent

91% correct responses for the particular

combination of chart type

data size (Garc

ıa-P

erez,

1998). Following the same procedure as Blascheck

et al. (2019), for each participant and each staircase,

we computed the threshold as the mean time of all

reversal points after the second.

We ﬁrst present the thresholds for the

small

stim-

uli (

320 px×320 px

), then for the

large

stimuli

(

1280 px×1280 px

), and then the comparison between

both. Last, we compare the trends from both stimuli

sizes to the trends reported in the second study (called

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer

137

●

777

radial

donut

bar

0 2000 4000 6000

●

777

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

121212

radial

donut

bar

0 2000 4000 6000

●

121212

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

242424

radial

donut

bar

0 2000 4000 6000

●

242424

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

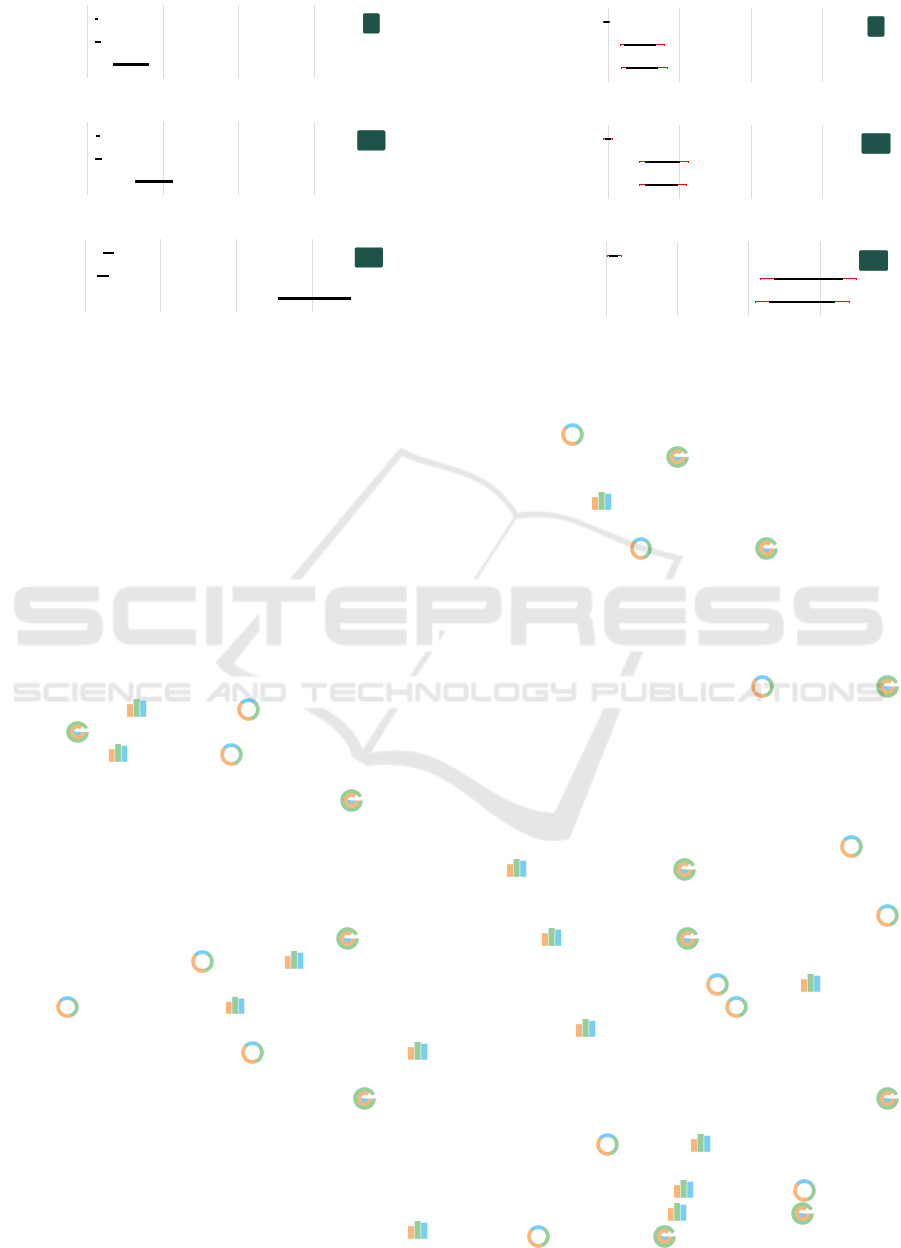

Figure 3: Results for the

small

stimuli displayed on the laptop screen (

320 px×320 px

). Left: Average thresholds in

milliseconds for each chart type and data size. Right: Pair-wise comparisons for each chart type and data size. Error bars

represent 95% Bootstrap conﬁdence intervals (CIs) adjusted for nine pairwise comparisons with Bonferroni correction.

“random differences”) by Blascheck et al. (2019) using

a smartwatch.

Some of the detailed results can be found in the

supplemental material uploaded to an Osf repository

(https://osf.io/7zwqn/). All analyses we conduct in the

paper can be done with the presented ﬁgures, however,

for sake of completeness we add the tables with actual

numbers.

Small Stimuli on the Laptop.

The middle row of Figure 2 shows the CIs of the

means of the chart types, and of their mean differ-

ences, for all data sizes of the

small

stimuli on the lap-

top screen.

Bar

and

Donut

clearly outperformed

Radial

. We did not ﬁnd evidence of a difference

between

Bar

and

Donut

; neither across all data

sizes nor for individual data sizes (7, 12, 24) (cf. Fig-

ure 3). We saw large thresholds for

Radial

: around

6.1 s

for 24 data values,

1.7 s

for 12 data values, and

1 s for 7 data values.

Large Stimuli on the Laptop.

The bottom row of Figure 2 shows the CIs of the means

for each chart type, and of their mean differences for

the

large

stimuli. We see that

Radial

is again

outperformed by

Donut

and

Bar

. Looking at the

individual differences between techniques, we see that

Donut

outperforms

Bar

. Breaking the results

down to the differences for individual data sizes (cf.

Figure 4), we see that

Donut

outperforms

Bar

for 12 and 24 data values but that there is no evidence

of a difference for 7 data values.

Radial

is the

worst technique for each data size.

Small vs. Large Stimuli on Laptop.

Figure 5 shows the differences between the

small

and

large

stimuli across all data sizes for all chart

types. Across all data sizes the difference for

Bar

and

Donut

in terms of display size is small (

4 ms

–

161 ms

). For

Radial

the difference is larger

(

197 ms

–

1717 ms

). Given that the CIs overlap 0

clearly for

Bar

, we have no evidence of a difference

between

small

and

large

stimuli for this chart. The

CIs for both

Donut

and

Radial

overlap 0 only

slightly giving us some evidence that participants per-

formed more slowly with the

small

charts. However,

Figure 5 and Figure 6 show that there is no evidence

for a difference of thresholds for

small

and

large

stimuli for 7 and 12 data values (CIs clearly intersect

0). The only exceptions are

Donut

and

Radial

for the 24 data values.

Small Stimuli on Smartwatch vs. Laptop.

The results of the original study can be found in Fig-

ure 7. Comparing the trends of the thresholds for the

small

stimuli to the trends observed from the smart-

watch study, we ﬁnd that for all chart types and data

sizes the order of charts is the same:

Donut

and

Bar

, and then

Radial

. Inspecting the trends for

the different data sizes individually, the same trends

for 7 and 12 data values can be observed:

Donut

and

Bar

, then

Radial

. The only exception are

the 24 data values. Here, the smartwatch study found

no difference between

Donut

and

Bar

, however,

for the

small

stimuli the

Donut

was slightly better

than the Bar .

Looking at individual differences between the three

chart types, we observe similar trends to the smart-

watch study for the

small

stimuli. The

Radial

across all data values has by far the highest threshold,

whereas

Donut

and

Bar

are fairly close. This is

also reﬂected in the mean threshold differences (small

difference between

Bar

and

Donut

but large

difference between

Bar

and

Radial

as well as

Donut

and

Radial

). Average thresholds were,

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

138

●

777

radial

donut

bar

0 2000 4000 6000

●

777

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

121212

radial

donut

bar

0 2000 4000 6000

●

121212

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

242424

radial

donut

bar

0 2000 4000 6000

●

242424

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

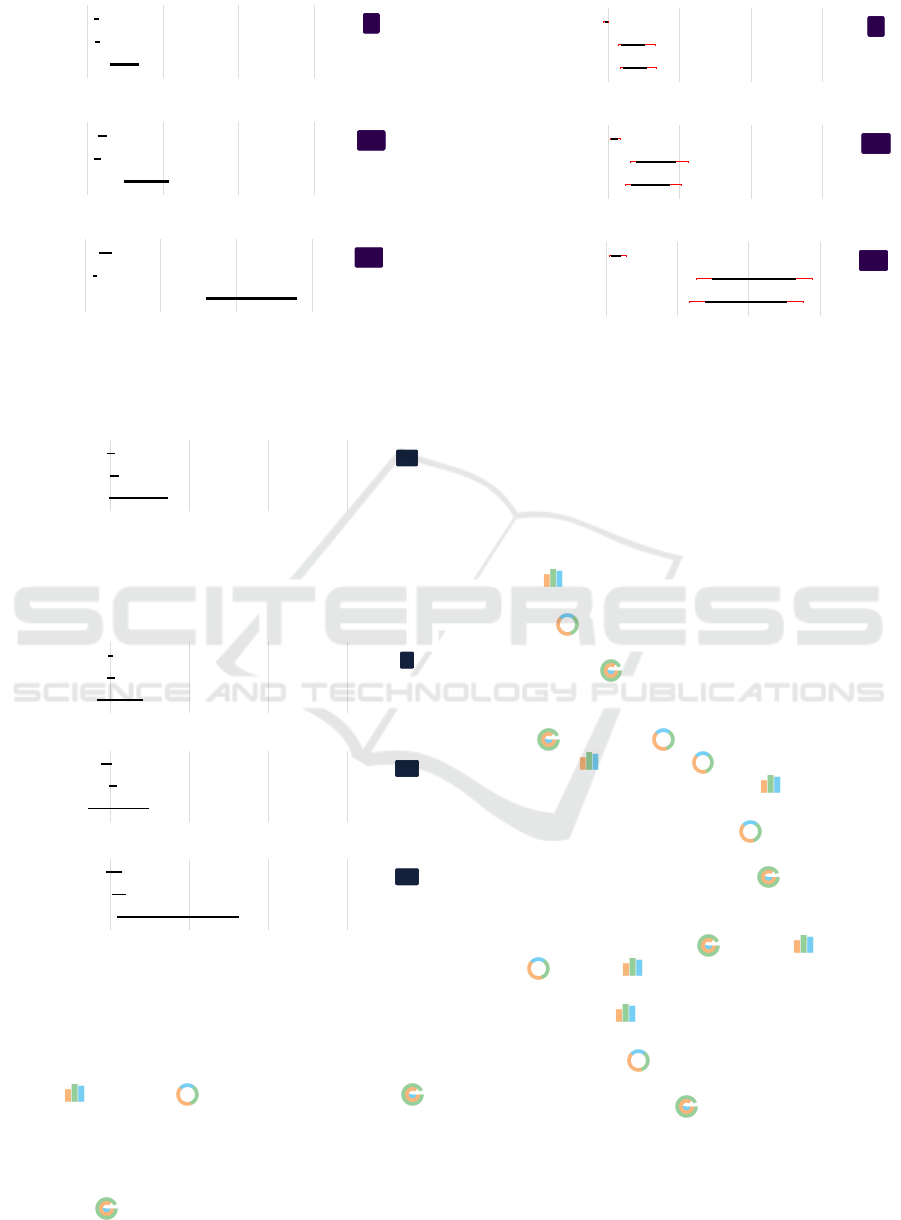

Figure 4: Results for the

large

stimuli displayed on the laptop screen (

1280 px×1280 px

). Left: Average thresholds in

milliseconds for each chart type and data size. Right: Pair-wise comparisons for each chart type and data size. Error bars

represent 95% Bootstrap conﬁdence intervals (CIs) adjusted for nine pairwise comparisons with Bonferroni correction.

●

allallall

Radial

Donut

Bar

0 2000 4000 6000

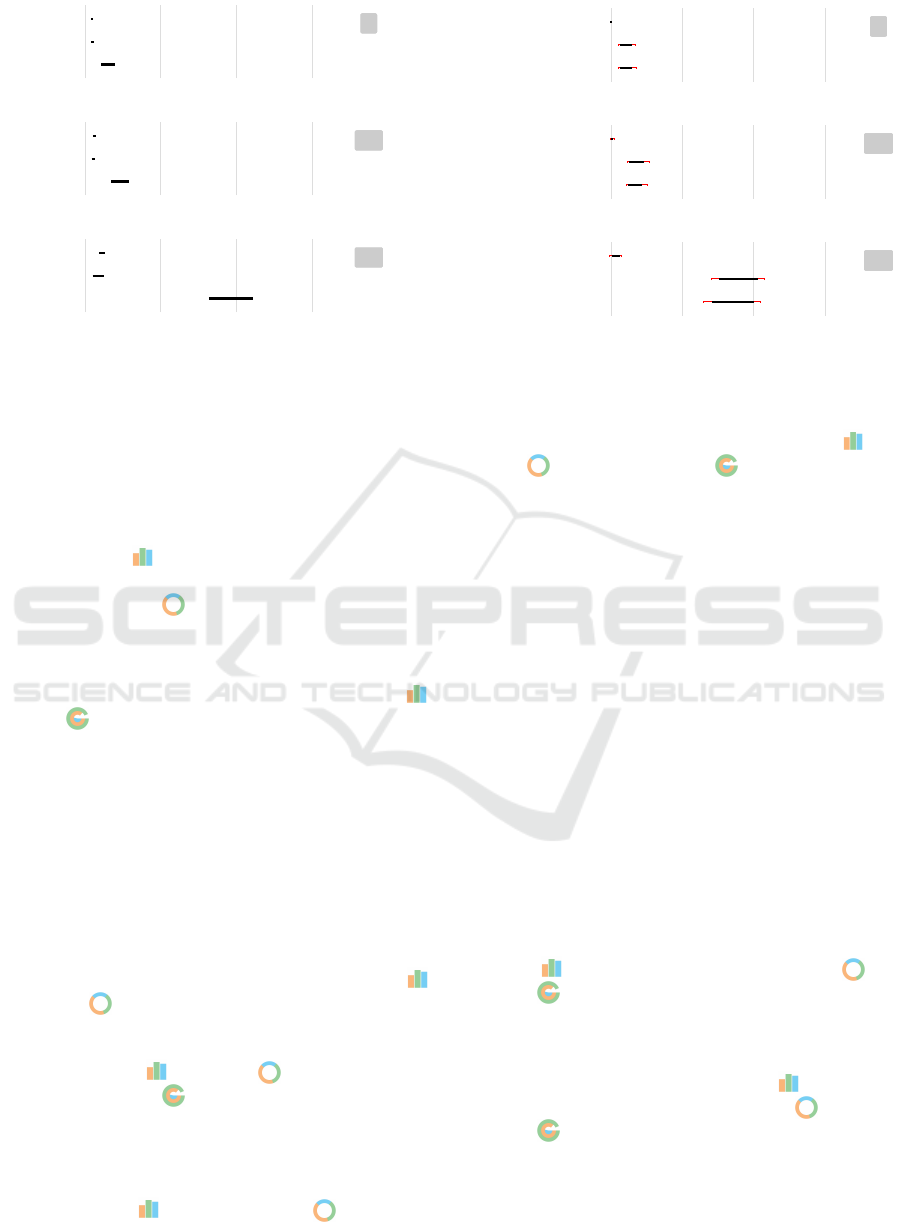

Figure 5: Difference between independent means of the

small

and

large

stimuli on the laptop screen for all chart

types across all data sizes. Error bars represent 95% Boot-

strap conﬁdence intervals (CIs).

●

777

Radial

Donut

Bar

0 2000 4000 6000

●

121212

Radial

Donut

Bar

0 2000 4000 6000

●

242424

Radial

Donut

Bar

0 2000 4000 6000

Figure 6: Difference between independent means of the

small

and

large

stimuli on the laptop screen for all chart

types and individual data sizes. Error bars represent 95%

Bootstrap conﬁdence intervals (CIs).

however, slower on the laptop, in the range of 100 ms

for Bar and Donut and 1400 ms for Radial .

For individual data sizes we can again observe the

same trends as in the smartwatch study. For 7 data

values all three charts have fairly similar thresholds,

but with the increase of data values the threshold for

the Radial increases as well.

4.2 Accuracy

We also report the accuracy for each stimulus type, for

which we target

91% correct responses. However, for

both stimuli types, all chart types, and all data sizes

the errors are larger than 9-10%. For the

small

stimuli

and

Bar

the mean error is 23% (7 data values =

18%, 12 data values = 25%, 24 data values = 26%),

for

Donut

the mean error is 19% (7 data values =

17%, 12 data values = 18%, 24 data values = 22%),

and for

Radial

the mean error is 23% (7 data val-

ues = 23%, 12 data values = 23%, 24 data values =

23%). There is some evidence of a difference between

Radial

and

Donut

for 7 data values as well as

between

Bar

and

Donut

for 12 and 24 data val-

ues. For the

large

stimuli and

Bar

the mean error

is 22% (7 data values = 18%, 12 data values = 21%,

24 data values = 27%), for

Donut

the mean error is

17% (7 data values = 15%, 12 data values = 16%, 24

data values = 20%), and for

Radial

the mean error

is 21% (7 data values = 22%, 12 data values = 22%,

24 data values = 18%). There is some evidence of a

difference between

Radial

and

Bar

as well as

Donut

and

Bar

for 24 data values. These error

rates are similar to the results reported by Blascheck

et al. (2019):

Bar

had a mean error of 23% (7 data

values

16%, 12 data values

23%, 24 data val-

ues

29%),

Donut

had a mean error of 16% (7 data

values

13%, 12 data values

13%, 24 data val-

ues

18%), and

Radial

had a mean error of 29%

(7 data values

28%, 12 data values

28%, 24 data

values = 31%).

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer

139

●

777

radial

donut

bar

0 2000 4000 6000

●

777

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

121212

radial

donut

bar

0 2000 4000 6000

●

121212

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

●

242424

radial

donut

bar

0 2000 4000 6000

●

242424

radial − bar

radial − donut

bar − donut

0 2000 4000 6000

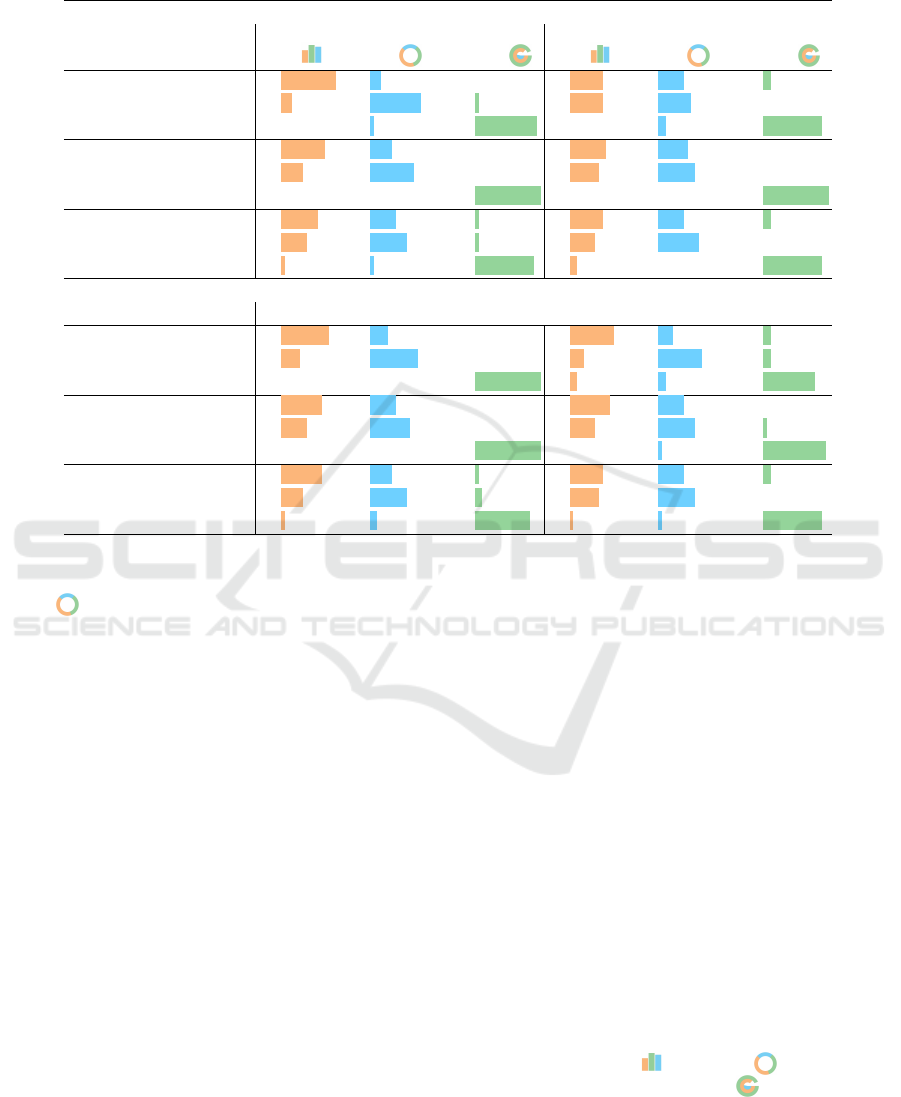

Figure 7: Data from the original smartwatch study. Left: Average thresholds in milliseconds for each chart type over all data

sizes. Right: Pair-wise comparisons for each chart type and data size. Error bars represent 95% Bootstrap conﬁdence intervals

(CIs) adjusted for nine pairwise comparisons with Bonferroni correction.

4.3 Post-questionnaire

In the post-questionnaire participants ranked all chart

types on preference and conﬁdence. Table 3 summa-

rizes the results for both stimuli sizes.

Overall,

Bar

was the most preferred and partici-

pants felt the most conﬁdent for all data sizes and both

stimuli sizes.

Donut

was the second most preferred

and the chart type participants felt second most con-

ﬁdent with for both stimuli sizes. The only exception

for the large stimuli preference are the 7 data val-

ues, for which the second rank is shared with

Bar

Radial

was the least preferred and participants felt

the least conﬁdent for both stimuli sizes.

5 DISCUSSION

We set out to understand if there is a difference be-

tween device type (laptop versus smartwatch) and dif-

ferent stimuli sizes (small versus large).

In general showing the small stimuli on a laptop in-

stead of a smartwatch led to similar overall trends. We

did not ﬁnd evidence of a difference between

Bar

and

Donut

except for 24 data values. All threshold

averages slightly increased for the

small

stimuli in the

laptop study compared to the smartwatch; in the order

100 ms

for

Bar

and

Donut

but in the order of

seconds for Radial .

Based on previous work, we also expected to see a

difference in stimulus size. For our simple data com-

parison task we found no clear evidence that the size

of the stimulus had an effect on the answer thresh-

olds. Both

Bar

as well as

Donut

could still

be read within less than

360 ms

. We observed the

same trends as in the smartwatch study (

Bar

and

Donut

outperform

Radial

). In contrast to pre-

vious studies (Heer et al., 2009; Neshati et al., 2019)

who found that completion time increased as chart

size increased we saw an overall decline in completion

time for the larger stimuli. This effect needs to be

studied further. In our study, in contrast to previous

work, participants did not explicitly have to choose

their own error vs. completion time tradeoff as each

trial had a pre-determined completion time.

The error rates for both stimuli sizes and the smart-

watch study were more or less the same, however, not

within the 9-10% targeted. This could be because the

number of reversals was not chosen large enough and

participants did not reach their true threshold. Com-

paring the actual accuracy rates, the difference be-

tween

small

and

large

stimuli was minimal, and

only slightly lower for the

large

stimuli. However,

these results are similar to ﬁndings in previous stud-

ies (Heer et al., 2009; Javed et al., 2010; Neshati et al.,

2019), in which the authors found that as chart size

increases the error decreases. Interestingly, for the

large

stimuli on the laptop there is clear evidence

that

Bar

had a higher error rate than

Donut

and

Radial

. This is interesting and warrants further

study. We hypothesize that the presence of distractors

or the thinner bars might have played a greater role for

larger stimuli.

Comparing the rankings, the

Bar

was mostly

ranked ﬁrst, followed by the

Donut

and last

Radial

for both preference and conﬁdence across

both stimuli sizes. This result was not the same as in

the smartwatch study. In the study by Blascheck et al.

(2019) the donut was preferred and participants felt

more conﬁdent, which could indicate that for a smart-

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

140

Table 3: Ranking of the three chart types for each data size. Top: Chart types participants preferred. Bottom: Chart

types participants felt most conﬁdent with. Left: For the

small

stimuli (

320 px×320 px

). Right: for the

large

stimuli

(1280 px×1280 px).

RANKING OF CHART PREFERENCE

SMALL STIMULI LARGE STIMULI

DATA SIZE RANK Bar Donut Radial Bar Donut Radial

1 15 3 0 9 7 2

7 2 3 14 1 9 9 0

3 0 1 17 0 2 16

1 12 6 0 10 8 0

12 2 6 12 0 8 10 0

3 0 0 18 0 0 18

1 10 7 1 9 7 2

24 2 7 10 1 7 11 0

3 1 1 16 2 0 16

RANKING OF CHART CONFIDENCE

SMALL STIMULI LARGE STIMULI

1 13 5 0 12 4 2

7 2 5 13 0 4 12 2

3 0 0 18 2 2 14

1 11 7 0 11 7 0

12 2 7 11 0 7 10 1

3 0 0 18 0 1 17

1 11 6 1 9 7 2

24 2 6 10 2 8 10 0

3 1 2 15 1 1 16

watch people prefer a different type of chart than for a

laptop computer. It could also be that familiarity with

Donut

was rated a bit lower in our study (M = 3.5,

SD = 1.6) than in the smartwatch study (M = 4.28,

SD = 1.13), however, the difference was minimal.

A major difference we see in the two studies is the

type of participants recruited. In our study, less than

half of the participants (15 of 36) had a bachelor or

master degree. Most had a higher education degree (A-

levels) and lower. In the smartwatch study, more than

three-quarters had a bachelor or master degree and had

a background in computer science. While the low-level

task we tested should not be impacted by academic

background, we cannot exclude the possibility that

prior exposure to charts might have inﬂuenced the

results slightly. Should there be an effect, the results

from the smartwatch study are likely a “best case” and

the thresholds for a population with less experience

reading charts might be higher, which was the case in

our study.

Initially for this study, we planned to recruit 24 par-

ticipants per condition (48 in total). However, due to

difﬁculties with recruitment, we reduced the number

of participants to 18 per condition during the study.

This lead to some orders of the conditions being used

only once and others being used three times. This

might have an effect on performance, i.e., conditions

done ﬁrst lead to better results because participants

are not tired. However, with the still large number of

participants per condition, we are conﬁdent that this

effect can be neglected.

In addition, especially for the

large

stimuli we

have to consider how realistic the scenario is. Initially,

the study design was inspired by a smartwatch us-

age scenario—people quickly glancing at their device

while potentially even performing a different task (e.g.,

running). Therefore, the charts were designed with no

labels, axes, grid lines, and tick marks, which would

not be the case for a large bar chart. Typically, usage

scenarios on a regular laptop would also be different

as people use visualization as their primary focus to

analyze some type of data.

In summary, our replication indicated that using a

setup that is less technically complicated in both soft-

ware and hardware design will allow us to reproduce or

replicate these types of smartwatch perception studies.

Our results show that the overall trends found on the

smartwatch hold for smartwatch-sized visualizations

on a larger display. However, we saw a slight increase

in thresholds for

Bar

and

Donut

and a larger in-

crease of thresholds for

Radial

. In addition, we

were interested to ﬁnd out to which extent the results

from the initial study would hold for larger visualiza-

tions. Our results indicate that the overall trends hold,

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer

141

Bar

and

Donut

still outperformed

Radial

However, we expected that thresholds would increase

for the large visualizations, which they did not.

6 CONCLUSIONS

We replicated the study by Blascheck et al. (2019)

on a laptop using two different stimuli sizes

(

320 px×320 px

and

1280 px×1280 px

). We investi-

gated if trends observed for small visualizations on

smartwatches hold for smartwatch-sized visualizations

as well as large visualizations shown on a larger dis-

play. Our results indicate that for this simple data

comparison task there was no difference between stim-

uli sizes and only minor differences when comparing

the results from the small stimuli to the smartwatch

study. Therefore, in the future, studies could also be

performed on desktop computers with small stimuli to

overcome complicated technical setups, but we recom-

mend to attempt similar resolutions. However, ecolog-

ical validity is diminished both for the smartwatch as

well as the large stimuli. Therefore, the context should

be considered when designing similar studies.

ACKNOWLEDGEMENTS

We would like to thank Ali

Unl

u for conducting the

study. The research was supported by the DFG grant

ER 272/14-1 and ANR grant ANR-18-CE92-0059-01.

Tanja Blascheck is indebted to the European Social

Fund and the Ministry of Science, Research, and Arts

Baden-W

urttemberg.

REFERENCES

Anderson, E. (1957). A semigraphical method for the analy-

sis of complex problems. Proceedings of the National

Academy of Science, 43(10):923–927.

Aravind, R., Blascheck, T., and Isenberg, P. (2019). A survey

on sleep visualizations for ﬁtness trackers. In EuroVis

2019 - Posters. The Eurographics Association.

Beck, F., Blascheck, T., Ertl, T., and Weiskopf, D. (2017).

Word-sized eye tracking visualizations. In Burch, M.,

Chuang, L., Fisher, B., Schmidt, A., and Weiskopf,

D., editors, Eye Tracking and Visualization, pages 113–

128. Springer.

Beck, F., Hollerich, F., Diehl, S., and Weiskopf, D. (2013a).

Visual monitoring of numeric variables embedded in

source code. In 2013 First IEEE Working Confer-

ence on Software Visualization (VISSOFT), pages 1–4.

IEEE.

Beck, F., Moseler, O., Diehl, S., and Rey, G. D. (2013b). In

situ understanding of performance bottlenecks through

visually augmented code. In 2013 21st International

Conference on Program Comprehension (ICPC), pages

63–72. IEEE.

Beck, F. and Weiskopf, D. (2017). Word-sized graphics for

scientiﬁc texts. IEEE Transactions on Visualization

and Computer Graphics, 23(6):1576–1587.

Blascheck, T., Besan

c¸

on, L., Bezerianos, A., Lee, B., and

Isenberg, P. (2019). Glanceable visualization: Stud-

ies of data comparison performance on smartwatches.

IEEE Transactions on Visualization and Computer

Graphics, 25(1):630–640.

Borgo, R., Kehrer, J., Chung, D., Maguire, E., Laramee, R.,

Hauser, H., Ward, M., and Chen, M. (2013). Glyph-

based visualization: Foundations, design guidelines,

techniques and applications. In Eurographics Con-

ference on Visualization - STARs, pages 39–63. The

Eurographics Association.

Brandes, U. (2014). Visualization for visual analytics: Micro-

visualization, abstraction, and physical appeal. In Pro-

ceedings of the IEEE Paciﬁc Visualization Symposium,

pages 352–353. IEEE Computer Society Press.

Brandes, U., Nick, B., Rockstroh, B., and Steffen, A. (2013).

Gestaltlines. Computer Graphics Forum, 32(3):171–

180.

Chung, D., Laramee, R., Kehrer, J., and Hauser, H. (2014).

Glyph-based multi-ﬁeld visualization. In Hansen, C.,

Chen, M., Johnson, C., Kaufman, A., and Hagen,

H., editors, Scientiﬁc Visualization, pages 129–137.

Springer.

Dragicevic, P. (2016). Fair statistical communication in HCI.

In Robertson, J. and Kaptein, M., editors, Modern

Statistical Methods for HCI, pages 291–330. Springer.

Fuchs, J., Isenberg, P., Bezerianos, A., and Keim, D. (2017).

A systematic review of experimental studies on data

glyphs. IEEE Transactions on Visualization and Com-

puter Graphics, 23(7):1863–1879.

Garc

ıa-P

erez, M. (1998). Forced-choice staircases with ﬁxed

step sizes: Asymptotic and small-sample properties.

Vision Research, 38(12):1861–1881.

Gofﬁn, P., Boy, J., Willett, W., and Isenberg, P. (2017). An

exploratory study of word-scale graphics in data-rich

text documents. IEEE Transactions on Visualization

and Computer Graphics, 23(10):2275–2287.

Greene, M. and Oliva, A. (2009). The briefest of glances:

The time course of natural scene understanding. Psy-

chological Science, 20(4):464–72.

Heer, J., Kong, N., and Agrawala, M. (2009). Sizing the

horizon: The effects of chart size and layering on the

graphical perception of time series visualizations. In

Proceedings of the Conference on Human Factors in

Computing Systems, pages 1303–1312. ACM.

Higgins, J. J. (2004). Introduction to Modern Nonparametric

Statistics. Thomson Learning, 1st edition.

Islam, A., Bezerianos, A., Lee, B., Blascheck, T., and Isen-

berg, P. (2020). Visualizing information on watch faces:

A survey with smartwatch users. In IEEE Visualization

Conference (VIS).

IVAPP 2021 - 12th International Conference on Information Visualization Theory and Applications

142

Javed, W., McDonnel, B., and Elmqvist, N. (2010). Graphi-

cal perception of multiple time series. IEEE Trans-

actions on Visualization and Computer Graphics,

16(6):927–934.

Kingdom, F. and Prins, N. (2010). Psychophysics: A Practi-

cal Introduction. Elsevier Science BV, 1st edition.

Neshati, A., Sakamoto, Y., Leboe-McGowan, L. C., Leboe-

McGowan, J., Serrano, M., and Irani, P. (2019). G-

sparks: Glanceable sparklines on smartwatches. In

Proceedings of the 45th Graphics Interface Conference

on Proceedings of Graphics Interface 2019, pages 1–9.

Canadian Human-Computer Communications Society.

Perin, C., Vuillemot, R., and Fekete, J.-D. (2013). Soccer-

Stories: A kick-off for visual soccer analysis. IEEE

Transactions on Visualization and Computer Graphics,

19(12):2506–2515.

Pizza, S., Brown, B., McMillan, D., and Lampinen, A.

(2016). Smartwatch in vivo. In Proceedings of the

Conference on Human Factors in Computing Systems

(CHI), pages 5456–5469. ACM.

Ropinski, T., Oeltze, S., and Preim, B. (2011). Survey

of glyph-based visualization techniques for spatial

multivariate medical data. Computers & Graphics,

35(2):392–401.

Saito, T., Miyamura, H. N., Yamamoto, M., Saito, H.,

Hoshiya, Y., and Kaseda, T. (2005). Two-tone pseudo

coloring: Compact visualization for one-dimensional

data. In Proceedings of the Conference on Information

Visualization, pages 173–180. IEEE Computer Society

Press.

Tufte, E. (2001). The visual display of quantitative informa-

tion. Graphics Press, 1st edition.

A Replication Study on Glanceable Visualizations: Comparing Different Stimulus Sizes on a Laptop Computer

143
