Machine Learning based Voice Analysis in Spasmodic Dysphonia: An

Investigation of Most Relevant Features from Specific Vocal Tasks

Giovanni Costantini

, Pietro Di Leo

, Francesco Asci

, Zakarya Zarezadeh

, Luca Marsili

Vito Errico

, Antonio Suppa

2,3 d

and Giovanni Saggio

Department of Electronic Engineering, University of Rome Tor Vergata, 00133 Rome, Italy

Department of Human Neurosciences, Sapienza University of Rome, 00185 Rome, Italy

IRCCS Neuromed, 86077 Pozzilli (IS), Italy

Gardner Family Center for Parkinson's Disease and Movement Disorders, Department of Neurology,

University of Cincinnati, Cincinnati, OH, U.S.A.

Keywords: Adductor-type Spasmodic Dysphonia, Botulinum Neurotoxin, Voice Analysis, Cepstral Analysis, Feature

Extraction, Feature Selection, Machine Learning.

Abstract: Adductor-type spasmodic dysphonia (ASD) is a task-specific speech disorder characterized by a strangled

and strained voice. We have previously demonstrated that advanced voice analysis, performed with support

vector machine, can objectively quantify voice impairment in dysphonic patients, also evidencing results of

voice improvements due to symptomatic treatment with botulinum neurotoxin type-A injections into the vocal

cords. Here, we expanded the analysis by means of three different machine learning algorithms (Support

Vector Machine, Naïve Bayes and Multilayer Percept), on a cohort of 60 ASD patients, some of them also

treated with botulinum neurotoxin type A therapy, and 60 age and gender-matched healthy subjects. Our

analysis was based on sounds produced by speakers during the emission of /a/ and /e/ sustained vowels and a

standardized sentence. As a conclusion, we report the main features with discriminatory capabilities to

distinguish untreated vs. treated ASD patients vs. healthy subjects, and a comparison of the three classifiers

with respect to their discriminating accuracy.

1 INTRODUCTION

Adductor-type spasmodic dysphonia (ASD) is a task-

specific focal dystonia, characterized by involuntary

laryngeal muscle spasms during speech production,

which mainly occurs for females, with a ratio with

respect to male ranging from 2/1 to 8/1 (Jinnah et al.,

2013). Clinically, ASD manifests with a strained and

strangled voice, speech arrest and intermittent

phonatory breaks.

Among task-specific focal dystonia, ASD is a rare

and challenging entity (Albert and Knoefel, 2011;

Casper and Leonard, 2006; Murry, 2014). Patients

with ASD may manifest a clinically overt voice

tremor. Currently, the diagnosis of ASD is based on

neurologic examination and the evaluation of voice

https://orcid.org/0000-0001-8675-5532

https://orcid.org/0000-0002-0253-559X

https://orcid.org/0000-0003-0717-3521

https://orcid.org/0000-0001-9903-5550

https://orcid.org/0000-0002-9034-9921

impairment, which relies on perceptual assessment,

according to validated clinical rating scales that are a

fundamental support, but can be prone to examiner’s

bias and experience. Conveniently, the sound of the

voice can be analyzed through technological means

too, which can help in rating objectification (Saggio

& Costantini, 2020).

Recently, we applied voice analysis aimed at

examining voice impairment in patients with ASD

(Antonio Suppa et al., 2020). In particular, the

cepstral peak prominence (CPP) and its smoothed

variant (CPPs) were found inversely proportional to

the degree of patients’ voice impairment, accordingly

to previous observations (Heman-Ackah et al., 2014;

Hillenbrand and Houde, 1996; Lowell et al., 2011;

Peterson et al., 2013; Suppa et al., 2015).

Costantini, G., Di Leo, P., Asci, F., Zarezadeh, Z., Marsili, L., Errico, V., Suppa, A. and Saggio, G.

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks.

DOI: 10.5220/0010344601030113

In Proceedings of the 14th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2021) - Volume 4: BIOSIGNALS, pages 103-113

ISBN: 978-989-758-490-9

103

In our study, we performed voice analysis by

means of machine learning algorithms too, comparing

patients’ vocal tasks with respect to healthy subjects’

ones (HS). Specifically, a machine learning model

applied to a large dataset of vocal samples, was able

to discriminate patients vs. control by means of

specific selected features (Asci et al., 2020; Parada-

Cabaleiro et al., 2018; Alessandrini et al., 2017;

Antonio Suppa et al., 2020). In such a way, we

demonstrated how, and to what extent, voice analysis

based on a machine learning approach, by means of

an artificial neural network (ANN) algorithm, gains

in accuracy classification with respect to traditional

means.

Furthermore, this approach was usefully adopted

to evidence improvements, in voices of patients

treated with botulinum neurotoxin type-A (BoNT-A)

injection into the vocal cords (Benninger et al., 2001;

Bhattacharyya and Tarsy, 2001; Schlotthauer et al.,

2010; Suppa et al., 2020).

Here, firstly we aimed at extending the

aforementioned analysis in ASD by applying

different machine learning algorithms, such as

Support Vector Machine (SVM), Naïve Bayes (NB),

and Multilayer Perceptron (MP), to evidence the best

performing one in differencing patients before and

after BoNT-A treatment, vs. healthy control group.

To this purpose, we asked subjects to perform

sustained /a/ and /e/ vowels, and to say a standardized

sentence. In this way, as a second aim, we determined

whether the performances of adopted algorithms

could be affected or depended by the specific vocal

task.

Finally, our third aim was to evidence which were

the families of low-level descriptors (LLDs) and

functionalities with the most relevant information

content with respect to our purposes.

2 MATERIALS AND METHODS

2.1 Subjects

Our patients’ cohort included 60 subjects with ASD

(9 men, 60.44yo±10.73SD; 51 women,

64.69yo±13.37SD), and a group of age- and gender-

matched healthy subjects (15 men,

60.73yo±12.79SD; 45 women, 57.76yo±11.9SD), for

comparison purposes. They were enrolled in the

Movement Disorders Clinic at the Department of

Human Neurosciences, Sapienza University of Rome

(Italy) (Antonio Suppa et al., 2020).

Patients were diagnosed with ASD according to

standard criteria (Johnson et al., 1997; Ludlow et al.,

2018; Schindler et al., 2010). All participants were

native Italian speakers, non-smokers, not suffering

from bilateral / unilateral hearing loss or any

respiratory disorders.

A patient’s subgroup of 35 subjects (8 men;

61.75yo±10.67SD; 27 women, 65.93yo±11.29SD)

was treated with BoNT-A injections. For them, voices

were recorded at starting time (e.g. before BoNT-A

injections) and one month after BoNT-A injections

(Antonio Suppa et al., 2020).

Patients’ groups were differentiated in order to

both evidence the vocal features that can discriminate

the pathological status (with respect to the healthy

subjects), and assess the effectiveness of the therapy

by means of data comparisons.

All participants gave their written informed

consent to the study, which was approved by the

institutional review board in accordance with the

Declaration of Helsinki.

2.2 Voice Recordings and Analysis

Details regarding the experimental setting and voice

recording procedures were already reported (Suppa et

al., 2020). In particular, all participants were upright

seated while three times repeated vocal tasks in a

sound-proof room. The voices were acquired by

means of a Shure WH20 dynamic headset

microphone (Shure Incorporated, USA), 5 cm from

the mouth, and recorded in “.wav” format by means

of a high definition audio-recorder Zoom H4n (Zoom

Corporation, Tokyo, Japan), sampled at 44.1 kHz,

with 16-bit resolution.

Vocal tasks were sustained emission of the vowels

/a/ and /e/, and the Italian-sound standardized

sentence “Nella casa in riva al mare maria vide tre

cani bianchi e neri”, at subject’s normal voice

intensity and pitch (Lowell et al., 2013; Peterson et

al., 2013).

The analysis included the extraction of more than

6000 voice features, by means of OpenSMILE

(software by audEERING GmbH, Germany) (Eyben

et al., 2010), in accordance to the INTERSPEECH

2016 Computational Paralinguistics Challenge

(ComParE) feature set (Schuller et al., 2016). We

added CPPs, extracted via SpeechTool software

(Heman-Ackah et al., 2014; Antonio Suppa et al.,

2020) to the feature set too, being CPPs relevant in

ASD

Each one of the extracted features is characterized

by its low-level descriptor (LLD), LLD family, and

LLD functional.

All features were imported in the Weka software

(Waikato Environment for Knowledge Analysis,

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

104

University of Waikato, New Zealand) (Hall et al.,

2009) in order to perform selection and ranking, as

detailed in the following.

Again, the Weka software was adopted for

classifying purposes too.

2.3 Data Pre-processing

Data pre-processing consisted of extraction and

selection of features.

Feature extraction is aimed at determining the

most relevant features in differentiating classes of

untreated patients, BoNT-A treated patients, and HS

(Barandas et al., 2020).

Feature selection is aimed at identifying the

optimal subset of features that maximizes information

content. Through feature selection, highly

intercorrelated or irrelevant features were removed to

improve classification performances, reducing data

storage, computational time and classifier’s

complexity. To perform feature selection, we adopted

a supervised filter made of an evaluator, which

measures the significance of a subset of features and

returns a numerical value of merit that guides the

search for the optimal subset, and a searching method,

that explores the features space, considering different

combinations of features in the dataset, in order to

find the feature subset with maximum information

content. As an evaluator, we adopted the correlation-

based feature selection (CFS) algorithm (Hall, 2000),

that prefers subsets of features with low

intercorrelation and high correlation with the target

class (i.e. untreated patients, BoNT-A treated patients

and HS), whilst as a searching method we adopted the

Greedy Stepwise algorithm. Furthermore, we ranked

the selected features on the basis of their Information

Gain with respect to the target class. This was

particularly aimed at determining the more relevant

features in evaluating the BoNT-A therapy

effectiveness.

2.4 Statistical Analysis

Kolmogorov-Smirnov test was used to demonstrate

the normality of the demographic and anthropometric

parameters of the subjects, in terms of age, gender,

height and weight, obtaining result of p > 0.05.

Mann-Whitney U test was used to compare the

demographic and clinical scores of ASD patients and

HS. Results obtained guaranteed the possibility of a

demographic and clinical scores comparison between

the patients vs. healthy groups (p > 0.05).

The assessed comparative statistical analysis

included the sensitivity, specificity, positive and

negative predictive values, as well as the accuracy

and the Youden’s index of the classification.

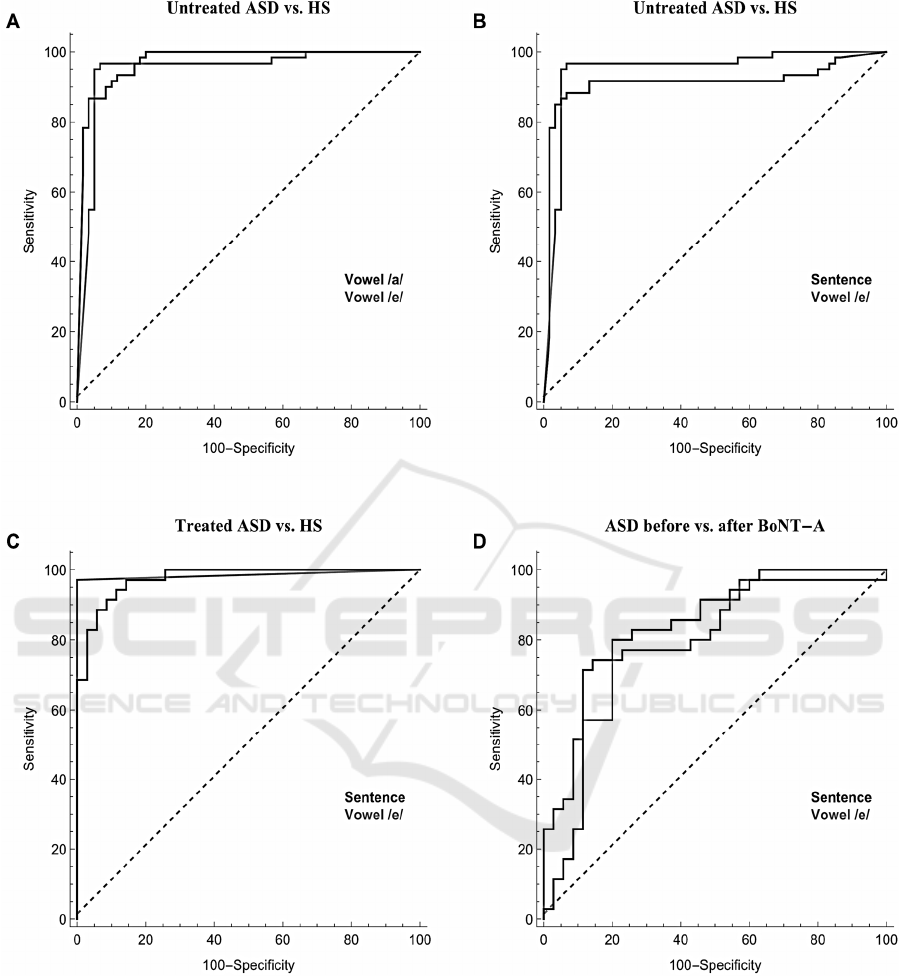

ROC analysis was also performed and the Area

Under Curve (AUC) value was calculated for all the

ROC curves. Classification’s performances obtained

for different vocal tasks were compared by

considering the differences among ROC curves

(DeLong et al., 1988).

2.5 Classification

For classification purposes, we adopted three

different machine learning models, such as Support

Vector Machine (SVM) with linear kernel, Naïve

Bayes (NB) and Multilayer Perceptron (MP). This

was to evidence the best performing classifier.

SVM model allows building a linear, binary and

non-probabilistic classifier, which considers training

examples as points in an N-dimensional space (where

N is the number of the features) and aims at separating

the two classes of subjects with a hyperplane in the

N-dimensional space. We trained the SVM using the

sequential minimal optimization (SMO) method

(Platt, 1999).

Naïve Bayes model allows building a supervised

probabilistic classifier based on Bayes’ theorem, with

the assumption of the independence between the

features (John and Langley, 1995).

Multilayer Perceptron is a class of artificial neural

network with at least three layers of neurons, that use

supervised backpropagation techniques for training

(Van Der Malsburg, 1986). We used a network with

N-neuron input layer, where N is equal to the number

of selected features, (N/2+1)-neuron hidden layer and

two-neuron output layer, trained through 500 epochs.

All three classifiers were trained through Weka

software using the features selected by CFS. All the

classification were made using a 10-folds cross-

validation. The three classifiers were used to perform

three different classification tests: HS vs. untreated

ASD, HS vs. ASD after treatment, untreated vs. the

same group of patients after subjected to BoNT-A

treatment.

3 RESULTS

3.1 HS vs. Untreated ASD

Table 1 shows comparison results of HS vs. untreated

ASD patients.

Among all the vocal tasks, we achieved the

highest accuracy (95%) for the vowel /e/, regardless

the adoption of Multilayer Perceptron or SVM.

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks

105

The vowel /a/, the vowel /e/ and the sentence

achieved similar performances according to the ROC

curves comparison (Figure 1 A, B).

Tables 2 and 3 evidence the top 10 most relevant

features, when ranked through the Information Gain

algorithm. In particular, for both vowels the most

relevant ranked features are the ones related to the

fundamental frequency, to the Mel-Frequency

Cepstral Coefficients (MFCC) and to the RASTA

coefficients (Hermansky and Morgan, 1994).

Conversely, for the sentence the most relevant

features are CPPs, and those related to jitter and

RASTA coefficients.

3.2 HS vs. Treated ASD

Table 4 shows comparison results related to HSs vs.

BoNT-A treated patients.

Among all the vocal tasks, we achieved the

highest accuracy (98.57%) for the vowel /e/,

regardless of the adoption of Multilayer Perceptron or

SVM.

Both vowel /e/ and the sentence achieved similar

performances according to comparisons of the ROC

curves (Figure 1 C). We found that the top 10 most

relevant features, when ranked through the

Information Gain algorithm, are similar to those

found in comparison of the previous section 3.1. In

particular, the LLDs’ families are the same for the

two cases.

3.3 ASD before and after BoNT-A

Table 4 shows comparison results related to untreated

patients vs. BoNT-A treated ones.

Among all the vocal tasks, we achieved the

highest accuracy (81.43%) for the sentence and SVM.

Both vowel /e/ and the sentence achieved similar

performances according to their ROC curves (Figure

1 D).

Table 5 evidences the top 10 most relevant

features, when ranked through the Information Gain

algorithm. In particular, for all the vocal tasks the

most relevant ranked features are the ones related to

the spectrum, to the Mel-Frequency Cepstral

Coefficients (MFCC) and to the RASTA coefficients.

3.4 The Most Relevant Features

Vocal features with high discriminatory power can be

found directly from comparing vocal samples of

treated and untreated patients from those of HS.

We examined the most relevant features (Tables

2, 3, 5) and found those capable of better

differentiating ASD patients from HS, and better

discriminating the clinical effects of BoNT-A therapy

on patients’ voice.

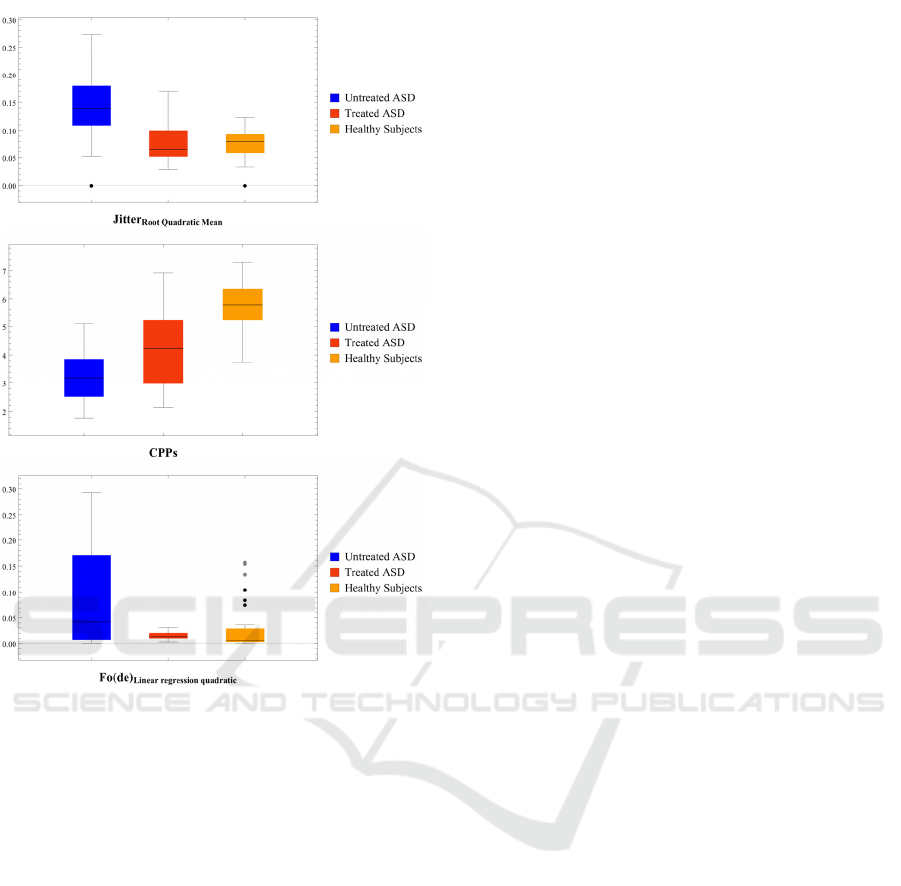

Figure 2 shows the distributions of the values of

HS and ASD patients, treated and untreated, for two

of those vocal features, found for the sentence by

means of ranking algorithms, compared to CPPs

distribution. Features found through our analysis are

comparable to CPPs, in terms of discriminatory

capabilities.

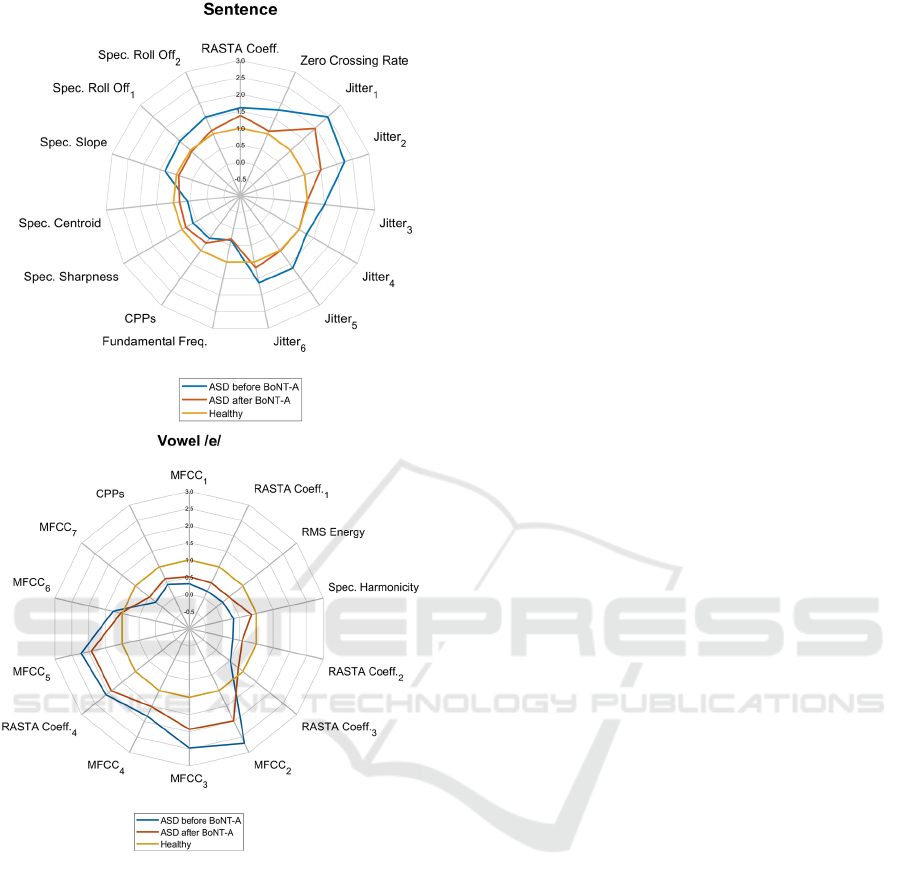

Figure 3 shows the mean values of that

parameters where the values of treated ASD patients

are more near to that of the HS rather than that of

untreated ASD. Those features could be biological

markers useful to evaluate the improvement in

patients’ voices after the treatment.

Table 1: Machine learning’s performance in discriminating HS from untreated ASD patients for all the vocal tasks with 10-

folds cross-validation. Sens: Sensitivity; Spec: Specificity; PPV: Positive Predictive Value; NPV: Negative Predictive Value;

Acc: Accuracy; AUC: Area Under the (ROC) Curve.

Classifier Vocal

Tasks

Features’

Number

Youden

Index

Sens

(%)

Spec

(%)

PPV

(%)

NPV

(%)

Acc

(%)

AUC

Healthy

vs.

ASD

before

BoNT-A

Naïve

Bayes

Vowel /a/ 93 0.85 94.74 90.48 90.00 95.00 92.5 0.955

Vowel /e/ 131 0.86 98.11 88.06 86.67 98.33 92.5 0.978

Sentence 85 0.77 95.91 81.69 78.3 96.67 87.5 0.975

Multilayer

Perceptron

Vowel /a/ 93 0.88 93.44 94.91 95 93.3 94.17 0.972

Vowel /e/ 131 0.9 95 95 95 95 95 0.985

Sentence 85 0.82 94.55 87.69 86.67 95.00 90.83 0.975

SVM

Vowel /a/ 93 0.87 93.33 93.33 93.33 93.33 93.33 0.971

Vowel /e/ 131 0.9 95 95 95 95 95 0.948

Sentence 85 0.82 94.55 87.69 86.67 95.00 90.83 0.908

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

106

Table 2: Ranking of the first 10 selected features for the vowels, obtained by means of Information Gain algorithm, when

discriminating HS from untreated ASD; LLD: Low Level Descriptor; MFCC: Mel Frequency Cepstral Coefficient. The suffix

“de” indicates that the current feature is a 1st order delta coefficient (differential) of the smoothed low-level descriptor (delta

regression coefficients computed from the feature).

HS vs. untreated ASD

Vowel /a/ Vowel /e/

№

Families of

LLDs

LLDs Functionals

Families of

LLDs

LLDs Functionals

RASTA

coefficients

Coefficient of

band 10 (de)

rd

Quartile MFCC

Mel

Coefficient(de)

Inter-quartile 1-3

Voicing

Fundamental

Frequency (fo)

Inter-quartile 1-2

MFCC

Mel

Coefficient(de)

rd

Quartile

Voicing

Relate

Fundamental

Fre

uenc

(

)

Inter-quartile 1-3

Voicing

Relate

Fundamental

Fre

uenc

(

)

Inter-quartile 1-2

RASTA

coefficients

Coefficient of

and 2 (de)

Inter-quartile 1-3

Voicing

Relate

Fundamental

Frequency (fo)

rd

Quartile

MFCC

Mel

Coefficient(de)

rd

Quartile MFCC

Mel

Coefficient(de)

Position of

arithmetic mean

RASTA

coefficients

Coefficient of

and 3

(

)

rd

Quartile

RASTA

coefficients

Coefficient of

and 6

(

)

Inter-quartile 1-3

Voicing

Relate

Fundamental

Fre

uenc

(

)

Inter-quartile 2-3

Voicing

Relate

Fundamental

Fre

uenc

(

)

Inter-quartile 2-3

RASTA

coefficients

Coefficient of

band 2 (de)

rd

Quartile MFCC

Mel

Coefficient(de)

Inter-quartile 2-3

MFCC

Mel

Coefficient(de)

rd

Quartile MFCC

Mel

Coefficient(de)

Inter-quartile 2-3

MFCC

Mel

Coefficient(de)

Quartile

RASTA

coefficients

Coefficient of

band 5 (de)

rd

Quartile

Table 3: Ranking of the first 10 selected features for the sentence, obtained by means of Information Gain algorithm, when

discriminating HS from untreated ASD; CPPs: Cepstral Peak Prominence smoothed; LLD: Low Level Descriptor; MFCC:

Mel Frequency Cepstral Coefficient. The suffix “de” indicates that the current feature is a 1st order delta coefficient

(differential) of the smoothed low-level descriptor (delta regression coefficients computed from the feature).

HS vs. untreated ASD

Sentence

№ Families of LLDs LLDs Functionals

1 Cepstral LLD CPPs Pure Value

2 Sound Quality Jitter Arithmetic mean

3 Sound Quality Jitter Inter-quartile 2-3

4 Sound Quality Jitter

rd

Quartile

5 Sound Quality Jitter Inter-quartile 1-3

6 Sound Quality Jitter Root quadratic mean

7 Sound Quality Shimmer

1%Percentile

8

EnergyRelated RMSEnergy

Relative peak mean

9 Sound Quality Jitter Standard deviation

10 Sound Quality Jitter

coefficient of the linear regression

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks

107

Table 4: Machine learning’s performance in discriminating treated ASD patients from HS and from ASD patients before

BoNT-A therapy, for the sentence and the vowel /e/, with 10-folds cross-validation. Sens: Sensitivity; Spec: Specificity; PPV:

Positive Predictive Value; NPV: Negative Predictive Value; Acc: Accuracy; AUC: Area Under the (ROC) Curve. Please note

that for these comparisons, since the vowels got comparable performance, we reported, for simplicity, only results related to

the vowel /e/.

Classifier Vocal

Tasks

Features’

Number

Youden

Index

Sens

(%)

Spec

(%)

PPV

(%)

NPV

(%)

Acc

(%)

AUC

Healthy

vs.

treated

ASD

Naïve Bayes

Vowel /e/ 84 0.84 96.77 87.18 85.71 97.14 91.43 0.964

Sentence 65 0.89 96.97 91.89 91.43 97.14 94.28 0.964

Multilayer

Perceptron

Vowel /e/ 84 0.97 100.0 97.22 97.14 100.0 98.57 1

Sentence 65 0.86 94.12 91.67 91.43 94.29 92.85 0.988

SVM

Vowel /e/ 84 0.97 100.0 97.22 97.14 100.0 98.57 0.986

Sentence 65 0.80 91.18 88.89 88.57 91.43 90 0.976

ASD

before

BoNT-A

vs.

after

BoNT-A

Naïve Bayes

Vowel /e/ 21 0.49 74.29 74.29 74.29 74.29 74.28 0.793

Sentence 23 0.67 75.00 92.31 94.29 68.57 80 0.865

Multilayer

Perceptron

Vowel /e/ 21 0.54 78.79 75.68 74.29 80.00 77.14 0.802

Sentence 23 0.58 76.32 81.25 82.86 74.29 78.57 0.824

SVM

Vowel /e/ 21 0.46 73.53 72.22 71.43 74.29 72.86 0.767

Sentence 23 0.60 81.82 78.38 77.14 82.86 81.43 0.931

Table 5: Ranking of the first 10 selected features for the vowel /e/ and for the sentence, obtained by means of Information

Gain algorithm, when discriminating ASD before and after BoNT-A therapy; LLD: Low Level Descriptor; MFCC: Mel

Frequency Cepstral Coefficient. The suffix “de” indicates that the current feature is a 1st order delta coefficient (differential)

of the smoothed low-level descriptor (delta regression coefficients computed from the feature). Please note that since for the

vowels were selected similar features we reported, for simplicity, only those related to the vowel /e/.

ASD before vs. after BoNT-A

Vowel /e/ Sentence

№

Families of

LLDs

LLDs Functionals

Families of

LLDs

LLDs Functionals

1 Spectral LLD

Spectral

Variance

(

)

Relative duration

LLD is above 75%

Spectral LLD

Spectral Flux

(

)

coefficient of

linear

rediction

RASTA

coefficients

Coefficient of

and 19 (de)

Position of

minimu

Spectral LLD

Spectral

Variance (de)

Relative duration

left curvature

3 Spectral LLD

Spectral

Skewness (de)

Mean segment

length

Spectral LLD Spectral Slope

Position of

maximum

RASTA

coefficients

Coefficient of

band 20 (de)

Standard segment

length

Prosodic

LLD

Sum of auditory

spectrum

Coefficient 0 of

linear prediction

5 MFCC

Mel

Coefficient

(

)

Quartile

Sound

Qualit

Jitter

coefficient of

linear re

ression

6 MFCC

Mel

Coefficient (de)

Inter-quartile 2-3

RASTA

coefficients

Coefficient of

band 23 (de)

Mean of falling

slope

7 Spectral LLD

Spectral

Harmonicity

Mean of peak

distances

MFCC

Mel

Coefficient (de)

Relative peak

mean

RASTA

coefficients

Coefficient of

band 6 (de)

Mean segment

length

MFCC

Mel

Coefficient (de)

coefficient of

linear prediction

Voicing Related

LLD

Fundamental

Frequency (fo)

Quartile

Energy

Related LLD

RMS Energy

Position of

minimum

10 Spectral LLD Spectral Slope

coefficient of the

linear prediction

MFCC

Mel

Coefficient (de)

Relative duration

left curvature

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

108

Figure 1: ROC curves comparison for the results obtained when differentiating untreated ASD patients from HS with two

different vowels (panels A) and with a sentence and a vowel (panel B), when differentiating treated ASD patients from HS

with a sentence and a vowel (panel C) and when differentiating ASD patients after and before BoNT-A with a sentence and

a vowel (panel D). Please note that since all the classifiers achieve similar results, we reported, for simplicity, only the ROC

curves related to SVM classifier. ROC analysis evidences that through a machine learning-based analysis is possible to

accurately discriminate between HS and ASD, both treated and untreated. Moreover, performances obtained with different

vocal tasks are comparable. Lowest results are obtained for panel D, suggesting that, although BoNT-A partially rehabilitates

the voices of treated patients, those does not result as the ones of the healthy counterpart.

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks

109

Figure 2: Comparison between the distributions of the

values of some of the most relevant vocal features for the

sentence, found by means of ranking algorithms, and CPPs’

distribution. Features found through our analysis are

comparable to CPPs, in terms of discriminatory

capabilities.

4 DISCUSSION

In our study we analyzed three different vocal tasks,

including the vowel /a/ and /e/ and an Italian-sound

sentence, by means of three different machine

learning algorithms. All the algorithms distinguished

ASD patients, both treated and untreated, from HS,

and also patients before and after BoNT-A.

Generally, we obtained slightly better performance

through SVM classifier according to the results

showed in Table 1.

Moreover, comparable performances were

obtained by means of all the vocal tasks. To better

quantify the symptomatic effects of BoNT-A, we

analyzed the most relevant features by means of the

Information Gain ranking algorithm.

We obtained several features that could be useful

to objectively evaluate the effects of BoNT-A therapy

through all the vocal tests.

Wolfe et al. (1995) reported that the sound

analysis of sustained vowels may not be adequate to

evidence ASD or vocal disorders in general,

preferring a speech-based analysis. Differently,

Maryn & Roy (2012) reported that both sounds of

sustained vowels and speech should be considered in

rating ASD severity. Furthermore, studies involving

cepstral analysis considered only sentences for vocal

tasks (Heman-Ackah et al., 2014; Lowell et al., 2013),

finding only a moderate correlation between the

CPPs values calculated from sustained vowels and

clinical parameters (Hernández et al., 2018).

Because of this discrepancy, here we preferred to

analyze the information content both of vowels /a/

and /e/ and of an Italian-sound standardized sentence,

by means of a machine learning approach, to evidence

differences among groups of untreated ASD patients,

BoNT-A treated ASD patients, and age- and gender-

matched healthy subjects.

According to our results, the subject under vocal

tasks can be correctly assigned to the belonging

group, with comparable accuracy, sensitivity and

specificity scores (Table 1), regardless the adopted

vocal tasks, involving sustained vowels or sentence.

Moreover, we compared the performances of

three different classifiers, with the result that in

general SVM slightly outperform with respect Naïve

Bayes (NB) and Multilayer Perceptron (MP), as in

general it occurs for classifying complex variables

obtained from large audio and medical datasets (G.

Costantini, D. Casali, M. Todisco, 2010; Giovanni

Costantini et al., 2010; Saggio et al., 2011).

The adopted procedure successfully performed in

discriminating HS vs. untreated vs. treated ASD

patients (Table 4). The latter discrimination confirms

how, although BoNT-A therapy meaningfully

improves ASD symptoms, the voice of treated

patients does not result as the one of the healthy

counterpart (A. Suppa et al., 2015; Antonio Suppa et

al., 2020).

The Information Gain ranking algorithm allowed

identifying the most relevant features among those

selected by CFS. Those features were almost the same

from analysis of sounds from both /a/ and /e/ vowels,

but different from the extracted one from the sentence

(Tables 2 and 3). As a result, sustained vowels and

sentence have a different information content, so that

it can be convenient to consider both of them to get a

complete view of patient’s voice conditions.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

110

Figure 3: Mean values of the selected features that can

discriminate more effectively vocal samples of ASD

patients after BoNT-A therapy from samples of the same

patients before the therapy. For each feature the mean value

is normalized to the mean value of the HS, that represents a

reference of the normal vocal behavior (yellow circle).

Features’ labels are relative to the LLDs of the features, two

features with the same LLD are reported with the same label

but with a different subscript, indicating they are related to

a different functional applied to the same LLD. Please note

that since the features of the vowels are similar, we

reported, for simplicity, only the radar charts of the

sentence and vowel /e/.

As depicted in Figure 2, showing a comparative

boxplot between CPPs and a pair of the selected

features, these features are able to differentiate

between HS and ASD (treated and untreated)

populations, also more effectively than CPPs.

Figure 3 shows two radar charts representing the

mean value of the distributions of the features we

considered the most effective in discriminating ASD

after BoNT-A from ASD before BoNT-A. These

plots highlight that the mean values of the parameters

of treated ASD patients are more near to that of the

HS rather than that of untreated ASD, and could be

useful to objectively evaluate the clinical effects of

BoNT-A therapy on patients’ voices.

5 CONCLUSIONS

Previous studies recognized CPPs as the most

relevant feature to identify and quantify ASD

(Heman-Ackah et al., 2014; Hillenbrand & Houde,

1996) and found low CPPs values in dysphonic

patients while speaking (Heman-Ackah et al., 2014;

Hillenbrand & Houde, 1996; A. Suppa et al., 2015) or

sustaining a vowel (Hernández et al., 2018).

Here, we performed a voice sound analysis,

extracting a large set of vocal features, selecting the

most relevant features with respect to the class, and

training three classifiers through machine learning

techniques.

In a previous study, we demonstrated the

possibility of discriminating ASD patients from HS,

by adopting a machine learning approach to a selected

group of vocal features, which better performed with

respect considering CPPs only (Antonio Suppa et al.,

2020).

In this study, we compared three machine learning

algorithms, obtaining high accuracy performances

with all of them, SVM slightly better outperforming

with respect to NB and MP.

In addition, according to our results, both the

emission of a vowel or the continuous speech allow

achieving comparable results in terms of accuracy,

sensitivity and specificity, even if analyzing the LLDs

related to sustained vowels and sentence present a

different information content. Through the analysis of

LLDs, it is possible to find new parameters that could

objectively evaluate ASD symptoms and the effects

of BoNT-A therapy.

According to the obtained results, this work can

represent a step towards future research aimed at

classifying other voice disorders due to neurologic or

non-neurologic disorders.

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks

111

REFERENCES

Albert, M. L., & Knoefel, J. E. (2011). Clinical Neurology

of Aging. Clinical Neurology of Aging. https://

oxfordmedicine.com/view/10.1093/med/97801953692

98.001.0001/med-9780195369298

Alessandrini, M., Micarelli, A., Viziano, A., Pavone, I.,

Costantini, G., Casali, D., Paolizzo, F., & Saggio, G.

(2017). Body-worn triaxial accelerometer coherence

and reliability related to static posturography in

unilateral vestibular failure. Acta Otorhino-

laryngologica Italica: Organo Ufficiale Della Societa

Italiana di Otorinolaringologia e Chirurgia Cervico-

Facciale, 37(3), 231–236. https://doi.org/10.14639/

0392-100X-1334

Asci, F., Costantini, G., Di Leo, P., Zampogna, A.,

Ruoppolo, G., Berardelli, A., Saggio, G., & Suppa, A.

(2020). Machine-Learning Analysis of Voice Samples

Recorded through Smartphones: The Combined Effect

of Ageing and Gender. Sensors, 20(18), 5022.

https://doi.org/10.3390/s20185022

Barandas, M., Folgado, D., Fernandes, L., Santos, S.,

Abreu, M., Bota, P., Liu, H., Schultz, T., & Gamboa, H.

(2020). TSFEL: Time Series Feature Extraction

Library. SoftwareX, 11, 100456.

Benninger, M. S., Gardner, G., & Grywalski, C. (2001).

Outcomes of botulinum toxin treatment for patients

with spasmodic dysphonia. Archives of Otolaryngology-

-Head & Neck Surgery, 127(9), 1083–1085.

Bhattacharyya, N., & Tarsy, D. (2001). Impact on quality

of life of botulinum toxin treatments for spasmodic

dysphonia and oromandibular dystonia. Archives of

Otolaryngology--Head & Neck Surgery, 127(4), 389–

392.

Casper, J. K., & Leonard, R. (2006). Understanding Voice

Problems: A Physiological Perspective for Diagnosis

and Treatment. Lippincott Williams & Wilkins.

Costantini, G., Todisco, M., Perfetti, R., Basili, R., &

Casali, D. (2010). SVM Based Transcription System

with Short-Term Memory Oriented to Polyphonic Piano

Music (pag. 201). https://doi.org/10.1109/MEL

CON.2010.5476305

Costantini, Giovanni, Casali, D., & Todisco, M. (2010). An

SVM based classification method for EEG signals.

Proceedings of the 14th WSEAS International Conf. on

Circuits, 107–109.

DeLong, E. R., DeLong, D. M., & Clarke-Pearson, D. L.

(1988). Comparing the areas under two or more

correlated receiver operating characteristic curves: A

nonparametric approach. Biometrics, 44(3), 837–845.

Eyben, F., Wöllmer, M., & Schuller, B. (2010).

OpenSMILE -- The Munich Versatile and Fast Open-

Source Audio Feature Extractor. In MM’10—

Proceedings of the ACM Multimedia 2010

International Conference (pag. 1462).

Hall, M. (2000). Correlation-Based Feature Selection for

Machine Learning. Department of Computer Science,

19.

Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reutemann,

P., & Witten, I. H. (2009). The WEKA data mining

software: An update. ACM SIGKDD Explorations

Newsletter, 11(1), 10–18.

Heman-Ackah, Y. D., Sataloff, R. T., Laureyns, G., Lurie,

D., Michael, D. D., Heuer, R., Rubin, A., Eller, R.,

Chandran, S., Abaza, M., Lyons, K., Divi, V., Lott, J.,

Johnson, J., & Hillenbrand, J. (2014). Quantifying the

cepstral peak prominence, a measure of dysphonia.

Journal of Voice: Official Journal of the Voice

Foundation, 28(6), 783–788.

Hermansky, H., & Morgan, N. (1994). RASTA processing

of speech. Speech and Audio Processing, IEEE

Transactions on, 2, 578–589. https://doi.org/10.

1109/89.326616

Hernández, J., León, N., Arteaga, L., & Fumero, Y. (2018).

Cepstral Analysis of Normal and Pathological Voice in

Spanish Adults. Smoothed Cepstral Peak Prominence

in Sustained Vowels Versus Connected Speech. Acta

Otorrinolaringológica Española, 69, 134–140.

Hillenbrand, J., & Houde, R. (1996). Acoustic correlates of

breathy vocal quality: Dysphonic voices and

continuous speech. Journal of Speech and Hearing

Research, 39, 311–321.

Jinnah, H. A., Berardelli, A., Comella, C., DeFazio, G.,

DeLong, M. R., Factor, S., Galpern, W. R., Hallett, M.,

Ludlow, C. L., Perlmutter, J. S., & Rosen, A. R. (2013).

The focal dystonias: Current views and challenges for

future research. Movement Disorders, 28(7), 926–943.

John, G., & Langley, P. (1995). Estimating Continuous

Distributions in Bayesian Classifiers. Proceedings of

the 11th Conference on Uncertainty in Artificial

Intelligence, 1.

Johnson, A., Jacobson, B., Grywalski, C., Silbergleit, A.,

Jacobson, G., & Benninger, M. (1997). The Voice

Handicap Index (VHI): Development and Validation.

American Journal of Speech-Language Pathology, 6,

66–70.

Lowell, S. Y., Colton, R. H., Kelley, R. T., & Hahn, Y. C.

(2011). Spectral- and cepstral-based measures during

continuous speech: Capacity to distinguish dysphonia

and consistency within a speaker. Journal of Voice:

Official Journal of the Voice Foundation, 25(5), e223-

232.

Lowell, S. Y., Colton, R. H., Kelley, R. T., & Mizia, S. A.

(2013). Predictive value and discriminant capacity of

cepstral- and spectral-based measures during

continuous speech. Journal of Voice: Official Journal

of the Voice Foundation, 27(4), 393–400.

Ludlow, C. L., Domangue, R., Sharma, D., Jinnah, H. A.,

Perlmutter, J. S., Berke, G., Sapienza, C., Smith, M. E.,

Blumin, J. H., Kalata, C. E., Blindauer, K., Johns, M.,

Hapner, E., Harmon, A., Paniello, R., Adler, C. H.,

Crujido, L., Lott, D. G., Bansberg, S. F., … Stebbins,

G. (2018). Consensus-Based Attributes for Identifying

Patients with Spasmodic Dysphonia and Other Voice

Disorders. JAMA Otolaryngology-- Head & Neck

Surgery, 144(8), 657–665.

Maryn, Y., & Roy, N. (2012). Sustained vowels and

continuous speech in the auditory-perceptual evaluation

of dysphonia severity. Jornal Da Sociedade Brasileira

de Fonoaudiologia, 24(2), 107–112.

BIOSIGNALS 2021 - 14th International Conference on Bio-inspired Systems and Signal Processing

112

Murry, T. (2014). Spasmodic Dysphonia: Let’s Look at

That Again. Journal of Voice, 28(6), 694–699.

Parada-Cabaleiro, E., Costantini, G., Batliner, A., Baird, A.,

& Schuller, B. (2018). Categorical vs Dimensional

Perception of Italian Emotional Speech. INTER-

SPEECH. https://doi.org/10.21437/Interspeech. 2018-47

Peterson, E. A., Roy, N., Awan, S. N., Merrill, R. M.,

Banks, R., & Tanner, K. (2013). Toward validation of

the cepstral spectral index of dysphonia (CSID) as an

objective treatment outcomes measure. Journal of

Voice: Official Journal of the Voice Foundation, 27(4),

401–410.

Platt, J. (1999). Fast Training of Support Vector Machines

Using Sequential Minimal Optimization. Advances in

Kernel Methods: Support Vector Learning, 185–208.

Saggio, G., & Costantini, G. (2020). Worldwide Healthy

Adult Voice Baseline Parameters: A Comprehensive

Review. Journal of Voice, 0(0). https://doi.org/

10.1016/j.jvoice.2020.08.028

Saggio, G., Giannini, F., Todisco, M., & Costantini, G.

(2011). A data glove based sensor interface to

expressively control musical processes (pag. 195).

https://doi.org/10.1109/IWASI.2011.6004715

Schindler, A., Ottaviani, F., Mozzanica, F., Bachmann, C.,

Favero, E., Schettino, I., & Ruoppolo, G. (2010). Cross-

cultural Adaptation and Validation of the Voice

Handicap Index Into Italian. Journal of Voice, 24(6),

708–714.

Schlotthauer, G., Torres, M. E., & Jackson-Menaldi, M. C.

(2010). A pattern recognition approach to spasmodic

dysphonia and muscle tension dysphonia automatic

classification. Journal of Voice: Official Journal of the

Voice Foundation, 24(3), 346–353.

Schuller, B., Steidl, S., Batliner, A., Hirschberg, J.,

Burgoon, J., Baird, A., Elkins, A., Zhang, Y., Coutinho,

E., & Evanini, K. (2016). The INTERSPEECH 2016

Computational Paralinguistics Challenge: Deception,

Sincerity and Native Language (pag. 2005).

Suppa, A., Marsili, L., Giovannelli, F., Di Stasio, F.,

Rocchi, L., Upadhyay, N., Ruoppolo, G., Cincotta, M.,

& Berardelli, A. (2015). Abnormal motor cortex

excitability during linguistic tasks in adductor-type

spasmodic dysphonia. The European Journal of

Neuroscience, 42(4), 2051–2060. https://doi.org/10.

1111/ejn.12977

Suppa, Antonio, Asci, F., Saggio, G., Marsili, L., Casali, D.,

Zarezadeh, Z., Ruoppolo, G., Berardelli, A., &

Costantini, G. (2020). Voice analysis in adductor spas-

modic dysphonia: Objective diagnosis and response to

botulinum toxin. Parkinsonism & Related Disorders, 73,

23–30. https://doi.org/10.1016/j.parkreldis.2020.03.012

Van Der Malsburg, C. (1986). Frank Rosenblatt: Principles

of Neurodynamics: Perceptrons and the Theory of

Brain Mechanisms. In G. Palm & A. Aertsen (A c. Di),

Brain Theory (pagg. 245–248). Springer Berlin

Heidelberg.

Wolfe, V., Cornell, R., & Fitch, J. (1995). Sentence/vowel

correlation in the evaluation of dysphonia. Journal of

Voice: Official Journal of the Voice Foundation, 9(3),

297–303.

Machine Learning based Voice Analysis in Spasmodic Dysphonia: An Investigation of Most Relevant Features from Speciﬁc Vocal Tasks

113
