On-demand Serverless Video Surveillance with Optimal Deployment

of Deep Neural Networks

Unai Elordi

1,2

, Luis Unzueta

, Jon Goenetxea

, Estíbaliz Loyo

, Ignacio Arganda-Carreras

2,3,4

and Oihana Otaegui

Vicomtech, Basque Research and Technology Alliance (BRTA), San Sebastian, Spain

Basque Country University (UPV/EHU), San Sebastian, Spain

Ikerbasque, Basque Foundation for Science, Bilbao, Spain

Donostia International Physics Center (DIPC), San Sebastian, Spain

Keywords: Video Surveillance, Serverless Computing, Deep Neural Networks Optimizations.

Abstract: We present an approach to optimally deploy Deep Neural Networks (DNNs) in serverless cloud architectures.

A serverless architecture allows running code in response to events, automatically managing the required

computing resources. However, these resources have limitations in terms of execution environment (CPU

only), cold starts, space, scalability, etc. These limitations hinder the deployment of DNNs, especially

considering that fees are charged according to the employed resources and the computation time. Our

deployment approach is comprised of multiple decoupled software layers that allow effectively managing

multiple processes, such as business logic, data access, and computer vision algorithms that leverage DNN

optimization techniques. Experimental results in AWS Lambda reveal its potential to build cost-effective on-

demand serverless video surveillance systems.

1 INTRODUCTION

Serverless computing is a cloud-native platform that

hides server usage from developers and runs

developer code on-demand, automatically scaled, and

billed only for the time the code is running (Castro et

al., 2019), under the scope of the Function-as-a-

Service (FaaS) paradigm. It represents an evolution in

cloud computing, which matches better the original

expectations for being treated as a utility (Ishakian et

al., 2018). Its two key features are cost (pay-as-you-

go billing with millisecond granularity) and elasticity

(scaling from zero to "infinity"). It allows developers

to concentrate on providing a piece of code (function)

to be executed by the serverless computing platform

and to delegate all their operational complexity and

scalability to the cloud provider without requiring a

high level of cloud computing expertise.

Most relevant cloud providers, such as Amazon,

IBM, Microsoft, and Google, have already released

serverless computing platforms, which are gaining

popularity due to their simplicity and economic

advantages. However, all these advantages over

"serverfull" architectures come at the expense of

some limitations of the current stateless platforms

(Ishakian et al., 2018), namely:

• The stateless nature of functions, which

prevents them to be executed, relying on the

serverless platform runtime to maintain the

state between invocations to optimize

performance.

• The lack of access to GPUs (despite very recent

initiatives to solve this limitation (Kim et al.,

2018)), which prevents deployed algorithms

from making use of high parallelization

capabilities within function instances.

• Cold" starts, i.e., additional latencies that occur

when the serverless function is invoked for the

first time, due to the required setting-up of

containers (part of the core capability of

serverless platforms) and bootstrapping.

• Scalability limits, i.e., despite their high

scalability capabilities they cannot scale up to

"infinity.

• Space constraints for the deployed program,

i.e., the main code, its dependencies, and the

required resources (e.g., data files).

Elordi, U., Unzueta, L., Goenetxea, J., Loyo, E., Arganda-Carreras, I. and Otaegui, O.

On-demand Serverless Video Surveillance with Optimal Deployment of Deep Neural Networks.

DOI: 10.5220/0010344807170723

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

717-723

ISBN: 978-989-758-488-6

717

These limitations are especially relevant to build

an on-demand video surveillance system (VSS) with

computer vision algorithms that involve the

deployment of Deep Neural Networks (DNNs), as

their complexity is significantly higher for hardware

platforms with limited computational resources

(Bianco et al., 2018). Thus, very recently important

efforts are being done towards the goal of optimizing

DNNs, such as new methodologies (Elordi et al.,

2018) (Frankle and Carbin, 2019), new

microprocessor classes (e.g., Intel's VPUs (Intel,

2019) and Google's TPUs (Google, 2019) and new

software tools for DNN model optimization included

in deep learning frameworks (e.g., TensorFlow

(Google, 2020), PyTorch (Facebook, 2019) and

OpenVINO (Intel, 2020)). However, since both DNN

optimization techniques and serverless architectures

are still at early stages, few works have yet focused

on the optimal deployment of DNNs on serverless

platforms, tackling simultaneously the characteristics

of both components.

Our main motivation is to help building cost-

effective on-demand VSSs, leveraging (1) the latest

advances of DNN optimization techniques for

inference purposes along with (2) tailored

deployment strategies to make the most of current

FaaS architectures. Although this paper is focused on

optimal DNN deployment in serverless

environments, our approach considers the security

and privacy measures to preserve the biometric data

on VSS environments (Biometrics Institute, 2020).

This work represents a step forward in distributed

computational VSS infrastructures and the Video-

Surveillance-as-a-Service (VSaaS) paradigm (Limna

and Tandayya, 2016). We have taken AWS Lambda

(Baird et al., 2017) as the baseline to design our

methodology.

2 SERVERLESS VSS PLATFORM

The FaaS platforms are materialized in function

instances, which have two stages (Baird et al., 2017).

The first stage begins when the FaaS function is

invoked for the first time, creating an isolated runtime

environment with the necessary resources. This

process takes additional time to be completed and,

consequently, this stage is called the cold start stage.

When the container initialization is finished, the

remaining function instances are executed

concurrently. This second stage is called the warm

stage.

Wrong management of resources in the

initialization process and the concurrent instances

could drastically increase the cold start and serverless

execution (warm stage) time. Therefore, the key is to

identify strategies to minimize processing time in

both stages for a good quality of service. In the

following, we summarize the current performance

strategies presented in the literature (Baird et al.,

2017) (Bardsley et al., 2018).

• Concise function logic if 3rd-party

dependencies are required, avoid using open-

source packages. Since their general-purpose

and 3rd-party interdependency nature, open-

source packages include more functionalities

than required and, thus, can cause a significant

slowdown in cold start time and increase

processing time.

• Third-party dependencies: limit the space and

the use of third-party libraries to match the

serverless function storage limitations.

• Resource management: limit the

reinitialization of local variables on every

instance. Instead, use global/static variables or

singleton patterns to handle the application

scope variables.

• Allocated function memory: finding the trade-

off between the configuration of computing

resources and execution cost can be the key to

optimal serverless execution.

• Language agnostic advice: the interpreted

programming languages achieve faster initial

invocation time, while compiled languages

perform best in the warm stage.

• Keep the container in the warm state: make

preconfigured periodical calls to serverless

functions to avoid changing to a cold stage.

Although these strategies are available for general

serverless architectures, the complexity of DNN

models (Bianco et al., 2018) requires a deep analysis

of DNN model deployment to cope with the

serverless platform limitations. With that purpose, we

present a FaaS architecture with tailored DNN

optimization strategies to maximize inference

efficiency.

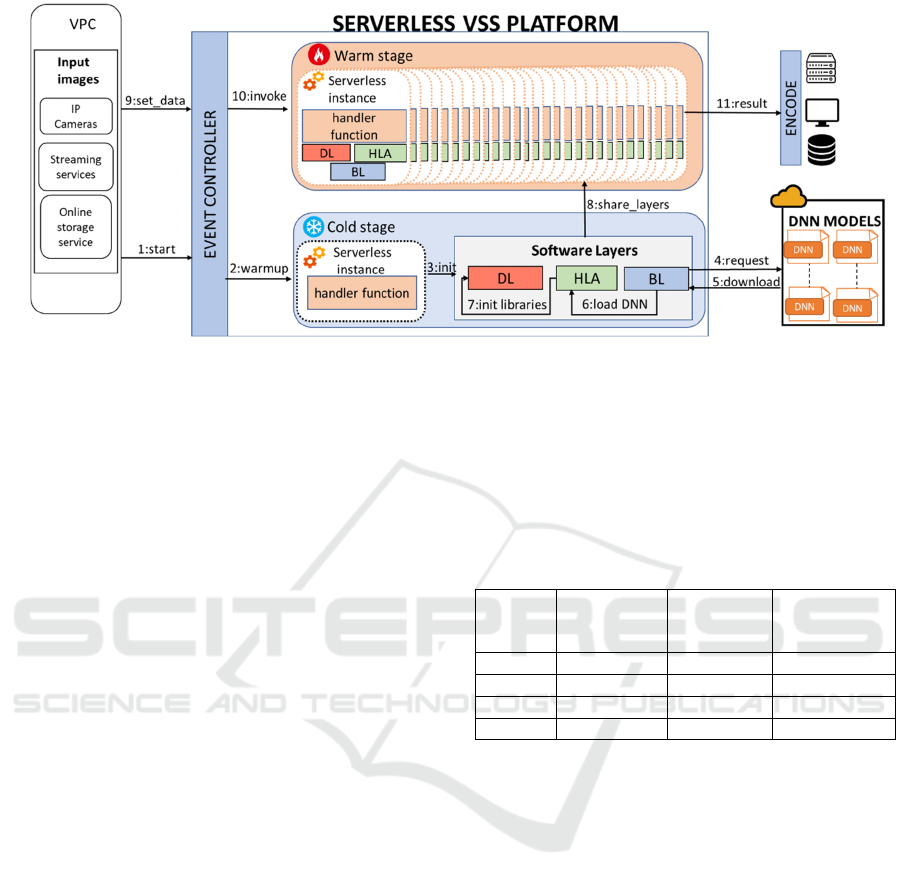

The proposed serverless architecture is illustrated

in Figure 1, together with the lifecycle of the

processing pipeline, where each processing task is

numbered from 1 to 11. This pipeline contains two

main components: the initialization process (from

step 1 to 7) and the on-demand invocation task (from

step 8 to 11). The event controller shown in the

architecture represents the event-triggering design of

FaaS platforms (see Figure 1). In this context, each

input-image source triggers an event to the FaaS

function. In terms of security, the images are stored

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

718

in a Virtual Private Cloud (VPC). Also, the image

data is encrypted.

Following the serverless strategies described

above, the designed FaaS function references the

resources in the global scope (software layers) and the

processing workload relies on the handler function.

3 INITIALIZATION PROCESS

When the serverless function is invoked for the first

time (cold start), the initialization process begins, and

the warm-up process initializes the runtime execution

container along with the software layers (step 2-3).

Then, DNN models are downloaded to the runtime

container (step 5-6). Finally, the DNN models are

loaded along with library initializations.

FaaS functions should be simple and concise.

Besides, FaaS architectures are based on ephemeral

storage, which means data will be erased when the

function finishes. Based on these requirements, we

decoupled the functionalities into three layers which

are shared across serverless function instances:

• Deep Learning (DL) layer: in charge of

handling DNN workload operations such as

model loading and inference processing, along

with pre- and post-processing low-level image

operations for Computer Vision (CV).

• High-Level Algorithm (HLA) layer: containing

the library for complex CV pipelines such as

face detection, face recognition and body pose

detection, supported by several DNN models

for inference processing.

• Business Logic (BL) layer: which provides

utilities deal with for accessibility to I/O

operations, communications, and business

logic algorithms.

Ideally, an optimal initialization process will

preserve the accuracy and the inference latency of

DNN models (Bianco et al., 2018) under FaaS

limitations such as storage size, memory

consumption, and computing resources. Model

compression techniques, such as pruning and

quantization (Han et al., 2015), reduce the size of the

DNN files, and therefore the required amount of

memory to load the compressed model, lessening the

cold start delay. These compression techniques are

especially relevant when several DNN models are

loaded into a layer, because of the rigorous constraint

of storage size on FaaS platforms. However, these

techniques require special attention in the

deployment, since too much compression could affect

the accuracy of the models (Liu et al., 2018).

FaaSification consists in changing the execution

runtime from monolithic architectures (code

processed in the same execution unit) to FaaS

architecture. Based on (Spillner et al., 2017), this

process depends on the Atomic Units (AU), which

depending on the level of complexity (3rdparty

dependencies, inter-function dependencies, etc) is

classified as shallow (AU: functions or method),

medium (AU: lines of code) and deep (AU:

instructions). Since the complexity of the DNN

processing algorithm lies in three functions (load

model, DNN inference, post-processing), our

approach is deployed following a shallow

FaaSification supported by HLA and DL layers.

4 ON-DEMAND INVOCATION

TASKS

After the first invocation of a serverless function

instance, the system verifies that all resources are in

the warm state and ready for DNN inference. Next,

several instances of the handler function are triggered

by the input data. These handler instances execute a

set of CV algorithms that involve multiple DNN

inferences (step 10). Supported by HLA and DL layer

to process CV tasks and DNN inferences, when the

FaaS function finishes, the BL layer encodes the

algorithm output in the preferred output (step 11).

The serverless platform capabilities to offload the

computation across several instances could leverage

an impressive DNN inference throughput. However,

the virtualization nature of this platform hardware

resources relies on a bottleneck, especially, when CV

processing tasks require to process many DNN

models at the same pipeline.

Based on the analysis of the computational

complexity of DNN models (Bianco et al., 2018),

choosing the ones that lower inference time while

preserving the accuracy is crucial for this type of

architecture. Moreover, vectorization programming

libraries such as Single Input Multiple Output

(SIMD) instructions and multi-threading-block

libraries provide extra processing power.

The assigned memory to each FaaS function

instance plays an important role in performance

optimization because more memory per function

means more resources for the handler function, but

also a higher price per execution. On the contrary,

FaaS instances are billed by function execution time,

so less time per function means a lower price. Thus, a

good trade-off between allocated memory and

function execution cost becomes an essential strategy.

On-demand Serverless Video Surveillance with Optimal Deployment of Deep Neural Networks

719

Figure 1: The proposed serverless video surveillance system architecture.

5 VSS CASE STUDY AND

EXPERIMENTS

We evaluate the potential of our approach in the

following case study: a VSS that periodically receives

(every few minutes) images acquired by several

surveillance cameras to detect human presence and

recognize registered individuals in uncontrolled

environments.

Deep Learning models are complex and require a

huge amount of processing power. A Deep Learning

model inference lies in Matrix-multiplication,

regularization, and the number of weights. So,

choosing the most optimal DNN with minimum

latency and maximum accuracy is a crucial strategy.

More specifically, in this VSS we deploy four DNNs

trained for the following purposes:

• Camera coverage detection (CM): a

MobileNet v1-based image classifier to detect

whether the image comes from a camera that

has been covered (by a hand, a sticker, etc.) or

not.

• Human body points detection (BP): an

OpenPose-based regression model with

MobileNet v1 as the backbone to detect

people’s body landmarks.

• Human face landmarks detection (FL): a

classic convolutional design-based regression

model that localizes both eyes, nose tip, and

mouth corners in a cropped facial image.

• Human face reidentification (FR): a MobileNet

v2-based facial feature extractor for

reidentification purposes. The extracted facial

features are compared with the registered ones

to determine whether they correspond to

registered individuals.

The table 1 shows the performance parameters of

the selected models.

Table 1:Selected DNN model parameters.

NAME Complexity

(GFlops)

AVG

Precission

(

AVG

Precission(%)

CM 0.569 4.24 70.9

HP 15.435 4.099 42.8

FL 0.021 0.191 92.95

FR 0.588 1.107 99.47

We have taken AWS Lambda as a baseline to

design and test our methodology. The source code is

written in Python language. We used OpenVINO as

DNN framework and OpenCV for CV algorithms.

Also, we used the AWS boto3 library for I/O

operations. Since video surveillance environments

manage biometric data, to preserve the security of

user privacy, we stored all images in a Virtual Private

Cloud (VPC) along with an encrypted Amazon S3

storage service. We also have given the minimum and

only necessary permissions to the handler lambda

function. Finally, we monitor function calls with

Amazon X-Ray. The low-economic impact to process

10,000 images with different batch sizes per request

and memory configurations per function is shown in

Figure 2. Notice the minimum memory to support the

VSS application logic is 704MB. The cost calculation

is based on the following equation:

cost = nr *((0.0009765625*am)*

(0.001*ru(rd,m)*mcc+mrc

)

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

720

Where:

• nr: number of requests in a month

• am: allocated memory (in MB)

• rd: request duration (in ms)

• ru: round up operation to the nearest M

multiple (m=100 ms)

• mcc: monthly compute charges (0.0000166667

USD/GB-s)

• mrc: monthly request charges (0.0000002

USD/request)

This cost experiment evinces that more images

per request involve cost-saving, especially when the

allocated memory function is higher. However,

despite the cost fluctuation of the first three

configurations (704MB to 1536MB) being negligible,

the price evolution of the remaining configurations is

increased from 13.38% (2048MB) to 61%.

(3008MB). Despite the AWS Lambda free tier offers

1 million Amazon Lambda function instances, these

function instances are activated with images (put

request) coming from S3 online storage service. This

S3 free tier offers 2000 put requests (images) in a

month. So, for this experiment, the Amazon free tier

is discarded because it represents only the 1% of the

experiment.

Figure 2: Average cost to process 10K images with VSSH

in AWS Lambda. The horizontal axis represents image

batch size per request (1,5,10) and the colour bars represent

the allocated memory per function, from 704MB to

3008MB. AWS free tier is not included in this experiment.

Figures 3 and 4 analyse the influence of the cold

start delays according to local and global scope

resource management strategies. In the local scope

strategy, all initialization process is executed in the

handler function while the global scope initializes all

resources before the first handler function. Each

figure contains three different lines which represent

container setup time (blue), function runtime init time

(red), and function code execution total time (green).

The container setup is the time delay to create an

isolated image container. In the function runtime init

we evaluate the time delay of the serverless function

resources (loading external resources, classes

initializations, loading 3rdparty libraries, code

downloading). Finally, the function code execution

calculates the total execution time of a serverless cold

instance.

Figure 3: Cold start time analysis of the global scope

strategy according to the amount of allocated memory per

function (from 704MB to 3008MB).

Figure 4: Cold start time analysis of the local scope strategy

according to the amount of allocated memory per function

(from 704MB to 3008MB).

This analysis of the resource management

strategies reveals that initializing the resources in the

global scope improves the performance of the cold

start delays (about 2-4 seconds difference). Also, the

increased time delay of the global scope in function

runtime initialization is due to the DNN models, code,

and libraries are loaded in this step.

As it was expected, as far as the allocated memory

per function instance increases, the cold-start time

delay is reduced in both scope strategies. This time

reduction is especially visible when the allocated

memory is between 704 and 1536MB. In contrast, the

container setup’s minimal time variations reveal that

the FaaS container initialization does not depend on

the allocated memory per function instance.

To analyse the cost-worthiness of serverless

computing deployment, Figure 5 unveils that our

FaaS architecture leverages an outstanding

1,54

1,52

1,49

1,54

1,52

1,49

1,55

1,52

1,49

1,74

1,73

1,70

2,17

2,12

2,08

2,50

2,46

2,39

1510

Cost (USD)

Number of images per request

704MB 1024MB 1536MB 2048MB 2560MB 3008MB

0,40

0,30

0,40 0,40 0,40 0,40

3,80

3,40

2,90 2,90

2,70

18,20

12,30

8,30

6,90

6,70

704 1024 1536 2048 2560 3008

Time (s)

Memory (MB)

Func code exec

Func runtime

init

Cont setup

0,43

0,31

0,59

0,44

0,46

0,37

0,67

0,69

0,61

0,66 0,65

0,63

22,40

16,00

10,60

9,40

9,10

8,90

704 1024 1536 2048 2560 3008

Time (s)

Memory (MB)

Func code

exec

Func

runtime init

Cont setup

On-demand Serverless Video Surveillance with Optimal Deployment of Deep Neural Networks

721

performance with an important time saving from

hours that would be needed with an off-the-shelf PC

to minutes (our approach). Also, the influence of the

allocated memory per function instance is shown in

Figure 3, where the reduction of the processing time

is very significant, especially between the 704MB

and 1536MB configurations.

Figure 5: Total times to process 10K images with the VSS

in AWS-Lambda. The colour bars represent image batch

size.

Considering the economic and the time

performance analysis shown in Figures 2, 3, and 4,

we conclude that the optimal allocated memory per

function remains on 1536MB. Also, as observed in

Figure 3, the optimal way to achieve the maximum

processing throughput is processing one image per

each FaaS instance.

6 DISCUSSION AND

CONCLUSION

The FaaS platform environment offers a suitable

distributed execution model to provide parallel

processing at a high scale. Nevertheless, the resource

limitations of this platform collide with the DNN

complex environment.

To overcome this challenge, we have presented a

methodology to optimally deploy several DNN

models to FaaS platforms supported by the latest CV

techniques to maximize the DNN processing

performance at minimum cost.

We have also evaluated a VSS case study

supported by experimental results that reveal an

outstanding performance improvement of our

serverless architecture. Furthermore, we conclude

that the major bottleneck lies in the processing of each

FaaS function, while the influence of the memory

allocation per function is visible in the processing

speed. Nevertheless, there is a large room for

improvement in reducing the DNN complex

environment, while the bottleneck could be addressed

by analysing the possibilities of distributing the DNN

processing into multi-tenant systems.

ACKNOWLEDGEMENTS

This work has been partially supported by the

program ELKARTEK 2019 of the Basque

Government under project AUTOLIB.

REFERENCES

Baird, A., Huang, G., Munns, C., and Weinstein, O. (2017).

Serverless Architectures with AWS Lambda: Overview

and Best Practices [White paper].

Bardsley, D., Ryan, L., and Howard, J. (2018). Serverless

Performance and Optimization Strategies. In

Proceedings of the IEEE International Conference on

Smart Cloud (SmartCloud). pages 19–26.

Bianco, S., Cadene, R., Celona, L., and Napoletano, P.

(2018). Benchmark analysis of representative deep

neural network architectures. IEEE Access, 6:64270–

64277.

Biometrics Institute. (2020). The Three Laws of

Biometrics. https://www.biometricsinstitute.org/the-

three-laws-of-biometrics/

Castro, P., Ishakian, P., Muthusamy, V., and Slominski, A.

(2019). The server is dead, long live the server: Rise of

serverless computing, overview of current state and

future trends in research and industry. arXiv preprint

arXiv:1906.02888.

Elordi, U., Unzueta, L., Arganda-Carreras, I., and Otaegui,

O. (2018). How can deep neural networks be generated

efficiently for devices with limited resources? In

Proceedings of the International Conference on

Articulated Motion and Deformable Objects, pages 24–

33.

Facebook. (2019). PyTorch torch.optim.

https://pytorch.org/docs/stable/optim.html

Frankle, J. and Carbin, M. (2019). The lottery ticket

hypothesis: Finding sparse, trainable neural networks.

In Proceedings of the International Conference on

Learning Representations (ICLR).

Google (2019). Cloud TPU. https://cloud.google.com/tpu

Google (2020). TensorFlow model optimization.

https://www.tensorflow.org/lite/performance/modelopt

imization

Han, S., Mao, H., and Dally, W. J. (2015). Deep

compression: Compressing deep neural networks with

pruning, trained quantization and Huffman coding.

arXiv preprint arXiv:1510.00149.

Intel (2019). Intel Movidius VPU.

https://www.movidius.com/solutions/vision-

processing-unit.

0,00

2,00

4,00

6,00

8,00

10,00

12,00

704 1024 1536 2048 2560 3008

Time (minutes)

Memory (MB)

1 img/req 5 img/req 10 img/req

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

722

Intel (2020). OpenVINO toolkit.

https://software.intel.com/en-us/openvino-toolkit

Ishakian, V., Muthusamy, V., and Slominski, A. (2018).

Serving deep learning models in a serverless platform.

In Proceedings of the IEEE International Conference

on Cloud Engineering (IC2E), pages 257–262.

Kim, J., Jun, J., Kang, D., Kim, D., and Kim, D. (2018).

GPU enabled serverless computing framework. In

Proceedings of the Euromicro International

Conference on Parallel, Distributed and Network-

based Processing (PDP), pages 533–540.

Limna, T. and Tandayya, P. (2016). A flexible and scalable

component-based system architecture for video

surveillance as a service, running on infrastructure as a

service. Multimedia Tools and Applications,

75(4):1765–1791.

Liu, Z., Sun, M., Zhou, T., Huang, and G., Darrell, T.

(2018). Rethinking the value of network pruning. In

Proceedings of the International Conference on

Learning Representations (ICLR).

Spillner, J., Mateos, C., and Monge, D. A. (2017). Faaster,

better, cheaper: The prospect of serverless scientific

computing and HPC. In Proceedings of the Latin

American High Performance Computing Conference,

pages 154–168.

On-demand Serverless Video Surveillance with Optimal Deployment of Deep Neural Networks

723
