Enhanced CycleGAN Dehazing Network

Zahra Anvari and Vassilis Athitsos

VLM Research Lab, Computer Science and Engineering Department,

University of Texas at Arlington, Texas, U.S.A.

Keywords:

Image Restoration and Reconstruction, Single Image Dehazing, Generative Adversarial Network.

Abstract:

Single image dehazing is a challenging problem, and it is far from solved. Most current solutions require

paired image datasets that include both hazy images and their corresponding haze-free ground-truth. How-

ever, in reality lighting conditions and other factors can produce a range of haze-free images that can serve

as ground truth for a hazy image, and a single ground truth image cannot capture that range. This limits the

scalability and practicality of paired methods in real-world applications.

In this paper, we focus on unpaired single image dehazing and reduce the image dehazing problem to an

unpaired image-to-image translation and propose an Enhanced CycleGAN Dehazing Network (ECDN). We

enhance CycleGAN from different angles for the dehazing purpose. We employ a global-local discriminator

structure to deal with spatially varying haze. We deﬁne self-regularized color loss and utilize it along with

perceptual loss to generate more realistic and visually pleasing images. We use an encoder-decoder archi-

tecture with residual blocks in the generator with skip connections so that the network better preserves the

details. Through an ablation study, we demonstrate the effectiveness of different modules in the performance

of the proposed network. Our extensive experiments over two benchmark datasets show that our network

outperforms previous work in terms of PSNR and SSIM.

1 INTRODUCTION

Haze is an atmospheric phenomenon that can cause

visibility issues, and the quality of images captured

under haze can be severely degraded. Hazy images

suffer from poor visibility and low contrast, which

can challenge both human visual perception and nu-

merous intelligent systems relying on computer vi-

sion methods.

The performance of standard computer vision

tasks such as object detection (Liu et al., 2016; Red-

mon et al., 2016), semantic segmentation (Long et al.,

2015), face detection, clustering and dataset cre-

ation (Yang et al., 2016; Anvari and Athitsos, 2019;

Lin et al., 2018; Lin et al., 2017) can be affected sig-

niﬁcantly when images are hazy. Hence, image de-

hazing is an essential pre-processing task for general-

purpose computer vision algorithms that are fed with

hazy images. As a result, single image dehazing

has received a great deal of attention over the past

decade (Ancuti et al., 2016; Ancuti et al., 2010; Em-

berton et al., 2015; Meng et al., 2013; Tarel and Hau-

tiere, 2009; Ancuti et al., 2016; Ancuti et al., 2010;

Emberton et al., 2015; Meng et al., 2013; Anvari and

Athitsos, 2020; Tarel and Hautiere, 2009).

Most of the recent image dehazing methods rely

on paired datasets, which means for each hazy im-

age there’s a single clean/haze-free image as a ground

truth. In practice, however, there is a range of clean

images that can correspond to a hazy image, due

to factors such as contrast or light intensity changes

throughout the day. In fact, it is infeasible to cap-

ture both ground truth/clear image and the hazy im-

age of the same scene simultaneously. Thus there is

an emerging need to develop solutions that do not rely

on the ground truth images and could operate with un-

paired supervision.

Single image dehazing methods can be catego-

rized into two main classes: prior-based methods and

learning-based methods. Prior-based models solve

the haze removal problem through estimating the

physical model, i.e. transmission map and atmo-

spheric light parameters. Learning-based methods

mainly use CNN-based or GAN-based models to re-

cover the haze-free images. These models take advan-

tage of large amount of training data to learn a model

that recovers the haze-free image of a hazy image.

In this paper, we focus on unpaired image dehaz-

ing and ﬁrst cast the unpaired image dehazing prob-

lem to an image-to-image translation problem and

Anvari, Z. and Athitsos, V.

Enhanced CycleGAN Dehazing Network.

DOI: 10.5220/0010347701930202

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

193-202

ISBN: 978-989-758-488-6

193

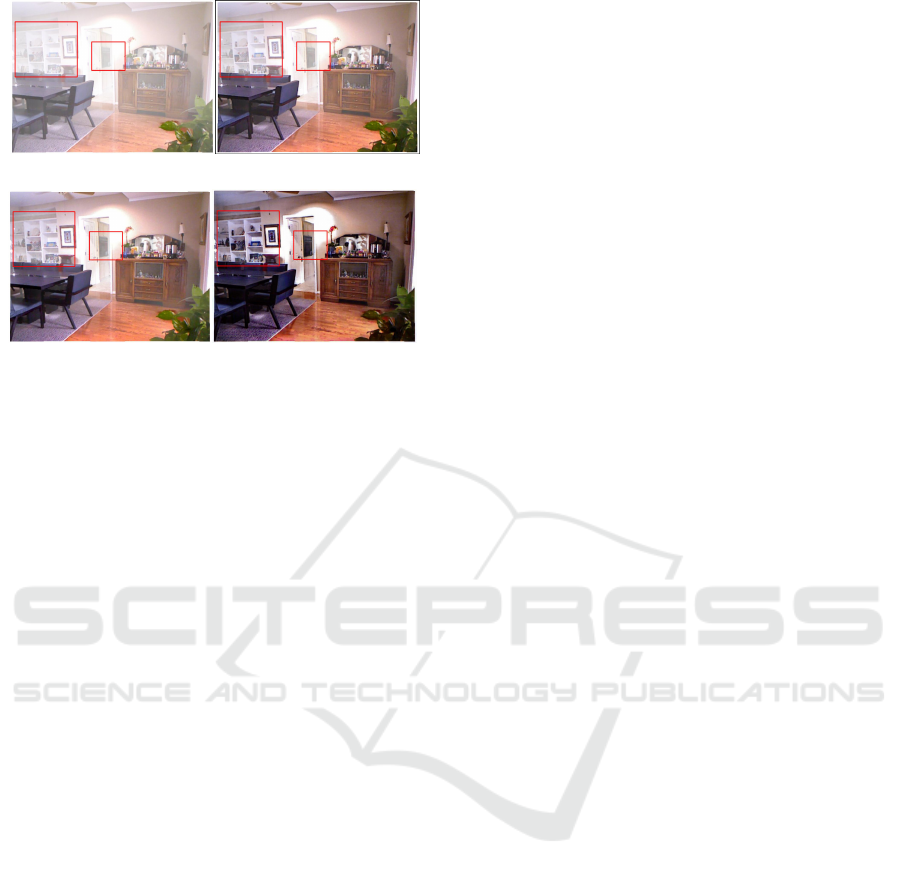

(a) Hazy (b) MSCNN

Figure 1: A single image dehazing example. Our method

generates an image with less haze and rich details compared

with MSCNN and DehazeNet.

then propose a novel cycle-consistent generative ad-

versarial network, called ECDN, that operates with-

out paired supervision and beneﬁts from (i) a global-

local discriminator architecture to handle spatially

varying haze (ii) an encoder-decoder generator ar-

chitecture with residual blocks to better preserve the

details (iii) skip connections in the generator to im-

prove the performance of the network and conver-

gence (iv) customized cyclic perceptual loss and a

self-regularized color loss to generate more realis-

tic images and mitigate the color distortion problem.

Through empirical analysis we show that the pro-

posed network can effectively remove haze and gen-

erate visually pleasing haze-free images.

Figure 1 shows the result of our method compared

to the current state-of-the-art methods. Our proposed

method removes haze more effectively and generates

a more realistic clean image compared to previous

work.

In summary, this paper presents the following con-

tributions:

• We propose a novel cycle-consistent generative

adversarial network called ECDN for unpaired

image dehazing. ECDN does not rely on any pri-

ors such as the physical scattering model, as op-

posed to many previous methods, and instead it

adopts the image-to-image translation approach

for unpaired image dehazing.

• We adopt a global-local discriminator structure to

deal with spatially varying haze and generate bet-

ter haze-free images.

• We deﬁne a self-regularized color loss and utilize

it along with a customized perceptual loss to gen-

erate more visually pleasing images with vibrant

colors and mitigate the color distortion problem.

Self-regularization is vital to our network since in

unpaired setting there is no external supervision

available.

• We use an encoder-decoder generator architecture

with residual blocks with skip connections to bet-

ter preserve the details.

• Through empirical analysis, we show that our net-

work outperforms the previous work in terms of

PSNR and SSIM.

2 RELATED WORK

Numerous attempts have been done to solve the sin-

gle image haze removal problem. These methods can

be categorized into two main classes: prior-based and

learning-based, that we describe them below.

2.1 Prior-based Dehazing

Prior-based methods are mainly based on prior in-

formation and assumptions to recover the haze-free

images from hazy images. They heavily depend

on estimating the parameters of the physical scatter-

ing model (McCartney, 1976; Srinivasa and Shree,

2002), aka. the atmospheric scattering model, which

contains the transmission map and the atmospheric

light to solve the haze removal problem. The phys-

ical scattering model is formulated as:

I(x) = J(x)t(x) + A(1 −t(x)) (1)

where I(x) is the hazy image, J(x) is the haze-free

image or the scene radiance, t(x) is the medium trans-

mission map, and A is the global atmospheric light on

each x pixel coordinates. He et al. (He et al., 2010)

proposed a dark channel prior to estimate the trans-

mission map effectively. Tan et al. (Tan, 2008) in-

crease the contrast of hazy images, based on the fact

that haze-free images have higher contrast than hazy

images.

2.2 Learning-based Dehazing

Recently learning based methods have been proposed

that utilize CNNs and GANs for the single image de-

hazing problem. CNN-based methods try to recover

the clean images through the atmospheric scattering

model, by mainly estimating the transmission map

and atmospheric light (McCartney, 1976; Narasimhan

and Nayar, 2000).

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

194

MSCNN (Ren et al., 2016) contains two sub-

networks called coarse-scale and ﬁne-scale, to esti-

mate the transmission map. The coarse-scale net-

work estimates the transmission map and is further

improved locally by the ﬁne-scale network. In De-

hazeNet (Cai et al., 2016), authors modiﬁed the clas-

sic CNN model by adding feature extraction and non-

linear regression layers. These modiﬁcations distin-

guish DehazeNet from other CNN-based models. The

All-In-One Dehazing Network (AOD-net) (Li et al.,

2017) proposed an end-to-end network that produces

the haze-free/clean images through reformulating the

atmospheric scattering model.

2.3 Generative Adversarial Networks

GANs have become one of the most successful meth-

ods for image generation, manipulation, restoration,

and reconstruction. GANs have been used to super-

resolve images (Ledig et al., 2017), remove motion

blurriness from images (Kupyn et al., 2018), and re-

move noise (Chen et al., 2018), to name a few appli-

cations. GANs are also utilized in image dehazing.

DDN was proposed as a disentangled dehazing net-

work without paired supervision (Yang et al., 2018).

The GAN that they proposed consists of three gener-

ators: one for generating haze-free image, one for the

atmospheric light, and the third generator for trans-

mission map.

The Cycle-consistent GAN (CycleGAN) (Zhu

et al., 2017) method was proposed for unpaired

image-to-image translation task and has gained sig-

niﬁcant attention during the past couple of years. Cy-

cleGAN is utilized for image dehazing along with the

perceptual loss to generate more visually realistic de-

hazed images (Engin et al., 2018).

3 PROPOSED METHOD

First we reduce the unpaired image dehazing problem

to an image-to-image translation problem, and then

propose an Enhanced CycleGAN Dehazing Network

(ECDN) to translate a hazy image to a haze-free one.

Next we describe our network in details.

3.1 Overview of ECDN

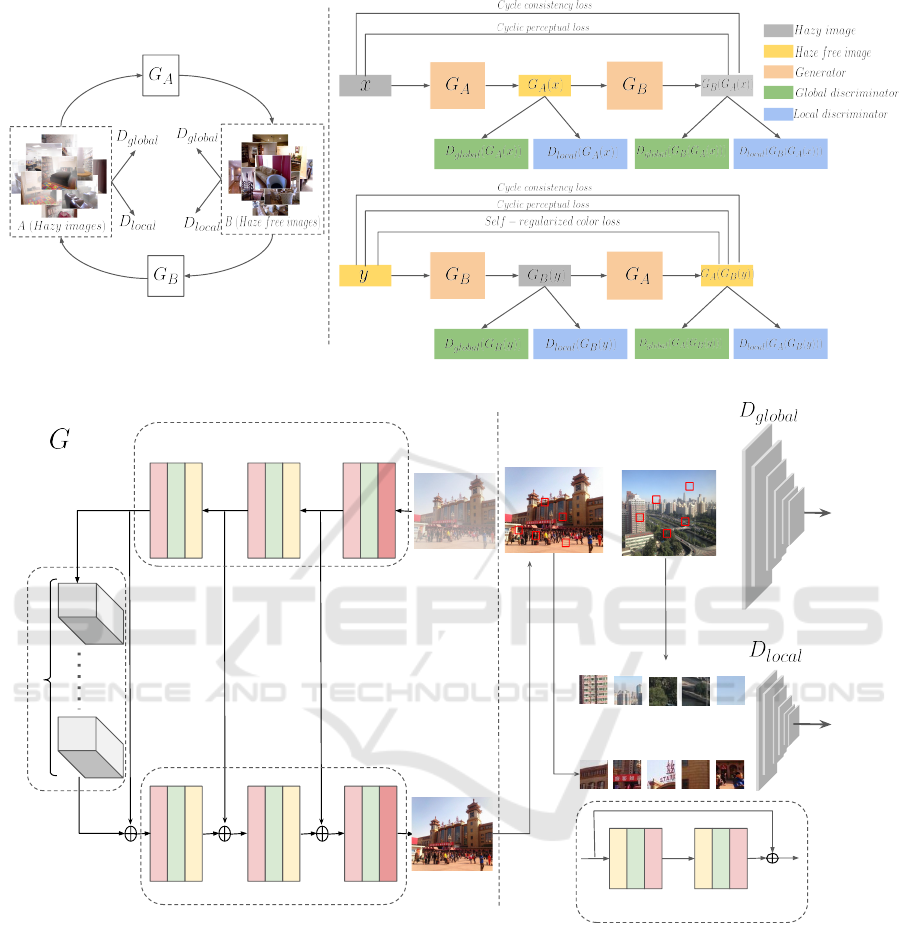

Figure 2a demonstrates an overview of our proposed

network. On the left, you can see the two domains i.e.

hazy and haze-free, and the generator G

which gen-

erates haze-free image of a hazy image and G

which

does the backward translation from haze-free to hazy.

We need these forward and backward transla-

tions to ensure the cycle consistency. At each

direction we have two discriminators i.e. D

global

and

local

for each generator to enforce them to generate

more realistic and better haze-free images.

Right side of Figure 2a illustrates our proposed

network in forward and backward cycles. Top row

depicts the hazy to haze-free translation cycle and

how the components interact. x is the hazy image

and G

(x)) is the reconstructed hazy image that

is used to calculate loss values i.e. cycle consis-

tency loss and cyclic perceptual loss. The bottom row

shows the backward cycle i.e. how the haze-free im-

age is reconstructed through the backward cycle. y

is the haze-free image and G

(y)) is the recon-

structed haze-free image that is used to calculate dif-

ferent loss values i.e. cycle consistency loss, cyclic

perceptual loss, and also self-regularized color loss.

We only use self-regularized color loss in the back-

ward cycle, since we want to make the haze free and

the reconstructed haze free images closer in terms of

color, and prevent color shifting and distortion.

Figure 2b depicts the network architecture of the

generator G

and the global and local discrimina-

tors. G

and G

utilize the same network architecture.

Similarly all discriminators share the same network

architecture, however operate on different scales.

3.2 Generator

Figure 2b presents the architecture of ECDN model.

The architecture of generator G

is depicted on the

left. Note that G

has the same architecture as G

In order to generate a haze-free image without paired

supervision in a cycle-consistent manner, we require

a generator network that can preserve the images’

texture, structure and details while removing haze.

Therefore, we designed a network with three parts:

encoder, feature transformation, and decoder.

The encoder module starts with a convolution

layer followed by an Instance Normalization and Relu

non-linearity and two downsampling blocks. Fea-

ture transformation, has six Residual Blocks to extract

complex and deep features whilst removing haze. Go-

ing deeper in network helps it to become capable of

representing complex functions and also learn fea-

tures at many different levels of abstraction. Decoder

consists of two upsampling blocks which are decon-

volution layers, followed by Instance Normalization

and Relu. The deconvolution layers are used to re-

cover image structural details and convert the feature

maps to a haze-free RGB image. The upsampling

operations are performed through the deconvolution

layer to obtain intermediate feature mappings with

Enhanced CycleGAN Dehazing Network

195

(a) An overview of ECDN

Conv 3x3 s=2

6 residual blocks

ResBlock

InsNorm

ReLU

Conv 3x3 s=2

InsNorm

ReLU

DeConv 3x3 s=2

InsNorm

ReLU

DeConv 3x3 s=2

InsNorm

ReLU

Conv 7x7 s=1

InsNorm

ReLU

DeConv 7x7 s=1

InsNorm

ReLU

Downsample

Upsample

ResBlock

Downsample

Random cropped patches

True/False

Feature Transformation

Encoder

Decoder

Conv

InsNorm

ReLU

Conv

InsNorm

ReLU

Residual Block (ResBlock)

(b) The architecture of ECDN. This ﬁgure shows the architecture of G

, D

Global

and D

Local

. G

, D

Global

and D

Local

have the

same architecture as G

, D

Global

, D

Local

respectively, except that they work on different inputs, i.e., the input to G

is a clean

image and the input to G

is a hazy image.

Figure 2: The overview and architecture of ECDN.

double spatial size and half channels than its previous

counterpart.

We use skip links between corresponding layers

of different levels from encoder and decoder to guar-

antee better convergence. A skip connection before

downsampling, is also applied between input and out-

put of the feature transformation module, as shown in

Figure 2b.

3.3 Discriminator

The right side of Figure 2b shows D

Global

and D

Local

Note that D

Global

and D

Local

have the same architec-

ture as D

Global

and D

Local

respectively. We have two

types of discriminators, global and local, each per-

forming a particular operation to classify real vs. fake

images. Initially our model contained only global dis-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

196

criminators. However, we have observed that global

discriminators often fail on spatially-varying hazy im-

ages, i.e., in cases where haze density variation ex-

ists in an image.Thus we decided that different im-

age parts need to be enhanced differently. In order

to enhance each region of an image appropriately, in

addition to improving the haze removal globally, we

utilized a global-local discriminator scheme inspired

by (Jiang et al., 2019) in a cycle-consistent manner.

Global discriminator D

Global

classiﬁes if a haze-

free image generated by G

is real or fake, based on

the entire image. Local discriminator D

Local

classi-

ﬁes if a haze-free image generated by G

is real or

fake, based on 5 randomly cropped image patches

of size 64 × 64 pixels from that image.

3.4 Loss Functions

Our objective loss function contains:

• Adversarial Loss for matching the distribution of

generated images to the data distribution in the

target domain.

• Cycle Consistency Loss to prevent the learned

mappings G

and G

from contradicting each

other.

• Cyclic Perceptual Loss to help the generators

generate more realistic and visually pleasing im-

ages.

• Self-regularized Color Loss to avoid color shift-

ing and artifacts in generated haze-free images

and also guide the generator to generate images

with vibrant colors.

The overall loss function for training ECDN is de-

ﬁned as follows:

Loss

total

= L

GAN

global

+ L

GAN

local

+ L

Cycle

global

Cycle

local

+ L

global

+ L

local

+ L

SRColor

global

(2)

Next we describe these loss functions in details.

3.4.1 Adversarial Loss

We adopted Least Squares GAN to calculate the ad-

versarial loss. Equations 3 and 4 show how we calcu-

late the adversarial loss for the global discriminators

and the global generators respectively.

Global

= E

∼P

real

[(D(x

) − 1)

∼P

f ake

[(D(x

) − 0])

]

(3)

Global

= E

∼P

f ake

[(D(x

) − 1)

] (4)

where D denotes the discriminator, and x

and x

are sampled from the real and fake distribution re-

spectively.

We introduced the local discriminator to further

enhance hazy image and deal with spatially-varying

hazy images. Equations 5 and 6 depicts the corre-

sponding loss functions:

Local

= E

∼P

real−patches

[(D(x

) − 1)

∼P

f ake−patches

[(D(x

) − 0)

]

(5)

Local

= E

∼P

f ake−patches

[(D(x

) − 1)

] (6)

where D denotes the discriminator, x

and x

are sam-

pled from patches taken from real and fake distribu-

tions.

3.4.2 Cycle Consistency Loss

Adversarial loss can not guarantee that the learned

function can map an individual input x

to desired

output y

. Thus a cycle-consistency loss is pro-

posed by CycleGAN to reduce the space of possible

mapping functions. Cycle-consistency loss function

(L1 − norm) compares the cyclic image and the orig-

inal image in an unpaired image-to-image translation

process (Zhu et al., 2017). Cycle consistency loss is

deﬁned as:

cycle

, G

) = E

x∼p

data(x)

[

(x)) − x)

]

y∼p

data(y)

[

(y)) − y)

]

(7)

where G

and G

are forward and backward genera-

tors, x belongs to domain X (i.e. the original domain,

hazy images here) and y belongs to domain Y (i.e. the

haze-free images). G

(x)) and G

(y)) are the

reconstructed images.

3.4.3 Self-regularized Color Loss

Hazy images usually lack brightness and contrast,

to improve these lacking features we deﬁne a self-

regularized color loss, inspired by (Wang et al., 2019)

to measure color difference between the haze-free im-

ages and the reconstructed images. We call it self-

regularized because we do not rely on the ground

truth image.

This loss function forces the generator to generate

images with the same color distribution as the haze-

free images. In addition, we observed that some of

the reconstructed images have color artifacts which

is an inherent problem of CycleGAN, this loss func-

tion was employed to deal with this problem as well.

Equation 8 shows color loss function.

Enhanced CycleGAN Dehazing Network

197

SRColor

∑

ANGLE(G

(y))

, y

) (8)

Where ()

denotes a pixel; ANGLE is a function

that calculates the angle between two colors regarding

the RGB color as a 3D vector. y belongs to domain

Y ( i.e. faze-free images) and G

(y)) the recon-

structed haze-free image.

Eq. 8 sums the angles between the color vectors

for every pixel pair in G

(y)) and image y. The

reason that we use this color loss calculation instead

of an L2 distance in other color space is that the L2

metric only numerically measures the color differ-

ence, it cannot ensure that the color vectors have the

same direction and the formulation is simple and fast

for network computation.

3.4.4 Cyclic Perceptual Loss

Adversarial and cycle consistency losses are not able

to preserve the textual and perceptual information of

corrupted hazy images. Therefore, to achieve the per-

ceptual quality we employed a cyclic perceptual loss.

We utilized a pre-trained VGG16 model to extract

features and calculated the distance between the fea-

tures of hazy and reconstructed hazy images and also

haze-free and the reconstructed haze-free counter-

part using L2 norm (Simonyan and Zisserman, 2014).

Equation 9 shows this loss function .

The goal of this loss function is to preserve the

image structure and content features during dehazing

and generate more realistic images. To calculate this

loss, we focus on feature maps extracted from the 2

and 5

pooling layers of VGG-16 pre-trained model.

Equation 9 shows how this loss is calculated:

Loss

(V gg(G

(x))) −V gg(x))

(V gg(G

(y))) −V gg(y))

(9)

where G

and G

are forward and backward gen-

erators, x belongs to domain X (i.e. the original

domain, hazy images here) and y belongs to do-

main Y (i.e. the haze-free images). G

(x)) and

(y)) are the reconstructed images. Vgg is a

VGG16 feature extractor from the second and ﬁfth

pooling layers.

To calculate the L

Local

for the local discriminator

we used the cropped local patches of input and output

images and used the same equation 9.

4 EXPERIMENTS AND RESULTS

To evaluate the performance of our method compared

to previous paired and unpaired methods, we train

a model on NYU dataset (Silberman et al., 2012)

and test it on NYU dataset and also Middlebury

dataset (Scharstein et al., 2014) as a cross-dataset to

show how our model generalizes. NYU contains 1449

hazy images paired with their ground truth images

and Middlebury contains 23 high-resolution(2k) hazy

images with their ground truth. Since our method uses

unpaired supervision, the training process received no

information about which haze-free image corresponds

to each hazy image.

4.1 Training

For training we need two sets of training datasets:

trainA includes hazy images and trainB includes

ground truth images (shufﬂed to simulate the un-

paired supervision similar to other unpaired meth-

ods (Yang et al., 2018)). We opted for Adam opti-

mizer (momentum = 0.5) with batch size of 1. Our

initial learning rate was 0.0002 for the ﬁrst 100

epochs, with linear decay to zero over the next 100

epochs. We implemented our model in PyTorch us-

ing two NVIDIA Tesla P100 GPUs and trained our

network for 200 epochs.

4.2 Quality Measures

We used the following measurement metrics, to ana-

lyze the performance of our proposed method:

• PSNR: It measures the ratio between the maxi-

mum possible value of a signal and the power of

distorting noise that affects the quality of its rep-

resentation. The higher the PSNR, the more ef-

fective the reconstruction method is.

• SSIM: It is a Structural Similarity Index which

is a perceptual metric that quantiﬁes image qual-

ity degradation caused by processing. In this

measurement, image degradation is considered as

the change of perception in structural informa-

tion (Kumar and Moyal, 2013).

• CIEDE2000: It measures the color difference be-

tween hazy and dehazed images; smaller values

indicate better color preservation, thus better de-

hazing and perceptual quality (Luo et al., 2001).

4.3 Ablation Study

To demonstrate the effectiveness of the local discrim-

inator, cyclic perceptual loss, and self-regularized

color loss, we perform several ablation experiments.

Figure 3 depicts a couple of examples on how

color loss helps with color artifacts removal. Employ-

ing color loss has enabled the network to remove arti-

facts effectively.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

198

(a) w/o color loss (b) with color loss (c) w/o color loss (d) with color loss

Figure 3: Examples showing the importance of color loss in our model ECDN.

PSNR: 12.14, SSIM:

0.74

(a) Hazy image

PSNR: 13.43, SSIM:

0.78

(b) CycleGAN

PSNR: 16.10, SSIM:

0.74

PSNR: 19.11, SSIM:

0.90

(d) Ours (e) Ground truth

Figure 4: Comparison between CycleGAN, Cycle-Dehaze and the proposed method.

Table 1: Ablation study over NYU dataset. The larger values of PSNR, SSIM and the smaller value of CIEDE2000 indicate

better dehazing and perceptual quality.

Setting ↑ PSNR ↑SSIM ↓ CIEDE2000

CycleGAN 13.3879 0.5223 17.6113

ECDN w/o color loss 14.5402 0.7407 15.6401

ECDN w/o perceptual loss 14.6582 0.7312 15.6348

EDCN w/o residual blocks 14.1092 0.6923 16.4344

EDCN w/o local discriminator 14.0681 0.7111 19.9466

ECDN 16.0531 0.8244 14.9436

We compared our method with other cycle-

consistent unpaired image-to-image translation meth-

ods. Figure 4 shows the comparison between Cycle-

GAN, Cycle-dehaze and our method using an exam-

ple image from NYU dataset. As one can observe our

method removed more haze and the generated haze-

free images is closer to the ground truth image. The

red bounding boxes signify some parts of the image

with different amount of haze removed by these meth-

ods.

Table 1 depicts the results of our ablation study in

terms of PSNR, SSIM and CIEDE2000. One can ob-

serve that incorporating local discriminators can help

achieve better PSNR, SSIM and CIEDE2000, mean-

ing better restoration and generation of more visu-

ally pleasing results. The best results in terms of

PSNR, SSIM, CIEDE2000 are achieved when the lo-

cal discriminators, cyclic perceptual loss, and self-

regularized color loss are incorporated.

4.4 Quantitative and Qualitative

Analysis

We compare our model with both paired and unpaired

methods, on the NYU and Middlebury datasets. Our

method as well as the competitors are trained on the

NYU dataset, and tested on NYU dataset and Mid-

dlebury dataset as a cross-datase. Our method outper-

forms other methods in terms of SSIM and PSNR on

both NYU and Middlebury datasets.

Table 2 and 3 and show the results on NYU and

Middlebury datasets respectively. Our method outper-

forms the other methods in terms of SSIM and PSNR,

and is the second best in terms of CIEDE2000.

Figure 5 shows the results of our method com-

pared with other methods. DCP suffers from color

distortion and over-exposure. CycleGAN introduces

color artifacts and color shifting, and fails to re-

move much haze especially from dense hazy im-

ages. MSCNN and DehazeNet similarly fail to re-

move much haze from hazy images as well.

Enhanced CycleGAN Dehazing Network

199

Table 2: Results on NYU dataset. Some of the numbers for the previous work are taken from (Yang et al., 2018; Engin et al.,

2018).

Method ↑PSNR ↑SSIM ↓CIEDE2000

DCP (He et al., 2010) 10.9803 0.6458 18.9781

CycleGAN (Cai et al., 2016) 13.3879 0.5223 17.6113

Cycle-Dehaze (Engin et al., 2018) 15.41 0.66 19.04432

DDN (Yang et al., 2018) 15.5456 0.7726 11.8414

DehazeNet (Cai et al., 2016) 12.8426 0.7175 15.8782

MSCNN (Ren et al., 2016) 12.2669 0.7000 17.4497

Ours 16.0531 0.8244 14.9436

Hazy

DehazeNet

MSCNN

Cycle-Dehaze

Ours GT

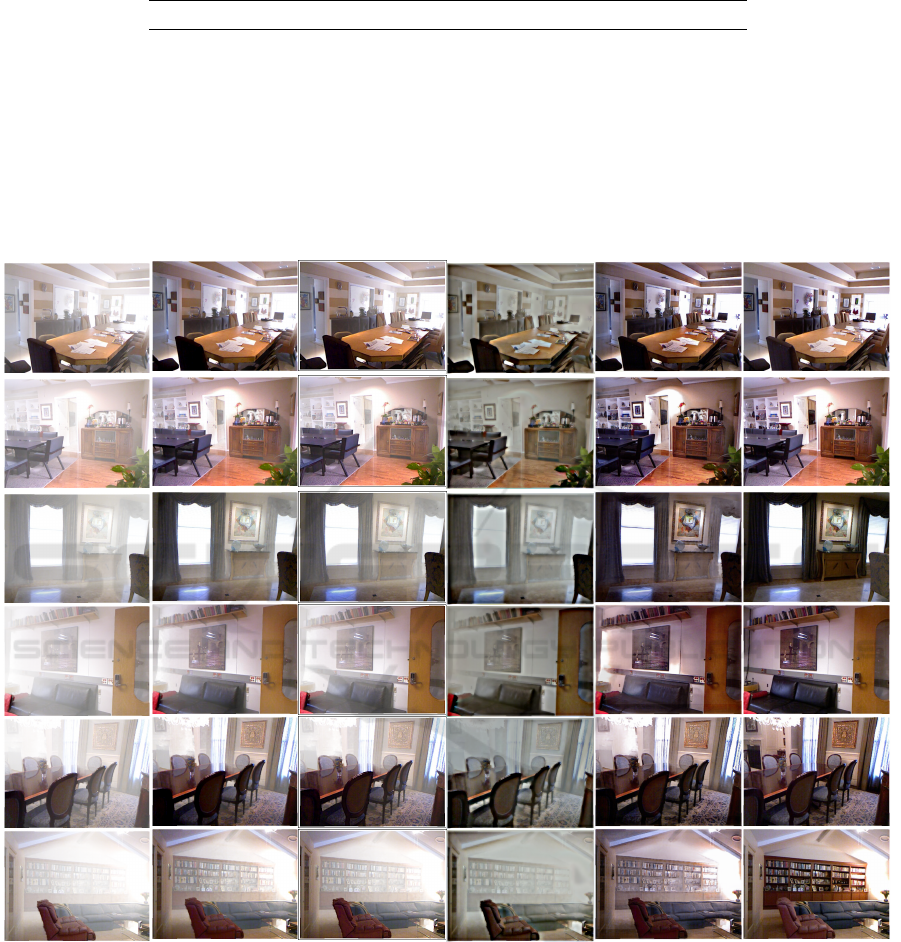

Figure 5: Comparison of the state-of-the-art dehazing methods on NYU dataset.

Our method, on the other hand is able to gener-

ate more natural haze-free images which are much

closer to the ground truth image. Moreover, one

can observe that our model outperforms the above-

mentioned methods in recovery of details, and gener-

ates more natural images with least color artifacts.

5 CONCLUSION

In this paper, we treated the image dehazing prob-

lem as an image-to-image translation problem, and

proposed a cycle-consistent generative adversarial

network, called ECDN, for unpaired image dehaz-

ing. ECDN utilizes discriminators with a local-global

structure and generators with an encoder-decoder ar-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

200

Table 3: Results on Middlebury dataset. The numbers for

the previous work are taken from (Yang et al., 2018; Engin

et al., 2018).

Method ↑PSNR ↑SSIM

DCP (He et al., 2010) 12.0234 0.6902

CycleGAN (Cai et al., 2016) 11.3037 0.3367

Cycle-Dehaze (Engin et al., 2018) 15.6016 0.8532

DDN (Yang et al., 2018) 14.9539 0.7741

DehazeNet (Cai et al., 2016) 13.5959 0.7502

MSCNN (Ren et al., 2016) 13.5501 0.7365

Ours 15.8747 0.8601

chitecture with residual blocks and skip links to re-

move haze effectively. It also leverages different loss

functions to generate realistic clean images. Using

two benchmark test datasets, we showed the effec-

tiveness of the proposed method. Our method out-

performs other methods in terms of PSNR and SSIM.

ACKNOWLEDGMENTS

We would like to thank the VISAPP’21 anonymous

reviewers for their valuable feedback. This work is

partially supported by National Science Foundation

grant IIS-1565328. Any opinions, ﬁndings, and con-

clusions or recommendations expressed in this publi-

cation are those of the authors, and do not necessarily

reﬂect the views of the National Science Foundation.

REFERENCES

Ancuti, C., Ancuti, C. O., De Vleeschouwer, C., and Bovik,

A. C. (2016). Night-time dehazing by fusion. In 2016

IEEE International Conference on Image Processing

(ICIP), pages 2256–2260. IEEE.

Ancuti, C. O., Ancuti, C., Hermans, C., and Bekaert, P.

(2010). A fast semi-inverse approach to detect and

remove the haze from a single image. In Asian Con-

ference on Computer Vision, pages 501–514. Springer.

Anvari, Z. and Athitsos, V. (2019). A pipeline for auto-

mated face dataset creation from unlabeled images. In

Proceedings of the 12th ACM International Confer-

ence on PErvasive Technologies Related to Assistive

Environments, pages 227–235.

Anvari, Z. and Athitsos, V. (2020). Evaluating single image

dehazing methods under realistic sunlight haze. arXiv

preprint arXiv:2008.13377.

Cai, B., Xu, X., Jia, K., Qing, C., and Tao, D. (2016). De-

hazenet: An end-to-end system for single image haze

removal. IEEE Transactions on Image Processing,

25(11):5187–5198.

Chen, J., Chen, J., Chao, H., and Yang, M. (2018). Image

blind denoising with generative adversarial network

based noise modeling. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 3155–3164.

Emberton, S., Chittka, L., and Cavallaro, A. (2015). Hier-

archical rank-based veiling light estimation for under-

water dehazing.

Engin, D., Genc¸, A., and Kemal Ekenel, H. (2018). Cycle-

dehaze: Enhanced cyclegan for single image dehaz-

ing. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 825–833.

He, K., Sun, J., and Tang, X. (2010). Single image haze

removal using dark channel prior. IEEE transac-

tions on pattern analysis and machine intelligence,

33(12):2341–2353.

Jiang, Y., Gong, X., Liu, D., Cheng, Y., Fang, C., Shen, X.,

Yang, J., Zhou, P., and Wang, Z. (2019). Enlighten-

gan: Deep light enhancement without paired supervi-

sion. arXiv preprint arXiv:1906.06972.

Kumar, R. and Moyal, V. (2013). Visual image quality as-

sessment technique using fsim. International Journal

of Computer Applications Technology and Research,

2(3):250–254.

Kupyn, O., Budzan, V., Mykhailych, M., Mishkin, D., and

Matas, J. (2018). Deblurgan: Blind motion deblurring

using conditional adversarial networks. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, pages 8183–8192.

Ledig, C., Theis, L., Husz

ar, F., Caballero, J., Cunningham,

A., Acosta, A., Aitken, A., Tejani, A., Totz, J., Wang,

Z., et al. (2017). Photo-realistic single image super-

resolution using a generative adversarial network. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 4681–4690.

Li, B., Peng, X., Wang, Z., Xu, J., and Feng, D. (2017).

Aod-net: All-in-one dehazing network. In Proceed-

ings of the IEEE International Conference on Com-

puter Vision, pages 4770–4778.

Lin, W.-A., Chen, J.-C., Castillo, C. D., and Chellappa,

R. (2018). Deep density clustering of unconstrained

faces. In Proceedings of the IEEE Conference

on Computer Vision and Pattern Recognition, pages

8128–8137.

Lin, W.-A., Chen, J.-C., and Chellappa, R. (2017). A

proximity-aware hierarchical clustering of faces. In

2017 12th IEEE International Conference on Auto-

matic Face & Gesture Recognition (FG 2017), pages

294–301. IEEE.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-

volutional networks for semantic segmentation. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 3431–3440.

Luo, M. R., Cui, G., and Rigg, B. (2001). The devel-

opment of the cie 2000 colour-difference formula:

Ciede2000. Color Research & Application: Endorsed

by Inter-Society Color Council, The Colour Group

Enhanced CycleGAN Dehazing Network

201

(Great Britain), Canadian Society for Color, Color

Science Association of Japan, Dutch Society for the

Study of Color, The Swedish Colour Centre Founda-

tion, Colour Society of Australia, Centre Franc¸ais de

la Couleur, 26(5):340–350.

McCartney, E. J. (1976). Optics of the atmosphere: scatter-

ing by molecules and particles. New York, John Wiley

and Sons, Inc., 1976. 421 p.

Meng, G., Wang, Y., Duan, J., Xiang, S., and Pan, C.

(2013). Efﬁcient image dehazing with boundary con-

straint and contextual regularization. In Proceedings

of the IEEE international conference on computer vi-

sion, pages 617–624.

Narasimhan, S. G. and Nayar, S. K. (2000). Chromatic

framework for vision in bad weather. In Proceed-

ings IEEE Conference on Computer Vision and Pat-

tern Recognition. CVPR 2000 (Cat. No. PR00662),

volume 1, pages 598–605. IEEE.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time object

detection. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 779–

788.

Ren, W., Liu, S., Zhang, H., Pan, J., Cao, X., and Yang,

M.-H. (2016). Single image dehazing via multi-scale

convolutional neural networks. In European confer-

ence on computer vision, pages 154–169. Springer.

Scharstein, D., Hirschm

uller, H., Kitajima, Y., Krathwohl,

G., Ne

c, N., Wang, X., and Westling, P. (2014).

High-resolution stereo datasets with subpixel-accurate

ground truth. In German conference on pattern recog-

nition, pages 31–42. Springer.

Silberman, N., Hoiem, D., Kohli, P., and Fergus, R. (2012).

Indoor segmentation and support inference from rgbd

images. In European conference on computer vision,

pages 746–760. Springer.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Srinivasa, G. and Shree, K. (2002). Vision and the atmo-

sphere. International Journal of Computer Vision,

48(3):233–254.

Tan, R. T. (2008). Visibility in bad weather from a single

image. In 2008 IEEE Conference on Computer Vision

and Pattern Recognition, pages 1–8. IEEE.

Tarel, J.-P. and Hautiere, N. (2009). Fast visibility restora-

tion from a single color or gray level image. In 2009

IEEE 12th International Conference on Computer Vi-

sion, pages 2201–2208. IEEE.

Wang, R., Zhang, Q., Fu, C.-W., Shen, X., Zheng, W.-S.,

and Jia, J. (2019). Underexposed photo enhancement

using deep illumination estimation. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition, pages 6849–6857.

Yang, S., Luo, P., Loy, C.-C., and Tang, X. (2016). Wider

face: A face detection benchmark. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 5525–5533.

Yang, X., Xu, Z., and Luo, J. (2018). Towards percep-

tual image dehazing by physics-based disentangle-

ment and adversarial training. In Thirty-second AAAI

conference on artiﬁcial intelligence.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. In Proceedings of

the IEEE international conference on computer vi-

sion, pages 2223–2232.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

202
