Investigating 3D Convolutional Layers as Feature Extractors for

Anomaly Detection Systems Applied to Surveillance Videos

Tiago S. Nazare, Rodrigo F. de Mello and Moacir A. Ponti

ICMC, Universidade de S

ao Paulo, S

ao Carlos, Brazil

Keywords:

Video Surveillance, Unusual Event Detection, Deep Learning.

Abstract:

Over the last few years, several strategies have been leveraged to detect unusual behavior in surveillance

videos. Nonetheless, there are still few studies that compare strategies based on 3D Convolutional Neural Net-

works to tackle such problem. This research gap has motivated the this work in which we aim at investigating

the features from a pre-trained C3D model and the training of fully 3D-convolutional auto-encoders for auto-

mated video anomaly detection systems, comparing them with respect to the anomaly detection performance

and the processing power demands. Additionally, we present an auto-encoder model to detect anomalous be-

havior based on the pixel reconstruction error. While C3D features coming from the ﬁrst layers were shown to

be both better descriptors and faster to be computed, the auto-encoder achieved results comparable to the C3D,

while requiring less computational effort. When compared to other studies using two benchmark datasets, the

proposed methods are comparable to the state-of-the-art for the Ped2 dataset, while inferior when detecting

anomalies on the Ped1 dataset. Additionally, our experimental results support the development of future 3D-

CNN-based anomaly detection methods.

1 INTRODUCTION

One of the main applications of automated video

analysis systems is the surveillance of public places

such as squares, malls and airports (Mabrouk and Za-

grouba, 2018). In this particular domain, a computer

vision model can assist humans in attempt to avoid

missing out suspicious activities and, therefore, make

surveillance more effective. Such assistance is needed

due to two main reasons: (i) usually a single person

is in charge of monitoring several video feeds at the

same time, which increases the chance of missing out

some important event (Dee and Velastin, 2008); and

(ii) it has been shown that the attention of an individ-

ual drastically decreases just after monitoring surveil-

lance cameras for 20 minutes (Haering et al., 2008).

Therefore, a model that, for instance, highlights cam-

eras with higher probability of having some abnormal

event would be of great help.

In this context, a great deal of computer vi-

sion methods have been proposed to detect abnor-

mal events in surveillance videos using approaches

such as: optical-ﬂow features (Colque et al., 2015;

Adam et al., 2008), Generative Adversarial Networks

– GANs (Ravanbakhsh et al., 2017), time series de-

composition (Ponti et al., 2017a), auto-encoders (Xu

et al., 2015), dictionary learning (Li et al., 2015), pre-

trained CNNs (Nazare et al., 2018b), (Ravanbakhsh

et al., 2018), (dos Santos et al., 2019) and contex-

tual approaches (Colque et al., 2018). Those methods

improved the results over time, nevertheless, most –

specially the ones based on CNNs – do not take into

account the amount of processing power required to

perform such task. This can pose a problem in sit-

uations where processing resources are limited, for

instance, the video may need to be processed using

the video recorder (e.g. a regular desktop) due to

bandwidth limitations (Muthusenthil and Kim, 2018).

Also, many studies do not justify well the use of spe-

ciﬁc deep network backbones and architectures.

Motivated by the aforementioned issues, we de-

vote our efforts to better understand the usage of 3D

CNNs for abnormal behavior detection in security

videos. In order to do so, we ﬁrst use a pre-trained

C3D model (Tran et al., 2015) as feature extractor for

abnormal behavior detection in security videos. We

look at how the features generated by the convolu-

tional part of a pre-trained C3D model affects both

anomaly detection and computational requirements

from two angles: (i) when we vary the input shape

of the video, and (ii) when we extract features from

different convolutional layers. Therefore, this paper

Nazare, T., F. de Mello, R. and Ponti, M.

Investigating 3D Convolutional Layers as Feature Extractors for Anomaly Detection Systems Applied to Surveillance Videos.

DOI: 10.5220/0010347907530762

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

753-762

ISBN: 978-989-758-488-6

753

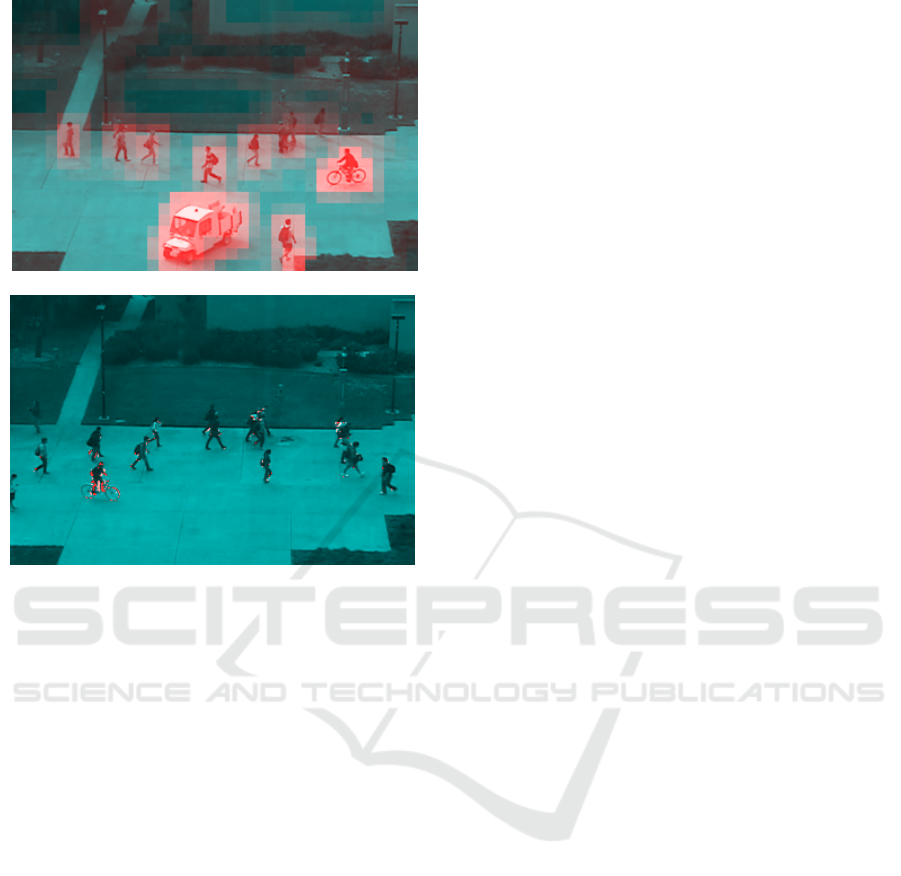

Figure 1: Anomaly score detection strategy comparison for

the two proposed methods. The ﬁrst image illustrate the

results from C3D features which are based on local fea-

ture distances (less precise), while the second image shows

the pixel-level reconstruction provided by the auto-encoder

(more precise).

does not intent to overcome state-of-the-art results,

which often employ more sophisticated training and

post-processing mechanisms, but rather shed light on

the use of 3D convolutions as a way to better repre-

sent video data, so that future work can make better

use of such models as backbones to improve results.

We present novel empirical evidence on this ap-

plication including that: (i) extracting features from

bottom layers of the network, i.e. closer to the in-

put layer, improves the anomaly detection, while re-

ducing the processing demands to generate features;

(ii) reduction of video resolution produces a small

loss in anomaly detection performance, while mak-

ing the feature extraction considerably faster; (iii) a

domain-speciﬁc auto-encoder (which only uses 3D

convolutions) is capable of obtaining similar perfor-

mance when compared to the C3D features, while

have a much lower computational complexity. Fig-

ure 1 illustrates both approaches using heatmaps of

the local features obtained by C3D and AE-3D for

anomaly detection, as detailed in the next sections.

2 RELATED WORK

Noticeably, convolutional neural networks have

turned into the main framework to solve various com-

puter vision problems (Ponti et al., 2017b) (Goodfel-

low et al., 2016). One of the main reasons for that

is the ability for transfer learning, in which a model

that was trained in some dataset/domain is used on

a new and, sometimes rather different, domain (Ko-

rnblith et al., 2019) (Dos Santos et al., 2020) . In

such case, the pre-trained network is leveraged as a

feature extractor (Razavian et al., 2014) or as weight

initialization in attempt to improve the starting point

for training on a target application (Kornblith et al.,

2019; Yosinski et al., 2014).

One of the applications that has beneﬁted from the

usage of transfer learning is the detection of anoma-

lous events in surveillance. For instance, in (Ravan-

bakhsh et al., 2018), the image region description gen-

erated by a pre-trained AlexNet (Krizhevsky et al.,

2012) is analyzed over time to detect unusual behav-

iors. In (Sultani et al., 2018), the authors used a pre-

trained C3D model as proposed by (Tran et al., 2015)

(originally trained for action recognition) as a fea-

ture extractor to detect unusual behavior on surveil-

lance videos. Nonetheless, in their study, the model

was used in classiﬁcation setup what means that sam-

ples from the anomalous class were used during train-

ing. In (Nazare et al., 2018b), the authors compared

the features generated by several CNNs trained on

the ImageNet dataset (Deng et al., 2009) to detect

anomalies in security videos, while (dos Santos et al.,

2019) evaluated the ability of 2D CNNs to generalize

across different video surveillance datasets. The pre-

vious studies extracted features from each individual

frame and did not use any kind of temporal tracking,

their model only use the instant appearance to detect

anomalies.

Although those studies achieved good results with

regards to the detection of abnormal behavior in se-

curity videos – as pointed out previously – they may

not be suited for situations in which the amount of

processing power is limited. Considering this gap, in

this paper, we investigate three ways of reducing the

amount of computation needed to leverage 3D con-

volution in surveillance applications. The ﬁrst ap-

proach, which is based on the ﬁndings of (Yosinski

et al., 2014), is to extract feature from convolutional

layers that are closer to the input of the network.

By doing so, we are able to reduce the processing

demands involved in extracting features (given that

we have fewer layers to execute a forwarding pass)

and we may also get better features (as pointed out

in (Yosinski et al., 2014)). The second approach com-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

754

Sequence of

video frames

Convolutional layers

(from a pre-trained C3D )

Extracted

C3D features

IPCA and

standard scalers

Anomaly scores

(using an 1-NN)

(a)

Conv3D 64 kernels (3✕3✕3)

MaxPooling3D (2✕2✕1)

Conv3D 128 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Conv3D 256 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Conv3D 512 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Conv3D 512 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Dense 4096 neurons

Softmax

Extractor 1 Extractor 2 Extractor 3 Extractor 4

(b)

Figure 2: Experimental setup diagram for C3D feature extraction.

prises the reduction of the frame sizes before pass-

ing them through the network, therefore reducing the

amount of pixels to be processed and, consequently,

the computation time required to generate features.

The third approach builds up a domain-speciﬁc auto-

encoder based only on 3D convolutions and use frame

its reconstruction error as an anomaly score.

3 EXPERIMENTAL SETUP

3.1 C3D Features

We start our experiments by using the experimental

setup presented in Figure 2 to better understand the

video anomaly detection of features extracted from

a pre-trained C3D network. On one hand, regarding

video anomaly detection (see Figure 2 (a)), uses ideas

presented in (Kornblith et al., 2019) but for the video-

surveillance scenario . On the other hand, concern-

ing the study of possible features to be extracted from

the pre-trained C3D model, our study is based on the

ﬁndings in (Yosinski et al., 2014).

In the ﬁrst step of our setup, we extract features

from video segments of 16 consecutive frames by per-

forming a forward pass such video segments through

convolutional layers of a pre-trained C3D model. As

a result of this process, we obtain tensors that contain

the descriptions of 32 × 32 × 16 regions of the video

segment, which is used to detect anomalies in video

regions/frames.

Given the four different C3D layers that we are

going to use to extract features from 32 × 32 × 16

video regions, we need to interpreted the output ten-

sor differently for each case (layer). For example,

when extracting features from the last convolutional

layer of the C3D model (Extractor 4 in Figure 2 (b)),

we get an M × N × 512 tensor in which we have

a 512-dimensional feature vector to describe M × N

video regions of size 32 × 32 × 16 pixels. On the

other hand, when carrying out this process for Ex-

tractor 3, each 32 × 32 × 16 region is going to gen-

erate a 2 × 2 × 2 × 512 descriptor. In Table 1, we

present the number of feature generate by the four

different extractors when describing a video region

with 32 × 32 × 16 pixels. Since Extractors 1, 2 and

3 generate a large number of features, we applied a

3D pooling on their spatial dimension in order to re-

duce them to one and speedup the anomaly detection

process (see the third column of Table 1).

Table 1: Number of features generated by each extractor

when describing a 32 × 32 × 16 video region (before and

after pooling).

Extractor # of raw features

# of features

after pooling

1 8 × 8 × 8 × 128 = 65536 128

2 4 × 4 × 4 × 256 = 16384 256

3 2 × 2 × 2 × 512 = 4096 512

4 1 × 1 × 1 × 512 = 512 512

In the second step of our setup, we reduce

the number of features using the Incremental PCA

Investigating 3D Convolutional Layers as Feature Extractors for Anomaly Detection Systems Applied to Surveillance Videos

755

(IPCA) model (Ross et al., 2008). Additionally, we

apply a standard scaler before the IPCA transforma-

tion and another one after it. By applying these pre-

processing steps, we reduce the number of features

and make them follow a mean equals to zero and a

standard deviation equals to one. This helps the ap-

proximate nearest neighbor method that we employed

to detect anomalies (Muja and Lowe, 2014) in order

to achieve faster inference time and give the same im-

portance to all features.

Lastly, in the third step of our setup, we use our

nearest neighbor model to compute the Euclidean dis-

tance of each new video region to the closest sample

in the training data. Such distance is considered as

an anomaly scores, where greater distance values in-

dicate a greater chance of being an anomaly.

The setup described above allow us to compare

features generated by four different C3D extractors

with respect to their suitability as features for video

anomaly detection scenarios and their computational

requirements. Our experiments cover the hyperpa-

rameter variations present in in Table 2 that were se-

lected to explore both the anomaly detection results

and the computational cost of the pre-trained C3D

model. Finally, we compare the results of all these

experiments using the frame-level anomaly detection

results (AUC and EER) on the Ped1 and the Ped2

datasets.

Table 2: Values tested for each hyperparameter.

Parameter Values

Pooling type average, max

Frame resolution 192 × 128, 384 × 256

IPCA output dimensions 8, 16, 32, 64, 128

3.2 Auto-encoder

Next, based on the good video anomaly detection re-

sults of the auto-encoders present in (Xu et al., 2015),

we designed a fully 3D-convolutional auto-encoder

architecture to model normal behavior in surveillance

applications. Our network architecture, which is de-

picted in Figure 3, uses: 3 × 3 × 3 kernels in all con-

volutional layers, ReLU activation function in all lay-

ers, 2 × 2 × 2 size for both the max-pooling and up-

sampling operations, Batch Normalization in every

layer, Gaussian noise to corrupt the input video seg-

ment and MSE as the loss function.

Such model is trained to reconstruct 20 × 20 × 8

video segments extracted from training videos con-

taining only normal behaviors. During the anomaly

detection phase, the trained auto-encoder is used to

reconstruct video segments and the reconstruction er-

ror of each pixel is used as pixel-level anomaly score.

UpSampling3D (2✕2✕2)

Conv3D 8 kernels (3✕3✕3)

UpSampling3D (2✕2✕2)

Conv3D 16 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Conv3D 8 kernels (3✕3✕3)

MaxPooling3D (2✕2✕2)

Conv3D 4 kernels (3✕3✕3)

Conv3D 16 kernels (3✕3✕3)

Encoder Decoder

Figure 3: The auto-encoder architecture proposed.

Figure 4: Frame reconstructed by our 3D auto-encoder ar-

chitecture. The ﬁrst image shows the original frame, while

the second presents its reconstructed version.

To illustrate the usefulness of such reconstruction er-

ror, Figure 4 presents such process on a video frame

containing a single anomaly. Inspecting the result-

ing image, we can notice that the anomaly (a biker)

was poorly reconstructed, while the remaining of the

frame is rather similar to the original one.

3.3 Surveillance Video Datasets

Our experiments are based on the two UCSD datasets

– Ped1 and Ped2 – which were both obtained from se-

curity footage from the University of California San

Diego (Mahadevan et al., 2010; Li et al., 2014). This

means that, differently from other surveillance sets,

these datasets were obtained from real situations and,

therefore, are of great value to estimate the detec-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

756

tion performance of automated surveillance systems.

Those datasets remain important benchmarks, since

they describe a similar problems (detecting anomalies

in a pedestrian environment), but having different res-

olution, perspective, and types of anomalies. In par-

ticular Ped1 is more challenging while Ped2 is more

well-behaved. In Table 3 and Figure 5, we present,

respectively, some characteristics and some frames of

these two datasets.

Table 3: Dataset characteristics.

Characteristic

Dataset

Ped1 Ped2

# training videos 34 videos 16 videos

# test videos 36 videos 12 videos

resolution 238 × 158 360 × 240

fps 10 fps 10 fps

3.4 Reproducibility Remarks

In order to extract features from the security videos

using a pre-trained C3D model and create our auto-

encoder model, we have used the Keras (Chollet

et al., 2015) library. With regards to the training the

IPCA model to reduce the number of features, we

have employed the implementation available on the

Scikit-learn (Pedregosa et al., 2011) library. Fi-

nally, to estimate the distance of each new sample to

the training set, we have used the approximate nearest

neighbor method implemented on the FLANN (Muja

and Lowe, ) library. In order to make it easier to re-

produce our results, our source code was made pub-

licly available

4 RESULTS AND DISCUSSION

4.1 Pre-trained C3D Network

Based on our C3D feature extraction setup, we exper-

imented with different parameters. In our ﬁrst experi-

ment, we tried to determine which conﬁguration – re-

garding frame resolution, pooling method and number

of dimensions after the IPCA transformation – pro-

vides the best results on the Ped1 and Ped2 datasets.

The results of our C3D experiments are presented in

Table 4 and indicate that features from Extractor 2 ob-

tained overall better results. This is interesting mainly

due to the following reasons:

1. As the original C3D training dataset and our target

datasets (Ped1 and Ped2) are different, the more

Our source code is available at https://github.com/

tiagosn/c3d features anomaly detection.

generic features from Extractor 2 end up being

more suitable for the anomaly detection task; and

2. When comparing to Extractors 3 and 4, Extrac-

tor 2 requires a forward pass throughout less C3D

layers and, consequently, less processing power to

generate its features.

Regarding the usage of different pooling methods,

we noticed that combining an average pooling with

the C3D usually leads to better anomaly detection re-

sults. Such phenomenon is particularly evident when

we compared the AUC values obtained by the two

pooling methods using some boxplots (see Figure 6).

Also, in most cases, keeping a higher number of IPCA

dimensions (i.e. 64 or 128) generates better anomaly

detection results.

4.2 3D Auto-encoder

Next, we tested our auto-encoder architecture with

and without background subtraction. The results ob-

tained are shown in Table 5 and indicate that back-

ground subtraction does not makes a substantial dif-

ference on the anomaly detection performance. When

comparing against the C3D results, we can see that

the auto-encoder performed better on Ped1 (while

lacking behind regarding state-of-the-art results) and

worse on Ped2 (still being comparable to the best re-

sults for that dataset). Nonetheless, as shown in Ta-

ble 6, it is important to notice that our auto-encoder

uses far less parameters than the C3D feature extrac-

tors.

4.3 Discussion

We emphasize our aim is not to present SOTA re-

sults, but investigate how far can we get with 3D-

convolution-based deep networks, that can be lever-

aged as backbones or components of more sophis-

ticated methods. When comparing C3D and AE-

3D results to classic and state-of-the-art methods on

both USCD datasets (Ped1 and Ped2) as in Table 7,

we notice that both C3D and AE3D methods for

learning representations achieved remarkable results

on Ped2, specially regarding AUC comparisons even

when compared to recent work (Park et al., 2020). On

the other hand, on the Ped1 experiments, our results

are far from the state-of-the-art and only compara-

ble to classic approaches (specially the ones from the

models based on C3D features).

Another interesting observation is that, for Ped1

even CNN-2D features (Nazare et al., 2018b) were

better than C3D pre-trained features, showing the po-

sitional learning of 3D convolutions from previous

Investigating 3D Convolutional Layers as Feature Extractors for Anomaly Detection Systems Applied to Surveillance Videos

757

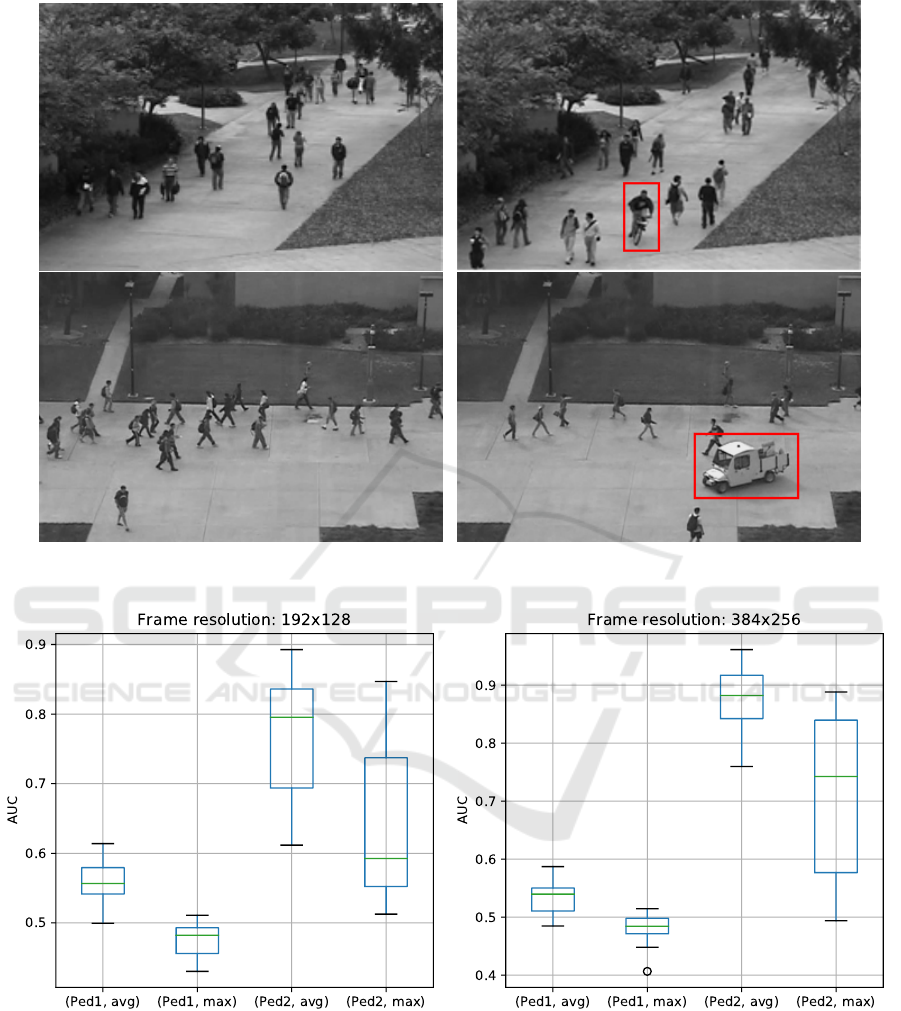

Figure 5: Some examples of frames from the two security video datasets. In the ﬁrst row, we have frames from the Ped1

dataset, while the second shows frames from the Ped2 dataset. The anomalies are highlighted by red boxes.

Figure 6: Pooling method comparison. These results show that just by using average pooling instead of max pooling as the

last layer of the feature extractor, we can greatly improve anomaly detection results.

tasks may not be adequate when there is signiﬁcant

relative distance between objects and camera.

This comparison also clearly indicates where the

learning process must become task-oriented: in a

more well behaved scenario such as Ped2, the use of

well selected features from a pre-trained network can

achieve results close to the state-of-the-art. On the

other hand, Ped1 frames has variation on both speed

and scale features of objects on the scene, which

makes it harder to ﬂag anomalies correctly. Thus, it

is paramount to design systems that address such sce-

narios and this is why region-based methods works

better. However, by learning dataset-speciﬁc models,

and compensating too much for regions of the frame,

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

758

Table 4: Results obtained from the frame-level detection on the Ped1 and the Ped2 datasets. This results where obtained

using several different hyperparameter conﬁgurations (feature extractor, pooling method, number of IPCA features and frame

resolution). Please notice that the greater the AUC is, the better it is; and the lower the EER is, the better it is.

Extractor Pooling

IPCA

dims.

Ped1 Ped2

192 × 168 384 × 256 192 × 168 384 × 256

AUC EER AUC EER AUC EER AUC EER

avg

8 61.39% 42.21% 54.88% 48.06% 79.53% 28.29% 88.17% 20.14%

16 56.33% 44.08% 53.96% 47.03% 74.80% 31.80% 90.03% 17.18%

32 56.83% 45.41% 55.03% 45.95% 70.20% 33.77% 88.96% 19.47%

64 54.21% 47.58% 54.80% 45.28% 82.96% 25.57% 92.65% 15.41%

128 49.96% 51.14% 49.70% 52.03% 84.11% 21.48% 94.63% 11.96%

max

8 46.66% 52.88% 46.61% 51.99% 54.07% 42.95% 49.38% 50.43%

16 43.04% 54.73% 47.61% 51.91% 51.27% 45.62% 50.48% 48.95%

32 44.76% 54.23% 48.43% 52.22% 53.24% 46.52% 52.70% 49.51%

64 44.41% 53.69% 48.43% 51.02% 59.25% 42.90% 57.66% 45.90%

128 45.32% 52.34% 48.95% 52.60% 56.41% 43.82% 57.69% 44.35%

avg

8 57.94% 44.46% 58.71% 44.44% 68.58% 37.05% 77.18% 30.48%

16 57.95% 43.54% 53.58% 47.56% 68.10% 36.07% 83.45% 25.53%

32 59.44% 43.52% 55.00% 45.77% 70.52% 35.96% 90.77% 15.99%

64 58.65% 43.68% 56.60% 46.33% 89.26% 20.22% 94.61% 11.80%

128 54.33% 46.05% 57.02% 44.42% 88.44% 19.40% 96.12% 11.48%

max

8 49.46% 50.47% 49.95% 49.41% 57.57% 45.08% 67.03% 37.40%

16 48.44% 51.75% 49.72% 49.84% 53.27% 45.87% 79.46% 26.70%

32 48.24% 50.87% 49.94% 49.28% 58.03% 41.84% 82.26% 24.52%

64 48.10% 50.47% 49.86% 51.06% 77.71% 29.74% 85.66% 22.87%

128 48.69% 50.51% 51.45% 48.91% 84.70% 23.28% 88.83% 19.07%

avg

8 53.35% 47.10% 50.45% 49.34% 61.18% 44.79% 75.97% 30.99%

16 54.10% 46.34% 48.45% 51.16% 65.81% 40.80% 77.57% 30.93%

32 52.09% 48.41% 50.37% 50.06% 80.25% 26.04% 85.00% 22.61%

64 55.57% 46.89% 51.65% 48.90% 83.10% 23.27% 87.85% 18.36%

128 55.68% 46.40% 51.94% 48.84% 85.04% 22.62% 88.22% 16.72%

max

8 49.85% 49.47% 46.33% 52.78% 61.74% 43.23% 74.24% 29.02%

16 49.16% 50.01% 40.64% 56.32% 61.29% 46.56% 72.60% 33.11%

32 45.92% 53.10% 44.81% 53.72% 70.57% 32.56% 79.89% 25.05%

64 49.83% 51.08% 48.12% 51.28% 76.87% 30.47% 86.95% 18.76%

128 51.11% 48.90% 48.52% 50.36% 82.35% 28.20% 87.25% 17.18%

4 -

8 48.98% 50.78% 50.49% 50.25% 76.47% 30.07% 79.17% 24.32%

16 49.85% 49.87% 46.04% 53.53% 77.41% 27.54% 84.98% 18.84%

32 48.02% 50.95% 48.86% 51.92% 81.76% 23.20% 85.69% 17.43%

64 48.53% 51.03% 46.55% 53.61% 72.93% 30.11% 87.93% 16.07%

128 48.38% 51.40% 48.48% 51.66% 70.67% 32.39% 87.02% 16.11%

Table 5: Frame-level anomaly detection results for the pro-

posed auto-encoder.

Method

Ped1 Pe2

AUC EER AUC EER

3D-auto-encoder

(with bg subtraction)

64.8% 39.7% 91.0% 15.0%

3D-auto-encoder

(without bg subtraction)

67.7% 38.7% 90.0% 19.0%

the best methods on Ped1 end up obtaining worse per-

formance on Ped2 such as for (Xu et al., 2015; Ravan-

bakhsh et al., 2017; Ravanbakhsh et al., 2018).

We believe that the main reason for this low per-

formance are due to changes in space perspective (ob-

ject sizes change according to the image region that

they are located), something that our approach does

not take into account.

Table 6: Number of parameters of CNN in our experiments.

Model # of trainable parameters

AE-3D 9,364

Extractor 1 226,560

Extractor 2 2,881,280

Extractor 3 13,499,136

Extractor 4 27,655,936

5 CONCLUSION

The usage of 3D convolutions as a way to learn or

obtain representations to detect anomalies in security

videos is still a matter of investigation. A pre-trained

C3D model, especially when exploring different lay-

Investigating 3D Convolutional Layers as Feature Extractors for Anomaly Detection Systems Applied to Surveillance Videos

759

Table 7: Frame-level anomaly detection comparison on both UCSD datasets (Ped1 and Ped2). The lower the EER is, the

better it is; and greater the AUC is, the better it is.

Method

Dataset

Ped1 Ped2

AUC EER AUC EER

LMH (Adam et al., 2008) 63.4% 38.9% 58.1% 45.8%

MPPCA (Kim and Grauman, 2009) 59.0% 40.0% 69.3% 30.0%

Social force (Mehran et al., 2009) 67.5% 31.0% 55.6% 42.0%

Sparse reconstruction (Cong et al., 2011) - 19.0% - -

LSA (Saligrama and Chen, 2012) 92.7% 16.0% - -

Sparse combination (Lu et al., 2013) 91.8% 15.0% - -

MDT (Li et al., 2014) 81.8% 25.0% 82.9% 25.0%

LNND (Hu et al., 2014) - 27.9% - 23.7%

Motion inﬂuence map (Lee et al., 2015) - 24.1% - 9.8%

Composition pattern (Li et al., 2015) - 21.0% - 20.0%

HOFM (Colque et al., 2015) 71.5% 33.3% 89.9% 19.0%

AMDN (Xu et al., 2015) 92.1% 16.0% 90.8% 17.0%

Flow decomposition (Ponti et al., 2017a) - - - 31.7%

Adversarial discriminator (Ravanbakhsh et al., 2017) 96.8% 7.0% 95.5% 11.0%

Plug-and-play CNN (Ravanbakhsh et al., 2018) 95.7% 8.0% 88.4% 18.0%

CNN-2D features (Nazare et al., 2018b) 64.1% 40.4% 88.9% 19.6%

Siamese (Ramachandra et al., 2020) 86.0% 23.3% 94.0% 14.1%

Memory auto-encoder (Park et al., 2020) - - 97.0% -

C3D (best results) 61.4% 42.2% 96.1% 11.5%

AE-3D (best results) 67.7% 38.7% 91.0% 15.0%

ers, shows discriminative capacities for scenes with

low variation in speed and scale along the frames. A

3D auto-encoder, on the other hand, is also capable of

learning spatial-temporal features from normal data

and produce remarkable results when considering the

low number of parameters of such model.

Regarding the C3D features, we considered four

different layers as feature extractors, and concluded

that features from early layers (layers that are closer

to the network input) are better for such task, specially

when combined with average pooling layers. Such

results where matched by a 3D auto-encoder that has

a signiﬁcantly lower number of parameters.

Those conclusions are enriched when we com-

pare the C3D and AE-3D with results from the liter-

ature. Well-behaved scenarios, such as Ped2 dataset,

beneﬁt from 3D convolutions and need less effort to

be solved. However, the varying distance between

camera and objects of Ped1 makes it less a generic

problem in terms of positional-based feature learn-

ing via 3D convolutions. Therefore, we advocate

that 3D-convolution-based methods are adequate for

video anomaly detection, however one should com-

bine other mechanisms to compensate for changes

in scale and speed along the frame. With this, fu-

ture work may improve the design of systems without

trial-and-error and better coupling the power of deep

3D convolutional networks and other strategies.

Future studies may include C3D models previ-

ously trained on grayscale datasets since, according

to (Nazare et al., 2018a), this can make a consid-

erable difference in the overall results; use alterna-

tive CNN architectures designed for videos, such as

the ones presented in (Srivastava et al., 2015; Tran

et al., 2018); consider multi-resolution video process-

ing, which has been successfully used by (Xu et al.,

2015), to better deal with changes in space perspec-

tive.

ACKNOWLEDGMENT

This work was supported by FAPESP (grants

#2015/04883-0, and #2018/22482-0), CNPq (grants

#303886/2020-0 and #304266/2020-5) and par-

tially supported by CEPID-CeMEAI (FAPESP grant

#2013/07375-0).

REFERENCES

Adam, A., Rivlin, E., Shimshoni, I., and Reinitz, D. (2008).

Robust real-time unusual event detection using multi-

ple ﬁxed-location monitors. IEEE Trans. Pattern Anal.

Mach. Intell.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

760

Chollet, F. et al. (2015). Keras. https://keras.io.

Colque, R. M., Caetano, C., de Melo, V. H. C., Chavez,

G. C., and Schwartz, W. R. (2018). Novel anoma-

lous event detection based on human-object interac-

tions. In VISIGRAPP (5: VISAPP), pages 293–300.

Colque, R. V. H. M., Caetano, C., and Schwartz, W. R.

(2015). Histograms of optical ﬂow orientation and

magnitude to detect anomalous events in videos. In

Conference on Graphics, Patterns and Images (SIB-

GRAPI).

Cong, Y., Yuan, J., and Liu, J. (2011). Sparse reconstruction

cost for abnormal event detection. In CVPR 2011.

Dee, H. M. and Velastin, S. A. (2008). How close are we to

solving the problem of automated visual surveillance?

Machine Vision and Applications.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-

Fei, L. (2009). ImageNet: A Large-Scale Hierarchical

Image Database. In CVPR09.

dos Santos, F. P., Ribeiro, L. S., and Ponti, M. A.

(2019). Generalization of feature embeddings trans-

ferred from different video anomaly detection do-

mains. Journal of Visual Communication and Image

Representation, 60:407–416.

Dos Santos, F. P., Zor, C., Kittler, J., and Ponti, M. A.

(2020). Learning image features with fewer labels

using a semi-supervised deep convolutional network.

Neural Networks.

Goodfellow, I., Bengio, Y., Courville, A., and Bengio, Y.

(2016). Deep learning, volume 1. MIT press Cam-

bridge.

Haering, N., Venetianer, P. L., and Lipton, A. (2008). The

evolution of video surveillance: an overview. Machine

Vision and Applications.

Hu, X., Hu, S., Zhang, X., Zhang, H., and Luo, L. (2014).

Anomaly detection based on local nearest neighbor

distance descriptor in crowded scenes. The Scientiﬁc

World Journal, 2014.

Kim, J. and Grauman, K. (2009). Observe locally, infer

globally: A space-time mrf for detecting abnormal

activities with incremental updates. In 2009 IEEE

Conference on Computer Vision and Pattern Recog-

nition(CVPR).

Kornblith, S., Shlens, J., and Le, Q. V. (2019). Do better

imagenet models transfer better? In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 2661–2671.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in Neural Information Pro-

cessing Systems 25.

Lee, D.-g., Member, S., Suk, H.-i., and Park, S.-k. (2015).

Motion Inﬂuence Map for Unusual Human Activity

Detection and Localization in Crowded Scenes. Cir-

cuits and Systems for Video Technology, IEEE Trans-

actions on, 8215.

Li, N., Wu, X., Xu, D., Guo, H., and Feng, W. (2015).

Spatio-temporal context analysis within video vol-

umes for anomalous-event detection and localization.

Neurocomputing.

Li, W., Mahadevan, V., and Vasconcelos, N. (2014).

Anomaly detection and localization in crowded

scenes. IEEE Transactions on Pattern Analysis and

Machine Intelligence.

Lu, C., Shi, J., and Jia, J. (2013). Abnormal event detection

at 150 fps in matlab. In Proceedings of the 2013 IEEE

International Conference on Computer Vision, ICCV

’13.

Mabrouk, A. B. and Zagrouba, E. (2018). Abnormal behav-

ior recognition for intelligent video surveillance sys-

tems: A review. Expert Systems with Applications,

91:480–491.

Mahadevan, V., Li, W., Bhalodia, V., and Vasconcelos, N.

(2010). Anomaly detection in crowded scenes. In Pro-

ceedings of IEEE Conference on Computer Vision and

Pattern Recognition, pages 1975–1981.

Mehran, R., Oyama, A., and Shah, M. (2009). Abnormal

crowd behavior detection using social force model. In

CVPR.

Muja, M. and Lowe, D. G. FLANN: Fast Library for Ap-

proximate Nearest Neighbors.

Muja, M. and Lowe, D. G. (2014). Scalable nearest neigh-

bor algorithms for high dimensional data. Pattern

Analysis and Machine Intelligence, IEEE Transac-

tions on, 36.

Muthusenthil, B. and Kim, H. S. (2018). CCTV Surveil-

lance System, attacks and design goals”. Interna-

tional Journal of Electrical and Computer Engineer-

ing, 8(4):2072.

Nazare, T. S., de Mello, R. F., da Costa, G. B. P., and Ponti,

M. A. (2018a). Color quantization in transfer learning

and noisy scenarios: An empirical analysis using con-

volutional networks. In 2018 31st SIBGRAPI Confer-

ence on Graphics, Patterns and Images (SIBGRAPI).

Nazare, T. S., de Mello, R. F., and Ponti, M. A. (2018b). Are

pre-trained cnns good feature extractors for anomaly

detection in surveillance videos? arXiv preprint

arXiv:1811.08495.

Park, H., Noh, J., and Ham, B. (2020). Learning memory-

guided normality for anomaly detection. In Proceed-

ings of the IEEE/CVF Conference on Computer Vision

and Pattern Recognition, pages 14372–14381.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Ponti, M., Nazare, T. S., and Kittler, J. (2017a). Optical-

ﬂow features empirical mode decomposition for mo-

tion anomaly detection. In 2017 IEEE International

Conference on Acoustics, Speech and Signal Process-

ing (ICASSP).

Ponti, M. A., Ribeiro, L. S. F., Nazare, T. S., Bui, T.,

and Collomosse, J. (2017b). Everything you wanted

to know about deep learning for computer vision but

were afraid to ask. In 2017 30th SIBGRAPI con-

ference on graphics, patterns and images tutorials

(SIBGRAPI-T).

Investigating 3D Convolutional Layers as Feature Extractors for Anomaly Detection Systems Applied to Surveillance Videos

761

Ramachandra, B., Jones, M., and Vatsavai, R. (2020).

Learning a distance function with a siamese network

to localize anomalies in videos. In The IEEE Win-

ter Conference on Applications of Computer Vision,

pages 2598–2607.

Ravanbakhsh, M., Nabi, M., Mousavi, H., Sangineto, E.,

and Sebe, N. (2018). Plug-and-play cnn for crowd

motion analysis: An application in abnormal event de-

tection. In 2018 IEEE Winter Conference on Applica-

tions of Computer Vision (WACV).

Ravanbakhsh, M., Sangineto, E., Nabi, M., and Sebe, N.

(2017). Training adversarial discriminators for cross-

channel abnormal event detection in crowds. CoRR,

abs/1706.07680.

Razavian, A. S., Azizpour, H., Sullivan, J., and Carls-

son, S. (2014). CNN features off-the-shelf: An as-

tounding baseline for recognition. In Proceedings of

the 2014 IEEE Conference on Computer Vision and

Pattern Recognition Workshops, CVPRW ’14, pages

512–519, Washington, DC, USA. IEEE Computer So-

ciety.

Ross, D. A., Lim, J., Lin, R.-S., and Yang, M.-H. (2008).

Incremental learning for robust visual tracking. Int. J.

Comput. Vision, 77(1-3):125–141.

Saligrama, V. and Chen, Z. (2012). Video anomaly detec-

tion based on local statistical aggregates. In CVPR.

IEEE Computer Society.

Srivastava, N., Mansimov, E., and Salakhudinov, R. (2015).

Unsupervised learning of video representations using

lstms. In Proceedings of the 32nd International Con-

ference on Machine Learning. PMLR.

Sultani, W., Chen, C., and Shah, M. (2018). Real-world

anomaly detection in surveillance videos. CoRR,

abs/1801.04264.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., and Paluri,

M. (2015). Learning spatiotemporal features with 3d

convolutional networks. In Proceedings of the 2015

IEEE International Conference on Computer Vision

(ICCV).

Tran, D., Wang, H., Torresani, L., Ray, J., LeCun, Y., and

Paluri, M. (2018). A closer look at spatiotemporal

convolutions for action recognition. In 2018 IEEE

Conference on Computer Vision and Pattern Recog-

nition, pages 6450–6459.

Xu, D., Ricci, E., Yan, Y., Song, J., and Sebe, N. (2015).

Learning deep representations of appearance and mo-

tion for anomalous event detection. In BMVC.

Yosinski, J., Clune, J., Bengio, Y., and Lipson, H. (2014).

How transferable are features in deep neural net-

works? In Advances in neural information processing

systems, pages 3320–3328.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

762
