Performance Benchmarking of YOLO Architectures for Vehicle License

Plate Detection from Real-time Videos Captured by a Mobile Robot

Amir Ismail

1,2

, Maroua Mehri

, Anis Sahbani

and Najoua Essoukri Ben Amara

Universit

e de Sousse, Ecole Nationale d’Ing

enieurs de Sousse,

LATIS-Laboratory of Advanced Technology and Intelligent Systems, 4023, Sousse, Tunisia

Enova Robotics, Novation City, Technop

ole de Sousse, 4000, Sousse, Tunisia

Keywords:

Vehicle License Plate, Detection, Real-time, Video, Mobile Robot, Deep Neural Networks, YOLO

Architectures.

Abstract:

In this paper, we address the issue of vehicle license plate (LP) detection for a mobile robotic application.

Speciﬁcally, we tackle the dynamic scenario of a robot in the physical world interacting based on its cameras.

The robot is dedicated essentially to patrol and secure unconstrained environments. Counter to the most recent

works of LP detection which assume controlled deploying scenario, the mobile platform requires a more robust

system that is suitable for various complex scenarios. To contribute to this purpose, we propose an end-to-

end detection module capable of localizing LP either in images or in live-streaming videos. The proposed

system is based on deep learning based detectors, particularly the most recent YOLOv4-tiny one. To evaluate

the proposed system, we introduce the ﬁrst-ever public Tunisian dataset, called PGTLP, for LP detection that

contains 3,000 annotated images. This dataset was gathered using the security robot during its patrolling and

surveillance of parking stations and high-risk areas. For the detection, a comparative study for the different

YOLO variants has been carried out in order to select the best detector. Our experiments are performed on

the PGTLP images and following the same experimental protocol. Among the selected models, YOLOv4-tiny

reveals the best compromise between detection performance and complexity. Further experiments that have

been conducted using the AOLP benchmark dataset point out that the proposed system has satisfying results.

1 INTRODUCTION

A long-standing target in the ﬁeld of license plate

detection and recognition (LPDR) is to develop sys-

tems that can perceive and understand a rich and

huge variety of conﬁgurations of license plates (LP).

Signiﬁcant strides have been made towards this goal

over the last few years beneﬁting from the parallel

progress in computing, data availability and partic-

ularly deep learning architectures. Meanwhile, con-

ventional computer vision techniques become more

and more limited, and no longer reliable in terms

of their ability to follow the requirements of real-

time scenario applications. Therefore, most of the

state-of-the-art works in LPDR have been focusing

on exploring what is happening in a very fast growing

ﬁeld, called representation learning, more commonly

known as deep learning. Hence, the progress has been

rapid in this context, especially when the algorithms

that were designed for visual recognition got really

useful for LPDR.

Given this, the identiﬁcation of vehicles through

their LP has been empowering many aspects of the

modern civilization from intelligent transportation

(e.g. trafﬁc ﬂow monitoring, congestion estimation

and management) to surveillance systems (e.g. ve-

hicle identiﬁcation and tracking, police interference)

to car park management (e.g. automatic number plate

recognition ticking, data insights, vehicle access). Ev-

idently, these extremely delicate applications require

ﬁrst and foremost a tricky trade-off between preci-

sion and operating time. Furthermore, a robust solu-

tion is highly required in this context considering the

large number of challenges. First up, the LP template

has been considered as the foreground issue since it

varies not only domestically, but as well across coun-

tries. This includes character component speciﬁca-

tions from size to color to texture along with its back-

ground. Also, it is pointed out that the single- and

double-lined LP keeps to be a major bottleneck situ-

ation. Second, when it comes to deployment, LPDR

is deﬁnitely an outdoor scenario. Hence it requires

Ismail, A., Mehri, M., Sahbani, A. and Ben Amara, N.

Performance Benchmarking of YOLO Architectures for Vehicle License Plate Detection from Real-time Videos Captured by a Mobile Robot.

DOI: 10.5220/0010349106610668

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

661-668

ISBN: 978-989-758-488-6

661

to be situation-independent in terms of camera angle,

camera motion and vehicle speed.

As regards to the above-mentioned requirements,

countless attempts keep maintaining a tremendous ef-

fort to get over the gap and deliver a scalable and

robust LPDR system. Although the fascinating up-

to-date outcomes, the existing solutions can oper-

ate only with respect to a predeﬁned ground which

is not always the case. We can mention for exam-

ple the single-template LP, the mono-language LP,

the camera placing (e.g. parking gate, highway, ur-

ban road). Few recent contributions have suggested

deep learning-based frameworks to completely re-

move some of these dependencies (Henry et al., 2020)

(Kessentini et al., 2019). However, their methods are

either designed to operate on one LP per frame or are

tested on a single-camera scenario.

The context of our work covers the partner-

ship with our industrial collaborator named “Enova

Robotics”, a company whose business is in manufac-

turing that manufactures mobile robots. It responds

to our partner’s need in order to satisfy his multi-

camera scenarios. In fact, “Pearl Guard”

, “Enova

Robotics”’s main product, is autonomously driving

security mobile platform. It patrols high-security ar-

eas such as airport runways and parking lots. It is with

respect to these conditions that we will introduce a

novel and realistic licence plate detection (LPD) sys-

tem to be implemented on the robot.

The main outcomes of this work are summarized

as listed below:

1. We present a comparative study of the state-of-

the-art object detection models, namely YOLO

and its derivatives in the context of LP detection

since many recent works rely on the YOLO exten-

sions.

2. We propose an end-to-end Tunisian LP detection

module that works on multi-templates without the

need of any pre-processing functionalities. The

infrastructure of the module is based on the state-

of-the-art YOLOv4-tiny object detection model.

The module remains robust to all the challenges

such as multi-LP context, various templates and

unusual backgrounds.

3. To the best of our knowledge, we present the ﬁrst

publicly-accessible Tunisian vehicle LP dataset

so-called the PGTLP dataset containing up to

3,000 multi-norm LP annotated images. This

dataset, collected using the security robot, covers

the major difﬁculty levels of LP detection in un-

constrained environments.

https://enovarobotics.eu/pguard/

4. We evaluate the proposed module on the AOLP

benchmark dataset (Hsu et al., 2012). The

achieved module is capable of running on a multi-

terrain robot with real-time performance.

The remainder of this paper is structured as fol-

lows. Section 2 reviews the main recent deep archi-

tectures proposed in the literature for LP detection.

Section 3 presents brief descriptions of the different

YOLO architectures evaluated in this paper. In Sec-

tion 4, we detail the experiments carried out to com-

pare the different YOLO architectures by outlining

the experimental corpus, the experimental protocol,

and the different computed performance evaluation

metrics. Section 5 analyzes the obtained qualitative

and quantitative results along with the computational

cost. Finally, our conclusions and further work are

given in Section 6.

2 RELATED WORK

The existing LPDR related contributions can be seen

as two main well-separated branches. Firstly, we de-

tect the LP, and then we recognize its components in

order to identify the vehicle. Since the recognition

module is out of the scope of this work, we will only

dig in from the detection part direction and we will go

mostly through deep learning-based contributions.

There is a large number of related works and inspi-

ration in the ﬁeld of LP detection. In a ﬁrst time, a lot

of focus is on traditional computer vision techniques.

Hsu et al. (Hsu et al., 2012) used the edge cluster-

ing approach to detect Taiwan LP. Kteta et al. (Ktata

et al., 2015) introduced a so-called extraction module

composed of horizontal and vertical edge processing

together with conventional pre-processing functions

such as dilatation and ﬁltering to detect Tunisian LP.

Since the jump up of deep models, old-fashion

computer vision methods are no longer reliable in

terms of pattern recognition compared to the new

competitive deep learning-based approaches. For in-

stance, Li and Shen (Li and Shen, 2016) extracted

candidate LP using a two 4-layer convolutional neural

networks (CNN). The ﬁrst CNN was used in a sliding

window fashion to ﬁnd the LP regions, while the sec-

ond one was applied to classify them into plate/non-

plate regions. Selmi et al. (Selmi et al., 2017) put for-

ward a complex detection system that started with few

pre-processing steps and ended with a CNN classi-

ﬁer to distinguish LP regions from non-LP ones. Bu-

lan et al. (Bulan et al., 2017) localized the American

LP using a CNN inspired by the AlexNet architecture

(Krizhevsky et al., 2012) and a linear support vector

machine (SVM) (Cortes and Vapnik, 1995) on top of

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

662

the extracted features. Silva et al. (Silva and Jung,

2017) proposed an end-to-end fast you only look once

(YOLO) based network named FV/LPD-NET to per-

form LP detection from car frontal-views. Hsu et al.

(Hsu et al., 2017) customized two versions of one-

stage detector which are YOLO (Redmon et al., 2016)

and YOLOv2 (Redmon and Farhadi, 2017) to be able

to handle LP detection under, as they have called it,

in-the-wild conditions. Raﬁque et al. (Raﬁque et al.,

2018) came with the idea of applying region con-

volutional neural network (RCNN) (Girshick et al.,

2014) and its derivatives such as fast RCNN (Gir-

shick, 2015) and faster RCNN (Ren et al., 2015) using

two different CNN conﬁgurations, such as ZF (Zeiler

and Fergus, 2014) and VGG16 (Simonyan and Zis-

serman, 2014). Xie et al. (Xie et al., 2018) ad-

dressed the task of localizing multi-directional LP in

Taiwanese cars. They took into consideration the ro-

tation angle of the LP and included it as a ﬁfth pa-

rameter of the bounding box into a YOLO-based de-

tector. Li et al. (Li et al., 2018) attempted to localize

the LP using a uniﬁed deep neural network (DNN).

Their model extracted convolutional features, gener-

ated proposal bounding boxes followed by integrating

and pooling operations to output regions features that

were used by fully connected (FC) layers to regress

the LP class score and the bounding boxes offsets.

Weidog et al. (Min et al., 2019) introduced a frame-

work composed of K-means++ clustering algorithm

(Arthur and Vassilvitskii, 2006) and YOLO-L detec-

tor. Initially, the clustering algorithm selected candi-

date boxes and forwarded them to the YOLO-L. The

detector was a modiﬁed version of the YOLOv2 (Red-

mon and Farhadi, 2017) that took care of the detection

step. Meng et al. (Meng et al., 2018) designed a CNN

model named LocateNet to regress the four vertices of

the LP bounding box. Saﬁe et al. (Saﬁe et al., 2019)

proposed a detection system for a surveillance cam-

era installed at a ﬁxed position. They combined Reti-

naNet (Lin et al., 2017) and residual networks (He

et al., 2015) to detect the car plaque numbers.

Recently, Kessentini et al. (Kessentini et al., 2019)

designed a two-stage DNN in the sake of detect-

ing multi-norm and multilingual LP. The ﬁrst stage

was dedicated to extract LP regions from natural

scene images based on YOLOv2 detector (Redmon

and Farhadi, 2017). In their scenario, they considered

only one vehicle instance per image. More recently,

Selmi et al. (Selmi et al., 2020) put available a deep

learning-based setting to ﬁnd LP in images. It was de-

veloped on top of the two-stage mask R-CNN object

detector (He et al., 2017). Inspired by the GoogLeNet

architecture (Szegedy et al., 2014), they proposed a

stylish feature extractor. After the generation of pro-

posals, a Softmax classiﬁer was trained to differenti-

ate LP from non-LP. To tackle the issue of various LP

templates, Henry et al. (Henry et al., 2020) presented

an end-to-end LPDR system. For LPD, they modi-

ﬁed a tiny version of YOLOv3 (Redmon and Farhadi,

2018) to make their system responds to real-time re-

quirements. After applying pre-processing and en-

hancement tools, Omar et al. (Omar et al., 2020)

used the SegNet (Kendall et al., 2015) architecture to

segment three regions of Iraqian LP for further pro-

cessing. Pustokhina et al. (Pustokhina et al., 2020)

proposed a full-path technique for LPDR which is

mainly applicable with its ﬁrst stage to ﬁnd LP us-

ing improved Bernsen algorithm (IBA) (Latha and

Chakravarthy, 2012) and connected component anal-

ysis (CCA).

3 YOLO ARCHITECTURES

The majority of computer vision applications are

based on using YOLO detectors due to its fast infer-

ence. Since we prioritize the real-time performance

to meet the needs of the mobile robot, our main focus

is to investigate the YOLO detector category. From

the early YOLOv2 to the most recent YOLOv4, YOLO

derivates keep revealing great compromise between

accuracy and runtime speed. Given this, we propose

to bring to the table six versions of YOLO and explore

their performances in the context of LP detection. The

ultimate goal of YOLO is to close the gap of runtimes

in working implementations. The fundamental idea

about YOLO is that they are one-stage detectors and

thereby they treat the detection as a straight regression

problem. In fact, YOLO detector is made up of three

well-independent parts.

• Backbone: is the network responsible for features

formation. Trained on ImageNet classiﬁcation, it

learns relevant features that will be tweaked in the

new task of detection.

• Neck: mixes and combines the features which are

formed in the CNN backbone in order to capture

both spatial and semantic information and feed

them to the detection step.

• Head: detects multiple-size objects in an anchor-

based fashion by using three different scales of the

network.

Broadly speaking, YOLO descendants respect the

same scheme. Indeed, they access the whole image

and split it into an S × S grid. Instead of predicting

arbitrary boxes, they predict offsets to a bunch of pre-

selected boxes more known as anchors presented in

Performance Benchmarking of YOLO Architectures for Vehicle License Plate Detection from Real-time Videos Captured by a Mobile Robot

663

Table 1. YOLOv2 happens to use mutli-scale train-

ing by removing fully connected layers which makes

it able to accept images of different sizes. Later on,

YOLOv3 comes essentially with feature pyramid net-

work (FPN) approach which allows it to make pre-

dictions at three different scales. A modiﬁed ver-

sion of YOLOv3 called YOLOv3-SPP detects objects

with different scales with a slightly different strategy

just by adding a spatial pyramid pooling (SPP) layer.

The SPP block is integrated just after the ﬁnal fea-

tures map in order to concatenate mutli-scale local

and global features. Just recently, the ﬁnal version

of YOLO termed YOLOv4 comes out with countless

additional fascinating blocks in particular the path ag-

gregation network (PAN) to be used as a way to prop-

agate information from low layers to the top ones.

The takeaway from this is the modularity of YOLO

in a way small blocks can be arranged and intercon-

nected in various ways so that they jointly process the

data.

In this work, we propose a comparative study of

the six following YOLO variants which are :

• YOLOv2: was a breakthrough in object detection.

It provides a smooth tradeoff between speed and

accuracy.

• YOLOv3, YOLOv3-SPP, YOLOv3-tiny: add nu-

merous connections to the backbone layers and

makes predictions at three separate levels to be

suitable for small object detection. YOLOv3-SPP

is a robust version of YOLOv3 which plugs in

SPP modules in front of the detection headers.

YOLOv3-tiny is a reduced version of YOLOv3,

much faster and less accurate.

• YOLOv4, YOLOv4-tiny: represent the mature

versions of YOLO detectors. Many technolo-

gies have been integrated into YOLOv4 making it

the state-of-the-art detector with a great compro-

mise between accuracy and processing frame rate.

YOLOv4-tiny is a tiny version of YOLOv4 with a

compressed backbone layers. It is 8 times faster

and about 2/3 more efﬁcient.

Table 1 reviews the key components and modules

in the evaluated variants of YOLO detectors and their

performances. In the tables below, the values which

are quoted in red and green colors, are considered as

the lowest and highest, respectively.

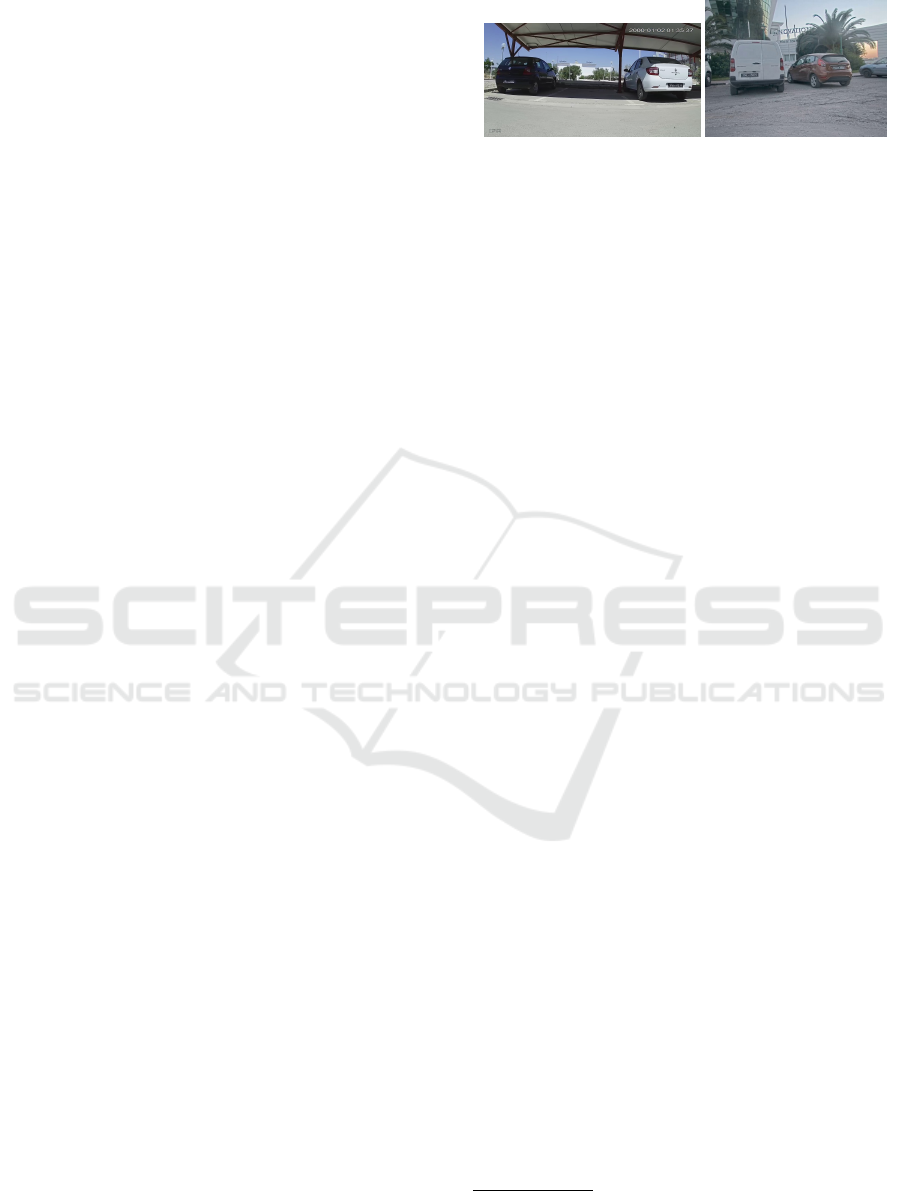

Figure 1: Samples from the PGTLP dataset. The resolution

of the images in the left column is 1920 ×1080 pixels, while

in the right column is 800 × 600 pixels.

4 EXPERIMENTS

4.1 Experimental Corpus

We propose to train the deep models on our proper

dataset. To do so, we take advantage of the mo-

bile robot, called “Pearl Guard”, to navigate in dif-

ferent environments while recording vehicles. Dur-

ing the patrolling, the robot “Pearl Guard” supervises

parking slots and high-risk areas. We consider two

scenarios: when the robot is stopped and the vehi-

cle is moving or both of them are in motion. We

have used the cameras of the mobile platform to col-

lect images with different resolutions: 1920 × 1080,

800 × 600 and 640 × 480 pixels (cf. 1). We have tried

to cover the most Tunisian LP templates used for ve-

hicles. Also, the proposed dataset considers the multi-

ple LP per frame situation so that images do not have

only one plate but also two and three instances. Un-

til now, the dataset is composed of 3,000 annotated

images for LP detection. The training and validation

sets contain 2,000 and 500 images, respectively. The

remaining 500 images are for the test phase. All the

models in this paper are trained on the training dataset

and evaluated on the validation dataset. Images are

labeled and annotated with bounding boxes (BB) us-

ing LabelImg tool

. LabelImg is a graphical image

annotation tool that supports YOLO annotation for-

mat. The PGTLP dataset is the ﬁrst and only Tunisian

dataset publicly and freely available for the research

purpose.

4.2 Experimental Protocol

Following the default conﬁgurations in Darknet

, we

have trained all the versions using stochastic gradient

descent (SGD) algorithm with the momentum of 0.9

except for YOLOv4 where we have used 0.949 and

weight decay of 0.0005. We have set the learning rate

initially to be of 0.001 and it is decayed by a factor of

https://github.com/tzutalin/labelImg

https://github.com/AlexeyAB/darknet

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

664

Table 1: The characteristics and modules speciﬁc to YOLO detectors.

YOLO v2 v3 v3-tiny v3-SPP v4 v4-tiny

Anchors 5 9 6 9 9 6

Backbone VGG-16 Darknet-53 Darknet-19 Darknet-53 CSPDarknet-53 CSPNet-15

FPN 7 D D D D D

SPP 7 7 7 D D D

PAN 7 7 7 7 D D

Head 1 3 2 3 3 2

mAP@.5 (%) 44.0 55.3 33.1 60.6 62.8 40.2

Speed (FPS) 40 66 345 38 55 330

Size (MB) 275 236 33.7 240 245 23.1

10 at the iteration step of 1, 600 and 1,800. We have

selected a maximum number of training iterations

equal to 2, 000 and we have used a batch size of 64.

We have set the size of input image as 416 and 608.

Multi-scale training is enabled by randomly rescaling

on the ﬂy the sizes of input images. The backbone

networks are initialized with the weights pre-trained

on ImageNet

. All the experiments were conducted

on Google Colaboratory servers. Table 2 summarizes

the selected hyperparameters for the training of the

models.

Table 2: Selected hyperparameters for the training phase.

Algorithm SGD

Momentum 0.9

Weight decay 0.0005

Learning rate 0.001

Number of iterations 2,000

Batch size 64

Subdivisions 8

Since the LP class does not exist in the ImageNet

classes, we have adapted the original architectures to

perform only LP detection by limiting the number of

classes to only one class. Based on this, we have

changed the number of ﬁlters in the convolutional

layer before the YOLO layer (prediction layer) in the

architecture. The number of ﬁlters is given by:

N f ilters = (NClasses + 1 + coor) ∗ NbAnchors (1)

where

• NClasses: denotes the total number of objects to

detect;

• NbAnchor: denotes the number of masks for each

layer;

• coor: denotes the four predicted offsets from a

predetermined set of boxes (anchors).

As we intend to detect only one class correspond-

ing to the LP, so the number of ﬁlters is ﬁxed to 18.

http://www.image-net.org/

YOLO detectors are anchor-based models so

that instead of directly predicting bounding boxes,

they predict offsets from a dataset-speciﬁc set of

priors. To identify the dimensions of anchors that

have the best coverage for the training data, we have

run k-means clustering on the dataset then we have

injected them into the architecture of each model

deﬁning a new set of anchors.

5 RESULTS

To analyze the performance of the investigated YOLO

architectures and provide an additional insights into

their numerical complexity, quantitative and qualita-

tive results and computational cost of each YOLO ar-

chitecture are ﬁrstly presented. Then, based on the

obtained results many observations and recommen-

dations about the YOLO architecture having the best

trade-off between the best performance and the lowest

computational cost are discussed.

5.1 Quantitative and Qualitative

Results

This section is divided into three parts: the quantita-

tive description of the LP detection results, the quali-

tative results and the comparison with state-of-the-art

LP detection models. In this work, precision (P), re-

call (R), mean average precision (mAP) and intersec-

tion over union (IoU) metrics are computed.

In Table 3, we present the results of the six eval-

uated YOLO models in terms of evaluation metrics.

These results are obtained on the validation dataset

of the PGTLP dataset. Two different input sizes (416

and 608) have been used during the training. As seen

from Table 3, a higher input size of the architecture

clearly increases the inference time while maintain-

ing the other metrics slightly unchangeable. Based on

this, we have decided to select 416×416 as input size

for all the models during the testing.

Performance Benchmarking of YOLO Architectures for Vehicle License Plate Detection from Real-time Videos Captured by a Mobile Robot

665

Table 4 shows the results of the models evalu-

ated on the test dataset. It is shown that the perfor-

mance of some models (YOLOv2, YOLOv3, YOLOv3-

SPP and YOLOv3-tiny) decreases when it comes to

different distribution of data while others (YOLOv4

and YOLOv4-tiny) remain robust. Actually, YOLOv4

and its compressed version YOLOv4-tiny outperform

distinguishably all their previous versions. For the

precision (P), YOLOv4-tiny reveals the best output

with 95.23% whereas YOLOv4 reach out 98.62% for

the recall. This means that these two models detect

correctly the LP and they do not get confused with

similar-to-LP objects. As we mentioned in the met-

rics section, mAP gives a robust view on the perfor-

mances. Hence, we report also in Table 4 the obtained

mAP for each model although related works limit their

metrics only to the P/R. As expected, YOLOv4 and

YOLOv4-tiny land to be in the same mAP plateau

where the ﬁrst one outdoes slightly by around 1% in

mAP.

In order to position our work among other related

state-of-the-art ones, it is fundamentally required to

evaluate the proposed module on different benchmark

datasets. Actually, there are not too many public

datasets to work with. The only one publicly avail-

able is the application oriented license plate (AOLP),

thereby we will consider it as our reference dataset.

This dataset contains 2,049 images of Taiwan license

plates. Images are categorized into three main sub-

sets: access control (AC), trafﬁc low enforcement

(LE) and road patrolling (RP), based on their level

of difﬁculty in particular RP is the toughest category

in AOLP. AC, LE and RP contain respectively 681,

757 and 611 images. Table 5 summarizes the per-

formance evaluation of the proposed module on the

AOLP dataset. It is worth mentioning that previous

works used to do both the training and testing exclu-

sively on the AOLP which makes it easier for their

modules to reach up high results. In our settings,

things were arguably different; we trained the pro-

posed model on our PGTLP dataset, we ﬁxed the

learned weights and then we passed to test on the

entire AOLP dataset. This is extremely beneﬁcial

to check out the capacity of our model to general-

ize when it comes to a completely different and un-

seen dataset. We have noticed also that the AOLP im-

age are not fully annotated. This means that numer-

ous images have, for example, two LP instances but

only one LP was annotated in the ground-truth. They

were consequently a source of serious error since our

model was able to detect them while considering them

as false positives. Figure 2 highlights some instances

of the encountered issue.

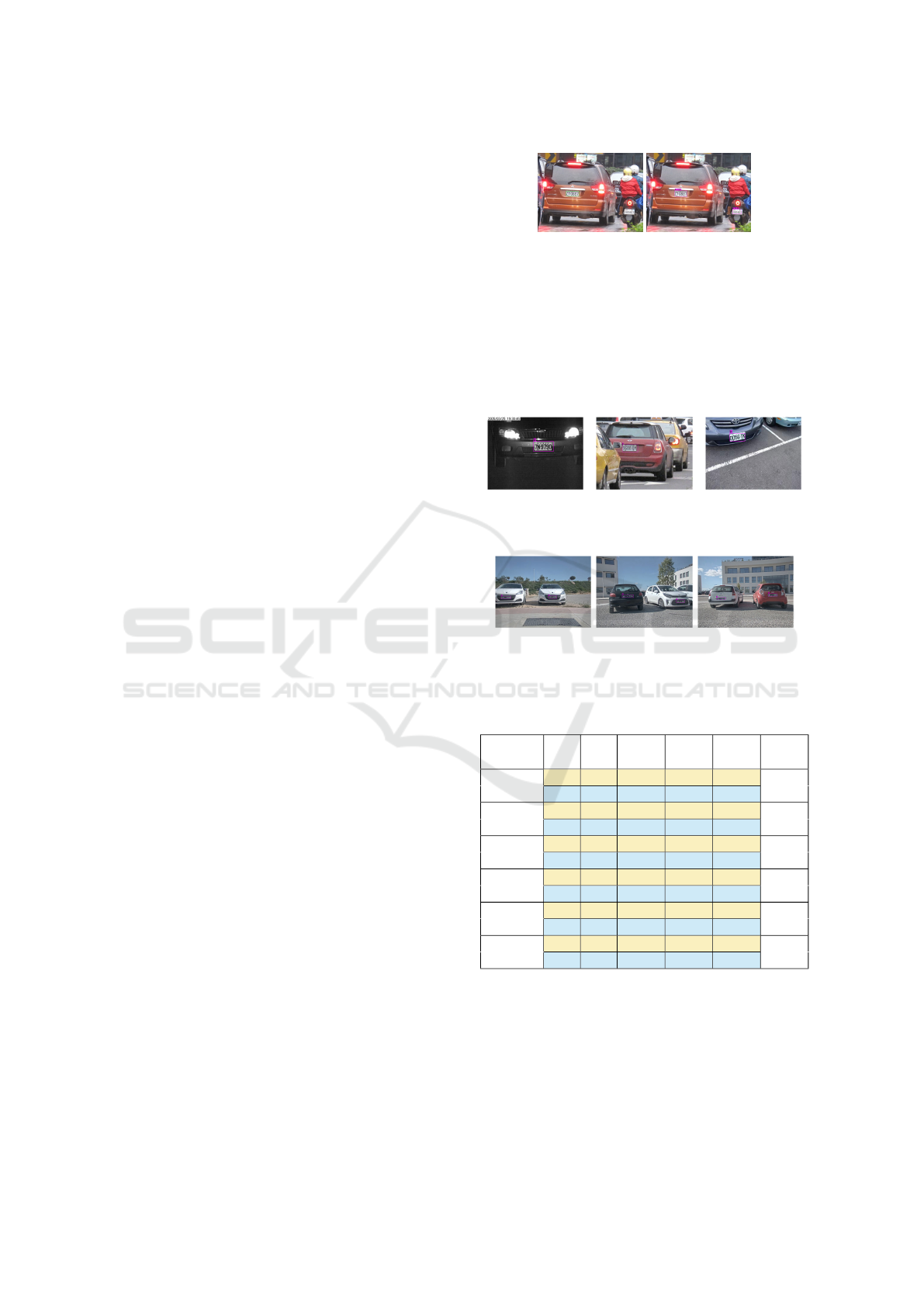

Figure 2: Annotation issue with the AOLP dataset. The left

and right columns are the ground-truth annotations and the

detected boxes, respectively.

Figures 3 and 4 illustrate few result examples of

LP detection in AOLP and PGTLP datasets, respec-

tively using the YOLOv4-tiny architecture. By visual

inspection of the obtained results on the two datasets,

we note that the YOLOv4-tiny architecture provides

satisfying results.

(a) AC (b) LE (c) RP

Figure 3: Result examples of LP detection in AOLP dataset.

Figure 4: Result examples of LP detection in PGTLP

dataset. Images size is 640 × 480 pixels.

Table 3: Evaluation results of baseline models on the

PGTLP validation set. IS, IT and V denote the input size,

inference time and volume, respectively.

Model IS F

(%)

IoU

(%)

mAP

(%)

(ms)

(MB)

416 81 52.35 83.71 14.82

256

608 83 53.65 85.69 21.40

416 95 77.24 99.47 26.76

235

608 93 76.10 98.98 43.57

V3-tiny

416 93 73.98 96.32 4.66

608 94 75.04 98.04 7.31

V3-SPP

416 94 77.34 99.36 27.55

239

608 95 79.98 99.09 44.56

416 95 75.82 99.36 33.26

244

608 94 75.60 98.81 53.49

V4-tiny

416 93 69.48 94.25 5.25

608 96 81.78 98.63 8.04

5.2 Computational Cost

Since the highest priority for our application is to be

relevant to deal with real-time scenarios and high-

speed moving robot, we care a lot about the run-

ning time of the models. In real scenarios, more

than one vehicle will exist in front of the robot there-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

666

Table 4: Evaluation results of baseline models on the

PGTLP test set.

Model P

(%)

mAP

(%)

Speed

(FPS)

V4-tiny 95.23 94.21 97.45 90.70

V4 88.83 98.62 98.24 26.60

V3 80.13 95.59 95.88 32.70

V3-SPP 69.66 91.73 89.94 30.50

V3-tiny 88.12 87.87 91.10 92.60

V2 68.93 87.23 73.48 69.60

Table 5: Performance evaluation of the proposed module on

the AOLP dataset.

AC LE RP

P R P R P R

86.45 80.61 92.99 95.99 75.40 71.58

fore multiple LP will be out there. Table 6 presents

the time consumption (IT ) of YOLOv4-tiny applied to

1920 × 1080 images. The execution time lightly in-

creases with the increase in the number of LP. The

YOLOv4-tiny can process an image with three LP in

4.097ms.

Table 6: Time consumption considering the number of LP

per image. Images resolution is 1920 × 1080 pixels.

Number of vehicles Time (ms per image)

1 3.224

2 3.342

3 4.097

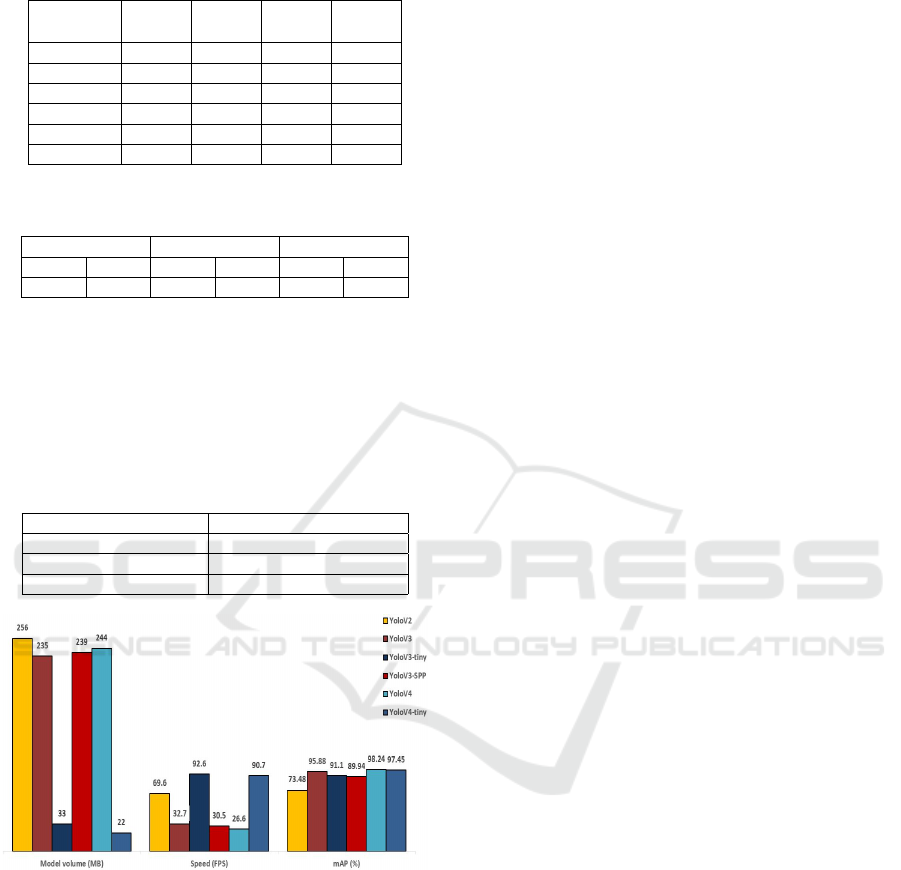

Figure 5: Comparison of baseline models in model volume,

speed and mAP score when input size is 416 × 416.

When it comes to videos, even though YOLOv4

has the best performance in terms of accuracy, it treats

video data slowly. On the other hand, the tiny version

of YOLOv3 is the fastest version and capable of run-

ning with 96 frames per second (FPS ). This goes the

same with YOLOv4-tiny which runs at 90FPS. An-

other important factor to consider is the memory con-

sumption of the model towards deploying and produc-

tion. Considering the limits imposed by computation

capability, a small model is extremely required. As

shown in Figure 5, YOLOv3-tiny and YOLOv4-tiny

versions are the smallest with respectively 33MB and

22MB of volume (V ). Hence, they seem to be suitable

for on-edge applications such as the security robot.

5.3 Observations and

Recommendations

To sum things up, the choice of the YOLO model re-

ally depends on the type of application to work on.

It is highly recommended to ﬁnd a great compromise

between the metrics to identify the suitable detector.

For example, if we care, for the most part, about mak-

ing only correct predictions, then YOLOv4 is the ulti-

mate choice. In our context, we have two constrains:

processing power and memory space. Given this, we

opt for the YOLOv4-tiny detector. On one hand, it has

a great detection accuracy and high running speed.

On the other hand, it is very small in terms of stor-

age volume.

6 CONCLUSIONS AND FURTHER

WORK

In this paper, we take a step into LP detection. We

have presented a one-stage real-time LP detection

module in order to empower a mobile security robot.

Previous works used to deal with static scenarios

which is a narrow view of the problem. However,

in our work, we address the dynamic scenarios. To

do so, we put available the ﬁrst Tunisian LP dataset.

The PGTLP dataset contains up to 3, 000 annotated

high resolution images captured by the “Pearl Guard”

which is a mobile robot of our industrial collabora-

tor “Enova Robotics”. Our dataset covers numerous

challenges such as different templates, angles, envi-

ronment backgrounds making it a major contribution

and subject to further experiments and contributions.

The main focal point of our work is to explore YOLO

detectors in the context of LP detection. Therefore,

we have conducted a thorough comparative study of

six variants of YOLO models from their theoretical

mechanisms to their working implementations. These

models have been subject to the same training/testing

procedure and evaluated in terms of precision, speed

and memory storage. We experimentally demonstrate

the effectiveness of the YOLOv4-tiny model to de-

tect LP in real-time videos which lands to be small

(22MB), precise (97.45%) and very fast (90.70FPS).

In the future, we are willing to develop the recognition

module to pull together the LPDR system puzzle. In

the same aim, we will enlarge the PGTLP to reach up

10,000 fully annotated images.

Performance Benchmarking of YOLO Architectures for Vehicle License Plate Detection from Real-time Videos Captured by a Mobile Robot

667

ACKNOWLEDGMENTS

This work has been supported by the VRR research

fund from the Tunisian Ministry of Higher Education

and Scientiﬁc Research that is gratefully acknowl-

edged. The authors would like also to thank our in-

dustrial partner “Enova Robotics” for providing ac-

cess to the PGTLP dataset.

REFERENCES

Arthur, D. and Vassilvitskii, S. (2006). k-means++: the ad-

vantages of careful seeding. Technical report, Stan-

ford.

Bulan, O., Kozitsky, V., Ramesh, P., and Shreve, M. (2017).

Segmentation-and annotation-free license plate recog-

nition with deep localization and failure identiﬁcation.

ITS, 18(9):2351–2363.

Cortes, C. and Vapnik, V. (1995). Support-vector networks.

ML, 20(3):273–297.

Girshick, R. (2015). Fast R-CNN. In CVPR, pages 1440–

1448.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In CVPR, pages 580–587.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. (2017).

Mask R-CNN. In ICCV, pages 2961–2969.

He, K., Zhang, X., Ren, S., and Sun, J. (2015). Deep resid-

ual learning for image recognition. arXiv preprint

arXiv:1512.03385.

Henry, C., Ahn, S. Y., and Lee, S. (2020). Multinational

license plate recognition using generalized character

sequence detection. IEEE Access, 8:35185–35199.

Hsu, G.-S., Ambikapathi, A., Chung, S.-L., and Su, C.-P.

(2017). Robust license plate detection in the wild. In

AVSS, pages 1–6.

Hsu, G.-S., Chen, J.-C., and Chung, Y.-Z. (2012).

Application-oriented license plate recognition. VT,

62(2):552–561.

Kendall, A., Badrinarayanan, V., and Cipolla, R. (2015).

Bayesian SegNet: model uncertainty in deep convolu-

tional encoder-decoder architectures for scene under-

standing. arXiv preprint arXiv:1511.02680.

Kessentini, Y., Besbes, M. D., Ammar, S., and Chabbouh,

A. (2019). A two-stage deep neural network for multi-

norm license plate detection and recognition. ESA,

136:159–170.

Krizhevsky, A., Sutskever, I., and Hinton, G. (2012). 2012

AlexNet. In NIPS, pages 1–9.

Ktata, S., Khadhraoui, T., Benzarti, F., and Amiri, H.

(2015). Tunisian license plate number recognition.

PCS, 73:312–319.

Latha, C. and Chakravarthy, G. (2012). An improved

Bernsen algorithm approaches for license plate recog-

nition. IOSR, 3(4):01–05.

Li, H. and Shen, C. (2016). Reading car license plates us-

ing deep convolutional neural networks and LSTMs.

arXiv preprint arXiv:1601.05610.

Li, H., Wang, P., You, M., and Shen, C. (2018). Reading

car license plates using deep neural networks. IVC,

72:14–23.

Lin, T.-Y., Goyal, P., Girshick, R., He, K., and Doll

ar, P.

(2017). Focal loss for dense object detection. In ICCV,

pages 2980–2988.

Meng, A., Yang, W., Xu, Z., Huang, H., Huang, L., and

Ying, C. (2018). A robust and efﬁcient method for

license plate recognition. In ICPR, pages 1713–1718.

Min, W., Li, X., Wang, Q., Zeng, Q., and Liao, Y. (2019).

New approach to vehicle license plate location based

on new model YOLO-L and plate pre-identiﬁcation.

IP, 13(7):1041–1049.

Omar, N., Sengur, A., and Al-Ali, S. G. S. (2020). Cascaded

deep learning-based efﬁcient approach for license

plate detection and recognition. ESA, 149:113280.

Pustokhina, I. V., Pustokhin, D. A., Rodrigues, J. J., Gupta,

D., Khanna, A., Shankar, K., Seo, C., and Joshi, G. P.

(2020). Automatic vehicle license plate recognition

using optimal K-Means with convolutional neural net-

work for intelligent transportation systems. IEEE Ac-

cess.

Raﬁque, M. A., Pedrycz, W., and Jeon, M. (2018). Vehi-

cle license plate detection using region-based convo-

lutional neural networks. SC, 22(19):6429–6440.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: uniﬁed, real-time object

detection. In CVPR, pages 779–788.

Redmon, J. and Farhadi, A. (2017). Yolo9000: better, faster,

stronger. In CVPR, pages 7263–7271.

Redmon, J. and Farhadi, A. (2018). Yolov3: an incremental

improvement. arXiv preprint arXiv:1804.02767.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster R-

CNN: towards real-time object detection with region

proposal networks. In NIPS, pages 91–99.

Saﬁe, S., Azmi, N. M. A. N., Yusof, R., Yunus, M. R. M.,

Sayuti, M. F. Z. C., and Fai, K. K. (2019). Object

localization and detection for real-time automatic li-

cense plate detection (ALPR) system using RetinaNet

algorithm. In SAI, pages 760–768.

Selmi, Z., Halima, M. B., and Alimi, A. M. (2017). Deep

learning system for automatic license plate detection

and recognition. In ICDAR, volume 1, pages 1132–

1138.

Selmi, Z., Halima, M. B., Pal, U., and Alimi, M. A. (2020).

DELP-DAR system for license plate detection and

recognition. PRL, 129:213–223.

Silva, S. M. and Jung, C. R. (2017). Real-time Brazilian li-

cense plate detection and recognition using deep con-

volutional neural networks. In CGPI, pages 55–62.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., Rabinovich,

A., et al. (2014). Going deeper with convolutions.

arXiv preprint arXiv:1409.4842.

Xie, L., Ahmad, T., Jin, L., Liu, Y., and Zhang, S. (2018).

A new cnn-based method for multi-directional car li-

cense plate detection. ITS, 19(2):507–517.

Zeiler, M. D. and Fergus, R. (2014). Visualizing and un-

derstanding convolutional networks. In ECCV, pages

818–833.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

668
