OFFSED: Off-Road Semantic Segmentation Dataset

Peter Neigel

1,2

, Jason Rambach

and Didier Stricker

1,2

German Research Center for Artiﬁcial Intelligence, Kaiserslautern, Germany

University of Kaiserslautern, Germany

Keywords:

Semantic Segmentation, ADAS, Outdoor, Industrial Vehicles.

Abstract:

Over the last decade, improvements in neural networks have facilitated substantial advancements in automated

driver assistance systems. In order to manage navigating its surroundings reliably and autonomously, self-

driving vehicles need to be able to infer semantic information of the environment. Large parts of the research

corpus focus on private passenger cars and cargo trucks, which share the common environment of paved roads,

highways and cities. Industrial vehicles like tractors or excavators however make up a substantial share of the

total number of motorized vehicles globally while operating in fundamentally different environments. In this

paper, we present an extension to our previous Off-Road Pedestrian Detection Dataset (OPEDD) that extends

the ground truth data of 203 images to full image semantic segmentation masks which assign one of 19 classes

to every pixel. The selection of images was done in a way that captures the whole range of environments and

human poses depicted in the original dataset. In addition to pixel labels, a few selected countable classes also

come with instance identiﬁers. This allows for the use of the dataset in instance and panoptic segmentation

tasks.

1 INTRODUCTION

Advanced Driver Assistance Systems (ADAS) for pri-

vate passenger cars, trucks, mobile working machines

and other vehicles need to be able to navigate their

often complex environments in an intelligent man-

ner in order to provide a beneﬁt to the human driver

while maintaining all required safety standards. To

this effect a suitable understanding of the surround-

ings is required. In computer vision terms, the sys-

tem must be able to semantically understand the con-

tent of images received by attached cameras in its

entirety: Pedestrians must be recognized to support

emergency breaks, passable ground and marked lanes

need to be understood in order to maneuver the vehi-

cle and so forth. Current state-of-the-art approaches

to semantic full image segmentation mainly rely on

convolutional neural networks that take in a monocu-

lar RGB-image as input and produce a class label for

every pixel in the image. To train these networks in

a supervised manner large image datasets are needed

that come with ground truth semantic labels for ev-

ery pixel in the image. Due to the focus of current

research on private passenger cars and cargo trucks,

most available datasets including semantic pixel la-

bels depict urban environments or highway roads.

Figure 1: Full image segmentation masks (right) and their

corresponding images (left). Construction sites are common

environments for mobile working machines, but are under-

represented in most deep learning datasets.

These environments are not suitable as training im-

ages for the assistance systems deployed on industrial

vehicles and working machines, since they often op-

erate in semantically and visually distinct surround-

ings, i.e. the passable ground for a passenger car and

an excavator differ greatly and excavators encounter

different objects than cars in a city. Since Tabor et

al. (Tabor et al., 2015) have demonstrated that vi-

sual gradient orientation alignment is distinctly spe-

ciﬁc to the environment, it is unclear whether neural

networks are able to generalize from one surround-

552

Neigel, P., Rambach, J. and Stricker, D.

OFFSED: Off-Road Semantic Segmentation Dataset.

DOI: 10.5220/0010349805520557

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 4: VISAPP, pages

552-557

ISBN: 978-989-758-488-6

Figure 2: Exemplary frames taken from different datasets. Left: Cityscapes dataset (Cordts et al., 2016). Center: KITTI

Stereo 2015 Dataset (Geiger et al., 2012). Right: OPEDD. Urban scenes differ substantially from off-road environments in

how they are made up visually, including colour spectrum, gradient orientations and human poses.

ing to the other. Additionally, even classes found

in both environments can differ between them: Per-

sons in urban settings often display more constrained

poses (upright standing/walking) than in working en-

vironments (often crouching, lying on the ﬂoor). Al-

though these industrial vehicles are used in dozens

of industries, from coarse earthwork to constructions

and from plowers to harvesters, they are neglected by

the currently available datasets.

Previous works (Halevy et al., 2009; Zhu et al.,

2015) hint to the fact that data may be more impor-

tant to neural network detection performance than al-

gorithms or architecture. While our previous work,

OPEDD (Neigel et al., 2020), tried to address the

problem of person detection, this new paper intends to

ﬁll the gap and add an off-road variant to the collec-

tion of semantic segmentation datasets. Our dataset

is a subset of 203 images from OPPED and there-

fore depicts the same off-road environments including

Meadows, Woods, Construction Sites, Farmland and

Paddocks. The pedestrians are portrayed in varying

poses, of which many are highly unusual in the ADAS

context, including crouching, lying down or hand-

stands to offer some extremes. To our knowledge,

there is no other dataset besides ours including real

construction sites complete with semantic segmenta-

tion. Our work comes with stereo-images, where the

left images come with manually created ground truth

segmentation masks for the full image. In addition to

per-pixel semantic labels, our work offers instance la-

Figure 3: Countable classes like persons can be separated

by instance IDs.

bels for objects where instances can be deﬁned (thing

classes) and depth from stereo. These ground truth la-

bels allow for the tasks of semantic segmentation, ob-

ject and instance detection with bounding boxes and

object masks, as well as panoptic segmentation.

2 RELATED WORK

For the last decade, Neural-network-based ap-

proaches have been dominating many computer vi-

sion tasks in terms of segmentation quality. This fact

coupled with the need of those networks for data has

propelled the creation of many scene segmentation

datasets for ADAS. Due to the commercial nature of

said systems, most publicly available datasets show

urban surroundings or highway roads. This chapter

gives an incomplete overview of popular datasets for

different tasks and surroundings.

Cityscapes (Cordts et al., 2016) is one of the most

used image datasets for dense urban environments.

The images were obtained with the help of a stereo-

camera mounted onto a car which was driven through

50 German cities. The annotations include pixel-level

semantic labels for 30 classes including persons, cars,

roads, buildings, trafﬁc lights, of which 17 classes are

used for evanulation in their benchmark. Out of a total

of 25,000 images, 5,000 come with ﬁnely annotated

pixel masks and the remaining 20,000 are coarsely

annotated, meaning that the pixel masks often don’t

coincide with the true object borders. In addition

to semantic labels, Cityscapes also includes instance

IDs allowing for the differentiation of countable ob-

jects. All annotations in total allow for the use of the

dataset in object-detection, semantic-, instance- and

panoptic-segmentation procedures.

Kitti (Geiger et al., 2012) is another widely used

dataset for driving scenes. It displays mostly ur-

ban environments with class deﬁnitions similar to the

Cityscapes dataset. In addition to two stereo-camera

pairs - one grayscale, one color - the capturing rig in-

cludes an inertial/GPS system as well as a 3D laser

scanner. This allows, in addition to per-pixel semantic

OFFSED: Off-Road Semantic Segmentation Dataset

553

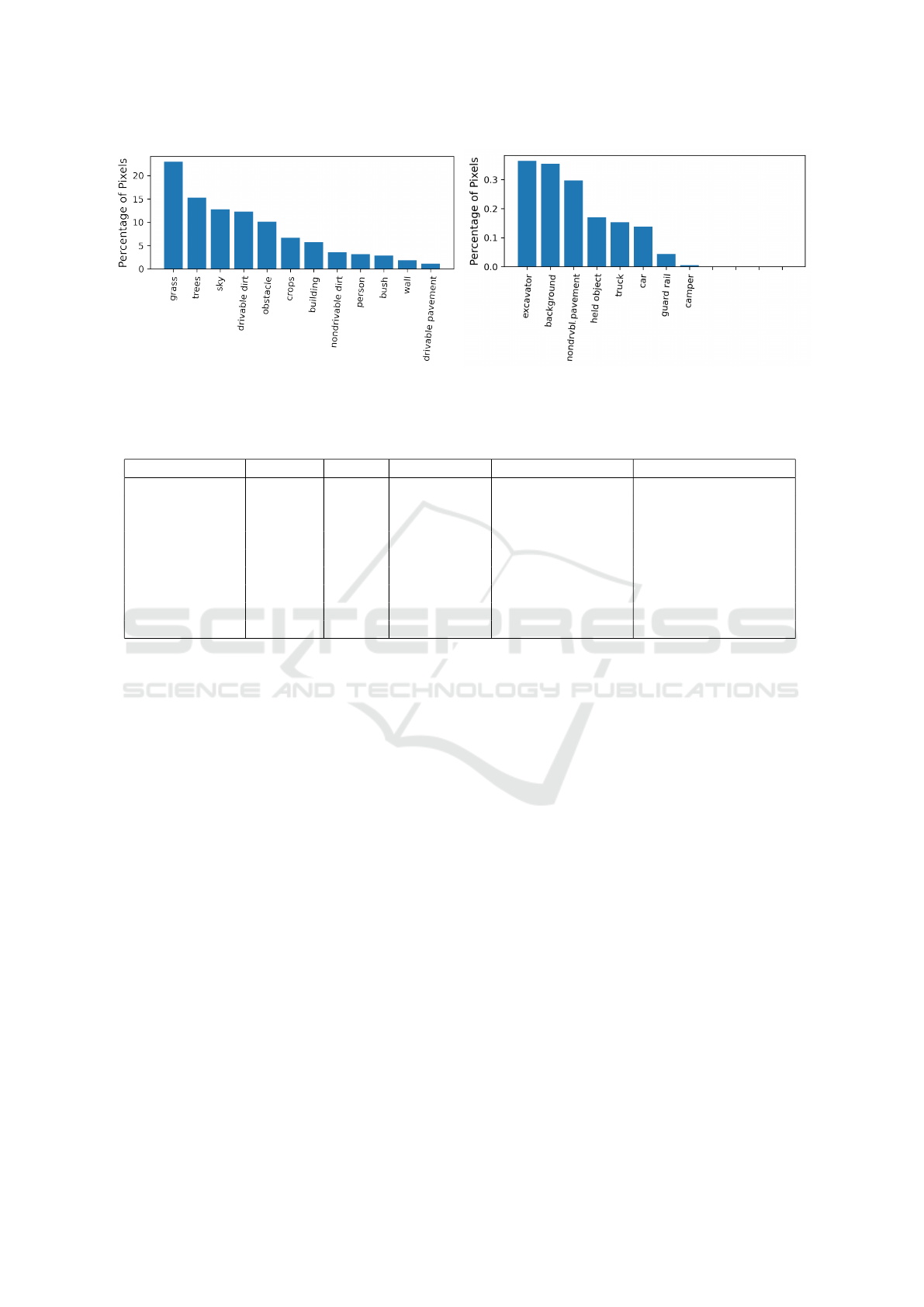

Figure 4: Percentage of pixels belonging to each class over the whole dataset. Left and right plots have different y-axis scales

for better visibility.

Table 1: Comparison of contents of datasets for semantic segmentation. N Images indicates how many images come with

ground truth annotations.

Dataset N Images Depth Segm. Masks Environment Human Poses

KITTI 2015 200 LIDAR X Urban/Street Std. Urban

Cityscapes 25,000 Stereo X Urban/Street Std. Urban

A2D2 41,277 LIDAR X Urban/Street Std. Urban

Mapillary Vistas 25,000 - X Urban/Street Mostly Std. Urban

ApolloScape 140,000 LIDAR X Urban/Street Std. Urban

BDD100K 10,000 - (X) Urban/Street Std. Urban

NREC 76,662 Stereo - Agricultural Std. Agricultural

KIT MOMA 5663 - - Multiple Off-Road Contruction

OFFSED 203 Stereo X Multiple Off-Road Wide Range, Unusual

labels, also the addition of ground truth data for depth,

3D bounding boxes and camera trajectory. For this

reason the KITTI dataset offers a large array of bench-

marks, from object detection and semantic segmen-

tation over depth estimation up to odometry, track-

ing and scene ﬂow. For semantic segmentation, only

the subset KITTI 2015 offers according segmentation

masks.

The Audi Autonomous Driving Dataset (A2D2)

(Geyer et al., 2020) makes use of six cameras and

ﬁve LIDARs. It includes 41,277 frames that come

with ground truth annotations for semantic segmenta-

tion. Since the environments depicted are highways,

country roads and cities in southern Germany, it de-

ﬁnes 38 different classes, of which many are similar

to KITTI and Cityscapes.. Other provided annotations

include 3D point clouds, 3D bounding boxes and in-

stance segmentation in addition to data like steering

wheel angle, throttle, and braking.

Mapillary Vistas (Neuhold et al., 2017) is a dataset

containing 25,000 images from locations around the

world including parts of Europe, North and South

America, Asia, Africa and Oceania, therefore cover-

ing large diversity and geographic extent. The frames

are taken from a wide range of capture devices includ-

ing mobile phones, tablets, action cameras and pro-

fessional capturing rigs. While the environments en-

compass urban, countryside and off-road scenes, most

images are still taken from the street or dirt tracks.

The ground truth annotations provide pixel-level se-

mantic labels for 66 classes and instance labels for a

subset of 37 classes.

One of the largest datasets with a focus on ADAS

is ApolloScape (Huang et al., 2020). Captured with

a rig including a stereo camera, two 360

◦

laser scan-

ners and an IMU/GNSS system, it consists of 140,000

video frames taken on urban locations in China. It

supplies ground truth per-pixel semantic labels as

well as 3D point clouds, of which some points are

also semantically labelled, for 28 classes. Addition-

ally, instance ID’s, 3D car instances, lane markings

and camera locations are provided.

The Berkeley Deep Drive Dataset (BDD100K)

(Yu et al., 2020) focuses on object detection, sup-

plying 100,000 videos of street and trafﬁc scenes in

the USA with ground truth bounding boxes for 10

classes. Semantic segmentation masks are provided

for 10,000 videos and 40 classes, of which a small

subset comes with instance IDs. Additional data pro-

vided includes car trajectories from IMU/GPS and

lane markings. In contrast to the previous works, the

National Robotics Engineering Center Agricultural

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

554

Figure 5: Selection of images from the presented dataset. Left column: Left frame of stereo image. Center column: Corre-

sponding segmentation masks. Right column: Corresponding depth maps. The dataset shows a wide range in environments

and unusual human poses.

Person-Detection dataset (Pezzementi et al., 2018) fo-

cuses on off-road environments instead of urban traf-

ﬁc scenes. Consisting of 95,000 images taken in ap-

ple and orange orchards of which 76,662 have an-

notations, it provides only bounding boxes for per-

sons, making it unsuitable for complete scene seman-

tic segmentation or instance segmentation. A fur-

ther distinctive feature of this dataset is the variety of

poses that persons are depicted in: Compared to city

scenes, workers in the orchards are found in crouch-

ing, stretching and otherwise unusual poses more of-

ten.

The Karlsruhe Mobile Machines dataset (KIT

MOMA) (Xiang et al., 2020) sets a focus on envi-

ronments where industrial vehicles and mobile ma-

chines like excavators, wheel loaders, bulldozers and

dumpers operate. The collection includes 5,663 im-

ages taken from outside of the vehicles. Eight dif-

ferent vehicle classes are deﬁned and annotated man-

ually with ground truth bounding boxes, resulting in

19,997 object instances.

3 DATA CAPTURING

The images in this dataset are a subset of the data from

our previous work, OPEDD (Neigel et al., 2020).

OPEDD consists of 1018 stereo images that were cap-

tured in ﬁve different environments, meadows, woods,

construction sites, farm-land and paddocks. The

images were extracted from stereo video sequences

recorded with a ZED camera (“ZED”, 2020) loss-

less compression. The images are rectiﬁed and depth

from stereo is provided. The full technical details of

the data capturing process can be taken from (Neigel

et al., 2020).

4 ANNOTATIONS

Manually annotating images for semantic segmenta-

tion is a labour intensive and costly task. The ground

truth semantic segmentation annotations were created

OFFSED: Off-Road Semantic Segmentation Dataset

555

Figure 6: Further selection of environments contained in the presented dataset. Left column: Left frame of stereo image.

Center column: Corresponding segmentation masks. Right column: Corresponding depth maps. Among other environments,

our dataset delivers segmentation masks for real construction sites.

manually with the help of the annotation tool CVAT

(“Computer Vision Annotation Tool”, 2020). In this

tool annotators draw polygons for every object and

label them according to predeﬁned classes. Addi-

tionally, the polygons are assigned a z-layer level and

thereby a depth ordering. This allows for borders be-

tween polygons to be drawn only once, saving time

in the annotation process. The 19 classes we deﬁned

are grass, trees, sky, drivable and non-drivable dirt,

obstacles, crops, building, person, bush, wall, driv-

able and non-drivable pavement, held/carried object,

truck, car, excavator, guard rail and camper. The full

image pixel masks are then created from the polygons

with the consideration of the polygon depth.

Each polygon can be supplied with additional ar-

bitrary attributes. For a subset of countable thing-

classes we assign instance identiﬁers to each object-

polygon. Since most classes (e.g. grass, sky, dirt) are

not suitable for division into instances, this is done for

only a small subset of classes: person, car, excavator,

truck and camper. In some instances single objects

are comprised of several polygons. This is necessary

when an an object is visually cut in two or more parts

by an occluding object.

Because the segmentation masks are created from

polygons, the masks can be extended to include more

classes easily. This can be desirable if classes should

be divided into more ﬁne-grained sub-classes. The

classes were chosen in a way that reﬂects possible en-

vironments for mobile working machines. Special in-

terest should be paid to classes like drivable and non-

drivable dirt or pavement/concrete since these classes

are dependent on the ego-vehicle and are therefore

prone to semantic as well as visual ambiguity. A dirt

heap that can be driven over by a larger machine may

pose an obstacle for a smaller one for example. Dur-

ing the annotation process, we labelled classes with

the background of ADAS for mobile working ma-

chines in mind and used that fact to guide decisions

e.g. between drivable and non-drivable dirt.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

556

5 CONCLUSIONS AND FUTURE

WORK

In this paper we presented an extension to our pre-

vious off-road pedestrian detection dataset OPEDD,

which adds full image semantic segmentation an-

notations to 203 images. To this end we deﬁned

19 semantic classes: grass, trees, sky, drivable and

non-drivable dirt, obstacles, crops, building, per-

son, bush, wall, drivable and non-drivable pavement,

held/carried object, truck, car, excavator, guard rail

and camper. The chosen images were selected in a

way that retains the wide range of outdoor environ-

ments and special human poses that were depicted in

OPEDD. For future work, we intend to completely se-

mantically annotate some of the video sequences the

images were taken from, to allow for the use of the

dataset in semantic SLAM and tracking tasks.

ACKNOWLEDGEMENTS

We would like to thank Ahmed Elsherif and Mitesh

Mittal for their help in annotating and reviewing the

quality of the annotations.

REFERENCES

Computer Vision Annotation Tool (2020). URL: https://

software.intel.com/content/www/us/ens/develop/

articles/computer-vision-annotation-tool-a-universal-

approach-to-data-annotation. html (visited on

12/18/2020).

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The Cityscapes Dataset for Semantic Urban

Scene Understanding. Proceedings of the IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition, pages 3213–3223.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we

ready for Autonomous Driving? The KITTI Vision

Benchmark Suite. Proceedings of the IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 3354–3361.

Geyer, J., Kassahun, Y., Mahmudi, M., Ricou, X., Durgesh,

R., Chung, A. S., Hauswald, L., Pham, V. H.,

uhlegg, M., Dorn, S., Fernandez, T., J

anicke, M.,

Mirashi, S., Savani, C., Sturm, M., Vorobiov, O.,

Oelker, M., Garreis, S., and Schuberth, P. (2020).

A2D2: Audi Autonomous Driving Dataset.

Halevy, A., Norvig, P., and Pereira, F. (2009). The un-

reasonable effectiveness of data. Intelligent Systems.

IEEE.

Huang, X., Wang, P., Cheng, X., Zhou, D., Geng, Q., and

Yang, R. (2020). The ApolloScape Open Dataset

for Autonomous Driving and Its Application. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 42(10):2702–2719.

Neigel, P., Ameli, M., Katrolia, J., Feld, H., Wasenm

uller,

O., and Stricker, D. (2020). OPEDD: Off-road pedes-

trian detection dataset. Journal of WSCG, 28(1-

2):207–212.

Neuhold, G., Ollmann, T., Bulo, S. R., and Kontschieder,

P. (2017). The Mapillary Vistas Dataset for Semantic

Understanding of Street Scenes. Proceedings of the

IEEE International Conference on Computer Vision,

2017-October:5000–5009.

Pezzementi, Z., Tabor, T., Hu, P., Chang, J. K., Ramanan,

D., Wellington, C., Wisely Babu, B. P., and Herman,

H. (2018). Comparing apples and oranges: Off-road

pedestrian detection on the National Robotics Engi-

neering Center agricultural person-detection dataset.

Journal of Field Robotics, 35(4):545–563.

Tabor, T., Pezzementi, Z., Vallespi, C., and Wellington, C.

(2015). People in the weeds: Pedestrian detection

goes off-road. In 2015 IEEE International Sympo-

sium on Safety, Security, and Rescue Robotics (SSRR),

pages 1–7.

Xiang, Y., Wang, H., Su, T., Li, R., and Geimer, M. (2020).

KIT MOMA: A Mobile Machines Dataset. ArXiv

Preprint.

Yu, F., Chen, H., Wang, X., Xian, W., Chen, Y., Liu, F.,

Madhavan, V., and Darrell, T. (2020). BDD100K: A

Diverse Driving Dataset for Heterogeneous Multitask

Learning.

ZED (2020). URL: https://www.stereolabs.com/zed/ (vis-

ited on 12/18/2020).

Zhu, X., Vondrick, C., Fowlkes, C. C., and Ramanan, D.

(2015). Do We Need More Training Data? Interna-

tional Journal of Computer Vision (IJCV), pages 1–

17.

OFFSED: Off-Road Semantic Segmentation Dataset

557
