Deep Emotion Recognition through Upper Body Movements and Facial

Expression

Chaudhary Muhammad Aqdus Ilyas

2,3 a

, Rita Nunes

, Kamal Nasrollahi

2 b

, Matthias Rehm

3 c

and Thomas B. Moeslund

2 d

Department of Electronic Systems, Aalborg University, Aalborg, Denmark

Visual Analysis of People Lab, Aalborg University, Aalborg, Denmark

Human-Robot Interaction Lab, Aalborg University, Aalborg, Denmark

Keywords:

Emotion Recognition, Facial Expressions, Body movements, Deep Learning, Convolutional Neural Networks.

Abstract:

Despite recent signiﬁcant advancements in the ﬁeld of human emotion recognition, applying upper body move-

ments along with facial expressions present severe challenges in the ﬁeld of human-robot interaction. This

article presents a model that learns emotions through upper body movements and corresponds with facial ex-

pressions. Once this correspondence is mapped, tasks such as emotion and gesture recognition can easily be

identiﬁed using facial features and movement vectors. Our method uses a deep convolution neural network

trained on benchmark datasets exhibiting various emotions and corresponding body movements. Features ob-

tained through facial movements and body motion are fused to get emotion recognition performance. We have

implemented various fusion methodologies to integrate multimodal features for non-verbal emotion identiﬁ-

cation. Our system achieves 76.8% accuracy of emotion recognition through upper body movements only,

surpassing 73.1% on the FABO dataset. In addition, employing multimodal compact bilinear pooling with

temporal information surpassed the state-of-the-art method with an accuracy of 94.41% on the FABO dataset.

This system can lead to better human-machine interaction by enabling robots to recognize emotions and body

actions and react according to their emotions, thus enriching the user experience.

1 INTRODUCTION

Human emotions play a vital role in human-human

and human-machine interaction. Emotions represent

the instantaneous mental states, which varies accord-

ing to human behavior and communication. Re-

searchers are emphasizing automatic recognition of

human emotions as it is one of the essential param-

eters for natural human-machine interaction.

In human-machine interaction, the interaction

would be impaired if machines cannot recognize

or understand human emotions. Similar applies to

human-human interaction if the other party fails to

understand these body expressions.

If machines can react to our moods, that would

enable smart homes or centers to adjust lighting, mu-

sic, and temperature accordingly. It would also help

https://orcid.org/0000-0002-0766-3531

https://orcid.org/0000-0002-1953-0429

https://orcid.org/0000-0001-6264-1688

https://orcid.org/0000-0001-7584-5209

medical doctors and physiologists automatically iden-

tify the symptoms of hypertension, depression, and

other behavioral disorders, enabling them to have

early preparations for such conditions. This skill

can enable sociable robotics to assist people in sim-

ple tasks such as delivering meals or vacuuming the

house. Humanoid robots that provide services to peo-

ple, the human-robot interaction would greatly im-

prove if these robots could adjust their reactions to

the current emotional state of a person Augello et al.

(2018); Kim et al. (2011); Sorbello et al. (2014). Gen-

erally, it would enable machines to respond, not lim-

ited to direct commands but with the ability to ad-

just their reactions to have natural and human-like,

human-machine interaction. However, these interac-

tions are minimal and could be improved if the robot

had more knowledge about the person they need to

interact with Breazeal (2003).

Human recognize and demonstrate emotions

through multi-modalities such as through facial ex-

pressions Nguyen et al. (2018); Barros et al. (2015);

Ilyas et al. (2018b); Mano et al. (2016), body move-

Ilyas, C., Nunes, R., Nasrollahi, K., Rehm, M. and Moeslund, T.

Deep Emotion Recognition through Upper Body Movements and Facial Expression.

DOI: 10.5220/0010359506690679

In Proceedings of the 16th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2021) - Volume 5: VISAPP, pages

669-679

ISBN: 978-989-758-488-6

669

ments Nguyen et al. (2018); Lang et al. (2015); Barros

et al. (2015); de Gelder et al. (2015), speech recog-

nition B

anziger et al. (2009) and physiological sig-

nals Agraﬁoti et al. (2011); Jerritta et al. (2011); Kim

and Andr

e (2008); Mart

ınez-Rodrigo et al. (2015);

Picard et al. (2001). Existing methods for identi-

fying these body expressions are heavily relying on

audio-visual cues B

anziger et al. (2009) and wear-

able sensors such as ECG monitors Agraﬁoti et al.

(2011); Jerritta et al. (2011); Kim and Andr

e (2008);

Mart

ınez-Rodrigo et al. (2015); Picard et al. (2001).

Audio-visual fusion have achieved remarkable results

with accuracy of approximately 99% Noroozi et al.

(2018). However, these approaches have their lim-

itations as audio-visual sensors cannot extract inner

affection Ekman et al. (2013); Picard et al. (2001).

For instance, a person can be happy or sad without

smiling and crying and vise versa. In addition, people

vary greatly in the expression of their emotions. De-

tection of signals through physiological sensors corre-

late heartbeat, blood pressure, and others signals with

happiness, anger, surprise, and others. This approach

is more suitable for identifying inner feelings as it

provides information about heart rhythm interaction

with the brain system. However, the wearable body

sensors cause inconvenience, so it is not suitable for

emotion detection in everyday practices.

Research has also shown that body language com-

prises a signiﬁcant amount of the affective informa-

tion Lang et al. (2015); de Gelder et al. (2015). Ac-

cording to Mehrabian Mehrabian et al. (1971), only

7% of human communication is conveyed through

words, 38% through vocal tone, and 55% through

non-verbal elements such as facial expression, body

language, and gestures. Body posture, gestures, eye

movement, hand and head movement, touch, or even

personal space represent the body language Mehra-

bian et al. (1971). Many studies have proved theo-

retically and empirically the beneﬁt of incorporating

various modalities in the perception of human emo-

tions compared to using a single methodPicard et al.

(2001); Soleymani et al. (2011). Complex human

emotions can be fully-implied by integrating signif-

icant features from multiple modalities (e.g., facial

features and body gestures).

In our research article, we have tried to explore the

effectiveness of facial expressions and body gestures

to recognize emotions. For this purpose, we have fol-

lowed two approaches; in the ﬁrst technique, Convo-

lutional Neural Networks (CNNs) classify emotions

without considering temporal features. In this system,

single images are used, thus classifying each frame in

videos in real-time. In the second approach, following

Barros et al. (2015); Sun et al. (2018), we have used

the temporal information to classify the emotions, but

a contrast to Barros et al. (2015); Sun et al. (2018)

full images are fed to the Long Short Term Memory

(LSTM) network to exploit the temporal information.

Besides, this article will explore various fusion tech-

niques like product fusion method (PFM), average fu-

sion method (AFM), and Multimodal Compact Bi-

linear Pooling (MCB) Fukui et al. (2016) fusion and

discuss their performances. Even though deep learn-

ing approaches show improved accuracy compared to

conventional approaches, they are still more compu-

tationally demanding. Hence, this work will explore

a solution with less computational requirements.

The paper organization is as follows: The fol-

lowing section 2 will discuss the related research.

Section 3 presents the proposed model, illustrating

how it deals with a frame-based and sequence-based

recognition of the emotions with different fusion tech-

niques. This section also discusses the evaluation of

the parameters to decrease the computation power.

Section 4 describes the experimental results and com-

pares them with state-of-the-art methods. The conclu-

sion and discussion of the experimental results with

future work are presented in section 5.

2 RELATED RESEARCH

Emotion recognition through non-verbal modalities

like facial expressions and body gestures is viewed

as one of the most effective cues Ekman et al. (2013).

Therefore, many researchers have explored the fusion

of visual-modalities for improved affect understand-

ing Picard et al. (2001); Gunes and Piccardi (2006);

Chen et al. (2013); Agraﬁoti et al. (2011); Shan et al.

(2007); Karpouzis et al. (2007). They illustrate that

facial expressions and body gestures augment each

other in understanding emotional states in activities of

daily living (ADL) and social robot interactions. Re-

searchers Gunes and Piccardi (2007) and Shan et al.

(2007) have analyzed the facial features with body

gestures, particularly upper limbs and head move-

ments, for emotion recognition. Former has utilized

facial action units (AU) and performed classiﬁcation

with Bayes Net with early and late fusion whereas

later has employed Spatio-temporal features classiﬁ-

cation with SVM along with Canonical Correlation

Analysis (CCA) at the decision level. In recent years,

researchers have focused on deep learning approaches

to solve this issue, which has achieved the best recog-

nition rates.

Gunes and Piccardi Gunes and Piccardi (2008)

presents the performance of facial expressions, body

movements, and their fused representation for auto-

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

670

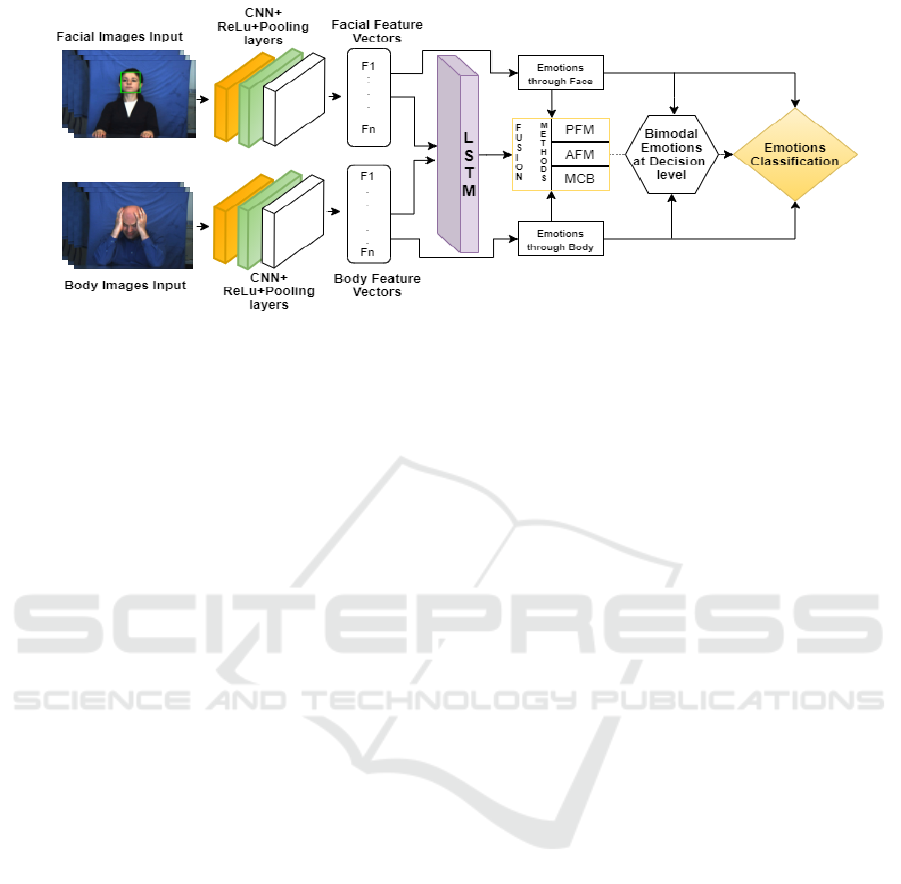

Figure 1: Bimodal Emotion Classiﬁcation Model through Facial Expressions and Upper Body Movements.

matic recognition of emotions. They extract the facial

and bodily features separately and compare their per-

formance accuracy. For facial expressions, they lo-

calize face and track landmarks and then extract fea-

tures. Similarly, for body motion analysis, they track

hand, shoulder, and head movements and then extract

a series of features with different features representa-

tion techniques. Both facial and bodily features are

classiﬁed with Support Vector Machines (SVM) and

Random Forests. In the last step, features are fused

to recognize emotions. Studies exhibit better perfor-

mance of system with feature fusion techniques Chen

et al. (2013)Gunes and Piccardi (2008).

Recent work of Barros et al. (2015) and Sun et al.

(2018) used Convolutional Neural Networks (CNN)

to recognize emotion from both face and body move-

ments. Both studies incorporated temporal features

into their classiﬁcation, which forces them to analyze

an entire video before it can be classiﬁed.

2.1 Facial Expression Recognition

Facial expressions are one of the vital source to know

about mood and feelings in an interpersonal commu-

nication. Therefore, researchers focus to analyze fa-

cial expressions through traditional machine leaning

and advanced deep learning algorithms. Khorrami

et al. (2016) used a deep learning approach to merge

CNNs with RNNs and evaluate how each portion of

the neural network contributed to the overall success

of the emotion recognition system. For training, two

different architectures were used, the ﬁrst with a sin-

gle CNN frame and the second with a combination

of CNN and RNN. Although CNN learns valuable

features from the video data from the single frame

regression, it disregards temporal information. This

knowledge can be implemented through the use of

RNN. Results determined that the CNN+RNN model

translates to more accurate predictions.

2.2 Emotion Recognition through Body

Movements

Upper body movement, such as hand and head move-

ment, conveys vital information related to emotional

states. For instance, when a person displays a neutral

emotion, they generally do not move their arms; how-

ever, when they are happy or sad, the body tends to be

extended, and the hands move upwards closer to the

head Noroozi et al. (2018). However, this information

is subjective, dependant upon the personal attitude

to the circumstances and cultural bias.Research pre-

sented by Piana et al. (2014) suggest real-time emo-

tion recognition through body movements and ges-

tures. The features are extracted from 3D motion

clips containing full-body movements, recorded us-

ing two systems: a professional optical motion cap-

ture system and Microsoft Kinect. The body joints are

tracked, and feature vectors of the movements are ex-

tracted and used for classiﬁcation using a linear SVM

classiﬁer. The emotions tested were the six standard

emotions. Human validation demonstrated that three

emotions were easily recognized from body move-

ments (happiness, sadness, and anger), while the oth-

ers (surprise, disgust, and fear) were confused with

each other. Because of that, a sub-problem with only

four emotions (happiness, sadness, anger, and fear)

was formulated. The approach showed better results

when only classifying four out of the six emotions.

Glowinski et al. (2011) took a different approach,

which analyzed affective behavior solely based on

upper-body movements. A range of twelve different

emotions was classiﬁed according to their valence and

arousal. Features were extracted from two videos, one

that displayed a frontal view of the subjects and an-

other that displayed a lateral view. The trajectories

of the head and hands were tracked, and low-level

physical measures, i.e., position, speed, acceleration,

Deep Emotion Recognition through Upper Body Movements and Facial Expression

671

were extracted. Higher-level expressive and dynamic

features include smoothness and continuity of move-

ment, spatial symmetry of the hands, gesture dura-

tion were then computed, forming a 25-features vec-

tor. PCA was later applied to reduce the dimension-

ality of the data. Furthermore, clustering was used

to classify the data into four clusters according to the

categorical variables, i.e., valence (positive, negative)

and arousal (high, low). The framework was tested

on the GEMEP (GEneva Multimodal Emotion Por-

trayals) dataset B

anziger et al. (2012). The results

demonstrate that gestures can be effectively used to

detect human emotional expression.

Research proposed by Barros et al. (2015) model

these upper body movements for emotional classiﬁ-

cation by using FABO Gunes and Piccardi (2006)

dataset. They present the motion by an additional

layer on the network that tracks the frame-wise differ-

ence in each sequence. This representation involves

the structure and information of the gesture/motion

with the aid of weighted shadows. Another study by

the same authors Barros et al. (2014) extracts spatial

and temporal features of gesture sequences through

Deep Neural Networks (DNN) to generate a motion

representation. Moreover, a Multichannel Convolu-

tional Neural Network (MCCNN) is used to learn and

extract features from the previously generated motion

representation and uses such features to classify dif-

ferent gestures.

We have trained our system with full frames of the

FABO dataset with facial and body gestures features

to capture the gesture information. The networks ex-

tract the spatial and temporal information using CNN

and LSTM and ﬁnally classify the emotions.

2.3 Bi-modal Emotion Recognition

Fusion of multiple modalities can achieve better

recognition performance than single modality. Nev-

ertheless, a good fusion strategy must be applied; oth-

erwise, the fusion of modalities can hurt the accuracy

of the recognition system.

Gunes and Piccardi studied this case precisely and

conducted experiments where only single modalities

were tested (facial expression or body gestures) and

where both modalities were fused to formulate a de-

tection Gunes and Piccardi (2006, 2007). The results

revealed that the bimodal approach had better perfor-

mance.

The bi-modal approach is also considered by

Barros et al. (2015) to recognize emotions by tak-

ing into account facial expression and body move-

ments. They used neural networks on their solution

and achieved much higher average accuracies on fus-

ing both modalities than testing each modality sepa-

rately, going from 57.84 ± 7.7% on body motion and

72.70 ± 3.1% on facial expression, to 91.30 ± 2.7%

average accuracy on bimodal emotion recognition.

The research proposed by Nguyen et al. (2018)

fused the audio-visual, face, and body modalities us-

ing the compact bilinear pooling (MCB) method and

demonstrated the state-of-the-art results. In this ar-

ticle, besides general feature-level fusion techniques

such as average fusion, product fusion, we have also

explored the bilinear pooling technique for face and

body fusion.

3 PROPOSED SYSTEM

Our model is comprised of Convolution Neural Net-

works (CNNs) to extract facial features and bodily

features, with linear addition of Long Short Term

Memory (LSTM) model to use the sequential infor-

mation. Each modality (face or body) is trained with

CNN in frame-based and sequence-wise to generate

the emotional states. It is challenging to determine

the multimodal fusion efﬁciency for emotion recog-

nition accuracy, so we have proposed three different

fusion techniques to identify the best approach. The

network structure remains the same for all considered

fusion modalities. Overview of the system is illus-

trated in Fig 1

3.1 Convolutional Neural Network

Convolutional Neural Network (CNN) performs re-

markably good at acquiring spatial information. Each

CNN layer operates twofold; ﬁltering through the

convolution layer and max-pooling to avoid losing

useful information. Generally, CNNs are composed

of convolutional layers, and fully connected layers ex-

tract features. Most of the parameters are also present

in the fully connected layers responsible for most of

the computation power. For instance, fully connected

layers of VGG16 contains 90% of all the parameters.

The VGG16 is a deep convolutional network with up

to sixteen layers (thirteen convolutional layers and

three fully connected layers). Inception V3 reduces

the parameters by the introduction of global average

pooling Szegedy et al. (2016). Similarly, Xception

Chollet (2016) takes advantage of the use of residual

modules and depth-wise separable convolutions.

To lessen the computation cost, we have imple-

mented CNN architecture as proposed by Arriaga

et al. (2017). It is a simple architecture that achieves

almost state-of-the-art performance classifying emo-

tions. The architecture classiﬁes emotions based on

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

672

Figure 2: Selection of the facial region on a frame from the FABO dataset and scaling into 48*48 to form image database.

facial expressions and faces according to gender. On

the contrary to Arriaga et al. (2017), only relying

on the FER-2013 dataset, we use the FABO dataset

for training purposes. Besides, our CNN architecture

contains four residual deep separable convolutional

layers, where batch normalization and ReLU acti-

vation function accompany each convolutional layer.

Batch normalization normalizes the activation of the

previous layer at each batch. Residual modules mod-

ify the desired mapping between two subsequent lay-

ers by connecting the output of previous layers to the

output of new layers. Depth-wise separable convo-

lutions reduce further the number of needed parame-

ters. They are composed of depth-wise convolutions

and point-wise convolutions. Instead of the fully con-

nected layers, this architecture uses Global Average

Pooling that reduces each feature map to a scalar by

calculating the average of all the elements in the fea-

ture map. The last convolution layer has the same

number of feature maps as the number of classes. In

the end, a softmax activation function is applied to

produce a prediction.

3.2 Long Short Term Memory

Networks (LSTMs)

LSTMs are a recurrent neural network that processes

and absorb sequential information. According to Ilyas

et al. (2018a):

”The LSTM states are controlled by three gates

associated with forget (f), input (i), and output (o)

states. These gates control the ﬂow of information

through the model by using point-wise multiplica-

tions and sigmoid functions σ, which bound the in-

formation ﬂow between zero and one.”

To take advantage of spatial and temporal infor-

mation, we have linearly combined the CNN and

LSTM model, where CNN extracts the features and

then sequentially feeds into the LSTM network. Such

a combination works well in the case of video data, as

exhibited by Yao et al. (2015); Fukui et al. (2016).

3.3 Fusion Methods

One of the issues in multimodal emotion recognition

is deciding when to combine the information. There

are a few different techniques to fuse the emotion

recognition results of different modalities with certain

advantages and disadvantages. Some of the most ex-

plored techniques are early (feature-level) fusion and

late (decision-level) fusion. Recent studies explore

another feature-based fusion method called bilinear

pooling fusion.

Feature-level Fusion. Feature-level fusion com-

bines the data from both modalities before classiﬁ-

cation. A single classiﬁer is used containing features

from both modalities. One of the biggest drawbacks

of feature-level fusion is high-dimensional feature

production resulting in more parameters and more

computation power consumption. To reduce the di-

mensions, we have applied the compact bilinear pool-

ing (MCB) as proposed by Lin et al. (2017). Bilin-

ear pooling multiplies two vectors that produce tons

of parameters, and it is costly. However, compact bi-

linear pooling reduces the dimensions with the same

information level but with very few parameters.

Compact Bilinear Pooling Fusion. Lin et al.

(2017) proposes a compact bilinear pooling technique

for ﬁne-grained visual recognition. In this technique,

outer product ⊗ is calculated by element wise mul-

tiplication of two input feature vectors f

∈ V

and

∈ V

and scaling it into a matrix [ ] to reduce di-

mensions. For instance y = X [ f

⊗ f

], where X is

a learned model, ⊗ denotes the outer product and [

] represents linearizing the matrix in a vector. This

technique has produced better results for multimodal

emotion recognition task as mentioned by Nguyen

et al. (2018), who fused audio-visual, face and body

features to recognize emotions by considering co-

relation among them.

Decision-level Fusion. Decision level fusion does

not produce high-dimensional features as each modal-

ity is trained and classiﬁed separately to fuse recogni-

tion accuracy at the end. However, this method fails to

understand the correlation between input modalities.

Deep Emotion Recognition through Upper Body Movements and Facial Expression

673

This co-relation is more important and meaningful in

human-machine interactions where body movements

and facial expressions complement each other Barros

et al. (2015).

4 EXPERIMENTAL RESULTS

In this section, we ﬁrst describe the databases in-

volved and their training protocols. Then we demon-

strate the results.

4.1 Benchmark Datasets

We have used the bi-modal face and body FABO

dataset and the FER-2013 dataset for the emotion

recognition task. Details of the datasets are men-

tioned as follows:

FABO-dataset. The bi-modal face and body data

set is presented by Gunes and Piccardi (2006). Two

cameras acquire the database for monitoring face and

body movements, that captures the facial data and up-

per body movements separately. The videos provide

annotations on the stages of the affective states, there-

fore splitting the demonstration of each emotion into

neutral, onset, apex, and offset phases. Annotation is

performed for 16 subjects out of the 23 subjects for

emotional classiﬁcation. The face and body posture

tend to shift in the onset process, and these changes

reach a steady level at the apex phase. Finally, ex-

pressions and movements exhibit relaxation at the off-

set stage. However, these phase annotations are only

done for twelve of the subjects.

Frames in the apex phase are considered for CNN

training since they are the ones that reﬂect the emo-

tions best. Two apex phases are assessed from the an-

notated videos. The dataset contains 1410 images for

anger, 458 for disgust, 343 for fear, 613 for happiness,

570 for sadness, and 588 for a surprise, split into test

and training. The neutral emotion is the exception,

the images for this emotion were obtained from the

neutral phase from each video, amounting to 786 im-

ages. The selected images display the upper body of

the subjects; therefore, a facial recognition algorithm

was applied to extract only the facial region within

the image. The method used was a DNN face detec-

tor module included in OpenCV 3.6 . The selected

frames were grayscaled and resized to the FER-2013

dataset size, which is 48*48 pixels as demonstrated in

the ﬁgure 2

FER-2013 Dataset. The FER-2013 database con-

sists of approximately 36,000 images, labeled with

seven emotion classes (six Ekman emotional states

plus neutral expression). FER-2013 is one of the

biggest databases for FER in-the-wild environment

but with a low image resolution of 48 * 48 pixels lead-

ing to problems for facial landmark detectors. The

dataset contains 35887 annotated images, with 4953

anger images, 547 disgust, 5121 fear, 8989 happi-

ness, 6077 sadness, 4002 surprise, and 6198 neutral

images. Some samples of the images are shown in

Fig. 3.

Experiments are performed to detect emotions

from face and and upper body separately and fused

accuracy is also calculated. Details are provided in

the section 3.3.

4.2 Network Training

The CNN architecture is trained with benchmark

datasets FER-2013 and FABO datasets to extract the

facial and body features and evaluate the effectiveness

of each modality.

Face-CNN Model: (For Facial Emotional Recogni-

tion). Only facial features are trained to the network

to evaluate facial expressions. To recognize emotions,

ﬁrst face is localized, tracked, and then face cropping

is applied according to the network input parameters.

CNN is trained with the FER-2013 dataset, with data

augmentation techniques applied to train with more

diverse data. It also helps to prevent overﬁtting and to

generalize the model.

Early stopping is used to avoid overﬁtting. It stops

the training process of the model when the error on

the validation set gets higher than before. The learn-

ing rate is reduced when validation loss has stopped

improving.

The CNN was trained using Adam optimizer. This

optimization algorithm is an extension of the stochas-

tic gradient descent. It has some beneﬁts compared to

other algorithms, such as less memory requirement,

computationally efﬁcient, and it is well suited for

problems with extensive data and parameters Kingma

and Ba (2014). The trained model that we called the

face-CNN model achieved 65% accuracy in the val-

idation set. To recognize the emotions from upper

Figure 3: FER-2013 sample images for facial emotion

recognition.

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

674

body movements, we have trained the CNN model

with body features of the FABO dataset.

Body-CNN Model: (For Upper Body Emotion

Recognition) Only the FABO dataset is used to

train the body-CNN model. This dataset is already de-

scribed in Section 4.1. However, to train this model,

full image frames of the FABO dataset with facial and

body gestures information are used, as illustrated in

Fig. 2.

CNN-body architecture is the same as CNN-

face, but the images are descaled from their original

1024x768 dimensions to 128x96 and grayscaled to

ease and fasten the training process. The pixel val-

ues were normalized to a range between -1 and 1.

Data augmentation strategies are also applied to in-

crease the number of training samples. Furthermore,

the data was split into train and validation data with

an 80/20 ratio. The model achieved a 96% accuracy

in the validation set.

4.3 Bi-modal Emotion Recognition

As mentioned in section 2, the fusion of different

modalities is capable of achieving more signiﬁcant re-

sults than single modalities for emotion recognition.

To identify which fusion technique works best in our

task, we have applied MCB fusion at the feature-level,

whereas product and average fusion strategies are ap-

plied at the decision level.

4.4 CNN Architecture

For our experimentation, we have used the same ar-

chitecture as proposed by Arriaga et al. (2017), as

described in detail in section 3.1. However, our im-

plementation varies with Arriaga et al. (2017) as we

have used different datasets for training with the ad-

dition of the LSTM model to exploit the temporal in-

formation. We aim to reduce the number of CNN pa-

rameters and computational costs and achieve better

generalization. The network is composed of 4 con-

volutional layers and ReLu and batch normalization

at each layer. As mentioned in section 3.1 instead of

fully connected layers, global average pooling is ap-

plied. However, in the case of a temporal database

LSTM model is installed, followed by the softmax.

4.5 Performance Analysis

4.5.1 Frame-based Emotion Recognition

The performance of each modality is tested with our

trained network for emotion recognition. Various

Table 1: Results of different evaluation metrics for each

frame-based emotion recognition method.

Evaluation

Matrix

Facial

Expressions

Upper Body

Movement

Bimodal

Average

Fusion

Bimodal

Product

Fusion

Bimodal

Bilinear

Pooling

Precision 77.2 % 72.8 % 81.7 % 82.6 % 83.7 %

Recall 73.0 % 72.7 % 80.4 % 80.9 % 81.5 %

F1-Score 72.8 % 71.5 % 80.3 % 80.9 % 82.5 %

Accuracy 77.7 % 76.8 % 85.7 % 86.6 % 87.2 %

classiﬁcation models with different evaluation met-

rics analyze which modality has better performed. We

have analyzed the system performance with precision,

recall, accuracy, and F1-score metrics, as illustrated in

Table 1. Moreover, bi-modal fusion with different fu-

sion methods is applied to identify the performance of

fusion strategies.

Facial Expression Analysis. The normalized con-

fusion matrix in Fig. 4 shows the percentage of im-

age samples that are of a speciﬁc emotion (true la-

bel) and that are classiﬁed as corresponding to a spe-

ciﬁc emotion (predicted label). The confusion matrix

shows the best classiﬁcation results corresponding to

the anger and neutral emotions with 94% and 90%, re-

spectively. The worst classiﬁcation result corresponds

to the surprise emotion that is often mistaken with

fear; however, fear rarely is misclassiﬁed as a sur-

prise.

Upper Body Movement Analysis. Fig. 5 displays

the normalized confusion matrix for the upper body

movements emotion recognition. This confusion ma-

trix shows the true positive rate; hence, the percent-

age of samples from each dataset that are classiﬁed

correctly.

From Fig. 5 it is possible to observe that, once

again, the best recognition results are attributed to

anger and neutral emotions. Comparatively to the fa-

cial expression recognition, in this recognition modal-

ity, the surprise emotion has a much better recognition

rate and is less often mistaken by fear. Also, the sad-

ness emotion is quite often misclassiﬁed as a surprise.

Bi-modal Analysis. Two different decision-level

fusion methods are tested, an average method and the

product-method. In the average method, the average

is calculated between both modalities and for each

of the emotions. In the product method, the product

of the probabilities of each modality is calculated for

each of the emotions.

Finally, the combination of both modalities pro-

duces the results in Fig. 6 using the average fusion

method, and Fig. 7 using the product fusion method.

Deep Emotion Recognition through Upper Body Movements and Facial Expression

675

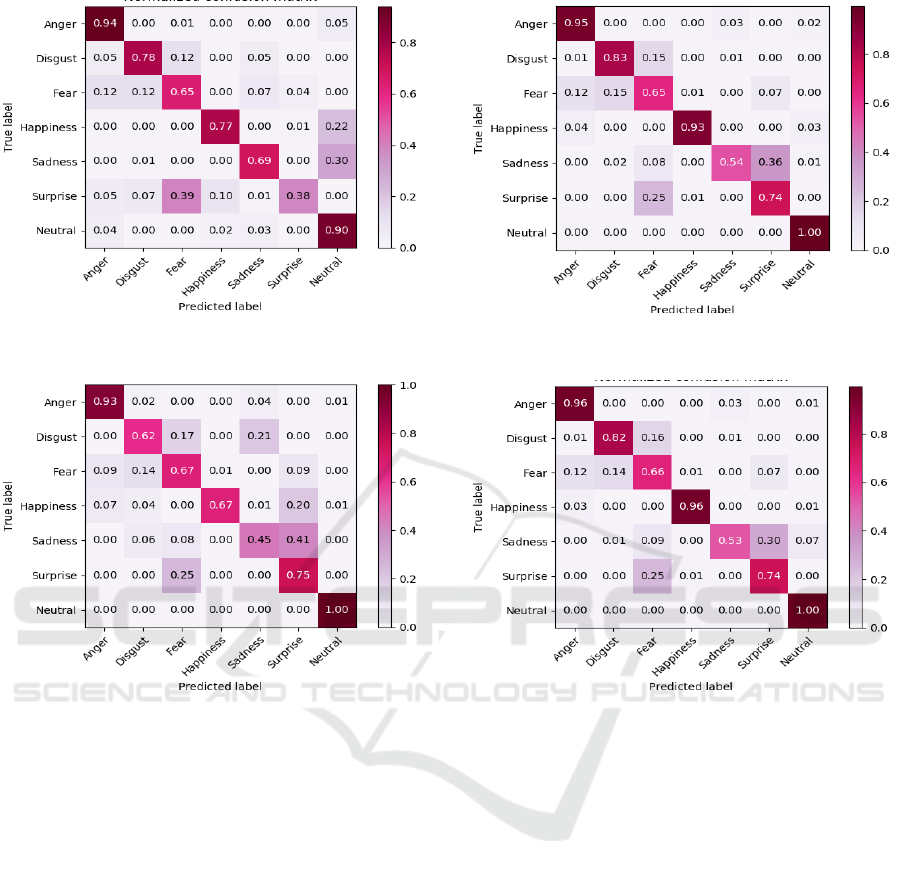

Figure 4: Normalized confusion matrix for facial expres-

sion recognition.

Figure 5: Normalized confusion matrix for upper body

movements emotion recognition.

4.5.2 Sequence-based Emotion Recognition

To train the system with spatial and temporal infor-

mation of the FABO dataset, we have to use the face-

CNN model pre-trained on the FER-2013 dataset. As

the FABO dataset posses video data with emotional

annotation for 16 subjects out of 23. Each video

displays the same emotion from two to four times,

so we have divided each video into neutral, onset,

apex, and offset maximum phase length of ﬁve sec-

onds. We trained this network with these video data

and obtained the features, as we have used the full

frames of the FABO dataset containing facial and ges-

ture features. These features are feed into LSTM in a

timely manner to evaluate the sequential information

for emotional classiﬁcation. Details of recognition ac-

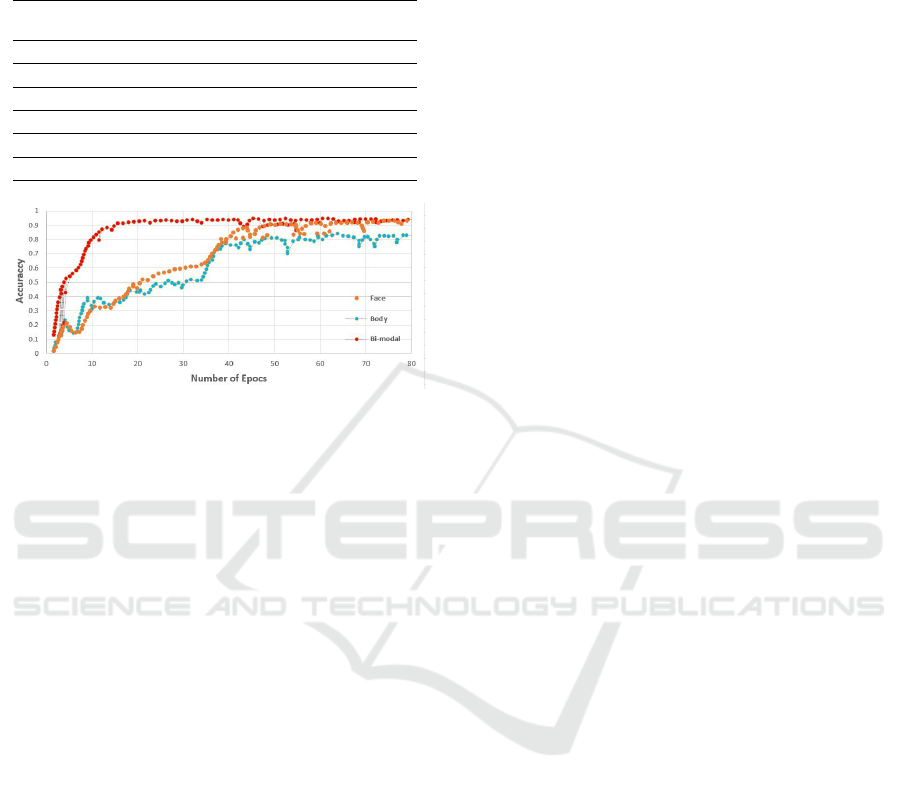

curacy is presented in the Fig. 8.

Facial Expression Analysis. Our network achieved

an average accuracy of 93.213 % when it is trained to

80 epochs. It is observed that system performance

reached its maximum accuracy when epochs range

Figure 6: Normalized confusion matrix for bimodal emo-

tion recognition using the average fusion method.

Figure 7: Normalized confusion matrix for bimodal emo-

tion recognition using the product fusion method.

from 40 to 50; after that system, performance did not

ﬂuctuate considerably.

Upper Body Movement Analysis. It is observed

that temporal information contributed to accuracy ef-

ﬁciency when the network is trained with full FABO

dataset frames. Our network achieved an accuracy of

up to 79.27 % for emotional recognition through up-

per body movement analysis.

Bi-modal Analysis. When the network is trained

with combined facial and upper body features, our

system has surpassed the state-of-art accuracy to

94.418 %. In this experiment, network parameters are

less than the state-of-art method Nguyen et al. (2018),

and it is robust to work in real-time scenarios.

4.6 Parameters Evaluation

Our network contains four deep-separable convolu-

tional neural layers with ReLu and batch normaliza-

tion function. We have used global average pooling

and softmax for emotion classiﬁcation that contribute

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

676

Table 2: Performance analysis of our system with CNN and

(CNN + LSTM) models and their comparison with state-

of-art methods. We have performed 3-fold cross validation

after splitting data into 80/20 protocols.

Method /

Modality

Facial

Expressions

Upper Body

Movement

Bimodal

Fusion

Gunes and Piccardi (2008)

35.2 % 73.1 % 82.7 %

Chen et al. (2013)

66.5 % 66.7 % 75.0 %

Barros et al. (2015)

72.7 57.8 91.3

Barros and Wermter (2016)

87.3 74.8 93.65

Our Frame based Model

77.7 76.8 87.2

Our sequence Based Model

90.42 79.27 94.41

Figure 8: Performance of the combined CNN + LSTM neu-

ral network model on test data of FABO dataset.

to approximately 600,000 parameters. We trained this

network with the FER-2013 database that provides an

accuracy of 65% on the validation set. However, us-

age off the shelf CNN network that is 70 times more

parametric heavy and provides 71.3% accuracy on the

FER-2013 dataset. In contrast, when we have em-

ployed this network to recognize emotions from face

and body, it surprised the state-of-art method when

we have a bi-modal model with temporal information.

Additionally, this model also showed improved accu-

racy in using a single modality such as the upper body

movements. We acquired an accuracy of 76.8 % and

79.27 % with spatial and temporal information, re-

spectively. Application of compact bilinear pooling

(MCB) contributed to dimensionality reduction with-

out compromising on the performance.

5 DISCUSSION AND

CONCLUSION

The major problem in developing a human-machine

affective system is the integration of multimodal

sensory information. In this research article, we have

explored the spatial-temporal technique for emotion

analysis of visual modalities. We have also studied

different fusion techniques with lesser computation

cost. We have developed a robust architecture to iden-

tify emotions from the face and upper body move-

ments to use in real-time human-machine inter-

action systems.

It is illustrated through the confusion matrices

that the bimodal approach shows better results than

the monomodal approaches, regardless of the fusion

method. In this case, the best recognition rates cor-

respond to both fusion methods for anger, happiness,

and neutral emotions. The worst recognition rate is

attributed to the sadness emotion that is often mis-

classiﬁed as a surprise emotion.

All the evaluation metrics being considered to

have greater values with this approach. Accuracy

shows a signiﬁcant improvement from 77, 7% and

76, 8% on the facial and upper body movements emo-

tion recognition, respectively, to 85, 7% and 86, 6%

on the fusion of both modalities.

Furthermore, the product fusion method shows

slightly better results on all the evaluation metrics

than the average fusion method. However, the MCB

method surpassed decision level recognition accu-

racy. It shows that inter modalities relationship to-

wards emotion identiﬁcation is an essential factor to

consider. We have demonstrated that spatial-temporal

information is better classiﬁed for anger, happy and

neutral emotions for further analysis. With upper

body movement alone, state of the art methods found

it challenging to classify the emotions accurately.

However, our system has performed better with the

rest of the methods, as illustrated in Table 2.

REFERENCES

Agraﬁoti, F., Hatzinakos, D., and Anderson, A. K. (2011).

Ecg pattern analysis for emotion detection. IEEE

Transactions on Affective Computing, 3(1):102–115.

Arriaga, O., Valdenegro-Toro, M., and Pl

oger, P. (2017).

Real-time convolutional neural networks for emo-

tion and gender classiﬁcation. arXiv preprint

arXiv:1710.07557.

Augello, A., Dignum, F., Gentile, M., Infantino, I., Man-

iscalco, U., Pilato, G., and Vella, F. (2018). A social

practice oriented signs detection for human-humanoid

interaction. Biologically inspired cognitive architec-

tures, 25:8–16.

anziger, T., Grandjean, D., and Scherer, K. R. (2009).

Emotion recognition from expressions in face, voice,

and body: the multimodal emotion recognition test

(mert). Emotion, 9(5):691.

anziger, T., Mortillaro, M., and Scherer, K. R. (2012).

Introducing the geneva multimodal expression cor-

pus for experimental research on emotion perception.

Emotion, 12(5):1161.

Barros, P., Jirak, D., Weber, C., and Wermter, S.

(2015). Multimodal emotional state recognition using

sequence-dependent deep hierarchical features. Neu-

ral Networks, 72:140–151.

Deep Emotion Recognition through Upper Body Movements and Facial Expression

677

Barros, P., Parisi, G. I., Jirak, D., and Wermter, S. (2014).

Real-time gesture recognition using a humanoid robot

with a deep neural architecture. In 2014 IEEE-RAS

International Conference on Humanoid Robots, pages

646–651. IEEE.

Barros, P. and Wermter, S. (2016). Developing crossmodal

expression recognition based on a deep neural model.

Adaptive behavior, 24(5):373–396.

Breazeal, C. (2003). Emotion and sociable humanoid

robots. International journal of human-computer

studies, 59(1-2):119–155.

Chen, S., Tian, Y., Liu, Q., and Metaxas, D. N. (2013). Rec-

ognizing expressions from face and body gesture by

temporal normalized motion and appearance features.

Image and Vision Computing, 31(2):175–185.

Chollet, F. (2016). Xception: deep learning with depthwise

separable convolutions. corr abs/1610.02357 (2016).

arXiv preprint arXiv:1610.02357.

de Gelder, B., De Borst, A., and Watson, R. (2015). The

perception of emotion in body expressions. Wiley In-

terdisciplinary Reviews: Cognitive Science, 6(2):149–

158.

Ekman, P., Friesen, W. V., and Ellsworth, P. (2013). Emo-

tion in the human face: Guidelines for research and

an integration of ﬁndings, volume 11. Elsevier.

Fukui, A., Park, D. H., Yang, D., Rohrbach, A., Darrell, T.,

and Rohrbach, M. (2016). Multimodal compact bilin-

ear pooling for visual question answering and visual

grounding. arXiv preprint arXiv:1606.01847.

Glowinski, D., Dael, N., Camurri, A., Volpe, G., Mortillaro,

M., and Scherer, K. (2011). Toward a minimal repre-

sentation of affective gestures. IEEE Transactions on

Affective Computing, 2(2):106–118.

Gunes, H. and Piccardi, M. (2006). A bimodal face and

body gesture database for automatic analysis of hu-

man nonverbal affective behavior. In 18th Interna-

tional Conference on Pattern Recognition (ICPR’06),

volume 1, pages 1148–1153. IEEE.

Gunes, H. and Piccardi, M. (2007). Bi-modal emo-

tion recognition from expressive face and body ges-

tures. Journal of Network and Computer Applications,

30(4):1334–1345.

Gunes, H. and Piccardi, M. (2008). Automatic tempo-

ral segment detection and affect recognition from

face and body display. IEEE Transactions on Sys-

tems, Man, and Cybernetics, Part B (Cybernetics),

39(1):64–84.

Ilyas, C. M. A., Haque, M. A., Rehm, M., Nasrollahi, K.,

and Moeslund, T. B. (2018a). Facial expression recog-

nition for traumatic brain injured patients. In VISI-

GRAPP (4: VISAPP), pages 522–530.

Ilyas, C. M. A., Nasrollahi, K., Rehm, M., and Moes-

lund, T. B. (2018b). Rehabilitation of traumatic brain

injured patients: Patient mood analysis from multi-

modal video. In 2018 25th IEEE International Confer-

ence on Image Processing (ICIP), pages 2291–2295.

IEEE.

Jerritta, S., Murugappan, M., Nagarajan, R., and Wan, K.

(2011). Physiological signals based human emotion

recognition: a review. In 2011 IEEE 7th Interna-

tional Colloquium on Signal Processing and its Ap-

plications, pages 410–415. IEEE.

Karpouzis, K., Caridakis, G., Kessous, L., Amir, N.,

Raouzaiou, A., Malatesta, L., and Kollias, S. (2007).

Modeling naturalistic affective states via facial, vocal,

and bodily expressions recognition. In Artiﬁcal intelli-

gence for human computing, pages 91–112. Springer.

Khorrami, P., Le Paine, T., Brady, K., Dagli, C., and Huang,

T. S. (2016). How deep neural networks can improve

emotion recognition on video data. In 2016 IEEE in-

ternational conference on image processing (ICIP),

pages 619–623. IEEE.

Kim, J. and Andr

e, E. (2008). Emotion recognition based on

physiological changes in music listening. IEEE trans-

actions on pattern analysis and machine intelligence,

30(12):2067–2083.

Kim, K., Cha, Y.-S., Park, J.-M., Lee, J.-Y., and You, B.-J.

(2011). Providing services using network-based hu-

manoids in a home environment. IEEE Transactions

on Consumer Electronics, 57(4):1628–1636.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Lang, K., Dapelo, M. M., Khondoker, M., Morris, R., Sur-

guladze, S., Treasure, J., and Tchanturia, K. (2015).

Exploring emotion recognition in adults and ado-

lescents with anorexia nervosa using a body mo-

tion paradigm. European Eating Disorders Review,

23(4):262–268.

Lin, T.-Y., RoyChowdhury, A., and Maji, S. (2017). Bilin-

ear cnns for ﬁne-grained visual recognition. In Trans-

actions of Pattern Analysis and Machine Intelligence

(PAMI).

Mano, L. Y., Faic¸al, B. S., Nakamura, L. H., Gomes, P. H.,

Libralon, G. L., Meneguete, R. I., Geraldo Filho, P.,

Giancristofaro, G. T., Pessin, G., Krishnamachari, B.,

et al. (2016). Exploiting iot technologies for enhanc-

ing health smart homes through patient identiﬁcation

and emotion recognition. Computer Communications,

89:178–190.

Mart

ınez-Rodrigo, A., Zangr

oniz, R., Pastor, J. M., Latorre,

J. M., and Fern

andez-Caballero, A. (2015). Emo-

tion detection in ageing adults from physiological sen-

sors. In Ambient Intelligence-Software and Applica-

tions, pages 253–261. Springer.

Mehrabian, A. et al. (1971). Silent messages, volume 8.

Wadsworth Belmont, CA.

Nguyen, D., Nguyen, K., Sridharan, S., Dean, D., and

Fookes, C. (2018). Deep spatio-temporal feature fu-

sion with compact bilinear pooling for multimodal

emotion recognition. Computer Vision and Image Un-

derstanding, 174:33–42.

Noroozi, F., Kaminska, D., Corneanu, C., Sapinski, T., Es-

calera, S., and Anbarjafari, G. (2018). Survey on emo-

tional body gesture recognition. IEEE transactions on

affective computing.

Piana, S., Stagliano, A., Odone, F., Verri, A., and Camurri,

A. (2014). Real-time automatic emotion recognition

from body gestures. arXiv preprint arXiv:1402.5047.

Picard, R. W., Vyzas, E., and Healey, J. (2001). Toward

machine emotional intelligence: Analysis of affective

VISAPP 2021 - 16th International Conference on Computer Vision Theory and Applications

678

physiological state. IEEE Transactions on Pattern

Analysis & Machine Intelligence, (10):1175–1191.

Shan, C., Gong, S., and McOwan, P. W. (2007). Beyond fa-

cial expressions: Learning human emotion from body

gestures. In BMVC, pages 1–10.

Soleymani, M., Lichtenauer, J., Pun, T., and Pantic, M.

(2011). A multimodal database for affect recognition

and implicit tagging. IEEE Transactions on Affective

Computing, 3(1):42–55.

Sorbello, R., Chella, A., Cal

ı, C., Giardina, M., Nishio, S.,

and Ishiguro, H. (2014). Telenoid android robot as an

embodied perceptual social regulation medium engag-

ing natural human–humanoid interaction. Robotics

and Autonomous Systems, 62(9):1329–1341.

Sun, B., Cao, S., He, J., and Yu, L. (2018). Affect recog-

nition from facial movements and body gestures by

hierarchical deep spatio-temporal features and fusion

strategy. Neural Networks, 105:36–51.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wo-

jna, Z. (2016). Rethinking the inception architecture

for computer vision. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2818–2826.

Yao, A., Shao, J., Ma, N., and Chen, Y. (2015). Captur-

ing au-aware facial features and their latent relations

for emotion recognition in the wild. In Proceedings of

the 2015 ACM on International Conference on Multi-

modal Interaction, pages 451–458. ACM.

Deep Emotion Recognition through Upper Body Movements and Facial Expression

679
