Research of the Possibilities of Conducting XSS-attacks and Methods

of Countering It

Pavel Razumov

, Larissa Cherckesova

and Olga Safaryan

Don State Technical University, Gagarina sq. 1, Rostov-on-Don, Russia

Keywords: XSS Attack, XSS Vulnerabilities, Cross-Site Scripting, Application Layer, Malicious Script, Exploits

Vulnerabilities, Dangerous Code, Virus Code, Preventive Protection Methods, Application Security.

Abstract: One of the most popular types of attacks these days is cross-site scripting using JavaScript. In addition to the

problems caused by illegal use of JavaScript, I will discuss security rules that will help prevent a possible

XSS attack, as well as provide research related to checking sites for organized website security. In this paper,

we have proposed some algorithms that support scanning XSS vulnerabilities, used to create an automated

scanning program that will reduce the risk of using Internet resources.

1 INTRODUCTION

One of the most popular attacks these days is cross-

site scripting using JavaScript. In addition to the

problems caused by illegal use of JavaScript, the

security features of the XSS attack related to checking

sites for organized website security were prevented

(Common Weakness Enumeration).

In this paper, I have proposed some algorithms

that scan for XSS vulnerabilities, used to create an

automated scanning program that reduced the risk of

using Internet resources (Cherckesova, 2020).

Research object: web application.

Research subject: search for XSS vulnerabilities

and counteraction to them.

The aim of this work is to create a proprietary

system for automated testing of web applications for

XSS vulnerabilities, capable of combining a high

level of coverage and detection, as well as ease of use.

An integral part of creating a new system is the use of

systems that fulfill similar goals.

The program should be operated by web

application developers to control the security level of

the project. End users are testers or web application

developers.

In this work, the analysis and classification of

existing XSS vulnerabilities will be carried out, as

https://orcid.org/0000-0003-2454-3600

https://orcid.org/0000-0002-9392-3140

https://orcid.org/0000-0002-7508-913X

well as the algorithm of the program and its

implementation will be described.

2 RESEARCH METHODOLOGY

The main task of cross-site scripting is to get user

cookies using a script built into the server and then

fetch the necessary data using them for the next

attacks. The attacker does not attack users directly,

but exploits vulnerabilities in the website visited by

the victims and injects a special script. In the browser,

this code does not appear to stand out in any way, but

at the same time this site becomes an accomplice in

the attack.

Usually, to exploit such vulnerabilities, contact

with the user is necessary: either they are attracted to

a hacked site using social engineering, or they are

waiting for the moment until they go to this site by

themselves.

Web programmers often do not pay due attention

to the problems associated with XSS vulnerabilities,

but if you do not get rid of them in a timely manner,

this can cause global problems and cause irreparable

harm to the security of the system. It is important to

consider that if the administrator's cookies get to a

Razumov, P., Cherckesova, L. and Safaryan, O.

Research of the Possibilities of Conducting XSS-attacks and Methods of Countering It.

DOI: 10.5220/0010617400003170

In Proceedings of the International Scientiﬁc and Practical Conference on Computer and Information Security (INFSEC 2021), pages 54-60

ISBN: 978-989-758-531-9; ISSN: 2184-9862

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

hacker, he will be able to gain access to the control

panel of the site and its contents.

XSS attacks were the most widespread in the past

year and the situation has not changed at the present

time. In this connection, it should be concluded that

cross-site scripting is relevant, but, unfortunately, not

enough efforts are being made to solve this problem,

and scammers are coming up with more and more

new schemes for its implementation, which are harder

to deal with every year (Frazer Howard).

2.1 Analysis and Classification of

Existing XSS Types

How Cross-Site Scripting Works.

Cross-site scripting (XSS) is one of many attacks

on web systems, affecting many web applications and

is one of the most common types of hacker attacks at

the application layer. In English, the term sounds like

Cross-Site Scripting, but it has the abbreviation XSS,

so as not to be confused with cascading style sheets,

which translate as Cascading Style Sheets (Kozlov,

2010).

This attack allows a hacker to inject malicious

code into a specific page of the site so that the victim's

Internet browser, when the page is launched, will

launch this code.

With the help of cross-site scripting, it is possible

to issue modified data, replace links, both visible and

hidden, or display your own advertisements on the

affected resource. If a hacker can find even one XSS

vulnerability, then cross-site scripting will work

(Fogie, 2007).

Many websites store their users' data in a database

(DB) so that they can be displayed as they are entered.

The peculiarity of such attacks is that the virus code

can use the authorization form of the site visitor to

obtain extended access or user authorization data in

the web system. Dangerous code can be embedded

into a web page not only through a vulnerability on

the user's computer, but also through a vulnerability

in the server.

The aforementioned attacks are often made

possible by malicious scripts written in JavaScript

(JS), with the help of which information is

subsequently introduced from third-party sources.

The scheme is built in such a way that the malicious

code gets into the database, where the username and

password of the visitor are located. Thus, when the

site displays the user's name on the web page, this

code will be executed. This code can do almost

anything, given certain conditions, as a result of

which the threat becomes quite realistic.

Many website owners neglect to protect against

such threats, believing that they cannot be used to

steal confidential data that is on the server. This is a

common mistake, since a page or cookie can contain

quite sensitive data, and where the safety of a cross-

site request forgery is at risk, a hacker will be able to

perform all actions available to the user. For the

operation of the application, and the business itself,

the results of XSS attacks can cause significant

damage. More than once, many popular websites such

as Vkontakte, Facebook, Google, Mail have become

victims of such attacks (Semenov).

Consider a standard example of an XSS attack:

 a hacker enters a script into the URL of an

active online store;

 the script directs the user to the replaced

malicious page;

 a script is executed on the page that gets the

value of the visitor's cookies;

 then the necessary information is sent to the

hacker, who uses it to intercept the user's

session.

Despite the fact that the store was not harmed, the

hacker using the vulnerability fraudulently obtained

the confidential information of visitors and took

control of their sessions. Also, there is an option to

create a fake URL by encoding a part of it using any

encoding method, which will make it unattractive.

The user will not be suspicious at the sight of the

familiar URL and will not pay attention to the

subsequent encoded part. Thus, fraud occurs on the

Internet (Mitchell).

General classification of XSS attacks.

Not all vulnerabilities are the same, there are many

types. Let us consider the classification of such

attacks and analyze according to two criteria: in the

direction of impact and in the method of impact.

Let's look at and analyze Figure 2 below, where

you can visually consider how to use cross-site

scripting.

According to the method of impact, attacks are

subdivided into active and passive:

 Passive (autonomous) requires the direct

intervention of the attacker. The victim needs

to do a specific action to call the event handler

and load the malicious script in a prepared

form. In this case, you can resort to social

engineering, for example, send an e-mail with

a proposal to follow the link and click on a

specific area of the site. When the user

completes all these actions, a malicious script

will be launched. In case of inaction of the

victim, the code will remain inactive.

Example:

Research of the Possibilities of Conducting XSS-attacks and Methods of Countering It

<b href = “b” onmauseower = alert (1561) style =

”frontsize: 600pc”>

In this example, we consider a hyperlink that

catches the eye of a site visitor, and has a long

designation, in connection with which, the chance of

clicking on it increases. This link has a hover event

handler that contains the attack code. This attack is

passive.

Of course, the links provided by hackers do not

look like:

http://www.haker.ru/searh?q=ans><script>alert

“+ document.cookies) </script>

There are many different ways to encode the

content of a link so that it does not look suspicious.

You can encode in base64, hex, or use a third-

party server for routing.

Example: data: text / html; base64,

aHR0NoLbWw / hYUe3GlcnQoJycpPC9zY3JpcHQ

- Active XSS attack. The hacker does not need to

urge potential victims to go to prepared links, because

the code is entered into the database or into a specific

active file on the server. Input forms have an event

handler installed that will be automatically activated

when entering a web page. As a result, all visitors will

become victims of cyber fraud.

Example:

<input type = kkkkkk value = a onfocus = alert

(2571) AUTOFOCUS>

The above is an input field with automatic focus

appearance, which executes the prepared attack code.

The focus is set so that its set handler is called. The

attack is active and is carried out automatically.

According to the impact vector, XSS attacks are

divided into three types: reflected, stored, and based

on the DOM model.

 Reflected ("Reflected XSS" - non-persistent).

The most common type of attack that requires

the user to take certain actions.

This type of attack will work if a user clicks on a

specially prepared link that sends a request to a

website containing a vulnerability. This vulnerability

is often the result of insufficient filtering of incoming

requests. All this allows you to manipulate functions

and activate malicious scripts to steal data.

If angle brackets are not escaped on the site, then

you should convert them to "& lt;" and "& gt;" to get

the script on the search results page.

The principle of such an attack can be seen in

Figure 1.

Various communication channels are used to

distribute the malicious link: e-mail, comments on the

site, messages on social networks. Anchor links are

more likely to provoke users to click.

Figure 1: Reflected XSS attack.

Next, let's look at an example of exploiting a

reflected XSS attack.

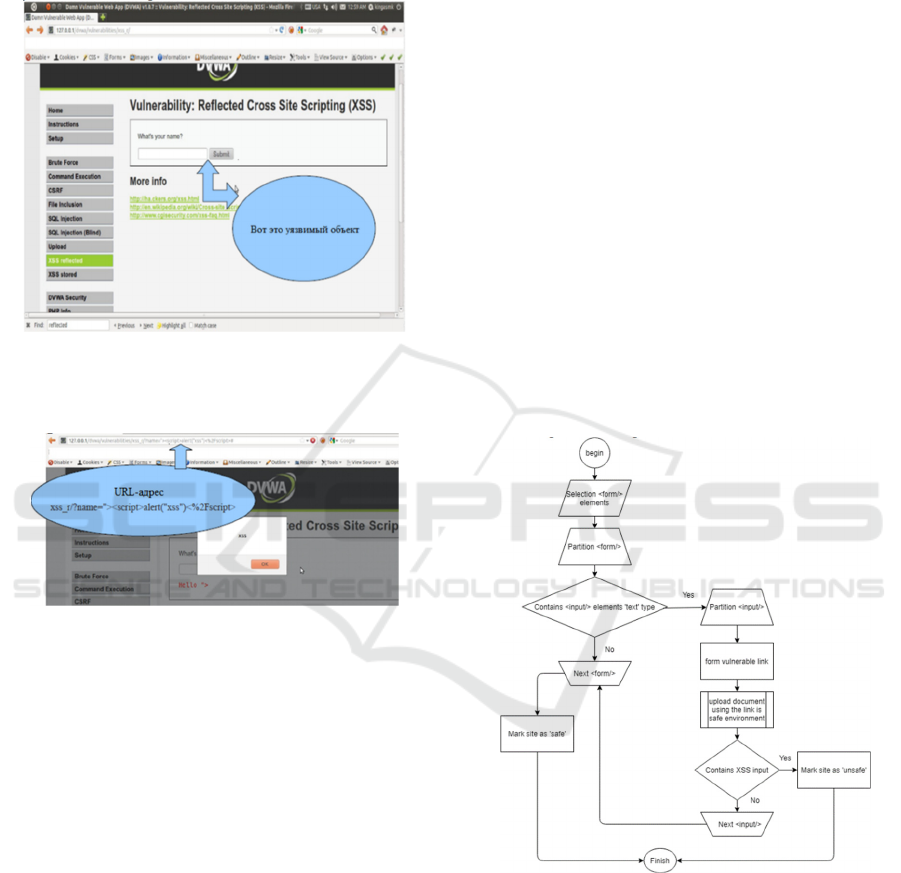

For demonstration purposes, let's try to exploit

this vulnerability using the example of DVWA.

Damn Vulnerable Web Application (DVWA) is a

web application that is intentionally filled with

vulnerabilities. The main goal is to help security

professionals test their skills and tools without

crossing the line of law, to help web developers better

understand the process of web application security,

and to help both students and teachers learn about

web application security. The goal of DVWA is to

practice some of the most common web

vulnerabilities, with variable levels of difficulty, with

a simple and understandable interface for each

(Kuznetsov, 2010).

In this project, there are both documented and

undocumented vulnerabilities. This is done in order

to be able to detect as many vulnerabilities as

possible.

Figure 2 shows code that is vulnerable to a

reflected XSS attack.

Figure 2: Example of code vulnerable to reflected XSS

attack.

As you can see from the example, data is not

cleared for the "name" parameter before it is

INFSEC 2021 - International Scientiﬁc and Practical Conference on Computer and Information Security

displayed in the user's browser. Thus, if you inject a

JavaScript script into it, this script will be executed.

Let's use the DVWA application to demonstrate

this vulnerability. The results are presented below, in

Figure 3 and in Figure 4.

Figure 3: Exploiting Reflected XSS.

Next, inject the code “<script> alert (“ xss ”);

</script>” into the form element:

Figure 4: Result of operating reflected XSS.

 Stored ("Stored XSS" - persistent). For a stored

attack to be successful, an attacker needs to find

a vulnerability on the site.

3 RESEARCH RESULTS

The program starts its work in parallel with the

loading of the site page. Two processes are launched

at one moment. The first method looks for

vulnerabilities on the current page, and the second

method checks all links on the current page, checks

against the list of already checked ones, and marks the

malicious ones with a marker (Mitchell and Zhukov,

2013).

The algorithm for checking a page for

vulnerability consists of 7 mandatory steps.

1. In the DOM-model of the page, elements with

the <form /> tag are selected.

2. Inside each of them, look for the child <input

/> elements.

3. For each found element, create a data object

that includes the value of the name attribute of the

<input /> tag, the value of the action attribute and the

parent <form /> element. If the attribute is empty, we

use the current URL, also enable the current protocol,

it can be http or https and the current domain.

4. The array of collected objects is sent to the

server.

5. The server generates a malicious link for each

dataset and executes it before loading so that it is

possible to check in a safe environment whether there

will be a response from a potentially vulnerable page.

6. After verification, the status of the current

domain is saved to the database and sends a visual

element to the client, which will symbolize the status

of verification.

7. If along with the data set came a flag that

requests a detailed report, then an HTML layout of

the report is attached in response to display it on the

client's screen.

The described algorithm is also presented as a

block diagram in Figure 5.

Figure 5: Block diagram of XSS-vulnerability search.

The preventive protection algorithm consists of 5

mandatory steps.

1. In the DOM-model of the page, links are

selected, that is, elements with the <a/> tag that have

a non-empty href attribute.

2. Each link is marked with an identifier like xss-

mark-i, where I is the ordinal number of the link in

the DOM model.

Research of the Possibilities of Conducting XSS-attacks and Methods of Countering It

3. An array of links is sent to the server, where a

selection is made against a table with already checked

pages.

4. As a result, the server returns link identifiers

that can be potentially dangerous according to the

accumulated information.

5. Extension, using CSS, by identifiers from step

2, visually marks dangerous and vulnerable links.

Letting the user understand that the link may be

dangerous, and the information on it is distorted.

This algorithm is also presented as a block

diagram in Figures 6 and 7.

Figure 6: Block diagram of the search for links with XSS

vulnerabilities.

Figure 7: Block diagram of the search for links with XSS

vulnerabilities.

Thus, using this extension, thanks to the

accumulation of the results of checks and preventive

protection methods, it is possible to accumulate a

database of dangerous sites much faster and make the

Internet safer.

In this chapter, the choice of the programming

language and the target platform for the software

product was justified, as well as the work with the

database, which was implemented in the application,

was considered.

Further, algorithms for checking a page for

vulnerability and preventive protection were

described, as well as their block diagrams were

implemented.

4 RESULTS DISCUSSION

To assess the quality of the created software product,

it was decided to compare the result of its work with

products that are already on the market and are

actively used by developers to test their own

products: NetSparker (CommunityEdition), an

extension for the XSS-Me browser, Wapiti.

Several projects were selected for testing:

 http://www.insecurelabs.org/ created with the

support of OWASP to strengthen the skills of

finding XSS vulnerabilities;

 http://www.insecurelabs.org/Task, a project

consisting of six tasks, the main goal of which

is to detect an XSS vulnerability.

Comparison of test results is shown in Table 1.

Table 1: Comparison of test results.

NetSparke

XSS

-ME

Wapiti

XSS

check

htt

://www.insecurelabs.or

Number of

vulnerabili

ties foun

2 7 9 12

Number of

skipped

forms

6/7 0/7 0/7 0/7

http://www.insecurelabs.org/Tas

Number of

vulnerabili

ties foun

5 18 6 16

Number of

skipped

forms

1/6 2/6 3/6 0/6

After analyzing the table, we can conclude that the

application created within the framework of this work

is a competitive product and, in some respects,

surpasses the existing analogues.

INFSEC 2021 - International Scientiﬁc and Practical Conference on Computer and Information Security

4.1 Comparison with Analogues

To assess the quality of the product obtained, it is

advisable to compare it by its main characteristics

with similar products. Comparison with analogs is

presented in table 2.

Table 2: Comparison with analogues.

NetSparke

r (CE)

XSS

-ME

Wapit

XSS

checke

GUI

availabilit

+ - + +

Authorizatio

n in the

stem

- - + -

Parallel wor

+ - + +

Sitemap

creation

- + - +

Stored XSS - + - +

Cross-

latfor

- + - -

Total 2 3 3 4

The table clearly reflects the main characteristics

of existing solutions and the XSS checker application

created within the framework of this work. According

to the information from the table, the XSS checker

has a number of advantages over existing solutions,

which makes it at least a competitive product.

In this chapter, the structure of classes and their

relationships was described, a demonstration of the

program's operation at all stages of its use was given

and its step-by-step installation was considered. A

comparative analysis with analogs was also carried

out.

5 CONCLUSION

Within the framework of this work, an attack on

WEB-applications such as Cross Site Scripting was

investigated. The basic principles of its work were

studied and the classification was given.

A list of XSS injections was collected from

various sources, through which it was decided to

check the WEB application for XSS vulnerabilities.

In 2020, the company "We Are Social" conducted

a study on the strength and sustainability of sites. As

a result of the security assessment, it was found that

most of the sites, namely 42%, are poorly protected

from this type of attack. Based on this, we can say that

many Internet resources are not credible and cannot

withstand attacks. This is a gross defect that needs to

be corrected, for the sake of security, both of the

owner of the site and the data of the site itself, and of

its users.

Unfortunately, not all website owners are willing

to invest in improving website security. But every

year, the severity of the law in relation to disclosure,

leakage and damage to personal data is tightening,

thereby forcing unscrupulous owners to better

monitor the safety of their resources. The size of the

fine for violation of the 6th part of Article 13.11 of

the Administrative Code is increasing, and with it the

protection of personal data is growing.

As part of the work, the existing systems were

studied that allow automated testing of application

security in the context of XSS vulnerabilities. The

main advantages and disadvantages of these systems

are revealed.

In accordance with the terms of reference, a

multithreaded system for automated testing of a WEB

application for Cross Site Scripting was created.

For the convenience of working with the

application, a user graphical interface was developed

using the JavaFX platform, which allows to inform

the user about the incorrectness of the data entered by

him, as well as to reflect the current state of the

program.

Also, a module was implemented that generates a

report on test results using a cascading style sheet and

the JavaScript programming language.

To assess the quality of the application, two open

source OWASP projects were tested. The results of

this application were compared with the results of

existing applications. The application developed as

part of the qualification work showed an excellent

result, in some respects outstripping existing

solutions such as Wapti, NetSparker, XSS-Me.

REFERENCES

Common Weakness Enumeration. Official site.

https://cwe.mitre.org

Cherckesova, L., Revyakina, Y., Safaryan, Boldyrikhin,

N., Ivanov, Y. (2020) Possibilities of conducting XSS-

attacks and the development of countermeasures. E3S

Web of Conferences, 224, 01040

Flanagan, D. (2012). Javascript. Detailed guidance.

Symbol-plus, 157 p.

Fogie S., Grossman, J., Hansen, R., Rager, A. and Petkov,

Petko D. (2007). XSS attacks: exploitation and

protection, Syngress, 464 p.

Frazer Howard, Modern Internet Attacks.

http://help.yandex.ru/webmaster/?id=1076109

Kozlov, D. D. (2010). Methods for detecting vulnerabilities

in web applications. - M: Publishing house of the

Research of the Possibilities of Conducting XSS-attacks and Methods of Countering It

Faculty of Computational Mathematics and

Cybernetics, Moscow State University, pages 146-158.

Kuznetsov, M. V. and Simdyanov, I. V. (2010). Object

oriented programming in PHP. - SPb.: BHV-

Petersburg, 608 p.

Mitchell, Ch. Ensuring the security of websites.

http://help.yandex.ru/webmaster/?id=1071330

Semenov, Yu.A. Overview of vulnerabilities, some types of

attacks and protection tools.

http://book.itep.ru/6/intrusion.htm

Shelukhin O.I., Sakalema D. Zh. and Filinov A.S. (2013).

Detection of intrusions in a computer network. M:

Hotline-Telecom, 220 p.

Zhukov, A.I. and Grankov, M.V. (2013). Using the SQL

language to interact with modern DBMS: method.

Instructions. Rostov-on-Don: Publishing Center of

DSTU, 203 p.

INFSEC 2021 - International Scientiﬁc and Practical Conference on Computer and Information Security
