An Approach to Identifying the Process of Implementing a
Distributed Denial of Service Attack based on a Probable Graph
Model
Dmitriy A. Bachmanov
a
, Michael M. Putyato
b
and Alexander S. Makaryan
c
Kuban State Technological University, 2 Moskovskaya St., Krasnodar, Russia
Keywords: DDoS, Cyber Threats, Denial Of Service, Botnet, Neural Networks, Bayes Theorem, Probability Theory,
Probabilistic Analysis, Information Security, Network Attacks.
Abstract: Distributed Denial-of-service (DDoS) attacks are one of the key threats to modern cyberspace. The main
difficulty of protecting against attacks of this type is that they are implemented with the help of legitimate
requests. It is possible to filter out suspicious legitimate requests by using a network filter. The purpose of
this article is to create and apply a graph probability model. This article discusses the approaches derived from
mathematical modeling and probabilistic estimation. Mathematical and graph models are formed to calculate
the probability of an attack
1 INTRODUCTION
Today, botnets, IP spoofing as well as combination
of those methods are the main means of commiting a
distributed DDoS (Denial of Service) attack. Most of
modern systems cannot provide timely detection or
use the methods of expert systems. In addition, this
kind of attacks can also be carried out by using
legitimate (legitimate) requests, which greatly
complicates the process of detecting and preventing
these incidents.
A denial-of-service attack is designed to disable
any network resource by depleting server resources.
At present day, the following attack
implementations are distinguished (Sinkov,
Medvedev and Nikolskaya, 2018) (Figure 1)

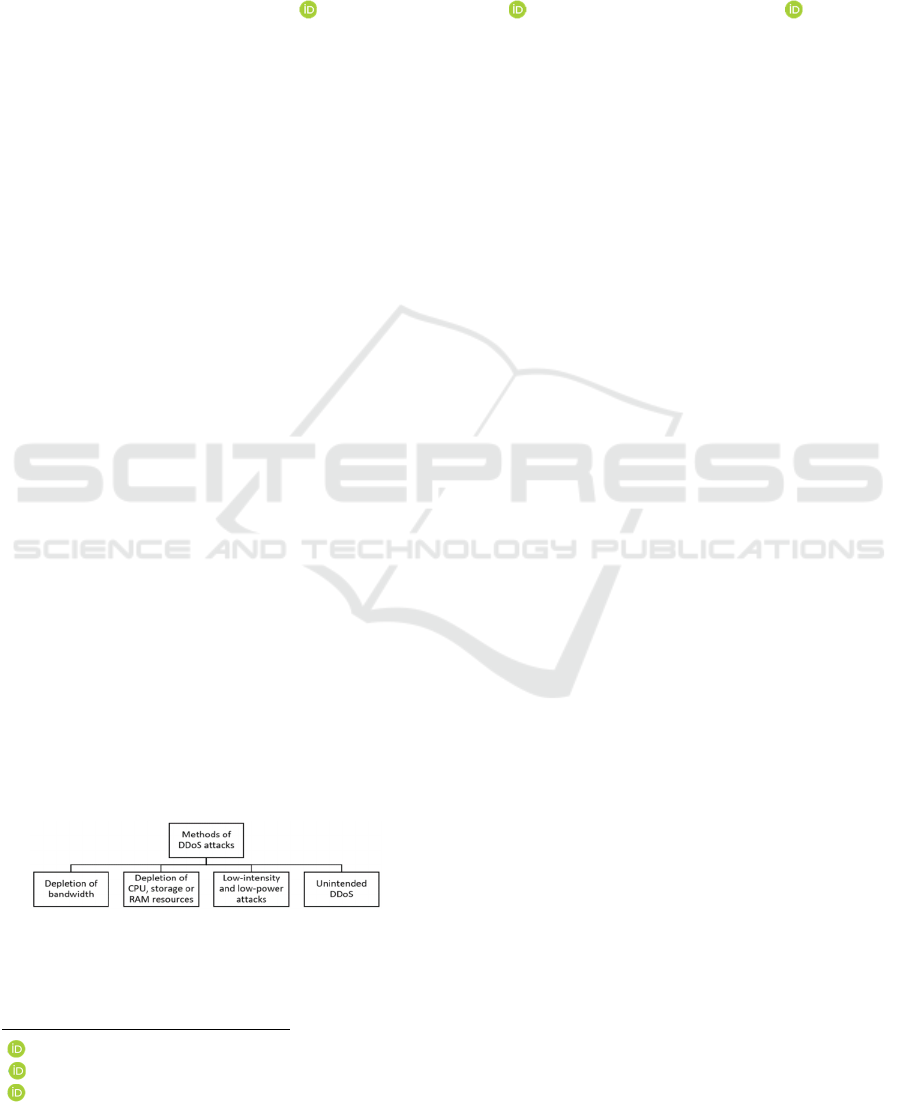

Figure 1: Methods of DDoS attack.
The first method, bandwidth depletion, can be
divided into two categories of attacks:
a
https://orcid.org/0000-0003-3474-6831
b
https://orcid.org/0000-0001-9974-7144
c
https://orcid.org/0000-0002-1801-6137
"Flood" attack. An attacker sends multiple
packets and requests to which the network
responds, causing bandwidth overflow. It is
implemented within the network and transport
layers of the OSI model (Open Systems
Interconnection) (Moskovskij nauchno-
issledovatelskij centr, 2006). Examples: ICMP
flooding, UDP flooding, TCP (SYN) flooding.
Traffic reflection and amplification-based
attacks. Sending requests to multiple servers
(bots) and receiving responses without
additional checks. The real response, in terms of
size in bytes, exceeds several times the expected
response, and, for one request from 10 sources
will come 10 responses. The problem of this
attack (RDDoS) is that it can be detected only
after a resource is unavailable, because the
resource will return a response that it cannot
accept.
The server resource exhaustion method is aimed at
exploiting vulnerabilities in network protocols and
flaws in network software. For example, exploiting
flaws in XML parsers algorithms (XXE injections) or
using sub-optimal regular expression processing
Bachmanov, D., Putyato, M. and Makaryan, A.
An Approach to Identifying the Process of Implementing a Distributed Denial of Service Attack based on a Probable Graph Model.
DOI: 10.5220/0010620100003170
In Proceedings of the International Scientific and Practical Conference on Computer and Information Security (INFSEC 2021), pages 145-149
ISBN: 978-989-758-531-9; ISSN: 2184-9862
Copyright
c
2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
145
methods (XSS attacks) can completely deplete server
RAM.
Low and Slow DDoS (LDDoS) attacks are the
most difficult to detect because they cause a Denial-
of-Service error on the victims network by opening
multiple endless connections. This behavior is not an
anomaly and does not require bandwidth depletion.
Implemented at the transport and application layers
of the OSI model.
Unintentional DDoS comes from users. Most
often occurs after an influx of interested users to a
poorly protected resource.
2 WAYS TO DETECT ATTACKS
One of the main criteria for the effectiveness of
distributed denial of service attack detection systems
is not only the accuracy of its identification, but also
the time in which this attack was detected. The less
time is spent on identifying the incident, the less the
consequences of the attack and various types of
losses are.
Due to the large number of types and methods of
DDoS attacks leading companies are activly
developing, a universal method, which could cope
most effectively with this problem.
Having studied the research on the problem of
detection of distributed denial of service attacks, an
analysis was given (Behal and Kumar, 2016; Chen,
2020).
The first method from the list is the Signature
method. It concludes in construction of characteristic
relations of the "abnormal" behavior of traffic
exchange and compares it with the incoming data.
From the advantages we can highlight the greatest
effectiveness against bandwidth-depletion attacks, or
in local networks, where it is possible to make a list
of source addresses, whose packets are guaranteed to
be "normal".
The second is statistical methods. Of the
advantages is the possibility of constructing a general
model of "normal" behavior and comparing
incoming traffic with it. Its disadvantages are a large
number of false positives due to the unique
characteristics of networks and traffic; lengthy
calculation of data on the "normal" behavior;
sensitive to the choice of statistical distributions.
In addition, methods based on attack detection
using artificial intelligence have been increasingly
studied recently (Palchevskij and Hristodulo, 2019;
Diyazitdinova (Miftahova) and Gubareva, 2018).
First, the Neural Networks approach. The
neurons of the network are pre-trained on data from
the network users. Traffic out of the "normal" range is
marked as anomalous. Signature analysis is more
effective. However most of design approaches are
heuristic, because they rarely lead to unambiguous
solutions and network training leads to deadlocks.
The Bayesian networks approach, provides an
combines Bayesian networks with statistical methods
to predict outcomes or identify causal relationships. It
is a graphical probabilistic model that describes
multiple variables and their Bayesian relationships.
The disadvantages are that it is not always feasible to
determine all the interactions in Bayesian networks for
complex systems.
The fuzzy logic approach is based on the fuzzy set
hypothesis, according to which reasoning is estimated
rather than precisely derived from classical logic. For
this model, fuzzy estimates have been developed to
detect DDoS attacks, which use the average time
between packet receptions and also detect IP address
violations in real time. But because of the peculiarities
of the method, the small amount of data suitable for
the analysis of distribution functions, in addition, there
is a need for their forced normalization and
compliance with additivity requirements, as well as
the difficulty of justifying the adequacy of
mathematical abstraction to describe the behavior of
the actual values.
These approaches are extremely flexible, as they
can be adapted to network parameters and to new data.
The Genetic Algorithms approach is to apply
genetic algorithms - search algorithms based on the
mechanisms of natural selection in nature. Such as
selection, crossing-over, mutations, and inheritance.
Genetic algorithms are able to tailor classification
rules with knowledge gathered from incoming traffic
and choose optimal parameters for the detection
process to distinguish attacks from normal data.
However it is worth highlighting their main
disadvantage. A potential solution representation has
to be chosen or developed to solve a specific problem
and there remains the problem of defining the fitness
function. In addition, there remains the problem of
choosing GA parameters and there are no effective
criteria for the termination of the algorithm.
The Nearest Neighbor Method detects anomalies
that are far from normal instances and uses distance-
or density-based measures to find similarities (or
distance) between two or more data instances.
Anomalies are classified using the k-nearest neighbor
method. Its advantages are ease of implementation and
the fact that the classification performed by this
algorithm can easily be interpreted by presenting
several nearest objects to the user. On the downsides,
inefficient memory consumption and excessive
INFSEC 2021 - International Scientific and Practical Conference on Computer and Information Security
146
complication of the silver rule. It requires a linear
number of operations on the sample length.
Hybrid systems combine several of the methods
described above, which increases the speed and
number of detected attacks, as well as reduces the
number of false positives. They are capable of
detecting attacks in which an attacker tries to replace
attack patterns from the system databases. But this
method is complex and expensive to implement.
Having analyzed the results of comparison and
research of experts, we can conclude that the
Bayesian networks method is the most appropriate to
describe a typical DDoS attack detection system
(Goldstein, Lampert, Reif, Stahl, Breuel, 2008;
Polat, 2020; Vorobeva et al., 2018). The main
advantage of this method is the ability to use any a
priori information regarding the parameters of the
model.
The information is expressed as an a priori
probability or probability density function, and then,
it is recalculated as an a posteriori distribution or
model variables. In addition, this method is easy to
understand and provides a "what if" scenario analysis
for predictive modeling.
3 DETECTION SYSTEM MODEL
The main advantage of using Bayesian networks in
the construction of a distributed denial-of-service
attack detection system model is the ability to infer
the probability of an attack by analyzing the traffic
on the hosts that receive it (Federalnoe agentstvo po
tekhnicheskomu regulirovaniyu i metrologii. tri
podhoda k interpretacii i ocenke neopredelennosti
izmerenij).
The classic model of distributed Denial of
Service attack detection system is shown in Figure 2.

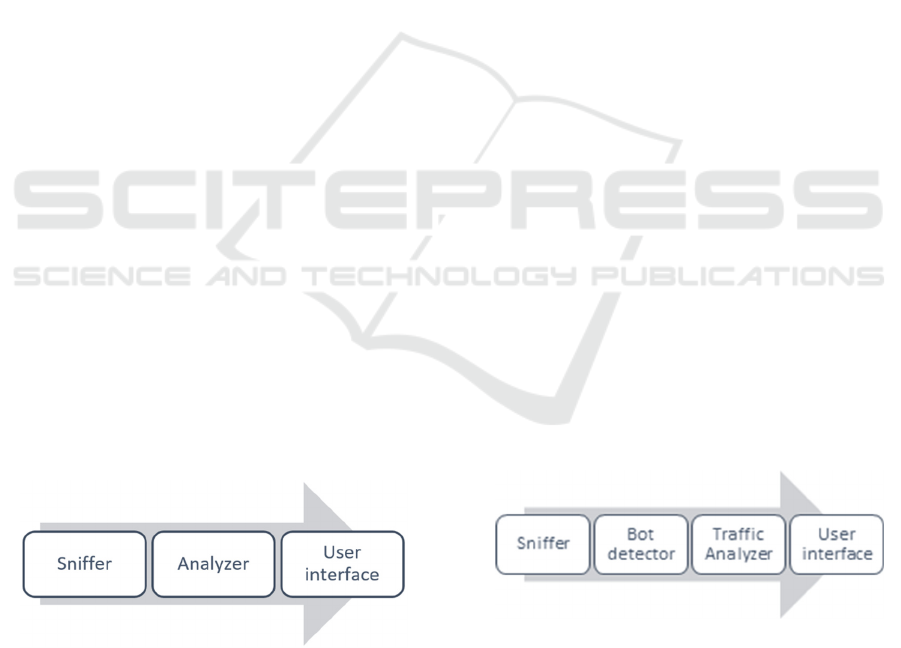

Figure 2: Distributed Denial of Service attack detection
system model.
The probabilistic model does not require any
preprocessing, and the Bayesian method can be
adapted to analyze network traffic, which will
significantly speed up the process of identifying an
attack.
The data collected by the sniffer can be used to
determine evaluation criteria or parameters that help
determine the specific type of attack. To date, there are
ready-made model implementations based on this
method (Bahiarov, 2018). This model proposes to
introduce the following basic evaluations:
The first (P1) is a logical variable, which indicates
the truth of the expression: whether the threshold of
the total number of requests for the control period is
exceeded.
The second one (P2) is also a logical variable, but
it checks if another expression is true: if the network
packet threshold for a certain protocol is exceeded in
a certain period.
It is also possible to enter a formal 3rd parameter,
corresponding to the number of requests from one IP
address, which will help identify additional parts of
the attack.
In this study, we propose to introduce a new
criterion into the model that will increase the accuracy
of attack detection, both in multi-agent systems and as
an individual solution.
Traffic analysis and collection systems, in addition
to collecting statistics on received requests, can also
analyze the network infrastructure and act as a filter
that, if certain conditions are met, will screen out
requests at the receiving stage and prohibit their
execution.
In addition, it is possible to allocate criterion P3 -
which will be a logical variable that will show the truth
of the expression: whether the check at the level of the
primary network filter is passed.
Thus, the classic model of the detection system can
be extended with one more element, some "filter"
before the traffic is received by the analyzer (Figure
3).
Figure 3: An augmented model of distributed denial of
service attack detection system.
The thresholds for the total number of requests and
the number of requests for a particular protocol are
defined as constants (normal values) based on the
collected statistics of the protected service, due to the
An Approach to Identifying the Process of Implementing a Distributed Denial of Service Attack based on a Probable Graph Model
147
fact that the current and maximum allowable load on
the service may vary (REST strasti po 200, 2020).
The mathematical model of the 2 criteria can be
represented by a general formula for detecting a
distributed Denial of Service attack.
𝑃
𝐻
|
𝑋
𝑃
𝑋
|𝐻
𝑃
𝐻
𝑃
𝑋
|𝐻
𝑃
𝐻
𝑃
𝑋
|𝐻
𝑃
𝐻
(1)
Where: hypothesis 𝐻
– offensive attack,
hypothesis 𝐻
– normal mode of operation, reason
𝑋 – one of the parameters P1, P2 = TRUE.
It is also possible to calculate the probability of
the absence or presence of an attack separately:
The formula for calculating the probability of
expression for the normal number of requests
received means there is no attack:
𝑃
𝑋|𝐻
𝐾
𝐾
𝐾
(2)
Where: 𝐾
– threshold value of queries, 𝐾
–
number of received queries.
The formula for calculating the probability of
expression for the abnormal number of requests
received means there is an attack:
𝑃
𝑋|𝐻
𝐾
𝐾
𝐾
(3)
Where: 𝐾
– threshold value of queries, 𝐾
–
number of received queries.
Taking as an example that the threshold value of
requests for our service 𝐾
= 1000, and the resulting
number of requests 𝐾
= 2300, let us calculate the
probabilities in formulas (2) and (3).
𝑃
𝑋|𝐻
1000
1000 2300
0,3
(2)
𝑃
𝑋|𝐻
2300
1000
2300
0,7
(3)
Substituting these values into formula (1) at a
priori standard probability value of 0.5 of attack, we
get the following value 𝑃
𝐻
|𝑋
.
𝑃
𝐻
|𝑋
0,7 ∗ 0,5
0,7∗0,50,3∗0,5
0,7
(1)
Since there can be more than 1 interaction
protocol (e.g., HTTP, FTP, TELNET), the
multipliers of variable P2 are divided into several
branches (P2, P2, P2) and counted separately,
depending on the specific type. P1 is calculated in a
single instance, since the threshold of the total
number of requests is not divided by any criteria.
All steps can be represented as a Bayesian
network of trust, which will help determine the
necessary calculations to obtain a value of
confidence that a DDoS attack is in progress (Figure
4).
Figure 4: Bayesian trust network 𝑃
𝐻
|𝑋
.
By setting a network identifier (filter), which will
determine whether the request is from a bot or not, and
concluding that the truth analysis of the variables P1,
P2 will not change, when P3 = FALSE, and when P1,
P2, P3 = TRUE we believe that at this time is a botnet
attack, you can significantly increase the probability
of identifying a distributed denial of service attack.
This allows us to represent the probability of
occurrence of hypothesis 𝐻
, provided that the request
comes from the bot, in the form of an equation:
𝑃
𝐻
|𝐶
𝑃
𝐶
𝑃𝐶
|𝐻
𝑃
𝐻
(4)
Where is the reason 𝐶
– bot request identification,
hypothesis 𝐻
– onslaught.
Taking into account the introduction of the new
criterion, we derive a new formula for the probability
of detecting a DDoS attack:
𝑃𝐻
|𝐶
,𝑃
𝐻
|𝑋
𝑃𝐶
,𝑃
𝐻
|𝑋
,𝐻
𝑃
𝐶
𝑃
𝑋|𝐶
(5)
Where, hypothesis 𝐻
– attack onset, cause 𝐶
–
Passing the surge protector, cause 𝑋 – one of the
parameters P1, P2 = TRUE.
With the additions and optimizations, the Bayesian
trust network will take a new form (Figure 5):

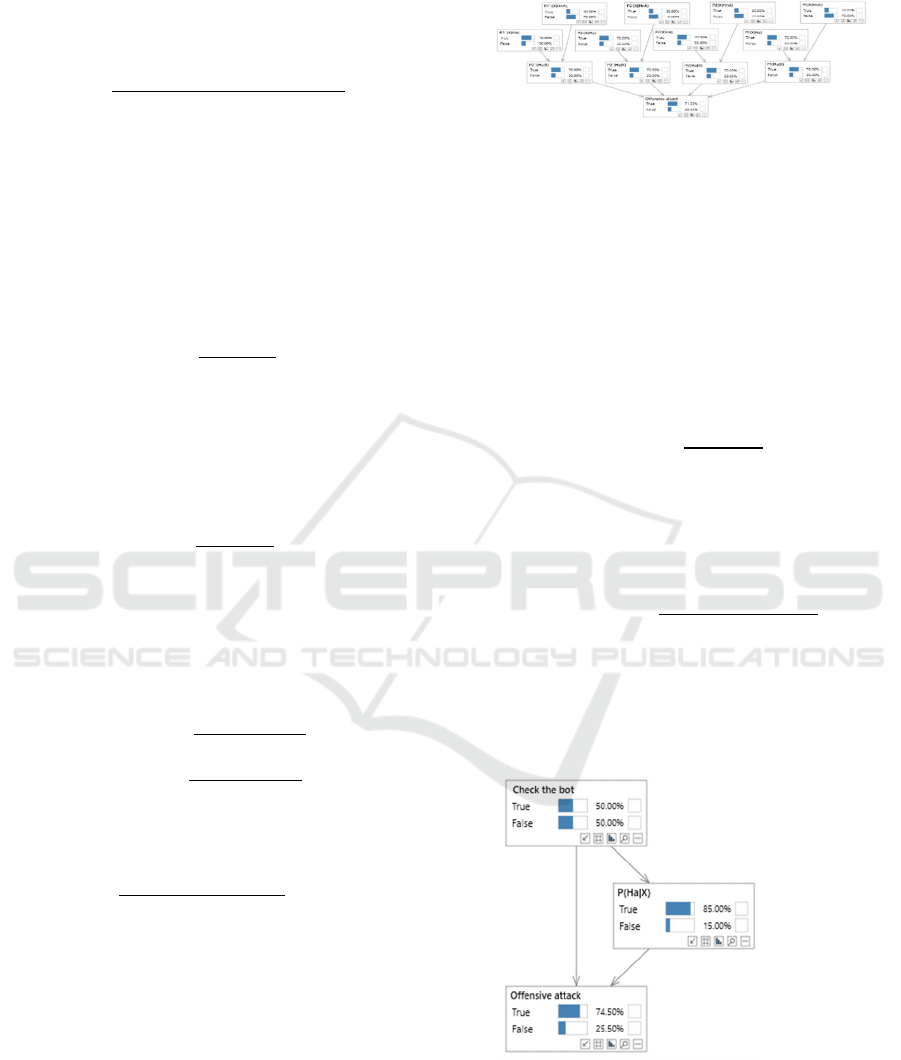

Figure 5: Bayesian trust network 𝑃𝐻
|𝐶
,𝑃
𝐻
|𝑋
.
Take the raw data with a standard probability value
of 0.5, taking into account the credibility of the attack
obtained in (1) and substitute in the formula (5) to get
INFSEC 2021 - International Scientific and Practical Conference on Computer and Information Security
148
the probability of a credible attack, taking into
account the introduction of additional criteria
𝑃
𝐻
|𝐶
,𝑋
0.5 ∗ 0,21 0,7 ∗ 0.7
0.5 ∗ 0,85
0,75
(5)
When comparing the probabilities of the classical
scheme and the augmented one, we can conclude that
the current model allows more accurate
identification of a possible threat, since another
criterion is added to assess the credibility of the
attack - C_A. Under the query analysis system, any
solution can be installed to determine the query
signature, such as the testcookie-nginx-module
(Testcookie-nginx-module, 2020).
The further scenario is similar to the classic one -
the detection system will display a notification of a
possible attack on the user interface, which allows to
identify a distributed denial-of-service attack at an
early stage, since, as noted earlier, the Bayesian
method allows to minimize the time to analyze the
received traffic and provide the result.
4 CONCLUSIONS
The new equation allows to evaluate the
effectiveness of measures used in order to find the
most appropriate one. In future studies, this equation
will help to evaluate new methods of protection or
existing ones, with some refinements.
This algorithm, in its present form, can be used,
as an auxiliary calculation of distributed DDoS
attack detection probability, in more complex
detection systems as a stand-alone solution, or as an
addition to the existing mechanism for detecting
cyber-attacks (Makaryan, Putyato and Ocheredko,
2020; Putyato et al., 2020).
REFERENCES
Sinkov A.S., Medvedev M.P., Nikolskaya K.YU. Analiz
problemy obnaruzheniya raspredelennyh atak tipa
"Otkaz v obsluzhivanii" // "Nauka nastroyashchego i
budushchego", Mar 2018. S. 148-152.
Moskovskij nauchno-issledovatelskij centr (MNIC)
Gosudarstvennyj Komitet Rossijskoj Federacii po
svyazi i informatizacii. GOST R ISO/MEK 7498-1-99
Informacionnaya tekhnologiya (IT). Vzaimosvyaz
otkrytyh sistem. Bazovaya etalonnaya model. CHast 1.
Bazovaya model // gostrf. 2006. URL:
http://www.gostrf.com/normadata/1/4294818/429481
8276.pdf (Access Date: 14.01.2021).
Behal S., Kumar K. Trends in Validation of DDoS
Research // International Conference on
Computational Modeling and Security (CMS 2016), No.
85, 2016. pp. 7-15.
Chen J., Tang X., Cheng J., Wang F., Xu R. DDoS Attack
Detection Method Based on Network Abnormal
Behavior in big data environment // International
Journal of Computational Science and Engineering,
2020.
Branickij A.A., Kotenko I.V. Analiz i klassifikaciya
metodov obnaruzheniya setevyh atak // trudy spiiran,
2016. pp. 207-244.
Palchevskij E.V., Hristodulo O.I. Razrabotka metoda
samoobucheniya impulsnoj nejronnoj seti dlya
zashchity ot DDoS-atak // Programmnye produkty i
sistemy, No. 3, 2019.
Diyazitdinova (Miftahova) A., Gubareva Yu. Issledovanie
vozmozhnosti metodov iskusstvennogo intellekta pri
raspoznavanii dos/ddos atak // problemy tekhniki i
tekhnologii telekommunikacij. opticheskie tekhnologii
v telekommunikaciyah, 2018. pp. 326-327.
Goldstein, Lampert, Reif , Stahl , Breuel. Bayes Optimal
DDoS Mitigation by Adaptive History-Based IP
Filtering // Seventh International Conference on
Networking, Mar 2008.
Polat, Polat, Cetin. Detecting DDoS Attacks in Software-
Defined Networks Through Feature Selection Methods
and Machine Learning Models // Open Access Journal,
Feb 2020. pp. 1-16.
Vorobeva YU.N., Katasyova D.V., Katasyov A.S.,
Kirpichnikov A.P. Nejrosetevaya model vyyavleniya
ddos-atak // vestnik tekhnologicheskogo universiteta,
Vol. 21, No. 2, 2018. pp. 94-98.
Federalnoe agentstvo po tekhnicheskomu regulirovaniyu i
metrologii. tri podhoda k interpretacii i ocenke
neopredelennosti izmerenij //
https://files.stroyinf.ru/Data2/1/4293766/4293766795.p
df. 2014.
Bahiarov. Teorema Bajesa kak metod opredeleniya atak tipa
otkaz v obsluzhivanii // Simvol nauki, 2018.
REST strasti po 200 [Electrionic resurce] // habr: [Web Site].
[2020]. URL: https://habr.com/ru/post/440900/
Testcookie-nginx-module [Electrionic resurce] // kyprizel:
[Web Site]. [2020]. http://kyprizel.github.io/testcookie-
nginx-module/
Makaryan A.S., Putyato M.M., Ocheredko A.R.
Informacionnye sistemy i tekhnologii v modelirovanii i
upravlenii // Analiz prakticheskoj realizacii
mekhanizmov vyyavleniya kiberatak v siem-sisteme
splunk. YAlta. May 2020. S. 252-256.
Putyato M.M., Makaryan A.S., CHerkasov A.N., Gorin I.G.
Adaptivnaya sistema kompleksnogo obespecheniya
bezopasnosti kak element infrastruktury situacionnogo
centra // Prikaspijskij zhurnal: upravlenie i vysokie
tekhnologii, 2020. pp. 75-84
An Approach to Identifying the Process of Implementing a Distributed Denial of Service Attack based on a Probable Graph Model
149
