A Method for Determining the Credibility of Intrusion Detection

based on a Probabilistic Graph Model in the Proactive Protection

Subsystem of the Operational Cybersecurity Center

Andrey R. Ocheredko

, Michael M. Putyato

and Alexander S. Makaryan

Kuban State Technological University, 2 Moskovskaya St., Krasnodar, Russian Federation

Keywords: Cybersecurity, Machine Learning, Cyber Threats, Neural Networks, Bayes Theorem, Probability Theory,

Probabilistic Analysis, Information Security, Network Attacks.

Abstract: The threat landscape is expanding rapidly, which has a number of consequences for most organizations and

individuals. This is evidenced by a large number of cyber attacks which constantly occur in cyberspace.

Although several defensive approaches have recently been proposed and implemented, the most of them are

entirely theoretical. Others remain unfeasible due to the computational requirements of their implementation.

The issue of computational complexity becomes extremely significant for methods which have proven to be

implementable, because they often tend to consume a large amount of computational resources. Also most of

these methods are reactive which means that they can only be initiated after an incident has already occurred.

Moving from reactive approach to proactive one is currently one of the greatest challenges in the sphere of

cybersecurity research.

1 INTRODUCTION

Cybersecurity is a serious problem for a large number

of organizations, institutions, corporations and

individuals around the world. Specialists (Buczak and

Guven, 2016) argue that a set of technologies and

processes for monitoring and preventing

unauthorized access, modification, misuse and denial

of service of computer networks and resources

implies a concept such as cybersecurity. It also

includes the tendency to authorize access to classified

content and critical infrastructure that can be accessed

through the network. Most networks are widely

interconnected via the Internet and serve as means of

exchanging data, information, intelligence, software

and hardware. Although the sharing of valuable

resources to improve operational efficiency is an

inherent feature the computer networking paradigm,

it has also created a way to easy distribution of

malware. Therefore the escalation of cyber-attacks is

taking place in cyberspace.



https://orcid.org/0000-0002-1451-995X

https://orcid.org/0000-0001-9974-7144

https://orcid.org/0000-0002-1801-6137

This expansion of the threat spectrum is a factor

in the growing power of cybercrime, which is

gradually entering the sphere of control over all

domestic, business and industrial functions. The

danger of cyberattacks consists in the possibility of

altering system or database parameters to create a

kinetic effect in escalating attacks, including the

tendency to destroy classified content (Akyazi, 2014).

Defense against cyber-attacks requires both proactive

and reactive approaches, which can also be

characterized as active and passive ones. They are

relevant in the context of organizing direct defensive

actions or methods to mitigate the effects of cyber

threats. Therefore, it is important to understand the

research gaps in current approaches to cybersecurity.

That is why this article is going to review the methods

that are in use now and the ones that will be used in

the near future to detect and prevent incidents. The

following sections will discuss cybersecurity

approaches in terms of detection, prediction and

prevention. Generally, attack detection and prediction

can be achieved with the help of machine learning and

Ocheredko, A., Putyato, M. and Makaryan, A.

A Method for Determining the Credibility of Intrusion Detection based on a Probabilistic Graph Model in the Proactive Protection Subsystem of the Operational Cybersecurity Center.

DOI: 10.5220/0010620400003170

In Proceedings of the International Scientiﬁc and Practical Conference on Computer and Information Security (INFSEC 2021), pages 163-167

ISBN: 978-989-758-531-9; ISSN: 2184-9862

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

163

evolutionary algorithms, as well as statistical methods

and association rules. Similarly, most approaches to

attack prevention are achieved by analyzing traffic to

detect and block (or stop) malicious activity.

2 APPROACHES TO DETECTING

CYBER-ATTACKS

Cyber attack detection is a common attack mitigation

technique. It involves responding to an anomalous

connection to report the presence of an attack pattern

or profile on the network. One of the main approaches

to cyberattack detection is intrusion detection.

Intrusion detection is the process of determining the

signature of an intrusion or attack in a continuous

stream of connections (Putjato and Makarjan, 2020)

Intrusion detection systems (IDS, Intrusion detection

system) operate based on three main approaches: the

signature-based approach, the anomaly-based

approach, and the hybrid approach. While misuse

detection takes into account signatures of known

attacks to help detect intrusions, anomaly detection

uses profiles of normal network activity to flag

intrusions in which a deviation from the normal

profile is detected. Combining these two approaches

results in a hybrid approach (Putjato, et al., 2020).

However, some approaches based on these 3 main

approaches have proven to be largely ineffective in

terms of attack detection, while some have resulted in

high consumption of computing resources. Similarly,

most of the approaches proposed in the extant

literature are computationally infeasible and can only

remain theoretical.

3 DETECTION WITH MACHINE

LEARNING

Recently, machine learning techniques have become

popular in the detection of cyber attacks. Machine

learning is particularly effective for analyzing data

and predicting the outcome of certain events based on

the available sample inputs, which are used to build a

suitable model to make the right decisions (Aissa and

Guerroumi, 2016). The main tasks of machine

learning algorithms are classifying and predicting the

presence or absence of a known instance of an

incident using data for learning. The application of

machine learning in today's cyberattack detection

scenario has helped to greatly improve the detection

process. In this paper, we will look at the application

of a Bayesian (probabilistic) model to information

security incident detection. There are 3 main types of

machine learning.

Machine Learning:

1. Supervised Learning

Good for tasks where every input data point is

labeled or belongs to a certain category (Kim G., Lee

and Kim S., 2014).

2. Unsupervised Learning

Good for tasks where all data are not labeled or do

not belong to a certain category. Algorithms are used

for clustering/grouping complex data into classes

(Yoo et al., 2014).

3. Reinforcement Learning

Good for tasks where future actions are based on

the results of current reactions, and the next actions

need to be predicted (Rani and Xavier, 2015).

4 A PROBALISTIC METHOD

FOR DETECTING INCIDENTS.

BUILDING A BAYESIAN

NETWORK

Bayesian networks form an important part of all types

of machine learning, combining the fields of

probability theory and graph theory to solve problems

of uncertainty and complexity. They are one of the

graphical probabilistic models that allow a compact

representation of the probability distribution of

simultaneous occurrences of controllable events (Lin,

Ke and Tsai, 2015). The advantage of Bayesian

networks is their relative intuitiveness for humans, as

it is easier to understand the direct relationships

between events and local probability distributions

than the resulting probability distributions of multiple

events occurring simultaneously. A Bayesian

network (or causal network) is represented as an

oriented acyclic graph (DAG) (Shapoorifard and

Shamsinejad, 2017). Each node in this graph is a

variable that has certain states. Directional edges in

this graph represent relationships between variables -

if there is a directional edge between two variables,

then one depends on the other. If there is no

relationship between two nodes, this does not mean

that they are completely independent, because they

can be connected through other nodes. However, they

can become dependent or independent depending on

the evidence set on the other nodes. Nodes and

connections build the structure of a Bayesian

network, and is called a structural specification

(Song, 2013). This model consists of several

parameters. The first is the a priori probability of

parent nodes, which do not depend on any states.

INFSEC 2021 - International Scientiﬁc and Practical Conference on Computer and Information Security

164

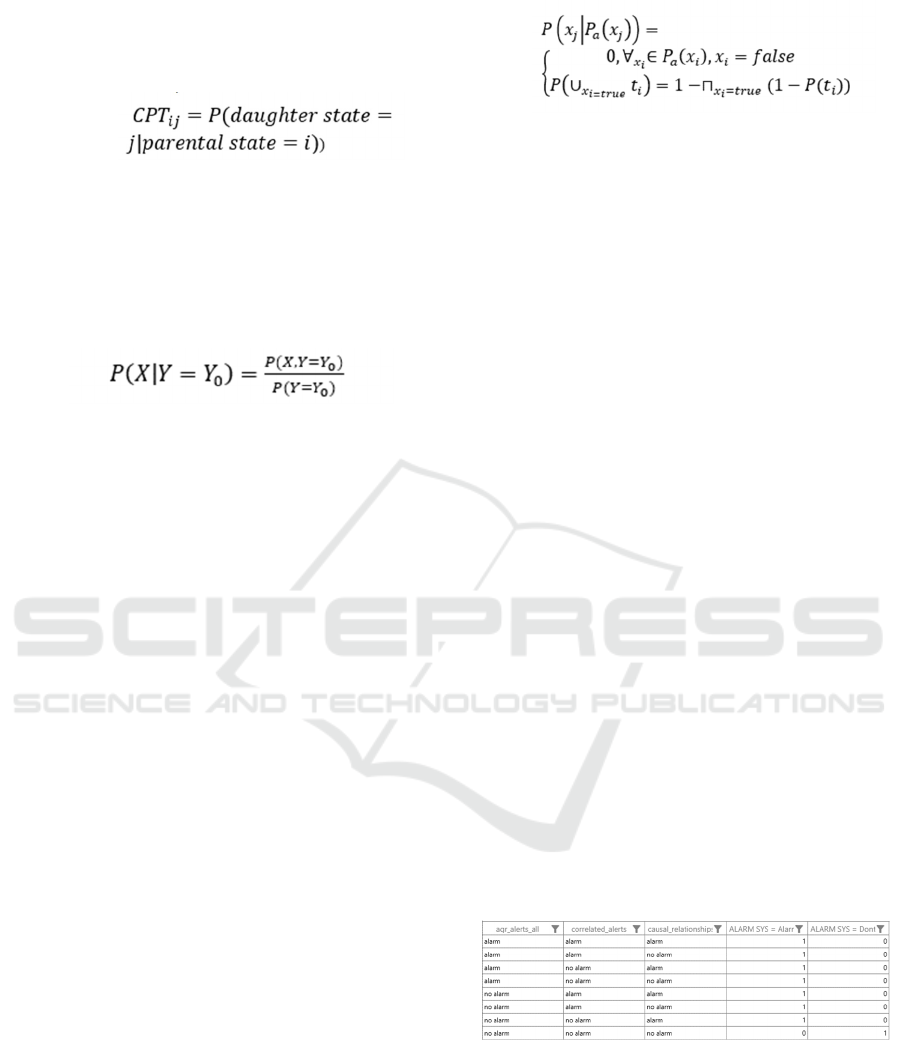

Each child node has a conditional probability table

(CPT), which specifies the prior relationship between

the node and its parent. Each element of the

conditional probability table is defined:

(1)

Some variables may have certain values that were

obtained by observation. Let be the set of observed

variables and 𝑌



- be the corresponding set of values.

Let X be the set of variables we are interested in. The

conclusion is the process of calculating the posterior

probability 𝑃𝑋|𝑌  𝑌



 (Abduvaliyev et al., 2013).

The posterior probability 𝑃𝑋|𝑌  𝑌



 is determined

using:

(2)

In this paper we consider only a finite set 𝑈



𝑋



,…,𝑋





of discrete random variables, where each

variable 𝑋



can take values 0 or 1. In our case, these

random variables will be aggregate warnings or

hyper-warnings. We define that each node in the

causal network has a binary state, i.e., 1 or 0. A value

of 1 represents a warning in the node being raised,

while a value of 0 indicates that it does not. Because

variables are discrete, conditional probability tables

contain the probability that a variable will contain one

of all possible values for each combination of its

parent values. To generate a Bayesian network, causal

relationships and conditional probabilities between

hyper-alerts are required (Butun, Morgera and

Sankar, 2014). Thus, the data from the previous

subsection written in the table will be used

causal_relationships. The procedure for creating a

Bayesian network is shown below. The Bayesian

network creation method accepts three input

parameters: (I) agr_alerts_all, (II) correlated_alerts и

(III) causal_relationships. The result of this process is

a Bayesian hyper-alert network (Ashfaq et al., 2017).

The stages of constructing a Bayesian network are as

follows:

Step 1: For each causal relationship between

hyper-alerts 𝑥



and 𝑥



in the correlated_alerts table, a

directed edge 𝑥



𝑥



is generated..

Step 2: Each node in the Bayesian network has a

conditional probability table (CPT). This table

displays the probability of a node given the values of

its parent nodes (Han et al., 2016). After all edges

were added to the network in step 1, a method was

used to generate a conditional probability table for

each node. This method was introduced in:

(3)

In this function 𝑥



indicates the values of the

variables in the parent nodes 𝑃



𝑥



 𝑥



. The variable

𝑡



denotes a transition that changes the state of the

network from 𝑥



to 𝑥



, where 𝑥



∈𝑃



𝑥



. Using this

formula, each field in the conditional probability table

at node 𝑥



is computed based on the values in the

parent nodes. It follows from this procedure that if all

parent nodes have a value of 0 and no such warnings

have occurred, then the child node cannot receive a

warning either, and the value in the corresponding

field will be 0. This procedure resulted in a Bayesian

network with conditional probability tables due to

different parent states in each node.

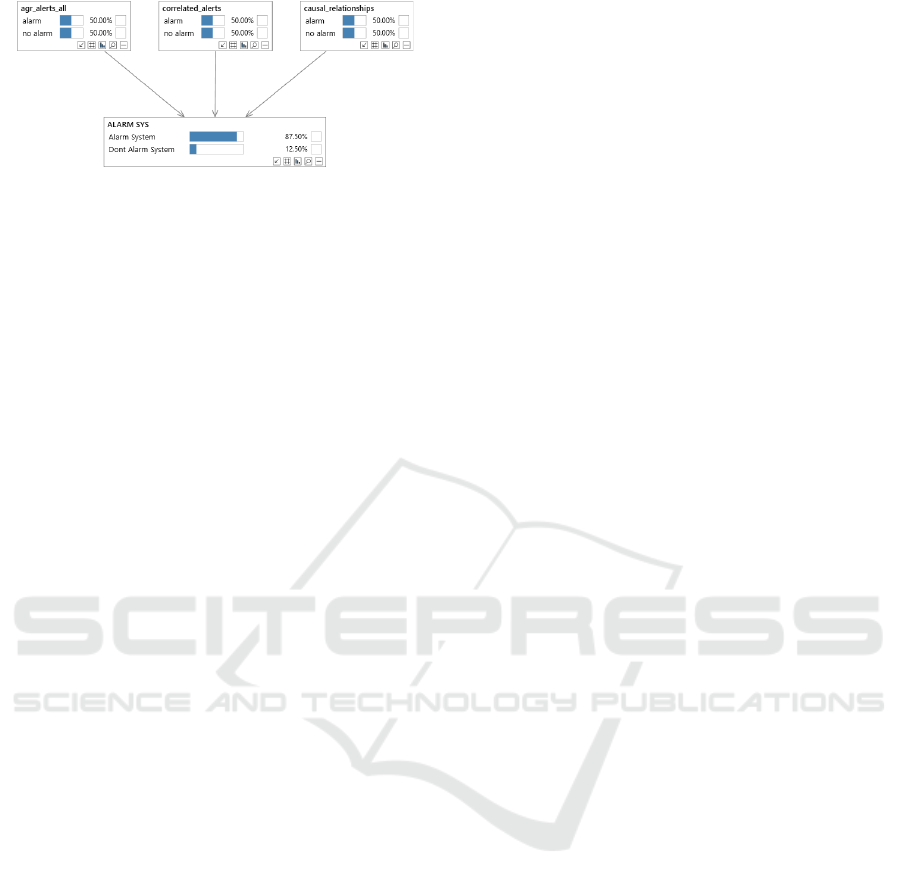

Based on the Bayesian network created, we can

then calculate the probability of a particular warning

occurring given other warnings using Bayesian

inference. After the intrusion system generates one or

more warnings, we can calculate the so-called

posterior probability, which is the probability that any

other condition will occur. With this knowledge, the

system administrator can take precautions to reduce

the risk of a successful cyberattack that would

otherwise cause more damage.

All steps can be represented as a Bayesian Web of

Trust, which can help determine the necessary

calculations to get a confidence value that an attack is

underway and an alert needs to be sent out. Let's take

the raw alert data from one of the modules with a

standard value of 0.5. To calculate the reliability of

data received from modules, we will use the classical

Bayesian trust network construction methodology.

Given that the notification is sent only when there is

a positive signal from each of the modules, let us set

the appropriate values for the matrix. (Figure 1).

Figure 1: Matrix of matching values.

Using a standard probability value of 0.5, we

obtain the following results for the validity of the

entire module network:

A Method for Determining the Credibility of Intrusion Detection based on a Probabilistic Graph Model in the Proactive Protection

Subsystem of the Operational Cybersecurity Center

165

Figure 2: Bayesian trust network 𝑃



𝑋

𝑌𝑌





When using the classical trust network scheme, it

is possible to specify the degree of interaction

between the signals received from the modules. In

this case, if at least one of the modules of the complex

system receives an alert, a hyper-alert is formed for

the specialist. When using the proposed scheme of

processing and alerting, the reliability of the result is

more than 80%.

5 CONCLUSIONS

In the context of cyberspace protection, it is important

to have a reliable and stable mechanisms for detecting

and predicting the likelihood of an attack in a typical

network environment. Varying network

configurations represent different activity profiles

and behavioral attributes of users and software. To

achieve an effective mechanism in this direction, a

cascade of multiple layers of non-linear processing

components is required, which can be useful for

extracting and transforming attributes to interpret

dynamic network profiles. Responding quickly to

security incidents is necessary to minimize the

damage caused by security incidents to the

organization. The primary goal of the organization is

to be as prepared as possible to handle security

incidents, and to prevent them by proactive actions.

Transitioning from reactive approach to proactive one

is currently a challenge in the sphere of cybersecurity

research.

The goal of constructing a Bayesian network was

to develop a model that, based on an attack prediction,

could determine the initial stages of an attack. The

model proposed does not only include the aggregation

of alerts, but also their correlation. We used the

proposed attack model to predict the attack itself. This

research can be extended in the future. There are

several problems left to be solved in the future work.

One of them is the processing and prediction of events

even if there are cycles in the attack graph. This case

is problematic, since many computational models

accounting for acyclic graphs cannot be used.

Therefore, it may be worthwhile to test another

method. For example, using an attack graph

simulation or a hidden Markov model. The second

problem, which this study presents, is the creation of

a complex and complete data set. To our knowledge,

no suitable dataset has been created to date that

emphasizes attacks. Therefore, it is important to form

a dataset that would contain attacks covering all

detectable attack stages.

REFERENCES

Buczak, A. L. and Guven, E. (2016). A survey of data

mining and machine learning methods for cyber

security intrusion detection, IEEE Communications

Surveys & Tutorials, 18(2): 1153-1176.

Akyazi, U. (2014). Possible scenarios and maneuvers for

cyber operational area. In European Conference on

Cyber Warfare and Security, Academic Conferences

International Limited, Greece.

Putjato, M.M. and Makarjan, A.S. (2020).

Kiberbezopasnost' kak neot#emlemyj atribut

mnogourovnevogo zaschischennogo kiberprostranstva.

Prikaspijskij zhurnal: upravlenie i vysokie tehnologii,

3(51): 94-102

Putjato, M.M., Makarjan, A.S., CHerkasov, A.N. and

Gorin, I.G. (2020). Adaptivnaja sistema kompleksnogo

obespechenija bezopasnosti kak jelement infrastruktury

situacionnogo centra. Prikaspijskij zhurnal: upravlenie

i vysokie tehnologii, 4(52): 75-84

Denning, D. E. (2014). Framework and principles for active

cyber defense. Computers & Security, 40: 108-113.

Aissa, N. B. and Guerroumi, M. (2016).Semi-supervised

statistical approach for network anomaly detection.

Procedia Computer Science, 83: 1090-1095.

Kim, G. Lee S. and Kim, S. (2014). A novel hybrid

intrusion detection method integrating anomaly

detection with misuse detection, Expert Systems with

Applications, 41(4): 1690-1700.

Yoo, S. Kim, S., Choudhary, A., Roy, O.P. and Tuithung,

T. (2014). Two-phase malicious web page detection

scheme using misuse and anomaly detection.

International Journal of Reliable Information and

Assurance, 2(1): 1-9.

Rani, M. S. and Xavier, S.B. (2015). A Hybrid Intrusion

Detection System Based on C5. 0 Decision Tree

Algorithm and One-Class SVM with CFA.

International Journal of Innovative Research in

Computer, 3(6): 5526-5537.

Lin, W. C., Ke, S. W. and Tsai, C. F. (2015). CANN: An

intrusion detection system based on combining cluster

centers and nearest neighbors. Knowledge-based

systems, 78: 13-21.

Shapoorifard, H. and Shamsinejad, P. (2017). A Novel

Cluster-based Intrusion Detection Approach

Integrating Multiple Learning Techniques.

International Journal of Computer Applications,

166(3): 13-16.

INFSEC 2021 - International Scientiﬁc and Practical Conference on Computer and Information Security

166

Song, J., Takakura, H., Okabe, Y. and Nakao, K. (2013).

Toward a more practical unsupervised anomaly

detection system. Information Sciences, 231: 4-14.

Abduvaliyev, A., Pathan, A. S. K., Zhou, J., Roman, R. and

Wong, W. C. (2013). On the vital areas of intrusion

detection systems in wireless sensor networks. IEEE

Communications Surveys & Tutorials, 15(3): 1223-

1237.

Butun, I., Morgera S.D. and Sankar, R. (2014). A survey of

intrusion detection systems in wireless sensor networks.

IEEE communications surveys & tutorials, 16(1): 266-

282.

Ashfaq, R. A. R., Wang, X. Z., Huang, J. Z., Abbas, H. and

He, Y. L. (2017). Fuzziness based semi-supervised

learning approach for intrusion detection system.

Information Sciences, 378: 484-497.

Han, Y., Alpcan, T., Chan, J., Leckie, C. and Rubinstein, B.

I. (2016). A game theoretical approach to defend

against co-resident attacks in cloud computing:

Preventing co-residence using semi-supervised

learning. IEEE Transactions on information Forensics

and Security, 11(3): 556-570.

A Method for Determining the Credibility of Intrusion Detection based on a Probabilistic Graph Model in the Proactive Protection

Subsystem of the Operational Cybersecurity Center

167
