A Simulated Annealing based Energy Efﬁcient Task Scheduling

Algorithm for Multi-core Processors

Pratik S. and Abhishek Mishra

Department of Computer Science & Information Systems, Birla Institute of Technology and Science Pilani,

Keywords:

Multi-core Processors, Randomized Algorithm, Scheduling, Simulated Annealing, Task Allocation.

Abstract:

In this paper we propose a Simulated Annealing (SA) based energy-efﬁcient task scheduling algorithm for

multi-core processors, the Simulated Annealing Energy Efﬁcient Task Scheduling Algorithm (SAEETSA), and

compare it with another algorithm, the Energy Efﬁcient Task Scheduling Algorithm (EETSA). Our results show

that for dual-core processors the SAEETSA algorithm is taking up to 16.78% less energy as compared to the

EETSA algorithm, and for tri-core processors, the SAEETSA algorithm is taking up to 26.97% less energy as

compared to the EETSA algorithm.

1 INTRODUCTION

SA is a local search-based meta-heuristic method to

navigate across large search spaces in optimization

problems (Gaspero, 2003), (Kleinberg and Tardos,

2006). It uses a waning probability function to ex-

plore paths that are not locally optimum but may lead

to future global optimum solutions. Other approaches

like steepest hill-climbing, while moving between ad-

jacent points in the solution space, will only move if

the next point corresponds to a better solution. This

is disadvantageous, because possibly the global op-

timum or even a better optimum solution may be

missed. After all, it can be reached by a path in which

a worse solution lies in between the current point and

the better optimum. SA helps to solve this disad-

vantage by not going to a strictly better solution lo-

cally but, by a small probability moves to a slightly

worse solution. This probability depends on the cur-

rent ‘temperature’ which decreases with each itera-

tion by a factor of β. It also depends on the inverse

exponential way of “how much worse” a solution is

compared to the current optimum discovered so far.

Our objective in this paper is to show that SA can sig-

niﬁcantly improve a simple randomized algorithm.

Multi-core processors have different cores which

can run at different speeds. With the increase in

core speeds, power consumption also increases. The

energy-efﬁcient task scheduling problem is to com-

plete the tasks within a given deadline to minimize

energy consumption.

The rest of the paper is organized as follows: sec-

tion 2 gives an overview of some energy-efﬁcient

task scheduling algorithms. Section 3 describes

the SAEETSA algorithm based on (Mishra and Tri-

pathi, 2014b). In sections 4 and 5, we compare the

SAEETSA algorithm with the EETSA algorithm for

dual-core and tri-core processors respectively. We

conclude in section 6.

2 LITERATURE OVERVIEW

Various task scheduling algorithms are proposed in

the literature for minimizing the parallel execution

time of tasks. (P. K. Mishra and Tripathi, 2012b)

compare various task scheduling algorithms. (Mishra

and Mishra, 2016) propose a local search-based task

scheduling algorithm that creates a hybrid of two

task scheduling algorithms and gives better paral-

lel execution time than the individual task schedul-

ing algorithms. (P. K. Mishra and Mishra, 2010)

have proposed a scheduling heuristic using computa-

tion time of tasks and the communication delay be-

tween dependent tasks. (P. K. Mishra and Mishra,

2011) have proposed a dynamic priority task schedul-

ing algorithm. (P. K. Mishra and Tripathi, 2012a)

have used randomization to improve the previous al-

gorithm (P. K. Mishra and Mishra, 2010). (Mishra

and Tripathi, 2011b), (Mishra and Tripathi, 2010)

have proposed a task scheduling algorithm that uses

cluster-dependent priority function and gives less par-

S., P. and Mishra, A.

A Simulated Annealing based Energy Efﬁcient Task Scheduling Algorithm for Multi-core Processors.

DOI: 10.5220/0010625900003063

In Proceedings of the 13th International Joint Conference on Computational Intelligence (IJCCI 2021), pages 81-87

ISBN: 978-989-758-534-0; ISSN: 2184-2825

allel execution time as compared to some well-known

task scheduling algorithms. (A. Mishra and Mishra,

2019) have done performance evaluation of SA-based

task scheduling algorithms by varying its various pa-

rameters.

Various task scheduling algorithms are proposed

in the literature for minimizing the energy consump-

tion of tasks. (Mishra and Tripathi, 2014a) have pro-

posed a pseudo-polynomial time energy-efﬁcient task

scheduling algorithm for a given computation load

and a given deadline on a multi-core processor with

software-controlled dynamic voltage scaling (DVS).

(Mishra and Tripathi, 2014b) have proposed a Monte-

Carlo energy-efﬁcient task scheduling algorithm for a

given set of independent tasks and a given common

deadline on a multi-core processor with software-

controlled DVS. (Mishra and Tripathi, 2011a) have

formulated a problem of energy efﬁcient task schedul-

ing of send-receive task graphs on multiple multi-core

processors with software controlled DVS. (Mishra

and Trivedi, 2020) have done benchmark compar-

ison of the contention aware nature-inspired meta-

heuristic task scheduling algorithms. (S. K. Biswas

and Muhuri, 2018) have proposed energy-efﬁcient

task scheduling algorithms in multiprocessor systems

using archived multi-objective SA. (Y. Yun and Kim,

2019) have proposed an adaptive genetic algorithm

for energy-efﬁcient task scheduling on asymmetric

multiprocessor system-on-chip.

SA is successfully applied to solve scheduling

problems. A recent example of SA based scheduling

algorithm is provided by (K. Haridass and McDon-

ald, 2014). They solve the problem of scheduling a

log transport system using SA.

3 THE SAEETSA ALGORITHM

Before describing the SAEETSA algorithm, ﬁrst we

describe the Energy Efﬁcient Task Scheduling Prob-

lem (EETSP) and the EETSA algorithm (Mishra and

Tripathi, 2014b). We use the same notation of

(Mishra and Tripathi, 2014b). t independent tasks

are given. The task set is {T

| j ∈ [1..t]}. Task T

has computation requirement of c

( j ∈ [1. .t], c

∈

N), given by the set C = {c

| j ∈ [1. .t] }. A com-

mon deadline of D is given (D ∈ N). The task set

| j ∈ [1..t]} has to be scheduled on a multi-core

processor with p cores and q possible discrete speeds

given by the set Q = {s

| i ∈ [1. .q],s

∈ N }. We de-

ﬁne the speed proﬁle of the processor, F = ( f

)

i=1

, to

be the vector such that f

is the number of time slots

in [0, D] in which the cores are running at the speed

of s

. We deﬁne the sleep proﬁle of the processor,

H = (h

)

(k,i)∈[1..p]×[1..q]

, to be the matrix such that h

is the number of time slots for s

on the k’th core that

are sleeping. We deﬁne the binary partition matrix of

the task set, G = (G

k j

)

(k, j)∈[1..p]×[1..t]

, to be the ma-

trix such that g

k j

= 1 if and only if the the task T

is allocated on the k’th core (otherwise it is 0). The

multi-core processor has software controlled per-chip

DVS. By per-chip DVS we mean that we can only

change the speed of all cores simultaneously (not in-

dividually). If the speed of the multi-core processor

is s

, then either a core will run at the speed of s

, or

it will be in a sleep state (speed = 0). Power con-

sumption of a core running at a speed of s is given by

P(s) = αs

, where α is a constant. Energy consump-

tion by a core running at a speed of s during τ units

of time is given by E(s,τ) = P(s)τ. A core running at

a speed of s can perform a maximum of c = sτ units

of computation during τ units of time. We assume

that the DVS software can change the speed of the

multi-core processor at periodic checkpoints given by

δτ = 1 (at the start of each unit time interval). The

EETSP problem is to ﬁnd an allocation of tasks to the

cores, speed of the multi-core processor at each unit

of time in [0, D], and for each core the unit time in-

tervals in which it is sleeping, so that the energy con-

sumption of the tasks is minimized, and also each task

is ﬁnished within the given deadline of D. (Mishra

and Tripathi, 2014b) have formulated an integer lin-

ear program (ILP) for the EETSP problem (equations

(6) − (8), and (11) − (16) in (Mishra and Tripathi,

2014b)).

Now we describe the EETSA algorithm for solv-

ing the EETSP problem as given in (Mishra and Tri-

pathi, 2014b). The EETSA algorithm is a Monte-

Carlo algorithm. It takes as input (m, n,t,C,Q,D),

where m and n are integer parameters. The EETSA

algorithm is divided into three parts. The ﬁrst part

is lined 01 to 27 in (Mishra and Tripathi, 2014b) in

which we make m attempts using randomization to

ﬁnd a feasible solution of the ILP. The second part

is lined 28 to 44 in (Mishra and Tripathi, 2014b) in

which we make n attempts using randomization to re-

duce the energy consumption for the case when the

ﬁrst part of the algorithm succeeds in ﬁnding a feasi-

ble solution of the ILP (otherwise we return “NO SO-

LUTION” which may be a wrong output). This en-

ergy reduction assumes that no core is sleeping. The

third part is lined 45 to 50 in (Mishra and Tripathi,

2014b) in which we further try to reduce the energy

consumption by assuming that some cores can sleep.

Similar to the EETSA algorithm, SAEETSA al-

gorithm also takes (m,n,t,C,Q,D) as input param-

eters, and it is also divided into three parts. First

part of the SAEETSA algorithm is lines 1 to 4. It

ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications

Algorithm 1: The SIMULATED-ANNEALING-ENERGY-

EFFICIENT-TASK-SCHEDULING-ALGORITHM.

1: procedure SAEETSA(m, n, t, C, Q, D)

2: Use part 1 of the EETSA algorithm (lines 01 to

25 of the EETSA algorithm in (Mishra and Tripathi,

2014b)) to ﬁnd a feasible solution (F,G,H) of the

ILP by making m randomization steps.

3: if step 01 fails to ﬁnd a feasible solution of ILP

then

4: return NO SOLUTION

5: else

6: b ← dt/ne

7: E

← α

∑

k=1

∑

i=1

( f

− h

)

8: (A,F

) ← (O

1×p

,F,G,H)

9: for j ← 1, t do

10: for k ← 1, p do

11: a

← a

+ c

k j

12: end for

13: end for

14: for r ← 1,n do

15: F

← F

16: for v ← 1,b do

17: RANDOM-SELECT (1, D,F)

18: M ←

∑

i=1

19: r ← RANDOM (0,1)

20: E ← α

∑

k=1

∑

i=1

( f

− h

)

21: if ∧

k=1

≤ M) then

22: if (E ≤ E

) ∨ (r ≤ e

−(E−E

)/T

)

then  T is the SA temperature

23: (E

) ← (E,F,G, H)

24: else

25: F ← F

26: end if

27: end if

28: end for

29: T ← T β  β is the SA cooling schedule

30: end for

31: L ← O

1×q

32: for k ← 1, p do

33: E

← α

∑

i=1

( f

− h

)

34: end for

35: for all L ∈ {L | (L ≥ O

1×q

) ∧ (L ≤ F)} do

36: for k ← 1, p do

37: if

∑

i=1

( f

− l

) ≥ a

then

38: E

← α

∑

i=1

( f

− h

)

39: if (E

≤ E

) then

40: (E

) ← (E

,L)

41: end if

42: end if

43: end for

44: end for

45: E

←

∑

k=1

46: (F

) ← (F,G)

47: H

← (H

)

k=1

48: return (E

)

49: end if

50: end procedure

is identical to the ﬁrst part of the EETSA algorithm

(Mishra and Tripathi, 2014b). The difference between

the two algorithms is in the second part (steps 5 to

30) and the third part (steps 31 to 50). In the sec-

ond part of the SAEETSA algorithm (reducing the

energy consumption from feasible solution of the ﬁrst

part assuming that no cores can sleep), steps 5 to 18

of the SAEETSA algorithm is identical to steps 28

to 39 of the EETSA algorithm (Mishra and Tripathi,

2014b). The difference between the two algorithms

is in steps 19 to 30 of the SAEETSA algorithm, and

steps 35 to 44 of the EETSA algorithm (Mishra and

Tripathi, 2014b). In steps 40 to 44 of the EETSA al-

gorithm (Mishra and Tripathi, 2014b), we follow the

greedy approach. We make n randomization steps

in which we modify F and try to get a feasible so-

lution. If the energy is minimized, then this F be-

comes the current F, and we repeat the same pro-

cess for total n number of times. In steps 14 to 30

of the SAEETSA algorithm, we make n attempts for

decreasing the energy consumption. In each attempt,

we modify F in step 17 in hope of ﬁnding a lower

energy value using local neighborhood search using

the function RANDOM-SELECT (1,D,F). The func-

tion RANDOM-SELECT (1,D,F) ﬁrst randomly se-

lects two time slots in [1,D]. It then applies the neigh-

borhood function n(F) to the selected time slots. The

neighborhood n(F) of F is deﬁned as follows: n(F) =

| ∃( j,k), such that ∀i 6= k, j, f

= f

and f

+ f

}. For example, (1,2,3,4) ∈ n(1,2,4,3), but

(1,2, 3,4) /∈ n(1,2,3,5). If the energy value is lower,

then the modiﬁed F becomes the current F (steps

22 and 23), and we repeat the process. However, if

we get a higher energy value, then with probability

−(E−E

)/T

, the modiﬁed F becomes the current F

(steps 19, 22 and 23) in hope of ﬁnding better solu-

tion some time later (the SA approach). Here E is the

current energy consumption, and E

is the lowest en-

ergy consumption found so far. T is the temperature.

In each iteration we update the temperature by a con-

stant factor β (step 29 is the cooling schedule). We

may initialize T = 15 and β = 0.9 which experimen-

tally give the best results.

The third part of the SAEETSA algorithm (steps

31 to 49: further reducing the energy consumption by

assuming that some cores can independently sleep) is

an optimization of the third part of the EETSA algo-

rithm (steps 45 to 50 in (Mishra and Tripathi, 2014b)).

The third part of the EETSA algorithm has a for all

loop in step 45 in (Mishra and Tripathi, 2014b). It

involves energy evaluation corresponding to all possi-

ble values of a p ×q matrix H, contributing a factor of

in the complexity expression. This is per-chip op-

timization. Equivalently, we have done per-core opti-

A Simulated Annealing based Energy Efﬁcient Task Scheduling Algorithm for Multi-core Processors

mization in the third part of the SAEETSA algorithm

(the for all loop in step 35). This reduces the com-

plexity factor of D

down to pD

. We have used all

possible values of the per-core sleep matrix L in en-

ergy calculation (step 35). We have done energy op-

timization independently for each core (the for loop

of step 36). Now we will prove the optimality of the

third part of the SAEETSA algorithm. Let E

be de-

ﬁned as the energy consumed by core k (step 33). The

total energy consumed E is given by the equation in

step 45 (E =

∑

k=1

After having designated F for an iteration of

EETSA, it is easy to prove that E is optimal (i.e. least)

across assignments of H (Mishra and Tripathi, 2014b)

if and only if E

is optimal for each k. Note that E

can be optimized separately for each k since E

and E

are independent, k 6= l, since they use different rows

of the sleep matrix H in their evaluation expression.

Consider the ‘only if’ part of the above claim: let’s

say to the contrary that E is least but E

is not least

for some k. Since E

can be replaced by optimal E

This corresponds to a change in some of the values of

row k of the sleep matrix H. Change in this row does

not affect other rows of H and hence other values of

don’t change. This means that by the equation in

step 45, the new energy computed E

is less than E.

But this contradicts our assumption that E is optimal.

Hence we have proved that E

is optimal for each 1 ≤

k ≤ p if E is optimal.

Next, we prove the ‘if’ part which is trivial: by the

equation in step 45, we have that E is least when E

is least for each 1 ≤ k ≤ p.

The above result helps us to reduce the complex-

ity of the SAEETSA algorithm by pruning the search

space of the sleep matrix optimization part. Note that

we don’t have to search through all values of H i.e.

values, we may simply ﬁnd optimal for each core

wherein we have to search through all possible values

of a single row of H only (the L matrix). This reduces

the complexity factor down to pD

, which is a huge

help.

The loop at step 35 runs D

times. The inner loop

(step 36) runs p times. Then the if part at step 37 re-

quires O(q) time. Lines 45 to 48 takes O(pq + pt)

time. This gives the time complexity of the third

part of SAEETSA as O(p(q +t + qD

)). Complexity

of the ﬁrst and second parts of the SAEETSA algo-

rithm is identical to the complexity of the ﬁrst and

second parts of the EETSA algorithm respectively

(Mishra and Tripathi, 2014b). Therefore, the over-

all time complexity of the SAEETSA comes out to be

O(t(mp + q + logt) + pn(t + q) + p(q + t + qD

)).

4 EXPERIMENTAL RESULTS

FOR DUAL-CORE

PROCESSORS

Figures 1 and 2 show the experimental results for

SAEETSA for p = 2 and q = 3,n = 10 with 5 node

task sets and 10 node task sets respectively. The

common deadline for the two cases was ﬁxed at 30

and 50 respectively. SAEETSA algorithm is show-

ing 16.78% and 8.48% average energy optimization

as compared to the EETSA algorithm respectively.

5 EXPERIMENTAL RESULTS

FOR TRI-CORE PROCESSORS

Figures 3 and 4 show the results for SAEETSA for

p = 3 and q = 3,n = 10 with 5 node task sets and

10 node task sets respectively. The common dead-

line for the two cases was ﬁxed at 30 and 50 respec-

tively. SAEETSA algorithm is showing 26.97% and

8.82% average energy optimization as compared to

the EETSA algorithm respectively.

6 CONCLUSION

The SAEETSA algorithm was an improvement of the

EETSA algorithm of (Mishra and Tripathi, 2014b) us-

ing SA with reduced time complexity. Our exper-

imental results are showing up to 26.97% improve-

ment over the EETSA algorithm. For future work, we

can try to formulate the energy-efﬁcient task schedul-

ing problem of independent tasks with a common

deadline on multiple multi-core processors with task

migration overheads.

ACKNOWLEDGEMENTS

The authors would like to thank the anonymous re-

viewers for their constructive comments in improving

the quality of this paper.

ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications

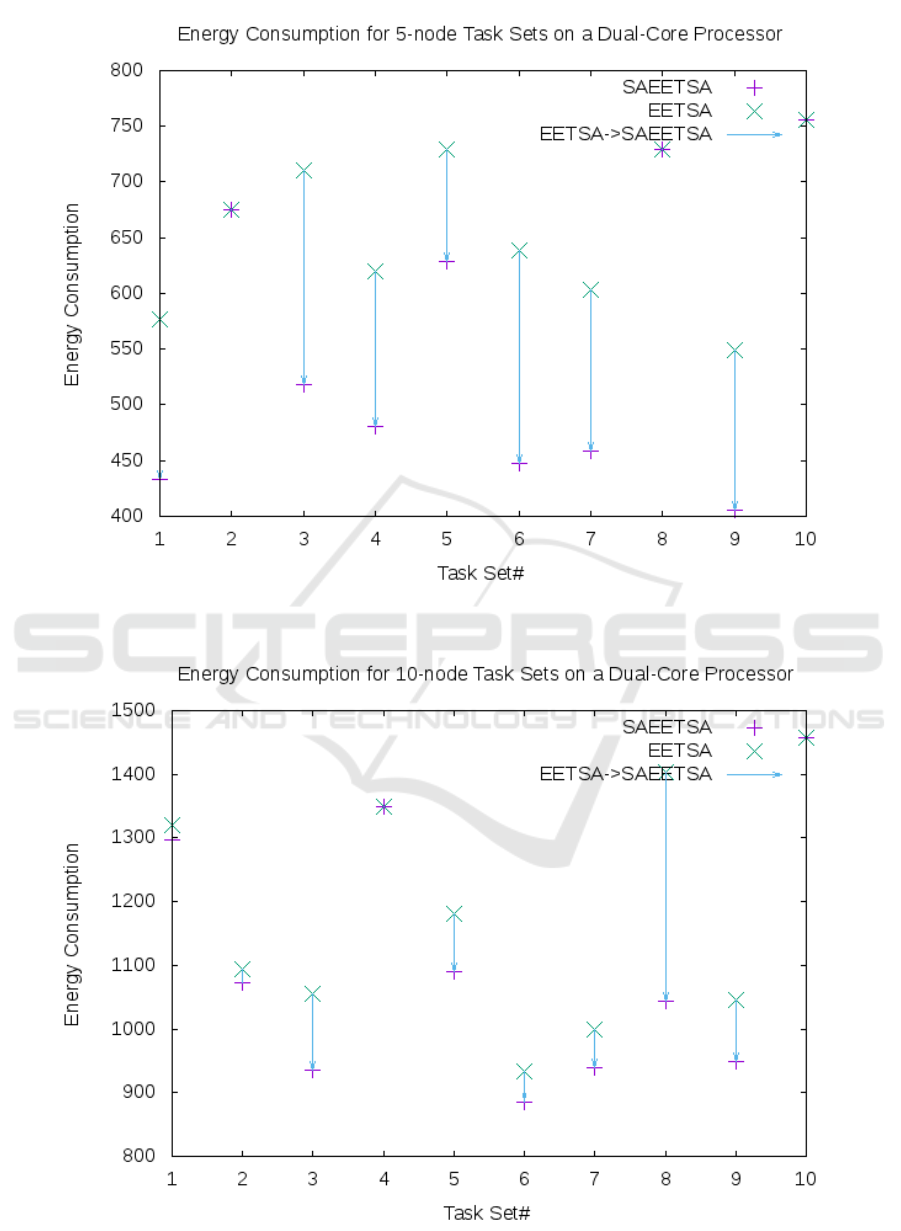

Figure 1: Energy consumption for 5 node task sets on a dual-core processor. The SAEETSA algorithm is consuming 16.78%

less energy as compared to the EETSA algorithm.

Figure 2: Energy consumption for 10 node task sets on a dual-core processor. The SAEETSA algorithm is consuming 8.48%

less energy as compared to the EETSA algorithm.

A Simulated Annealing based Energy Efﬁcient Task Scheduling Algorithm for Multi-core Processors

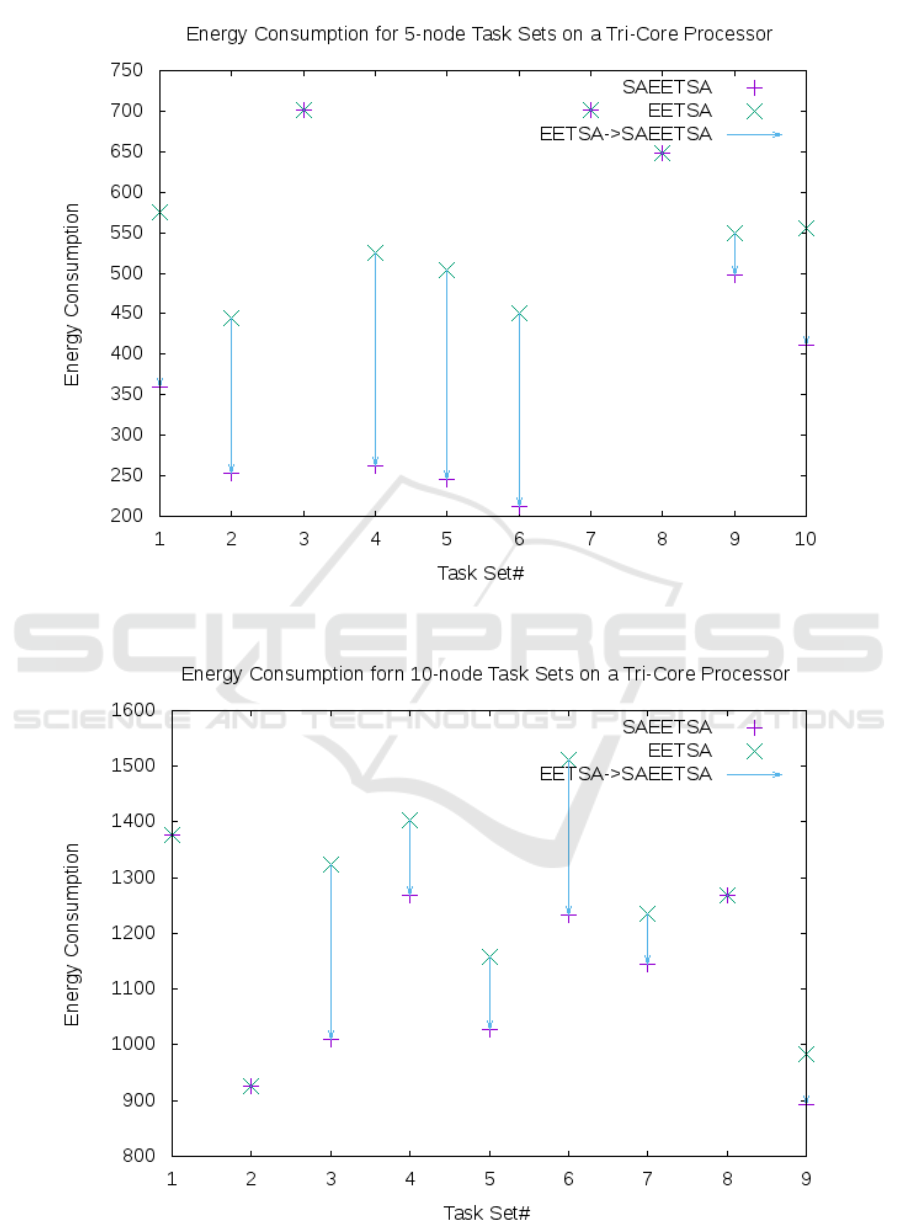

Figure 3: Energy consumption for 5 node task sets on a tri-core processor. The SAEETSA algorithm is consuming 26.97%

less energy as compared to the EETSA algorithm.

Figure 4: Energy consumption for 10 node task sets on a tri-core processor. The SAEETSA algorithm is consuming 8.82%

less energy as compared to the EETSA algorithm.

ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications

REFERENCES

A. Mishra, K. S. M. and Mishra, P. K. (2019). Perfor-

mance evaluation of simulated annealing-based task

scheduling algorithms. In D. Goyal et al. (eds.), In-

formation Management and Machine Intelligence, Al-

gorithms for Intelligent Systems. Springer.

Gaspero, L. D. (2003). Local Search Techniques for

Scheduling Problems: Algorithms and Software Tools.

PhD thesis, Universita degli Study di Udine.

K. Haridass, J. Valenjuela, A. D. Y. and McDonald, T.

(2014). Scheduling a log transport system using simu-

lated annealing. Information Sciences, 264:302–316.

Kleinberg, J. and Tardos, E. (2006). Algorithm Design.

Pearson.

Mishra, A. and Mishra, P. K. (2016). A random-

ized scheduling algorithm for multiprocessor environ-

ments using local search. Parallel Processing Letters,

26(1):1650002.

Mishra, A. and Tripathi, A. K. (2010). An extention of

edge zeroing heuristic for scheduling precedence con-

strained task graphs on parallel systems using cluster

dependent priority scheme. In International Confer-

ence on Computer & Communication Technology (IC-

CCT’10). IEEE.

Mishra, A. and Tripathi, A. K. (2011a). Energy efﬁ-

cient task scheduling of send-receive task graphs on

distributed multi-core processors with software con-

trolled dynamic voltage scaling. International Jour-

nal of Computer Science & Information Technology,

3(2):204–210.

Mishra, A. and Tripathi, A. K. (2011b). An extension of

edge zeroing heuristic for scheduling precedence con-

strained task graphs on parallel systems using clus-

ter dependent priority scheme. Journal of Information

and Computing Science, 6(2):83–96.

Mishra, A. and Tripathi, A. K. (2014a). Energy ef-

ﬁcient voltage scheduling for multi-core processors

with software controlled dynamic voltage scaling. Ap-

plied Mathematical Modelling, 38:3456–3466.

Mishra, A. and Tripathi, A. K. (2014b). A monte carlo al-

gorithm for real time task scheduling on multi-core

processors with software controlled dynamic voltage

scaling. Applied Mathematical Modelling, 38:1929–

1947.

Mishra, A. and Trivedi, P. (2020). Benchmarking

the contention aware nature inspired metaheuristic

task scheduling algorithms. Cluster Computing,

23(2):537–553.

P. K. Mishra, K. S. Mishra, A. M. and Tripathi, A. K.

(2012a). A randomized scheduling algorithm for mul-

tiprocessor environments. Parallel Processing Letters,

22(4):1250015.

P. K. Mishra, K. S. M. and Mishra, A. (2010). A clustering

heuristic for multiprocessor environments using com-

putation and communication loads of modules. Inter-

national Journal of Computer Science & Information

Technology, 2(5):170–182.

P. K. Mishra, K. S. M. and Mishra, A. (2011). A clustering

algorithm for multiprocessor environments using dy-

namic priorities of modules. Annales Mathematicae

et Informaticae, 38:99–110.

P. K. Mishra, A. Mishra, K. S. M. and Tripathi, A. K.

(2012b). Benchmarking the clustering algorithms

for multiprocessor environments using dynamic pri-

ority of modules. Applied Mathematical Modelling,

36:6243–6263.

S. K. Biswas, R. J. and Muhuri, P. K. (2018). Energy

efﬁcient scheduling in multiprocessor systems using

archived multi-objective simulated annealing. In 2018

IEEE Congress on Evolutionary Computation (CEC).

IEEE.

Y. Yun, E. J. H. and Kim, Y. H. (2019). Adaptive genetic al-

gorithm for energy-efﬁcient task scheduling on asym-

metric multiprocessor system-on-chip. Microproces-

sors and Microsystems, 66:19–30.

A Simulated Annealing based Energy Efﬁcient Task Scheduling Algorithm for Multi-core Processors
