The Dynamic Role Mining Problem: Role Mining in Dynamically
Changing Business Environments
Simon Anderer
1
, Tobias Kempter
1
, Bernd Scheuermann
1
and Sanaz Mostaghim
2
1
Faculty of Management Science and Engineering, Hochschule Karlsruhe, Moltkestrasse 30, Karlsruhe, Germany
2
Institute for Intelligent Cooperating Systems, Otto-von-Guericke Universit
¨
at, Magdeburg, Germany
Keywords:
Role Based Access Control, Dynamic Role Mining Problem, Dynamic Evolutionary Algorithm.
Abstract:
Role Based Access Control is one of the most frequently used concepts for authorization management in
today’s business landscapes. The corresponding optimization problem, the so-called Role Mining Problem
(RMP), which was shown to be NP-complete, relies in finding a minimal set of roles and a corresponding as-
signment of those roles to users based on a static user permission assignment. However, as job duties, positions
and responsibilities of users in companies constantly change, the corresponding user permission assignment
is also subject to changes. Thus, the RMP in its present form has to be extended by dynamically occurring
events, representing the changes in business environments. This paper defines the Dynamic Role Mining Prob-
lem (DynRMP) and presents the most relevant events from business perspective as well as their algorithmic
implications for the RMP. Furthermore, several methods to include those events into the framework of an evo-
lutionary algorithm, which is a suitable solution strategy for the RMP, are presented and evaluated in a range
of experiments.
1 INTRODUCTION
Role Based Access Control (RBAC) is nowadays one
of the widest spread means to avoid erroneous and
fraudulent behavior of users in collaborative systems.
This is of utmost relevance, since errors and frauds
constitute one of the main sources of preventable fi-
nancial or other damage in enterprises and other orga-
nizations (Verizon, 2019). At this, the access rights
of users are restricted so that they can only access
content and perform actions, which are required to
perform the tasks of their work. In contrast to other
access control models, RBAC groups permissions to
so-called roles which are then assigned to the corre-
sponding users (Sandhu et al., 1996). Especially in
large companies or organizations, where direct user-
permission assignments can turn out to be quite in-
comprehensible due to the large number of users and
permissions, this approach leads to a substantial re-
duction of complexity and thus administrative costs.
In the past, role-engineering, which comprises the
definition of roles and their assignment to users, was
often realized in consultant projects (top-down) last-
ing months or even years, since they require thorough
analysis of organization structures and business pro-
cesses (Gallaher et al., 2002). In recent years, how-
ever, the bottom-up approach, where roles are derived
automatically from the prevailing user-permission as-
signment of the considered organization or enter-
prise, has become increasingly popular (Mitra et al.,
2016). The corresponding optimization problem is
called the Role Mining Problem (RMP) and is NP-
complete (Vaidya et al., 2007). At this, the under-
lying user-permission assignments are assumed to re-
main the same during the whole optimization process.
However, companies are not static, but they change
constantly. Employees change positions and depart-
ments, join or leave the company. These occurrences
have an impact on a company’s IT systems, because
users are assigned different permissions depending on
their job position. Thus, if role mining software is
used in a company, it must be ensured that it reacts to
relevant changes as quickly as possible, since an out-
dated role concept harbors security risks and leads to
costs due to additional maintenance effort.
The aim of this paper is to present events, that re-
flect the dynamically changing business environments
of companies and their integration into a formerly
static evolutionary algorithm. Especially, in case a
new user is joining the company, different role as-
signment strategies are presented and evaluated. On
the one hand, one new role could be created for each
Anderer, S., Kempter, T., Scheuermann, B. and Mostaghim, S.
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments.
DOI: 10.5220/0010654000003063
In Proceedings of the 13th International Joint Conference on Computational Intelligence (IJCCI 2021), pages 37-48
ISBN: 978-989-758-534-0; ISSN: 2184-3236
Copyright © 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)
37

new user, containing all of the new user’s permissions
and then included it into the optimization process. On
the other hand, it might be reasonable to first provide
the new user with all roles, whose permissions are a
subset of the new user’s permission set or with only a
selection of those roles, based on a greedy approach,
or other key figures of the available roles, before cre-
ating a new role. In addition, dynamic role mining is
experimentally compared with a static approach in or-
der to show its strength in relation to the presented dy-
namically occurring events in business environments.
The remainder of this paper is organized as fol-
lows. Section 2 introduces to the Role Mining Prob-
lem and dynamic optimization problems in general
and, building on that, derives a definition of the Dy-
namic Role Mining Problem. Section 3 presents an
overview of previously published approaches consid-
ering the Role Mining Problem. In Section 4 and 5,
the algorithmic consequences of the presented events
are described and different role assignment strategies
are presented. Section 6 presents the evaluation re-
sults of the experiments performed. Section 7 con-
cludes the paper and presents paths for future re-
search.
2 PROBLEM DESCRIPTION
This section introduces to the Basic Role Mining
Problem and dynamic optimization problems. Based
on that the Dynamic Role Mining Problem is defined.
2.1 The Role Mining Problem
The Role Mining Problem was firstly defined by
Vaidya, Atluri and Guo in 2007 as minimum biclique
cover problem (Vaidya et al., 2007). In contrast to
that, this paper introduces the RMP as binary matrix
decomposition problem (cf. (Anderer et al., 2020)),
using the following definitions:
• U = {u
1
, u
2
, ..., u
m
} a set of m = |U| users
• P = {p
1
, p
2
, ..., p
n
} a set of n = |P| permissions
• R = {r
1
, r
2
, ..., r
k
} a set of k = |R| roles
• UPA ∈ {0, 1}
m×n
the user-permission assignment
matrix, where UPA
i j
= 1 implies, that permission
p
j
is assigned to user u
i
• UA ∈ {0, 1}
m×k
the user-role assignment matrix,
where UA
i j
= 1 implies, that role r
j
is assigned to
user u
i
• PA ∈ {0, 1}
k×n
the role-permission assignment
matrix, where PA
i j
= 1 implies, that role r
i
con-
tains permission p
j
.
Based on these definitions, the Basic Role Min-
ing Problem can now be described: Given a set of
users U, a set of permissions P and a user-permission
assignment UPA, find a minimal set of Roles R, a
corresponding user-role assignment UA and a role-
permission assignment PA, such that each user has
exactly the set of permissions granted by the UPA ma-
trix.
RMP =
(
min |R|
s.t.,
k
UPA −UA ⊗ PA
k
1
= 0.
)
(1)
where
k
.
k
1
denotes the L
1
-norm for matrices and ⊗
the Boolean Matrix Multiplication:
(UA ⊗ PA)
i j
=
k
_
l=1
(UA
il
∧ PA
l j
).

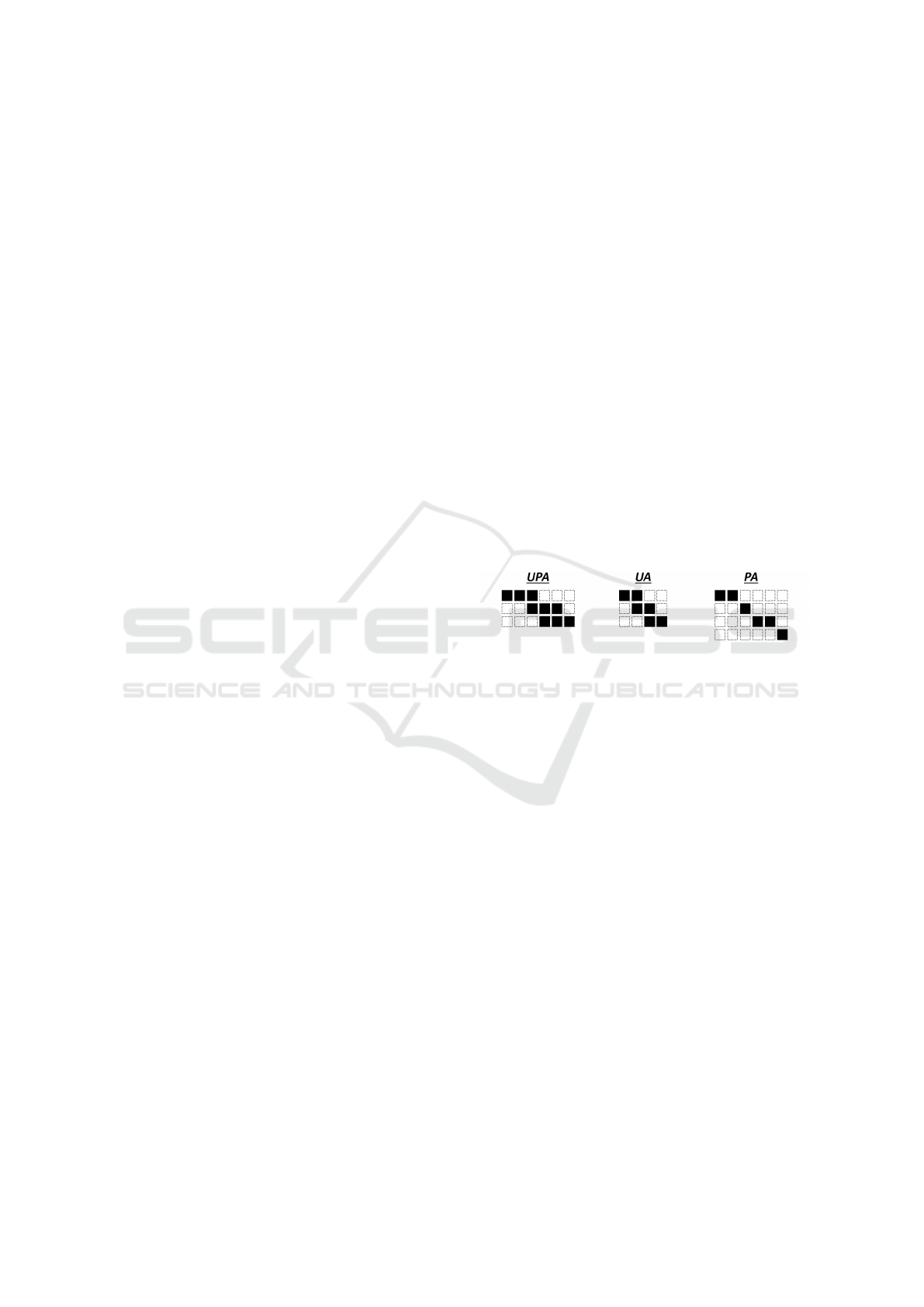

Figure 1 shows an example of the schematic rep-
resentation of the U PA, UA and PA matrix, as used
throughout the remainder of the paper to illustrate the
developed methods and results. The matrices in the
figure are based on 3 users, 6 permissions and 4 roles.
Black cells indicate 1’s, white cells represent 0’s.
Figure 1: Schematic representation of the UPA, UA and PA
matrix.
A tuple π :=
h
R, UA, PA
i
can be considered one
possible solution to the underlying RMP. If the con-
straint in (1) is satisfied, the corresponding RBAC so-
lution candidate is denoted 0-consistent.
There are several further variants of the RMP. In
some of them, the 0-consistency-condition is relaxed,
which means that the definition of roles and their as-
signment to users may result in deviations compared
to the original user-permission assignment, possibly
leading to less roles. In addition to the number of
roles and possible deviations, other, more business-
driven factors are often considered. Colantonio et al.,
for instance, consider administrative costs of RBAC
schemes (Colantonio et al., 2008), while Molloy et al.
as well as Xu and Stoller consider their interpretabil-
ity (Molloy et al., 2008), (Xu and Stoller, 2012). A
broad survey of specifications and definitions of dif-
ferent RMP variants is given in (Mitra et al., 2016).
2.2 Dynamic Optimization Problems
Many real-life optimization problems involve aspects
of uncertainty and are subject to constraints or objec-
tive functions that change over time. In tour and route
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
38

planning and the underlying Traveling Salesperson
Problem and Vehicle Routing Problem, for example,
the occurrence of new destinations and orders must be
taken into account to dynamically adapt the calculated
tours and routes to the actual conditions (Guntsch,
2004). In addition, travel time between different des-
tinations can vary based on changing traffic condi-
tions (Anderer et al., 2017). In machine scheduling
problems, it is crucial to react to unforeseen events
like unexpected machine failures, staff shortages, de-
layed material deliveries or urgent changes in cus-
tomer orders (Ouelhadj and Petrovic, 2009), (Anderer
et al., 2018).
In its most general form, a dynamic optimization
problem can be defined as follows (Cruz et al., 2011):
DOP =
(
optimize f (x, t)
s.t., x ∈ F(t) ⊆ S, t ∈ T.
)
where:
• S ∈ R
n
, S is the search space.
• t ∈ T is the time.
• f : S × T → R is the objective function, that
aasigns a numerical value ( f (x, t)) to each pos-
sible solution (x ∈ S) at time t.
• F(t), is the set of feasible solutions x ∈ F(t) ⊆ S
at time t.
3 RELATED WORK
The Role Mining Problem and its different vari-
ants are well-studied problems. Many solution tech-
niques have been applied in the last years. One of
the first role mining tools is ORCA, which obtains
roles by clustering permissions (Schlegelmilch and
Steffens, 2005). Likewise, many other approaches
are based on the permission grouping concept e.g.
(Molloy et al., 2009), (Vaidya et al., 2010). Other
authors map the RMP to different other problems
known in data mining e.g. the Matrix Decompo-
sition Problem (Lu et al., 2008) or the Set Cover
Problem (Huang et al., 2015). Saenko and Kotenko
are the first to apply evolutionary algorithms for role
mining (Saenko and Kotenko, 2011). Subsequently,
this approach of using evolutionary algorithms was
also adopted by (Du and Chang, 2014) and (An-
derer et al., 2020). However, none of the above ap-
proaches have considered the inclusion of dynamic
elements in role mining. One work that comes close
to dynamic role optimization is the consideration of
the RBAC Scheme Reconfiguration Problem (Saenko
and Kotenko, 2017). In addition to the initial user-
permission assignment UPA
0
and a corresponding
RBAC scheme π
0
=
h
R
0
, UA
0
, PA
0
i
, a further user-
permission assignment UPA
1
is considered which re-
flects the authorization status at a later point in time.
The challenge of the RBAC Scheme Reconfiguration
Problem consists in finding matrices ∆UA and ∆PA,
reflecting changes in user-role and role permission as-
signment, such that:
(
min
k
∆UA
k
1
+
k
∆PA
k
1
s.t. (UA
0
⊕ ∆UA) ⊗ (PA
0
⊕ ∆PA) = UPA
1
.
)
However, in this approach, the changes in the user-
permission assignment are aggregated over a certain
period of time and then processed all at once, whereas
dynamic role mining aims at handling these business-
driven events in real time. An overview on dynamic
data mining in general is given by (Du et al., 2016).
4 DYNAMIC ROLE MINING
In order to be able to react to dynamically occurring
changes and events in business environments, these
must be examined in more detail. Therefore, this sec-
tion firstly defines the Dynamic Role Mining Problem
to give a formal framework for dynamic role mining.
Secondly, the dynamically occurring events and cor-
responding event handling methods are described.
4.1 The Dynamic Role Mining Problem
The definition of the Dynamic Role Mining Problem
basically coincides with that of the Basic RMP. How-
ever, in order to represent the dynamic changes in the
business environment, variables must be modeled as
time-dependent. Based on the notations introduced in
Section 2.1 and Section 2.2, the dynamic Role Mining
Problem can be defined as follows:
DynRMP =
(
min |R(t)|
s.t.
k
UPA(t) −UA(t) ⊗ PA(t)
k
1
= 0, t ∈ T.
)
As in the static case, the optimization objective is to
minimize the total number of roles, which coincides
with the number of rows of PA(t) respectively the
number of columns of UA(t). At this, it should be
noted that each user must be assigned exactly the per-
missions that he or she requires as given by UPA(t).
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments
39

4.2 Events and Event Handling
One goal of dynamic optimization is to be able to re-
act to changes as quickly as possible. Therefore, these
should be forwarded to the optimization algorithm, if
possible in real time. One advantage of the dynam-
ically occurring events in role mining consists in the
fact that they provide lead time for the optimization
algorithm. At this, a distinction is made between the
time of the occurrence of the information on the fu-
ture event t
e
i
,1
and the time of the actual occurrence
t
e
i
,2
of event e
i
(see Figure 2).

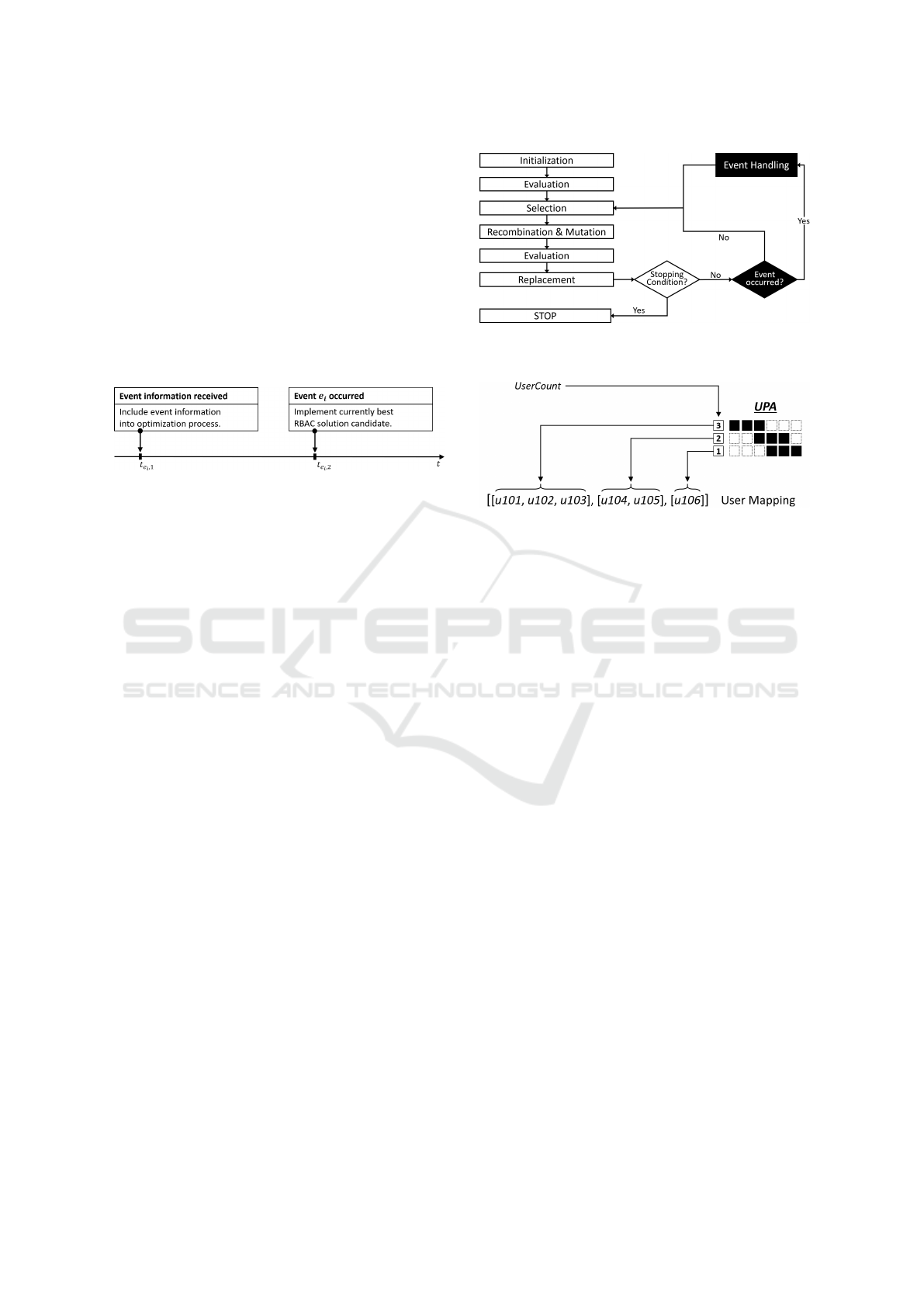

Figure 2: Event occurrence.
This means that the optimization algorithm is usu-
ally informed about the upcoming event before it oc-
curs, such that event information can already be in-
cluded in the optimization process at t
e
i
,1
. At t
e
i
,2
,
simply the currently best RBAC solution candidate
has to be selected and implemented as new authoriza-
tion concept of the company.
In the further course of this chapter, several events,
corresponding event-handling methods and their inte-
gration into an evolutionary algorithm are presented.
To determine if a new event is currently pending, this
is checked at the beginning of each new iteration.
If this is the case, the corresponding event-handling
method is called to adapt the individuals of the current
population of the evolutionary algorithm to the new
conditions of the business environment. Since, the
event-handling methods are independent of the other
methods of the evolutionary algorithm, they can be
included in each evolutionary role mining algorithm.
A schematic representation of the integration of the
event-handling methods into the sequential process of
the evolutionary algorithm is given in Figure 3.
Most companies fill a majority of their positions
at least twice. This is necessary so that employees
can substitute for each other in the event of vacation
or illness. But also in case of employees leaving the
company, the dual staffing of positions prevents hin-
drances in the operational process. From an algorith-
mic perspective, users that have exactly the same set
of permissions can be considered as one row in the
UPA matrix (see Figure 4).
The rows of the UPA matrix therefore no longer
correspond to individual users but to whole classes of
users with the same permission set. In order to be
Figure 3: Integration of the event-handling methods into an
evolutionary algorithm.
Figure 4: Exemplary user mapping.
able to identify all users even after aggregation, each
user is assigned a unique UserID. Subsequently, the
UserIDs corresponding to each user class are stored in
a separate user mapping. For further modeling of the
events, however, only the number of users per class,
plays a role and is therefore added as UserCount to
each row of the UPA (and UA) matrix.
4.2.1 The UserJoinsCompany-Event
Whenever a new employee joins a company, it must
be decided which permissions he or she should re-
ceive. In order for the evolutionary algorithm to pro-
cess this, the UserJoinsCompany-event is triggered,
which includes information on the new user’s permis-
sion set as well as the event times. Based on that, it
can be checked whether the new user has the identical
permission set as any of the already existing users. At
this, two different cases are distinguished:
Case 1: Permission Set of New User Equals Per-
mission Set of Existing User. If the new user cor-
responds to one of the existing users, there is no need
to add a new row to the U PA and UA matrix, as this
user is already assigned the same permissions as the
new user. Thus, simply the corresponding row in the
UPA and UA matrix needs to be identified and the as-
sociated user count has to be increased by one. In ad-
dition, the new user has to be added to corresponding
class of the user mapping. For an example see Figure
5.
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
40

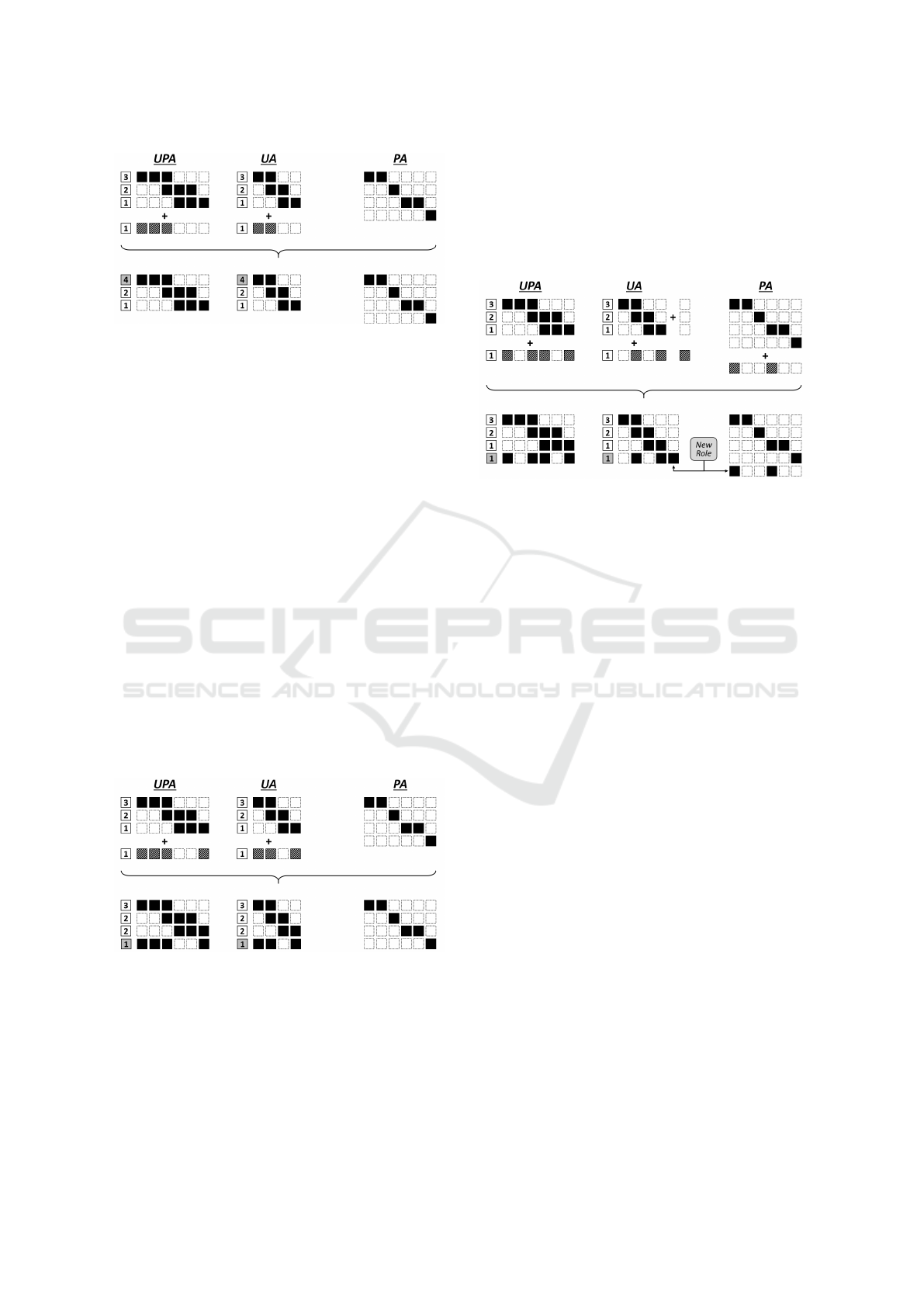

Figure 5: Exemplary handling of UserJoinsCompany-event
Case 1.
Case 2: Permission Set of New User Does Not
Equal Permission Set of Existing User. If the new
user does not correspond to an existing user, at first, a
new row is added to the UPA matrix containing all of
the user’s permissions. Subsequently, it is checked,
whether the new user can be assigned already exist-
ing roles from the PA matrix. Again, two cases can be
distinguished:
Case 2.1: Permission Set of New User Can Be Cov-
ered Completely by Existing Roles. In this case,
existing roles are assigned to the new user in order
to provide him or her with the required permissions.
This can be achieved in several ways. For example,
the user can simply be assigned all roles whose per-
missions form a subset of his or her permission set
(see Figure 6). In contrast to this, a greedy approach
could be applied, such that the roles are evaluated
and ranked in terms of their contribution in covering
user’s permission set. Both of these as well as other
role-assignment methods are described in more detail
in Section 5.
Figure 6: Exemplary handling of UserJoinsCompany-event
Case 2.1.
Case 2.2: Permission Set of New User Cannot Be
Covered Completely by Existing Roles. If not all
of the new user’s permissions can be covered by exist-
ing roles, a new role must be created for this user. This
role can either directly include all of the user’s per-
missions and be the only role assigned to the new user,
or an attempt is first made to cover the user’s permis-
sions set as best as possible using existing roles and
only the remaining permissions are used for the new
role. An example for the second approach is given in
Figure 7. In both cases, this means that the new role
must be added to the PA matrix as additional row as
well as to the UA matrix as additional column.
Figure 7: Exemplary handling of UserJoinsCompany-event
Case 2.2.
4.2.2 The UserLeavesCompany-Event
The UserLeavesCompany-event is in some ways the
opposite of the UserJoinsCompany-event. While a
new user leads to an increase in the number of users
in the user mapping, the departure of a user leads to
a reduction in the number of users. If a new user can
cause the need to create a new role, the departure of a
user may lead to the removal of one or more roles.
As soon as the information about the imminent de-
parture of a user is transmitted, this information can
be included into the optimization process. This means
that the user can be directly deleted from the UPA and
UA matrix but is then written to a so-called Tempo-
raryUserList. This list can be considered a techni-
cal auxiliary tool to ensure users who will leave the
company to access their permissions directly and in-
dependently of the current role concept. In this way,
they can continue to do their work until the day of
their departure, without affecting the further role op-
timization process. Again, two different cases must
be considered:
Case 1: Permission Set of Leaving User Equals
Permission Set of Existing User. This corresponds
to the simplest case of this event. If there are sev-
eral users with the same permission profile, and one
of them is leaving the company, this has no influence
on the UPA, UA and PA matrix. Only the UserCount
and user mapping have to be adjusted in such a way
that the UserID of the affected user is removed. This
does not have any relevant effects on the optimization
process. An example can be found in Figure 8.
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments
41

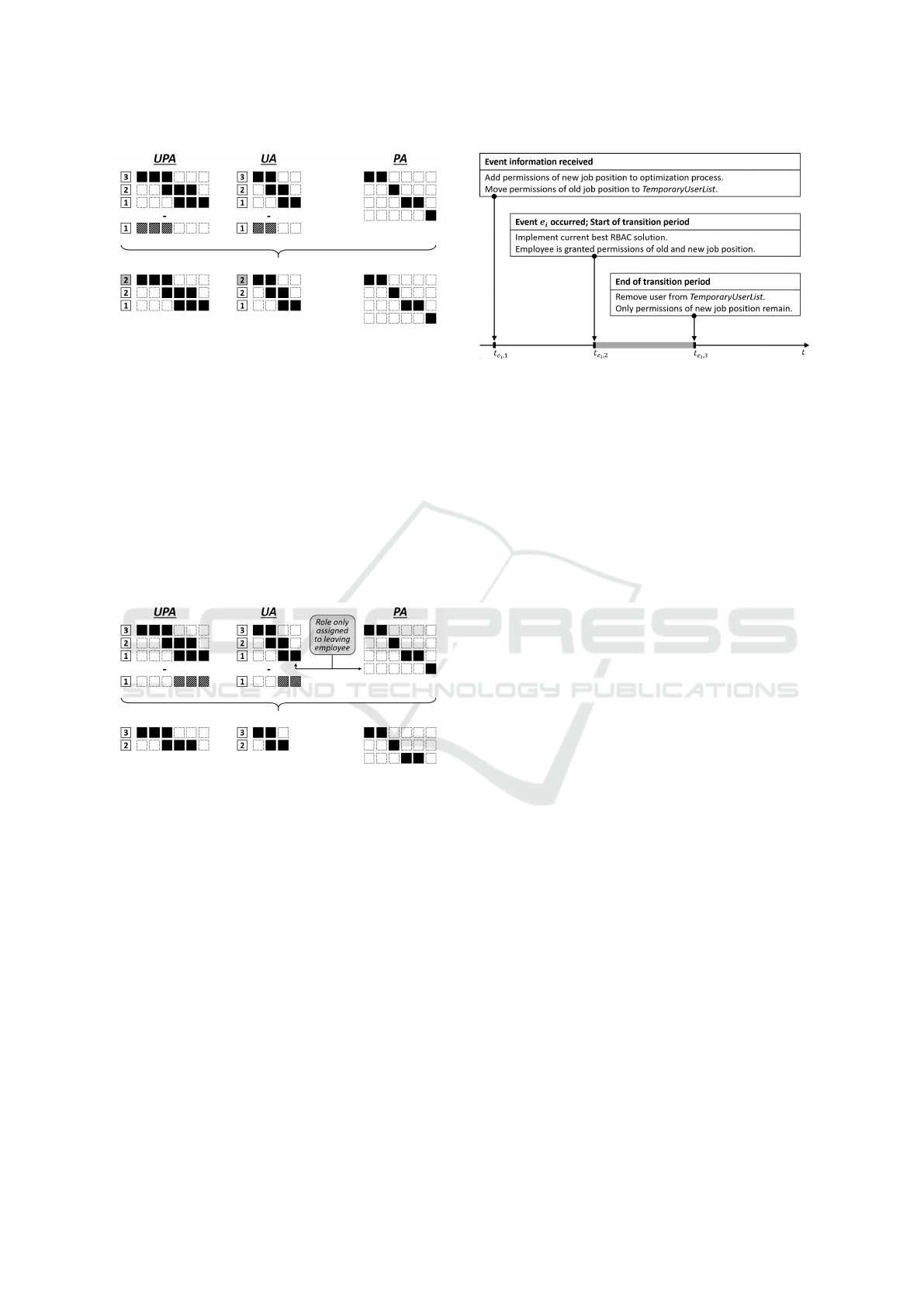

Figure 8: Exemplary handling of UserLeavesCompany-
event Case 1.
Case 2: Permission Set of Leaving User Does Not
Equal Permission Set of Existing User. In case the
leaving user has a unique permission set, there is a
corresponding row in the U PA and UA matrix (with
user count 1), that can now be removed. In addition,
the roles that were assigned to the leaving user must
be reviewed. In case that one of these roles was as-
signed to only the leaving user, it becomes obsolete
and can be deleted from the PA and UA matrix, re-
moving the corresponding matrix row of the PA ma-
trix respectively the corresponding column of the UA
matrix. An example is given in Figure 9.
Figure 9: Exemplary handling of UserLeavesCompany-
event Case 2.
4.2.3 The PositionChange-Event
The change of position of a user takes place within the
context of relocations and promotions. In this context,
it is common for users to continue to complete work
from their previous job position, such that the user is
assigned the permissions of the old and the new po-
sition at the same time during a certain transition pe-
riod. This can lead to compliance conflicts, if the user
is allowed to execute transactions, that may not nor-
mally be controlled by the same person. It is therefore
of highest importance to ensure that the permissions
of the old job position are revoked after the transition
period has expired.
The handling of the PositionChange-Event can be
achieved by applying the event-handling methods of
the two previous events in parallel. As soon as the in-
Figure 10: Schematic handling of PositionChange-event.
formation about the impending change of position be-
comes known, the user concerned will be added to the
optimization process using the methods of the User-
JoinsCompany-event, but with unchanged UserID. At
the same time, the permissions of the old job position
are moved to the TemporaryUserList, using the meth-
ods of the UserLeavesCompany-event (again with un-
changed UserID). This ensures that the permissions,
that the user will hold in his future position, can al-
ready be part of the role optimization process, while
the permissions of the user’s old position lose their
influence on the optimization process immediately.
At the beginning of the transition period, the user is
granted the permissions of the new job position by
the roles obtained from the UA matrix of the currently
best RBAC solution candidate and the permissions of
the old position from the TemporaryUserList. At the
end of the transition period, the user is removed from
the TemporaryUserList such that only the permissions
required for the new job position remain in the user’s
permission set.
4.2.4 The PermissionRequest-Event
The permission request is an event that occurs when
a user realizes that he or she lacks authorizations to
perform the tasks given. In such cases, it must be
possible for users to request missing permissions au-
tonomously. For this purpose, many companies use
the concept of permission requests on which the user
concerned can report which permissions are required
additionally to complete the work. Subsequently, this
is reviewed by a supervisor and either approved or re-
jected. In case of approval, the additional permissions
assigned to the requesting user have immediate im-
pact on the underlying role concept.
Even though a user usually requests only a few
additional permissions, this event can also be pro-
cessed using the mechanisms of the UserJoinsCom-
pany-event. The difference between PermissionRe-
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
42

quest- and the PositionChange-event consists in the
fact that the user should in any case continue to have
the authorizations he already has. In addition, there
is no transition period during which two job posi-
tions are held simultaneously. Therefore, entries on
the TemporaryUserList are not necessary in this case.
5 ROLE ASSIGNMENT
As shown in Section 4, all events can be processed
using the methods of the UserJoinsCompany- and
the UserLeavesCompany-event. However, since the
UserLeavesCompany-event can be implemented in a
straight forward fashion, the main focus of this sec-
tion lies on the UserJoinsCompany-event. Whenever
a new user has a unique permission set, i.e. no user
with the same permissions exists in the UPA matrix
yet, the new user’s permissions must be assigned ei-
ther via the already existing roles of the PA matrix
or via a new role, or sometimes via a combination of
the two (see Section 4.2.1). For this purpose, different
role assignment methods are described in this section.
An evaluation of these methods in the framework of
an evolutionary role mining algorithm is presented in
Section 6.
ORFA - One Role for All. This represents the sim-
plest method to provide the user with permissions
needed. At this, one role is created containing all of
the new user’s permissions and then added as addi-
tional row to the PA matrix and as additional column
to the UA matrix. This is based on the assumption
that the applied role mining algorithm will continue to
optimize the created additional ORFA-roles automati-
cally in the course of the further optimization process.
AAR - Assign All Roles. Since it is possible that
the permission set can completely be covered by the
existing roles of the PA matrix (Case 2.1 of the User-
JoinsCompany-event), it can be reasonable to provide
the user with these roles and thereby prevent the un-
necessary creation of a new role. For this, AAR is a
straight forward method, as it assigns all roles (PA)
j
to the new user which are a subset of the new user’s
permission set (UPA)
m+1
:
n
∑
k=1
UPA
m+1,k
· PA
k, j
=
n
∑
k=1
PA
k, j
(2)
In the case, that not all permission can be covered
by existing roles (Case 2.2 of the UserJoinsCompany-
event), a new role, containing the uncovered permis-
sions of the new user, is created and added to the PA
and UA matrix.
ARR - Assign Random Roles. It may be useful not
to assign all suitable roles to the new user, as it is
possible that the required permissions can already be
covered with fewer roles. Therefore, in addition to the
subset condition (Equation 2), the contribution of the
role to the covering of the remaining permissions of
the new user is also considered. At this, iteratively a
random role is selected. However, this role is only as-
signed to the user if it covers at least one of the user’s
remaining uncovered permissions. In case there is no
role left that has positive contribution, the role assign-
ment procedure is stopped and, if necessary, a new
role with the remaining uncovered permissions of the
new user is created.
GREEDY - Greedy Selection. Sometimes it is de-
sirable to assign as few roles as possible to the new
user. Therefore a GREEDY approach is applied. It
follows basically the same procedure as the method
above. However, the roles are not selected randomly,
but instead in each step the role is assigned to the new
user that provides the greatest contribution to cover-
ing remaining uncovered permissions (and fulfills the
subset condition in Equation 2). Again, if there is no
role left that has positive contribution, the role assign-
ment procedure is stopped and, if necessary, a new
role with the remaining uncovered permissions of the
new user is created.
ABP - Assign by Popularity. The ABP method is
based on the assumption that popular roles are good
roles in terms of minimizing the total number of roles.
Popular in this context means that they are assigned
to many users. The less often a role is assigned to
a user, the more likely it is to be dropped during the
further optimization process. Therefore, in each step,
of all the roles that satisfy the subset condition (2),
the role is assigned to the new user, which has the
highest popularity i.e. is assigned to the largest num-
ber of other users. As for the other methods, if there
is no role left that has positive contribution, the role
assignment procedure is stopped and, if necessary, a
new role with the remaining uncovered permissions
of the new user is created.
ABS - Assign by Similarity. It can be assumed that
the permission set of new users has great similarity
to the permissions of the users from the same area or
division of the company. Thus, ABS is a role assign-
ment method based on the similarity between the new
user and existing users. To determine the similarity
of the permission sets M and N of two users, the Jac-
card coefficient, which is a common measure for the
similarity of sets, is used:
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments
43

Jaccard(M, N) =
|
M ∩ N
|
|
M ∪ N
|
.
Based on this, the new user is iteratively assigned all
roles of the next most similar user, which satisfy the
subset condition (2), until there is no role left with
positive contribution.
6 EVALUATION
In this section, the presented methods are evaluated in
two different test setups. At first, the role-assignment
methods are evaluated. Subsequently, the advantages
of dynamic role mining compared to the implementa-
tion of a static role concept are demonstrated in the
context of a second experiment. As in Section 5,
the main focus here is again on the UserJoinsCom-
pany event. All experiments were conducted on dif-
ferent benchmark instances of RMPlib (Anderer et al.,
2021). Since no other approaches for dynamic role
optimization are known so far, the focus of this sec-
tion is on the evaluation of the role-assignment meth-
ods and the advantages of dynamic optimization.
6.1 The addRole-EA
All evaluated methods were integrated into an exist-
ing evolutionary algorithm for the Role Mining Prob-
lem, the addRole-EA. At this, each individual con-
sists of two binary matrices UA(t) and PA(t). In
each iteration, new roles are added to the individu-
als (Mutation) and existing roles are exchanged be-
tween individuals (Crossover). These are then as-
signed to all users, whose permission set is a superset
of the permissions contained in the roles at the given
time (0-consistency). Subsequently all roles, that be-
came obsolete by the addition of the new roles, are
deleted from the individuals, resulting in a reduction
of the total number of roles, which serves as objec-
tive function of the addRole-EA. The different event-
handling methods are integrated into the optimization
algorithm as described in Section 4 without changing
its general framework. A detailed description of the
addRole-EA is given in (Anderer et al., 2020).
6.2 Evaluation of Role-assignment
Methods
As a basis for the evaluation of the role-
assignment methods, three different benchmark
instances with different numbers of users were
selected (PLAIN small 02, PLAIN small 05 and
PLAIN medium 01). In all three cases, different
numbers of new users were added at the beginning
(Position 1), around the middle (Position 2), and
towards the end (Position 3) of the role optimiza-
tion process (see Figure 11). For this purpose,
the benchmark instances were reduced in size by
randomly selecting a number of users usersAtStart,
that represent the existing employees at the beginning
of the optimizing process. The remaining users then
serve as the basis for dynamically adding new users
during the optimization process.

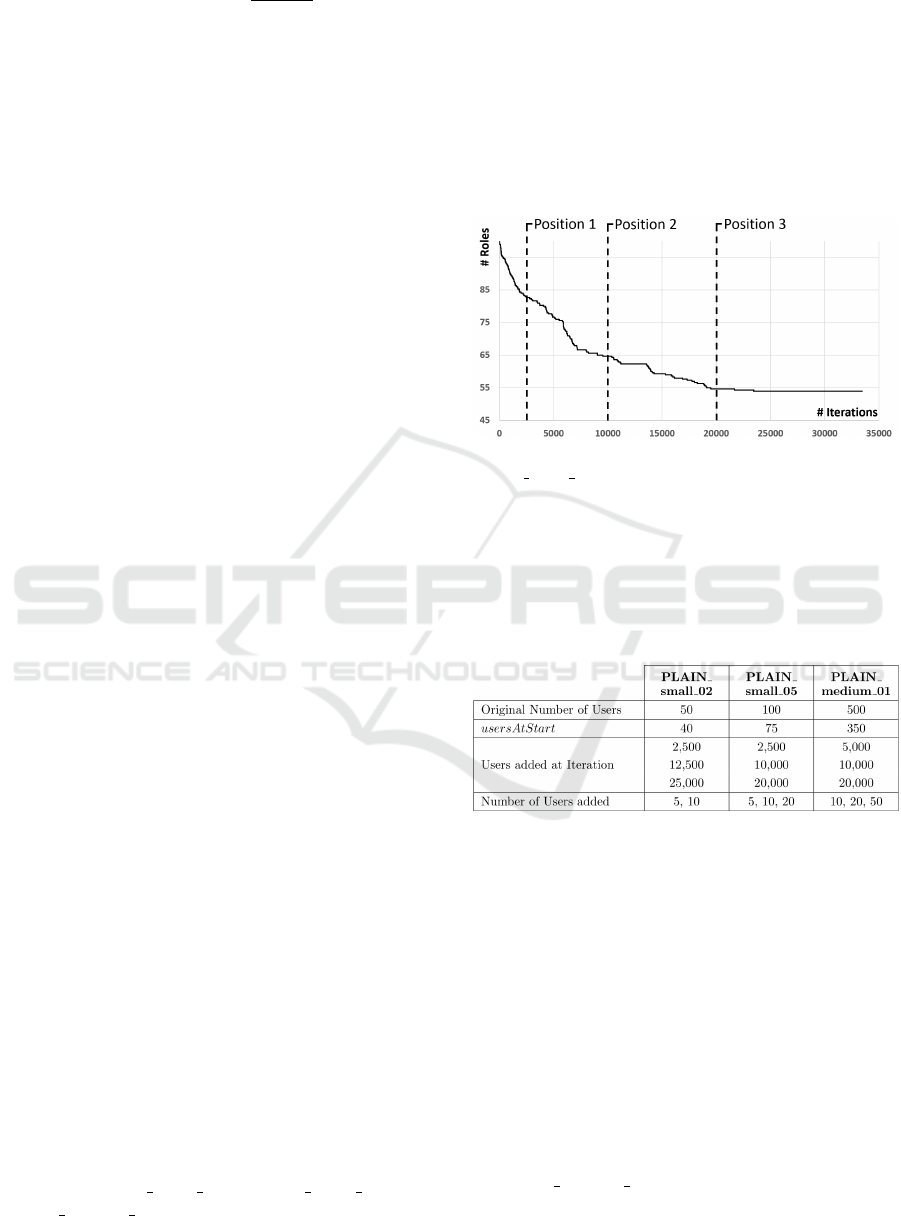

Figure 11: Positions of the adding of users exemplaryly at
PLAIN small 05.
The parameters of the different test setups are
shown in Table 1. At this, the tests were repeated 20
times with different random seeds for each parameter
combination. Results were averaged.
Table 1: Parameter values for the evaluation of role-
assignment methods.
Due to the initial reduction of the benchmark in-
stances, all new users that are added during the op-
timization process correspond to either Case 2.1 or
Case 2.2 of the UserJoinsCompany-event (see Sec-
tion 4). Since Case 1 has no influence on the opti-
mization process from an algorithmic point of view,
the selected evaluation scenario still covers the en-
tire event. Table 2 shows the percentage of new roles
compared to the number of new users. If this equals
0%, no new role had to be created (Case 2.1). If it
equals 100%, one new role had to be created for ev-
ery new user (Case 2.2). The position specifications
refer to the various times at which new roles are added
(see Figure 11 & Table 1). It becomes apparent, that
hardly any new roles need to be created in the case
of PLAIN medium 01 at all three positions. In the
other benchmark instances, the existing set of roles
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
44

can also be used in a considerable number of cases to
completely cover the permissions of a new user.

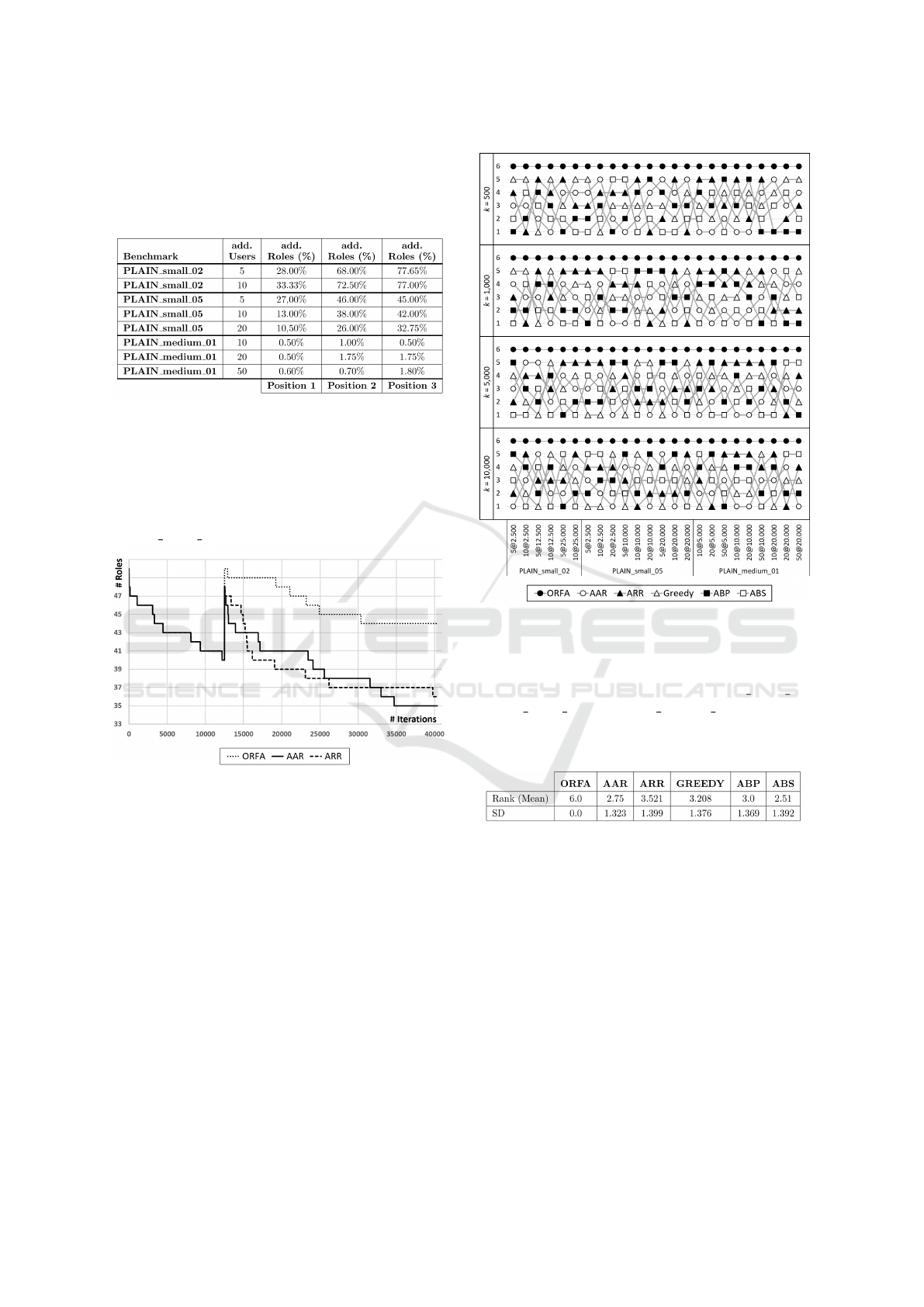

Table 2: Percentual average of new roles in each test sce-
narios.
Across all test scenarios, it turned out that the
ORFA-method performs the worst. In almost all
cases, the added ORFA-roles were reduced at a sig-
nificantly slower rate. In some cases, the added
ORFA-roles could in fact not be further optimized
at all. Figure 12 shows the representative course
of role optimization using ORFA-role -assignment at
PLAIN small 02, adding 10 roles at iteration 12, 500.
Figure 12: Representative course of role optimization with
ORFA compared to ARR and AAR.
For a more detailed comparison of the different
role-assignment methods, the integral over four fixed
iteration intervals (500, 1,000, 5,000 and 10,000 iter-
ations), each starting at the iteration of the arrival of
the new users (Positions 1-3), was calculated, in order
to evaluate the speed of the optimization process sub-
sequent to the addition of the new users depending on
the choice of the role-assignment method:
Z
Position
i
+k
Position
i
r(x
∗
(τ), τ)dτ,
where k ∈ {500, 1000, 5000, 10000} and r(x
∗
(τ), τ)
denotes the number of roles of the best individual
x
∗
(τ) at iteration τ. Subsequently, the different role-
assignment methods were ranked based on the aver-
age integral values over all runs of each test case (Fig-
ure 13).
Figure 13: Ranking of role-assignment methods.
For a more detailed statistic consideration, Table 3
shows the mean values and the standard deviations
of the ranks across all test cases of PLAIN small 02,
PLAIN small 05 and PLAIN medium 01.
Table 3: Mean values and standard deviations of ranks
across all test cases.
This again underlines the poor performance of the
ORFA method (rank 6 of 6 in all test cases).
For the more sophisticated role-assignment methods
(GREEDY, ABP and ABS), the similar mean values
combined with the high standard deviation in each
case suggest, that none of them performs significantly
better than the two straight-forward methods (AAR
and ARR). This shows that, while it is important to
consider the existing roles in handling the UserJoins
Company-event, the choice of method is not a critical
factor.
6.3 Dynamic vs. Static Role Mining
In practice, once a good role concept has been found
and implemented, the contained roles usually remain
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments
45

unchanged over time. However, this static approach
is inflexible and can lead to the unnecessary creation
of roles in case of the UserJoinsCompany-Event. It
may therefore be advisable to consider role mining as
an ongoing dynamic process to be able to consider
the dynamically occurring events in the role mining
process.
In order to examine this more closely, again
new users are added to the reduced benchmark
instances (PLAIN small 02, PLAIN small 05 and
PLAIN medium 01). In the static case, at a certain
point in time, the current best PA matrix (in terms
of the number of roles) and the contained roles are
fixed as PA
static
. From this point on, a certain num-
ber of new users is added at regular iteration intervals
based on a given frequency. Whenever a new user
joins the company, it is checked, whether his or her
permission set can be covered by the roles contained
in PA
static
(Case 2.1 of the UserJoinsCompany-event).
If this is not the case, a new role containing the uncov-
ered permissions is created as in Case 2.2 and added
to PA
static
. In the dynamic case, the new user is in-
tegrated into the optimization process via the event
UserJoinsCompany (see Section 4). Since no role as-
signment method has proven to be particularly perfor-
mant, the ARR-method is used exemplarily. The pa-
rameters underlying the different test cases are shown
in Table 4. Each test setup was repeated 20 times with
different random seeds. Results were averaged.

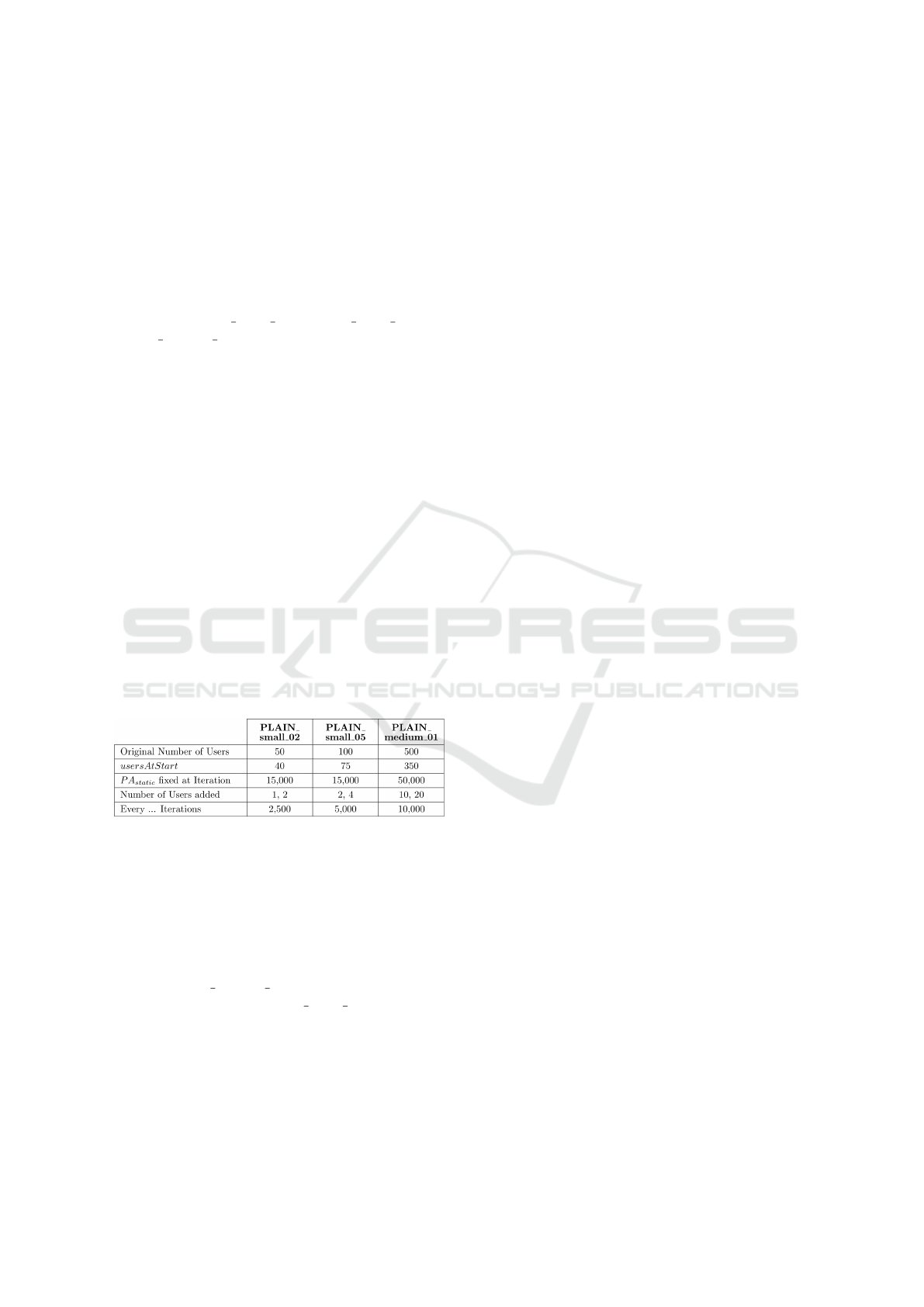

Table 4: Parameter values for the evaluation of role-
assignment methods.
The final average results of all test cases are shown
in Figure 14. In all test cases, it is evident that dy-
namic role optimization produces significantly fewer
roles. While the new roles are simply added in the
static case (staircase-shaped curve), the curve associ-
ated with dynamic optimization also increases at the
corresponding positions, but then drops again signif-
icantly. At this, the average reduction ranges from
4.63% (PLAIN
medium 01, 20 users every 10, 000
iterations) to 11.60% (PLAIN small 02, 2 users ev-
ery 2, 500 iterations) compared to the static approach.
This is due to the fact that during dynamic role op-
timization, already existing roles, which are adapted
to the current user structure, can be modified in such
a way, that they can also be assigned to the joining
users.
7 CONCLUSION AND FUTURE
WORKS
This paper presented the Dynamic RMP as exten-
sion to the well-known Role Mining Problem in-
cluding the consideration of dynamically changing
business environments. Four different event types,
comprising new employees joining the company, em-
ployees leaving the company, position changes and
permission requests, are presented and correspond-
ing event-handling methods are described. Espe-
cially for the UserJoinsCompany-event different role-
assignment methods are presented and evaluated. At
this, it became apparent, that it is more effective to
build on the existing roles at the time of the new em-
ployee’s company entry, rather than creating a sepa-
rate role for each new employee (ORFA). One possi-
ble reason could be the role structure underlying the
benchmark instances of RMPlib. In real-world sce-
narios, where it can be assumed that new and exist-
ing users are more similar, especially the ABS-method
could achieve better results. Furthermore, it is possi-
ble that the chosen evolutionary algorithm, in which
the methods were embedded, had impact on the evalu-
ation results. Hence, all methods should be examined
in the context of other role mining algorithms.
In addition, initial experiments were conducted to
distinguish between static and dynamic role mining,
showing that the inclusion of the dynamically occur-
ring events into the optimization process results in a
substantial reduction of roles. This needs to be inves-
tigated in more detail in the future. In particular, the
frequency and number of the added users as well as
the correlation to the selected role-assignment method
are of great interest in this context.
Moreover, since the role mining problem is of
great practical relevance, it is desirable to apply and
examine the developed methods, in particular includ-
ing the event-handling methods for all of the de-
scribed events, in real-life business use-cases.
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
46

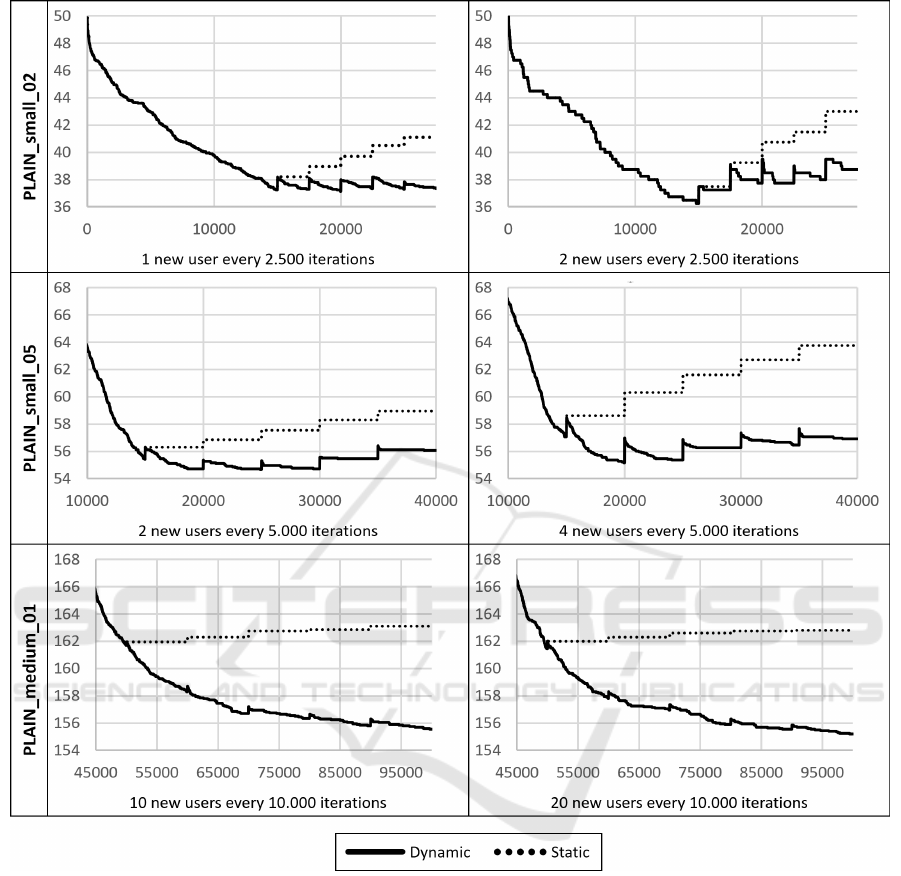

Figure 14: Average results of all test cases.
REFERENCES
Anderer, S., Halbich, M., Scheuermann, B., and
Mostaghim, S. (2017). Towards real-time fleet-event-
handling for the dynamic vehicle routing problem. In
Proceedings of the 9th International Joint Conference
on Computational Intelligence - Volume 1: IJCCI,,
pages 35–44. INSTICC, SciTePress.
Anderer, S., Kreppein, D., Scheuermann, B., and
Mostaghim, S. (2020). The addrole-EA: A new evo-
lutionary algorithm for the role mining problem. In
Proceedings of the 12th International Joint Confer-
ence on Computational Intelligence, IJCCI 2020, Bu-
dapest, Hungary, November 2-4, 2020, pages 155–
166. SCITEPRESS.
Anderer, S., Scheuermann, B., Mostaghim, S., Bauerle, P.,
and Beil, M. (2021). Rmplib: A library of benchmarks
for the role mining problem. In Proceedings of the
26th ACM Symposium on Access Control Models and
Technologies, SACMAT ’21, page 3–13, New York,
NY, USA. Association for Computing Machinery.
Anderer, S., Vu, T.-H., Scheuermann, B., and Mostaghim,
S. (2018). Meta heuristics for dynamic machine
scheduling: A review of research efforts and indus-
trial requirements. In IJCCI, pages 192–203.
Colantonio, A., Di Pietro, R., and Ocello, A. (2008). A cost-
driven approach to role engineering. In Wainwright,
R. L. and Haddad, H. M., editors, Proceedings of the
The Dynamic Role Mining Problem: Role Mining in Dynamically Changing Business Environments
47

2008 ACM symposium on Applied computing - SAC
’08, pages 2129–2136, New York, USA. ACM Press.
Cruz, C., Gonz
´
alez, J. R., and Pelta, D. A. (2011). Op-
timization in dynamic environments: a survey on
problems, methods and measures. Soft Computing,
15(7):1427–1448.
Du, J., Zhou, J., Li, C., and Yang, L. (2016). An overview
of dynamic data mining. In 2016 3rd International
Conference on Informative and Cybernetics for Com-
putational Social Systems (ICCSS), pages 331–335.
Du, X. and Chang, X. (2014). Performance of ai algo-
rithms for mining meaningful roles. In 2014 IEEE
Congress on Evolutionary Computation (CEC), pages
2070–2076. IEEE.
Gallaher, M., O’Connor, A., Kropp, B., and Tassey, G.
(2002). The economic impact of role-based access
control. Technical report, National Institute of Stan-
dards and Technology (NIST).
Guntsch, M. (2004). Ant algorithms in stochastic and multi-
criteria environments. PhD thesis, Karlsruhe Institute
of Technology.
Huang, H., Shang, F., Liu, J., and Du, H. (2015). Handling
least privilege problem and role mining in rbac. Jour-
nal of Combinatorial Optimization, 30(1):63–86.
Lu, H., Vaidya, J., and Atluri, V. (2008). Optimal boolean
matrix decomposition: Application to role engineer-
ing. In 2008 IEEE 24th International Conference on
Data Engineering, pages 297–306. IEEE.
Mitra, B., Sural, S., Vaidya, J., and Atluri, V. (2016). A
survey of role mining. ACM Computing Surveys,
48(4):1–37.
Molloy, I., Chen, H., Li, T., Wang, Q., Li, N., Bertino, E.,
Calo, S., and Lobo, J. (2008). Mining roles with se-
mantic meanings. In Ray, I. and Li, N., editors, Pro-
ceedings of the 13th ACM symposium on Access con-
trol models and technologies - SACMAT ’08, pages
21–30, New York, New York, USA. ACM Press.
Molloy, I., Li, N., Li, T., Mao, Z., Wang, Q., and Lobo, J.
(2009). Evaluating role mining algorithms. In Carmi-
nati, B. and Joshi, J., editors, Proceedings of the 14th
ACM symposium on Access control models and tech-
nologies - SACMAT ’09, pages 95–104, New York,
New York, USA. ACM Press.
Ouelhadj, D. and Petrovic, S. (2009). A survey of dy-
namic scheduling in manufacturing systems. Journal
of scheduling, 12(4):417–431.
Saenko, I. and Kotenko, I. (2017). Reconfiguration of rbac
schemes by genetic algorithms. In Badica, C., El Fal-
lah Seghrouchni, A., Beynier, A., Camacho, D., Herp-
son, C., Hindriks, K., and Novais, P., editors, Intelli-
gent Distributed Computing X, volume 678 of Studies
in Computational Intelligence, pages 89–98. Springer
International Publishing, Cham.
Sandhu, R. S., Coyne, E. J., Feinstein, H. L., and Youman,
C. E. (1996). Role-based access control models. Com-
puter, 29(2):38–47.
Schlegelmilch, J. and Steffens, U. (2005). Role mining with
orca. In Ferrari, E. and Ahn, G.-J., editors, Proceed-
ings of the tenth ACM symposium on Access control
models and technologies - SACMAT ’05, pages 168–
176, New York, New York, USA. ACM Press.
Vaidya, J., Atluri, V., and Guo, Q. (2007). The role mining
problem. In Lotz, V. and Thuraisingham, B., editors,
Proceedings of the 12th ACM symposium on Access
control models and technologies - SACMAT ’07, pages
175–184, New York, New York, USA. ACM Press.
Vaidya, J., Atluri, V., Warner, J., and Guo, Q. (2010). Role
engineering via prioritized subset enumeration. IEEE
Transactions on Dependable and Secure Computing,
7(3):300–314.
Verizon (2019). Data breach investigations report 2019.
Computer Fraud & Security, 2019(6):4.
Xu, Z. and Stoller, S. D. (2012). Algorithms for min-
ing meaningful roles. In Atluri, V., Vaidya, J., Kern,
A., and Kantarcioglu, M., editors, Proceedings of the
17th ACM symposium on Access Control Models and
Technologies - SACMAT ’12, pages 57–66, New York,
New York, USA. ACM Press.
ECTA 2021 - 13th International Conference on Evolutionary Computation Theory and Applications
48
