Semi-Structured Schema for a Big Data (S-SSBD)

Shady Hamouda

, Raed Sughayyar

and Omar Elejla

Emirates College of Technology, Abu Dhabi, U.A.E.

Faculty of Information Technology, IUG, Palestine

Keywords: Semi-Structured, Big Data, Schema.

Abstract: Big data has become a crucial issue and has emerged as one of the most important technologies in the modern

world. One of the concerns that need to be addressed regarding big data is the lack of a method that can handle

a semi-structured data model with a flexible schema. None of the existing semi-structured models can handle

a large volume of data with a flexible schema. Therefore, these requirements give significance to designing

and develop a schema for semi-structured data. In addition, these issues and challenges have to be addressed

by researchers when designing a method or algorithm to retrieve information from a large amount of data.

This study aims to design a semi-structured data schema for big data applications. This study assessed the

flexible schema feature and data based on the semi-structure features. The result showed that the proposed

schema can cover and handle any change in the schema.

1 INTRODUCTION

Big data is a research area that is open for discussion

(Stanescu, Brezovan, & Burdescu, 2016). Five main

dimensions known as the 5V characteristics can

describe big data (Pokorny, 2013; Rodríguez-

Mazahua et al., 2016). These dimensions include

volume, which concerns the data scalability as data

grow every day; velocity, which represents the speed

of data and indicates the critical point of big data by

measuring the performance of transactions; variety,

which represents the data format, such as structured,

semi-structured and unstructured; veracity, which is

concerned with data accuracy; and value, which

describes the importance of the data. The elements of

the taxonomy of big data are described in Figure 1.

Goli-Malekabadi, Sargolzaei-Javan, and Akbari

(2016) considered variety as one of the most

important dimensions for big data management

because it describes the type and nature of data.

Therefore, the present thesis focuses on converting

structured data types to semi-structured data types.

In the relational data model, the data and the

relationship among them are organized into tables

(Zhao, Huang, Liang, & Tang, 2013). Each table has

rows and columns, where rows represent records and

columns represent the attributes. Moreover, the

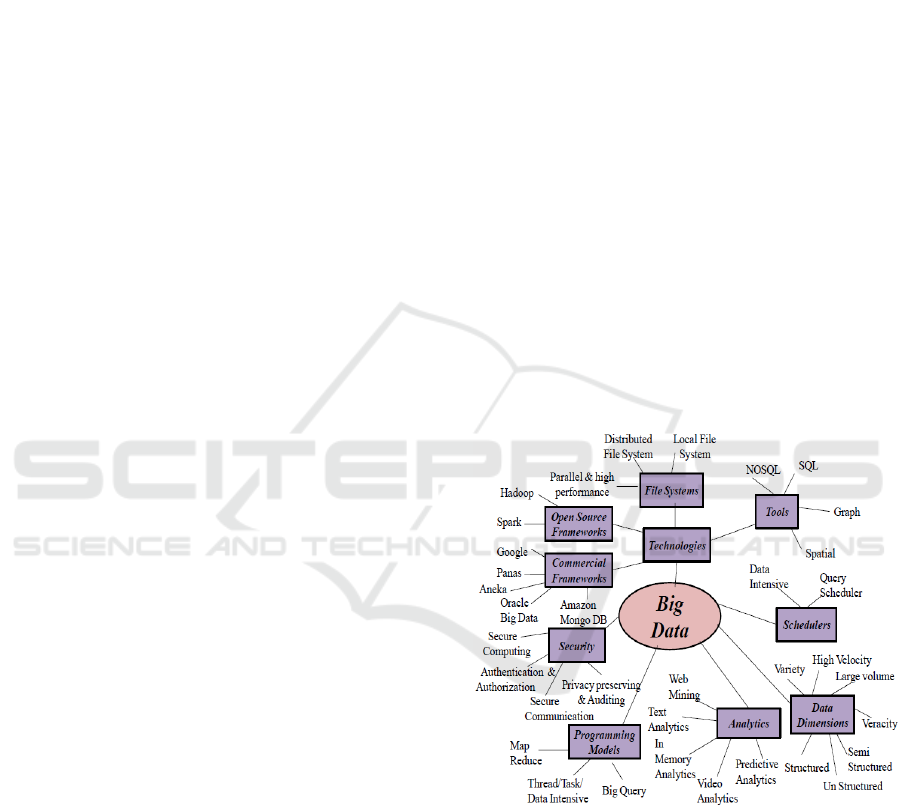

Figure 1: Big data taxonomy (Pokorny, 2013).

model uses SQL to access and process data

(Neves & Bernardino, 2015). As Kune, Konugurthi,

Agarwal, Chillarige, and Buyya (2016) mentioned,

most organizations use a relational database as

structured data to store and access their data. Thus,

these organizations encounter problems with speed

and the increasing size of data. For this reason,

relational database application has become a

bottleneck when the data increase and require more

scalability (Moore, Qassem, & Xhafa, 2014).

202

Hamouda, S., Sughayyar, R. and Elejla, O.

Semi-Structured Schema for a Big Data (S-SSBD).

DOI: 10.5220/0010687600003064

In Proceedings of the 13th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2021) - Volume 2: KEOD, pages 202-209

ISBN: 978-989-758-533-3; ISSN: 2184-3228

On the other side, semi-structured data are

emerging as one of the biggest data models for

handling large amounts of data. Semi-structured

captured and stored data have become huge and need

to process flexible schemas and speed through a

distributed system (Lombardo, Di Nitto, & Ardagna,

2012).

A semi-structured data format can store data in

extensible markup language (XML), JavaScript

Object Notation (JSON) and Binary JavaScript

Object Notation (BSON). Moreover, a document-

oriented database stores data in semi-structured data

using the key-value concept. The value of a key can

be any data type that gives database flexibility to store

any kind of data (Zhao et al., 2013).

2 SEMI-STRUCTURED DATA

A semi-structured data is a form of structured data

that can deal with any data type without a formal

structure. Semi-structured data (Yaish & Goyal,

2013) are required to store and handle large amounts

of data with flexibility schemas, which have emerged

as one of the biggest data models for handling large

amounts of data. Many models are proposed to handle

semi-structured data as follows:

Numerous properties of a conceptual model for

semi-structured data need to be addressed to handle

semi-structured data. These properties can include no

strict structure, no strict participation/instances,

hierarchical structure, non-hierarchical structure,

ordering, the irregular structure of data, disjunction,

self-evolving, mixed content, abstraction, separation

of structure and content explicitly, partial

relationship/participation, heterogeneous, n-array

relationship, inheritance, reuse potential, constraints,

functional dependencies, symmetric relationship and

recursive relationship (Ganguly & Sarkar, 2012).

These properties are evaluated with the semi-

structured data model presented in Table 1.

Ganguly and Sarkar (2012) found that none of

these models can overcome all of the properties and

requirements of the semi-structured data model. Only

the GOOSSDM model can solve most properties of

semi-structured requirements, but the integration of

semantic web technologies still has a problem with all

of these models. In addition, GOOSDM has

drawbacks in representing schema-less data and data

with a particular timestamp (Banerjee, Shaw, Sarkar,

& Debnath, 2015).

Banerjee et al. (2015) likewise mentioned a

conceptual model of big data transforming data model

to a logical level, which is represented in XML,

JSON, or BSON. JSON is a lightweight language of

the data format used to store and exchange data and it

follows the concept of JavaScript language ((Bansel

& Chis, 2016). Moreover, JSON is a serialization

format, which has schema-less data with all kinds of

data types, such as string, number, list and array, and

nested structure (Florescu & Fourny, 2013).

The features of JSON include easy preparation,

string array analysis, suitability for semi-structured

data, and cloud database (Mathew & Kumar, 2015).

JSON can represent the logical model of big data

better than XML because it represents data through a

collection of key-value pairs that are more suitable for

representing semi-structured data (Peng, Cao, & Xu,

2011). Moreover, JSON is useful and faster than

XML in analyzing data (Florescu & Fourny, 2013).

Binary-encoded serialization of JSON (BOSN) is

used to support complex data types in different

programming languages and supports flexible

schema more than JSON (Bansel & Chis, 2016).

Therefore, JSON plays an important role in

representing semi-structured data in a NoSQL

database, as it is lightweight and uses flexible data to

deal with formatted semi-structured data, and can be

compatible with most programming languages.

This challenge has led to the presentation of the

“not only structured query language (NoSQL)

database” as a new concept of database technology.

One of the most powerful types of NoSQL databases

is the document-oriented database that supports a

flexible schema and stores data in a semi-structured

format. The concept of NoSQL is to be fast and

efficient in data processing in terms of scalability,

reliability, agility, and performance (Grolinger,

Higashino, Tiwari, & Capretz, 2013). Moreover,

Hashem and Ranc (2016) mentioned that the NoSQL

distribution supports flexible schema that will give

flexible methods to handle and process semi-

structured data. Therefore, NoSQL can be preferred

to overcome scalability, high performance, and

variability.

A document-oriented database is designed for

storing, retrieving, and managing document-oriented

or semi-structured data. The central concept of a

document-oriented database is the notion of a

document where the contents within the document are

encapsulated or encoded in some standard format

such as JSON or BSON, And XML. Storing data in

JSON or BSON representation is easy by mapping the

object structure of most of the programming

languages directly into this representation.

Consequently, a set of related documents are stored

and represented by a collection that considers the

table of the relational database. Each document can

Semi-Structured Schema for a Big Data (S-SSBD)

203

Table 1: Evaluations of the semantic properties of the conceptual model with semi-structured models (Ganguly & Sarkar,

2012).

Properties

Model Name

ERX

ORA-SS

XER

EReX

XUML

XSEM

GOOSSDM

GN-DTD

No strict structure F F F X F F F F

No strict participation/instances F F F X F F X P

Hierarchical structure F F F F F F F F

Non-hierarchical structure X P X F P F F P

Ordering F F F X P F F F

The irregular structure of data X X X F F F F F

Disjunction X F X F F X F X

Self-evolving X F X X X F X

Mixed content X F F F F F F X

Abstraction X F F X X X F F

Separation of structure and content explicitly X F F X X X F F

Partial relationship/participation X F F F F F F F

Heterogeneous X F X F F X F

N-array relationship X F X F X F F

Inheritance X X X F F X F F

Reuse potential X F F X X F F F

Constraints F F X F F F F P

Cardinality X F X X X X X F

F=fully supported; X = not fully supported; P=partially supported

ERX:Entity relational for XML;ORA-SS:object relationship attribute model for semi-structured data; XER:Extensible ER;

EReX:Entity relational extended to XML;XUML:Executable of Unified Modeling Language;XSEM:Conceptual model for

XML;GOOSSDM:Graph object-oriented semi-structured data model.

be identified by a unique key that is known to the user

or can be automatically created by the database. This

ID becomes an index for the document or can create

other indexes depending on the application

requirements to speed up the query process.

Relationships between the collections can be

identified in two ways: embedding the document and

referencing it. In the embedded document, the

document can contain another document. This model

can lead to the de-normalization of the database.

Reference documents consider the relationships of

the relational database, which shows the relationships

between the collections and the foreign key.

Therefore, a document-oriented database is used to

achieve the objective of this study.

However, there are many challenges and complex

problems for design schema for document-oriented

databases, also there are no tools or methodology

available to support a good schema (Mior, Salem,

Aboulnaga, & Liu, 2017). Moreover, there is still a

lack of strategies for conceptually representing the

data model for a document-oriented database

(Guimaraes et al., 2015). Therefore, the data model

can be used for big data application still has some

issues and challenges such as: how to design a schema

with association relationship and use query

effectively (Mason, 2015).

3 ALGORITHM TO MAPPING

STRUCTURE DATABASE

(USING

ENTITY-RELATIONSHIP)

SCHEMA TO SEMI

STRUCTURE SCHEMA

In large data, conceptual models can be important for

developers to consider and management perspectives

because they can describe the structure and application

semantics. Also, conceptual modeling presents

challenges for large data applications (Storey & Song,

2017). The entity-relationship diagram is a concept of

relational database design. It describes the design

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

204

Table 2: Symbols and type of algorithm.

Model T

otions Descriptions

Schema

Stron

Entit

Ei Ei….n (i=1 to n)

Weak Entit

Attribute A Ai….An (i=1 and n number of attributes)

Multi-Value attribute Mv

Relationship R Relationships can be one to one (1:1) or one to many

(1:N) or man

to man

(M:M)

S-SSBD

Collection C

Documen

-value K

Embedded document E

The embedded model applies between two entities

Reference documen

Reference model applies between two entities

Array [ ] Array data type

of the conceptual schema, which can be assigned to

another data schema, and transform to semi-structured

data formatted, thus an algorithm is proposed to map

the ER schema to semi-structured schema.

The component of ER schema is entities,

attributes, and relationships. We represent entity by E

and the series of entities will be E

….E

(i=1 to n)

, the

number of attributes represented by use A

….A

(j=1 to n)

and also R represents the type of relationships (1:1)

or (1:N) and (M: M).

Table 2 notions use to map ER schema to S-SSBD

as the following algorithm:

3.1 Algorithm of Mapping ER Schema

to S-SSBD

The study describes how to map the ER schema to the

S-SSBD. This study highlights the mapping

algorithm presented by (Hamouda & Zainol, 2019;

Hamouda, Zainol, & Anbar, 2019).

Input: ER Schema

Output: S-SSBD

1: BEGIN

2: for each strong entity, Ei

(i=1…n)

3: create new collection Ci

(i=1….n)

where n=

number of collection for each entity

4: for each weak entity, WE

i(i=1…n)

5: create WE

i(i=1…n)

as embedded documents into

belong strong entity (WE

⊆ E

)

6: end for

7: for each multi-value attribute, "MVi” do

8: store multi-values as array data type into belong

strong entity ∀ MV

i(i=1…n)

[]⊆ Ei

9: end for

10: for each (1:1) relationship between two entities

(E1 and E2) do

11: If E1 datasets size is less than 16 MB and no

other relationship with other entity

12: E1 store as an embedded document into E2

(E1 E

⊆ E2)

13: else

14: apply reference document between E1 and

E2 (E1 R

⊆ E2)

15: end if

16: end for

17: for each (1:M) relationship between two entities

(E1 and E2) do

18: if M dataset size is less than 16 MB records then

19: M side store as an embedded document into 1

side (E2

(N)

⊆ E1

(1)

)

20: else

21: apply reference document between E1and E2 (

E1 R

⊆ E2 )

22: end if

23: end for

24: for each (M: M) relationship between two entities

(E1 and E2) do

25: for E1 side do

26: create array data type into an embedded

document

27: store the primary key of E2 with other related

attributes

28: Update E1 with the embedded document of E2

(E2 :{[E

]} ⊆ E1)

29: end for

30: for E2 do

31: create array data type into an embedded

document

32: store the primary key of E1 with other related

attributes

33: Update E2 with the embedded document of E1

(E1 :{[E

]} ⊆ E2)

34: end for

Semi-Structured Schema for a Big Data (S-SSBD)

205

35: end for

36: END

The pseudo-code of the above algorithm is describing

how to map the ER schema to S-SSBD. It takes the

ER schema as input and mapping the S-SSBD as

output. This algorithm was applied to the case study

to generate an S-SSBD.

4 CASE STUDY 1: W3SCHOOL

SCHEMA

This case study is the schema of W3Schools Web site

(http://www.w3schools.com/). This schema has

characteristics that are completely different from

those typically used in most applications,

such as integration restrictions, relationships, and

different data types.

The W3school schema can be similar to other

businesses that have products with categories and

these products have suppliers and then offer these

products to customers for ordering and shipping.

Therefore, this schema is chosen to implement

mapping from a relational database to a document-

oriented database through S-SSBD and then evaluate

how S-SSBD can cover any new business

requirements when changing the schema.

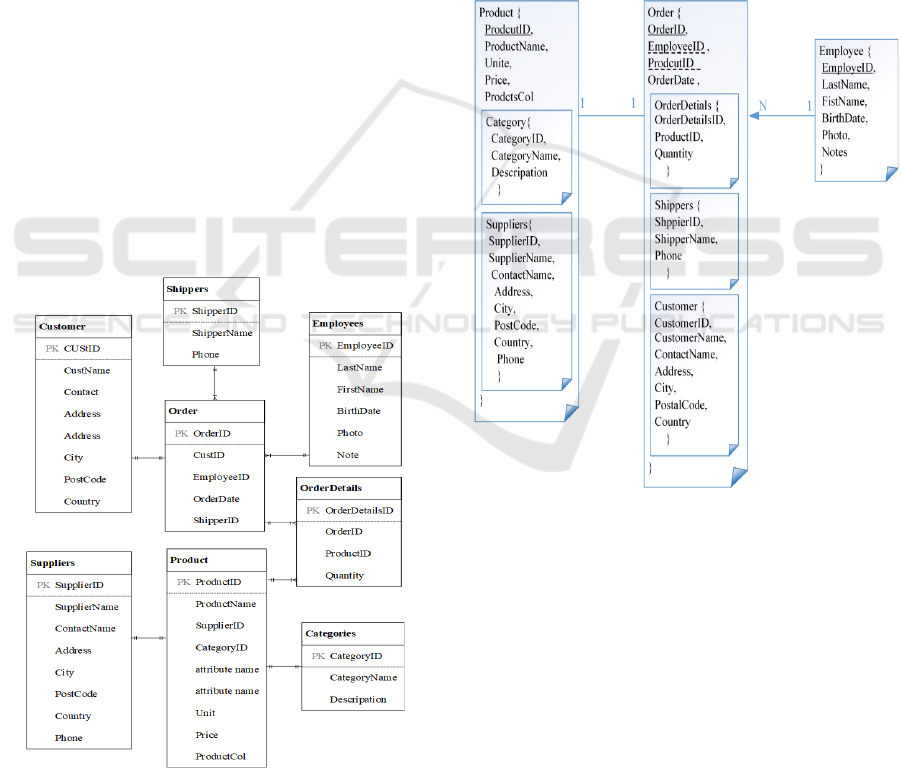

Figure 2: Entity relational schema for W3schools (Rocha,

Vale, Cirilo, Barbosa, & Mourão, 2015).

As we can see from the schema, the product has

categories and suppliers, and an order has order

details and shipping to the customer through the

employees. Therefore, S-SSBD applied to map the

above schema, it creates product collection and store

categories and suppliers as embedded documents, and

also, creates order collection and stores the order

details with shipping as embedded documents,

moreover, these orders and products will manage

through the collection of employees. The algorithm

of mapping ER schema to S-SSBD were applied to

the schema shown in Figure 2, and the output of this

schema, presented in Figure 3, is as follows:

i. Created new collections for the main strong entity,

which are PRODUCT, ORDER, and

EMPLOYEES.

Figure 3: The S-SSBD for W3schools.

ii. Mapped the relationship between PRODUCT and

CATEGORY by store CATEGORIES as

embedded documents in the PRODUCT

iii. collection. Also, mapped the relationship between

PRODUCT and SUPPLIERS by store

SUPPLIERS as embedded documents in the

PRODUCT collection

iv. Mapped the relationship between ORDER and

ORDERDETAILS by creating an embedded

document for ORDERDETAILS in the ORDER

collection. Also, the relationship between

ORDER and SHIPPERS was mapped to create

embedded documents for SHIPPERS in the

ORDER collection.

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

206

v. Mapped the relationship between ORDERS and

CUSTOMERS by creating an embedded

document for CUSTOMERS in the ORDERS

collection.

The evaluation of this case study assessed the

flexibility of the schema by checking whether the

features of the S-SSBD were compatible with any

business requirement changes.

5 EVALUATION: FLEXIBILITY

OF THE SCHEMA

The flexibility of the schema refers to the evaluation

of the capability to meet and respond to business

change requirements during the development process

(Rathor, Batra, & Xia, 2016). Accordingly, this

evaluation tested the flexibility of the S-SSBD using

the W3schools schema in Figure 3 to determine

whether it could keep up with new business

requirements. In a relational database, the new field

should add to all table records to change its schema.

By contrast, an S-SSBD allows the addition or

alteration of the data for a specific document in any

structure without changing the database schema. An

S-SSBD thereby permits the application to use the

required data while ignoring the unrequired data.

In the W3schools schema 2, the relationship

between PRODUCTS and SUPPLIES is one to one.

In this case, the W3schools schema needs to change

the business requirements by allowing one

PRODUCT to have many SUPPLIES or each

SUPPLIER to provide many PRODUCTS; however,

this new requirement creates difficulty in changing

the relational database schema. To incorporate this

requirement in the relational database, a new table

should be added to allow the PRODUCT to have

many SUPPLIERS, as shown in Figure 4. The

relational database schema will not allow the same

PRODUCT to have many SUPPLIERS because it is

fixed and has change constraints.

The previous scenario indicates that the change

required will affect the database schema, query level,

and reporting level. Given that the relational database

needs to change, all queries related to PRODUCT and

SUPPLIER need to be redesigned and recoded. By

contrast, an S-SSBD supports a flexible schema with

semi-structured data that can add or change

relationships between entities without adverse

effects. In the previous case in Figure 3, the

relationships between PRODUCTS and SUPPLIERS

can be changed without affecting the schema because

the PRODUCT collection stores the SUPPLIERS as

embedded documents and lists SUPPLIERS for each

product. In an S-SSBD, mapping one-to-one or

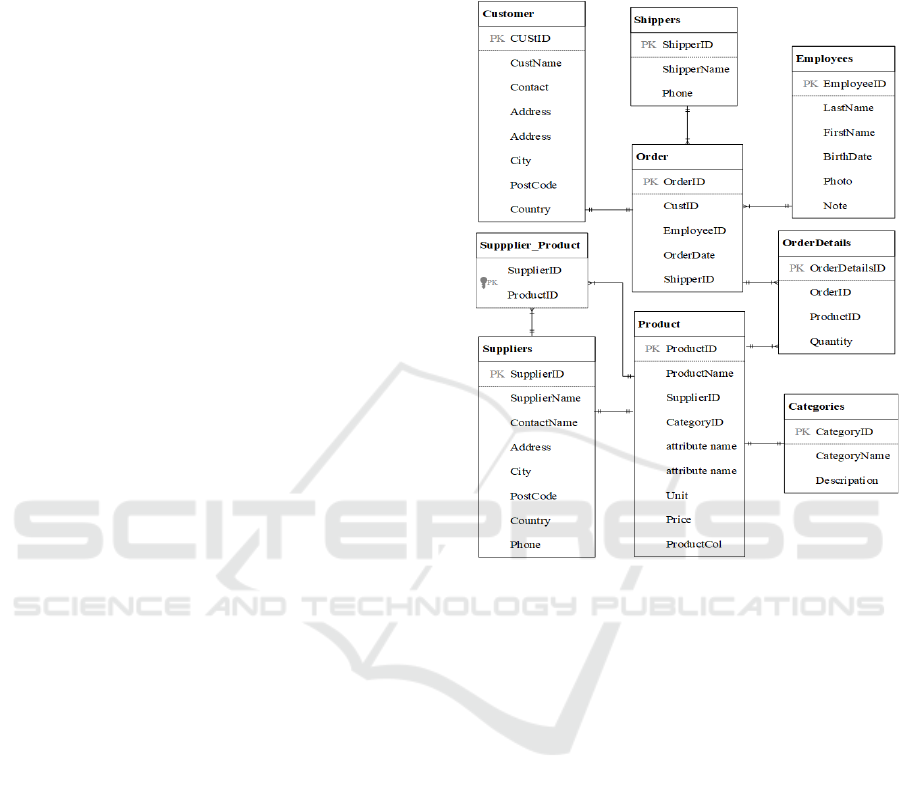

Figure 4: ER schema after changing the relationship

between product and supplier.

one-to-many relationships can occur via the

embedded documents. Therefore, this schema can

store the many SUPPLIES as embedded documents

into each PRODUCT, as shown in Figure 3. In

addition, the second evaluation assessed the flexible

schema feature and data based on the semi-structure

features.

6 CONCLUSION

A semi-structured data can be formatted in a

document in a way that is more useful than a table

when a large amount of data is available. The

proposed schema provides features for the conceptual

representation of a document-oriented database. For

example, it presents a flexible schema by allowing the

application to change or update business

requirements over time, and it represents

relationships as embedded and reference documents.

Additionally, semi-structured data with a flexible

schema can handle two data dimensions of big data—

Semi-Structured Schema for a Big Data (S-SSBD)

207

that is, a semi-structure and a large volume of data. In

future work, this study can be extended to migrate the

structure database to a document-oriented database

using the proposed schema of semi-structured data.

REFERENCES

Banerjee, S., Shaw, R., Sarkar, A., & Debnath, N. C.

(2015). Towards logical level design of Big Data. Paper

presented at the 2015 IEEE 13th International

Conference on Industrial Informatics (INDIN).

Bansel, A., & Chis, A. E. (2016). Cloud-Based NoSQL

Data Migration. Paper presented at the 2016 24th

Euromicro International Conference on Parallel,

Distributed, and Network-Based Processing (PDP).

Florescu, D., & Fourny, G. (2013). JSONiq: The history of

a query language. IEEE internet computing, 17(5), 86-

90.

Ganguly, R., & Sarkar, A. (2012). Evaluations of

Conceptual Models for Semi-structured Database

System. International Journal of Computer

Applications, 50(18).

Goli-Malekabadi, Z., Sargolzaei-Javan, M., & Akbari, M.

K. (2016). An effective model for store and retrieve big

health data in cloud computing. Computer Methods and

Programs in Biomedicine, 132, 75-82.

Grolinger, K., Higashino, W. A., Tiwari, A., & Capretz, M.

A. (2013). Data management in cloud environments:

NoSQL and NewSQL data stores. Journal of Cloud

Computing: Advances, Systems and Applications, 2(1), 1.

Guimaraes, V., Hondo, F., Almeida, R., Vera, H., Holanda,

M., Araujo, A., Lifschitz, S. (2015). A study of genomic

data provenance in NoSQL document-oriented

database systems. Paper presented at the

Bioinformatics and Biomedicine (BIBM), 2015 IEEE

International Conference on Bioinformatics and

Biomedicine.

Hamouda, S. and Zainol, Z. (2019). Semi-Structured Data

Model for Big Data (SS-DMBD). In Proceedings of the

8th International Conference on Data Science,

Technology and Applications - DATA, ISBN 978-989-

758-377-3; ISSN 2184-285X, pages 348-356. DOI:

10.5220/0007957603480356.

Hamouda, S.; Zainol, Z. and Anbar, M. (2019). A Flexible

Schema for Document Oriented Database (SDOD).

In Proceedings of the 11th International Joint

Conference on Knowledge Discovery, Knowledge

Engineering and Knowledge Management -

KEOD, ISBN 978-989-758-382-7; ISSN 2184-3228,

pages 413-419. DOI: 10.5220/0008353504130419

Hashem, H., & Ranc, D. (2016). Evaluating NoSQL

document oriented data model. Paper presented at the

Future Internet of Things and Cloud Workshops

(FiCloudW), IEEE International Conference on Future

Internet of Things and Cloud Workshops.

Kune, R., Konugurthi, P. K., Agarwal, A., Chillarige, R. R.,

& Buyya, R. (2016). The anatomy of big data

computing. Software: Practice and Experience, 46(1),

79-105.

Lombardo, S., Di Nitto, E., & Ardagna, D. (2012). Issues in

handling complex data structures with noSQL

databases. Paper presented at the Symbolic and

Numeric Algorithms for Scientific Computing

(SYNASC), 2012 14th International Symposium on

Symbolic and Numeric Algorithms for Scientific

Computing.

Mason, R. T. (2015). NoSQL databases and data modeling

techniques for a document-oriented NoSQL database'.

Paper presented at the Proceedings of Informing

Science & IT Education Conference (InSITE).

Mathew, A. B., & Kumar, S. M. (2015). Analysis of data

management and query handling in social networks

using NoSQL databases. Paper presented at the

Advances in Computing, Communications and

Informatics (ICACCI), 2015 International Conference

on Advances in Computing, Communications and

Informatics.

Mior, M., Salem, K., Aboulnaga, A., & Liu, R. (2017).

NoSE: Schema design for NoSQL applications. IEEE

Transactions on Knowledge and Data Engineering,

29(10), 2275-2289.

Moore, P., Qassem, T., & Xhafa, F. (2014). 'NoSQL'and

Electronic Patient Record Systems: Opportunities and

Challenges. Paper presented at the P2P, Parallel, Grid,

Cloud and Internet Computing (3PGCIC), 2014 Ninth

International Conference on P2P, Parallel, Grid, Cloud

and Internet Computing.

Neves, P., & Bernardino, J. (2015). Big Data Issues. Paper

presented at the Proceedings of the 19th International

Database Engineering & Applications Symposium.

Peng, D., Cao, L.-d., & Xu, W.-j. (2011). Using JSON for

data exchanging in web service applications. Journal of

Computational Information Systems, 7(16), 5883-5890.

Pokorny, J. (2013). NoSQL databases: a step to database

scalability in web environment. International Journal

of Web Information Systems, 9(1), 69-82.

Rathor, S., Batra, D., & Xia, W. (2016). What Constitutes

Software Development Agility?

Rocha, L., Vale, F., Cirilo, E., Barbosa, D., & Mourão, F.

(2015). A Framework for Migrating Relational Datasets

to NoSQL1. Procedia Computer Science, 51, 2593-2602.

Rodríguez-Mazahua, L., Rodríguez-Enríquez, C.-A.,

Sánchez-Cervantes, J. L., Cervantes, J., García-

Alcaraz, J. L., & Alor-Hernández, G. (2016). A general

perspective of Big Data: applications, tools, challenges

and trends. The Journal of Supercomputing, 72(8),

3073-3113.

Stanescu, L., Brezovan, M., & Burdescu, D. D. (2016).

Automatic mapping of MySQL databases to NoSQL

MongoDB. Paper presented at the Computer Science

and Information Systems (FedCSIS), 2016 Federated

Conference on Computer Science and Information

Systems.

Storey, V. C., & Song, I.-Y. (2017). Big data technologies

and Management: What conceptual modeling can do.

Data & Knowledge Engineering, 108, 50-67.

Yaish, H., & Goyal, M. (2013). A multi-tenant database

architecture design for software applications.

Paper

presented at the Computational Science and

Engineering (CSE), 2013 IEEE 16th International

KEOD 2021 - 13th International Conference on Knowledge Engineering and Ontology Development

208

Conference on Computational Science and

Engineering.

Zhao, G., Huang, W., Liang, S., & Tang, Y. (2013).

Modeling MongoDB with relational model. Paper

presented at the Emerging Intelligent Data and Web

Technologies (EIDWT), 2013 Fourth International

Conference on Emerging Intelligent Data and Web

Technologies.

Semi-Structured Schema for a Big Data (S-SSBD)

209
