Zero-Shot Action Recognition with Knowledge Enhanced Generative

Adversarial Networks

Kaiqiang Huang, Luis Miralles-Pechu

an and Susan Mckeever

Technological University Dublin, Grangegorman, Dublin, Ireland

Keywords:

Human Action Recognition, Zero-Shot Learning, Generative Adversarial Networks.

Abstract:

Zero-Shot Action Recognition (ZSAR) aims to recognise action classes in videos that have never been seen

during model training. In some approaches, ZSAR has been achieved by generating visual features for unseen

classes based on the semantic information of the unseen class labels using generative adversarial networks

(GANs). Therefore, the problem is converted to standard supervised learning since the unseen visual features

are accessible. This approach alleviates the lack of labelled samples of unseen classes. In addition, objects

appearing in the action instances could be used to create enriched semantics of action classes and therefore,

increase the accuracy of ZSAR. In this paper, we consider using, in addition to the label, objects related to

that action label. For example, the objects ‘horse’ and ‘saddle’ are highly related to the action ‘Horse Riding’

and these objects can bring additional semantic meaning. In this work, we aim to improve the GAN-based

framework by incorporating object-based semantic information related to the class label with three approaches:

replacing the class labels with objects, appending objects to the class, and averaging objects with the class.

Then, we evaluate the performance using a subset of the popular dataset UCF101. Our experimental results

demonstrate that our approach is valid since when including appropriate objects into the action classes, the

baseline is improved by 4.93%.

1 INTRODUCTION

The ﬁeld of human action recognition (HAR) has

drawn substantial attention from the computer vision

research community. With the increase in the de-

mand for HAR-based applications in real-world sce-

narios (e.g. video surveillance (Wang, 2013)), the low

volume of available labelled action training data is

a challenge when attempting to develop generalised

and robust models. Due to the expensive labour work

involved, it is difﬁcult to build large-scale labelled

video datasets of human actions by collecting ade-

quate video instances with well-deﬁned class-level

annotations. Therefore, due to their reliance on the

difﬁcult-to-acquire large scale labelled datasets, it is

not possible to scale supervised approaches for recog-

nising actions (Huang et al., 2019b).

For this work, we consider the extreme case of

data scarcity in the HAR ﬁeld, termed Zero-Shot

Action Recognition (ZSAR). ZSAR aims to recog-

nise unseen action classes by training a classiﬁcation

model using knowledge transferred from other seen

action classes with the assistance of semantic infor-

mation (Mishra et al., 2018; Liu et al., 2019; Man-

dal et al., 2019). The common type of semantic in-

formation can be either annotations of class-level at-

tributes (Liu et al., 2011; Wang and Chen, 2017) or

word embedding (Mikolov et al., 2013). The seman-

tic information is then used to embed both seen and

unseen classes in ﬁxed-sized and high-dimensional

vectors. The general idea behind ZSAR is based on

the fact that a human can recognise and detect un-

seen action classes by matching text-based descrip-

tions of the class with previously learned visual con-

cepts. For example, given the description ‘an animal

horse-like with black-and-white stripes’, a human is

able to detect ‘zebra’ as long as he understands what

a horse looks like and what the pattern ‘black-and-

white stripe’ looks like. Generalised ZSAR attempts

to recognise video instances from both seen and un-

seen classes, whereas with conventional ZSAR, the

test set contains unseen classes only. In this work, we

are exploring a new approach so we consider conven-

tional ZSAR initially. If the results of our approach

are positive, we will apply it to generalised ZSAR in

the future.

Early approaches to ZSAR largely depend on

projection-based methods, which attempt to learn a

254

Huang, K., Miralles-Pechuán, L. and Mckeever, S.

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks.

DOI: 10.5220/0010717000003063

In Proceedings of the 13th International Joint Conference on Computational Intelligence (IJCCI 2021), pages 254-264

ISBN: 978-989-758-534-0; ISSN: 2184-3236

projection function to map the visual representations

of seen classes to their corresponding semantic rep-

resentations. Then, the learned projection function is

used to recognise novel classes by measuring the sim-

ilarity level between the prototype representations and

the predicted representations of the video instances in

the embedding space (Liu et al., 2011; Xian et al.,

2016; Wang and Chen, 2017; Huang et al., 2021).

The semantic representations from these works are

generally obtained using only the action class label,

which does not explicitly contain information about

the objects that appear in the videos. However, a

small number of papers proposed to build relation-

ships between the objects and the action label to pro-

duce enriched semantics for representing class knowl-

edge (Jain et al., 2015; Mettes and Snoek, 2017; Gao

et al., 2019), achieving better performance than the

approach of using only the class label.

It is noteworthy that the video instances of seen

and unseen classes can be totally disjoint and their

distributions are different, resulting in a large domain

gap (termed domain shift). For example, both classes

of ‘horse’ and ‘pig’ have the same attribute of ‘tail’,

but their tails could look very different. Hence, the

projection-based approaches learn a projection func-

tion using video instances from the seen classes with-

out any adaptation, leading to the problem of domain

shift (Fu et al., 2015). To alleviate the inﬂuence of

domain shift, generative-based methods can learn a

model (e.g. GANs) to synthesise visual features for

unseen classes based on the relationships between the

instances of seen classes and the semantic represen-

tations of both seen and unseen classes. A super-

vised model is then trained to produce predictions for

a given test sample (Narayan et al., 2020).

In our work, we propose to explore and im-

prove the GAN-based approach (Narayan et al., 2020)

by using additional object-based information as en-

hanced semantics for the ZSAR task. For our investi-

gation, we use a subset of the UCF101 dataset, which

is a common-used dataset for benchmarking in the

HAR ﬁeld. We answer the research question - Can

object-based information be used as extra semantic

information to improve the performance in the GAN-

based framework for the ZSAR task? We summarise

our contributions as follows. (1) We improve recog-

nition accuracies for unseen classes by adding extra

object-based knowledge into the GAN-based frame-

work. (2) We perform empirical evaluations to inves-

tigate three methods for injecting object-based knowl-

edge into the GAN-based framework. The methods

are:

• Replacing: the semantic representations of ac-

tion classes are replaced with the corresponding

object-based representations.

• Appending: the object-based representations are

appended to the semantic representations of ac-

tion classes.

• Averaging: both class-based and object-based

representations are averaged.

(3) We created a subset of the UCF101 dataset and

selected multiple objects for each class to empirically

evaluate models, including the selected objects for

each action class.

The rest of this paper is structured as follows. In

Section 2, we introduce an overview of ZSAR, in-

cluding a review of the related works and the cat-

egorisation of the different approaches. In Section

3, we present the GAN-based framework and ex-

plain how the ZSAR task is performed. In Section

4, we describe the proposed methodology, which in-

cludes object-based information using a subset of the

UCF101 dataset. We also deﬁne the metrics for evalu-

ating its performance. In Section 5, we explain the ex-

perimental setups and their implementations in more

detail. In Section 6, we show the results and ﬁndings.

Finally, in Section 7, we conclude the paper and pro-

pose a few ideas for future work.

2 RELATED WORK

In this section, we review the relevant literature on

early approaches for ZSAR as well as on generative

approaches based on GANs.

Early works on the ZSAR depend on projection-

based methods (Xu et al., 2015; Li et al., 2016;

Xu et al., 2016; Xu et al., 2017; Wang and Chen,

2017). They learned a projection function that models

the relationship between visual features and seman-

tic features for seen classes, where these visual fea-

tures are typically extracted from a deep neural net-

work. The learned projection function is then used

to recognise a novel class by measuring the likeli-

hood between its true semantic representation and

the predicted semantic representation of the video in-

stances in the embedding space. It can be expected

that classes with similar semantic descriptions con-

tain similar vectors in the semantic embedding space.

However, classes with similar attributes-based seman-

tic knowledge may have large variations in the visual

space. For example, both action classes of walking

and running have the semantic description of outdoor

activity, but their video instances could seem very dif-

ferent since walking and running have a very different

pace and outﬁt. Therefore, building a high-accuracy

projection function is a challenge, which may cause

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks

255

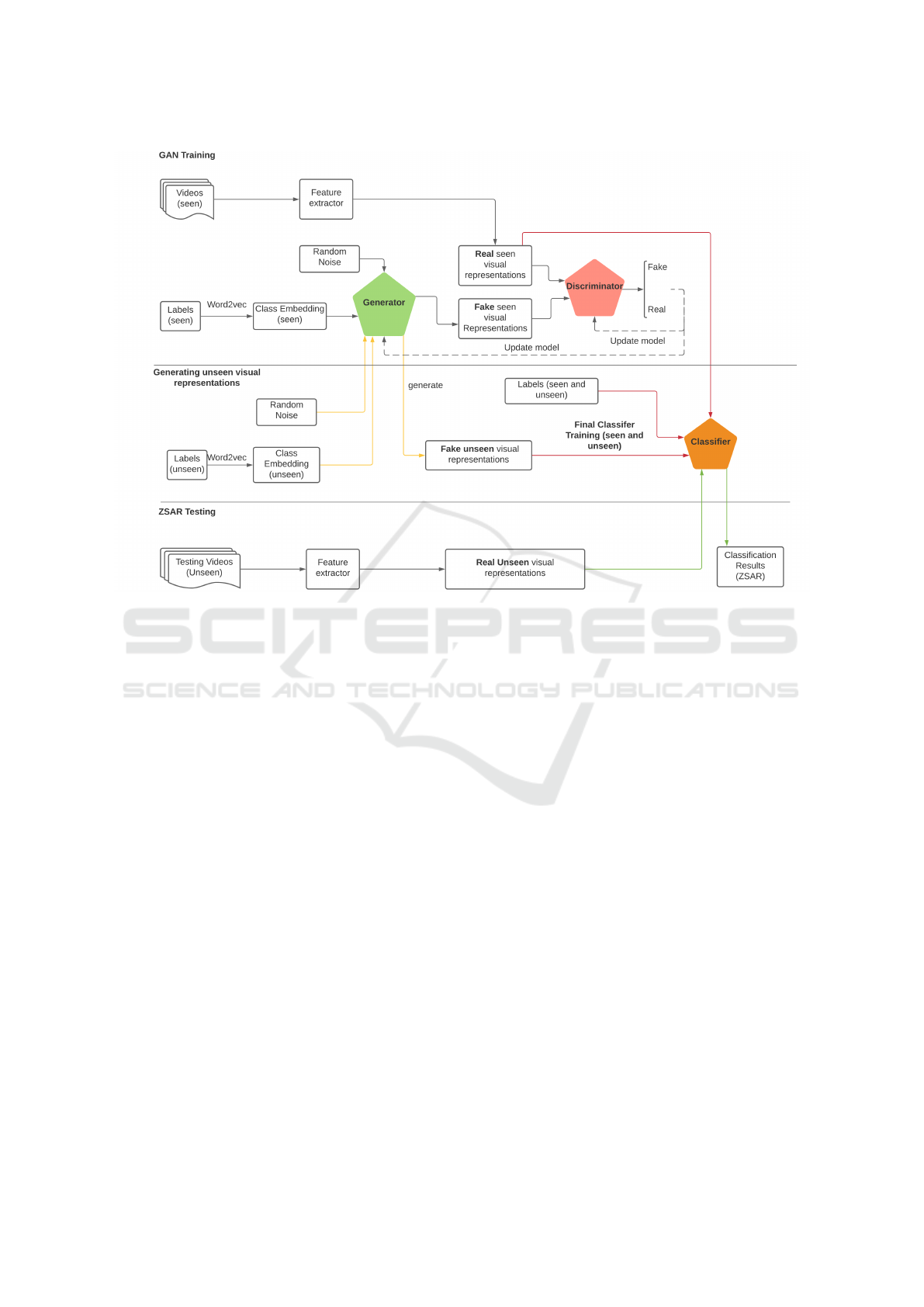

Figure 1: Pipeline of the GAN-based framework for Zero-Shot Action Recognition based on the approach (Xian et al., 2018).

ambiguity in the visual-semantic projection due to the

large variation in the visual embedding space.

Instead of either using class-level labels or

manual-annotated attributes as external knowledge in

the ZSAR task, other works (Jain et al., 2015; Mettes

and Snoek, 2017; Gao et al., 2019; Xing et al., 2021)

used the relationships between objects and actions as

additional knowledge to improve the ZSAR perfor-

mance. Intuitively, objects that appear in a video help

to identify what the video is about. This leads to an

approach in which the semantics of the action class

can be obtained not only from the class label but also

from the objects that appear in the video. The work

(Jain et al., 2015) aims to recognise action classes

using semantic embedding that are extracted from a

skip-gram model for the object categories detected in

videos. Action class labels are associated with objects

with a convex combination function of action and ob-

ject afﬁnities. The authors of the paper (Mettes and

Snoek, 2017) built a spatial-aware embedding by in-

corporating word embeddings, box locations for ac-

tors and objects, as well as spatial relations to gener-

ate action tubes. This method builds an embedding

to represent the relationships among actions, objects,

and their interactions, providing enriched semantic

representation. Advancing on this approach, the work

(Gao et al., 2019) built an end-to-end ZSAR frame-

work based on a structured knowledge graph, which

can jointly model the relationships between action-

attribute, action-action, and attribute-attribute. All of

these works attempt to build the relationships between

objects detected in videos and action class labels to

represent enriched semantics and that can be applied

in the ZSAR task for better performance.

Recently, generative-based methods are used to

synthesise visual features for unseen classes based on

their semantic representations. In the GAN context,

most approaches were originally proposed for the task

of zero-shot image classiﬁcation (ZSIC). GANs can

be used for synthesising fake unseen samples. The

authors of the paper (Xian et al., 2018) proposed a

conditional Wasserstein GAN (WGAN) model using

classiﬁcation loss to synthesise visual features for un-

seen classes. Speciﬁcally, the conditional WGAN

is learned using visual features of seen classes and

their corresponding semantic embeddings. The visual

features of the unseen classes are then synthesised

using the trained conditional WGAN and used to-

gether with the real visual features from seen classes

to train a classiﬁer in a supervised manner. The over-

all pipeline of the GAN-based approach to achieve the

ZSAR task is shown in Fig. 1. Other works (Felix

et al., 2018; Huang et al., 2019a; Mandal et al., 2019;

Narayan et al., 2020; Mishra et al., 2020) also apply

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

256

auxiliary components to enforce a cycle-consistency

constraint on the reconstruction of the semantic em-

beddings during training. The auxiliary components

help to produce a higher quality generator to synthe-

sise semantically consistent visual features for unseen

classes. However, these approaches only embedded

the action class label to train GANs and did not con-

sider any semantics related to objects that may ap-

pear in video instances. In this work, we propose to

include object knowledge as further conditioning in-

formation. We add external knowledge into the se-

mantic space to represent the semantics for the action

classes. We expect this object-based enriched seman-

tics to improve the ZSAR performance on the GAN-

based framework.

3 APPROACHES

In this section, we ﬁrst explain how GANs are used

for ZSAR. We then present a speciﬁc GAN-based

framework used in our empirical evaluations.

The general GAN-based framework shown in Fig.

1 was originally proposed for the ZSIC by (Xian et al.,

2018). The main objective of using a GAN is to gen-

erate visual representations for unseen classes due to

the lack of unseen instances. There are three stages

in the framework, which are GAN training, generat-

ing unseen visual representations, and ZSAR testing.

The GAN consists of a generator G and a discrimi-

nator D. D attempts to distinguish real visual repre-

sentations from the generated ones, and G attempts to

fool the discriminator by generating visual represen-

tations that are similar to the real ones. The GAN here

is also trained with the condition of word embeddings

for a seen action class label (e.g. word2vec), which

enables a generator to synthesise accurate visual rep-

resentations that are representative of that class. Once

the GAN has been trained, G is applied to synthe-

sise visual representations for unseen action classes,

using the corresponding semantic embedding along

with random noise. A discriminative classiﬁer is then

trained with real seen visual representations, synthe-

sised unseen visual representations, and all the seen

and unseen class labels in a fully supervised fash-

ion as shown in the middle layer called ‘Generat-

ing unseen visual representations’ of Fig. 1. In the

ZSAR testing stage, the learned discriminative clas-

siﬁer is used to predict a label by inputting the real

visual representation of the testing action video. It is

noted that the GAN-based framework is only trained

with visual and semantic representations from seen

action classes. But,it has the ability to synthesise

semantically visual representations conditioned on a

class-speciﬁc semantic vector (e.g. word2vec) with-

out having access to any video instances of the unseen

classes.

In our work, we follow the GAN-based approach

named TF-VAEGAN (Narayan et al., 2020) and this

work extended evaluations from the ZSIC to the

ZSAR. To keep this paper self-contained, we intro-

duce the TF-VAEGAN framework in more detail,

which recently delivered impressive ZSAR results.

The process of training a GAN is a key part of the

framework and it is illustrated in Fig. 2. As discussed,

GANs can synthesise visual representations that are

close to the distribution of real instances, but they

could suffer from an issue called mode collapse (Ar-

jovsky and Bottou, 2017), which leads to the problem

of having low diversity of generated visual represen-

tations. In other words, mode collapse could produce

visual representations without large variations in the

end. While similar to GANs, variational autoencoders

(VAEs) (Kingma and Welling, 2013) are another gen-

erative model that employs an encoder to represent

the input as a latent variable with a Gaussian distri-

bution assumption and a decoder that reconstructs the

input from the latent variable.

The generation of unseen visual representations

with VAEs can be achieved with more stable outputs

than with GANs (Verma et al., 2018). Hence, the

TF-VAEGAN framework combines the advantages of

VAEs and GANs by assembling the decoder of the

VAE and the generator of the GAN to synthesise se-

mantically consistent visual representations, achiev-

ing impressive classiﬁcation ZSAR results. In Fig. 2,

the real visual representations of seen action classes x

extracted from a deep neural network (e.g. I3D model

(Carreira and Zisserman, 2017)) along with the se-

mantic embeddings a are the input to the encoder E.

The output of E is the latent code z that compresses

the information from visual representations x, opti-

mised by the Kullback-Leibler divergence. The ran-

dom noise and semantic embeddings a are the input of

the generator G that synthesises the visual represen-

tation x', and the synthesised visual representations

x'and real visual representations x are compared us-

ing a binary cross-entropy loss.

The discriminator D takes either x or x'along with

the corresponding semantic embeddings a as input,

and determines whether the input is real or synthe-

sised. The WGAN loss is applied to the output of

D to distinguish between the real and the synthesised

visual representations. Additionally, both the seman-

tic embedding decoder SED and the feedback module

F improve the process of visual representation syn-

thesis and reduce ambiguities among action classes

during the zero-shot classiﬁcation. The SED inputs

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks

257

either x or x'and reconstructs the semantic embedding

a', which is trained by a cycle-consistency loss.

The feedback module F transforms the latent em-

bedding of SED and puts it back to the latent represen-

tation of G which can reﬁne x'to achieve an enhanced

visual representation synthesis. It is worth noting that

the generator G transforms the semantic embeddings

to visual representations, while SED transforms the

visual representations to semantic embeddings. Con-

sequently, the G and the SED include supplementary

information regarding visual representation and also

the supplementary information can assist to improve

the quality of visual representation synthesis and re-

duce ambiguity and misclassiﬁcation among action

classes.

In our work, we enrich the semantic embeddings

a by incorporating object-based semantic embedding

with different inclusion techniques such as replacing,

appending and averaging rather than only using sim-

ple word embedding of action labels. By doing this,

we expect to achieve better performance based on the

TF-VAEGAN framework for the ZSAR task.

4 METHODOLOGY

In this section, we describe our methodology to per-

form the ZSAR task using the TF-VAEGAN frame-

work with the inclusion of object-based semantics on

a subset of a benchmark dataset (i.e. UCF101). We

also describe in more detail the applied visual and se-

mantic embeddings.

Dataset. The videos in our selected dataset only

contains a single action, so we are not dealing with

the complexities of either action transitions or mul-

tiple actions in the same instance (Ye et al., 2010).

In our work, we choose the UCF101 (Soomro et al.,

2012) dataset, which has 101 action categories with a

total of 13320 videos. To apply object-based semantic

information, we select objects for each action class.

First, we selected 10 seen classes for training and 10

unseen classes for testing. Then, for each seen class,

we manually selected three objects that appear in the

videos. Also, we manually reviewed all the objects

for seen classes to ensure that the objects we picked

are linked to the actions recommended by Concept-

Net (Speer et al., 2017).

For unseen classes, we

found suitable objects solely using ConceptNet, as

ConceptNet is a knowledge base that connects words

and phrases of natural language with labelled relationships.

Its knowledge was collected from many resources, such as

WordNet(Bond and Foster, 2013) and DBPedia(Auer et al.,

2007).

Table 1: The information of action classes and their objects

for our generated subset.

Seen Classes Objects

Archery arrow,bow,bracer

Basketball Shoot basketball,hoop,backboard

Brushing Teeth teeth,toothpaste,mouth

Diving pool,water,springboard

Mopping Floor mop,ﬂoor,mphead

Shaving Beard beard,face,shaver

Surﬁng wave,surfboard,surf

Typing ﬁnger,keyboard,monitor

Walking With Dog leash,dog,road

Writing On Board board,mark pen,ﬁnger

Unseen Classes Objects

Biking bicycle,helmet,wheel

Blow Dry Hair hair,dryer,head

Blowing Candles candle,light,table

Golf Swing golf,golf club,grass

Haircut hair, hand,scissors

Horse Riding horse,saddle,race course

Rafting raft,river,paddle

Soccer Penalty soccer,goal,pitch

Table Tennis Shot

ping pong,table tennis bat,

table

Tennis Swing

tennis ball, tennis racket,

tennis net

video instances of unseen action classes are not avail-

able during the training process. Hence, only an ex-

ternal knowledge base (i.e. ConceptNet) is used to

ﬁnd out objects for unseen action classes, which can

avoid breaking the premise of zero-shot learning (i.e.

seen and unseen classes are disjoint). For example,

the objects for the action class of Shaving Beard are

beard, face and shaver. The action class of Biking has

the objects bicycle, helmet and wheel. In a nutshell,

we choose 10 seen classes and 10 unseen classes from

the UCF101 dataset along with the selection of three

objects for each class as shown in Table 1.

Visual & Semantic Embeddings. To produce real

visual representations x in Fig. 2, we adopted the

off-the-shelf I3D model for visual feature extraction

provided by (Mandal et al., 2019), which is the most

common approach. I3D was originally proposed by

(Carreira and Zisserman, 2017) and contains RGB

and Inﬂated 3D networks to generate appearance and

ﬂow features from Mixed 5c layer. For each video

instance, the outputs from Mixed 5c layer for both

networks are averaged through a temporal dimension,

pooled in the spatial dimension, and then ﬂattened to

obtain a 4096-dimensional vector for appearance and

ﬂow features. In the end, both appearance and ﬂow

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

258

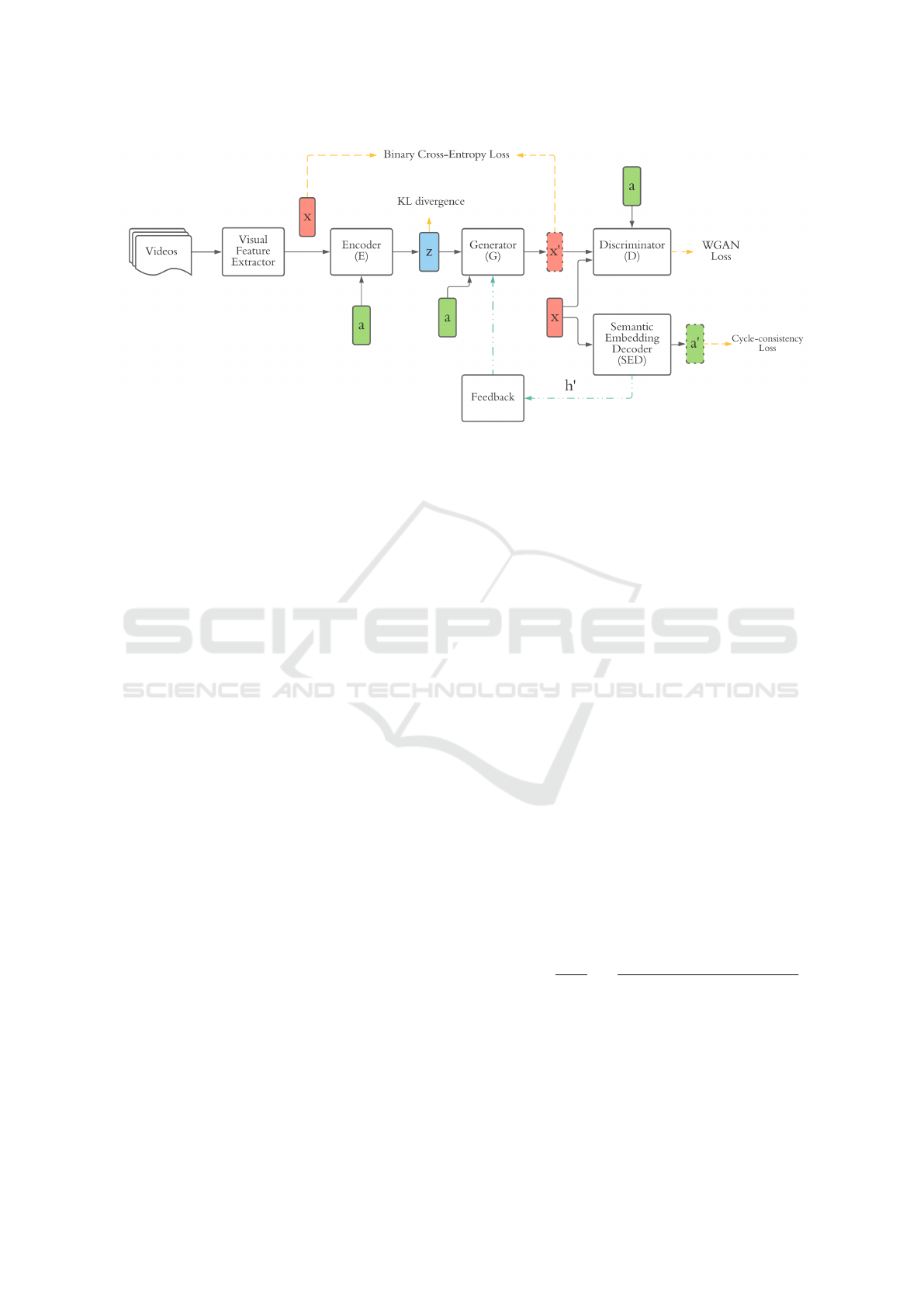

Figure 2: The overall architecture of TF-VAEGAN framework.

features are concatenated to represent a video with an

8192-dimensional vector.

It has been recently shown that the Bidirectional

Encoder Representations from Transformers (BERT)

(Devlin et al., 2018) presents state-of-the-art results

in a wide variety of natural language processing

tasks, such as question answering and natural lan-

guage inference. However, in the literature of ZSAR,

Word2Vec has been extensively used to produce se-

mantic embedding for action labels. The aim of this

paper is to justify whether the ZSAR performance

can be improved by including object-based informa-

tion and therefore, we used the common approach

to compare our performance with other researchers

(Xu et al., 2015; Li et al., 2016; Xu et al., 2016;

Xu et al., 2017; Wang and Chen, 2017). In the

same way, we implemented the I3D CNNs rather than

the latest CNN models as they are much more pop-

ular in the literature. Therefore, for producing the

class-speciﬁc semantic representations a in Fig. 2,

Word2Vec (Mikolov et al., 2013), which is built upon

a skip-gram model that was pre-trained on a large-

scale text corpus (i.e. Google News Dataset), is used

to deliver a 300-dimensional vector for each action

class label on our generated subset. Furthermore, for

all the selected objects, each of their names is repre-

sented as a 300-dimensional vector using Word2Vec.

For this subset of the UCF101 dataset, all the action

class labels and object names have the same type and

size of word embedding.

The Inclusion of Object Semantics. In previous

GAN-based ZSAR works, the component of class

embedding a in Fig. 1 is a simple word embedding

(i.e. Word2Vec) for each action label. The input

does not contain any object-related semantics. As

discussed earlier, we aim to include objects into the

class embedding a as enhanced knowledge to im-

prove ZSAR performance, evaluating on the GAN-

based framework (i.e. TF-VAEGAN). We have con-

sidered three approaches to add object-based seman-

tics that are replacing, appending, and averaging. For

replacing, the embedding of the class label is directly

substituted by either the embedding of the one corre-

sponding object or by more objects. For appending,

the object embeddings are concatenated to the corre-

sponding action class embedding to form a new high

dimensional vector, whose length relates to the num-

ber of objects to be appended. For example, the new

embedding would be a 600-dimensional vector if one

object embedding is appended to action class embed-

ding. For averaging, we calculate the mean of the em-

bedding of the action class label and the embedding of

the corresponding objects as a new 300-dimensional

vector, which also contains semantic information for

both class and objects within a small-size vector. All

three object-inclusion approaches will be empirically

evaluated on our generated subset using the modiﬁed

TF-VAEGAN framework.

Evaluation Metrics. Class accuracy is a standard

metric in the ZSAR ﬁeld. We use the average per-

class accuracies deﬁned in the following equation

(Xian et al., 2017):

ACC

class

∑

C=1

# correct predictions in Class C

# instances in Class C

(1)

5 EXPERIMENTS

In this section, we explain the experimental conﬁgu-

rations for evaluating the TF-VAEGAN framework on

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks

259

Table 2: Experimental conﬁgurations for the inclusion of

one object. Note that, Rep., App. and Avg. denote the in-

clusion approaches of replacing, appending and averaging,

respectively. obj1, obj2 and obj3 denote the ﬁrst, second

and third objects being selected for an action class, respec-

tively.

Experiments

Object

Inclusion

Semantic

Embedding

(baseline)

action

2 Rep. obj1

3 Rep. obj2

4 Rep. obj3

5 App. action, obj1

6 App. action, obj2

7 App. action, obj3

8 Avg. AVG(action, obj1)

9 Avg. AVG(action, obj2)

10 Avg. AVG(action, obj3)

our generated subset with the three aforementioned

operations (i.e. replacing, appending and averag-

ing) to include object-based information as enhanced

knowledge. The ZSAR implementations are then de-

scribed in more detail.

Experiments and Baseline. Table 2 shows ten

experimental conﬁgurations conducted to perform

ZSAR with different inclusion approaches with only

one object. The object inclusion approaches are re-

placing (Rep.), appending (App.) and averaging

(Avg.). As the baseline, the object-based knowledge

is not used in Experiment 1, but only knowledge re-

lated to the action class. From Experiment 2 to Ex-

periment 10, a single object is included to produce

the object-involved semantic embedding a, shown in

Fig. 2. The results from Experiment 2 to Experi-

ment 10 are compared to the baseline to see whether

the object inclusion can improve the ZSAR perfor-

mance. Notably, the visual features of seen classes

(i.e. x) are represented by I3D and the synthesised vi-

sual features for unseen classes (i.e. x') are the same

as I3D in size. Also, the semantic representations of

action class labels and object names are extracted us-

ing Word2Vec to form the different types of semantic

embedding (i.e. a) with different object inclusion ap-

proaches.

For further investigations, Table 3 shows eight ex-

perimental conﬁgurations including multiple objects

as semantic embedding to perform the ZSAR evalua-

tions with the approaches of App. and Avg. We ignore

the approach of Rep. in the cases of including multi-

ple objects because of its poor performance in single-

object inclusion evaluations, which will be shown in

the next section.

Table 3: Experimental conﬁgurations for the inclusion of

multiple objects.

Exp.

Object

Inclusion

Semantic

Embedding

11 App. action, obj1, obj2

12 App. action, obj1, obj3

13 App. action, obj2, obj3

14 App. action, obj1, obj2, obj3

15 Avg. AVG(action, obj1, obj2)

16 Avg. AVG(action, obj1, obj3)

17 Avg. AVG(action, obj2, obj3)

18 Avg. AVG(action, obj1, obj2, obj3)

Implementation Details. Similar to the TF-

VAEGAN approach (Narayan et al., 2020), the

structures of discriminator D, encoder E, and gener-

ator G are developed as fully connected networks in

two layers along with 4096 hidden units. Also, the

semantic embedding decoder SED and the feedback

module F have the same structure as D, E and G.

Leaky ReLU is used for each activation function,

except in the output of G, where a sigmoid activation

is applied to calculate the binary cross-entropy loss.

The whole framework is trained using an Adam

optimiser with 10

−4

learning rate. The ﬁnal discrim-

inative classiﬁer is a single-layer fully connected

network with equal output units to the number of

unseen classes. We directly apply the same hyper-

parameters as the TF-VAEGAN work, such as α, β

and σ are set to 10, 0.01 and 1, respectively. As in

the work (Xian et al., 2019), α is the coefﬁcient for

weighting the WGAN loss, β is a hyper-parameter

for weighting the decoder reconstruction error in the

semantic decoder embedding SED, and σ is used

in the feedback module F to control the feedback

modulation. The gradient penalty coefﬁcient λ

is initially set to 10 for training a WGAN in the

framework. Additionally, each conﬁguration is run 5

times.

6 RESULTS & ANALYSIS

In this section, we present and discuss the experimen-

tal results for the conﬁgurations shown in Table 2 and

Table 3. For each conﬁguration, we measure the mean

average accuracy across 10 unseen classes over 5 rep-

etitions. We compare the results obtained in the ex-

periments with object inclusion to the results from the

baseline experiment without any object knowledge.

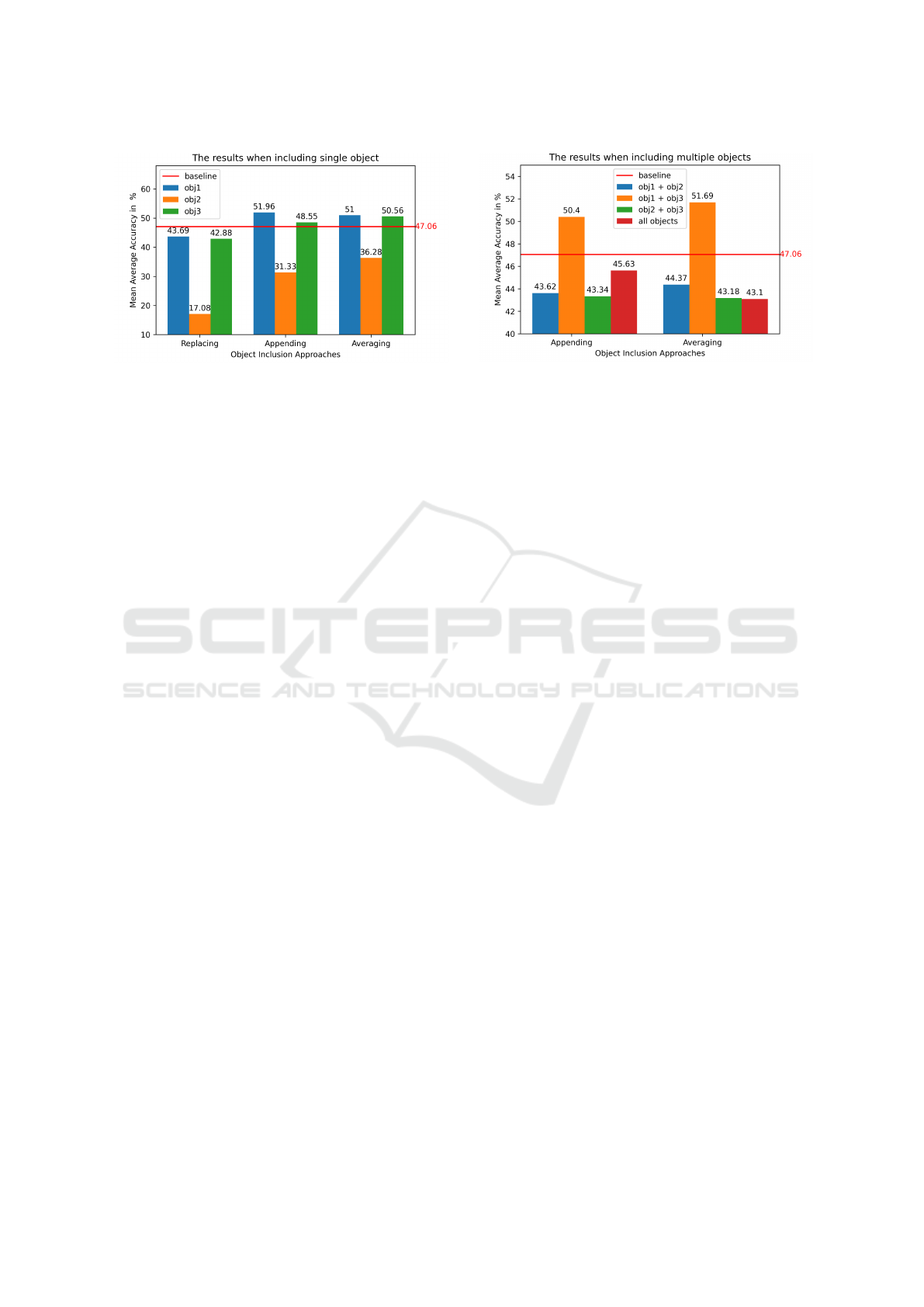

Table 4 shows the mean average accuracy from the

baseline and other experiments with a single object

inclusion, and also the comparison results in percent-

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

260

Table 4: Experimental results for the baseline without ob-

ject knowledge and other experiments with single object in-

clusion and the comparison results are shown in percentage.

Note that, MAA denotes the mean average accuracy and

STD denotes the standard deviation.

Exp.

Object

Inclusion

MAA / STD

Compared

to baseline

1 Baseline 47.06% / 0.02 \

2 Rep. obj1 43.69% / 0.03 -3.37%

3 Rep. obj2 17.08% / 0.04 -29.98%

4 Rep. obj3 42.88% / 0.02 -4.18%

5 App. obj1 51.96% / 0.02 4.90%

6 App. obj2 31.33% / 0.02 -15.73%

7 App. obj3 48.55% / 0.01 1.49%

8 Avg. obj1 51.00% / 0.01 3.94%

9 Avg. obj2 36.28% / 0.03 -10.78%

10 Avg. obj3 50.56% / 0.03 3.50%

age against the baseline. As can be seen, the approach

of Rep. (Experiment 2-4) yields poor performance

against the baseline regardless of which object is in-

corporated as there is no semantic knowledge of the

action class included which could have improved the

quality of visual feature synthesis of the generator. To

this point, the approach of Rep. is not considered for

the experiments with multiple objects inclusion.

For the App. approach (Experiments 5-7), the

comparison results against the baseline are 4.90%, -

15.73% and 1.49% by incorporating obj1, obj2 and

obj3, respectively. Similarly, after evaluating the

Avg. approach (Experiments 8-10), the comparison

results are 3.94%, -10.78% and 3.50% when includ-

ing obj1, obj2 and obj3, respectively. It is worth not-

ing that the inclusion of the second object (obj2) de-

livers the worst performance by a large margin of all

approaches when compared to the baseline and more-

over, there is an improvement when using obj1 and

obj3 for both App. and Avg. approaches. In this re-

gard, we observe that the selection of objects for each

action class has a signiﬁcant impact on the ZSAR

evaluation in the TF-VAEGAN framework. We then

check our generated subset to ﬁnd out which exact

obj2 is selected for each action class. For example, we

choose ‘light’ as obj2 for the action class of ‘Blow-

ing Candles’ and ‘river’ as obj2 for the action class

of ‘Rafting’. These objects seem too general to be

added to the corresponding action class, which in-

dicates that the selected objects for an action class

should be speciﬁcally related to the contents of the

videos of that class to provide more precise knowl-

edge to represent its semantic embedding. On the

contrary, a boost compared to the baseline is gained

by including obj1 (e.g. Experiments 5 and 8) because

obj1 is speciﬁcally related to the corresponding ac-

tion class. For example, the object ‘hair’ is selected

Table 5: Experimental results for the baseline and other

experiments including multiple objects inclusion and the

comparison results are shown in percentage.

Exp.

Object

Inclusion

MAA / STD

Compared

to baseline

Baseline

47.06% / 0.02 \

App.(obj1, obj2)

43.62% / 0.02 -3.44%

App.(obj1, obj3)

50.40% / 0.01 3.34%

App.(obj2, obj3)

43.34% / 0.02 -3.72%

14 App. all obj. 45.63% / 0.02 -1.43%

Avg.(obj1, obj2)

44.37% / 0.01 -2.69%

Avg.(obj1, obj3)

51.69% / 0.02 4.63%

Avg.(obj2, obj3)

43.18% / 0.01 -3.88%

Avg. all obj.

43.10% / 0.01 -3.96%

as obj1 for the action class ‘Haircut’, and also the ob-

ject ‘horse’ as obj1 belongs to the action class ‘Horse

Riding’. To this point, it is understood that includ-

ing high-relevant objects into one action class can im-

prove the performance in the ZSAR ﬁeld.

As can be seen in Fig. 3, the inclusion approach

of Rep. does not improve the ZSAR performance. We

consider that removing class labels has a negative im-

pact on representing semantic embedding given to the

GANs. This is congruent with the results of App. and

Avg., which have better results than the Rep. and also

than the baseline for obj1, obj2 and obj3. Further-

more, the objects of the second column (i.e. obj2) do

not improve the results but worsen them. We think

the objects were not properly selected and in the fu-

ture, we will explore different strategies for selecting

objects to improve the baseline individually as well as

when combined with other objects.

As further explorations, we conduct more exper-

iments including multiple objects into one class for

ZSAR evaluations (Experiment 11-18), and the re-

sults are shown in Table 5. For the App. approach,

the results against the baseline are -3.44%, 3.34%,

-3.72% and -1.43% by incorporating obj1 + obj2,

obj1 + obj3, obj2 + obj3 and all objects, respec-

tively. It can be found that the performance boost

is only gained when excluding obj2, which also de-

livers poor performance in the single-object inclusion

experiments. Similarly, for the Avg. approach, the

comparison results are -2.69%, 4.63%, -3.88% and -

3.96% for the cases of obj1 + obj2, obj1 + obj3, obj2

+ obj3 and all objects, respectively. The inclusion

of obj2 yields poor performance regardless of which

other objects to be included together, shown in Fig.

4. In other words, similar to experiments of using

single object, obj2 can pull down the ZSAR perfor-

mance if it is included into semantic embedding in

the framework. Additionally, the Avg. approach can-

not dominantly outperform the App. approach in all

cases, and vice versa. The standard deviation values

for all the experiment results are under 0.04, indicat-

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks

261

Figure 3: The results of mean average accuracy when in-

cluding single object for three inclusion approaches.

ing that the generation process of visual features for

unseen classes is stable in the TF-VAEGAN and also

the ﬁnal discriminative classiﬁer based on the super-

vised learning approach is learned consistently.

The limitations of our work are described as fol-

lows: (1) We manually selected objects that appear in

videos, along with manual-checking in the Concept-

Net, for each action class. This approach does not

scale well if the number of considered action classes

along with their selected object increases. (2) We only

considered evaluating our object-inclusion approach

on the TF-VAEGAN framework which could be a

limitation, leading to ﬁnding out the less conclusive

points.

All discussions so far are focused on model per-

formance with object inclusion as enhanced knowl-

edge in the framework. There is no doubt that includ-

ing high-relevant objects for action classes can im-

prove the ZSAR results in the TF-VAEGAN frame-

work. We also believe that the approach of object in-

clusion can be applied to the generative-based model,

which can be GANs, VAE and the combination of

both GAN and VAE. Additionally, our results in the

experiments show that it is possible to improve the

performance of ZSAR by adding related objects to

the classes. Other investigations have better results

because they use more elaborated frameworks. How-

ever, in order to understand better what kind of objects

improved the baseline the most to reﬁne the object se-

lection, it was more suitable not to select a complex

framework.

7 CONCLUSION

In this piece of research, we have investigated the im-

pact on the evaluations of zero-shot action recognition

by incorporating object-based knowledge in the TF-

VAEGAN framework. We generated a subset from

Figure 4: The results of mean average accuracy when in-

cluding multiple objects for three inclusion approaches.

the UCF101 dataset by manually selecting objects

that appear in videos for each action class, and then

evaluated the framework on this subset. Furthermore,

we evaluated and discussed the different approaches

of object inclusion (i.e. Replacing, Appending and

Averaging). We have proved that adding objects to the

class labels is a feasible strategy to improve the results

when Appending and Averaging approaches are ap-

plied. We have also seen that the objects can improve

but also can hinder the performance of ZSAR. Our

approach can also be applied to generalised ZSAR.

Lastly, we concluded that a performance boost can

be achieved by incorporating high-relevant and spe-

ciﬁc objects as enhanced semantic knowledge into the

corresponding action classes in the generative-based

method for the ZSAR task.

As future work, we aim to investigate generalised

ZSAR which is a more challenging task that tests

both seen and unseen classes together in the classi-

ﬁcation stage. Also, we will explore strategies for

selecting objects in a better way. In addition, more

approaches to include the object-based information

as enriched knowledge will be explored and exam-

ined, such as extracting semantic knowledge from an

existing knowledge graph (i.e. ConceptNet) for ac-

tion classes. Furthermore, we expect that this perfor-

mance could be improved by applying optimisation

techniques to the hyper-parameters values. We also

think that using more recent and effective modules in

the pipeline such as BERT or 3D ResNets (Kataoka

et al., 2020) will boost the performance of our ap-

proach.

ACKNOWLEDGEMENTS

This project is funded under the Fiosraigh Scholarship

of Technological University Dublin.

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

262

REFERENCES

Arjovsky, M. and Bottou, L. (2017). Towards principled

methods for training generative adversarial networks.

arXiv preprint arXiv:1701.04862.

Auer, S., Bizer, C., Kobilarov, G., Lehmann, J., Cyganiak,

R., and Ives, Z. (2007). Dbpedia: A nucleus for a web

of open data. In The semantic web, pages 722–735.

Springer.

Bond, F. and Foster, R. (2013). Linking and extending an

open multilingual wordnet. In Proceedings of the 51st

Annual Meeting of the Association for Computational

Linguistics (Volume 1: Long Papers), pages 1352–

1362.

Carreira, J. and Zisserman, A. (2017). Quo vadis, action

recognition? a new model and the kinetics dataset.

In proceedings of the IEEE Conference on Computer

Vision and Pattern Recognition, pages 6299–6308.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Felix, R., Reid, I., Carneiro, G., et al. (2018). Multi-modal

cycle-consistent generalized zero-shot learning. In

Proceedings of the European Conference on Com-

puter Vision (ECCV), pages 21–37.

Fu, Y., Hospedales, T. M., Xiang, T., and Gong, S. (2015).

Transductive multi-view zero-shot learning. IEEE

transactions on pattern analysis and machine intelli-

gence, 37(11):2332–2345.

Gao, J., Zhang, T., and Xu, C. (2019). I know the relation-

ships: Zero-shot action recognition via two-stream

graph convolutional networks and knowledge graphs.

In Proceedings of the AAAI conference on artiﬁcial

intelligence, volume 33, pages 8303–8311.

Huang, H., Wang, C., Yu, P. S., and Wang, C.-D. (2019a).

Generative dual adversarial network for generalized

zero-shot learning. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 801–810.

Huang, K., Delany, S.-J., and McKeever, S. (2019b). Hu-

man action recognition in videos using transfer learn-

ing. In Proceedings of IMVIP 2019: Irish Machine

Vision & Image Processing, Technological University

Dublin, Dublin, Ireland.

Huang, K., Delany, S. J., and McKeever, S. (2021). Fairer

evaluation of zero shot action recognition in videos.

In VISIGRAPP (5: VISAPP), pages 206–215.

Jain, M., Van Gemert, J. C., Mensink, T., and Snoek, C. G.

(2015). Objects2action: Classifying and localizing

actions without any video example. In Proceedings

of the IEEE international conference on computer vi-

sion, pages 4588–4596.

Kataoka, H., Wakamiya, T., Hara, K., and Satoh, Y. (2020).

Would mega-scale datasets further enhance spatiotem-

poral 3d cnns? arXiv preprint arXiv:2004.04968.

Kingma, D. P. and Welling, M. (2013). Auto-encoding vari-

ational bayes. arXiv preprint arXiv:1312.6114.

Li, Y., Hu, S.-h., and Li, B. (2016). Recognizing unseen ac-

tions in a domain-adapted embedding space. In 2016

IEEE International Conference on Image Processing

(ICIP), pages 4195–4199. IEEE.

Liu, J., Kuipers, B., and Savarese, S. (2011). Recognizing

human actions by attributes. In CVPR 2011, pages

3337–3344. IEEE.

Liu, K., Liu, W., Ma, H., Huang, W., and Dong, X. (2019).

Generalized zero-shot learning for action recognition

with web-scale video data. WWW, 22(2):807–824.

Mandal, D., Narayan, S., Dwivedi, S. K., Gupta, V.,

Ahmed, S., Khan, F. S., and Shao, L. (2019). Out-of-

distribution detection for generalized zero-shot action

recognition. In Proceedings of CVPR, pages 9985–

9993.

Mettes, P. and Snoek, C. G. (2017). Spatial-aware object

embeddings for zero-shot localization and classiﬁca-

tion of actions. In Proceedings of the IEEE inter-

national conference on computer vision, pages 4443–

4452.

Mikolov, T., Sutskever, I., Chen, K., Corrado, G. S., and

Dean, J. (2013). Distributed representations of words

and phrases and their compositionality. In Advances in

neural information processing systems, pages 3111–

3119.

Mishra, A., Pandey, A., and Murthy, H. A. (2020). Zero-

shot learning for action recognition using synthesized

features. Neurocomputing, 390:117–130.

Mishra, A., Verma, V. K., Reddy, M. S. K., Arulkumar, S.,

Rai, P., and Mittal, A. (2018). A generative approach

to zero-shot and few-shot action recognition. In 2018

IEEE Winter Conference on WACV, pages 372–380.

IEEE.

Narayan, S., Gupta, A., Khan, F. S., Snoek, C. G., and

Shao, L. (2020). Latent embedding feedback and dis-

criminative features for zero-shot classiﬁcation. In

Computer Vision–ECCV 2020: 16th European Con-

ference, Glasgow, UK, August 23–28, 2020, Proceed-

ings, Part XXII 16, pages 479–495. Springer.

Soomro, K., Zamir, A. R., and Shah, M. (2012). Ucf101:

A dataset of 101 human actions classes from videos in

the wild. arXiv preprint arXiv:1212.0402.

Speer, R., Chin, J., and Havasi, C. (2017). Conceptnet 5.5:

An open multilingual graph of general knowledge. In

Thirty-ﬁrst AAAI conference on artiﬁcial intelligence.

Verma, V. K., Arora, G., Mishra, A., and Rai, P. (2018).

Generalized zero-shot learning via synthesized exam-

ples. In Proceedings of the IEEE conference on com-

puter vision and pattern recognition, pages 4281–

4289.

Wang, Q. and Chen, K. (2017). Zero-shot visual recognition

via bidirectional latent embedding. IJCV, 124(3):356–

383.

Wang, X. (2013). Intelligent multi-camera video surveil-

lance: A review. Pattern recognition letters, 34(1):3–

19.

Xian, Y., Akata, Z., Sharma, G., Nguyen, Q., Hein, M., and

Schiele, B. (2016). Latent embeddings for zero-shot

classiﬁcation. In Proceedings of CVPR, pages 69–77.

Xian, Y., Lorenz, T., Schiele, B., and Akata, Z. (2018). Fea-

ture generating networks for zero-shot learning. In

Zero-Shot Action Recognition with Knowledge Enhanced Generative Adversarial Networks

263

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 5542–5551.

Xian, Y., Schiele, B., and Akata, Z. (2017). Zero-shot

learning-the good, the bad and the ugly. In Proceed-

ings of the IEEE Conference on CVPR, pages 4582–

4591.

Xian, Y., Sharma, S., Schiele, B., and Akata, Z. (2019).

f-vaegan-d2: A feature generating framework for any-

shot learning. In Proceedings of the IEEE/CVF Con-

ference on Computer Vision and Pattern Recognition,

pages 10275–10284.

Xing, M., Feng, Z., Su, Y., Peng, W., and Zhang, J. (2021).

Ventral & dorsal stream theory based zero-shot action

recognition. Pattern Recognition, 116:107953.

Xu, X., Hospedales, T., and Gong, S. (2015). Semantic

embedding space for zero-shot action recognition. In

2015 IEEE International Conference on Image Pro-

cessing (ICIP), pages 63–67. IEEE.

Xu, X., Hospedales, T., and Gong, S. (2017). Transduc-

tive zero-shot action recognition by word-vector em-

bedding. International Journal of Computer Vision,

123(3):309–333.

Xu, X., Hospedales, T. M., and Gong, S. (2016). Multi-

task zero-shot action recognition with prioritised data

augmentation. In European Conference on Computer

Vision, pages 343–359. Springer.

Ye, J., Coyle, L., Mckeever, S., Dobson, S., Ye, J., Coyle,

L., Mckeever, S., and Dobson, S. (2010). Dealing with

activities with diffuse boundaries. In In Proceedings

of the Workshop on How.

NCTA 2021 - 13th International Conference on Neural Computation Theory and Applications

264
