Intelligent Sketch-based Recurrent Neural Networks Models to

Handle Text-to-SQL Task

Youssef Mellah, Zakaria Kaddari, Toumi Bouchentouf, Jamal Berrich

and Mohammed Ghaouth Belkasmi

Mohammed First University, LARSA/SmartICT Laboratory, ENSAO, Oujda, Morocco

Keywords: SQL, NLP, RNN, LSTM, GRU, WikiSQL.

Abstract: Databases store a large amount of current data and information, and to access them, users must know a

query language like SQL. Therefore, using a system capable of converting a natural language into an

equivalent SQL query will make this task much easier. In that direction, the making a system facilitating the

interaction with the relational databases is a challenging problem in the field of Natural Language

Processing (NLP), and remains a very important area of research. It has recently regained momentum due to

the introduction of large-scale DataSets. We present, in this article, our approach based on Recurrent Neural

Networks (RNNs), more specifically on Long-Short Term memory cells (LSTM) and Gated Recurrent Units

(GRU). We also describe WikiSQL, the DataSet used for training, evaluation, and testing our models.

Finally, we present our results of evaluations.

INTRODUCTION

Today, a large quantity of information is stored in a

relational database and forms the basis of

applications such as medical records (Hillestad,

2005), financial markets (Beck, 2000), and asset

management customer relationships (Ngai, 2009).

However, it is absolutely necessary to know a query

language like SQL, to interact with relational

databases, which is not obvious to everyone.

Therefore, recent research appeared to address

systems that map Natural Language (NL) to SQL

queries. A long-standing goal has been to enable

users to interact with the database through NL

(Androutsopoulos, 1995; Popescu, 2003). We call

this task Text-to-SQL. In this work, we present our

approach based on classifications (Bakliwal, 2011)

and recurrent neural networks (Mikolov, 2010),

specifically on LSTM (Sundermeyer, 2012) and

GRU (Dey, 2017) cells. The idea is inspired by the

SQLNet approach (Xu, 2017); in particular, we use a

sketch to generate an SQL query from natural

language. The sketch aligns naturally with the

syntactic structure of an SQL query.

We set up RNN, similar to the traditional sketch-

based approaches of program synthesis (Alur, 2013;

Solar-Lezama, 2006).

RELATED WORK

There is a range of representations for semantic

analysis or the mapping of natural language to

formal meaning, such as executable programs and

logical forms (Zelle, 1996; Zettlemoyer, 2012;

Wong 2007). As a subtask of semantic analysis, the

Text-to-SQL problem has been studied for a long

time (Li, 2006; Giordani 2012; Wang, 2017), and

one of the primary works, PRECISE (Popescu,

2003), which translates questions into SQL queries

and identifies questions about which it is unsure.

(Iyer, 2017) use a Seq2Seq model with human

feedback. The community of database has come up

with methods that tend to involve engineering

manual features and user interactions with systems.

Recent work sees Deep Learning (DL) (Cai, 2017)

like a primary technique, based on neural machine

translation(Castano,1997).

Our work is similar to recent work using DL,

precisely RNN with LSTM and/or GRU.

DATASET

We operate on WikiSQL (Zhong, 2017), a DataSet

for Text-to-SQL task which contains a collection of

Mellah, Y., Kaddari, Z., Bouchentouf, T., Berrich, J. and Belkasmi, M.

Intelligent Sketch-based Recurrent Neural Networks Models to Handle Text-to-SQL Task.

DOI: 10.5220/0010731000003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 201-205

ISBN: 978-989-758-559-3

201

questions, corresponding SQL queries, and SQL

tables. WikiSQL, which is the largest hand-

annotated semantic analysis dataset to date. This

DataSet is more prominent than other datasets that

handle the Text- to-SQL task, either in terms of

number of tables or examples. Each table only exists

in a single set, either the train, the dev or the test set.

Using WikiSQL, the model must be able to not

only generalize to new queries, but to new table

schema, due to the diversity and the large number of

tables that contain. Finally, WikiSQL contains

realistic data extracted from the web, with 87,673

examples of questions, queries, and database tables

built from 26,521 tables. All SQL queries in

WikiSQL respect the format illustrated in the sketch

of Figure 1.

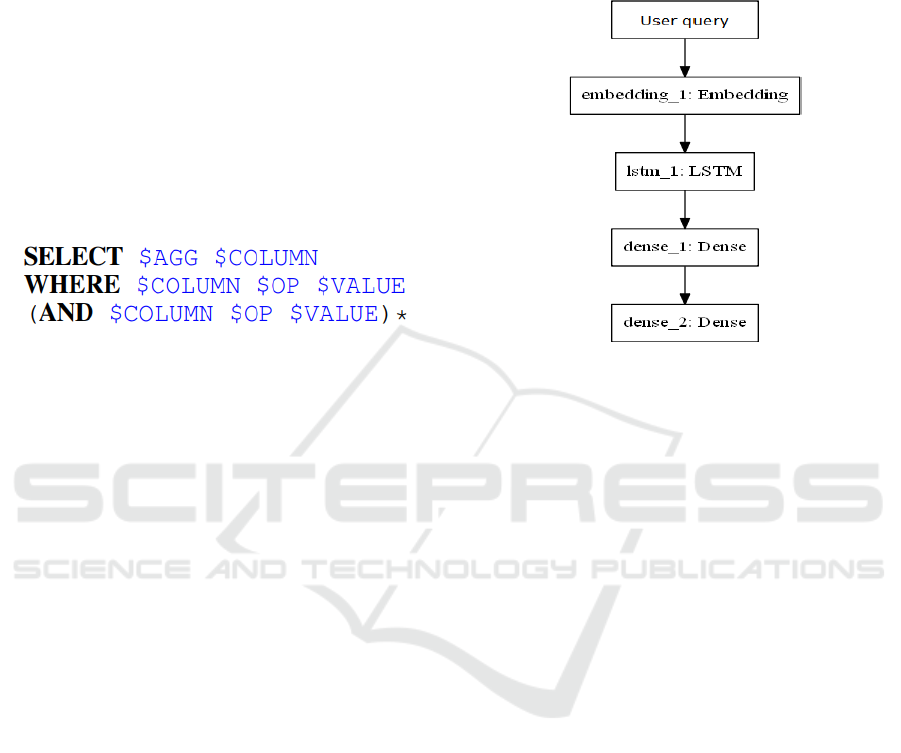

Figure 1: WikiSQL queries sketch.

APPROACH

Our approach can be seen as a neural network

alternative to traditional sketch-based program

synthesis approaches, so we also track location

filling. The idea is to use a sketch to generate an

SQL query from natural language. The sketch

respects the syntactic structure of an SQL query;

neural networks are set up each predicting a

component of the request. As shown in Figure 1, the

locations that will be predicted are tokens starting

with "$". Our proposed pipeline can therefore be

divided into six modules ($AGG, $SELCOL,

$CONDCOUNT, $CONDCOL, $CONDOP and

$CONDVALUE).

4.1

AGG Module

The role of this model is to predict the correct

aggregation function, given the user question as

input. This is a classification problem. Therefore,

the model must select one of the six classes ["",

"COUNT", "AVG", "MAX", "MIN", "SUM"],

conditioned on user request as input only. Using

word embedding, a sequence of tokens is taken by

the pattern, which represents the natural language

statement. The wrapper is then sent to an LSTM

layer whose internal states are first passed to a dense

layer with tanh as activation and finally to a dense

layer with a softmax function which gives a

probability distribution over all the classes. This can

be posed as a classification problem in which we

have six classes and we choose the one with the

probability maximum. Figure 2 shows the

conception of this module

Figure 2: AGG, CONDCOUNT and CONDOP Modules

architecture

4.2

SELCOL Model

The goal of this model is to get the appropriate

selection COLUMN given the natural language

utterance; it is also treated as a classification

problem. Given this time the user question and the

database schema as inputs, the model returns a

column of the table schema. The inputs are

converted to embedding, then they are processed by

two GRUs according to the hidden states.

Then, we concatenate the outputs, and integrate

them into two dense layers, with softmax as the

activation function in order to return a probability

(score) between 0 and 1 of each column. The

column with the highest probability is returned at the

end by the model. The architecture of the model is

shown in figure 3.

4.3

CONDCOUNT Model

This model is for finding the number of conditions

in the WHERE clause. We remark that the most

complex query in WikiSQL contains tree conditions,

so we treat this need also as a classification problem

with four classes: [0, 1, 2, 3]; 0 for no condition, 1

for one condition, 2 for two conditions and 3 for tree

conditions (the maximum). This module is

considered like AGG module. Figure 2 shows the

visualization of the module.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

202

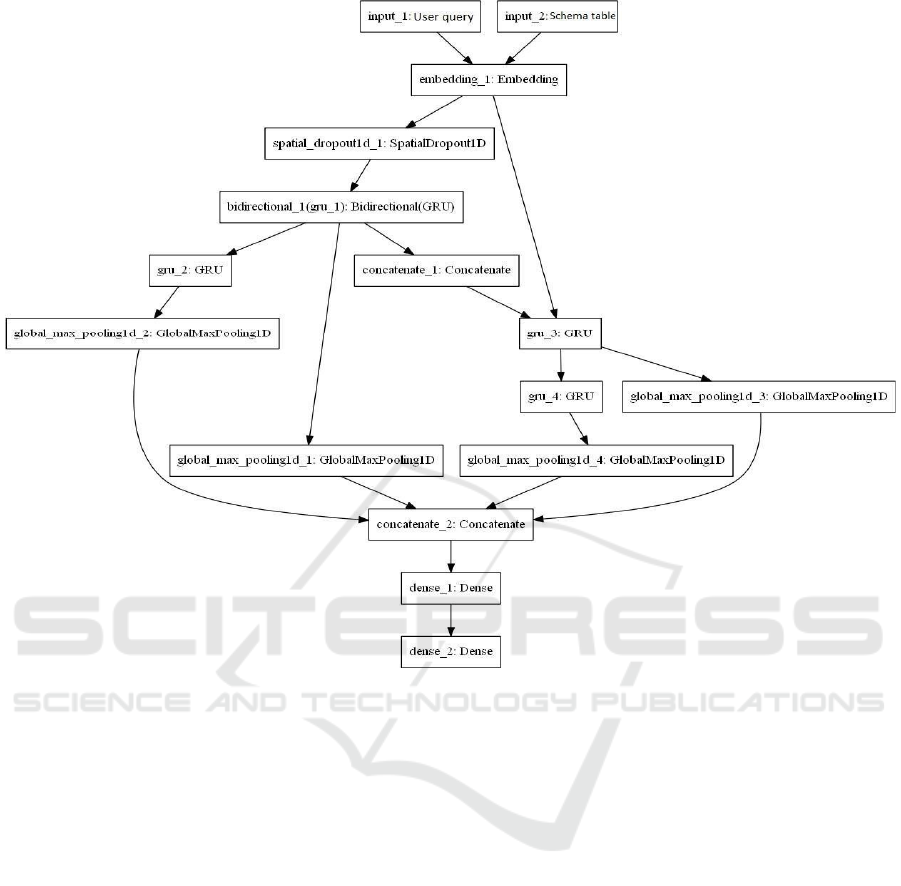

Figure 3: SELCOL and CONDCOL Modules architecture

4.4

CONDCOL Model

For this model, the goal is to find the appropriate

column for the condition in the where clause, giving

the question and the database schema as inputs. This

model is identical to the SELCOL model. The

architecture is the same in figure 3.

4.5

CONDOP Model

The function of this model is to predict the correct

operation for the condition in the where clause. It is

also considered as a problem of classification of

three classes: [=,>, <]. This model is identical to the

model of prediction of the aggregation function

(AGG). For the architecture it is the same visualized

in figure 2

4.6

CONDVALUE Model

The goal here is to generate the value of the

condition in the where clause. The model takes the

user question as input, and returns two outputs: the

first concerns the number of words to be taken from

the question, and the second concerns the probability

of each word to appear as a condition value. The

entry tokens are converted to embedding and then

pass a bidirectional GRU. The hidden state of the

latter is subsequently passed to another GRU. Then

the whole is passed to two dense layers, one with

relu as an activation function, and the other with

softmax. The first dense layer returns the probability

of each token in the issue that it appears in the value,

and the second dense layer returns the number of

tokens to build the final value (maximum 4

according to the DataSet). The architecture of this

model is presented in figure 4.

Intelligent Sketch-based Recurrent Neural Networks Models to Handle Text-to-SQL Task

203

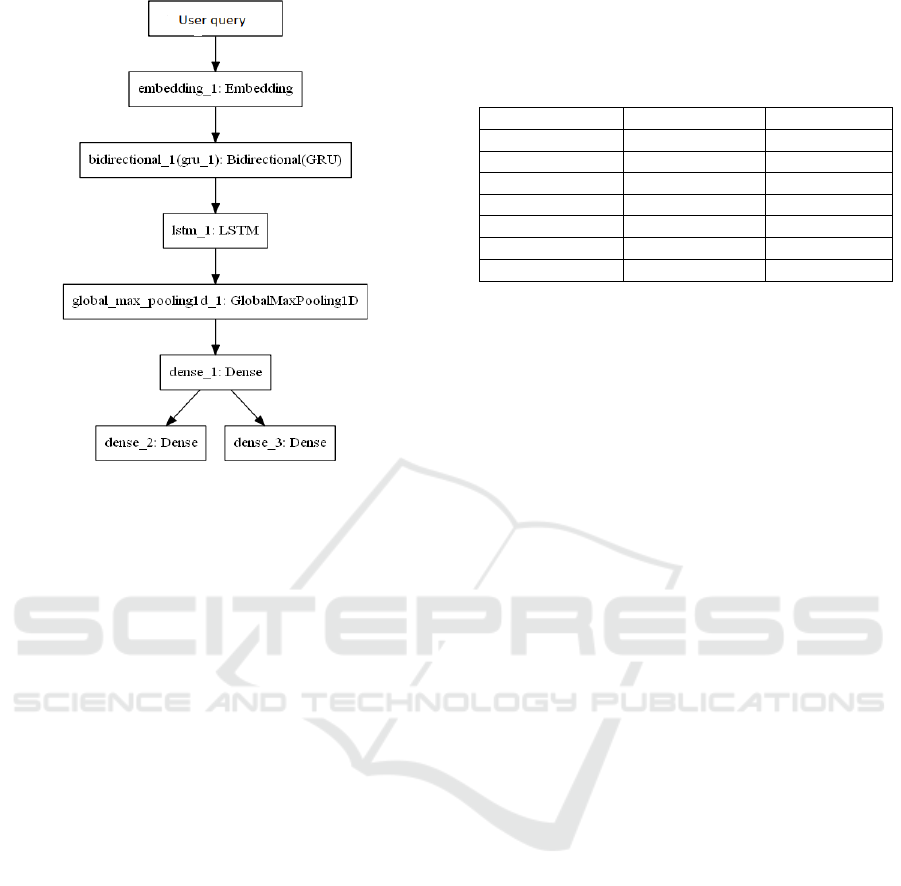

Figure 4: CONDVALUE Module architecture.

TECHNICAL DETAILS

This part is devoted to present certain parameters

involving RNNs. All models are implemented with

Python and the Keras framework. The two imputes

used (user question and database schema) are

tokenized with Keras’s tokenizer, and are

represented as a sequence of tokens. These

sequences are converted into representative vectors

(embedding) using GloVe (Pennington, 2014). Each

token is converted into a vector of dimensions 50.

The CONDOP, CONDCOUNT and AGG models

had two hidden layers, and the others have only one

hidden layer. The learning rate and the dimensions

of all these hidden layers are respectively 0.2 and 50.

The Adam optimizer (Kingma, 2014) is used to

optimize the cross-entropy, keeping these hyper-

parameters by default. We trained the different

models with a batch size of 64 and that over 100

epochs.

RESULTS AND DISCUSSION

Table 1 shows results of train and test execution accuracy

of each module, evaluated on WikiSQL DataSet.

Module Train Accurac

Test Accurac

AGG 92% 90%

SELCOL 96.5% 95.3%

CONDCOUNT 94.8% 93.3%

CONDCOL 85% 86.8%

CONDOP 91.2% 92.8%

CONDVALUE 45.6% 41.4%

All SQL Query 42.8% 40.3%

We remark that the smallest accuracies are usually

for CONDVALUE, and CONDCOL. In fact, on

text-to-SQL task, there is always a problem with

column prediction because it is unrealistic that users

always formulate their questions with exact column

names and string entries.

Also, the VALUES of the conditions are not

always mentioned in the question users. Suddenly

the model must be able to access the data of the

databases (which is out of the scope of our models),

this explains the inadequate precision of the value,

and which influences negatively on the total

precision of the whole SQL query.

We believe that by improving the prediction of

VALUES, the precision of all SQL queries will be

significantly improved.

CONCLUSIONS

We presented our approach, to handle the Text-to-

SQL task. We employed a sketch based on

Classifications. We used in particular RNN with

LSTM and GRU cells. Finally, we showed the

results and accuracies of our models.

In future work, we plan to use the Transformer

architecture or test the Seq2Seq architecture based

on Encoder- Decoder, to improve the precisions,

generate more complete and complex SQL queries

and evaluate the model on more complex Datasets

such as Spider, and see where we can be in term of

accuracy.

REFERENCES

Hillestad, R., Bigelow, J., Bower, A., Girosi, F., Meili, R.,

Scoville, R., & Taylor, R. (2005). Can electronic

medical record systems transform health care?

Potential health benefits, savings, and costs. Health

affairs, 24(5), 1103- 1117.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

204

Beck, T., Demirgüç-Kunt, A., & Levine, R. (2000). A new

database on the structure and development of the

financial sector. The World Bank Economic Review,

14(3), 597-605.

Ngai, E. W., Xiu, L., & Chau, D. C. (2009). Application of

data mining techniques in customer relationship

management: A literature review and classification.

Expert systems with applications, 36(2), 2592-2602.

Androutsopoulos, I., Ritchie, G. D., & Thanisch, P.

(1995). Natural language interfaces to databases-an

introduction. arXiv preprint cmp-lg/9503016.

Popescu, A. M., Etzioni, O., & Kautz, H. (2003, January).

Towards a theory of natural language interfaces to

databases. In Proceedings of the 8th international

conference on Intelligent user interfaces (pp. 149-157).

Bakliwal, A., Arora, P., Patil, A., & Varma, V. (2011,

November). Towards Enhanced Opinion Classification

using NLP Techniques. In Proceedings of the

Workshop on Sentiment Analysis where AI meets

Psychology (SAAIP 2011) (pp. 101-107).

Mikolov, T., Karafiát, M., Burget, L., Černocký, J., &

Khudanpur, S. (2010). Recurrent neural network based

language model. In Eleventh annual conference of the

international speech communication association.

Sundermeyer, M., Schlüter, R., & Ney, H. (2012). LSTM

neural networks for language modeling. In Thirteenth

annual conference of the international speech

communication association.

Dey, R., & Salem, F. M. (2017, August). Gate-variants of

gated recurrent unit (GRU) neural networks. In 2017

IEEE 60th international midwest symposium on

circuits and systems (MWSCAS) (pp. 1597-1600).

IEEE.

Xu, X., Liu, C., & Song, D. (2017). Sqlnet: Generating

structured queries from natural language without

reinforcement learning. arXiv preprint

arXiv:1711.04436.

Alur, R., Bodik, R., Juniwal, G., Martin, M. M.,

Raghothaman, M., Seshia, S. A., & Udupa, A. (2013).

Syntax-guided synthesis (pp. 1-8). IEEE.

Solar-Lezama, A., Tancau, L., Bodik, R., Seshia, S., &

Saraswat, V. (2006, October). Combinatorial

sketching for finite programs. In Proceedings of the

12th international conference on Architectural support

for programming languages and operating systems

(pp. 404- 415).

Zelle, J. M., & Mooney, R. J. (1996, August). Learning to

parse database queries using inductive logic

programming. In Proceedings of the national

conference on artificial intelligence (pp. 1050-1055).

Zettlemoyer, L. S., & Collins, M. (2012). Learning to map

sentences to logical form: Structured classification

with probabilistic categorial grammars. arXiv preprint

arXiv:1207.1420.

Wong, Y. W., & Mooney, R. (2007, June). Learning

synchronous grammars for semantic parsing with

lambda calculus. In Proceedings of the 45th Annual

Meeting of the Association of Computational

Linguistics (pp. 960-967).

Giordani, A., & Moschitti, A. (2012, December).

Translating questions to SQL queries with generative

parsers discriminatively reranked. In Proceedings of

COLING 2012: Posters (pp. 401-410).

Wang, C., Cheung, A., & Bodik, R. (2017, June).

Synthesizing highly expressive SQL queries from

input-output examples. In Proceedings of the 38th

ACM SIGPLAN Conference on Programming

Language Design and Implementation (pp. 452- 466).

Popescu, A. M., Etzioni, O., & Kautz, H. (2003, January).

Towards a theory of natural language interfaces to

databases. In Proceedings of the 8th international

conference on Intelligent user interfaces (pp. 149-157).

Da San Martino, G., Romeo, S., Barroón-Cedeño, A., Joty,

S., Maàrquez, L., Moschitti, A., & Nakov, P. (2017,

August). Cross-language question re-ranking. In

Proceedings of the 40th International ACM SIGIR

Conference on Research and Development in

Information Retrieval (pp. 1145-1148).

Iyer, S., Konstas, I., Cheung, A., Krishnamurthy, J., &

Zettlemoyer, L. (2017). Learning a neural semantic

parser from user feedback. arXiv preprint

arXiv:1704.08760.

Cai, R., Xu, B., Yang, X., Zhang, Z., Li, Z., & Liang, Z.

(2017). An encoder-decoder framework translating

natural language to database queries. arXiv preprint

arXiv:1711.06061.

Castano, A., & Casacuberta, F. (1997). A connectionist

approach to machine translation. In Fifth European

Conference on Speech Communication and

Technology.

Zhong, V., Xiong, C., & Socher, R. (2017). Seq2sql:

Generating structured queries from natural language

using reinforcement learning. arXiv preprint

arXiv:1709.00103.

Pennington, J., Socher, R., & Manning, C. D. (2014,

October). Glove: Global vectors for word

representation. In Proceedings of the 2014 conference

on empirical methods in natural language processing

(EMNLP) (pp. 1532-1543).

Kingma, D. P., & Ba, J. (2014). Adam: A method for

stochastic optimization. arXiv preprint arXiv:1412

Intelligent Sketch-based Recurrent Neural Networks Models to Handle Text-to-SQL Task

205
