University Graduates Tracking Platform: Case Study

Nadir Belhaj

, Abdelmounaim Hamdane

, Nour El Houda Chaoui

and Moulhime El Bekkali

Department of Electrical and Computer Engineering of Computing, Sidi Mohamed Ben Abdellah University, Fez,

Morocco

houda.chaoui@usmba.ac.ma

Keywords: Data Warehouse, educational intelligence, graduates performance, graduate tracking, learning analytics,

academic analytics, Higher education, data integration, job market entry.

Abstract: In this paper, we will explain our approach in building a graduates tracking platform, which will enable a

detailed analysis of the university graduates, their labour market entry, hiring companies, industries, and

sectors. We implemented a data warehouse to track university graduates and analyze their career paths after

graduation. This analysis is used for university courses assessment and measuring the demand level of skills

we teach our students in the labour market.

1 INTRODUCTION

Tracking graduates, assessing the education system

and gathering feedback about courses and university

student’s life is becoming a significant need for every

educational institution to make intelligent and

strategic decisions based on an extensive volume of

data collected every year (Moscoso-Zea et al., 2016).

In need of being able to enhance the quality of courses

and better serve the students with the right skills

needed in the labour market, we implemented a data

warehouse inside of our university Sidi Mohammed

Ben Abdellah, located in Fez city (Wierschem et al.,

2003), (Bouaziz et al., 2017). In Morocco, none of the

universities implemented a complete students and

graduates data warehouse capable of storing data,

analyzing and delivering fast and accurate reports. A

data warehouse is a collection of data from various

sources stored in a large database then processed into

a multi-dimensional storage form to make it easy for

querying and reporting (Sulianta and Juju, 2010),

(Gosain and Heena, 2015) and (Moscoso-Zea et al.,

2016). The Labour market is highly dynamic because

of competition, growth, and demand of customers;

this is why the university nowadays needs to prepare

https://orcid.org/0000-0001-9179-0295

https://orcid.org/0000-0001-7645-1287

https://orcid.org/0000-0002-4228-035X

https://orcid.org/0000-0002-1098-6841

the students for a never-stable environment with the

correct skills, techniques, training, and tools. To be

capable of doing this, establishing the right strategies

and processes based on the right data is needed.

Having a data warehouse full of information’s about

our student’s and their after university career data

helps in better understanding the university students

culture by performing data mining and data analysis

to learn more about the students and get answers for

questions such as: where they prefer to live after

graduation, are they willing to relocate or not, how

much does it take to land a job after graduation, how

many interviews needed by job vacancy, what is the

median salary by sector, are the skills learned in the

university in demand in the labour market and many

more, (Moscoso-Zea et al., 2016; Buenstorf et al.,

2016; Bichsel, 2012).

This research was held in Sidi Mohamed Ben

Abdellah University in Morocco with the

collaboration of faculty, institutes, students, and

graduates and focuses on data warehouse design and

data collection over the span of four years.

Belhaj, N., Hamdane, A., Chaoui, N. and El Bekkali, M.

University Graduates Tracking Platform: Case Study.

DOI: 10.5220/0010736300003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 451-456

ISBN: 978-989-758-559-3

451

2 METHODS

2.1 The Student Career Tracking Data

Warehouse Architecture

Building a data warehouse has always been an

important decision for every enterprise and

organization, including universities. The most critical

decision in its design is finding the right way to

follow to build it, whether a Bill Inmon Top-down

approach which advocates that a global data

warehouse is constructed first and serves as a basis

for small data marts (Inmon, 2005). Or to follow a

Bottom up data warehouse design approach

recommended by Ralph Kimball (Kimball and Ross,

2013), based on building data marts first to provide

the reporting and analytics capability for specific

business processes and then compounding them to

make a data warehouse also named dimensional

modelling (Kimball and Ross, 2016).

The university is composed of faculty, institutions

and departments that operate separately and

independently. This is why a bottom-up Kimball’s

approach is recommended for implementing our data

warehouse (Vogelgesang and Appelrath, 2016).

We will begin first by gathering the primary data

sources that will connect to an ETL (Extract

Transform Load) tool to clean, unify and load data in

data marts that answers some specific questions and

through a bus architecture we will chain them up then

build the data warehouse.

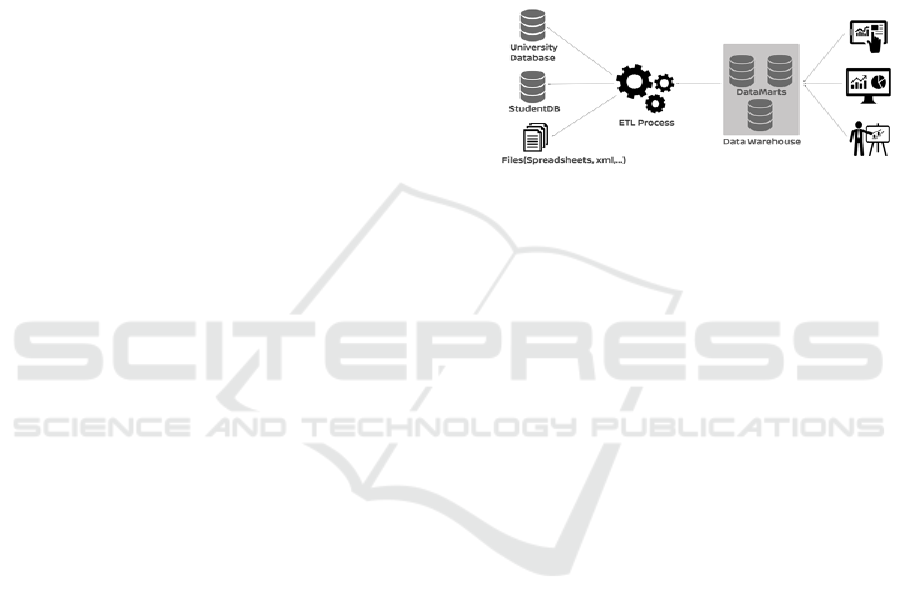

In Figure 1 below, we explain the process of

extracting data from our primary data sources, which

are the university database that is connected to the

data collection platform the university web

application that collects data from students and

graduates. StudentDB a database that contains all

students path before university data such as personal

data, high school data, family data, etc, and a bunch

of files containing data about the university, different

study programs, which are subject to change and

delivered every year from the Moroccan minister of

research and higher education.

Through an ETL process, we clean and unify our

data to load it in the data marts and extract reports.

We decided to gather the most important

questions that we need to understand the pattern of

our graduates then collected a bunch of inquiries like

the following:

Q 1: How many graduates by faculty and by

degree or specialty?

Q 2: What is the average mark of our graduates

by the institute and by degree?

Q 3: How many graduates are hired within the

first six months after graduation?

Q 4: Which are the most hiring sectors of our

graduates?

Q 5: What is the average time for our graduates to

find a Job?

Q 6: How many graduates used to work while

studying?

Based on these questions, we started designing

our data marts, extracted three principal data marts

based on three main events: enrollment, graduation,

and hiring (Rahman et al., 2015):

Figure 1. Data extraction, transformation, and loading in

Bottom-up approach

2.2 Design of Data Marts

2.2.1 Defining the Scope of Data Marts

Enrolment Data Mart

The first data mart is the enrollment data mart, which

provides access to meaningful data that is specific to

the student registration phase.

This data mart will provide answers to some specific

questions such as:

- How many students enrolled in institute X and

degree YY?

- Where our students are coming from?

- How many foreign students per institute and

degree?

- What is the popularity of each degree?

- How many foreign students overall?

Logical design of enrollment data mart

A logical design is a conceptual design, which is

highly abstracted from the physical layer, and it is

called dimensional modelling in data mart design and

Ralph Kimball first introduced this concept in

(Kimball and Ross, 2013). We begin by defining a

central fact table that models an event which can be a

single transaction such as enrollment by a student, a

periodic time where a snapshot of events are collected

such as registered students in spring session or a

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

452

business process with a clear beginning and end.

Every fact table has a set of associated dimensions

tables that contain information of the fact table in the

form of entities (students, institutes, courses, etc.).

Classifying Data for the data mart schema

To classify our extracted data in facts and

dimensions tables, we need an appropriate schema or

data model and we chose the star schema as it offers

fast querying, load performance and ease of

understandability and navigation (George et al.,

2015). One standard methodology in star schema’s

design is to start with the creation of dimensions first,

then the fact table and we arranged our dimensions

for the enrollment data mart as follows:

- Student Dimension

- Institute Dimension

- Degree Dimension

- Date Dimension

This dimension contains data about our university-

enrolled students. Every row is related to a unique

student with attributes providing information about

its personal data (Full Name, Gender, Email, etc.),

previous work and studies, family conditions and

other details. This dimension is helpful in performing

analyses of newly enrolled students and graduates

achievements related to their past work, studies and

their living conditions.

Institute Dimension:

The Institute dimension embodies every faculty and

institute attached to Sidi Mohammed Ben Abdellah

University, which is composed as of this date of X

Institute, YY Faculty, ZZ. Every row contains

Institute Name, Type, address, and other details that

can help in the process of filtering our reports by

institute, faculty and other attributes.

Degree Dimension:

Every student is enrolled in a particular study

program and this dimension gathers every detail

about each degree in our university such as title, level

(PhD, Masters, etc…) , type (scientific, literature,

etc.) , duration and other details. Each attribute will

be helpful in extracting precise information about

student’s study enrollments in every study program.

Date Dimension:

We need to query our report annually, quarterly,

monthly, weekly and daily and here resides the

importance of our date dimension.

This dimension is standard to all data marts and

will be drawn on the enrollment data mart alone till

we chain all of them to form the entire data

warehouse.

Enrollment Fact Table:

The fact table contains the metrics of our data mart,

all the fields that we want to summarize and foreign

keys of our dimensions. Enrollment fact table has two

outlined attributes, which are the high school

graduation mark and the paid fee for professional

degrees.

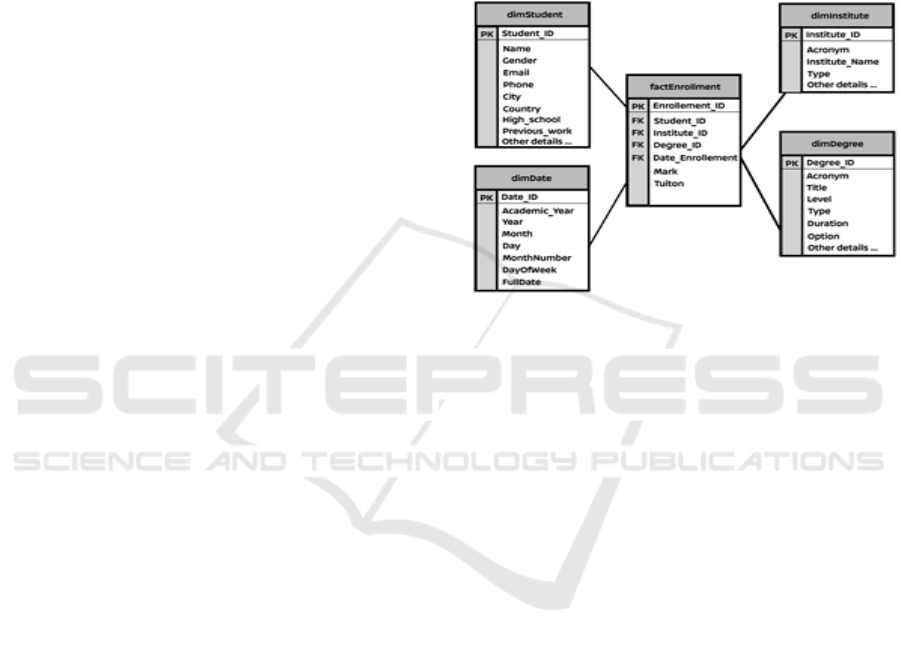

Figure 2: Star schema of Enrollment data mart with the fact

enrollment table and its dimensions

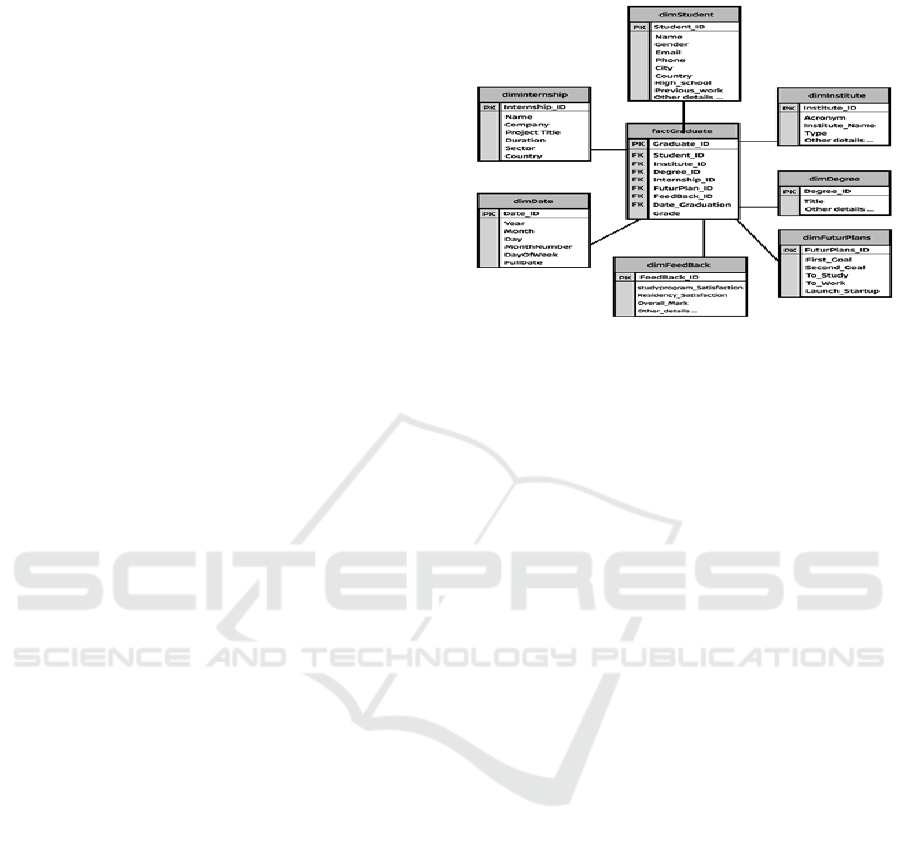

Graduate Data Mart

The scope of graduate’s data mart is answering some

of the essential questions that are related to the

graduation of every student and can provide

meaningful insights about their internships, future

plans, endeavours, and accurate feedback about life

inside the university and residency. This data can help

to understand the correlations between graduates

performance in the job market and their progress

through their study cursus.

Example of the graduate’s data mart queries:

Q1: How many graduates are satisfied by the

university training, dormitory, etc ?

Q2: How many students used to follow a paid

training while studying outside of the university?

Q3: What is the average of students that wants to

follow their studies inside the same university and

abroad?

Q4: How many graduates intend to start their job

(launch a start-up)?

Q5: how many scientific, literature, finance, etc

students?

Q6: how many graduates used to work

(freelancing) while studying?

Q7: what is the average of English speaking

graduates?

University Graduates Tracking Platform: Case Study

453

Q8: How many graduates with more than a

diploma?

Q8: How many graduates know how to use a

computer and essential applications?

Q9: How many graduates do have a smartphone;

use a smartphone instead of a computer in their

studies?

2.2.2 Dimension Tables

The graduate’s data mart star schema is consisting of

the following dimensions:

- -Student Dimension (same table used students data

mart)

- Internship Dimension

- Date Dimension (same table used in students data

mart)

- Institute Dimension (same table used in students

data mart)

- Degree Dimension (same table used in students

data mart)

- Futur Plans Dimension

- Feedback Dimension

Internship Dimension:

This dimension describes every internships for each

graduate and can help in understanding the

relationship between the graduate’s future job and his

past internships. Each row contains company name,

project title, duration, company sector, country and

other details.

Future Plans Dimension:

The future plans dimension describes the university

graduates goals and endeavors. Simplifies the

comparison of the actual state of every graduate and

his pre-graduation vision and helps understanding the

correlations between his job and his plans. It

embodies attributes like First-year goals, second-year

goals, five-year goals, if he is willing to launch his

own business, etc.

Feedback Dimension:

University Sidi Mohammed Ben Abdellah is among

top universities in Morocco and top 500 in the world

and to achieve more it prioritizes a quality first rule.

That is why we need more feedback from all the

university stakeholders.

Graduation Fact Table:

The graduation fact table represents the event of

graduation of each student in the university and holds

foreign keys to the mentioned dimensions, date of

graduation and one measurable attribute, which is the

grade or mark.

Figure 3: Star schema of Graduates data mart with the fact

graduate table and its dimensions

Job Data Mart

This data mart is the missing component in our career

tracking data warehouse. Based on our collected data,

it serves as a primary source for analyzing the labour

trends, university graduates performance, graduates

skills compatibility with Job market demand and a lot

more.

Analyses through this data mart will open space

for more insights and provides answers to many

questions such as:

Q1: What are the top hiring companies of our

graduates?

Q2: What are the hiring industries of our

graduates?

Dimension Tables

The Job Data Mart is composed of four dimensions:

- Student Dimension (same table used in graduate

and enrollment data mart

- Employer Dimension

- Sector Dimension

- Contract Dimension

- Date Dimension (same table used in graduate and

enrollment data mart).

Employer Dimension:

The employer dimension provides information about

each employer such as the company name, size type,

sector, desired skills, and profiles, advantages, etc.

Each row represents a unique employer.

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

454

Sector Dimension:

This dimension contains information about the

diverse sectors and industries available in today’s

labour such as industry, photography, art, film

making, Information systems, administration, etc.

Available attributes help in the analysis of current

market trends and repartition of our graduates in the

different country sectors and international labour

market, every sector is divided into sub-sectors,

which will provide a drill-down and drill up inside our

reports.

Contract Dimension:

In Morocco, and many other countries we have a

different type of job contracts (Full Time, Part Time,

permanent contract, temporary contract) and having

this detail as a dimension will enable querying data

and analyses based on the type of contracts.

Job Fact Table:

The Job fact table models the transition from a

graduate to a hired person event and holds foreign

keys to the above-seen dimensions, date of hiring and

one metric attribute, which is the salary.

3 RESULTS

The student career development data warehouse can

help us get meaningful insights by a simple drill

across reports. We can as example get the number of

applicants, how many of them got accepted and

enrolled, average students mark, how many did

graduate and the most critical numerical value that

our data warehouse provides is how many of our

students got hired.

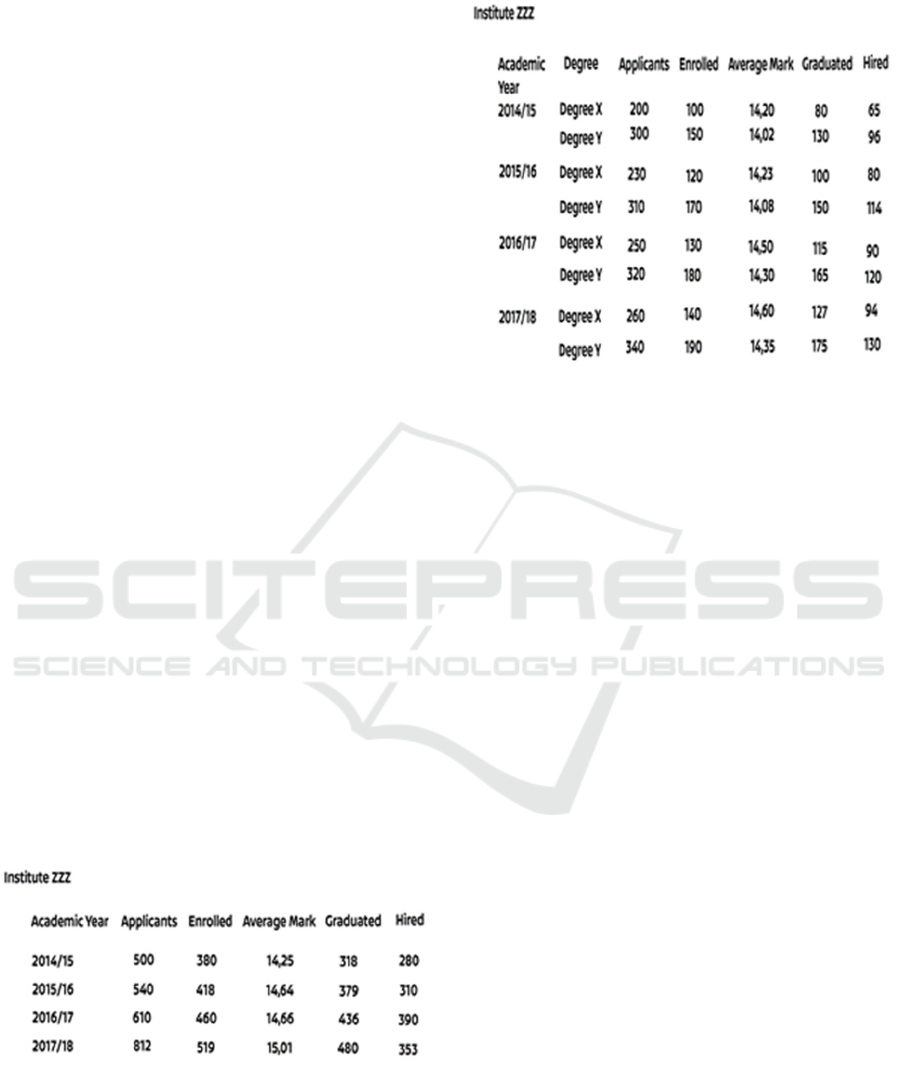

Table 1: simple drill-across report

Table 2: Report refinement by drilling down

4 CONCLUSIONS

We explained the design of a student career

progression data warehouse that can be implemented

following bottom up approach by defining the basics

data marts and connecting them through common

dimensions to from a bus architecture. This

architecture is capable of providing a solid data

warehouse that can be queried to get important

information’s about how our graduates progressed in

the labour market and how the study program of the

university helped them in reaching their career goals.

This study and work is a basis for new research in Big

data, data mining and machine learning by adding

more data sources, exploring new data patterns, and

extracting better reports and analysis.

REFERENCES

Oswaldo Moscoso-Zea, Andres-Sampedro, Sergio Luján-

Mora, 2016, “Datawarehouse design for educational

data mining,” 15th International Conference on

Information Technology Based Higher Education and

Training (ITHET) 8-10 Sept.

David Wierschem, Jeremy McMillen, Randy McBroom,

2003, “What Academia can gain from building a Data

Warehouse”, Number 1, EDUCAUSE QUARTERLY.

S. Bouaziz, A. Nabli, and F. Gargouri, 2017,

“

From

Traditional Data Warehouse to Real Time Data

Warehouse,” in International Conference on Intelligent

Systems Design and Applications.

F. Sulianta and D. Juju, 2010, “Data Mining. Jakarta: PT.

Elex Media Komputindo.

Gosain and Heena, 2015,

“

Literature Review of Data model

Quality metrics of Data Warehouse,” in International

University Graduates Tracking Platform: Case Study

455

Conference on Intelligent Computing, Communication

& Convergence, pp. 236–243.

O. Moscoso-Zea, Andres-Sampedro and S. Luján-Mora,

2016, "Datawarehouse design for educational data

mining," 15th International Conference on Information

Technology Based Higher Education and Training

(ITHET), Istanbul, pp. 1-6. doi:

10.1109/ITHET.2016.7760754.

Guido Buenstorf, Matthias Geissler, Stefan Krabel, 2016,

“Locations of labour market entry by German

university graduates: is (regional) beauty in the eye of

the beholder”, February, Volume 36, Issue 1, pp 29–49

Springer Berlin Heidelberg.

https://doi.org/10.1007/s10037-015-0102-z.

W. H. Inmon, 2005, “Building the data warehouse. New

York: John Wiley & Sons”.

R. Kimball and M. Ross, 2016,

“

Fact Table Core

Concepts,” in the Kimball Group Reader: Relentlessly

Practical Tools for Data Warehousing and Business

Intelligence.

T. Vogelgesang and H.-J. Appelrath,

“2016, PMCube: A

DataWarehouse-Based Approach for Multidimensional

Process Mining,” in International Conference on

Business Process Management, pp. 167–178.

Ralph Kimball and Margy Ross, 2013, “The Data

Warehouse Toolkit, 3rd Edition” Wiley.

J. George, B. V. Kumar, and S. Kumar, 2015, “Data

Warehouse Design Considerations for a Healthcare

Business Intelligence System,” Proc. World Congr.

Eng., vol. 1.

L. Rahman, S. Riyadi, and P. Eko,

“2015, “Development of

Student Data Mart using Normalized Data Store

Architecture,” in Advanced Science Letters, pp. 3226–

3230.

J. Bichsel, 2012,

“Analytics in Higher Education Benefits,

Barriers, Progress and Recommendations,” [Online].

Available:

https://net.educause.edu/ir/library/pdf/ERS1207/ers12

07.pdf. [Accessed: 26-Mars 2021].

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

456
