Design of Audio based Accident and Crime Detection using Simple

Architecture of Neural Network

Afis Asryullah Pratama

, Sritrusta Sukaridhoto

, Mauridhi Hery Purnomo

, Achmad Basuki

Vita Lystianingrum

and Rizqi Putri Nourma Budiarti

Department of Electronic Engineering, Politeknik Elektronika Negeri Surabaya, Surabaya, Indonesia

Department of Computer Engineering, Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia

Department of Creative Multimedia Technology, Politeknik Elektronika Negeri Surabaya, Surabaya, Indonesia

Department of Electrical Engineering, Institut Teknologi Sepuluh Nopember, Surabaya, Indonesia

Engineering Department, Universitas Nahdlatul Ulama Surabaya, Surabaya, Indonesia

Keywords: Audio Recognition, Mel Spectrogram, CNN, RNN, Surveillance System.

Abstract: The accident and crime happened on the road still increasing nowadays. Those two events were considered

as emergency event that need a quick response. In this research, a method to detect accident and crime were

proposed. The proposed method uses audio data as input and extracting the Mel spectrogram as the feature,

which later be fed to our simple neural network architectures. We classify our dataset into engine_idling,

car_crash, and gun_shot classes to represent normal, accident, and crime condition on the road. Our simple

CNN architecture obtains accuracy of 95.31% and 93.75% with 200ms and 1000ms segment duration

respectively, and our simple RNN architecture obtains 86.67% and 58.67% by using 200ms and 1000ms

segment duration respectively. We can conclude that the best simple architecture was performed by CNN

architecture with 200ms segment duration.

1 INTRODUCTION

The transportation technology was being developed

day by day, this has an impact not only to the system

of the vehicles but also the number of vehicles and its

passengers, in Indonesia there were 146,858,759

vehicles which include passenger cars, buses, freight

cars, and motorcycles in 2018 (BPS, 2018b;

Mahfuzhon and Setyawan, 2018). The increment of

vehicles and its passengers also increase the number

of accidents happened. In 2018, there are 109,215

accidents and 29,472 deaths were recorded in

Indonesia (BPS, 2018a). Most of the death cases from

car accident were happened due to the late treatment

for the casualties (Kattukkaran, George, and Haridas,

2017).

Other than car accidents, crime also an emergency

event that needs a quick response. In 2018 there are

8,423 mugs and 90.757 snitches happened in

Indonesia. But according to statistics but only 23.44%

in 2017 and 23.99% in 2018 was reported (Badan

Pusat Statistik, 2019). The low reporting rate of

crimes mostly caused by the lack of awareness and

information about where to report it.

Therefore, we need a system to detect accidents and

crimes with capability to deliver the emergency events

happened on the road. In this research, we propose a

method to detect car crash, idling engine and gunshot

as representatives of accident and crime sounds. we use

audio data of mentioned events for surveillance

purpose. We use several audio segmentation

parameters and neural network architectures to find the

best result for the case we focused on.

2 SYSTEM DESIGN

There are many methods for audio recognition such

as analyzing both time and frequency domain of

sample audio gives an accuracy of 65%-82%

(Sammarco and Detyniecki, 2018), or by extracts the

audio feature using MFCC and inferenced with DNN

which gives an accuracy of 98.4% (Arslan and

Canbolat, 2018). The MFCC and DNN method could

Pratama, A., Sukaridhoto, S., Purnomo, M., Basuki, A., Lystianingrum, V. and Budiarti, R.

Design of Audio based Accident and Crime Detection using Simple Architecture of Neural Network.

DOI: 10.5220/0010940300003260

In Proceedings of the 4th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2021), pages 76-81

ISBN: 978-989-758-615-6; ISSN: 2975-8246

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

Figure 1: Audio segmentation with (1000ms length and overlap 50%, left), (200ms length and overlap 50%, right).

give a better result but it could be unimplementable

in a small memory device, therefore we need a

simpler architecture which requires less memory.

Our proposed method extracts the features of

audio signal using Mel spectrogram and uses neural

network with thresholding to get the conclusion.

Complete steps of our proposed method were shown

in Figure 2.

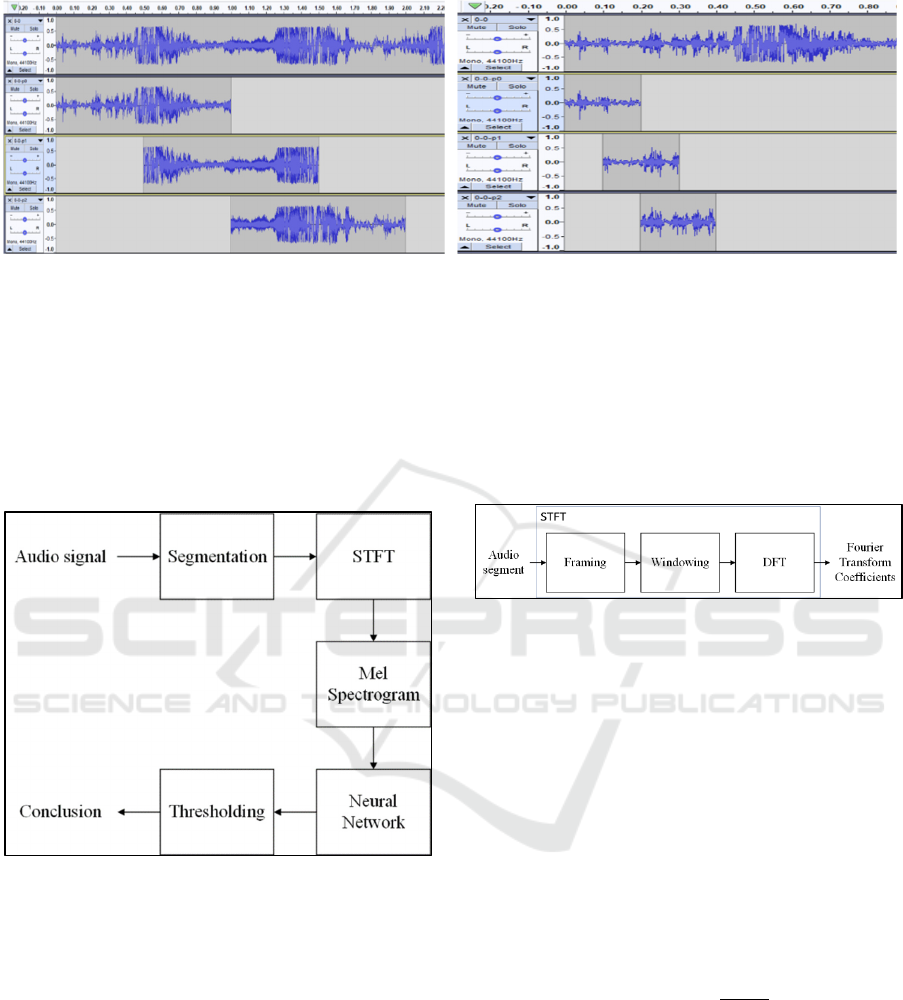

Figure 2: Methods workflow.

Our methods consist of several steps, which are

segmentation, framing, windowing, short time

Fourier transform (STFT), Mel spectrogram

extraction, neural network and thresholding with

following details.

2.1 Segmentation

We use single channel audio signal with sampling

rate 44100Hz as the input. Then we slice the audio

into smaller segments with 2 different parameters,

first with 1000ms length and the other with 200ms

length both with 50% overlap ratio Figure 1.

We use different parameters to analyze the effects of

segment length to our proposed method’s performance.

2.2 STFT

STFT were used to compute Fourier transform of the

segment faster. STFT step consists of 3 subprocesses

as shown in Figure 3.

Figure 3: STFT steps.

2.2.1 Framing

For each segment will be framed into smaller frames

with frame width 1764 samples, and hop length 441

samples. Frame width for Fast Fourier Transform

(FFT) must be the power of 2, therefore 1764 fulfil

the requirement needed.

2.2.2 Windowing

The discontinuity for each frame’s edge could cause

a spectral leakage. Thus, we implement windowing

method using Hann window function.

𝑤



𝑘



=0.5∙1𝑐𝑜𝑠

2𝜋𝑘

𝐾1

,𝑘

=1…𝐾

)

w : window coefficients

k : coefficient index

K : window width

We use Hann window with window width 1764

samples so we could fit the whole frame with the

window.

Design of Audio based Accident and Crime Detection using Simple Architecture of Neural Network

2.2.3 FFT

FFT is a Discrete Fourier Transform (DFT) with a

faster computation process. Therefore, we use it to

obtain the Fourier transform coefficients within a

shorter time. DFT equation is shown in (2).

𝑥

𝑘

𝑁

=𝑥



𝑛



∙𝑒











(2)

𝑥 : Discrete Fourier series

k : [0, N-1]

N : Fourier width

x : Input samples

n : sample index

We use FFT with N=1764, so we could calculate

Fourier transform coefficients for each windowed

frame.

2.3 Mel Spectrogram

Human hearing perception of frequencies is not linear

but logarithmic, meaning that human hearing has a

higher resolution at high frequencies. The perception

graph is described in the Mel scale which can be

mapped with (3).

𝑀𝑒𝑙



𝑓



= 2595∙𝑙𝑜𝑔1+

𝑓

500



(3)

Mel : Mel coefficients

f : total filter banks

With equation above, we calculate 128 Mel filter

banks then convolute it with Fourier transform

coefficients that has been converted into dB unit.

2.4 Neural Network

In this research, we use Neural network (NN) in two

different architectures, which are Convolutional

Neural Network (CNN), and Recurrent Neural

Network (RNN). We use two different architectures

to analyze which performs better in the focused case.

We use a total of 133 voice data with the label

car_crash from YouTube channels CarCrashesTime

and CarCrashesTime2, and a total of 201 voice data

with the engine_idling label and 361 voice data with

the gun_shot label from the UrbanSound8K dataset

(Car Crashes Time - YouTube n.d.; Car Crashes Time

- YouTube n.d.; Salamon, Jacoby, and Bello 2014).

Those 3 labels represent accident, normal, and crime

condition on the road.

Table 1: Pre-processed datasets.

Class

Mel Spectrogram

200ms 1000ms

Car_crash

Engine_idli

Gun_shot

2.4.1 CNN

In this study, a CNN architecture was built which

consists of two 2-dimensional convolution layers

with the activation function of Rectified Linear Unit

(Relu) and 2-dimensional max pooling, then

continued with a fully connected layer with the

SoftMax activation function as follows.

Figure 4: Simple CNN architecture.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

The architecture has an input of a 224x224 sized

matrix, and provides confidence values from 3 classes

as an output.

The training process were done by using the

training dataset which divided into training and

validation datasets with the ratio of 8:2. The training

process is done with the parameters learning rate =

0.0001, epochs = 40 and the Adam optimizer.

2.4.2 RNN

In this study, a CNN architecture was built which

consists of 2 Long Short Term Memory (LSTM)

layer, then continued with a fully connected layer

with the SoftMax activation function as shown in

Figure 5.

Figure 5: Simple RNN architecture.

The architecture has an input of a 101x128 sized

matrix, and provides output in the form of confidence

values from 3 dataset classes.

We train our model using training dataset which

divided into training and validation data with ratio of

8:2. And train it with the same parameter as CNN.

2.5 Thresholding

Thresholding was used to ignore inference result with

confidence value lower than assigned threshold value.

The threshold value was configured by trial-and-error

method.

3 EXPERIMENT AND RESULT

This section explains the results of the experiments of

our proposed method.

3.1 CNN Test

Our CNN model was tested using 150 data from 3

different classes with result shown at

Figure 6

The CNN model with 200ms and 1000ms

segment duration obtains accuracy of 95.31% and

93.75% respectively.

3.2 RNN Test

We test our RNN model with 150 data from 3

different classes with following results.

Our RNN model with 200ms and 1000ms

segment duration obtains accuracy of 86.67% and

59.97% respectively.

3.3 Comparison

We compare the accuracy of our proposed method

with the research of (Sammarco and Detyniecki 2018)

and (Arslan and Canbolat 2018). The detailed

comparison shown in Table 2.

Figure 6: CNN test with (200ms segment duration, left), (1000ms segment duration, right).

Design of Audio based Accident and Crime Detection using Simple Architecture of Neural Network

Figure 7: RNN test with (200ms segment duration, left), (1000ms segment duration, right).

Table 2 : Method comparison detail.

Method Accuracy (%)

Our simple CNN 93.75

–

95.31

Our simple RNN 59.97

–

86.67

(Sammarco and

Det

niecki 2018)

65 – 82

(Arslan and Canbolat

2018)

98.4

4 CONCLUSION

Our proposed method is able to classify car crash,

engine idling and gun shot from the audio data with

various accuracy. The shorter segment duration could

give a higher accuracy for accident and crime

detection, applied for both CNN and RNN

architecture. CNN has a better accuracy than RNN

architectures with lowest accuracy of 93.75%. The

best model was performed by CNN model with

200ms segment duration.

In the future, we hope our simple neural network

architecture could be improved with more dataset and

implemented in an embedded system with limited

memory resources as an early warning surveillance

system.

ACKNOWLEDGEMENTS

This research was registered in World Class Professor

program with number 082/E4.1/AK.04.PT/2021.

Special gratitude to World Class Professor program

who funded this research and thanks everyone who

participated in this Audio Based on Road Accident

and Crime Detection using Neural Network Research

Team. We like to give our thanks for the help,

support, and knowledge to given in this research.

REFERENCES

Arslan, Yuksel, and Huseyin Canbolat. 2018. “Performance

of Deep Neural Networks in Audio Surveillance.” In

2018 6th International Conference on Control

Engineering and Information Technology, CEIT 2018,.

Badan Pusat Statistik. 2019. “Statistik Kriminal 2019.”

Badan Pusat Statistik: 1–218.

BPS, Badan Pusat Statistik. 2018a. “Jumlah Kecelakaan,

Koban Mati, Luka Berat, Luka Ringan, Dan Kerugian

Materi Yang Diderita Tahun 1992-2018.”

https://www.bps.go.id/linkTableDinamis/view/id/1134

(January 8, 2021).

———. 2018b. “Perkembangan Jumlah Kendaraan

Bermotor Menurut Jenis, 1949-2018.”

https://www.bps.go.id/linkTableDinamis/view/id/1133

(January 8, 2021).

“Car Crashes Time - YouTube.” https://www.youtube.com/

c/CarCrashesTime2 (July 9, 2021a).

———. https://www.youtube.com/user/CarCrashesTime

(July 9, 2021b).

Kattukkaran, Nicky, Arun George, and T. P.Mithun

Haridas. 2017. “Intelligent Accident Detection and

Alert System for Emergency Medical Assistance.” In

2017 International Conference on Computer

Communication and Informatics, ICCCI 2017,.

Mahfuzhon, Adnan, and Gembong Edhi Setyawan. 2018.

“Rancang Bangun Alat Pendeteksi Kecelakaan Mobil

Menggunakan Sensor Akselerometer Dan Sensor 801s

Vibration.” Jurnal Pengembangan Teknologi Informasi

dan Ilmu Komputer (J-PTIIK) Universitas Brawijaya.

Salamon, Justin, Christopher Jacoby, and Juan Pablo Bello.

2014. “A Dataset and Taxonomy for Urban Sound

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

Research.” In MM 2014 - Proceedings of the 2014 ACM

Conference on Multimedia,.

Sammarco, Matteo, and Marcin Detyniecki. 2018.

“Crashzam: Sound-Based Car Crash Detection.” In

VEHITS 2018 - Proceedings of the 4th International

Conference on Vehicle Technology and Intelligent

Transport Systems,.

Design of Audio based Accident and Crime Detection using Simple Architecture of Neural Network
