cutting processes it is possible to improve the
efficiency, accuracy, and quality of the workpiece and
at the same time can lower the costs and machining
times. Schulz (1992) says that the process of high-
speed machining is determined based on the type of
material used as shown in Figure 1.

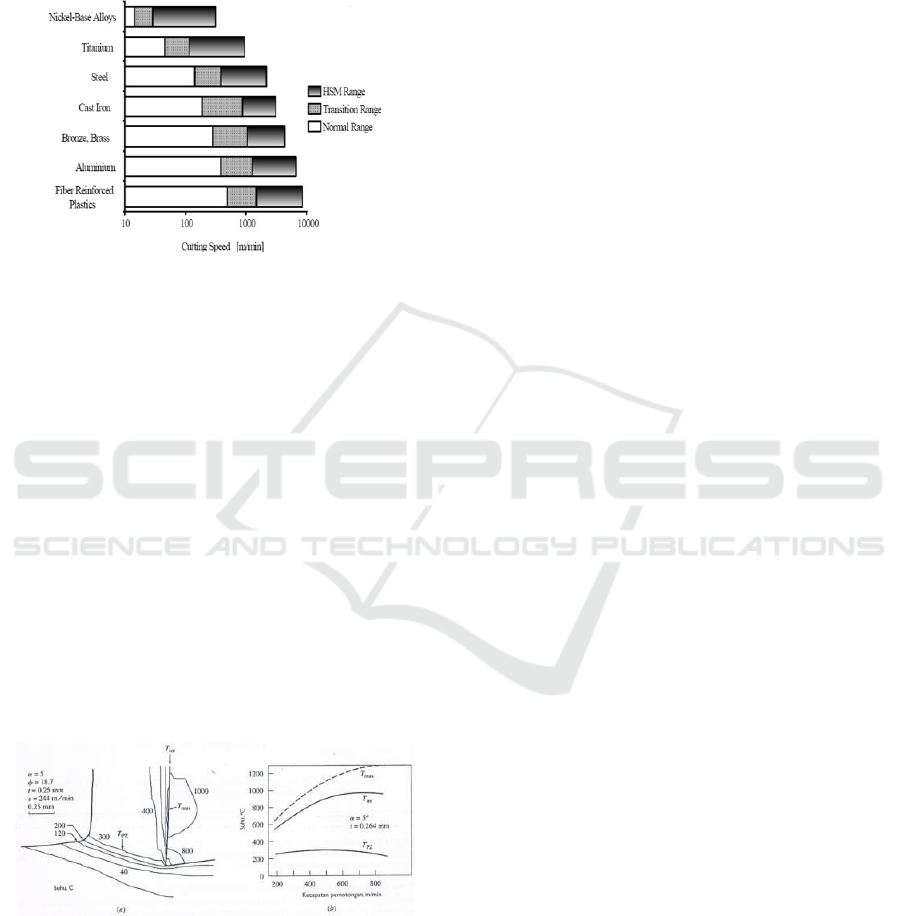

Figure 1: Cutting Speed at High-Speed Processes.
1.2 Cutting Temperature
Because the cutting area continues to move on the
workpiece, the heating rate in front of the cutting tool
is relatively small, and at least at high cutting speeds,
most of the heat (more than 80%) is carried away by
the chip. Nevertheless, the cutting tool continuously
intersects with the chip since there is no heat sealing
layer, the side face of the cutting tool becomes hot.
Friction on the face of the cut side (deformation in the
cutting area of the secondary) is also the cause of
heating. Detailed calculation results show that the
maximum temperature occurs on the face of the cut
side which is located a bit far from the end of the
cutting tool before the chip is lifted. As expected, the
maximum temperature (Tmax) and average interface
temperature (Tint) rise as the cutting speed increases,
as shown in Figure 2.
Figure 2: (a) Calculation of temperature distribution in chip
and cutting tools, (b) Temperature variation with cutting
speed during AISI 1016 steel cutting with carbide cut
chisel.
According to Abhang L.B et al, (2010) in their
research on the lathe process using alloy steel
workpieces with EN-31 series temperature increase in
cutting tool is the effect of cutting conditions. More
clearly they elaborate as follows:
1. Result of cutting speed (Vc) The cutting speed
greatly affects the increase in cutting
temperature. They further explained that the
increasing speed of friction cutting will
increase, which will lead to an increase in
temperature in the cutting zone.
2. As a result of the motion of eating (f) With
increased feeding motion (f) affecting the
growl, causing increased friction and causing
a rise in cutting temperatures, this is as
reported by Shaw (1984), Stephenson (1992).
3. Resulting from cutting depth (a) Changes in
cutting temperature are recorded in the cutting
zone as a function of cutting depth for different
cutting speeds and feeding motions with a
constant cutting tool radius (0.4mm).
1.3 Mecanishm Cutting Tool Wear
One of the mechanisms of cutting tool wear is a
chemical reaction. Two surfaces that rub against each
other with considerable pressure along with an active
chemical environment (air or coolant with a certain
composition) can cause interaction between the
cutting tool material and the workpiece. The newly
formed workpiece material surface (the sultry surface
and the cut workpiece surface) are so chemically
active that it is easy to react again and stick to the
cutting tool surface. At low cutting speeds, oxygen in
the air in the gaps between the cutting tool with a
growl or workpiece has the opportunity to react with
the material of the workpiece to reduce the degree of
unification with the surface of the cutting tool. As a
result, the contact area where the shift between the
cutting tool and the chip/workpiece will be wider so
that the wear and tear process due to friction will

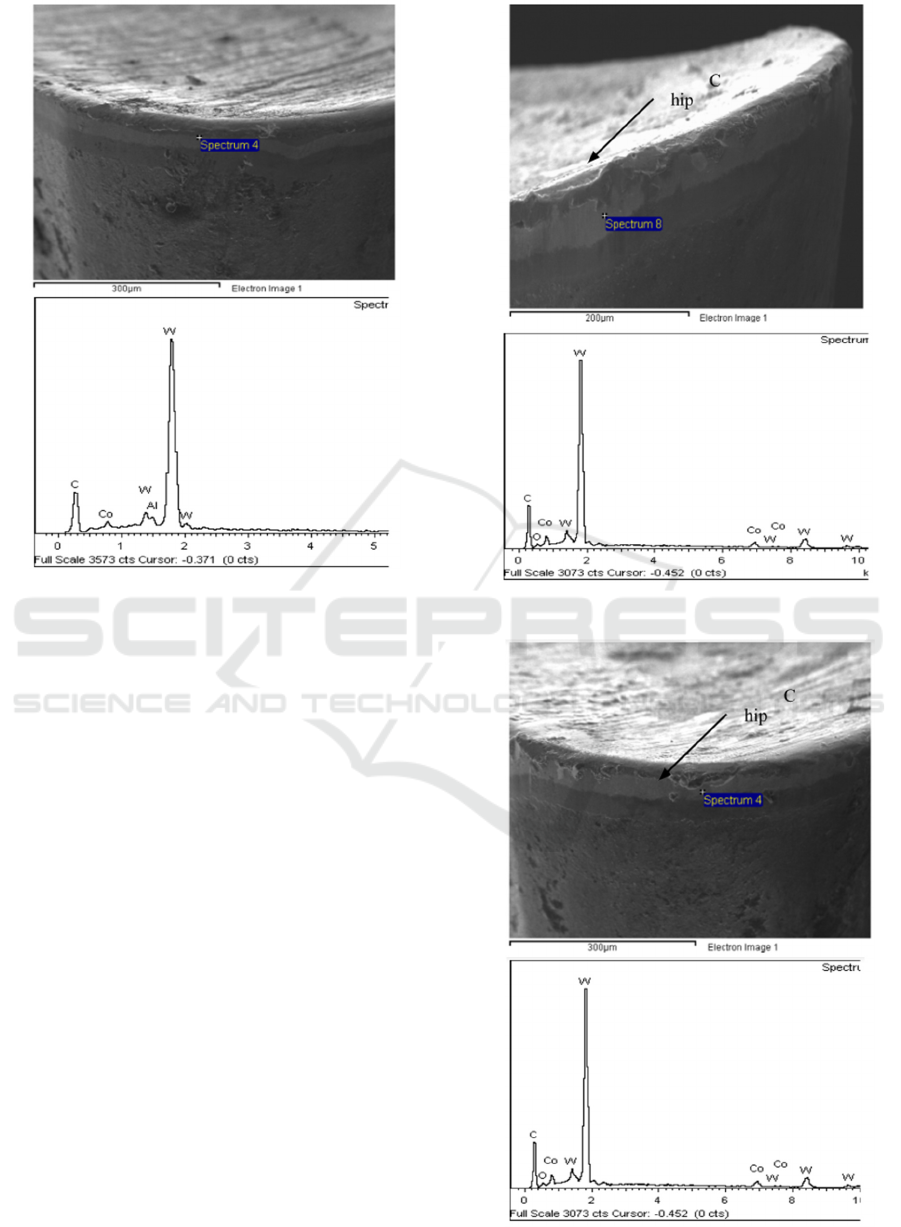

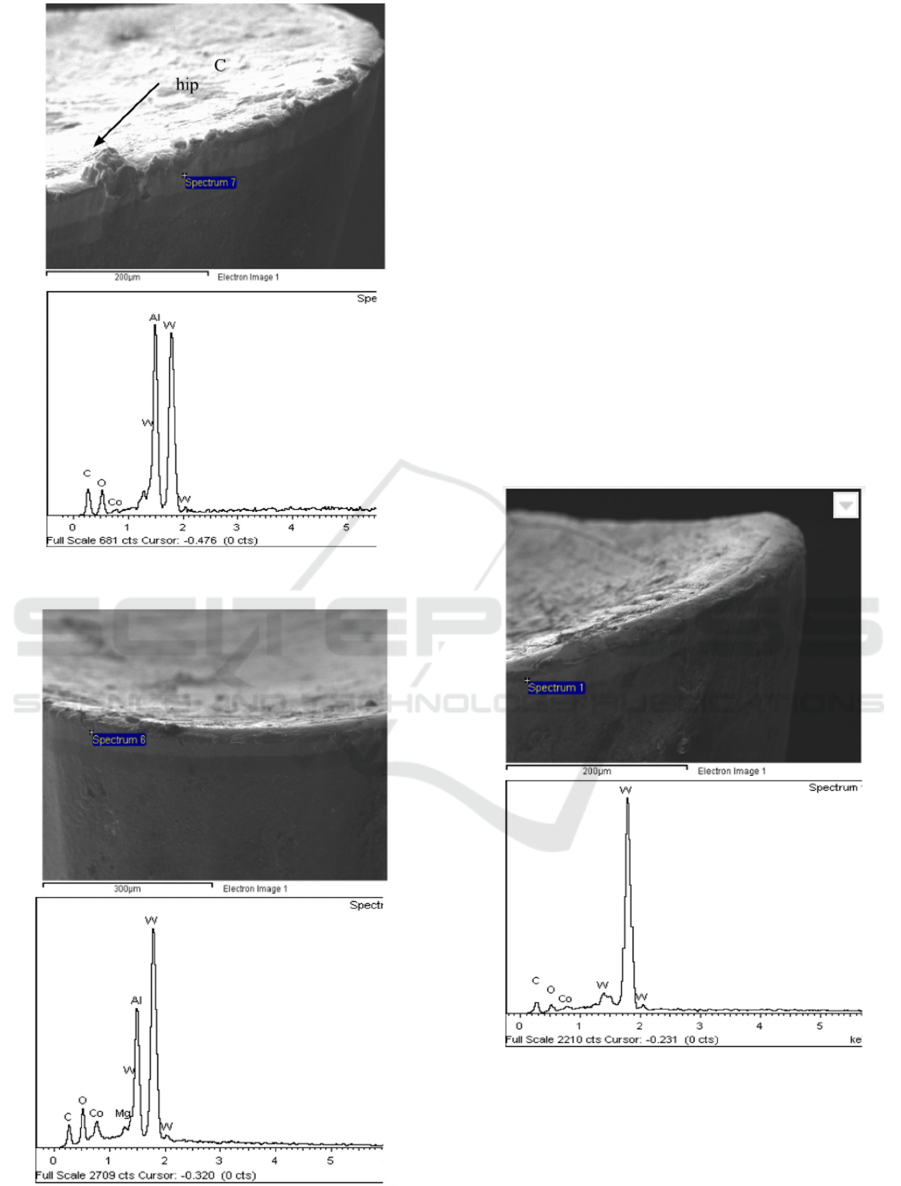

occur faster. To observe damage/wear of the cutting
tool coating as a result of chemical reactions used
Microscope Elekron Scanning and Energy Dispersive
X-Ray Spectroscopy (SEM-EDS). SEM- EDS is a
tool that can provide direct information about the
topography (texture of the sample surface),
morphology (shape and size), composition
(constituent elements of the sample), as well as
crystallography information (atomic arrangement of
the sample preparation).

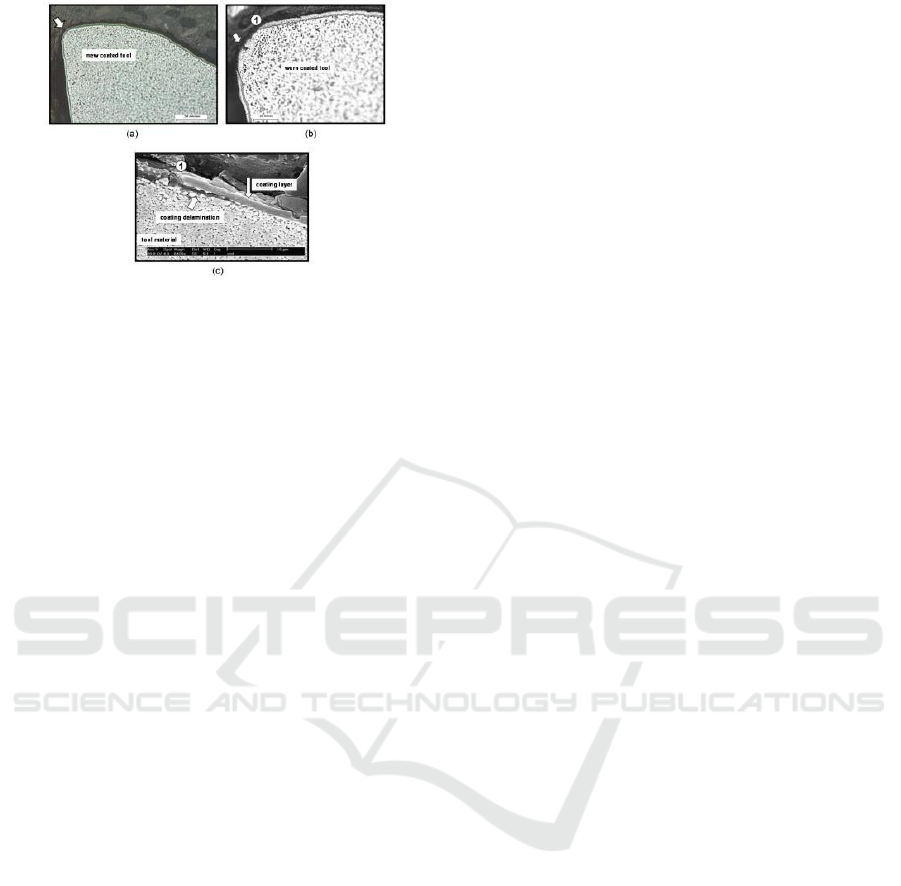

Ginting (2006) damage to the coating element in
the form of coating delamination is the occurrence of
loss of cutting tool in the form of layers from
surface of the cutting tool. The exfoliation of the
coating can be seen in Figure 3.
