Image Content Authentic Detection System using Convolutional

Neural Network Method

Komang Ayu Triana Indah, Ida Bagus Putra Manuaba and Putu Manik Prihatini

Departement of Electrical Engineering, Bali State Polytechnic, Badung, Bali, Indonesia

Keywords

Fake Image, Deep Learning, Convolutional Neural Network.

Abstract

Digital content is often manipulated for a specific purpose, where image data is often falsified from the

original data to provide information that is different from the original. In this study, an image detection

system will be built through image classification techniques to detect image patterns that are manipulated

using the Convolutional Neural Network (CNN) method. CNN is a development of Multilayer Perceptron

(MLP) which is designed to process two-dimensional data. Each relationship between layers is carried out

by linear operations with the existing weight values using linear convolution operations. This application

serves to detect the authenticity of image content with the backpropagation process for accuracy and

comparison with numbers from the training data set. The analysis of the research results produces an

accuracy curve and loss validation, which states the classification of whether the image is original or has

been modified. The application uses the Python programming language with Tensorflow objects to classify

CNN images using two convolutional layers, one Max Pooling layer, one fully connected layer, and one

output layer with softmax achieving 91.83% accuracy. Suggestions for system development, namely the use

of metadata extraction with deep learning CNN can increase efficiency and reduce computational costs of

the training dataset process.

1 INTRODUCTION

Social media is a means of exchanging information

virtually in today's digital era. According to

statistical data from the Cupo Nation portal in its

statistical report, the Indonesian population is the

fourth largest social media user in the world after

India, the United States and Brazil. With a total of

290 million users or 19.01 percent of the total

population of Indonesia. Using social media

unwisely will have a negative impact on users with

the development of a lot of false news in the form of

content by manipulating text, image and video

information using editing applications whose

technology is increasingly advanced and up-to-

date

(Putri et al., 2020).

Besides being provocative, the content has the

potential to cause divisions between race, ethnicity,

religion and culture in Indonesia, which is known for

its diversity. Publication of digital content is often

manipulated for certain purposes, where information

data in the form of image data is often falsified from

original data to provide information that is different

from the reality. In this study, we will design a hoax

detection system in the form of image content using

the Convolutional Neural Network (CNN) method

using the Python programming language. The input

data is in the form of image content that is included

in the training data set for the filtering,

classification,

and segmentation processes that

produce output

flow predictions whether the image

is manipulated

or not.(Li and Lyu, 2018).

MATERIALS AND METHOD

2.1 Electronic Information System

Electronic System is defined as a series of electronic

devices and procedures that function to prepare,

collect, process, analyze, store, display, announce,

transmit, and/or disseminate electronic information.

Therefore, there is a very close relationship between

Electronic System Operators, Electronic System

Users, Electronic Systems, and Electronic

Information. Electronic information includes text,

image, audio and video data that has been processed

Indah, K., Manuaba, I. and Prihatini, P.

Image Content Authentic Detection System using Convolutional Neural Network Method.

DOI: 10.5220/0010957400003260

In Proceedings of the 4th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2021), pages 969-975

ISBN: 978-989-758-615-6; ISSN: 2975-8246

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

969

that has meaning. Electronic data that has been

processed into electronic information in its

development can have positive and negative impacts

that affect people's lifestyles today. The positive

impact is increasing human civilization for the latest

technology, while the negative impact is the spread

of hoax news or lies that can affect people's

mindsets.(Juditha, 2018).

2.2 Hoax Content

Hoax is misguided and dangerous information

because it misleads human perception by conveying

false information as truth. The impact of the spread

of fake news (hoax) will have a bad impact and

harm many parties, because it can cause losses from

various aspects, both time and economy, public

panic, worsening social relations and so on. The

technique used in the manipulated information

classification system is by using a machine learning-

based approach. The algorithms used for text-based

hoax detection include: Convolutional Neural

Network (CNN), Multilayer Perceptron (MLP),

Naive Bayes (NB), Random Forest (RF), Support

Vector Machine (SVM) and Decision Tree (DT).

(Putri et al., 2019)

2.3 Digital Image Processing and

Computer Vision

Image processing In the field of computers, there

are actually three fields of study related to image

data, but the objectives of the three are different,

namely: Computer Graphics (computer graphics).

Computer Graphics aims to produce images (more

accurately called graphics or pictures) with

geometric

primitives such as lines, circles and so on.


processing (image processing). Image

Processing

aims to improve image quality so that it

is easily

interpreted by humans or machines (in this

case

computers). Image processing techniques

transform

images into other images. So, the input is

an image

and the output is also an image, but the

output

image has a better quality than the input

image.

(Kinghorn, Zhang and Shao, 2018).

2.4 Convolutional Neural Network

(CNN)

CNN is a type of network based on feedforward,

where the information flow is only in one direction,

namely from input to output. Although there are

several types of CNN architectures, in general,

CNNs have several convolutional layers and a

pooling layer. Then, followed by one or more fully

connected layers. In image classification, the input

to CNN is in the form of an image, so that each pixel

can be processed. In short, the convolutional layer

used as a feature extractor that learns the

representation of these features from the image that

is input to the CNN. Meanwhile, the pooling layer is

tasked with reducing the spatial resolution of feature

maps. Generally, before the fully connected layer,

there is a stack of several convolutional and pooling

layers that serve to extract more abstract feature

representations. After that, the fully connected layer

will interpret these features and perform functions

that require high-level reasoning. The classification

at the end of CNN will use the softmax function.

(Wiriyathammabhum et al., 2019).

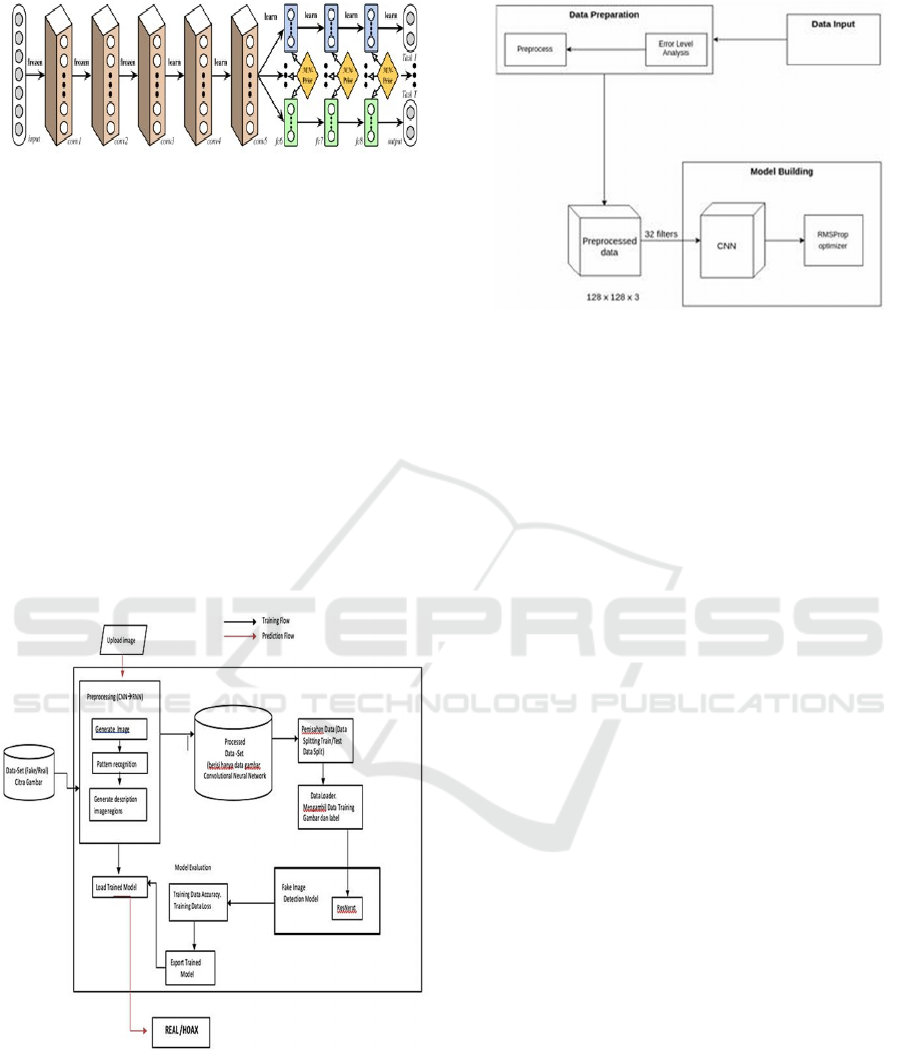

Figure 1: Convolutional Neural Network Model

Architecture.

In the deep learning model used, the first layer

CNN consists of a convolutional layer with a

kernel size of 5x5 and a number of filters 32. The

second layer of CNN consists of a convolutional

layer with a kernel size of 5x5 and a number of

filters 32, and a Max Pooling layer with a size of

2x2. The two convolutional layers used use the

glorot uniform kernel initializer, and the ReLU

activation function to make the neurons in the

convolutional layer select so that they can receive

useful signals from the input data.(Hanin et al., 2019).

2.5 Deep Relationship Networks

In MTL for computer vision, the approaches often

share convolutional layers, while learning the task-

specific full connected layers by improving this

model with Deep Relationship Networks. In addition

to the shared structure and special layers, which can

be seen in Figure 3, they placed the previous matrix

on a fully connected layer, which allowed the model

to study the relationships between tasks, similar to

some Bayesian models (Kendall et al.,

2018).

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

970

Figure 2: Deep Relationship Network with convolutional

layers together and fully connected with prior matrix.

In the architecture used, only two convolutional

layers are needed, because the results generated

from the conversion process into an ELA image can

highlight important features to determine whether an

image is original or has been modified properly.

2.6 Software System Design

In designing this system, architecture and block

diagrams are arranged which are divided into several

processes, namely: Image Image Data Set,

Preprocessing, Processed Data Set, Data Splitting,

Data Loader, Model Evaluation and Load Trained

Model.

System Block Diagram

Figure 3: System Block Diagram.

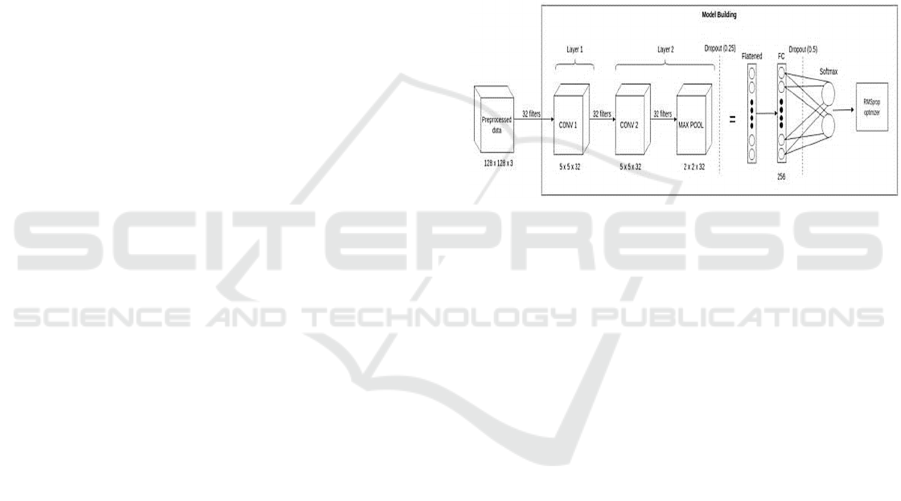

Figure 4: Convolutional Neural Network method

configuration.

In general, architectural design is divided into two

major parts, namely data preparation and model

building. At the initial stage, input data consisting of

images with the “.jpg” format, with the following

details: 177 images with tampered labels and 294

images with real labels, were entered into the data

preparation stage. The data preparation stage is the

stage where each image which is input data is

converted first into a result image. The next step is

to normalize by dividing each RGB value by 255.0

to perform normalization, so that CNN converges

faster (reaching the global minimum of the loss

value

belonging to the validation data) because the

value

of each RGB value only ranges between 0 and 1. The

next step is to change label on a data, where 1

represents tampered and 0 represents real to be

categorical value. After that, the distribution of

training data and validation data was carried out

using the distribution of 80% for training data and

20% for validation data. The next step is to use

training data and validation data to conduct deep

learning model training using CNN.

RESULT

3.1 Software Implementation in

Software

Applications

Figure 5 the following is the implementation of

the

application software

Image Content Authentic Detection System using Convolutional Neural Network Method

971

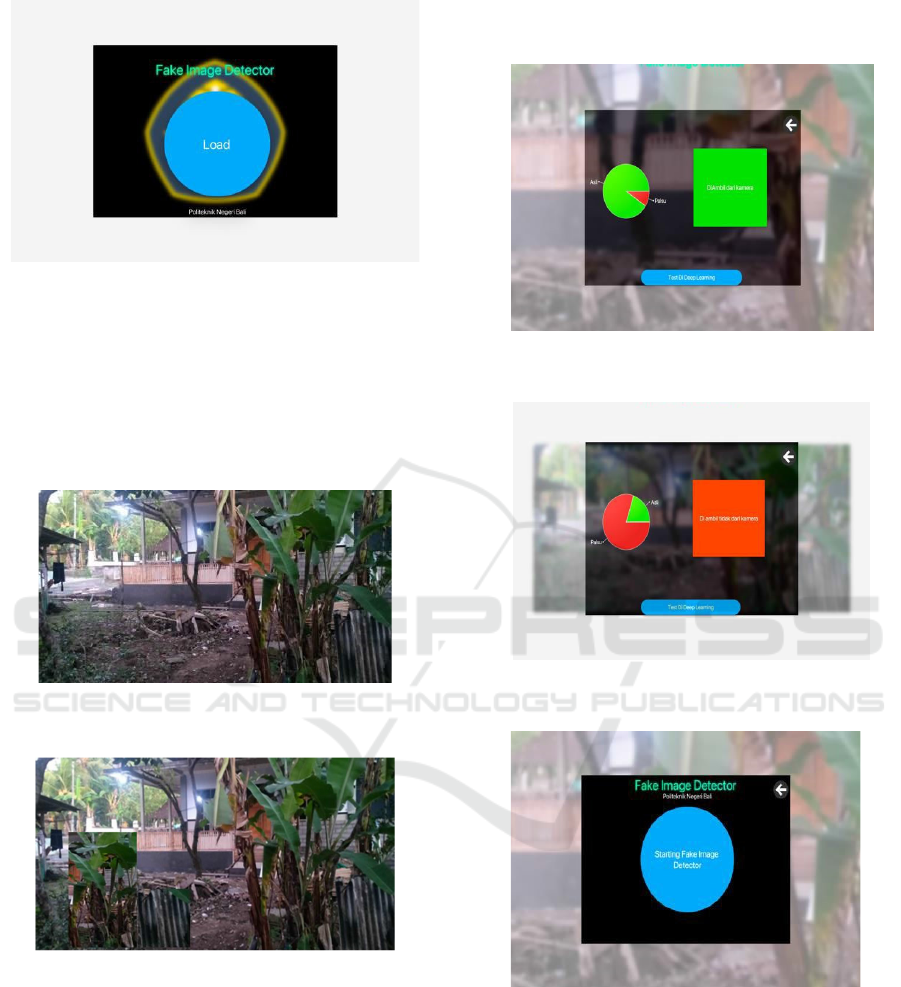

Figure 5: The main view of the manipulated image

detection

system architecture.

Input

The input is in the form of image datasets

obtained

from cellphone cameras/photo

cameras for real data

and image data from

the internet/social media. The

dataset is in

the data preparation module which will

later enter the system, for processing.

Figure 6a: Image taken directly from the phone

camera

(real).

Figure 6b: Edited image.

Process

In the next process, the image size is

changed. The

next step is to normalize by

dividing each RGB

value by 255.0 so that

CNN converges faster

(reaching the global

minimum of the loss value

belonging to the

validation data) because the value

of each

RGB value only ranges between 0 and 1.

The next step is to change the label on a

data,

where 1 represents tampered and 0

represents real

to be categorical value.

After that, the distribution

of training data

and validation data was carried out

using the distribution of 80% for training data and

20% for validation data.

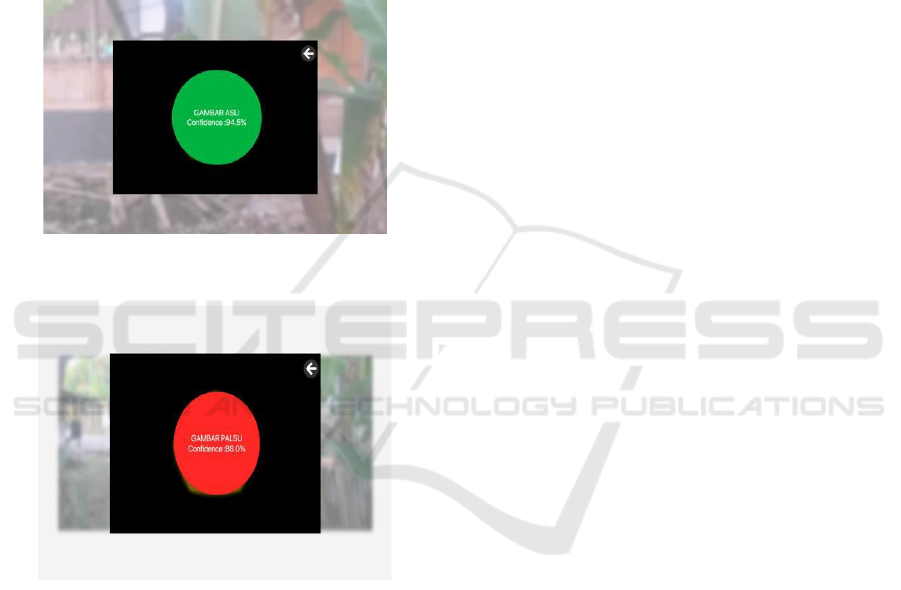

Figure 7a: Metadata Process and CNN Deep Learning (real

pict).

Figure 7b: CNN Metadata and Deep Learning Process

(manipulated image).

Figure 8: The process of separating training data and

validation data.

The next step is to use training data and

validation

data to conduct deep learning

model training using

CNN. The

optimization applied during training is

the

RMSProp optimizer, which is one of the

adaptive learning rate methods. The

complete

architecture used in the model

building section can

be seen in the image below or by using the link

which is a

complete architectural drawing.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

972

Output

In the deep learning model used, the first

layer of

CNN consists of a convolutional

layer with a kernel

size of 5x5 and a

number of filters 32. The second

layer of

CNN consists of a convolutional layer with

a kernel size of 5x5 and a number of filters

32, and

a Max Pooling layer with a size of

2x2. The two

convolutional layers used use

the glorot uniform

kernel initializer, and the

ReLU activation function

to make the

neurons in the convolutional layer select

that they can receive useful signals from the

input

data.

Figure 9a: Meta data extraction results for

original image

results.

Figure 9b: Meta data extraction results for

manipulated

image results

3.2 Software Training Data Output

from Data Preparation Modul

The next step is to use training data and validation

data to conduct deep learning model training using

CNN. The optimization applied during training is

the RMSProp optimizer, which is one of the

adaptive learning rate methods. The complete

architecture used in the model building section can

be seen in the image below or by using the link

which is a complete architectural drawing.

The process of detecting fake images like the

following program listing. The output of training

data from metadata preparation is in the following

coding listing:

with a Fakeness from metdata =

0.09090909

Number of metadata fields = 64

Fakeness from metdata = 0.8

Number of metadata fields = 20

The results of the Deep Learning test for real image

metadata results are as follows:

Loading NN........

Loading Image

:/Users/ayutriana/Desktop/image/origi

na l.jpg

Dimension is set to

java.awt.Dimension[width=100,height=1

]

{faked=0.0, real=1.0}

Neural net results:-

{faked=0.0, real=1.0}

Metadata Result: Fakeness =

0.09090909 Fakeness from metdata =

0.09090909 Number of metadata fields =

The results of the Deep Learning test for fake image

metadata results are as follows:

Loading NN........

Loading Image

:/Users/ayutriana/Desktop/RESEARCH

DIPA 2021/image/fake_wa.jpeg

Dimension is set to

java.awt.Dimension[width=100,height=100

]

Nueral network loaded =

/Users/ayutriana/Desktop/fake_image_d

et ector/nnet/MLPV2.0.nnet

Learning Rule =

org.neuroph.nnet.learning.MomentumBackp

ropagation@1cecd71a

{faked=1.0, real=1.0}

Neural net results:-

{faked=1.0, real=1.0}

Result Metadata: Fakeness = 0.8

The following is the meta data information used in

the training datasets:

----------------------------------------------

JPEG---------------------------------

[JPEG] Compression Type - Baseline

[JPEG] Data Precision - 8 bits [JPEG] Image Height

- 3024 pixels [JPEG] Image Width - 4032 pixels

[JPEG] Number of Components - 3

[JPEG] Component 1 - Y

component: Quantization table 0, Sampling

Image Content Authentic Detection System using Convolutional Neural Network Method

973

factors 2 horiz/2 vert [JPEG] Component 2 -

Cb component: Quantization table 1,

Sampling factors 1 horiz/1 vert [JPEG] Component

3 - Cr component: Quantization

table 1, Sampling factors 1 horiz/1 vert

---------------------------------------------- Exif

IFD0---------------------------------

[Exif IFD0] Orientation - Right side, top (Rotate 90

CW)

[Exif IFD0] X Resolution - 72 dots per inch [Exif

IFD0] Y Resolution - 72 dots per inch [Exif IFD0]

Resolution Unit - Inch

[Exif IFD0] YCbCr Positioning - Center of pixel

array

---------------------------------------------- Exif

SubIFD---------------------------------

[Exif SubIFD] Exif Version - 2.21

[Exif SubIFD] Components Configuration -

YCbCr

[Exif SubIFD] FlashPix Version - 1.00 [Exif

SubIFD] Color Space - sRGB

[Exif SubIFD] Exif Image Width - 4032 pixels [Exif

SubIFD] Exif Image Height - 3024 pixels [Exif

SubIFD] Scene Capture Type - Standard

---------------------------------------------- Exif

Thumbnail---------------------------------

[Exif Thumbnail] Compression - JPEG (old- style)

[Exif Thumbnail] X Resolution - 72 dots per inch

[Exif Thumbnail] Y Resolution - 72 dots per inch

[Exif Thumbnail] Resolution Unit - Inch

[Exif Thumbnail] Thumbnail Offset - 286 bytes

[Exif Thumbnail] Thumbnail Length - 5966 bytes

---------------------------------------------- ICC

Profile---------------------------------

[ICC Profile] Profile Size - 548 [ICC Profile] CMM

Type - appl [ICC Profile] Version - 4.0.0

[ICC Profile] Class - Display Device [ICC Profile]

Color space - RGB

[ICC Profile] Profile Connection Space - XYZ [ICC

Profile] Profile Date/Time - 2017:07:07

13:22:32

[ICC Profile] Signature - acsp

[ICC Profile] Primary Platform - Apple

Computer, Inc.

[ICC Profile] Device manufacturer - APPL [ICC

Profile] XYZ values - 0.964 1 0.825 [ICC Profile]

Tag Count - 10

[ICC Profile] Profile Description - Display P3 [ICC

Profile] Copyright - Copyright Apple Inc.,2017

[ICC Profile] Media White Point - (0.9505, 1, 1.0891)

[ICC Profile] Red Colorant - (0.5151, 0.2412, 65536)

[ICC Profile] Green Colorant - (0.292, 0.6922,0.0419)

[ICC Profile] Blue Colorant - (0.1571, 0.0666,

0.7841)

[ICC Profile] Red TRC - para (0x70617261): 32

bytes

[ICC Profile] Chromatic Adaptation - sf32

(0x73663332): 44 bytes

[ICC Profile] Blue TRC - para (0x70617261): 32

bytes

[ICC Profile] Green TRC - para (0x70617261): 32

bytes

----------------------------------------------

File---------------------------------

[File] File Name - REAL camera 2.jpg [File] File

Size - 1550651 bytes

[File] File Modified Date - Mon Jul 26 13:03:19

+08:00 2021

DISCUSSION

Based on the results of trials in this study, it can be

concluded as follows: obtained from the proposed

method has a maximum accuracy of 91.83%. The

image of the accuracy curve and loss curve can be

seen appearing 5x5 and filter af 32. The second layer

of CNN consists of a convolution layer with a kernel

size of 5x5 and a filter count of 32, and a Max

Pooling layer with a size of 2x2. Two uses used It

can be seen in the figure above that the best

accuracy is obtained at epoch 0.220. The validation

loss value at a linear value of 5 starts to level off and

eventually increases, which is a sign of overfitting.

A good method for identifying the number of epochs

to use during training is early termination. With this

method, the training will be stopped when the

validation accuracy value starts to decrease or the

validation loss value starts to increase. The test uses

an image dataset obtained from data preparation

which will later be processed by the system .

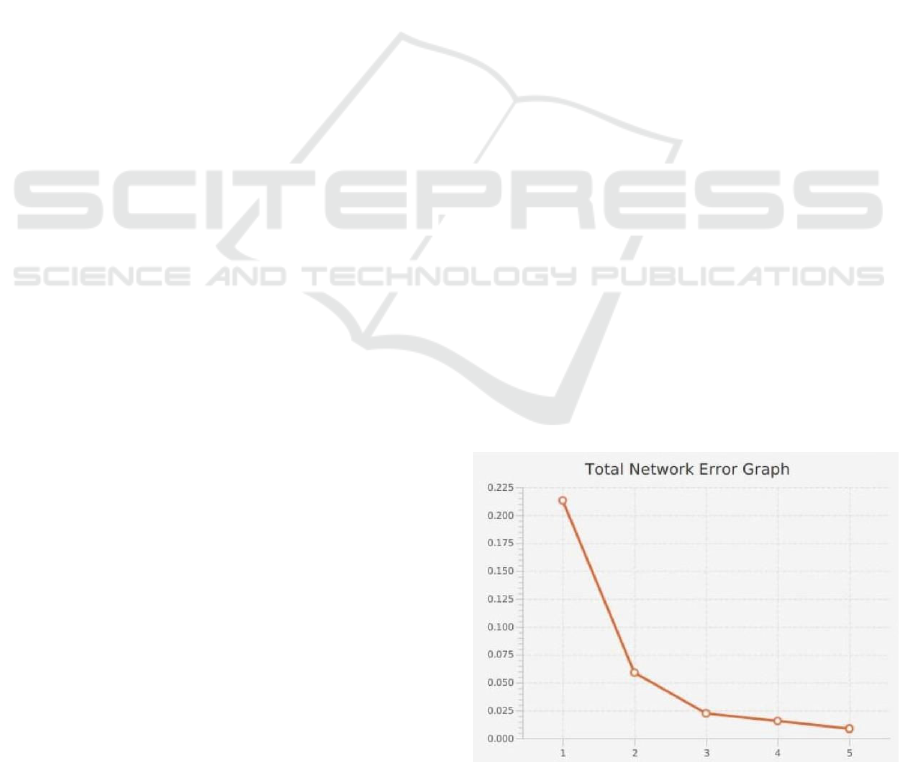

Figure 10: Accuracy curves and loss curves for

training data

and validation data.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

974

The number of training epochs required is small to

achieve convergence, because the use of the

resulting image features makes model training

much

more efficient, and the normalization

performed on

the RGB values for each pixel also

speeds up the

convergence of the CNN model.

CONCLUSION

Based on the results of trials in this study, the

following conclusions can be drawn: CNN using two

convolutional layers, one MaxPooling layer, one

fully connected layer, and one output layer with

softmax can achieve 91.83% accuracy. The use of

metadata extraction with deep learning CNN can

increase efficiency and reduce the computational

costs of the training process. This can be seen from

the reduction in the number of layers from the

previous method and the number of epochs required.

REFERENCES

Grant, J. T. (1984) ‘Background subtraction

techniques

in surface analysis’, Journal of

Vacuum Science &

Technology A: Vacuum,

Surfaces, and Films, 2(2),

pp. 1135–1140.

doi:10.1116/1.572689.

Lahagu, J. (2019) 'Detecting the Originality of a

Digital

Image By Applying the Method

Adler-32', KOMIK (National Conference on

Information

and Computer Technology), 3(1),

pp. 789–797.

doi:10.30865/komik.v3i1.1694.

Van Den Oord, A., Kalchbrenner, N. and Kavukcuoglu, K.

(2016) ‘Pixel Recurrent neural networks’, 33rd

International

Conference on Machine Learning, ICML

2016,

4, pp. 2611–2620.

Research, L. and Internal, H. (2019) ‘Internal Grants

for

News Detection Systems Fake News on

Social

Media'.

Zgöbek, zlem, JA Gulla, (2017). “Towards an

Understanding of Fake News”, Norwegian Big

Data

Symposium Kshetri, Nir, J. Voas, “The

Economics

of 'Fake News'”, IT Pro

(November/December 2017),

IEEE Computer

Society.

Chinese Academy of Sciences. “CASIA Image

Tempering Detection Evaluation Database

(CAISA

TIDE) V2.0. Taken from

http://forensics.idealtest.org

N. Krawetz (2007), "A pictures worth digital image

analysis and forensics," Black Hat Briefings, p.

1-31,

Rawat, Waseem, Z. Wang, (2017), “Deep

Convolutional

Neural Networks for Image

Classification: A

Comprehensive Review”,

Neural Computation 29 p.

2352-2449.

Gunawan, Teddy Surya, Hanafiah, SAM, Kartiwi,

M.,

Ismail, N., Za'bah, NF, Nordin, AN,

(2017)

“Development of Photo Forensics

Algorithm by

Detecting Photoshop

Manipulation Using Error Level

Analysis”,

Indonesian Journal of Electrical

Engineering

and Computer Science, Vol. 7, No. 1, , p.

131-

137.

Photo Forensics: Detect Photoshop Manipulation

with

Error Level Analysis, September 2018.

Taken

from

https://resources.infosecinstitute.com/error-

level-

analysis-detect-image-

manipulation/#gref

Edelman, (2018) Edelman Trust Barometer Global

Report”, taken from

https://cms.edelman.com/ sites/

default/files/201

8- 01/2018%20Edelman %20Trust

%20Barometer %20Global%20Report.pdf

Bulls, Jeff (2009),“6 Powerful Reasons Why you

Should

include Images in your Marketing”,

taken from

https://www.jeffbullas.com/6-

powerful-reasons-why-

you-should-in include-

images-in-your-marketing-

infographic /

Villan, M. Afsal, Kuruvilla, K., Paul, J., Elias, E. P.,

(2017)“Fake Image Detection Using Machine

Learning”, International Journal of Computer Science

and Information Technology & Security (IJCSITS), Vol.

7, No. 2.

V. Nair and G. E. Hinton, (2010) “Rectified linear

units

improve restricted boltzmann machines,”

Proceedings

of the 27th International

Conference on Machine

Learning, June 21-24,

p. 807-814.

Putri, T. T. A., Mendoza, M. D., & Alie, M. F. (2020).

Sentiment Analysis On Twitter Using The Target-

Dependent Approach And The Support Vector

Machine (SVM) Method: Sentiment Analysis On

Twitter Using The Target-Dependent Approach And

The Support Vector Machine (SVM) Method. Jurnal

Mantik, 4(1), 20-26.

Juditha, C. (2018). Hoax Communication Interactivity in

Social Media and Anticipation (Interaksi Komunikasi

Hoax di Media Sosial serta Antisipasinya). Pekommas,

3(1), 261723.

Kinghorn, P., Zhang, L., & Shao, L. (2018). A region-based

image caption generator with refined descriptions.

Neurocomputing, 272, 416-424.

Wiriyathammabhum, Peratham, Abhinav Shrivastava, Vlad

I. Morariu, and Larry S. Davis. "Referring to objects in

videos using spatio-temporal identifying descriptions."

arXiv preprint arXiv:1904.03885 (2019).

Hanin, B., & Rolnick, D. (2019). Deep relu networks have

surprisingly few activation patterns. Advances in neural

information processing systems, 32.

Kendall, A., Gal, Y., & Cipolla, R. (2018). Multi-task

learning using uncertainty to weigh losses for scene

geometry and semantics. In Proceedings of the IEEE

conference on computer vision and pattern recognitio n

(pp. 7482-7491).

Image Content Authentic Detection System using Convolutional Neural Network Method

975
