Realtime Detection of Masks and Distance in an Effort to Control

Physical Distancing based on Faster R-CNN

Agus Khumaidi, Intan Puspita Sari, Joko Endrasmono and Ryan Yudha Adhitya

Department of Marine Elctrical Engineering, Politeknik Perkapalan Negeri Surabaya, Surabaya, Indonesia

Keywords: Physical Distancing, Distance, Mask, Faster Regional Convolutional Neural Network (Faster R-CNN),

Euclidean Distance, Object Tracking.

Abstract: According to the Circular Letter of the Governor of East Java in 2020 concerning Control, Supervision, and

Law Enforcement in the Implementation of Large-Scale Social Restrictions in East Java in point 1b, it explains

that everyone is required to wear a mask and maintain a distance of at least 1 meter when in outside the home,

while point 2b explains that the person in charge of a restaurant / restaurant / similar business is obliged to

maintain a distance in the queue of at least 1 meter between customers. In this study, The Faster R-CNN

method has been applied to classify objects; people, masks, and no masks. Before the classification process

is carried out, the dataset is collected and trained first. This classification applies to the queuing conditions in

the room. From the results of real-time trials, the success of the model when classifying objects in the form

of masks, no masks, and people has an average success of 92,67% with a safe detection distance of 400 cm.

Based on the tests that have been carried out, the distance calculation using Euclidean Distance produces an

average error of 4,591 % with the largest distance error reaching 7,32 cm.

1 INTRODUCTION

Humans are actually social creatures who always

need the help and presence of others. However, the

COVID-19 Virus requires each individual to wear a

mask and perform Physical Distancing by keeping a

distance of more than 1 meter from anyone to reduce

the risk of spreading the virus.

According to the 2020 East Java Governor's Circular

on Control, Supervision and Law Enforcement in the

Implementation of Large-Scale Social Restrictions in

East Java, point 1b explains that everyone is required

to wear a mask and maintain a distance of at least 1

meter at all times. Outside the home, while point 2b

explains that the person in charge of a restaurant /

similar business is obliged to maintain a distance in

the queue of at least 1 meter between customers.

However, the rules for maintaining a safe distance

and the use of masks are often violated in the

application of Physical Distancing, especially in

crowd locations such as queues at malls and

restaurants(Timur, 2020).

With the background of these problems, the authors

have innovations to overcome Physical Distancing

violations, namely by implementing a Distance

Detection System and Masks as Prevention of

Physical Distancing Violations in Queues Using the

Faster R-CNN Method. This study uses a camera as a

sensor that functions like the human eye. Then used

video processing to detect objects using OpenCV.

With the use of OpenCV, videos can be processed in

real-time and can be classified into several objects

using the Faster R-CNN Method (Salim, 2020). And

can predict the distance between human objects using

the Euclidean Distance measurement method

(Nishom, 2019).

2 METHODOLOGY

2.1 Identification of Problems

In this system, the problem raised is an effort to

reduce violations in Physical Distancing. The purpose

of this research is to reduce the spread and risk of

being exposed to the Covid-19 virus. The problem

formulation of this research is how the system can

detect people and objects using Faster R-CNN and

efficiently estimate the distance between objects

using Euclidean Distance.

1034

Khumaidi, A., Sari, I., Endrasmono, J. and Adhitya, R.

Realtime Detection of Masks and Distance in an Effort to Control Physical Distancing based on Faster R-CNN.

DOI: 10.5220/0010958400003260

In Proceedings of the 4th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2021), pages 1034-1038

ISBN: 978-989-758-615-6; ISSN: 2975-8246

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2.2 Study of Literature

At this stage, the authors seek as much information as

possible about the concepts that will be used in the

study. The search was carried out related to

information about the Convolutional Neural Network

(Adhitya et al., 2020), Faster R-CNN, Centroid

Tracking, Euclidean Distance, OpenCV (Rinanto &

Khumaidi, 2015). It is hoped that this information

will be able to support the completion of this research.

2.3 System Planning

System design is the stage that is used to provide an

overview of the system used in research. This

research uses equipment, namely a notebook with

GPU (Ren et al., 2016), Logitech C922 Pro webcam

with 640 x 480 camera resolution as image input, and

speaker as sound notification output. The system

flowchart in this study is shown in Figure 1.

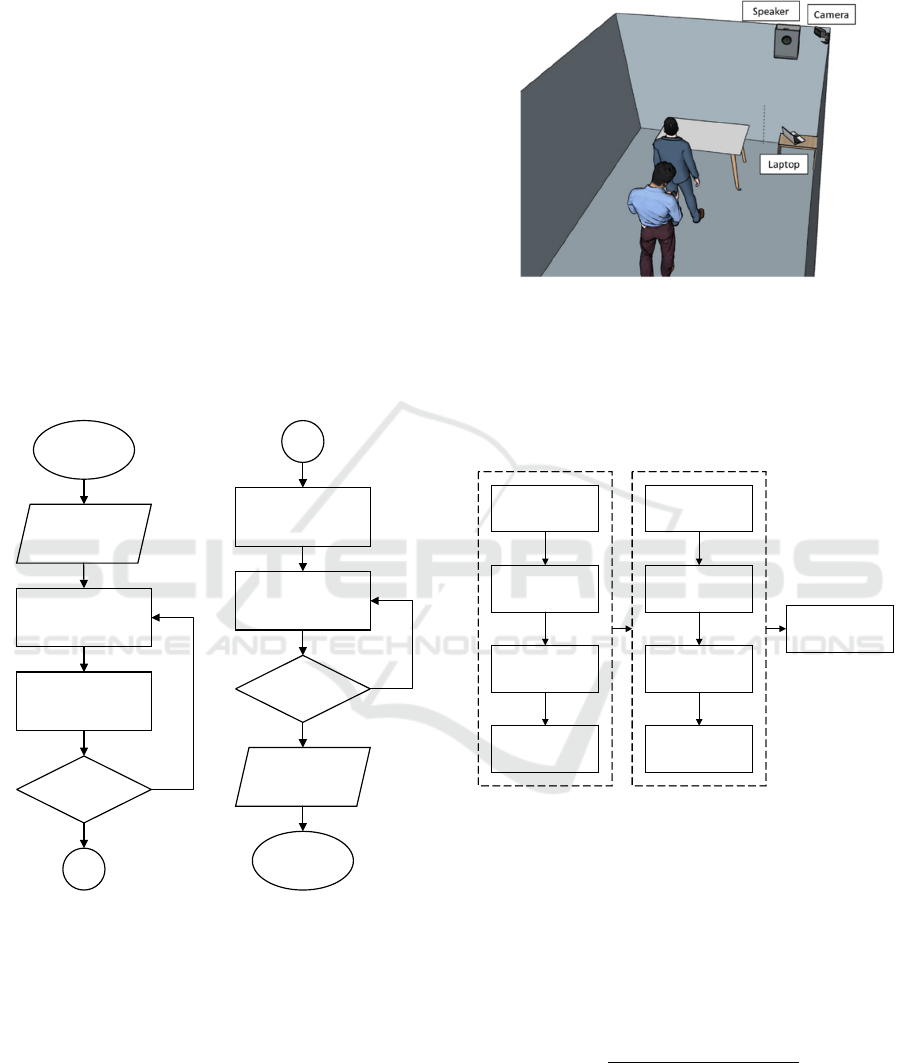

Figure 1: System Flowchart.

2.4 Hardware Design

Hardware design aims to provide an overview of the

tools used. In Figure 2, is the application of the tool

in the queuing room where humans who are objects

will be detected, webcams that function to capture

images are placed at the position of the upper end of

the room, with the aim of being able to reach a wider

area of a room. If the "people" is too close or there is

a "people" that is not wearing a mask, then the

speaker will issue a sound notification.

Figure 2: Hardware Design.

2.5 Software Design

In this research, the system uses the Faster R-CNN

method. The steps taken to detect objects are as

shown in Figure 3.

Dataset Collection

Labeling Image

(Annotations)

Convert XML to

CSV

Convert CSV to

TFRecord

Pre - Processing

Pre-Processing Data

Training

Inference Graph

Export Model

Training

Testing

Figure 3: Software Design.

2.6 Centroid Euclidean Distance

Centroid and Euclidean Distance are used to

determine the distance between objects by

determining the coordinates of the Centroid value as

shown in Figure 5 from each bounding box in each

frame using equation 1.

































(1)

description:

D : Distance resul

Video Processing

Process

Is An Object

Detected?

Reading

Webcam

Start

Object Detection

Yes

Perspective

Estimated Distance

Is Keeping the

Distance Safe?

Sound Notifications

Finished

Yes

Realtime Detection of Masks and Distance in an Effort to Control Physical Distancing based on Faster R-CNN

1035





: Distance x is measured from the distance

measurement based on pixel value

variation





: Distance y is measured from the distance

measurement based on pixel value

variation

3 RESULT

3.1 Dataset

The dataset was obtained from the collection of

photos with the provision of faces using masks,

without masks, and people in a standing position, the

number of datasets used were 1580 images. The

dataset is then converted into an XML file and

divided into 2 parts, namely 80% train data and 20%

test data. Figure 4 is a few samples from the dataset

used.

(A)

(B)

(C)

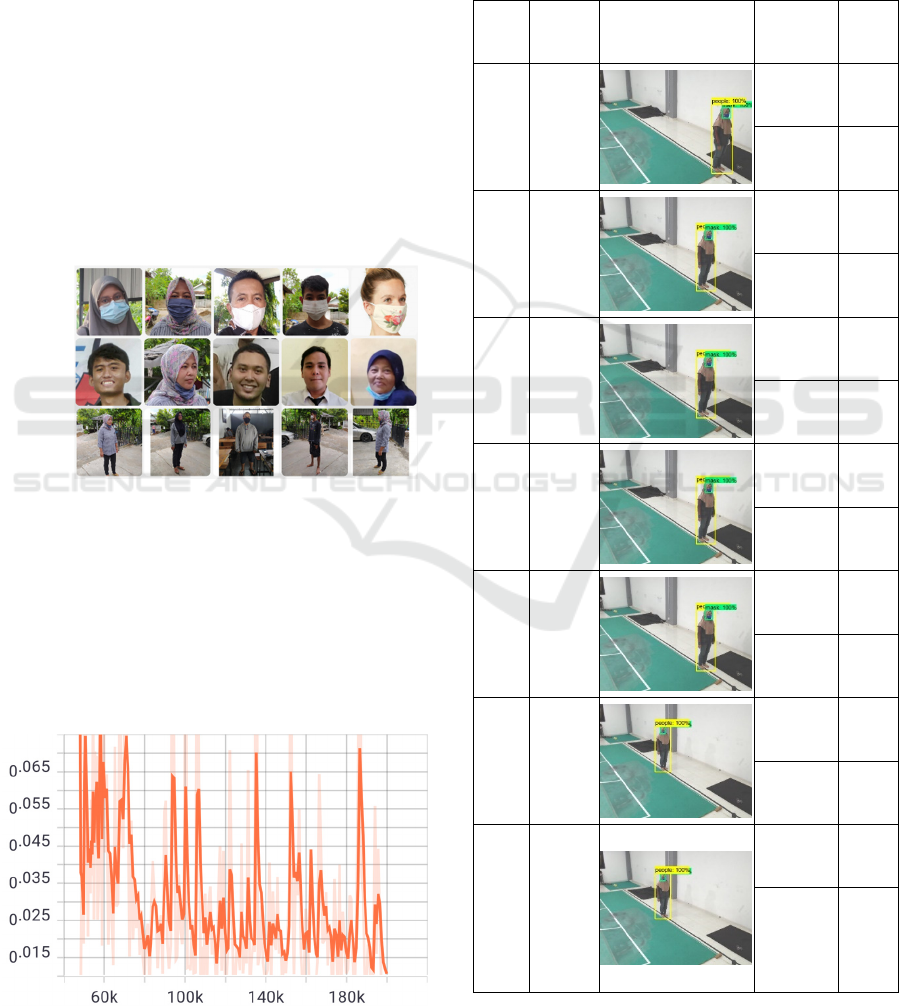

Figure 4: Dataset Class (A) Mask (B) No Mask (C) People.

3.2 Inference Graph Tensorboard

Tensorboard is used because the neural network is a

process known as a black box, so it cannot be

observed in detail what processes occur in the neural

network system. Training process is carried out until

step 200,000 and generate total loss below 0,015. The

total Loss graph is shown in Figure 5.

Figure 5: Total Loss Graph.

3.3 Testing Object Detection

Detection is divided into 3 according to the

predetermined class, namely Mask, No mask, and

People. The test was carried out with the camera

position being 220 cm from the floor and the first

object at a distance of 347.27 cm from the camera.

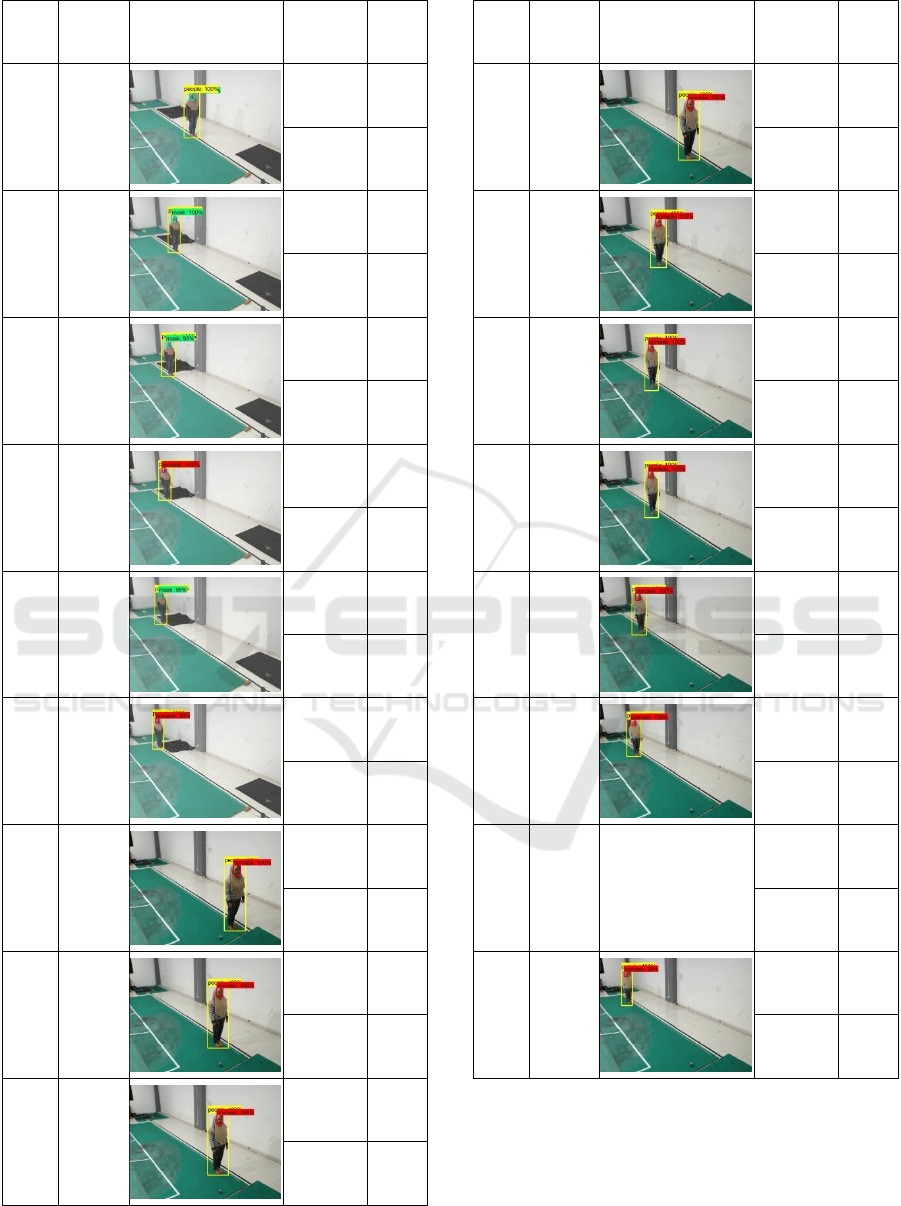

Table 1: Testing Object Detection (24 data from 140).

Dis-

tance

Prediction Image Results

State

ment

1 0 cm

Mask True

People True

2 50 cm

Mask True

People True

100

Mask True

People True

150

Mask True

People True

200

Mask True

People True

250

Mask True

People True

300

Mask True

People

True

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1036

Dis-

tance

Prediction Image Results

State

ment

350

Mask True

People True

400

Mask True

People True

450

Mask True

People True

500

mask

False

People True

550

Mask True

People True

600

mask

False

People True

14 0 cm

mask

True

People True

15 50 cm

mask

True

People True

100

mask

True

People True

Dis-

tance

Prediction Image Results

State

ment

150

mask

True

People True

200

mask

True

People True

250

mask

True

People True

300

mask

True

People True

350

mask

True

People True

400

mask

True

People True

: : :

: :

140

500

mask

True

People True

Based on the test data in Table 1 from 140 data,

the percentage of detection success was 92.67%.

3.4 Testing Object Tracking

In object tracking testing, the system can perform

object tracking in the form of object IDs precisely

Realtime Detection of Masks and Distance in an Effort to Control Physical Distancing based on Faster R-CNN

1037

according to the existing queue conditions, the test

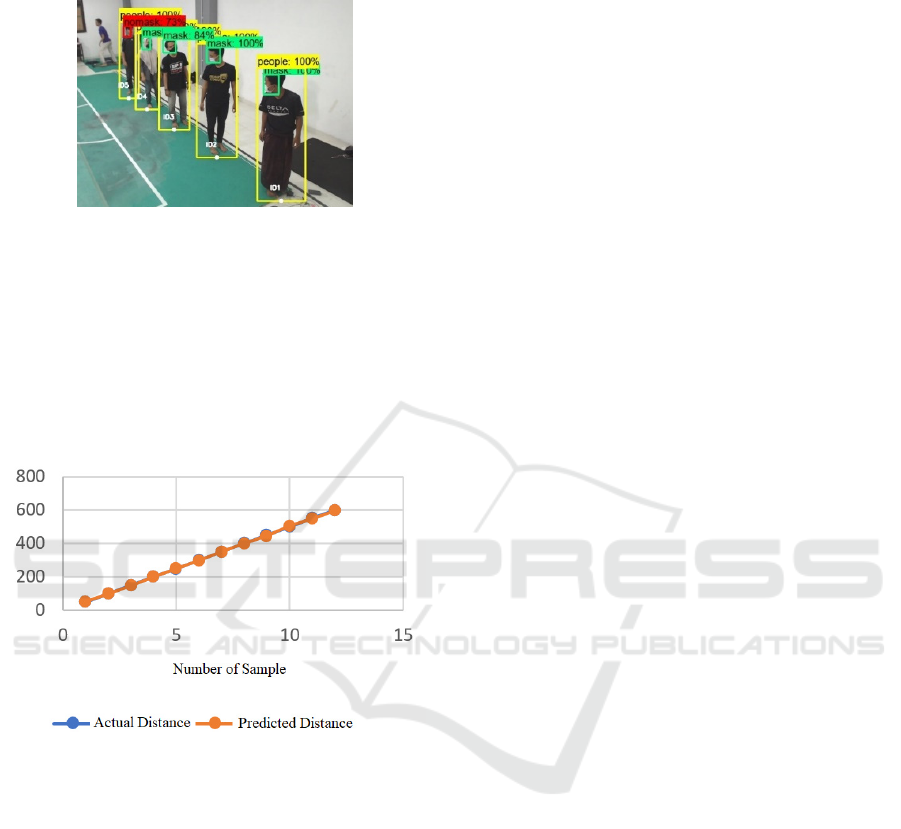

results are as shown in Figure 6.

Figure 6: Object Tracking.

3.5 Testing Distance Object

Distance measurement is done using the perspective

model. Then, for distance estimation, Euclidian

Distance calculation is used to get the distance

between "People" objects. Based on the test results as

shown in Figure 7 using 12 distance data, the largest

error is 1.86% with a distance difference of 0.93 cm.

Figure 7: Distance Testing Graph.

4 CONCLUSION

From the testing that has been done, the results of this

research can be concluded that:

1. Based on the test results from 140 data, the

success of the system when classifying objects in

the form of masks, no masks, and people has an

average success of 92.67% with a safe detection

distance of 400 cm.

2. Based on the tests that have been carried out, the

distance calculation using the Euclidean Distance

calculation produces an average error of 4.591 %

with the largest distance error reaching 7.32 cm.

REFERENCES

Adhitya, R. Y., Khumaidi, A., Sarena, S. T., Kautsar, S.,

Widiawan, B., & Afriansyah, F. L. (2020). Applied

Haar Cascade and Convolution Neural Network for

Detecting Defects in the PCB Pathway. CENIM 2020 -

Proceeding: International Conference on Computer

Engineering, Network, and Intelligent Multimedia

2020, Cenim, 408–411.

https://doi.org/10.1109/CENIM51130.2020.9297996

Nishom, M. (2019). Perbandingan Akurasi Euclidean

Distance, Minkowski Distance, dan Manhattan

Distance pada Algoritma K-Means Clustering berbasis

Chi-Square. Jurnal Informatika: Jurnal

Pengembangan IT (JPIT), 4(1), 20–24.

https://doi.org/10.30591/jpit.v4i1.1253

Ren, S., He, K., Girshick, R., & Sun, J. (2016). Faster R-

CNN: Towards Real-Time Object Detection with

Region Proposal Networks. IEEE Transactions on

Pattern Analysis and Machine Intelligence, 39(6),

1137–1149.

https://doi.org/10.1109/TPAMI.2016.2577031

Rinanto, N., & Khumaidi, A. (2015). Aplikasi Android-

Raspberry Pi Pada Kapal Tanpa Awak Untuk Pencarian

Korban Kecelakaan Laut. Jurnal SISFO : Inspirasi

Profesional Sistem Informasi, 05(04).

https://doi.org/10.24089/j.sisfo.2015.09.003

Salim, A. (2020). Estimasi Kecepatan Kendaraan Melalui

Video Pengawas Lalu Lintas Menggunakan Parallel

Line Model.

Timur, G. J. (2020). Surat Edaran Pengendalian,

Pengawasan Dan Penegakan Hukum Dalam

Pelaksanaan Pembatasan Sosial Berskala Besar Di

Jawa Timur. http://files.bpbd.jatimprov.go.id/

KEDARURATAN/COVID19/PRODUK HUKUM

DAN KEBIJAKAN/PEMERINTAH PROVINSI/SE

GUB PSBB.pdf

A. Khumaidi, E. M. Yuniarno and M. H. Purnomo,. (2017).

"Welding defect classification based on convolution

neural network (CNN) and Gaussian kernel," 2017

International Seminar on Intelligent Technology and Its

Applications (ISITIA), Surabaya, 2017, pp. 261-265,

doi: 10.1109/ISITIA.2017.8124091

A. Budianto et al. (2017). "Analysis of artificial intelligence

application using back propagation neural network and

fuzzy logic controller on wall-following autonomous

mobile robot," 2017 International Symposium on

Electronics and Smart Devices (ISESD), Yogyakarta,

pp. 62-66, doi: 10.1109/ISESD.2017.8253306

R. Y. Putra et al.(2016). "Neural network implementation

for invers kinematic model of arm drawing robot," 2016

International Symposium on Electronics and Smart

Devices (ISESD), Bandung, pp. 153-157, doi:

10.1109/ISESD.2016.7886710

S. R. Dewi, (2018). “Deep Learning Object Detection Pada

Video Menggunakan Tensorflow dan Convolutional

Neural Network,”

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1038
