Implementation of Command Query Responsibility Segregation
(CQRS) in the Competency Test Information System
I Gusti Ngurah Bagus Caturbawa, Sri Andriati Asri, I Wayan Suasnawa,
Anak Agung Ngurah Gde Sapteka, Ni Gusti Ayu Putu Harry Saptarini and Kadek Amerta Yasa
Department of Electrical Engineering, Politeknik Negeri Bali, Kampus Bukit Jimbaran, Badung, Indonesia
Keywords: Certification, CQRS, Pattern System, System Architecture.
Abstract: Lembaga Sertifikasi Profesi (LSP) is an institution that carries out professional certification activities in
Indonesia. The process of implementing the competency test at LSP includes the registration process, pre-
assessment, assessment, up to the issuance of certificates. The purpose of this research is to build a
competency test information system for LSP. This competency test information system was built by applying
a pattern architecture that divides the processes of writing and reading data in different processes. This
architecture is known as the Command Query Responsibility Segregation (CQRS). CQRS separates writes
and reads into different models, using commands to update data, and queries to read data. The write model
may treat a set of associated objects as a single unit for data changes and ensure that these objects are always
in a consistent state. The read model just returns a DTO for use in a view. Implementing CQRS in an
application prevents updating commands from causing merge conflicts at the domain level. A CQRS pattern
system development can avoid complex joins when creating queries.
1 INTRODUCTION
Professional certification in various fields is one of
the main programs of the Indonesian government in
improving workforce competence. This is necessary
because of the need to standardize services between
Asean countries. The target for professional
certification participants and the funds provided by
the government has increased every year. The aim of
the government is to trigger professional certification
institutions that are starting to grow to cultivate
professional certification in the industrial world.
Lembaga Sertifikasi Profesi (LSP) is an agency
for implementing professional certification activities
that has obtained a license from the Badan Nasional
Sertifikasi Profesi (BNSP). Licenses are granted
through an accreditation process by BNSP which
states that the relevant LSP has met the requirements
to carry out professional certification activities. The
process of granting competency certificates is carried
out systematically and objectively through a
competency test that refers to the Indonesian national
work competency standards, international standards
and/or special standards. Competency testing is a
procedure that is part of the assessment to measure
the competence of certification participants using one
or several methods such as written, oral, practical, and
observational, as stipulated in the certification
scheme (BNSP, 2017). The activities of a
professional certification body determine that a
person meets the requirements for certification, which
includes registration, assessment, certification
decisions, maintenance of certification,
recertification, and use of certificates. According to
the procedure, it will go through a fairly long process
and will require the management of a lot of
documents for the entire competency test process. If
the implementation of this competency test is carried
out with a large number of competency test
participants (assessments), the LSP needs to create a
computerized system to streamline the competency
test process. This is due to the large number of
documents that must be prepared by both the LSP
manager and the assessor.
Therefore, this study will raise the topic of
designing a Competency Test Information System in
a professional certification institution. More
specifically in this article, we will discuss the use of
the Command Query Responsibility Segregation
(CQRS) pattern architecture. Command Query
Responsibility Segregation (CQRS) is a development
1322
Caturbawa, I., Asri, S., Suasnawa, I., Sapteka, A., Saptarini, N. and Yasa, K.
Implementation of Command Query Responsibility Segregation (CQRS) in the Competency Test Information System.
DOI: 10.5220/0010964500003260
In Proceedings of the 4th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2021), pages 1322-1326
ISBN: 978-989-758-615-6; ISSN: 2975-8246
Copyright
c
 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

of the Command Query Separation (CQS) technique
introduced by Bertrand Meyer which can be applied
to the development of distributed software systems
(Meyer, 1997).
2 THEORY
System development always changes with the needs
of application developers related to the Relational
Database Management System (RDBMS).
Dominguez & Melnik suggested the need for a
method to organize the system in a different way
when interacting with the database (Domínguez, et
al., 2012). In 2013 CQRS has been widely used in
various systems developed for financial institutions
and health institutions (Betts, et al., 2012).
Information systems generally use a client-server
architecture (Niltoft, et al., 2013). Figure 1. illustrates
a commonly used client-server architecture, the MVC
Architecture/Pattern. Model-View-Controller (MVC)
is a method for separating data (Model) from the view
(View) and how to process it (Controller). In its
implementation, most frameworks are based on the
MVC architecture. MVC separates application
development based on its components, namely the
main components that build an application such as the
part that is the control, the data manipulation section,
and the user interface. In general, a system is usually
composed of a user interface, business logic and a
database-linked model. In the model, the services
provided are creating, reading, updating and deleting
records. This is not the only way to design and design
systems, but is a very commonly used system.

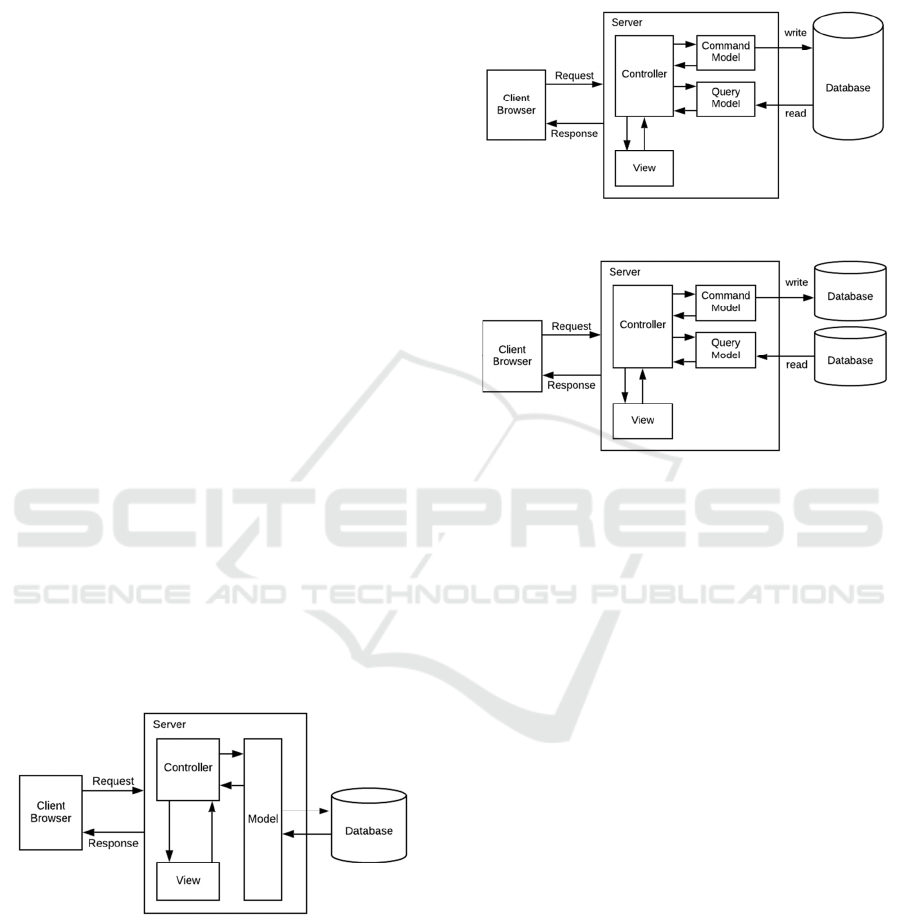

Figure 1: Client server architecture.
The concept of using CQRS will note the
difference between reading a record and writing a
record. This requires one class for inserting, updating
or deleting notes and one class for reading notes. This
class is implemented in the form of two models,
namely the query model and the command model.
This reduces the complexity because it differentiates
command logic and query logic (Erb, et al., 2014) as
shown in Figure 2. This means that there is a
separation of responsibilities between the two classes
(Fitzgerald, 2012).
Figure 2: A model of CQRS with one database.
Figure 3: A model of CQRS with separated databases.
In its development, this separation of
responsibilities can also be done in the database (Erb,
et al., 2014). This can be seen in Figure 3. This
requires 2 databases with the same records. This will
reduce the burden compared to if the process only
uses one database. However, this separation will
require a very reliable synchronization. In designing
this competency test system, the implementation of
the CQRS used is one database, which is separated
only from the query model and command model.
3 RESEARCH METHODOLOGY
This research uses a case study of competency test
software. The software built is used by the
Professional Certification Institute (LSP). In
implementing this system, the first thing to do is
collect data about the concept and application of
CQRS. After that we carried out an analysis to design
how the CQRS concept was applied.
At the next stage, the development team involved
were invited to discuss how to implement the CQRS
concept into the system being built. System analyst
creates designs which are then translated into
program code.
Implementation of Command Query Responsibility Segregation (CQRS) in the Competency Test Information System
1323

start
CQRS Team Dev eloper
Participation
Expert Software Developer
Review
end
CQRS Literature Analysis
Need
improvement?
Yes
No
Figure 4: Research Methodology.
In the final stage, the implementation results are
reviewed by experienced software developers. If
there is any program code that needs improvement, it
will be discussed again by the development team and
improvements will be made according to the
suggestions given. If it is appropriate, the system
development cycle using the CQRS concept is
complete.
4 RESULTS AND DISCUSSION
In implementing CQRS in the domain, the structures
can be differentiated directly into separate folders,
namely the command folder and the query folder.

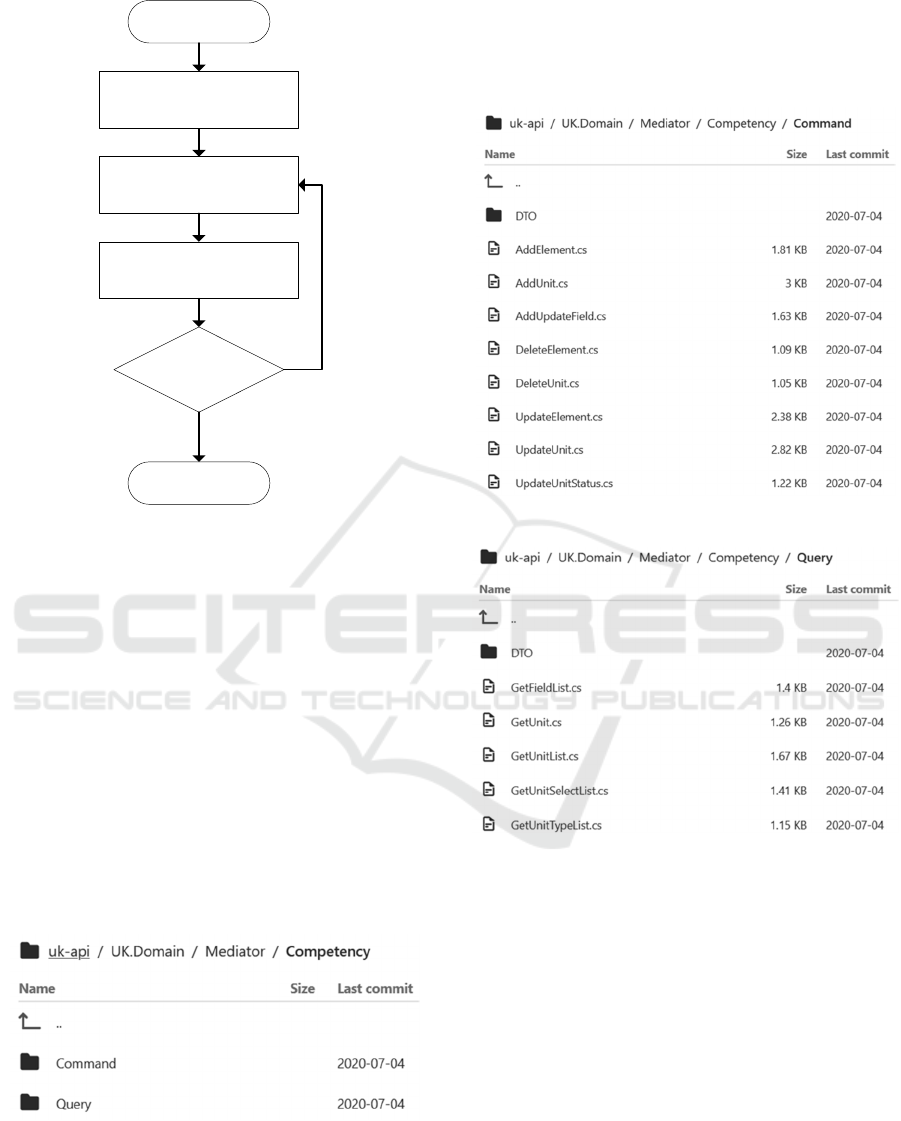

Figure 5: The structure of the model in the domain.
Figure 5 illustrates the structure of the system being
built. Furthermore, in Figure 6 shows model in the
form of classes that have write functions. This write
function takes the form of the process of adding,
changing, and deleting notes. Models related to the
read function are specifically placed in the query
folder as shown in Figure 7.
Figure 6: Write models.
Figure 7: Read models.
In the creation of a class for the read function, it will
have two parts. The main part is a query class that will
be processed further in the Handler class. The output
of this query class is in the form of base results and
result values. When a query is executed successfully,
the resulting status is successful. If this fails, a
message is required to provide information via the
user interface. The class for this read function is
shown in Figure 8.
Next, on the class for the write function. As stated
in the previous section, this writing function includes
creating, updating, and deleting records. Basically the
writing process can be implemented in one model
class. One model class is possible if the level of code
complexity is not too large. In conditions where the
iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science
1324

system being built has a large level of complexity,
each of these functions can be made separately. This
will make it easier for programmers to develop and
maintain the system being built. The three processes
that are included in this write function are made
separately as shown in Figure 9, Figure 10, and Figure
11.

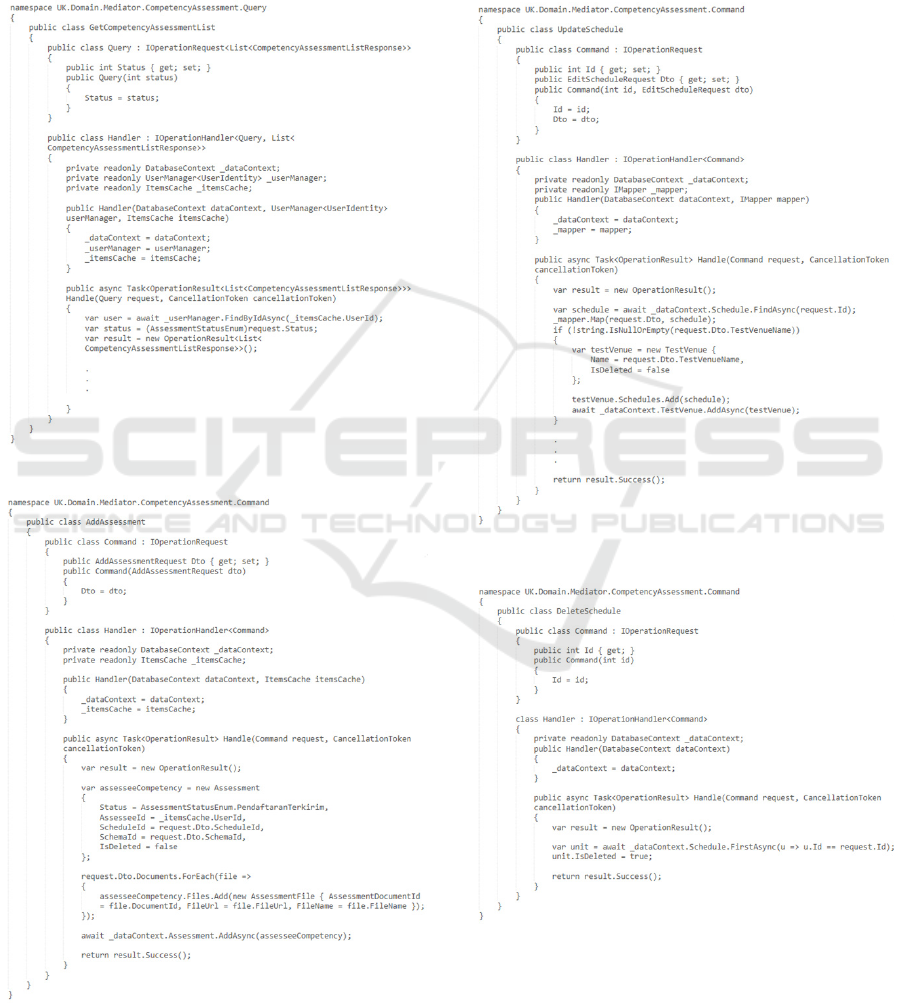

Figure 8: Implementation of class for the reading model.
Figure 9: Implementation of class for the write model.
Unlike the model class in the read function, the model
class in this write function has one output, namely the
base result, which indicates whether the write process
has been successfully carried out or not. If not
successful it will give an error message on the system
user interface. The output of this write function does
not require an output in the form of a result value.
Figure 10: Implementation of class for the write model.
Figure 11: Implementation of class for the write model.
Some of the advantages when we apply the CQRS
method are better performance of the built system due
to better concurrent access handling, as well as a
domain model and a simple query model.
Implementation of Command Query Responsibility Segregation (CQRS) in the Competency Test Information System
1325

5 CONCLUSIONS
A common approach used by most people to interact
with information systems is to treat it as a data store
(Create Read Update Delete). We have a model of
multiple record structures for creating new records,
reading records, updating existing records, and
deleting records when we are done with them. In the
simplest of systems, our interaction is about keeping
and retrieving these records. As technology develops
in information systems, our needs become more
sophisticated, we try to develop models that are
commonly used. We view information in different
ways, perhaps breaking it down into several records.
CQRS using a significant change structure, can be
a significant solution to create information systems.
There are several benefits to using CQRS. The first is
that some complex domains are easier to handle using
CQRS. There is usually a fair amount of overlap
between the command and query sides to make
sharing the model easier. Another benefit is that in
handling high-performance applications, CQRS
separates the load from reads and writes so we can
scale it independently. When it comes to
distinguishing between reading and writing, it is very
useful.
Based on the description that has been described
in the previous section, it can be concluded as
follows. The CQRS implementation basically
simplifies the design so that it has separate read
(query) model and write (update) models. Separation
of the read and write sides will make system
maintenance easier. Most of the complex business
logic will be in the write model. Compared to the
written model, the reading model can be relatively
simpler. By using a pattern like this, system
development will be more flexible when changes
need to be made. On the other hand, the application
can avoid complex joins when creating queries.
REFERENCES
BNSP, (2017). Peraturan Badan Nasional Sertifikasi
Profesi No. 2/BNSP/VIII/2017, Badan Nasional
Sertifikasi Profesi, Jakarta.
Meyer, B. (1997). Object-oriented software construction,
2nd edn. Prentice Hall, New Jersey.
Domínguez, J. and Melnik, G. (2012). A Journey into
CQRS, Patterns & Practices Symposium Online 2012,
Retrieved from http://channel9.msdn.com/Events/Pat
terns-Practices-Symposium-Online/Patterns-Practices-
Symposium-Online-2012/A-Journey-into-CQRS.
Betts, D., Domínguez, J., Melnik, G., Simonazzi, F. and
Subramanian, M. (2012). Exploring CQRS and Event
Sourcing - A journey into high scalability, availability,
and maintainability with Windows Azure, 2012,
Retrieved from http://msdn.microsoft.com/en-
us/library/jj554200.aspx.
Niltoft, P. and Pochill, P. (2013). Evaluating Command
Query Responsibility Segregation. Lund: Department
of Computer Science, Faculty of Engineering, LTH,
Lund University.
Erb, B. and Kargl, F. (2014). Combining discrete event
simulations and event sourcing, Proceedings of the 7th
International ICST Conference on Simulation Tools
and Techniques, pp. 51-55.
Fitzgerald, S. (2012). State Machine Design, Persistence
and Code Generation using a Visual Workbench, Event
Sourcing and CQRS, School of Computer Science and
Informatics, University College Dublin, Dublin.
iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science
1326
