The development of micro hydro power screw

Archimedes turbines were divided into two sections.

The first was creates a design of the screw

Archimedes turbines that suites for irrigation water

channel, and the second was build the micro hydro

power. The flowchart of the research are shown in

Figure 1.

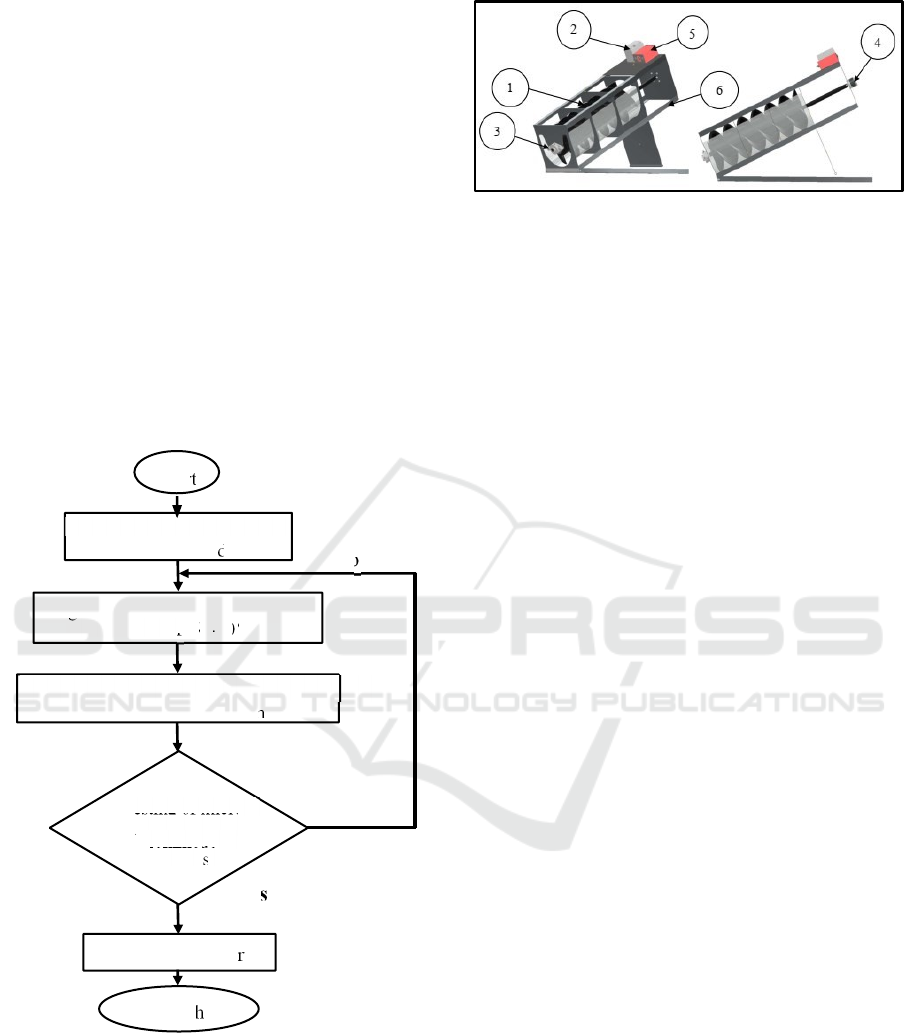

Figure 1: Flowchart of the research.

By using CAD the design of the micro hydro power

screw Archimedes turbines were shown in Figure 2.

1. Screw Archimedes Turbine

2. Battery

3. Bearing

4. Generator

5. Inverter

6. Box

Figure 2: Design of micro hydro screw Archimedes turbines.

3 RESULT AND DISCUSSION

From the geometry design using CAD in Fig.2, then

the prototype of micro hydro power screw

Archimedes turbines were built and developed. The

rotor construction has 3 screw blades, a thread range

of 492 mm, a radius of outer blade (Ro) 112.5 mm

and an inner screw radius (Ri) of 55 mm. The turbine

was 70 cm long with the number of turbines turns of

2 turns with 3 blade, and the length of turbine turn are

24 cm. The turbines shaft designed with adjustable

slope which was 15°, 20°, 25°, and 30°. The turbine

shaft conducted with a generator from DC stepper

motor with power output 24V. The generator

connected to an inverter to convert the current output

generator from DC into AC. The power produce from

the system will be storage in a battery. The prototype

of micro hydro power screw Archimedes are shown

in Fig. 3 below:

Yes

tart

Desi

rotot

e of Micro

Hydro

Power Model

Design of screw Archimedes turbines

ith

ope

1 5 ° - 30 °

Build and fabrication of micro hydro power

screw Archimedes turbines

Experimental report

tin

f mi

ower screw

him

edes

Fini

Development of Micro Hydro Power Screw Archimedes Turbines Types in Small Irrigation Channel

1421

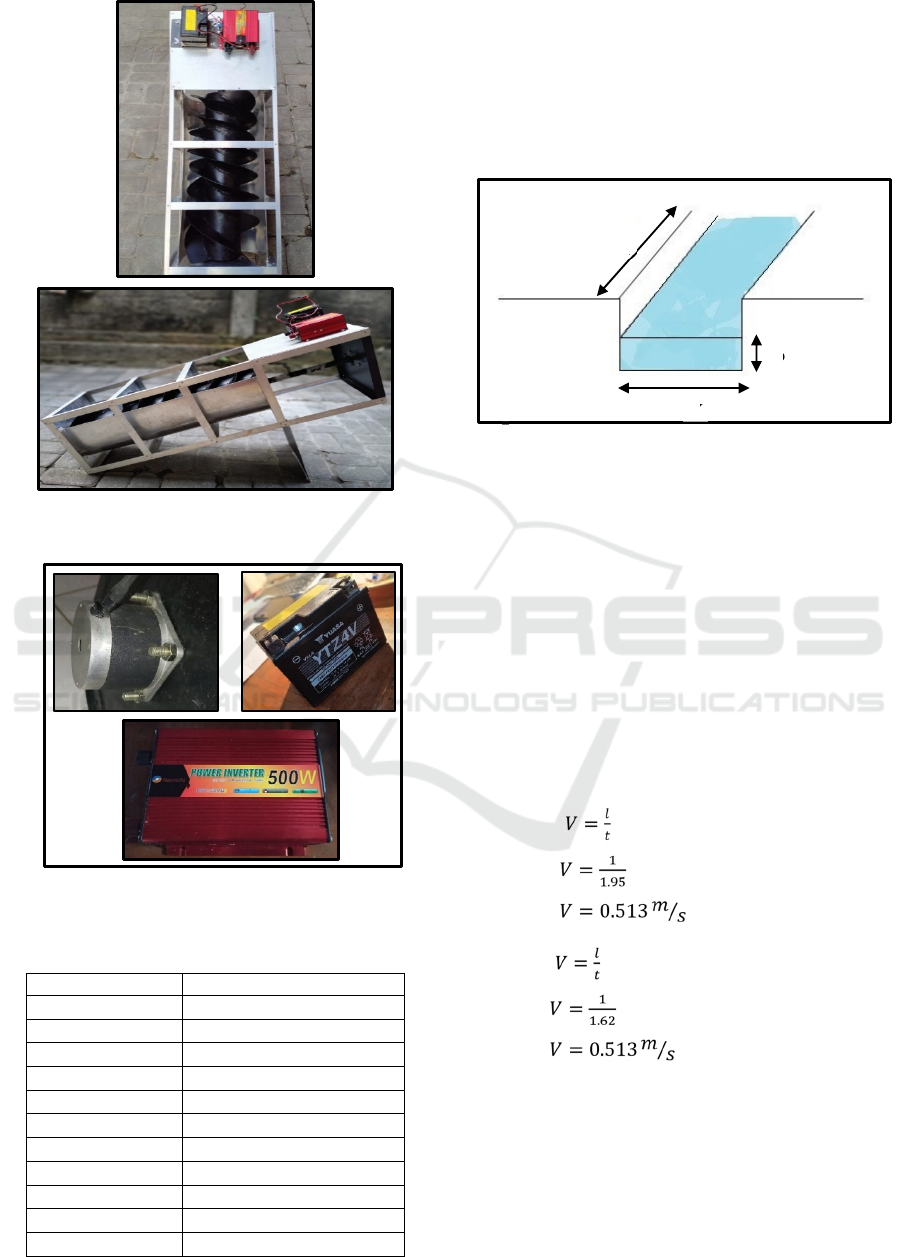

Figure 3: Prototype micro hydro screw Archimedes

turbines portable.

Figure 4: I Power generation components (generator,

inverter, and battery).

Table 1: Micro Power Hydro Specification.

Name Specification

Dimension (p x l x t) 100 cm x 30 cm x 30 cm

Number of blade 3

Turbine stainless plat

Number of turn 2

Length of turn 24 cm

Screw length 70 cm

Do 20.5 cm

Di 11 cm

Generator DC stepper, Output 24 V

Inverter AC 230V, 500

Battery 12V 3Ah

The micro hydro power tested in small irrigation

channel with the widh about 70 cm and the depth of

the water about 12 – 15 cm. The test done 2 times in

different irrigation channel, where both has the same

average size of channel. The water velocities (v) were

test by the average speed of water flow in 1 meter

length of the irrigation channel.

Figure 5: Schematic of water irrigation channel.

𝐴 = 𝑙 𝐷

𝐴 = 70 𝑥 12

𝐴 = 875 𝑐𝑚

𝐴 = 0.0875 𝑚

By measure the average time of water flow in 1 m

length, it can be known the water flow rate of the

irrigation channel upstream the micro hydro power

generator. Test 1 the average time of water flow in 1

m length was 1.95 s, and the Test 2 the average time

was 1.62 s.

The water flow rate:

Test 1.

Test 2.

The power output from the generator measure using a

digital AVO meter, and the rotation of generator

measured using a digital tachometer. The water flow

to the micro hydro generator were assumed to be

homogen, which was it’s a steady condition of water

flow, no rainfalls, no turbulence of water flow

upstream the micro hydro generator.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1422

The power output from generator analyze using the

formula:

P = V.I (1)

Where:

P = Power (watt)

V = voltage (volt)

I = current (ampere)

The result of the micro hydro power test were shown

in table 2 and table 3 below:

Table 2: Micro Hydro Power Performance (v = 0.513 m/s).

Slope/

inclination

(°)

Rotation

(rpm)

Output

Generator

(Volt)

(Ampere)

(watt)

1 15 901,6 8,9 2,2 19,58

2 20 1318,17 11 2,92 32,12

3 25 906,008 9,65 2,36 22,77

4 30 1061,43 10,7 2,7 28,94

Table 3: Micro Hydro Power Performance (V = 0.617 M/S).

Slope/

inclination

(°)

Rotation

Output

Generator

(Volt)

(Ampere)

(watt)

1 15 953,3 9 2,4 21,6

2 20 1345,7 12,3 3,12 38,4

3 25 934,02 11,1 2,56 28,5

4 30 1100,04 11,8 2,96 34,9

The performances analysis of micro hydro power

screw Archimedes are shown in Fig. 6 and Fig. 7

below:

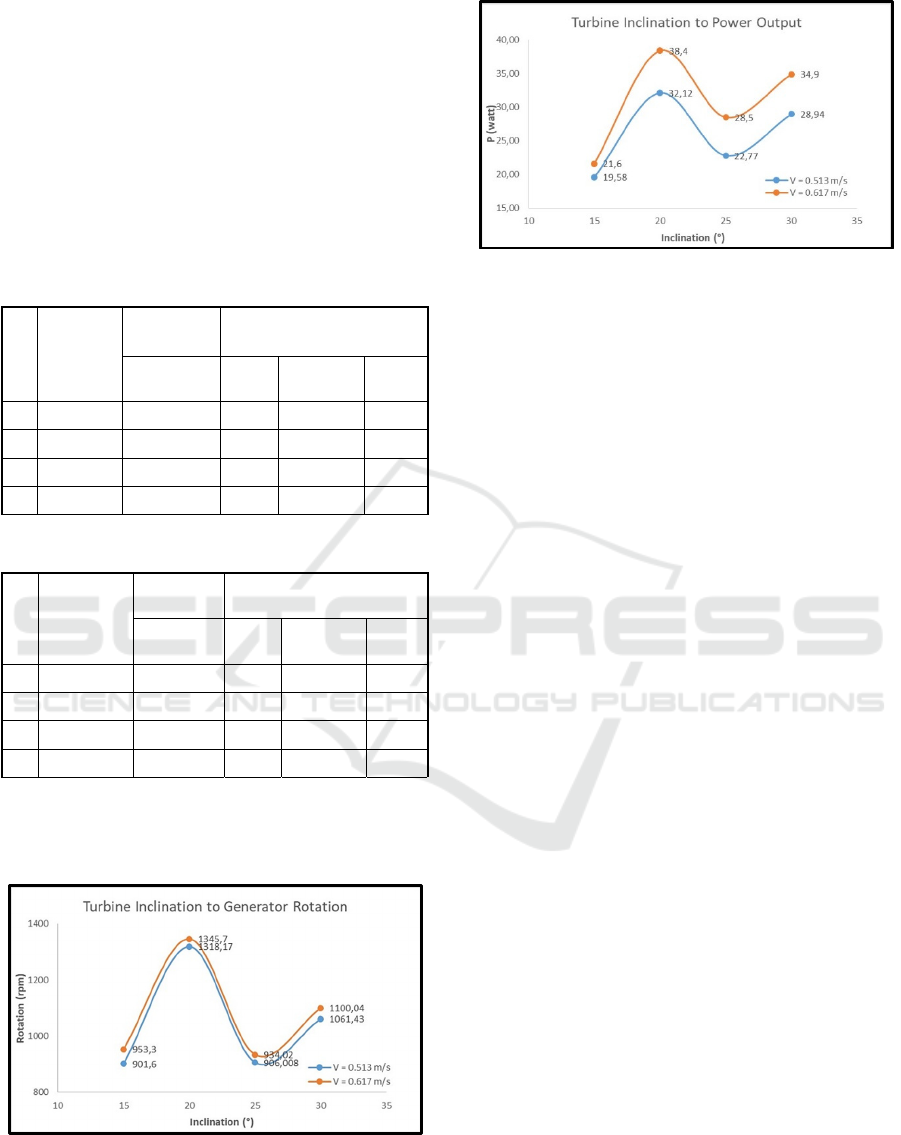

Figure 6: Turbines inclination to generator performance.

Figure 7: Turbines inclination to power output.

Fig. 6 and Fig. 7 above shows that the micro hydro

power screw Archimedes can work properly for uses

in small irrigation channel. The flow velocities of the

water was 0.513 m/s and 0.617 m/s with depth of

water about 12 cm. The screw Archimedes turbine

can rotate with all various shaft inclination.

The test result showed that the inclination takes a

good effect to the output of generator, which was the

highest turbine and generator rotation (about 1300

rpm) and also the highest power output generate

about 38 W at the inclination of turbine 20°. This

shown that the inclination of turbine to the water flow

take an important things. When the water flow

constantly and flew smooth to the micro hydro screw

Archimedes the maximum inclination was about 20°.

Whenever we set the inclination higher than 20° the

water flew in the screw turbine will floods and take

effect to the performance of rotation of generator. The

generator will be flooded and drown with the water

so the rotation will decrease. It will cause the power

generate from generator also decreasing.

4 CONCLUSIONS

From the foregoing analysis, it can be concluded that

the micro hydro power screw Archimedes turbines

that has been design and build with adjustable turbine

inclination can work properly. The construction of the

design is made with turbine specifications: the rotor

construction has 3 screw blades, a thread range of 492

mm, a radius of outer blade (Ro) 112.5 mm and an

inner screw (Ri) of 55 mm. The box frame has a

dimensions of 1m long, 30cm wide and 30cm high.

The screw Archimedes turbine and the generator in

the prototype of micro hydro power that have been

developed were not equipped with any coupling

system but it’s connected directly so that the turbine

rotation was always the same as the generator

rotation.

Development of Micro Hydro Power Screw Archimedes Turbines Types in Small Irrigation Channel

1423

The result showed that the screw Archimedes

turbines can produce enough rotation with low head

from irrigation water channels and produce an

electricity. The voltage generated by the generator is

not able to charge the battery yet. If the power on the

battery is allowed to quickly run out of use by the

inverter, therefore a step up module is installed to

increase the output voltage of the generator so that the

power from the generator to the battery becomes

more stable. The highest rotation of generator were

found in turbines inclination of 20° which was about

1300 rpm, and the power output produce from the

generator about 38 watt.

From the results of experimental it can be

suggested several things to improve the micro hydro

power screw Archimedes turbines performances. The

first is an improvement on the system design. The

design of blade and number of turn of the turbine can

more varying for a better rotation performance, it can

also connected with a gearbox as a transmission in

order to step up the rotation of generator. The second

improvement are the material, include the material of

turbines blade, the generator, and the box frame

ACKNOWLEDGEMENTS

The authors would like to acknowledge The Director

and Head of P3M State Polytechnic of Bali for

funding this research. Authors also likes to thanks full

to the research team and all the staff of Mechanical

Engineering Department of Bali State Polytechnic for

the support.

REFERENCES

(2017). www.esdm.go.id

Okot D K. (2013). Review of small hydropower

technology. Renewable and ustainable Energy

Reviews, vol. 26, pp. 515– 520.

Saroinsong T, Rudy S, Slamet W and Mega N. S. (2016).

Fluid flow phenomenon in a three-bladed power-

generating archimedes screw turbine. J. of Engineering

Science and Technology Review, vol. 9 (2) pp. 72-79.

Rorres C. ( 2000). The turn of the screw: optimal design of

an archimedes screw. J. of Hydraulic Engineering, vol.

126.

Dellinger G, Abdelali T, Pierre-Andre G, Abdallah G.

(2016). Experimental investigation and performance

analysis of archimedes screw generator. J. of Hydraulic

Research, vol. 54 (2), pp.197-209,

Apriansyah F, Angga R and Denny D. (2016). Design of

micro-hydro power plant on rainwater disposal pipe”,

e-Proceeding of Engineering, vol.3, pp. 57 – 64.

Lyons M, William DL. (2013). Archimedes screws for

microhydro power generation. ES-FuelCell2013-

18067, July 14-19.

Waters S, George A A. (2015). Over 2000 years in review:

revival of the archimedes screw from pump to turbine.

Renewable and Sustainable Energy Reviews, vol. 51,

pp. 497 – 505.

Kumar U, Piyus S and AC Tiwari. (2016). Suitability of

archimedes screws for micro hydro power generation in

india. International Journal of Thermal Technologies,

Vol.6 (3) pp. 273 – 278.

Bruce R Munson, Donald F Young . (2002). Fundamentals

of Fluid Mechanics Fourth Edition. John Wiley & Son,

New York.

iCAST-ES 2021 - International Conference on Applied Science and Technology on Engineering Science

1424
