A Multiple-instance Learning Approach for the Assessment of

Gallbladder Vascularity from Laparoscopic Images

Constantinos Loukas

, Athanasios Gazis

and Dimitrios Schizas

Medical Physics Lab, Medical School, National and Kapodistrian University of Athens, Mikras Asias 75 str., Athens,

Greece

Department of Surgery, Laikon General Hospital, National and Kapodistrian University of Athens, Athens, Greece

Keywords: Surgery, Laparoscopic Cholecystectomy, Gallbladder, Vascularity, Classification, Multiple Instance Learning.

Abstract: An important task at the onset of a laparoscopic cholecystectomy (LC) operation is the inspection of

gallbladder (GB) to evaluate the thickness of its wall, presence of inflammation and extent of fat. Difficulty

in visualization of the GB wall vessels may be due to the previous factors, potentially as a result of chronic

inflammation or other diseases. In this paper we propose a multiple-instance learning (MIL) technique for

assessment of the GB wall vascularity via computer-vision analysis of images from LC operations. The bags

correspond to a labeled (low vs. high) vascularity dataset of 181 GB images, from 53 operations. The instances

correspond to unlabeled patches extracted from these images. Each patch is represented by a vector with color,

texture and statistical features. We compare various state-of-the-art MIL and single-instance learning

approaches, as well as a proposed MIL technique based on variational Bayesian inference. The methods were

compared for two experimental tasks: image-based and video-based (i.e. patient-based) classification. The

proposed approach presents the best performance with accuracy 92.1% and 90.3% for the first and second

task, respectively. A significant advantage of the proposed technique is that it does not require the time-

consuming task of manual labelling the instances.

1 INTRODUCTION

Laparoscopic surgery (LS), offers substantial benefits

for the patient such as minimized blood loss, rapid

recovery, better cosmetic results and lower risk of

infection. In addition, the laparoscopic camera allows

to record the video of the surgery, thus providing a

rich set of visual information that can be leveraged for

various computer vision applications. For example,

vision-based systems may provide context-aware

assistance to the surgeon during or after the operation

to facilitate improvements in the delivery of surgical

care. Artificial Intelligence (AI) in surgery has a key

role in this direction by training a computer to analyze

and understand images and ultimately enhance

surgical performance throughout the patient care

pathway (Ward et al., 2021).

To date, surgical video analysis has been

employed to provide key semantic information about

https://orcid.org/0000-0001-7879-7329

https://orcid.org/0000-0003-4965-5270

https://orcid.org/0000-0002-7046-0112

the status of an operation, such as its current phase

(Cheng et al., 2021), remaining duration (Marafioti et

al., 2021), instrument detection (Zhang et al., 2020),

and coagulation events (Loukas and Georgiou, 2015).

Post-operatively, the video recordings have been

employed for surgical performance analysis (Funke et

al., 2019), keyframe extraction (Loukas et al., 2018),

surgical gesture recognition (van Amsterdam et al.,

2021), and management of large-scale surgical data

repositories (Al Abbas et al., 2019). In addition, the

availability of annotated video datasets, such as

Cholec80 (Twinanda et al., 2017), has been a key

factor in recent AI applications, allowing the

employment of state-of-the-art machine learning

techniques such as deep learning.

Apart from recording the video of the operation,

the surgeon may also acquire still frames that reflect

certain visual features of the operated organ or the

outcome of a procedural task. Moreover, the acquired

Loukas, C., Gazis, A. and Schizas, D.

A Multiple-instance Learning Approach for the Assessment of Gallbladder Vascularity from Laparoscopic Images.

DOI: 10.5220/0010762500003123

In Proceedings of the 15th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2022) - Volume 2: BIOIMAGING, pages 15-23

ISBN: 978-989-758-552-4; ISSN: 2184-4305

images may be utilized post-operatively in the

patient’s formal report, for future reference about the

patient’s anatomy and for medical education or

research purposes (Loukas et al., 2011). Recently, a

few research works have been published on the

analysis of still frames extracted from the video of a

surgery. A framework for multi-label classification of

laparoscopic images into five anatomic classes was

proposed in (Loukas and Sgouros, 2020). In (Madad

Zadeh et al., 2020) a convolutional neural network

(CNN) was employed for semantic image

segmentation into surgical tools and gynecologic

anatomic structures. In (Baghdadi et al., 2019) a

computer vision technique was applied to surgical

images with the aim to assess surgical performance

on pelvic lympl node dissection. In (Derathé et al.,

2020), visual features extracted from manual

annotations of still video frames were employed to

assess surgical exposure, an important indicator of

surgical expertise. AI on surgical images has also

been applied recently for intraoperative guidance and

detection of adverse events (Madani et al., 2020,

Beyersdorffer et al., 2021).

In this paper we elaborate from a different

perspective on the image-based assessment of

gallbladder (GB) vascularity proposed recently in

(Loukas et al., 2021). In laparoscopic

cholecystectomy (LC), a common surgical technique

for the treatment of GB diseases, the surgeon initially

inspects the GB to assess certain features that are

important for the strategy to be performed. Some of

these features include thickness of the GB wall,

indications of inflammation and fat coverage. In

addition, difficulty in the visualization of the GB

vessels may result from fatty infiltration or increased

thickening of the GB wall (potentially as a result of

chronic inflammation or other diseases), conditions

that may suggest increased intraoperative difficulty

(Iwashita et al., 2016).

In (Loukas et al., 2021) the main focus was on the

vascularity assessment of GB images extracted from

LC videos. The employed method was based on a

CNN trained to classify the GB wall into vascularity

levels (e.g. low vs. high). Due to the small number of

GB images available for CNN training, 800 image

patches were manually annotated by surgical experts.

Although highly promising (91.7% accuracy), this

approach was based on the time consuming task of

patch annotation to create the ground truth dataset.

In the present work we propose an alternative

strategy that alleviates this limitation. In particular,

we employ a different machine learning approach

https://mpl-en.med.uoa.gr/as/datasets

based on multiple-instance learning (MIL).

Compared to single-instance learning (SIL), in MIL

the training examples correspond to bags of instances

and each bag is assigned a specific label. In the

present work, the bags correspond to the limited

dataset of GB images available, and the instances

correspond to sequential patches extracted from the

GB images. It is important to note that the MIL

approach does not require that the labels of the

instances are known, but rather the labels of the bags.

This is particularly suited in our case since the

number of GB images available is limited, whereas

from each GB image we can extract dozens of

patches, without the need to annotate them.

The rest of the paper is organized as follows. The

next section presents the employed dataset, the image

feature extraction process and various state-of-the-art

MIL techniques employed, as well as a proposed one

based on variational Bayesian inference.

Subsequently follow the comparative experiments

and presentation of the results for two experimental

tasks (image-based and video-based classification).

Finally, we conclude the paper with a discussion and

directions for future work.

2 METHODOLOGY

2.1 Dataset

For the purpose of this study we employed the

GBVasc181 dataset

(Loukas et al., 2021), which

includes 181 surgical images with manual contours

(regions of interest-ROIs) of the GB wall. The images

are extracted from 53 LC videos of the Cholec80

dataset (Twinanda et al., 2017) and the ROIs contain

the body and fundus of the GB. In addition, the

dataset provides labels with respect to the vascularity

level of the GB ROIs: low (L) and high (H)

vascularity. H denotes presence of prominent

superficial vessels whereas L denotes absence of

vessels or extensive fat coverage. The labelling was

performed by two expert surgeons (E1 and E2) via

visual inspection of the GB ROIs. According to

(Loukas, et al., 2021), the level of agreement between

the two experts was high (~92%), so we randomly

chose the annotations of expert E1 as the ground-truth

for algorithm training.

The GBVasc181 dataset also includes vascularity

annotation for 800 image patches extracted

selectively from the ROIs, but this information was

not used in this study. Instead, based on the MIL

BIOIMAGING 2022 - 9th International Conference on Bioimaging

formulation, each GB ROI was considered as a bag of

instances that correspond to image patches (64x64).

The patches were extracted from each ROI in a

sliding window fashion with 50% overlap. In total

3,272 patches were extracted from the 181 ROIs.

Table 1 provides a statistical overview of the

employed ROI/patch dataset and the ground-truth

annotations.

Table 1: Data statistics. Number (#) of GB images and

patches per vascularity class (L, H).

Vascularity class: L H

# annotated GB images (ROIs): 71 110

# patches extracted

from the GB ROIs:

Min 2 1

Max 51 70

Median 14 17

Total 1214 2058

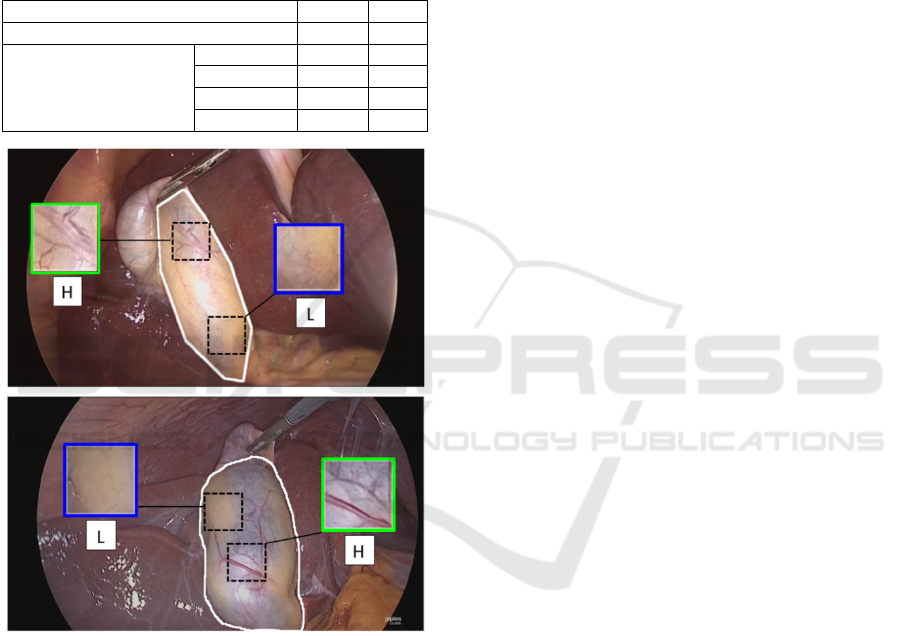

Figure 1: Examples of GB images from the GBVasc181

dataset. The manual outline of the ROI is shown in white.

The ground-truth vascularity label for the top and bottom

ROI is L and H, respectively. Insets show sample patches

with different vascularity.

It should be noted that the patch labels were

considered unknown. Indeed, the patches extracted

from a GB ROI may not necessarily inherit the label

of the ROI. A GB ROI with vascularity H may also

contain patches from the L class, and vice versa. As

shown in Figure 1 the GB wall presents a variable

vascularity pattern with regions from both classes.

Hence, the employed dataset is in essence weakly

labeled and the MIL paradigm is particularly suited:

only the labels of the bags (ROIs) is known, whereas

the label of the instances (patches) contained in each

bag is unknown.

2.2 Feature Extraction

Each patch was represented by a 707-long feature

vector that included 3 categories of features (Lux and

Marques, 2013). First, color and color-edge features

were extracted after the patches were quantized to 32

colors via k-means. Compared to uniform color

quantization, the previous approach was preferred

since the color values expanded over a limited region

in the RGB space. The number of color features was

259 and included: mean RGB color values, color

histogram, auto color correlogram, improved color

coherence, and color edge magnitude-direction

histograms. Color coherence considers the size and

locations of the regions with a particular quantized

color and the auto color correlogram measures how

often a quantized color finds itself in its immediate

neighborhood. The color edge magnitude-direction

histograms employs the Sobel gradient operator on

each quantized color image plane providing two

histograms for the edge magnitude and direction.

The second category included mostly information

about texture (405 features). The input was the

intensity component of the color image and the

extracted features were: histogram of oriented

gradients (HOG) with 7 bins and cell-size=16,

Tamura features (coarseness, contrast and

directionality), and the edge histogram descriptor.

The third category included 43 statistical features

extracted from the RGB image. In particular, we

extracted global features such as skewness and

kurtosis as well as statistical features using the

following higher-order matrix-based types: GLCM

(gray-level co-occurrence matrix), GLRLM (gray-

level run-length matrix), GLSZM (gray-level size

zone matrix) and NGTDM (neighborhood gray-tone

difference matrix). From each matrix various

statistical features were extracted such as: energy,

contrast, etc. (GLCM); short run emphasis, long run

emphasis, etc. (GLRLM); small zone emphasis, large

zone emphasis, etc. (GLSZM); complexity, strength,

etc. (NGTDM). It should be noted that compared to

the standard calculation of these matrices based on 8-

heignboors connectivity, in our case the RGB image

was considered a 3D volume. Thus, the matrices were

obtained using 26-neighboors connectivity (i.e. pixels

were considered to be neighbors in all 13 directions

in the three dimensions).

After feature extraction, all features were

concatenated into a patch-based feature vector with

A Multiple-instance Learning Approach for the Assessment of Gallbladder Vascularity from Laparoscopic Images

707 dimensions. To reduce the dimensionality of the

feature space, PCA was performed using the feature

vectors collected from all patches of the training set

of GB images. This process led to feature vectors with

211-223 dimensions (depending on the training fold),

that accounted for > 95% of the total variance.

2.3 MIL Methods

MIL is a form of supervised learning applicable to

problems where the training examples correspond to

bags of instances and each bag is assigned a specific

label but the labels of the instances are usually

unknown. Under the MIL formulation,

{





,



}





is a data set of N training bags 



and each bag is

associated with label 



. A bag contains a set of 



instances: 



=











, usually in form of a feature

vector, whereas the number of instances 



may vary

among the bags.

The MIL formulation was first proposed to solve

the binary musk drug activity prediction problem

(Dietterich et al., 1997): a molecule (bag of instances)

is considered active (resp. inactive) if one (resp. none)

of its spatial confirmations (instances) is able to bind

to a certain target site. The solution to this problem

was approached via the standard MIL assumption,

which states that a positive bag contains at least one

positive instance, whereas negative bags contain only

negative instances:

=

+1,∃



:



=+1

−1,∀



:



=−1

(1)

where 



={+1,−1} denotes the hidden class

label for an instance 



that belongs to bag .

MIL algorithms may be categorized according to

their ability to perform instance-level or bag-level

predictions (Quellec et al., 2017). The first category

(primarily instance-level) targets instance prediction

but may easily be employed for bag prediction, as

required for the purpose of this study. After training

an instance-level detector, a bag is positive if it

contains at least one positive instance otherwise it is

negative. This category includes algorithms such as

the Axis-parallel hyper rectangle (APR), Diversity

Density (DD), its variant Expectation-Maximization

DD (EM-DD), and mi-SVM. The aforementioned

approaches follow the standard MIL assumption.

The second category includes bag-level

algorithms that are optimized for bag-level prediction

and can be further divided according to their ability

to also perform instance-level prediction (primary

bag-level) or not (exclusively bag-level). A well-

known primary bag-level algorithm is MI-SVM and

it follows the standard MIL assumption. From the

exclusively bag-level subcategory we employed the

Citation KNN (CKNN) and mi-Graph, both of which

follow alternative MI assumptions (nearest neighbor

and graph assumptions, respectively). For an

extensive review of MIL techniques the reader is

referred to (Quellec et al., 2017),(Amores, 2013). In

the following we summarize the aforementioned MIL

algorithms and a proposed method (MI-VBGMM)

that falls under the exclusively bag-level category.

All methods were employed for the GB vascularity

classification problem studied in this paper.

The APR (Dietterich et al., 1997) was the first

method that introduced the MIL paradigm, aiming to

find a hyper rectangle that contain at least one

instance from each positive bag while excluding all

the instances from negative bags. A bag is classified

as positive (resp. negative) if one (resp. none) of its

instances lies within the APR.

For the DD method (Maron and Lozano-Pérez,

1998), the goal is to find a discriminative point in the

feature space so that in its neighborhood all positive

bags have at least on instance, while instances from

negative bags are far away. The location of this point

and the feature weights defining the appropriate

neighborhood are found by maximizing a DD metric.

The EM-DD (Zhang and Goldman, 2001) is a widely

known variant that employs the EM algorithm.

The mi-SVM and MI-SVM (Andrews et al.,

2003) both employ the maximum margin concept of

the SVM algorithm. The mi-SVM method focuses on

instance-level prediction by maximizing the

separation between positive and negative instances.

The goal of MI-SVM is to maximize positive and

negative bags by focusing on the most ‘most positive’

and ‘least negative’ instances contained in the

positive and negative bags, respectively.

CKNN generalizes the k-nearest neighbors (k-

NN) idea using the Hausdorff distance as the bag-

level distance metric (Wang and Zucker, 2000). In

addition to the nearest neighbors of a bag, citers that

count the candidate bag as one of their neighbors are

also considered in the classification rule.

The mi-Graph relies on the assumption that the

spatial relationships among instances are important

for the label of the bag. This method employs SVM

classification at the bag-level using a kernel that is

based on the ɛ-graph representation of the bags (Zhu

et al., 2009).

The proposed method (MI-VBGMM) belongs to

the exclusively bag-level subcategory and employs

variational Bayesian Gaussian mixture models

(VBGMM) at its core. The overall process consists of

3 main steps. First, the instances from all bags of the

BIOIMAGING 2022 - 9th International Conference on Bioimaging

training set are clustered using VBGMM. Compared

to other techniques (k-means, k-medoids, GMM,

etc.), VBGMM does not require to predefine the

number of clusters. Starting with an initial (usually

high) number of clusters K, the optimum number of

clusters K* is estimated by excluding components

with small weights (<1%). The weights are computed

via a formula that provides the expected value of the

mixing coefficients involved in the GMM. In this

study K* was found about 24 (depending on the

training fold). A detailed implementation of the

algorithm with application to surgical images is

provided in (Loukas and Sgouros, 2020),(Bishop,

2006). Second, each instance 



is represented by the

probability 



that the instance is assigned to each

of the K clusters. The formula for 



is omitted for

brevity. Finally, each bag 



is represented by a novel

feature vector 



that accumulates 



of all 



instances for the 

∗

components:





=×

∑











,…,

∑





∗







 (2)

where  is a normalization factor so that

‖





‖



Having obtained the VBGMM parameters, the

previous step is also employed to transform the test

bags into novel feature vectors 



. Finally, after

having a vector representation for every bag, the MIL

problem is transformed into a standard classification

task which was addressed via the SVM algorithm.

After SVM training, a test bag is classified as positive

(resp. negative), if the corresponding SVM score is

positive (resp. negative).

2.4 Experimental Protocol

The 53 videos were randomly split into five-folds, so

that every fold included GB images (and their

corresponding patches), from different operations

(i.e. patients). Based on a five-fold cross-validation,

one of the five folds served as the test set (20%) and

the other four folds as the training set (80%).

We evaluated two experimental tasks. For the first

task (image level classification) each image is

considered as a bag, annotated with its vascularity

label (L or H), and the instances are the patches

extracted from the images. On average there are 3.4

images per video and 18 patches per image (i.e. a

single bag contains about 18 instances). For each

experimental run the training and test sets included

approximately 145 and 36 bags, respectively.

For the second task (video level classification),

we evaluated the algorithm’s performance at the

video level based on majority voting of the image

labels predicted from the first task. In particular, the

label with most votes was assigned to the video. In

case the label counts of the two classes were equal,

the label with the highest probability was considered.

For the ground truth video labels we did not

encountered such an issue. For every video the

majority of its image labels (annotated by the expert

surgeon) corresponded to a single class.

3 RESULTS

For both experimental tasks the performance of each

algorithm was evaluated via the metrics: accuracy

(Acc), precision (Pre), recall (Rec), and F1. The

results are presented as mean values across the five

experimental runs. The convention used was: the

label “positive” (resp. “negative”) refers to H (resp.

L) vascularity images.

Eleven methods, as described in Section 2.3, were

evaluated on the GBVasc181 dataset: APR, CKNN,

DD, EM-DD, mi-Graph, mi-SVM and MI-SVM and

MI-VBGMM (the last three with linear and RBF

kernels for the SVM classifier). For all methods,

except mi-Graph and MI-VBGMM, we used the

implementation reported in (Wang, 2008). The mi-

Graph was obtained from (Zhu et al., 2009) and the

reference website of the authors (LAMDA). The

proposed method MI-VBGMM was implemented

based on (Bishop, 2006) and our previous work

(Loukas and Sgouros, 2020). For each method the

hyper-parameters were optimized using grid search.

In the following we first present the result for the two

experimental tasks and then we assess the best MIL

method against various SIL methods.

3.1 Comparison of MIL Methods

In the first experimental task (image-level

classification), the goal was to predict the vascularity

label of the GB ROIs using the extracted patches.

Table 2 shows the performance of the examined

methods. As expected, APR, DD and EM-DD have

the lowest performance, probably because positive

instances do not form a single cluster in the feature

space. The mi-SVM approach has the highest

performance among the primarily instance-level

algorithms (87.5% Acc). However, the bag-level

algorithms (mi-Graph, MI-SVM, CKNN and MI-

VBGMM) outperform all instance-level algorithms

(88.2-92.1% Acc). CKNN and MI-SVM have similar

performance (88.2% and 88.9% Acc), whereas mi-

Graph shows slightly better performance (90.2%

Acc). For the SVM-based methods, the linear kernel

A Multiple-instance Learning Approach for the Assessment of Gallbladder Vascularity from Laparoscopic Images

seems to be slightly more suitable compared to the

RBF kernel. The proposed method shows the best

performance across most metrics: 92.1% Acc, 94.6%

Pre and 94.0% F1. As reported in (Loukas et al.,

2021), the agreement at the image-level between two

expert surgeons was close to 92%, which is similar to

the performance of MI-VBGMM linear.

Table 2: MIL performance comparison for image-level

classification. Best results column-wise are in bold.

Second-best results are underlined. Symbols

†

and

‡

denote

instance-level and bag-level algorithms, respectively.

Method

Acc

(%)

Pre

(%)

Rec

(%)

APR

†

65.2 68.0 87.2 76.4

CKNN

‡

88.2 88.3 93.8 91.0

†

41.3 93.3 9.7 17.6

EM-DD

†

66.9 67.1 95.0 78.6

mi-Graph

‡

90.2 93.0 91.8 92.4

mi-SVM linear

†

87.5 85.1 97.4 90.8

mi-SVM RBF

†

86.9 82.9

100.0

90.7

MI-SVM linear

‡

88.9 92.2 90.4 91.3

MI-SVM RBF

‡

88.5 93.0 88.9 90.9

MI-VBGMM

linear (proposed)

‡

92.1 94.6

93.4

94.0

MI-VBGMM

RBF (proposed)

‡

91.1 93.8 92.4 93.1

Table 3: MIL performance comparison for video-level

classification. Best results column-wise are in bold.

Second-best results are underlined. Symbols

†

and

‡

denote

instance-level and bag-level algorithms, respectively.

Method

Acc

(%)

Pre

(%)

Rec

(%)

APR

†

68.2 71.6 90.3 79.9

CKNN

‡

86.9 87.7 94.6 91.0

†

39.8 93.3 14.6 25.2

EM-DD

†

68.6 70.4 94.6 80.7

mi-Graph

‡

88.6 91.5 92.1 91.8

mi-SVM linear

†

85.3 84.3 96.8 90.1

mi-SVM RBF

†

85.8 83.1

100.0

90.8

MI-SVM linear

‡

88.1 91.4 91.5 91.4

MI-SVM RBF

‡

87.5 92.0 90.0 91.0

MI-VBGMM

linear (proposed)

‡

90.3 93.8

92.1

92.9

MI-VBGMM

RBF (proposed)

‡

89.7 92.9 92.3 92.6

The next goal was to predict the vascularity label

of the patient’s GB using the images extracted from

the video of the operation (video-level classification).

Table 3 shows the results for this experimental task.

As described before, a majority-voting approach was

employed using the image labels predicted from the

first task. Similarly to the previous results, APR, DD

and EM-DD have the lowest performance and mi-

SVM shows the highest performance (85.3% Acc)

among the four instance-level methods. The accuracy

of the four bag-level algorithms (mi-Graph, MI-

SVM, CKNN and MI-VBGMM) is again higher than

that of the instance-level ones (86.9-90.3% Acc). The

proposed method presents the best performance,

higher than 90%, across all metrics: 90.3% Acc,

93.8% Pre, 92.1% Rec and 92.9% F1. For all SVM-

based methods the linear kernel results in a slightly

better performance. Moreover, the accuracy of the

proposed method is the highest than all other

methods, independent to the SVM kernel employed.

3.2 MIL vs. SIL

Based on the same setup employed for the MIL

experiments (i.e. experimental tasks and training/test

folds), we compared the proposed method (MI-

VBGMM) against five SIL methods: SVM (with

linear kernel), k-nearest neighbors (kNN), naïve

Bayes (NB), random forest (RF), and AdaBoost.

Hyper-parameter optimization was again performed

via grid search. In contrast to MIL, SIL methods

consider as samples the instances from all bags. For

each instance, the ground-truth label was assigned to

that of the bag it belongs to. After training, the label

of a candidate bag is predicted via majority voting of

the predicted labels of its instances. Hence, for the

first task (image-level classification) the label of a GB

ROI is determined by majority voting of the patch

predicted labels. For the second task (video-level

classification), the label prediction approach was the

same to that followed for the MIL methods, as

described previously.

Tables 4 and 5 show the results for the first and

second experimental tasks, respectively. The

proposed MIL method outperforms all other SIL

methods across most metrics. In particular, for image-

level classification the accuracy and F1 metric of MI-

VBGMM is higher by 3.6% and 2.5% compared to

the second best method, respectively (92.1% vs.

88.5%-SVM and 94.0% vs. 91.5%-AdaBoost).

Moreover, MI-VBGMM outperforms the CNN-based

method reported in (Loukas et al., 2021). In terms of

accuracy, the performance is slightly higher (92.1%

vs. 91.2%) whereas for the other metrics the

performance difference is notably higher (4.2% for

Pre, 1.9% for Rec and 3.1% for F1). Note that the

single instance CNN method in (Loukas et al., 2021)

employs 800 manually labelled patches for CNN

BIOIMAGING 2022 - 9th International Conference on Bioimaging

training. In contrast, MI-VBGMM training is based

only on manual labelling of the GB ROIs (181

images; same dataset as in (Loukas et al., 2021)),

resulting in a significant reduction in the annotation

cost.

For the video-level classification (Table 5), the

proposed method presents again the best

performance. The accuracy and F1 metric of MI-

VBGMM is higher by 2.5% and 0.8% compared to

the second best method (AdaBoost), respectively

(90.3% vs. 87.8% and 92.9% vs. 92.1%).

Table 4: Comparison of MIL (MI-VBGMM) vs. SIL

methods for image-level classification. Best results

column-wise are in bold. Second-best results are

underlined.

Method

Acc

(%)

Pre

(%)

Rec

(%)

MI-VBGMM

linear (proposed)

92.1 94.6

93.4

94.0

SVM 88.5 88.9 91.4 90.1

kNN 86.9 88.6 92.9 90.7

NB 80.3 77.8 96.9 86.3

RF 87.2 86.3 96.4 91.1

AdaBoost 86.9 86.0

97.7

91.5

CNN 91.2 90.4 91.5 90.9

Table 5: Comparison of MIL (MI-VBGMM) vs. SIL

methods for video-level classification. Best results column-

wise are in bold. Second-best results are underlined.

Method

Acc

(%)

Pre

(%)

Rec

(%)

MI-VBGMM

linear (proposed)

90.3 93.8

92.1

92.9

SVM 80.0 84.0 87.5 85.7

kNN 81.1 83.3 92.6 87.7

NB 78.1 78.0 96.1 86.1

RF 86.4 87.1 95.3 91.0

AdaBoost 87.8 87.9

96.7

92.1

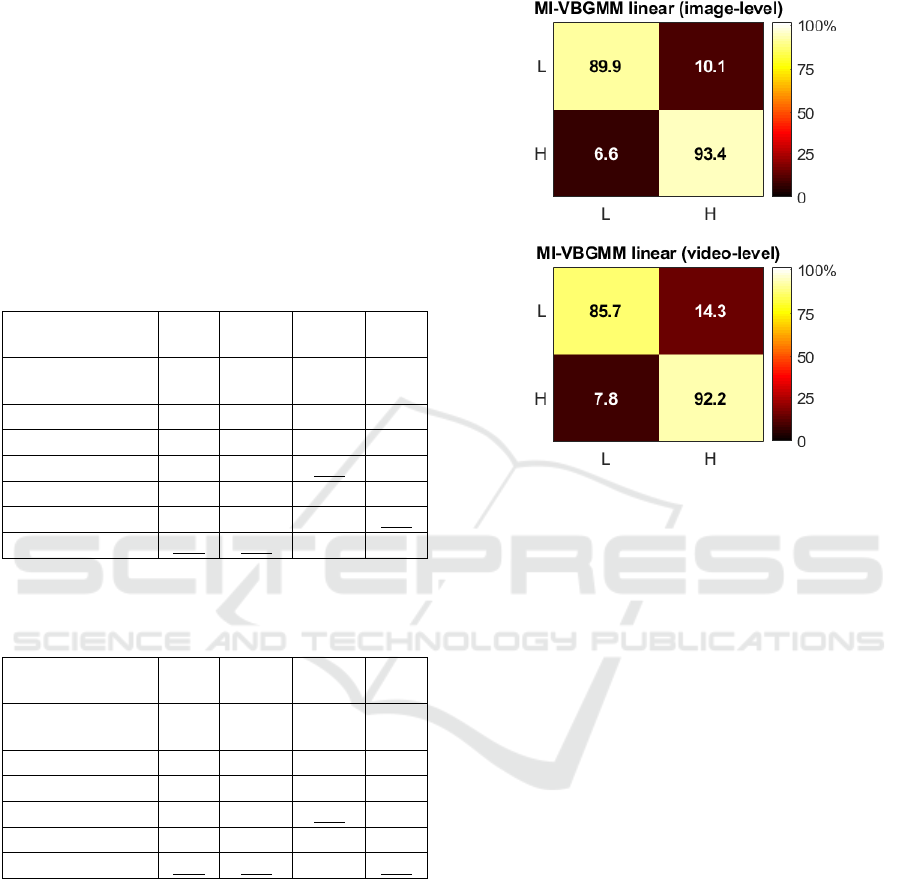

Figure 2 shows the normalized confusion

matrices for the best method (MI-VBGMM linear),

for the image- and video-level classification tasks.

The normalization was applied on the aggregation of

the confusion matrices across the five test-sets. It may

be seen that the H class is recognized better than the

L class in both experimental tasks (93.4 vs. 89.9 and

92.2 vs. 85.7). This may be due to the fact that the

presence of blood vessels in the H class images

provide a distinguishable pattern that is captured

more easily by the extracted features. In contrast, L

images are distinguishable only by their color

(yellowish due to great fat coverage), and they lack a

texture pattern due to the absence of blood vessels.

Figure 2: Color-coded confusion matrices of the proposed

method for the two experimental tasks (image-level and

video-level classification). The X and Y-axis represent

predicted and ground truth labels, respectively.

4 CONCLUSIONS

In this paper we investigate the potential of image-

based assessment of the GB wall vascularity from

intraoperative images using various state-of-the art

MIL techniques and a proposed bag-level approach

based on VBGMMs and SVM. In addition, we

compared the best MIL method with SIL techniques

in order to assess the significance of the multiple

instance concept over standard classification of single

instances.

Our results show that the MIL framework is

particularly suited to the problem of GB vascularity

classification. The GB image can be considered as a

bag, labelled with its vascularity level, whereas the

instances are patches extracted from the GB ROI. For

the image-level classification task, the proposed

approach presents the best performance with Acc

92.1%. For the video-level classification task the

accuracy was slightly lower, 90.3%. In terms of the

SIL methods, the best approach was based on a CNN

and provided slightly lower performance (91.2% Acc

for image-level classification). However, CNN

training requires manual annotation for a large

number of patches, which is tedious and time-

A Multiple-instance Learning Approach for the Assessment of Gallbladder Vascularity from Laparoscopic Images

consuming. In contrast, the proposed MIL technique

requires only manual annotation of the GB images,

the number of which is significantly lower. MIL can

thus leverage surgical image classification to improve

GB vascularity assessment, without the need of

labeling the patches extracted from every surgical

image.

A potential extension of the proposed work is to

apply the MIL concept directly at the patient-level. In

particular, in this study the video-level classification

was based simply on a majority voting of the image

labels from each video, mainly due to the small

number of operations available (only 53). Given a

larger video dataset, one could consider the patient as

the bag, along with its GB vascularity label, and the

patches extracted from the GB images of the video as

the instances. This way, the patient-level GB

classification could be improved, without the need of

labelling the images extracted from every video of the

operation.

As future work, we aim to expand the GBVasc181

dataset by performing more annotations upon the

Cholec80 video collection. Moreover, we aim to

combine the MIL concept with CNNs at the image-

level to improve further the classification

performance. In particular, we currently design a 3D

CNN architecture that takes as input a sequence of

patches extracted from a GB image and outputs the

vascularity label of the image. The generation of

spatial attention maps that allow visualization of GB

wall regions with a variable vascularity is also major

topic of interest for future research work.

ACKNOWLEDGEMENTS

The author thanks Special Account for Research

Grants and National and Kapodistrian University of

Athens for funding to attend the meeting

REFERENCES

Al Abbas, A.I. et al., 2019. Methodology for developing an

educational and research video library in minimally

invasive surgery, Journal of Surgical Education, 76(3),

pp. 745–755.

Amores, J., 2013. Multiple instance classification: Review,

taxonomy and comparative study, Artificial

Intelligence, 201, pp. 81–105.

van Amsterdam, B., Clarkson, M.J. and Stoyanov, D., 2021.

Gesture recognition in robotic surgery: A review, IEEE

Transactions on Biomedical Engineering, 68(6), pp.

2021–2035.

Andrews, S., Tsochantaridis, I. and Hofmann, T., 2003.

Support vector machines for multiple-instance learning,

In Advances in Neural Information Processing Systems,

pp. 1–8.

Baghdadi, A. et al., 2019. A computer vision technique for

automated assessment of surgical performance using

surgeons’ console-feed videos, International Journal of

Computer Assisted Radiology and Surgery, 14(4), pp.

697–707.

Beyersdorffer, P. et al., 2021. Detection of adverse events

leading to inadvertent injury during laparoscopic

cholecystectomy using convolutional neural networks,

Biomedizinische Technik/Biomedical Engineering,

66(4), pp. 413-421.

Bishop, C.M., 2006. Illustration: Variational Mixture of

Gaussians, in Pattern Recognition and Machine

Learning. New York: Springer-Verlag New York, Inc.,

pp. 474–481.

Cheng, K. et al., 2021. Artificial intelligence-based

automated laparoscopic cholecystectomy surgical

phase recognition and analysis’, Surgical Endoscopy,

(ahead of print).

Derathé, A. et al., 2020. Predicting the quality of surgical

exposure using spatial and procedural features from

laparoscopic videos, International Journal of Computer

Assisted Radiology and Surgery, 15(1), pp. 59–67.

Dietterich, T.G., Lathrop, R.H. and Lozano-Pérez, T., 1997.

Solving the multiple instance problem with axis-

parallel rectangles, Artificial Intelligence, 89(1–2), pp.

31–71.

Funke, I. et al., 2019. Video-based surgical skill assessment

using 3D convolutional neural networks, International

Journal of Computer Assisted Radiology and Surgery,

14(7), pp. 1217–1225.

Iwashita, Y. et al., 2016. What are the appropriate

indicators of surgical difficulty during laparoscopic

cholecystectomy? Results from a Japan-Korea-Taiwan

multinational survey, Journal of Hepato-Biliary-

Pancreatic Sciences, 23(9), pp. 533–547.

Loukas, C. et al., 2011. The contribution of simulation

training in enhancing key components of laparoscopic

competence, The American Surgeon, 77(6), pp. 708–

715.

Loukas, C. and Georgiou, E., 2015. Smoke detection in

endoscopic surgery videos: a first step towards retrieval

of semantic events, International Journal of Medical

Robotics and Computer Assisted Surgery, 11(1), pp.

80–94.

Loukas, C. et al., 2018. Keyframe extraction from

laparoscopic videos based on visual saliency detection,

Computer Methods and Programs in Biomedicine, 165,

pp. 13–23.

Loukas, C. and Sgouros, N.P., 2020. Multiinstance

multilabel learning for surgical image annotation, The

International Journal of Medical Robotics and

Computer Assisted Surgery, 16 (e2058), pp. 1–12.

Loukas, C., Frountzas, M. and Schizas, D., 2021. Patch-

based classification of gallbladder wall vascularity

from laparoscopic images using deep learning,

BIOIMAGING 2022 - 9th International Conference on Bioimaging

International Journal of Computer Assisted Radiology

and Surgery, 16(1), pp. 103–113.

Lux, M. and Marques, O., 2013. Visual information

retrieval using Java and LIRE, Synthesis Lectures on

Information Concepts, Retrieval, and Services. Edited

by G. Marchionini. Morgan & Claypool.

Madad Zadeh, S. et al., 2020. SurgAI: deep learning for

computerized laparoscopic image understanding in

gynaecology, Surgical Endoscopy, 34(12), pp. 5377–

5383.

Madani, A. et al., 2020. Artificial intelligence for

intraoperative guidance: using semantic segmentation

to identify surgical anatomy during laparoscopic

cholecystectomy, Annals of Surgery, (ahead of print).

Marafioti, A. et al., 2021. CataNet: Predicting remaining

cataract surgery duration, In MICCAI 2021, 24

International Conference on Medical Image Computing

and Computer-Assisted Intervention. Strasbourg,

France, Springer, pp. 426-435.

Maron, O. and Lozano-Pérez, T., 1998. A framework for

multiple-instance learning, In Proceedings of Advances

in Neural Information Processing Systems. Denver,

CO, USA. MIT Press, pp. 570–576.

Quellec, G. et al., 2017. Multiple-Instance Learning for

Medical Image and Video Analysis, IEEE Reviews in

Biomedical Engineering, 10, pp. 213–234.

Twinanda, A.P. et al., 2017. EndoNet: A deep architecture

for recognition tasks on laparoscopic videos, IEEE

Transactions on Medical Imaging, 36(1), pp. 86–97.

Wang, J., 2008. MILL: A Multiple Instance Learning

Library. Carnegie Mellon University. Available at:

http://www.cs.cmu.edu/~juny/MILL/.

Wang, J. and Zucker, J.-D., 2000. Solving the multiple-

instance problem: a lazy learning approach, In

Proceedings of the 17

International Conference on

Machine Learning. San Francisco, CA, USA, pp. 1119–

1126.

Ward, T.M. et al., 2021. Surgical data science and artificial

intelligence for surgical education, Journal of Surgical

Oncology. 124(2), pp. 221–230.

Zhang, B. et al., 2020. Surgical tools detection based on

modulated anchoring network in laparoscopic videos,

IEEE Access, 8, pp. 23748–23758.

Zhang, Q. and Goldman, S.A., 2001. EM-DD: An improved

multiple-instance learning technique, In Advances in

Neural Information Processing Systems, pp. 1073–

1080.

Zhu, Z.-H., Sun, Y.-Y. and Li, Y.-F., 2009. Multi-instance

learning by treating instances as non- I.I.D. samples, In

Proceedings of the 26

International Conference on

Machine Learning. Montreal, Canada, pp. 1249–1256.

A Multiple-instance Learning Approach for the Assessment of Gallbladder Vascularity from Laparoscopic Images
